Genesis G80 Quick Reference Manual

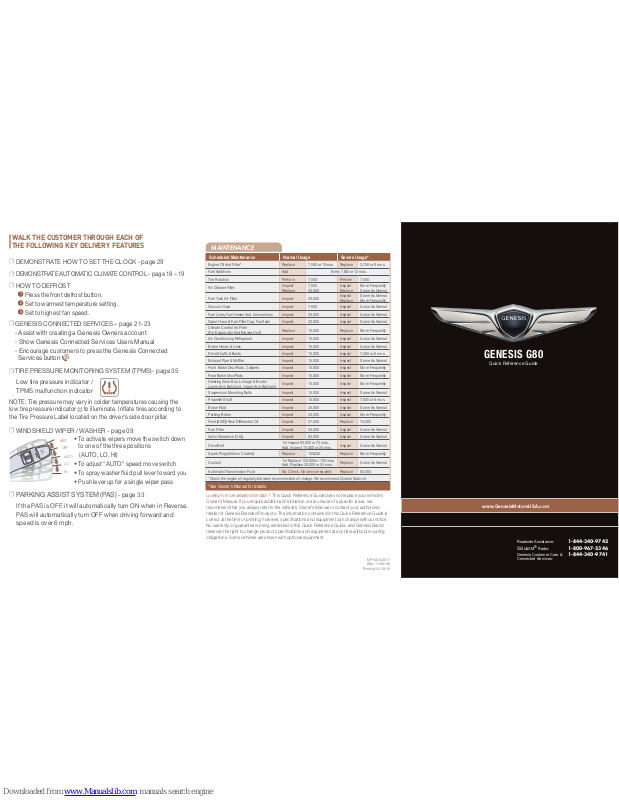

Page 1

Looking For more detailed information?

This Quick Reference Guide does not replace your vehicle’s Owner’s Manual. If you require additional information or are unsure of a specific issue, we recommend that you always refer to the vehicle’s Owner’s Manual or contact your authorized retailer of Genesis Branded Products. The information contained in this Quick Reference Guide is correct at the time of printing; however, specifications and equipment can change without notice. No warranty or guarantee is being extended in this Quick Reference Guide, and Genesis Brand reserves the right to change product specifications and equipment at any time without incurring obligations. Some vehicles are shown with optional equipment.

MAINTENANCE

Low tire pressure indicator / TPMS malfunction indicator

Scheduled Maintenance Normal Usage Severe Usage*

Engine Oil And Filter* Replace 7,500 or 12 mos. Replace 3,750 or 6 mos.

Fuel Additives Add Every 7,500 or 12 mos.

Tire Rotation Perform 7,500 Perform 7,500

Air Cleaner Filter

Inspect Replace

7,500 30,000

Inspect Replace

More Frequently Same As Normal

Fuel Tank Air Filter Inspect 30,000

Inspect Replace

Same As Normal More Frequently

Vacuum Hose Inspect 7,500 Inspect Same As Normal

Fuel Lines, Fuel Hoses And Connections Inspect 30,000 Inspect Same As Normal

Vapor Hose & Fuel Filler Cap, Fuel tank Inspect 30,000 Inspect Same As Normal

Climate Control Air Filter (For Evaporator And Blower Unit)

Replace 15,000 Replace More Frequently

Air Conditioning Refrigerant Inspect 15,000 Inspect Same As Normal

Brake Hoses & Lines Inspect 15,000 Inspect Same As Normal

Drive Shafts & Boots Inspect 15,000 Inspect 7,500 or 6 mos.

Exhaust Pipe & Mufer Inspect 15,000 Inspect Same As Normal

Front Brake Disc/Pads, Calipers Inspect 15,000 Inspect More Frequently

Rear Brake Disc/Pads Inspect 15,000 Inspect More Frequently

Steering Gear Box, Linkage & Boots/ Lower Arm Ball Joint, Upper Arm Ball Joint

Inspect 15,000 Inspect More Frequently

Suspension Mounting Bolts Inspect 15,000 Inspect Same As Normal

Propeller Shaft Inspect 15,000 Inspect 7,500 or 6 mos.

Brake Fluid Inspect 30,000 Inspect Same As Normal

Parking Brake Inspect 30,000 Inspect More Frequently

Front(AWD)/Rear Differential Oil Inspect 37,500 Replace 75,000

Fuel Filter Inspect 30,000 Inspect Same As Normal

Valve Clearance (3.8L) Inspect 60,000 Inspect Same As Normal

Drive Belt

1st Inspect 60,000 or 72 mos. Add. Inspect 15,000 or 24 mos.

Inspect Same As Normal

Spark Plugs (Iridium Coated) Replace 105,000 Replace More Frequently

Coolant

1st Replace 120,000 or 120 mos. Add. Replace 30,000 or 24 mos.

Replace Same As Normal

Automatic Transmission Fluid No, Check, No service required Replace 60,000

*Check the engine oil regularly between recommended oil change. We recommend Quaker State oil.

*See Owner’s Manual for details.

☐

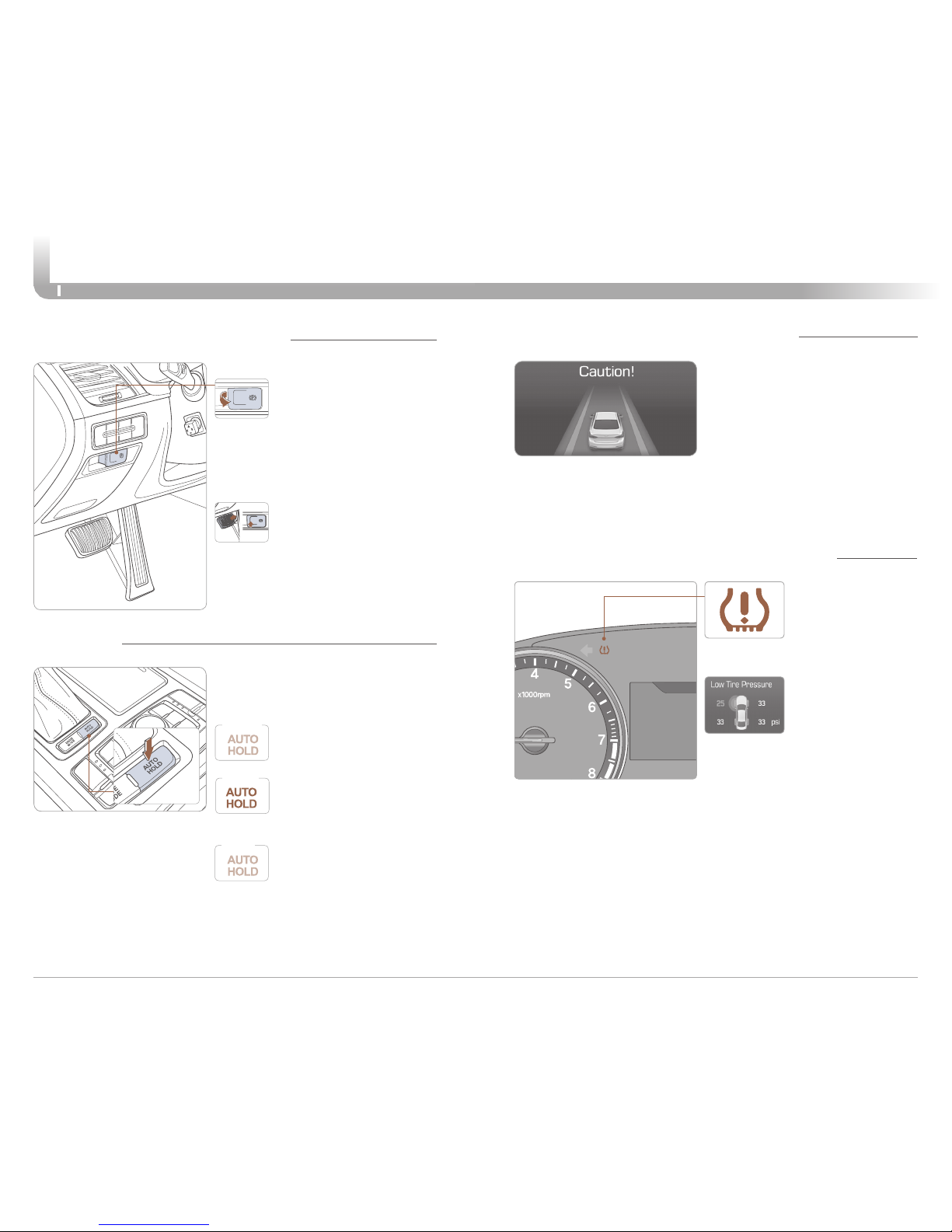

TIRE PRESSURE MONITORING SYSTEM (TPMS)- page 35

☐

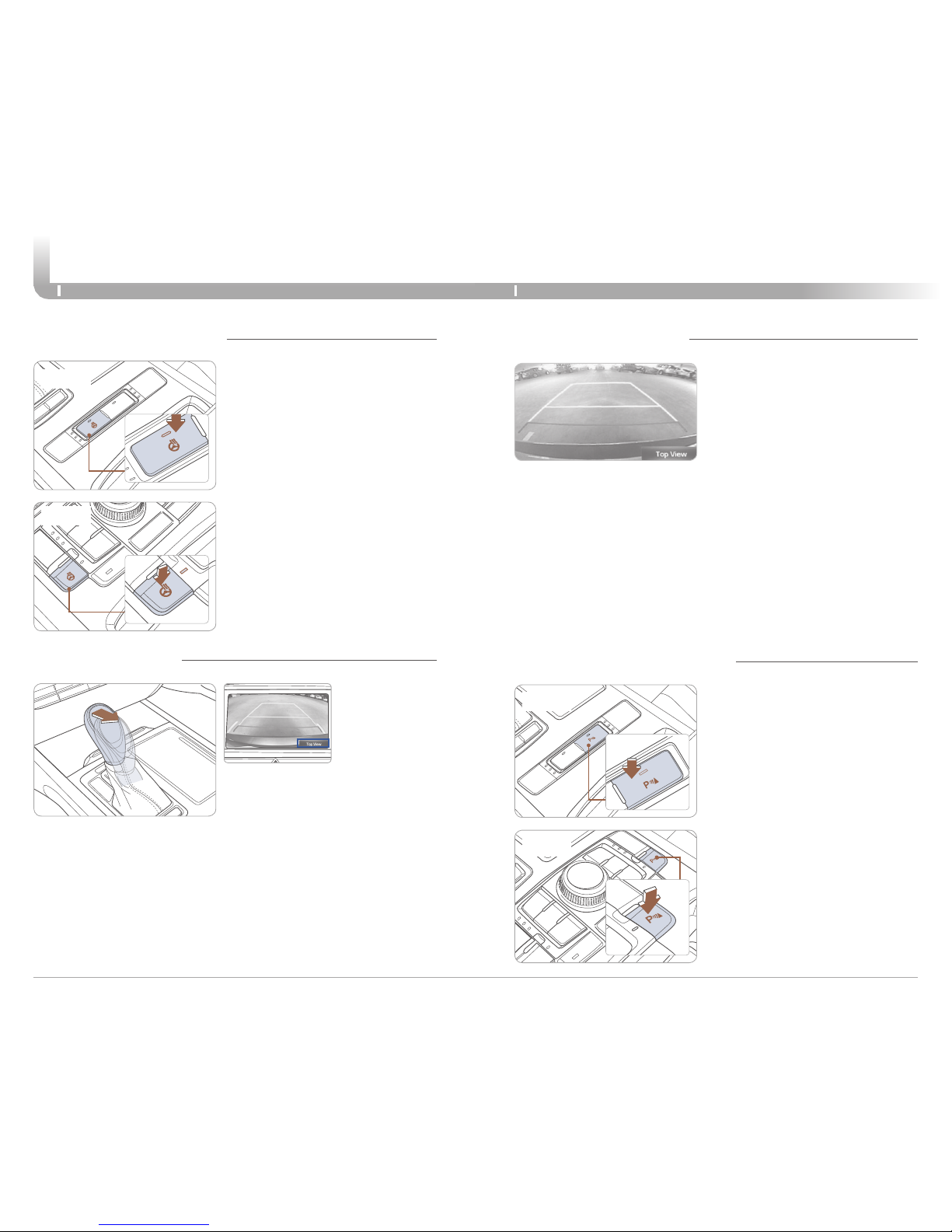

PARKING ASSIST SYSTEM (PAS) - page 33

• To activate wipers move the switch down to one of the three positions

(AUTO, LO, HI)

• To adjust "AUTO" speed move switch

•

To spray washer fluid pull lever toward you

• Push lever up for a single wiper pass

☐

WINDSHIELD WIPER / WASHER - page 09

AUTO

MIST

OFF

NOTE: Tire pressure may vary in colder temperatures causing the low tire pressure indicator to illuminate. Inflate tires according to the Tire Pressure Label located on the driver’s side door pillar.

If the PAS is OFF, it will automatically turn ON when in Reverse. PAS will automatically turn OFF when driving forward and speed is over 6 mph.

☐

HOW TO DEFROST

1 Press the front defrost button. 2 Set to warmest temperature setting. 3 Set to highest fan speed.

WALK THE CUSTOMER THROUGH EACH OF THE FOLLOWING KEY DELIVERY FEATURES

☐

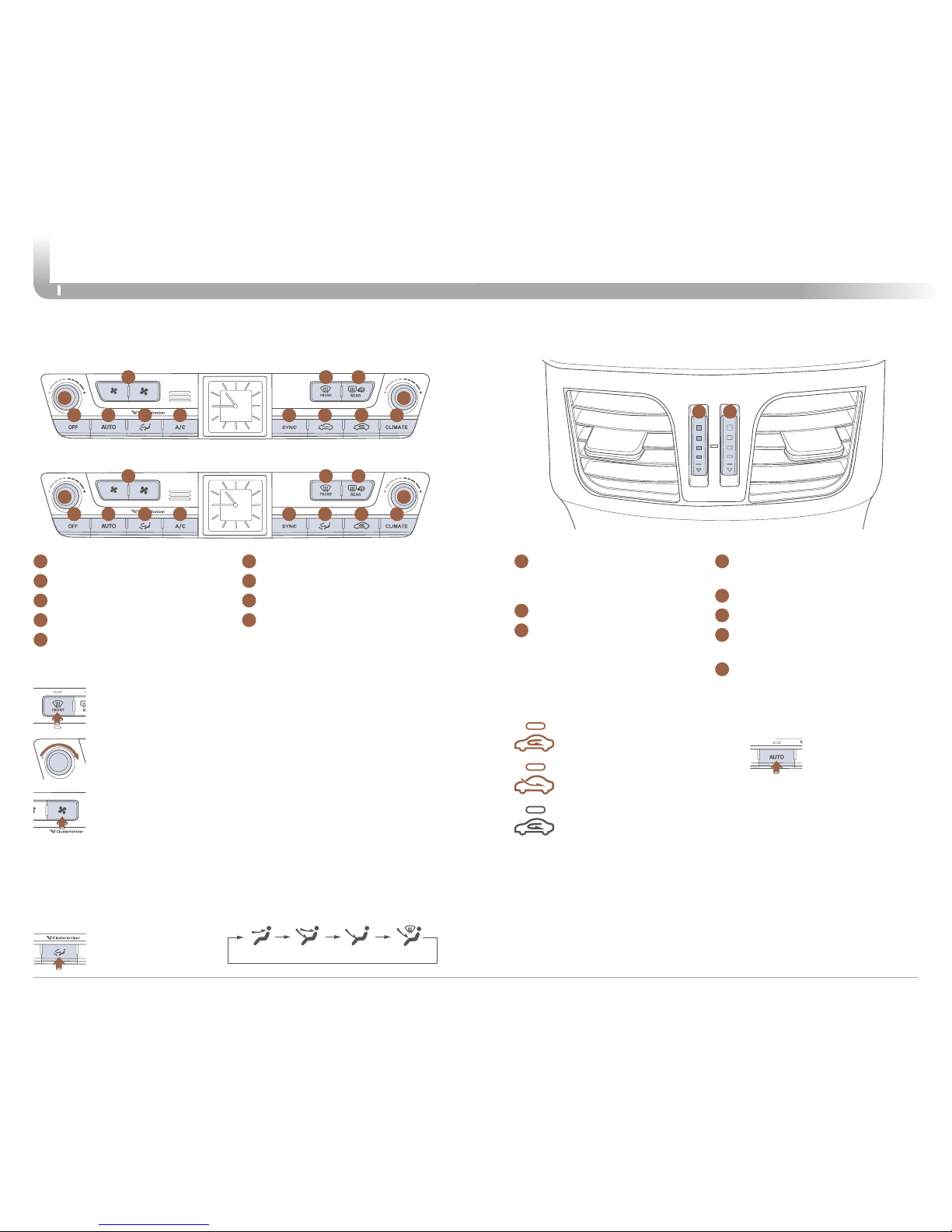

DEMONSTRATE AUTOMATIC CLIMATE CONTROL - page 18 – 19

☐

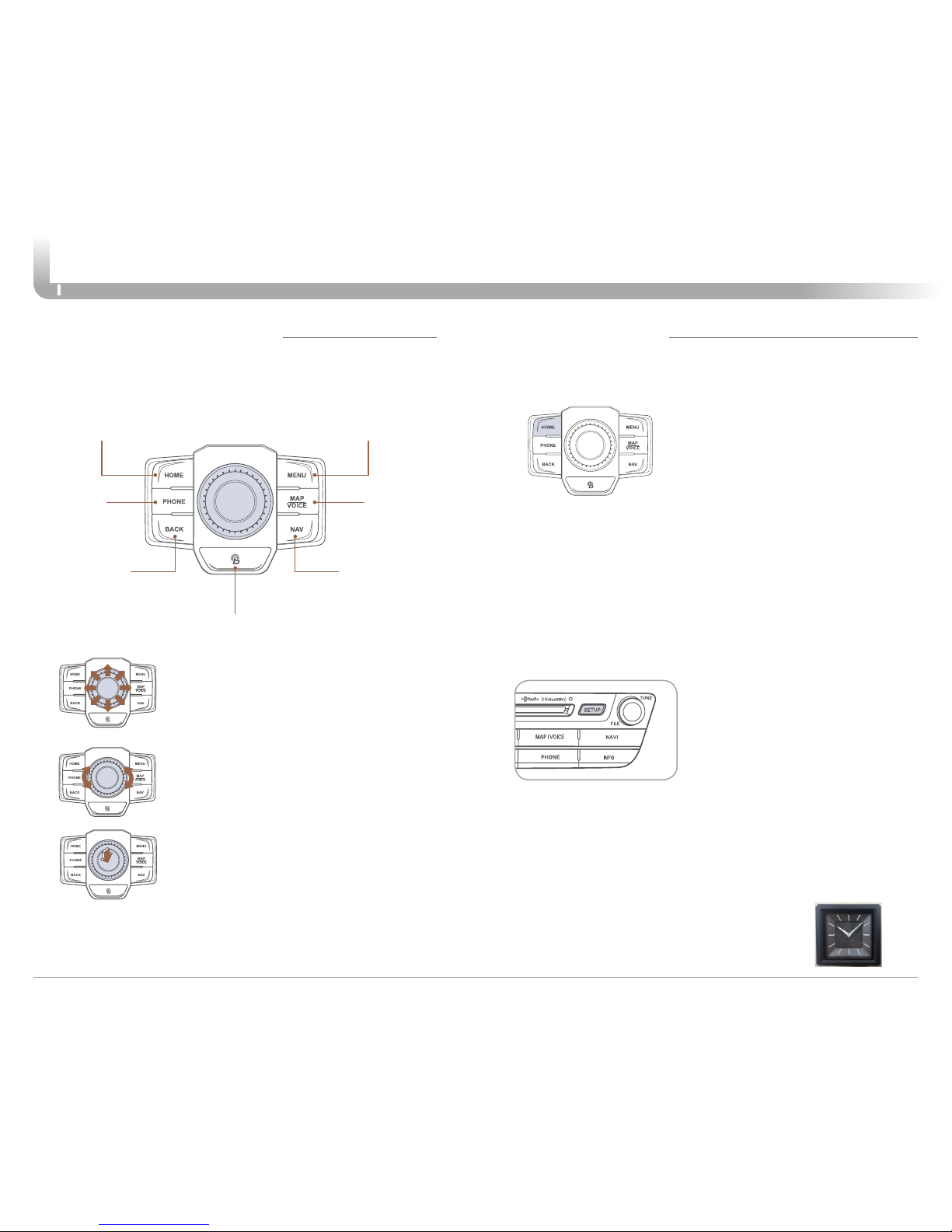

DEMONSTRATE HOW TO SET THE CLOCK - page 29

NP150-G2017 (Rev 11/09/16)

Printing 12/29/16

☐

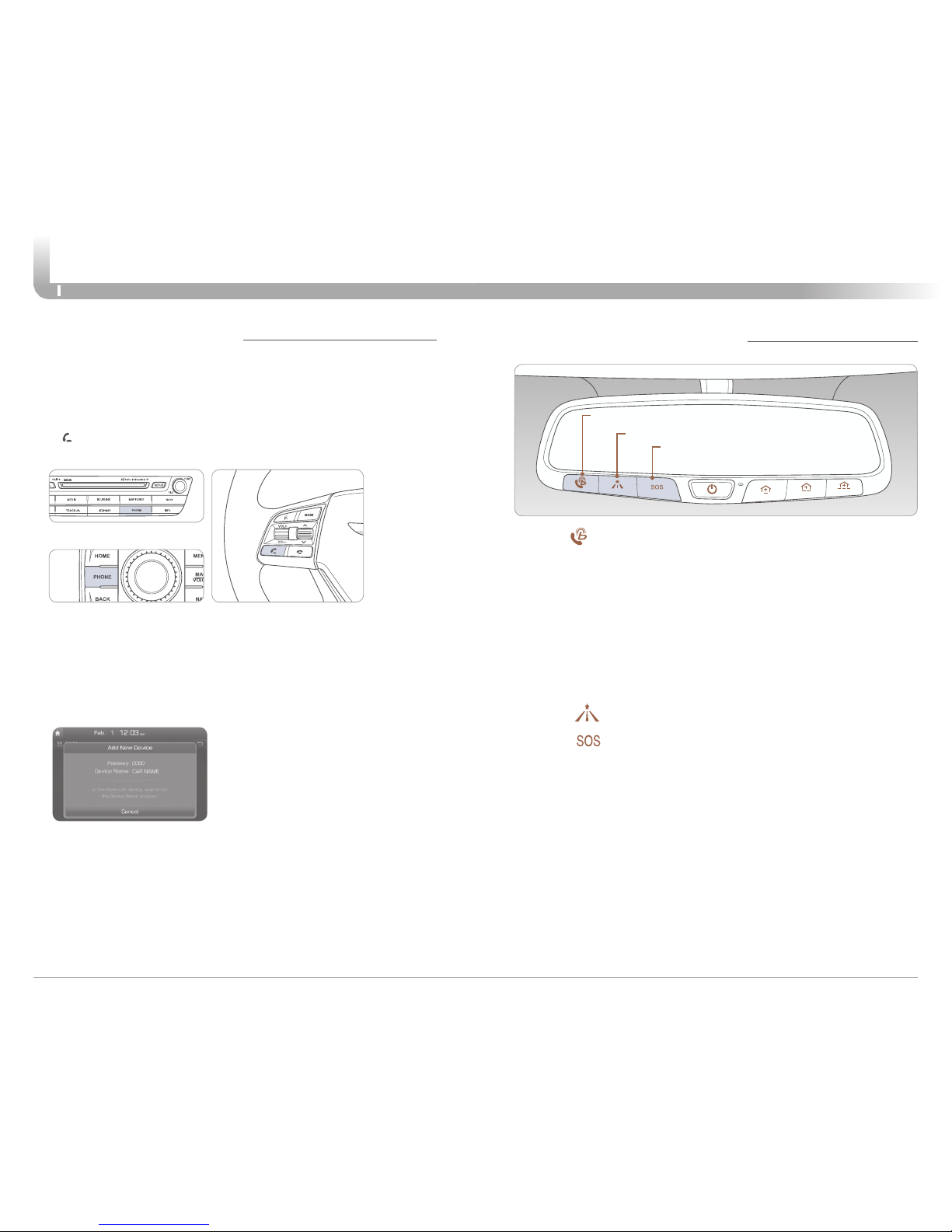

GENESIS CONNECTED SERVICES – page 21-23

- Assist with creating a Genesis Owners account

- Show Genesis Connected Services Users Manual

- Encourage customers to press the Genesis Connected Ser vices button

Roadside Assistance: 1-844-340-9742

SiriusXM

Radio: 1-800-967-2346

Genesis Customer Care & Connected Services:

GENESIS G80

Quick Reference Guide

1-844-340-9741

www.GenesisMotorsUSA.com

Page 2

Page 3

Steering wheel adjustment

Page06

Instrument cluster

Page14-15

Navigation

Page26

Head lights and fog lights

Page08

Climate control

Page18-19

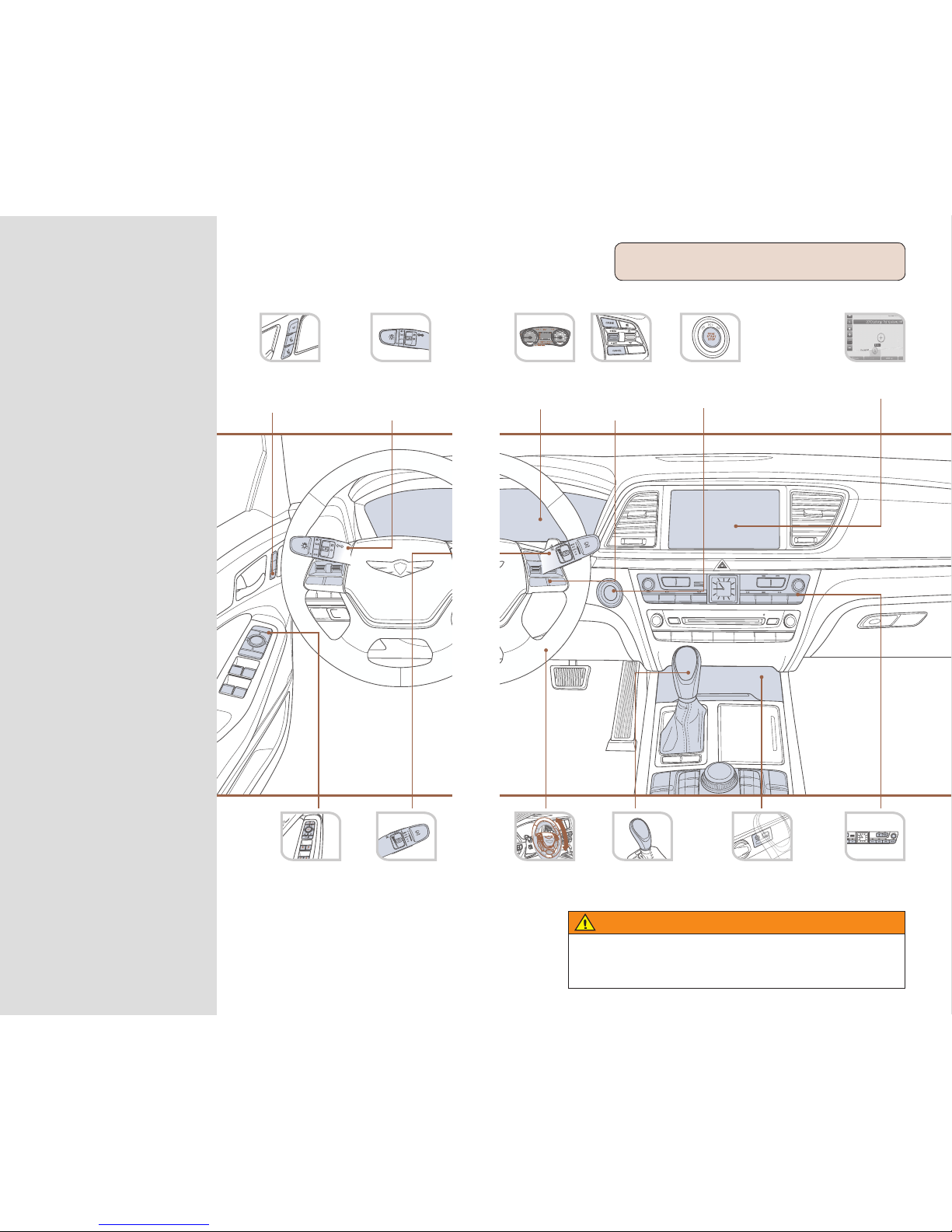

Driver's main controls

Page07

Wiper and washer

Page09

Transmission

Page36

Table of contents

Automatic Emergency Braking (AEB) 35 Auto Hold 34 AUX, USB and iPod port 27 Blind Spot Detection system (BSD) 38 Bluetooth operational tips 24 Bluetooth phone pairing 20 Child - protector rear door lock 12 Climate control 18-19 Climate control system seat & seat warmer

31 Clock adjustment 29 Cruise control/Advance smart cruise control 4 0 Driver Information System (DIS) 28 Drive mode integrated control system 39 Driver position memory system 05 Driver's main controls 07 Electronic Stability Control (ESC) 37 Electronic Parking Brake (EPB) 34 Engine start/stop button 05 Front seat adjustment 03 Fuel filler door 07 Genesis Connected Services 21-23 Headlights and fog lights 08 Headrest adjustment 04 Head up display 17 Heated steering wheel 32 HomeLink wireless garage control system 13 Instrument cluster 14-15 Interior lights 10 Lane Keeping Assist System (LKAS) 37 LCD display control/modes 16 Navigation 26 Panoramic Sunroof 10 Parking assist system (PAS) 33 Parking Guide system 33 Rearview camera 32 Rear window curtain 30 Seat belt adjustment 04 Smart key 02 Steering wheel adjustment 06 Steering wheel audio control 24 Tire Pressure Monitoring System (TPMS) 35 Transmission/paddle shifter 36 Trunk 11 Voice recognition tips 25 Wipers and washer 09

Engine start/ stop button

Page05

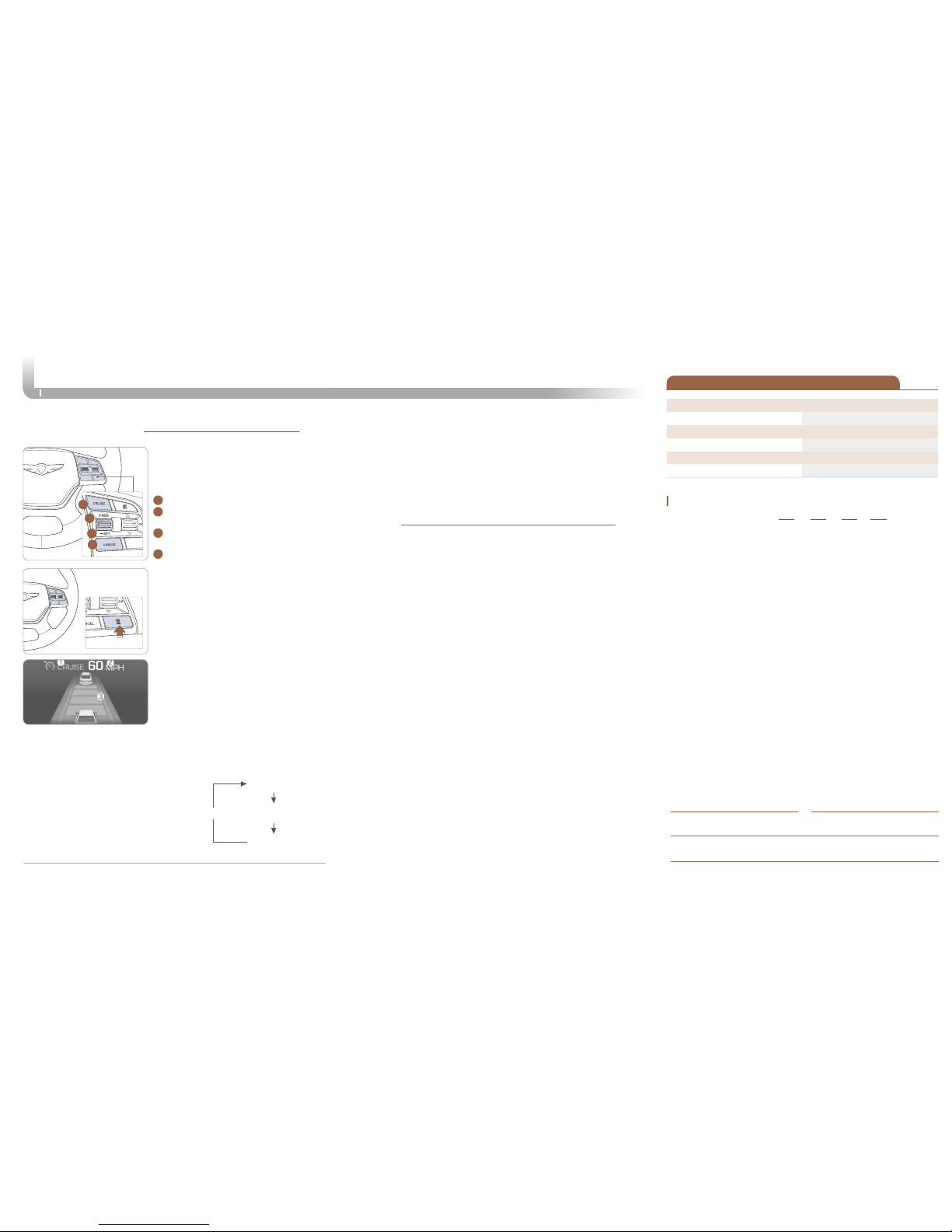

Cruise control/ Advanced smart cruise control

Page40

AUX,USB and iPod

Page27

Driver position memory system

Page05

* Some vehicles may not be equipped

with all the listed features.

Use this Quick Reference Guide to learn about the features that will enhance your enjoyment of your Genesis Branded vehicle. More detailed information about these features are available in your Owner’s Manual.

FREQUENTLY ASKED QUESTIONS

• Pair phone to your vehicle. Refer to page 20.

WARNING!

To reduce the risk of serious injury to yourself and others, read and understand the important SAFETY INFORMATION in your Owner’s Manual.

Page 4

GETTING STARTED

Quick Reference Guide I 03

02 I Quick Reference Guide

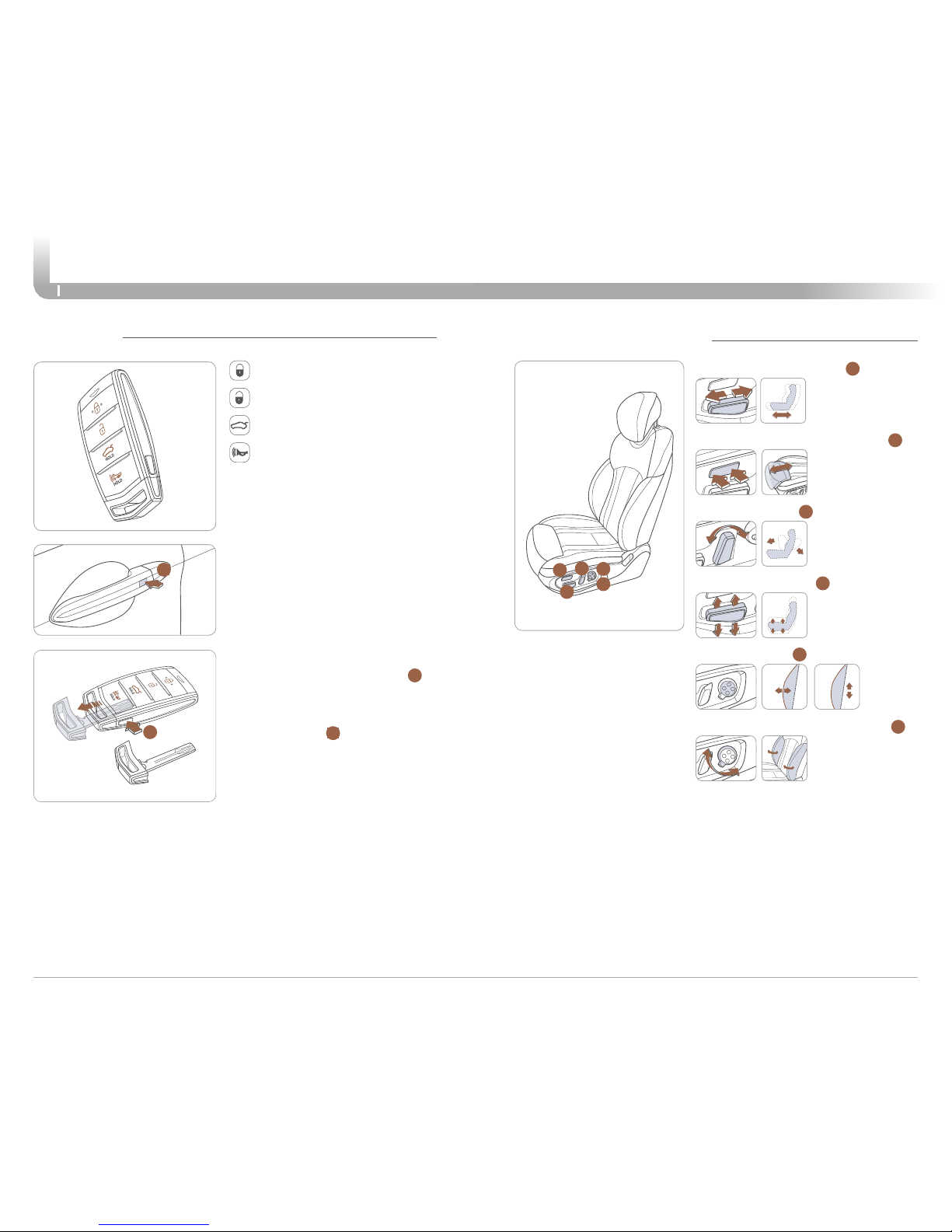

Driver’s door Lock / Unlock

Smart key must be within 28~40 in. from the outside door handle.

Press: Once – Unlock driver door

Twice – Unlock all doors Third – Lock all doors

Lock

Unlock

Trunk unlock

Panic

NOTE:

The key hole is located under

the key hole cover B.

SMART KEY

Remove mechanical key.

Press and hold the release button

to remove the mechanical key.

GENESIS

FRONT SEAT ADJUSTMENT

Forward and backward

Seat cushion length

(for driver’s seat)

Seatback angle

Seat cushion height

Lumbar support

Seat bolster adjustment (for driver’s seat)

Page 5

GETTING STARTED

Quick Reference Guide I 05

04 I Quick Reference Guide

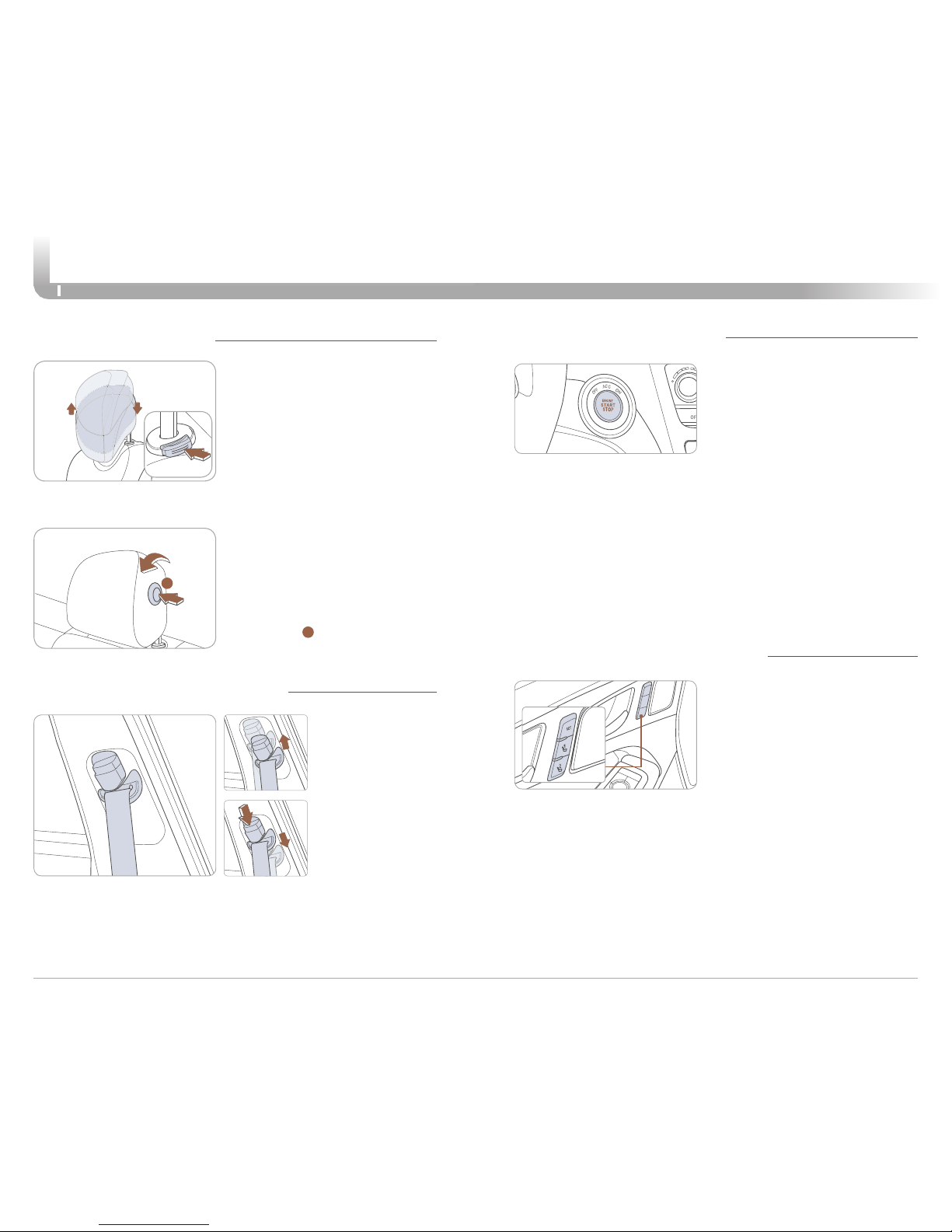

HEADREST ADJUSTMENT

To Raise Headrest:

Pull headrest up.

To Lower Headrest:

Press lock button while pressing down on headrest.

To adjust headrest forward:

Pull forward to 1 of 3 positions.

To adjust backward:

Pull it fully forward to the farthest position and release it.

To Raise Center Headrest:

Rotate headrest forward. Lift headrest up.

To Lower Center Headrest:

Press lock button while pressing down on headrest.

Press button to rotate headrest down.

GENESIS

With the ignition OFF and foot OFF of brake pedal, press the engine start / stop button.

• Once for ACC(Accessory) mode.

• Twice for ON mode.

• Three times for OFF.

ENGINE START/STOP BUTTON

To start the engine in any mode(including OFF), press the engine start/stop button while pressing the brake pedal.

To shut the engine OFF, place shift lever in P(Park) and press the engine start/stop button again.

Emergency situations

Shut off engine while drving

Press and hold engine start/stop button for more than 2 seconds or press 3 times consecutively within 3 seconds.

Restart engine while driving

Press engine start/stop button with shift lever in N(Neutral).

Storing

1. Adjust the driver’s seat, outside rearview mirrors, steering wheel, instrument panel illumination and head up display.

2. Press the SET button. The

system will beep once.

3. Press one of the memory buttons (1 or 2) within 5 seconds. The system will beep twice.

Recalling

Press the desired memory button (1 or 2). The system will beep once.

DRIVER POSITION MEMORY SYSTEM

NOTE: Transmission must be in P(Park).

SEAT BELT ADJUSTMENT (Front seat)

Pull up to raise.

Press button and push down to lower.

Rear center headrest

NOTE:

For resetting, please see

Owner’s Manual for procedure.

Page 6

FEATURES AND CONTROLS

Quick Reference Guide I 07

06 I Quick Reference Guide

Set the angle 2 and distance

with the switch 1.

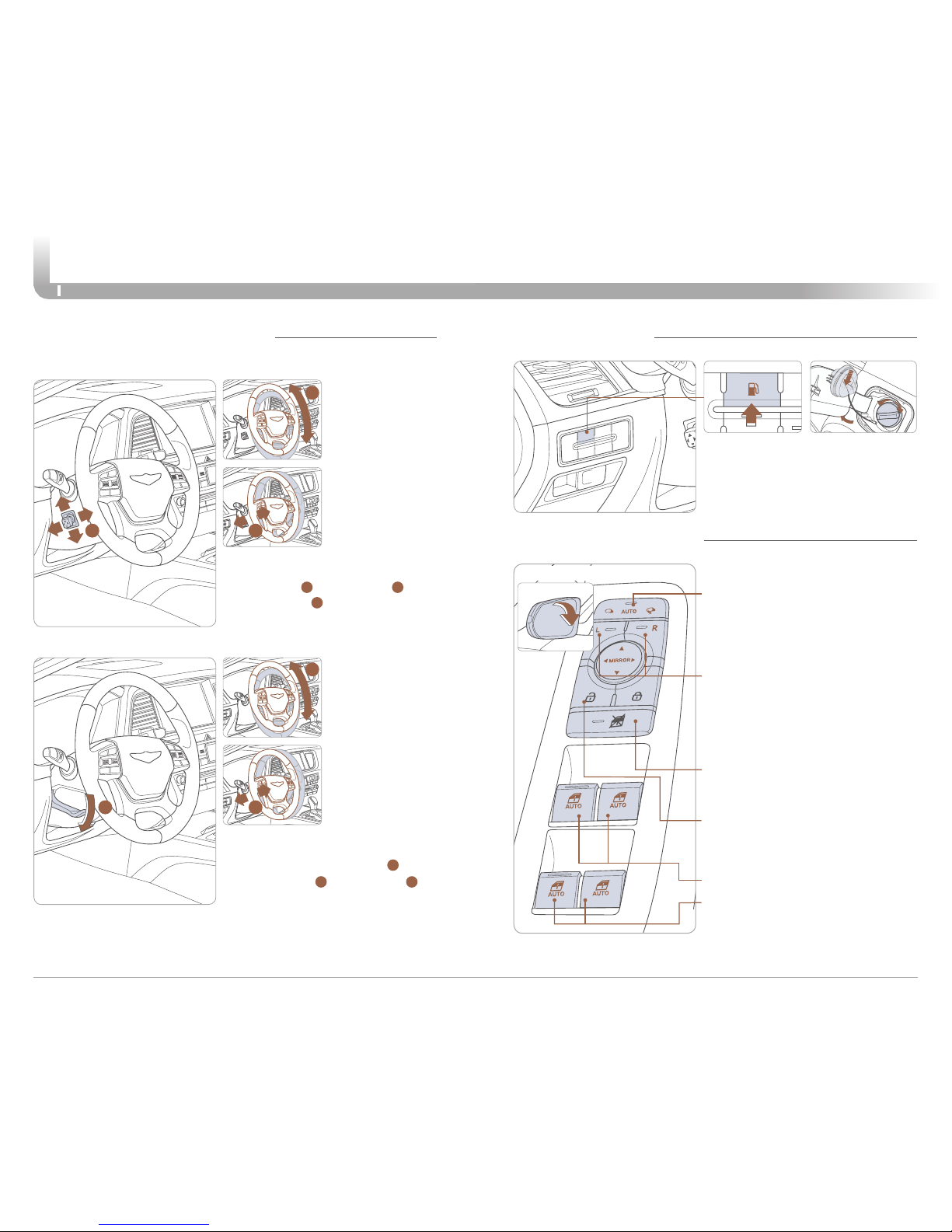

STEERING WHEEL ADJUSTMENTS

NOTE:

Do not adjust while driving.

1. Move the lever downward 1.

2. Set the angle 2 and distance 3.

3. Pull the lever up.

NOTE:

Do not adjust while driving.

Power tilt and telescopic

Manual tilt and telescopic

NOTE: Tighten fuel cap until one click is heard.

Failure to do this may result in the Check Engine Light illuminating.

FUEL FILLER DOOR

• Front power window switches.

•Press switch left/right to unfold/fold mirrors.

• Rear power window switches.

• Press the L or R button to adjust the mirror by using the directional switch.

If L or R button is still selected, both mirrors will tilt downward when reversing. Deselect L or R will disable the auto tilt down feature.

Driver’s door

DRIVER'S MAIN CONTROLS

Outside Rearview Mirror

Press the lock or unlock button on the smart key, and the mirrors will be folded or unfolded when AUTO is set.

Power window lock button

Disables the power window switches on the rear passenger doors.

Door Lock

Locks/unlocks all doors.

Window Switches

GENESIS

Page 7

Quick Reference Guide I 09

FEATURES AND CONTROLS

08 I Quick Reference Guide

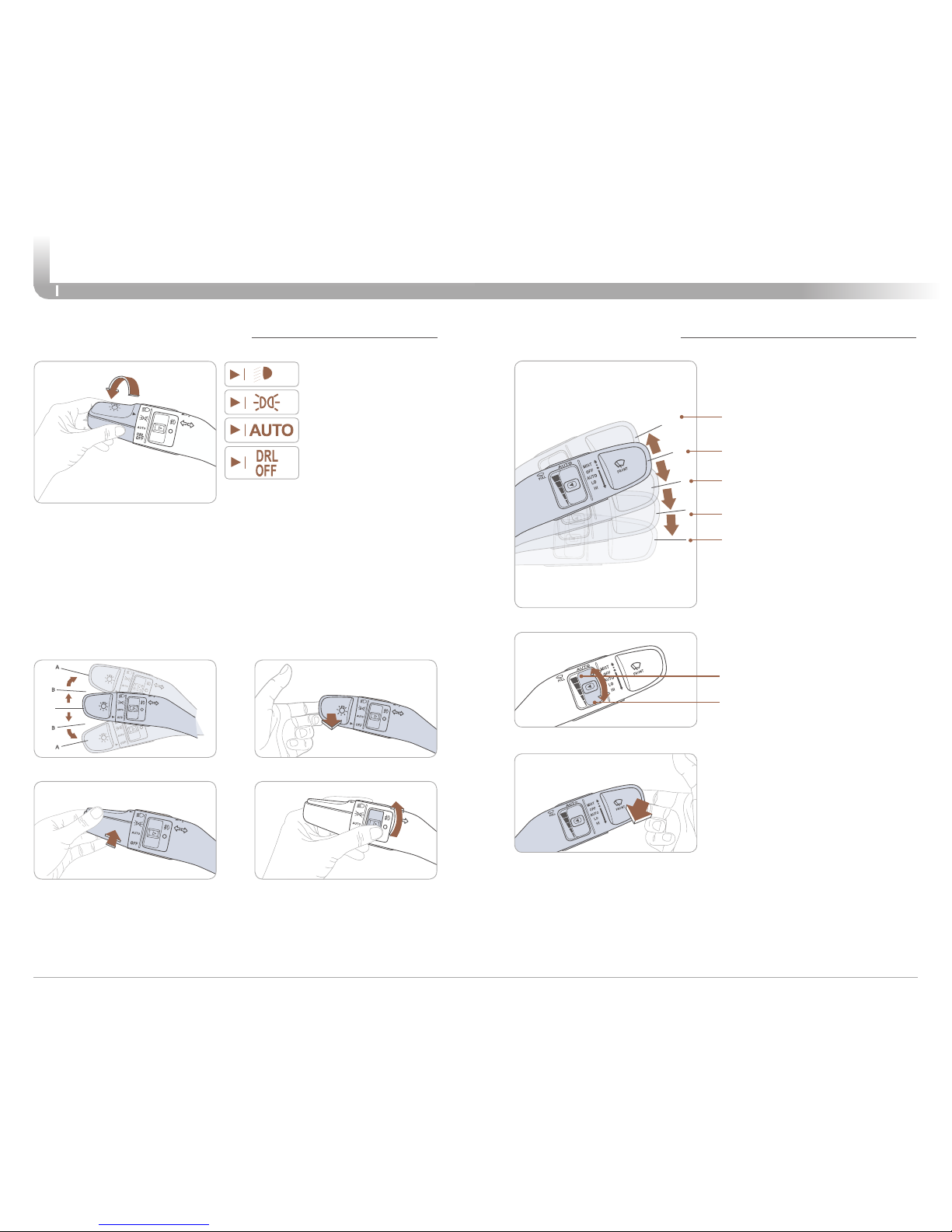

WIPERS AND WASHER

Auto control wipe interval adjustment

Adjust the control knob.

Windshield washer

Pull the lever gently toward you to spray washer fluid on the windshield and to run the wipers1-3 cycles.

Headlamp washer

Fluid will spray on headlamp assemblies when headlamps are turned ON. Will activate only once for every ignition key cycle or only once every 15 minutes.

Fast wiper speed

Slow wiper speed

MIST - Single wipe

AUTO - Auto control wipe

LO - Low wiper speed

HI - High wiper speed

OFF

HEADLIGHTS AND FOG LIGHTS

Parking light position

DRL OFF position

Auto light position

Headlight position

Headlight delay

Headlights may stay on for 15 seconds after exiting and locking vehicle. Press the remote lock button twice to turn headlights off. This feature can be enabled/disabled under the Lights menu in the User Settings of the instrument cluster.

See Owner’s Manual for more detail.

Fog light

Turn signals and lane change signals

Flashing high beam

PULL

High beam

PUSH

GENESIS

Smart High Beam Function

1. Select auto position on stalk.

2. Push lever forward to engage Auto High beam.

3. Push lever forward again to disengage. See Owner's Manual for more details.

Page 8

Quick Reference Guide I 11

FEATURES AND CONTROLS

10 I Quick Reference Guide

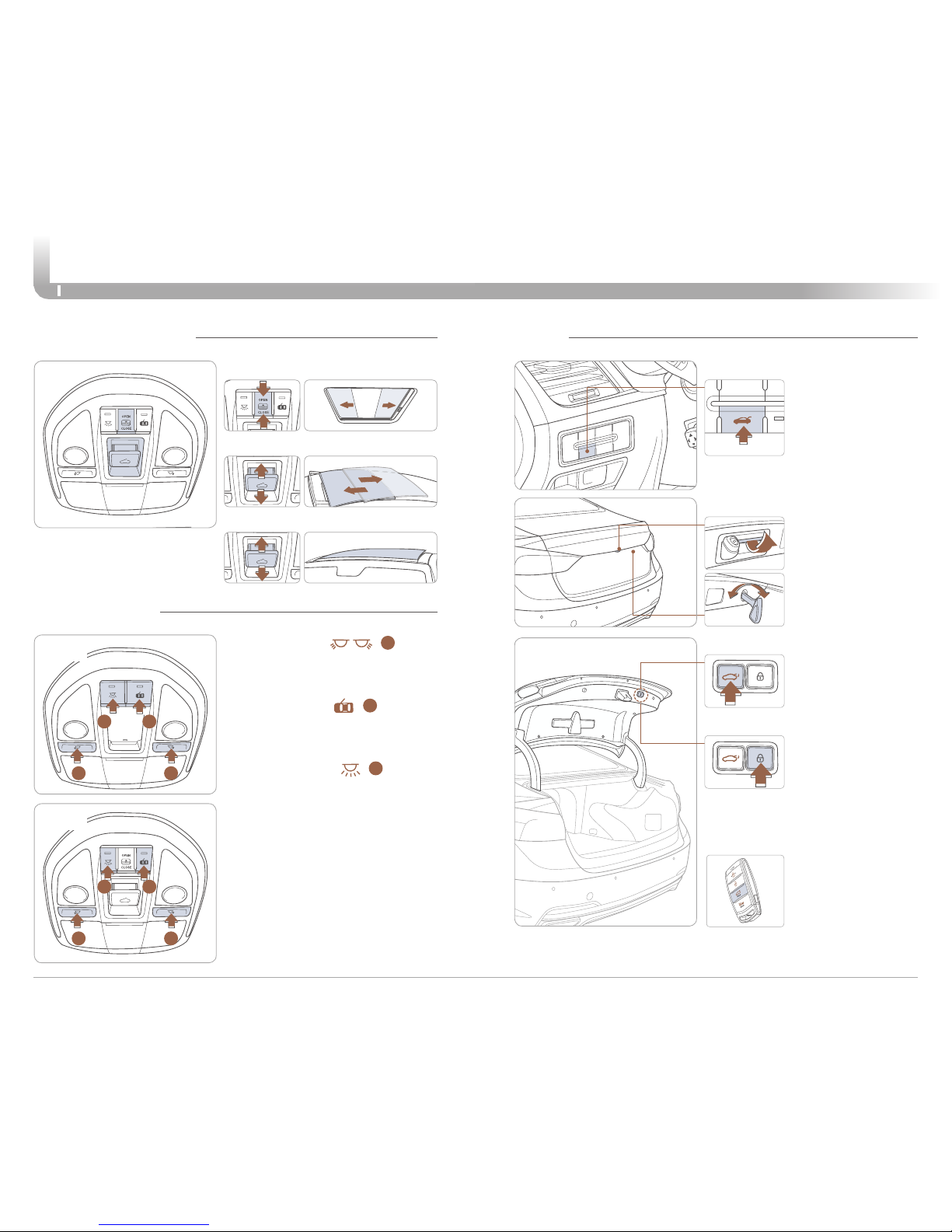

PANORAMIC SUNROOF

Sunshade

Sliding the sunroof

Tilting the sunroof

INTERIOR LIGHTS

Type A

Type B

Press the button to open the trunk.

Power trunk:

To close, press and hold until trunk is fully closed.

TRUNK

Trunk main control button

Press to open. Smart key needs to be within range.

Use the mechanical key.

Trunk open button

Pressing the button closes the power trunk

automatically.

Power trunk close button

Pressing the button with the smart key in proximity locks all the doors and closes the power trunk automatically.

Power trunk lock button

Pressing the button for more than 1 second opens the power trunk automatically.

Trunk open button on the smart key

GENESIS

Front Map Lamp ( )

Push the switch to turn the map lamp on or off.

Front Door Lamp ( )

Lights will turn on when any door is open.

Front Room Lamp ( )

Push the switch to turn the room lamp on or off.

Page 9

Quick Reference Guide I 13

FEATURES AND CONTROLS

12 I Quick Reference Guide

CHILD-PROTECTOR REAR DOOR LOCK

Lock

Insert a key into the hole and turn it towards the lock position .

Unlock

Insert a key into the hole and turn away from the lock position .

HOMELINK WIRELESS GARAGE CONTROL SYSTEM

Standard Programming

To program most devices, follow these instructions:

1. For ﬁrst-time programming, press and hold the two outside buttons, HomeLink® Channel 1 and Channel 3 Buttons, until the indicator light begins to ﬂash (after 10 seconds). Release both buttons. Do not hold the buttons for longer than 20 seconds.

2. Position the end of your hand-held transmitter 1-3 inches (2-8 cm) away from the HomeLink® buttons while keeping the indicator light in view.

3. Simultaneously press and hold both the HomeLink® and hand-held transmitter button. DO NOT release the buttons until step 4 has been completed.

4. While continuing to hold the buttons the red indicator Status LED will ﬂash slowly and then rapidly after HomeLink® successfully trains to the frequency signal from the hand-held transmitter. Release both buttons.

For detail instructions and list of compatible products, refer to your Owner’s Manual or visit www.homelink.com.

GENESIS

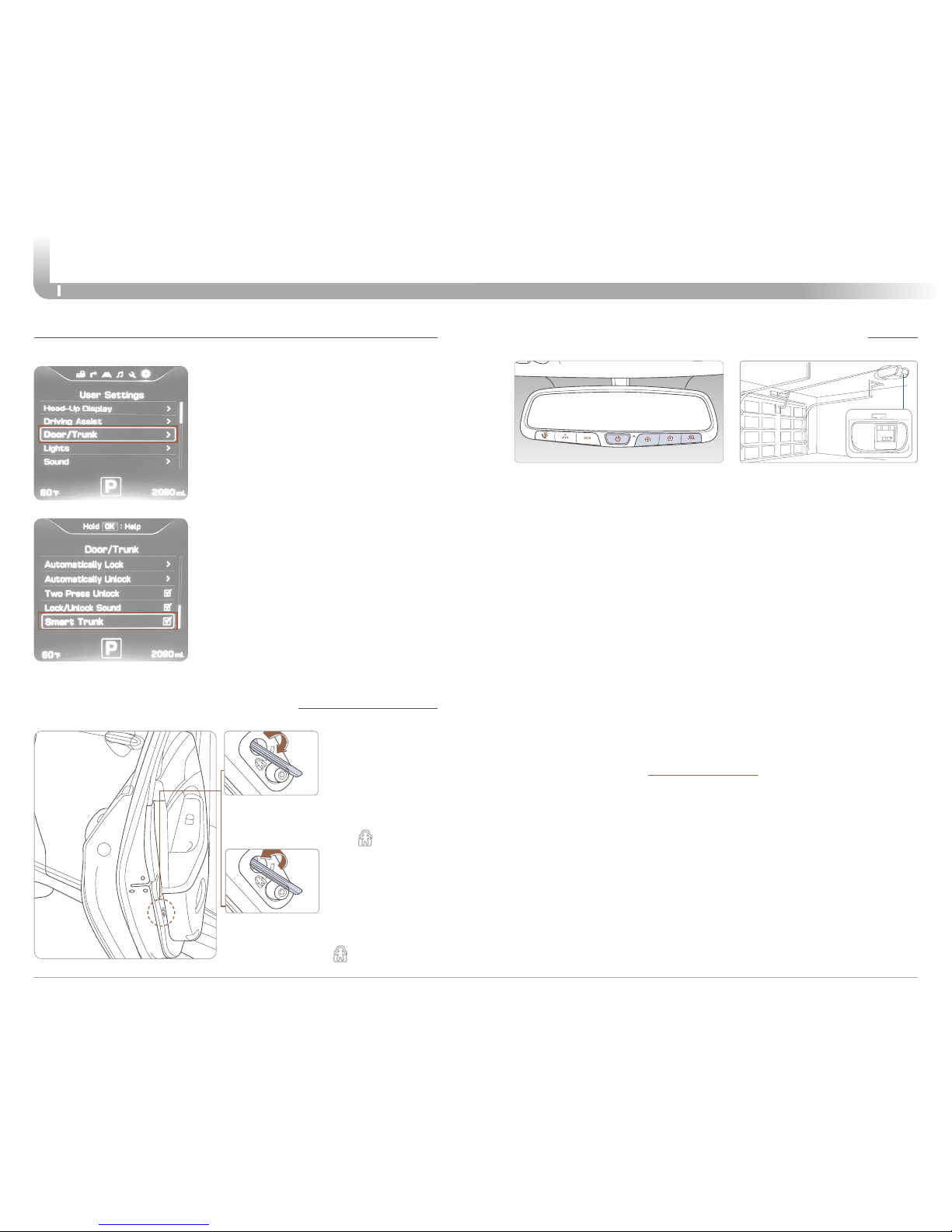

Smart Trunk

Trunk will open automatically when detecting smart key within range near the trunk for more than 3 seconds.

To enable Smart Trunk function:

Vehicle must be in P (Park) to adjust settings in the User Setting mode.

1. Select "Door/Trunk" in the User Settings in the instrument cluster.

2. Check "Smart Trunk".

NOTE: Function is active after 15 seconds when all doors are closed and locked. The vehicle will also provide an audible and visual alarm while activating. For more details, refer to Owner's Manual. Factory setting defaults Smart Trunk in OFF position.

Page 10

Quick Reference Guide I 15

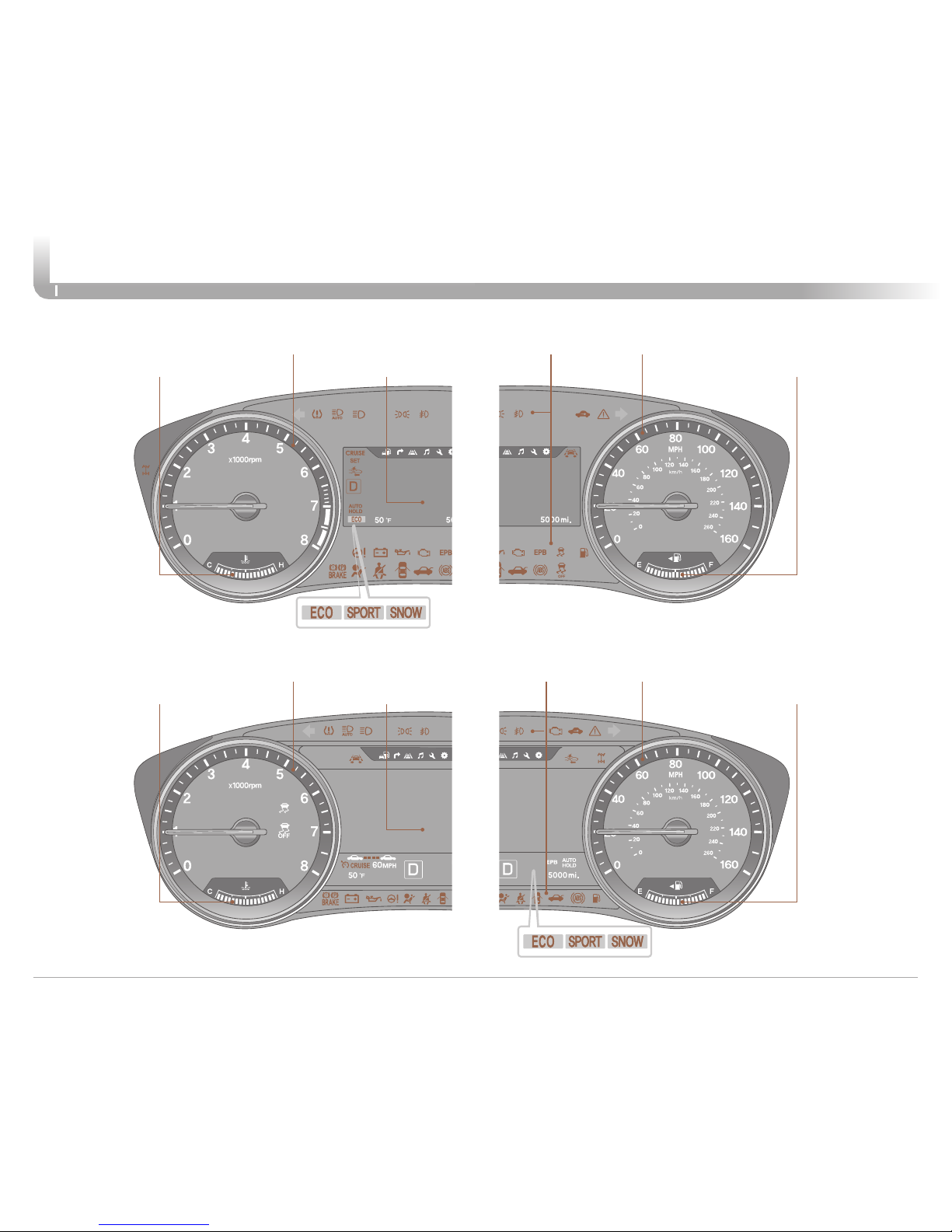

INSTRUMENT CLUSTER

14 I Quick Reference Guide

GENESIS

Fuel gauge

Tachometer Speedometer

Engine coolant temperature gauge

Warning and

indicator lights

LCD display

(including trip computer)

Type A with 4.3" LCD Display

Type B with 7" LCD Display

Fuel gauge

Tachometer Speedometer

Engine coolant temperature gauge

Warning and

indicator lights

LCD display

(including trip computer)

Page 11

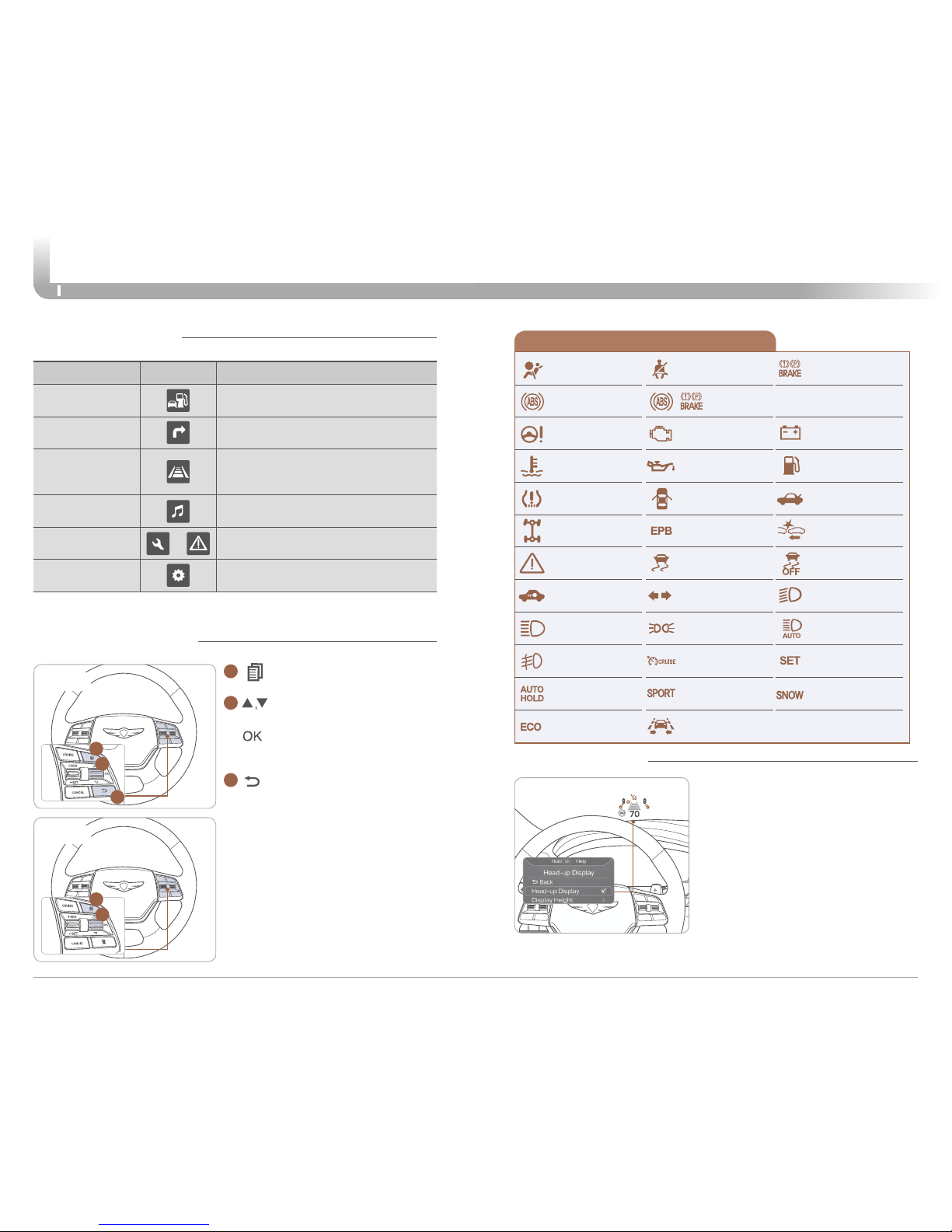

INSTRUMENT CLUSTER

Quick Reference Guide I 17

16 I Quick Reference Guide

WARNINGS AND INDICATORS

Air bag warning light

Electric Power Steering (EPS) warning light

Seat belt warning

Parking brake & Brake fluid warning light

Electronic Brake Force Distribution (EBD) system warning light

Low tire pressure warning light

Trunk open warning light

Low fuel level warning light

Front fog light indicator

Low beam indicator

Smart high beam indicator

SNOW mode indicator

Light ON indicator

ECO indicator

SPORT mode indicator

Anti-lock Brake System (ABS) warning light

High beam indicator

Door open warning light

Electronic Stability Control (ESC) indicator

Master warning light

Automatic Emergency Braking (AEB) warning light

Electric Parking Brake (EPB) warning light

Engine oil pressure warning light

Charging system warning light

Immobilizer indicator

Malfunction Indicator Lamp (MIL)

Electronic Stability Control (ESC) OFF indicator

Cruise indicator

Lane Keeping Assistant System(LKAS) indicator

Cruise SET indicator

AUTO HOLD indicator

Turn signal indicator

LCD DISPLAY MODES

The head up display is a transparent display which projects an image of selected information of the instrument cluster and navigation on the windshield glass. To activate the head up display, select “Head-up Display” on the “User Settings Mode” in the LCD display. Adjust "Head-up Display" height until in view.

HEAD UP DISPLAY

: MODE button for changing

modes

: MOVE switch for changing

items

: SELECT/RESET button for

setting or resetting the selected item

: BACK button for moving

to upper level menu (if equipped)

LCD DISPLAY CONTROL

Modes Symbol Explanation

Trip Computer

This mode displays driving information like the tripmeter, fuel economy, and so on.

Turn By Turn (TBT)

(if equipped)

This mode displays the navigation turn by turn guidance.

ASCC/LKAS

(if equipped)

This mode displays the state of the Advanced Smart Cruise Control (ASCC) and Lane Keeping Assist System (LKAS).

A/V

This mode displays the state of the A/V system.

Informaition or

Display service internal warning messages and tire pressures.

User Settings Changes settings.

Type A

Type B

Engine coolant temperature warning light

AWD warning light

GENESIS

NOTE: See Owner's Manual for more details on selecting content to display on the Head Up Display.

(Press)

Page 12

Quick Reference Guide I 19

CLIMATE CONTROL

1 8 I Quick Reference Guide

DEFOGGING / DEFROSTING

3. Set the fan speed to the highest speed.

2. Select warmest temperature.

1. Press the front defrost button.

AIR INTAKE CONTROL

SYSTEM OFF

Pressing the OFF button will place the system in the OFF mode.

• Front blower will turn off.

• Outside (fresh) air position will be selected.

• Vented air will be at last set temperature.

Automatically controls the modes, fan speeds, air intake and air-conditioning functions.

AUTOMATIC HEATING / AIR CONDITIONING

SYNC button (sync driver and passenger front air temperature)

Air intake control button (Outside air)

Air intake control button

(Recirculated air)

Climate information

screen selection button

Mode selection button (Passenger)

Air intake control button

Rear temperature

control thumbwheel

Rear vent ON/OFF thumbwheel

Driver’s temperature control knob

Fan speed control button

OFF button

AUTO (automatic control) button

Mode selection button (Driver)

Air conditioning button

Front windshield defrost button

Rear window defrost button

Passenger’s temperature

control knob

Front Rear

Type A

Type B

16 17

When cabin humidity and carbon dioxide levels increase while Climate Control is off, fresh air will be circulated into the cabin.

Please refer to the Owner's Manual for more information.

Changing the direction of the air flow as follow.

SMART VENT

MODE SELECTION

GENESIS

Outside(fresh) air position (type B) (light off)

Recirculated air position

Outside(fresh) air position (type A)

NOTE: To reduce the glass fogging and improve visibility, keep the interior surface of the windshield clean by wiping it with a clean cloth and glass cleaner. In addition, select air intake control to the outside (fresh) air position whenever possible while operating the vehicle.

Page 13

MULTIMEDIA

20 I Quick Reference Guide

Quick Reference Guide I 21

GENESIS

BLUETOOTH PHONE PAIRING

Pairing a new device

Standard AVN

DIS navigation system

2. Press <YES> to search for Bluetooth phones.

Pair your car after your mobile phone detects the Bluetooth device.

4. Enter the passkey or accept

the authorization popup. (The default passkey is 0000.)

5. Connect Bluetooth.

1. Press the PHONE button in the head unit(or DIS navigation system) or button in the steering wheel remote control.

NOTE:

Vehicle must be in (P) Park to complete pairing process.

GENESIS CONNECTED SERVICES

• SOS

• Navigation

• Connected Services Menu

Press the button for access to the voice-response menu of services.

- Press the button for Destination Search Powered by Google®.

- Press the

button for SOS Emergency Assistance.

- Refer to your Genesis Connected Services Menu User’s Manual for detailed information on system operation.

- For immediate assistance with subscription services, please call 1-844-340-9741.

Google® is a registered trademark of Google Inc.

You can say:

- "Service Link" to schedule a service appointment.

- "Roadside Assistance" for roadside services.

- "Genesis Account Services" for help with your Blue Link subscription.

Page 14

You can download the Genesis Mobile App to your compatible smart phone from the following sites:

• iPhone® — Apple® App Store

• Android® — Google Play

Remote Start with Climate Control

This feature enables you to remotely start your vehicle and set an engine timer (1-10 minutes) from virtually anywhere. You can also set the climate control temperature and turn on the rear-window defroster, ensuring a warm or cool car is ready to go when you are.

• To use this feature, you must have a Genesis Connected Services Personal Identification Number (PIN). To create or change your PIN, log on to www.GenesisMotorsUSA.com/Owners.

• Remote Start with Climate Control will automatically shut off after 10 minutes or after selected engine timer runs out.

• While this feature is active, the parking lights will blink until vehicle is turned off or when vehicle is in operation.

• To continue operation of the vehicle, the proximity key must be inside the vehicle with the driver prior to pressing the brake and being able to move the gearshift from the "P" (park) position.

Genesis Intelligent Assistance App

Remember...

Remote Features

Please note: Remote Services are subject to adequate cellular coverage and signal strength, and only available in the 50 United States.

Remote Start Preconditions:

• Ignition is OFF

• Alarm is armed (i.e., vehicle locked by key fob Remote Door Lock)

• Gearshift level is in the “P” (park) position

• Brake pedal is not depressed

• Engine hood is securely closed

• All the doors are closed and locked

• The tailgate or trunk lid is closed

• The security/panic system is not activated

• The proximity key is not inside the vehicle

• The battery power is not low

• Vehicle is located in an open area

• It has been less than 4 days since last vehicle ignition off

• Vehicle located in area with good cell reception

Remote Start with Climate will terminate...

• After 10 minutes or after selected engine timer runs out

• Brake is pressed without proximity key inside vehicle

• Alarm is triggered without proximity key inside vehicle

• Door/trunk is opened from inside the vehicle

Notice: Laws in some communities may restrict the use of the features that remotely start the engine. For example, some laws may require a person using the remote start feature to have the vehicle in view when doing so or limit the length of time a vehicle engine may idle. Please check local and state regulations for any requirements and restrictions on remote starting of vehicles and engine idling time.

WARNING!

Do not remote start vehicle in an enclosed environment (i.e., closed garage). Prolonged operation of a motor vehicle in an enclosed environment can cause a harmful build-up of carbon monoxide. Carbon monoxide is harmful to your health. Exposure to high levels of carbon monoxide can cause headaches, dizziness or in extreme cases unconsciousness and/or death. Do not leave children or animals unattended in a vehicle while using the remote start function.

CAUTION!

If the vehicle’s windshield wipers are left on when the vehicle was last driven, then the wipers will turn on if the remote start function is activated. To avoid damage to the wiper blades (i.e., due to heavy ice or snow accumulated on the windshield), please always turn the vehicle’s windshield wipers off when parking the vehicle.

MULTIMEDIA

22 I Quick Reference Guide

Quick Reference Guide I 23

GENESIS

Page 15

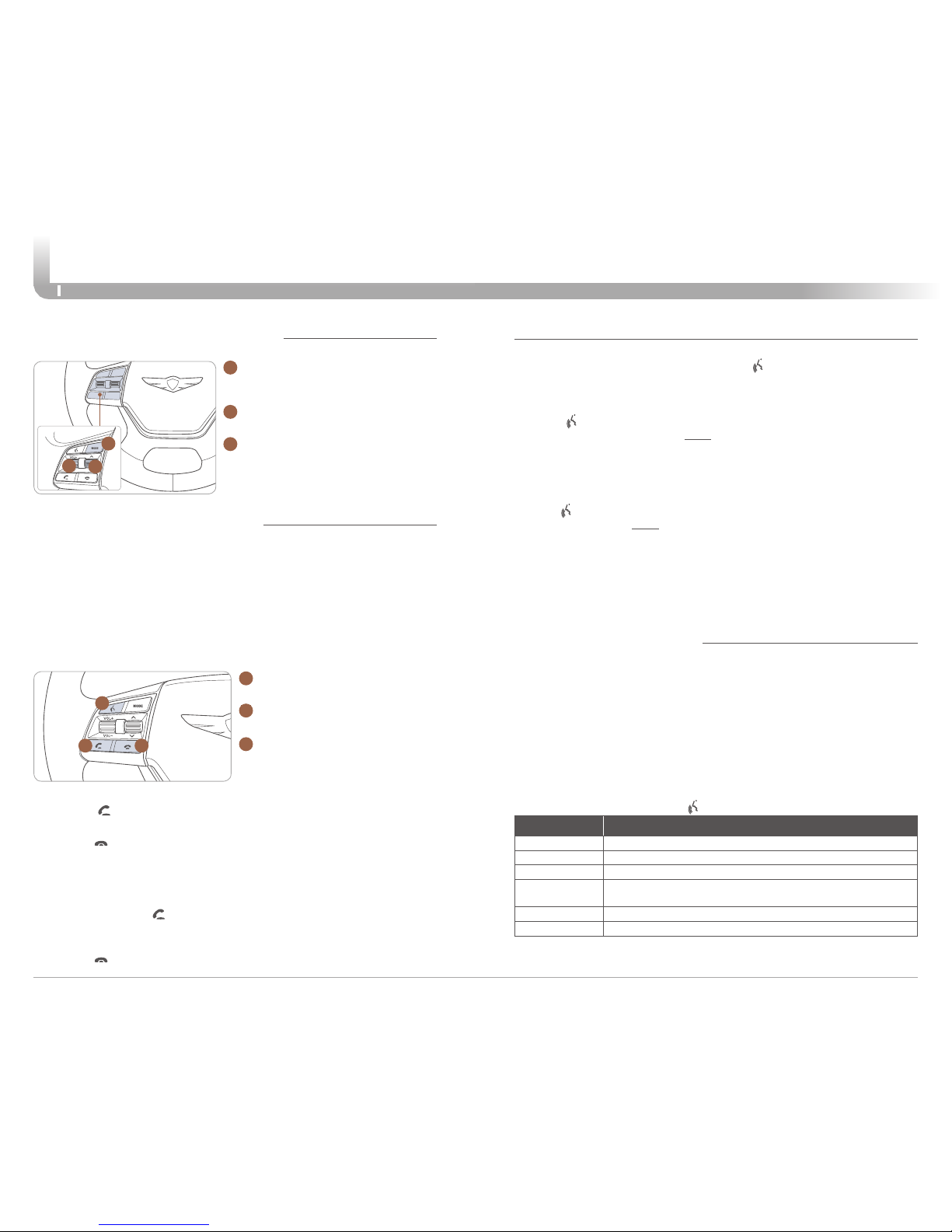

STEERING WHEEL AUDIO CONTROL

VOLUME/MUTE

Scroll up or down to adjust the volume.

Press to mute or unmute the sound.

SEEK/PRESET

Change station.

MODE

Change the audio source.

To Answer a Call:

• Press button on the steering wheel.

To Reject a Call:

• Press button on the steering wheel.

To Adjust Ring Volume:

• Use the VOLUME buttons on the steering wheel.

To Transfer a Call to the Phone (Private Call):

• Press and hold button on the steering wheel until the audio system transfers a call to the phone.

To Finish a Call:

• Press button on the steering wheel.

BLUETOOTH OPERATIONAL TIPS

In the following situations you or the other party may have difficulty hearing each other:

1. When Bluetooth volume is set too high. It may result in distortion and echo.

2. When driving on a rough road, high speeds and/or with the window open.

3. When the air conditioning vents are facing the microphone and/or when

the air conditioning fan is at the max speed.

Steering wheel bluetooth control

TALK

Activates voice recognition.

CALL

Places and transfers calls.

END

Ends calls or cancels functions.

2 3

Making a call using voice recognition:

The menu tree identies available voice recognition Bluetooth® functions.

Calling by Name:

1. P

ress button.

2. Say the following command after the Voice Recognition beep:

• “Call <John Smith>”: Connects the call to John Smith.

• “ Call <John Smith> on <on Mobile/in Ofce/at Home>”: Connects the call to John Smith’s Mobile, Home, or Ofce phone number.

Dialing by Number:

1. Press button.

2. Say “Dial Number” after the Voice Recognition beep.

3. Say desired phone number. For complete list of commands,

refer to your Owner’s Manual.

VOICE RECOGNITION TIPS

Your vehicle is equipped with Voice Recognition technology which allows drivers to operate their phones without having to take their eyes off the road to minimize distractions.

Voice recognition performance may be affected if speaking before Voice Recognition beep is heard, driving with windows and sun roof open; when the heating-cooling system is on; when passing in a tunnel or when driving on rugged and uneven roads.

Quick reference on using voice commands

To start voice command. Press the key, the following commands are available:

Command Function

Call Displays downloaded Contacts. Call <Name> Calls <Name> saved in Contacts. Dial Number Displays a screen where you can say a phone number to dial. Dial <Phone #> You can directly say the number to call.

ex) Dial 111 555 1234 Redial Directly calls at the number that you last dialed. Call History Displays your Call History.

MULTIMEDIA

24 I Quick Reference Guide

Quick Reference Guide I 25

GENESIS

Page 16

MULTIMEDIA

26 I Quick Reference Guide

Quick Reference Guide I 27

GENESIS

AUX, USB AND iPod PORT

Use the input jack to connect an external audio device and listen to it through the audio system in your vehicle.

NOTE: To operate your iPod

through the vehicle's audio system,

connect your Apple supplied USB cable to the USB port.

iPod® is a trademark of Apple Inc.

Map position

Standard AVN

DIS Navigation system

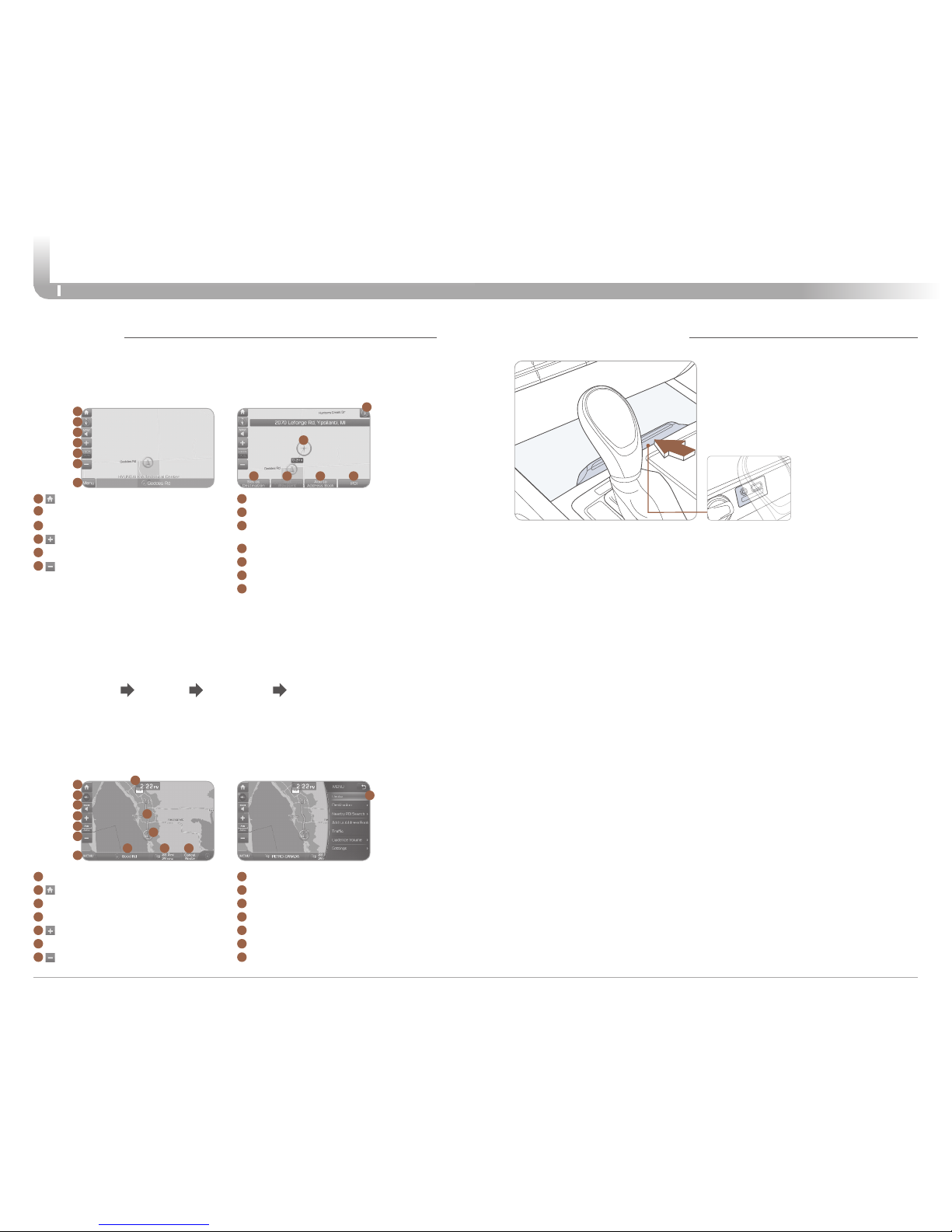

NAVIGATION

North Up/Heading Up.

• Displays the current map mode to reflect the position in reference to the screen. The map mode can be switched between North Up and Heading Up.

• Each time the button is pressed, the screen will switch in the order

shown below. – Heading Up North Up Heading Up – Map Scale: Increases or decreases the map size. – Map Scale indicator: shows the scale of the map. – Map Voice Key: Activate/deactivate the voice guidance.

Move to the Home Screen

Change the map view mode

Navigation Voice Guidance On/Off

Zoom in the map

Map scale display

Zoom out the map

Clock display

Move to the Home Screen

Change the map view mode

Navigation voice guidance on/off

Zoom in the map

Map scale display

Zoom out the map

[MENU] button

Touch to scroll the map

Quick and easy selection of

a destination from the map screen

Set a waypoint to the current route

Save frequently used address to address book

Find a POI(Point Of Interest) around the current position

Vehicle position

[MENU] button

Route guidance

Vehicle position

Current position and Destination

Remaining distance display/ Remaining time

Cancel Route

[Route] button

3 4 5 6 7

11 12913

9 10 11 12

2 3 4 5 6

Page 17

Quick Reference Guide I 29

FEATURES AND CONTROLS

28 I Quick Reference Guide

GENESIS

Scrolling through Controller

Move the focus or scroll through the navigation map.

Turning the controller

Move the focus, or zoom in/out the navigation map.

Pressing the controller

Start/Select the focused feature.

DRIVER INFORMATION SYSTEM (DIS) CLOCK ADJUSTMENT

The central control panel is located in the vehicle center console. It comprises the controller and the main function buttons.

Open the HOME main menu

Open menu screen

Go back one menu level

Open the Navigation main menu

Open the Genesis

Connected Services

main menu

Open the PHONE main menu

MAP/VOICE button

1. Press "HOME" button.

1. Press the "SETUP" button.

2. Press "Settings" icon on the screen, then press "Clock".

3. To set your preferred Time Setting:

• Check "GPS Time" to adjust the time automatically.

• Press “Time Setting” to adjust the clock manually. GPS Time must not be selected.

• If "Daylight Savings Time" is selected, the clock will be adjusted forward by one hour.

2. Press "Clock" icon on the screen.

3. To set your preferred Time Setting:

• Check "GPS Time" to adjust the time automatically.

• Press “Date/Time Setting” to adjust the clock manually. GPS Time must not be selected.

• If "Daylight Savings Time" is selected, the clock will be adjusted forward by one hour.

With DIS Touch System

With Touch Screen System

NOTE:

Once the digital clock is adjusted, the analog

clock will be updated accordingly.

Page 18

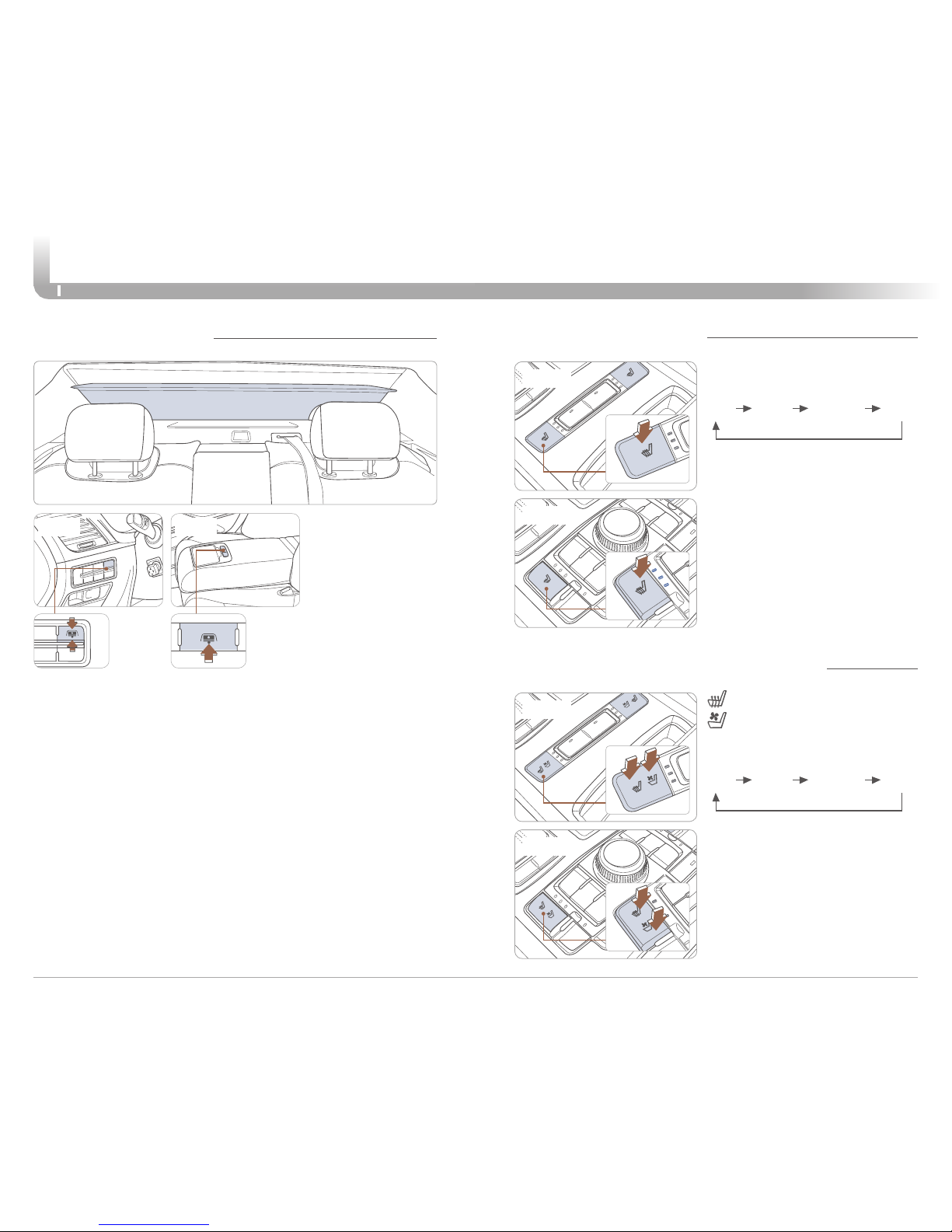

Quick Reference Guide I 31

FEATURES AND CONTROLS

30 I Quick Reference Guide

GENESIS

SEAT WARMER (front seats)

If you want to turn it off immediately, press and hold the button.

CLIMATE CONTROL SYSTEM SEAT (front seats)

If you want to turn it off immediately, press and hold the button.

Each time you push the button, the setting is changed as follows:

OFF

HIGH MIDDLE LOW

– Heat – Cool

Each time you push the button, the setting is changed as follows:

OFF

HIGH MIDDLE LOW

Type A

Type B

Type A

Type B

REAR WINDOW CURTAIN

Press the button to lower. Press the button again to raise.

Front Rear

NOTE:

If curtain is in up position, curtain will move downward automatically when shifting into Reverse. Curtain will raise automatically when shifter is in Drive and vehicle speed is above 10 mph.

Page 19

Quick Reference Guide I 33

FEATURES AND CONTROLS DRIVING

32 I Quick Reference Guide

GENESIS

PARKING GUIDE SYSTEM

The parking guide system will activate when the back-up light is ON and the shift lever in the R (Reverse) position.

PARKING ASSIST SYSTEM (PAS)

The parking assist system assists the driver during movement of the vehicle by chiming if any object is sensed within the distance of 39.5 inches in front and

47.2 inches in behind the vehicle.

PAS ON / OFF

To turn the PAS off, press the ON/OFF button. To turn the PAS on, press it again.

If you move the shift lever to R with the engine start/stop button in ON and the parking assist system in OFF, the parking assist system will turn ON automatically. The system will automatically turn off when vehicle is driven forward at a speed above 6 mph.

Type A

Type B

HEATED STEERING WHEEL

Pressing the heated steering wheel button warms the steering wheel. The indicator on the button is illuminated.

Type A

Type B

REARVIEW CAMERA

When transmission is shifted into R (Reverse), rearview camera displays the area behind the vehicle.

To switch view, press "Top View" button on screen.

Page 20

Quick Reference Guide I 35

DRIVING

34 I Quick Reference Guide

GENESIS

AUTOMATIC EMERGENCY BRAKING (AEB)

The Automatic Emergency Braking (AEB) helps avoid accidents by identifying critical situations early and warning the driver. Also, the system helps reduce the severity of crashes which cannot be avoided by lowering the speed of collision and, in some cases, by preparing the vehicle and restraint systems for impact.

TIRE PRESSURE MONITORING SYSTEM (TPMS)

LOW TIRE PRESSURE INDICATOR

Illuminates if one or more of your tires is significantly under-inflated.

TPMS MALFUNCTION INDICATOR

Blinks for approximately one minute, then remains illuminated when there is a malfunction with the TPMS. Inspect all tires and adjust tire pressure to specification. If the lamp remains illuminated, have the system checked by authorized retailer of Genesis Branded Products as soon as possible.

Low Tire Pressure Position Telltale and Tire Pressure Telltale ( Shown on the LCD display )

Low Tire Pressure Indicator / TPMS Malfunction Indicator

NOTE: Vehicle must

be driven for accurate tire pressure reading.

ELECTRONIC PARKING BRAKE (EPB)

Stop the vehicle then pull the EPB switch.

Applying

Move shift lever from P to R, N or D while depressing the brake pedal.

Releasing

Press the EPB switch while depressing the brake pedal.

NOTE: If necessary, emergency braking is

possible by pulling and holding the EPB switch.

NOTE: System can be Enabled/

Disabled in the User Settings page of the instrument cluster under Driving Assist.

NOTE: Units can be changed in the User Settings page of the instrument

cluster under Other Features.

AUTO HOLD

To cancel the AUTO HOLD operation, press the AUTO HOLD switch again.

The Auto Hold feature assists in steep hill areas. It holds the brake until the accelerator pedal is pressed.

Press the AUTO HOLD

switch.

WHITE

Stop the vehicle by pressing

the brake pedal. The brakes will remain engaged even if the brake pedal is released.

GREEN

The brakes will release when the accelerator pedal is pressed with transmission in D, R or manual mode.

WHITE

Page 21

36 I Quick Reference Guide

Quick Reference Guide I 37

DRIVING

GENESIS

ELECTRONIC STABILITY CONTROL (ESC)

The ESC system is an electronic system designed to help the driver maintain vehicle control under adverse conditions.

• To turn LKAS on, press the LKAS switch.

• To turn LKAS off, press the switch again.

The Lane Keeping Assist System detects lane markers on the road, and assists the driver’s steering to help keep the vehicle between lanes.

LANE KEEPING ASSIST SYSTEM (LKAS)

ESC automatically selects the ON position when the engine is started.

To turn off Traction Control

Press the ESC OFF button once.

To turn off Traction and Stability Control

Press and hold the ESC OFF button for more than 3 seconds.

NOTE: LKAS operates only when the

vehicle speed is above 38 mph and when the LKAS indicator is green displayed in the instrument cluster. Refer to the Owner's Manual for more detailed information.

NOTE: LKAS Settings can be

adjusted in the User Settings page of the instrument cluster under Driving Assist.

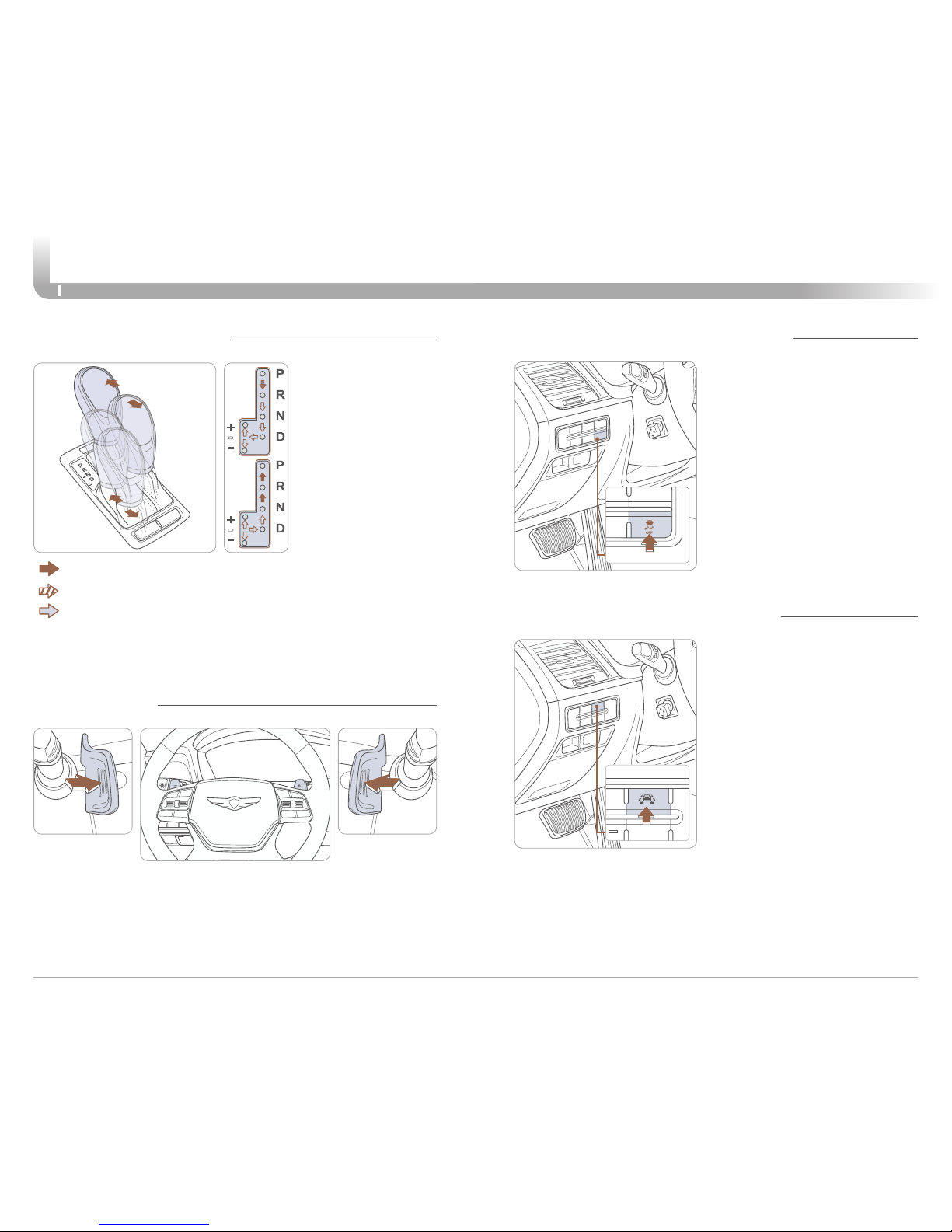

AUTOMATIC TRANSMISSION

( ) : Press the shift button, then move shift lever.

( ) : Depress the brake pedal, then move shift lever.

( ) : Move shift lever.

Move the shift lever from D (Drive) into the manual gate to select. Move the shift lever forward (+) to up shift or rearward (–) to downshift.

Manual shift mode

PADDLE SHIFTER

Press (-) to downshift

Press (+) to upshift

The Paddle shifter is available when the shift lever is in the D position or the manual shift mode.

Pull the [+] or [-] paddle shifter once to shift up or down one gear.

Page 22

Quick Reference Guide I 39

38 I Quick Reference Guide

DRIVING

GENESIS

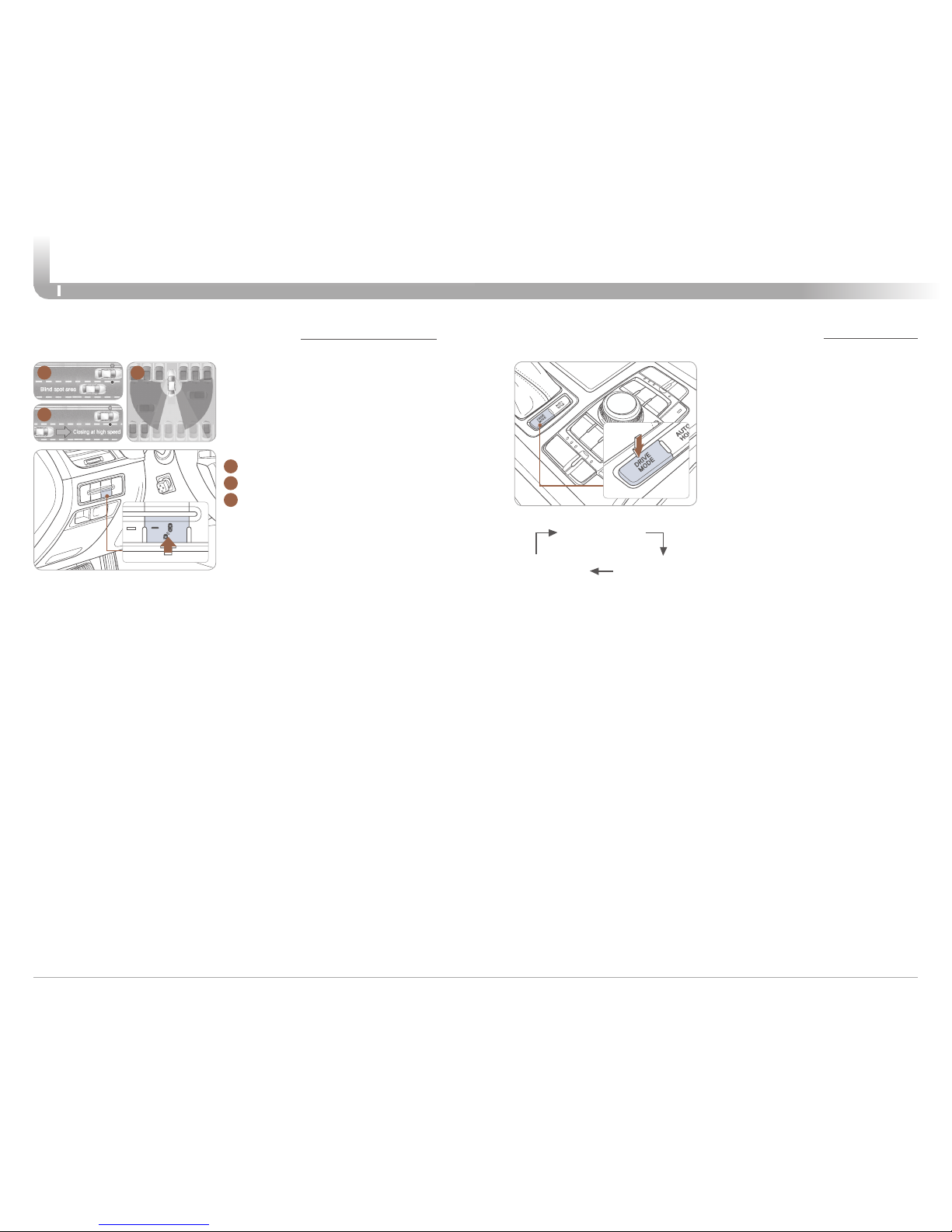

You can select the drive mode according to your preference or the road condition. The drive mode defaults to the Normal mode whenever the engine start/stop button is turned to the ON position.

Each time you press the button, the drive mode is changed as follows :

DRIVE MODE INTEGRATED CONTROL SYSTEM

Normal mode is not displayed on the instrument cluster.

Normal mode

Sport mode focuses on dynamic driving by automatically controlling the steering wheel, engine and transmission system.

Sport mode

Snow mode helps you to drive more effectively on the slippery road such as snowy or muddy road.

Press and hold the drive mode button to select the Snow mode. Press the button again to return to previous mode.

Snow mode

Active ECO helps improve fuel efficiency by controlling certain engine and transmission system operating parameters.

ECO mode

Normal mode

Sport mode ECO mode

The BSD (Blind spot detection) system uses a radar sensor to alert the driver while driving. It senses the rear side territory of the vehicle and provides information to the driver.

Blind spot detection

Lane change assist

Rear cross traffic alert

The BSD system will activate once vehicle speed exceeds 20 mph.

The rear cross traffic alert will activate, if vehicle is in reverse at speeds below 6 mph and BSD is activated.

BLIND SPOT DETECTION SYSTEM (BSD)

• To turn the BSD on, press the BSD

button. (indicator illuminated)

• To turn the BSD off, press the

BSD button again.

Page 23

GENESIS BRAND OWNER RETAILER NAME

SALES CONSULTANT DATE

VIN PREVIOUS VEHICLE

GENESIS CUSTOMER DELIVERY CHECKLIST

BEFORE DELIVERY

☐

SET TIRE PRESURE LF RF RR LR

☐

VERIFY VEHICLE IS CLEAN, IN GOOD CONDITION, FREE OF CHIPS AND SCRATCHES · CLEAN WINDSHIELD AND BACK WINDOW

☐

ENSURE FLOORMATS ARE SNAPPED INTO PLACE

Sales Consultant Date Sales Manager Date

Customer Date

40 I Quick Reference Guide

DRIVING

CRUISE CONTROL/ADVANCED SMART CRUISE CONTROL

Setting vehicle distance (Advanced smart cruise control only)

The vehicle to vehicle distance will automatically activate when you set the cruise speed.

This system assist you in setting the distance from the vehicle ahead and will maintain the selected distance without you depressing the accelerator or the brake pedal.

If your vehicle is equipped with Advanced smart cruise control and you wish to eliminate the vehicle distance function, you can change cruise control setting to a standard setting.

Press the Cruise Control button on the steering wheel to turn on Cruise Control. Then press and hold the vehicle distance button for more than 2 seconds to toggle between Smart Cruise Control (SCC) and Cruise Control (CC) mode.

Please refer to your Owner's Manual for more information.

Each time the vehicle distance set button is pressed, the vehicle to vehicle distance changes as follows:

The cruise control system allows you to program the vehicle to maintain a constant speed without holding the accelerator pedal.

Distance 4

Distance 3

Distance 2

Distance 1

To On/Off the cruise control.

To Resume or Increase the cruise control speed.

To Set or Decrease

the cruise control speed.

To Cancel the cruise control.

GENESIS BRANDED VEHICLE OWNER PRIVACY POLICY

Your Genesis Branded vehicle may be equipped with technologies and services that use information collected, generated, recorded or stored by the vehicle. We have created a Vehicle Owner Privacy Policy to explain how these technologies and services collect, use, and share this information.

You may read our Vehicle Owner Privacy Policy on the GenesisMotorsUSA.com website at http://www.genesismotorsusa.com/privacy-policy.html If you would like to receive a hard copy of our Vehicle Owner Privacy Policy, please contact Customer Care at:

Genesis Customer Care P.O. Box 20850 Fountain Valley, CA 92728 844-340-9741 [email protected]

Genesis Customer Care representatives are available Monday through Friday, between the hours of 5:00 AM and 7:00 PM PST and Saturday and Sunday between 6:30 AM and 3:00 PM PST (English). For Customer Care assistance in Spanish or Korean, representatives are available Monday through Friday between 6:30 AM and 3:00 PM PST.
