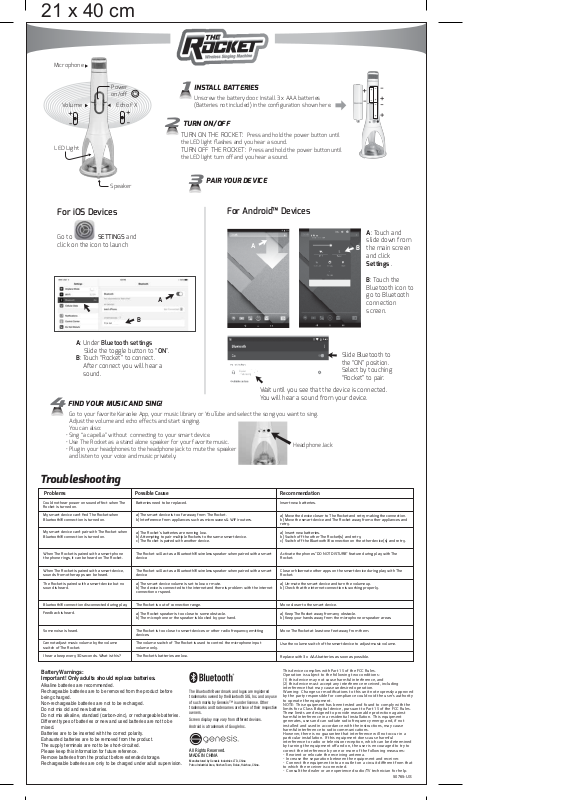

Genesis 50765 User Manual
21 x 40 cm
Microphone
Power
on/off
Volume
Echo FX
LED Light
Speaker
For iOS Devices
Go to SETTINGS and
click on the icon to launch
Rocket
INSTALL BATTERIES
1
Unscrew the battery door. Install 3 x AAA batteries
(Batteries not included) in the configuration shown here.
TURN ON / OFF
2
TURN ON THE ROCKET:
Press and hold the power button until
the LED light flashes and you hear a sound.
TURN OFF THE ROCKET:
Press and hold the power button until
the LED light turn off and you hear a sound.
PAIR YOUR DEVICE
3
For Android™ Devices
A: Touch and
A
A
B
slide down from
B
the main screen
and click
Settings .
B: Touch the
Bluetooth icon to
go to Bluetooth
connection
screen.
A: Under Bluetooth settings
Slide the toggle button to “ON”.
B: Touch “Rocket” to connect.
After connect you will hear a
sound.
Rocket
Wait until you see that the device is connected.
You will hear a sound from your device.
FIND YOUR MUSIC AND SING!
4
Go to your favorite Karaoke App, your music library or YouTube and select the song you want to sing.
Adjust the volume and echo effects and start singing.
You can also:
• Sing “a capella” without connecting to your smart device.
• Use The Rocket as a stand alone speaker for your favorite music.
• Plug in your headphones to the headphone jack to mute the speaker
Headphone Jack
and listen to your voice and music privately.
Troubleshooting
Problems Possible Cause Recommendation
Could not hear power on sound effect when The
Rocket is turned on.
My smart device can't find The Rocket when
Bluetooth® connection is turned on.
My smart device can't pair with The Rocket when
Bluetooth® connection is turned on.
Batteries need to be replaced.
a) The smart device is too far away from The Rocket.
b) Interference from appliances such as microwaves & WiFi routers.
a) The Rocket's batteries are running low.
b) Attempting to pair multiple Rockets to the same smart device.
c) The Rocket is paired with another device.
Insert new batteries.
a) Move the device closer to The Rocket and retry making the connection.
b) Move the smart device and The Rocket away from other appliances and
retry.
a) Insert new batteries.
b) Switch off the other The Rocket(s) and retry.
c) Switch off the Bluetooth® connection on the other device(s) and retry.
Slide Bluetooth to
the “ON” position.
Select by touching
“Rocket” to pair.
When The Rocket is paired with a smart phone
the phone rings, it can be heard on The Rocket.
When The Rocket is paired with a smart device,
sounds from other apps can be heard.
The Rocket is paired with a smart device but no
sound is heard.
Bluetooth® connection disconnected during play.
Feedback is heard.
Some noise is heard.
Cannot adjust music volume by the volume
switch of The Rocket.
I hear a beep every 30 seconds. What is this?
The Rocket will act as a Bluetooth® wireless speaker when paired with a smart
device.
The Rocket will act as a Bluetooth® wireless speaker when paired with a smart
device.
a) The smart device volume is set to low or mute.
b) The device is connected to the internet and there is problem with the internet
connection or speed.
The Rocket is out of connection range.
a) The Rocket speaker is too close to some obstacle.
b) The microphone or the speaker is blocked by your hand.
The Rocket is too close to smart devices or other radio frequency emitting
devices.
The volume switch of The Rocket is used to control the microphone input
volume only.
The Rocket's batteries are low.
Battery Warnings:
Important! Only adults should replace batteries.
Alkaline batteries are recommended.
Rechargeable batteries are to be removed from the product before
being charged.
Non-rechargeable batteries are not to be recharged.
Do not mix old and new batteries.
Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
Different types of batteries or new and used batteries are not to be
mixed.
Batteries are to be inserted with the correct polarity.
Exhausted batteries are to be removed from the product.
The supply terminals are not to be short-circuited.
Please keep this information for future reference.
Remove batteries from the product before extended storage.
Rechargeable batteries are only to be charged under adult supervision.
Activate the phones "DO NOT DISTURB" feature during play with The
Rocket.
Close or hibernate other apps on the smart device during play with The
Rocket.
a) Un-mute the smart device and turn the volume up.
b) Check that the internet connection is working properly.
Move closer to the smart device.
a) Keep The Rocket away from any obstacle.
b) Keep your hands away from the microphone or speaker areas.
Move The Rocket at least one feet away from them.
Use the volume switch of the smart device to adjust music volume.
Replace with 3 x AAA batteries as soon as possible.
The Bluetooth® word mark and logos are registered
trademarks owned by the Bluetooth SIG, Inc. and any use
of such marks by Genesis™ is under license. Other
trademarks and trade names are those of their respective
owners.
Screen display may vary from different devices.
Android is a trademark of Google Inc.
All Rights Reserved.
MADE IN CHINA
Manufactured by Genesis Industries LTD.,China
Putou Industrial Area, Huzhen Town, Boluo, Huizhou, China.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning: Changes or modications to this unit not expressly approved
by the party responsible for compliance could void the user’s authority
to operate the equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
50765-US
