GM-400EF

User Manual

Forehead and Ear Thermometer

Page 2

Introduction

Thank you for choosing the Dual-Mode Digital Forehead and Ear Infrared

Thermometer, or Dual-Mode Infrared Thermometer for short.

The Dual-Mode Infrared Thermometer GM-400EF can be used to read

body temperatures by measuring the ear and forehead temperature. The

device is suitable for adults and children (the ear test mode only for

children above 3 months).

Please read the instructions carefully before using the product, and put it

in a safe and secure place for reference.

Manual Ver.: 1.1 Issuing Date: 2016/10/26

Transmitter

Power

(W)

0.01 / 0.12 0.23 0.1 / 0.38 0.73 1 / 1.2 2.3 10 / 3.8 7.3 100 / 12 23 For transmitters rated at a maximum output power not listed above, the

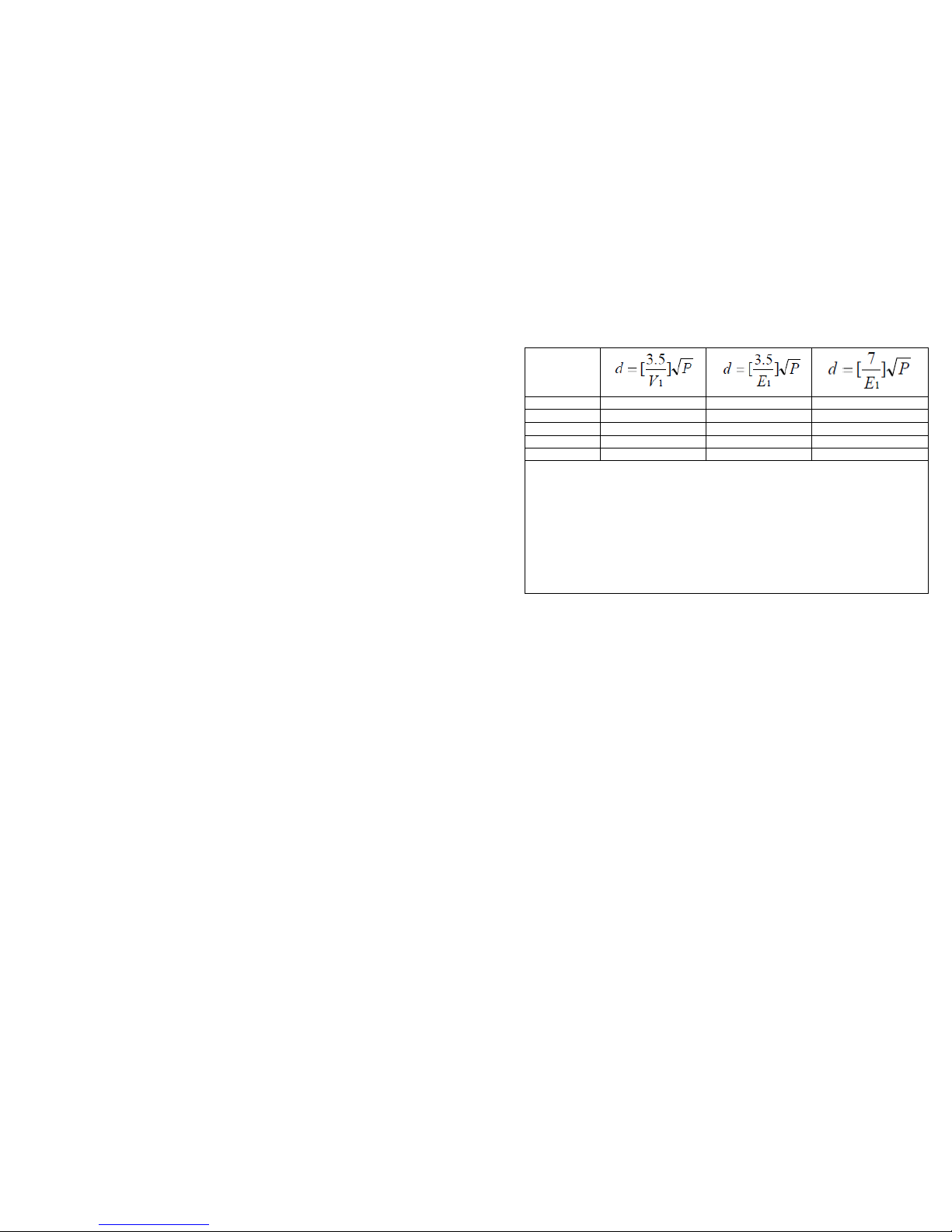

recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

Page 3

Electromagnetic site survey,a

should be less than the compliance level in each frequency range.b

Interference may occur in the vicinity of equipment marked with the following symbol:

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic is affected by absorption and reflection from structures, objects and people.

a. Field strengths from

fixed transmitters, such as base stations for radio

(cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the GM-400EF Infrared Thermometer is used exceeds the applicable RF compliance level above, the GM-400EF Infrared Thermometer should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the GM-400EF Infrared Thermometer. b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

Recommended separation distances between portable and mobile RF communications equipment and the EQUIPMENT or SYSTEM

-for EQUIPMENT and SYSTEMS that are not LIFE-SUPPORTING

Recommended separation distances between port

able and mobile RF

communications equipment and the GM-400EF Infrared Thermometer.

The GM-

400EF Infrared Thermometer is intended for use in an electromagnetic

environment in which radiated RF disturbances are controlled. The customer or the user of the GM-400EF Infrared Thermometer can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the GM-400EF Infrared Thermometer as recommended below, according to the maximum output power of the communications equipment.

Rated

maximum output

Separation distance according to frequency of transmitter m

150 kHz to 80 MHz

80 MHz to 800

MHz

800 MHz to 2,5 GHz

Contents

1. The advantages of infrared thermometer GM-400EF ........... .......... ......... 1

2. Necessary safety instructions ....... ..................... ......... .............................. ..... 2

3. Instructions for product designs....................... ......... ..................... .......... ...... 3

4. How to measure the forehead temperature ................................. .......... ..... 4

5. How to measure the ear temperature ................ .............................. ............ 4

6. Instructions for display and operation .............. .............................. .............. 5

7.Cleaning and Disinfection ................. ........................................ ......... .............. 8

8.Maintenance ............ .................... .......... ........................................ ...................... 8

9. Replace the battery. ............ .................... .......... .............................. .......... ....... 9

10.Troubleshooting .................. .......... ......... ..................... ......... ............................ 9

11. Technical specifications ........... .............................. .......... .......................... 10

12. After-sale service ................. .............................. .............................. .......... .. 11

13. Security type ................ .............................. .......... .............................. .......... . 11

14. Authorized European Representati ve: ......... ..................... ......... ............. 11

15. Symbols ............... .......... ......... ..................... ......... ............................... ......... . 12

16.Declaration ............. .......... .............................. .............................. .......... ........ 12

17. Appendix A: EMC Information-Guidance and Manufacture’s

Declaration ............................ ......... ..................... ......... .......... .............................. 12

Page 4

1. The advantages of infrared thermometer GM-400EF

Multiple use (measurement of forehead and ear temperature) Thanks to its dual-mode design, you are free to take body temperature by detecting the infrared heat given off by the forehead, which is from 32℃ to 42.2℃(from 89.6℉ to 107.9℉) , and by the eardrum, which is from 0℃ to 100.0℃（from 32.0℉ to 212.0℉）. The product consists of ABS plastics, temperature sensor, infrared temperature measuring element, microcomputer controlled circuit, LCD, backlight and buzzer.

Convenient for use

● Special ergonomic design to facilitate operation.

● No inconvenience would be caused to your daily life. It’s available for measurement when your child’s sleeping.

● It provides comfortable user experience (compared to anal thermometer for children) and rapid reading and simple operation (compared to mouth thermometer).

Memory recall

A maximum of 20 previous readings is available to help you track the changes of your body temperature.

Safe and hygienic

● Compared to mercury thermometer, there is no danger of breaking the glass or swallowing mercury.

● It is totally safe for children to use.

Fever warning

When the reading exceeds 37.5℃/99.5℉ , this product shall warn the user that he/she may have a fever by 7 rapid and short rings with LCD flicker. (For normal forehead temperature, the signal is long ring with LCD no flicker)

Extensive clinical data of hospital

The cooperation with designated hospitals is subjected to precise clinical verification, with the support of extensi ve clinical data and professional medical experts.

Application scope

The thermometer takes human body temperature for clinical or household use. It applies to all age groups and those who are suffering from a fever.

IEC 61000

-4-8

environment.

Guidance and manufacturer´s declaration – electromagnetic immunity –for EQUIPMENT and SYSTEM that are not LIFE-SUPPORTING

Guidance and manufacturer´s declaration

– electromagnetic immunity

The GM-

400EF Infrared Thermometer is intended for use in the elec

tromagnetic

environment specified below. The customer or the user of the GM-400EF Infrared Thermometer should assure that it is used in such an environment.

Immunity test

IEC

60601 test level

Compliance

level

Electromagnetic environment

guidance

Radiated RF IEC 61000-4-3

3 V/m 80 MHz to 2.5 GHz

3 V/m

Portable and mobile RF communications equipment should be used no closer to any part of the GM-400EF Infrared Thermometer, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance

where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).b

Field strengths from fixed RF transmitters, as determined by an

Page 5

● The GM-400EF Infrared Therm ometer should not be used adjacent to or stacked with other equipment.

Guidance and manufacturer´s declaration – electromagnetic emission –for all EQUIPMENT AND SYSTEMS

Guidance and manufacturer´s declaration

– electromagnetic emission

The GM-

400EF Infrared Thermometer is intended for use in the electromagnetic

environment specified below. The customer or the user of the GM-400EF Infrared Thermometer should assure that it is used in such an environment.

Emissions

test

Compliance

Electromagnetic environment

- guidance

RF emissions CISPR 11

Group 1

The GM-

400EF Infrared Thermometer uses

RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.

RF emissions CISPR 11

Class B

The GM-400EF Infrared Thermometer is suitable for use in all establishments, including domestic establish ments and those directly connected to the public low-voltage powe r supply network that supplies buildings used for domestic purposes.

Guidance and manufacturer's declaration – electromagnetic immunity –for all EQUIPMENT and SYSTEMS

Guidance and manufacturer´s declaration

– electromagnetic im

munity The GM-

400EF Infrared Thermometer is intended for use in the electromagnetic

environment specified below. The customer or the user of the GM-400EF Infrared Thermometer should assure that it is used in such an environment.

Immunity test

IEC

60601 test level

Compliance

level

Electromagnetic environment

guidance

Electrostatic

discharge (ESD) IEC 61000-4-2

±6 kV contact

±8 kV air

±6 kV contact

±8 kV air

Floors should be wood,

concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30 %.

Power

frequency (50/60 Hz) magnetic field

3 A/m 3 A/m

Power frequency magnetic

fields should be at levels characteristic of a typical location in a typical commercial or hospital

2. Necessary safety instructions

● Do not use the device with a newborn baby.

● The device is not a continuous monitoring device.

● GM-400EF is not waterproof. Please do not immerse in water or other liquids. Cleaning and disinfection procedure shall be in comply with the instructions specified in cleaning and storage.

● Please do not use the product if the temperature sensor or the dual-mode infrared thermometer shows any sign of damage. Do not try to repair the product if it is damaged. Please contact the nearest Customer Service.

● GM-400EF consists of precision parts with high quality. Please prevent the product from falling down. Protection shall be provided for no intense shock and vibration. Do not twist the dual-mode infrared thermometer or the temperature sensor.

● Operating Conditions: Temperature: 10°C to 40°C Humidity: ≤80% RH, non-condensing Atmospheric pressure: 860hPa to 1060hPa

● Storage and Shipping Conditions: Temperature: -10°C to 55°C Humidity: ≤93% RH, non-condensing Atmospheric pressure: 860hPa to 1060hPa

● Battery Installation: Put two AAA batteries into the battery compartment with the correct polarities. Push the battery cover horizontally along the arrow.

Notes:

☆ If it is the first time use of the thermometer, please pull out the

plastic strip.

☆ Battery polarities should be correctly installed. Otherwise, damage

may be caused to the device.

☆ Please put in or remove batteries in the right order. Otherwise, it may

cause damage to the device bracket.

☆ Please remove the batteries if the thermometer will not be used for a

long time.

Warnings

● Please keep the dual-mode infrared thermometer out of children’s reach

Page 6

● Medical assistance cannot be replaced by the use of infrared dualmode infrared thermometer

● The dual-mode infrared thermometer is not waterproof! Keep it away from water.

3. Instructions for product designs

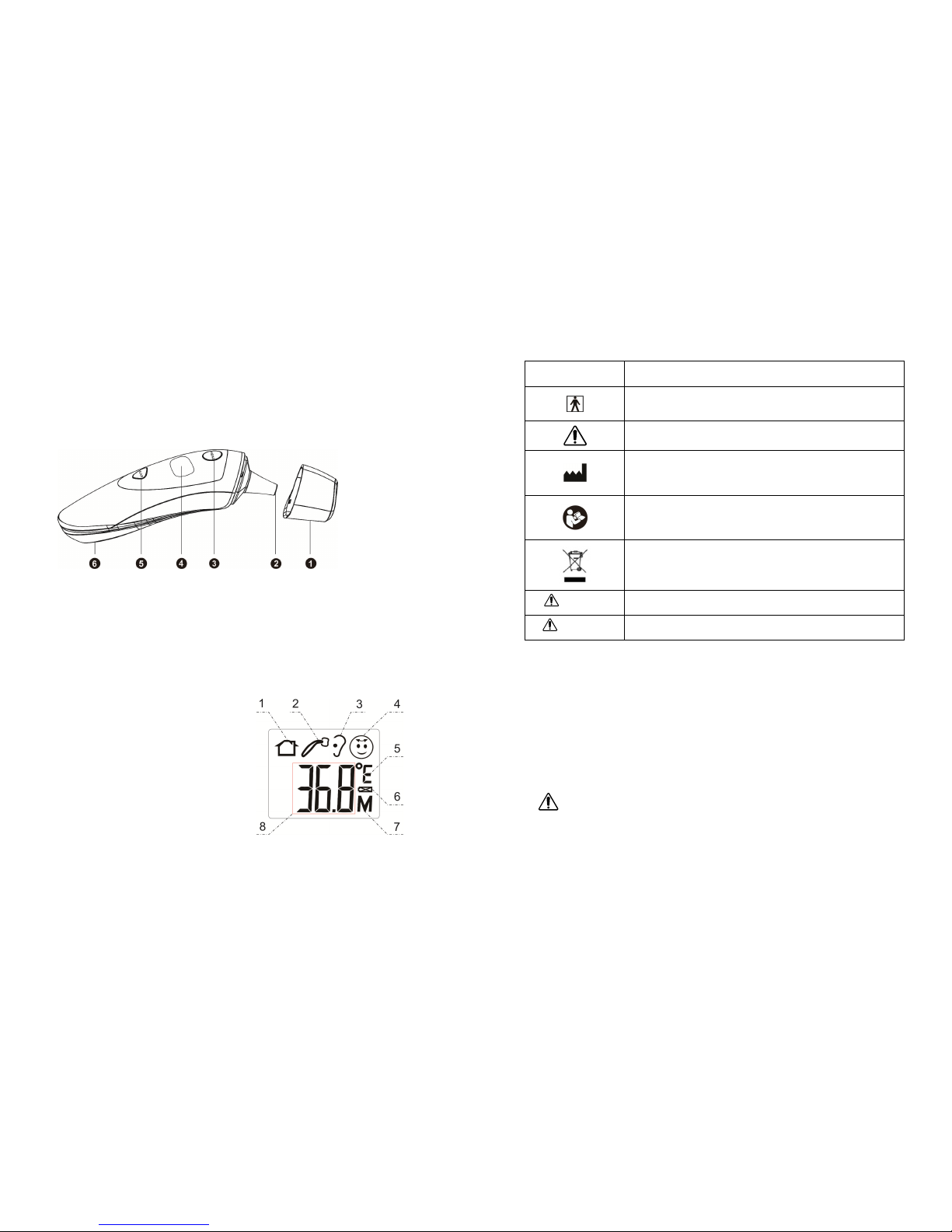

(1) Probe cover (put the cover on when using the forehead mode) (2) Probe (take off the cover when using the ear mode) (3) Forehead mode (4) LCD display screen (5) Ear mode (6) Battery cover

Display description

1. Ambient temperature

2. Ready for measurement

3. Ear mode

4. Head mode

5. ˚C / ˚F

6. Low power indicator

7. Memory mode

8. Digits

15. Symbols

Symbol Description

Type BF applied part.

Attention must be paid.

Information about a manufacturer, such as name and address.

Please read the instructions carefully.

Waste electrical materials should be sent to a dedicated collection point for recycling.

W arning

A personal injury or thermometer damage may occur if

the thermometer is not correctly used.

Attention

Inaccurate reading or thermometer damage may occur if

the thermometer is not correctly used.

16.Declaration

EMC of this product complies with IEC60601-1-2 standard. The materials with which the user can come into contact have no toxicity

and no action on tissues, which complies with ISO10993-1, ISO10993-5 and ISO10993-10.

UDI: 09351337000043

17. Appendix A: EMC Information-Guidance and Manufacture’s Declaration

CAUTION:

● GM-400EF Infrared Therm ometer needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided for in the ACCOMPANYING DOCUMENTS.

● Portable and mobile RF communications equipment can affect GM-400EF Infrared Thermometer

Page 7

5.Display resolution

0.1 /0.1℃ ℉

6.Latency Time

1 second

7.Sound

Volume≧50 db (the perpendicular distance from dB Volume sensor to thermometer is 10cm )

.Autom

atic shutdown

function

10s±1s

.Low-voltage display

function

The product shall display low

voltage signal if the voltage

is below 2.51V±0.15V.

10.Memory function Memorize 20 groups of measured temperature.

11.LED backlit

specifications

≧1.2cd/m

12.Operational

conditions

ASTM 10℃-40 (50℃ ℉-104 )/15℉ -95%RH

13.Type of measuring Applicable for forehead temperature and ear temperature

.battery

Changeable for two 1.5V triple AAA batteries

.Battery life

More than 3000 times

16.The date of

production

See the label

17.Life 5 years

12. After-sale service

The device is under warranty for one year since the date of purchase. Application for repair should be presented during the warranty period. Damage caused by improper use is not under warranty scope. Batteries and packaging are not under warranty scope as well.

13. Security type

The signal indicates that the thermometer is a BF type device with

internal power supply.

14. Authorized European Representative:

Wellkang Ltd Suite B, 29Harley Street, LONDON, W1G9QR,U.K.

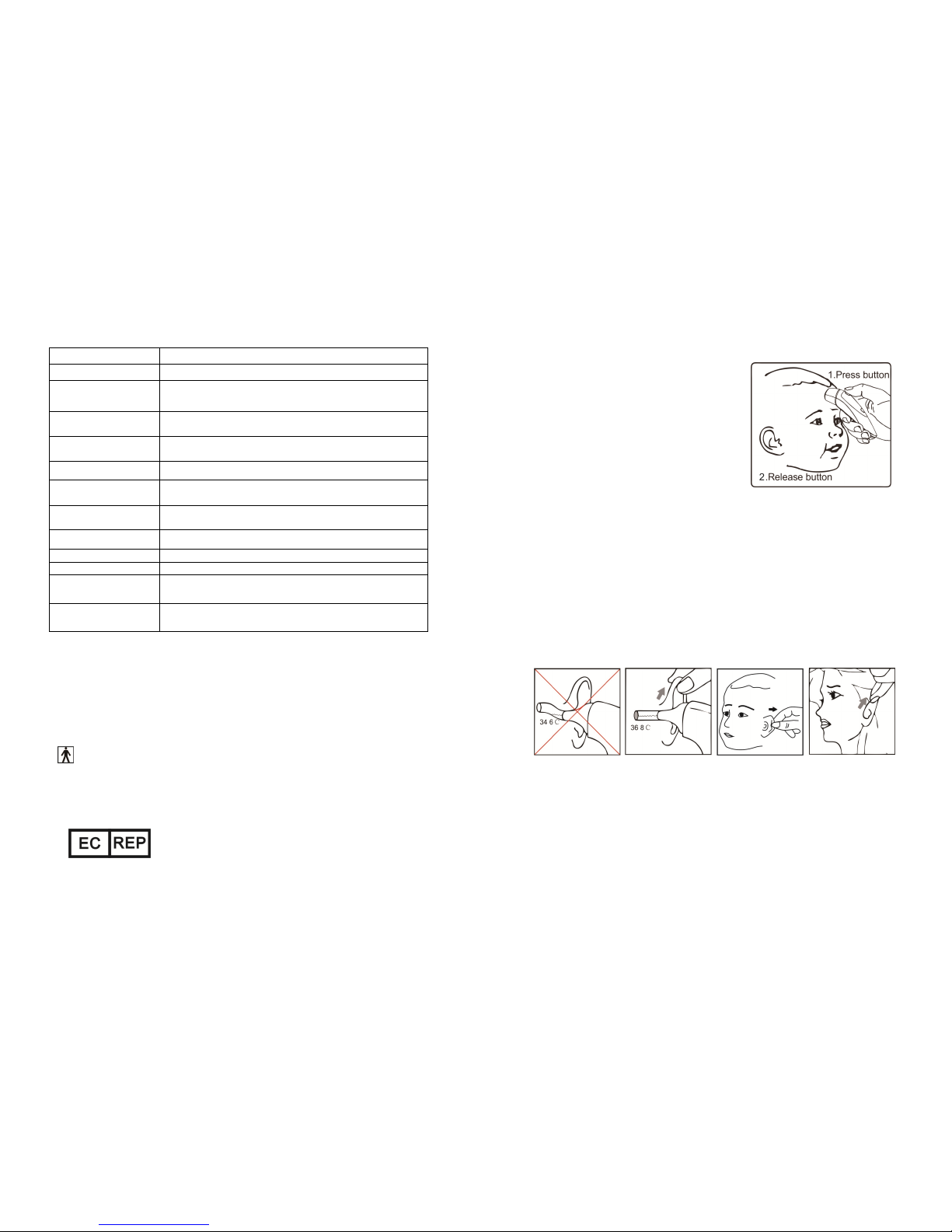

4.How to measure the forehead temperature

Position the probe just above the middle of the eyebrows, keep in contact, and press the head button momentarily to take a reading. The temperature will be displayed on the LCD screen. Once the back light turns off, you can retake the temperature if you wish. If you are not happy with the reading, simply repeat the process, ensuring you position the probe between the eyebrows.

Once the reading has been completed, remove the thermometer away from the forehead and observe the temperature.

5.How to measure the ear temperature

Take off the probe cover; insert the sensor into the ear canal. Then press the EAR button when the thermometer is off, the temperature reading is shown on the LCD display. You can take another measurement when the backlight is off.

Note:

Children under 1 year: Pull the ear straight back. Children aged 1 year to adult: Pull the ear up and back.

In order to avoid the inaccuracy: (1) Please make sure that there is no dirt on the temperature sensor. (2) Please make sure that the device is only used indoor, and there is no strong wind. (3) If the eyebrow area is covered with hair, sweat or dirt, please clean the area beforehand to improve the reading accuracy.. (4) Before you measure the ear temperature, please make sure that the ear is clean, with no earwax or obstructions. (5) Please make sure that there is no intense emotion and movement

Page 8

before measuring. (6) If GM-400EF is transferred from one condition to another with a different ambient temperature, it is suggested to leave it for more than 30 minutes, and please follow the rule (2). (7) If the tester moves from one condition to another with a different ambient temperature, it is suggested to have a rest for more than 10 minutes, and please follow the rule (2). (8) Do not hold GM-400EF for a long time as it is highly sensitive to heat. GM-400EF has undergone clinical tests, so it is safe and accurate when used in accordance with the operation manual.

6. Instructions for display and operation

LCD

display

Operational method and instruction

for displays

Sound and backlight

1.Measuring forehead temperature Press the HEAD button momentarily and release. The temperature reading will be displayed on the LCD.

2.Measuring ear temperature Press the EAR button once quickly (no longer than 4 seconds). The ear temperature reading will be displayed on the LCD.

3. Press the EAR or HEAD button to take another measurement.

Attention: When the measured temperature exceeds 37.5℃/99.5℉, which may indicate a fever, you will hear 7 short rapid beeps, and the LCD will flicker.

1. Forehead temperature mode :

32.0℃/89.6℉≤t <37.6℃/99.6℉ Ear temperature mode:

0.0℃/32.0℉≤t <37.6℃/99.6℉, there will be one long beep and the LCD will display green backlight for 3 seconds.

2. Forehead temperature mode: 37.6℃/99.6℉≤t <42.2℃/107.9℉ Ear temperature mode:

37.6℃/99.6℉≤t <100℃/212℉ There will be 7 short beeps and the LCD will display red backlight for 3 seconds

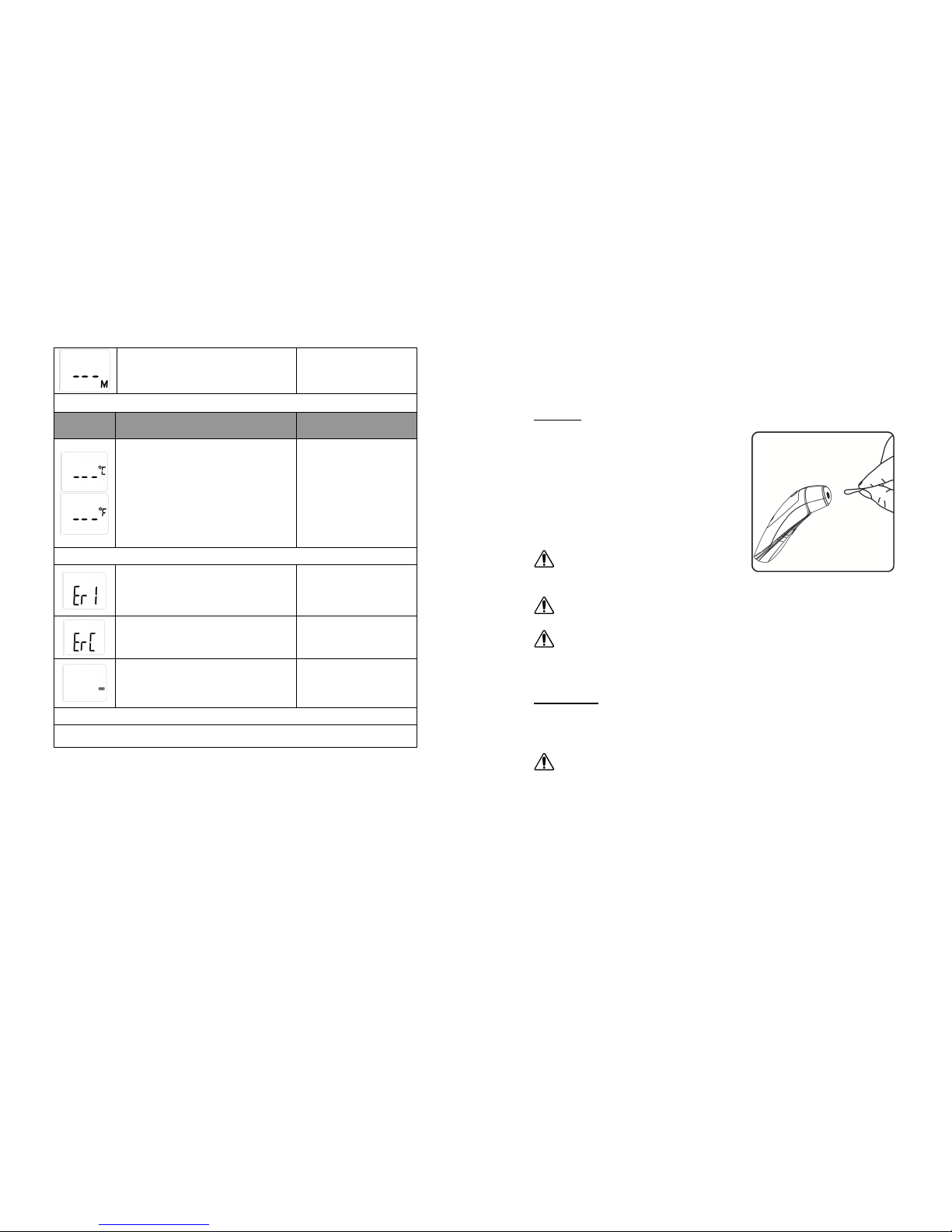

Problem

Possible Cause Solution

"ErC" is displayed.

An error occurs when

data is being read from or

written into the memory,

or the temperature

correction is not

complete.

Contact Generation

Guard.

The temperature

reading is lower

than the typical

body temperature

range.

The lens of the

temperature probe is

dirty.

Clean the lens using a

cotton swab.

The distance between the

temperature probe and

the target is too far.

Move the thermometer

closer to the target.

The thermometer is not

used within 30 minutes

after being taken from a

cold environment.

Wait for more than 30

minutes after the

thermometer is moved

into the measurement

environment.

The temperature

reading is higher

than the typical

body temperature

range.

The temperature probe is

faulty.

Contact Generation

Guard.

11. Technical specifications

Items

Standards

Model Dual-mode infrared thermomet

er GM-

400EF

1.Applicable regulations and laws ASTM 1965/EN12470-5/GB/T 19146-2010

2.Temperature units

/ , ℃ ℉

adjustable

3.Measurement range

Forehead temperature mode:32.0℃

42.2 / 89.6℃F –

107.9 F ear temperature mode:0.0℃-100.0 /32.0℃ F – 212.0 F

4.Precision

±0.2 /±0.4℃F

Page 9

3) Check whether safety risks exist on a regular basis.

4) Remove the batteries if the thermometer will not be used for more than two months.

9. Replace the battery.

Slide the battery cover off along the marked direction. Put two AAA batteries correctly into the compartment.

Remove the batteries if the thermometer will not be used for more than two months.

10.Troubleshooting

Problem

Possible Cause Solution

The thermometer

fails to turn on.

The battery level is

extremely low.

Use new batteries of the

same model or

specifications.

Polarities of the batteries

are reversed.

Ensure that the batteries

are correctly installed

according to the polarity

symbols in the battery

compartment.

The thermometer is

faulty.

If the warranty period

has not expired, contact

a local distributor.

Only the battery

symbol is displayed

after the

thermometer

powers on.

The battery level is low. Use new batteries of the

same model or

specifications.

"Er1" is displayed.

The ambient temperature

is lower than 10°C

(50.0°F) or higher than

40°C (104°F).

Take a measurement

under an ambient

temperature between

10°C (50.0°F) and 40°C

(104°F).

Ready for detection, the relative symbol will twinkle.

1. The measured temperature exceeds 100℃/212.0℉ on the ear temperature mode.

2. The measured value exceeds

42.2℃/107.9℉on the forehead temperature mode.

3 short beeps and red backlight display for 3 seconds.

1. The measured value exceeds 0℃/32.0℉ on the ear temperature mode.

2. The measured value exceeds

32℃/89.6℉on the forehead temperature mode.

3 short beeps and red backlight display for 3 seconds.

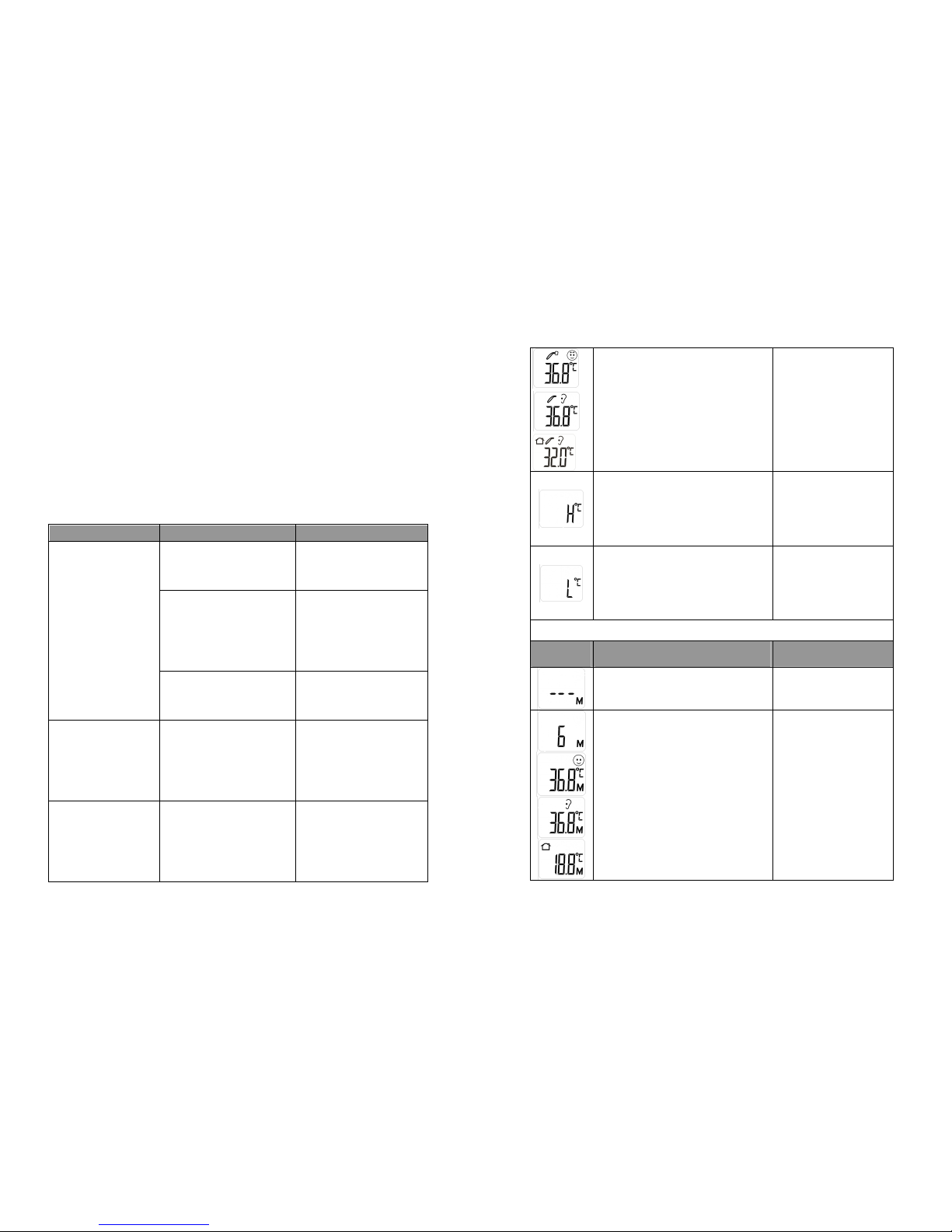

Memory data, stores 20 temperature readings

LCD

display

Operational m

ethod and instruction

for displays

Sound and backlight

In power off mode, press and hold the EAR button for 3 - 6 seconds to enter the recall mode.

silence

Once the screen displays a flashing “- - -M” symbol, release and press the EAR button again and the screen will display the first data group. 1-20 data groups can be stored and you may review the stored data by pressing the EAR button.

silence

Page 10

The LCD will only display “- - -”, ℃/℉ and the M symbol twinkling if there is no test data.

silence

/ conversion℃ ℉

LCD

display

Operational steps

Sound and backlight

While the thermometer is off, click and hold the EAR button for 6-9 seconds or until the “- - -°C or - - -°F” symbol is blinking on screen. Click the EAR button again within 5 seconds to change the temperature unit to either ° C or °F.

silence

Error message

It will display “Er1” when the ambient temperature exceeds 40.0℃/104℉or drops below 10.0℃/50.0℉.

3 short beeps and red backlight display for 3 seconds.

It will display “ErC” if there is Memory Error. Please contact your supplier.

3 short beeps and red backlight display for 3 seconds.

There will be a low-voltage sign (no twinkling) when the battery voltage is below 2.61V±2%. Please replace the battery.

silence

Power Off Mode

In any mode, if there is no operation for 10 seconds, it will turn off automatically.

Attention:

●Electromagnetic interference: GM-400EF contains sensitive electronic

component and shall not be used under a condition with

electromagnetic interference (such as a place nearby mobile phones

and microwaves).

●Please dispose used products and batteries in accordance with local

regulation requirements.

●Please take out the battery if the device is not used for a long time.

7.Cleaning and Disinfection

Cleaning

1) Clean the temperature probe with a soft cloth. Clean the lens of the temperature probe with a cotton swab.

2) Wipe the thermometer body with a slightly damp soft cloth, and gently dry the body with a piece of tissue paper.

Keep water off the lens during the cleaning process. Otherwise, the lens may be damaged.

The lens may be scratched if it is cleaned with a piece of tissue

paper, resulting in inaccurate readings.

Do not clean the thermometer with corrosive cleansers. During the cleaning process, do not touch the lens using hard objects, immerse any part of the thermometer into liquid, or allow liquid to enter the thermometer.

Disinfection

1) Disinfect the thermometer body and the area around the

temperature probe with a cloth slightly moistened with 75% medical alcohol.

Do not use hot steam or ultraviolet radiation for disinfection.

Otherwise, the thermometer may be damaged or quickly aged.

8. Maintenance

1) After each use, clean the temperature probe as described in

"Cleaning and Disinfection".

2) Store the thermometer in a dry, dust-free, and well-ventilated place.

Ensure that the thermometer is not exposed to sunlight. Ensure that the storage and transportation environments meet the requirements
