HIGH-PERFORMANCE RECORDING
VIDEO BORESCOPE SYSTEM with
VGA RESOLUTION PROBE
USER’S MANUAL
DCS1600HP
Please read this manual carefully and thoroughly before using this product.
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
What’s in the Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 –5
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 –6
Setup Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Attach Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Charge Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Insert SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 – 13
Viewing Live Video on the Console . . . . . . . . . . . . . . . . . . . . 8
Operating the Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 – 11
Using the Three Control Buttons . . . . . . . . . . . . . . . 8 –9

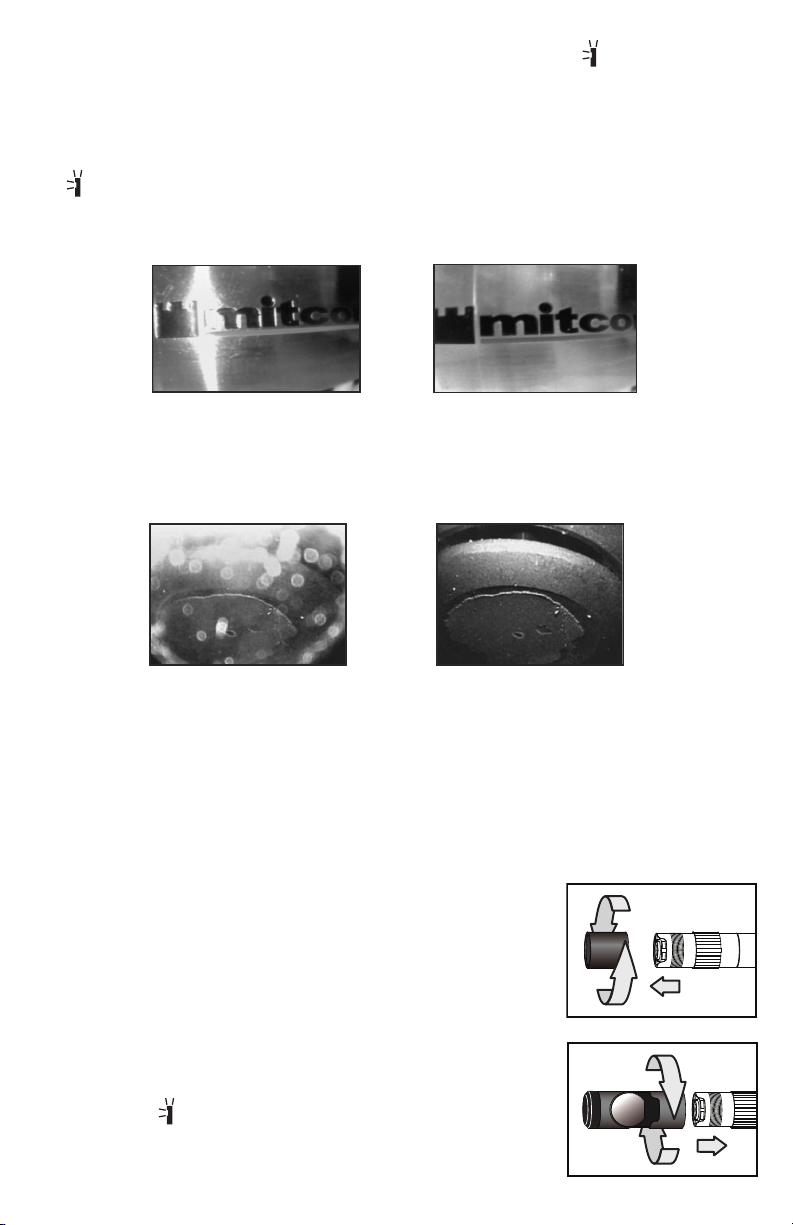

Attaching the Mirrored Viewing Tip (Optional) . . . 9 – 10
Viewing Live Video on a TV Monitor . . . . . . . . . . . . . . . . . . 10
Taking Pictures and Recording Videos . . . . . . . . . . . . . . . 11
Viewing Photos and Playing Back Videos . . . . . . . . . . . . . 11
Accessing SD Card Content . . . . . . . . . . . . . . . . . . . . . . . . 12
Navigating the Main Menu . . . . . . . . . . . . . . . . . . . . . 12 – 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 – 15
Operating, Maintenance & Troubleshooting Tips—
H16 Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Operating & Maintenance Tips—P16181HP Probe . . . . . . . . . . . 16
Compatible Probes & Accessories . . . . . . . . . . . . . . . . . . . . . . . . 17
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Return for Repair Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
2
INTRODUCTION
Thank you for purchasing General Tools & Instruments’ (General’s) DCS1600HP HighPerformance Recording Video Borescope System with VGA Resolution Probe. Please read
this user’s manual carefully and thoroughly before using the instrument.
The DCS1600HP is a complete system that combines an H16 Handheld Recording Video
Borescope Console with a P16181HP VGA Resolution Probe, which is 1m (39 in.) long
and has a diameter of 5.5mm (0.22 in.). A list of all probes compatible with the H16
console can be found on p. 17.
The H16 is a handheld computerized console with a 3.5-inch (diagonal) color LCD. A
thumbwheel on the left side of the H16 allows you to adjust the brightness of the LEDs
illuminating the camera at the end of an attached probe. A horizontal line of green bars
indicating the brightness level temporarily appears on-screen whenever the unit is
powered on or the brightness is changed.
The console has three operating modes: Preview, Playback and Menu:
• In Preview mode, video framed by the camera’s field of view is displayed in real
time on the console’s LCD. The H16 automatically enters this mode when powered
on. A front-panel button allows you to double the size of a target (a zoom level of

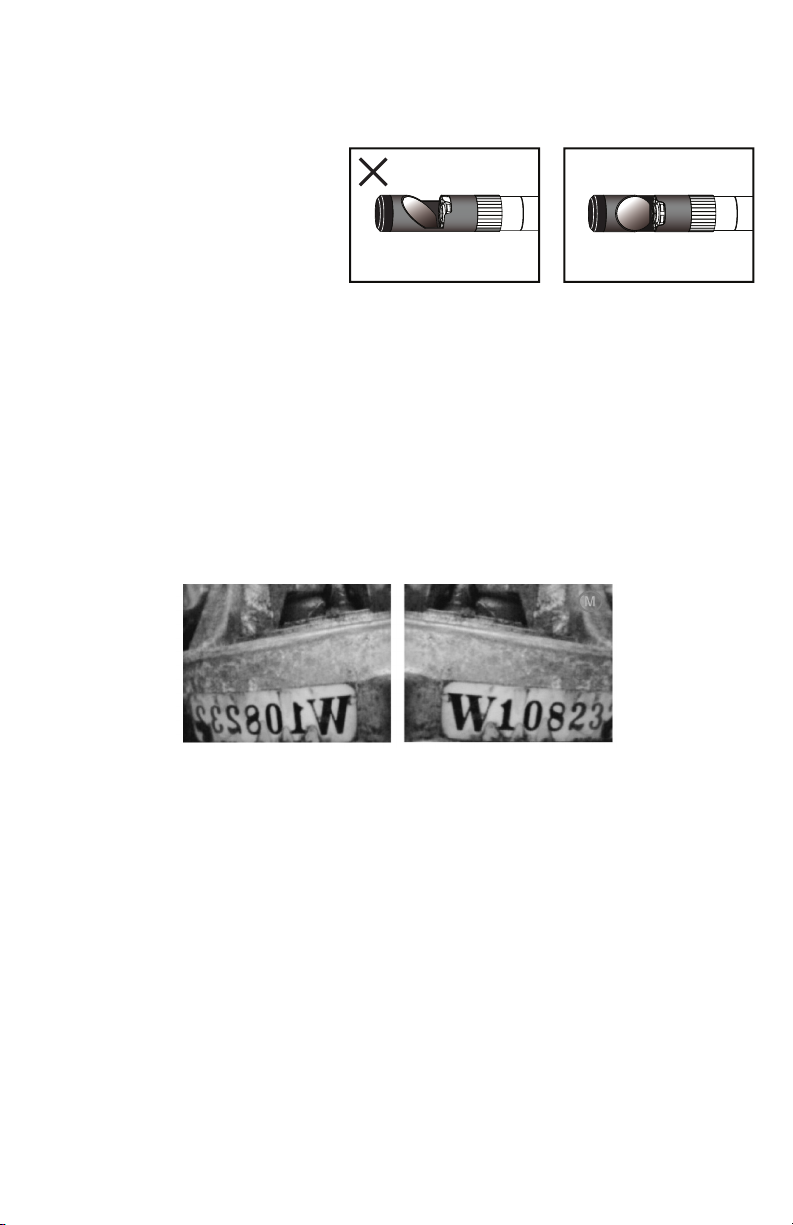

2X). The same button allows you to “mirror” video, making it possible to read serial
numbers seen and “reversed” by an attached probe with a mirrored viewing tip.
The zoom and mirroring functions can be applied at the same time. In Preview
mode, real-time video also can be exported through an included video cable to
any NTSC- or PAL-format TV monitor with an RCA input jack.
Operating in Preview mode, the H16 also allows you to record inspection videos and
photos at 640 x 480 pixel resolution on an included SD memory card by pressing
icon-labeled buttons on the console’s front panel. The remaining front-panel
buttons enable access to Playback and Menu modes.
• In Playback mode, you can browse the SD card for saved video and picture files
and view the media on the console’s LCD or a larger TV monitor. Video clips and
photos also can be viewed on a PC in either of two ways: 1) by removing the SD
card and plugging it into the computer directly or through a card reader; or 2) by
using a supplied cable to connect the H16 to the PC through one of its USB ports.
Because videos are saved as .avi files and photos as .jpg files, applications found
on most PCs (Microsoft Windows Media Player and Microsoft Office Picture
Manager) can open the files. The 8GB SD memory card included with the H16 can
store more than three hours of video, recorded at an average of 26 Mbytes/minute,
in addition to hundreds of photos.
• In Menu mode, you use familiar scrolling motions and responses to dialog boxes to
navigate a main menu with six submenus. When selected, submenu items execute
“housekeeping” functions such as deleting files, setting the date and time, enabling
or disabling date and time stamps, choosing any of 27 languages for display
indications and menu options, selecting a Video out format and disabling or
adjusting the console’s Auto Power Off trigger.
3
KEY FEATURES
•
3.5 in. diagonal color LCD for viewing probe video in real time and saved video and
pictures later
• 1m (39 in.) long semi-rigid probe with IP67 ingress protection rating and diameter of
5.5mm (0.22 in.). Probe has six super-bright white LEDs (four forward-facing and two
side-facing) to support capture of 640 x 480 pixel (VGA) resolution video and still
images. Probe controller has light boost, anti-reflection and 90° image rotation
buttons.
• Console is compatible with dozens of high-performance camera-tipped probes from
General (see p. 17)
• Thumbwheel for adjusting brightness of camera lighting
• Familiar menu-driven user interface for viewing and recording videos and photos on
standard SD memory card (8GB card included) and playing back media on console,
TV or PC
• Rechargeable battery with 4-hour capacity
• 1-year limited warranty
SAFETY INSTRUCTIONS
CAUTION!
Never insert a probe attached to the H16 into a structure or space known
or suspected to contain live electric wiring
• The H16 is intended for industrial applications only. Do not use it for human or any
other biological inspections.
• Never insert an attached probe into any flammable gas or liquid (including fuels in an
oil, gasoline or diesel tank)
• Do not disassemble the instrument. Doing so creates a potentially fatal electrical
hazard (and voids the warranty as well).
WHAT’S IN THE CASE
The DCS1600HP comes in a custom hard plastic protective carrying case. Inside the
case are:
• The H16 console. The console integrates an LCD monitor, a connector for a highperformance camera-tipped probe from General, and front-panel controls for
controlling the camera’s lights, adjusting system parameters, and recording and
playing back videos and photos captured by an attached probe.
• A P16181HP semi-rigid VGA Resolution Probe of 1m (39 in.) length and 5.5mm
(0.22 in.) diameter
• A 8GB SD memory card
• An AC adaptor/battery charger for a 110/220VAC supply. The adapter has a 5.5VDC,
center-positive output plug.
• A video cable for connecting the H16 to a TV monitor. The cable has RCA plugs at one
end and a mini-stereo plug at the other end.
• A 110° mirrored probe viewing tip
4
• A USB cable with a mini-USB plug on one end and a full-size USB plug on the other
end. It can be used to display the contents of the SD card on a computer directly,
without removing the card from the console.
• A microfiber screen cleaning cloth
• This user’s manual
PRODUCT OVERVIEW
Fig. 1 shows the names and locations of all of the controls, ports and jacks of the H16.
Fig. 2 (on the next page) shows the controls and physical features of the P16181HP VGA
Resolution Probe. Table 1 (also on the next page) details how the function of each frontpanel button on the H16 changes with the console’s operating mode. Familiarize
yourself with the labels, positions and functions of all buttons and connectors before
moving on to the Setup Instructions and Operating Instructions.
14
8
11
12
4
5
7
6
2
1
3
9
10
15
13
LEFT SIDE
FRONT BACK RIGHT SIDE
Fig. 1. The controls, ports and jacks of the H16
1 Start/Stop Video Recording Button
2 Snapshot Button
3 Power On/Off Button
4 Previous Video/Photo Button
5 ▼ Next Video/Photo Button
6 OK OK Button
7 ESC Escape/Zoom/Mirror Button
8 SD Card Socket
9 TV Out Jack
10 AC Adaptor Jack
11 Mini-USB Jack
12 Brightness Adjustment
Thumbwheel
13 Hanger Hole
14 Probe Connector
15 Reset Button
5
Fig. 2. The controls and physical features
1
1
0
9
8
7
6
5
4
3
2
of the P16181HP VGA Resolution Probe
1. Probe
2. Stainless steel camera head
containing four forward-facing
LEDs and two side-facing LEDs
3. Stainless steel accessory
alignment ring
4. Black metal thread protector ring
5. Red rubber protective cap
6. Probe handle
7. Light boost button
8. 90° rotation button
9. Anti-reflection button
10. Probe connector
Table 1. The H16’s multi-function buttons
Button Label In Preview Mode In Playback Mode In Menu Mode
▲ Switches to Selects next-oldest Moves up one line;
Playback mode video or photo when setting DATE/TIME,
moves back one field
▼ Switches to Selects next-newest Moves down one line;
Playback mode video or photo when setting DATE/TIME,
moves ahead one field
OK Switches to Menu mode Pauses/plays video clip Executes highlighted command
ESC Presssed briefly, enlarges Switches to Preview mode Switches to Preview mode
target by 100% (zooms 2X);
Pressed and held,
mirrors video
Takes a picture N/A When setting DATE/TIME,
(stores .jpg photo on SD card) increases value by one unit
Starts/stops recording an Enables deletion of any When setting DATE/TIME,
.avi video on SD card individual photo or video decreases value by one unit
per button press. Also used to
enable/disable superimposition
of date and time stamps on
photo/video displays.
per button press
