“Stacker 150” Woodbox (WBX-150) Assembly Instructions
How-To Assemble Your
STACKER 150
Woodbox
PART NO. WBX-150
DIFFICULTY NOVICE
APPROX. DIM. 3'W x 2'D x 4'H
APPROX. WEIGHT 2,485 lbs.
GENERAL SHALE OUTDOOR LIVING PRODUCT WARRANTY
All General Shale Outdoor Living products are warranted to be made from high quality materials that meet or exceed ASTM material standards.
Outdoor Living products are intended for recreational or residential use and are not warranted for any other purpose. The life of the product
depends on correctness of installation and extent of usage. All metal components are subject to normal rust and corrosion.
ANY IMPLIED WARRANTIES ARE HEREBY DISCLAIMED AND ARE EXPRESSLY EXCLUDED.
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Materials included with your outdoor kit.
A-(7) 4" x 8" x 16" Block
B–(12) 4" x 8" x 12" Block
B1–(5) 4" x 8" x 14" Bullnose
B2–(1) 4" x 4 ½" x 14" Bullnose
B3–(1) 4" x 6 ¾" x 14" Bullnose
C1–(1) 4" x 8" x 8" Bullnose
C2–(1) 4" x 8" x 8" Bullnose Corner
C3–(2) 4" x 5" x 8" Bullnose
D–(42) 4" x 8" x 4" Block
E–(16) 4" x 4"x 16" Block
F–(31) 4" x 4" x 12" Block
F2–(2) 4" x 4" x 11 ¼" Block
G–(6) 4" x 4" x 4" Block
H–(1) 4" x 4 ¼" x 8" Blo ck
I–(1) 4" x 6 ¾" x 12" Bl ock
(1) 6" x 8" x 27" Cast Lintel
(1) 4" x 8" x 27" Concrete Lintel
(1) in Set Mix Bag
Note: Actual components may vary slightly. Some cutting may be required.
Additional materials required to install your kit.
Concrete or Gravel (for setting base)
Level
Tape Measure
Small Trowel
5 gal. Mixing Bucket
Note: You may also use landscape adhesive (available separately) in place of supplied thin set mix.
NOTE: is unit is designed for outdoor use only. is unit is not designed to be used on
wood decks or under roof enclosures. Locate unit reasonable distance from any combustible
materials. Comply with local building code(s) and burning permits as applicable. Retain these
instructions with unit.
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
2
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Step
1
Create a level base using Crusher Run Stone to accommodate the overall footprint
of the woodbox kit.
Prepare an area 3'6" wide x 2'6" deep.
Remove sod and vegetation.
Excavate/remove so soil as required to provide level stone surface at a
minimum of 4" deep.
If required, use landscape blocks to retain stone base.
If installing optional hearth/knee wall, extend base as required.
If soil under sod is hard, soil can be leveled out and used as a base material.
Reference diagrams for creating a level base.
Existing Ground
Screed Stone Base Level
2'6"
4"min. Crusher Run Stone
Undisturbed Ground
(Base Section View)
3'6"
Woodbox Outline
3'6" x 2'6"
Crusher Run Base
(4" min. thickness)
FRONT
(Base Plan View)
4"
3' x 2'
NOTE: All outdoor living kits can be installed directly on a properly prepared stone base. However,
for best performance and appearance, a concrete pad is recommended.
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
3
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Step
2

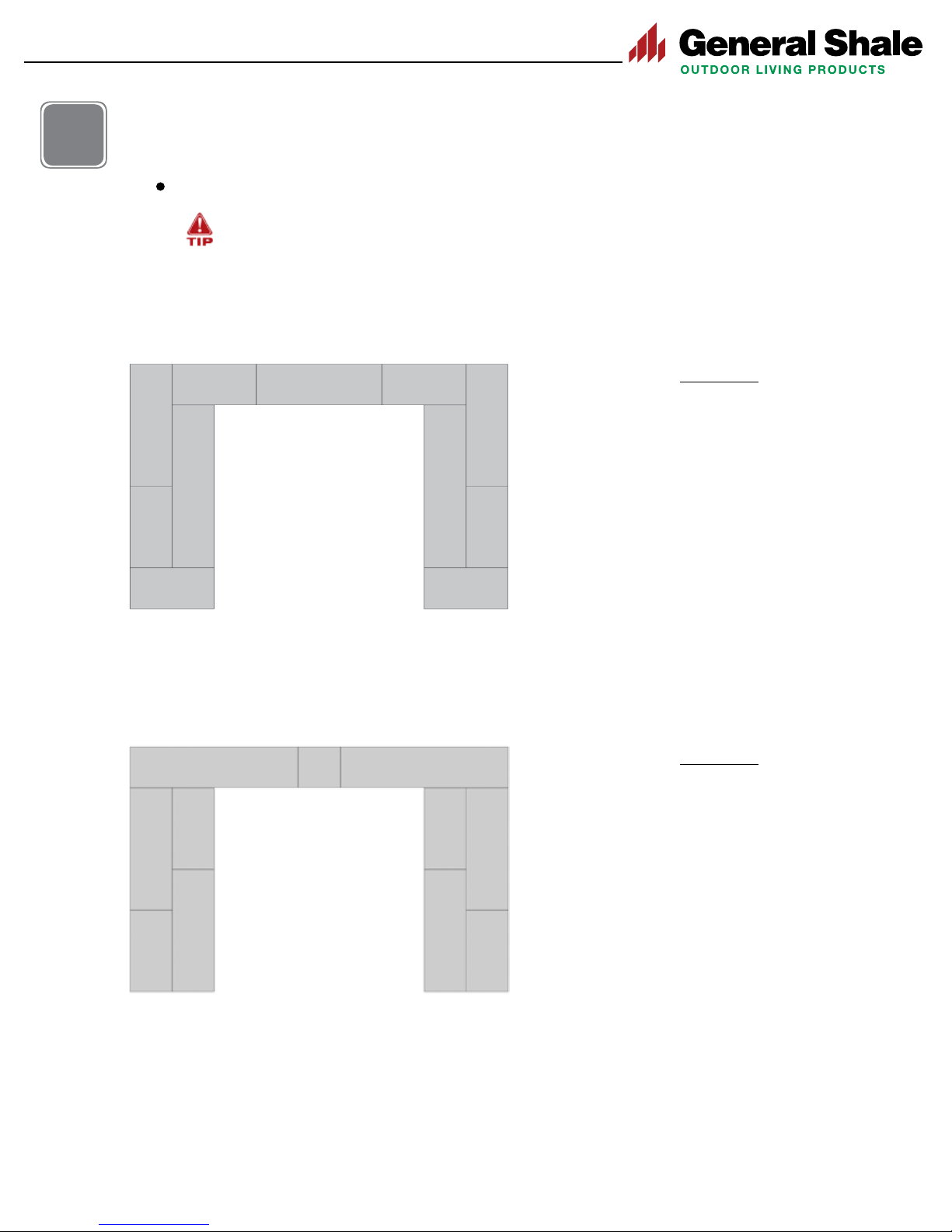

Build the woodbox (courses 1 and 2).
Assemble the woodbox on a level setting base.
Aer laying the rst course, check to make sure it is level before proceeding.
Apply thin set layer with small trowel to bond courses.
Mix thin set according to manufacturers instructions. Apply thin set to
the inside of block to prevent excess from squeezing out onto the face of
the woodbox.
B
B
B
B
B
B
B
B
B
B
B
B
B
B
Course 1
(9) B - 4" x 8" x 12" Block
A
F2
A
F2
A
Course 2
B
B
B
B
B
A
A
A
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
(6) A - 4" x 8" x 16" Block
(2) F2 - 4" x 4" x 11 ¼" Block
4
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Step
3
Build the woodbox (courses 3 and 4).
Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block.
Apply thin set to the inside of block to prevent excess from squeezing out
onto the face of the woodbox.
D F D
F
A H
E E
B1 B2 B1
Course 3
F
(1) B2 - 4" x 4 ½" x 14" Bullnose Block
DD
DD
(1) A - 4" x 8" x 16" Block
(2) B1 - 4" x 8" x 14" Bullnose Block
(6) D - 4" x 8" x 4" Block
(2) E - 4" x 4" x 16" Block
(2) F - 4" x 4" x 12" Block
(1) H - 4" x 4 ¼" x 8" Block
E G E
D
F
F
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
D
Course 4
(4) D - 4" x 8" x 4" Block
(2) E - 4" x 4" x 16" Block
F
F
DD
(4) F - 4" x 4" x 12" Block
(1) G - 4" x 4" x 4" Block
5
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Step
4
Build the woodbox (courses 5 and 6).
Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block.
Apply thin set to the inside of block to prevent excess from squeezing out
onto the face of the woodbox.
D F D
F
E
D
E
Course 5
(6) D - 4" x 8" x 4" Block
F
(2) E - 4" x 4" x 16" Block
(3) F - 4" x 4" x 12" Block
D
D D
E G E
D
F
F
D
Course 6
(4) D - 4" x 8" x 4" Block
(2) E - 4" x 4" x 16" Block
F
F
DD
(4) F - 4" x 4" x 12" Block
(1) G - 4" x 4" x 4" Block
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
6
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Step
5
Build the woodbox (courses 7 and 8).
Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block.
Apply thin set to the inside of block to prevent excess from squeezing out
onto the face of the woodbox.
D F D
F
E
D
E
Course 7
(6) D - 4" x 8" x 4" Block
F
(2) E - 4" x 4" x 16" Block
(3) F - 4" x 4" x 12" Block
D
D D
E G E
D
F
F
D
Course 8
(4) D - 4" x 8" x 4" Block
(2) E - 4" x 4" x 16" Block
F
F
DD
(4) F - 4" x 4" x 12" Block
(1) G - 4" x 4" x 4" Block
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
7
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Step
6
Build the woodbox (courses 9 and 10).
Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block.
Apply thin set to the inside of block to prevent excess from squeezing out
onto the face of the woodbox.
D F D
F
E
D
E
Course 9
(6) D - 4" x 8" x 4" Block
F
(2) E - 4" x 4" x 16" Block
(3) F - 4" x 4" x 12" Block
D
D D
E G E
F F
D D
6"6" x 8" x 27" Cast Lintel
FF
Course 10
(2) D - 4" x 8" x 4" Block
(2) E - 4" x 4" x 16" Block
(4) F - 4" x 4" x 12" Block
(1) G - 4” x 4” x 4” Block
(1) 6” x 8” x 27” Cast Lintel
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
8
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Step
7
Build the woodbox (course 11).
Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block.
Apply thin set to the inside of block to prevent excess from squeezing out
onto the face of the woodbox.
D F D
F
D
2"
4" x 8" x 27" Cast Lintel
2"
8"
Course 11
(4) D - 4" x 8" x 4" Block
F
(2) G - 4" x 4" x 4" Block
(3) F - 4" x 4" x 12" Block
(1) 4" x 8" x 27" Concrete Lintel
D
G G
Lintel from Course 10
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
9
“Stacker 150” Woodbox (WBX-150) Assembly Instructions
Step
8
Build the woodbox cap (course 12).
Use supplied thin set between all courses and all block. Use supplied thin set between all courses and all block.
Apply thin set to the inside of block to prevent excess from squeezing out
onto the face of the woodbox.
C1, C2 and C3 blocks can be ipped over and used on the le side of the
woodbox to use the woodbox on the right side of the replace.
C1
B B B I
C3
B1 B1 B1 B3
Course 12 (Cap)
(3) B - 4" x 8" x 12" Block
(3) B1 - 4" x 8" x 14" Bullnose Block
(1) B3 - 4" x 6 3/4" x 14" Bullnose Block
(1) C1 - 4" x 8" x 8" Bullnose Block
(1) C2 - 4" x 8" x 8" Bullnose Corner Block
(2) C3 - 4" x 5" x 8" Bullnose Block
(1) I - 4" x 6 ¾" x 12" Block
C3
C2
OL-BRO 0016-0916
P.O. Box 3547 / Johnson City, TN 37602 / 1-800-414-4661 / www.GeneralShale.com
10
