SMCG AND SMCJ5.0 THRU 170CA
SURFACE MOUNT TRANSZORB™ TRANSIENT VOLTAGE SUPPRESSOR
Stand-off Voltage - 5.0 - 170 Volts Peak Pulse Power - 1500 Watts
FEATURES
♦ Plastic package has Underwriters
Laboratory Flammability Classification 94V-0
♦ For surface mounted applications in order to optimize
board space
♦ Low profile package
♦ Built-in strain relief
♦ Glass passivated junction
♦ Low inductance
♦ 1500W peak pulse power capability with a 10/1000µs
waveform, repetition rate (duty cycle): 0.01%
♦ Excellent clamping capability
♦ Fast response time: typically less than 1.0ps from 0 Volts
to V
(BR)
for uni-directional and 5.0ns for bi-directional types
♦ For devices with V
(BR)
≥10V, IDare typically less
than 1.0µA
♦ High temperature soldering guaranteed:
250°C/10 seconds at terminals
MECHANICAL DATA
Case: JEDEC DO214AB / DO215AB molded plastic over
passivated junction
Terminals: Solder plated, solderable per MIL-STD-750,
Method 2026
Polarity: For unidirectional types the color band denotes the
cathode, which is postitive with respect to the anode under
normal TVS operation
Mounting Position: Any
Weight: 0.007 ounces, 0.21 gram
DEVICES FOR BI-DIRECTIONAL APPLICATIONS
For bi-directional use add suffix C or CA for types SMC-5.0 thru SMC-170 (e.g. SMCG5.0C, SMCJ170CA).
Electrical characteristics apply in both directions.
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS VALUE UNITS
Peak pulse power dissipation with a 10/1000µs waveform
(NOTES 1, 2, FIG. 1)
P
PPM
Minimum 1500 Watts
Peak pulse current with a 10/1000µs waveform
(NOTE 1, FIG. 3)
I
PPM SEE TABLE 1
Amps
Peak forward surge current 8.3ms single half sine-wave superimposed
on rated load (JEDEC Method)
(NOTES 2, 3)
- uni-directional only
I
FSM
200.0 Amps
Maximum instantaneous forward voltage at 100A
(NOTE 3)
uni-directional only V
F
3.5 Volts
Operating junction and storage temperature range TJ, T
STG
-55 to +150 °C
NOTES:
(1) Non-repetitive current pulse, per Fig.3 and derated above TA=25°C per Fig. 2
(2) Mounted on 0.31 x 0.31” (8.0 x 8.0mm) copper pads to each terminal
(3) Measured on 8.3ms single half sine-wave. For uni-directional devices only.
Dimensions in inches and (millimeters)
DO-215AB
GULL WING
DO-214AB
MODIFIED J-BEND
1/25/99
0.126 (3.20)
0.114 (2.90)
0.125 (3.17)
0.115 (2.92)
0.016 (0.41)
0.006 (0.15)
0.103 (2.62)
0.079 (2.06)
0.060 (1.52)
0.030 (0.76)
0.280 (7.11)
0.260 (6.60)
0.008 (0.203)
0.320 (8.13)
0.305 (7.75)
MAX.
0.245 (6.22)
0.130 (5.72)
0.280 (7.11)
0.260 (6.60)
0.095 (2.41)
0.075 (1.90)
0.020
(0.51)
MAX.
0.058 (1.47)
0.038 (0.97)
0.400 (10.16)
0.380 (9.64)
0.032 (8.10)
0.024 (6.10)
0.245 (6.22)
0.220 (5.59)
0.012 (0.305)
0.006 (0.152)
SEATING
PLANE
0.008 (0.20)
0.004 (0.10)
ELECTRICAL CHARACTERISTICS at (T
A
=25°C unless otherwise noted) TABLE 1
Breakdown Maximum Maximum
Device Voltage Reverse Peak Pulse Maximum
Device Type Device Type Marking V
(BR)
(Volts) Test Stand-off Leakage Surge Clamping
Gull Wing Modified Code
(NOTE 1)
Current Voltage at V
WM
Current I
PPM
Voltage at I
PPM
Lead “J” Bend Lead UNI BI (MIN / MAX) at IT(mA) VWM(Volts)
(NOTE 3) ID
(µA)
(NOTE 2)
(Amps) VC(Volts)
SMCG5.0 SMCJ5.0 GDD 6.40 / 7.82 10.0 5.0 1000 156.3 9.6
SMCG5.0A SMCJ5.0 GDE 6.40 / 7.07 10.0 5.0 1000 163.0 9.2
SMCG6.0 SMCJ6.0 GDF 6.67 / 8.15 10.0 6.0 1000 131.6 11.4
SMCG6.0A SMCJ6.0A GDG 6.67 / 7.37 10.0 6.0 1000 145.6 10.3
SMCG6.5 SMCJ6.5 GDH 7.22 / 8.82 10.0 6.5 500 122.0 12.3
SMCG6.0A SMCJ6.5A GDK 7.22 / 7.98 10.0 6.5 500 133.9 11.2
SMCG7.0 SMCJ7.0 GDL 7.78 / 9.51 10.0 7.0 200 112.8 13.3
SMCG7.0A SMCJ7.0A GDM 7.78 / 8.60 10.0 7.0 200 125.0 12.0
SMCG7.5 SMCJ7.5 GDN 8.33 / 10.2 1.0 7.5 100 104.9 14.3
SMCG7.5A SMCJ7.5A GDP 8.33 / 9.21 1.0 7.5 100 116.3 12.9
SMCG8.0 SMCJ8.0 GDQ 8.89 / 10.9 1.0 8.0 50 100.0 15.0
SMCG8.0A SMCJ8.0A GDR 8.89 / 9.83 1.0 8.0 50 110.3 13.6
SMCG8.5 SMCJ8.5 GDS 9.44 / 11.5 1.0 8.5 20 94.3 15.9
SMCG8.5A SMCJ8.5A GDT 9.44 / 10.4 1.0 8.5 20 104.2 14.4
SMCG9.0 SMCJ9.0 GDU 10.0 / 12.2 1.0 9.0 10 88.8 16.9
SMCG9.0A SMCJ9.0A GDV 10.0 / 11.1 1.0 9.0 10 97.4 15.4
SMCG10 SMCJ10 GDW 11.1 / 13.6 1.0 10.0 5.0 79.8 18.8
SMCG10A SMCJ10A GDX 11.1 / 12.3 1.0 10.0 5.0 88.2 17.0
SMCG11 SMCJ11 GDY 12.2 / 14.9 1.0 11.0 5.0 74.6 20.1
SMCG11A SMCJ11A GDZ 12.2 / 13.5 1.0 11.0 5.0 82.4 18.2
SMCG12 SMCJ12 GED 13.3 / 16.3 1.0 12.0 5.0 68.2 22.0
SMCG12A SMCJ12A GEE 13.3 / 14.7 1.0 12.0 5.0 75.4 19.9
SMCG13 SMCJ13 GEF 14.4 / 17.6 1.0 13.0 5.0 63.0 23.8
SMCG13A SMCJ13A GEG 14.4 / 15.9 1.0 13.0 5.0 69.8 21.5
SMCG14 SMCJ14 GEH 15.6 / 19.1 1.0 14.0 5.0 58.1 25.8
SMCG14A SMCJ14A GEK 15.6 / 17.2 1.0 14.0 5.0 64.7 23.2
SMCG15 SMCJ15 GEL 16.7 / 20.4 1.0 15.0 5.0 55.8 26.9
SMCG15A SMCJ15A GEM 16.7 / 18.5 1.0 15.0 5.0 61.5 24.4
SMCG16 SMCJ16 GEN 17.8 / 21.8 1.0 16.0 5.0 52.1 28.8
SMCG16A SMCJ16A GEP 17.8 / 19.7 1.0 16.0 5.0 57.7 26.0
SMCG17 SMCJ17 GEQ 18.9 / 23.1 1.0 17.0 5.0 49.2 30.5
SMCG17A SMCJ17A GER 18.9 / 20.9 1.0 17.0 5.0 54.3 27.6
SMCG18 SMCJ18 GES 20.0 / 24.4 1.0 18.0 5.0 46.6 32.2
SMCG18A SMCJ18A GET 20.0 / 22.1 1.0 18.0 5.0 51.4 29.2
SMCG20 SMCJ20 GEU 22.2 / 27.1 1.0 20.0 5.0 41.9 35.8
SMCG20A SMCJ20A GEV 22.2 / 24.5 1.0 20.0 5.0 46.3 32.4
SMCG22 SMCJ22 GEW 24.4 / 29.8 1.0 22.0 5.0 38.1 39.4
SMCG22A SMCJ22A GEX 24,4 / 26.9 1.0 22.0 5.0 42.3 35.5
SMCG24 SMCJ24 GEY 26.7 / 32.6 1.0 24.0 5.0 34.9 43.0
SMCG24A SMCJ24A GEZ 26.7 / 29.5 1.0 24.0 5.0 38.6 38.9
SMCG26 SMCJ26 GFD 28.9 / 35.3 1.0 26.0 5.0 32.2 46.6
SMCG26A SMCJ26A GFE 28.9 / 31.9 1.0 26.0 5.0 35.6 42.1
SMCG28 SMCJ28 GFF 31.1 / 38.0 1.0 28.0 5.0 30.0 50.0
SMCG28A SMCJ28A GFG 31.1 / 34.4 1.0 28.0 5.0 33.0 45.4
SMCG30 SMCJ30 GFH 33.3 / 40.7 1.0 30.0 5.0 28.0 53.5
SMCG30A SMCJ30A GFK 33.3 / 36.8 1.0 30.0 5.0 31.0 48.4
SMCG33 SMCJ33 GFL 36.7 / 44.9 1.0 33.0 5.0 25.4 59.0
SMCG33A SMCJ33A GFM 36.7 / 40.6 1.0 33.0 5.0 28.1 53.3
SMCG36 SMCJ36 GFN 40.0 / 48.9 1.0 36.0 5.0 23.3 64.3
SMCG36A SMCJ36A GFP 40.0 / 44.2 1.0 36.0 5.0 25.8 58.1
SMCG40 SMCJ40 GFQ 44.4 / 54.3 1.0 40.0 5.0 21.0 71.4
SMCG40A SMCJ40A GFR 44.4 / 49.1 1.0 40.0 5.0 23.3 64.5
SMCG43 SMCJ43 GFS 47.8 / 58.4 1.0 43.0 5.0 19.6 76.7
SMCG43A SMCJ43A GFT 47.8 / 52.8 1.0 43.0 5.0 21.6 69.4
SMCG45 SMCJ45 GFU 50.0 / 61.1 1.0 45.0 5.0 18.7 80.3
SMCG45A SMCJ45A GFV 50.0 / 55.3 1.0 45.0 5.0 20.6 72.7
SMCG48 SMCJ48 GFW 53.3 / 65.1 1.0 48.0 5.0 17.5 85.5
SMCG48A SMCJ48A GFX 53.3 / 58.9 1.0 48.0 5.0 19.4 77.4
SMCG51 SMCJ51 GFY 56.7 / 69.3 1.0 51.0 5.0 16.5 91.1
SMCG51A SMCJ51A GFZ 56.7 / 62.7 1.0 51.0 5.0 18.2 82.4
GDD
GDE
GDF
GDG
BDH
BDK
GDL
GDM
BDN
BDP
BDG
BDR
BDS
BDT
BDU
BDV
BDW
BDX
GDY
GDZ
BED
BEE
GEF
GEG
BEH
BEK
BEL
BEM
GEN
GEP
GEQ
GER
BES
BET
BEU
BEV
BEW
BEX
BEY
BEZ
BFD
BFE
BFF
BFG
BFH
BFK
BFL
BFM
BFN
BFP
BFQ
BFR
BFS
BFT
GFU
GFV
GFW
GFX
GFY
GFZ
ELECTRICAL CHARACTERISTICS at (T
A
=25°C unless otherwise noted) TABLE 1 (Cont’d)
Breakdown Maximum Maximum
Device Voltage Reverse Peak Pulse Maximum
Device Type Device Type Marking V
(BR)
(Volts) Test Stand-off Leakage Surge Clamping
Gull Wing Modified Code
(NOTE 1)
Current Voltage at V
WM
Current I
PPM
Voltage at I
PPM
Lead “J” Bend Lead UNI BI (MIN / MAX) at IT(mA) VWM(Volts)
(NOTE 3) ID
(µA)
(NOTE 2)
(Amps) VC(Volts)
SMCG54 SMCJ54 GGD 60.0 / 73.3 1.0 54.0 5.0 15.6 96.3
SMCG54A SMCJ54A GGE 60.0 / 66.3 1.0 54.0 5.0 17.2 87.1
SMCG58 SMCJ58 GGF 64.4 / 78.7 1.0 58 5.0 14.6 103
SMCG58A SMCJ58A GGG 6.4.4 / 71.2 1.0 58 5.0 16.0 93
SMCG60 SMCJ60 GGH 66.7 / 81.5 1.0 60 5.0 14.0 107
SMCG60A SMCJ60A GGK 66.7 / 73.7 1.0 60 5.0 15.5 96
SMCG64 SMCJ64 GGL 71.1 / 86.9 1.0 64 5.0 13.2 114
SMCG64A SMCJ64A GGM 71.1 / 78.6 1.0 64 5.0 14.6 103
SMCG70 SMCJ70 GGN 77.8 / 95.1 1.0 70 5.0 12.0 125
SMCG70A SMCJ70A GGP 77.8 / 86.0 1.0 70 5.0 13.3 113
SMCG75 SMCJ75 GGQ 83.3 / 102 1.0 75 5.0 11.2 134
SMCG75A SMCJ75A GGR 83.3 / 92.1 1.0 75 5.0 12.4 121
SMCG78 SMCJ78 GGS 86.7 / 106 1.0 78 5.0 10.8 139
SMCG78A SMCJ78A GGT 86.7 / 95.8 1.0 78 5.0 11.9 126
SMCG85 SMCJ85 GGU 94.4 / 115 1.0 85 5.0 9.9 151
SMCG85A SMCJ85A GGV 94.4 / 104 1.0 85 5.0 10.9 137
SMCG90 SMCJ90 GGW 100 / 122 1.0 90 5.0 9.4 160
SMCG90A SMCJ90A GGX 100 / 111 1.0 90 5.0 10.3 146
SMCG100 SMCJ100 GGY 111 / 136 1.0 100 5.0 8.4 179
SMCG100A SMCJ100A GGZ 111 / 123 1.0 100 5.0 9.3 162
SMCG110 SMCJ110 GHD 122 / 149 1.0 110 5.0 7.7 196
SMCG110A SMCJ110A GHE 122 / 135 1.0 110 5.0 8.5 177
SMCG120 SMCJ120 GHF 133 / 163 1.0 120 5.0 7.0 214
SMCG120A SMCJ120A GHG 133 / 147 1.0 120 5.0 7.8 193
SMCG130 SMCJ130 GHH 144 / 176 1.0 130 5.0 6.5 231
SMCG130A SMCJ130A GHK 144 / 159 1.0 130 5.0 7.2 209
SMCG150 SMCJ150 GHL 16.7 / 204 1.0 150 5.0 5.6 268
SMCG150A SMCJ150A GHM 167 / 185 1.0 150 5.0 6.2 243
SMCG160 SMCJ160 GHN 178 / 218 1.0 160 5.0 5.2 287
SMCG160A SMCJ160A GHP 178 / 197 1.0 160 5.0 5.8 259
SMCG170 SMCJ170 GHQ 189 / 231 1.0 170 5.0 4.9 304
SMCG170A SMCJ170A GHR 189 / 209 1.0 170 5.0 5.5 275
N0TES:
(1) V
(BR)
measured after ITapplied for 300µs square wave pulse or equivalent
(2) Surge current waveform per Fig. 3 and derate per Fig. 2
(3) For bi-directional types having V
WM
of 10 Volts and less, the ID limit is doubled
(4) For the bi-directional SMCG/SMCJ5.0CA, the maximum V
(BR)
is 7.25 Volts
(5) All terms and symbols are consistent with ANSI/IEEE C62.35
APPLICATION N0TES
These surface mountable packages are designed specifically for transient voltage suppression. The wide leads assure a large surface contact for good heat dissipation, and a low resistance path for surge current flow to ground. These high speed transient voltage
suppressors can be used to effectively protect sensitive components such as integrated circuits and MOS devices.
A 1500W (SMC) device is normally selected when the threat of transients is from lightning-induced transients conducted via external
leads or I/0 lines. It is also used to protect against switching transients induced by large coils or industrial motors.
System impedance at component level in a system is usually high enough to limit the current to within the peak pulse current (I
PP
)
rating of this series.

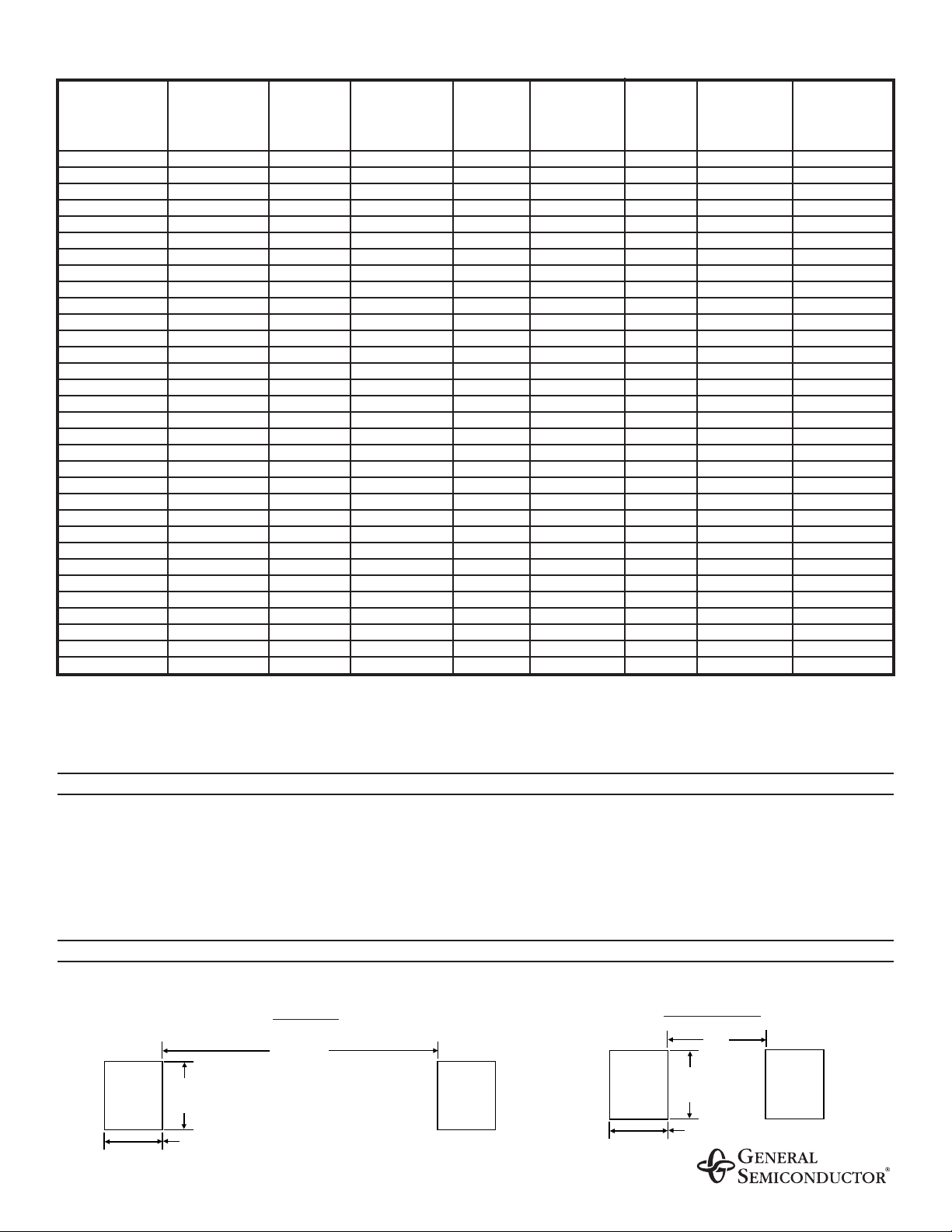

RECOMMENDED PAD SIZES
The pad dimensions should be 0.010” (0.25mm) longer than the contact size, in the lead axis.
This allows a solder fillet to form, see figure below. Contact factory for soldering methods.
MODIFIED J-BEND
GULL- WING
GGD
GGE
GGF
GGG
GGH
GGK
GGL
GGM
GGN
GGP
GGQ
GGR
GGS
GGT
GGU
GGV
GGW
GGX
GGY
GGZ
GHD
GHE
GHF
GHG
GHH
GHK
GHL
GHM
GHN
GHP
GHQ
GHR
0.310" (7.87)
0.125" (3.17)
0.050" (1.27)
0.190" (4.83)
0.125" (3.17)
0.070" (1.78)

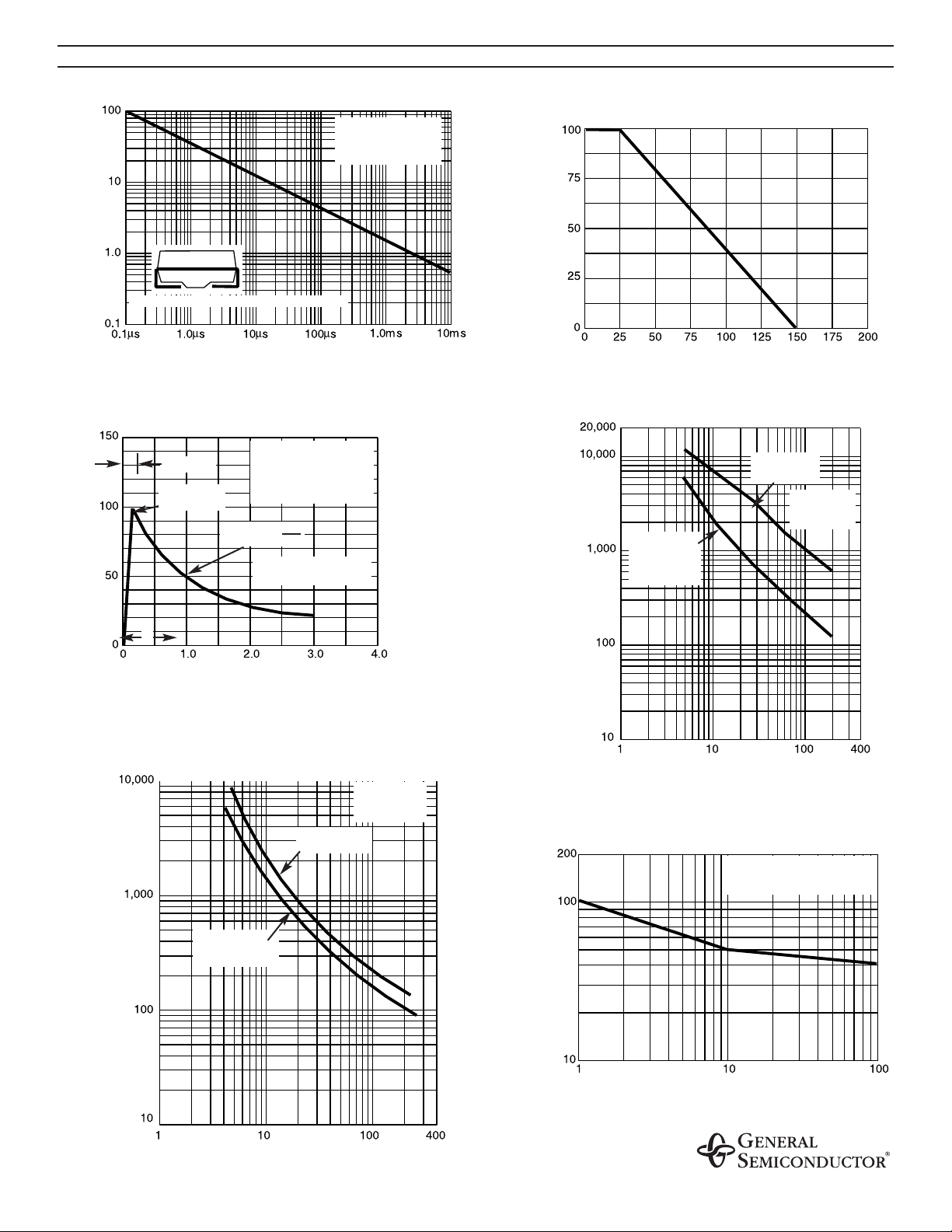

MAXIMUM RATINGS AND CHARACTERISTIC CURVES SMCG AND SMCJ5.0 THRU 170CA
FIG. 1 - PEAK PULSE POWER RATING CURVE
P
PPM
, PEAK PULSE POWER, kW
td, PULSE WIDTH, sec.
TA, AMBIENT TEMPERA TURE, °C
FIG. 4 - TYPICAL JUNCTION CAPACITANCE
UNI-DIRECTIONAL
FIG. 3 - PULSE WAVEFORM
t, TIME, ms
VWM, REVERSE STAND-OFF VOLTAGE,
VOLTS
V
WM,
STAND-OFF VOLTAGE, VOLTS
NUMBER OF CYCLES AT 60 H
Z
I
PPM
PEAK PULSE CURRENT, % I
RSM
PEAK PULSE POWER (P
PP
) or CURRENT (I
PP
)
DERATING IN PERCENTAGE, %
C
J
, CAPACITANCE, pF
C
J
, JUNCTION CAPACITANCE, pF
I
FSM
, PEAK FORWARD SURGE CURRENT,
AMPERES
NON-REPETITIVE
PULSE WAVEFORM
SHOWN in FIG. 3
TA=25°C
TJ=25°C PULSE WIDTH (td)
is DEFINED as the POINT
WHERE the PEAK
CURRENT DECAYS
to 50% of I
PPM
tr=10µsec.
MEASURED at
ZERO BIAS
V
R,
MEASURED
at STAND-OFF
VOLTAGE, V
WM
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
UNIDIRECTIONAL ONLY
HALF VALUE - I
PP
2
10/1000µsec. WAVEFORM
as DEFINED by R.E.A.
FIG. 6 - MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
PEAK VALUE
I
PPM
FIG. 5 - TYPICAL JUNCTION CAPACITANCE
BI-DIRECTIONAL
FIG. 2 - PULSE DERATING CURVE
TJ=25°C
f=1.0 MH
Z
Vsig=50mVp-p
TJ=25°C
f=1.0 MH
Z
Vsig=50mVp-p
0.31 X 0.31” (8.0 X 8.0mm) COPPER PADAREAS
MEASURED at
ZERO BIAS
MEASURED at
STAND-OFF
VOLTAGE, V
WM
td
MAXIMUM RATINGS AND CHARACTERISTIC CURVES SMCG AND SMCJ5.0 THRU 170CA
FIG. 7 - MAXIMUM CONTINUOUS POWER DISSIPATION
TL, LEAD TEMPERATURE, °C
P
M(AV),
AVERAGE POWER DISSIPATION,
WATTS
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
2.0
1.5
1.0
0.5
0
25 50 75 100 125 150 175
Loading...
