R1000BT Series Bluetooth
Barcode Scanner Quick Start
Guide
1. Product Outlook
Item Name Description
1
Scanning
Window
Reading barcode ,Red light or Laser will beam out from this
window
2 Buzzer Hole
The buzzer will sound when good decoded：
（1）Connect USB cable，buzzer will beep “b....b.b.”；
（2）Good decoed：Flashing green light and buzzer one time.
3
Trigger
But ton
Press the trigger button to sc an the barcode one time,double
click to hide and display soft keyboard in iOS device like
iphone or iPad.
4
LEDs
Indic at or
LED has three color (Red,Green,Blue) which indicate with
different scenario. Please reference the following table for
detail description
5 MicroUSB
Charge with bluetoot h barcode sc anner with Micro-USB or
connect PC with USB port.
6 Power Switch
Swith t o left or right to power on the scanner of turn off the
scanner.Please turn off the power to save power.
7
Magic Strap
Hole
Take the yellow magic strap through the hole to wear it on
the finger
8 batt ery c over Take off t he bat tery c over t o c hange t he bat tery
2. LED Indicator
Item Stat us Description
1
Green LED light flashing
(with buzzer sound)
Decode suc c ess
2
Green LED light flashes
continuously
Low battery alarm
3
Red LED light constant
light
Charging
4
Red LED light turn off Charging is c omplete
5
Red LED light flashes
continuously
Built- in batt ery
abnormal
6
Blue LED c ontinuously
flashing
Enter the Bluet ooth
pairing mode
7
Blue LED t urn off
Bluetooth Pairing
successful
3. Bluetooth Connecting
3.1 Bluetooth Connecting
Bluetooth HID Mode
3.1.1 Turn on the scanner (press the trigger button for a while),Click
the trigger button, Scan configure barcode “Bluetooth HID
Mode”, Toggle scanner mode to HID mode, at this time the
scanner's blue light flashing fast.

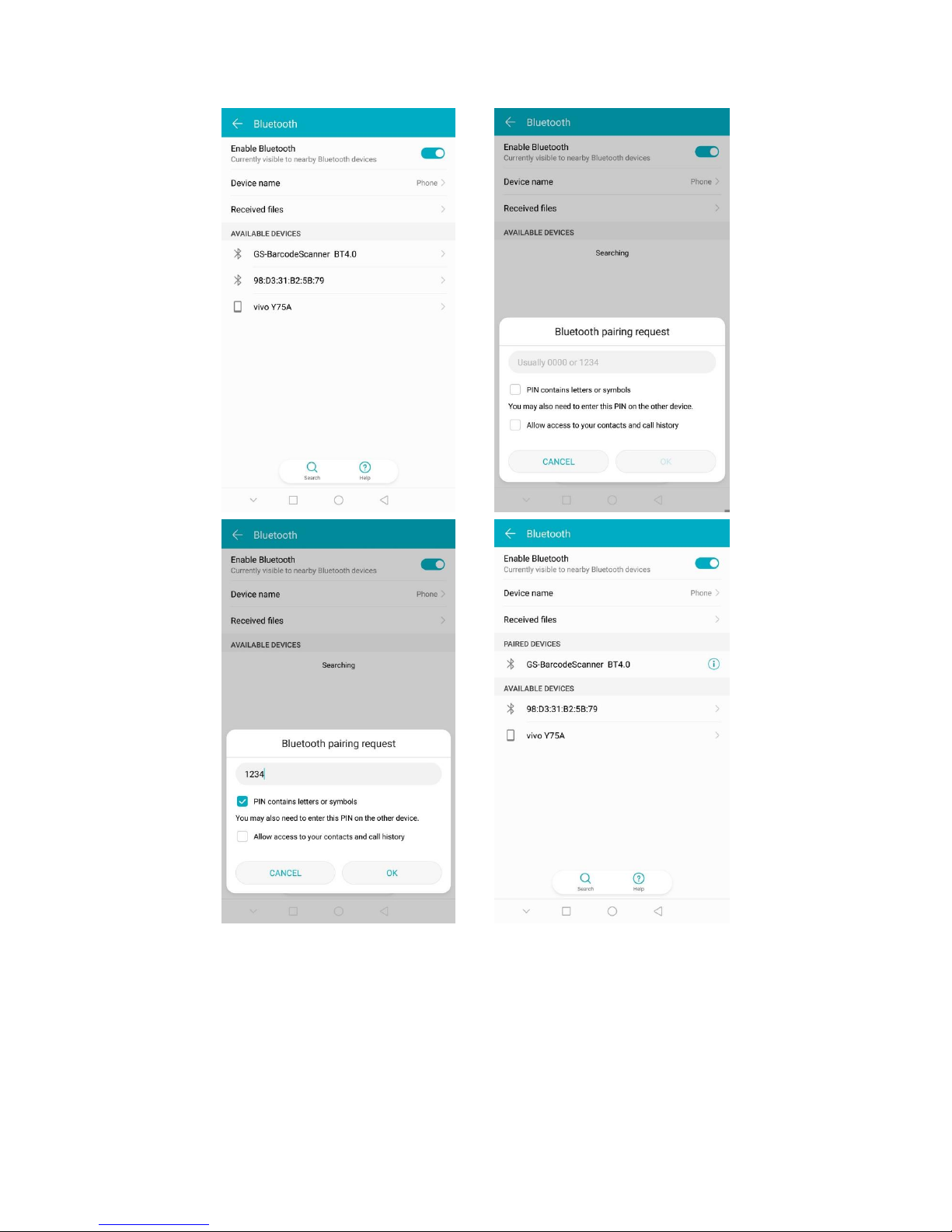

3.1.2 Open the Smart Device Bluetooth Setting, turn on Bluetooth,
search around the connected devices, in the list of connected
devices (Available devices) to discover our scanner "GS-
BarcodeScanner BT4.0", Click the "GS-BarcodeScanner BT4.0",
then, click the "PAIR".
3.1.3 Connection is successful, the scanner Blue light is extinguished.
3.1.4 You can input data anywhere with the cursor.
3.2 SPP mode(GS Keyboard input APP）
Bluetooth HID Mode
3.2.1 Turn on the scanner (power switch), press the trigger key
(Trigger button), scanning the barcode "Bluetooth SPP Mode",
switch scanner mode to the SPP Mode, at this time the scanner's
blue light is flashing slowly
3.2.2 Click the icon , turn on the Generalscan Keyboard, Click
the “Choose”, switch to system setting, Active “Generalscan
Keyboard”
3.2.3 Return to “Generalscan Keyboard”, Click the “Open”, switch to
Bluetooth setting, Turn on the Bluetooth, search around the
connected devices, in the list of connected devices (Available
devices) to discover our scanner " GS-BarcodeScanner BT4.0",
click Connect, the PN Number is “1234”, Bluetooth paired is
successful.
3.2.4 Return to ”Generalscan Keyboard”, Click the ”Select”, Select the
scanner
3.2.5 Click the “Change”, Select the “Generalscan Keyboard”
3.2.6 Click the “Test”, You can input data anywhere with the cursor.
Generalscan Ring Barcode Scanner Series Using Introduction：
https://www.youtube.com/watch?v=byjziUmtxJY
4. Configure barcode
4.1 Connecting to a PC Host via USB
USB HID MODE(*)
USB HID MODE
USB VCP MODE
USB VCP MODE
4.2 Output Interface
Bluetooth Output Mode(*)
Bluetooth output Mode
USB HID Output Mode
USB HID Out Mode
USB VCP Output Mode
USB VCP Output Mode
4.3 Bluetooth Mode Configuration
Bluetooth HID Mode(*)
Bluetooth HID Mode
Bluetooth SPP Slave Mode
Bluetooth SPP Slave Mode
Bluetooth SPP Master
Mode
Bluetooth SPP Master Mode
Bluetooth BLE Mode
Bluetooth BLE Mode
4.4 Hibernation Time
1 second Hibernation(*)
1 second Hibernation
5 second Hibernation
5 second Hibernation
4.5 Buzzer Volume Setting
Mute Buzzer Volume
Mute Buzzer Volume
Low Buzzer Volume
Low Buzzer Volume
Medium Buzzer Volume
Medium Buzzer Volume
High Buzzer Volume(*)
High Buzzer Volume
4.6 On-Board Build-in Suffix for CR&LF
Enable CR&LF suffix(*)
Enable CR&LF suffix
Disable CR&LF suffix
Disable CR&LF suffix
4.7 HID Keyboard Layout
English Keyboard Layout(*)
English Keyboard Layout
France Keyboard Layout
France Keyboard Layout
German Keyboard Layout
German Keyboard Layout
Spanish Keyboard Layout
Spanish Keyboard Layout
Italian Keyboard Layout
Italian Keyboard Layout
Japanese Keyboard Layout
Japanese Keyboard Layout
4.8 Reset Factory Bluetooth Name
Reset Factory
Bluetooth
Name
Reset Factory Bluetooth Name
4.9 Hardware Information
Read firmware Version
Read firmware Version
Read Device ID
Read Device ID
Read Battery Volume
Read Battery Volume
4.10 Default Factory Setting
Default Factory Setting
Default Factory Setting
