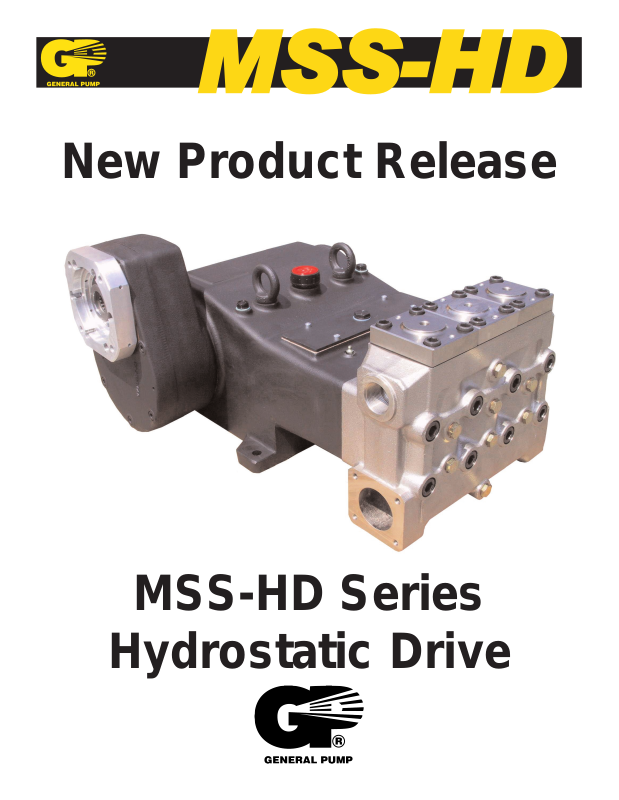

New Product Release

MSS-HD Series

Hydrostatic Drive

INDUSTRIAL INDUSTRIAL

SPECIFICATIONS

Model MSS3618HDL5 MSS4018HDL5 MSS4518HDL5 MSS5018HDL5 MSS5518HDL5

Max Pressure* 5000 3900 3050 2470 2000

Max Flow 35.9 44.4 56.3 69.5 84.0

Max RPM (Input) 1800

Hydraulic HP 104.7 101.0 100.2 100.2 98.0

Inlet Port (2) 2-1/2” NPT-F

Outlet Port (2) 1-1/4” NPT-F
Input Shaft

Configuration

Hollow SAE J744 Splined 14-Tooth

Options Drain Valve Kit (p/n F208006920) Please Note: Kit contains three complete assemblies

4

GGEENNEERRAALL PPUUMMPP

1174 Northland Drive • Mendota Heights, MN 55120

Phone: [phone] • Fax: [phone] • e-mail: [e-mail] • www.generalpump.com

DIMENSIONS - IN” (MM)

Coupler Spline Data ANSI B92.1-1970
Type Flat Root Side
Class 5
No. Teeth 14
Pitch 12/24
Pressure 30º
Pitch Ø 1.1667 (29.634)
“B” 1.20 (30.5)
“C” .87 (22.1)
J744 Shaft Code 32-4 (C)

*Pressure ratings are for intermittant duty only. For other applications contact GP Companies Technical Support at 888-484-5487

Ref 300569 Rev. A

06-05

27.9"

12.1"

(308)

9.1"

(230)

2.1"

G 1" 1/4

(M 10)

(53)

2.8"

(72)

(Ø 66)

3.1"
(80)

G1/2"

4.5"

19.1"
(484)

(708.5)

(114.5)

45°

(114.5)

4.5"

8.1"

(207)

6.6"

(168)

4.8"

(123)

13.8"
(350)

6.3

(159)

6.6"

5.1"

(130)

45°

(168)

45°

5.8"

(148)

Ø .65"

(Ø 16.5)

8.7"

(220)

14.6"
(372)

21.9"

(556)

13.2"
(336)

12.6"
(321)

Flange Flangia tipo type SAE C

Prof. ANSI B 92.1

M 14

N°4 Fori

2.4" - Profile
(60 - Prof. Profilo)

Ø 5"

(Ø 127)

13.8"
(350)

OIL

14.6"

(372)

OIL
