IMPORTANT: When ordering replacement parts, always give the model number, serial number of
the machine and part number. Also a brief description of each item and quantity
desired.
GENERAL
INTERNATIeHAV.
8360, Champ-d'Eau, Montreal (Quebec)
Canada H1P 1Y3
Tel.: (514) 326-1161
Fax : (514) 326-5555
www.general.ca
PARTS DIAGRAM
:

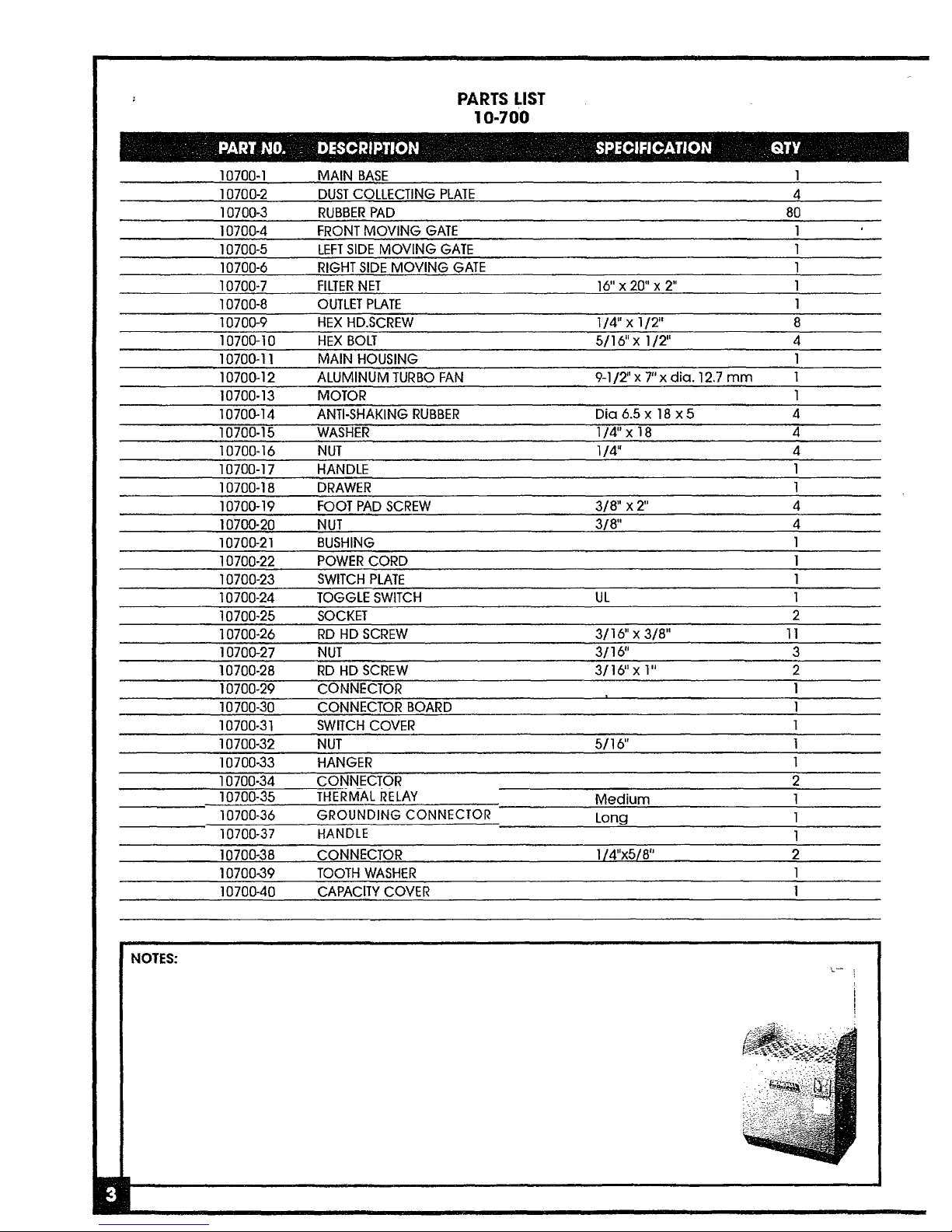

PARTS LIST
10-700
PART NO.
10700-1
10700-2
10700-3
10700-4
10700-5
10700-6
10700-7
10700-8
10700-9
10700-10
10700-1
10700-12
10700-13
10700-14
10700-15
1
10700-17
10700-18
10700-19
10700-20
10700-21
10700-22
10700-23
10700-24
10700-25
10700-26
10700-27
10700-28
10700-29
10700-30
10700-31
10700-32
10700-33
10700-34
10700-35
10700-36
10700-37
10700-38
10700-39
10700-40
1
0700-1 6
DESCRIPTION
MAIN BASE
DUST COLLECTING PLATE
RUBBER PAD
FRONT MOVING GATE
LEFT SIDE MOVING GATE
RIGHT SIDE MOVING GATE
FILTER NET
OUTLET PLATE
HEX HD.SCREW
HEX BOLT
MAIN HOUSING
ALUMINUM TURBO FAN
MOTOR
ANTI-SHAKING RUBBER
WASHER
NUT
HANDLE
DRAWER
FOOT PAD SCREW
NUT
BUSHING
POWER CORD
SWITCH PLATE
TOGGLE SWITCH
SOCKET
RD HD SCREW
NUT
RD HD SCREW
CONNECTOR
CONNECTOR BOARD
SWITCH COVER
NUT
HANGER
CONNECTOR
THERMAL RELAY
GROUNDING CONNECTOR
HANDLE
CONNECTOR
TOOTH WASHER
CAPACITY COVER
SPECIFICATION
16" x 20" x 2'
1/4" x 1/2'
5/16" x 1/2"
9-1/2 x 7"x dia. 121 mm
Dia 6.5 x 18 x 5
1/4" x 18
1/4"
3/8" x 2"
3/8"
UL
3/16" x 3/8"
3/16"
3/16" x 1"
.
5/16"
Medium
Long
1/4"x5/8"
QTY
1
4
80
1
1
1
1
1
8
4
1
1
1
4
4
4
1
1
4
4
1
1
1
1
2
11
3
2
1
1
1
1
1
2
1
1
1
2
1
I
,
NOTES:
„7-...
,---
,-
-
•
• • • • •ATTENTION!• • •
•
• •
NEVER ATTEMPT TO CONNECT TO AN
OUTLET WITH A GREATER POWER SOURCE
VOLTAGE THAN REQUIRED!
ALWAYS VERIFY THAT THE MACHINE IS
PROPERLY GROUNDED TO AVOID ELECTRIC SHOCK
TO THE WORK OPERATOR!
ELECTRICAL REQUIREMENTS
Before connecting the machine to the power source verify that the voltage supplied corresponds as specified on
the nameplate of the machine. A power source with greater voltage than needed can result in serious injury to the
user as well as damage the machine. If in doubt, contact a qualified electrician before connecting to the power
source.
GROUNDING
Machine must be properly grounded in order to avoid electric shock to the work operator. The use of an extension
cord is not recommended, if necessary use a three-prong extension cord and outlet (immediately replace the
extension cord if worn out, cut or damaged). If in doubt contact a qualified electrician. (Fig,A & B)
Fig. A
Adapter
Grounding
terminal
Connect to a circuit breaker no greater than voltage supplied on name plate, to avoid shock or fire; replace the
power cord if it gets worn out, cut or damaged in any way replace immediately.
IF IN DOUBT, CONTACT A QUALIFIED ELECTRICIAN TO
PERFORM ALL ELECTRICAL CONNECTIONS NECESSARY!
DOWN DRAFT TABLE
10-700
GENERAL® INTERNATIONAL
ment and if properly used will give perfect results. However, a reasonable amount of care and
attention is necessary to ensure perfect performance and accurate work. It is imperative that
you take a few moments to familiarise yourself with these instructions, as they will no doubt
save you a lot of time and trouble.
UNPACKAGE AND CLEANUP
To ensure maximum performance from your GENERAL® INTERNATIONAL Dust collector, clean it properly; and install
it accurately before use. As soon as you receive your 10-700 Ml, we recommend you follow these procedures:
Finish removing the contents of the shipping carton with pallet and compare with the contents list.
1.
2.
Report damage, if any to your local distributor.
3.
Clean all rust protected surfaces with a mild solvent or kerosene. Do not use lacquer thinner; paint thinner, or
gasoline. These will damage painted surfaces.
To prevent rust, apply a light coating of paste wax to surface.
4.
Down Draft Tables are carefully tested and inspected before ship-
SAFETY PRECAUTIONS
READ CAREFULLY BEFORE OPERATING THE MACHINE
Replace any broken or worn out parts immediately in order to avoid further damage to your equipment
1.
For replacement parts please contact our service centre.
Do not operate or store your machine near hazardous materials.
2.
Install the dust collector on a solid and stable surface.
3.
Never attempt to leave the machine running while unattended.
4.
Always turn the control button to "Off' before disconnecting from the power source.
5.
Disconnect from the power source when not in use.
6.
Disconnect from power source when replacing or servicing parts.
7.
All objects must be cleared away from surface before starting work operations.
8.
Extension cords are not recommended, if necessary; ensure that the extension cord used can supply and carry the
9.
electrical requirement needed.
10.
Properly ground plug into the power outlet.
11.
Clean and remove any dust or particles.
GENERAL 0 INTERNATIONAL guarantee
All component parts of GENERAL INTERNATIONAL machinery are carefully inspected during all production stages and each
machine is thoroughly inspected upon completion of assembly. Because of quality, GENERAL INTERNATIONAL agrees to
repair or replace any genuine part or parts which, upon examination, proves to be defective in workmanship or material
within a period of 24 months from date of purchasein order to obtain warrantee, all defective parts must be returned prepaid to GENERAL INTERNATIONAL MFG. Co Ltd. Repairs made without our written authorization voids all guarantees.
DOWN DRAFT TABLE
10-71313
CITEMTOta,
alREWMgE
gr
-
MglINCTOCZE
•
The downdraff table provides a higher level of safety and
convenience by collecting dust at the source.
•
Special design for heavy and finish sanding, routing and chop saw
applications.
•
Collect dust that otherwise would stay in the work environment.
•
Industrial strength steel cabinet with three foldable dust curtains.
'Steel top with rubber grommets to hold and protect working piece.
•
Low noise.
•
Shop vacuum or dust collector can easily clean the metal tray
when full of dust.
•
With two electric outlets.
FEATURES
TABLE SIZE
TABLE HEIGHT
FILTER MICRON
AIRFLOW CAPACITY
MOTOR
WEIGHT
SPECIFICATIONS
31 1/2" x21 1/4" (819 x 553 mm
34 Vs" (870 mm)
0.5
1250 CFM
1
/3 HP, 110 V, 1 Ph
207 LBS (94 Kg)
