Page 1
SURFboard® Cable Modem
SB3100
User Guide
®
Page 2
Declaration of Conformity
According to 47CFR, Parts 2 and 15 for Class B Personal Computers and
Peripherals; and/or CPU Boards and Power Supplies used with Class B Personal
Computers, General Instrument, 6450 Sequence Drive, San Diego, CA 92121,
declares under sole responsibility that the product identifies with 47CFR Part 2 and
15 of the FCC Rules as a Class B digital device. Each product marketed is identical
to the representative unit tested and founded to be compliant with the standards.
Records maintained continue to reflect the equipment being produced can be
expected to be within the variation accepted, due to quantity production and
testing on a statistical basis as required by 47CFR 2.909. Operation is subject to
the following condition: This device must accept any interference received,
including interference that may cause undesired operation. The above named party
is responsible for ensuring that the equipment complies with the standards of
47CFR, Paragraph 15.101 to 15.109. The Class B digital apparatus meets all
requirements of the Canadian Interface Causing Equipment Regulations.
This product was FCC certified under test conditions that included the
use of the supplied cable between system components. To be in
compliance with FCC regulation, the user must use this cable and install it
properly.
Page 3
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
CAUTION
TO PREVENT ELECTRICAL SHOCK, DO NOT USE THIS (POLARIZED)
PLUG WITH AN EXTENSION CORD, RECEPTACLE, OR OTHER
OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT
BLADE EXPOSURE.
Canadian Compliance
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations. Cet appareil numérique de la
classe B respects toutes les exigences du Règlement sur le matériel brouilleur
du Canada.
Repairs
If repair is necessary, contact your cable TV service provider.
Copyright © 1999 by General Instrument Corporation.
All rights reserved. No part of this publication may be reproduced in any form
or by any means or used to make any derivative work (such as translation,
transformation or adaptation) without written permission from General
Instrument.
General Instrument reserves the right to revise this publication and to make
changes in content from time to time without obligation on the part of General
Instrument to provide notification of such revision or change. General
Instrument provides this guide without warranty of any kind, either implied or
expressed, including, but not limited, to the implied warranties of
merchantability and fitness for a part icular purpose. General Instrument may
make improvements or changes in the product(s) described in this manual at any
time.
General Instrument, the General Instrument logo, SURFboard, and the SURFboard logo are
registered trademarks of General Instrument Corporation.
Macintosh is a registered trademark of Apple Corporation.
Microsoft is a registered trademark and Windows is a trademark of Microsoft Corporation.
Netscape is a registered trademark of Netscape Communications Corporation.
UNIX is a registered trademark of the Open Group.
Page 4
Front Panel..........................................................................3
Rear Panel...........................................................................4
For a Single User...............................................................7
For Multiple Users ............................................................8
Operation ......................................................9
Powering Up the First Time .......................................... 9
Basic Configuration ....................................10
Configuring for TCP/IP..................................................10
Verifying Your IP Address............................................13
Troubleshooting .........................................14
Page 5
2
The General Instrument® SURFboard® SB3100 cable modem enables you to
connect your home or business computer to a DOCSIS-compliant data
network. It provides high-speed access to the Internet and other online
services. The SB3100 transmits and receives data at much higher speeds than
traditional telephone or ISDN modems.
Unlike a telephone modem, the SB3100 is always online. Just open your
browser and surf.
Page 6
3

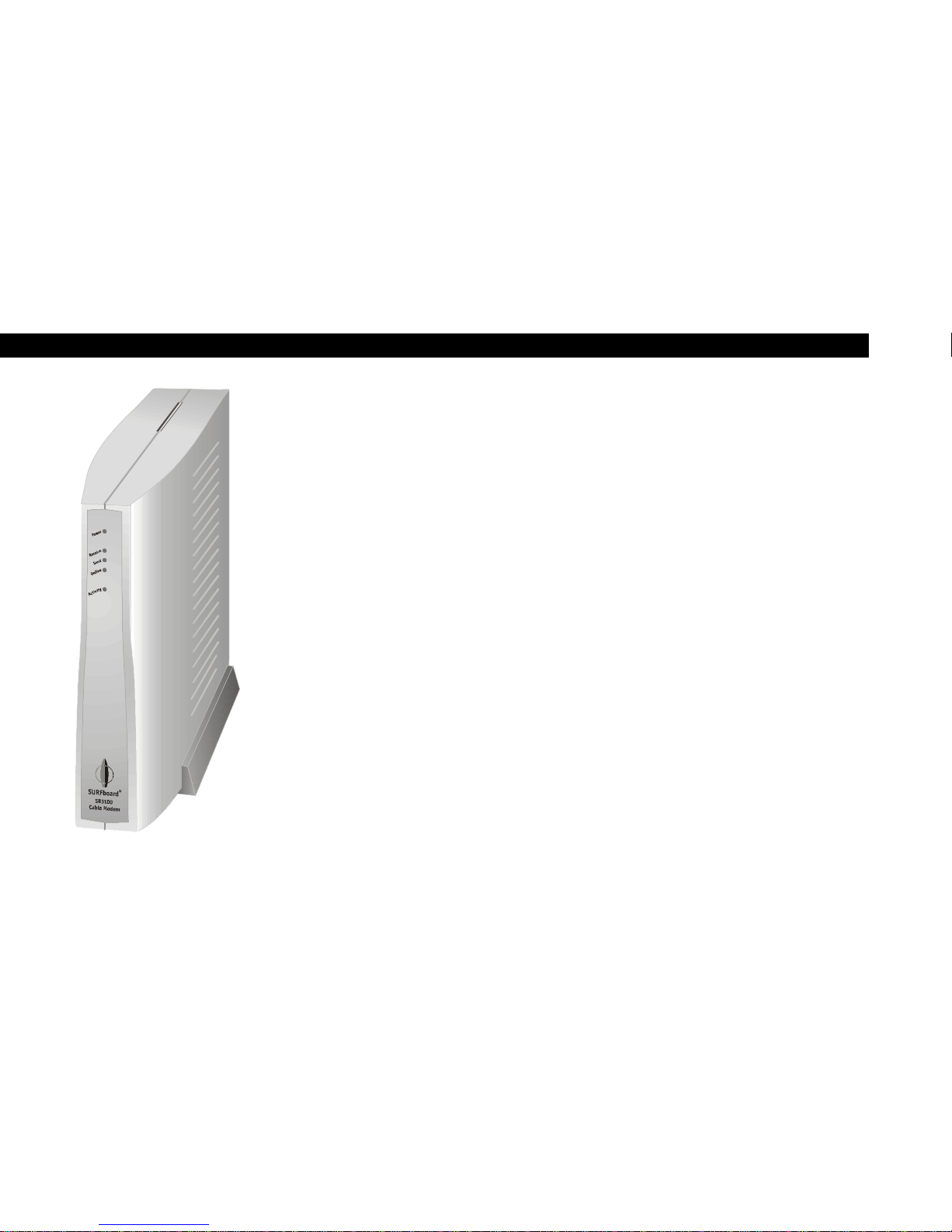

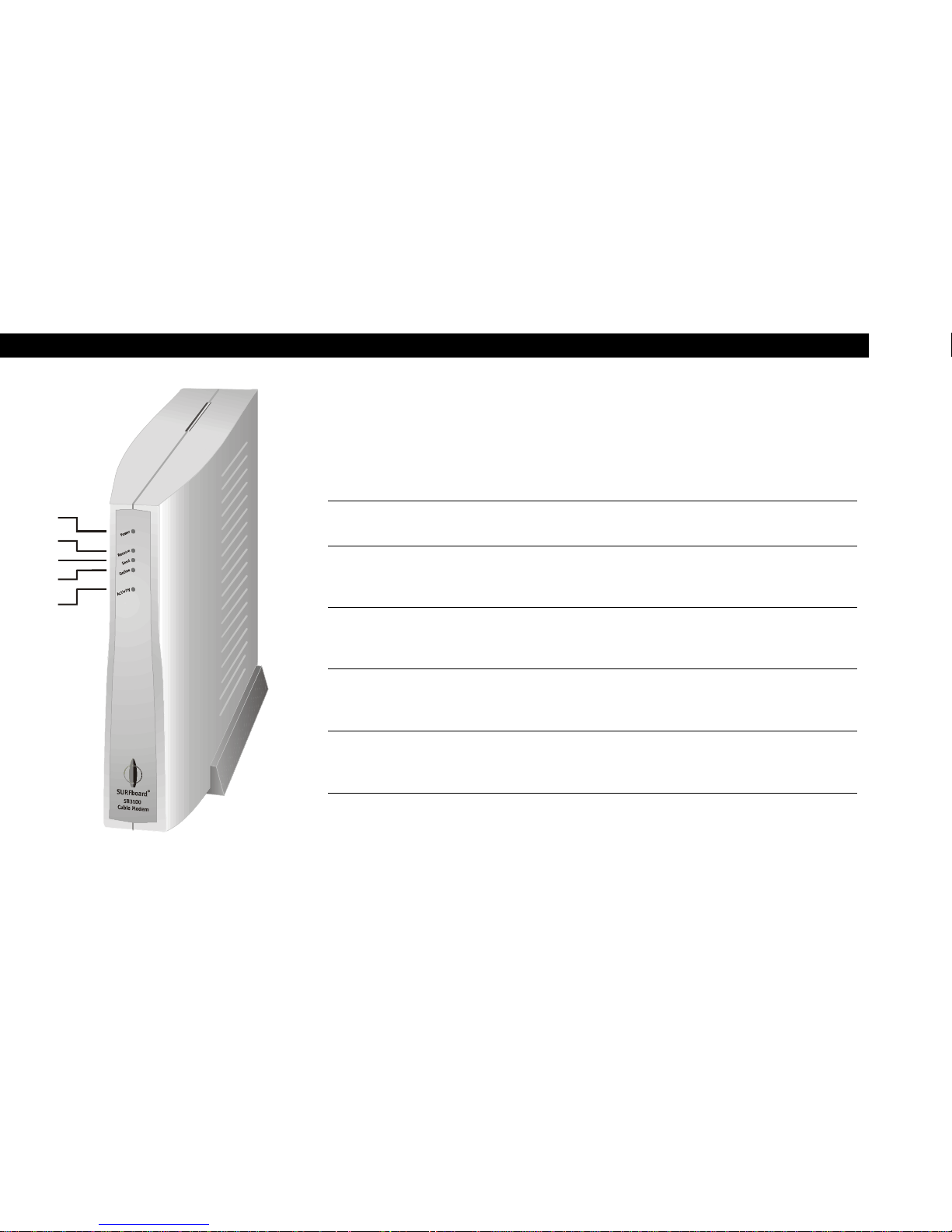

Front Panel
The five front-panel lights provide information about power,
communications, and errors.
Light Color Description
1
Power
Green
When the light is flashing, startup diagnostics are being
performed. A solid light indicates the SB3100 is on.
2
Receive
Green
When the light is flashing, the SB3100 is scanning for
the downstream frequency. A solid light indicates the
downstream channel is acquired.
3
Send
Green When the light is flashing, the SB3100 is scanning for
the upstream frequency. A solid light indicates the
upstream channel is acquired.
4
Online
Green When the light is flashing, the SB3100 is scanning for
the network connection. A solid light indicates the
network connection is acquired..
5
Activity
Amber
When the light is flashing, the SB3100 is transmitting
or receiving data. When the light is off, the SB3100 is
not transferring data
1
3
4
5
2
If an error occurs, the lights provide a quick way of detecting the problem.
See Troubleshooting for more information.
Page 7
4

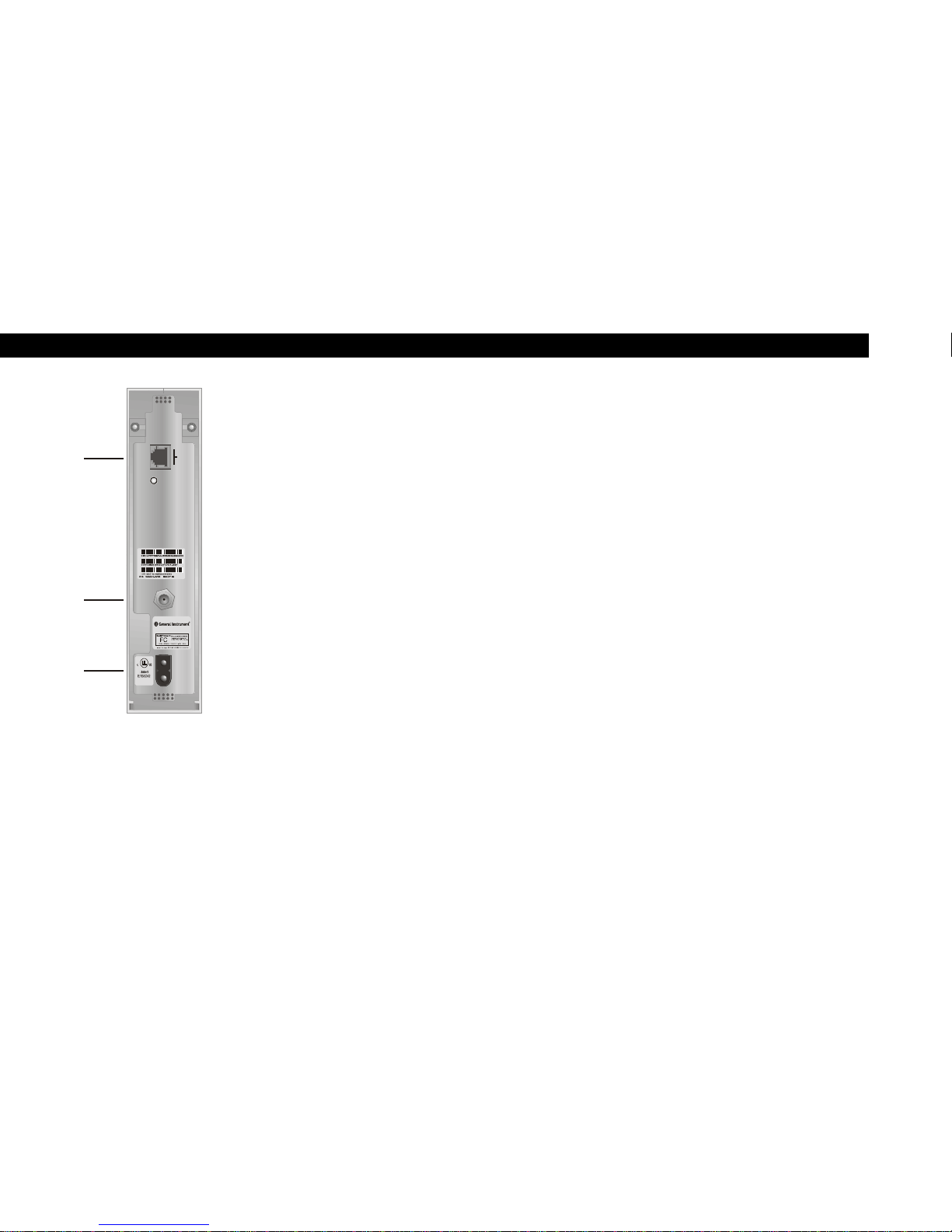

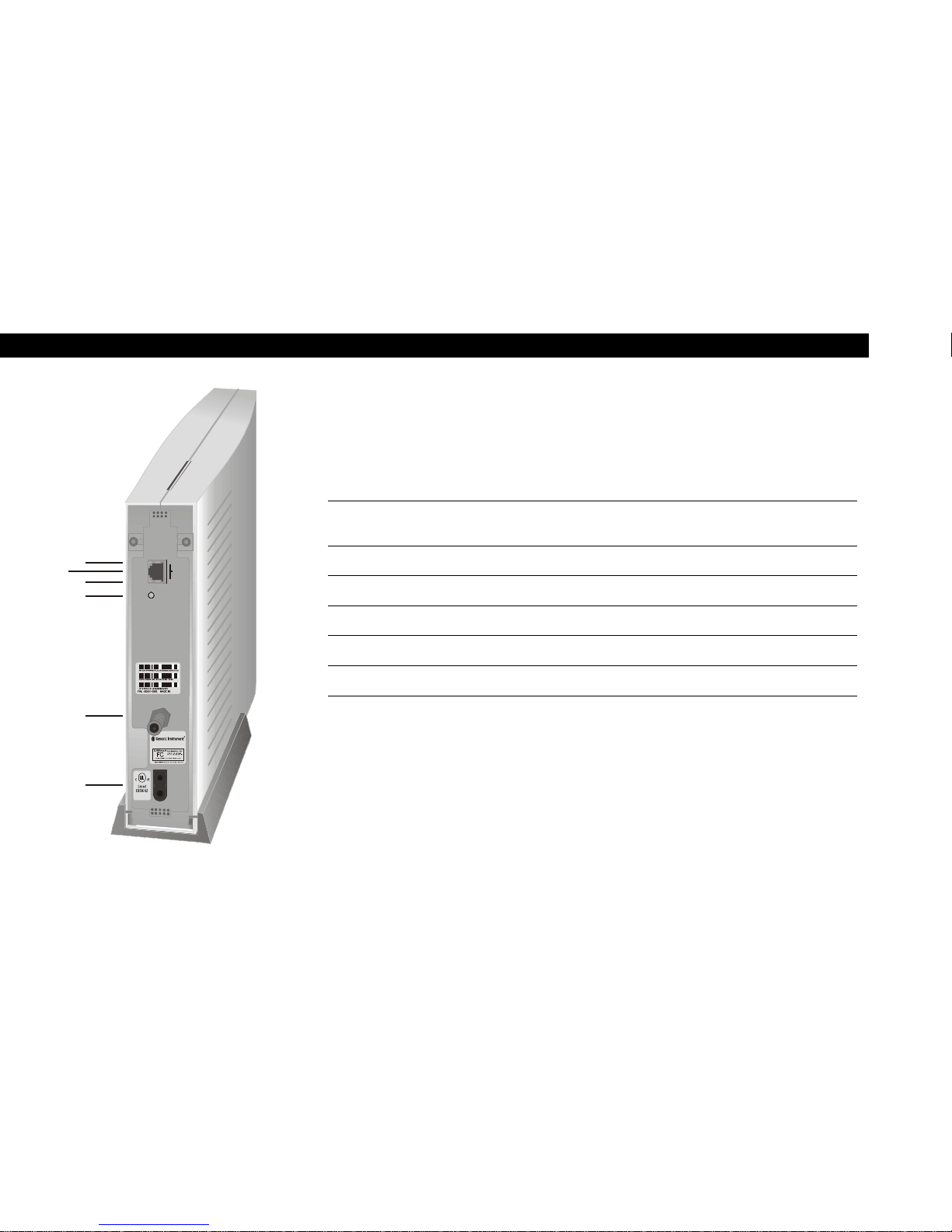

Rear Panel
The rear panel provides Ethernet activity and link status lights, the reset
button, and all the connectors.
Item Description
1
ACT When the light flashes, the Ethernet connection is
transferring data.
2
ENET
This port transfers data to and from your computer.
3
LINK
When the light is on, the Ethernet connection is available.
4
This is the recessed reset button.
5
CABLE
This port transfers data to and from the service provider.
6
POWER
This connector provides power to the SB3100.
1
2
6
5
4
3
ACT
LINK
ENET
POW ER
CABLE
Page 8
5
Before you begin the installation, check that you received:
Power cord
Required to connect the SB3100 to the
electrical outlet.
One 10Base-T Ethernet cable
Required to connect your computer to the
SB3100.
You need to purchase a 75-ohm coaxial cable with F-type connectors for
connecting your SB3100 to the nearest cable outlet. If you have a TV set
attached to the cable outlet, you may need a 5-900 MHz splitter to use both
the TV and the SB3100.
Page 9
6
To use the SB3100 with your computer system, you need the following:
Service Provider
You must sign up with your data service provider who
provides access to the Internet and other online services.
Computer
Your computer must support Ethernet and the TCP/IP
protocol to access the SB3100. The SB3100 is compatible
with Microsoft
®
, Macintosh®, and UNIX® operating systems.
You don’t need special software to operate the SB3100.
Ethernet card
Any standard 10Base-T Ethernet card operates with the
SB3100. Your computer must be configured for TCP/IP and
have an IP address for the SB3100 to operate. Your service
provider furnishes the IP address.
HTML Browser
Any standard HTML (web) browser works with the SB3100.
Page 10
7
ACT
LINK
ENET
CABLE
POWER
computer
TV cable to
Power cord
outlet
You must call your service provider to activate your service. You need to
provide the media access control (MAC) address. This address is found on
the barcode label marked HFC MAC ID on the rear panel. The address
format is 00:20:40:xx:xx:xx.
The installation of the SB3100 can be completed in a matter of minutes.
After you attach the three cables, you must configure your computer.
For a Single User
1
Connect the coaxial TV cable to the SB3100 connector marked
CABLE and the other end to the cable outlet or splitter. Hand-tighten
the connectors to avoid damaging them. You may need a 5-900 MHz
splitter if you have a TV connected to the cable outlet.
2 Connect the 10Base-T Ethernet cable to the SB3100 connector
marked ENET and the other end to the Ethernet jack on the back of
your computer.
3 Plug the power cord into the SB3100 connector marked POWER and
the other end to the electrical outlet.
Page 11
8
Service
provider
Crossover
Ethernet cable
Standard
Ethernet cable
Ethernet
hub
Computer Computer
Computer
SB3100
TV cable
For Multiple Users
The SB3100 can easily serve as a gateway to the Internet for up to 32 users.
The users must be on the LAN and the SB3100 must be attached to the
LAN and the cable system.
The network administrator at your service provider configures your modem
for multiple users.
Page 12
9
Powering Up the First Time
You must allow 5 to 30 minutes to power up the first time because the
SB3100 must find and lock on the appropriate channels for communications.
1 Be sure that your computer is on and SB3100 is unplugged.
2 Plug the SB3100 in and notice that the lights on the front panel cycle
through this sequence:
• Power flashes during a self-test. When the self-test is successfully
complete, the light is solid green.
• Receive flashes while the SB3100 scans for the downstream
channel. When the downstream channel is locked, the light is
solid green.
• Send flashes while the SB3100 scans for the upstream channel.
When the upstream channel is locked, the LED is solid green.
• Online flashes while the SB3100 is obtaining configuration
information. When the configuration information is obtained, the
LED is solid green.
During normal operation, the Power, Receive, Send, and Online lights are on
and the Activity light flashes.
Page 13
10
The SB3100 contains all necessary software. You don’t need to configure the
SB3100 but you must configure your computer for TCP/IP and check for an
IP address. Your service provider may provide additional instructions for
setting up your computer. The following basic instructions are for
Windows™ 95 or Windows 98. If you are using a different operating
system, refer to that user guide.
Configuring for TCP/IP
1
On the Windows Desktop, click Start.
2 Select Settings and then Control Panel from the pop-up menus.

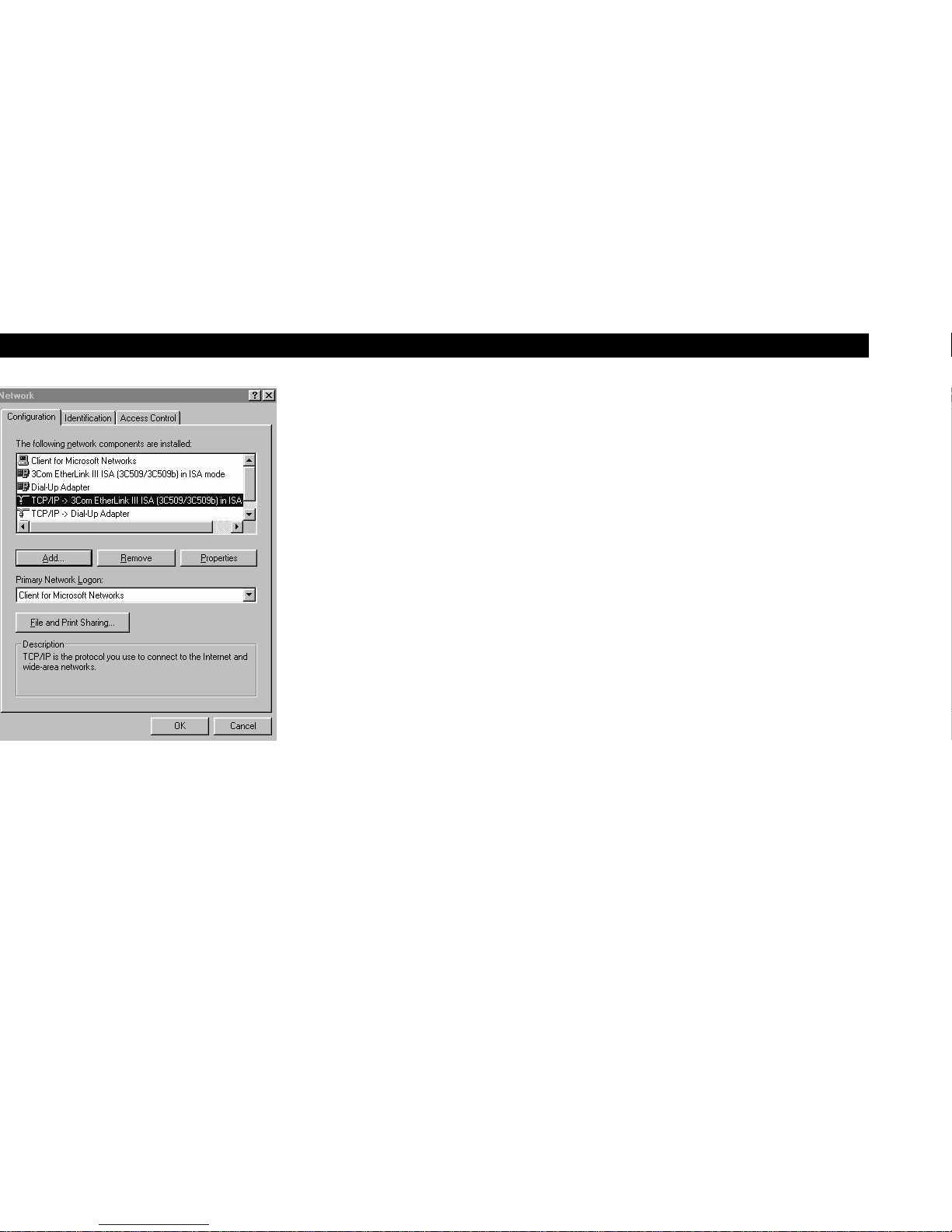

3 Double-click the Network icon on the Control Panel window.

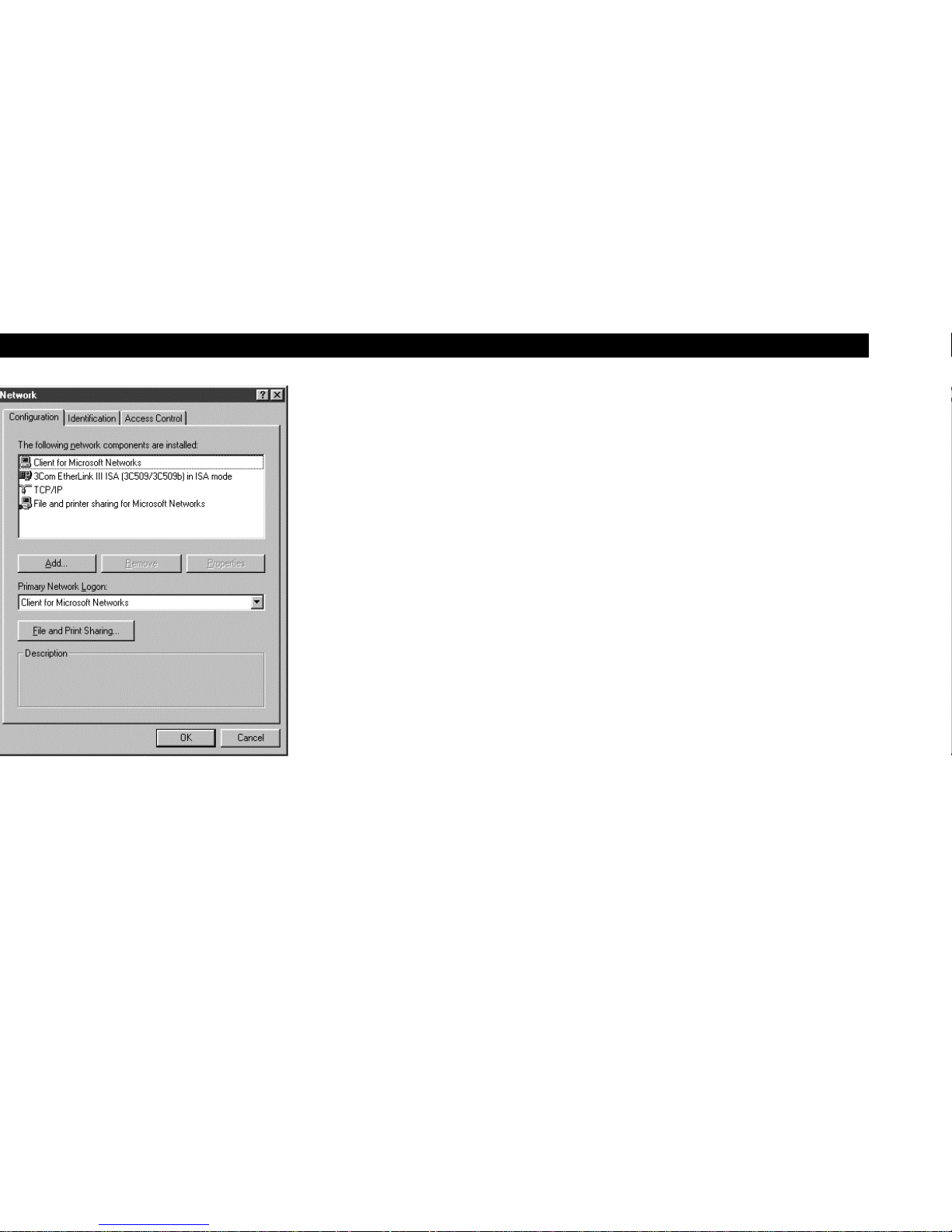

4 Select the Configuration tab on the Network window.
5 Check to see if TCP/IP has been installed for the Ethernet card. If
TCP/IP appears in the list of network components, it is installed and
you can proceed to step 10. If it doesn’t appear on the list, continue
with step 6.
Page 14
11

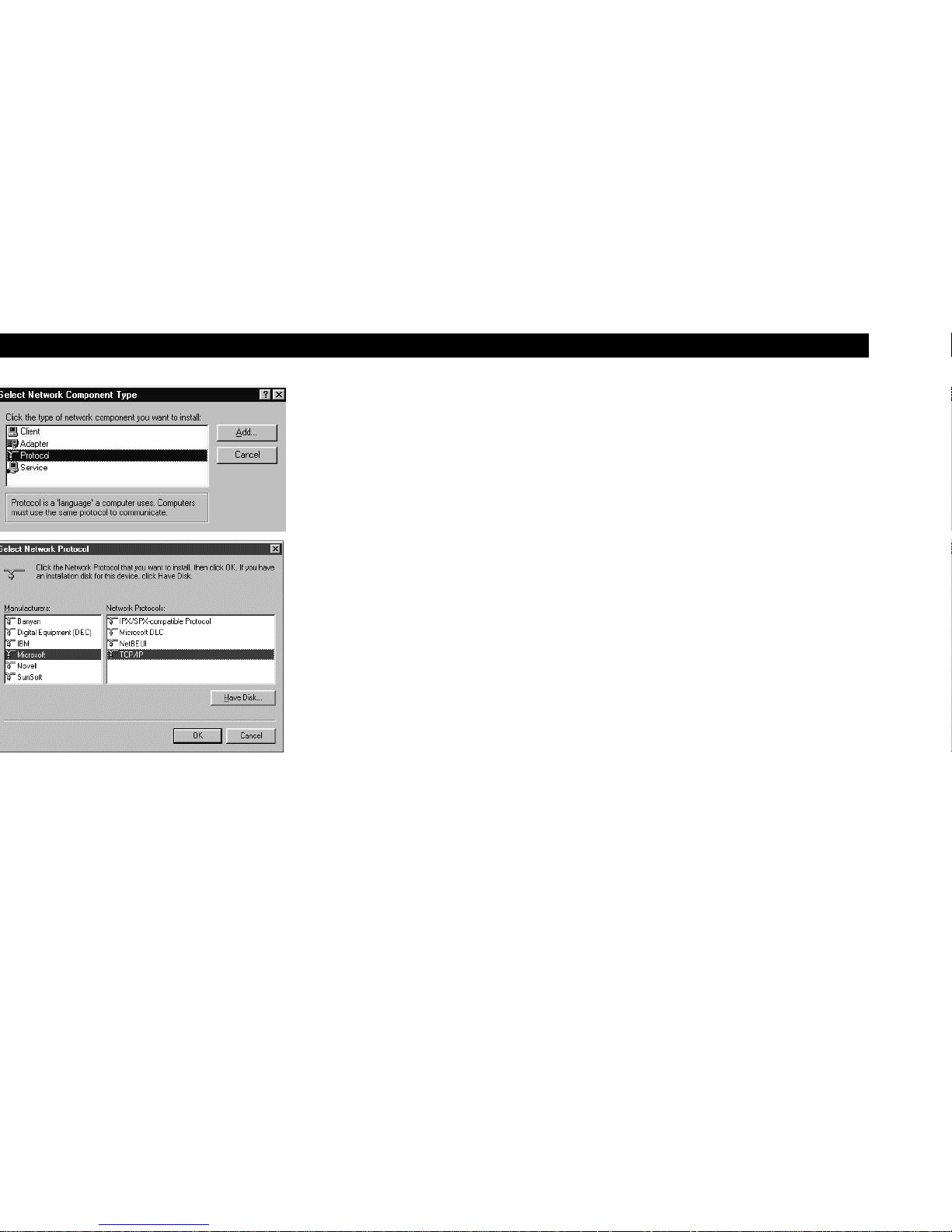

6 Click Add.
7 Double-click the Protocol option on Select Network Component
Type window.
8 Click Microsoft in the Manufacturers section and then click TCP/IP in
the Network Protocol section of Select Network Protocol window.
9 Click OK.
Page 15
12
10 Click TCP/IP on the Network window. If you have more than one
TCP/IP entry, choose the one associated with the Ethernet card
connected to the SB3100.
11 Click Properties.
12 Select the IP Address tab on the TCP/IP window.
13 Click Obtain an IP address automatically.
14 Click OK to accept the TCP/IP settings.
15 Click OK to close the Network window.
16 Click OK when a prompt to restart your computer is displayed and
then click OK again.
Page 16
13

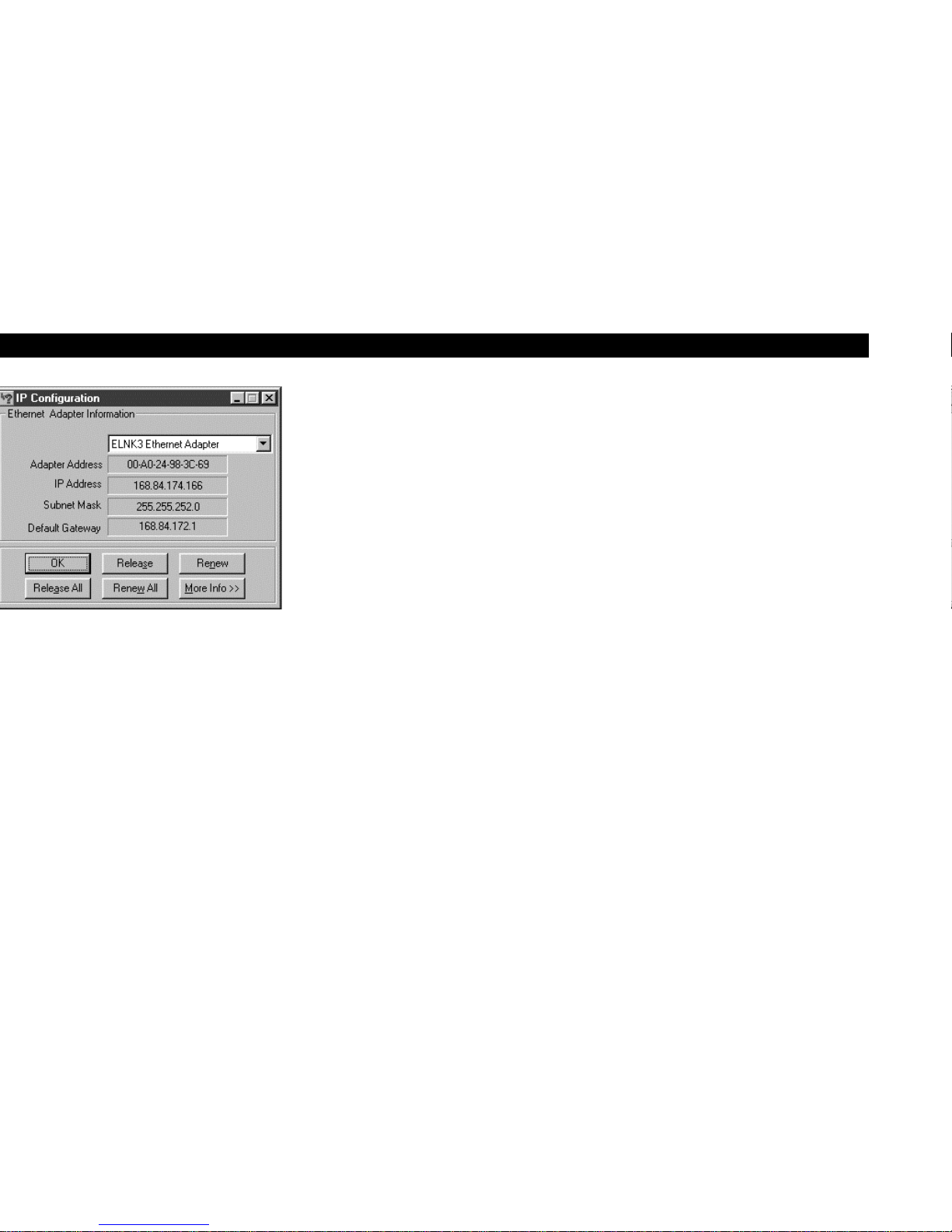

Verifying Your IP Address
The following basic instructions are for Windows 95 or Windows 98. If you
are using a different operating system, refer to that user guide. To check the
IP address:
1 On the Windows Desktop, click Start.
2 Select Run.
3 Type winipcfg.exe. A window similar to the example is displayed.
4 Select your adapter name.
5 Click Renew.
6 Click OK after the system displays an IP address.
If after performing this procedure, your computer doesn’t access the
internet, call your service provider. They will assist in verifying your
configuration.
Page 17
14
Check that the power cord is properly plugged into the wall outlet and the rear panel of the SB3100.
Call your service provider.
Check the lights on the front-panel. Note the first light from top to bottom that is off. This light
indicates where the error occurred. If the first light that is off is:
Receive
Send
Online
During normal operation, the downstream channel is lost. During startup, the downstream
channel is not acquired.
During normal operation, the upstream channel is lost. During startup, the upstream
channel is not acquired.
During normal operations, the IP registration is lost. During startup, the IP registration was
not successful.
Check that your TV is working if you have cable TV and you have a clear TV picture. If you aren’t
receiving your regular TV channels, your data service will not function.
Check the coaxial cable at the rear panel and outlet and hand-tighten if necessary.
Check the IP address (follow the steps on page 13); call your service provider if you need an IP address.
Page 18
TOGETHER WITH PROOF OF PURCHASE OF THIS PRODUCT, WITHIN TEN (10)
DAYS AFTER PURCHASE, FOR A FULL REFUND.
YOU SHOULD OPEN THIS PRODUCT PACKAGE AND USE THE PRODUCT ONLY
IF YOU ACCEPT EACH OF THE TERMS OF THIS AGREEMENT.
GI’s Cable Modem Software is never sold. GI licenses it to the original customer and to
any subsequent licensee for personal use only on the terms of this Agreement. GI
retains the ownership of this copy and any subsequent copies of the software. BY
OPENING THIS PRODUCT PACKAGE AND USING THE PRODUCT YOU
INDICATE YOUR ACCEPTANCE OF THESE TERMS. Otherwise, you may return this
product (including all software, components, documentation, and other contents of this
product package) together with proof of purchase, within ten (10) days after purchase,
to the place where you obtained it for a full refund. This copy of the software is licensed
to you under the following terms.
Page 19
You may not
Loan, distribute, rent, lease, give, sublicense or otherwise transfer the software or
documentation (or any copy of the software or documentation), in whole or in part, to
any other person, except as permitted under the TRANSFER paragraph above. Copy or
translate the User Guide included with the software. Copy, alter, translate, decompile,
disassemble or reverse engineer the software or documentation, including but not
limited to, modifying the software to make it operate on non-compatible hardware.
Remove, alter or cause not to be displayed, any copyright notices or startup message
contained in the programs or documentation. Export the software or the product
components in violation of any United States export laws.
The software is not designed or intended for use in on-line control of aircraft, air traffic,
aircraft navigation or aircraft communications; or in design, construction, operation or
maintenance of any nuclear facility. GI and its licensors disclaim any express or implied
warranty of fitness for such uses. You represent and warrant that you shall not use the
software for such purposes.
Title of this product, the software and the documentation, including the ownership of all
copyrights, mask work rights, patents, trademarks and all other intellectual property
rights subsisting in the foregoing, and all adaptations to and modifications of the
foregoing shall at all times remain with GI. GI retains all rights not expressly licensed
under this Agreement. This product, the software and the documentation, including any
images, graphics, photographs, animation, video, audio, music and text incorporated
therein is owned by GI or its suppliers and is protected by United States copyright laws
and international treaty provisions. Except as otherwise expressly provided in this
Agreement, the copying, reproduction, distribution or preparation of derivative works
of the software, any portion of the product or the documentation is strictly prohibited
by such laws and treaty provisions. Nothing in this Agreement constitutes a waiver of
GI’s rights under United States copyright law.
This Agreement and your rights regarding any matter it addresses are governed by the
laws of California. THIS LICENSE SHALL TERMINATE AUTOMATICALLY if you fail to
comply with the terms of this Agreement.
Page 20
CONSEQUENTIAL DAMAGES, SO THE ABOVE EXCLUSION OR LIMITATION MAY
NOT APPLY TO YOU.)
IN NO CASE SHALL GI’S LIABILITY EXCEED THE AMOUNT YOU PAID IN LICENSE
FEES FOR THE RIGHT TO USE A SINGLE COPY OF THIS SOFTWARE. GI’S
SOFTWARE PRICING REFLECTS THIS ALLOCATION OF RISK AND LIMITATIONS
ON LIABILITY CONTAINED IN THIS LIMITED WARRANTY.
What additional provisions should I be aware of? Because it is impossible for GI to know
the purposes for which you acquired this software and accompanying product or the
uses to which you will put this software and accompanying product, you assume full
responsibility for the selection of the software and accompanying product, and for their
installation and use and the results of that use.
While every reasonable effort has been made to insure that you will receive software
that you can use and enjoy, GI does not warrant that the functions of the software will
meet your requirements or that the operation of the software will be uninterrupted or
error-free. Due to the complex nature of computer programs, the programs in this
package (like all programs) will probably never be completely error-free.
GI is not responsible for problems caused by changes in the operating characteristics of
the hardware or operating system software you are using which are made after the
release date of this version of the Cable Modem Software, nor for problems in the
interaction of the Cable Modem with any other software. This agreement constitutes
the entire agreement between you and GI regarding the software, product and
documentation, and supersedes any prior representations, understandings and
agreements, either oral or written.
The Limited Warranty gives you specific rights, and you may also have other rights that
vary from state to state. No action for breach of warranty may be commenced more
than one (1) year following the expiration of the Warranty Period.
U.S. GOVERNMENT RESTRICTED RIGHTS
The software, product and documentation is provided with RESTRICTED RIGHTS. The
use, duplication or disclosure by the Government is subject to restrictions as set forth
in subdivision (c)(1)(ii) of The Rights in Technical Data and Computer Software clause at
52.227-7013. The contractor/manufacturer is General Instrument Corporation, 6450
Sequence Drive, San Diego, California 92121.
Page 21
General Instrument Corporation
462641-001-99
7/99
Loading...
