General Filters MAC 2000 Installation Manual
FORM NO.
14044 REV. A

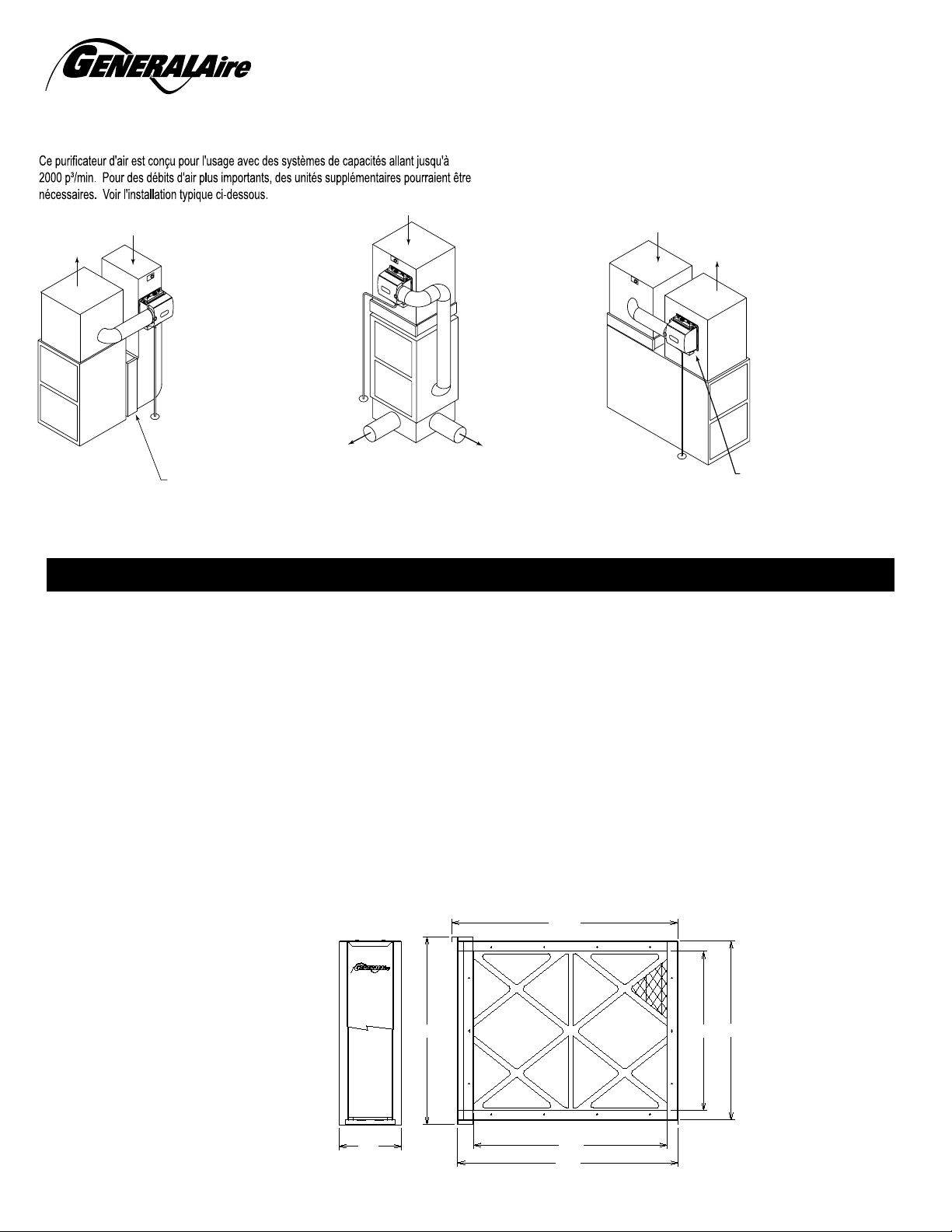

This air cleaner is designed for use in systems up to 2000 CFM. For higher airflows additional units
may be required. See Typical Installations below.
FOR INSTALLATION IN THE
RETURN AIR DUCT OF ANY
FORCED AIR HEATING AND
COOLING SYSTEM
INSTALLER: PLEASE FILL OUT AND MAIL GUARANTEE CARD AFTER INSTALLATION
IS COMPLETE. LEAVE INSTALLATION INSTRUCTIONS WITH HOME OWNER
MAC 2000
MEDIA
AIR CLEANER
Litho in U.S.A.
INSTALLATION INSTRUCTIONS
GENERALAire MAC 2000
MEDIA AIR CLEANER
IMPORTANT: A 26 INCH CLEARANCE MUST BE ALLOWED FOR REMOVAL OF THE MEDIA CARTRIDGE
FROM THE CABINET.
1. Turn off electricity to furnace.
2. Remove front cover.
3. Slide media cartridge from air cleaner cabinet, and discard packing
material.
4. Remove and discard existing furnace air filter.
5. Install cabinet in return air system. Properly install airflow direction
arrows on interior of cabinet. Duct supports are recommended to
support weight of cabinet. See typical installations.
6. Slide the media cartridge into the cabinet. Be sure the airflow
arrow on the cartridge is in the same direction as the arrow in the
cabinet. The wire mesh is always on the downstream side of the
filter media. Replace cover.
7. If a condition indicator is to be used, install on a vertical duct
surface between the air cleaner and the furnace blower.
8. Turn on electricity and furnace and check performance of all
equipment.
GENERALAire FLOW THRU
SERIES HUMIDIFIER
20x25x5
Actual Size: 19 5/8x24 1/8x4 15/16
MODEL: MAC 2025
WWW.GENERALAIRE.COM
Novi, MI 48375-1115
43800 Grand River Ave.
GENERAL FILTERS, INC.
22
25
7
18
21 5/16
20 1/4
25 5/8
HIGH BOY COUNTER-FLOW
RETURN AIR
RETURN AIR
WARM AIR
WARM AIR
WARM AIR
LOW BOY
RETURN AIR
WARM AIR
FILL OUT AND MAIL THIS
WARRANTY CARD AND
LITERATURE REQUEST FORM
H
IGH EFFICIENCY AIR CLEANERS
E
LECTRONIC TEMPERATURE
C
OMPENSATING HUMIDISTAT
UV A
IR PURIFIERS
HEPA A
IR CLEANER
H
UMIDIFIERS
E
LITE STEAM HUMIDIFIERS
A
IR FILTER GAGE
F
UEL OIL FILTERS AND
A
CCESSORIES
MAINTENANCE
The Air Cleaner Media 14201 will normally need to be replaced every 4 to 6 months (end of the heating or cooling season) with normal usage. If an air
cleaner condition indicator is used, change the media when the device indicates that service is required. Additionally, the frequency of filter replacement
can be determined by visual examination.
PARTS LIST PRESSURE DROP SCHEDULE
CABINET 14001
FILTER CARTRIDGE 14201
CFM IN W.C.
600 0.04
800 0.06
1000 0.08
1200 0.11
1400 0.14
ACCESS
DOOR
14008
1600 0.17
1800 0.21
2000 0.26
LIMITED WARRANTY
T
his air cleaner, if properly registered by the return of the attached warranty registration card to the manufacturer, is warranted to the consumer against defects in materials and
workmanship for a period of two years from the date of installation. The air cleaner media is not covered by this limited warranty
Any other defective parts will b e repaired without charge except for
