General Electric XQ_I SCHEMATICS_SM_2219416-100_6 8010 Technical Documentation

Technical Publication

Direction 2219416−100
Revision 6

RevolutionT XQ/iT System Schematics

GE Medical Systems

gemedical.com

Copyrighte 1999, 2000, 2002 and 2004 By General Electric Co.
All Rights Reserved

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

THIS PAGE INTENTIONALLY LEFT BLANK.

ii

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

D THIS SERVICE MANUAL IS AVAILABLE IN ENGLISH ONLY.

WARNING

AVERTISSEMENT

WARNUNG

D IF A CUSTOMER’S SERVICE PROVIDER REQUIRES A LANGUAGE OTHER THAN ENGLISH, IT IS THE CUSTOMER’S RESPONSIBILITY TO PROVIDE TRANSLATION SERVICES.
D DO NOT ATTEMPT TO SERVICE THE EQUIPMENT UNLESS THIS SERVICE MANUAL HAS BEEN CONSULTED AND IS UNDERSTOOD.
D FAILURE TO HEED THIS WARNING MAY RESULT IN INJURY TO THE SERVICE PROVIDER, OPERATOR OR PATIENT FROM ELECTRIC SHOCK, MECHANICAL OR OTHER HAZARDS.

D CE MANUEL DE MAINTENANCE N’EST DISPONIBLE QU’EN ANGLAIS.
D SI LE TECHNICIEN DU CLIENT A BESOIN DE CE MANUEL DANS UNE AUTRE LANGUE QUE L’ANGLAIS, C’EST AU CLIENT QU’IL INCOMBE DE LE FAIRE TRADUIRE.
D NE PAS TENTER D’INTERVENTION SUR LES ÉQUIPEMENTS TANT QUE LE MANUEL SERVICE N’A PAS ÉTÉ CONSULTÉ ET COMPRIS.
D LE NON-RESPECT DE CET AVERTISSEMENT PEUT ENTRAÎNER CHEZ LE TECHNICIEN, L’OPÉRATEUR OU LE PATIENT DES BLESSURES DUES À DES DANGERS ÉLECTRIQUES, MÉCANIQUES OU AUTRES.

D DIESES KUNDENDIENST−HANDBUCH EXISTIERT NUR IN ENGLISCHER

SPRACHE.

D FALLS EIN FREMDER KUNDENDIENST EINE ANDERE SPRACHE BENÖTIGT, IST ES AUFGABE DES KUNDEN FÜR EINE ENTSPRECHENDE ÜBERSETZUNG ZU SORGEN.
D VERSUCHEN SIE NICHT, DAS GERÄT ZU REPARIEREN, BEVOR DIESES KUNDENDIENST−HANDBUCH ZU RATE GEZOGEN UND VERSTANDEN WURDE.
D WIRD DI ESE WARNUNG NICHT BEACHTET, SO KANN ES ZU VERLETZUNGEN DES KUNDENDIENSTTECHNIKERS, DES BEDIENERS ODER DES PATIENTEN DURCH ELEKTRISCHE SCHLÄGE, MECHANISCHE ODER SONSTIGE

GEFAHREN KO M M E N .

AVISO

ATENÇÃO

AVVERTENZA

D ESTE MANUAL DE SERVICIO SÓLO EXISTE EN INGLÉS.
D SI ALGÚN PROVEEDOR DE SERVICIOS AJENO A GEMS SOLICITA UN IDIOMA QUE NO SEA EL INGLÉS, ES RESPONSABILIDAD DEL CLIENTE OFRECER UN SERVICIO DE TRADUCCIÓN.
D NO SE DEBERÁ DAR SERVICIO TÉCNICO AL EQUIPO, SIN HABER CONSULTADO Y COMPRENDIDO ESTE MANUAL DE SERVICIO.
D LA NO OBSERV ANCIA DEL PRESENTE AVISO PUEDE DAR LUGAR A QUE EL PROVEEDOR DE SERVICIOS, EL OPERADOR O EL PACIENTE SUFRAN LESIONES PROVOCADAS POR CAUSAS ELÉCTRICAS, MECÁNICAS O DE

OTRA NATURALEZA.

D ESTE MANUAL DE ASSISTÊNCIA TÉCNICA SÓ SE ENCONTRA DISPONÍVEL

EM INGLÊS.

D SE QUALQUER OUTRO SERVIÇO DE ASSISTÊNCIA TÉCNICA, QUE NÃO A GEMS, SOLICITAR ESTES MANUAIS NOUTRO IDIOMA, É DA RESPONSABILIDADE DO CLIENTE FORNECER OS SERVIÇOS DE TRADUÇÃO.
D NÃO TENTE REPARAR O EQUIPAMENTO SEM TER CONSULTADO E COMPREENDIDO ESTE MANUAL DE ASSISTÊNCIA TÉCNICA.
D O NÃO CUMPRIMENTO DESTE AVISO PODE POR EM PERIGO A SEGURANÇA DO TÉCNICO, OPERADOR OU PACIENTE DEVIDO A‘ CHOQUES ELÉTRICOS, MECÂNICOS OU OUTROS.

D IL PRESENTE MANUALE DI MANUTENZIONE È DISPONIBILE SOLTANTO IN

INGLESE.

D SE UN ADDETTO ALLA MANUTENZIONE ESTERNO ALLA GEMS RICHIEDE IL MANUALE IN UNA LINGUA DIVERSA, IL CLIENTE È TENUTO A PROVVEDERE DIRETTAMENTE ALLA TRADUZIONE.
D SI PROCEDA ALLA MANUTENZIONE DELL’APP ARECCHIATURA SOLO DOPO AVER CONSULT ATO IL PRESENTE MANUALE ED A VERNE COMPRESO IL CONTENUTO.
D NON TENERE CONTO DELLA PRESENTE AVVERTENZA POTREBBE FAR COMPIERE OPERAZIONI DA CUI DERIVINO LESIONI ALL’ADDETTO ALLA MANUTENZIONE, ALL’UTILIZZATORE ED AL PAZIENTE PER FOLGORAZIONE

ELETTRICA, PER URTI MECCANICI OD ALTRI RISCHI.

iii

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

iv

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

IMPORTANT! . . . X-RAY PROTECTION

X-ray equipment if not properly used may cause injury. Accordingly, the instructions herein contained should be thoroughly read and understood by everyone who will use the equipment before you attempt to place this equipment in
operation. The General Electric Company, Medical Systems Group, will be glad to assist and cooperate in placing this equipment in use.

Although this apparatus incorporates a high degree of protection against x-radiation other than the useful beam, no practical design of equipment can provide complete protection. Nor can any practical design compel the operator to take adequate precautions to
prevent the possibility of any persons carelessly exposing themselves or others to radiation. It is important that everyone having anything to do with x-radiation be properly trained and fully acquainted with the recommendations of the National Council on Radiation
Protection and Measurements as published in NCRP Reports available from NCRP Publications, 7910 Woodmont Avenue, Room 1016, Bethesda, Maryland 20814, and of the International Commission on Radiation Protection, and take adequate steps to protect
against injury.

The equipment is sold with the understanding that the General Electric Company, Medical Systems Group, its agents, and representatives have no responsibility for injury or damage which may result from improper use of the equipment. Various protective
material and devices are available. It is urged that such materials or devices be used.

CAUTION: United States Federal law restricts this device to use by or on the order of a physician.

CERTIFIED ELECTRICAL CONTRACTOR STATEMENT

All electrical installations that are preliminary to positioning of the equipment at the site prepared for the equipment shall be performed by licensed electrical contractors. In addition, electrical feeds into the Power Distribution Unit shall be performed by licensed electrical
contractors. Other connections between p ieces of e lectrical equipment, calibrations, and testing shall be p erformed by qualified G E Medical personnel. The products involved (and the accompanying electrical installations) are highly sophisticated, and special engineering
competence is required. In performing all electrical work on these products, GE will use its own specially trained field engineers. All of GE’s electrical work on these product s will comply with the requirements of the applicable electrical codes.

The purchaser of GE equipment shall only utilize qualified personnel (i.e., GE’s field engineers , personnel of third-party servic e companies with equivalent training, or licensed electricians) to perform electrical servicing on the equipment .

DAMAGE IN TRANSPORTATION

All packages should be closely examined at time of delivery. If damage is apparent, have notation “damage in shipment” written on all copies of the freight or express bill before delivery is accepted or “signed for” by a General Electric representative or a hospital
receiving agent. Whether noted or concealed, damage MUST be reported to the carrier immediately upon discovery, or i n any event, within 14 days after receipt, and the contents and containers held for inspection by the carrier. A transportation company will not
pay a claim for damage if an inspection is not requested within this 14 day period.

Call T raf fic and T ransportation, Milwaukee, WI (414) 827−3468 / 8*285−3468 immediately after damage is found. At this time be ready to supply name of carrier , delivery date, consignee name, freight or express bill number, item damaged and extent of damage.
Complete instructions regarding claim procedure are found in Section “S” of the Policy & Procedure Bulletins. 6/17/94

v

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

REVISION HISTORY

REV DATE REASON FOR CHANGE

0 July 30, 1999 Changed A1 A4 to 2142602. Deleted old CPU board schematic. New CPU board has no schematic. Updated TBS A2 A3 schematic to Rev.1. Updated WLS A6A2A1 and SKL A25. Added TBS A7. Initial product re-

lease.
1 Feb. 17, 2000 Updated TBS A2 A3 to Rev. 2. Added SKL A7 (page 2) and SKL A8.
2 Mar. 6, 2000 Included new revision of Top Half schematic.
3 Mar. 29, 2000 Updated A2 A4, S000113, to Rev. 3. Updated 2219402sch (Sec. 43) to Rev. 1.
4 Nov. 22, 2002 Updated part numbers for IDC Module.
5 Feb. 24, 2004 Updated overall schematics drawing 2212195SCH to include connections to new PDU (PCN 238341).
6 May 11, 2004 Updated ADS interconnect drawings to reflect IP Server (Cotello) option.

vi

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE OF CONTENTS

CHAPTER 1 − INTRODUCTION 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1

CONTENT AND ORGANIZATION 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2

HIERARCHICAL CONVENTIONS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3

REFERENCES 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHAPTER 2 − REVOLUTION XQ/I SYSTEM COMPONENTS 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHAPTER 3 − SYSTEMS CABINET (SKL) 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1

SYSTEM CABINET (65KW, 50HZ − 2213251, 80KW, 50HZ − 2213251−2, 65KW, 60HZ − 2213251−3AND 80KW, 60HZ − 2213251−4) 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2

SKL A1 − 2197212 (ASC−EDM) 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3

ELECTRICAL INTERFACE CONNECTORS AND SIGNAL NAMES 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4

SKL A1 A1 2107542 (BIU BOARD) 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 5

SKL A1 A2, 2113448 (SERIAL BOARD) 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 6

SKL A1 A3, 2196392 (CPU BOARD) 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 7

SKL A1 A4, 2142602 (CONTROL PANEL BOARD) 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 8

SKL A1 A7, POWER SUPPLY ASSEMBLY 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 9

SKL A1 A20, 2109475 (ASC BACKPLANE) 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 10

SKL A2, 2108822 (ECM) 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 11

SKL A3, 2111391, (ADW) AND 2108475SCH (HUB ) 108. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 12

SKL A4, 2192776 (AC DISTRIBUTION) 117. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 13

SKL A5 (CABINET FANS) 119. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vii

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE OF CONTENTS

SECTION 14

SKL A6 (POWER STRIP PANEL) 120. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 15

ETHERNET HUBS 121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-1 DES−815: (SKL A7) 121. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-1-1 Indicators 122. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-1-2 SWITCHES 122. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-1-3 PORTS 122. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-2 ETHERNET HUB (SKL A7, DES−1016FX: 16 RJ−45 N−WAY PORTS, 2 FX PORTS) 123. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-2-1 INDICATORS 123. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-2-2 SWITCHES 123. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15-2-3 PORTS 123. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 16

SKL A7 A1 (10BASE2 AUI TRANSCEIVER, USED WITH DES−815 ONLY) 124. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 17

SKL A7 A2 (100BFX TRANSCEIVER, USED WITH DES−815 ONLY) 125. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17-1 INDICATORS 125. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

17-2 SWITCH SETTINGS 125. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 18

SKL A8 (MEDIA CONVERTER DE−855, USED WITH DES−1016FX ONLY) 126. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18-1 INDICATORS BNC PORT 126. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

18-2 INDICATORS UTP PORT 126. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 19

SKL A25, 2215717 (CABINET BULKHEAD &MAIN HARNESS) 130. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 20

SKL RPM A1 (POSITIONER ELECTRONICS) 131. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 21

SKL RPM A1 A2, 46-321384G4 (CPU/BIU) 132. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 22

SKL RPM A1 A3/A4, 46−232850G2 (RAD POSITIONER I/O) 156. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 23

SKL RPM A1 A7/A8, 46−288322G1 (COLLIMATOR CONTROL/SERVO) 169. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 24

SKL RPM A1 A20, 2125006 (RAD POSITIONER BACKPLANE) 178. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 25

SKL RPM A1 A30, 2194083 (RACK POWER SUPPLY) 186. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 26

SKL RPM A1 A30 A1, 46-264102G1 (RECTIFIER/FILTER) 188. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

viii

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE OF CONTENTS

SECTION 27

SKL IDC A1, 2199347−2 (IDC INDUSTRIAL PC) 190. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHAPTER 4 − DETECTOR SUPPORT ASSEMBLY (DSA, 2242088) 191. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHAPTER 5 − WALLSTAND (WLS) 193. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1

WLS, 2206092 (RECEPTOR STAND) 193. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2

WLS A2 A1, 2237647 (RECEPTOR STAND POWER INTERFACE) 197. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3

WLS A2 A2, 2237652 (POWER SUPPLY) 199. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4

WLS A2 A3, 2237653 (RECEPTOR STAND CONTROL BOARD) 201. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 5

WLS A6 A2, 2210104 (ION CHAMBER) 205. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 6

WLS A6 A2 A1, 2210104 (PREAMP) 206. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHAPTER 6 − TUBE STAND (TBS) 207. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1

TBS, 2203945 (TUBE STAND) 207. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2

TBS A2 A1, 2238038 (TUBE STAND POWER INTERFACE) 212. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3

TBS A2 A2, 2237652 (POWER SUPPLY) 214. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4

TBS A2 A3, 2238040 (TUBE STAND CONTROL BOARD) 214. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 5

TBS A2 A4, 2238041 (TUBE STAND SERVO BOARD) 225. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 6

TBS A6, 46−155400G277 (X−RAY TUBE) 229. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 7

TBS A7, 2212794 (COLLIMATOR) 230. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ix

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE OF CONTENTS

CHAPTER 7 − ACQUISITION DIGITAL STATION (ADS) AND ADVANTX CONSOLE (SCC1) 231. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1

ADS, 2219402 & 2219403 (ACQUISITION DIGITAL STATION) 231. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2

ADVANTX CONSOLE 236. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1 SCC1, 2224559 (CONSOLE) 236. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2 SCC1, 2106682−2 (CONTROL BOARD) 239. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

x

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

CHAPTER 1 − INTRODUCTION

SECTION 1
CONTENT AND ORGANIZATION

This document contains schematics for the assemblies described in its Table of Contents. Schematics are arranged in alpha−numeric order, using the reference designators that are assigned to each assembly . Reference designators are the brief codes
that are used to identify and locate the assembly within a system.

Schematics are pre c eded by a Title Page that contains the schematic number, the reference designator, and the name of the schematic. The title page also usually contains an assembly drawing or physical representation, of the schematic area being
described.

Signal Name Lists are provided for interfaces such as: backplanes, wire harnesses, or transition panels, that do not have many active components. These interfaces electrically link the different assemblies together and must be included in the schematics
document for proper signal tracing.

SECTION 2
HIERARCHICAL CONVENTIONS

Some schematics contained in this document use a hierarchical design philosophy. This hierarchical philosophy allows for easier schematic representation of complex circuitry. To a typical schematic user however, the hierarchical schematics may seem
difficult to follow. So to address this issue, there are listed below, some informative highlights which should help in the understanding of hierarchical design schematics.

− Hierarchical schematics are structured from a high level (ie.,complete system) to a low level (ie., discrete components). In circuit board schematic applications this means that there will typically be a block diagram on the first schematic sheets,
which represents the entire circuit board. Then from this diagram, each of the blocks is broken down into the discrete component circuitry.

− For individual signal connections, a similar schematic structuring technique is used. At the block diagram schematic level, signals are grouped together into buses, which travel between the blocks. The individual signal connections are first shown
separately when the blocks are broken down into the discrete component circuitry.

− Buses are drawn thicker than the individual signal lines and they also have two numbers shown in parenthesis, immediately following the bus name. These numbers indicate how many individual signals are contained in the bus. For example;
(7:0) indicates that there are eight total signals in the bus, ranging from 0 through 7. If the buses happen to be data or address buses, the numbers in parenthesis also indicate the most significant bit and least significant bit as follows, (MSB:LSB).

− When an individual signal line enters or leaves a bus, it is drawn using a diagonal line called a ripper. Next to the ripper, a number is also drawn. This ripper number is unique to the signal line that it represents. In other words, if a ripper number
is 3 and the signal line name that leaves the bus is XAC, every time XAC leaves or enters that bus, the ripper number, will always be 3. Examples of ripper symbols are shown in Illustration 1.

− There are some special symbols, called ports and pages, used to link buses and signal lines from one sheet of the schematic to others. Port symbols link signals between different functional blocks, while the page symbols link signals within the
same functional block. Examples of these symbols are shown in Illustration 1.

1

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

ILLUSTRATION 1−1

HIERARCHICAL EXAMPLES

Ripper Example

BUS

ADDR( 3: 0 )

0
1
2
3

RIPPER

ADDR(0)
ADDR(1)
ADDR(2)
ADDR(3)

SIGNAL

Off Sheet Examples

Port Out Port In

On Page Off PagePort In/Out

Page In/Out

SECTION 3
REFERENCES

For additional information about: Jumpers, Switches, Fuses, Circuit Breakers, Test Points, LED’s, and Variable Components, refer to the corresponding Central Listing document, that is associated with each Schematic document. For additional
information about: interconnecting signal cables, grounds wires, and power connections, refer to the appropriate system−level MIS documents. To understand the theory of operation of a circuit, refer to the appropriate system−level diagnostics and theory
documents.

Note: Theory of operation is considered proprietary information and is therefore, restricted to documents that are only available to GE employees or to sites with special licensing agreements.

2

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

CHAPTER 2 − REVOLUTION XQ/I SYSTEM COMPONENTS

ADS A8

Workstation Monitor

SCPU System Cabinet

SKL

WLS

Receptor Stand

SCC1

Advantx Console

ADS Enclosure

ADS

Acquisition Digital Station

ADS A12

CDROM Burner
(SUN U10 only)

SUNBLADE 150 (new)SUN U10 (old)

TBS

Tube Stand

Detector Support Assembly

DSA

3

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

THIS PAGE INTENTIONALLY LEFT BLANK.

4

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

CHAPTER 3 − SYSTEMS CABINET (SKL)

SECTION 1
SYSTEM CABINET (65KW , 50HZ − 2213251, 80KW, 50HZ − 2213251−2, 65KW, 60HZ − 2213251−3AND 80KW, 60HZ − 2213251−4)

UPPER HALF 2212195

(COVERED BY THIS MANUAL)

SCPU GENERATOR

(SEE GENERATOR MANUAL)

SKL

5

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

DETAIL “A”

ROOM IP ADDRESS

DETAIL “D”

A25

J107

J101

J102

J103

J104

J109

RECORD THE 1ST ADDRESS

OF THE ASSIGNED IP

BLOCK:

RT BUS

TEST

CONNECTION,

DO NOT USE
TERMINATOR

10BTX

ETHERNET

FOR SERVICE

USE

FIBER CHANNEL

TO WALL STAND

DETECTOR

CHILLER CONTROL

TO DSA

POWER SUPPLY CONTROL

TO DSA

A3

ARCNET

HUB

MODULE

A2

ECM

MODULE

FIBER

TO CONSOLE

WARM START/RST

TO CONSOLE

100BFX

ETHERNET

TO

WORKSTATION

ROOM DOOR INTLK

XRAY WARN LIGHT

CABINET BULKHEAD

J19

J1

TS1

A25

CABINET

BULKHEAD

(SEE DETAIL ”D”)

A3

ARCNET HUB MODULE
(HIDDEN − SEE DETAIL

“A”)

A4

POWER

DISTRIBUTION

UNIT

A2

ECM MODULE

(SEE DETAIL “A”)

A5

FANS

RPM A1

POSITIONER

MODULE

1

A2 A3 A7

PU

POWER UNIT

ION CHAMBER

TO WALL STAND

WALL STAND

CONTROL

TUBE STAND

CONTROL

A1

ASC−EDM

MODULE

J105

J106

J108

J17

TO GENERATOR

J18

J12J1

1

RPM A1 A20

POSITIONER

MODULE BACKPLANE

A25 K1

XRAY W ARN LIGHT

A6 A1

POWER STRIP

J28J2

7

J32J31J3

0

J3

J2

J1

RPM A1 A30

POSITIONER

MODULE PWR SUPPLY

POWER STRIP PANEL

A6

J19

TRANSCEIVER

TRANSCEIVER

A7

10/100M

ETHERNET

HUB

IDC A1

IMAGE DETECTOR

CONTROL

A7A1

10B2

A7A2

100BFX

6

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SHT. CONT.

1

2 3 4 5 6 7 8 9 10

12

2212195SCH

−

A

B

A

B

OVERALL SCHEMATICS OF

EAGLE1 SYSTEMS CABINET

C

UPPER HALF

INDEX:

SHEET 2: SYSTEM CABINET OVERALL (NEW PDU)
SHEET 3: POSITIONER MODULE
SHEET 4: IDC MODULE

D

SHEET 5: IDC MODULE
SHEET 6: SYSTEM CABINET OVERALL (OLD PDU)

C

D

E

NOTES:

1. THIS SCHEMATIC MEETS THE SPECIFICA TIONS

F

OF GE SCHEMATIC STANDARDS 46−017486

2. ACTIVE LOW SIGNALS ARE INDICATED WITH
” / ” AFTER THE SIGNAL NAME

3. UNLESS OTHERWISE SPECIFIED:
RESISTORS ARE IN OHMS, 0.25W, 1%.
CAPACITORS ARE IN FARADS.
INDUCTORS ARE IN HENRIES.

H

PATH: XRNETAPP1/USER12/DOCSRC/SCH/2212195.ILF (INTERLEAF 5.0)
REV 2 PCN: 209564

REV 3 PCN: 238341

DESCRIPTION: CHANGED RT BUS CABLE TO 2241169 AT C,5

DESCRIPTION: UPDATED SHT 2 AT B,2 & ADDED SHT 6

DATE: 8DEC99

DATE: 03FEB2004MADE BY: D. BEETCHER

APPR BY: DATE:MADE BY: G. HEILER T

APPR BY: DATE:

1 2 3 4 5 6 7 8 9 10

KEY TO CONNECTOR STYLES:

HUBBEL TWIST LOCK

NORTH AMERICAN 120V

IEC 320

AC ADAPTER

LOW VOLTAGE POWER JACK

AMP MATE & LOCK

AMP M SERIES

PHOENIX TERMINAL

MADE: DAVID D. VOIGHT
CHECK:
APPR:
OTHER:

DATE: 97JUL08
DATE:
DATE:
DATE:

7

SUB D

80MD

50 PIN CHAMP

96 PIN DIN

HEWLETT PACKARD FIBER

10 BASE T

SC FIBER
4 WALL

GE MEDICAL SYSTEMS

Milwaukee, WI USA

PCN #

209473

209564

238341

DATE

10

24FEB

2000

2
0
1
0

03FEB

2004

3
0
1
0
0

REV3SIZE

SHT. / CONT. ON

B

DEC99

SHT

2

1

3

0

4

1
50
6− −

DESIGN TITLE: EAGLE1 SYS CABINET UPPER HALF SCHEMATIC
FIRST MADE FOR: EAGLE1

DRAWING NO.

2212195SCH

/

12

11

E

F

H

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SHT. CONT.

23

2212195SCH

A

B

C

D

A

DSA

INTERLOCK JUMPER PLUG

TUBE

STAND

WALL

STAND

B

CONSOLE

SERVICE

USE

C

D

1

J3

SPARE
SPARE

J4
J6
J5

J8

J7

the connections to

PDU part # 2264423.

If using PDU part #

J1 CONSOLE PWR

SERVICE

OUTLET

GENERATOR

GENERATOR

2 3 4 5 6 7 8 9 10

CABINET EMI

BARRIER

120VAC COLD

120VAC WARM

SKL A4 − PDU

NOTE: These are

2192776, refer to

Sheet 6.

480VAC IN

(FOR TEST)

J12

J107

J11

SKL A6A1
POWER
STRIP

2208804−2
2208804−2

J9

PART OF 2206105

SKL A6

J19

J17

2122860−2 (Generator)

2122860−2 (Generator)

2204157

TO SKL A8

AC ADAPTER

(SEE SHT 5)

A30J1

SKL RPM A1
POS MODULE
(SEE SHEET 3)

A30 J2

A20 A2 J2

2204390 (RT Bus)

FANS SKL A5

2208804−2

POWER CORD SUPPLIED WITH ETHERNET HUB

2208804

A20 U1
A20 U2

A30 J3

2241169 (RT Bus)

J31

J12

SERIAL

PORT

J14

SKL A2
ECM

2118610−2 (Fiber)

2206105

PART OF

J13

J25

J8

J1/2

This sheet used for systems with PDU part # 2264423.

SKLA7

ETHERNET

PWR

POWER

RTBUS

2204805−2 (DC Power)

HUB

(SEE SHEET 4)

SKL IDC A1

CARDRACK

(SEE SHEET 4)

IDC

Use sheet 6 for PDU part # 2192776.

SERVICE
LAPTOP

10B2

A7 POWER

SUPPLY

46−251920G35 (Ethernet Coax Long)

J12

J11

A4 CONTROL

PANEL BOARD

SKL A1
TITAN

FRONT
PANEL

A8 HARD

DRIVE

A9

FLOPPY

COM 2

ETHERNET

CONSOLE

E

SKL A25
CABINET

J19

BULKHEAD

F

CONSOLE

GENERATOR

J1

J18

H

PATH: XRNET APP1/USER12/DOCSRC/SCH/2212195.ILF (INTERLEAF 5.0)
REV 2 PCN: 209564

REV 3 PCN: 238341

DESCRIPTION: CHANGED RT BUS CABLE TO 2241169 AT C,5

DATE: 24FEB2000

APPR BY: DATE:MADE BY: G. HEILER T

DESCRIPTION: UPDATE CONNECTIONS T O NEW PDU AT B,2

DATE: 03FEB2004 APPR BY: DATE:MADE BY: D. BEETCHER

1 2 3 4 5 6 7 8 9 10

2118610−2 (Fiber)

SPARE
SPARE J3
SPARE J5
SPARE J7
SPARE J8

J2

J4

SKL A3
HUB

J9

SPARE

2204814 (Console)

2204810 (Generator)

SPARE

MADE: DAVID D. VOIGHT
CHECK:
APPR:
OTHER:

J13

J12

J10

J1

J6

J11

2118610

SPARE

DATE: 96DEC19
DATE:
DATE:
DATE:

8

(Fiber)

2204805 (DC Power)

2118610−2 (Fiber)

2204812 (Prep/Exp/Reset)

GE MEDICAL SYSTEMS

Milwaukee, WI USA

SERIAL (COM 2)

PARALLEL PORT

J13

EXT

LOCAL

J1

A3 CPU BOARD

J1

A1 BIU BOARD

A2 SERIAL BOARD

A20 BACKPLANE

J31

J27

J30

J28J32

DESIGN TITLE: EAGLE1 SYS CABINET UPPER HALF SCHEMATIC
FIRST MADE FOR: EAGLE1

DRAWING NO.

2212195SCH

REV3SIZE

B

SHT. / CONT. ON

/

23

11

E

F

H

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SHT. CONT.

1

2 3 4 5 6 7 8 9 10

34

2212195SCH

A

A2

CPU−BIU

A3

RAD IO #1

A4

SPARE RAD I/O

A7

COLLIMATOR #1

A8

SPARE COLLIMATOR

B

ION CHAMBER

WALL STAND CONTROL

C

TUBE STAND CONTROL

ROOM DOOR INTLK

X−RAY WARNING LIGHT

SKL A25
CABINET

D

BULKHEAD
(CONT.)

J105

9M

J106

15M

J108

37M

TS1

FOR WIRING OF THIS

5

2215717 (Main Harness)

HARNESS SEE

2215717SCH

POS A1
RAD POSITIONER MODULE

A20

POSITIONER

CARDRACK

BACKPLANE

J15

J3

J2

J1

J14

J13

TB1
TB2

J12

U1 U2

A30

POSITIONER

CARDRACK

POWER SUPPLY

J4

COLLIMATOR

MOTOR
SUPPLY

DC SUPPLY
+5,+/−15,+24

TO SKL A3 HUB J6

(SEE SHEET 2)

A30 A1

A30 A2

PART OF MAIN

HARNESS

J3

J2

J1

2215717

WARM START

TO POWER STRIP

(SEE SHEET 2)

TO SKL A2 ECM J13 (SEE SHEET 2)

TO SKL A4 PDU J11 (SEE SHEET 2)

A

B

C

D

E

F

H

PATH: XRNETAPP1/USER12/DOCSRC/SCH/2212195.ILF (INTERLEAF 5.0)
REV 1 PCN:

REV 2 PCN:

DESCRIPTION:

DATE:

DESCRIPTION:

APPR BY: DATE:MADE BY:

DATE: APPR BY: DATE:MADE BY:

1 2 3 4 5 6 7 8 9 10

MADE: DAVID D. VOIGHT
CHECK:
APPR:
OTHER:

DATE: 97JUL08
DATE:
DATE:
DATE:

9

TO RT BUS

(SEE SHEET 2)

POSITIONER MODULE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE: EAGLE1 SYS CABINET UPPER HALF SCHEMATIC
FIRST MADE FOR: EAGLE1

DRAWING NO.

2212195SCH

REV0SIZE

B

SHT. / CONT. ON

/

34

11

E

F

H

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SHT. CONT.

1

2 3 4 5 6 7 8 9 10

45

2212195SCH

A

CHILLER CONTROL

POWER SUPPLY CONTROL

B

TO DETECTOR

C

TO WORKSTATION

SPARE

J103

9F

J104

26F

J102

J101

J109

2208907−8

2208907−6

2215028−8

2216031

2216032

2215028−7

IDC A1

ENET

A4

ETHERNET

CAN

RTBUS

A1

SYSTEM

INTERFACE

BOARD

COM

A2

CPU

FIBER

C80 DAP

J1

THIS SHEET FOR SYSTEMS WITH
DES−815 ETHERNET HUB

A6

A6 A1

FIBER CHANNEL I/O

IDE HARD

DRIVE

3.5” FLOPPY

A30

DC SUPPLY

+5,+3.3,+/−12

A

B

C

DIGIT AL RAD IDC MODULE

D

SKL A25
CABINET
BULKHEAD
(CONT.)

50 OHM

TERMINATOR

7 SLOT PASSIVE

BACKPLANE

CPU + 3ISA+3PCI

TO RT BUS BRACKET J19

(SEE SHEET 2)

TO POWER STRIP

(SEE SHEET 2)

D

E

F

H

PATH: XRNETAPP1/USER12/DOCSRC/SCH/2212195.ILF (INTERLEAF 5.0)
REV 1 PCN: 209473

REV 2 PCN:

DESCRIPTION: ADDED SHT 5

DATE: 8DEC99

DESCRIPTION:

APPR BY: DATE:MADE BY: G. HEILER T

DATE: APPR BY: DATE:MADE BY:

1 2 3 4 5 6 7 8 9 10

CABINET EMI

BARRIER

5X

(10M)

SKL A7
ETHERNET HUB

2X

(100M)

10BFX

XCVR

MII

PORT

XCVR

A2

PORT

MADE: DAVID D. VOIGHT
CHECK:
APPR:
OTHER:

10B2

AUI

TO SKL A1 TITAN J13

(SEE SHEET 2)

E

A1

IDC MODULE

F

H

10

TO POWER STRIP

(SEE SHEET 2)

DATE: 97JUL08
DATE:
DATE:
DATE:

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE: EAGLE1 SYS CABINET UPPER HALF SCHEMATIC
FIRST MADE FOR: EAGLE1

DRAWING NO.

2212195SCH

REV1SIZE

B

SHT. / CONT. ON

/

45

11

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SHT. CONT.

1

2 3 4 5 6 7 8 9 10

5−

2212195SCH

A

CHILLER CONTROL

POWER SUPPLY CONTROL

B

TO DETECTOR

C

TO WORKSTATION

SPARE

J103

9F

J104

26F

J102

J101

J109

2208907−6

2215028−8

2216031

2216032

2208907−8

2215028−7

IDC A1

ENET

A4

ETHERNET

CAN

RTBUS

A1

SYSTEM

INTERFACE

BOARD

COM

A2

CPU

FIBER

C80 DAP

J1

A6

A6 A1

FIBER CHANNEL I/O

IDE HARD

DRIVE

3.5” FLOPPY

A30

DC SUPPLY

+5,+3.3,+/−12

THIS SHEET FOR SYSTEMS WITH
DES−1016FX ETHERNET HUB
AND DE−855 MEDIA CONVERTER

A

B

C

DIGIT AL RAD IDC MODULE

D

SKL A25
CABINET
BULKHEAD
(CONT.)

7 SLOT PASSIVE

BACKPLANE

CPU + 3ISA+3PCI

TO RT BUS BRACKET J19

(SEE SHEET 2)

TO POWER STRIP

(SEE SHEET 2)

D

E

F

H

PATH: XRNETAPP1/USER12/DOCSRC/SCH/2212195.ILF (INTERLEAF 5.0)
REV 1 PCN:

REV 2 PCN:

DESCRIPTION:

DATE:

DESCRIPTION:

APPR BY: DATE:MADE BY:

DATE: APPR BY: DATE:MADE BY:

1 2 3 4 5 6 7 8 9 10

CABINET EMI

BARRIER

1X

5X

(100B−Fx)

(10B−T)

SKL A7
ETHERNET HUB

MADE: DAVID D. VOIGHT
CHECK:
APPR:
OTHER:

TO AC POWER

(SEE SHT 2)

4X

(100B−T)3X(10B−T)

AC ADAPTOR

2215028−8

11

SKL A8
MEDIA
CONVERTER
DE−855

DATE: 97JUL08
DATE:
DATE:
DATE:

10B2

50 OHM

TERMINATOR

TO POWER STRIP

(SEE SHEET 2)

GE MEDICAL SYSTEMS

Milwaukee, WI USA

TO SKL A1 TITAN J13

(SEE SHEET 2)

IDC MODULE

DESIGN TITLE: EAGLE1 SYS CABINET UPPER HALF SCHEMATIC
FIRST MADE FOR: EAGLE1

DRAWING NO.

2212195SCH

REV0SIZE

B

SHT. / CONT. ON

/

56

11

E

F

H

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SHT. CONT.

23

2212195SCH

A

B

C

D

A

B

C

D

DSA

TUBE

STAND

WALL

STAND

CONSOLE

SERVICE

USE

1

J3

SPARE

GENERATOR

J4
J6
J8

J5

J7

J1J2CONSOLE PWR

SERVICE

OUTLET

SERVICE

OUTLET

GENERATOR

SPARE
SPARE

SPARE

2 3 4 5 6 7 8 9 10

CABINET EMI

BARRIER

120VAC COLD

120VAC WARM

SKL A4 − PDU

NOTE: These are

the connections to

PDU part # 2192776.

If using PDU part #

2264423, refer to

Sheet 2.

480VAC IN

J12

J107

(FOR TEST)

J11

SKL A6A1
POWER
STRIP

2208804−2
2208804−2

J9

PART OF 2206105

SKL A6

J19

J17

2122860−2 (Generator)

2122860−2 (Generator)

2204157

TO SKL A8

AC ADAPTER

(SEE SHT 5)

A30J1

SKL RPM A1
POS MODULE
(SEE SHEET 3)

A30 J2

A20 A2 J2

2204390 (RT Bus)

FANS SKL A5

2208804−2

POWER CORD SUPPLIED WITH ETHERNET HUB

2208804

A20 U1
A20 U2

A30 J3

2241169 (RT Bus)

J31

J12

SERIAL

PORT

J14

SKL A2
ECM

2118610−2 (Fiber)

2206105

PART OF

J13

J25

J8

J1/2

SKLA7

ETHERNET

PWR

HUB

(SEE SHEET 4)

SKL IDC A1

POWER

CARDRACK

RTBUS

(SEE SHEET 4)

2204805−2 (DC Power)

This sheet used for systems with PDU part # 2192776.

Use sheet 2 for PDU part # 2264423.

SERVICE
LAPTOP

10B2

IDC

A7 POWER

SUPPLY

46−251920G35 (Ethernet Coax Long)

J12

J11

A4 CONTROL

PANEL BOARD

SKL A1
TITAN

FRONT
PANEL

A8 HARD

DRIVE

A9

FLOPPY

COM 2

ETHERNET

CONSOLE

E

SKL A25
CABINET

J19

BULKHEAD

F

CONSOLE

GENERATOR

J1

J18

H

PATH: XRNET APP1/USER12/DOCSRC/SCH/2212195.ILF (INTERLEAF 5.0)
REV 1 PCN:

REV 2 PCN:

DESCRIPTION:

DATE:

DESCRIPTION:

APPR BY: DATE:MADE BY:

DATE: APPR BY: DATE:MADE BY:

1 2 3 4 5 6 7 8 9 10

2118610−2 (Fiber)

SPARE
SPARE J3
SPARE J5
SPARE J7
SPARE J8

J2

J4

SKL A3
HUB

J9

SPARE

2204814 (Console)

2204810 (Generator)

SPARE

MADE: DAVID D. VOIGHT
CHECK:
APPR:
OTHER:

J13

J12

J10

J1

J6

J11

2118610

SPARE

12

(Fiber)

DATE: 96DEC19
DATE:
DATE:
DATE:

2204805 (DC Power)

2118610−2 (Fiber)

2204812 (Prep/Exp/Reset)

GE MEDICAL SYSTEMS

Milwaukee, WI USA

SERIAL (COM 2)

PARALLEL PORT

J13

EXT

LOCAL

J1

A3 CPU BOARD

J1

A1 BIU BOARD

A2 SERIAL BOARD

A20 BACKPLANE

J31

J27

J30

J28J32

DESIGN TITLE: EAGLE1 SYS CABINET UPPER HALF SCHEMATIC
FIRST MADE FOR: EAGLE1

DRAWING NO.

2212195SCH

REV0SIZE

B

SHT. / CONT. ON

/

6−

11

E

F

H

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 2

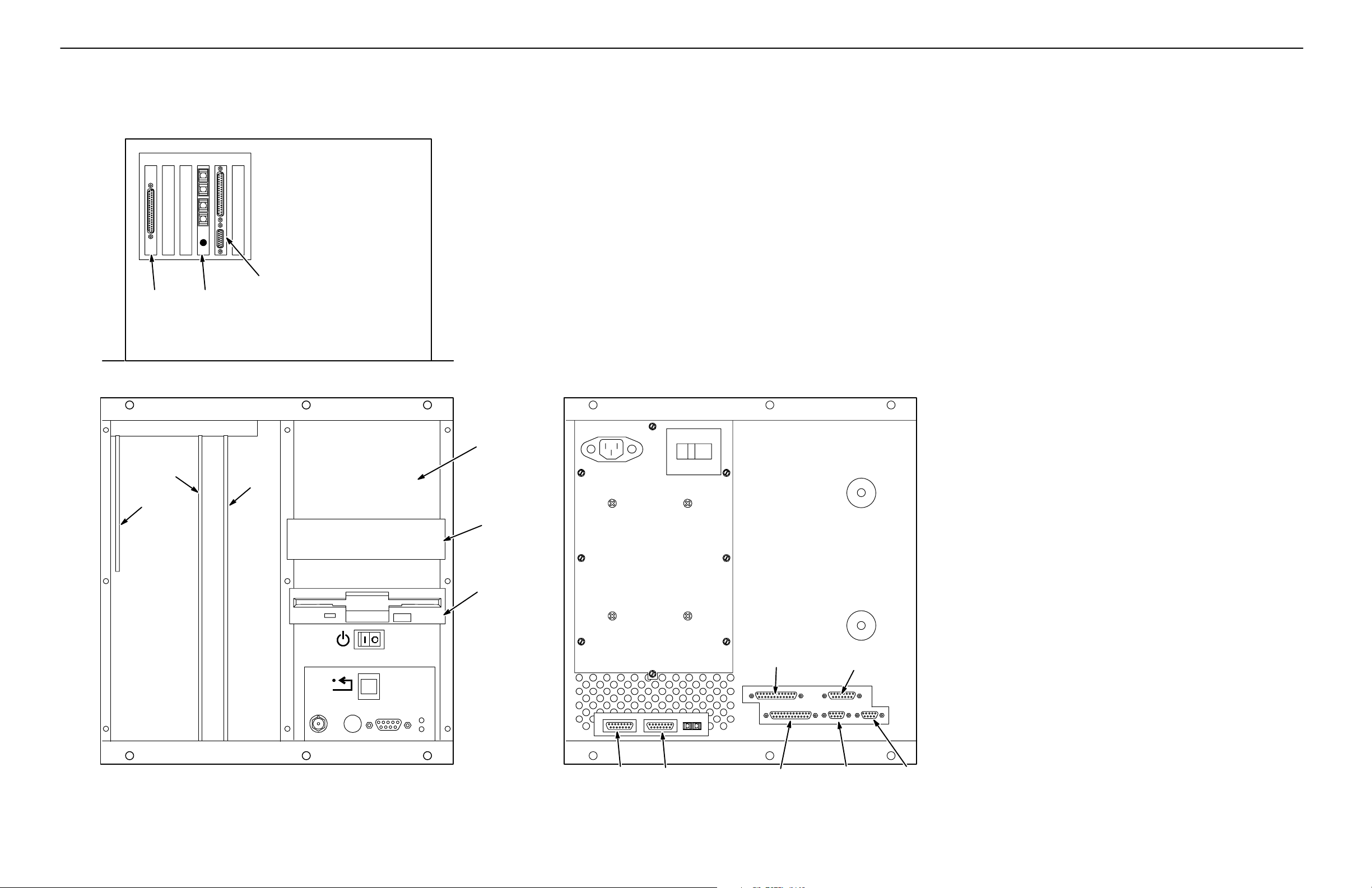

SKL A1 − 2197212 (ASC−EDM)

TOP VIEW

ASSEMBL

Y

ASSEMBL

Y

BOARD

SERIAL

ASSEMBL

Y

BOARD

BIU

BOARD

CPU

BIU

SERIAL

FRONT VIEW REAR VIEW

POWER

AC IN

SUPPLY

CPU

HARD DRIVE

FLOPPY

ON / OFF

BIPLANE ASC

25 PIN

J27

15 PIN SPARE

J30

ETHERNET COM2 STATUS

DC OUT

HUB

J12

DC OUT

ECM

J11

13

25 PIN

CONSOLE

J32

9 PIN

ECM

J31

9 PIN

PUNIT

J28

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 3
ELECTRICAL INTERFACE CONNECTORS AND SIGNAL NAMES

TABLE 4−1

INTERNAL INTERFACE CONNECTORS FOR ASC−EDM

Pins

Function From Connector Type J# Pins Each To Connector Type J#

AC Input Power Breaker Terminals n/a 3 Pwr Supply Terminal Strip n/a 3

DC Output +/−12V PS Asm Amp Mate−n−lock P1 4 Con Panel Bd Amp Mate−n−Lock J3 4

DC Output +5V PS Asm Amp Mate−n−lock J1 4 Con Panel Bd Winchester Power Term J1/J2 1

DC Sense, POK PS Asm Amp Mate−n−lock P2 3 Con Panel Bd Molex J3−1 3
DC Output Power Con Panel Bd Amp MTA J4 19 Backplane Amp MTA J10 19
DC Output Power Con Panel Bd Amp HSG J14 4 Hard Disk Amp Mate−n−lock J1 4
DC Output Power Con Panel Bd Molex HSG J15 4 Floppy Disk Amp 2.5mm J1 4
DC Output Power Con Panel Bd Molex 22−01 series J13 2 Fan Permanently Attached n/a 2

Each

System ON/OFF Con Panel Bd Molex 22−01 series J16 3 On/off switch Amp 187 Fast On n/a 2

System Reset Con Panel Bd Molex 22−01 series J17 3 Reset switch Soldered Terminals n/a 2

COM2 Serial Port CPU Bd Dual Row Straight Hdr P7 10 Con Panel Bd Shrouded RA Header J8 10

IDE Disk Data CPU Bd Dual Row Straight Hdr P11 40 Hard Disk Header P1 40

Floppy Disk Data CPU Bd Dual Row Straight Hdr P3 34 Floppy Disk Header (vendor select) P2 34

CPU Reset

Keyboard

Speaker
Status, Reset, I2C BIU Bd Header RA wo/ejectors J5 20 Backplane Header w/ejectors J14 20
Status, Reset, I2C Backplane Header w/ejectors J26 16 Con Panel Bd Header w/ejectors J10 16

Ethernet BIU Bd RA SMB J4 2 Con Panel Bd RA SMB J5 2
Ethernet BIU Bd RA BNC J3 2 Enclosure BNC J13 2

* Note: Number of individual connectors and pins may vary depending upon CPU Bd MFG.

Note: All Header Connector Types are Pinned (Male)

CPU Bd 3, Amp MTA Connectors P10

P4
P5

2
5
4

Backplane Header w/ejectors J23 16

14

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE 4−2

EXTERNAL INTERFACE CONNECTORS FOR ASC−EDM

J# Pins From Bd Function Connector Type To Bd J# Notes

J28 9 Backplane System ON/OFF Male Pin Sub−D Kernel BH J18
J31 9 Backplane ECM I/F Male Pin Sub−D ECM J8 Prep, Exp, Rst
J32 15 Backplane Console I/F Male Pin Sub−D Kernel BH Bd J14 Console Rst, Prep, Exp
J27 15 Backplane Biplane ASC Male Pin Sub−D Kernel BH J27 Bipl ASC, Rst, RTBus
J30 9 Backplane UPS Control Male Pin Sub−D UPS n/a No cable in Std Sys
J13 1 Backplane Ethernet BNC or Triax Kernel BH J16 To Digital Sys

J1 80 Serial Bd 8 Serial Ports Female mini−D Kernel BH Bd J16 Modem, Insite
P6 9 CPU Bd Serial Port Male Pin Sub−D UPS, Spare n/a COM1, Not Used
P8 25 CPU Bd Parallel Port Female Pin Sub−D Spare n/a LPT1, Not Used

J1 1 BIU Bd* Ethernet BNC or Triax Backplane J13 To Digital Sys

LOC 2 BIU Bd Arcnet Versa−Link Hub J10 Plastic Fiber

EXT 2 BIU Bd Bipl Arcnet Versa−Link Kernel BH J26 Not Used

J9 9 Cont Panel Bd Serial Port Male Pin Sub−D Laptop I/F n/a COM2, Front Panel
n/a 2 Cont Panel Bd Arcnet Versa−Link Hub n/a Not Present in Std ASC

J7 1 Cont Panel Bd Arcnet 75W BNC Laptop I/F n/a Not Present in Std ASC

J6 1 Cont Panel Bd Ethernet 50W BNC Laptop I/F n/a 10Base2, Front Panel

J12 15 Cont Panel Bd DC Output Power Female Pin Sub−D ECM J25 EMC Filtered
J11 15 Cont Panel Bd DC Power + I2C Female Pin Sub−D Hub J1 EMC Filtered

n/a 3 EMC Filter AC Input Power IEC Input Plug AC Dist J5 Integral w/EMC Filter

* Internal Top−Bulkhead mounted cable from BIU Bd J3

15

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE 4−3

CONNECTOR (J31) − ECM INTERFACE

Signal Name Pin No.

RT−RST−P 1
RT−RST−N 2

3

PREP−SW 4

EXP−SW 5

6
7
8
9

TABLE 4−4

CONNECTOR (J32) − CONSOLE INTERFACE

Signal Name Pin No.

1

PREP−SW 2

EXP−SW 3

RT−RST−N 4

5
6

SYS−ON* 7

8

+12 VDC 9

ASC−RST 10

RT−RST−P 11

12
13

24 VL 14

24 VL−RTN 15

16

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE 4−5

CONNECTOR (J30) − UPS INTERFACE

Signal Name Pin No.

1

POK* 2

3

GND 4

LOW−BATT* 5

UPS−SHUT−OFF* 6

7
8
9

TABLE 4−6

CONNECTOR (J27) − BIPLANE ASC

Signal Name Pin No.

+12 VDC 1

ASC−RST 2
RT−RST−P 3
RT−RST−N 4

RT−RST−NR 5
RT−RST−PR 6

P12V−OUT 7

P12V−IN 8

9
10
11
12
13
14
15

17

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE 4−7

CONNECTOR (J28) − POWER UNIT

Signal Name Pin No.

1

SYS−ON* 2

3

4

5

24 VL 6

24 VL−RTN 7

8

9

TABLE 4−8

CONNECTOR (J11) − HUB POWER AND I2C

Signal Name Pin Function

VCC 1 +5VDC power for hub
VCC 2 +5VDC power for hub
VCC 3 +5VDC power for hub

SCLK 4 I2C serial bus clock

SER_DATA 5 I2C serial bus data

V12P 6 +12VDC power for hub
V12P 7 +12VDC power for hub

V12N 8 −12VDC power for hub
LGND 9 LOGIC GND for hub
LGND 10 LOGIC GND for hub
LGND 11 LOGIC GND for hub
LGND 12 LOGIC GND for hub
LGND 13 LOGIC GND for hub

AGND 14 12V RTN for hub
AGND 15 12V RTN for hub

18

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE 4−9

CONNECTOR (J12) − ECM POWER

Signal Name Pin Function

VCC 1 +5VDC power for ECM
VCC 2 +5VDC power for ECM
VCC 3 +5VDC power for ECM

NC 4 No Connect

NC 5 No Connect
V12P 6 +12VDC power for ECM
V12P 7 +12VDC power for ECM
V12N 8 −12VDC power for ECM

LGND 9 LOGIC GND for ECM
LGND 10 LOGIC GND for ECM
LGND 11 LOGIC GND for ECM
LGND 12 LOGIC GND for ECM
LGND 13 LOGIC GND for ECM
AGND 14 12V RTN for ECM
AGND 15 12V RTN for ECM

TABLE 4−10

CONNECTOR (J9) − COM2 FRONT PANEL

Signal Name Pin Function

DCD 1 Data Carrier Detect
RXD 2 Receive Data (DTE)

TXD 3 Transmit Data (DTE)

DTR 4 Data Terminal Ready

GND 5 Ground

DSR 6 Data Set Ready

RTS 7 Request To Send
CTS 8 Clear T o Send

RI 9 Ring Indicator

TABLE 4−11

CONNECTOR (J6) − ETHERNET BNC FRONT PANEL

Signal Name Pin Function

EDATA 1 Ethernet Data

ESHIELD 2 Ethernet Shield (GND)

19

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE 4−12

CONNECTOR (J13) − ETHERNET BNC BIU BD

Signal Name Pin Function

EDATA 1 Ethernet Data

ESHIELD 2 Ethernet Shield (GND)

TABLE 4−13

CONNECTOR (J1) − 8 SERIAL CHANNELS

Signal Name Connector − Pin No. Signal Type Signal Direction

SOUT*_0 J1−1 RS−232 OUT

SIN*_0 J1−2 RS−232 IN

RTS_0 J1−3 RS−232 OUT

CTS_0 J1−4 RS−232 IN
DTR_0 J1−5 RS−232 OUT
DSR_0 J1−6 RS−232 IN
DCD_0 J1−7 RS−232 IN

RI_0 J1−8 RS−232 IN
LGND J1−9 POWER BI
LGND J1−10 POWER BI

SOUT* / SOUT+_1 J1−11 RS−232 / RS−422 OUT

N.C. / SOUT−_1 J1−12 RS−232 / RS−422 OUT

SIN* / SIN+_1 J1−13 RS−232 / RS−422 IN

N.C. / SIN−_1 J1−14 RS−232 / RS−422 IN
RTS / R TS+_1 J1−15 RS−232 / RS−422 OUT
DTR / RTS−_1 J1−16 RS−232 / RS−422 OUT
CTS / CTS+_1 J1−17 RS−232 / RS−422 IN
DSR / CTS−_1 J1−18 RS−232 / RS−422 IN

LGND J1−19 POWER BI
LGND J1−20 POWER BI

SOUT* / SOUT+_2 J1−21 RS−232 / RS−422 OUT

N.C. / SOUT−_2 J1−22 RS−232 / RS−422 OUT

SIN* / SIN+_2 J1−23 RS−232 / RS−422 IN

N.C. / SIN−_2 J1−24 RS−232 / RS−422 IN
RTS / R TS+_2 J1−25 RS−232 / RS−422 OUT
DTR / RTS−_2 J1−26 RS−232 / RS−422 OUT
CTS / CTS+_2 J1−27 RS−232 / RS−422 IN
DSR / CTS−_2 J1−28 RS−232 / RS−422 IN

LGND J1−29 POWER BI
LGND J1−30 POWER BI

20

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

Signal Name Connector − Pin No. Signal Type Signal Direction

SOUT* / SOUT+_3 J1−31 RS−232 / RS−422 OUT

N.C. / SOUT−_3 J1−32 RS−232 / RS−422 OUT

SIN* / SIN+_3 J1−33 RS−232 / RS−422 IN

N.C. / SIN−_3 J1−34 RS−232 / RS−422 IN
RTS / R TS+_3 J1−35 RS−232 / RS−422 OUT
DTR / RTS−_3 J1−36 RS−232 / RS−422 OUT
CTS / CTS+_3 J1−37 RS−232 / RS−422 IN
DSR / CTS−_3 J1−38 RS−232 / RS−422 IN

LGND J1−39 POWER BI
LGND J1−40 POWER BI
LGND J1−41 POWER BI
LGND J1−42 POWER BI

SOUT* / SOUT+_4 J1−43 RS−232 / RS−422 OUT

N.C. / SOUT−_4 J1−44 RS−232 / RS−422 OUT

SIN* / SIN+_4 J1−45 RS−232 / RS−422 IN

N.C. / SIN−_4 J1−46 RS−232 / RS−422 IN
RTS / R TS+_4 J1−47 RS−232 / RS−422 OUT
DTR / RTS−_4 J1−48 RS−232 / RS−422 OUT
CTS / CTS+_4 J1−49 RS−232 / RS−422 IN
DSR / CTS−_4 J1−50 RS−232 / RS−422 IN

LGND J1−51 POWER BI
LGND J1−52 POWER BI

SOUT* / SOUT+_5 J1−53 RS−232 / RS−422 OUT

N.C. / SOUT−_5 J1−54 RS−232 / RS−422 OUT

SIN* / SIN+_5 J1−55 RS−232 / RS−422 IN

N.C. / SIN−_5 J1−56 RS−232 / RS−422 IN
RTS / R TS+_5 J1−57 RS−232 / RS−422 OUT
DTR / RTS−_5 J1−58 RS−232 / RS−422 OUT
CTS / CTS+_5 J1−59 RS−232 / RS−422 IN
DSR / CTS−_5 J1−60 RS−232 / RS−422 IN

LGND J1−61 POWER BI
LGND J1−62 POWER BI

SOUT* / SOUT+_6 J1−63 RS−232 / RS−422 OUT

N.C. / SOUT−_6 J1−64 RS−232 / RS−422 OUT

SIN* / SIN+_6 J1−65 RS−232 / RS−422 IN

N.C. / SIN−_6 J1−66 RS−232 / RS−422 IN

Signal Name Connector − Pin No. Signal T ype Signal Direction

21

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

Signal Name Signal DirectionSignal TypeConnector − Pin No.

RTS / R TS+_6 J1−67 RS−232 / RS−422 OUT
DTR / RTS−_6 J1−68 RS−232 / RS−422 OUT
CTS / CTS+_6 J1−69 RS−232 / RS−422 IN
DSR / CTS−_6 J1−70 RS−232 / RS−422 IN

LGND J1−71 POWER BI
LGND J1−72 POWER BI

SOUT* / SOUT+_7 J1−73 RS−232 / RS−422 OUT

N.C. / SOUT−_7 J1−74 RS−232 / RS−422 OUT

SIN* / SIN+_7 J1−75 RS−232 / RS−422 IN

N.C. / SIN−_7 J1−76 RS−232 / RS−422 IN
RTS / R TS+_7 J1−77 RS−232 / RS−422 OUT
DTR / RTS−_7 J1−78 RS−232 / RS−422 OUT
CTS / CTS+_7 J1−79 RS−232 / RS−422 IN
DSR / CTS−_7 J1−80 RS−232 / RS−422 IN

TABLE 4−14

CONNECTOR (P6) − COM1 CPU BD

Signal Name Pin Function

DCD 1 Data Carrier Detect
RXD 2 Receive Data (DTE)

TXD 3 Transmit Data (DTE)

DTR 4 Data Terminal Ready
GND 5 Ground
DSR 6 Data Set Ready

RTS 7 Request To Send

CTS 8 Clear T o Send

RI 9 Ring Indicator

22

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

TABLE 4−15

CONNECTOR (P8) − LPT1 CPU BD

Signal Name Pin Function

STROBE 1 Data Clock

DATA_0 2 Data Bit 0
DATA_1 3 Data Bit 1
DATA_2 4 Data Bit 2
DATA_3 5 Data Bit 3
DATA_4 6 Data Bit 4
DATA_5 7 Data Bit 5
DATA_6 8 Data Bit 6
DATA_7 9 Data Bit 7

ACK 10 Data Acknowledge

BUSY 11 Device Busy

PAPER_END 12 Paper End

SLCT 13 Data Solicit

AF 14 Auto Feed XT

ERR 15 Error

INIT 16 Initialize

SLCT_IN 17 Solicit Data Input

GND 18 Ground Return
GND 19 Ground Return
GND 20 Ground Return
GND 21 Ground Return
GND 22 Ground Return
GND 23 Ground Return
GND 24 Ground Return
GND 25 Ground Return

23

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 4
SKL A1 A1 2107542 (BIU BOARD)

24

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

REVISION PCN NUMBER DATE

n

n

n

B

C

n

A −−−−−− 28/Jan/94

B −−−−−− 26/Aug/94

0 −−−−−− 17−OCT−94

32

SIGN

OFF

54

block_diagram

isa_if

arcnet

ethernet

nv_rom

ports

clk_pwr

isa_conn

pci_if

flash_1

flash_2

flash_3

pci_conn

spares

6

SHT

NUM

2

3

4

5

6

7

8

9

10

11

12

13

14

15

10987

REVSHEET_NAME

0

0

0

0

0

0

0

0

0

0

0

0

0

0

1 CONT.SHT.

2107542SCH

2

A

B

C

D

E

F

H

REV
MADE BY

REV
MADE BY

D

NOTES:

1.THE GROUP NUMBER AND GROUP REVISION

FOR THIS PWA IS

2.THIS SCHEMATIC MEETS THE SPECIFICA−

TIONS OF GE SCHEMATIC STANDARDS

46−017486.

3.UNLESS OTHERWISE SPECIFIED ALL

RESISTORS ARE 0.1W,1% AND ARE IN OHMS.

4.ACTIVE LOW SIGNALS ARE INDICATED

WITH ”*” AFTER THE SIGNAL NAME.

22/user/xr_pwa/ad x2_asc_biu

OFBLOCK SHTBLOCK PATHNAME

1

PCN

2

PCN

DESCRIPTION

DATE

DESCRIPTION

DATE

APPR BY

APPR BY

DATE

DATE

MADE

piekarski_j 28/Jan/94

CHECK

JIM WOODS
JIM PIEKARSKI 20−OCT−94

APPR
OTHER

M POTTER−HUMMER 20 −OCT−94

DATE
DATE
DATE
DATE

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE
FIRST MADE FOR

DRAWING NO.

2107542SCH

2107542 C

ADX2_ASC_BIU

ADVANTX_II

SIZEREV

0

SHT./CONT. ON

B1

2

/

E

F

H

25

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

321

A

isa_conn
Sheet−9

P1

CTRL_BUS(15:0)

B

C

D

ISA_INTR(8:0)

ENET_OUT(3:0)

BKPL_IF(15:0)

I2C_BUS(1:0)

I

S

A

B

U

S

P2

SYS_PWR(3:0)

SYS_DAT(7:0)

SYS_CTRL(10:0)

SYS_ADR(19:0)

clk_pwr

XTAL

CAPS

isa_if

Sheet−3

XCVRS

BUFFS

COUNTE R

Sheet−8

BUFFER

DIODE

DC/DC
CONV

FPGA

DECODE

I/O & MEM

MASTER

SEQUEN CER

POST
CODE
PORT

CLK_BUS(4:0)

LED_PWR

L

LED_PWR
E
D

’S

D_BUS2(7:0)

D_BUS1(7:0)

CLK_BUS(4:0)

CS_BUS*(16:0)

CTRL_BUS(15:0)

BD_ADR_BUS(19:0)

54

6

ethernet

BD_ADR_BUS(19:0)

CS_BUS*(16:0)

CTRL_BUS(15:0)

SYS_DAT(7:0)

CLK_BUS(4:0)

CTRL_BUS(15:0)

CS_BUS*(16:0)

BD_ADR_BUS(19:0)

D_BUS1(7:0)

CLK_BUS(4:0)

CS_BUS*(16:0)

CTRL_BUS(15:0)

BD_ADR_BUS(19:0)

D_BUS2(7:0)

SYS_CTRL(10:0)

CLK_BUS(4:0)

BUFS

XCVR

ports Sheet−7

READ
PORTS

LATCH

SNIC

INTR

arcnet Sheet−4

ARCNET−0

ARCNET−1

WRITE
PORTS

INTERRU PT

CONTROL LER

AND PORT

DECODE R

INTR

INTR

Sheet−5

RAM

COAX

XFMR

XCVR
I/F

F.O.
XCVR

F.O.
XCVR

BKPL_IF(15:0)

INTR_BUS(2:0)

ISA_INTR(8:0)

NMI_EN_H

T_DAT

PORT_RST_H

ENET_OUT(3:0)

INTR_BUS(2:0)

INTR_BUS(2:0)

10987

2 CON T.SHT.

2107542 SCH

3

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

pci_conn
Sheet−14

P

C

I

1

PCN

2

PCI_AD(3 1:0)

PCI_CTRL (11:0)

pci_if S heet−10

F

LATCH

P

G

XCVR

A

flash_3

sheet−13

FLASH

DESCRIP TION

DATE

DESCRIP TION

DATE

PCI_A(31:0)

PCI_D(31:0)

FL_CS*(4:0)

FL_OE*(3:0)

FL_WR*(3:0)

FL_PWD*(2:1)

APPR BY

APPR BY

PCI_A(31:0)

PCI_D(31:0)

FL_CS*(4 :0)

FL_OE*(3:0)

FL_WR*(3:0 )

FL_PWD*(2:1 )

PCI_A(31:0)

PCI_D(31:0)

FL_CS*(4:0)

FL_OE*(3:0)

FL_WR*(3:0 )

FL_PWD*(2:1)

flash_1 Sheet− 11

FLASH

FLASH

flash_2

Sheet−12

FLASH

FLASH

DATE

DATE

piekarski_j 28/Jan/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

26

20−OCT−94

nv_rom Sheet−6

D_BUS2(7:0)

BD_ADR_BUS(19:0)

CS_BUS*(16:0)

D_BUS1(7:0)

CTRL_BUS(15:0)

CLK_BUS(4:0)

GE MEDICAL SYSTEMS

Milwaukee, WI USA

WRITE
PORTS

TEMP

SENSOR

128K
NV−RAM

BIOS
ROM

IIC
CONT

SER−EE
PROM

21/user /xr_pwa/ad x2_asc_bi u

OFBLOCK SH TBLOCK P ATHNAME

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

PORT_RST_H

T_ DAT

NMI_EN_H

FL_PWD*(2:1)

I2C_BUS(1:0)

ADX2_A SC_BIU

2107542 SCH

ADVANT X_II

E

F

H

SIZEREV

0

SHT./CO NT. ON

B2

3

/

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

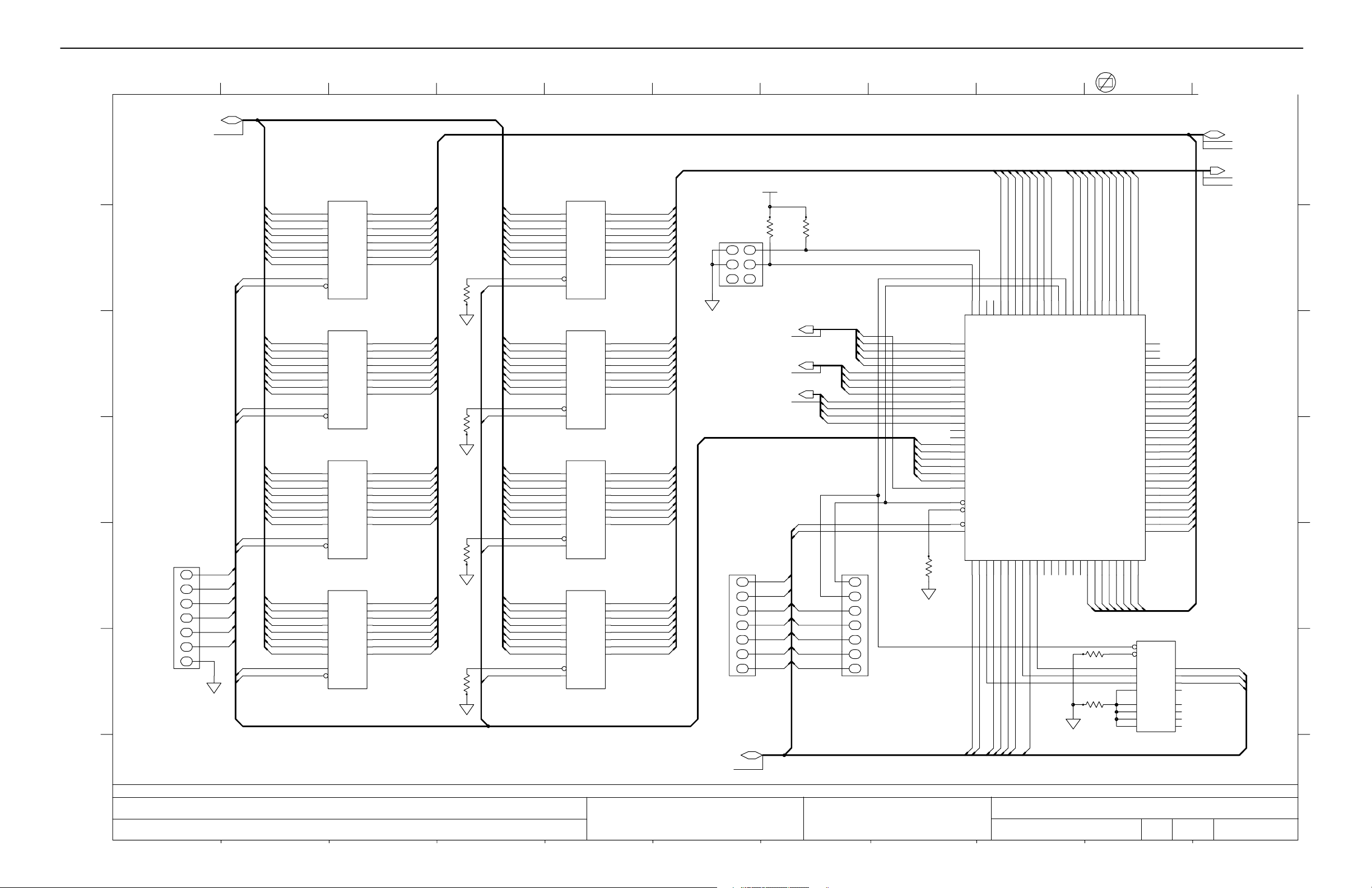

SYS_DAT(7:0)

A

B

C

[4−C2]−[ 5−F1]−[6−B1]

D

E

F

H

REV

MADE BY

REV

MADE BY

[5−D1]−[9 −B6]

SYS_CTRL(10:0)

[7−F1]−[ 9−A6]

CLK_BUS(4:0)

[7−C1]−[ 8−A7]

1

PCN

2

2
4

3

SYS_ADR(19:0)

[9−C6]

74FCT245AT_ UTF

0

2

SD0
SD1
SD2
SD3
SD4
SD5
SD6
SD7

249

A1

3

A2

4

A3

5

A4

6

A5

7

A6

8

A7

9

A8

1

DIR

19

G

9

10

0
1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19

R19

249

L

1
2
3
4
5
6
7

DT_R*

DB2_OE*

SEQ_CLK

R20

L

DESCRIP TION

DATE

DESCRIP TION

DATE

U22

B1
B2
B3
B4
B5
B6
B7
B8

TYP

2
3
4

SMEMRD*

5

SMEMWR*

R25

249

R7

L

249

74FCT2827AT_U TF

2

SA0

3

SA1

4

SA2

5

SA3

6

SA4

7

SA5

8

SA6

9

SA7

10

SA8

11

SA9

1

13

74FCT2827AT_U TF

2

SA10

3

SA11

4

SA12

5

SA13

6

SA14

7

SA15

8

SA16

9

SA17

10

SA18

11

SA19

1

13

DB2_0

18
17
16

DB2_2

15

DB2_3

14

DB2_4
DB2_5

13
12

DB2_6
DB2_7

11

IORD*
IOWR*

BUSREQ

IOAK*

U6

D0
D1
D2
D3
D4
D5
D6
D7
D8
D9

OE1
OE2

TYP

U5

D0
D1
D2
D3
D4
D5
D6
D7
D8
D9

OE1
OE2

TYP

APPR BY

APPR BY

321

0
1
2
3
4
5
6
7

U4

74FCT2374AT_ UTF

3
4
7

8
13
14
17
18

1
11

Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9

Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9

1Q

1D

2Q

2D

3Q

3D

4Q

4D

5Q

5D

6Q

6D

7Q

7D

8Q

8D

OC

CLK

TYP

BA0

23

BA1

22

BA2

21

BA3

20

BA4

19

BA5

18

BA6

17

BA7

16

BA8

15

BA9

14

BA10

23

BA11

22

BA12

21

BA13

20

BA14

19

BA15

18

BA16

17

BA17

16

BA18

15

BA19

14

D_BUS2(7:0)

74FCT245A T_UTF

10
11
12
13
14
15
16
17
18
19

2
3

2
5
6
9
12
15
16
19

0
1
2
3
4
5
6
7
8
9

0
1
2
3
4
5
6
7

DB1_OE*

LIORD*

LBUSREQ

2

SD0

A118B1

3

SD1

A217B2

4

SD2

A316B3

5

SD3

A415B4

6

SD4

A5

7

SD5

A613B6

8

SD6

A712B7

9

SD7

A811B8

1

DT_R*

LIOWR*
LMEMRD*
LMEMWR*

LIOAK*

Connect pins as show n
with traces on the
bottom side of board

L

19

7
8
9

10

DIR
G

12

34

56

78

910

Hdr−Pin

Straight

14−Pos

DATE

DATE

J1

U3

TYP

VCC

1211

1413

B5

4.75K

14

R32

DB1_0
DB1_1
DB1_2
DB1_3
DB1_4
DB1_5
DB1_6
DB1_7

R45

0
1
2
3
4
5
6
7

R55

R44

BIOS_DEC

R54

MADE

CHECK

APPR

OTHER

DB1_0
DB1_1
DB1_2DB2_1
DB1_3
DB1_4
DB1_5
DB1_6
DB1_7

RESET*

POST_WR*

8

6

74FCT2273ATQ_ UTF

3

1D

4

2D

7

3D

8

4D

13

5D

14

6D

17

7D

18

8D

1

CLR

11

CLK

DATE

DATE

DATEPCN

DATE

54

0
1
2
3
4
5
6
7

0

R57

R58

9

8

7

6

5

4

3

JB(9:3)

piekarski_j 28/Jan/94

JIM WOODS

JIM PIEKARSKI 20−OCT−94

M POTT ER−HUMMER 20 −OCT−94

27

U41

1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q

TYP

20−OCT−94

10987

LED_PWR

2

0

5

1

6

2

9

3

12

4

15

5

16

6

19

7

2
1

0
7
6

DS2

DS1

01

LED_DAT( 7:0)

7
8
10
9

8
7

9
8
7

1

2
4
3
2
1

4

GE MEDICAL SYSTEMS

Milwaukee, WI USA

180

DS4

2

63

LIORD*

LIOWR*
LMEMWR*
LMEMRD*
LBUSREQ

LIOAK*

CY_PCEM*

BUSAKH

BUSAKL

POST_WR*
ARC1_CS*
ARC0_CS*

DB1_0
DB1_7
DB1_6

SMEMRD*

RESET*
SEQ_CLK

0

NVCS*

DB1_2
DB1_1
JB_A9
JB_A8
JB_A7

IORD*
BA4
BA3
BA2
BA1

DS6

DS5DS3

34567

16

IO_MC1

15

IO_MC3

14

IO_MC4

12

IO_MC6

11

IO_MC8

10

IO_MC9

9

IO_MC11

8

IO_MC12

5

IO_MC14

4

IO_MC16

28

IO_MC17

27

IO_MC19

25

IO_MC21

24

IO_MC22

23

IO_MC24

22

IO_MC25

21

IO_MC27

20

IO_MC28

18

AEN

OE*

L

17
41
40
37
36
35
34
33

84

2

1

83

249
R27

IO_MC29
IO_MC32
IO_MC33
IO_MC35
IO_MC37
IO_MC38
IO_MC40
IO_MC41
IO_MC43

IN/OE1
IN/OE2

IN/GCLR
IN/GCLK

DS8

DS7

U30

EPM7096−15

IO_MC45
IO_MC46
IO_MC48
IO_MC49
IO_MC51
IO_MC53
IO_MC54
IO_MC56
IO_MC57
IO_MC59
IO_MC61
IO_MC62
IO_MC64
IO_MC65
IO_MC67
IO_MC69
IO_MC70
IO_MC72
IO_MC73
IO_MC75
IO_MC76
IO_MC77
IO_MC80
IO_MC81
IO_MC83
IO_MC84
IO_MC86
IO_MC88
IO_MC89
IO_MC91
IO_MC92
IO_MC94
IO_MC96

2118567

OFBLOCK SH TBLOCK P ATHNAME

[8−D9]

555−2303

GREEN

31

DB1_5
DB1_4

30
29

DB1_3

44

BA5

45

BA6

48

BA7

49

BA8

50

BA9

51

JB_A6

JB_A5

52
54

JB_A4

55

IO_WAIT

56

BB_CS*

57

BIOSCS*

BIOS_DEC

58
60

EIO_CS*

61

BA13

62

BA14

63

BA15

64

BA16

65

BA17

67

BA18

68

BA19

DTR*

69
70

DB2OE*
DB1OE*

71
73

EOE*

74

ERD*

75

EWR*

76

LWR*

77

LRD*

80

RFSH*

81

BA0

6

11/user /xr_pwa/ad x2_asc_bi u/isa_if

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

2107542 SCH

4

56

3

16

ADX2_A SC_BIU

D_BUS1(7:0)

[4−A2]−[ 6−A1]

5
4
3

5
6
7
8
9

7

2

13
14

15
16
17
18

19
DT_R*
DB2_OE*
DB1_OE*

ENET_OE*
ERD_STB*
EWR_STB*
LWR_STB*
LRD_STB*

0

ADVANT X_II

CS_BUS*(16:0)

[4−B2]−[5− C1]−[6−A1]−[7−A1]

BD_ADR_BUS(19:0)

[4−A2]−[ 5−A1]−[6−A1]
[7−B1]

5

2

R50

4

R52

3

R51

6
13
14
12
11

R49
R36
R35
R30
R29

0

49.9

SIZEREV

B3

3 CON T.SHT.

2107542 SCH

D_BUS2(7:0)

[6−D1]−[7− A1]

CTRL_BUS(15:0)

[4−C2]− [5−A1]−[6−A1]
[7−B1]− [9−A1]

SHT./CO NT. ON

4

A

B

C

D

E

F

H

4

/

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

BD_ADR_BUS(19: 0)

A

[3−C11]−[5 −A1]−[6−A1]−[7−E1 ]

CTRL_BUS(15:0)

[3−B11]−[5 −A1]−[6−A1]

B

[3−B11]−[5 −C1]−[6−A1]−[7−A1 ]

C

[3−C1]−[5 −F1]−[6−B1]

D_BUS1(7:0)

[3−A10]−[6 −A1]

[7−B1]−[9 −A1]

CS_BUS*(16:0)

CLK_BUS(4:0)

[7−C1]−[8 −A1]

ARC0_CS*

0

4 CON T.SHT.

2107542 SCH

1
2
6
7

6

SN75454B

A1
B1
A2
B2

U20

_Y1

_Y2

10987

CR2

BAV70

2

3

1

CAT2

L

AN1

R53

1.0K

0.500W
1%

82.5
R43

0.500W
1%

C24

0.1U
50V
10%

L

82.5
R42

VCC

3

5

U21

74HCT14

21

C49

0.1U
50V
10%

2

HFBR1527

U28

GND

VO1

HFBR2521

U38

3RL4

VCC

321

U2

COM20020

BA0
BA1
BA2

DB1_0
DB1_1
DB1_2

DB1_3
DB1_4
DB1_5
DB1_6
DB1_7

49.9

10
11
12

23
27
26
25

16
17
20

1
2
3

4
5
6

8
9

A0_MUX
A1
A2_ALE

AD0
AD1
AD2

_PULSE1

D3

_PULSE2

D4
D5
D6
D7

_RST
_RD_DS
_WR−DIR
_CS

XTAL1
XTAL2
RXIN

_TXEN

_INTR

18
19

21

24

A_INT0*

0
1
2

0
1
2

3
4
5
6
7

0
11
12

0

RESET*
LRD_STB*
LWR_STB*

R47

A_CLK

54

1

5

A

B

C

U29

10
11
12

23
27
26
25

16
17
20

1
2
3

4
5
6

8
9

COM20020

A0_MUX
A1
A2_ALE

AD0
AD1
AD2

_PULSE1

D3

_PULSE2

D4
D5
D6
D7

_RST
_RD_DS
_WR−DIR
_CS

XTAL1
XTAL2
RXIN

_TXEN

_INTR

18
19

21

24

A_INT1*

2

U21

74HCT14

43

INTR_BUS(2:0)

[5−D8]−[7 −C1]

D

0

BA0

1

BA1

2

BA2

0
1
2

3
4
5

0
11
12

ARC1_CS*

A_CLK

6
7

E

1

F

DB1_0
DB1_1
DB1_2

DB1_3
DB1_4
DB1_5
DB1_6
DB1_7

RESET*
LRD_STB*
LWR_STB*

R56

49.9

CR1

BAV70

2

3

1

R24

1.0K

0.500W
1%

82.5
R5

VCC

L

C25

0.1U
50V
10%

0.500W
1%

82.5
R6

L

C16

0.1U
50V
10%

2

CAT2

AN1

HFBR1527

GND

VO1

U1

3

4

RL

HFBR2521

U19

VCC

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user /xr_pwa/ad x2_asc_bi u/arcnet

OFBLOCK SH TBLOCK P ATHNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

piekarski_j 28/JAN/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

ADX2_A SC_BIU

ADVANT X_II

2107542 SCH

SIZEREV

0

SHT./CO NT. ON

B4

5

/

H

28

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

A

B

C

D

E

F

CTRL_BUS(15:0 )

[3−B11]−[ 4−C2]−[6−A1]

[7−B1] −[9−A1]

BD_ADR_BUS(19:0)

[3−C11]− [4−A2]

[6−A1]−[7− E1]

CY_PCEM*

3

CS_BUS*(16:0)

[3−B11]−[4 −B2]

[6−A1]−[7 −A1]

SYS_DAT(7:0)

[3−A1]−[9 −B6]

CLK_BUS(4:0)

[3−C1]− [4−C2]−[6−B1]

[7−C1]−[8− A7]

R33

49.9

321

BUSAKL

7

U61

74FCT2244AT

1

_1G

19

_2G

A1
A2
A3
A4
A5
A6
A7
A8

DIR
G

1Y1
1Y2
1Y3
1Y4

2Y1
2Y2

2Y3
2Y4

1Y1
1Y2
1Y3
1Y4

2Y1

2Y2
2Y3
2Y4

L

U49

TYP

18
16
14
12

3
5
7
9

18
16
14
12

3
5
7
9

B1
B2
B3
B4
B5
B6
B7
B8

ER_A0
ER_A1
ER_A2
ER_A3

ER_A4
ER_A5
ER_A6
ER_A7

ER_A8
ER_A9
ER_A10
ER_A11

ER_A12
ER_CS*
ER_WR*
ER_RD*

12

E_AD1

17
14

E_AD2

11

E_AD3

16

E_AD4

13

E_AD5

18

E_AD6
E_AD7

15

BA0
BA1
BA2
BA3

BA4
BA5
BA6
BA7

BA8
BA9
BA10
BA11

BA12

0

1
2
3
4
5
6
7

R78

SD0
SD1
SD2
SD3
SD4
SD5
SD6
SD7

17
15
13
11

19

17
15
13
11

2

1A1

4

1A2

6

1A3

8

1A4

2A1

2A2

2A3
2A4

U50

74FCT2244AT

1

_1G
_2G

2

1A1

4

1A2

6

1A3

8

1A4

2A1

2A2

2A3
2A4

249

74FCT245AT _UTF

8
3
6
9
4
7
2
5

1

19

0
1
2
3

4
5
6
7

8
9
10
11

12

DT_R*
ENET_OE*

ERD_STB*
EWR_STB*

RESET*

BUSAKH

EWR_STB*

ERD_STB*

14
13

2

6

13
14

0

8

E_CLK

2

ERAM_LADR_(7:0)

0
1
2
3

4
5
6
7

ERAM_HADR_(4:0)

0
1
2
3

4

0
1
2
3
4
5
6
7

2

54

0
1
2
3

EIO_CS*

VCC

4
5
6
7

0
1
2
3
4

R 6 0 49.9

R96

2K

E_ADR_DAT_(7:0)

E_AD0

0

E_AD1

1

E_AD2

2

E_AD3

3

E_AD4
E_AD5
E_AD6
E_AD7

0

E_AD0
E_AD1

1

E_AD2

2

E_AD3

3

E_AD4

4

E_AD5

5

E_AD6

6
7

E_AD7E_AD0
ER_A8

ER_A9
ER_A10
ER_A11

ER_A12

BA0
BA1
BA2
BA3

13
14
17
18

11

26

7
8

9
10
11
12
13
14
15
16
17
19
22
23
24
25

6

5

4

3

27
31
30

36
68

65

38

40

6

U62

74FCT373AT _UTF

3

1D
2D
3D
4D
5D
6D
7D
8D

OC
C

TYP

ADS0

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15

RA0
RA1
RA2
RA3

_CS
_SRD
_SWR

_RACK
_WACK

_RESET

READY

BACK

1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q

R98

2K

U59

DP83901A

PLL−VCC

PRQ_ADS1

_SNISEL

L

4
7
8

1

R65

249

2
5
6
9
12
15
16
19

VCC

_PRD
_PWR

_MRD
_MWR

_ACK

INT

CD+
CD−

RX+
RX−

TX+
TX−

SEL

TEST

BSCLK

BREQ

ER_A0
ER_A1
ER_A2
ER_A3
ER_A4
ER_A5
ER_A6
ER_A7

X1
X2

0
1
2
3
4
5
6
7

58

39
2
37

29
28

32

67

63
62

61
60

43
42

47
56
46

50
51

34

41

VCO_VCC

IOAK*

E_INT

VCC

L

BUSREQ

10987

U60

IDT71256L −35

ER_A0
ER_A1
ER_A2
ER_A3
ER_A4
ER_A5
ER_A6
ER_A7
ER_A8

ER_A9
ER_A10
ER_A11
ER_A12

ER_WR*
ER_CS*
ER_RD*

4

13

R74

0.25W

R119

75.0
1%

0.125W

PM12PP1

SM1
15

R75

511

10

25
24
21
23

26

27
20
22

SP1

1%

9
8
7
6
5
4
3

2

1

1

16

A0
A1
A2
A3

IO1

A4

IO2

A5

IO3

A6

IO4

A7

IO5

A8

IO6

A9

IO7

A10

IO8
A11
A12
A13
A14

WE
CS
OE

MAX

MEM_IMAGE

R76

11
12
13
15
16
17
18
19

2
3

12

13
14

5
6
7
8

9
10
11
20
21
22
23
24
25

E_AD0
E_AD1
E_AD2
E_AD3
E_AD4
E_AD5
E_AD6

E_AD7

U58

DP8392CV

CD+
CD−

RX+4TXO
RX−

TX+
TX−

VEE1
VEE2
VEE3
VEE4
VEE5
VEE6
VEE7
VEE8
VEE9
VEE10
VEE11
VEE12
VEE13

0
1
2
3
4
5
6
7

RR+
RR−

RXI

CDS

HBE

GND1
GND2

R87

1.0K
1%

0.100W

18
19

E_TXO

28

26

1

15

16
17

E_RXI

E_GND

E_GND

0

1

2

3

0
1
2
3

0

1
2
3
4

R118

0.125W

7

5

PM2

EP−9531G−6

SM212SP2

10

75.0
1%

PP2

T1

R73

4
5
6
7

VCC

R66

R97

2K

2K

R77

2K

10

0

R64

274

1%

0.125W

L

9

R88
2K

INTR_BUS(2:0)

[4−F5]−[ 7−C1]

R63

PM38PP3

274
1%

0.125W

SM3
9

VEE

E_GND

A

SP3

R72

75.0
1%

0.125W

ENET_VEE

C82

10N
1000V
20%

5 CON T.SHT.

2107542 SCH

ENET_OUT(3:0)

[9−E8]

6

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user /xr_pwa/ad x2_asc_bi u/ethernet

OFBLOCK SH TBLOCK P ATHNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

piekarski_j 28/Jan/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

ADX2_A SC_BIU

ADVANT X_II

2107542 SCH

SIZEREV

0

SHT./CO NT. ON

B5

6

/

H

29

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

D_BUS1(7:0)

[3−A10]−[ 4−A2]

A

B

[3−C1]−[ 4−C2]−[5−F1]

C

D

BD_ADR_BUS(19 :0)

[3−C11] −[4−A2]−[5−A1]−[7 −E1]

CTRL_BUS(15:0)

[3−B11]−[ 4−C2]−[5−A1]

CS_BUS*(16:0)

[3−B11] −[4−B2]−[5−C1]−[7 −A1]

CLK_BUS(4:0)

[7−C1]−[8 −A7]

[7−B1]−[9 −A1]

321

VCC

R114

4.75K

4

0

12

I2C_CS*

5

LRD_STB*

11

RESET*

0

HCT_OE*

4

2

R38

0
1
2
3
4
5
6
7

R37

DT_R*

DB2_0
DB2_1
DB2_2
DB2_3
DB2_4
DB2_5
DB2_6
DB2_7

L

LWR_STB*

BA0

49.9

49.9

19

VCC

20
10

18

17

16
19

U56

74HCT245

_OE

1

DIR

2

A0

3

A1

4

A2

5

A3

6

A4

7

A5

8

A6

9

A7

1
4

6

2
3

B0
B1
B2
B3
B4
B5
B6
B7

U68

PCD8584

VDD
VSS

CLK
_IACK

_WR
A0
_CS

_RD
_RESET

SDA
SCL

18
17
16
15
14
13
12
11

_INT

DB0
DB1
DB2
DB3
DB4
DB5
DB6
DB7

HCT_D0
HCT_D1
HCT_D2
HCT_D3
HCT_D4
HCT_D5
HCT_D6
HCT_D7

5

7

HCT_D0

8

HCT_D1

9

HCT_D2

11

HCT_D3

12

HCT_D4

13

HCT_D5

14

HCT_D6

15

HCT_D7

R110

R122

HCT(7:0)

0
1
2
3
4
5
6
7

100

100

0
1
2
3
4
5
6
7

R112
100

R111

100

I2C_DATA

54

VCC

I2C_CLK

R93

2K

R113

2K

5
6
8
1
2
3
4

L

VCC

6

U67

PCF8582E2D

SDA
SCL
VDD

PTC

A0
A1
A2
VSS

0

1

6

R48

49.9

12
11

VCC

R94

2K

7

I2C_BUS(1:0)

[9−C10]

NV_CS*

LWR_STB*

LRD_STB*

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14

U39

DS1245AB−120

22

_CE

29

_WE

24

_OE

12

BA0
BA1
BA2
BA3
BA4
BA5
BA6
BA7
BA8

BA9
BA1 0
BA1 1
BA1 2
BA1 3
BA1 4

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

3

A14

31

A15

2

A16

NOTE:
Connect pin # 30
to Vcc for 8k/32k

compatibility.

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

10987

7

U40

R59

49.9

13

DB1_0
DB1_1
DB1_2
DB1_3
DB1_4
DB1_5
DB1_6
DB1_7

0
1
2
3
4
5
6
7

14
15
17
18
19
20
21

R117

4.75K

12

11

12V_POS

R116

4.75K

R61

2K

VCC

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

LWR_STB*

BIOS_CS*
LRD_STB*

BA0
BA1
BA2
BA3
BA4
BA5
BA6
BA7
BA8

BA9
BA10
BA11
BA12
BA13
BA14
BA15

27/28/29X010− 120

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

29

A14

3

A15

2

A16

1

VPP/NC

31

PGM/WE

22

CE

24

OE

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7

NC/GND

6 CON T.SHT.

2107542 SCH

13

DB1_0

14

DB1_1

15

DB1_2

17

DB1_3

18

DB1_4

19

DB1_5

20

DB1_6

21

DB1_7

30

L

7

A

0
1
2
3
4
5
6
7

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

D_BUS2(7:0)

[3−A11]−[ 7−A1]

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

U55

74FCT2273ATQ_U TF

0
1
2
3
4
5
6
7

0

14

0

11

RESET*

PAGE_BITS*

0
1
2
3
4
5
6
7

RESET*

STAT_WR*

APPR BY

APPR BY

DB2_0
DB2_1
DB2_2
DB2_3
DB2_4
DB2_5
DB2_6
DB2_7

DB2_0
DB2_1
DB2_2
DB2_3
DB2_4
DB2_5
DB2_6
DB2_7

3

1D

4

2D

7

3D

8

4D

13

5D

14

6D

17

7D

18

8D

1

CLR

11

CLK

74FCT2273ATQ_U TF

3

1D

4

2D

7

3D

8

4D

13

5D

14

6D

17

7D

18

8D

1

CLR

11

CLK

TYP

U54

TYP

1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q

1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q

2

NV_PG0

5

NV_PG1

6

BIOS_PG0
9
12
15
16

FL_PWD1 *

19

FL_PWD2 *

2

TEMP_DAT_WR

TEMP_CLK

5
6

TEMP_RST*
9
12
15
16

NMI_EN_H

19

PORT_RST_H

DATE

DATE

1
2

FL_PWD*(2:1)

[11−B1]− [12−B1]−[13−B1]

NMI_EN_H

[7−H1]

PORT_RST_H

[7−F1]

piekarski_j 28/Jan/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

U65
74ALS1005

R90

4.75K

1011 1213

3

DATE

DATE

DATEPCN

DATE

VCC

U65
74ALS1005

U57

DS1620

CLK_CONV2DQ
_RST

THIGH

TLOW
TCOM

20−OCT−94

R84

4.75K

1

7
6
5

T_DAT

[7−C1]

GE MEDICAL SYSTEMS

Milwaukee, WI USA

R123

1.0K

R124

10K

D

G

Q1
2N7002

S

11/user /xr_pwa/ad x2_asc_bi u/nv_rom

OFBLOCK SH TBLOCK P ATHNAME

D

Q2

G

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

MTD4P05

S

+

C90

10U
25V
20%

2107542 SCH

R85

4.75K

ADX2_A SC_BIU

C79

0.1U
50V
10%

ADVANT X_II

C36

0.1U
50V
10%

VPP

C74

C32

0.1U

0.1U

50V

50V

10%

10%

L

SIZEREV

0

SHT./CO NT. ON

B6

7

/

E

F

H

30

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

D_BUS2(7:0)

A

B

C

D

BD_ADR_BUS(19:0)

E

F

H

REV

MADE BY

REV

MADE BY

[3−A11]−[6 −D1]

CS_BUS*(16:0)

[3−B11]− [4−B2]

[5−C1]− [6−A1]

CTRL_BUS(15:0)

[3−B11]−[ 4−C2]−[5−A1]

[6−A1]−[ 9−A1]

INTR_BUS(2:0)

[4−F5]−[5 −D8]

[3−C11] −[4−A2]

[5−A1]−[6− A1]

CLK_BUS(4:0)

[3−C1]− [4−C2]−[5−F1]

SYS_CTRL(10:0)

1

PCN

2

T_DAT

[6−F7]

[6−B1]−[8− A7]

PORT_RST_H

[6−H5]

[3−C1]−[9− A6]

NMI_EN_H

[6−H5]

0

15

0

I_CLK

1

0

BUS_RESET

DESCRIP TION

DATE

DESCRIP TION

DATE

2
3
6
7

0

DB2_0

1

DB2_1

2

DB2_2

3

DB2_3

4

DB2_4

5

DB2_5

6

DB2_6

7

DB2_7

RESET*

INT_CFG*

321

13

INT_STAT*

LBAT*

SWIND_IN*

SP_I1*

CRST_DET*

A_INT1*

2

A_INT0*

1

E_INT

0

74FCT2273ATQ_ UTF

3

1D

4

2D

7

3D

8

4D

13

5D

14

6D

17

7D

18

8D

1

CLR

11

CLK

TYP

VCC

R115

4.75K

APPR BY

APPR BY

1Q
2Q
3Q
4Q
5Q
6Q
7Q
8Q

R34

1

19

2
4
6
8

17
15
13
11

2
5
6
9
12
15
16
19

16
14
11
5
4
10
9

U23

74FCT2244AT

_1G
_2G

1A1

1Y1

1Y2

1A2
1A3

1Y3
1Y4

1A4

2Y1

2A1

2Y2

2A2

2Y3

2A3

2Y4

2A4

TYP

I1_LEV0
I1_LEV1
I1_LEV2
EN_EINT
I2_LEV0
I2_LEV1
I2_LEV2
EN_AINT

0
1
2
3

L

49.9

18
16
14
12

3
5
7
9

11
12
4

R31

249

DB2_0
DB2_1

DB2_2

DB2_3

DB2_4
DB2_5
DB2_6
DB2_7

0
1
2
3
4
5
6
7

2
1

I1_LEV0
I1_LEV1
I1_LEV2
EN_EINT
I2_LEV0
I2_LEV1
I2_LEV2
EN_AINT

RST*
A_INT1*
A_INT0*

LRD_STB*

LWR_STB*

DB2_OE*

BA0
BA1
BA2
BA3

PAGE_BITS*

STAT_WR*

I2C_CS*

HCT_OE*
BKPL_RD*
BKPL_WR*

I_OE*

8
9
10
11

12
13
14
15

0
1
2
3

4
5
6
7

INT_CONFIG(7:0)

0
1
2
3
4
5
6
7

BD_BASE_C S*

DATE

DATE

249

R91

L

OP_RTB_RESE T*

PWR_UNIT_OFF*
ERLY_CPU_RST *

16
15
14
12
11
10

9
8
5

4
28
27
25
24
23
22
21
20
18
17
41
40
37
36
35
34
33

84

2

1
83

POK*

LOW_BATT*

SW_IND_IN*

SPARE_IN 1*

CON_RST_DET*

EPM7096−1 5

IO_MC1
IO_MC3
IO_MC4
IO_MC6
IO_MC8
IO_MC9
IO_MC11
IO_MC12
IO_MC14
IO_MC16
IO_MC17
IO_MC19
IO_MC21
IO_MC22
IO_MC24
IO_MC25
IO_MC27
IO_MC28
IO_MC29
IO_MC32
IO_MC33
IO_MC35
IO_MC37
IO_MC38
IO_MC40
IO_MC41
IO_MC43

IN/OE1
IN/OE2

IN/GCLR
IN/GCLK

2118567−2

54

U9

MADE

CHECK

APPR

OTHER

19

17
15
13
11

IO_MC45
IO_MC46
IO_MC48
IO_MC49
IO_MC51
IO_MC53
IO_MC54
IO_MC56
IO_MC57
IO_MC59
IO_MC61
IO_MC62
IO_MC64
IO_MC65
IO_MC67
IO_MC69
IO_MC70
IO_MC72
IO_MC73
IO_MC75
IO_MC76
IO_MC77
IO_MC80
IO_MC81
IO_MC83
IO_MC84
IO_MC86
IO_MC88
IO_MC89
IO_MC91
IO_MC92
IO_MC94
IO_MC96

6

U66

74FCT2244AT

1

_1G

_2G

BPOK*

2

1A1

4

1A2

6

1A3

8

1A4

2A1
2A2
2A3
2A4

18

1Y1
1Y2
1Y3
1Y4

2Y3
2Y4

TYP

31
30
29
44
45
48
49
50
51
52
54
55
56
57
58
60
61
62
63
64
65
67
68
69
70
71
73
74
75
76
77
80
81

piekarski_j 28/Jan/94

JIM WOODS

JIM PIEKARSKI 20−OCT−94

M POTT ER−HUMMER 20 −OCT−94

16
14
12

3

2Y1

5

2Y2

7
9

BKPL_STAT(7:0)

INT_STAT*
INT_CFG*

E_INT
BPOK*
OP_RST*

PU_OFF*
ECPU_RST*
L_POK*
L_OP_RTB_RST*
L_ECPU_RST*
L_PUNIT_OFF*

IO_CHNL_C HK
ISA_INT_0
ISA_INT_1
ISA_INT_2
ISA_INT_3
ISA_INT_4
ISA_INT_5
ISA_INT_6
ISA_INT_7

OP_RST*
LBAT*
SWIND_IN*

PU_OFF*

ECPU_RST*

SP_I1*
CRST_DET*

13
15

NMI_EN_H

BUS_RESET

0
1
2
3

4
5
6
7

0

0
1
4
5

0
1
4
5

0
1
2
3

8
0
1
2
3
4
5
6
7

DATE

DATE

DATEPCN

DATE

31

OP_RST*

PU_OFF*

ECPU_RST*

0

L_OP_RTB_RS T*

1

L_PUNIT_OFF*

3

L_ECPU_RST*

2

BKPL_RD*

10

L_STAT(3:0)

20−OCT−94

74FCT373AT _UTF

BPOK*

3
4
7
8

13

L_POK*

14
17
18

1

11

ISA_INTR(8:0)

[9−B1]

U53

DB2_0
DB2_1
DB2_2
DB2_3
DB2_4
DB2_5
DB2_6
DB2_7

0
1
2
3
4
5
6
7

1D
2D
3D
4D
5D
6D
7D
8D

OC
C

GE MEDICAL SYSTEMS

Milwaukee, WI USA

TYP

5

2Q

6

3Q

9

4Q

12

5Q

15

6Q

16

7Q

19

8Q

2

1Q

0
1
2
3
4
5
6
7

0

9

OFBLOCK SH TBLOCK P ATHNAME

BKPL_WR*

11/user /xr_pwa/ad x2_asc_bi u/ports

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

DB2_0
DB2_1
DB2_2
DB2_3
DB2_4
DB2_5
DB2_6
DB2_7

RESET*

U52

74FCT2273AT Q_UTF

3
4
7

8
13
14
17
18

1
11

2107542 SCH

1Q

1D

2Q

2D

3Q

3D

4Q

4D

5Q

5D

6Q

6D

7Q

7D

8Q

8D

CLR

CLK

TYP

ADX2_A SC_BIU

ADVANT X_II

SUICIDE _RST

2
5

RTB_RES ET

6

OP_RESE T

9

CRST_DE T_CLR

12

UPS_SHUT _OFF

15

SW_IND_ OUT
DISP_ST AT_1

16
19

DISP_ST AT_2

/

8

A

[9−A11]

B

C

D

E

F

H

8

10987

3

SIZEREV

0

B7

7 CON T.SHT.

2107542 SCH

BKPL_IF(15:0)

U64
74ALS1005

21

0

U64
74ALS1005

43

1

U64
74ALS1005

89

2

U64
74ALS1005

65

3

U64
74ALS1005

1213

4

U64
74ALS1005

1011

5

U65U31
74ALS1005

4

6

U65
74ALS1005

21

7

SHT./CO NT. ON

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

A

B

C

SYS_PWR(3:0)

D

E

F

[9−A6]

R120

4.75K

1

R100

4.75K

VCC

Y1

14

NRT80C−40.0 000

VCC

CNTL

OUT

GND

40.000MHz

7

L

12V_POS

3

+

C54

10U
25V
20%

0

1

C48

0.1U
50V
10%

0

1

+

C1

10U
25V
20%

0

1

++++++

C26

33U
16V
10%

0

R99

8

49.9

C2

10U
25V
20%

C38

0.1U
50V
10%

++

C17

10U
25V
20%

C85

33U
16V
10%

+

C95

0.1U
50V
10%

C91

10U
25V
20%

C30

33U
16V
10%

C89

10U
25V
20%

VCC

R89

4.75K

C61

0.1U
50V
10%

C44

0.1U
50V
10%

C100

33U
16V
10%

C4

0.1U
50V
10%

C84

0.1U
50V
10%

0.1U
50V
10%

C15

33U
16V
10%

C70

321

R101

4.75K

U63

74FCT161AT_ UTF

DIP

3

A

4

B

5

C

6

D

7

ENP

10

9
1
2

ENT
LOAD
CLR

C99

0.1U
50V
10%

C60

0.1U
50V
10%

C40

0.1U
50V
10%

C69

0.1U
50V
10%

CLK

TYP

RCO

C67

0.1U
50V
10%

C19

0.1U
50V
10%

C10

0.1U
50V
10%

QA
QB
QC
QD

C58

0.1U
50V
10%

14
13
12
11

15

R121

2K

C18

0.1U
50V
10%

C86

0.1U
50V
10%

C55

0.1U
50V
10%

R80

49.9

R81

49.9

R79

TP6

C63

0.1U
50V
10%

C33

0.1U
50V
10%

C87

0.1U
50V
10%

249

L

WHITE

C52

0.1U
50V
10%

C41

0.1U
50V
10%

C51

0.1U
50V
10%

10

11

12

IDT49FCT805A

9

_OEA

INA

INB

_OEB

249
R83

C73

0.1U
50V
10%

C66

0.1U
50V
10%

C56

0.1U
50V
10%

VIA1 VIA2

U51

L

OA1
OA2
OA3
OA4
OA5

OB1
OB2
OB3
OB4
OB5

MON

C59

0.1U
50V
10%

C77

0.1U
50V
10%

C27

0.1U
50V
10%

2
3
4
6
7

19
18
17
15
14

13

C96

0.1U
50V
10%

C14

0.1U
50V
10%

C68

0.1U
50V
10%

8 CON T.SHT.

2107542 SCH

VCC

2K

R102

C50

0.1U
50V TP4
10%

L

A_CLK

I_CLK

6

0

1

2

3

4

C57

0.1U
50V
10%

C64

0.1U
50V
10%

C83

0.1U
50V
10%

CLK_BUS(4:0)

[3−C1]−[ 4−C2]−[5−F1]−[6−B 1]−[7−C1]

C65

C35

C23

C13

0.1U

0.1U

0.1U
50V
10%

C3

0.1U
50V
10%

50V
10%

C62

0.1U
50V
10%

50V
10%

C7

0.1U

50V
10%

0.1U
50V
10%

C39

0.1U
50V
10%

C21

0.1U
50V
10%

C72

0.1U
50V
10%

C78

0.1U
50V
10%

C43

0.1U
50V
10%

C47

0.1U
50V
10%

C28

0.1U
50V
10%

C93

0.1U
50V
10%

C53

0.1U
50V
10%

1
4

C75

0.1U
50V
10%

C46

0.1U
50VC850V
10%

U48

CE−2054

VIN+
VIN−

C76

0.1U
50V
10%

VOUT+
VOUT−

0.1U

10%

CR3

1N4448

C22

0.1U
50V
10%

C94

0.1UC60.1U
50V
10%

E_GND

2
3

C20

0.1U
50V
10%

50V
10%

ENET_VEE

LED_PWR

[3−A9]

C80

0.1U
50V
10%

C45

0.1U
50V
10%

+

C92

10U
25V
20%

54

R69

33.2
R67

49.9
R68

E_CLK

49.9
R70

SEQ_CLK

49.9
R82

I2C_10M

49.9

C42

C34

C31

0.1U

0.1U
50V
10%

C11

0.1U
50V
10%

C88

0.1U
50V
10%

0.1U
50V
10%

C37

0.1U
50V
10%

C9

0.1U
50V
10%

50V
10%

C12

0.1U
50V
10%

C5

0.1U
50V
10%

22.1

R95

C97

0.1U
50V
10%

VEE

10987

VCO_VCC

C29

0.1U
50V
10%

A

+

C98

10U
25V
20%

C71

0.1U
50V
10%

9

A

B

C

D

E

TP5

RED

BLACK

F

H

REV

MADE BY

REV

MADE BY

11/user /xr_pwa/ad x2_asc_bi u/clk_pwr

OFBLOCK SH TBLOCK P ATHNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

28/Jan/94Jim Piekarski

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

ADX2_A SC_BIU

ADVANT X_II

2107542 SCH

SIZEREV

0

SHT./CO NT. ON

B8

9

/

H

32

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

A

CTRL_BUS(15:0)

[3−B11]−[ 4−C2]−[5−A1]

[6−A1]−[7 −B1]

B

ISA_INTR(8:0)

[7−F7]

C

D

E

F

5

IO_CHNL_CHK

8

ISA_INT_0

0

ISA_INT_1

1

ISA_INT_2

2

ISA_INT_3

3

ISA_INT_4

4

ISA_INT_5

5

ISA_INT_6

6

ISA_INT_7

7

IO_WAIT

U7

74ALS1005

U7
74ALS1005

U7
74ALS1005

U8
74ALS1005

U8
74ALS1005

U8
74ALS1005

U8
74ALS1005

U8
74ALS1005

3

U8
74ALS1005

U7
74ALS1005

89

21

43

65

1213

1011

89

65

4

21

IOCHRDY*

R10

2K

R9

2K

IRQ3*

R8

2K

IRQ5*

R14

2K

IRQ7*

R23

2K

IRQ9*

R22

2K

IRQ10*

R21

2K

IRQ11*

R12

2K

IRQ12*

R13

2K

IRQ15*

321

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

VCC

R11

4.75K

3

0

1

2

3

2

4

1

0

5

6

7

ISA_BUS_INT(7:0)

0

5

4

3

2

6

VCC

0

GND

BUS_RESET

+5_VDC

1

IRQ9*

12V_POS

3

GND

0

SMEMWR*

IOWR*

IORD*

RFSH*

IRQ5*

IRQ3*

+5_VDC

1

0

54

R1
10KR310K

012345

R46
10KR410K

P1

A1

B1

A2B2

A3B3

B4

A4

B5

A5

B6

A6

A7B7

B8

A8

B9

A9

A10B10

A11B11

A12B12

A13B13

A14B14

B15

A15

B16

A16

B17

A17

B18

A18

A19B19

B20

A20

B21

A21

B22

A22

B23

A23

B24

A24

B25

A25

B26

A26

B27

A27

B28

A28

A29B29

B30

A30

A31B31

Plug−Pin
Straight

62−Pin_Card− Edge

R26

R2

10K

10K

SD7

7

6

SD6

5

SD5

4

SD4

3

SD3

2

SD2

1

SD1

SD0

0

IOCHRDY*

AEN

SA19SMEMRD*

SA18

SA17

SA16

SA15

SA14

SA13

SA12

SA11

SA10IRQ7*

SA9

SA8

SA7

SA6

SA5

SA4

SA3

SA2

SA1

SA0GND

R28
10K

6

6

SYS_CTRL(10:0)

[3−C1]−[7− F1]

SYS_PWR(3:0)

[8−C1]

SYS_DAT(7:0)

[3−A1]− [5−D1]

1

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

0

SYS_ADR(19:0)

[3−D1]

IRQ10*

4

IRQ11*

5

IRQ12*

6

IRQ15*

7

+5_VDC

1

GND

0

P2

C1D1

C2D2

C3D3

C4D4

C5D5

D6 C6

D7 C7

D8 C8

D9 C9

D10 C10

D11 C11

D12 C12

D13 C13

D14 C14

D15

C15

C16

D16

D17

C17

C18

D18

Plug−Pin
Straight

36−Pin_Card− Edge

VCC

R103

2K

R105

2K

R108

2K

R107

2K

ENET_OUT(3:0)

10

12

14

SUICIDE_RST*

0

OP_RESET*

2

8

UPS_SHUT_OF F*

4

DISP_STAT_1*

6

8

10

12

14 15

[5−E11]

POK* OP_RTB_RESET*

SPARE_IN1*

ID_DATA

1

Place SMB

on bottom

side of bd.

under BNC

J5

1

34

56

78

910

Hdr−Pin

Right−Angle

20−Pos

E_TXO

0

E_RXI

1

E_GND

2

E_GND

3

U76

RTB_RESET*

2

CON_RST_DET _CLR*

SW_IND_OUT*

DISP_STAT_2 *

SW_IND_IN*LOW_BATT*

1211

ERLY_CPU_RS T*PWR_UNIT_OFF *

1413

CON_RST_DET *

1615

1817

ID_CLK

2019

SMB

BNC

CR4

1N4448

C81

10N
1000V
20%

10987

1

3

5

7

9

11

13

0

J2

J3

J4

R86
1M
1%

0.500W

P

R104

9

2K

R106

11

2K

R92

13

2K

R109

15

2K

I2C_BUS(1:0)

[6−C6]

9 CON T.SHT.

2107542 SCH

BKPL_IF(15:0)

[7−A11]

VCC

10

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user /xr_pwa/ad x2_asc_bi u/isa_conn

OFBLOCK SH TBLOCK P ATHNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

piekarski_j 28/Jan/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

ADX2_A SC_BIU

ADVANT X_II

2107542 SCH

SIZEREV

0

SHT./CO NT. ON

B9

10

/

H

33

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

11

A

B

C

D

E

F

DEV_SEL *

STOP*

T_RDY*

10 CON T.SHT.

2107542 SCH

PCI_D(31:0)
[11−H1]−[1 2−H1]
[13−E1]

PCI_A(31:0)
[11−A1]−[1 2A1]
[13−A1]

11

321

PCI_AD(31:0)

A

B

C

D

E

F

[14−C8]

TP3

1

2

3

4

5

6

7

Hdr−Pin

Straight

7−Pos

U27

74FCT245A T_UTF

AD_0
AD_1
AD_2
AD_3
AD_4
AD_5
AD_6
AD_7

19

19

19

19

6

A1

8

A2

2

A3

4

A4

7

A5

9

A6

3

A7

5

A8

1

DIR
G

TYP

U26

74FCT245A T_UTF

8

A1

6

A2

2

A3

9

A4

4

A5

7

A6

3

A7

5

A8

1

DIR
G

TYP

U25

74FCT245A T_UTF

6

A1

8

A2

4

A3

2

A4

7

A5

9

A6

3

A7

5

A8

1

DIR
G

TYP

U24

74FCT245A T_UTF

8

A1

6

A2

4

A3

2

A4

7

A5

9

A6

3

A7

5

A8

1

DIR
G

TYP

0
1
2
3
4
5
6
7

4

PDT_R*

0

P_OE0*

8
9
10
11
12
13
14
15

4

PDT_R*

1

P_OE1*

16
17
18
19
20
21
22
23

4

PDT_R*
P_OE2*

2

0

1

2

3

4

5

L

24
25
26
27
28
29
30
31

4

PDT_R*

3

P_OE3*

PCI_D0

14

B1

12

PCI_D1

B2

18

PCI_D2

B3

16

PCI_D3

B4

13

PCI_D4

B5

11

PCI_D5

B6

17

PCI_D6

B7

15

PCI_D7

B8

12

PCI_D8AD_8

B1

14

PCI_D9AD_9

B2

18

PCI_D10AD_10

B3

11

PCI_D11AD_11

B4

PCI_D12AD_12

16

B5

13

PCI_D13AD_13

B6

17

PCI_D14AD_14

B7

15

PCI_D15AD_15

B8

14

PCI_D16AD_16

B1

12

PCI_D17AD_17

B2

16

PCI_D18AD_18

B3

18

PCI_D19AD_19

B4

13

PCI_D20AD_20

B5

PCI_D21AD_21

11

B6

17

PCI_D22AD_22

B7

15

PCI_D23AD_23

B8

12

PCI_D24AD_24

B1

14

PCI_D25AD_25

B2

16

PCI_D26AD_26

B3

PCI_D27AD_27

18

B4

13

PCI_D28AD_28

B5

PCI_D29AD_29

11

B6

17

PCI_D30AD_30

B7

15

PCI_D31AD_31

B8

0
1
2
3
4
5
6
7

249

R18

L

8

9
10
11
12
13
14
15

249

R17

L

16
17
18
19
20
21
22
23

249

R16

L

24
25
26
27
28
29
30
31

249

R15

L

0
1
2
3
4
5
6
7

PCI_ACLK

5

8
9
10
11
12
13
14
15

PCI_ACLK

5

16
17
18
19
20
21
22
23

PCI_ACLK

5

24
25
26
27
28
29
30
31

5

PCI_ACLK

PCI_BUS_CTRL(5:0)

AD_0
AD_1
AD_2
AD_3
AD_4
AD_5
AD_6
AD_7

AD_8

AD_9
AD_10
AD_11
AD_12
AD_13
AD_14
AD_15

AD_16
AD_17
AD_18
AD_19
AD_20
AD_21
AD_22
AD_23

AD_24
AD_25
AD_26
AD_27
AD_28
AD_29
AD_30
AD_31

74FCT373 AT_UTF

14
18
13
17

4
8
3
7

1

11

74FCT373 AT_UTF

18
14
17

8

13

4
7
3

1

11

74FCT373 AT_UTF

14
18
13
17

8
4
7
3

1

11

74FCT373 AT_UTF

18
14
13
17

8
4
7
3

1

11

54

U13

PCI_A0

TYP

U12

TYP

U11

TYP

U10

TYP

15

1Q

19

PCI_A1

2Q

12

PCI_A2

3Q

16

PCI_A3

4Q

5

PCI_A4

5Q

9

PCI_A5

6Q

2

PCI_A6

7Q

6

PCI_A7

8Q

19

PCI_A8

1Q

15

PCI_A9

2Q

16

PCI_A10

3Q

9

PCI_A11

4Q

PCI_A12

12

5Q

5

PCI_A13

6Q

6

PCI_A14

7Q

2

PCI_A15

8Q

15

PCI_A16

1Q

19

PCI_A17

2Q

12

PCI_A18

3Q

16

PCI_A19

4Q

9

PCI_A20

5Q

PCI_A21

5

6Q

6

PCI_A22

7Q

2

PCI_A23

8Q

19

PCI_A24

1Q

15

PCI_A25

2Q

12

PCI_A26

3Q

PCI_A27

16

4Q

9

PCI_A28

5Q

PCI_A29

5

6Q

6

PCI_A30

7Q

2

PCI_A31

8Q

1D
2D
3D
4D
5D
6D
7D
8D

OC
C

1D
2D
3D
4D
5D
6D
7D
8D

OC
C

1D
2D
3D
4D
5D
6D
7D
8D

OC
C

1D
2D
3D
4D
5D
6D
7D
8D

OC
C

0
1
2
3
4
5
6
7

8

9
10
11
12
13
14
15

16
17
18
19
20
21
22
23

24
25
26
27
28
29
30
31

PCI_CTRL(11:0)

6

VCC

R62

4.75K

U75

21

4

3

6

5

Hdr−Pin

Straight

L

6−Pos

[14−F8]

Hdr−Pin

Straight

FL_CS*(4:0)

FL_OE*(3:0)

FL_WR*(3:0)

TP2

1

2

3

4

5

7

7−Pos

[11−A1]−[12− A1]−[13−A1]

[11−A1]−[12− A1]−[13−A1]

[11−A1]−[12− A1]−[13−A1]

R71

4.75K

0

1

2

3

4

5

6

10987

1

2

15

MC120

MC121

130

131

C_BE3*

C_BE2*

5

3

4

6

MC2216MC2118MC1920MC2019MC17

EPM7128_160

2118567− 3

MC116

MC117

MC118

122

123

128

129

ID_SEL*

7

21

U42

MC115

121

22

23

242526

27

28

29

30

31

160

151

MC8

MC104

106

152

MC6

MC102

105

28

249

153

158

MC5

MC4

MC61
MC62
MC64
MC65
MC67
MC68
MC69
MC70
MC72
MC73
MC75
MC76
MC77
MC78
MC80
MC81
MC83
MC84
MC85
MC86
MC88
MC89
MC91
MC92
MC93
MC94
MC96

MC100

MC101

102

103

272625

19

17
15
13
11

159

MC1

MC3

MC97

MC99

100

101

24

U32

74FCT244AT

1

_1G
_2G

2

1A1

4

1A2

6

1A3

8

1A4

2A1
2A2
2A3
2A4

TYP

49
48
43

0

62

1

63

2

64

3

65

4

67

5

68

6

69

7

70

8

71

9

72

10

73

11

78

12

80

13

88

14

89

15

90

16

91

17

92

18

93

19

94

20

96

21

97

22

98

23

99

18

1Y1

16

1Y2

14

1Y3

12

1Y4

3

2Y1

5

2Y2

7

2Y3

9

2Y4

144

MC113

112

150

145

147

146

149

MC16

MC112

MC9

MC14

MC12

MC13

MC11

MC105

MC108

MC107

MC109

MC110

107

109

108

110

111

31

301029

R40

R39

249

L

0

MSIZE_0

MSIZE_1

CTRL_EN
DATA_EN

11

MC3010MC2812MC2514MC2713MC24

140
142

141
139

41

MC33

33

MC35

32

MC36

31

MC37

30

MC38

29

MC40

28

MC41

27

MC43

25

MC44

24

MC45

23

MC46

22

MC48

59

MC49

58

MC51

57

MC52

56

MC53

54

MC54

53

MC56

52

MC57

51

MC59

50

MC60

_OE1
_OE2

_GCLR
GCLK

MC329MC29

MC123

MC124

MC125

MC126

MC128

132

134

135

136

137

C_BE1*

C_BE0*

I_RDY*

FRAME*

2

3456768910

4
0
1
2

3
0
1
2
3

0
1
2
3

1
0

TP1

1

7

8

9

11

2

3

4

5

6

7

Hdr−Pin

Straight

7−Pos

FL_OE0*
FL_OE1*

FL_OE2*
FL_OE3*

FL_WR0*
FL_WR1*
FL_WR2*
FL_WR3*

P_RST*

PCI_CLK

FL_CS0*
FL_CS1*

FL_CS2*
FL_CS3*

5
4
3
2
1
0

FL_CS4*

OE*

L

R41

249

H

REV

MADE BY

REV

MADE BY

11/user /xr_pwa/ad x2_asc_bi u/pci_if

OFBLOCK SH TBLOCK P ATHNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

piekarski_j 28/Jan/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

ADX2_A SC_BIU

ADVANT X_II

2107542 SCH

SIZEREV

0

SHT./CO NT. ON

B10

11

/

H

34

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

PCI_A(31:0)

[10−A11 ]−[12−A1]

A

FL_CS*(4:0)

[10−C7]−[ 12−A1]

FL_OE*(3:0)

[10−C7]−[ 12−A1]

FL_WR*(3:0)

[10−C7]−[ 12−A1]

FL_PWD*(2:1)

[6−E5]−[ 12−B1]

B

C

D

[13−A1]

[13−A1]

[13−A1]

[13−A1]

[13−B1]

11 CON T.SHT.

2107542 SCH

30

5

PCI_D24

16

PCI_D25

15

PCI_D26

14

PCI_D27

13

PCI_D28

9

PCI_D29

8
7

PCI_D30
PCI_D31

6

VPP

30

5

16
15
14
13
9
8
7
6

6

PCI_D8

PCI_D9
PCI_D10
PCI_D11
PCI_D12
PCI_D13
PCI_D14
PCI_D15

10987

E28F008SA−1 20 F28F008SA −120

FL_CS0*

0

2

2

8

9
10
11
12
13
14
15

FL_OE2*
FL_WR2*

FL_PWD1*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A10

10

PCI_A11

11

PCI_A12

12

PCI_A13

13

PCI_A14

14

PCI_A15

15

PCI_A16

16

PCI_A17

17

PCI_A18

18

PCI_A19

19

PCI_A20

20

PCI_A21

21

9

_CE

37

_OE

38

_WE

12

_PWD

RY_BY

24

A0

23

A1

22

A2

21

A3

20

A4

19

A5

18

A6

17

A7

16

A8

15

A9

14

A10

13

A11

8

A12

7

A13

6

A14

5

A15

4

A16

3

A17

2

A18

1

A19

VPP VPP

VPP

11

36

PCI_D16

25

D0

26

D1

27

D2

28

D3

32

D4

33

D5

34

D6

35

D7

PCI_D17
PCI_D18
PCI_D19
PCI_D20
PCI_D21
PCI_D22
PCI_D23

16
17
18
19
20
21
22
23

3

3

0

FL_CS0*
FL_OE3*
FL_WR3*

FL_PWD1*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A10

10

PCI_A11

11

PCI_A12

12

PCI_A13

13

PCI_A14

14

PCI_A15

15

PCI_A16

16

PCI_A17

17

PCI_A18

18

PCI_A19

19

PCI_A20

20

PCI_A21

21

29

24
23
22
21
20
19
18
17
25
26
27
28
33
34
35
36
37
38
39
40

_CE32VPP

4

_OE

3

_WE
_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19

U14

RY_BY

D0
D1
D2
D3
D4
D5
D6
D7

321

1

VPP

VPP

11

36

PCI_D0

25

D0

26

D1

27

D2

28

D3

32

D4

33

D5

34

D6

35

D7

PCI_D1

PCI_D2
PCI_D3
PCI_D4
PCI_D5
PCI_D6
PCI_D7

0
1
2
3
4
5
6
7

1

1

0

FL_CS0*
FL_OE1*
FL_WR1*

FL_PWD1*

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

U69

E28F008SA− 120

FL_CS0*

0

0

0

FL_OE0*
FL_WR0*

FL_PWD1*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A1 0

10

PCI_A1 1

11

PCI_A1 2

12

PCI_A1 3

13

PCI_A1 4

14

PCI_A1 5

15

PCI_A1 6

16

PCI_A1 7

17

PCI_A1 8

18

PCI_A1 9

19

PCI_A2 0

20

PCI_A2 1

21

9

_CE

37

_OE

38

_WE

12

24
23
22
21
20
19
18
17
16
15
14
13

8
7
6
5
4
3
2
1

_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19

RY_BY

PCI_A2
PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9
PCI_A10
PCI_A11
PCI_A12
PCI_A13
PCI_A14
PCI_A15
PCI_A16
PCI_A17
PCI_A18
PCI_A19
PCI_A20
PCI_A21

54

F28F008 SA−120

_CE32VPP

4

_OE

3

_WE

29

_PWD

24

A0

23

A1

22

A2

21

A3

20

A4

19

A5

18

A6

17

A7

25

A8

26

A9

27

A10

28

A11

33

A12

34

A13

35

A14

36

A15

37

A16

38

A17

39

A18

40

A19

U43 U33

RY_BY

D0
D1
D2
D3
D4
D5
D6
D7

12

A

B

24
25
26
27
28
29
30
31

C

D

E

F

[10−A11]−[1 2−H1]

H

REV

MADE BY

REV

MADE BY

PCI_D(31:0)

[13−E1]

1

PCN

2

FL_CS1*

1

0

0

DESCRIP TION

DATE

DESCRIP TION

DATE

FL_OE0*
FL_WR0*

FL_PWD1*

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

PCI_A2
PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9
PCI_A10
PCI_A11
PCI_A12
PCI_A13
PCI_A14
PCI_A15
PCI_A16
PCI_A17
PCI_A18
PCI_A19
PCI_A20
PCI_A21

U70

F28F008SA− 120 F28F008SA−1 20

32

_CE

4

_OE

3

_WE

29

_PWD

17

A0

18

A1

19

A2

20

A3

21

A4

22

A5

23

A6

24

A7

25

A8

26

A9

27

A10

28

A11

33

A12

34

A13

35

A14

36

A15

37

A16

38

A17

39

A18

40

A19

APPR BY

APPR BY

VPP

RY_BY

30

5

PCI_D0

16

D0

15

D1

14

D2

13

D3

9

D4

8

D5

7

D6

6

D7

PCI_D1

PCI_D2
PCI_D3

PCI_D4
PCI_D5
PCI_D6
PCI_D7

0
1
2
3
4
5
6
7

DATE

DATE

1

1

FL_CS1*

1 1

FL_OE1*
FL_WR1*

FL_PWD1*

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

PCI_A2
PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9
PCI_A10
PCI_A11
PCI_A12
PCI_A13
PCI_A14
PCI_A15
PCI_A16
PCI_A17
PCI_A18
PCI_A19
PCI_A20
PCI_A21

37
38
12

17
18
19
20
21
22
23
24
16
15
14
13

MADE

CHECK

APPR

OTHER

U44

E28F008 SA−120

_CE9VPP
_OE
_WE
_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11

8

A12

7

A13

6

A14

5

A15

4

A16

3

A17

2

A18

1

A19

piekarski_j 11/Feb/94

JIM WOODS

JIM PIEKARSKI 20−OCT−94

M POTT ER−HUMMER 20 −OCT−94

RY_BY

11

36

PCI_D8
PCI_D9

8

9
10
11
12
13
14
15

DATE

DATE

DATEPCN

DATE

25

D0

26

D1
D2
D3
D4
D5
D6
D7

27
28
32
33
34
35

PCI_D10
PCI_D11
PCI_D12
PCI_D13
PCI_D14
PCI_D15

2

2

20−OCT−94

FL_CS1*
FL_OE2*
FL_WR2*

FL_PWD1*

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

32

_CE

4

_OE

3

_WE

29

_PWD

17

PCI_A2
PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9
PCI_A10
PCI_A11
PCI_A12
PCI_A13
PCI_A14
PCI_A15
PCI_A16
PCI_A17
PCI_A18
PCI_A19
PCI_A20
PCI_A21

GE MEDICAL SYSTEMS

Milwaukee, WI USA

A0

18

A1

19

A2

20

A3

21

A4

22

A5

23

A6

24

A7

25

A8

26

A9

27

A10

28

A11

33

A12

34

A13

35

A14

36

A15

37

A16

38

A17

39

A18

40

A19

35

U34

VPP

RY_BY

U15

30

5

PCI_D16

16

D0

15

D1

14

D2

13

D3

9

D4

8

D5

7

D6

6

D7

PCI_D17
PCI_D18
PCI_D19
PCI_D20
PCI_D21
PCI_D22
PCI_D23

OFBLOCK SH TBLOCK P ATHNAME

16
17
18
19
20
21
22
23

11/user /xr_pwa/ad x2_asc_bi u/flash_1

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

3

3

2107542 SCH

FL_CS1*

1

FL_OE3*
FL_WR3*

FL_PWD1*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A10

10

PCI_A11

11

PCI_A12

12

PCI_A13

13

PCI_A14

14

PCI_A15

15

PCI_A16

16

PCI_A17

17

PCI_A18

18

PCI_A19

19

PCI_A20

20

PCI_A21

21

ADX2_A SC_BIU

ADVANT X_II

E28F008SA −120

_CE9VPP

37

_OE

38

_WE

12

_PWD

17

A0

18

A1

19

A2

20

A3

21

A4

22

A5

23

A6

24

A7

16

A8

15

A9

14

A10

13

A11

8

A12

7

A13

6

A14

5

A15

4

A16

3

A17

2

A18

1

A19

RY_BY

0

VPPVPP VPPVPP

11

36

PCI_D24
PCI_D25
PCI_D26
PCI_D27
PCI_D28
PCI_D29
PCI_D30
PCI_D31

24
25
26
27
28
29
30
31

12

/

25

D0

26

D1

27

D2

28

D3

32

D4

33

D5

34

D6

35

D7

SIZEREV

SHT./CO NT. ON

B11

E

F

H

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

PCI_A(31:0)

[10−A11 ]−[11−A1]

A

FL_CS*(4:0)

[10−C7]−[ 11−A1]

FL_OE*(3:0)

[10−C7]−[ 11−A1]

FL_WR*(3:0)

[10−C7]−[1 1−A1]

B

FL_PWD*(2:1)

[6−E5]−[ 11−B1]

C

D

[13−A1]

[13−A1]

[13−A1]

[13−A1]

[13−B1]

321

2

VPP

VPP

11

36

PCI_D0

25

D0

26

D1

27

D2

28

D3

32

D4

33

D5

34

D6

35

D7

PCI_D1

PCI_D2
PCI_D3
PCI_D4
PCI_D5
PCI_D6
PCI_D7

0
1
2
3
4
5
6
7

1

1

2

FL_CS2*
FL_OE1*
FL_WR1*

FL_PWD2*

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

U71

E28F008SA− 120

FL_CS2*

2

0

0

FL_OE0*
FL_WR0*

FL_PWD2*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A10

10

PCI_A11

11

PCI_A12

12

PCI_A13

13

PCI_A14

14

PCI_A15

15

PCI_A16

16

PCI_A17

17

PCI_A18

18

PCI_A19

19

PCI_A20

20

PCI_A21

21

9

_CE

37

_OE

38

_WE

12

24
23
22
21
20
19
18
17
16
15
14
13

8
7
6
5
4
3
2
1

_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19

RY_BY

PCI_A2
PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9
PCI_A10
PCI_A11
PCI_A12
PCI_A13
PCI_A14
PCI_A15
PCI_A16
PCI_A17
PCI_A18
PCI_A19
PCI_A20
PCI_A21

54

F28F008 SA−120

_CE32VPP

4

_OE

3

_WE

29

_PWD

24

A0

23

A1

22

A2

21

A3

20

A4

19

A5

18

A6

17

A7

25

A8

26

A9

27

A10

28

A11

33

A12

34

A13

35

A14

36

A15

37

A16

38

A17

39

A18

40

A19

U45 U35

RY_BY

D0
D1
D2
D3
D4
D5
D6
D7

6

VPP VPP VPP

30

5

16
15
14
13
9
8
7
6

PCI_D8

PCI_D9
PCI_D10
PCI_D11
PCI_D12
PCI_D13
PCI_D14
PCI_D15

2

2

8

9
10
11
12
13
14
15

2

FL_CS2*
FL_OE2*
FL_WR2*

FL_PWD2*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A10

10

PCI_A11

11

PCI_A12

12

PCI_A13

13

PCI_A14

14

PCI_A15

15

PCI_A16

16

PCI_A17

17

PCI_A18

18

PCI_A19

19

PCI_A20

20

PCI_A21

21

E28F008SA−1 20 F28F008SA −120

9

_CE

37

_OE

38

_WE

12

_PWD

24

A0

23

A1

22

A2

21

A3

20

A4

19

A5

18

A6

17

A7

16

A8

15

A9

14

A10

13

A11

8

A12

7

A13

6

A14

5

A15

4

A16

3

A17

2

A18

1

A19

VPP

RY_BY

11

36

PCI_D16

25

D0

26

D1

27

D2

28

D3

32

D4

33

D5

34

D6

35

D7

PCI_D17
PCI_D18
PCI_D19
PCI_D20
PCI_D21
PCI_D22
PCI_D23

16
17
18
19
20
21
22
23

3

3

2

FL_CS2*
FL_OE3*
FL_WR3*

FL_PWD2*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A10

10

PCI_A11

11

PCI_A12

12

PCI_A13

13

PCI_A14

14

PCI_A15

15

PCI_A16

16

PCI_A17

17

PCI_A18

18

PCI_A19

19

PCI_A20

20

PCI_A21

21

10987

4
3

29

24
23
22
21
20
19
18
17
25
26
27
28
33
34
35
36
37
38
39
40

U16

_CE32VPP
_OE
_WE

RY_BY

_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19

D0
D1
D2
D3
D4
D5
D6
D7

12 CON T.SHT.

2107542 SCH

30

5

PCI_D24

16

PCI_D25

15

PCI_D26

14

PCI_D27

13

PCI_D28

9

PCI_D29

8
7

PCI_D30
PCI_D31

6

13

A

B

24
25
26
27
28
29
30
31

C

D

E

F

PCI_D(31:0)

[10−A11]−[ 11−H1]−[13−E1]

H

1

REV

MADE BY

REV

MADE BY

PCN

2

FL_CS3*

3

0

0

DESCRIP TION

DATE

DESCRIP TION

DATE

FL_OE0*
FL_WR0*

FL_PWD2*

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

PCI_A2
PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9
PCI_A10
PCI_A11
PCI_A12
PCI_A13
PCI_A14
PCI_A15
PCI_A16
PCI_A17
PCI_A18
PCI_A19
PCI_A20
PCI_A21

F28F008SA− 120

32

_CE

4

_OE

3

_WE

29

_PWD

17

A0

18

A1

19

A2

20

A3

21

A4

22

A5

23

A6

24

A7

25

A8

26

A9

27

A10

28

A11

33

A12

34

A13

35

A14

36

A15

37

A16

38

A17

39

A18

40

A19

APPR BY

APPR BY

U72

VPP

RY_BY

U46

30

5

PCI_D0

16

D0

15

D1

14

D2

13

D3

9

D4

8

D5

7

D6

6

D7

PCI_D1

PCI_D2
PCI_D3
PCI_D4
PCI_D5
PCI_D6
PCI_D7

0
1
2
3
4
5
6
7

DATE

DATE

1

1

FL_CS3*

3 3

FL_OE1*
FL_WR1*

FL_PWD2*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A10

10

PCI_A11

11

PCI_A12

12

PCI_A13

13

PCI_A14

14

PCI_A15

15

PCI_A16

16

PCI_A17

17

PCI_A18

18

PCI_A19

19

PCI_A20

20

PCI_A21

21

E28F008 SA−120

_CE9VPP

37

_OE

38

_WE

12

_PWD

17

A0

18

A1

19

A2

20

A3

21

A4

22

A5

23

A6

24

A7

16

A8

15

A9

14

A10

13

A11

8

A12

7

A13

6

A14

5

A15

4

A16

3

A17

2

A18

1

A19

piekarski_j 11/Feb/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

RY_BY

11

36

PCI_D8

25

D0

26

D1
D2
D3
D4
D5
D6
D7

27
28
32
33
34
35

PCI_D10
PCI_D11
PCI_D12
PCI_D13
PCI_D14
PCI_D15

PCI_D9

8

9
10
11
12
13
14
15

DATE

DATE

DATEPCN

DATE

20−OCT−94

2

2

FL_CS3*
FL_OE2*
FL_WR2*

FL_PWD2*

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

32

29

17

PCI_A2

18

PCI_A3

19

PCI_A4

20

PCI_A5

21

PCI_A6

22

PCI_A7

23

PCI_A8

24

PCI_A9

25

PCI_A10

26

PCI_A11

27

PCI_A12

28

PCI_A13

33

PCI_A14

34

PCI_A15

35

PCI_A16

36

PCI_A17

37

PCI_A18

38

PCI_A19

39

PCI_A20

40

PCI_A21

GE MEDICAL SYSTEMS

Milwaukee, WI USA

F28F008SA−1 20

_CE

4

_OE

3

_WE
_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19

U36

VPP

RY_BY

30

5

PCI_D16

16

D0

15

D1

14

D2

13

D3

9

D4

8

D5

7

D6

6

D7

PCI_D17
PCI_D18
PCI_D19
PCI_D20
PCI_D21
PCI_D22
PCI_D23

OFBLOCK SH TBLOCK P ATHNAME

16
17
18
19
20
21
22
23

11/user /xr_pwa/ad x2_asc_bi u/flash_2

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

3

3

2107542 SCH

FL_CS3*

3

FL_OE3*
FL_WR3*

FL_PWD2*

PCI_A2

2

PCI_A3

3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9

PCI_A10

10

PCI_A11

11

PCI_A12

12

PCI_A13

13

PCI_A14

14

PCI_A15

15

PCI_A16

16

PCI_A17

17

PCI_A18

18

PCI_A19

19

PCI_A20

20

PCI_A21

21

ADX2_A SC_BIU

ADVANT X_II

37
38
12

17
18
19
20
21
22
23
24
16
15
14
13

E28F008SA −120

_CE9VPP
_OE
_WE
_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11

8

A12

7

A13

6

A14

5

A15

4

A16

3

A17

2

A18

1

A19

0

U17

RY_BY

VPPVPP VPPVPP

11

36

PCI_D24
PCI_D25
PCI_D26
PCI_D27
PCI_D28
PCI_D29
PCI_D30
PCI_D31

24
25
26
27
28
29
30
31

13

/

25

D0

26

D1

27

D2

28

D3

32

D4

33

D5

34

D6

35

D7

SIZEREV

SHT./CO NT. ON

B12

E

F

H

36

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

A

B

C

D

PCI_A(31:0)

[10−A11 ]−[11−A1]

[12−A1]

FL_CS*(4:0)

[10−C7]− [11−A1]

[12−A1]

FL_OE*(3:0)

[10−C7] −[11−A1]

[12−A1]

FL_WR*(3:0)

[10−C7]− [11−A1]

[12−A1]

FL_PWD*(2:1)

[6−E5]−[11− B1]

[12−B1 ]

13 CON T.SHT.

2107542 SCH

VPP

30

5

16

D0

15

D1

14

D2

13

D3

9

D4

8

D5

7

D6

6

D7

PCI_D24
PCI_D25
PCI_D26
PCI_D27
PCI_D28
PCI_D29
PCI_D30
PCI_D31

VPP

30

5

16
15
14
13
9
8
7
6

6

PCI_D8

PCI_D9
PCI_D10
PCI_D11
PCI_D12
PCI_D13
PCI_D14
PCI_D15

10987

U37

4

2

2

8

9
10
11
12
13
14
15

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

PCI_A2
PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9

E28F008SA−120

_CE9VPP

37

_OE

38

_WE

12

_PWD

24

A0

23

A1

22

A2

21

A3

20

A4

19

A5

18

A6

17

A7

16

A8

15

A9

14

A10

13

A11

8

A12

7

A13

6

A14

5

A15

4

A16

3

A17

2

A18

1

A19

RY_BY

VPP

11

36

PCI_D16

25

D0

26

D1

27

D2

28

D3

32

D4

33

D5

34

D6

35

D7

PCI_D17
PCI_D18
PCI_D19
PCI_D20
PCI_D21
PCI_D22
PCI_D23

16
17
18
19
20
21
22
23

3

3

FL_CS4*FL_CS4*FL_CS4*FL_CS4*

4

FL_OE3*FL_OE2*FL_OE1*FL_OE0*
FL_WR3*FL_WR2*FL_WR1*FL_WR0*

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

PCI_A2
PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9
PCI_A10PCI_A10PCI_A10PCI_A10
PCI_A11PCI_A11PCI_A11PCI_A11
PCI_A12PCI_A12PCI_A12PCI_A12
PCI_A13PCI_A13PCI_A13PCI_A13
PCI_A14PCI_A14PCI_A14PCI_A14
PCI_A15PCI_A15PCI_A15PCI_A15
PCI_A16PCI_A16PCI_A16PCI_A16
PCI_A17PCI_A17PCI_A17PCI_A17
PCI_A18PCI_A18PCI_A18PCI_A18
PCI_A19PCI_A19PCI_A19PCI_A19
PCI_A20PCI_A20PCI_A20PCI_A20
PCI_A21PCI_A21PCI_A21PCI_A21

29

17
18
19
20
21
22
23
24
25
26
27
28
33
34
35
36
37
38
39
40

F28F008SA− 120

_CE32VPP

4

_OE

3

_WE
_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19

U18

RY_BY

321

2

U73

4

0

0

FL_PWD2* FL_PWD2*FL_PWD2* FL_PWD2*

PCI_A2

2
3

PCI_A4

4

PCI_A5

5

PCI_A6

6

PCI_A7

7

PCI_A8

8

PCI_A9

9
10
11
12
13
14
15
16
17
18
19
20
21

E28F008SA−120

_CE9VPP

37

_OE

38

_WE

12

_PWD

24

A0

23

A1

22

A2

21

A3

20

A4

19

A5

18

A6

17

A7

16

A8

15

A9

14

A10

13

A11

8

A12

7

A13

6

A14

5

A15

4

A16

3

A17

2

A18

1

A19

RY_BY

VPP

11

36

PCI_D0

25

D0

26

D1

27

D2

28

D3

32

D4

33

D5

34

D6

35

D7

PCI_D2
PCI_D3
PCI_D4
PCI_D5

PCI_D6

PCI_D7

0
1
2
3
4
5
6
7

4

1

1

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

PCI_A2
PCI_A3PCI_D1PCI_A3
PCI_A4
PCI_A5
PCI_A6
PCI_A7
PCI_A8
PCI_A9

54

29

17
18
19
20
21
22
23
24
25
26
27
28
33
34
35
36
37
38
39
40

F28F008SA−120

_CE32VPP

4

_OE

3

_WE
_PWD

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19

U47

RY_BY

D0
D1
D2
D3
D4
D5
D6
D7

14

A

B

C

24
25
26
27
28
29
30
31

D

E

F

H

REV

MADE BY

REV

MADE BY

PCI_D(31:0)

[10−A11]− [11−H1]

1

2

[12−H1]

PCN

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

piekarski_j 27/Jul/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

37

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

11/user /xr_pwa/ad x2_asc_bi u/flash_3

OFBLOCK SH TBLOCK P ATHNAME

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

ADX2_A SC_BIU

ADVANT X_II

2107542 SCH

E

F

H

SIZEREV

0

SHT./CO NT. ON

B13

14

/

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

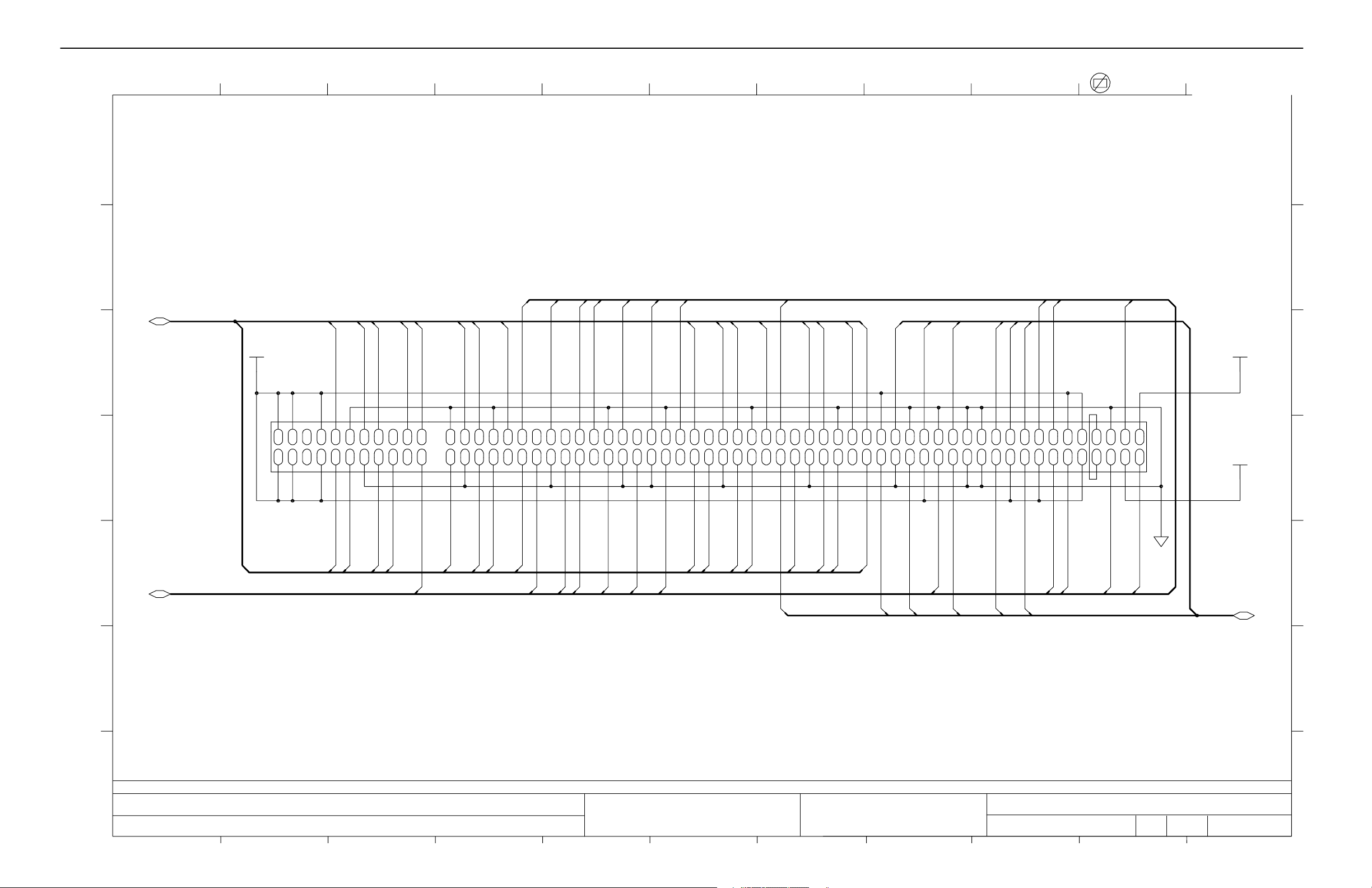

321

A

B

C

1

3

5

AD_1

AD_3

AD_5

8

7

AD_7

AD_8

10

12

AD_10

AD_12

6

14

C_BE1*

AD_14

11

DEVSEL*

54

7

3

17

IRDY*

C_BE2*

AD_17

6

8

19

21

23

AD_19

AD_21

AD_23

C_BE3*

25

27

29

3130

AD_25

AD_27

AD_29

AD_31

0

PCI_AD(31:0)

[10−A1]

CLK

10987

VCC

14 CON T.SHT.

2107542 SCH

15

A

B

C

L

P3

D

VCC

E

F

B61A61

B62A62

B58A58

B59A59

B60A60

A52 B52

A49 B49

A48 B48

AD_0

0

A57 B57

AD_2

2

A56 B56

A55 B55

A54 B54

A53 B53

AD_4

AD_6

C_BE0*

6

4

5

AD_9

9

A47 B47

AD_11

11

A46 B46

AD_13

13

B45A45

B44A44

AD_15

15

B41A41

B42A42

B43A43

B38A38

B39A39

B40A40

STOP*

9

B37A37

B36A36

TRDY*

4

B35A35

B34A34

FRAME*

2

B33A33

A32 B32

AD_16

16

A31 B31

AD_18

18

A30 B30

A29 B29

AD_20

20

A28 B28

AD_22

22

B27A27

B26A26

AD_24

ID_SEL

24

10

B20A20

B21A21

B22A22

B23A23

A19 B19

A25 B25

A24 B24

AD_26

AD_28

28

26

A18 B18

AD_30

A15 B15

A17 B17

A16 B16

RST*

1

B12A12

B13A13

B14A14

B9A9

B11A11

B10A10

A7 B7

A8 B8

PCI_CTRL(11:0)

[10−E6 ]

B4A4

A6 B6

A5 B5

B1A1

B2A2

B3A3

Plug−Pin
Straight
160−Pin_Card −Edge

L

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user /xr_pwa/ad x2_asc_bi u/pci_conn

OFBLOCK SH TBLOCK P ATHNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

piekarski_j 11/Feb/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

ADX2_A SC_BIU

ADVANT X_II

2107542 SCH

SIZEREV

0

SHT./CO NT. ON

B14

15

/

H

38

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

321

A

SPARES

B

U65

74ALS1005

89

U65

74ALS1005

C

56

U7

74ALS1005

1213

U21

74HCT14

U21

74HCT14

13 12

U21

74HCT14

1011

65

54

6

10987

15 CON T.SHT.

2107542 SCH

−

A

B

C

U7

74ALS1005

11 10

D

E

F

L

U21

74HCT14

98

L

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user /advantx_i i/asc_biu

OFBLOCK SH TBLOCK P ATHNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

piekarski_j 28/Jan/94

MADE

CHECK

JIM WOODS

JIM PIEKARSKI 20−OCT−94

APPR

OTHER

M POTT ER−HUMMER 20 −OCT−94

DATE

DATE

DATEPCN

DATE

20−OCT−94

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TITLE

FIRST MAD E FOR

DRAWIN G NO.

ADX2_A SC_BIU

ADVANT X_II

2107542 SCH

SIZEREV

0

SHT./CO NT. ON

B15

−

/

H

39

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 5
SKL A1 A2, 21 13448 (SERIAL BOARD)

40

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

41

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

42

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

43

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

44

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

45

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

46

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

47

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

48

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

49

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 6
SKL A1 A3,

No Schematic Available

2196392 (CPU BOARD)

50

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 7
SKL A1 A4

, 2142602 (CONTROL PANEL BOARD)

51

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

52

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

53

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

54

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 8
SKL A1 A7, POWER SUPPLY ASSEMBL Y

No Schematic Available.

55

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 9
SKL A1 A20,

2109475 (ASC BACKPLANE)

56

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1 CONT.SHT.

2109475S CH

1

2

3

4

5

6

7

8

9

10

11

12

6

NOTES:

0

0

0

0

0

0

0

0

0

0

0

0

1. THE GROUP NUMBER AND GROUP REVISION

FOR THIS PWA IS 2109475 C

2. THIS SCHEMATIC MEETS THE SPECIFICATIONS

OF GE SCHEMATIC STANDARDS 46−017486.

3. UNLESS OTHERWISE SPECIFIED, ALL RESISTORS

ARE 0.25W, 1%, AND ARE IN OHMS, ALL

4. ACTIVE LOW SIGNALS ARE INDICATED WITH

”*” AFTER THE SIGNAL NAME.

REVISION PCN NUMBER DAT E

n

n

n

n

A −−−−− − 14/MAR/94 JWW

B −−−−− − 06/JUL/94

0 −−−−− − 20/OCT/94 .

10987

SIGN

OFF

JWW

1

A

B

C

32

SHEET NAME SHEET NO. REV.

COVER_SHEET

BLOCK_DIAGRAM

DE−COUPLINGS

ISA_BUS_1

ISA_BUS_2

ISA_BUS_3

ISA_BUS_4

ISA_BUS_5

ISA_BUS_6

PCI_BUS_1

PCI_BUS_2

PCI_BUS_3

54

2

A

B

C

D

E

F

H

REV

MADE BY

REV
MADE BY

PCI_BUS_4

RELAY_LOGIC_1

RELAY_LOGIC_2

RELAY_LOGIC_3

CONNECTORS_1

CONNECTORS_2

SPARES

1

PCN

2

DESCRIPTION

DATE

DESCRIPTION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR
OTHER

13

14

15

16

17

18

19

0

0

0

0

0

0

0

DATE

DATE

DATEPCN
DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

41/user/adv antx_ii/backplan e/asc_backplan e

OFBLOCK SHTBLOCK PATHNAM E

DESIGN T ITLE

FIRST MA DE FOR

DRAWING NO.

ASC_BACK PLANE

Advantx II

2109475SC H

D

E

F

H

SIZEREV

0

SHT./CON T. ON

B1

2

/

57

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

SA(19:0)

LA( 6:0)

B

C

DRQ(6:0)

CLK

IRQ(10:0)

ISA_RESET

ISA BUS 6

SD(15:0)

DACK(6:0)

CTRL(16:0)

OSC

32

SA(19:0)

LA(6:0)

DRQ(6:0)

CLK

IRQ(10:0)

ISA_RESET

SD(15:0)

DACK(6:0)

CTRL(16:0)

OSC

54

SA(19:0)

LA(6:0)

DRQ(6:0)

CLK

IRQ(10:0)

ISA_RESET

SD(15:0)

DACK(6:0)

CTRL(16:0)

OSC

ISA BUS 4 ISA BUS 3ISA BUS 5 ISA BUS 2 ISA BUS 1

6

SA(19:0)

LA(6:0)

DRQ(6:0)

CLK

IRQ(10:0)

ISA_RESET

SD(15:0)

DACK(6:0)

CTRL(16:0)

OSC

SA(19:0)

LA(6:0)

DRQ(6:0)

CLK

IRQ(10:0)

ISA_RESET

SD(1 5:0)

DACK (6:0)

CTRL(16:0)

OSC

SA(19:0)

LA(6:0)

DRQ(6:0)

IRQ(10:0)

ISA_RESET

CLK

10987

SD(15:0)

DACK(6:0)

CTRL(16:0)

OSC

2 CONT.SHT.

2109475S CH

3

A

B

C

D

E

F

H

REV

MADE BY

REV
MADE BY

D

CLK

ISA_RESET

PB_RESET*

RELAY LOGIC

DATE

DATE

ooooo

oooÁooo

ooooo

oooÁooo

oooÁooo

oooÁooo

ooooo

o

oÁooo

o

ooo

o

o

PB_RESET*

1

PCN

2

o

o

o

o

o

o

o

o

CONNECTORS

o

o

DESCRIPTION

DESCRIPTION

ASC_OPP_PL(6:0)

BIU(13:0)

ECM(1:0)

CPU_RESET*

CPU_RESET*

ECM(1:0)

o

BIU(13:0)

o

o

o

o

o

ASC_OPP_PL(6:0)

o

o

o

APPR BY

APPR BY

DATE

DATE

PCI_AD(31:0)

PCI_CUST(11:0)

PCI_CTRL(22:0)

MADE

CHECK

APPR
OTHER

PCI_AD(31:0)

PCI_CUST(11:0)

PCI_CTRL(22:0)

PCI BUS 4

Park_C 14/03/94

DATE

DATE

DATEPCN
DATE

PCI_AD(31:0)

PCI_CUST(11:0)

PCI_CTRL(22:0)

GE MEDICAL SYSTEMS

Milwaukee, WI USA

PCI_AD(31:0)

PCI_CUST(11:0)

PCI_CTRL(22:0)

PCI BUS 2PCI BUS 3 PCI BUS 1

42/user/adv antx_ii/backplan e/asc_backplan e

OFBLOCK SHTBLOCK PATHNAM E

DESIGN T ITLE

FIRST MA DE FOR

DRAWING NO.

ASC_BACK PLANE

Advantx II

2109475SC H

0

SIZEREV

SHT./CON T. ON

B2

3

/

E

F

H

58

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

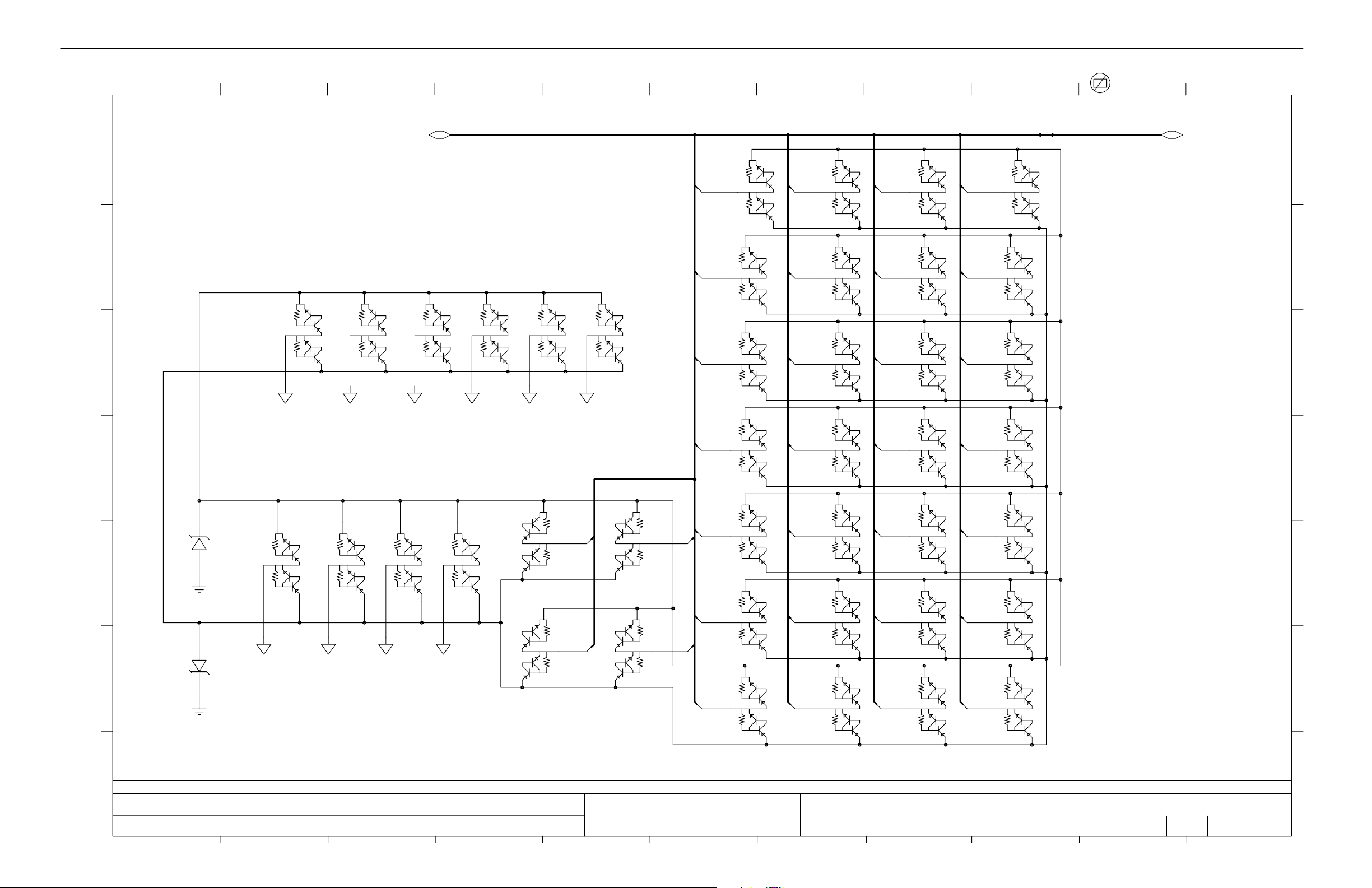

3 CONT.SHT.

2109475SC H

MOUNTING

HOLES

C3

1.0U
35V
20%

C96

0.01U
50V
10%

C11
22U
35V
20%
1

32

C97

0.01U
50V
10%

2

+

3

2

+

2

C18

1.0U
35V
20%
1

C7 C5

1.0U
35V
20%
1331

C23

+

1.0U
35V
20%
1331

2

C8

+

1.0U
35V
20%

31

2

+

2

+

2

C20

+

22U
35V
20%

31

1.0U
35V
20%

2

+

C6

1.0 U
35V
20%
13

C2

1.0U
35V
20%

54

2

+

3

2

+

2

C17 C1

+

1.0U
35V
20%
1

C9

1.0U
35V
20%
13

2

+

31

1

A

B

C

ISA BUS

DECOUPLING

P5V

2

+

31

P12V

2

+

3

N12V

C4
22U
35V
20%
1

C25
22U
35V
20%
1

3

2

+

3

2

+

C22

1.0U
35V
20%
13

C10

1.0U
35V
20%

6

L

2

+

31

2

C24

+

22U
35V 35V
20%

1.0U
35V
20%

31

10987

C16

1.0U

20%
1

2

C21

+

1.0U
35V
20%
13

2

C48

+

22U
35V
20%

31

C94

0.01U
50V
10%

C95

0.01U
50V
10%

L

J33 J1 J3

J11 J22 J12

J2

U18

J29 J25

2

+

3

4

A

B

C

P5V

C62C63

0.1U
100V
20%

C72

0.1U
100V
20%

C104

0.1U
100V 100V
20%

C73

C109

0.1U

0.01U
100V

50V

20%

10%

C105 C106

0.1U

20%

0.1U
100V 100V
20%

C40

0.22U
50V
10%

C110

0.01U
50V
10%

C112 C115

0.1U

20%

L

0.1U
100V
20%

C116

0.1U
100V
20%

P12V

N12V

C117

0.1 U
100 V
20%

L

2

C12

+

22U
35V
20%

3

1

2

+

3

C111
22U
35V
20%
1

C76

0.1U
100V
20%

20%
100V 100V

0.1U

C102

C77

0.1U
100V
20%

20%

0.1U

C103

C39

0.22U
50V
10%

C64C65

0.1 U

20%

C107

0.01U
50V
10%

0.1U
100V100 V
20%

C68C69

0.1U
100V
20%

2

C33

+

22U
35V
20%
13

0.1U
100V
20%

C74

0.1U
100V 100V
20%

C26
22U
35V
20%

C70C71

C41
22U
35V
20%

0.1U
100V100V
20%

0.1U

20%

2

+

3

D

E

F

LOGIC

DECOUPLING

PCI BUS

DECOUPLING

0.1U
100V
20%

P5V

2

+

31 1

C66C67

0.1U

20%

C108

0.01U
50V
10%

0.1U
100V100V
20%

C100

0.1U

20%

J24 J15

L

L

J13 J17

D

E

F

H

REV

MADE BY

REV

MADE BY

43/user/ad vantx_ii/backp lane/asc_ba ckplane

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B3

4

/

H

59

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

DRQ(6:0)

C

IRQ(10:0)

P5V

32

6

540

0456

678910

6

78

910

54

6

312

13 2

11 12 13 14 15 1 6

54321 0

N12VP12V N5V

10987

OSC

CLK

DACK(6:0)

ISA_RESET

4 CONT.SHT.

2109475SC H

5

A

B

C

BALE

A29 B29

ADD_2

A28 B28

ADD_3

TC

B27A27

ADD_4

DACK _2*

B26A26

ADD_5

IRQ_3

A25 B25

ADD_6

IRQ_4

A24 B24

ADD_7

IRQ_ 5

B23A23

ADD_8

IRQ_6

B22A22

ADD_9

IRQ_7

B21A21

ADD_10

CLK

B20A20

ADD_11

REFRESH*

DRQ_1

A19 B19

A18 B18

ADD_12

ADD_13

DACK _1*

A17 B17

ADD_14

DRQ_3

A16 B16

ADD_15

DACK_3*

A15 B15

ADD_16

IOR*

B14A14

ADD_17

IOW*

B13A13

ADD_18

SMEMW*

SMEMR*

B12A12

AEN

ADD_19

191817161510 11 12 13 145678901234

B11A11

IRQ_2_9

B4A4

DAT_5

B3

A3

DAT_6

ISA_RESET

B2A2

DAT_7

J8

B1A1

IOCHCHK*

0

CTRL(16:0)

SD(15:0)

D

E

F

DRQ_2

ENDXFR*

B9A9

B10A10

A8 B8

A7B7A6 B6

A5 B5

DAT_0

DAT_2

DAT_3

DAT_1

IOCHRDY

1

DAT_4

IRQ_15

DRQ_6

DACK _7*

C14 D14

DAT_11

D13C13

DAT_10

DACK_6*

D12C12

DAT_9

DRQ_5

D11C11

DAT_8

DRQ_0

DAC K_5*

D10C10

MEMW*

MEMR*

54

DACK_0*

D9C9

D8C8

LADD_0

0123456

DRQ_7

MASTER16*

D

SA(19:0)

E

LA(6:0)

F

L

C18 D18

C17 D17

C16 D16

C15 D15

DAT_12

DAT_13

DAT_14

DAT_15

15

14 13 1 2 11 10 9 8 012345 67

IRQ_14

D7C7

LADD_1

LADD_2

D6C6

LADD_3

IRQ_12

IRQ_11

D5C5

LADD_4

D4C4

LADD_5

IOCS16*

MEMCS16*

IRQ_ 10

D1C1

D2C2

D3C3

SBHE*

LADD_6

3 2

OSC

B31

A31

A30 B30

ADD_1

ADD_0

ISA SLOT 1

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/isa_1

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B4

5

/

H

60

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

DRQ(6:0)

C

IRQ(10:0)

P5V

32

6

540

0456

67

6

78

910

54

89

10

6

312

13 2

11 12 13 14 15

54321 0

16

P12V N12V N5V

10987

OSC

CLK

DACK(6:0)

ISA_RESET

5 CONT.SHT.

2109475SC H

6

A

B

C

DACK_2*

DRQ_5

DRQ_7

MASTER16*

D

SA(19:0)

E

LA(6:0)

F

L

C18 D18

C17 D17

DAT_14

DAT_15

15

14 13 1 2 11 10 9 8 012345 67

C16 D16

DAT_13

C15 D15

DAT_12

DAC K_7*

C14 D14

DAT_11

DRQ_6

D13C13

DAT_10

DAC K_6*

D12C12

DAT_9

D11C11

DAT_8

DACK_5*

D10C10

MEMW*

DRQ _0

D9C9

MEMR*

IRQ_15

IRQ_12

IRQ_14

DACK_0*

D6C6

D7C7

D8C8

LADD_1

LADD_0

0123456

LADD_2

LADD_3

D5C5

IRQ_11

IRQ_10

D4C4

LADD_4

LADD_5

IOCS16*

D3C3

LADD_6

MEMCS16*

D1C1

D2C2

ADD_0

SBHE*

ISA SLOT 2

B31

A31

OSC

A30 B30

ADD_1

A29 B29

ADD_2

BALE

A28 B28

ADD_3

TC

B27A27

ADD_4

B26A26

ADD_5

IRQ_3

A25 B25

ADD_6

IRQ_4

A24 B24

ADD_7

IRQ_5

B23A23

ADD_8

IRQ_6

B22A22

ADD_9

IRQ_7

B21A21

ADD_10

CLK

B20A20

ADD_11

REFRESH*

A19 B19

ADD_12

DRQ_1

A18 B18

ADD_13

DACK_1*

DRQ_ 3

A17 B17

ADD_14

ADD_15

DACK_3*

A16 B16

ADD_16

IOR*

B14A14

A15 B15

ADD_17

IOW*

B13A13

ADD_18

SMEMW*

SMEMR*

B12A12

AEN

ADD_19

191817161510 11 12 13 145678901234

2

B11A11

DRQ_2

ENDXFR*

B9A9

B10A10

A8 B8

A7B7A6 B6

DAT_0

DAT_2

DAT_1

IOCHRDY

10354

DAT_3

A5 B5

DAT_4

IRQ_ 2_9

B4A4

DAT_5

ISA_RESET

B3

A3

DAT_6

DAT_7

B1A1

B2A2

IOCHCHK*

J7

CTRL(16:0)

SD(15:0)

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/isa_2

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B5

6

/

H

61

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

DRQ(6:0)

C

IRQ(10:0)

P5V

32

6

540

0456

678910

6017825910

54

6

312

13 2

11 12 13 14 15 1 6

54321 0

P12V N12V N5V

10987

OSC

CLK

DACK(6:0)

ISA_RESET

6 CONT.SHT.

2109475SC H

7

A

B

C

DRQ_7

DRQ_6

DACK_6*

C16 D16

DAT_13

C15 D15

DAT_12

DACK_7*

C14 D14

DAT_11

D13C13

DAT_10

D12C12

DAT_9

MASTER16*

D

SA(19:0)

E

LA(6:0)

F

L

C18 D18

C17 D17

DAT_14

DAT_15

15

14 13 1 2 11 10 9 8 012345 67

DRQ_5

D11C11

DAT_8

DRQ_0

DACK_5*

D9C9

D10C10

MEMW*

MEMR*

4

IRQ_15

IRQ_14

DACK_0*

D7C7

D8C8

LADD_1

LADD_0

0123456

IRQ_12

D6C6

LADD_2

LADD_3

D5C5

LADD_4

IRQ_11

IRQ_10

D4C4

LADD_5

D3C3

IOCS16*

MEMCS16*

D1C1

D2C2

SBHE*

LADD_6

3

OSC

BALE

B31

A31

A30 B30

A29 B29

ADD_1

ADD_2

ADD_0

ISA SLOT 3

ADD_3

A28 B28

TC

B27A27

ADD_4

IRQ_3

DACK_2*

B26A26

ADD_5

ADD_6

A25 B25

IRQ_4

A24 B24

ADD_7

IRQ_5

B23A23

ADD_8

IRQ_6

B22A22

ADD_9

IRQ_7

B21A21

ADD_10

CLK

B20A20

ADD_11

REFRESH*

A19 B19

ADD_12

DRQ_1

A18 B18

ADD_13

DACK_1*

A17 B17

ADD_14

DRQ_3

A16 B16

ADD_15

DACK_3*

IOR*

B14A14

A15 B15

ADD_16

ADD_17

IOW*

B13A13

ADD_18

SMEMW*

SMEMR*

B12A12

AEN

ADD_19

191817161510 11 12 13 145678901234

B11A11

DRQ_2

ENDXFR*

B9A9

B10A10

A8 B8

A7B7A6 B6

DAT_0

DAT_2

DAT_1

IOCHRDY

DAT_3

A5 B5

DAT_4

IRQ_2_9

B4A4

DAT_5

B3

A3

DAT_6

ISA_RESET

B2A2

DAT_7

J6

B1A1

IOCHCHK*

CTRL(16:0)

SD(15:0)

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/isa_3

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B6

7

/

H

62

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

DRQ(6:0)

C

IRQ(10:0)

P5V

32

6

540

0456

6017823910

54

78 9106 11

6

312

13 2

16151412 13

54321 0

P12V N12V N5V

10987

OSC

CLK

DACK(6:0)

ISA_RESET

7 CONT.SHT.

2109475SC H

8

A

B

C

IRQ_12

DRQ_6

DRQ_7

MAST ER16*

D

SA(19:0)

E

LA(6:0)

F

L

C18 D18

C17 D17

DAT_14

DAT_15

15

14 13 1 2 11 10 9 8 012345 67

C16 D16

DAT_13

C15 D15

DAT_12

DAC K_7*

C14 D14

DAT_11

D13C13

DAT_10

DRQ_5

DACK_6*

D11C11

D12C12

DAT_9

DAT_8

DACK _5*

D10C10

MEMW*

5

DRQ_ 0

D9C9

MEMR*

4

IRQ_15

D6C6

LADD_2

LADD_3

D5C5

LADD_4

IRQ_11

IRQ_10

D4C4

LADD_5

D3C3

DACK_0*

IRQ_14

D7C7

D8C8

LADD_1

LADD_0

0123456

IOCS 16*

MEMCS16*

D1C1

D2C2

SBHE*

LADD_6

ISA SLOT 4

B31

A31

ADD_0

OSC

A30 B30

ADD_1

A29 B29

ADD_2

BALE

A28 B28

ADD_3

TC

B27A27

ADD_4

DACK_2*

IRQ_3

B26A26

ADD_5

ADD_6

A25 B25

IRQ_4

A24 B24

ADD_7

IRQ_5

B23A23

ADD_8

IRQ_ 6

B22A22

ADD_9

IRQ_7

B21A21

ADD_10

CLK

B20A20

ADD_11

REFRESH*

A19 B19

ADD_12

DRQ_1

A18 B18

ADD_13

DACK_1*

DRQ_3

A17 B17

ADD_14

ADD_15

DACK_3*

A16 B16

ADD_16

A15 B15

IOR*

B14A14

ADD_17

IOW*

B13A13

ADD_18

SMEM R*

B12A12

ADD_19

191817161510 11 12 13 145678901234

SME MW*

AEN

B11A11

ENDX FR*

DRQ _2

B9A9

B10A10

A8 B8

A7B7A6 B6

A5 B5

DAT_0

DAT_2

DAT_3

DAT_1

IOCHRDY

DAT_4

IRQ_2_9

B3

B4A4

A3

DAT_5

DAT_6

ISA_RESET

J5

B1A1

B2A2

DAT_7

IOCHCHK*

CTRL(16:0)

SD(15:0)

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/isa_4

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B7

8

/

H

63

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

DRQ(6:0)

C

IRQ(10:0)

P5V

32

6

540

0456

678910

6027815910

54

6

312

13 2

12 13 14 15 1611

54321 0

P12V N12V N5V

10987

OSC

CLK

DACK(6:0)

ISA_RESET

8 CONT.SHT.

2109475SC H

9

A

B

C

IRQ_15

IRQ_12

D6C6

LADD_2

LADD_3

D5C5

LADD_4

IRQ_11

D4C4

IOCS16*

IRQ_ 10

D3C3

LADD_5

LADD_6

MEMCS16*

D1C1

D2C2

ADD_0

SBHE*

3

ISA SLOT 5

B31

A31

OSC

A30 B30

ADD_1

A29 B29

ADD_2

DRQ_7

MASTER16*

D

SA(19:0)

E

LA(6:0)

F

L

C18 D18

C17 D17

DAT_14

DAT_15

15

14 13 1 2 11 10 9 8 012345 67

C16 D16

DAT_13

C15 D15

DAT_12

DACK _7*

C14 D14

DAT_11

DRQ_6

D13C13

DAT_10

DACK_6*

D12C12

DAT_9

DRQ_5

D11C11

DAT_8

DRQ_0

DACK_5*

D10C10

MEMW*

IRQ_ 14

DACK_0*

D9C9

D7C7

D8C8

MEMR*

LADD_1

LADD_0

4

0123456

BALE

A28 B28

ADD_3

TC

B27A27

ADD_4

DACK_2*

B26A26

ADD_5

IRQ_ 3

A25 B25

ADD_6

IRQ _4

A24 B24

ADD_7

IRQ_ 5

B23A23

ADD_8

IRQ_6

B22A22

ADD_9

IRQ_7

B21A21

ADD_10

CLK

B20A20

ADD_11

REFR ESH*

A19 B19

ADD_12

DRQ_ 1

A18 B18

ADD_13

DACK_1*

DRQ_3

A17 B17

ADD_14

ADD_15

A16 B16

DACK _3*

A15 B15

ADD_16

IOR*

B14A14

ADD_17

IOW*

B13A13

ADD_18

SMEMW*

SMEMR*

B12A12

AEN

ADD_19

191817161510 11 12 13 145678901234

B11A11

ENDXFR*

DRQ_2

IRQ_2_9

ISA_RESET

J4

B9A9

B10A10

A8 B8

A7B7A6 B6

DAT_0

DAT_2

DAT_3

DAT_1

IOCHRDY

A5 B5

DAT_4

B4A4

DAT_5

B3

A3

DAT_6

B2A2

DAT_7

B1A1

IOCHCHK*

CTRL(16:0)

SD(15:0)

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/isa_5

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B8

9

/

H

64

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

DRQ(6:0)

C

IRQ(10:0)

P5V

32

6

540

0456

67

6

78

910

54

89

10

6

312

13 2

12 13 14 15 1611

54321 0

P12V N12V N5V

10987

OSC

CLK

DACK(6:0)

ISA_RESET

9 CONT.SHT.

2109475SC H

10

A

B

C

DRQ_6

DRQ_5

DACK_6*

DRQ_7

C16 D16

DAT_13

C15 D15

DAT_12

DACK_7*

C14 D14

DAT_11

D13C13

DAT_10

MA STER1 6*

D

SA(19:0)

E

LA(6:0)

F

L

C18 D18

C17 D17

DAT_14

DAT_15

15

14 13 1 2 11 10 9 8 012345 67

DACK_5*

DACK_0*

DRQ_0

D9C9

D8C8

D10C10

D11C11

D12C12

DAT_9

DAT_8

MEMW*

MEMR*

LADD_0

54 3 21 0

0123456

IRQ_ 14

D7C7

LADD_1

LADD_2

D6C6

LADD_3

IRQ_12

D5C5

LADD_4

D4C4

LADD_5

IRQ_10

IOCS16*

D3C3

LADD_6

MEMCS16*

D1C1

D2C2

ADD_0

SBHE*

ISA SLOT 6

B31

A31

OSC

A30 B30

ADD_1

A29 B29

ADD_2

BALE

A28 B28

ADD_3

IRQ_11

IRQ_15

TC

B27A27

ADD_4

IRQ_3

DACK_2*

B26A26

ADD_5

ADD_6

A25 B25

IRQ_4

A24 B24

ADD_7

IRQ_5

B23A23

ADD_8

IRQ_ 6

B22A22

ADD_9

IRQ_7

B21A21

ADD_10

CLK

B20A20

ADD_11

REFRESH*

A19 B19

ADD_12

DRQ_1

A18 B18

ADD_13

DACK_1*

DRQ_ 3

A17 B17

ADD_14

ADD_15

A16 B16

DACK_3*

IOR*

A15 B15

ADD_16

ADD_17

B14A14

IOW*

B13A13

ADD_18

SMEM R*

B12A12

ADD_19

191817161510 11 12 13 145678901234

SMEMW*

B11A11

AEN

IOCHRDY

B10A10

B9A9

DAT_0

ENDXFR*

A8 B8

A7B7A6 B6

DAT_2

DAT_1

DRQ_ 2

DAT_3

A5 B5

DAT_4

IRQ_2_9

B3

B4A4

A3

DAT_5

DAT_6

ISA_RESET

J9

B1A1

B2A2

DAT_7

IOCHCHK*

CTRL(16:0)

SD(15:0)

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/isa_6

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B9

10

/

H

65

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

10 CONT.SHT.

2109475SC H

N12VP5V

AD_03

32

AD_05

AD_07

AD_08

54

0

AD_10

AD_12

CBE_1*

AD_1 4

SERR*

PERR*

LOCK*

DEVSEL*

5

IRDY *

1

A

B

PCI_AD(31:0)

C

AD_01

AD_17

CBE_2*

6

530

42

REQ_1*

REQ_3*

89

INT_B*

INT_D*

AD_19

AD_21

764312

312927252319 2135 78 1012 17141

AD_23

CBE_3*

AD_25

AD_27

AD_29

AD_31

REQ_0*

1

CLK_B

CLK_A

GNT_ 3*

10987

10

TCK

11

A

B

C

J20

B11A1 1

CLK_D

B10A1 0

B9A9

CLK_C

A8 B8

A7 B7

INT_C*

B12A1 2

B13A1 3

B41A4 1

B42A4 2

B43A4 3

B44A4 4

A47 B47

A46 B46

AD_13

B45A4 5

PAR

AD_15

SBO*

B58A5 8

B59A5 9

B60A6 0

B61A6 1

B62A6 2

A52 B52

A49 B49

AD_09

A48 B48

AD_11

A57 B57

A56 B56

A55 B55

A54 B54

A53 B53

D

AD_00

AD_02

E

PCI_CTRL(22:0)

F

AD_04

AD_06

CBE_ 0*

22 20 18 17 16

B38A3 8

B39A3 9

B40A4 0

SDONE

(MASTER / CPU)

B37A3 7

STOP*

PCI SLOT 1

B36A3 6

TRDY*

B34A3 4

B35A3 5

FRAME*

B33A3 3

A32 B32

AD_16

A31 B31

AD_18

A30 B30

AD_20

A29 B29

A28 B28

AD_22

B26A2 6

B27A2 7

AD_24

GNT_ 2*

A25 B25

A24 B24

B23A2 3

AD_26

AD_28

B20A2 0

B21A2 1

B22A2 2

A19 B19

A18 B18

A17 B17

AD_30

REQ_ 2*

GNT_0*

302826242220181615131196420

10

9

B14A1 4

A15 B15

A16 B16

RST*

GNT_1*

15 1314

87611

A6 B6

INT_A*

B4A4

A5 B5

TMS

B1A1

B2A2

B3A3

P12V

D

L

TRST*

12

111921

PCI_CUST(11:0)

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/pci_1

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B10

11

/

H

66

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

11 CONT.SHT.

2109475SC H

N12VP5V

AD_03

32

AD_05

AD_07

AD_08

54

0

AD_10

AD_12

CBE_1*

AD_1 4

SERR*

PERR*

LOCK*

DEVSEL*

5

IRDY *

1

A

B

PCI_AD(31:0)

C

AD_01

AD_17

CBE_2*

6

13 14

INT_D*

INT_B*

AD_19

AD_21

764312

312927252319 2135 78 1012 17141

0

2

AD_23

CBE_3*

AD_25

AD_27

AD_29

AD_31

REQ_0*

CLK_A

10987

10

TCK

12

A

B

C

J19

B12A1 2

B13A1 3

B41A4 1

B42A4 2

B43A4 3

B44A4 4

A47 B47

A46 B46

AD_13

B45A4 5

PAR

AD_15

SBO*

B58A5 8

B59A5 9

B60A6 0

B61A6 1

B62A6 2

A52 B52

A49 B49

AD_09

A48 B48

AD_11

A57 B57

A56 B56

A55 B55

A54 B54

A53 B53

D

AD_00

AD_02

E

PCI_CTRL(22:0)

F

AD_04

AD_06

CBE_ 0*

22 20 18 17 16

B38A3 8

B39A3 9

B40A4 0

STOP*

SDONE

PCI SLOT 2

B37A3 7

B36A3 6

TRDY*

B33A3 3

B34A3 4

B35A3 5

A32 B32

A31 B31

A30 B30

A29 B29

FRAME*

AD_16

AD_18

AD_20

A28 B28

AD_22

B26A2 6

B27A2 7

IDSEL

AD_24

31

A25 B25

A24 B24

B23A2 3

AD_26

AD_28

B20A2 0

B21A2 1

B22A2 2

A19 B19

A18 B18

A17 B17

AD_30

302826242220181615131196420

GNT_0*

9

B14A1 4

A15 B15

A16 B16

RST*

15 98

B9A9

B11A1 1

B10A1 0

A7 B7

A8 B8

INT_C*

A6 B6

INT_A*

B4A4

A5 B5

TMS

B1A1

B2A2

B3A3

P12V

D

L

TRST*

12

111921

PCI_CUST(11:0)

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/pci_2

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B11

12

/

H

67

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

12 CONT.SHT.

2109475SC H

N12VP5V

AD_03

32

AD_05

AD_07

AD_08

54

0

AD_10

AD_12

CBE_1*

AD_1 4

SERR*

PERR*

LOCK*

DEVSEL*

5

IRDY *

1

A

B

PCI_AD(31:0)

C

AD_01

AD_17

CBE_2*

6

98

INT_B*

INT_D*

AD_19

AD_21

764312

312927252319 2135 78 1012 17141

4

1

AD_23

CBE_3*

AD_25

AD_27

AD_29

AD_31

REQ_1*

CLK_B

10987

10

TCK

13

A

B

C

J18

B12A1 2

B13A1 3

B41A4 1

B42A4 2

B43A4 3

B44A4 4

A47 B47

A46 B46

AD_13

B45A4 5

PAR

AD_15

SBO*

B58A5 8

B59A5 9

B60A6 0

B61A6 1

B62A6 2

A52 B52

A49 B49

AD_09

A48 B48

AD_11

A57 B57

A56 B56

A55 B55

A54 B54

A53 B53

D

AD_00

AD_02

E

PCI_CTRL(22:0)

F

AD_04

AD_06

CBE_ 0*

22 20 18 17 16

B38A3 8

B39A3 9

B40A4 0

STOP*

SDONE

PCI SLOT 3

B37A3 7

B36A3 6

TRDY*

B33A3 3

B34A3 4

B35A3 5

A32 B32

A31 B31

A30 B30

A29 B29

FRAME*

AD_16

AD_18

AD_20

A28 B28

AD_22

B26A2 6

B27A2 7

IDSEL

AD_24

30

A25 B25

A24 B24

B23A2 3

AD_26

AD_28

B20A2 0

B21A2 1

B22A2 2

A19 B19

A18 B18

A17 B17

AD_30

302826242220181615131196420

GNT_1*

8

B14A1 4

A15 B15

A16 B16

RST*

15 1413

B9A9

B11A1 1

B10A1 0

A7 B7

A8 B8

INT_C*

A6 B6

INT_A*

B4A4

A5 B5

TMS

B1A1

B2A2

B3A3

P12V

D

L

TRST*

12

111921

PCI_CUST(11:0)

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/pci_3

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B12

13

/

H

68

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

13 CONT.SHT.

2109475SC H

N12VP5V

AD_03

32

AD_05

AD_07

AD_08

54

0

AD_10

AD_12

CBE_1*

AD_1 4

SERR*

PERR*

LOCK*

DEVSEL*

5

IRDY *

1

A

B

PCI_AD(31:0)

C

AD_01

AD_17

CBE_2*

6

14 13

INT_D*

INT_B*

AD_19

AD_21

764312

312927252319 2135 78 1012 17141

10

6

AD_23

CBE_3*

AD_25

AD_27

AD_29

AD_31

REQ_2*

CLK_C

10987

10

TCK

14

A

B

C

J21

B12A1 2

B13A1 3

B41A4 1

B42A4 2

B43A4 3

B44A4 4

A47 B47

A46 B46

AD_13

B45A4 5

PAR

AD_15

SBO*

B58A5 8

B59A5 9

B60A6 0

B61A6 1

B62A6 2

A52 B52

A49 B49

AD_09

A48 B48

AD_11

A57 B57

A56 B56

A55 B55

A54 B54

A53 B53

D

AD_00

AD_02

E

PCI_CTRL(22:0)

F

AD_04

AD_06

CBE_ 0*

22 20 18 17 16

B38A3 8

B39A3 9

B40A4 0

STOP*

SDONE

PCI SLOT 4

B37A3 7

B36A3 6

TRDY*

B33A3 3

B34A3 4

B35A3 5

A32 B32

A31 B31

A30 B30

A29 B29

FRAME*

AD_16

AD_18

AD_20

A28 B28

AD_22

B26A2 6

B27A2 7

IDSEL

AD_24

29

A25 B25

A24 B24

B23A2 3

AD_26

AD_28

B20A2 0

B21A2 1

B22A2 2

A19 B19

A18 B18

A17 B17

AD_30

302826242220181615131196420

GNT_2*

11

B14A1 4

A15 B15

A16 B16

RST*

15 89

B9A9

B11A1 1

B10A1 0

A7 B7

A8 B8

INT_C*

A6 B6

INT_A*

B4A4

A5 B5

TMS

B1A1

B2A2

B3A3

P12V

D

L

TRST*

12

111921

PCI_CUST(11:0)

E

F

H

REV

MADE BY

REV

MADE BY

11/user/ad vantx_ii/backp lane/asc_ba ckplane/pci_4

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B13

14

/

H

69

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

14 CONT.SHT.

2109475SC H

DS2E−M−DC5V

5.0V

1

COIL+

16

COIL−

DS2E−M−DC5V

5.0V

1

COIL+

16

COIL−

6

LOCAL RTB RESET

N12V

K3

K2

3

9

11
13

8

6
4

L

9

11
13

8

6
4

+

2

ASC_P12V_IN

ASC_P12V_OUT

1
20%
35V
10U

C51

P12V

10987

TP6

TP7

21

9

11
13

8

6
4

YELLOW

P5V

R22

6.65K
1%

0.25W

U23

74HC14

9

ECM(1:0)

ASC_OPP_PL(6:0)

TP10

YELLOW

8

RESET_MGR

2

C61

+

10U
35V
20%

3

1

ASC_RST

0

R16

6.65K
1%

0.25W

R17

6.65K
1%

0.25W

6

5

YELLOW

01

01

RT_RST_N

RT_RST_P

LOCAL RESET RELAY

K1

DS2E−S−DC12V

12.0V

1

COIL+

1N4148

16

CR1

COIL−

1

A

B

TP5

YELLOW

ISA_RESET

C

8

1

BIU(13:0)

D

E

32

R36

3.32K
1%

0.25W

RTB_RST*

OPP_PL_RST*

P5V

1

R2

2.2K
2%

0.19W

8

U1

74HC14

34

1

R7

2.2K
2%

0.19W

9

11 10

13 12

98

U1

74HC14

U1

74HC14

U1

74HC14

L

1
2
6
7

R30
100
1%

0.25W

SN75454B

A1
B1
A2
B2

U3

54

_Y1

_Y2

3

5

P5V

1N4148
CR6

P5V

1N4148
CR5

REMOTE RESET

15

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

L

PB_RESET*

PUSH BUTTON RESET
FROM SWITCH INDICATOR BOARD

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

L

31/user/ad vantx_ii/backp lane/asc_ba ckplane/relay _logic

OFBL OCK SHTBLOCK PA THNAME

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

ASC_BACK PLANE

Advantx I I

2109475 SCH

F

H

SIZEREV

0

SHT./CONT . ON

B14

15

/

70

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

15 CONT.SHT.

2109475SC H

R7

2.2K
2%

0.19W

6

BIU(13:0)

U7

74HC14

1011

U2

74ALS1005

65

OPP_PL_RTB_RST*

10

10987

1

A

B

ASC_OPP_PL(6:0)

C

32

RT_RST_PR

4

RT_RST_NR

3

R8

1.10K
1%

0.25W

C98

0.01U
50V
10%

R13

1.10K
1%

0.25W

54

REMOTE RESET DETECT

U27

HCPL2731

1N5817
CR4

A1

2

C

V8

O

M

P5V

1

2

7

5

L

16

A

B

C

ID_CLK

D

E

F

I2C
TEST
ONLY

P5V

L

J34

1132

43

56

78

910

R7

2.2K

0.19W

2%

P5V

1

5

U6

PCF8582E2N

SDA
SCL
VDD

7

PTC

A0
A1
A2

VSS

SERIAL ID PROM

P5V

5
6
8
1
2
3
4

L

R4

100

1%

0.25W

ID_DATA

7

D

E

F

H

REV

MADE BY

REV

MADE BY

32/user/ad vantx_ii/backp lane/asc_ba ckplane/relay _logic

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B15

16

/

H

71

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

6

P5V

U25

74HC14

4

1

R2

2.2K
2%

0.19W

2

1011

U20

LTC1232

1

_PBRST

2

TD

3

TOL

7

_ST

_RST

RST

6

5

3

P5V

U22

13

74HC74

_Q

8

_CL R

CLK

11

D

Q

12

9

_PRE

10

74HC14U774ALS1005

13 12 1 2

P5V

U2

TP14

YELLOW

10987

P5V

1

4

R7

2.2K
2%

0.19W

_RST

32

6

U19

74HC32

9

5

10

8

4

5

74HC32

U19

U23

74HC14

11 10

U23

74HC14

6

34

54

1

2

U19

74HC32

3

U2

74ALS1005

1

A

RESET CLEAR PULSE EXTENDER

B

P5V

1

R2

U2

74ALS1005

13 12

C

ISA_RESET

RESET_MGR

U23

D

CLK

74HC14

1213

2.2K
2%

0.19W

4

L

1

_PBRST

2

TD
TOL3RST

7

_ST

U21

LTC1232

SHT. CONT.16

2109475SC H

CPU_RESET*

17

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

1

R37

3.32K

JP2

U23

74HC14

POK*

/user/ad vantx_ii/backp lane/asc_ba ckplane/relay _logic 33

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

65

PWR_UNIT_OFF*

5

POWER UNIT OFF DETECT LOCAL RESET PROCESSOR

U22

74HC74

DATE

DATE

1

2

_Q

6

_CLR

CLK

3

Q

D

5

2

_PRE

P5V

4

1%

0.25W

L

MADE

CHECK

APPR

OTHER

U28

74ALS1005

Park_C 14/03/94

PWR_OUT_DET*

1011

DATE

DATE

DATEPCN

DATE

L

6

GE MEDICAL SYSTEMS

Milwaukee, WI USA

U2

74ALS1005

34

EARLY_CPU_RST*

113

OFBL OCK SHTBLOCK PA THNAME

1

R2

2.2K
2%

0.19W

10

SUICIDE_RST*

0

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

U1

74HC14

ASC_BACK PLANE

Advantx I I

U28

74ALS1005

8965

E

BIU(13:0)

F

H

SIZEREV

0

SHT./CONT . ON

16B

17

/

72

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

17 CONT.SHT.

2109475SC H

BIU(13:0)

P12V

ECM(1:0)

6

ASC_RST_CON

1N5817

CR11

R33

3.32K

0.25W

24VL−RTN

RT_R ST_P

L

L

1%

L

24VL

C84

0.001U
100V
20%

C87

0.001U
100V
20%

3

R31

20.0K
1%

0.25W

C114

2.2U
50V
20%

CR10

1N5817

CONSOLE

J32

8

15

14

13

12

11

10

9

HCPL2731

A4

C

P5V

L

SYS_ON*

7

6

5

RT_RST_N

4

EXP_SW

3

PREP_SW

2

1

L

P5V

U27

V8

O

6

5

M

L

1N5817
CR14

CON_RST_DET_CLR*

9 12

10

R32

100

1%

0.25W

R2

2.2K

0.19W

L

C91

0.001U
100V

2%

C86

0.001U
100V
20%

20%

1.10K

0.25W

1

9

0.001U

L

R34

1%

U25

74HC14

11 10

U25

74HC14

C85

0.001U
100V
20%

L

C92

100V

20%

C113

2.2U
50V
20%

1213

L

1

0

1N5817
CR12

12

13

1

0

U25

74HC14

U19

74HC32

24VL−RTN

PREP_SW

RT_RST_N

RT_RST_P

11

24VL

EXP_SW

65

U25

74HC14

98

POWER_UNIT

J28

1

6

SYS_ON*

2

7

3

8

4

9

5

ECM
J31

5

9

4

8

3

7

2

6

1

U24

10

74HC74

12

11

9

Q

D

_PRE

CLK

_Q

_CLR

13

8

U10

74ALS1005

10987

CON _RST_ DET *

1011

1

R2

2.2K
2%

0.19W

P5V

6

5

L

ASC_BIU

J14

21

43

65

109

11 12

13214

15

16

17 18

19

20

U26

HCPL2731

V8

O

M

A4

C

PWR_UNIT_OFF*

RTB_RST*

CON_RST_DET_CLR*

SW_IND_OUT*

STAT_2*

OPP_PL_RTB_RST*

SW_IND_IN*LOW_BATT*

EARLY_CPU_RST*

CON_RST_DET*

J36

ID_CLK

A

U7

74HC14

65

B

74HC14U174ALS1005

C

D

E

F

0

1

UPS_SHUT_OFF*

2

3

4

PWR_UNIT_OFF*

5

6

1

3

U28

2165

SUICIDE_RST*

OPP_PL_RST*

STAT_1*

POK*

PWR_OUT_DET*

J35

ID_D ATA

32

CR9

R23

3.32K
1%

0.25W

1N5817

3

CR8

13

7

5

1

67

8

9

10

11

12

137

+

C101

47U
35V
20%

24VL−RTN

P5V_SENSE_RTN

P5V _SENS E

ID_CLK

ID_DATA

PB_R ESET*

P5V

11

R2

2.2K
2%

0.19W

R2

2.2K
2%

0.19W

C89

0.001U
100V

20%

U10

74ALS1005

U10

74ALS1005

1

C90

0.001U
100V

C88

0.001U
100V

L

1N5817

SW_IND

J26

5

9

11 12

13 14

15 16

R7

2.2KR72.2K
2%

0.19W

63

43

0

20%

L

3

4

20%

L

SYS_ON*

21

43

6

8877

10

1

0

ASC_RT_RST_P

1

ASC_RT_RST_N

2

ASC_RT_RST_NR

3

ASC_RT_RST_PR

4

ASC_P12V_OUT

5

ASC_P12V_IN

6

54

SW_IND_IN*

SW_IND_OUT*

STAT_2

STAT_1

L

2%

0.19W

P12V

ASC_RST

ASC_OPP_PL(6:0)

MINIMUM UL SPACING OF 0.06 INCH REQUIRED

CR13

1N5817

ASC_OPP_PL

J27

1

9

2

10

3

11

4

12

5

13

6

14

7

15

8

18

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

21/user/ad vantx_ii/backp lane/asc_ba ckplane/conne ctors

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

14/03/9 4Park_C

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2109475 SCH

ASC_BACK PLANE

Advantx I I

SIZEREV

0

SHT./CONT . ON

B17

18

/

H

73

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

19

A

B

C

D

E

F

100

1%

18 CONT.SHT.

2109475SC H

2

1

A

POWER

J10

1

2

3

B

C

P5V

D

JP1

12

E

F

L

CPU_RESET*

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

R35

6.65K
1%

0.25W

CPU_RESET

J23

12

34

56

78

910

P5V

TP1

P5V_SENSE_RTN

L

74HC14

1

1211

1413

1615

32

RED

P5V_SENSE

P12 V N12V

TP3

WHITE

TP2

BLACK

U7

U28

74ALS1005

54

POK*

3

LOW_BATT*

4

N5V

TP4

WHITE

CR15

1N5235B

V6.8

POK*

212

3

TP8

WHITE

BIU(13:0)

BIU(13:0)

6

U28

74ALS1005

U2

74ALS1005

R7

2.2K

U7

74HC14

U7

74HC14

BACKPLANE

NOT USED

POK*

NOT USED

GND/COMMON

LOW_BATT*

UPS_SHUT_OFF*

NOT USED

NOT USED

2%

0.19W

3434

9898

P5V

7

P5V

1101

TP11

P12V

R7

2.2K
2%

0.19W

YELLOW

TP13

YELLOW

UPS

J30

1

6

2

7

3

8

4

9

5

L

TP12

R29

6.65K

0.25W

YELLOW

3

5

U17

SN75454B

_Y1

_Y2

1%

UPS INTERFACE WIRING TABLE

1

2

3

4

5

6

7

8

PARA

SYSTEMS

1

2

3

4

5

6

7

8

DELTEC

2

3

6

4

5

1

7

8

A1
B1
A2
B2

R20

100

0.25W

10987

P5V

1

R2

2.2K
2%

0.19W

5

R19

100

0.25W

1%

UPS_SHUT_OFF*

R18

0.25W

1
2
6
7

1%

L

H

REV

MADE BY

REV

MADE BY

L

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

NOT USED

GE MEDICAL SYSTEMS

Milwaukee, WI USA

9

9

9

22/user/ad vantx_ii/backp lane/asc_ba ckplane/conne ctors

OFBL OCK SHTBLOCK PA THNAME

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

ASC_BACK PLANE

Advantx I I

2109475 SCH

H

SIZEREV

0

SHT./CONT . ON

B18

19

/

74

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

321

A

B

C

U28

74ALS1005

13 12

U10

74ALS1005

1213

U10

74ALS1005

98

D

U10

74ALS1005

65

U23

74HC14

U25

74HC14

21

21

54

6

U24
74HC74

4

2

3

5

Q

D

_PRE

CLK

6

_Q

_CLR

1

2

U26

HCPL2731

A1

C

P5V

V8

O

7

5

M

10987

19 CONT.SHT.

2109475SC H

−

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

L L

SPARES

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

Park_C 14/03/94

MADE

CHECK

APPR

OTHER

L

DATE

DATE

DATEPCN

DATE

L

GE MEDICAL SYSTEMS

Milwaukee, WI USA

44/user/ad vantx_ii/backp lane/asc_ba ckplane

OFBL OCK SHTBLOCK PA THNAME

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

ASC_BACK PLANE

Advantx I I

2109475 SCH

E

F

H

SIZEREV

0

SHT./CONT . ON

B19

−

/

75

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

THIS PAGE INTENTIONALLY LEFT BLANK.

76

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

SECTION 10
SKL A2, 2108822 (ECM)

77

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

C

D

E

F

32

SHEET_NA ME REV

ECM_PWB

CONNECTOR_BLK

PR_BUS_PROTECTION

RT_BUS_PROTECTION

RT_TERMINATION

SERIES_RES

CPU

80C186_87_BLK

ADDRESS_LATCH

TRANSCEIVER

MEMORY_BLK

INPUT_OUTPUT_BLK

INPUT_OUTPUT_BLK

INPUT_OUTPUT_BLK

CONTROL_BLK

CONTROL_BLK

INTERRUPT_BLK

BIU

ETL

PREP_EXPO SE_SW_RCVRS

PWR_SUPP LY_DIAGNOSTIC

ETL_FPGA_FUNCTIONS

SYSTEM_TIMERS

SYSTEM_TIMERS

AEC_REFER ENCE_UPDATE

ABC_AEC_CONTROL

POWER_UNIT_IF

PWR_CAPS_UNUSED_DEVICES

PWR_CAPS_UNUSED_DEVICES

SHT

NUM

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

54

0

0

0

0

1

0

0

1

0

0

0

0

0

0

0

1

0

0

0

0

0

0

0

0

0

0

0

0

1

6

SIGN

OFF

INITDA/MTH/ YR− −−−−−A

GA

JWW5−DEC−9 40

GAA25JAN9 51 180519

n

n

DATEPCN NUMBE RREVISI ON

24AUG94B

NOTE:

VERIFY THIS PRINT I S THE LATES T REVISION

USING GE PR ODUCT STRUCTURE SYS TEM (PSS).

NOTES:

1.THE GROU P NUMBER AND GROUP REVISI ON

FOR THIS PWA IS

2.THIS S CHEMATIC MEET S THE SPECI FICA−

TIONS OF GE SCHEMATIC STANDARDS

46−01748 6.

3.UNLESS OTHERWISE SP ECIFIED:

RESISTOR S ARE IN OHMS , 0.1W, 1%.

CAPACITO RS ARE IN FAR ADS.

INDUCTOR S ARE IN HENR IES.

4.ACTI VE LOW SIGNALS ARE INDIC ATED

WITH ”* ” AFTER THE SIGNAL NAME

2108822 D

10987

1 CONT.SHT.

2108822SC H

2

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/xr _pwa/ecm_asm/e cm_pwb/cove r_sheet

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

J. Dwyer 5− DEC−94

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822 SCH

ECM_PWB

ADVANTX_I I

SIZEREV

1

SHT./CONT . ON

B1

2

/

H

78

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

A

B

C

D

E

1

G_RT_DATA(15:0)

RESET(1:0)

SHEET 9 THRU 18

ETL_LOC_RT(3:0)

G_RT_DATA(15:0)

RESET(1:0)

INTERRUPT(30:0)

RS232_SERVICE_PT(6:0)

CPU

32

G_TRANS_ENB(15:0)

BIU_CTRL(8:0)

LOCAL_RT_BUS(15:0)

DATA1(31:0)

ADR_L(25:0)

CLK_RST(11:0)

CONTROL(14:0)

ETL_DECODE(16:0)

DIAGNOSTICS(15:0)

PWR_CTRL(8:0)

DATA2(15:0)

I2C(2:0)

DATA1(31:0)

ADR_L(25:0)

CLK_RST(11:0)

CONTROL(14:0)

ETL_DECODE(16:0)

DIAGNOSTICS(15:0)

PWR_CTRL(8:0)

54

6

G_TRANS_ENB(15:0)

BIU_CTRL(8:0)

LOCAL_RT_BUS(15:0)

REAL_TIME_INPUTS(3:0)

BIU

SHE ET 19

G_TRANS_ENB(15:0)

BIU_CTRL(8:0)

LOCAL_RT_BUS(15:0)

DATA1(31:0) GE_BUS(1:0)

ADR_L(25:0) INTERRUPT(30:0)

CLK_RST(11:0)

ETL_LOC_RT(3:0)

EXPOSURE_TIMING_LOGIC

SHEETS 20 THR U 27

REAL_TIME_INPUTS(3:0)

LOCAL_RT_BUS(15:0)

ADR_L(25:0)

DATA1(31:0)

CLK_RST(11:0)

CONTROL(14:0)

ETL_DECODE(16:0)

ETL_PU_CTRL_STAT(7:0)

POWER_UNIT_INTERFACE

ETL_PU_ CNTRL(7:0)

CONTROL (14:0)

DIAGNOS TICS(15:0)

PWR_CTR L(8:0)

DATA2(1 5:0)

G_RT_DATA(15:0)

GLOBAL_RT_BUS(31:0)

ETL_LOC_RT(3:0)

INTERRUPT(30:0)

RS232(7:0)

SFT_STRT_CONTACTOR*

ETL_PU_CNTRL(7:0)

SHEET 28

F2

RS232_SE RVICE_PT(6:0)

INTERRU PT(30:0)

PWR_UNT_ IF(30:0)

ISOLATED_ POWER(1:0)

GLOBAL_RT_BUS(31:0)

GE_BUS(1:0)

RS232(7:0)

SFT_STRT_CONT ACTOR*

RS232_SERVICE_PT(6:0)

PWR_UNT_IF(30:0)

ISOLATED_POWER(1:0)

10987

2 CONT.SHT.

2108822− SCH

CONNECTOR_BLK

SHEET 3

3

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

INTERRUPT(30:0)

I2C(2:0)

DC_POWER_IN(5:0)

POWER_SUPPLY_DECOUPLING

UNUSED_DEVICES_AND_SPARES

SHEET 29 THRU 30

DC_POWER_IN(5:0)

11/user/ad vantx_ii/ecm_A SM.cab/ecm_ pwb

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

J. Dwyer 94 −APR−10

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX I I

SIZEREV

0

SHT./CONT . ON

B2

3

/

F

H

79

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

PU_IF_CONN(30:0)

A

J12

1

20

2

21

3

22

HV_ON_PU−P

8

EXP_EN*−P

B

C

D

E

F

0

PU_EXT_SYNC−P

2

RAD_PULSE*−P

7

EXP_CMND*−P

5

RXCLK−P

12

TXCLK−P

18

SERVREQ−P

14

PURX−P

10

PU_RST−P

20

PUTX−P

16

9.2VDC_RTN_KERNEL

1

0

9

10

11

12

13

14

15

G2

L

Plug−Pin
Rt−Angle

15−Pos_Sub−D_Emi

ISOLATED_POWER(1:0)

DC_POWER_IN(5:0)

J25

1

2

3

4

5

6

7

8

G1

4

23

5

24

6

25

7

26

8

27

9

28

10

29

11

30

12

31

13

32

14

33

15

34

16

35

17

36

18

37

19

Plug_Pin
Straight

37−Pos_Sub−D

VCC_IN

12VP_IN

12VN_IN

L

HV_ON_PU−N

EXP_EN*−N

PU_EXT_SYNC−N

RAD_PULSE*−N

EXP_CMND*−N

RXCLK−N

TXCLK−N

SERVREQ−N

PURX−N

PU_RST−N

PUTX−N

9.2VDC_KERNEL_RE MOTE

1

2

3

32

PU_BUS _PROTECTION

SHEET 4

1

9

1

3

6

4

13

19

15

11

21

17

0

J14

DSR

RTS

3

CTS

2

L TG

9−Pos_Sub−D_Emi

1

6

2

7

3

8

4

9

5

G2

G1

Rec−Soc

Rt−Angle

RS232(7:0)

L

PWR_UNT_IF(30:0)

DCD

RXD*

TXD*

DTR

4

0

1

5

54

1

SFT_STRT_CONTACTOR *

I2C(2:0)

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

12VP

0

VDC_24_KERNEL

EXP_SW

3

SHIELD_GND_KERNEL

1

6

RT_OUT(31:0)

RTB1_N*

RTB2_N*

RTB3_N*

RTB4_N*

RTB5_N*

RTB6_N*

RTB7_N*

RTB8_N*

RTB9_N*

RTB10_N*

RTB11_N*

RTB12_N*

RTB13_N*

RTB14_N*

RTB15_N*

RTB16_N*

REAL_TIME_INPUTS(3:0)

VCC

I2C _CLK

0

I2C_DATA

1

L

J31

261

272

283

294

305

631

732

833

934

10 35

11 36

12 37

13 38

14 39

15 40

16 41

17 42

18 43

4419

4520

4621

4722

4823

24 49

25 50

5251

Rec−Soc

Rt−Angle

50−Pos_CHAMP

RESET(1:0)

J13

1

6

2

7

3

8

4

9

5

G2

G1

Rec−Soc

Rt−Angle

9−Pos_Sub−D_Emi

RTB1_P*

RTB2_P*

RTB3_P*

RTB4_P*

RTB5_P*

RTB6_P*

RTB7_P*

RTB8_P*

RTB9_P*

RTB10_P*

RTB11_P*

RTB12_P*

RTB13_P*

RTB14_P*

RTB15_P*

RTB16_P*

VDC_24_RTN_KERNEL

0

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

RES ET−PRESET−N

ARTB1−PARTB1−N

PREP_SW

L

12VP

12VN

L

RT_BUS_PR OTECTION

1

SHEET 5

0

1

2

2

12VN

3

R11

4.75K

L

10987

RT_TERM INATION

SHEET 6

J8

0

1

RESET−P

RESET−N

PREP_SW

EXP_SW

L

0

2

4

RD_2*

TD_2*

DTR_2

L

2

RS232_SERVICE_PT(6:0)

1

2

3

4

5

G1

Rt−Angle

9−Pos_Sub−D_Emi

Plug−Pin

J15

1

2

3

4

5

G1

Rec−Soc

Rt−Angle

9−Pos_Sub−D_Emi

6

7

8

9

G2

L

6

RTS_2

7

CTS_2

8

9

G2

L

SERIES_RE S

SHEET 7

1

3

GLOBAL_RT_BUS(31:0)

1

2

= Transient Ground 1

= Transient Ground 2

TG

3 CONT.SHT.

2108822− SCH

4

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/xr _pwa/ecm_pwb/c onnector_bl k

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

J.Dwyer 94−APR− 10

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX_I I

SIZEREV

0

SHT./CONT . ON

B3

4

/

H

80

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

C

PU_IF_CONN(30:0) PWR_UNT_IF(30:0)

32

0

VC080505C150

1

VC080505C150

2

VC080505C150

3

VC080505C150

4

VC080505C150

RV5

RV6

RV7

RV9

RV12

R289

33.2

R290

33.2

R291

33.2

R293

33.2

R296

33.2

54

0

1

2

3

4

6

11

VC080505C150

12

VC080505C150

13

VC080505C150

14

VC080505C150

15

VC080505C150

RV20

RV13

RV14

RV17

RV18

R304

33.2

R297

33.2

R298

33.2

R301

33.2

R302

33.2

11

12

13

14

15

10987

4 CONT.SHT.

2108822− SCH

5

A

B

C

5

RV10

VC080505C150

D

E

F

6

VC080505C150

7

VC080505C150

8

VC080505C150

9

VC080505C150

10

VC080505C150

RV11

RV8

RV3

RV4

RV19

R294

33.2

R295

33.2

R292

33.2

R287

33.2

R288

33.2

R303

33.2

5

6

7

8

9

10

16

VC080505C150

17

VC080505C150

18

VC080505C150

19

VC080505C150

20

VC080505C150

21

VC080505C150

RV23

RV24

RV15

RV16

RV21

RV22

R307

33.2

R308

33.2

R299

33.2

R300

33.2

R305

33.2

R306

33.2

16

17

18

19

20

21

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/xr _pwa/ecm_pwb/c onnector_bl k/pu_bus_prot ection

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

F.Boehm 94−APR− 10

MADE

CHECK

APPR

OTHER

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX I I

SIZEREV

0

SHT./CONT . ON

B4

5

/

H

81

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

16 V+ V+16

CR10

SP720

IN

1

C

L L L L L L

8V−

CR10

SP720

32

R_P(31:0)

CR10

SP720

V+16

CR10

SP720

IN

97

IN

10 11

V−8

16 V+ V+16

CR10

SP720

IN
6

IN

V−8

8V−

CR10

SP720

V−8

54

16 V+

IN

8V−

6

0

4

8

12

CR12

SP720

CR12

SP720

CR12

SP720

CR11

SP720

10987

RT_OUT(31:0)

V+16

CR12

IN

7

V+16

IN
5

V+16

IN
3

V+16

IN
7

1

V−8

CR12

5

V−8

CR12

9

V−8

CR11

13

SP720

SP720

SP720

SP720

V+16

CR12

IN
6

V+16

IN
4

V+16

IN
2

V+16

IN
6

2

V−8

CR12

6

V−8

CR12

10

V−8

CR11

14

SP720

SP720

SP720

SP720

V+16

IN

10

V+16

IN

12

V+16

IN

14

V+16

IN

10

3

V−8

CR12

SP720

7

V−8

CR12

SP720

11

V−8

CR11

SP720

15

CR12

SP720

IN

13

IN

15

IN

11

V+16

IN

11

V−8

V+16

V−8

V+16

V−8

V+16

5 CONT.SHT.

2108822− SCH

6

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

POS_TVS_CLAMP

CR13

2

10.0V

SMBJ10

1

NEG_TVS_CLAMP

1

SMBJ5.0

2

1

PCN

2

CR12

CR9

5.0V

DESCRIP TION

DESCRIP TION

V+16

SP720

IN
91

DATE

DATE

V−8

CR12

SP720

16 V+

IN

APPR BY

APPR BY

V+16

CR11

SP720

IN
91

8V−

CR11

SP720

V−8

16 V+

IN

8V−

LLLL

DATE

DATE

V− 8

V− 8

V+ 16

V+ 16

CR10
SP720

IN

3

CR10
SP720

IN

14

28

30

V+ 16

CR10
SP720

2

CR10
SP720

15

29

31

IN

V− 8

V+ 16

IN

V− 8

J.Dwyer 94−APR− 10

MADE

CHECK

APPR

OTHER

16

20

24

CR11

SP720

CR11

SP720

CR10

SP720

DATE

DATE

DATEPCN

DATE

IN
5

IN
3

IN
5

V−8

V+16

CR11

SP720

17

IN
4

V−8

V+16

CR11

SP720

21

IN
2

V−8

V+16

CR10

SP720

25

IN
4

V−8

V−8

V+16

CR11

SP720

18

IN

12

V−8

V+16

CR11

SP720

22

IN

14

V−8

V+16

CR10

SP720

26

IN

12

V−8

GE MEDICAL SYSTEMS

Milwaukee, WI USA

V−8

V+16

V−8

V+16

V−8

V+16

V−8

CR11

SP720

19

IN

13

CR11

SP720

23

IN

15

CR10

SP720

27

IN

13

11/user/xr _pwa/ecm_pwb/c onnector_bl k/rt_bus_prot ection

OFBL OCK SHTBLOCK PA THNAME

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

V−8

V+16

V−8

V+16

V−8

V+16

V−8

2108822−S CH

ECM_PWB

ADVANTX_I I

SIZEREV

0

SHT./CONT . ON

B5

6

/

D

E

F

H

82

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

S_R(31:0)

C

32

54

6

10987

R_P(31:0)

6 CONT.SHT.

2108822− SCH

7

A

B

C

L

D

VCC

E

F

R239
332
1%

0.125W

1

R240
150
1%

0.25W

0

R241
332
1%

0.125W 0.125W

R284
332
1%

0.125W

3

R285
150
1%

0.25W

2

R286
332
1%

0.125W

R236
332
1%

0.125W

5

R237
150
1%

0.25W

4

R238
332
1%

0.125W

R281
332
1%

0.125W

7

R282
150
1%

0.25W

6

R283
332
1%

0.125W

R233
332
1%

0.125W

9

R234
150
1%

0.25W

8

R235
332
1%

R278
332
1%

0.125W

11

R279
150
1%

0.25W

10

R280
332
1%

0.125W

R230
332
1%

0.125W

13

R231
150
1%

0.25W

12

R232
332
1%

0.125W

R275
332
1%

0.125W

15

R276
150
1%

0.25W

14

R277
332
1%

0.125W

R227
332
1%

0.125W

17

R228
150
1%

0.25W

16

R229
332
1%

0.125W

R272
332
1%

0.125W

19

R273
150
1%

0.25W

18

R274
332
1%

0.125W

R224
332
1%

0.125W

21

R225
150
1%

0.25W

20

R226
332
1%

0.125W

R269
332
1%

0.125W

23

R270
150
1%

0.25W

22

R271
332
1%

0.125W

R221
332
1%

0.125W

25

R222
150
1%

0.25W

24

R223
332
1%

0.125W

R266
332
1%

0.125W

27

R267
150
1%

0.25W

26

R268
332
1%

0.125W

R218
332
1%

0.125W

29

R219
150
1%

0.25W

R220
332
1%

0.125W

R263
332
1%

0.125W

31

R264
150
1%

0.25W

3028

R265
332
1%

0.125W

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/xr _pwa/ecm_pwb/c onnector_bl k/rt_terminat ion

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

MADE

CHECK

APPR

OTHER

dwyer_j

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX_I I

SIZEREV

1

SHT./CONT . ON

B6

7

/

H

83

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

C

D

E

F

32

54

GLOBAL_RT_BUS(31:0)

33.2
1%

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

0.100W

R188

R187

R163

R162

R186

R185

R161

R160

R184

R183

R159

R158

R182

R181

R157

R156

R180

R179

R155

R154

R178

R177

R153

R152

R176

R175

R151

R150

R174

R173

R149

R148

6

RTB1_P

RTB1_N

RTB2_P

RTB2_N

RTB3_P

RTB3_N

RTB4_P

RTB4_N

RTB5_P

RTB5_N

RTB6_P

RTB6_N

RTB7_P

RTB7_N

RTB8_P

RTB8_N

RTB9_P

RTB9_N

RTB10_P

RTB10_N

RTB11_P

RTB11_N

RTB12_P

RTB12_N

RTB13_P

RTB13_N

RTB14_P

RTB14_N

RTB15_P

RTB15_N

RTB16_P

RTB16_N

10987

0

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

S_R(31:0)

7 CONT.SHT.

2108822− SCH

8

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/xr _pwa/ecm_pwb/c onnector_bl k/series_res

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

MADE

CHECK

APPR

OTHER

dwyer_j

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX_I I

SIZEREV

0

SHT./CONT . ON

B7

8

/

H

84

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

MEMORY_BLK

SHEET 12

MEM_CTRL(10:0)

GLOBAL_DT_R

B

C

80c186_87_blk

SHEET 9 THRU 11

PWR_CTRL(8:0)

D

RST*

E

RST*

CLK_RST(11:0)

INTERRUPT_CTRL(16:0)

32

MEM_CTRL(10:0)

A_D(19:0)

DATA2(15:0)

AL2(19:0)

AL2(19:0)

DATA2(15:0)

XCEIVER_CTRL(4:0)

CPU_FPGA(20:0)

CHIP_SELECTS(11:0)

A_D(19:0)

CLK_RST(11:0)

ADR_L(25:0)

54

RS232_SERVICE_PT(6:0)

RESET(1:0)

AL2(19:0)

DATA2(15:0)

XCEIVER_CTRL(4:0)

CPU_FPGA(20:0)

CHIP_SELECTS(11:0)

A_D(19:0)

CLK_RST(11:0)

ADR_L(25:0)

6

IO_CTRL(15:0)

ETL_LOC_RT(3:0)

G_RT_DATA(15:0)

INTERRUPT_CTRL(16:0)

INPUT_OUTPUT_BLK

SHEET 13 THRU 15

RS232_SERVICE_PT(6:0)

RESET(1:0)

DATA2(15:0)

DATA1(31:0)

CLK_RST(11:0)

IO_CTRL(15:0)

ETL_LOC_RT(3:0)

G_RT_DATA(15:0)

CLK_RST(11:0)

XCEIVER_CTRL(4:0)

CPU_FPGA(20:0)

CHIP_SELECTS(11:0)

A_D(19:0)

ADR_L(25:0)

INTERRUPT_CTRL(16:0)

INTERRUPT(30:0)

DIAGNOSTICS(15:0)

CONTROL(14:0)

CONTROL_BLK

SHEET 16 THRU 17

I2C(2:0)

RST*

GLO BAL_D T_R

ME M_CTR L(10: 0)

IO_CTRL(15:0)

PWR_CTRL(8:0)

BIU_CTRL(8:0)

LOCAL_RT_BUS(15:0)

G_TRANS_ENB(15:0)

CONTROL(14:0)

ETL_DECODE(16:0)

10987

DATA2(15:0)

DIAGNOSTICS(15:0)

PWR_CTRL(8:0)

BIU_CTRL(8:0)

LOCAL_RT_BUS(15:0)

G_TRANS_ENB(15:0)

CONTROL(14:0)

ETL_DECODE(16:0)

8 CONT.SHT.

2108822− SCH

I2C(2:0)

9

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

CLK_RST(11:0)

INTERRUPT_BLK

INTERRUPT_CTRL(16:0)

INT_A1

DATA1(31:0)

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATA1(31:0)

DATE

DATE

INTERRUPT(30:0)

dwyer_j

MADE

CHECK

APPR

OTHER

INT_A1

DATA1(31:0)

INTERRUPT(30:0)

DATE

DATE

DATEPCN

DATE

SHEET 18

GE MEDICAL SYSTEMS

Milwaukee, WI USA

11/user/xr _pwa/ecm_pwb/c pu

OFBL OCK SHTBLOCK PA THNAME

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

ECM_PWB

ADVANTX_I I

2108822−S CH

0

ADR_L(25:0)

DATA1(31:0)

SIZEREV

SHT./CONT . ON

B8

9

/

F

H

85

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

A

B

C

R112

332

D

L

E

F

186_SLV_SELECT*

H

REV

MADE BY

REV

MADE BY

1

L

CPU_8_MEG

A18

A16

S1*

ARDY

BHE

DEN*

INT_REQUEST

1

PCN

2

4

1

19

13

17

PWR_CTRL(8:0)

R103

1%

2K

1

OE

16.000MHz
OSC_TRI−S

GND

VCC

Y3

OUT

5

U53

74ABT244

_1G
_2G

2

1A1

4

1A2

6

1A3
1A481Y4
2A1112Y1
2A2
2A3152Y3
2A4

18

1Y1

16

1Y2

14

1Y3

12
9
7

2Y2

5
3

2Y4

RST*

TEST HEADER 1

CLK1_4

D12_4

D8_4

D6_4

D0_4

Rec−Pin

Straight

20−Pos_Header

VCC

8

R107

68. 1
R105

68.1

R106

68.1

R109

68.1
R108

68.1

J30

CLK2_4

12

D15_4

34

D13_4D14_4

56

D11_4

78

9

D9_ 4D10_4

10

D7_ 4

1211

D5_ 4

1413

D3_ 4D4_4

1615

D1_ 4D2_4

1817

2019

DESCRIP TION

DATE

DESCRIP TION

DATE

CPU_8MEG_6

CPU_8MEG_3

CLK_8MEG_2

R110

68.1

R113

68.1

CLK_8MEG_1

CLK_8MEG_0

L

WR_2*

ALE_2

DT_R

INT0

INTA*

ALE

A19

A17

S2*

S0*

ALE

32

16

MCS3*

12

S0*

2

S1*

3

S2*

4

1

6

3

2

1

APPR BY

APPR BY

4
6
7
16

15

5

4

CHIP SELECTS:
(1). LCS [0 −−> 3FFFF]
(2). UCS [ E0000 −−> FFFFF ]
(3). MCS2 [ 7000 −−> 7800 ]
(4). PCS0 [ 0 −−> 7F ]
(5). PCS1 [ 80 −−> FF ]
(6). PCS2 [ 100 −−> 17F ]
(7). PCS3 [ 180 −−> 1FF ]
(8). PCS4 [ 200 −−> 27F ]
(9). PCS5 [ 280 −−> 2FF ]
(10). PCS6 [ 300 −−> 37F ]

7

8

11
9
10

0
1
14
13

INT0
186_SLV_SELE CT*
INTA*
INT_REQUEST

RESET

CLK_8MEG

ALE
DEN*
DT_R

BHE
ARDY
WR*
RD*

VCC

R111
2K
1%

0.100W

TIMER_1_OUT

WT_REGB

7

DTR_REGB

6

L

DATE

DATE

52

S0

53

S1

54

S2

20

TMRIN0

22

TMROUT0

21

TMRIN1

23

TMROUT1

18

DRQ0

19

DRQ1

45

INT0

44

INT1

42

INT2/INTA0−

41

INT3/INTA1−

46

NMI

59

X1

58

X2

57

RESET

24

RES

56

CLKOUT

38

MCS037MCS136MCS235MCS3

N80C186XL_UTF

ALE40DT/R−48LOC K39DEN

U46

74HCT14

11

54

31

PCS5/A132PCS6/A2

U48

62RD63WR61

RESET*

10

MADE

CHECK

APPR

OTHER

33

25

LCS34UCS

PCS027PCS128PCS229PCS330PCS4

AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8

AD9
AD10
AD11
AD12
AD13
AD14
AD15

A16/S3
A17/S4
A18/S5
A19/S6

HLD A50HOL D47TES T55ARD Y49SRD Y64BHE−/S7

51

TEST*

RD*
WR*

RESET

5

dwyer_j

MCS2*
PCS6*
PCS5*
PCS4*
PCS3*
PCS2*
PCS1*
PCS0*

UCS*
LCS*

17
15
13
11
8
6
4
2
16
14
12
10
7
5
3
1

68
67
66
65

0
3
4
9
8

MCS3*
MCS1*
MCS0*

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

16
17
18
19

7
6
5
4
3
2
1
0
9
8

6

R104

332

NPX(9:0)

7
1
2

L

DATE

DATE

DATEPCN

DATE

R101
332

9

8

7

6
5

3
4

VCC

U51

N80C187−12

BUSY

_ERROR

PEREQ

D0
D1

CLK
CKM
RESET

_NPS1
NPS2
CMD0
CMD1

_NPRD
_NPWR

D2
D3
D4
D5
D6
D7
D8

D9
D10
D11
D12
D13
D14
D15

TEST HEADER 2

CLK1_2

D0_2

36
44
39

38
37
32
35

30
31

XCEIVER_CTRL(4:0)

CPU_8MEG

A_D14

A_D12

A_D10

A_D8

A_D6

A_D4

A_D2

A_D0

GE MEDICAL SYSTEMS

Milwaukee, WI USA

0

28
29

1
2

27

26

A_D0

25

A_D1

24

A_D2

22

A_D3

21

A_D4

20

A_D5

19

A_D6

18

A_D7

17

A_D8

16

A_D9

14

A_D10

13

A_D11

9

A_D12

8

A_D13

7

A_D14

5

A_D15

J29

1

2

3

4

5

6

78

9

10

1211

1413

1615

1817

2019

Rec−Pin

Straight

20−Pos_Header

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

CLK2_2

D15_2

D13_2D14_2

D11_2D12_2

D9_2D10_2

D7_2D8_2

D5_2D6_2

D3_2D4_2

D1_2D2_2

OFBL OCK SHTBLOCK PA THNAME

ALE_2

ALE

A_D15

A_D13

A_D11

A_D9

A_D7

A_D5

A_D3

A_D1

L

11/user/xr _pwa/ecm_pwb/c pu/80C186_8 7_blk

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

ADDRESS_LATCH

SHEET 10

D

G

TRANSCEIVER

SHEET 11

CPU_8MEG

A14

14

A12

12

A10

10

A8

8

6

A6

A4

4

A2

2

A0

0

ECM_PWB

ADVANTX_I I

2108822−S CH

10987

CHIP_SELECTS(11:0)

6

A1_NPX

A2_NPX

AL2(19:0)

ADR_L(25:0)

INT_A1

DATA1(31:0)

DATA2(15:0)

CPU_FPGA(20:0)

A_D(19:0)

INTERRUPT_CTRL(16:0)

CLK_RST(11:0)

TEST HEADER 3

J28

CLK2_3

CLK1_3

D14_3

D6_3

D4_3

D0_3

1

21

4

3

65

87

109

11 12

13 14

15 16

17 18

19 20

Rec−Pin

Straight

20−Pos_Header

SIZEREV

B9

D15_3

D13_3

D11_3D12_3

D9_3D10_3

D7_3D8_3

D5_3

D3_3

D1_3D2_3

A19
A18
A17
A16

A15

A13

A11

/

ALE

A9

A7

A5

A3

A1

10

10

19
18
17
16

15

13

11

9

7

5

3

1

9 CONT.SHT.

2108822− SCH

5

L

SHT./CONT . ON

A

B

C

D

E

F

H

86

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

10 CONT.SHT.

2108822− SCH

24

1
25
48

47
46
44

41
40
38
37
36
35
33
32
30
29
27
26

24

1
25
48

47
46
44

41
40
38
37
36
35
33
32
30
29
27
26

24

1
25
48

47
46
44

41
40
38
37
36
35
33
32
30
29
27
26

6

U57

SN74ABT16373

_OC1
_OC2
_C1
_C2

1A1
1A2
1A3
1A4431Y4
2A1
2A2
2A3
2A4
3A1
3A2
3A3
3A4
4A1
4A2
4A3
4A4

SN74ABT16373

_OC1
_OC2
_C1
_C2

1A1
1A2
1A3
1A4431Y4
2A1
2A2
2A3
2A4
3A1
3A2
3A3
3A4
4A1
4A2
4A3
4A4

SN74ABT16373

_OC1
_OC2
_C1
_C2

1A1
1A2
1A3
1A4431Y4
2A1
2A2
2A3
2A4
3A1
3A2
3A3
3A4
4A1
4A2
4A3
4A4

U50

U54

1Y1
1Y2
1Y3

2Y1
2Y2
2Y3
2Y4
3Y1
3Y2
3Y3
3Y4
4Y1
4Y2
4Y3
4Y4

1Y1
1Y2
1Y3

2Y1
2Y2
2Y3
2Y4
3Y1
3Y2
3Y3
3Y4
4Y1
4Y2
4Y3
4Y4

1Y1
1Y2
1Y3

2Y1
2Y2
2Y3
2Y4
3Y1
3Y2
3Y3
3Y4
4Y1
4Y2
4Y3
4Y4

2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23

2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23

2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23

L

16
17
18
19

A2_SCC
A1_SCC
A4_SERIAL
A3_SERIAL
A2_SERIAL
A1_SERIAL

10987

R117

68.1

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

25
24
23
22
21
20

A16

16
17
18

A_19

19

A0

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14

A15

15

INT_A1

AL2(19:0)

A1_NPX

A2_NPX

ADR_L(25:0)

1

A

A_D(19:0)

B

C

D

ALE_2

E

F

32

R118
332
1%

0.100W

L

54

A_D1

10

A_D1

1
2
3
4
5
6
7
8
9
10
11
12
13
14

A_D15

15

A_D16

16
17
18
19

A_D19
A_D 1

1

A_D2

2

A_D2

2

A_D1

1
4

A_D4

3

A_D3

2

A_D2
A_D1

1
16

A_D16
17
18
19

A_D19

A_D0

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14

A_D15

15

11

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

11/user/xr _pwa/ecm_pwb/c pu/address_ latch

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

MADE

CHECK

APPR

OTHER

dwyer_j

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX_I I

SIZEREV

0

SHT./CONT . ON

B10

11

/

H

87

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

C

D

32

A_D(19:0)

54

DT_R

10

DT_R

10

XCEIVER_1A _EN*

0

XCEIVER_1B _EN*

1

0
1
2
3
4
5
6
7
0
1
2
3
4
5
6
7

XCEIVER_2_EN*

2

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

6

U47

74ABT16245−1

1

1

DIR1

24

24

DIR2

48

48

_G1

25

25

_G2

47

47
46

46
44

44
43

43
41

41
40

40
38

38
37

37
36

36
35

35
33

33
32

32
30

30
29

29
27

27
26

26

74ABT16245−1

1

1

24

24
48

48
25

25

47

47 2
46

46 3
44

44 5
43

43 6
41

41 8
40

40 9
38

38 11
37

37 12
36

36 13
35

35 14
33

33 16
32

32 17
30

30 19
29

29 20
27

27 22
26

26 23

1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4
3A1
3A2
3A3
3A4
4A1
4A2
4A3
4A4

DIR1
DIR2
_G1
_G2

1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4
3A1
3A2
3A3
3A4
4A1
4A2
4A3
4A4

U56

1Y1
1Y2
1Y3
1Y4
2Y1
2Y2
2Y3
2Y4
3Y1
3Y2
3Y3
3Y4
4Y1
4Y2
4Y3
4Y4

1Y1
1Y2
1Y3
1Y4
2Y1
2Y2
2Y3
2Y4
3Y1
3Y2
3Y3
3Y4
4Y1
4Y2
4Y3
4Y4

10987

DATA1(31:0)

VCC

R97

10K

15
14
13
12
11
10

R116

10K

10

13
11

14
15
12

5
6
8
7
4
3
2
1

9

8
9
4
3
7

2
6
1

5

16

R93

10K

2%

0.08W

VCC

16

R127

10K

2%

0.08W

2

2
3

3
5

5
6

6
8

8
9

9
11

11
12

12
13

13
14

14
16

16
17

17
19

19
20

20
22

22
23

23

2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

11 CONT.SHT.

2108822− SCH

12

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

DT_ R

10

XCEIVER_3 A_EN*

R114

10K

1
2
4
13
3
8
12
7
10
5
6
14
9

15

3

4

MADE

CHECK

APPR

OTHER

XCEIVER_3 B_EN*

0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

dwyer_j

74ABT16245−1

1

1

24

24
48

48
25

25

47

47
46

46
44

44
43

43
41

41
40

40
38

38
37

37
36

36
35

35
33

33
32

32
30

30
29

29
27

27
26

26

DIR1
DIR2
_G1
_G2

1A1
1A2
1A3
1A4
2A1
2A2
2A3
2A4
3A1
3A2
3A3
3A4
4A1
4A2
4A3
4A4

DATE

DATE

DATEPCN

DATE

U55

1Y1
1Y2
1Y3
1Y4
2Y1
2Y2
2Y3
2Y4
3Y1
3Y2
3Y3
3Y4
4Y1
4Y2
4Y3
4Y4

DATA2(15:0)

VCC

R115

10K

2

2
3

3
5

5
6

6
8

8
9

9
11

11
12

12
13

13
14

14
16

16
17

17
19

19
20

20
22

22
23

23

0

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15

GE MEDICAL SYSTEMS

Milwaukee, WI USA

16

9

10

7

6
11
12

5

R126

13

4

10K

3

2%

14

0.08W

15

2

111

8

11/user/xr _pwa/ecm_pwb/c pu/transcei vers

OFBL OCK SHTBLOCK PA THNAME

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX_I I

SIZEREV

0

SHT./CONT . ON

B11

12

/

E

F

H

CPU_FPGA(20:0)

XCEIVER_CTRL(4:0)

VCC

16

R125

10K

2%

0.08W

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

88

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

1

A

B

C

D

E

DATA2(15:0)

A_D(19:0)

GLOBAL_DT_R

CLK_RST(11:0)

U60

74ABT245−1

A_D8

8
9
10
11
12
13
14

A_D15

15

2

A1

5

A2

6

A3

9

A4

8

A5

7

A6

4

A7

3

A8

1

DIR

19

G

TYP

RESET

4

BYTE_WR_SWAP*

B1
B2
B3
B4
B5
B6
B7
B8

5

32

VCC

12VP

D2_0

18
15
14
11
12
13
16

D2_7

17

R120

3.74K

0
1
2
3
4
5
6
7

R119
10K

B

CR4
1N914

R123
10K

R124

2.21K

0.125W

C

Q4
MMBT3904L

E

L

2

J32

12

1

54

0
1
2
3

10

FLASH_BYT E*
FLASH_CE*
FLASH_WR*
FLASH_OE*

12VP

BYTE_WR_A0

6

1
2
3

U62

E28F400BX−T−80

54

_BYTE

32

_CE

13

_WE

34

_OE

14

_PWD

A2_1

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

A2_18

C116

0.1U
50V
10%

L

31
27
26
25
24
23
22
21
10

9

55
20

17

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A108DQ10
A117DQ11
A126DQ12
A135DQ13
A144DQ14
A153DQ15
A16
A17

VPP

DQ0
DQ1
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9

D2_0

35
37
39
41
45
47
49
51
36
38
40
42
46
48
50
52

D2_15

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

A2_1

A2_18

SRAM_WR*

7

SRAM_LOW_CS*

8

SRAM_OE*

6

A2_1

A2_18

SRAM_WR*

7

SRAM_HIGH_CS*

9

SRAM_OE*

6

VCC

VCC

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

3

A14

31

A15

2

A16

1

NC

29

WE

22

CS1

30

CS2

24

OE

12

A0

11

A1

10

A2

9

A3

8

A4

7

A5

6

A6

5

A7

27

A8

26

A9

23

A10

25

A11

4

A12

28

A13

3

A14

31

A15

2

A16

1

NC

29

WE

22

CS1

30

CS2

24

OE

10987

U65

HM628128LP−8

U64

HM628128LP−8

IO0
IO1
IO2
IO3
IO4
IO5
IO6
IO7

IO0
IO1
IO2
IO3
IO4
IO5
IO6
IO7

13
14
15
17
18
19
20
21

13
14
15
17
18
19
20
21

DATA2(15:0)

D2_0

D2_7

D2_8

2108822− SCH

1

1

D2_15

12 CONT.SHT.

0
1
2
3
4
5
6
7

8

9
10
11
12
13
14
15

13

A

B

C

D

E

F

H

REV

MADE BY

REV

MADE BY

AL2(19:0)

MEM_CTRL(10:0)

F

1

U64 and U65 can accomodate a 128K by 8

or 512K by 8 part

11/user/xr _pwa/ecm_pwb/c pu/memory_b lk

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

MADE

CHECK

APPR

OTHER

dwyer_j

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX_I I

SIZEREV

0

SHT./CONT . ON

B12

13

/

H

89

REVOLUTION XQ/i

GE MEDICAL SYSTEMS SYSTEM SCHEMATICS

REV 6 DIRECTION 2219416−100

13 CONT.SHT.

2108822− SCH

65565

R242
2K

6

L

S2

PUSHSW_2GND

3

G1

U66

74HCT14

21

VCC

R189

21

10

4

G2

L

U75
SN74HC05

U75
SN74HC05

U75
SN74HC05

34

R209

1%

20.5

0.125W
vcc_for_1232

VCC

10987

VCC

R139

2K

C151

0.01U
50V
10%

L

21

VCC

U85

LTC1232

1

_PBRST

2

TD

3

TOL

7

_ST

8

VCC

_RST

RST

GND

6

5

4

R190

4.75K

RST*

14

R243

3.74K

32

CP U_RES ET

R244

3.74K

C165

0.1U
50V
10%

CR15
PMLL4150

REMOTE_RESET*

HCPL0700

A2

3

C

U88

54

VCC 8

VO 6

GND

VB

L

U66

74HCT14

VCC

C164

0.01U
50V
10%

5
7

L

1

A

RS232_SERVICE_PT(6:0)

B

DIAGNOSTICS(15:0)

RESET(1:0)

RESET−P

0

RESET−N

C

1

14

A

B

C

CLK_4MEG

IO_CTRL(15:0)

D

R102KR8

S1

E

F

DATA1(31:0)

DIPSW8

8

8

7

7

6

6

5

5

4

4

3

3

2

2

116

1

L

DP0

9

9

DP1

10

10

DP2

11

11

DP3

12

12

DP4

13

13

DP5

14

14

DP6

15

15

DP7

16

2K

R5
2K

R4
2K

2K

R9

R7

2K

R6

2K

VCC

R3
2K

DIP_SWITCH_EN *

11

L

16
17
18
19
20
21
22
23

R29

332

SN74ABT16244

1
48
25
24

47
46
44

41
40
38
37
36
35
33
32
30
29
27
26

U7

_G1
_G2
_G3
_G4

1A1

1Y1

1A2

1Y2

1A3

1Y3
1A4431Y4
2A1

2Y1
2A2

2Y2
2A3

2Y3
2A4

2Y4
3A1

3Y1
3A2

3Y2
3A3

3Y3
3A4

3Y4
4A1

4Y1
4A2

4Y2

4Y3

4A3

4Y4

4A4

2
3
5
6
8
9
11
12
13
14
16
17
19
20
22
23

L

87

D

E

8

9
10
11
12
13
14
15

0
1
2
3
4
5
6
7

IO_DATA_BUS(7:0)

F

H

REV

MADE BY

REV

MADE BY

31/user/xr _pwa/ecm_pwb/c pu/input_ou tput_blk

OFBL OCK SHTBLOCK PA THNAME

1

PCN

2

DESCRIP TION

DATE

DESCRIP TION

DATE

APPR BY

APPR BY

DATE

DATE

MADE

CHECK

APPR

OTHER

dwyer_j

DATE

DATE

DATEPCN

DATE

GE MEDICAL SYSTEMS

Milwaukee, WI USA

DESIGN TIT LE

FIRST M ADE FOR

DRAWING N O.

2108822−S CH

ECM_PWB

ADVANTX_I I

SIZEREV

0

SHT./CONT . ON

B13

14

/

H

90
