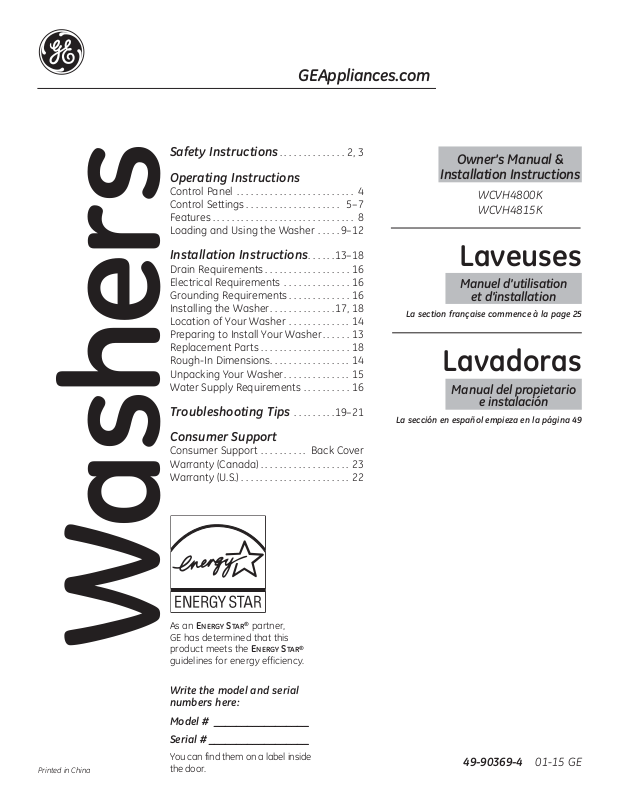

General Electric WCVH4800KWW Owners Manual

GEAppliances.com

Safety Instructions .............. 2, 3

Operating Instructions

Control Panel ......................... 4

Control Settings .................... 5–7

Features .............................. 8

Loading and Using the Washer .....9–12

Installation Instructions ......13–18

Drain Requirements ..................16

Electrical Requirements ..............16

Grounding Requirements .............16

Installing the Washer ..............17, 18

Location of Your Washer .............14

Preparing to Install Your Washer ......13

Replacement Parts ...................18

Rough-In Dimensions .................14

Unpacking Your Washer ..............15

Water Supply Requirements ..........16

Troubleshooting Tips .........19–21

Consumer Support

Consumer Support .......... Back Cover

Warranty (Canada) ................... 23

Warranty (U.S.) ....................... 22

Owner’s Manual &

Installation Instructions

WCVH4800K WCVH4815K

Laveuses

Manuel d’utilisation

et d’installation

La section française commence à la page 25

Lavadoras

Manual del propietario

e instalación

La sección en español empieza en la página 49

Printed in China

As an ENERGY STAR® partner, GE has determined that this

Washers

product meets the ENERGY STAR® guidelines for energy efficiency.

Write the model and serial numbers here:

Model # _________________ Serial # __________________

You can find them on a label inside the door.

49-90369-4 01-15 GE

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill you or hurt you and others. All safety messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as:

IMPORTANT SAFETY INSTRUCTIONS



Read all instructions before using the appliance.

 DO NOT wash or dry articles that have been previously cleaned in, washed in, soaked in or spotted with gasoline,

dry-cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.

 DO NOT add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These

substances give off vapors that could ignite or explode.

 Under certain conditions, hydrogen gas may be produced in a hot-water system that has not been used for 2

weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using a washing machine, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, DO NOT smoke or use an open flame during this time.

 DO NOT allow children to play on or in this appliance. Close supervision of children is necessary when this appliance

Installation

Instructions

is used near children. Before the washer is removed from service or discarded, remove the door or lid. Failure to follow these instructions may result in death or injury to persons.

DANGER WARNING CAUTION

WARNING

Indicates a hazardous situation which, if not avoided, will result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in death or serious injury.

Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

To reduce the risk of death, fire, explosion, electric shock, or injury to persons when using your

appliance, follow basic precautions, including the following:

 DO NOT reach into the appliance if the tub or agitator is moving to prevent accidental entanglement.

 DO NOT install or store this appliance where it will be exposed to the weather.

 DO NOT tamper with controls, repair or replace any part of this appliance or attempt any servicing unless

specifically recommended in the user maintenance instructions or in published user repair instructions that you understand and have the skills to carry out.



DO NOT operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts

including a damaged cord or plug.



Unplug the appliance or turn off the circuit breaker before servicing. Pressing the Power button DOES NOT disconnect

power.

 See “Electrical Requirements” located in the Installation Instructions for grounding instructions.

SAVE THESE INSTRUCTIONS

Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions

GEAppliances.com

PROPER INSTALLATION

This washer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions, you can receive one by visiting GEAppliances.com or by calling

800.GE.CARES (800.432.2737).

 Ensure that the hot water hose is connected to the “H”

(internal red screened) valve and the cold water hose is connected to the “C” (internal blue screened) valve.

 Install or store where it will not be exposed to

temperatures below freezing or exposed to the weather, which could cause permanent damage and invalidate the warranty.

 Properly ground washer to conform with all

governing codes and ordinances. Follow details in Installation Instructions.

WARNING

Plug into a grounded 3 prong outlet.

DO NOT remove ground prong. DO NOT use an adapter. DO NOT use an extension cord.

Failure to do so can result in death, fire or electrical shock.

- Electrical Shock Hazard

WHEN NOT IN USE

 Turn off water faucets to minimize leakage if a break

or rupture should occur. Check the condition of the fill hoses; GE recommends changing the hoses every 5 years.

 GE strongly recommends the use of new water

supply hoses. Hoses degrade over time and need to be replaced every 5 years to reduce the risk of hose failures and water damage.

Parts and Accessories

Order on-line at GEApplianceparts.com today, 24 hours a day or by phone at 800.626.2002 during normal business hours.

Part Number Accessory

PM14X10002 4 ft Rubber Water Supply Hoses

PM14X10005 4 ft Braided Metal Water Supply Hoses WX10X10011 Tide WX7X1 Washer Floor Tray

Washing Machine Cleaner*

Instructions

Installation

* Tide® is a registered trademark of Procter & Gamble

SAVE THESE INSTRUCTIONS

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

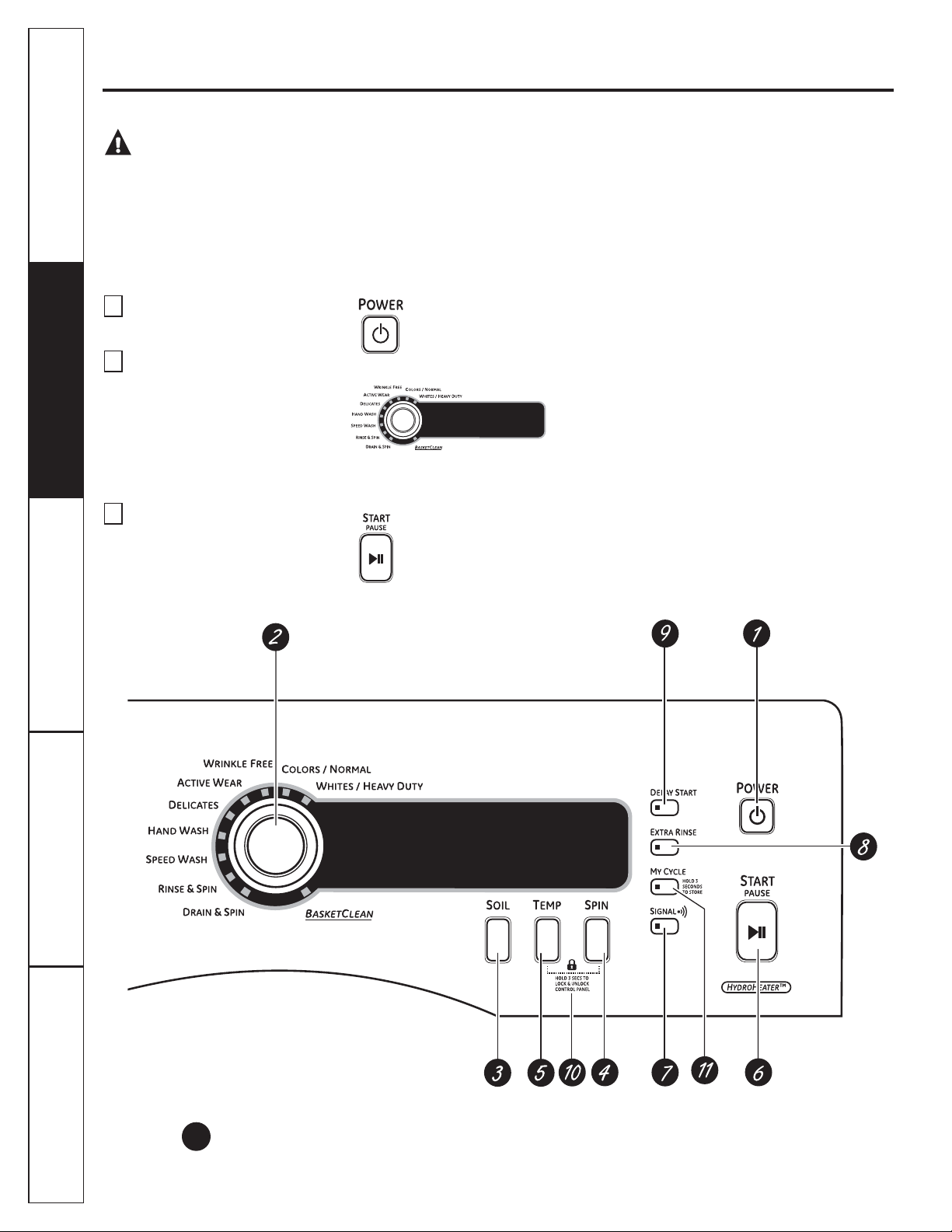

About the washer control panel.

You can locate your model number on a label inside the door.

WARNING! To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT

SAFETY INSTRUCTIONS before operating this appliance.

Quick Start

If the screen is dark, press the POWER button to “wake up” the display.

Press the

Select a wash cycle. (Defaults

are set for each wash cycle. These default settings can be changed. See Control settings for more information.)

If you selected a wash cycle,

press the START/PAUSE button.

POWER

button.

Installation

Instructions

Power

Press to “wake up” the display. If the display is active, press to put the washer into standby mode.

NOTE: Pressing POWER does not disconnect the appliance from the power supply.

Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions

Control settings. GEAppliances.com

Wash Cycles

The wash cycles are optimized for specific types of wash loads. The chart below will help you match the wash setting with the loads. The Gentle Wash™ lifters lightly tumble the clothes into the water and detergent solution to clean the load.

WHITES/ For heavily to lightly soiled white laundry. HEAVY DUTY

COLORS/NORMAL For heavily to lightly soiled colorfast cottons, household linens, work and play clothes.

WRINKLE FREE For easy care and permanent press items. (PERMA PRESS)

ACTIVE WEAR For active sports, exercise and some casual wear clothes. Fabrics include modern

technology finishes and fibers such as spandex, stretch and microfibers.

DELICATES For lingerie and special-care fabrics with light to normal soil. Provides gentle tumbling and soak during wash and rinse.

HANDWASH For items labeled hand-washable with light soils. Provides gentle rocking to mimic the handwashing action.

SPEED WASH For lightly soiled items that are needed in a hurry. Cycle time is approximately 30 minutes, depending on selected options.

RINSE & SPIN To quickly rinse out any items at any time. DRAIN & SPIN Drain and spin at any time. BASKET CLEAN To clean drum and reduce odor.

NOTE: Basket Clean is a special cycle used to clean the washer drum and reduce

odor. DO NOT add garments to this cycle. Remove detergent cup and add one cup of bleach or other commercially available product manufactured for this purpose, such as Tide® Washing Machine Cleaner.

Instructions

Installation

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

Control settings.

Installation

Instructions

Soil Level

Changing the SOIL level increases or decreases the wash time to remove different amounts of soil. To change the SOIL level, press the SOIL level button until you have reached the desired setting.

You can choose between Extra Light, Light, Normal, Heavy or Extra Heavy soil.

Spin Speed

Changing the SPIN setting changes the final spin speed of the cycles. Always follow the garment manufacturer’s care label when changing the SPIN setting.

To change the SPIN setting, press the SPIN setting button until you have reached the desired setting. You can choose between No Spin, Low, Medium, High or Extra High Spin. Higher spin speeds are not available on certain cycles, such as Delicates.

Higher spin speeds remove more water from the clothes and will help reduce dry time, but may also increase the possibility of setting wrinkles on some fabrics.

Wash Temp

Adjust to select the proper water temperature for the wash cycle. The rinse water is always cold to help reduce energy usage and reduce setting of stains and wrinkles.

Follow the fabric manufacturer’s care label when selecting the wash temperature. To change the wash temperature, press the TEMP button until you have reached the desired

setting. You can choose between Tap Cold, Cold, Warm, Hot or Sanitize. The Sanitized wash temperature is not available on certain cycles, such as Delicates.

When selecting the Sanitize wash temperature, the washer increases the water temperature to sanitize and kill more than 99% of many common bacteria found in home laundry. The sanitize wash temperature is only available on the Whites/Heavy Duty wash cycle. For best results, select the heavy soil setting when using the Sanitize wash temperature setting.

Start/Pause

Press to start a wash cycle. If the washer is running, pressing it once will pause the washer and unlock the door. This function can be used to add garments during a cycle. Press again to restart the wash cycle.

NOTE: If the washer is paused and the cycle is not restarted within 15 minutes, the current wash cycle will be cancelled.

NOTE: In some cases the washer will drain first, then unlock the door when it is paused. NOTE: The washer performs automatic system checks after pressing the START/PAUSE button.

Water will flow in 45 seconds or less. You may hear the door lock and unlock before water flows; this is normal.

Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions

GEAppliances.com

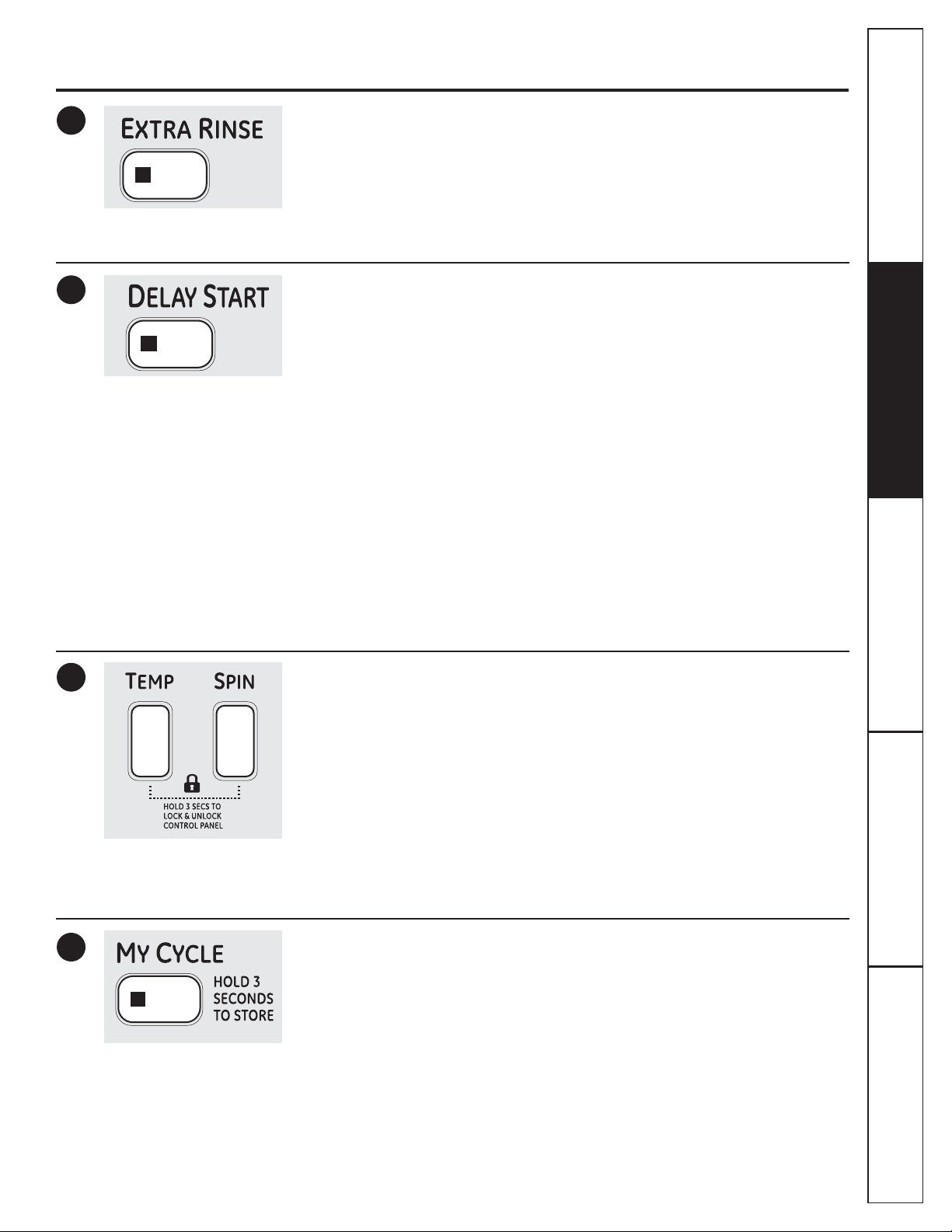

Signal

When the light is “on,” the washer will beep at the end of the cycle and every time you press a button on the control panel.

Extra Rinse

Use an extra rinse when additional rinsing is desired to remove excess dirt and detergent from soiled loads.

Delay Start

Use to delay the start of your washer.

1. Choose your wash cycle and any

options.

2. Press DELAY START button. You can

change the delay time in 1-hour increments (up to 18 hours) each time you press the DELAY START button. Stop pressing the button when your desired time is displayed.

3. Press the START/PAUSE button to start

the countdown.

The countdown time will be shown in the ESTIMATED TIME REMAINING display.

To turn the signal off, press the SIGNAL button and the light will go off.

NOTES:

 If the door is opened while the washer

is in DELAY, the countdown time will continue to count down the delay time. If the door is not closed and the countdown time expires, the cycle will not start until the door is closed and the START/PAUSE button is pressed.

 You can delay the start of a washer

cycle up to 18 hours.

The light on the button will light up when

DELAY START is on.

Instructions

Installation

Lock

You can lock the controls to prevent any selections from being made. Or you can lock or unlock the controls after you have started a cycle.

Children cannot accidentally start the washer by touching pads with this option selected.

To lock the washer, press and hold the TEMP and SPIN buttons together for 3 seconds.

My Cycle

To save a favorite cycle, set the desired settings for wash cycle, soil level, spin speed and wash temp settings and hold down the MY CYCLE button for 3 seconds. A beep will sound to indicate the cycle has been saved.

To use your custom cycle, press the MY CYCLE button before washing a load.

To change the saved cycle, set the desired settings and hold down the MY CYCLE button for 3 seconds.

To unlock the washer controls, press and hold the TEMP and SPIN buttons together for 3 seconds. A sound is made to indicate the lock/unlock status.

The control lock icon on the display will light up when it is on.

NOTE: The POWER button can still be used when the machine is locked.

NOTE: When using MY CYCLE, wash options cannot be modified after the cycle has been started.

NOTE: If you change wash options with MY CYCLE before starting the cycle, the MY CYCLE light will turn off and you will be returned to the base cycle.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

About the washer features.

The Dispenser Drawer

Slowly open the dispenser drawer by pulling it out until it stops.

After adding laundry products, slowly close the dispenser drawer. Closing the drawer too quickly could result in early dispensing of the bleach, fabric softener or detergent.

You may see water in the bleach and fabric softener compartments at the end of the cycle. This is a result of the flushing/ siphoning action and is part of the normal operation of the washer.

Use only HE High-Efficiency detergent.

Detergent Cup – Use for Liquid Detergent

Detergent Cavity – Use for Powder Detergent

Installation

Instructions

Liquid Bleach Compartment

The Detergent Compartment

 Only use high-efficiency detergent

in this washer. Use the detergent manufacturer’s recommended amount. DO NOT fill above the MAX line.

The detergent compartment is in the left side of the dispenser drawer. The detergent cavity (cup removed) is used for powder detergent, and the detergent cup is used for liquid detergent.

 Powder Detergent – Remove the

detergent cup and pour the suggested amount of powder detergent into the detergent cavity.

 Liquid Detergent – Leave the detergent

cup in the drawer and pour liquid detergent into the cup. Do not fill above the MAX line.

The Liquid Bleach Compartment

If desired, measure out the recommended amount of liquid bleach, not to exceed 1/3 cup (80 ml) and pour into the right compartment labeled “LIQUID BLEACH” marked with this symbol .

 Add measured detergent to the

left detergent compartment of the dispenser drawer.

 Detergent is flushed from the dispenser

at the beginning of the wash cycle. Either powdered or liquid high-efficiency detergent can be used.

 Detergent usage may need to be

adjusted for water temperature, water hardness, size and soil level of the load. Avoid using too much detergent in your washer since it can lead to oversudsing and detergent residue being left on the clothes.

It is recommended to use High-Efficiency (HE) bleach in this front-load washer.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.

NOTE: Do not use powdered bleach in the dispenser.

Fabric Softener Compartment

Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions

The Fabric Softener Compartment

If desired, pour the recommended amount of liquid fabric softener into the compartment labeled “FABRIC SOFTENER.”

Use only liquid fabric softener in the dispenser.

Dilute with water to the maximum fill line.

Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener, which could stain clothes.

NOTE: Do not pour fabric softener directly on the wash load.

Loading and using the washer.

Always follow fabric manufacturer’s care label when laundering. GEAppliances.com

Sorting Wash Loads

Colors

Whites

Lights Darks

Soil

Heavy

Normal

Light

Fabric

Delicates

Easy Care

Sturdy Cottons

Lint

Lint Producers Lint Collectors

Combine large and small items in a load. Load large items first. Large items should not be more than

half the total wash load.

Washing single items is not recommended. This may cause an out-of-balance load. Add one or two

similar items.

Pillows and comforters should not be mixed with other items. This may cause an out-of-balance load. Sort dark-colored clothes from light-colored clothes to prevent dye transfer. This is a high-efficiency

washer, so it uses less water, making dye transfer more common.

WARNING

Never place items in the washer that are dampened with gasoline or other flammable liquids. No washer can completely remove oil. Do not dry anything that has ever had any type of oil on it (including cooking oils). Doing so so can result in death, explosion, or fire.

- Fire Hazard

Loading the Washer

The wash drum may be fully loaded with loosely added items. Do not wash garments containing

flammable materials (waxes, cleaning fluids, etc.).

To add items after the washer has started, press START/PAUSE and wait until the door is unlatched. The washer may take up to 30 seconds to unlock the door after pressing START/PAUSE, depending on the machine conditions. Do not try to force open the door when it is locked. After the door unlocks, open gently. Add items, close the door and press

START/PAUSE to restart.

Instructions

Installation

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

Loading and using the washer.

Installation

Instructions

Care and Cleaning/General Maintenance

Exterior: Immediately wipe off any spills. Wipe with damp cloth. Wipe or dust spills or washing compounds with a damp cloth. Washer control panel and finishes may be damaged by some laundry pretreatment and stain remover products. Apply these products away from the washer. The fabric may then be washed and dried normally. Damage to your washer caused by these products is not covered by your warranty. Do not hit surface with sharp objects.

Interior: Dry around the washer door opening, flexible gasket (including attached hoses) and door glass. These areas should always be clean to ensure a watertight seal.

It is recommended to rinse the washer at least once per month with 1 cup of bleach (or other commercially available product manufactured for this purpose, such as Tide® Washing Machine Cleaner) poured into the bleach section of the dispenser (no clothes) using the BASKET CLEAN cycle (found in the WASHER cycles menu).

Moving and Storage: Ask the service technician to remove water from drain pump and hoses. Do not store the washer where it will be exposed to the weather. When moving the washer, the tub should be kept stationary by using the shipping bolts removed during installation. See Installation Instructions in this manual. If these parts are not available, they can be ordered by visiting our Website at GEAppliances.com or by calling 800.GE.CARES.

Long Vacations: Be sure water supply is shut off at faucets. Drain all water from hoses if weather will be below freezing.

Clean Pump Filter

Due to the nature of the front-load washer, it is sometimes possible for small articles to pass to the pump. The washer has a filter to capture lost items so they are not dumped to the drain. To retrieve lost items, clean out the pump filter.

1. Open the door on the bottom right of the front of the unit.

2. Twist the small white cap counterclockwise a quarter turn

and unhook the small rubber hose. Pull the hose out of the hole and remove the white drain hose plug above a small pan to capture any water that may drain. Drain the excess water. Replace.

3. Unscrew the pump filter. Rinse. Replace.

4. Close the access door.

Pump Filter Door

Cleaning the Door Gasket

Open the washer door. Using both hands, press down the door gasket. Remove any foreign objects if found trapped inside the gasket. Make sure there is nothing blocking the holes behind the gasket.

While holding down the door gasket, inspect the interior of the gasket by pulling it down with your fingers. Remove any foreign objects if found trapped inside this gasket. Make sure there is nothing blocking the holes behind the gasket.

When you are finished cleaning the door gasket, remove your hands and

Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions

the gaskets will return to the operating position.

Drain Hose

Drain Plug

Pump Filter

Always follow fabric manufacturer’s care label when laundering. GEAppliances.com

Dispenser Drawer Area: Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month.

 Remove the drawer by first pulling it out until it stops. Then reach back into

the rear center of the drawer cavity and press down firmly on the lock tab, pulling out the drawer.

Lock tab is visible only after drawer has been pulled out

 Remove all cups and inserts from the dispenser drawer. Rinse the inserts, cups

and drawer with hot water to remove traces of accumulated laundry products.

 To clean the drawer opening, use a small brush to clean the recess.

Remove all residue from the upper and lower parts of the recess.

 Return inserts to the proper compartments. Replace the dispenser drawer.

 To reduce buildup in the Dispenser Drawer area:

Use only HE High-Efficiency detergent.

Instructions

Installation

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

Loading and using the washer.

Fabric Care Labels

Below are fabric care label “symbols” that affect the clothing you will be laundering.

WASH LABELS

Machine wash cycle

BLEACH LABELS

Bleach symbols

Normal

Any bleach

(when needed)

Permanent Press/

wrinkle resistant

Only non-chlorine bleach

Gentle/

delicate

(when needed)

Hand wash

Do not wash Do not wring

Do not bleach

Installation

Instructions

DETERGENT LABELS

Use only HE High-Efficiency detergent.

Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions

Installation Washer

Instructions WCVH4800 and WCVH4815

If you have any questions, call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com

In Canada, call 1.800.561.3344

or visit www.GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT – Save these instructions

for local inspector’s use.

•

IMPORTANT – Observe all governing

codes and ordinances.

• Note to Installer – Be sure to leave these

instructions with the Consumer.

• Note to Consumer – Keep these instructions

for future reference.

• Skill level – Installation of this appliance requires

basic mechanical and electrical skills.

• Completion time – 1-3 hours

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not

covered under the Warranty.

TOOLS REQUIRED FOR WASHER INSTALLATION

 Wrench (provided)  Channel-lock adjustable pliers  Carpenter’s level

PARTS SUPPLIED

 Wrench

 Water Hoses (2)

FOR YOUR SAFETY:

WARNING

• This appliance must be properly grounded and

installed as described in these Installation Instructions.

• Do not install or store appliance in an area where

it will be exposed to water/weather. See Location of Your Washer section.

• NOTE: This appliance must be properly grounded, and electrical service to the washer must conform with local codes and ordinances and the latest edition of the National Electrical Code, ANSI/NFPA 70.

 Hose Guide

 Hose Fittings (4)

 Shipping Bolt

Hole Covers (4)

 Detergent Cup

Installation Instructions

LOCATION OF YOUR WASHER

Do Not Install the Washer:

1. In an area exposed to dripping water or outside

weather conditions. The ambient temperature should never be below 60°F (15.6°C) for proper washer operation.

2. In an area where it will come in contact with curtains

or drapes.

3. On carpet. The floor MUST be a hard surface with

a maximum slope of 1/2” per foot (1.27 cm per 30 cm). To make sure the washer does not vibrate or move, you may have to reinforce the floor.

NOTE: If floor is in poor condition, use 3/4” impregnated plywood sheet solidly attached to existing floor covering.

IMPORTANT:

Minimum Installation Clearances

• When installed in alcove: Sides, Rear,

Top = 0” (0 cm)

• When installed in closet: Sides, Rear,

Top = 0” (0 cm), Front = 1” (2.54 cm)

• Closet door ventilation openings required:

2 louvers each 60 square in. (387 cm (7.6 cm) from top and bottom of door

), located 3”

ROUGH-IN DIMENSIONS

FRONT

23.5”

(597 mm)

33.4”*

(849 mm)

SIDE

26.6”

(676.5 mm)

CONTRACTOR DIMENSIONS

BACK

21”

(533 mm)

(159 mm)

4”

(102 mm)

(756 mm)

27.75”

(705 mm)

6.25”

33.4”*

(849 mm)

29.75”

*NOTE:

Washer legs have 0.75” (19 mm) adjustability. Stacked: 67.7” (171.8 cm)

Installation Instructions

UNPACKING THE WASHER

WARNING: Recycle or destroy the carton

and plastic bags after the washer is unpacked. Make materials inaccessible to children. Children might use them for play. Cartons covered with rugs, bedspreads or plastic sheets can become airtight chambers causing suffocation.

1. Cut and remove all packaging straps.

2. While it is in the carton, carefully lay the washer on its

side. DO NOT lay the washer on its front or back.

3. Turn down the bottom flaps. Remove all base packaging

including the styrofoam base.

4. Carefully return the washer to an upright position and

remove the carton by lifting it upward.

5. Carefully move the washer to within 4 feet (122cm)

of the final location.

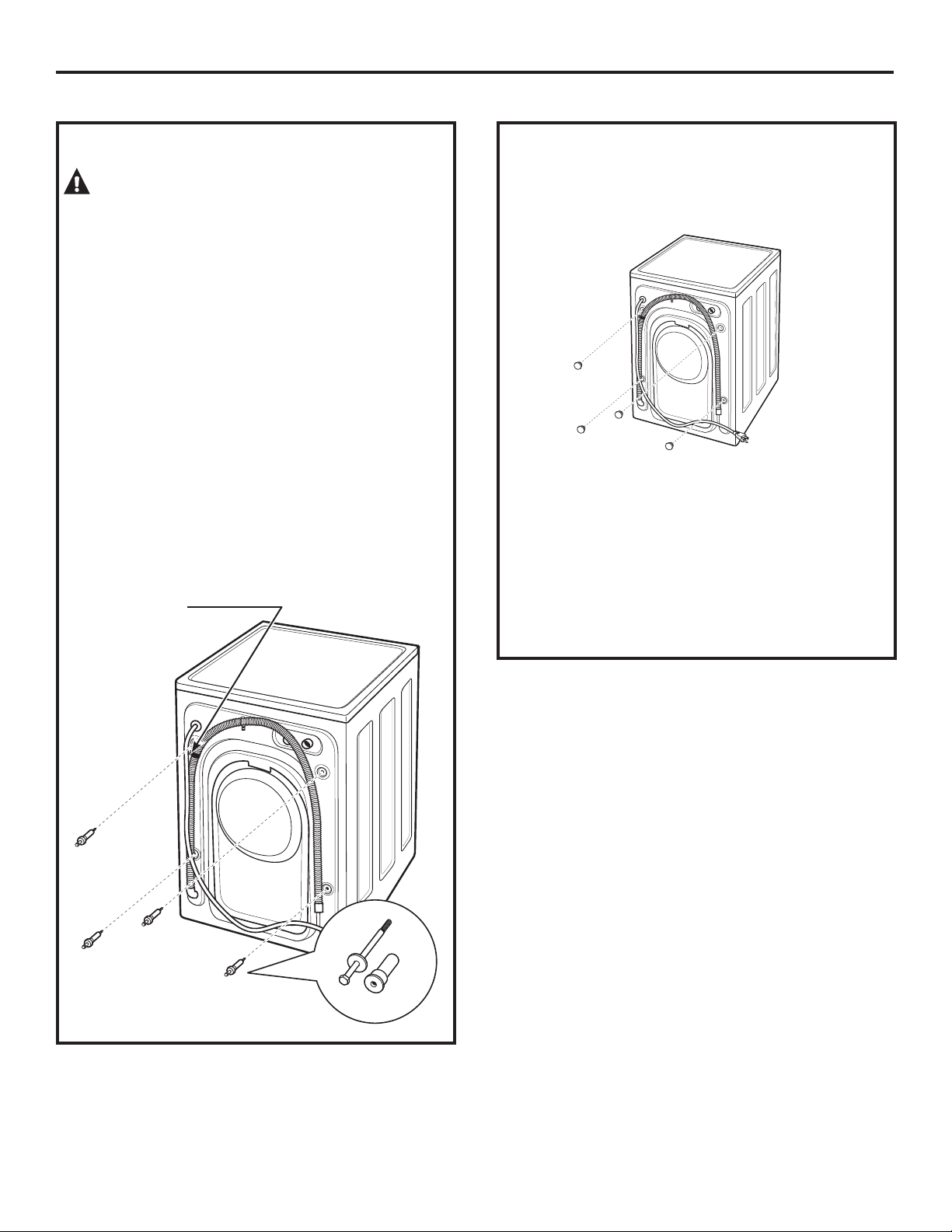

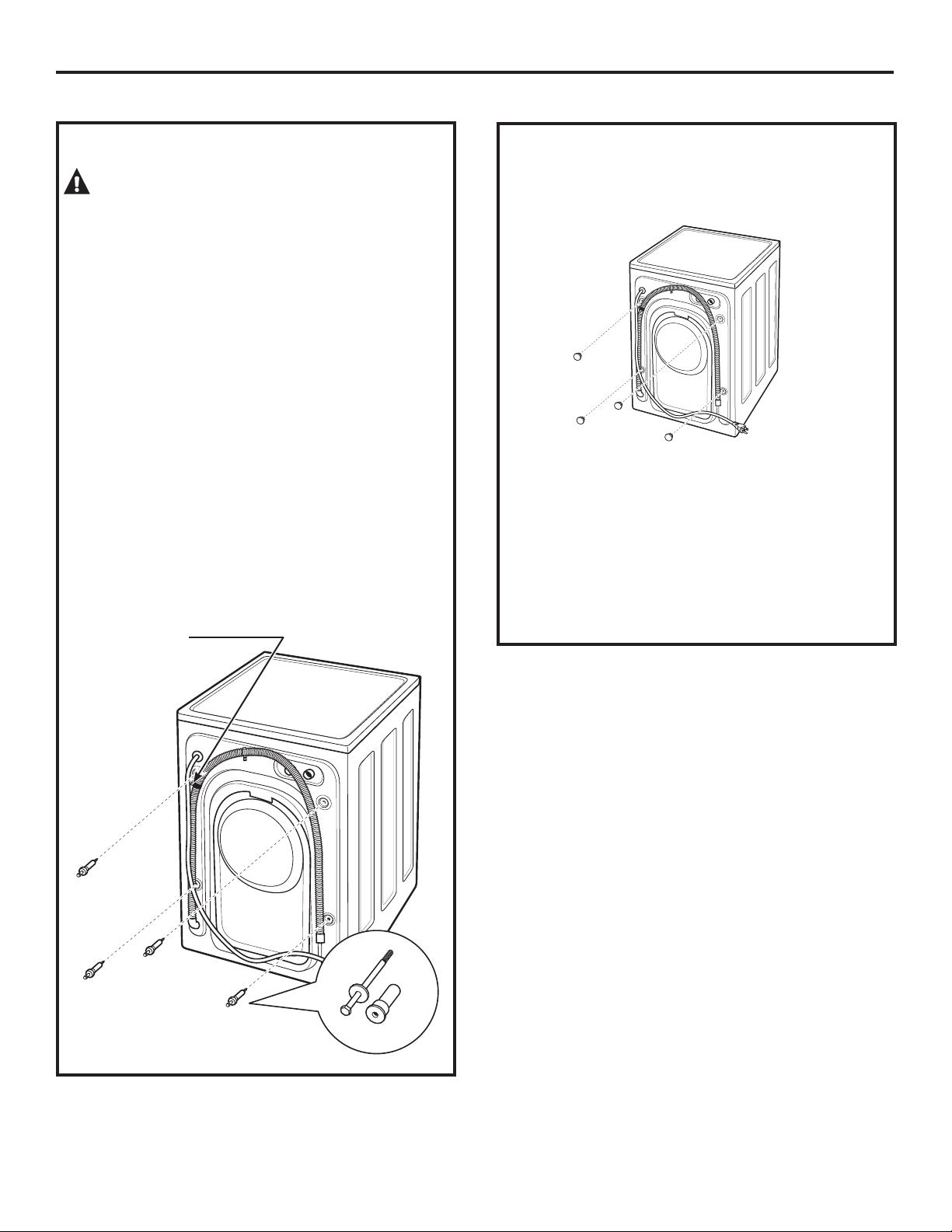

6. Remove the following from the back side of the washer: 4 bolts 4 plastic spacers (including rubber grommets)

Do not remove screw or clip

UNPACKING THE WASHER (cont.)

7. Insert shipping bolt hole covers into shipping bolt holes.

NOTES:

• Failure to remove the shipping braces can cause

the washer to become severely unbalanced.

• Save all bolts for future use.

• If you must transport the washer at a later date, you must

reinstall the shipping support hardware to prevent shipping damage. Keep the hardware in the plastic bag provided.

Installation Instructions

ELECTRICAL REQUIREMENTS

Read these instructions completely and carefully.

:$51,1*³TO REDUCE THE RISK OF

FIRE, ELECTRICAL SHOCK AND PERSONAL INJURY:

• DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.

Washer must be electrically grounded in accordance

with local codes and ordinances or, in the absence of local codes, in accordance with the NATIONAL ELECTRICAL CODE, ANSI/NFPA NO. 70.

CIRCUIT – Individual, properly polarized and grounded

15-amp branch circuit fused with 15-amp, time-delay fuse or circuit breaker.

POWER SUPPLY – 2-wire, with ground, 120-volt, single-phase, 60-Hz, Alternating Current.

OUTLET RECEPTACLE – Properly grounded 3-prong receptacle to be located so the power supply cord is accessible when the washer is in an installed position.

WATER SUPPLY REQUIREMENTS

Hot and cold water faucets MUST be installed within 42 inches (107 cm) of your washer’s water inlet. The faucets MUST be 3/4” (1.9 cm) garden hose-type so inlet hoses can be connected. Water pressure MUST be between 10 and 120 pounds per square inch. Your water department can advise you of your water pressure. The hot water temperature should be set to deliver water at 120° to 140°F (48°–60°C) to provide proper Automatic Temperature Control (ATC) performance.

DRAIN REQUIREMENTS

1. Drain capable of eliminating 9.5 gals (36 L) per minute.

2. A standpipe diameter of 1-1/4” (3.18 cm) minimum.

3. The standpipe height above the floor should be:

Minimum height: 30” (76 cm)

Maximum height: 58” (147 cm)

58”

(147 cm)

Max.

GROUNDING REQUIREMENTS

WARNING: Improper connection of the

equipment-grounding conductor can result in a risk of electrical shock. Check with a licensed electrician if you are in doubt as to whether the appliance is properly grounded.

1. The washer MUST be grounded. In the event of

malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electrical current.

2. Since your washer is equipped with a power supply

cord having an equipment-grounding conductor and a grounding plug, the plug MUST be plugged into an appropriate, copper-wired receptacle that is properly installed and grounded in accordance with all local codes and ordinances or in the absence of local codes, with the National Electrical Codes, ANSI/NFPA 70 (latest edition). If in doubt, call a licensed electrician. DO NOT cut off or alter the grounding prong on the power supply cord. In situations where a two-slot receptacle is present, it is the owner’s responsibility to have a licensed electrician replace it with a properly grounded three-prong, grounding-type receptacle.

BACK

30”

(76 cm)

Min.

Installation Instructions

INSTALLING THE WASHER

1. Run some water from the hot and cold faucets to flush

the water lines and remove particles that might clog the water valve screens.

2. Remove the inlet hoses from the plastic bag. Remove

black rubber washers from bag and insert into hose fitting before connecting to unit.

3. (90° elbow end)

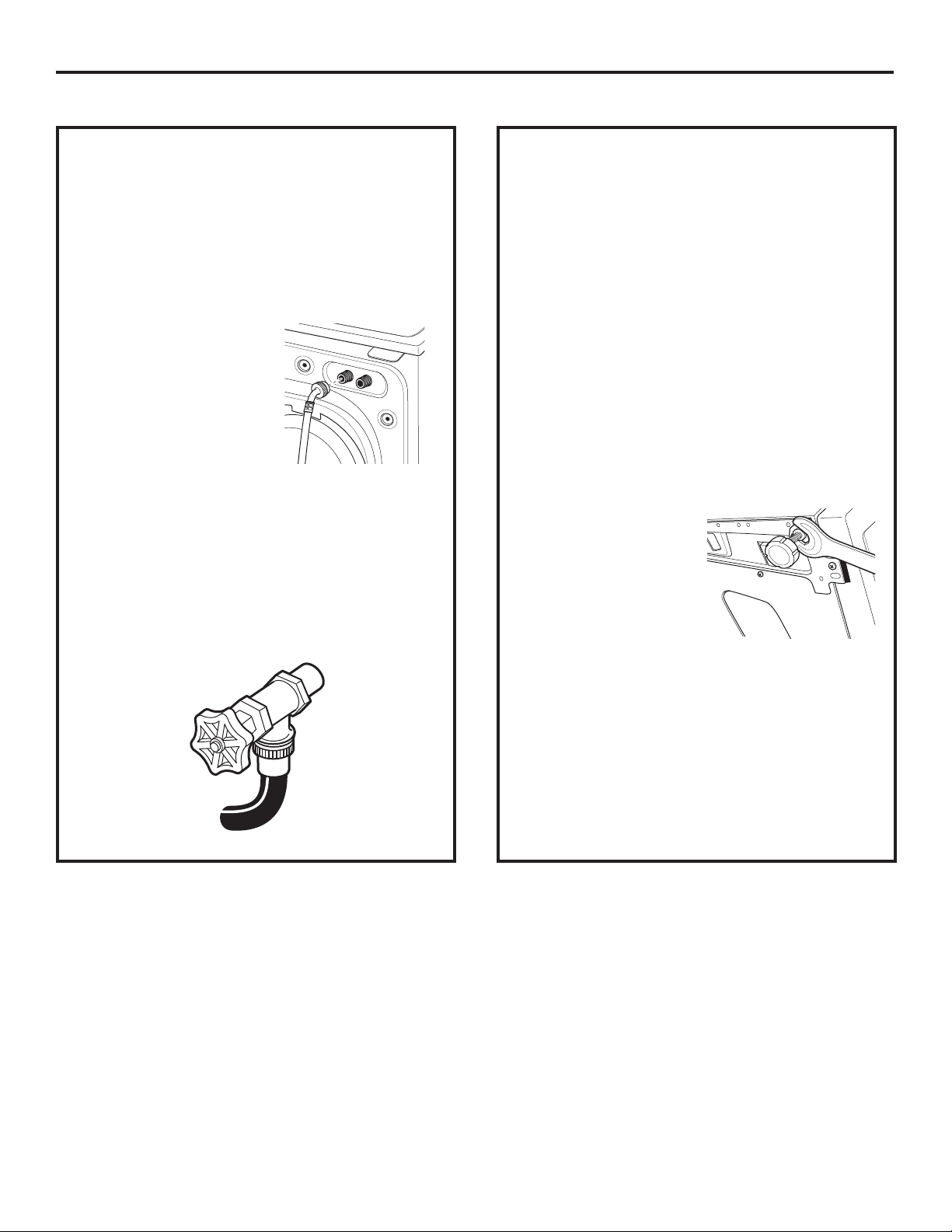

Carefully connect the inlet hose marked HOT to the outside “H” outlet of the water valve. Tighten by hand; then tighten another 2/3 turn with pliers. Carefully connect the other inlet hose to the inside “C” outlet of the water valve. Tighten by hand; then tighten another 2/3 turn with pliers. Do not cross-thread

or overtighten these connections.

4. Connect the inlet hose ends to the HOT and COLD water

faucets tightly by hand; then tighten another 2/3 turn with pliers. Turn the water on and check for leaks.

5. Carefully move the washer to its final location. Gently rock

the washer into position. It is important not to damage the rubber leveling legs when moving your washer to its final location. Damaged legs can increase washer vibration. It may be helpful to spray window cleaner on the floor to help move your washer into its final position.

NOTE: To reduce vibration, ensure that all four rubber leveling legs are firmly touching the floor. Push and pull on the back right and then back left of your washer.

NOTE: Do not use the dispenser drawer or door to lift

the washer.

NOTE: If you are installing into a drain pan, you can use

a 24-inch-long 2x4 to lever the washer into place.

6. With the washer in its

final position, place a level on top of the washer (if the washer is installed under a counter, the washer should not be able to rock). Adjust the front leveling legs up or down to ensure the washer is resting solidly. Turn the locknuts on each leg up toward the base of the washer and snug with a wrench.

NOTE: Keep the leg extension at a minimum to prevent

excessive vibration. The farther out the legs are extended, the more the washer will vibrate.

If the floor is not level or is damaged, you may have

to extend the rear leveling legs.

Installation Instructions

INSTALLING THE WASHER

7. Attach U-shaped hose guide to the end of the drain

hose. Place the hose in a laundry tub or standpipe.

NOTE: If the drain hose is placed in a standpipe without

forming a U shape, a siphoning action could occur. There must be an air gap around the drain hose. A snug hose fit can also cause a siphoning action.

8. Plug the power cord into a grounded outlet.

(cont.)

9. Turn on the power at the circuit breaker/fuse box.

10. Read the rest of this Owner’s Manual. It contains

valuable and helpful information that will save you time and money.

11. Before starting the washer, check to make sure: Main power is turned on.

The washer is plugged in. The water faucets are turned on. The unit is level and all four leveling legs are firmly

on the floor.

The shipping support hardware is removed

and saved. The drain hose is properly tied up. There are no leaks at the faucet, drain line

or washer.

12. Run the washer through a complete cycle.

Check for water leaks and proper operation.

13. If your washer does not operate, please review

the Before you call for service section before calling for service.

14. Place these instructions in a location near the washer

for future reference.

NOTE: Check to be sure the power is off at the circuit

breaker/fuse box before plugging the power cord into an outlet.

REPLACEMENT PARTS

If replacement parts are needed for your washer, they can be ordered in the United States by visiting our Website at GEAppliances.com or by calling 800.GE.CARES. In Canada, visit www.GEAppliances.ca or call 1.800.561.3344.

Before you call for service… GEAppliances.com

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Cause What To Do

Not spinning or agitating Drain hose is kinked or • Straighten drain hose and make sure washer is not

improperly connected sitting on it.

Household drain may • Check household plumbing. You may need to call be clogged a plumber.

Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down in the drain

Washer pump filter may • Clean Pump Filter – Open the pump access door (use a coin)

be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.

Load is out of balance • Redistribute clothes and run Drain & Spin or Rinse & Spin.

• Increase load size if washing small load containing heavy

and light items.

Leaking water Door gasket is damaged • Check to see if gasket is seated and not torn. Objects left in pockets may cause damage to the washer (nails, screws, pens, pencils).

Door gasket not damaged • Water may drip from the door when the door is opened. This is a normal operation.

Check back left of washer • If this area is wet, you have oversudsing condition. for water Use less detergent.

Fill hoses or drain hose is • Make sure hose connections are tight at washer and

improperly connected faucets and make sure end of drain hose is correctly inserted in and secured to drain facility.

Household drain may • Check household plumbing. You may need to call be clogged a plumber.

Not draining Drain hose is kinked or • Straighten drain hose and make sure washer is not

improperly connected sitting on it.

Household drain may • Check household plumbing. You may need to call be clogged a plumber.

Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down in the drain

Washer pump filter may • Clean Pump Filter – Open the pump access door (use a coin)

be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.

Not spinning Drain hose is kinked or • Straighten drain hose and make sure washer is not sitting on it.

improperly connected

Household drain may • Check household plumbing. You may need to call a plumber. be clogged

Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down in the drain

Washer pump filter may • Clean Pump Filter – Open the pump access door (use a coin)

be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.

Load is out of balance • Redistribute clothes and run Drain & Spin or Rinse & Spin.

• Increase load size if washing small load containing heavy

and light items. Motor is overheated • Washer motor will stop if it becomes overheated. It will

automatically restart after a cool-down period of up to 2 hours (if washer has not been manually turned off).

Door is open • Make sure door is closed.

Instructions

Installation

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

Before you call for service…

Problem Possible Cause What To Do

Incomplete cycle or timer Drain hose is kinked or • Straighten drain hose and make sure washer is not not advancing improperly connected sitting on it.

Household drain may • Check household plumbing. You may need to call be clogged a plumber.

Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain. pushed too far down in the drain

Washer pump filter may • Clean Pump Filter – Open the pump access door (use a coin) be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.

Automatic load redistribution • Timer stops at 1 minute; machine has redistributed the load once or twice. This is normal operation. Do nothing;

the machine will finish the wash cycle.

Loud or unusual noise; Cabinet moving • Washer is designed to move 1/4” to reduce forces vibration or shaking transmitted to the floor. This movement is normal.

All rubber leveling legs are not • Push and pull on the back right and then back left of your firmly touching the floor washer to check if it is level. If the washer is uneven, adjust the rubber leveling legs so they are all firmly touching the floor. Your installer should correct this problem.

Unbalanced load • Open door and manually redistribute load. To check machine, run rinse and spin with no load. If normal, unbalance was caused by load.

Shipping bolts not removed • All five (5) shipping bolts should be removed before use. Clothes too wet Drain hose is kinked or • Straighten drain hose and make sure washer is not

improperly connected sitting on it.

Household drain may • Check household plumbing. You may need to call be clogged a plumber.

Installation

Drain hose siphoning; drain hose • Ensure there is an air gap between hose and drain.

Instructions

pushed too far down the drain Washer pump filter may • Clean Pump Filter – Open the pump access door (use a coin)

be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.

Load is out of balance • Redistribute clothes and run Drain & Spin or Rinse & Spin.

• Increase load size if washing small load containing heavy

and light items.

No power/washer not Drain hose is kinked or • Straighten drain hose and make sure washer is not

working or dead improperly connected sitting on it.

Household drain may • Check household plumbing. You may need to call be clogged a plumber.

Drain hose pushed too far • Ensure there is an air gap between hose and drain. down in the drain

Washer pump filter may • Clean Pump Filter – Open the pump access door (use a coin)

be clogged and remove the pump filter by turning it counterclockwise and pulling out. Clean the filter, removing all loose debris, and put filter back in place.

Washer is unplugged • Make sure cord is plugged securely into a working outlet. Water supply is turned off • Turn both hot and cold faucets fully on.

Circuit breaker/fuse is • Check house circuit breakers/fuses. Replace fuses or tripped/blown reset breaker. Washer should have separate outlet.

Controls are not set properly • Hold START/PAUSE button to start cycle.

Automatic self-system checks • First time the washer is plugged in, automatic checks occur. It may take up to 20 seconds before you can use

Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions

your washer. This is normal operation.

GEAppliances.com

Problem Possible Cause What To Do

Water does not enter Automatic self-system checks • After START is pressed, the washer does several system checks.

washer or enters slowly Water will flow several seconds after START is pressed.

from the upper back of the washer. Use a brush or toothpick to clean the screens in the machine. Reconnect the hoses and turn the water back on.

Filter clogged or fill hose may • Make sure that the water valve filters (blue and orange screen be kinked must be free of solids) on the unit are not clogged. Turn off water

and check filter by disconnecting hose at machine. Check that fill hoses are not kinked or clogged.

for this washer may be different than for a non-energy-efficient washer.

water faucets are turned to their completely open position. The washer door is open • The washer door must be closed for all washer cycle operations.

If the door is opened during the washer operation, all functions will stop, including water filling.

Incorrect fill hose connection • Make sure that the fill hoses connect the hot water supply to the hot inlet on the washer and the cold water supply to the cold inlet on the washer (hot to hot, cold to cold).

Water fill optimization • Water may not cover the top level of the clothes. This is normal for this high-efficiency washer. The water fill is optimized by the system for best wash performance.

Snags, holes, tears, rips Pens, pencils, nails, screws or • Remove loose items from pockets.

or excessive wear other objects left in pockets

Pins, snaps, hooks, sharp buttons, • Fasten snaps, hooks, buttons and zippers. belt buckles, zippers and sharp objects left in pockets

Wrinkling Improper sorting • Avoid mixing heavy items (like work clothes) with light items (like blouses).

Overloading • Load your washer so clothes have enough room to move freely. Incorrect wash cycle •

(especially for easy-care loads). Repeated washing in water that is too hot • Wash in warm or cold water.

Grayed or yellowed Not enough detergent • Use correct amount of detergent. clothes

• Use a water conditioner like Calgon brand or install a water softener.

Water is not hot enough • Make sure water heater is delivering water at 120°–140°F (48°–60°C).

Detergent is not dissolving • Try a liquid detergent. Dye transfer • Sort clothes by color. If fabric label states wash separately,

unstable dyes may be indicated. Colored spots Incorrect use of fabric softener • Check fabric softener package for instructions and follow

directions for using dispenser. Dye transfer • Sort whites or lightly colored items from dark colors.

• Promptly remove wash load from washer.

Water temperature Water supply is improperly • Make sure hoses are connected to correct faucets. is incorrect connected

House water heater is not set • Make sure house water heater is delivering water

properly at 120°–140°F (48°–60°C).

Bad odor inside Washer unused for a long time • Leave the door slightly open for the water to air dry.

your washer

manufactured for this use such as Tide See Care and Cleaning/General Maintenance in the Loading and using the washer section.

Slight variation This is normal • Due to the metallic properties of paint used for this unique in metallic color product, slight variations of color may occur due to viewing

angles and lighting conditions.

Water valve screens are stopped up • Turn off the water source and remove the water connection hoses

Insufficient water supply • Make sure that the water supply is turned on. Make sure that the

Hard water • Use hottest water safe for fabric.

Energy efficiency • This is an energy-efficient washer. As a result, the temperature settings

Match Cycle selection to the type of fabric you are washing

Not using HE (high-efficiency) detergent • Use HE detergent.

or not using recommended quality of HE detergent

• Run a Basket Clean cycle (found in the Washer cycles menu)

with 1 cup of bleach or other commercially available product

Washing Machine Cleaner.

Instructions

Installation

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

GE Washer Warranty. (For customers in the United States)

All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number availa ble when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

For The Period Of: We Will Replace:

One Year Any part of the washer which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and related service original purchase costs to replace the defective part.

What Is Not Covered (in the United States):

 Service trips to your home to teach you how to use

the product.

 Improper installation, delivery or maintenance.  Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

 Damage after delivery.

 Replacement of house fuses or resetting of circuit

breakers.

 Damage to the product caused by accident, fire, floods

or acts of God.

 Incidental or consequential damage caused by possible

defects with this appliance.

 Product not accessible to provide required service.

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV/LPLWHG

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Installation

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use

Instructions

within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Consumer Support Troubleshooting Tips Operating Instructions Safety Instructions

GE Washer Warranty. (For customers in Canada)

All warranty service provided by our Factory Service Centres or an authorized technician. For service, call 1.800.561.3344. Please have serial number and model number available when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

For The Period Of: We Will Replace:

One Year Any part of the washer which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty, Mabe will also provide, free of charge, all labour and related original purchase service costs to replace the defective part.

What Is Not Covered (in Canada):

 Service trips to your home to teach you how to use

the product.

 Improper installation, delivery or maintenance.  Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

 Damage after delivery.

(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV/LPLWHG

Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

 Replacement of house fuses or resetting of circuit

breakers.

 Damage to the product caused by accident, fire, floods

or acts of God.

 Incidental or consequential damage caused by possible

defects with this appliance.

 Product not accessible to provide required service.

Instructions

Installation

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are in your province, consult your local or provincial consumer affairs office.

Warrantor: Mabe Canada Inc.,

Burlington, Ontario

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

+ 53 hidden pages
