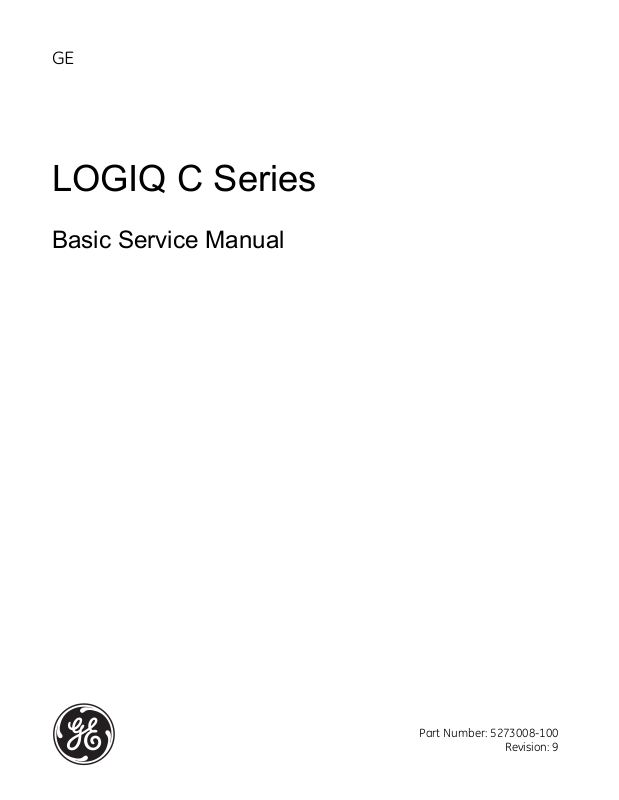

LOGIQ C Series

Basic Service Manual

Part Number: 5273008-100

Revision: 9

WARNING

(EN)

AVERTISSEMENT

(FR)

WARNUNG

(DE)

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Important Precautions

THIS SERVICE MANUAL IS AVAILABLE IN ENGLISH ONLY.

• IF A CUSTOMER’S SERVICE PROVIDER REQUIRES A LANGUAGE OTHER THAN ENGLISH, IT IS THE CUSTOMER’S RESPONSIBILITY TO PROVIDE TRANSLATION SERVICES.

• DO NOT ATTEMPT TO SERVICE THE EQUIPMENT UNLESS THIS SERVICE MANUAL HAS BEEN CONSULTED AND IS UNDERSTOOD.

• FAILURE TO HEED THIS WARNING MAY RESULT IN INJURY TO THE SERVICE PROVIDER, OPERATOR OR PATIENT FROM ELECTRIC SHOCK, MECHANICAL OR OTHER HAZARDS.

CE MANUEL DE MAINTENANCE N’EST DISPONIBLE QU’EN ANGLAIS.

• SI LE TECHNICIEN DU CLIENT A BESOIN DE CE MANUEL DANS UNE AUTRE LANGUE QUE L’ANGLAIS, C’EST AU CLIENT QU’IL INCOMBE DE LE FAIRE TRADUIRE.

• NE PAS TENTER D’INTERVENTION SUR LES éQUIPEMENTS TANT QUE LE MANUEL SERVICE N’A PAS éTé CONSULTé ET COMPRIS.

• LE NON-RESPECT DE CET AVERTISSEMENT PEUT ENTRAîNER CHEZ LE TECHNICIEN, L’OPéRATEUR OU LE PATIENT DES BLESSURES DUES à DES DANGERS éLECTRIQUES, Mé CANIQUES OU AUTRES.

DIESES KUNDENDIENST-HANDBUCH EXISTIERT NUR IN ENGLISCHER SPRACHE.

• FALLS EIN FREMDER KUNDENDIENST EINE ANDERE SPRACHE BENö TIGT, IST ES AUFGABE DES KUNDEN FüR EINE ENTSPRECHENDE ÜBERSETZUNG ZU SORGEN.

• VERSUCHEN SIE NICHT, DAS GERä T ZU REPARIEREN, BEVOR DIESES KUNDENDIENST-HANDBUCH NICHT ZU RATE GEZOGEN UND VERSTANDEN WURDE.

• WIRD DIESE WARNUNG NICHT BEACHTET, SO KANN ES ZU VERLETZUNGEN DES KUNDENDIENSTTECHNIKERS, DES BEDIENERS ODER DES PATIENTEN DURCH ELEKTRISCHE SCHLä GE, MECHANISCHE ODER SONSTIGE GEFAHREN KOMMEN.

AVISO

(ES)

ATENÇÃO

(PT-Br)

(PT-pt)

AVISO

AVVERTENZA

(IT)

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

ESTE MANUAL DE SERVICIO Só LO EXISTE EN INGLéS.

• SI ALGúN PROVEEDOR DE SERVICIOS AJENO A GEHC SOLICITA UN IDIOMA QUE NO SEA EL INGLéS, ES RESPONSABILIDAD DEL CLIENTE OFRECER UN SERVICIO DE TRADUCCIó N.

• NO SE DEBERá DAR SERVICIO TéCNICO AL EQUIPO, SIN HABER CONSULTADO Y COMPRENDIDO ESTE MANUAL DE SERVICIO.

• LA NO OBSERVANCIA DEL PRESENTE AVISO PUEDE DAR LUGAR A QUE EL PROVEEDOR DE SERVICIOS, EL OPERADOR O EL PACIENTE SUFRAN LESIONES PROVOCADAS POR CAUSAS ELéCTRICAS, MECá NICAS O DE OTRA NATURALEZA.

ESTE MANUAL DE ASSISTêNCIA TéCNICA Só SE ENCONTRA DISPONíVEL EM INGLêS.

• SE QUALQUER OUTRO SERVIç O DE ASSISTêNCIA Té CNICA, QUE Nã O A GEHC, SOLICITAR ESTES MANUAIS NOUTRO IDIOMA, é DA RESPONSABILIDADE DO CLIENTE FORNECER OS SERVIç OS DE TRADUç ã O.

• Nã O TENTE REPARAR O EQUIPAMENTO SEM TER CONSULTADO E COMPREENDIDO ESTE MANUAL DE ASSISTêNCIA TéCNICA.

• O Nã O CUMPRIMENTO DESTE AVISO PODE POR EM PERIGO A SEGURANç A DO TéCNICO, OPERADOR OU PACIENTE DEVIDO A‘ CHOQUES ELé TRICOS, MECâ NICOS OU OUTROS.

ESTE MANUAL DE ASSISTÊNCIA ESTÁ DISPONÍVEL APENAS EM INGLÊS.

• SE QUALQUER OUTRO SERVIÇO DE ASSISTÊNCIA TÉCNICA, QUE NÃO A GEHC, SOLICITAR ESTES MANUAIS NOUTRO IDIOMA, É DA RESPONSABILIDADE DO CLIENTE FORNECER OS SERVIÇOS DE TRADUÇÃO.

• NÃO TENTE EFECTUAR REPARAÇÕES NO EQUIPAMENTO SEM TER CONSULTADO E COMPREENDIDO PREVIAMENTE ESTE MANUAL.

• A INOBSERVÂNCIA DESTE AVISO PODE RESULTAR EM FERIMENTOS NO TÉCNICO DE ASSISTÊNCIA, OPERADOR OU PACIENTE EM CONSEQUÊNCIA DE CHOQUE ELÉCTRICO, PERIGOS DE ORIGEM MECÂNICA, BEM COMO DE OUTROS TIPOS.

IL PRESENTE MANUALE DI MANUTENZIONE è DISPONIBILE SOLTANTO IN INGLESE.

• SE UN ADDETTO ALLA MANUTENZIONE ESTERNO ALLA GEHC RICHIEDE IL MANUALE IN UNA LINGUA DIVERSA, IL CLIENTE è TENUTO A PROVVEDERE DIRETTAMENTE ALLA TRADUZIONE.

• SI PROCEDA ALLA MANUTENZIONE DELL’APPARECCHIATURA SOLO DOPO AVER CONSULTATO IL PRESENTE MANUALE ED AVERNE COMPRESO IL CONTENUTO.

• NON TENERE CONTO DELLA PRESENTE AVVERTENZA POTREBBE FAR COMPIERE OPERAZIONI DA CUI DERIVINO LESIONI ALL’ADDETTO ALLA MANUTENZIONE, ALL’UTILIZZATORE ED AL PAZIENTE PER FOLGORAZIONE ELETTRICA, PER URTI MECCANICI OD ALTRI RISCHI.

ii -

HOIATUS

(ET)

VAROITUS

(FI)

ΠΡΟΕΙ∆ΟΠΟΙΗΣΗ

(EL)

FIGYELMEZTETÉS

(HU)

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

KÄESOLEV TEENINDUSJUHEND ON SAADAVAL AINULT INGLISE KEELES.

• KUI KLIENDITEENINDUSE OSUTAJA Nõ UAB JUHENDIT INGLISE KEELEST ERINEVAS KEELES, VASTUTAB KLIENT Tõ LKETEENUSE OSUTAMISE EEST.

• ä RGE üRITAGE SEADMEID TEENINDADA ENNE EELNEVALT Kä ESOLEVA TEENINDUSJUHENDIGA TUTVUMIST JA SELLEST ARU SAAMIST.

• Kä ESOLEVA HOIATUSE EIRAMINE Võ IB Põ HJUSTADA TEENUSEOSUTAJA, OPERAATORI Võ I PATSIENDI VIGASTAMIST ELEKTRILö ö GI, MEHAANILISE Võ I MUU OHU TAGAJä RJEL.

TÄMÄ HUOLTO-OHJE ON SAATAVILLA VAIN ENGLANNIKSI.

• JOS ASIAKKAAN PALVELUNTARJOAJA VAATII MUUTA KUIN ENGLANNINKIELISTä MATERIAALIA, TARVITTAVAN Kä ä NNö KSEN HANKKIMINEN ON ASIAKKAAN VASTUULLA.

• ä Lä YRITä KORJATA LAITTEISTOA ENNEN KUIN OLET VARMASTI LUKENUT JA YMMä RTä NYT Tä Mä N HUOLTO-OHJEEN.

• MIKä LI Tä Tä VAROITUSTA EI NOUDATETA, SEURAUKSENA VOI OLLA PALVELUNTARJOAJAN, LAITTEISTON Kä YTTä Jä N TAI POTILAAN VAHINGOITTUMINEN Sä HKö ISKUN, MEKAANISEN VIAN TAI MUUN VAARATILANTEEN VUOKSI.

ΤΟ ΠΑΡΟΝ ΕΓΧΕΙΡΙ∆ΙΟ ΣΕΡΒΙΣ ∆ΙΑΤΙΘΕΤΑΙ ΣΤΑ ΑΓΓΛΙΚΑ ΜΟΝΟ.

• ΕΑΝ ΤΟ ΑΤΟΜΟ ΠΑΡΟΧΗΣ ΣΕΡΒΙΣ ΕΝΟΣ ΠΕΛΑΤΗ ΑΠΑΙΤΕΙ ΤΟ ΠΑΡΟΝ

ΕΓΧΕΙΡΙ∆ΙΟ ΣΕ ΓΛΩΣΣΑ ΕΚΤΟΣ ΤΩΝ ΑΓΓΛΙΚΩΝ, ΑΠΟΤΕΛΕΙ ΕΥΘΥΝΗ ΤΟΥ ΠΕΛΑΤΗ ΝΑ ΠΑΡΕΧΕΙ ΥΠΗΡΕΣΙΕΣ ΜΕΤΑΦΡΑΣΗΣ.

• ΜΗΝ ΕΠΙΧΕΙΡΗΣΕΤΕ ΤΗΝ ΕΚΤΕΛΕΣΗ ΕΡΓΑΣΙΩΝ ΣΕΡΒΙΣ ΣΤΟΝ ΕΞΟΠΛΙΣΜΟ ΕΚΤΟΣ

ΕΑΝ ΕΧΕΤΕ ΣΥΜΒΟΥΛΕΥΤΕΙ ΚΑΙ ΕΧΕΤΕ ΚΑΤΑΝΟΗΣΕΙ ΤΟ ΠΑΡΟΝ

ΕΓΧΕΙΡΙ∆ΙΟ ΣΕΡΒΙΣ.

• ΕΑΝ ∆Ε ΛΑΒΕΤΕ ΥΠΟΨΗ ΤΗΝ ΠΡΟΕΙ∆ΟΠΟΙΗΣΗ ΑΥΤΗ, ΕΝ∆ΕΧΕΤΑΙ ΝΑ ΠΡΟΚΛΗΘΕΙ ΤΡΑΥΜΑΤΙΣΜΟΣ ΣΤΟ ΑΤΟΜΟ ΠΑΡΟΧΗΣ ΣΕΡΒΙΣ, ΣΤΟ ΧΕΙΡΙΣΤΗ Ή ΣΤΟΝ ΑΣΘΕΝΗ ΑΠΟ ΗΛΕΚΤΡΟΠΛΗΞΙΑ, ΜΗΧΑΝΙΚΟΥΣ Ή ΑΛΛΟΥΣ ΚΙΝ∆ΥΝΟΥΣ.

EZEN KARBANTARTÁSI KÉZIKÖNYV KIZÁRÓLAG ANGOL NYELVEN ÉRHETŐ EL.

• HA A VEVŐ SZOLGÁLTATÓJA ANGOLTÓL ELTÉRŐ NYELVRE TART IGÉNYT, AKKOR A VEVŐ FELELŐSSÉGE A FORDÍTÁS ELKÉSZÍTTETÉSE.

• NE PRÓBÁLJA ELKEZDENI HASZNÁLNI A BERENDEZÉST, AMÍG A KARBANTARTÁSI KÉZIKÖNYVBEN LEÍRTAKAT NEM ÉRTELMEZTÉK.

• EZEN FIGYELMEZTETÉS FIGYELMEN KÍVÜL HAGYÁSA A SZOLGÁLTATÓ, MŰKÖDTETŐ VAGY A BETEG ÁRAMÜTÉS, MECHANIKAI VAGY EGYÉB VESZÉLYHELYZET MIATTI SÉRÜLÉSÉT EREDMÉNYEZHETI.

iii

VIÐVÖRUN

(IS)

VÝSTRAHA

(CS)

ADVARSEL

(DA)

WAARSCHUWING

(NL)

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

ÞESSI ÞJÓNUSTUHANDBÓK ER EINGÖNGU FÁANLEG Á ENSKU.

• EF ÞJÓNUSTUAÐILI VIÐSKIPTAMANNS ÞARFNAST ANNARS TUNGUMÁLS EN ENSKU, ER ÞAÐ Á ÁBYRGÐ VIÐSKIPTAMANNS AÐ ÚTVEGA ÞÝÐINGU.

• REYNIÐ EKKI AÐ ÞJÓNUSTA TÆKIÐ NEMA EFTIR AÐ HAFA SKOÐAÐ OG SKILIÐ ÞESSA ÞJÓNUSTUHANDBÓK.

• EF EKKI ER FARIÐ AÐ ÞESSARI VIÐVÖRUN GETUR ÞAÐ VALDIÐ MEIÐSLUM ÞJÓNUSTUVEITANDA, STJÓRNANDA EÐA SJÚKLINGS VEGNA RAFLOSTS, VÉLRÆNNAR EÐA ANNARRAR HÆTTU.

TENTO SERVISNÍ NÁVOD EXISTUJE POUZE V ANGLICKé M JAZYCE.

•VPř íPADě, ŽE POSKYTOVATEL SLUŽEB ZÁKAZNÍKŮM POTř EBUJE Ná VOD V JINéM JAZYCE, JE ZAJIšTě Ní Př EKLADU DO ODPOVíDAJíCíHO JAZYKA úKOLEM Zá KAZNíKA.

• NEPROVÁDĚJTE úDRŽBU TOHOTO ZAř íZENí, ANIŽ BYSTE SI Př Eč ETLI TENTO SERVISNÍ NÁVOD A POCHOPILI JEHO OBSAH.

•VPř íPADě NEDODRŽOVá Ní TéTO VýSTRAHY MůŽE DOJíT ÚRAZU ELEKTRICKÁM PROUDEM PRACOVNíKA POSKYTOVATELE SLUŽEB, OBSLUŽNéHO PERSONá LU NEBO PACIENTů VLIVEM ELEKTRICKéHOP PROUDU, RESPEKTIVE VLIVEM K RIZIKU MECHANICKÉHO POŠKOZENÍ NEBO JINÉMU RIZIKU.

DENNE SERVICEMANUAL FINDES KUN PÅ ENGELSK.

• HVIS EN KUNDES TEKNIKER HAR BRUG FOR ET ANDET SPROG END ENGELSK, ER DET KUNDENS ANSVAR AT SØRGE FOR OVERSÆTTELSE.

• FORSØG IKKE AT SERVICERE UDSTYRET MEDMINDRE DENNE SERVICEMANUAL ER BLEVET LÆST OG FORSTÅET.

• MANGLENDE OVERHOLDELSE AF DENNE ADVARSEL KAN MEDFŘRE SKADE PĹ GRUND AF ELEKTRISK, MEKANISK ELLER ANDEN FARE FOR TEKNIKEREN, OPERATŘREN ELLER PATIENTEN.

DEZE ONDERHOUDSHANDLEIDING IS ENKEL IN HET ENGELS VERKRIJGBAAR.

• ALS HET ONDERHOUDSPERSONEEL EEN ANDERE TAAL VEREIST, DAN IS DE KLANT VERANTWOORDELIJK VOOR DE VERTALING ERVAN.

• PROBEER DE APPARATUUR NIET TE ONDERHOUDEN VOORDAT DEZE ONDERHOUDSHANDLEIDING WERD GERAADPLEEGD EN BEGREPEN IS.

• INDIEN DEZE WAARSCHUWING NIET WORDT OPGEVOLGD, ZOU HET ONDERHOUDSPERSONEEL, DE OPERATOR OF EEN PATIËNT GEWOND KUNNEN RAKEN ALS GEVOLG VAN EEN ELEKTRISCHE SCHOK, MECHANISCHE OF ANDERE GEVAREN.

iv -

BRĪDINĀJUMS

(LV)

ĮSPĖJIMAS

(LT)

ADVARSEL

(NO)

OSTRZEŻENIE

(PL)

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

šĪ APKALPES ROKASGRĀMATA IR PIEEJAMA TIKAI ANGĻU VALODĀ.

• JA KLIENTA APKALPES SNIEDZĒJAM NEPIECIEŠAMA INFORMĀCIJA CITĀ VALODĀ, NEVIS ANGĻU, KLIENTA PIENĀKUMS IR NODROŠINĀT TULKOŠANU.

• NEVEICIET APRĪKOJUMA APKALPI BEZ APKALPES ROKASGRĀMATAS IZLASĪŠANAS UN SAPRAŠANAS.

•ŠĪ BRĪDINĀJUMA NEIEVĒROŠANA VAR RADĪT ELEKTRISKĀS STRĀVAS TRIECIENA, MEHĀNISKU VAI CITU RISKU IZRAISĪTU TRAUMU APKALPES SNIEDZĒJAM, OPERATORAM VAI PACIENTAM.

ŠIS EKSPLOATAVIMO VADOVAS YRA IŠLEISTAS TIK ANGLŲ KALBA.

• JEI KLIENTO PASLAUGŲ TEIKĖJUI REIKIA VADOVO KITA KALBA – NE ANGLŲ, VERTIMU PASIRŪPINTI TURI KLIENTAS.

•NEMĖGINKITE ATLIKTI ĮRANGOS TECHNINĖS PRIEŽIŪROS DARBŲ, NEBENT VADOVAUTUMĖTĖS ŠIUO EKSPLOATAVIMO VADOVU IR JĮ SUPRASTUMĖTE

• NEPAISANT ŠIO PERSPĖJIMO, PASLAUGŲ TEIKĖJAS, OPERATORIUS AR PACIENTAS GALI BŪTI SUŽEISTAS DĖL ELEKTROS SM

ŪGIO, MECHANINIŲ AR

KITŲ PAVOJŲ.

DENNE SERVICEHÅNDBOKEN FINNES BARE PÅ ENGELSK.

• HVIS KUNDENS SERVICELEVERANDØR TRENGER ET ANNET SPRÅK, ER DET KUNDENS ANSVAR Å SØRGE FOR OVERSETTELSE.

• IKKE FORSØK Å REPARERE UTSTYRET UTEN AT DENNE SERVICEHÅNDBOKEN ER LEST OG FORSTÅTT.

• MANGLENDE HENSYN TIL DENNE ADVARSELEN KAN FØRE TIL AT SERVICELEVERANDØREN, OPERATØREN ELLER PASIENTEN SKADES PÅ GRUNN AV ELEKTRISK STØT, MEKANISKE ELLER ANDRE FARER.

NINIEJSZY PODRĘCZNIK SERWISOWY DOSTĘPNY JEST JEDYNIE W JĘZYKU ANGIELSKIM.

•JEśLI FIRMA ś WIADCZĄCA KLIENTOWI USłUGI SERWISOWE WYMAGA UDOSTęPNIENIA PODRę CZNIKA W JęZYKU INNYM NIŻ ANGIELSKI, OBOWIĄZEK ZAPEWNIENIA STOSOWNEGO TłUMACZENIA SPOCZYWA NA KLIENCIE.

• NIE PRó BOWAć SERWISOWAć NINIEJSZEGO SPRZęTU BEZ UPRZEDNIEGO ZAPOZNANIA SIę Z PODRę CZNIKIEM SERWISOWYM.

• NIEZASTOSOWANIE SIę DO TEGO OSTRZEŻENIA MOżE GROZIć OBRAŻENIAMI CIAłA SERWISANTA, OPERATORA LUB PACJENTA W WYNIKU PORAŻENIA PRĄDEM, URAZU MECHANICZNEGO LUB INNEGO RODZAJU ZAGROŻEń.

ATE NŢIE

(RO)

ОСТОРОЖНО!

(RU) (BG)

ПРЕДУПРЕЖДЕНИЕ

UPOZORENJE

(SR)

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

ACEST MANUAL DE SERVICE ESTE DISPONIBIL NUMAI ÎN LIMBA ENGLEZĂ.

• DACĂ UN FURNIZOR DE SERVICII PENTRU CLIENŢI NECESITĂ O ALTĂ LIMBĂ DECÂT CEA ENGLEZĂ, ESTE DE DATORIA CLIENTULUI SĂ FURNIZEZE O TRADUCERE.

• NU ÎNCERCAŢI SĂ REPARAŢI ECHIPAMENTUL DECÂT ULTERIOR CONSULTĂRII ŞI ÎNŢELEGERII ACESTUI MANUAL DE SERVICE.

• IGNORAREA ACESTUI AVERTISMENT AR PUTEA DUCE LA RĂNIREA DEPANATORULUI, OPERATORULUI SAU PACIENTULUI ÎN URMA PERICOLELOR DE ELECTROCUTARE, MECANICE SAU DE ALTĂ NATURĂ.

Данное рук о во дс тв о по обслуживанию ПРЕДОСТАВЛЯЕТСЯ только на английском Яз ыке.

• Ес ли сервисноМУ ПЕРСОНАЛУ клиента необходимо рук о во дс т во не на английском ЯЗЫКЕ, клиенту следует самостоЯтельно ОБЕСПЕЧИТЬ перевод.

• ПЕРЕД ОБСЛУЖИВАНИЕМ ОБОРУДОВАНИЯ ОБЯЗАТЕЛЬНО

ОБРАТИТЕСЬ

К ДАННОМУ РУКОВОДСТВУ И ПОЙМИТЕ ИЗЛОЖЕННЫЕ В НЕМ СВЕДЕНИЯ.

• НЕСОБЛЮДЕНИЕ УКАЗАННЫХ ТРЕБОВАНИЙ МОЖЕТ ПРИВЕСТИ К ТОМУ,

ЧТО СПЕЦИАЛИСТ ПО ТЕХОБСЛУЖИВАНИЮ, ОПЕРАТОР ИЛИ ПАЦИЕНТ ПОЛУЧАТ УДАР ЗЛЕКТРИЧЕСКИМ ТОКОМ, МЕХАНИЧЕСКУЮ ТРАВМУ ИЛИ ДРУГОЕ ПОВРЕЖДЕНИЕ.

ТОВА СЕРВИЗНО РЪКОВОДСТВО Е НАЛИЧНО САМО НА АНГЛИЙСКИ ЕЗИК.

• АКО ДОСТАВЧИКЪТ НА СЕРВИЗНИ УСЛУГИ НА КЛИЕНТ

СЕ НУЖДАЕ ОТ ЕЗИК, РАЗЛИЧЕН ОТ АНГЛИЙСКИ, ЗАДЪЛЖЕНИЕ НА КЛИЕНТА Е ДА ПРЕДОСТАВИ ПРЕВОДАЧЕСКА УСЛУГА.

• НЕ СЕ ОПИТВАЙТЕ ДА ИЗВЪРШВАТЕ СЕРВИЗНО ОБСЛУЖВАНЕ НА ТОВА ОБОРУДВАНЕ, ОСВЕН ВСЛУЧАЙ, ЧЕ СЕРВИЗНОТО РЪКОВОДСТВО Е ПРОЧЕТЕНО И СЕ РАЗБИРА.

• НЕСПАЗВАНЕТО НА ТОВА ПРЕДУПРЕЖДЕНИЕ МОЖЕ ДА ДОВЕДЕ ДО НАРАНЯВАНЕ НА ДОСТАВЧИКА НА СЕРВИЗНИ УСЛУГИ, НА

ОПЕРАТОРА ИЛИ ПАЦИЕНТА ВСЛЕДСТВИЕНА ТОКОВ УДАР, МЕХАНИЧНИ ИЛИ ДРУГИ РИСКОВЕ.

OVAJ PRIRUČNIK ZA SERVISIRANJE DOSTUPAN JE SAMO NA ENGLESKOM JEZIKU.

• AKO KLIJENTOV SERVISER ZAHTEVA JEZIK KOJI NIJE ENGLESKI,

ODGOVORNOST JE NA KLIJENTU DA PRUŽI USLUGE PREVOĐENJA.

• NEMOJTE POKUŠAVATI DA SERVISIRATE OPREMU AKO NISTE PROČITALI I RAZUMELI PRIRUČNIK ZA SERVISIRANJE.

• AKO NE POŠTUJETE OVO UPOZORENJE, MOŽE DOĆI DO POVREĐIVANJA SERVISERA, OPERATERA ILI PACIJENTA UZROKOVANOG ELEKTRIČNIM UDAROM, MEHANIČKIM I DRUGIM OPASNOSTIMA.

vi -

OPOZORILO

(SL)

UPOZORENJE

(HR)

UPOZORNENIE

(SK)

VARNING

(SV)

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

TA SERVISNI PRIROČNIK JE NA VOLJO SAMO V ANGLEŠČINI.

• ČE PONUDNIK SERVISNIH STORITEV ZA STRANKO POTREBUJE NAVODILA V

DRUGEM JEZIKU, JE ZA PREVOD ODGOVORNA STRANKA SAMA.

• NE POSKUŠAJTE SERVISIRATI OPREME, NE DA BI PREJ PREBRALI IN

RAZUMELI SERVISNI PRIROČNIK.

• ČE TEGA OPOZORILA NE UPOŠTEVATE, OBSTAJA NEVARNOST ELEKTRIČNEGA UDARA, MEHANSKIH ALI DRUGIH NEVARNOSTI IN POSLEDIČNIH POŠKODB PONUDNIKA SERVISNIH STORITEV, UPORABNIKA OPREME ALI PACIENTA.

OVAJ SERVISNI PRIRUČNIK DOSTUPAN JE SAMO NA ENGLESKOM JEZIKU.

• AKO KLIJENTOV SERVISER ZAHTIJEVA JEZIK KOJI NIJE ENGLESKI, ODGOVORNOST KLIJENTA JE PRUŽITI USLUGE PREVOĐENJA.

• NEMOJTE POKUŠAVATI SERVISIRATI OPREMU AKO NISTE PROČITALI I RAZUMJELI SERVISNI PRIRUČNIK.

• AKO NE POŠTUJETE OVO UPOZORENJE, MOŽE DOĆI DO OZLJEDE SERVISERA, OPERATERA ILI PACIJENTA PROUZROČENE STRUJNIM UDAROM, MEHANIČKIM I DRUGIM OPASNOSTIMA.

TÁTO SERVISNÁ PRÍRUČKA JE K DISPOZíCII LEN V ANGLIČTINE.

• AK ZÁKAZNÍKOV POSKYTOVATEĽ SLUŽIEB VYŽADUJE INÝ JAZYK AKO ANGLIČTINU, POSKYTNUTIE PREKLADATEĽSKÝCH SLUŽIEB JE ZODPOVEDNOSŤOU ZÁKAZNÍKA.

• NEPOKÚŠAJTE SA VYKONÁVAŤ SERVIS ZARIADENIA SKÔR, AKO SI NEPREČÍTATE SERVISNÚ PRÍRUČKU A NEPOROZUMIETE JEJ.

• ZANEDBANIE TOHTO UPOZORNENIA Mô ŽE VYÚSTIŤ DO ZRANENIA POSKYTOVATEĽA SLUŽIEB, OBSLUHUJúCEJ OSOBY ALEBO PACIENTA ELEKTRICKýM PRúDOM, PRÍPADNE DO MECHANICKéHO ALEBO INé HO NEBEZPEč ENSTVA.

DEN HÄR SERVICEHANDBOKEN FINNS BARA TILLGÄNGLIG PÅ ENGELSKA.

• OM EN KUNDS SERVICETEKNIKER HAR BEHOV AV ETT ANNAT SPRÅK ÄN ENGELSKA ANSVARAR KUNDEN FÖR ATT TILLHANDAHÅLLA ÖVERSÄTTNINGSTJÄNSTER.

• FÖRSÖK INTE UTFÖRA SERVICE PÅ UTRUSTNINGEN OM DU INTE HAR LÄST OCH FÖRSTÅR DEN HÄR SERVICEHANDBOKEN.

• OM DU INTE TAR HÄNSYN TILL DEN HÄR VARNINGEN KAN DET RESULTERA I SKADOR PÅ SERVICETEKNIKERN, OPERATÖREN ELLER PATIENTEN TILL FÖLJD AV ELEKTRISKA STÖTAR, MEKANISKA FAROR ELLER ANDRA FAROR.

vii

DİKKAT

(TR)

(JA)

Traditional

Chinese

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

BU SERVİS KILAVUZU YALNIZCA İNGİLİZCE OLARAK SAĞLANMIŞTIR.

•EĞER MÜŞTERİ TEKNİSYENİ KILAVUZUN İNGİLİZCE DIŞINDAKİ BİR DİLDE OLMASINI İSTERSE, KILAVUZU TERCÜME ETTİRMEK MÜŞTERİNİN SORUMLULUĞUNDADIR.

•SERVİS KILAVUZUNU OKUYUP ANLAMADAN EKİPMANLARA MÜDAHALE ETMEYİNİZ.

• BU UYARININ GÖZ ARDI EDİLMESİ, ELEKTRİK ÇARPMASI YA DA MEKANİK VEYA DİĞER TÜRDEN KAZALAR SONUCUNDA TEKNİSYENİN, OPERATÖRÜN YA DA HASTANIN YARALANMASINA YOL AÇABİLİR.

viii -

(ZH-CN)

(KO)

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

DANGER

WARNINGWARNING

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

DAMAGE IN TRANSPORTATION

All packages should be closely examined at time of delivery. If damage is apparent write “Damage In Shipment” on ALL copies of the freight or express bill BEFORE delivery is accepted or “signed for” by a GE representative or hospital receiving agent. Whether noted or concealed, damage MUST be reported to the carrier immediately upon discovery, or in any event, within 14 days after receipt, and the contents and containers held for inspection by the carrier. A transportation company will not pay a claim for damage if an inspection is not requested within this 14 day period.

CERTIFIED ELECTRICAL CONTRACTOR STATEMENT - FOR USA ONLY

All electrical Installations that are preliminary to positioning of the equipment at the site prepared for the equipment shall be performed by licensed electrical contractors. Other connections between pieces of electrical equipment, calibrations and testing shall be performed by qualified GE personnel. In performing all electrical work on these products, GE will use its own specially trained field engineers. All of GE’s electrical work on these products will comply with the requirements of the applicable electrical codes.

The purchaser of GE equipment shall only utilize qualified personnel (i.e., GE’s field engineers, personnel of third-party service companies with equivalent training, or licensed electricians) to perform electrical servicing on the equipment.

OMISSIONS & ERRORS

If there are any omissions, errors or suggestions for improving this documentation, please contact the GE Global Documentation Group with specific information listing the system type, manual title, part number, revision number, page number and suggestion details.

Mail the information to:

Service Documentation, GE Medical Systems (China) Co., Ltd. No.19 Changjiang Road WuXi National Hi-Tech Development Zone Jiangsu, P.R China 214028 TEL: +86 510 85225888; FAX: +86 510 85226688

GE Healthcare employees should use TrackWise to report service documentation issues. These issues will then be in the internal problem reporting tool and communicated to the writer.

SERVICE SAFETY CONSIDERATIONS

DANGEROUS VOLTAGES, CAPABLE OF CAUSING DEATH, ARE PRESENT IN THIS EQUIPMENT. USE EXTREME CAUTION WHEN HANDLING, TESTING AND ADJUSTING.

Use all Personal Protection Equipment (PPE) such as gloves, safety shoes, safety glasses, and kneeling pad, to reduce the risk of injury.

For a complete review of all safety requirements, see the Chapter 1, Safety Considerations section in the Service Manual.

x -

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

LEGAL NOTES

The contents of this publication may not be copied or duplicated in any form, in whole or in part, without prior written permission of GE.

GE may revise this publication from time to time without written notice.

PROPRIETARY TO GE

Permission to use this Advanced Service Software and related documentation (herein called the material) by persons other than GE employees is provided only under an Advanced Service Package License relating specifically to this Proprietary Material. This is a different agreement from the one under which operating and basic service software is licensed. A license to use operating or basic service software does not extend to or cover this software or related documentation.

If you are a GE employee or a customer who has entered into such a license agreement with GE to use this proprietary software, you are authorized to use this Material according to the conditions stated in your license agreement.

However, you do not have the permission of GE to alter, decompose or reverse-assemble the software, and unless you are a GE employee, you MAY NOT COPY the Material. The Material is protected by Copyright and Trade Secret laws; the violation of which can result in civil damages and criminal prosecution.

If you are not party to such a license agreement or a GE Employee, you must exit this Material now.

TRADEMARKS

All products and their name brands are trademarks of their respective holders.

COPYRIGHTS

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Revision History

Revision Date Reason for change

1 June 10,2008 Initial Release

2 October 20,2008 Add new spare parts in Chapter 9

3 January 21,2009 Add CKD information

4 February 02,2010 Update Korean Rating Plate

5 May 22,2010 Update the procedure for unpacking the equipment in Chapter 3

6 July 13,2010 Update Label Locations information in Chapter 1

7 June 14 ,2010 Add keyboard lamp usage infromation in chapter 6

8 December 05,2012 Update environmental labels and add new spare parts

9 Auguest 05,2014 Update the spare parts

List of Effected Pages(LOEP)

Pages Revision Pages Revision Pages Revision

Title Page 9

Important PrecautionsI

pages i to x

Table of Contents

pages i to x

Chapter 1 - Introduction

pages 1-1 to 1-12

Chapter 2 - Site Preparation

pages 2-1 to 2-10

Chapter 3 -System Setup

pages 3-1 to 3-22

Chapter 4 - Functional

Checks

pages 4-1 to 4-36

Chapter 5 - Theory

pages 5-1 to 5-4

Chapter 6 - Service

Adjustments

pages 6-1 to 6-2

Chapter 7 - Diagnostics/

Troubleshooting

pages 7-1 to 7-14

9 Back Cover 9

Chapter 8 - Replacement

Procedures

pages 8-1 to 8-6

Chapter 9 - Replacement Parts

pages 9-1 to 9-8

Chapter 10 - Periodic Maintenance

pages 10-1 to 10-22

Index

pages I to II

xii -

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Table of Contents

CHAPTER 1

Introduction

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Purpose of Chapter 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Purpose of Service Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Typical Users of the Basic Service Manual . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2

Purpose of Operator Manual(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2

LOGIQ C2/C3/C5 Models covered by this manual . . . . . . . . . . . . . . . . . . . 1 - 2

Important Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4

Conventions Used in Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4

Standard Hazard Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5

Product Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5

Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 6

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 6

Human Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 6

Mechanical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 6

Electrical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 7

Label Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 7

Dangerous Procedure Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 8

Returning/Shipping Probes and Repair Parts . . . . . . . . . . . . . . . . . . . . . . . 1 - 8

EMC, EMI, and ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9

Electromagnetic Compatibility (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9

CE Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9

Electrostatic Discharge (ESD) Prevention . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9

Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10

System Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 11

Factory Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 11

i Table of Contents

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 2

Site Preparations

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1

Purpose of chapter 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1

General Console Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2

Console Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2

Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2

EMI Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4

Scan Probe Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 5

Facility Needs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6

Purchaser Responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6

Required Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7

Recommended and Alternate Ultrasound Room Layout . . . . . . . . . . . . . . . 2 - 8

Networking Pre-installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 9

ii -

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 3

System Setup

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1

Purpose of Chapter 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1

Setup Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2

Average Installation Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2

Installation Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3

Safety Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4

Receiving and Unpacking the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 5

Moving into Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 6

Product Locator Installation Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 6

Preparing for Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 7

Verify Customer Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 7

Physical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 7

EMI Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 7

Completing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

Power On / Boot Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

Power Off/ Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

Transducer Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 9

System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 10

System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 10

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 10

On-Board Optional Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 11

Connecting Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 12

Peripherals/Accessories Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 12

Available Probes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 18

Software/Option Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 18

Connectivity Installation Worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 19

Loading Base Image Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 20

Software Version check out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 21

Functional Check-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 21

Paperwork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 22

Product Locator Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 22

User Manual(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 22

iii

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 4

Functional Checks

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1

Purpose for Chapter 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1

Required Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1

General Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2

Power On/Boot Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2

Power Off/ Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2

Archiving and Loading Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4

Adjusting the Display Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5

System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6

B Mode Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 9

M Mode Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 12

Doppler Mode Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 15

Color Flow Mode Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 19

Basic Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23

Probe/Connectors Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24

Using Cine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24

Image Management (QG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 25

Backup and Restore Database, Preset Configurations and Images . . . . . . 4 - 26

Software Configuration Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 35

Peripheral Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 35

iv -

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 5

Components and Functions (Theory)

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1

Purpose of Chapter 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 2

System Diagram

5 - 2

Software Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 3

Common Service Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 6

Service Adjustments

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1

Purpose of this chapter 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1

Monitor Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 2

Adjustments Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 2

vi -

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 7

Diagnostics/Troubleshooting

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1

Purpose of Chapter 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1

Gathering Trouble Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 2

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 2

Collect Vital System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 2

Collect a Trouble Image with Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 3

USB Quick Save. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 4

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 4

Check and Record the Print or Store Key Function . . . . . . . . . . . . . . . . . . 7 - 4

Setting the Print or Store Key to USB Quick Save . . . . . . . . . . . . . . . . . . . 7 - 5

Screen Captures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 6

Check and Record the Store Key Function . . . . . . . . . . . . . . . . . . . . . . . . 7 - 6

Setting the Store Key to Screen Capture . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 6

Capturing a Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 6

Reset the Store Key to Customer’s Functionality . . . . . . . . . . . . . . . . . . . . 7 - 8

Common Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 9

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 9

PC Diagnostics (Non-Interactive Tests) . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 10

PC Diagnostics (Interactive Tests) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 11

Restart LOGIQ C Series After Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 11

Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 12

Network Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 12

vii

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 8

Replacement Procedures

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

Purpose of Chapter 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

DISASSEMBLY/RE-ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Warning and Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Air filter and Knob Screw (FRU No. 5030) . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Loading Base Image Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 3

viii -

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 9

Renewal Parts

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1

Purpose of Chapter 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1

List of Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1

Renewal Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 2

Equipment Models Covered in this Chapter . . . . . . . . . . . . . . . . . . . . . . . . 9 - 2

Operator Console Assy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 3

Keyboard Assy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 3

Accessories and kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 4

Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 6

Probes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 7

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

CHAPTER 10

Care & Maintenance

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 1

Periodic Maintenance Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 1

Purpose of Chapter 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 1

Why do Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2

Keeping Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2

Quality Assurance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2

Maintenance Task Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2

How often should care & maintenance tasks be performed? . . . . . . . . . . . . 10 - 2

Tools Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 4

Standard GE Tool Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 4

Special Tools, Supplies and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 6

Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

Physical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

Outlet Test - Wiring Arrangement - USA & Canada . . . . . . . . . . . . . . . . . . . 10 - 8

Grounding Continuity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 9

Chassis Leakage Current Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 11

Isolated Patient Lead (Source) Leakage–Lead to Lead . . . . . . . . . . . . . . . . 10 - 14

Isolated Patient Lead (Sink) Leakage-Isolation Test . . . . . . . . . . . . . . . . . . 10 - 14

Probe Leakage Current Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 16

When There's Too Much Leakage Current... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 20

x -

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Chapter 1 Introduction

Section 1-1 Overview

1-1-1 Purpose of Chapter 1

This chapter describes important issues related to safely servicing the LOGIQ C Series. The service

provider must read and understand all the information presented in this manual before installing or

servicing a unit.

Table 1-1 Contents in Chapter 1

Section Description Page Number

1-1

1-2

1-3

1-4

1-5

"Overview"

"Important Conventions"

"Safety Considerations"

"EMC, EMI, and ESD"

"Customer Assistance"

1-1-2 Purpose of Service Manual

This Service Manual provides installation and service information for the LOGIQ C Series and contains

the following chapters:

1.) - Introduction: Contains a content summary and warnings.

2.) - Site Preparations: Contains pre-installation requirements for the LOGIQ C Series.

3.) - System Setup: Contains installation procedures.

4.) - Functional Checks: Contains functional checks that are recommended as part of the installation,

or as required during servicing and periodic maintenance.

5.) - Components and Functions (Theory): Contains block diagrams and functional explanations of

the electronics.

6.) - Service Adjustments: Contains instructions on how to make available adjustments to the LOGIQ

C Series.

7.) - Diagnostics/Troubleshooting: Provides procedures for running diagnostic or related routines

for the LOGIQ C Series.

8.) - Replacement Procedures: Provides disassembly procedures and reassembly procedures for all

changeable Field Replaceable Units (FRU).

9.) - Renewal Parts: Contains a complete list of field replaceable parts for the LOGIQ C Series.

10.) - Care & Maintenance: Provides periodic maintenance procedures for the LOGIQ C Series.

1-1

1-4

1-6

1-9

1-10

Chapter 1 Introduction 1-1

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

1-1-3 Typical Users of the Basic Service Manual

• Service Personnel (installation, maintenance, etc.).

• Hospital’s Service Personnel

• Contractors (Some parts of Chapter 2 - Site Preparation)

1-1-4 Purpose of Operator Manual(s)

The Operator Manual(s) should be fully read and understood before operating the LOGIQ C Series and also kept near the unit for quick reference.

NOTE: Probe information displayed on screen does not necessarily reflect the probes available on your

ultrasound system. Please refer to the probe list for available probes and features.

1-1-5 LOGIQ C2/C3/C5 Models covered by this manual

Table 1-2 LOGIQ C2 Model Designations

Part Number Description

5270586

5310386

5310387

5262932

5310757

LOGIQ C2 Console for Europe

LOGIQ C2 Console for China

LOGIQ C2 Pro Console for China

LOGIQ C2 Console for India

LOGIQ C2 Console for Argentina

Table 1-3 LOGIQ C3 Model Designations

Part Number Description

5268906

5310388

5310389

5265742

5315917

5316706

5310821

LOGIQ C3 Console for Europe

LOGIQ C3 Console for China

LOGIQ C3 Pro Console for China

LOGIQ C3 Console for India

LOGIQ C3 Console (110V)

LOGIQ C3 Console for Korea

LOGIQ C3 Console for Argentina

1-2 Section 1-1 - Overview

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

1-1-5 LOGIQ C2/C3/C5 Models covered by this manual (cont’d)

Table 1-4 LOGIQ C3 Model Designations

Part Number Description

52711114

5310390

5310391

5269046

5316707

5315918

5310823

5391533

5391534

5391538

5391536

LOGIQ C5 Console for Europe

LOGIQ C5 Console for China

LOGIQ C5 Pro Console for China

LOGIQ C5 Console for India

LOGIQ C5 Console for Korea

LOGIQ C5 Console (110V)

LOGIQ C5 Console for Argentina

LOGIQ C5 3-Probe Console for China

LOGIQ C5 Pro 3-Probe Console for China

LOGIQ C5 3-Probe Console (110V)

LOGIQ C5 3-Probe Console for Argentina

Chapter 1 Introduction 1-3

DANGER

WARNINGWARNING

CAUTION

NOTICE

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Section 1-2 Important Conventions

1-2-1 Conventions Used in Book

Icons

Pictures, or icons, are used wherever they reinforce the printed message. The icons, labels and conventions used on the product and in the service information are described in this chapter.

Safety Precaution Messages

Various levels of safety precaution messages may be found on the equipment and in the service information. The different levels of concern are identified by a flag word that precedes the precautionary message. Known or potential hazards are labeled in one of following ways:

DANGER IS USED TO INDICATE THE PRESENCE OF A HAZARD THAT WILL CAUSE SEVERE PERSONAL INJURY OR DEATH IF THE INSTRUCTIONS ARE IGNORED.

WARNING IS USED TO INDICATE THE PRESENCE OF A HAZARD THAT CAN CAUSE SEVERE PERSONAL INJURY AND PROPERTY DAMAGE IF INSTRUCTIONS ARE IGNORED.

Caution is used to indicate the presence of a hazard that will or can cause minor personal injury and property damage if instructions are ignored.

Equipment Damage Possible Notice is used when a hazard is present that can cause property damage but has absolutely no

personal injury risk.

Example: Disk drive will crash.

NOTE: Notes provide important information about an item or a procedure.

Information contained in a NOTE can often save you time or effort.

1-4 Section 1-2 - Important Conventions

LASER

LIGHT

Signed

Date

TAG

LOCKOUT

EYE

PROTECTION

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

1-2-2 Standard Hazard Icons

Important information will always be preceded by the exclamation point contained within a triangle, as

seen throughout this chapter. In addition to text, several different graphical icons (symbols) may be

used to make you aware of specific types of hazards that could cause harm.

Table 1-5 Standard Hazard Icons

ELECTRICAL MECHANICAL RADIATION

LASER HEAT PINCH

Other hazard icons make you aware of specific procedures that should be followed.

Table 1-6 Standard Icons Indicating a Special Procedure Be Used

AVOID STATIC ELECTRICITY TAG AND LOCK OUT WEAR EYE PROTECTION

1-2-3 Product Icons

Please refer to User Manual (Basic user Manual/User Guide) for the detail Product Icons information.

Chapter 1 Introduction 1-5

WARNING

CAUTION

WARNING

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Section 1-3 Safety Considerations

1-3-1 Introduction

The following safety precautions must be observed during all phases of operation, service and repair of this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual, violates safety standards of design, manufacture and intended use of the equipment.

1-3-2 Human Safety

Servicing should be performed by authorized personnel only. Only personnel who have participated in a LOGIQ C Series Training are authorized to service the equipment.

1-3-3 Mechanical Safety

WHEN THE UNIT IS RAISED FOR A REPAIR OR MOVED ALONG ANY INCLINE, USE EXTREME CAUTION SINCE IT MAY BECOME UNSTABLE AND TIP OVER.

ULTRASOUND PROBES ARE HIGHLY SENSITIVE MEDICAL INSTRUMENTS THAT CAN EASILY BE DAMAGED BY IMPROPER HANDLING. USE CARE WHEN HANDLING AND PROTECT FROM DAMAGE WHEN NOT IN USE. DO NOT USE A DAMAGED OR DEFECTIVE PROBE. FAILURE TO FOLLOW THESE PRECAUTIONS CAN RESULT IN SERIOUS INJURY AND EQUIPMENT DAMAGE.

NEVER USE A PROBE THAT HAS FALLEN TO THE FLOOR. EVEN IF IT LOOKS OK, IT MAY BE DAMAGED.

The LOGIQ C Series weighs 75 kg or more, depending on installed peripherals, when ready for use. Care must be used when moving it or replacing its parts. Failure to follow the precautions listed could result in injury, uncontrolled motion and costly damage.

ALWAYS: Be sure the pathway is clear. Use slow, careful motions. Use two people when moving on inclines or lifting more than 75 kg (169 lbs).

AFTER UNPLUG POWER CORD, WAIT FOR AT LEAST 20 SECONDS FOR CAPACITORS TO DISCHARGE AS THERE ARE NO TEST POINTS TO VERIFY ISOLATION.

1-6 Section 1-3 - Safety Considerations

WARNINGWARNING

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

1-3-3 Mechanical Safety (cont’d)

NOTE: Special care should be taken when transporting the unit in a vehicle:

• Secure the unit in an upright position.

• Lock the wheels (brake)

1-3-4 Electrical Safety

To minimize shock hazard, the equipment chassis must be connected to an electrical ground. The

system is equipped with a three-conductor AC power cable. This must be plugged into an approved

electrical outlet with safety ground. The power outlet used for this equipment should not be shared with

other types of equipment.

Both the system power cable and the power connector meet international electrical standards.

DO NOT SERVICE OR DISASSEMBLE PARTS UNDER FRU UNIT LEVEL AT ANY CIRCUMSTANCES.

1-3-5 Label Locations

See LC2/C2 PRO, LC3/LC3 PRO, LC5/C5PRO Basic User Manual (5265060-100,5268001-

100,5268596-100) section “Warning Label Location” for more Information.

Chapter 1 Introduction 1-7

DANGER

WARNING

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

1-3-6 Dangerous Procedure Warnings

Warnings, such as the examples below, precede potentially dangerous procedures throughout this manual. Instructions contained in the warnings must be followed.

DANGEROUS VOLTAGES, CAPABLE OF CAUSING DEATH, ARE PRESENT IN THIS EQUIPMENT. USE EXTREME CAUTION WHEN HANDLING, TESTING AND ADJUSTING.

EXPLOSION WARNING

DO NOT OPERATE THE EQUIPMENT IN AN EXPLOSIVE ATMOSPHERE. OPERATION OF ANY ELECTRICAL EQUIPMENT IN SUCH AN ENVIRONMENT CONSTITUTES A DEFINITE SAFETY HAZARD.

DO NOT SUBSTITUTE PARTS OR MODIFY EQUIPMENT

BECAUSE OF THE DANGER OF INTRODUCING ADDITIONAL HAZARDS, DO NOT INSTALL SUBSTITUTE PARTS OR PERFORM ANY UNAUTHORIZED MODIFICATION OF THE EQUIPMENT.

SHUT DOWN FORCEDLY OR PLUG IN/OUT ACDC INVALID MAY CAUSE THE DAMAGE OF SYSTEM FILES.

AFTER UNPLUG POWER CORD, WAIT FOR AT LEAST 20 SECONDS FOR CAPACITORS TO DISCHARGE AS THERE ARE NO TEST POINTS TO VERIFY ISOLATION.

1-3-7 Returning/Shipping Probes and Repair Parts

Equipment being returned must be clean and free of blood and other infectious substances.

GEMS policy states that body fluids must be properly removed from any part or equipment prior to shipment. GEMS employees, as well as customers, are responsible for ensuring that parts/equipment have been properly decontaminated prior to shipment. Under no circumstance should a part or equipment with visible body fluids be taken or shipped from a clinic or site (for example, body coils or an ultrasound probe).

The purpose of the regulation is to protect employees in the transportation industry, as well as the people who will receive or open this package.

NOTE:The USER/SERVICE staff should dispose all the waste properly as per federal, state, and local

waste disposal regulation.

1-8 Section 1-3 - Safety Considerations

WARNING

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Section 1-4 EMC, EMI, and ESD

1-4-1 Electromagnetic Compatibility (EMC)

Electromagnetic compatibility describes a level of performance of a device within its electromagnetic

environment. This environment consists of the device itself and its surroundings including other

equipment, power sources and persons with which the device must interface. Inadequate compatibility

results when a susceptible device fails to perform as intended due interference from its environment or

when the device produces unacceptable levels of emission to its environment. This interference is often

referred to as radio–frequency or electromagnetic interference (RFI/EMI) and can be radiated through

space or conducted over interconnecting power of signal cables. In addition to electromagnetic energy,

EMC also includes possible effects from electrical fields, magnetic fields, electrostatic discharge and

disturbances in the electrical power supply.

1-4-2 CE Compliance

The LOGIQ C Series unit conforms to all applicable conducted and radiated emission limits and to

immunity from electrostatic discharge, radiated and conducted RF fields, magnetic fields and power line

transient requirements.

For applicable standards refer to the Safety Chapter in the Basic User Manual.

NOTE:For CE Compliance, it is critical that all covers, screws, shielding, gaskets, mesh, clamps, are in good

condition, installed tightly without skew or stress. Proper installation following all comments

noted in this service manual is required in order to achieve full EMC performance.

1-4-3 Electrostatic Discharge (ESD) Prevention

DO NOT TOUCH ANY BOARDS WITH INTEGRATED CIRCUITS PRIOR TO TAKING THE NECESSARY ESD PRECAUTIONS:

1.FOLLOW GENERAL GUIDELINES FOR HANDLING OF ELECTROSTATIC SENSITIVE EQUIPMENT.

Chapter 1 Introduction 1-9

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Section 1-5 Customer Assistance

1-5-1 Contact Information

If this equipment does not work as indicated in this service manual or in the User Manual, or if you require additional assistance, please contact the local distributor or appropriate support resource, as listed below.

Prepare the following information before you call:

- System ID serial number.

- Software version.

Table 1-7 Phone Numbers for Customer Assistance

Location Phone Number

USA

GE Vingmed Ultrasound

Ultrasound Service Engineering

9900 Innovation Drive

Wauwatosa, WI 53226

Canada 1-800-668-0732

Latin America

Europe (OLC- EMEA)

GE Ultraschall Deutschland GmbH

Beethovenstraße 239

Postfach 11 05 60, D-42655 Solingen

Germany

Online Services Ultrasound Asia

Australia

China

India

Japan

Korea

Singapore

Service: On-site

Service Parts

Application Support

Service

Application Support

OLC - EMEA

Phone: +49 (0)212 2802 - 652

+33 1 3083 1300

Fax: +49 (0) 212 2802 - 431

Phone: +(61) 1-800-647-855

+(86) 800-810-8188

+(91) 1-800-11-4567

+(81) 42-648-2924

+(82) 2620 13585

+(95) 6277-3444

1-800-437-1171

1-800-558-2040

1-800-682-5327 or 1-262-524-5698

1-800-321-7937

1-262-524-5698

1-10 Section 1-5 - Customer Assistance

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

1-5-2 System Manufacturer

Table 1-8 System Manufacturer

Manufacturer FAX Number

GE Medical Systems (China) Co., Ltd.

No.19, Changjiang Road, Wuxi National Hi-Tech Development Zone, Jiangsu, P.R. China 214028

1-5-3 Factory Site

Table 1-9 Factory Site

GE Medical Systems (China) Co., Ltd.

No.19, Changjiang Road, Wuxi National Hi-Tech Development Zone, Jiangsu, P.R. China 214028

Wirpo GE Healthcare Pvt. Ltd.,

No. 4, Kadugodi Industrial Area, Bangalore. 560067 Karnataka. India.

TEL: +86 510-85225888

FAX: +86 510-85226688

Factory Site FAX Number

TEL: +86 510-85225888

FAX: +86 510-85226688

TEL: +91-80-41801000

FAX: +91-80-28452924

Chapter 1 Introduction 1-11

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

This page was intentionally left blank.

1-12 Section 1-5 - Customer Assistance

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Chapter 2 Site Preparations

Section 2-1 Overview

2-1-1 Purpose of chapter 2

This chapter provides the information required to plan and prepare for the installation of LOGIQ C Series.Included are descriptions of the facility and electrical needs to be met by the purchaser of the unit.

Table 2-1 Contents in Chapter 2

Section Description Page Number

2-1

2-2

2-3

"Overview"

"General Console Requirements"

"Facility Needs"

2-1

2-2

2-6

Section 2-1 - Overview 2 - 1

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Section 2-2 General Console Requirements

2-2-1 Console Environmental Requirements

Table 2-2 Environmental Requirements for LOGIQ C Series Scanners

Operational Storage Transport

Temperature

Humidity

Pressure

10 - 40oC

50 - 104

30 - 75% non-condensing

700 - 1060hPa 700 - 1060hPa 700 - 1060hPa

-5 - 50

23 - 122

10 - 90% non-condensing

-5 - 50

23 - 122

10 - 90% non-condensing

NOTE: Temperature in degrees C. Conversion to Degrees F = (Degrees C * 9/5) + 32.

2-2-1-1 Lighting

Bright light is needed for system installation, updates and repairs. However, operator and patient comfort may be optimized if the room light is subdued and indirect. Therefore a combination lighting system (dim/bright) is recommended. Keep in mind that lighting controls and diameters can be a source of EMI which could degrade image quality. These controls should be selected to minimize possible interface.

2-2-2 Electrical Requirements

NOTE: GE Healthcare requires a dedicated power and ground for the proper operation of its Ultrasound

equipment. This dedicated power shall originate at the last distribution panel before the system.

Sites with a mains power system with defined Neutral and Live:

The dedicated line shall consist of one phase, a neutral (not shared with any other circuit), and a full size ground wire from the distribution panel to the Ultrasound outlet.

Sites with a mains power system without a defined Neutral:

The dedicated line shall consist of one phase (two lines), not shared with any other circuit, and a full size ground wire from the distribution panel to the Ultrasound outlet.

NOTE: Please note that image artifacts can occur, if at any time within the facility, the ground from the

main facility's incoming power source to the Ultrasound unit is only a conduit.

2 - 2 Section 2-2 - General Console Requirements

CAUTION

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

2-2-2 Electrical Requirements (cont’d)

2-2-2-1 LOGIQ C Series Power Requirements

The following power line parameters should be monitored for one week before installation. We recommend that you use an analyzer Dranetz Model 606-3 or Dranetz Model 626:

Table 2-3 Electrical Specifications for LOGIQ C Series

PARAMETER AREA LIMITS

Voltage Range

Power All applications MAX. 750 VA

Line Frequency All applications 50/60Hz (±2Hz)

Power Transients All applications

Decaying Oscillation All applications

2-2-2-2 Inrush Current

Inrush Current is not a factor to consider due to the inrush current limiting properties of the power supplies.

2-2-2-3 Site Circuit Breaker

It is recommended that the branch circuit breaker for the machine be ready accessible.

POWER OUTAGE MAY OCCURE. The LOGIQ C Series requires a dedicated single branch circuit. To avoid circuit overload and

possible loss of critical care equipment, make sure you DO NOT have any other equipment operating on the same circuit.

100-120V~ 500VA

220-240V~ 500VA

Less than 25% of nominal peak voltage for less than 1 millisecond for any type of transient, including line frequency, synchronous, asynchronous, or aperiodic transients.

Less than 15% of peak voltage for less than 1 millisecond.

2-2-2-4 Site Power Outlets

A desiccated AC power outlet must be within reach of the unit without extension cords. Other outlets adequate for the external peripherals, medical and test equipment needed to support this unit must also be present within 1 m (3.2 ft.) of the unit. Electrical installation must meet all current local, state, and national electrical codes.

2-2-2-5 Unit Power Plug

If the unit arrives without the power plug, or with the wrong plug, you must contact your GE dealer or the installation engineer must supply what is locally required.

2-2-2-6 Power Stability Requirements

Voltage drop-out

Max 10 ms.

Power Transients

(All applications) Less than 25% of nominal peak voltage for less than 1 millisecond for any type of transient, including line frequency, synchronous, asynchronous, or aperiodic transients.

Section 2-2 - General Console Requirements 2 - 3

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

2-2-3 EMI Limitations

Ultrasound machines are susceptible to Electromagnetic Interference (EMI) from radio frequencies, magnetic fields, and transient in the air wiring. They also generate EMI. The LOGIQ C Series complies with limits as stated on the EMC label. However there is no guarantee that interface will not occur in a particular installation.

Possible EMI sources should be identified before the unit is installed.

Electrical and electronic equipment may produce EMI unintentionally as the result of defect.

These sources include:

• medical lasers,

• scanners,

• cauterizing guns,

•computers,

•monitors,

• fans,

• gel warmers,

• microwave ovens,

• light dimmers,

• portable phones.

The presence of broadcast station or broadcast van may also cause interference. See for EMI Prevention tips.

See Ta bl e 2 -4 for EMI Prevention tips.

Table 2-4 EMI Prevention/abatement

EMI Rule Details

Keep the unit at least 5 meters or 15 feet away from other EMI sources. Special shielding

Be aware of RF sources

Ground the unit

Replace all screws, RF gaskets, covers, cores

Replace broken RF gaskets

Do not place labels where RF gaskets touch metal

Use GE specified harnesses and peripherals

Take care with cellular phones Cellular phones may transmit a 5 V/m signal; that could cause image artifacts.

may be required to eliminate interference problems caused by high frequency, high powered radio or video broadcast signals.

Poor grounding is the most likely reason a unit will have noisy images. Check grounding of the power cord and power outlet.

After you finish repairing or updating the system, replace all covers and tighten all screws. Any cable with an external connection requires a magnet wrap at each end. Install the shield over the front of card cage. Loose or missing covers or RF gaskets allow radio frequencies to interface with the ultrasound signals.

If more than 20% or a pair of fingers on the RF gaskets are broken, replace the gaskets. Do not turn on the unit until any loose metallic part is removed.

Never place a label where RF gaskets meet the unit. Otherwise, the gap created will permit RF leakage. Or, if a label has been found in such a position, move the label.

The interconnect cables are grounded and require ferrite beads and other shielding. Also, cable length, material, and routing are all important; do not change from what is specified.

Properly dress peripheral cables

Do not allow cables to lie across the top of the card cage or hang out of the peripheral bays. Loop the excess length for peripheral cables inside the peripheral bays. Attach the monitor cables to the frame.

2 - 4 Section 2-2 - General Console Requirements

NOTICE

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

2-2-4 Scan Probe Environmental Requirements

Operation:10° to 40° C

Storage:-10° to 50° C

NOTE: Temperature in degrees C. Conversion to Degrees F = (Degrees C * (9/5) + 32).

SYSTEMS AND ELECTRONIC PROBES ARE DESIGNED FOR STORAGE TEMPERATURES OF

-10 TO + 60 degrees C. WHEN EXPOSED TO LARGE TEMPERATURE VARIATIONS, THE PRODUCT SHOULD BE KEPT IN ROOM TEMPERATURE FOR 10 HOURS BEFORE USE.

Section 2-2 - General Console Requirements 2 - 5

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Section 2-3 Facility Needs

2-3-1 Purchaser Responsibilities

The work and materials needed to prepare the site is the responsibility of the purchaser. Delay, confusion, and waste of manpower can be avoided by completing pre installation work before delivery. User the Pre Installation checklist to verify that all needed steps have been taken, Purchaser reasonability includes:

• Procuring the materials required.

• Completing the preparations before delivery of the ultrasound system.

• Paying the costs for any alternations and modifications not specifically provided in the sales contract.

NOTE: All electrical installation that are preliminary to the positioning of the equipment at the site

prepared for the equipment must be performed by licensed electrical contractors. Other connections between pieces of electrical equipment, products involved (and the accompanying electrical installations) are highly sophisticated and special engineering competence is required. All electrical work on these product must comply with the requirements of applicable electrical codes. The purchaser of GE equipment must only utilize qualified personnel to perform electrical servicing on the equipment.

The desire to use a non-listed or customer provided product or to place an approved product further from the system than the interface kit allows presents challenges to the installation team. To avoid delays during installation, such variances should be made known to the individuals or group performing the installation at the earliest possible date (preferable prior to purchase). The ultrasound suite must be clean proof to delivery of the machine. Carpet is not recommended because it collects dust and creates static. Potential sources of EMI (electromagnetic interference) should also be investigated before delivery. Dirt, static, and EMI can negatively impact system.

2 - 6 Section 2-3 - Facility Needs

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

2-3-2 Required Features

NOTE: GE Medical Systems requires a dedicated power and ground for the proper operation of its

Ultrasound equipment. This dedicated power shall originate at the last distribution panel before the system.

Sites with a mains power system with defined Neutral and Live:

The dedicated line shall consist of one phase, a neutral (not shared with any other circuit), and a full size ground wire from the distribution panel to the Ultrasound outlet.

Sites with a mains power system without a defined Neutral:

The dedicated line shall consist of one phase (two lines), not shared with any other circuit, and a full size ground wire from the distribution panel to the Ultrasound outlet.

Please note that image artifacts can occur, if at any time within the facility, the ground from the main facility's incoming power source to the Ultrasound unit is only a conduit.

• Dedicated single branch power outlet of adequate amperage meeting all local and national codes which is located less than 2.5 m (8 ft.) from the unit’s proposed location

• Door opening is at least 76 cm (30 in) wide

• Proposed location for unit is at least 0.3 m (1 ft.) from the wall for cooling

• Power outlet and place for any external peripheral are within 2 m (6.5 ft.) of each other with peripheral within 1 m of the unit to connect cables.

Section 2-3 - Facility Needs 2 - 7

LINEN SUPPLY

EXAMINATION

TABLE

FILM VIEWER

COUNTER TOP

FILE

CABINET

SECRETARYS OR DOCTOR’S DESK

FILM

PROCESSING

ROOM,

OVERHEAD LIGHTS DIMMER

DEDICATED

POWER

RECEPTACLE

EXTERNAL

PERIPHERALS

SINK

COUNTER

TOP

FILM VIEWER

FILM SUPPLIES

SINK

LINEN SUPPLY

PROBES/SUPPLIES

24 IN. (61 CM)

EXAMINARION

TABLE

76 IN. (193 CM)

DOOR

30 IN.

(76 CM)

An 8 by 10 foot Minimal Floor Plan

DEDICATED POWER OUTLETS

DEDICATED ANALOG TELEPHONE LINE FOR CONNECTION TO INSITE

A 14 by 17 foot Recommended Floor Plan

GE CABINET FOT SOFTWARE AND MANUALS

Scale : Each square equals one square foot

DOOR

42 IN.

(107 CM)

DEDICATED ALALOG TELEPHONE LINE FOR CONNECTION TO INSITE

SUCTION LINE

EMERGECY OXYGEN

24 IN.

(61 CM)

76 IN.

(193 CM)

PATIENT

TOILET

FACILITY

FOOT

LOGIQ 5

CONSOLE

18 IN.

(46 CM)

STOOL

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

2-3-3 Recommended and Alternate Ultrasound Room Layout

Recommended standard floor plan and a minimal floor plan for ultrasound equipment:

2 - 8 Section 2-3 - Facility Needs

Figure 2-1 RECOMMENDED ULTRASOUND ROOM LAYOUT

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

2-3-4 Networking Pre-installation Requirements

2-3-4-1 Stand Alone Scanner (without Network Connection)

None.

2-3-4-2 Scanner Connected to Hospital’s Network

Supported networks:

Wire LAN

2-3-4-3 Purpose of DICOM Network Function

DICOM services provide the operator with clinically useful features for moving images and patient information over a hospital network. Examples of DICOM services include the transfer of images to workstations for viewing or transferring images to remote printers. As an added benefit, transferring images in this manner frees up the on-board monitor and peripherals, enabling viewing to be done while scanning continues. With DICOM, images can be archived, stored, and retrieved faster, easier, and at a lower cost.

2-3-4-4 DICOM Option Pre-installation Requirements

To configure the LOGIQ C Series to work with other network connections, the site’s network administrator must provide some necessary information.

Information must include:

• A host name, local port number, AE Title, IP address and Net Mask for the LOGIQ C Series.

• The IP addresses for the default gateway and other routers at the site for ROUTING INFORMATION.

• The host name, IP address, port and AE Title for each device the site wants connected to the

LOGIQ C Series for DICOM APPLICATION INFORMATION. A field for the make (manufacturer)

and the revision of the device, is also included. This information may be useful for solving errors.

Section 2-3 - Facility Needs 2 - 9

LOGIQ C

Host Name

AE Title

Local Port

IP Address

Net Mask

...

ROUTING INFORMATION

ROUTER2 ROUTER3

ROUTER1

...

Destination IP Addresses

GATEWAY IP Addresses

Default

DICOM APPLICATION INFORMATION

NAME

Store 2

Store 3

Store 1

MAKE/REVISION IP ADDRESSES PORTAE TITLE

Store 5

Store 6

Store 4

Storage Commit

MPPS

Worklist

...

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

2-3-4-4 DICOM Option Pre-installation Requirements (cont’d)

Figure 2-2 Worksheet for DICOM Network Information

2 - 10 Section 2-3 - Facility Needs

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Chapter 3 System Setup

Section 3-1 Overview

3-1-1 Purpose of Chapter 3

This chapter contains information needed to install the unit. Included are references to a procedure that describes how to receive and unpack the equipment and how to file a damage or loss claim. How to prepare the facility and unit of the actual installation, and how to check and test the unit and external peripherals for electrical safety are included in this procedure. Also included LOGIQ C Series in this section are guidelines for transporting the unit to a new site.

Table 3-1 Contents in Chapter 3

Section Description Page Number

3-1 "Overview" 3-1

3-2 "Setup Reminders" 3-2

3-3 "Receiving and Unpacking the Equipment" 3-3

3-4 "Preparing for Installation" 3-4

3-5 "Completing the Installation" 3-5

3-6 "System Configuration" 3-6

3-7 "Software/Option Configuration" 3-7

3-8 "Connectivity Installation Worksheet" 3-8

3-9 "Loading Base Image Software" 3-9

3-10 "Software Version check out" 3-10

3-11 "Paperwork" 3-11

Chapter 3 System Setup 3 - 1

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-2Setup Reminders

3-2-1 Average Installation Time

Table 3-2 Average Installation Time

Description Average Installation Time Comments

Unpacking the scanner

Scanner wo/options

DICOM Option

0.5 hour

Dependant on the configuration that is required

Dependant on the amount of configuration

The LOGIQ C Series has been designed to be installed and checked out by an experienced service technician in approximately 1 hour. LOGIQ C Series consoles with optional equipment may take slightly longer.

3 - 2 Section 3-2 - Setup Reminders

CAUTION

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-2-2 Installation Warnings

1.) Since the LOGIQ C Series weighs approximately 75 kg without options, preferably two people should unpack it. Two people are also preferable for installing any additional bulky items.

2.) There are no operator serviceable components. To prevent shock, do not remove any covers or panels. Should problems or malfunctions occur, unplug the power cord. Only qualified service personnel should carry out servicing and troubleshooting.

NOTE: For information regarding packing labels, refer to LABELS ON PACKAGE.

3.) After being transported, the unit may be very cold or hot. If this is the case, allow the unit to acclimate before you turn it on. It requires one hour for each 2.5°C increment it's temperature is below 10°C or above 30°C.

Equipment damage possibility. Turning the system on without acclimation after arriving at site may cause the system to be damaged.

Table 3-3 Acclimation Time

60 55 50 45 40 35 30 25 20 15 10 5 0 -5 -10 -15 -20 -25 -30 -35 -40

°C

140 131 122 113 104 95 86 77 68 59 50 41 32 23 14 5 -4 -13 -22 -31 -40

°F

864200000002468101214161820

hrs

Chapter 3 System Setup 3 - 3

DANGER

CAUTION

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-2-3 Safety Reminders

WHEN USING ANY TEST INSTRUMENT THAT IS CAPABLE OF OPENING THE AC GROUND LINE (I.E., METER’S GROUND SWI TCH IS OPEN), DON’T TOUCH THE UNIT!

Two people should unpack the unit because of its weight. Two people are required whenever a part weighing 19kg (35 lb.) or more must be lifted.

If the unit is very cold or hot, do not turn on its power until it has had a chance to acclimate to its operating environment.

To prevent electrical shock, connect the unit to a properly grounded power outlet. Do not use a three to two prong adapter. This defeats safety grounding.

Do NOT wear the ESD wrist strap when you work on live circuits and more than 30 V peak is present.

Do not use a 20 Amp to 15 Amp adapter on the 120 Vac unit’s power cord. This unit requires a dedicated 20 A circuit and can have a 15A plug if the on board peripherals do not cause the unit to draw more than 14.0 amps.

Do not operate this unit unless all board covers and frame panels are securely in place. System performance and cooling require this.

OPERATOR MANUAL(S) The User Manual(s) should be fully read and understood before operating the LOGIQ C Series and kept near the unit for quick reference.

Figure 3-1 Environmental Labels

3 - 4 Section 3-2 - Setup Reminders

CAUTION

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-3 Receiving and Unpacking the Equipment

When a new system arrives, check that any components are not damaged and are not in short supply. If shipping damage or shortage occurs, contact the address shown in Chapter 1.

Do not lift the unit by the Keyboard. Equipment damage may result.

The crate with the LOGIQ C Series weighs approximately 75kg. Be prepared for a sudden shift of weight as the unit is removed from its base (pallet)

Unpacking the the equipment

1.) Remove all the strapping tapes from the packing box.

2.) Remove the upper cover of the packing box and then rotate the knob to the right to open the packing box.

3.) Remove the PE bag and plastic film from the system.

4.) Remove Accessories Carton from the system.

5.) Remove the PE bag and plastic film from the syste

6.) Lift down the system .

Figure 3-2 Open the box

Chapter 3 System Setup 3 - 5

CAUTION

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-3-1 Moving into Position

Do not tilt the unit more than 5 degrees to avoid tipping it over. To avoid injury by tipping over. Set the monitor to the lowest position before moving.

In general, a single adult can move the LOGIQ C Series along an even surface with no steep grades. At least two people should move the machine when large humps, grooves, or grades will be encountered. (It is better to pull from the rear rather than push from the front of the unit). Before moving, store all loose parts in the unit. Wrap transducers in soft cloth or foam to prevent damage.

Although LOGIQ C Series is a mobile machine, two people should move it over rough surfaces or up and down grades.

3-3-2 Product Locator Installation Card

NOTE: The Product Locator Installation Card shown may not be same as the provided Product Locator

card.

Figure 3-3 Product Locator Installation Card

3 - 6 Section 3-3 - Receiving and Unpacking the Equipment

WARNINGWARNING

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-4 Preparing for Installation

3-4-1 Verify Customer Order

Compare items received by the customer to that which is listed on the delivery order. Report any items that are missing, back ordered or damaged.

3-4-2 Physical Inspection

3-4-2-1 System Voltage Settings

Verify that Docking Cart is set to the correct voltage. The Voltage settings for the LOGIQ C Series is found on a label to the right of the Power switch and External I/O, on the rear of the system.

Connecting a LOGIQ C Series to the wrong voltage level will most likely destroy it.

3-4-2-2 Video Formats

Check that the video format is set to the locally used video standard, NTSC or PAL.

3-4-3 EMI Protection

This Unit has been designed to minimize the effects of Electro Magnetic Interference (EMI). Many of the covers, shields, and screws are provided primarily to protect the system from image artifacts caused by this interference. For this reason, it is imperative that all covers and hardware are installed and secured before the unit is put into operation.

Chapter 3 System Setup 3 - 7

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-5 Completing the Installation

3-5-1 Power On / Boot Up

NOTE: After turning off a system, wait at least ten seconds before turning it on again. The system may not be

able to boot if power is recycled too quickly.

3-5-1-1 Scanner Power On

When power is applied to the scanner, power is distributed to the Cooling Unit, Control Panel, LCD, Peripherals and the Back-end Processor.

3-5-1-2 Turn on the system

Press the Power On/Off switch at the front of the system once.

Figure 3-4 Power On/Off Switch

When the Power On/Off switch on the Control Panel is pressed once, the Back-end Processor starts and the software code is distributed to initiate the scanner.

No status messages are displayed during this process.

3-5-2 Power Off/ Shutdown

NOTE: After turning off a system, wait at least ten seconds before turning it on again. The system may not be

able to boot if power is recycled too quickly.

3-5-2-1 Back-end Processor Power Down

To power down the system:

1.) Press the Power On/Off switch once.

3 - 8 Section 3-5 - Completing the Installation

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-5-2-1 Back-end Processor Power Down (cont’d)

2.) The System-Exit window is displayed.

Figure 3-5 System Exit Window

3.) Using the Trackball or Select key, select Shutdown.

4.) The shutdown process takes a few seconds and is complete when the power status LED is turned amber.

5.) Disconnect the probes.Clean or disinfect all probes as necessary. Store them in their shipping cases to avoid damage.

3-5-2-2 Scanner Shutdown

Disconnect the Mains Power Cable if necessary. For example: Relocating the scanner.

3-5-3 Transducer Connection

1.) Plug the probe connector into the probe port, then lock the probe.

NOTE: Please ensure that the probe latch is in an unlocked position before you connect the probe to the

system.

NOTE: It is not necessary to turn OFF power to connect or disconnect a probe.

Chapter 3 System Setup 3 - 9

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-6 System Configuration

3-6-1 System Specifications

3-6-1-1 Physical Dimensions

The physical dimensions of the LOGIQ C Series unit are summarized in Table 3-4 on page 3-10 . The Size of LOGIQ C Series.

Table 3-4 Physical Dimensions of LOGIQ C Series

Height Width Depth Unit

1400 500 700 mm

55.16 19.70 27.58 inches

3-6-1-2 Weight

Table 3-5 Weight of LOGIQ C Series With Monitor and Without Other Peripherals

Model Weight [kg] Weight [lb]

LOGIQ C Series Approximately 75 Approximately 165

3-6-2 Electrical Specifications

Table 3-6 Electrical Specifications for LOGIQ C Series

System Voltage Current Frequency

110 -120 V AC

220- 240 V AC

500VA 50/60Hz

3 - 10 Section 3-6 - System Configuration

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-6-3 On-Board Optional Peripherals

Table 3-7 List of Optional Peripherals

Device Manufacturer Model Video Signal

B/W Printer SONY UP-D897MD USB

B/W Printer SONY UP-D257MD USB

HP Printer HP HP 470b Officejet USB

USB Memory SanDisk SanDisk 2G USB

USB Memory SanDisk SanDisk 4G USB

Footswitch Whanam FSU2001 USB

USB Hard Disk Seagate USBHDD 80G USB

USB Hard Disk Seagate USBHDD 250G USB

Color Printer SONY UP-D23MD USB

ECG NORAV ECG -USB1 USB

NOTE: Color Printer and ECG are only supported by LOGIQ C5/C5 PRO.

NOTE: For detailed installation information and connection procedures, please refer to Peripheral Installation

Instruction manual (5266280-100).

Chapter 3 System Setup 3 - 11

WARNINGWARNING

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-6-4 Connecting Cables

Equipment damage possibility. Be sure to use the following recommended connecting cables to connect recording devices and a network with LOGIQ C Series console.

Table 3-8 List of Connecting Cables

Name Part No. Figure NOTE

USB Cable 5122305

3-6-5 Peripherals/Accessories Connector Panel

LOGIQ C Series peripherals and accessories can be properly connected using the side connector panel.

3-6-5-1 Rear Panel Connector

Located on the rear panel are Network port, 2 USB port, S-Video Out, VGA, Audio Out, Composite Out.

For USB Printer

Figure 3-6 Rear Connector Panel

1.) Network Port

2.) 2 USB Ports (Printers, Footswitch, etc)

3.) S-Video Out

4.) VGA

5.) Audio Out

6.) Composite Out

NOTE: Audio Out is not supported by LOGIQ C2/C2 PRO.

3 - 12 Section 3-6 - System Configuration

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-6-5-2 Left Panel Connector

1 USB port is Located on the left panel.

Figure 3-7 Left Connector Panel

1.) 1 USB Ports (Printers, Footswitch, etc)

3-6-5-3 Printer Box Rear Panel connector

Figure 3-8 Printer Box Rear Connector Panel

1.) 1 USB Ports only for B/W Printer

NOTE: Each outer (case) ground line of peripheral/accessory connectors are protectively grounded.

Signal ground lines are not isolated, except the Service port (3). All of signal lines (include signal GND) of the Service port are isolated.

Chapter 3 System Setup 3 - 13

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-6-5-4 Pin assignment for each connector

Table 3-9 Pin Assignments of External VGA

Pin No. Signal Pin No. Signal

1RED9 NC

2 GREEN 10 NC

3BLUE11 NC

4NC12NC

5NC13HSY

6 GND 14 VSY

7 GND 15 NC

8GND

Table 3-10 Pin Assignments of USB

Pin No. Signal Pin No. Signal

1 +5 VDC 5 +5 VDC

2DATA6DATA

3DATA7DATA

4GND8GND

Table 3-11 Pin Assignments of Audio

Pin No. Signal Pin No. Signal

1GND4 NC

2L+5R+

3 Speaker L 6 Speaker R

Table 3-12 Pin Assignment of S-Video

Pin No. Output Signal Pin No. Output Signal

1GND3 Y

2GND4 C

Table 3-13 Pin Assignment of Composite Video Out

Pin No. Output Signal Pin No. Output Signal

1 Composite Out 2 GND

3 - 14 Section 3-6 - System Configuration

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-6-5-5 Connect Peripherals

A.) Connect B/W printer to the system.

B/W Printer can be properly connected using USB Ports.

Figure 3-9 Connect B/W printer to the system

B.) Connect UP-D23 color printer to the system. (Only supported by LOGIQ C5/C5 PRO)

UP-D23 Color Printer can be properly connected using USB Ports.

Figure 3-10 Connect color printer to the system

Chapter 3 System Setup 3 - 15

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-6-5-5 Connect Peripherals (cont’d)

C.) Connect Foot Switch to the system.

Foot Switch can be properly connected using USB Ports.

Figure 3-11 Connect Foot Switch to the system

D.) Connect the USB Memory to the system. The USB Memory can be properly connected using USB

ports.

Figure 3-12 USB Memory Connection

E.) ECG can be properly connected using USB ports. (ECG only supported by LOGIQ C5/C5 PRO)

Figure 3-13 ECG

3 - 16 Section 3-6 - System Configuration

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-6-5-5 Connect Peripherals (cont’d)

F.) Connect the USB HDD to the system. The USB Harddisk can be properly connected using USB

ports.

Figure 3-14 USB Hard Disk Connection

G.) Connect HP 470b Officejet printer to the system. HP 470b Officejet Printer can be properly

connected using USB Ports

Figure 3-15 HP 470b Officejet printer Connection

Chapter 3 System Setup 3 - 17

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

3-6-6 Available Probes

See in specification in the LOGIQ C Series User Reference Manual for Probes and intended use.

Table 3-14 List of Probes on LOGIQ C Series

Probe Name Material of Headshell Area of Using TYPE Catalog Number

4C-RC

3.8C-RC

6.5C-RC

E6C-RC

E7C-RC

7.5L-RC

7L-RC

3S-RC

NORYL GENERAL PURPOSE CONVEX H48102LE

NORYL GENERAL PURPOSE CONVEX H48102LD

VETERINARY

VALOX

VALOX CARDIAC SECTOR H40452LA

PEDIATRIC

NEONATAL

TRANSVAGINAL

TRANSRECTAL

TRANSVAGINAL

TRANSRECTAL

SMALL PARTS

PERIPHERAL VASCULAR

SMALL PARTS

PERIPHERAL VASCULAR

MICRO-CONVEX H48102LF

MICRO-CONVEX H48102LH

MICRO-CONVEX H48102LG

LINEAR H48102LJ

LINEAR H48102LK

Section 3-7 Software/Option Configuration

Refer to the LOGIQ C Series Basic User Manual, Chapter 16, Customizing Your System for information on configuring items like Hospital, Department, Language, Units (of measure), Date, Time and Date Format.

For information on configuring Software Options, Refer to the LOGIQ C Series Basic User Manual, Chapter 16, Customizing Your System.

For information on configuring DICOM Connectivity, Refer to the LOGIQ C Series Basic User Manual, Chapter 16, Customizing Your System.

3 - 18 Section 3-7 - Software/Option Configuration

Site System Information

Services (Destination Devices)

TCP/IP Settings

Device Type

Manufacturer

Name

IP Address

Port

AE Title

1 2 3 4 5 6 7 8 9 10 11 12

Name - AE Title:

Dept:

LOGIQ SN:

Type:

Floor:

Room:

REV:

Comments:

CONTACT INFORMATION

Name

Title

Phone

E-Mail Address

Site:

IP Settings

IP Address:

Subnet Mask:

Default Gateway:

Remote Archive Setup

Remote Archive IP:

Remote Archive Name:

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-8 Connectivity Installation Worksheet

Chapter 3 System Setup 3 - 19

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-9 Loading Base Image Software

Refer to

Section 8-3 "Loading Base Image Software" on page 8-3.

3 - 20 Section 3-9 - Loading Base Image Software

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-10Software Version check out

3-10-1 Functional Check-out

1.) Power on LOGIQ C Series scanner and wait until system booting to main screen.

2.) Press UTILITY

3.) Choose the About

key on control panel.

button on the right.

Figure 3-16 About and Software version

4.) Check whether “Software version” is the right version for use.

Chapter 3 System Setup 3 - 21

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL

Section 3-11 Paperwork

NOTE: During and after installation, the documentation (i.e. User Manuals, Installation Manuals...) for the

peripheral units must be kept as part of the original system documentation. This will ensure that all relevant safety and user information is available during the operation and service of the complete system.

3-11-1 Product Locator Installation

NOTE: The Product Locator Installation Card shown may not be same as the provided Product Locator

card.

Figure 3-17 Product Locator Installation Card

3-11-2 User Manual(s)

User Check that the correct User Manual(s) for the system and software revision, is included with the installation. Specific language versions of the User Manual may also be available. Check with your GE Sales Representative for availability.

3 - 22 Section 3-11 - Paperwork

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Chapter 4 Functional Checks

Section 4-1 Overview

4-1-1 Purpose for Chapter 4

This chapter provides procedures for quickly checking major functions of the LOGIQ C Series console,

diagnostics by using the built-in service software, and power supply.

Table 4-1 Contents in Chapter 4

Section Description Page Number

4-1 "Overview" 4-1

4-2 "Required Equipment" 4-1

4-3 "General Procedure" 4-2

4-4 "Software Configuration Checks" 4-35

4-5 "Peripheral Checks" 4-35

Section 4-2 Required Equipment

To perform these tests, you'll need any of the sector, linear, or convex transducers.

(normally you should check all the transducers used on the system)

Chapter 4 Functional Checks 4 - 1

CAUTION

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

Section 4-3 General Procedure

SYSTEM REQUIRES ALL COVERS Operate this unit only when all board covers and frame panels are securely in place. The covers are required for safe operation, good system performance and cooling purposes.

4-3-1 Power On/Boot Up

After connect the system to the electrical supply, the power is applied to the scanner. When the Control panel Power On/Off key is pressed once, the System starts.

4-3-1-1 Scanner Power On

When power is applied to the scanner, power is distributed to the Cooling Unit, Control Panel, LCD, Peripherals and the Back-end Processor.

4-3-1-2 Turn on the system

Press the Power On/Off switch at the front of the system once.

Figure 4-1 Power On/Off Switch

When the Power On/Off switch on the Control Panel is pressed once, the Back-end Processor starts and the software code is distributed to initiate the scanner.

No status messages are displayed during this process.

4-3-2 Power Off/ Shutdown

NOTE: After turning off a system, wait at least ten seconds before turning it on again. The system may not be

able to boot if power is recycled too quickly.

4-3-2-1 Back-end Processor Power Down

To power down the system:

1.) Press the Power On/Off switch at the front of the system once.

4 - 2 Section 4-3 - General Procedure

CAUTION

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

4-3-2-1 Back-end Processor Power Down (cont’d)

2.) The System-Exit window is displayed.

Figure 4-2 System Exit Window

3.) Using the Trackball or Select key, select Shutdown.

4.) The shutdown process takes a few seconds and the power off sequence is complete when the power status LED is turned amber.

5.) Disconnect the probes.Clean or disinfect all probes as necessary. Store them in their shipping cases to avoid damage.

4-3-2-2 Scanner Shutdown

Disconnect the Mains Power Cable is necessary. For example: Relocating the scanner.

DO NOT unplug and/or transport the unit until after the power off sequence has been completed. Failure to do so may result in corrupted patient files.

Chapter 4 Functional Checks 4 - 3

NOTICE

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

4-3-3 Archiving and Loading Presets

NOTE: Always save presets before any software reload. This ensures the presets loaded after the software

reload are as up–to–date as possible.

NOTE: The system may crash if use a DVD for Archive/Backup/EZBackup/Restore, so always use a

CD-R or USB HDD for Archive/Backup/EZBackup/Restore. DVD only can be used for upgrade.

All user presets except changes to Summary, Anatomy, and Biometry pages, can be saved on an CDR disk (or USB memory device) for reloading on the system.

Presets should NOT be saved on the same CD-R disk (or USB memory device) as images. The Archive Menu lists the images but does NOT list the presets stored on a CD-R disk (or USB memory device).

4-3-3-1 Archiving Presets to an CD-R Disk (or USB memory device)

1.) Insert an empty (blank) CD-R disk into the DVD-RW.

2.) Access to the Utility Menu, and select System. The Backup sheet will be shown on the LCD display.

Figure 4-3 Backup Sheet

3.) Select the item to back up either from Resource Files.

4.) Enter backup destination or browse through the disk to locate the destination.

5.) Select Backup now. The backup status for each item is displayed on the Result column.

4 - 4 Section 4-3 - General Procedure

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

4-3-3-2 Loading Presets from an CD-R disk (or USB memory device)

1.) Insert the CD-R disk with the archived Presets into the DVD-RW.

2.) Access to the Utility Menu, and select System. The Restore sheet will be shown on the LCD display.

3.) Select the item to restore either from Resource Files.

4.) Enter restore destination or browse through the disk to locate the destination.

5.) Select Restore. The restore status for each item is displayed on the Result column.

4-3-4 Adjusting the Display Monitor

Please refer to Section 6-2 "Monitor Adjustments" on page 6-2

Chapter 4 Functional Checks 4 - 5

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

4-3-5 System Features

4-3-5-1 Control Panel

Figure 4-4 Control Panel Tour

1.) Power On/Off Switch

2.) Probe Key

3.) Top Menu Controls

4.) Keyboard

5.) Preset, Comment, Harmonics keys

6.) Patient key

7.) Mode keys: B-Mode, M-Mode, PW-Mode, CF Mode.

8.) Gain/Auto key

9.) Zoom key

10.)Ellipse key

11.)Depth key

12.)Reverse, Print, Store keys

13.)Left, Right key

14.)Freeze key

15.)Trackball

16.)Imaging/Measurement keys

17.)TGC

18.)Gel Holder

19.)Probe Holder

NOTE: LOGIQ C2/C2 PRO do not have Harmonics keys and press CTRL+H to active Harmonics mode

NOTE: LOGIQ C2/C2 PRO do not support PW Mode and CF Mode, and do not have PW and CF mode

key, LOGIQ C3/C3 PRO do not support CF Mode, and do not have CF mode key.

4 - 6 Section 4-3 - General Procedure

GE D

IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL

4-3-5-2 LOGIQ C Series SoftMenu Key Tour
