General Electric LOGIQ BOOK XP SERIES BASIC SERVICE MANUAL R2.2.X_SM_5194296-100_11 LOGIQ BOOK XP Series Basic Service Manual

GE

LOGIQ BOOK XP Series

Basic Service Manual

Part Number: 5194296-100

Revision: 11

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

Important Precautions

THIS SERVICE MANUAL IS AVAILABLE IN ENGLISH ONLY.

• IF A CUSTOMER’S SERVICE PROVIDER REQUIRES A LANGUAGE OTHER
THAN ENGLISH, IT IS THE CUSTOMER’S RESPONSIBILITY TO PROVIDE
TRANSLATION SERVICES.

WARNING

(EN)

AVERTISSEMENT

(FR)

• DO NOT ATTEMPT TO SERVICE THE EQUIPMENT UNLESS THIS SERVICE
MANUAL HAS BEEN CONSULTED AND IS UNDERSTOOD.

• FAILURE TO HEED THIS WARNING MAY RESULT IN INJURY TO THE SERVICE
PROVIDER, OPERATOR OR PATIENT FROM ELECTRIC SHOCK, MECHANICAL
OR OTHER HAZARDS.

CE MANUEL DE MAINTENANCE N’EST DISPONIBLE QU’EN ANGLAIS.

• SI LE TECHNICIEN DU CLIENT A BESOIN DE CE MANUEL DANS UNE AUTRE
LANGUE QUE L’ANGLAIS, C’EST AU CLIENT QU’IL INCOMBE DE LE FAIRE
TRADUIRE.

• NE PAS TENTER D’INTERVENTION SUR LES ÉQUIPEMENTS TANT QUE LE
MANUEL SERVICE N’A PAS ÉTÉ CONSULTÉ ET COMPRIS.

• LE NON-RESPECT DE CET AVERTISSEMENT PEUT ENTRAÎNER CHEZ LE
TECHNICIEN, L’OPÉRATEUR OU LE PATIENT DES BLESSURES DUES À DES
DANGERS ÉLECTRIQUES, MÉCANIQUES OU AUTRES.

WARNUNG

(DE)

DIESES KUNDENDIENST-HANDBUCH EXISTIERT NUR IN ENGLISCHER
SPRACHE.

• FALLS EIN FREMDER KUNDENDIENST EINE ANDERE SPRACHE BENÖTIGT,
IST ES AUFGABE DES KUNDEN FÜR EINE ENTSPRECHENDE ÜBERSETZUNG
ZU SORGEN.

• VERSUCHEN SIE NICHT, DAS GERÄT ZU REPARIEREN, BEVOR DIESES
KUNDENDIENST-HANDBUCH NICHT ZU RATE GEZOGEN UND VERSTANDEN
WURDE.

• WIRD DIESE WARNUNG NICHT BEACHTET, SO KANN ES ZU VERLETZUNGEN
DES KUNDENDIENSTTECHNIKERS, DES BEDIENERS ODER DES PATIENTEN
DURCH ELEKTRISCHE SCHLÄGE, MECHANISCHE ODER SONSTIGE
GEFAHREN KOMMEN.

i

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

ESTE MANUAL DE SERVICIO SÓLO EXISTE EN INGLÉS.

• SI ALGÚN PROVEEDOR DE SERVICIOS AJENO A GEHC SOLICITA UN IDIOMA
QUE NO SEA EL INGLÉS, ES RESPONSABILIDAD DEL CLIENTE OFRECER UN
SERVICIO DE TRADUCCIÓN.

AVISO

(ES)

• NO SE DEBERÁ DAR SERVICIO TÉCNICO AL EQUIPO, SIN HABER
CONSULTADO Y COMPRENDIDO ESTE MANUAL DE SERVICIO.

• LA NO OBSERVANCIA DEL PRESENTE AVISO PUEDE DAR LUGAR A QUE EL
PROVEEDOR DE SERVICIOS, EL OPERADOR O EL PACIENTE SUFRAN
LESIONES PROVOCADAS POR CAUSAS ELÉCTRICAS, MECÁNICAS O DE
OTRA NATURALEZA.

ESTE MANUAL DE ASSISTÊNCIA TÉCNICA SÓ SE ENCONTRA DISPONÍVEL EM
INGLÊS.

• SE QUALQUER OUTRO SERVIÇO DE ASSISTÊNCIA TÉCNICA, QUE NÃO A
GEHC, SOLICITAR ESTES MANUAIS NOUTRO IDIOMA, É DA

ATENÇÃO

(PT-Br)

RESPONSABILIDADE DO CLIENTE FORNECER OS SERVIÇOS DE TRADUÇÃO.

• NÃO TENTE REPARAR O EQUIPAMENTO SEM TER CONSULTADO E
COMPREENDIDO ESTE MANUAL DE ASSISTÊNCIA TÉCNICA.

• O NÃO CUMPRIMENTO DESTE AVISO PODE POR EM PERIGO A SEGURANÇA
DO TÉCNICO, OPERADOR OU PACIENTE DEVIDO A‘ CHOQUES ELÉTRICOS,
MECÂNICOS OU OUTROS.

AVISO

(PT-pt)

AVVERTENZA

(IT)

ESTE MANUAL DE ASSISTÊNCIA ESTÁ DISPONÍVEL APENAS EM INGLÊS.

• SE QUALQUER OUTRO SERVIÇO DE ASSISTÊNCIA TÉCNICA, QUE NÃO A
GEHC, SOLICITAR ESTES MANUAIS NOUTRO IDIOMA, É DA
RESPONSABILIDADE DO CLIENTE FORNECER OS SERVIÇOS DE TRADUÇÃO.

• NÃO TENTE EFECTUAR REPARAÇÕES NO EQUIPAMENTO SEM TER
CONSULTADO E COMPREENDIDO PREVIAMENTE ESTE MANUAL.

• A INOBSERVÂNCIA DESTE AVISO PODE RESULTAR EM FERIMENTOS NO
TÉCNICO DE ASSISTÊNCIA, OPERADOR OU PACIENTE EM CONSEQUÊNCIA
DE CHOQUE ELÉCTRICO, PERIGOS DE ORIGEM MECÂNICA, BEM COMO DE
OUTROS TIPOS.

IL PRESENTE MANUALE DI MANUTENZIONE È DISPONIBILE SOLTANTO IN
INGLESE.

• SE UN ADDETTO ALLA MANUTENZIONE ESTERNO ALLA GEHC RICHIEDE IL
MANUALE IN UNA LINGUA DIVERSA, IL CLIENTE È TENUTO A PROVVEDERE
DIRETTAMENTE ALLA TRADUZIONE.

• SI PROCEDA ALLA MANUTENZIONE DELL’APPARECCHIATURA SOLO DOPO
AVER CONSULTATO IL PRESENTE MANUALE ED AVERNE COMPRESO IL
CONTENUTO.

• NON TENERE CONTO DELLA PRESENTE AVVERTENZA POTREBBE FAR
COMPIERE OPERAZIONI DA CUI DERIVINO LESIONI ALL’ADDETTO ALLA
MANUTENZIONE, ALL’UTILIZZATORE ED AL PAZIENTE PER FOLGORAZIONE
ELETTRICA, PER URTI MECCANICI OD ALTRI RISCHI.

ii -

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

KÄESOLEV TEENINDUSJUHEND ON SAADAVAL AINULT INGLISE KEELES.

• KUI KLIENDITEENINDUSE OSUTAJA NÕUAB JUHENDIT INGLISE KEELEST
ERINEVAS KEELES, VASTUTAB KLIENT TÕLKETEENUSE OSUTAMISE EEST.

HOIATUS

(ET)

• ÄRGE ÜRITAGE SEADMEID TEENINDADA ENNE EELNEVALT KÄESOLEVA
TEENINDUSJUHENDIGA TUTVUMIST JA SELLEST ARU SAAMIST.

• KÄESOLEVA HOIATUSE EIRAMINE VÕIB PÕHJUSTADA TEENUSEOSUTAJA,
OPERAATORI VÕI PATSIENDI VIGASTAMIST ELEKTRILÖÖGI, MEHAANILISE
VÕI MUU OHU TAGAJÄRJEL.

TÄMÄ HUOLTO-OHJE ON SAATAVILLA VAIN ENGLANNIKSI.

• JOS ASIAKKAAN PALVELUNTARJOAJA VAATII MUUTA KUIN
ENGLANNINKIELISTÄ MATERIAALIA, TARVITTAVAN KÄÄNNÖKSEN
HANKKIMINEN ON ASIAKKAAN VASTUULLA.

VAROITUS

(FI)

• ÄLÄ YRITÄ KORJATA LAITTEISTOA ENNEN KUIN OLET VARMASTI LUKENUT
JA YMMÄRTÄNYT TÄMÄN HUOLTO-OHJEEN.

• MIKÄLI TÄTÄ VAROITUSTA EI NOUDATETA, SEURAUKSENA VOI OLLA
PALVELUNTARJOAJAN, LAITTEISTON KÄYTTÄJÄN TAI POTILAAN
VAHINGOITTUMINEN SÄHKÖISKUN, MEKAANISEN VIAN TAI MUUN
VAARATILANTEEN VUOKSI.

ΠΡΟΕΙ∆ΟΠΟΙΗΣΗ

(EL)

FIGYELMEZTETÉS

(HU)

ΤΟ ΠΑΡΟΝ ΕΓΧΕΙΡΙ∆ΙΟ ΣΕΡΒΙΣ ∆ΙΑΤΙΘΕΤΑΙ ΣΤΑ ΑΓΓΛΙΚΑ ΜΟΝΟ.

• ΕΑΝ ΤΟ ΑΤΟΜΟ ΠΑΡΟΧΗΣ ΣΕΡΒΙΣ ΕΝΟΣ ΠΕΛΑΤΗ ΑΠΑΙΤΕΙ ΤΟ ΠΑΡΟΝ

ΕΓΧΕΙΡΙ∆ΙΟ ΣΕ ΓΛΩΣΣΑ ΕΚΤΟΣ ΤΩΝ ΑΓΓΛΙΚΩΝ, ΑΠΟΤΕΛΕΙ ΕΥΘΥΝΗ ΤΟΥ
ΠΕΛΑΤΗ ΝΑ ΠΑΡΕΧΕΙ ΥΠΗΡΕΣΙΕΣ ΜΕΤΑΦΡΑΣΗΣ.

• ΜΗΝ ΕΠΙΧΕΙΡΗΣΕΤΕ ΤΗΝ ΕΚΤΕΛΕΣΗ ΕΡΓΑΣΙΩΝ ΣΕΡΒΙΣ ΣΤΟΝ ΕΞΟΠΛΙΣΜΟ
ΕΚΤΟΣ ΕΑΝ

ΕΧΕΤΕ ΣΥΜΒΟΥΛΕΥΤΕΙ ΚΑΙ ΕΧΕΤΕ ΚΑΤΑΝΟΗΣΕΙ ΤΟ ΠΑΡΟΝ

ΕΓΧΕΙΡΙ∆ΙΟ ΣΕΡΒΙΣ.

• ΕΑΝ ∆Ε ΛΑΒΕΤΕ ΥΠΟΨΗ ΤΗΝ ΠΡΟΕΙ∆ΟΠΟΙΗΣΗ ΑΥΤΗ, ΕΝ∆ΕΧΕΤΑΙ ΝΑ
ΠΡΟΚΛΗΘΕΙ ΤΡΑΥΜΑΤΙΣΜΟΣ ΣΤΟ ΑΤΟΜΟ ΠΑΡΟΧΗΣ ΣΕΡΒΙΣ, ΣΤΟ ΧΕΙΡΙΣΤΗ Ή
ΣΤΟΝ ΑΣΘΕΝΗ ΑΠΟ ΗΛΕΚΤΡΟΠΛΗΞΙΑ, ΜΗΧΑΝΙΚΟΥΣ Ή ΑΛΛΟΥΣ ΚΙΝ∆ΥΝΟΥΣ.

EZEN KARBANTARTÁSI KÉZIKÖNYV KIZÁRÓLAG ANGOL NYELVEN ÉRHETŐ EL.

• HA A VEVŐ SZOLGÁLTATÓJA ANGOLTÓL ELTÉRŐ NYELVRE TART IGÉNYT,
AKKOR A VEVŐ FELELŐSSÉGE A FORDÍTÁS ELKÉSZÍTTETÉSE.

• NE PRÓBÁLJA ELKEZDENI HASZNÁLNI A BERENDEZÉST, AMÍG A
KARBANTARTÁSI KÉZIKÖNYVBEN LEÍRTAKAT NEM ÉRTELMEZTÉK.

• EZEN FIGYELMEZTETÉS FIGYELMEN KÍVÜL HAGYÁSA A SZOLGÁLTATÓ,
MŰKÖDTETŐ VAGY A BETEG ÁRAMÜTÉS, MECHANIKAI VAGY EGYÉB
VESZÉLYHELYZET MIATTI SÉRÜLÉSÉT EREDMÉNYEZHETI.

iii

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

ÞESSI ÞJÓNUSTUHANDBÓK ER EINGÖNGU FÁANLEG Á ENSKU.

• EF ÞJÓNUSTUAÐILI VIÐSKIPTAMANNS ÞARFNAST ANNARS TUNGUMÁLS EN
ENSKU, ER ÞAÐ Á ÁBYRGÐ VIÐSKIPTAMANNS AÐ ÚTVEGA ÞÝÐINGU.

VIÐVÖRUN

(IS)

• REYNIÐ EKKI AÐ ÞJÓNUSTA TÆKIÐ NEMA EFTIR AÐ HAFA SKOÐAÐ OG
SKILIÐ ÞESSA ÞJÓNUSTUHANDBÓK.

• EF EKKI ER FARIÐ AÐ ÞESSARI VIÐVÖRUN GETUR ÞAÐ VALDIÐ MEIÐSLUM
ÞJÓNUSTUVEITANDA, STJÓRNANDA EÐA SJÚKLINGS VEGNA RAFLOSTS,
VÉLRÆNNAR EÐA ANNARRAR HÆTTU.

TENTO SERVISNÍ NÁVOD EXISTUJE POUZE V ANGLICKÉM JAZYCE.

•VPŘÍPADĚ, ŽE POSKYTOVATEL SLUŽEB ZÁKAZNÍKŮM POTŘEBUJE NÁVOD
V JINÉM JAZYCE, JE ZAJIŠTĚNÍ PŘEKLADU DO ODPOVÍDAJÍCÍHO JAZYKA
ÚKOLEM ZÁKAZNÍKA.

• NEPROVÁDĚJTE ÚDRŽBU TOHOTO ZAŘÍZENÍ, ANIŽ BYSTE SI PŘEČETLI

VÝSTRAHA

(CS)

TENTO SERVISNÍ NÁVOD A POCHOPILI JEHO OBSAH.

•VPŘÍPADĚ NEDODRŽOVÁNÍ TÉTO VÝSTRAHY MŮŽE DOJÍT ÚRAZU
ELEKTRICKÁM PROUDEM PRACOVNÍKA POSKYTOVATELE SLUŽEB,
OBSLUŽNÉHO PERSONÁLU NEBO PACIENTŮ VLIVEM ELEKTRICKÉHOP
PROUDU, RESPEKTIVE VLIVEM K RIZIKU MECHANICKÉHO POŠKOZENÍ NEBO
JINÉMU RIZIKU.

ADVARSEL

(DA)

WAARSCHUWING

(NL)

DENNE SERVICEMANUAL FINDES KUN PÅ ENGELSK.

• HVIS EN KUNDES TEKNIKER HAR BRUG FOR ET ANDET SPROG END
ENGELSK, ER DET KUNDENS ANSVAR AT SØRGE FOR OVERSÆTTELSE.

• FORSØG IKKE AT SERVICERE UDSTYRET MEDMINDRE
DENNE SERVICEMANUAL ER BLEVET LÆST OG FORSTÅET.

• MANGLENDE OVERHOLDELSE AF DENNE ADVARSEL KAN MEDFŘRE SKADE
PĹ GRUND AF ELEKTRISK, MEKANISK ELLER ANDEN FARE FOR
TEKNIKEREN, OPERATŘREN ELLER PATIENTEN.

DEZE ONDERHOUDSHANDLEIDING IS ENKEL IN HET ENGELS VERKRIJGBAAR.

• ALS HET ONDERHOUDSPERSONEEL EEN ANDERE TAAL VEREIST, DAN IS DE
KLANT VERANTWOORDELIJK VOOR DE VERTALING ERVAN.

• PROBEER DE APPARATUUR NIET TE ONDERHOUDEN VOORDAT DEZE
ONDERHOUDSHANDLEIDING WERD GERAADPLEEGD EN BEGREPEN IS.

• INDIEN DEZE WAARSCHUWING NIET WORDT OPGEVOLGD, ZOU HET
ONDERHOUDSPERSONEEL, DE OPERATOR OF EEN PATIËNT GEWOND
KUNNEN RAKEN ALS GEVOLG VAN EEN ELEKTRISCHE SCHOK,
MECHANISCHE OF ANDERE GEVAREN.

iv -

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

ŠĪ APKALPES ROKASGRĀMATA IR PIEEJAMA TIKAI ANGĻU VALODĀ.

• JA KLIENTA APKALPES SNIEDZĒJAM NEPIECIEŠAMA INFORMĀCIJA CITĀ
VALODĀ, NEVIS ANGĻU, KLIENTA PIENĀKUMS IR NODROŠINĀT TULKOŠANU.

BRĪDINĀJUMS

(LV)

• NEVEICIET APRĪKOJUMA APKALPI BEZ APKALPES ROKASGRĀMATAS
IZLASĪŠANAS UN SAPRAŠANAS.

•ŠĪ BRĪDINĀJUMA NEIEVĒROŠANA VAR RADĪT ELEKTRISKĀS STRĀVAS
TRIECIENA, MEHĀNISKU VAI CITU RISKU IZRAISĪTU TRAUMU APKALPES
SNIEDZĒJAM, OPERATORAM VAI PACIENTAM.

ŠIS EKSPLOATAVIMO VADOVAS YRA IŠLEISTAS TIK ANGLŲ KALBA.

• JEI KLIENTO PASLAUGŲ TEIKĖJUI REIKIA VADOVO KITA KALBA – NE ANGLŲ,
VERTIMU PASIRŪPINTI TURI KLIENTAS.

ĮSPĖJIMAS

(LT)

•NEMĖGINKITE ATLIKTI ĮRANGOS TECHNINĖS PRIEŽIŪROS DARBŲ, NEBENT
VADOVAUTUMĖTĖS ŠIUO EKSPLOATAVIMO VADOVU IR JĮ SUPRASTUMĖTE

• NEPAISANT ŠIO PERSPĖJIMO, PASLAUGŲ TEIKĖJAS, OPERATORIUS AR
PACIENTAS GALI BŪTI SUŽEISTAS DĖL ELEKTROS SM

ŪGIO, MECHANINIŲ AR

KITŲ PAVOJŲ.

ADVARSEL

(NO)

OSTRZEŻENIE

(PL)

DENNE SERVICEHÅNDBOKEN FINNES BARE PÅ ENGELSK.

• HVIS KUNDENS SERVICELEVERANDØR TRENGER ET ANNET SPRÅK, ER DET
KUNDENS ANSVAR Å SØRGE FOR OVERSETTELSE.

• IKKE FORSØK Å REPARERE UTSTYRET UTEN AT DENNE
SERVICEHÅNDBOKEN ER LEST OG FORSTÅTT.

• MANGLENDE HENSYN TIL DENNE ADVARSELEN KAN FØRE TIL AT
SERVICELEVERANDØREN, OPERATØREN ELLER PASIENTEN SKADES PÅ
GRUNN AV ELEKTRISK STØT, MEKANISKE ELLER ANDRE FARER.

NINIEJSZY PODRĘCZNIK SERWISOWY DOSTĘPNY JEST JEDYNIE W JĘZYKU
ANGIELSKIM.

•JEŚLI FIRMA ŚWIADCZĄCA KLIENTOWI USłUGI SERWISOWE WYMAGA
UDOSTĘPNIENIA PODRĘCZNIKA W JĘZYKU INNYM NIŻ ANGIELSKI,
OBOWIĄZEK ZAPEWNIENIA STOSOWNEGO TłUMACZENIA SPOCZYWA NA
KLIENCIE.

• NIE PRÓBOWAĆ SERWISOWAĆ NINIEJSZEGO SPRZĘTU BEZ UPRZEDNIEGO
ZAPOZNANIA SIĘ Z PODRĘCZNIKIEM SERWISOWYM.

• NIEZASTOSOWANIE SIĘ DO TEGO OSTRZEŻENIA MOżE GROZIĆ
OBRAŻENIAMI CIAłA SERWISANTA, OPERATORA LUB PACJENTA W WYNIKU
PORAŻENIA PRĄDEM, URAZU MECHANICZNEGO LUB INNEGO RODZAJU
ZAGROŻEŃ.

v

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

ACEST MANUAL DE SERVICE ESTE DISPONIBIL NUMAI ÎN LIMBA ENGLEZĂ.

• DACĂ UN FURNIZOR DE SERVICII PENTRU CLIENŢI NECESITĂ O ALTĂ LIMBĂ
DECÂT CEA ENGLEZĂ, ESTE DE DATORIA CLIENTULUI SĂ FURNIZEZE O
TRADUCERE.

ATE NŢIE

(RO)

• NU ÎNCERCAŢI SĂ REPARAŢI ECHIPAMENTUL DECÂT ULTERIOR
CONSULTĂRII ŞI ÎNŢELEGERII ACESTUI MANUAL DE SERVICE.

• IGNORAREA ACESTUI AVERTISMENT AR PUTEA DUCE LA RĂNIREA
DEPANATORULUI, OPERATORULUI SAU PACIENTULUI ÎN URMA
PERICOLELOR DE ELECTROCUTARE, MECANICE SAU DE ALTĂ NATURĂ.

ДАННОЕ РУКОВОДСТВО ПО ОБСЛУЖИВАНИЮ ПРЕДОСТАВЛЯЕТСЯ ТОЛЬКО
НА АНГЛИЙСКОМ ЯЗЫКЕ.

• ЕСЛИ СЕРВИСНОМУ ПЕРСОНАЛУ КЛИЕНТА НЕОБХОДИМО РУКОВОДСТВО
НЕ НА АНГЛИЙСКОМ ЯЗЫКЕ, КЛИЕНТУ СЛЕДУЕТ САМОСТОЯТЕЛЬНО
ОБЕСПЕЧИТЬ ПЕРЕВОД.

ОСТОРОЖНО!

(RU)

• ПЕРЕД ОБСЛУЖИВАНИЕМ ОБОРУДОВАНИЯ ОБЯЗАТЕЛЬНО
К ДАННОМУ РУКОВОДСТВУ И ПОЙМИТЕ ИЗЛОЖЕННЫЕ В НЕМ СВЕДЕНИЯ.

ОБРАТИТЕСЬ

• НЕСОБЛЮДЕНИЕ УКАЗАННЫХ ТРЕБОВАНИЙ МОЖЕТ ПРИВЕСТИ К ТОМУ,

ЧТО СПЕЦИАЛИСТ ПО ТЕХОБСЛУЖИВАНИЮ, ОПЕРАТОР ИЛИ ПАЦИЕНТ
ПОЛУЧАТ УДАР ЗЛЕКТРИЧЕСКИМ ТОКОМ, МЕХАНИЧЕСКУЮ ТРАВМУ ИЛИ
ДРУГОЕ ПОВРЕЖДЕНИЕ.

ПРЕДУПРЕЖДЕНИЕ

(BG)

UPOZORENJE

(SR)

ТОВА СЕРВИЗНО РЪКОВОДСТВО Е НАЛИЧНО САМО НА АНГЛИЙСКИ ЕЗИК.

• АКО ДОСТАВЧИКЪТ НА СЕРВИЗНИ УСЛУГИ НА КЛИЕНТ

СЕ НУЖДАЕ ОТ
ЕЗИК, РАЗЛИЧЕН ОТ АНГЛИЙСКИ, ЗАДЪЛЖЕНИЕ НА КЛИЕНТА Е ДА
ПРЕДОСТАВИ ПРЕВОДАЧЕСКА УСЛУГА.

• НЕ СЕ ОПИТВАЙТЕ ДА ИЗВЪРШВАТЕ СЕРВИЗНО ОБСЛУЖВАНЕ НА ТОВА
ОБОРУДВАНЕ, ОСВЕН ВСЛУЧАЙ, ЧЕ СЕРВИЗНОТО РЪКОВОДСТВО Е
ПРОЧЕТЕНО И СЕ РАЗБИРА.

• НЕСПАЗВАНЕТО НА ТОВА ПРЕДУПРЕЖДЕНИЕ МОЖЕ ДА ДОВЕДЕ ДО
НАРАНЯВАНЕ НА ДОСТАВЧИКА НА СЕРВИЗНИ УСЛУГИ, НА

ОПЕРАТОРА
ИЛИ ПАЦИЕНТА ВСЛЕДСТВИЕНА ТОКОВ УДАР, МЕХАНИЧНИ ИЛИ ДРУГИ
РИСКОВЕ.

OVAJ PRIRUČNIK ZA SERVISIRANJE DOSTUPAN JE SAMO NA ENGLESKOM
JEZIKU.

• AKO KLIJENTOV SERVISER ZAHTEVA JEZIK KOJI NIJE ENGLESKI,

ODGOVORNOST JE NA KLIJENTU DA PRUŽI USLUGE PREVOĐENJA.

• NEMOJTE POKUŠAVATI DA SERVISIRATE OPREMU AKO NISTE PROČITALI I
RAZUMELI PRIRUČNIK ZA SERVISIRANJE.

• AKO NE POŠTUJETE OVO UPOZORENJE, MOŽE DOĆI DO POVREĐIVANJA
SERVISERA, OPERATERA ILI PACIJENTA UZROKOVANOG ELEKTRIČNIM
UDAROM, MEHANIČKIM I DRUGIM OPASNOSTIMA.

vi -

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

TA SERVISNI PRIROČNIK JE NA VOLJO SAMO V ANGLEŠČINI.

• ČE PONUDNIK SERVISNIH STORITEV ZA STRANKO POTREBUJE NAVODILA V

DRUGEM JEZIKU, JE ZA PREVOD ODGOVORNA STRANKA SAMA.

OPOZORILO

(SL)

• NE POSKUŠAJTE SERVISIRATI OPREME, NE DA BI PREJ PREBRALI IN

RAZUMELI SERVISNI PRIROČNIK.

• ČE TEGA OPOZORILA NE UPOŠTEVATE, OBSTAJA NEVARNOST
ELEKTRIČNEGA UDARA, MEHANSKIH ALI DRUGIH NEVARNOSTI IN
POSLEDIČNIH POŠKODB PONUDNIKA SERVISNIH STORITEV, UPORABNIKA
OPREME ALI PACIENTA.

OVAJ SERVISNI PRIRUČNIK DOSTUPAN JE SAMO NA ENGLESKOM JEZIKU.

• AKO KLIJENTOV SERVISER ZAHTIJEVA JEZIK KOJI NIJE ENGLESKI,
ODGOVORNOST KLIJENTA JE PRUŽITI USLUGE PREVOĐENJA.

UPOZORENJE

(HR)

• NEMOJTE POKUŠAVATI SERVISIRATI OPREMU AKO NISTE PROČITALI I
RAZUMJELI SERVISNI PRIRUČNIK.

• AKO NE POŠTUJETE OVO UPOZORENJE, MOŽE DOĆI DO OZLJEDE
SERVISERA, OPERATERA ILI PACIJENTA PROUZROČENE STRUJNIM
UDAROM, MEHANIČKIM I DRUGIM OPASNOSTIMA.

UPOZORNENIE

(SK)

VARNING

(SV)

TÁTO SERVISNÁ PRÍRUČKA JE K DISPOZÍCII LEN V ANGLIČTINE.

• AK ZÁKAZNÍKOV POSKYTOVATEĽ SLUŽIEB VYŽADUJE INÝ JAZYK AKO
ANGLIČTINU, POSKYTNUTIE PREKLADATEĽSKÝCH SLUŽIEB JE
ZODPOVEDNOSŤOU ZÁKAZNÍKA.

• NEPOKÚŠAJTE SA VYKONÁVAŤ SERVIS ZARIADENIA SKÔR, AKO SI
NEPREČÍTATE SERVISNÚ PRÍRUČKU A NEPOROZUMIETE JEJ.

• ZANEDBANIE TOHTO UPOZORNENIA MÔŽE VYÚSTIŤ DO ZRANENIA
POSKYTOVATEĽA SLUŽIEB, OBSLUHUJÚCEJ OSOBY ALEBO PACIENTA
ELEKTRICKÝM PRÚDOM, PRÍPADNE DO MECHANICKÉHO ALEBO INÉHO
NEBEZPEČENSTVA.

DEN HÄR SERVICEHANDBOKEN FINNS BARA TILLGÄNGLIG PÅ ENGELSKA.

• OM EN KUNDS SERVICETEKNIKER HAR BEHOV AV ETT ANNAT SPRÅK ÄN
ENGELSKA ANSVARAR KUNDEN FÖR ATT TILLHANDAHÅLLA
ÖVERSÄTTNINGSTJÄNSTER.

• FÖRSÖK INTE UTFÖRA SERVICE PÅ UTRUSTNINGEN OM DU INTE HAR LÄST
OCH FÖRSTÅR DEN HÄR SERVICEHANDBOKEN.

• OM DU INTE TAR HÄNSYN TILL DEN HÄR VARNINGEN KAN DET RESULTERA I
SKADOR PÅ SERVICETEKNIKERN, OPERATÖREN ELLER PATIENTEN TILL
FÖLJD AV ELEKTRISKA STÖTAR, MEKANISKA FAROR ELLER ANDRA FAROR.

vii

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

BU SERVİS KILAVUZU YALNIZCA İNGİLİZCE OLARAK SAĞLANMIŞTIR.

•EĞER MÜŞTERİ TEKNİSYENİ KILAVUZUN İNGİLİZCE DIŞINDAKİ BİR DİLDE
OLMASINI İSTERSE, KILAVUZU TERCÜME ETTİRMEK MÜŞTERİNİN
SORUMLULUĞUNDADIR.

DİKKAT

(TR)

•SERVİS KILAVUZUNU OKUYUP ANLAMADAN EKİPMANLARA MÜDAHALE
ETMEYİNİZ.

• BU UYARININ GÖZ ARDI EDİLMESİ, ELEKTRİK ÇARPMASI YA DA MEKANİK
VEYA DİĞER TÜRDEN KAZALAR SONUCUNDA TEKNİSYENİN, OPERATÖRÜN
YA DA HASTANIN YARALANMASINA YOL AÇABİLİR.

(JA)

Traditional

Chinese

viii -

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

(ZH-CN)

(KO)

ix

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

DAMAGE IN TRANSPORTATION

All packages should be closely examined at time of delivery. If damage is apparent write “Damage In
Shipment” on ALL copies of the freight or express bill BEFORE delivery is accepted or “signed for” by
a GE representative or hospital receiving agent. Whether noted or concealed, damage MUST be
reported to the carrier immediately upon discovery, or in any event, within 14 days after receipt, and the
contents and containers held for inspection by the carrier. A transportation company will not pay a claim
for damage if an inspection is not requested within this 14 day period.

CERTIFIED ELECTRICAL CONTRACTOR STATEMENT - FOR USA ONLY

All electrical Installations that are preliminary to positioning of the equipment at the site prepared for the
equipment shall be performed by licensed electrical contractors. Other connections between pieces of
electrical equipment, calibrations and testing shall be performed by qualified GE personnel. In
performing all electrical work on these products, GE will use its own specially trained field engineers.
All of GE’s electrical work on these products will comply with the requirements of the applicable
electrical codes.

The purchaser of GE equipment shall only utilize qualified personnel (i.e., GE’s field engineers,
personnel of third-party service companies with equivalent training, or licensed electricians) to perform
electrical servicing on the equipment.

OMISSIONS & ERRORS

If there are any omissions, errors or suggestions for improving this documentation, please contact the
GE Global Documentation Group with specific information listing the system type, manual title, part
number, revision number, page number and suggestion details.

Mail the information to:

Service Documentation,
GE Medical Systems (China) Co., Ltd.
No.19 Changjiang Road
WuXi National Hi-Tech Development Zone
Jiangsu, P.R China 214028
TEL: [phone]; FAX: [phone]

GE employees should use TrackWise to report service documentation issues. These issues will then
be in the internal problem reporting tool and communicated to the writer.

SERVICE SAFETY CONSIDERATIONS

DANGER

DANGEROUS VOLTAGES, CAPABLE OF CAUSING DEATH, ARE PRESENT IN
THIS EQUIPMENT. USE EXTREME CAUTION WHEN HANDLING, TESTING AND
ADJUSTING.

WARNINGWARNING

Use all Personal Protection Equipment (PPE) such as gloves, safety shoes, safety
glasses, and kneeling pad, to reduce the risk of injury.

For a complete review of all safety requirements, see the Chapter 1, Safety Considerations section in
the Service Manual.

x -

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

LEGAL NOTES

The contents of this publication may not be copied or duplicated in any form, in whole or in part, without
prior written permission of GE.

GE may revise this publication from time to time without written notice.

TRADEMARKS

All products and their name brands are trademarks of their respective holders.

COPYRIGHTS

All Material Copyright© 2009-2014 by General Electric Company Inc. All Rights Reserved.

xi

GE
Direction 5194296-100, Revision 11 LOGIQ BOOK XP Series Basic Service Manual

Revision History

Revision Date Reason for change

1 2007/06/25 Initial Release.

2 2007/12/19 Add one Caution for CMOS battery

3 2008/09/18 Add one label for battery

4 2008/12/04 Delete section “Using a Phantom”

5 2010/09/15 Update the section “Important Precaution”

6 2010/10/22 Update to add Isolation Cart Enhanced Version

7 2011/12/25 Update for software R2.2.2 release

8 2012/03/15 Update Application Software upgrade instruction and add new spare parts

9 2012/05/29 Add instruction for loading system software with USB memory stick and add new spare parts

10 2012/12/17 Update package label and add new spare parts

11 2014/06/10 Update spare part list

List of Effected Pages(LOEP)

Pages Revision Pages Revision

Title Page N/A

Important Precautions

i to ix

Table of Contents

pages i to xii

Chapter 1 - Introduction

pages 1-1 to 1-18

Chapter 2 - Pre-Installation

pages 2-1 to 2-10

Chapter 3 - Installation

pages 3-1 to 3-50

Chapter 4 - Functional

Checks

pages 4-1 to 4-30

11

11

11

11

11

11

Chapter 5 - Theory

pages 5-1 to 5-18

Chapter 6 - Service

Adjustments

pages 6-1 to 6-2

Chapter 7 - Diagnostics/

Troubleshooting

pages 7-1 to 7-24

Chapter 8 - Replacement

Procedures

pages 8-1 to 8-6

Chapter 9 - Replacement

Parts

pages 9-1 to 9-18

Chapter 10 - Periodic

Maintenance

pages 10-1 to 10-20

Index

pages I to II

11

11

11

11

11

11

11

xii -

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Table of Contents

CHAPTER 1

Introduction

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Purpose of Chapter 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Chapter Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Purpose of Service Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

Typical Users of the Basic Service Manual . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2

Purpose of Operator Manual(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2

Important Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3

Conventions Used in Book . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3

Standard Hazard Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 4

Product Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5

Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9

Human Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9

Mechanical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9

Electrical Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10

Labels Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 10

Battery Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 11

Dangerous Procedure Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 12

Lockout/Tagout Requirements (For USA Only) . . . . . . . . . . . . . . . . . . . . . . 1 - 13

Returning/Shipping Probes and Repair Parts . . . . . . . . . . . . . . . . . . . . . . . 1 - 14

EMC, EMI, and ESD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 15

Electromagnetic Compatibility (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 15

CE Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 15

Electrostatic Discharge (ESD) Prevention . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 15

Customer Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 16

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 16

System Manufacturer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 17

1 Table of Contents

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 2

Pre Installation

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1

Purpose of this chapter 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1

Chapter Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1

General Console Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2

Console Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2

Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2

Electrical Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2

LOGIQ Book XP Series Power Requirements . . . . . . . . . . . . . . . . . 2 - 2

Inrush Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3

Site Circuit Breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3

Site Power Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3

Unit Power Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3

Power Stability Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3

EMI Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4

Scan Probe Environmental Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 5

Facility Needs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6

Recommended Ultrasound Room Layout . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6

Purchaser Responsibilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 6

Required Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7

Desirable Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7

Recommended and Alternate Ultrasound Room Layout . . . . . . . . . . 2 - 8

Networking Pre-installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 9

Stand Alone System (without Network Connection) . . . . . . . . . . . . . 2 - 9

System Connected to Hospital’s Network . . . . . . . . . . . . . . . . . . . . . 2 - 9

Purpose of DICOM* Network Function . . . . . . . . . . . . . . . . . . . . . . . 2 - 9

DICOM* Option Pre-installation Requirements . . . . . . . . . . . . . . . . . 2 - 9

2 Table of Contents

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 3

Installation

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1

Purpose of Chapter 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1

Average Installation Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1

Installation Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 2

Safety Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3

Receiving and Unpacking the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4

Moving into Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 7

Packing the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 7

Preparing for Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

Verify Customer Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

Physical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

System Voltage Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

EMI Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 8

Completing the Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 9

Power On / Boot Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 9

System Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 9

Turn on the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 10

Power Off/ Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 10

Back-end Processor Power Down . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 10

System Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 11

Transducer Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 11

System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 12

System Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 12

Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 12

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 13

Approved peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 13

Connecting Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 14

Peripherals/Accessories Connector Panel . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 14

Rear Panel Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 14

Connect peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 18

Available Probes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 24

Software/Option Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 25

Connectivity Installation Worksheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 26

Table of Contents 3

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Loading the System Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 27

Loading the System Software with CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 28

Loading Base Image Software (For R2.2.1 or lower) . . . . . . . . . . . . 3 - 28

Upgrading Application Software (For R2.2.1 or lower) . . . . . . . . . . . 3 - 30

Loading the system software with DVD (For R2.2.2) . . . . . . . . . . . . . . . . . . 3 - 33

Loading the System Software with USB Memory Stick (For R2.2.2 or above) 3 - 38

Functional Check-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 43

Option Key Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 44

Probe Recognition Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 48

Peripheral Devices Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 48

Reinstall DICOM Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 49

Paperwork . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 50

Product Locator Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 50

User Manual(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 50

4 Table of Contents

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 4

Functional Checks

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1

Purpose for Chapter 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1

Required Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1

General Procedure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2

Power On/Boot Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2

System Power On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2

Turn on the system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3

Power Off/ Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3

Back-end Processor Power Down . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3

System Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4

Archiving and Loading Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5

Archiving Presets to an CD-R disk . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5

Loading Presets from an CD-R disk . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5

Adjusting the Display Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6

Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6

Lockout/Tagout (LOTO) requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6

System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 7

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 7

LOGIQ Book XP Series SoftMenu Key Tour . . . . . . . . . . . . . . . . . . 4 - 8

Monitor Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 9

B Mode Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 10

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 10

B Mode OP Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 11

B Mode Softmenu Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 12

M Mode Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 13

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 13

M Mode OP Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 14

M Mode Softmenu Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 15

Color Flow Mode Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 16

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 16

Color Flow Mode OP Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . 4 - 17

Color Flow Mode Softemenu Key . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 18

Doppler Mode Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 19

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 19

Doppler Mode OP Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 20

Doppler Mode OP Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 21

Basic Measurements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 22

Distance and Tissue Depth Measurements . . . . . . . . . . . . . . . . . . . 4 - 22

Circumference/Area (Ellipse) Measurement . . . . . . . . . . . . . . . . . . 4 - 22

Worksheets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23

Table of Contents 5

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Report* Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23

Probe/Connectors Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23

Connecting a probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23

Activating the probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23

Deactivating the probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23

Disconnecting the probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23

Using Cine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24

Activating CINE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24

Quickly Move to Start/End Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24

Start Frame/End Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24

Adjusting the CINE Loop Playback Speed . . . . . . . . . . . . . . . . . . . . 4 - 24

Moving through a CINE Loop Frame By Frame . . . . . . . . . . . . . . . . 4 - 24

Image Management (QG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24

Backup and Restore Database, Preset Configurations and Images . . . . . . 4 - 25

Formatting Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 25

Backup System Presets and Configurations . . . . . . . . . . . . . . . . . . . 4 - 26

Restore System Presets and Configurations . . . . . . . . . . . . . . . . . . 4 - 27

Archiving Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 28

Software Configuration Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 30

Peripheral Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 30

6 Table of Contents

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 5

Components and Functions (Theory)

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 1

Block Diagrams and Theory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 2

Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 2

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 3

Power Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4

AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4

Air Flow Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 5

Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 6

Common Service Platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7

Global Service User Interface (GSUI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7

Internationalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7

Service Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7

Access / Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 7

The usage for security cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 8

Service Home Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 9

Error Logs Tab (Not available on LOGIQ Book XP Series now) . . . . . . . . 5 - 10

Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 11

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 12

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 12

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 13

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 14

Diagnostics Execution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 14

Diagnostic Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 14

Image Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 15

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 15

Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 16

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 16

Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 16

PM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 17

Table of Contents 7

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 6

Service Adjustments

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1

Purpose of this chapter 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1

Monitor Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 2

Adjustments Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 2

8 Table of Contents

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 7

Diagnostics/Troubleshooting

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1

Purpose of Chapter 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1

Gathering Trouble Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 2

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 2

Collect Vital System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 2

Collect a Trouble Image with Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 3

Screen Captures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 4

Check and Record the P3 Key Function . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 4

Setting the P3 Key to Screen Capture . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 5

Capturing a Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 6

Reset the P3 Key to Customer’s Functionality . . . . . . . . . . . . . . . . . . . . . . 7 - 7

Global Service User Interface (GSUI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 8

Enter global service user interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 8

Active Diagnostic Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 10

Reset Database . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 11

Clean Userdefs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 13

Update FPGA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 15

Control Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 15

Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 15

Loop Count . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 15

Progress Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 16

Short Text Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 16

Background Color . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 16

Common Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 17

Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 17

Disruptive Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 17

System Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 17

PC Diagnostics (Non-Interactive Tests) . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

CPU Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

Hard Drive Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

Memory Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

CD Drive Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

Video Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

USB Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

PC Diagnostics (Interactive Tests) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

Keyboard Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

LCD Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 18

Table of Contents 9

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

LOGIQ Book XP Series Diagnostic Descriptions. . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 19

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 19

FRU Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 20

MST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 20

DFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 21

DTX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 22

DCNN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 23

PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 24

10 Table of Contents

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 8

Replacement Procedures

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

Purpose of Chapter 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

Disassembly/Re-assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

Warning and Caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

Handle Assy (FRU No. 312) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Needed Manpower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Removal Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Mounting procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 2

Trackball Roller Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 4

Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 4

Needed Manpower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 4

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 4

Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 4

Loading the System Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 6

Table of Contents 11

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 9

Renewal Parts

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1

Purpose of Chapter 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1

List of Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1

Renewal Parts Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 2

Equipment Models Covered in this Chapter . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 2

Operator Console Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 3

Keyboard Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 4

Bottom Assy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 4

Isolation Cart Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 5

Isolation Cart Enhanced Version Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 7

Accessories and Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 10

Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 16

Probes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 17

12 Table of Contents

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

CHAPTER 10

Care & Maintenance

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 1

Periodic Maintenance Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 1

Purpose of Chapter 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 1

Why do Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2

Keeping Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2

Quality Assurance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2

Maintenance Task Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 2

How often should care & maintenance tasks be performed? . . . . . . . . . . . 10 - 2

Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 4

Special Tools, Supplies and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 4

Specific Requirements for Care & Maintenance . . . . . . . . . . . . . . . 10 - 4

System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 5

Preliminary Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 5

Functional Checks (See Also Chapter 4) . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 6

System Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 6

Peripheral/Option Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

Input Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

AC/DC Adapter Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

General Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 7

Physical Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 8

Optional Diagnostic Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 9

View the Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 9

Probe Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 9

Probe Related Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 9

Basic Probe Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 9

Basic Probe Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 9

Battery Performance Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 10

Electrical Safety Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 11

Safety Test Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 11

GEMS Leakage Current Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12

Outlet Test - Wiring Arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 13

Chassis Leakage Current Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 14

Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 14

Generic Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 14

Data Sheet for enclosure Source Leakage Current . . . . . . . . . . . . . 10 - 15

Table of Contents 13

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Probe Leakage Current Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 16

Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 16

Generic Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 16

No Meter Probe Adapter Procedure . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 16

Data Sheet for Transducer Source Leakage Current . . . . . . . . . . . . 10 - 17

When There's Too Much Leakage Current... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 18

14 Table of Contents

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Chapter 1
Introduction

Section 1-1 Overview

1-1-1 Purpose of Chapter 1

This chapter describes important issues related to safely servicing this ultrasound machine. The service
provider must read and understand all the information presented here before installing or servicing a
unit.

1-1-2 Chapter Contents

Table 1-1 Contents in Chapter 1

Section Description Page Number

1-1

1-2

1-3

1-4

1-5

Overview

Important Conventions

Safety Considerations

EMC, EMI, and ESD

Customer Assistance

1-1-3 Purpose of Service Manual

This Service Manual provides service information for the LOGIQ Book XP Series Ultrasound Scanning
System. It contains the following chapters:

1.) Chapter 1 - Introduction: Contains a content summary and warnings.

2.) Chapter 2 - Pre Installation: Contains pre-installation requirements for the LOGIQ Book XP

Series.

3.) Chapter 3 - Installation: Contains installation procedures.

4.) Chapter 4 - Functional Checks: Contains functional checks that are recommended as part of the

installation, or as required during servicing and periodic maintenance.

5.) Chapter 5 - Components and Functions (Theory): Contains block diagrams and functional

explanations of the electronics.

6.) Chapter 6 - Service Adjustments: Contains instructions on how to make available adjustments to

the LOGIQ Book XP Series.

7.) Chapter 7 - Diagnostics/Troubleshooting: Provides procedures for running diagnostic or related

routines for the LOGIQ Book XP Series.

8.) Chapter 8 - Replacement Procedures: Provides disassembly procedures and reassembly

procedures for all changeable Field Replaceable Units (FRU).

9.) Chapter 9 - Renewal Parts: Contains a complete list of field replaceable parts for the LOGIQ Book

XP Series.

10.)Chapter 10 - Care & Maintenance: Provides periodic maintenance procedures for the LOGIQ

Book XP Series.

1-1

1-3

1-9

1-15

1-16

Chapter 1 Introduction 1-1

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-1-4 Typical Users of the Basic Service Manual

• Service Personnel (installation, maintenance, etc.).

• Hospital’s Service Personnel

• Contractors (Some parts of Chapter 2 - Pre-Installation)

1-1-5 Purpose of Operator Manual(s)

The Operator Manual(s) should be fully read and understood before operating the LOGIQ Book XP
Series and also kept near the unit for quick reference.

1-2 Section 1-1 - Overview

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 1-2 Important Conventions

1-2-1 Conventions Used in Book

Icons

Pictures, or icons, are used wherever they reinforce the printed message. The icons, labels and
conventions used on the product and in the service information are described in this chapter.

Safety Precaution Messages

Various levels of safety precaution messages may be found on the equipment and in the service
information. The different levels of concern are identified by a flag word that precedes the precautionary
message. Known or potential hazards are labeled in one of following ways:

DANGER

DANGER IS USED TO INDICATE THE PRESENCE OF A HAZARD THAT WILL
CAUSE SEVERE PERSONAL INJURY OR DEATH IF THE INSTRUCTIONS ARE
IGNORED.

WARNINGWARNING

CAUTION

NOTICE

NOTE: Notes provide important information about an item or a procedure.

WARNING IS USED TO INDICATE THE PRESENCE OF A HAZARD THAT CAN CAUSE
SEVERE PERSONAL INJURY AND PROPERTY DAMAGE IF INSTRUCTIONS ARE
IGNORED.

Caution is used to indicate the presence of a hazard that will or can cause minor personal injury
and property damage if instructions are ignored.

Equipment Damage Possible
Notice is used when a hazard is present that can cause property damage but has absolutely no

personal injury risk.

Example: Disk drive will crash.

Information contained in a NOTE can often save you time or effort.

Chapter 1 Introduction 1-3

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-2-2 Standard Hazard Icons

Important information will always be preceded by the exclamation point contained within a triangle, as
seen throughout this chapter. In addition to text, several different graphical icons (symbols) may be
used to make you aware of specific types of hazards that could cause harm.

Table 1-2 Standard Hazard Icons

ELECTRICAL MECHANICAL RADIATION

LASER HEAT PINCH

LASER

LIGHT

Other hazard icons make you aware of specific procedures that should be followed.

Table 1-3 Standard Icons Indicating a Special Procedure Be Used

AVOID STATIC ELECTRICITY TAG AND LOCK OUT WEAR EYE PROTECTION

TAG

&

LOCKOUT

Date

Signed

EYE

PROTECTION

1-4 Section 1-2 - Important Conventions

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-2-3 Product Icons

The following table describes the purpose and location of safety labels and other important information
provided on the equipment.

Table 1-4 Warnings

LABEL/SYMBOL PURPOSE/MEANING LOCATION

Identification and Rating Plate • Manufacture’s name and address

• Date of manufacture

• Model and serial numbers

• Electrical ratings (Volts, Amps, phase,
and frequency)

Bottom panel of the console

Type/Class Label

IP Code (IPX1) Indicates the degree of protection

Used to indicate the degree of safety or
protection.

provided by the enclosure per IEC60

529. Can not be used in operating room

environment.

Authorized European Representative
address

United States only Prescription
Requirement label

Equipment Type BF (man in the box
symbol) IEC 878-02-03 indicates B
Type equipment having a floating
applied part.

Bottom panel of the adapter.

Footswitch

Bottom panel

Bottom panel

Probe connectors

“CAUTION” The equilateral triangle is
usually used in combination with other
symbols to advise or warn the user.

General Warning Various

Do not push the system. Rear of Isolation Cart

Various

Chapter 1 Introduction 1-5

GE

REF

SN

Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Table 1-4 Warnings

LABEL/SYMBOL PURPOSE/MEANING LOCATION

“Consult accompanying documents” is
intended to alert the user to refer to the
operator manual or other instructions
when complete information cannot be
provided on the label.

“CAUTION - Dangerous voltage” (the
lightning flash with arrowhead in
equilateral triangle) is used to indicate
electric shock hazards.

“ON” indicates the power on position of
the power switch.
“Off” indicates the power Off position of
the power switch.
CAUTION
This Power Switch DOES NOT
ISOLATE Mains Supply

“Protective Earth” indicates the
protective earth (grounding) terminal.

Various

Various

Power on/off switch

Inside of AC adapter

REF

SN

“TUV” Listing and Certification Mark is
used to designate conformance to
nationally recognized product safety
standards. The Mark bears the name
and /or logo of the testing laboratory,
product category, safety standard is
assessed and a control number.

Date of manufacture.

The date could be a year, year and
month, or year, month and day, as
appropriate. See ISO 8601 for date
formates.

Catalog or model number. Rating Plate

Serial number Rating Plate

Equipment Class II.

For products not relying protective earth
such as products having double or
reinforced insulation.

Bottom panel of the console

Rating Plate

Rating Plate

Direct Current.

For products to be powered from a DC
supply.

1-6 Section 1-2 - Important Conventions

Rating Plate

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Table 1-4 Warnings

LABEL/SYMBOL PURPOSE/MEANING LOCATION

Input Rating Plate

For use with adapter model TWADP
100

Description Rating Plate

Type CF Defib-Proof Applied Part (heart
in the box with paddle) symbol is in
accordance with IEC 60878-02-06.

Do not connect the CD-RW to system
while scanning

This symbol indicates that the waste of
electrical and electronic equipment
must not be disposed as unsorted
municipal waste and must be collected
separately. Please contact an
authorized representative of the
manufacturer for information concerning
the decommissioning of your
equipment.

Indicates the product contains
hazardous materials in excess of the
limits established by Chinese standard
SJ/T11363-2006 Requirements for
Concentration Limits for Certain
Hazardous Substances in Electronic
Information Products. The number in
the symbol is the Environment-friendly
Use Period (EFUP), which indicates the
period during which the toxic or
hazardous substances or elements
contained in electronic information
products will not leak or mutate under
normal operating conditions so that the
use of such electronic information
products will not result in any severe
environmental pollution, any bodily
injury or damage to any assets.

Rating Plate

ECG Module

CD-RW

Rating Plate

Rear panel, rating plate

This product consists of devices that
may contain mercury, which must be
recycled or disposed of in accordance
with local, state, or country laws. (Within
this system, the backlight lamps in the
monitor display contain mercury.)

Bottom panel of the console

Chapter 1 Introduction 1-7

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Table 1-4 Warnings

LABEL/SYMBOL PURPOSE/MEANING LOCATION

The separate collection symbol is
affixed to a battery, or its packaging, to
advise you that the battery must be
recycled or disposed of in accordance
with local or country laws. The letters
below the separate collection symbol
indicate whether certain elements
(Pb=Lead, Cd=Cadmium, Hg=Mercury)
are contained in the battery. To
minimize potential effects on the
environment and human health, it is
important that all marked batteries that
you remove from the product are
properly recycled or disposed. For
information on how the battery may be
safely removed from the device, please
consult the service manual or
equipment instructions. Information on
the potential effects on the environment
and human health of the substances
used in batteries is available at this url:
http://www.gehealthcare.com/euen/
weee-recycling/index.html

Battery pack

GOST Symbol. Russia Regulatory
Country Clearance.

Bottom

1-8 Section 1-2 - Important Conventions

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 1-3 Safety Considerations

1-3-1 Introduction

The following safety precautions must be observed during all phases of operation, service and repair of
this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this
manual, violates safety standards of design, manufacture and intended use of the equipment.

1-3-2 Human Safety

Operating personnel must not remove the system covers.
Servicing should be performed by authorized personnel only.
Only personnel who have participated in a LOGIQ Book XP Series Training are authorized to service
the equipment.

1-3-3 Mechanical Safety

WARNINGWARNING

Ultrasound probes are highly sensitive medical instruments that can easily be damaged
by improper handling. Use care when handling and protect from damage when not in
use. Do not use a damaged or defective probe. Failure to follow these precautions can
result in serious injury and equipment damage.

WARNINGWARNING

CAUTION

NOTE: Special care should be taken when transporting the unit in a vehicle:

Never use a probe that has fallen to the floor. Even if it looks ok, it may be damaged.

The LOGIQ Book XP Series weights 4.3kg or more, depending on installed peripherals, when
ready for use. To avoid possible injury and equipment damage:

ALWAYS:

• Use the handle to move the system.

• Do not let the system strike walls or door frame.

• Limit movement to a slow careful walk.

• Before transporting, place the system in its special storage case.

• Ensure that the system is firmly secured while inside the vehicle.

• Secure system with straps or as directed otherwise to prevent motion during transport.

• Prevent vibration damage by driving cautiously. Avoid unpaved roads, excessive speeds, and
erratic stops or starts.

Chapter 1 Introduction 1-9

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-3-4 Electrical Safety

To minimize shock hazard, the equipment chassis must be connected to an electrical ground. The
system is equipped with a three-conductor AC power cable. This must be plugged into an approved
electrical outlet with protective ground.

The power outlet used for this equipment should not be shared with other types of equipment.

Both the system power cable and the power connector meet international electrical standards.

1-3-5 Labels Locations

Please refer to Basic User Manual for label location information.

1-10 Section 1-3 - Safety Considerations

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-3-6 Battery Safety

To avoid the risk of injury, follow the warning and cautions to make sure that the battery does not burst,
ignite, or generate heat of fumes.

WARNINGWARNING

CAUTION

• The battery has a safety device. Do not disassemble or alter the battery.

• Charge the batteries only when the ambient temperature is between 0° and 40° C (32° and
104° F).

• Do not short-circuit the battery by directly connecting the negative terminals with metal

objects.

• Do not heat the battery or discard it in a fire.

• Do not expose the battery to temperature over 60° C (140° F). Keep it away from fire and other
heat sources.

• Do not charge the battery near a heat source, such as a fire or heater.

• Do not leave the battery in direct sunlight.

• Do not drop packs from height to prevent them from possible malfunction damage.

• Do not pierce the battery with a sharp object, hit it, or step on it.

• Do not use a damaged battery.

• Do not solder a battery.

• Do not connect the battery to an electrical power outlet.

• Do not contact PCM (Power Control and Monitor, it is a small board in the battery) directly

to prevent packs from ESD damage.

• In the case of longer non-use of the LOGIQ Book XP Series, please make sure the battery is

removed.

To avoid the battery bursting, igniting, or fumes from the battery causing equipment damage,
observe the following precautions:

• Do not immerse the battery in water or allow it to get wet.

• Do not put the battery into a microwave oven or pressurized container.

• If the battery leaks or emits an odor, remove it from all possible flammable sources.

• If the battery emits an odor or heat, is deformed or discolored, or in a way appears abnormal

during use, recharging or storage, immediately remove it and stop using it. If you have any
questions about the battery, consult GE or your local representative.

• Store the battery between -20° C (-4° F) and 60° C (140°F).

• Use only GE recognized batteries.

• In case of the long term (3 months or more) storage:

• Store the battery in a temperature range of 10° C (50° F) and 30° C (86°F).

• When charging for the first time after long-term storage. Recover such packs
to original performance through repeating several cycles of full charging and
discharging.

• When store packs for more than 6 months, charge at lease once charging
require per 6 months to prevent leakage and deterioration in performance
due to self-discharging.

• When the system isn't powered on continuously more than 6 months, in order to prevent
leakage and deterioration in performance of CMOS battery, power on the system at least
once per 6 months for more than 15 hours to have CMOS battery fully charged. Time and
date need to be re-setup.

NOTICE

The battery shall be shipped in about 30% charged state. Those packs have to be fully charged and
discharged up to 3 times to utilize Li-lon smart packs before use.

Chapter 1 Introduction 1-11

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-3-7 Dangerous Procedure Warnings

Warnings, such as the examples below, precede potentially dangerous procedures throughout this
manual. Instructions contained in the warnings must be followed.

DANGER

WARNINGWARNING

WARNINGWARNING

WARNINGWARNING

DANGEROUS VOLTAGES, CAPABLE OF CAUSING DEATH, ARE PRESENT
IN THIS EQUIPMENT. USE EXTREME CAUTION WHEN HANDLING, TESTING
AND ADJUSTING.

EXPLOSION WARNING

DO NOT OPERATE THE EQUIPMENT IN AN EXPLOSIVE ATMOSPHERE.
OPERATION OF ANY ELECTRICAL EQUIPMENT IN SUCH AN ENVIRONMENT
CONSTITUTES A DEFINITE SAFETY HAZARD.

DO NOT SUBSTITUTE PARTS OR MODIFY EQUIPMENT
BECAUSE OF THE DANGER OF INTRODUCING ADDITIONAL HAZARDS, DO NOT

INSTALL SUBSTITUTE PARTS OR PERFORM ANY UNAUTHORIZED MODIFICATION
OF THE EQUIPMENT.

SHUT DOWN FORCEDLY OR PLUG IN/OUT ACDC INVALID MAY CAUSE THE
DAMAGE OF SYSTEM FILES.

1-12 Section 1-3 - Safety Considerations

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-3-8 Lockout/Tagout Requirements (For USA Only)

Follow OSHA Lockout/Tagout requirements (USA) or local Lockout/Tagout requirements by ensuring
you are in total control of the AC power plug at all times during the service process.

To apply Lockout/Tagout:

1.) Plan and prepare for shutdown.

2.) Shutdown the equipment.

3.) Isolate the equipment.

4.) Apply Lockout/Tagout Devices.

5.) Remove battery.

6.) Control all stored and residual energy.

7.) Verify isolation.

All potentially hazardous stored or residual energy is relieved.

NOTICE

TAG

&

LOCKOUT

Date

Signed

Energy Control and Power Lockout for LOGIQ Book XP Series

WHEN SERVICING PARTS OF THE SYSTEM WHERE THERE IS EXPOSURE TO VOLTAGE
GREATER THAN 30 VOLTS:

1. TURN OFF THE SCANNER.

2. UNPLUG THE SYSTEM.

3. MAINTAIN CONTROL OF THE SYSTEM POWER PLUG.

4. WAIT FOR AT LEAST 20 SECONDS FOR CAPACITORS TO DISCHARGE AS THERE ARE NO

TEST POINTS TO VERIFY ISOLATION. THE AMBER LIGHT ON THE OP PANEL ON/OFF BUTTON
WILL TURN OFF.

5. REMOVE THE SYSTEM BATTERY.

Chapter 1 Introduction 1-13

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-3-9 Returning/Shipping Probes and Repair Parts

Equipment being returned must be clean and free of blood and other infectious substances.

GEMS policy states that body fluids must be properly removed from any part or equipment prior to
shipment. GEMS employees, as well as customers, are responsible for ensuring that parts/equipment
have been properly decontaminated prior to shipment. Under no circumstance should a part or
equipment with visible body fluids be taken or shipped from a clinic or site (for example, body coils or
an ultrasound probe).

The purpose of the regulation is to protect employees in the transportation industry, as well as the
people who will receive or open this package.

NOTE: The US Department of Transportation (DOT) has ruled that “items that were saturated and/or

dripping with human blood that are now caked with dried blood; or which were used or intended
for use in patient care” are “regulated medical waste” for transportation purposes and must be
transported as a hazardous material.

NOTE: The USER/SERVICE staff should dispose all the waste properly as per federal, state, and local

waste disposal regulation.

The ultrasound system is not meant to be long term storange of patient data or image. The user is
responsible for the data on the system and a regular backup is highly recommended.

If the system is sent for repair, please ensure that any patient information is backup and erased from
the system before shipping. It is always possible during system failure and repair to lose patient data.
GE is not resposible for the loss of this data.

If PHI (Patient Healthcare Information) data needs to be sent to GE employees for service purposes,
GE will ascertain agreement from the customer. The patient information shall only be transferred by
approved service processes, tools and devices restricting access, protecting or encrypting data where
required, and providing traceability in the form of paper or electronic documents at each stage of the
procedure while maintaining compliance with cross-border restrictions of patient information transfers.

1-14 Section 1-3 - Safety Considerations

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 1-4 EMC, EMI, and ESD

1-4-1 Electromagnetic Compatibility (EMC)

Electromagnetic compatibility describes a level of performance of a device within its electromagnetic
environment. This environment consists of the device itself and its surroundings including other
equipment, power sources and persons with which the device must interface. Inadequate compatibility
results when a susceptible device fails to perform as intended due interference from its environment or
when the device produces unacceptable levels of emission to its environment. This interference is often
referred to as radio–frequency or electromagnetic interference (RFI/EMI) and can be radiated through
space or conducted over interconnecting power of signal cables. In addition to electromagnetic energy,
EMC also includes possible effects from electrical fields, magnetic fields, electrostatic discharge and
disturbances in the electrical power supply.

1-4-2 CE Compliance

The LOGIQ Book XP Series unit conforms to all applicable conducted and radiated emission limits and
to immunity from electrostatic discharge, radiated and conducted RF fields, magnetic fields and power
line transient requirements.

For applicable standards refer to the Safety Chapter in the Basic User Manual.

NOTE: For CE Compliance, it is critical that all covers, screws, shielding, gaskets, mesh, clamps, are in

good condition, installed tightly without skew or stress. Proper installation following all
comments noted in this service manual is required in order to achieve full EMC performance.

1-4-3 Electrostatic Discharge (ESD) Prevention

WARNINGWARNING

DO NOT TOUCH ANY BOARDS WITH INTEGRATED CIRCUITS PRIOR TO TAKING
THE NECESSARY ESD PRECAUTIONS:

1.FOLLOW GENERAL GUIDELINES FOR HANDLING OF ELECTROSTATIC
SENSITIVE EQUIPMENT.

Chapter 1 Introduction 1-15

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 1-5 Customer Assistance

1-5-1 Contact Information

If this equipment does not work as indicated in this service manual or in the User Manual, or if you
require additional assistance, please contact the local distributor or appropriate support resource, as
listed below.

Prepare the following information before you call:

- System ID serial number.

- Software version.

Table 1-5 Phone Numbers for Customer Assistance

Location Phone Number

USA

GE Medical Systems

Ultrasound Service Engineering

9900 Innovation Drive

Wauwatosa, WI 53226

Canada 1-800-668-0732

Latin America

Europe

GE Ultraschall Deutschland GmbH& Co. KG

BeethovenstraBe 239

Postfach 11 05 60, D-42665 Solingen

Germany

Asia (Singapore)

GE Ultrasound Asia

Service Department - Ultrasound

298 Tiong Bahru Road #15-01/06

Central Plaza

Singapore 169730

Japan support Center

Service: On-site

Service: Parts

Applications support

Service

Applications Support

Phone: [phone] (General Imaging and Cardiac)

Fax: [phone]

Tel: [phone]

Fax: [phone]

[phone]

Phone: [phone]

Fax: [phone]

1-800–437–1171

1-800-558-2040

1-800-682-5327 or 1-262-524-5698

1-800-321-7937

1-262-524-5698

1-16 Section 1-5 - Customer Assistance

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

1-5-2 System Manufacturer

Table 1-6 System Manufacturer

Manufacturer Phone Number

GE Medical Systems (China) Co., Ltd.

No.19, Changjiang Road, Wuxi National Hi-Tech Dev. Zone, Jiangsu, P.R.
China 214028

GE Ultrasound Korea:

65-1, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do,
Korea 462-120

TEL: [phone]

FAX: [phone]

TEL: [phone]

FAX: [phone]

Chapter 1 Introduction 1-17

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

This page was intentionally left blank.

1-18 Section 1-5 - Customer Assistance

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Chapter 2
Pre Installation

Section 2-1 Overview

2-1-1 Purpose of this chapter 2

This chapter provides the information required to plan and prepare for the installation of a LOGIQ Book
XP Series. Included are descriptions of the facility and electrical needs to be met by the purchaser of
the unit.

2-1-2 Chapter Contents

Table 2-1 Contents in Chapter 2

Section Description Page Number

2-1

2-2

2-3

Overview

General Console Requirements

Facility Needs

2-1

2-2

2-6

Chapter 2 Pre Installation 2-1

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 2-2 General Console Requirements

2-2-1 Console Environmental Requirements

Table 2-2 Environmental Requirements for LOGIQ Book XP Series Systems

Operational Storage Transport

Temperature

Humidity

Pressure

Temperatures in degree C, conversion to degree F = (degree C*(9/5) + 32)

10 - 40 degree C -5 - 50 degree C -5 - 50 degree C

30 - 75%
non-condensing

700 - 1060hPa 700 - 1060hPa 700 - 1060hPa

10 - 90%
non-condensing

10 - 90%
non-condensing

2-2-1-1 Lighting

Bright light is needed for system installation, updates and repairs. However, operator and patient
comfort may be optimized if the room light is subdued and indirect. Therefore a combination lighting
system (dim/bright) is recommended. Keep in mind that lighting controls and diameters can be a source
of EMI which could degrade image quality. These controls should be selected to minimize possible
interface.

2-2-2 Electrical Requirements

NOTE: GE Medical Systems requires a dedicated power and ground for the proper operation of its

Ultrasound equipment. This dedicated power shall originate at the last distribution panel before
the system.

Sites with a mains power system with defined Neutral and Live:

The dedicated line shall consist of one phase, a neutral (not shared with any other circuit), and a full
size ground wire from the distribution panel to the Ultrasound outlet.

Sites with a mains power system without a defined Neutral:

The dedicated line shall consist of one phase (two lines), not shared with any other circuit, and a full
size ground wire from the distribution panel to the Ultrasound outlet.

Please note that image artifacts can occur, if at any time within the facility, the ground from the main
facility's incoming power source to the Ultrasound unit is only a conduit.

2-2-2-1 LOGIQ Book XP Series Power Requirements

Table 2-3 Electrical Specifications for LOGIQ Book XP Series

Adapter Name Voltage Power Tolerances Current Frequency

ADM-9020M-GE 100-240 VAC 108VA ±10% 1.08-0.45A 50-60HZ

2-2 Section 2-2 - General Console Requirements

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

2-2-2-2 Inrush Current

Inrush current is not a factor to consider due to the inrush current limiting properties of the power
supplies.

Table 2-4 Inrush Current

Inrush Current

Voltage

100V 0.38A 0.41A

240V 0.20A 0.21A

2-2-2-3 Site Circuit Breaker

It is recommended that the branch circuit breaker for the machine be readily accessible.

2-2-2-4 Site Power Outlets

A dedicated AC power outlet must be within reach of the unit without extension cords. Other adequate
outlets for the external peripherals, medical and test equipment needed to support this unit must also
be present within 1 m (3.2 ft.) of the unit. Electrical installation must meet all current local, state, and
national electrical codes.

2-2-2-5 Unit Power Plug

If the unit arrives without a power plug, or with the wrong plug, you must contact your GE dealer or the
installation engineer must supply what is locally required.

2-2-2-6 Power Stability Requirements

Voltage drop-out

Max 10 ms.

Power Transients

Console Only Console with all peripherals

(All applications)
Less than 25% of nominal peak voltage for less than 1 millisecond for any type of transient, including
line frequency, synchronous, asynchronous, or aperiodic transients.

Chapter 2 Pre Installation 2-3

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

2-2-3 EMI Limitations

Ultrasound machines are susceptible to Electromagnetic Interference (EMI) from radio frequencies,
magnetic fields, and transient in the air wiring. They also generate EMI. The LOGIQ Book XP Series
complies with limits as stated on the EMC label. However there is no guarantee that interface will not
occur in a particular installation.

Possible EMI sources should be identified before the unit is installed.

Electrical and electronic equipment may produce EMI unintentionally as the result of defect.

These sources include:

• medical lasers,

• scanners,

• cauterizing guns,

•computers,

•monitors,

• fans,

• gel warmers,

• microwave ovens,

• light dimmers,

• portable phones.

The presence of a broadcast station or broadcast van may also cause interference.

See Ta bl e 2 -5 for EMI Prevention tips.

Table 2-5 EMI Prevention/abatement

EMI Rule Details

Be aware of RF sources

Ground the unit

Replace all screws, RF
gaskets, covers, cores

Replace broken RF gaskets

Do not place labels where RF
gaskets touch metal

Use GE specified harnesses
and peripherals

Take care with cellular phones Cellular phones may transmit a 5 V/m signal; that could cause image artifacts.

Keep the unit at least 5 meters or 15 feet away from other EMI sources. Special shielding
may be required to eliminate interference problems caused by high frequency, high
powered radio or video broadcast signals.

Poor grounding is the most likely reason a unit will have noisy images. Check grounding of
the power cord and power outlet.

After you finish repairing or updating the system, replace all covers and tighten all screws.
Any cable with an external connection requires a magnet wrap at each end. Install the
shield over the front of card cage. Loose or missing covers or RF gaskets allow radio
frequencies to interfere with the ultrasound signals.

If more than 20% or a pair of the fingers on an RF gasket are broken, replace the gasket.
Do not turn on the unit until any loose metallic part is removed.

Never place a label where RF gaskets meet the unit. Otherwise, the gap created will permit
RF leakage. Or, if a label has been found in such a position, move the label.

The interconnect cables are grounded and require ferrite beads and other shielding. Also,
cable length, material, and routing are all important; do not change from what is specified.

Properly dress peripheral
cables

Do not allow cables to lie across the top of the card cage or hang out of the peripheral bays.
Loop the excess length for peripheral cables inside the peripheral bays. Attach the monitor
cables to the frame.

2-4 Section 2-2 - General Console Requirements

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

2-2-4 Scan Probe Environmental Requirements

Operation:10° to 40° C

Storage:-10° to 50° C

NOTE: Temperature in degrees C. Conversion to Degrees F = (Degrees C * (9/5) + 32).

NOTICE

SYSTEMS AND ELECTRONIC PROBES ARE DESIGNED FOR STORAGE TEMPERATURES OF

-10 TO + 50 degrees C. WHEN EXPOSED TO LARGE TEMPERATURE VARIATIONS, THE
PRODUCT SHOULD BE KEPT IN ROOM TEMPERATURE FOR 10 HOURS BEFORE USE.

Chapter 2 Pre Installation 2-5

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 2-3 Facility Needs

2-3-1 Recommended Ultrasound Room Layout

2-3-1-1 Purchaser Responsibilities

The work and materials needed to prepare the site is the responsibility of the purchaser. Delay,
confusion, and waste of manpower can be avoided by completing pre installation work before delivery.
User the Pre Installation checklist to verify that all needed steps have been taken,
Purchaser reasonability includes:

• Procuring the materials required.

• Completing the preparations before delivery of the ultrasound system.

• Paying the costs for any alternations and modifications not specifically provided in the sales
contract.

NOTE: All electrical installation that are preliminary to the positioning of the equipment at the site

prepared for the equipment must be performed by licensed electrical contractors. Other
connections between pieces of electrical equipment, products involved (and the accompanying
electrical installations) are highly sophisticated and special engineering competence is
required. All electrical work on these product must comply with the requirements of applicable
electrical codes. The purchaser of GE equipment must only utilize qualified personnel to
perform electrical servicing on the equipment.

The desire to use a non-listed or customer provided product or to place an approved product further
from the system than the interface kit allows presents challenges to the installation team. To avoid
delays during installation, such variances should be made known to the individuals or group performing
the installation at the earliest possible date (preferable prior to purchase).
The ultrasound suite must be clean prior to delivery of the machine. Carpet is not recommended
because it collects dust and creates static. Potential sources of EMI (electromagnetic interference)
should also be investigated before delivery. Dirt, static, and EMI can negatively impact system.

2-6 Section 2-3 - Facility Needs

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

2-3-2 Required Features

NOTE: GE Medical Systems requires a dedicated power and ground for the proper operation of its

Ultrasound equipment. This dedicated power shall originate at the last distribution panel before
the system.

Sites with a mains power system with defined Neutral and Live:

The dedicated line shall consist of one phase, a neutral (not shared with any other circuit), and a full
size ground wire from the distribution panel to the Ultrasound outlet.

Sites with a mains power system without a defined Neutral:

The dedicated line shall consist of one phase (two lines), not shared with any other circuit, and a full
size ground wire from the distribution panel to the Ultrasound outlet.

Please note that image artifacts can occur, if at any time within the facility, the ground from the main
facility's incoming power source to the Ultrasound unit is only a conduit.

• Dedicated single branch power outlet of adequate amperage meeting all local and national codes
which is located less than 2.5 m (8 ft.) from the unit’s proposed location

• Door opening is at least 76 cm (30 in) wide

• Proposed location for unit is at least 0.2m (0.67 ft.) from the wall for cooling

• Power outlet and place for any external peripheral are within 2 m (6.5 ft.) of each other with
peripheral within 1 m of the unit to connect cables.

• Power outlets for other medical equipment and gel warmer

• Power outlets for test equipment and modem within 1 m (3.2 ft.) of unit

• Clean and protected space to store transducers (in their cases or on a rack)

• Material to safely clean probes (done with a plastic container, never metal)

2-3-3 Desirable Features

• Door is at least 92 cm (3 ft.) wide

• Circuit breaker for dedicated power outlet is easily accessible

• Sink with hot and cold water

• Receptacle for bio–hazardous waste, like used probe sheaths

• Emergency oxygen supply

• Storage for linens and equipment

• Nearby waiting room, lavatory, and dressing room

• Dual level lighting (bright and dim)

• Lockable cabinet ordered by GE for its software and proprietary manuals.

Chapter 2 Pre Installation 2-7

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

2-3-3-1 Recommended and Alternate Ultrasound Room Layout

Recommended standard floor plan and a minimal floor plan for ultrasound equipment:

FILM

FILE

C AB INE T

SE CR E TA R YS O R
DO C TO R 'S DES K

DEDIC AT ED

POWER

RECEP TACLE

R OOM ,

PR O C ESSIN G

F IL M VIE WE R

C OUN T E R TO P

C OUN T E R

TO P

SIN K

SU C T IO N LINE

EMERGECY
OX Y GEN

O VE R HE A D
LI G HT S D IMME R

DOOR
42 IN .

(107 C M)

A 14 by 17 foot R ecommended F loor P lan

S cale : E ach square equals one square foot

18 IN .

(46 CM)

C ONS O LE

F OOT

SW

S TOO L

76 IN .

(193 C M)

LINEN SUPPLY

E XAM IN AT ION

TAB LE

24 IN .

(61 CM)

PAT IEN T

TO ILE T

F AC ILI T Y

F IL M VIE W ER

SIN K

F IL M SUPPLIES

LINEN SUPPLY

PR OB ES /SUPPLIES

EXT ERNAL

PE R IP HE R ALS

DEDIC AT E D POWER
OUTLETS

DOOR
30 IN .

(76 CM)

24 IN .
(61 CM)

F OOT

SW

S TOO L

E XAM IN AR ION

TAB LE

LOGIQ Book XP

C ONS O LE

76 IN .
(193 C M)

G E C AB INE T
FOT S OFTWARE
A ND MANU ALS

A n 8 by 10 foot Minimal Floor P lan

Figure 2-1 RECOMMENDED ULTRASOUND ROOM LAYOUT

2-8 Section 2-3 - Facility Needs

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

2-3-4 Networking Pre-installation Requirements

2-3-4-1 Stand Alone System (without Network Connection)

None.

2-3-4-2 System Connected to Hospital’s Network

Supported networks:

Wireless LAN

2-3-4-3 Purpose of DICOM* Network Function

DICOM* services provide the operator with clinically useful features for moving images and patient
information over a hospital network. Examples of DICOM* services include the transfer of images to
workstations for viewing or transferring images to remote printers. As an added benefit, transferring
images in this manner frees up the monitor and peripherals, enabling viewing to be done while scanning
continues. With DICOM*, images can be archived, stored, and retrieved faster, easier, and at a lower
cost.

2-3-4-4 DICOM* Option Pre-installation Requirements

To configure the LOGIQ Book XP Series to work with other network connections, the site’s network
administrator must provide some necessary information.

NOTICE

Information must include:

• A host name, local port number, AE Title, IP address and Net Mask for the LOGIQ Book XP Series.

• The IP addresses for the default gateway and other routers at the site for ROUTING
INFORMATION.

• The host name, IP address, port and AE Title for each device the site wants connected to the

LOGIQ Book XP Series for DICOM* APPLICATION INFORMATION. A field for the make

(manufacturer) and the revision of the device, is also included. This information may be useful for
solving errors.

* DICOM is option on LOGIQ Book XP Series.

Chapter 2 Pre Installation 2-9

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

2-3-4-4 DICOM* Option Pre-installation Requirements (cont’d)

.

.

LOGIQ Book

Host Name

Local Port

IP Address

..

.

AE Title

ROUTING INFORMATION

ROUTER1
ROUTER2
ROUTER3

DICOM APPLICATION INFORMATION

NAME

Store 1

Store 2

Store 3

Store 4

Destination
IP Addresses

...

...

...

MAKE/REVISION IP ADDRESSES PORTAE TITLE

Net Mask

Default

...

GATEWAY IP Addresses

...

...

...

...

...

...

...

...

Store 5

Store 6

Worklist

Storage
Commit

MPPS

...

...

...

...

...

Figure 2-2 Worksheet for DICOM Network Information

2-10 Section 2-3 - Facility Needs

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Chapter 3
Installation

Section 3-1 Overview

3-1-1 Purpose of Chapter 3

This chapter contains information needed to install the unit. Included are references to a procedure that
describes how to receive and unpack the equipment and how to file a damage or loss claim.
How to prepare the facility and unit of the actual installation, and how to check and test the unit, probes,
and external peripherals for electrical safety are included in this procedure. Also included in this section
are guidelines for transporting the unit to a new site.

Table 3-1 Contents in Chapter 3

Section Description Page Number

3-1

3-2

3-3

3-4

3-5

3-6

3-7

3-8

3-9

Overview

Receiving and Unpacking the Equipment

Packing the Equipment

Preparing for Installation

Completing the Installation

System Configuration

Software/Option Configuration

Connectivity Installation Worksheet

Loading the System Software

3-1-2 Average Installation Time

Table 3-2 Average Installation Time

Description Average Installation Time Comments

Unpacking the system

Scanner wo/options

DICOM* Option

20 minutes

30 minutes

30 minutes

3-1

3-4

3-7

3-8

3-9

3-12

3-25

3-26

3-27

Dependent on the configuration that is required

Dependent on the amount of configuration

NOTICE

* This function is option on LOGIQ Book XP Series.

The LOGIQ Book XP Series installation and functional checkout will take approximately one hour.
LOGIQ Book XP Series consoles with optional equipment may take slightly longer.

Chapter 3 Installation 3-1

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-1-3 Installation Warnings

1.) There are no operator serviceable components. To prevent shock, do not remove any covers or
panels. Should problems or malfunctions occur, unplug the power cord. Only qualified service
personnel should carry out servicing.

NOTE: For information regarding packing labels, refer to LABELS ON PACKAGE.

2.) After being transported, the unit may be very cold or hot. If this is the case, allow the unit to

acclimate before you turn it on. It requires one hour for each 2.5°C increment it's temperature is
below 10°C or above 40°C.

DANGER

Equipment damage possibility. Turning the system on without acclimation after arriving at site
may cause the system to be damaged.

Table 3-3 Time for Settlement

60 55 50 45 40 35 30 25 20 15 10 5 0 -5 -10 -15 -20 -25 -30 -35 -40

°C

140 131 122 113 104 95 86 77 68 59 50 41 32 23 14 5 -4 -13 -22 -31 -40

°F

864200000002468101214161820

hrs

3-2 Section 3-1 - Overview

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-1-4 Safety Reminders

DANGER

CAUTION

DANGER

DANGER

DANGER

DANGER

WHEN USING ANY TEST INSTRUMENT THAT IS CAPABLE OF OPENING THE
AC GROUND LINE (I.E., METER’S GROUND SWITCH IS OPEN), DON’T TOUCH
THE UNIT!

If the unit is very cold or hot, do not turn on its power until it has had a chance to acclimate to
its operating environment.

To prevent electrical shock, connect the unit to a properly grounded power outlet. Do not use a
three to two prong adapter. This defeats safety grounding.

Do not operate this unit unless all board covers are securely in place.

OPERATOR MANUAL(S)
The User Manual(s) should be fully read and understood before operating the LOGIQ Book XP
Series and kept near the unit for quick reference.

ACOUSTIC OUTPUT HAZARD
Although the ultrasound energy transmitted from the LOGIQ Book XP Series probe is within FDA
limits, avoid unnecessary exposure. Ultrasound energy can produce heat and mechanical
damage

Chapter 3 Installation 3-3

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-2 Receiving and Unpacking the Equipment

When a new system arrives, check that any components are not damaged and are not in short supply.
If shipping damage or shortage occurs, contact the address shown in Chapter 1.

1.) Cut the four PLASTIC BANDs.

2.) Cut the adhesive tape and open top covers of paper carton.

Adhesive tape

Plastic Bands

1

2

Figure 3-1 Open top covers of paper carton.

3-4 Section 3-2 - Receiving and Unpacking the Equipment

GE

Console and

s

Accessories Package

er

rubber band

d

Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-2 Receiving and Unpacking the Equipment (cont’d)

3.) Take out the Paper pad.

4.) Take out console together with 2 interleavers.

5.) Take out the interleavers beside Accessories Package.

6.) Take out Accessories Package..

Paper pa

interleaver

interleav

CAUTION

Figure 3-2 Unpacking the equipment

Do not lift the unit by the rubber band. Equipment damage may result.

Chapter 3 Installation 3-5

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-2 Receiving and Unpacking the Equipment (cont’d)

7.) Remove 2 interleavers.

8.) Remove plastic bag.

Interleaver

Plastic bag

Console

Figure 3-3 Removing interleavers and plastic bag

Interleaver

3-6 Section 3-2 - Receiving and Unpacking the Equipment

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-2 Receiving and Unpacking the Equipment (cont’d)

NOTE: Check the shipping container for special instructions. Verify that the container is intact. In some

cases a secondary container may be used. If so, ask the carrier for unpacking instructions.

CAUTION

Please carefully unpack the system, and do not dispose the package of LOGIQ Book XP Series,
so that it can be reused for service.

3-2-1 Moving into Position

CAUTION

CAUTION

Do not lift the unit by the rubber band. Use handle to move system.

Equipment Damage Possibility. Lifting the console by holding covers may damage the covers.
Do not lift the console by holding any covers.

In general, a single adult can move the LOGIQ Book XP Series. Before moving, store all loose parts in
original accessory box or in back pack. Return probes to original box.

Section 3-3 Packing the Equipment

Please pack LOGIQ Book XP Series in the reverse order of unpacking.

Figure 3-4 Labels on Package

Chapter 3 Installation 3-7

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-4 Preparing for Installation

3-4-1 Verify Customer Order

Compare items received by the customer to that which is listed on the delivery order. Report any items
that are missing, back ordered or damaged.

3-4-2 Physical Inspection

3-4-2-1 System Voltage Settings

• Verify that the system is set to the correct voltage. The Voltage settings for the LOGIQ Book XP

Series System is found on a label located on the AC adapter.

• 220-240VAC(China); 100-120VAC(USA/Japan); 220-240VAC(Europe, Latin America)

WARNINGWARNING

Connecting a LOGIQ Book XP Series System to the wrong voltage level will most likely
destroy the system.

3-4-3 EMI Protection

This Unit has been designed to minimize the effects of Electro Magnetic Interference (EMI). Many of the
covers, shields, and screws are provided primarily to protect the system from image artifacts caused by
this interference. For this reason, it is imperative that all covers and hardware are installed and secured
before the unit is put into operation.

3-8 Section 3-4 - Preparing for Installation

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-5 Completing the Installation

3-5-1 Power On / Boot Up

NOTE: After turning off a system, wait at least ten seconds before turning it on again. The system may not be

able to boot if power is recycled too quickly.

3-5-1-1 System Power On

Lower the handle. Plug the AC adapter output connector into the system DC input port (located on the
system’s rear panel) with the arrow side upward. Plug the AC adapter power cord into a grounded,
protective earth outlet.

CAUTION

Figure 3-5 connect AC adapter

When power is applied to the system, power is distributed to the Cooling Unit, Control Panel, LCD,
Peripherals and the Back-end Processor.

The system should rest on the handle to allow an air gap to prevent overheating.

Chapter 3 Installation 3-9

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-5-1-2 Turn on the system

Press the Power On/Off switch at the front of the system once.

Power On/Off switch

Figure 3-6 Power On/Off Switch

When the Power On/Off switch on the Control Panel is pressed once, the Back-end Processor starts
and the software code is distributed to initiate the system.

No status messages are displayed during this process.

3-5-2 Power Off/ Shutdown

NOTE: After turning off a system, wait at least ten seconds before turning it on again. The system may not be

able to boot if power is recycled too quickly.

3-5-2-1 Back-end Processor Power Down

To power down the system:

1.) Press the Power On/Off switch at the front of the system once.

2.) The System-Exit window is displayed.

Figure 3-7 System Exit Window

3.) Using the Trackball or Select key, select Shutdown.

4.) The shutdown process takes a few seconds and is complete when the power status LED is turned

off.

5.) Disconnect the probes.Clean or disinfect all probes as necessary. Store them in their shipping

cases to avoid damage.

6.) Close LCD cover.

3-10 Section 3-5 - Completing the Installation

GE

probe latch

Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-5-2-2 System Shutdown

Disconnect the Mains Power Cable if necessary. For example: Relocating the system.

3-5-3 Transducer Connection

1.) Carefully open the system LCD display, plug the probe connector into the probe port, then lock the

probe latch upward.

NOTE: Please ensure that the probe latch is in an unlocked position before you connect the probe to the

systsem.

probe latch

Figure 3-8 Connect the probe

NOTE: It is not necessary to turn OFF power to connect or disconnect a probe.

Chapter 3 Installation 3-11

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-6 System Configuration

3-6-1 System Specifications

3-6-1-1 Physical Dimensions

The physical dimensions of the LOGIQ Book XP Series console are summarized in Figure 3-9 on page

3-12 .

Table 3-4 Physical Dimensions of LOGIQ Book XP Series

Height Width Depth Unit

78-99.5 350 280-320 mm

3.07-3.92 13.78 11-12.6 inches

WEIGHT: 4.3KG (9.5 lb.)
NOTE: Length is in mm

99.5

350

Figure 3-9 Overall Dimensions

78

280

320

3-12 Section 3-6 - System Configuration

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-2 Electrical Specifications

Table 3-5 Electrical Specifications for LOGIQ Book XP Series

Adapter Voltage Tolerances Current Frequency

ADM-9020M-GE

100-240 VAC +/-10% 1.08-0.45 A 50/60Hz

3-6-3 Approved peripherals

Table 3-6 Approved peripherals

Device Manufacturer Model Interface

B/W Printer SONY UP-D897 USB

B/W Printer Mitsubishi P95D USB

Digital Color Printer SONY UP-D23MD USB

Digital Color Printer SONY UP-D25MD USB

Deskjet Color Printer HP HP470 USB

Officejet Color Printer HP HP K5400 USB

Officejet Color Printer HP HP K8600 USB

Officejet Color Printer HP HP 100 Mobile USB

USB DVD-RW LITEON LITEON DX-20A4P USB

USB DVD-RW LITEON LITEON Model eHAU 120 USB

USB DVD-RW LITEON LITEON Model eHAU 324 USB

USB DVD-RW Plextor PX-L890UE USB

USB DVD-RW LITEON LITEON eSAU108 DVDRW USB

USB DVD-RW LITEON LITEON eUAU108 DVDRW USB

Wireless LAN Adapter Cisco LDK10250 PCMCIA

Wireless LAN Adapter Cisco AIR-CB2AG-A-K9 PCMCIA

Wireless LAN Adapter Cisco AIR-CB2AG-J-K9 (Only for Japan) PCMCIA

Network Adapter Netgear P/N:FA511 PCMCIA

Network Adapter TRENDNet TE100-PCBUSR PCMCIA

Network Adapter Netgear ETX-PCM (Only for Japan) PCMCIA

Network Adapter TRENDNet TU2-ET100 USB

Footswitch Whanam FSU2001 USB

Footswitch Whanam FSU1000 USB

USB Memory Sandisk Sandisk 2G USB

USB Memory Sandisk Sandisk 4G USB

USB HUB GAOJIAN HE702A USB

USB HUB GAOJIAN HE 420GE USB

NOTE: See each option installation instructions for installation and connection procedures.

WARNINGWARNING

Wire LAN card(FA511) must be worked with patient isolation box (P/N: EP200132), for
details, please refer to option manual.

Chapter 3 Installation 3-13

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-4 Connecting Cables

WARNINGWARNING

Equipment damage possibility. Be sure to use the following recommended connecting cables to connect
recording devices and a network with LOGIQ Book XP Series console.

Table 3-7 List of Connecting Cables

Name Part No. Figure NOTE

USB Cable 5135661

3-6-5 Peripherals/Accessories Connector Panel

LOGIQ Book XP Series peripherals and accessories can be properly connected using the rear
connector panel.

3-6-5-1 Rear Panel Connector

Located on the rear panel are video input and output connectors, audio input and output, camera
expose connectors, footswitch connector, power connector, and control connections for printer, and
service tools.

For USB Printer & USB CD-RW

3-14 Section 3-6 - System Configuration

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-5-1 Rear Panel Connector (cont’d)

This section indicates the pin assignment for each connector.

1

3

4

2

Figure 3-10 Rear Connector Panel

1.) PCMCIA Port for PC Card

2.) SVGA Output (CRT monitor option is not supported)

3.) Two interchangeable USB Port (Digital Printer, CD-RW and/or Footswitch, etc.)

4.) Port for DC input (AC Adapter)

NOTICE

The USB devices should be connected to LOGIQ Book XP Series first, power on USB devices before
turning LOGIQ Book XP Series to work.

NOTE: After User insert the PC Card into the PCMCIA Port, a “Beep” of buzzer will be heard, which means the

Card works properly, otherwise, please pull out the Card and insert again.

NOTE: Each outer (case) ground line of peripheral/accessory connectors are protectively grounded.

Signal ground lines are not isolated.

Chapter 3 Installation 3-15

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-5-1 Rear Panel Connector (cont’d)

1. Pin Assignment of DC/DC input

Connector: 3 Pin, Female

Table 3-8 Pin Assignments of DC/DC input

Pin No. Signal Pin No. Signal

1+3 -

2NC

2. Pin Assignment of USB

Table 3-9 Pin assignment of USB1

Pin No. Signal Pin No. Signal

1 +5VDC 3 DATA+

2 DATA- 4 GND

Table 3-10 Pin assignment of USB2

Pin No. Signal Pin No. Signal

1 +5VDC 3 DATA+

2 DATA- 4 GND

3. Pin assignment of RS232C for external VGA

Connector: D-SUB, 15Pin, Female

Table 3-11 Pin Assignments of RS232C for External VGA

Pin No. Signal Pin No. Signal

1RED9 N/A

2 GREEN 10 SGND

3BLUE11 N/A

4N/A12N/A

5 GND 13 HSYNC

6 RGND 14 VSYNC

7GGND15 N/A

8BGND16

3-16 Section 3-6 - System Configuration

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-5-1 Rear Panel Connector (cont’d)

4. Pin Assignment of PCMCIA

Table 3-12 Pin Assignments of PCMCIA

Pin No. Signal Pin No. Signal

1 DGND 35 DGND

2 BCDATA3 36 BCD1#

3 BCDATA4 37 BCDATA11

4 BCDATA5 38 BCDATA12

5 BCDATA6 39 BCDATA13

6 BCDATA7 40 BCDATA14

7 BCE1# 41 BCDATA15

8 BCADR10 42 BCE2#

9BOE#43BVS1#

10 BCADR11 44 BIORD#

11 BCADR9 45 BIOWR#

12 BCADR8 46 BCADR17

13 BCADR13 47 BCADR18

14 BCADR14 48 BCADR19

15 BWE_C# 49 BCADR20

16 BRDY_IREO# 50 BCADR21

17 PPCMVCCB 51 PPCMVCCB

18 PPCMVPPB 52 PPCMVPPB

19 BCADR15 53 BCADR22

20 BCADR16 54 BCADR23

21 BCADR12 55 BCADR24

22 BCADR7 56 BCADR25

23 BCADR6 57 BVC2#

24 BCADR5 58 BRESET

25 BCADR4 59 BWAIT#

26 BCADR3 60 BINPACK#

27 BCADR2 61 BREG#

28 BCADR1 62 BBCD2

Chapter 3 Installation 3-17

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Table 3-12 Pin Assignments of PCMCIA

Pin No. Signal Pin No. Signal

29 BCADR0 63 BBCD1

30 BCDATA0 64 BCDATA8

31 BCDATA1 65 BCDATA9

32 BCDATA2 66 BCDATA10

33 BIOCS16# 67 BCD2#

34 DGND 68 DGND

3-6-5-2 Connect peripherals

A.) Connect B/W printer to the system.

B/W Printer can be properly connected using USB Port1 or USB Port 2(Figure 3-11 on page 3-18 ).

Figure 3-11 Connect B/W printer to the system

3-18 Section 3-6 - System Configuration

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-5-2 Connect peripherals (cont’d)

B.) Connect color printer to the system.

Color Printer can be properly connected using USB Port1 or USB Port 2(Figure 3-12 on page 3-19 ).

Figure 3-12 Connect digital color printer to the system

NOTICE

HP470 Deskjet Color Printer and HP K5400 Officejet Color Printer must connect with PIT (Printer
Isolation Transformer) when being used.

Chapter 3 Installation 3-19

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-5-2 Connect peripherals (cont’d)

C.) Connect CD-RW to the system.

CD-RW can be properly connected using USB Port1 or USB Port2.

Figure 3-13 Connect CD-RW to the system

Iomega CD-RW drive recommended media list

Media issues are common throughout the CD-RW drive industry. Because CD media vendors often
change disc suppliers, quality levels may change due to manufacturing differences. This means that
you may encounter CD creation problems with media that may have worked successfully before.
Overall system configuration and other factors may also affect the success of creating a CD.

The following media types have been tested. Iomega highly recommends that you use the media types
on this list when creating your CDs.

Not all brands of media have been tested and, therefore, you may encounter success with other brands
not listed. This list will be updated as other media is tested and approved.

Table 3-13 Iomega CD-RW drive recommended media list

Brand Name Type Product Code Speed

Acer CDR80 Acer Media 40x-1x

Digital Research CDR80 DRCDR3250 32x-1x

Fuji Photo Film CDR74 CD-R74C 24x-1x

Fuji Photo Film CDR74 CD-R650D 24x-1x

Fuji Photo Film CDR80 CD-R700D 24x-1x

Hi-Val CDR80 CDR80 16x 24x-1x

Imation CDR80 CDR80 16x 24x-1x

Iomega Verbatim CDR CD-R74 32x-1x

Kodak CDR CDR Ultima 16x-1x

3-20 Section 3-6 - System Configuration

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Table 3-13 Iomega CD-RW drive recommended media list

Brand Name Type Product Code Speed

Kodak CDR CDR Gold Ultima 16x-1x

Mitsui CDR CDR74 32x-1x

Mitsui CDR CDR80 32x-1x

Mitsubishi Chemical Ultra CDRW - 24x

Mitsubishi Chemical HS CDRW RW74EU1 12x/10x/8x/4x

Mitsubishi Chemical CDRW RW74Q1 4x/2x

Mitsubishi Chemical CDRW RW74U1P 4x/2x

Ricoh CDR74 Type 74R-SG 24x-1x

Ricoh CDR74 Type 74-SFSGH2 24x-1x

Ricoh CDR80 CD-R Type 80 24x-1x

Ricoh HS CDRW CDRW 74 10x 12x/10x/8x/4x

Ricoh CDRW 74R-AZ2 4x/2x

Ricoh CDRW 74R-AZ2M3 4x/2x

Ricoh CDRW 74R-AZ2M4 4x/2x

Ricoh CDRW 74R-AZ 2x

Ricoh CDRW 74R-AZAM 2x

Samsung CDR74 Premium CDR-74 32x-1x

Sentinel CDR74 CDR74 Hyperspeed 16x-1x

TDK 48x - 48x-1x

TDK CDR74 CD-R74S 24x-1x

TDK CDR74 CD-R74A 24x-1x

TDK CDR80 CD-R80A 24x-1x

TDK CDRW CD-RW74 4x/2x

Verbatim CDR DataLifePlus CD-R 700 48x-1x

Verbatim CDR DataLifePlus CD-R 650 24x-1x

Verbatim DataLifePlus CD-RW 650 4x/2x

Yamaha CDRW CD-RW74M4 4x/2x

Chapter 3 Installation 3-21

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-5-2 Connect peripherals (cont’d)

D.) Connect Footswitch to the system.

Footswitch can be properly connected using USB Port1 or USB Port2.

Wireless
LAN Card

Footswitch FSU 1000

Footswitch FSU 2001

Figure 3-14 Connect Footswitch to the system

E.) Connect Wireless LAN Card to the system.

Wireless LAN Card can be properly connected using Signal Port for Card.

Figure 3-15 Connect Wireless LAN Card to the system

F.) Connect the CRT to the system.

CRT can be properly connected using the SVGA output.

3-22 Section 3-6 - System Configuration

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-5-2 Connect peripherals (cont’d)

G.) Connect the USB Memory to the system. The USB Memory can be properly connected using USB

port 1 or 2.

Figure 3-16 USB Memory Connection

H.) Connect the ECG to the system. ECG can be properly connected using USB port 1 or 2.

Figure 3-17 ECG Connection

NOTE: Please refer to the operation manual of each peripheral for information needed by the user to

operate the system safely.

For detailed installation information, please refer to the LOGIQ Book XP Series Peripheral Installation
Instruction manual 5194298-100.

Chapter 3 Installation 3-23

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-6 Available Probes

See in specification in the LOGIQ Book XP Series User Reference Manual for Probes and intended use.

Table 3-14 List of Probes on LOGIQ Book XP/XP PRO

Probe Name Material of Headshell Area of Using TYPE Catalog Number Part Number

3C-RS NORYL GENERAL PURPOSE CONVEX H40402LL 2290776

E8C-RS VALOX

8C-RS VALOX

i12L-RS ABS (GE)

8L-RS VALOX

3S-RS VALOX

i739-RS NORYL

T739-RS NORYL

TRANSVAGINAL

TRANSRECTAL

VETERINARY

PEDIATRIC

NEONATAL

INTRAOPERATIVE

SMALL PARTS

VASCULAR PEDIATRICS

SMALL PARTS

PERIPHERAL VASCULAR

CARDIOLOGY

TRANSVAGINAL

ABDOMEN

INTRAOPERATIVE

SMALL PARTS

PERIPHERAL VASCULAR

INTRAOPERATIVE

SMALL PARTS

PERIPHERAL VASCULAR

MICRO-CONVEX H40402LN 2290777

MICRO-CONVEX H40402LS 2354971

LINEAR H40402LW 2377942

LINEAR H40402LT 2376127

SECTOR H4000PD 2355686

LINEAR H40402LJ 2404995

LINEAR H40412LP 2404999

3-24 Section 3-6 - System Configuration

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-6-6 Available Probes (cont’d)

Table 3-15 List of Probes on LOGIQ Book XP Vet

Probe Name Material of Headshell Area of Using TYPE Catalog Number Part Number

3C-RS NORYL GENERAL PURPOSE CONVEX H41562LJ 5134641

E8C-RS VALOX

8C-RS VALOX

i12L-RS ABS (GE)

8L-RS VALOX

3S-RS VALOX

i739-RS LC NORYL

T739-RS NORYL

TRANSVAGINAL

TRANSRECTAL

VETERINARY

PEDIATRIC

NEONATAL

INTRAOPERATIVE

SMALL PARTS

VASCULAR PEDIATRICS

SMALL PARTS

PERIPHERAL VASCULAR

CARDIOLOGY

TRANSVAGINAL

ABDOMEN

INTRAOPERATIVE

SMALL PARTS

PERIPHERAL VASCULAR

INTRAOPERATIVE

SMALL PARTS

PERIPHERAL VASCULAR

MICRO-CONVEX H41562LL 5134643

MICRO-CONVEX H41562LK 5134642

LINEAR H41562LN 5134645

LINEAR H41562LM 5134644

SECTOR H41562LR 5134647

LINEAR H41482LS 5136420

LINEAR H41562LP 5134646

Section 3-7 Software/Option Configuration

Refer to the LOGIQ Book XP Series Basic User Manual, Chapter 16, Customizing Your System for
information on configuring items like Hospital, Department, Language, Units (of measure), Date, Time
and Date Format.

For information on configuring Software Options, Refer to the LOGIQ Book XP Series Basic User
Manual, Chapter 16, Customizing Your System.

For information on configuring DICOM* Connectivity, Refer to the LOGIQ Book XP Series Basic User
Manual, Chapter 16, Customizing Your System.

NOTICE

* This function is option on LOGIQ Book XP Series.

Chapter 3 Installation 3-25

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-8 Connectivity Installation Worksheet

Site System Information

Site:

Dept:

LOGIQ SN:

CONTACT INFORMATION

Name

TCP/IP Settings

Name - AE Title:

Type:

Title

Floor:

Room:

REV:

Phone

Comments:

E-Mail Address

IP Settings

IP Address:

Subnet Mask:

Default Gateway:

Services (Destination Devices)

Device Type

1
2
3
4
5
6
7
8
9
10
11
12

Manufacturer

Name

Remote Archive Setup

Remote Archive IP:

Remote Archive Name:

IP Address

Port

AE Title

3-26 Section 3-8 - Connectivity Installation Worksheet

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

Section 3-9 Loading the System Software

NOTE: System Software may also be referred to as the Base Image or Ghost.

WARNINGWARNING

While the software install procedure is designed to preserved data, you should save
any patient data, images, system setups and customer presets to CD, DVD, USB Flash
Drive, or USB Hard Disk before doing a software upgrade.

NOTE: Before loading the system software, please ensure that the power can be continuously supplied

and there is no risk of power cut off during loading procedure.

There are three methods to load the system software:

• Load the system software with CD. Refer to section 3-9-1 "Loading the System Software with CD"

from page 3-28 to page 3-32

• Load the system software with DVD. Refer to section 3-9-2 "Loading the system software with DVD

(For R2.2.2)" from page 3-33 to page 3-37

• Load the system software with USB memory stick. Refer to section 3-9-3 "Loading the System

Software with USB Memory Stick (For R2.2.2 or above)" from page 3-38 to page 3-42

Chapter 3 Installation 3-27

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-1 Loading the System Software with CD

3-9-1-1 Loading Base Image Software (For R2.2.1 or lower)

NOTE: While it is believed to be unnecessary, It would not hurt to disconnect the system from the

network and remove all transducers.

1.) Insert the disk labeled “Base System Software Load Image” into the CDROM drive.

2.) Properly turn off the system by momentarily pressing the Power On/Off Switch. Select
Shutdown from the System Exit menu. Wait for the Standby Switch to turn amber.

3.) If the system will not shutdown normally, hold down the Power On/Off Switch until the light
turns from green to amber.

Figure 3-18 Shutdown Dialog Box

4.) Turn on the system. system will detect the CDRW automatically as shown in Figure 3-19 on

page 3-28 .

Figure 3-19 System Update

3-28 Section 3-9 - Loading the System Software

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-1-2 Upgrading Application Software (For R2.2.1 or lower) (cont’d)

5.) Press any key on the Keyboard to continue the steps.

6.) Press any key to continue when below message display as shown in Figure 3-19 on page 3-

28 .

Figure 3-20 Update message

7.) System CD will be loaded as shown in Figure 3-21 on page 3-29 .

Figure 3-21 System CD loading

8.) After finish updating system CD, take out “System Software CD” from CD-RW, prepare to

upgrade “Application Software”.Refer to Figure 3-22 on page 3-29 .

9.) After finish updating system CD, take out “System Software CD” from CD-RW, prepare to

upgrade “Application Software”.Refer to Figure 3-22 on page 3-29

Figure 3-22 Update Successful

Chapter 3 Installation 3-29

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-1-2 Upgrading Application Software (For R2.2.1 or lower)

WARNINGWARNING

While the software install procedure is designed to preserve data, you should save any
patient data, images, system setups to a CD-RW or hardcopy.

1.) Disconnect the system from the network.

2.) Place the “Application Software” CD-ROM into the CD-ROM drive.

3.) Power off the system.

4.) Connect the CD-ROM drive to the system.

5.) Power on the system. Wait for a dialog box like the one in Figure 3-23 on page 3-30 .

Figure 3-23 Start Application Window

6.) Select INSTALL SW ...

7.) There will be two dialog boxes popping up warning you that you are about to install new
software as shown in Figure 3-24 on page 3-30 . In both cases click OK

Figure 3-24 Start Loader Dialog Boxes

8.) Now you just have to wait till the Software loads (Approximately for 10 minutes).

9.) When the process has completed, the window will turn dark and you will see the following
message in Figure 3-25 on page 3-31 .

.

.

3-30 Section 3-9 - Loading the System Software

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-1-2 Upgrading Application Software (For R2.2.1 or lower) (cont’d)

Figure 3-25 Software Load Complete

10.)When it completes loading, the system will reboot.

11.)Remove the CD from the drive.

If possible, while the system is rebooting remove the CD from the drive. If you didn’t do that don’t worry
you will get a dialog box like the one shown in Figure 3-26 on page 3-31 .

Figure 3-26 Start Software

12.)REMOVE the Applications CD

13.)From the Start Applications dialog box, select START

14.)Select UPGRADE

button to upgrade the FPGA while the following message box appears by

pressing the unmarked key of the trackball.

Figure 3-27 Upgrade FPGA

.

Chapter 3 Installation 3-31

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-1-2 Upgrading Application Software (For R2.2.1 or lower) (cont’d)

15.)Click on the SHUT DOWN

button to shut down the system after FPGA upgrade completing.

Figure 3-28 FPGA Upgrade

3-32 Section 3-9 - Loading the System Software

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-2 Loading the system software with DVD (For R2.2.2)

WARNINGWARNING

While the software install procedure is designed to preserve data, you should save any
patient data, images, system setups to CD, DVD, USB Flash Drive, or USB Hard Disk.

NOTE: Because any data may be lost or impacted during upgrade process, the preserved patient data

on the system should be backed up before application software upgrade.

1.) Disconnect the system from the network.

2.) Power off the system.

3.) Connect the DVD-ROM to the system and turn on the DVD-ROM.

4.) Place the “Application Software” DVD into the DVD-ROM drive.

5.) Power on the system. The system will operate automatically to start application software

upgrading process.

Figure 3-29 Software Loading

6.) The system operates automatically to scan USB Devices as shown in

Figure 3-29 on page 3-33

Figure 3-30 Scanning USB Devices

Chapter 3 Installation 3-33

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-2 Loading the system software with DVD (For R2.2.2) (cont’d)

7.) Press any key on the keyboard to continue the steps when message displays as shown in

Figure 3-31 on page 3-34

Figure 3-31 Software upgrade continuing

3-34 Section 3-9 - Loading the System Software

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-2 Loading the system software with DVD (For R2.2.2) (cont’d)

8.) The system provides three options [a], [b] and [c] as shown in Figure 3-32 on page 3-35 .

- To select [a], the complete disk will be loaded. This option is recommended for application

software upgrade.

NOTE: When to select [a] to load complete disk, please ensure that any patient data on the disk has

been backed up.

- To select [b], only the bootable C: partition is loaded. This option is intended for recovery of a

system that will not boot up. It is not recommended for application software upgrade because
during upgrade process, the data on the system would possibly be impacted.

- To select [c] to quit system upgrade process.

9.) To continue upgrading application software process, select [a] and input “a“.

Figure 3-32 Loading selection

Chapter 3 Installation 3-35

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-2 Loading the system software with DVD (For R2.2.2) (cont’d)

10.)When the message displays as shown in Figure 3-33 on page 3-36 , input “Yes“ and press on
“Enter“ key on the keyboard to continue the steps.

Figure 3-33 Upgrading selection

11.)The system DVD is being loaded as shown in Figure 3-34 on page 3-36 . The Progress
Indicator displays the loading progress status.

Figure 3-34 Upgrading progress status

3-36 Section 3-9 - Loading the System Software

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-2 Loading the system software with DVD (For R2.2.2) (cont’d)

12.)When the system DVD loading as shown in Figure 3-34 on page 3-36 is completed, the

system upgrade process is completed successfully. Follow the instruction as shown in Figure

3-35 on page 3-37

Figure 3-35 Upgrade completed

Chapter 3 Installation 3-37

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-3 Loading the System Software with USB Memory Stick (For R2.2.2 or above)

NOTE: Because any data may be lost or impacted during upgrade process, the preserved patient data

on the system should be backed up before application software upgrade.

1.) Disconnect the system from the network.

2.) Power off the system.

3.) Insert USB memory stick labeled “System & Application Software” to the system.

4.) Turn on the system. System will detect the USB memory stick automatically.

5.) Press any key to continue when below message display as shown in Figure 3-36 on page 3-

38 .

Figure 3-36 System Software load message

3-38 Section 3-9 - Loading the System Software

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-3 Loading the System Software with USB Memory Stick (For R2.2.2 or above) (cont’d)

6.) The system software load instruction window displays. Select one of the options for loading

the system. Select choice [a] to load the complete disk. Refer to Figure 3-37 on page 3-39

NOTICE

NOTE: When to select [a] to load complete disk, please ensure that any patient data on the disk has

If you select [a], ALL existing software and data will be erased. If backup has not been
performed, all data like Patient Database, System Configuration and User Configurations
(Customer Presets) will be lost.

- To select [a], the complete disk will be loaded. This option is recommended for application

software upgrade.

been backed up.

- To select [b], only the bootable C: partition is loaded. This option is intended for recovery of a

system that will not boot up. It is not recommended for application software upgrade because
during upgrade process, the data on the system would possibly be impacted.

- To select [c] to quit system upgrade process.

WARNINGWARNING

Figure 3-37 System Software load instruction

While the software install procedure is designed to preserve data, you should select
choice [b] to format disk C only.

Chapter 3 Installation 3-39

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-3 Loading the System Software with USB Memory Stick (For R2.2.2 or above) (cont’d)

7.) Input “Yes” or “No” and press Enter key to continue.

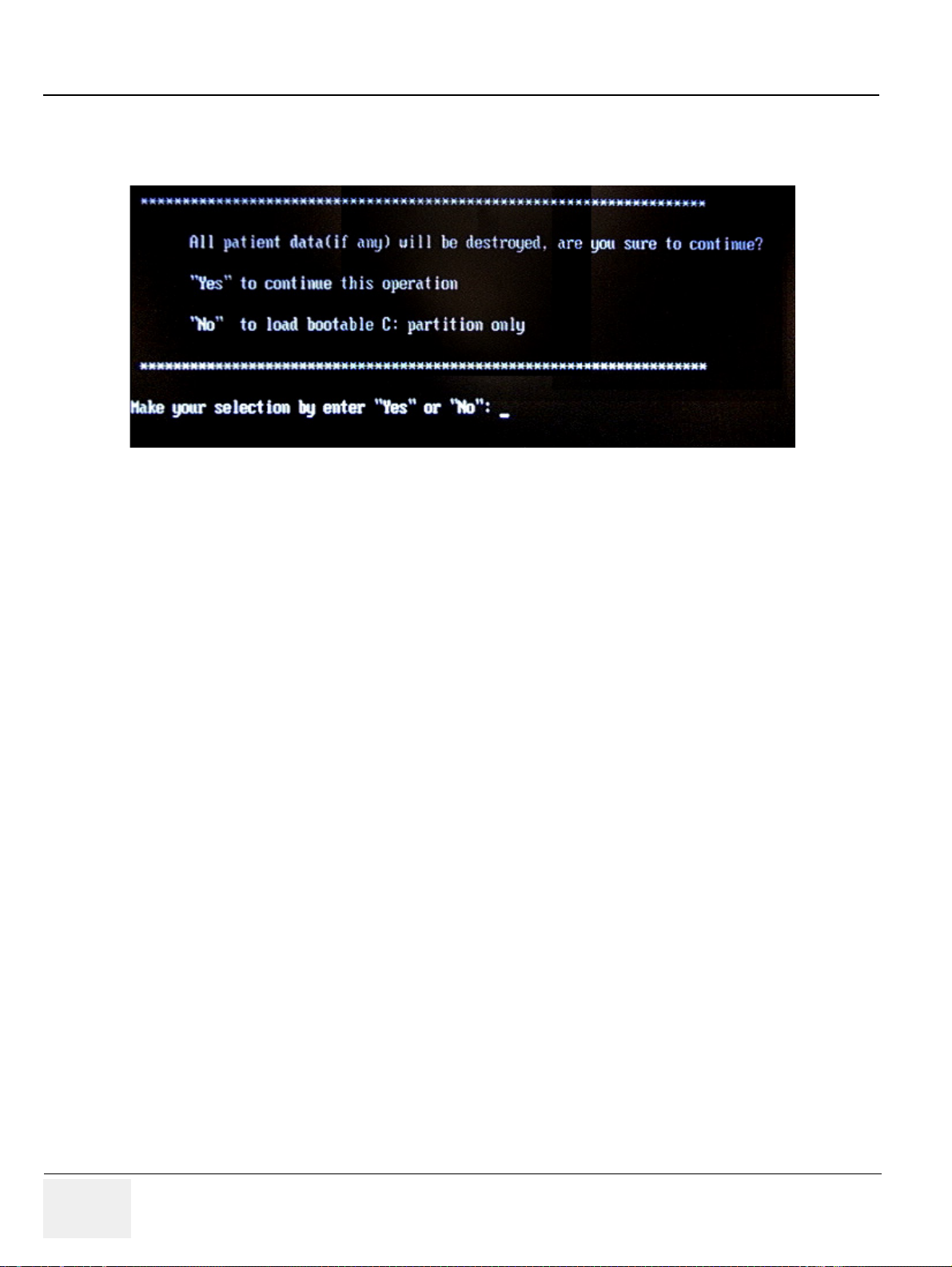

Figure 3-38 Confirmation on loading the system

3-40 Section 3-9 - Loading the System Software

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-3 Loading the System Software with USB Memory Stick (For R2.2.2 or above) (cont’d)

8.) System USB memory stick will be loaded as shown in Figure 3-39 on page 3-41 . Wait for the

software installation to complete. (Typical installation time: 5-10 minutes). Status bar on the
screen indicates progress.

WARNINGWARNING

Do not interrupt the software loading at any time.

Figure 3-39 System USB memory stick loading

If the screen displays as show in Figure 3-40 on page 3-41 following step 7, wait about 1 minute until

Figure 3-39 on page 3-41 displays.

Figure 3-40 System USB memory stick loading blank message

Chapter 3 Installation 3-41

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-3 Loading the System Software with USB Memory Stick (For R2.2.2 or above) (cont’d)

9.) After finish updating system, remove the USB memory stick and press any key to shut down
the system. Refer to Figure 3-41 on page 3-42 .

NOTE: If you don not remove the USB memory stick, the software system loading process repeats

when the system boots up.

Figure 3-41 System upgrade complete

3-42 Section 3-9 - Loading the System Software

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-4 Functional Check-out

1.) Power on LOGIQ Book XP Series system and wait until system booting to main screen.

2.) Press UTILITY

3.) Choose the About

key on control panel

button on the right.

Figure 3-42 General Screen

4.) Check whether "Software Version" is the right version for use.

Figure 3-43 About Screen

NOTE: The software version information displayed in Figure 3-43 on page 3-43 does not necessarily

reflect the software version you install on your ultrasound system. The real software version will
display on your ultrasound system after you have completed loading the system software.

Chapter 3 Installation 3-43

GE
Direction 5194296-100, Revision 11 LOGIQ Book XP Series Basic Service Manual

3-9-5 Option Key Update

NOTE: After the system software loading completion, please input option key and check the

option strings to ensure that the options are activated and working.

NOTE: Option key is required to be input when the system is powered on after software loading

completion.

1.) Power on the system.

2.) Input series number of the system and select “OK“.

3.) Input option key according to SW Option Key label.

4.) Press “OK” and the system enters scanning mode.

5.) Refer to the process as below to verify if the options are activated and working.
Select Utility -> Advanced -> Admin -> System Admin , then check “option” list. If the option is

enable or permanent, it means the option function is available; if the option is disabled, it means the
function is invalid.

Figure 3-44 Option key screen

3-44 Section 3-9 - Loading the System Software
