Page 1
PART QUANTITY
Trim Frame 1
Bottom Duct 1
Top Bracket 1
Phillips Round-Head 24
Screws (22 required
for installation)
Phillips Flat-Head 5
Screws (4 required for
installation)
Anti-Tip Bracket 1
Bottom Bracket 1
Template 1
PARTS INCLUDED
Questions? Call GE Answer Center at 800.626.2000 or
Visit our Website at:
www.GEAppliances.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS
.
Installation Built-In Trim Kits
Instructions
JX2127 and JX2130
Read these instructions completely and carefully.
•
IMPORTANT – Save these
instructions for local inspector’s use.
•
IMPORTANT – Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• For easier installation and personal safety, we
recommend that two people install this microwave oven.
• Unplug the microwave oven before attempting
installation of this kit.
BEFORE YOU BEGIN
• Skill level – Installation of this appliance requires basic
mechanical and electrical skills.
• Completion time – 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• This kit is UL listed for installation alone or over
any General Electric/Hotpoint/RCA single electric
wall oven.
TOOLS YOU WILL NEED
#2 Phillips screwdriver
Pencil
Tape measure
Awl or punch
Drill with
7
⁄64″ bit or #35
1
FOR YOUR SAFETY:
WARNING – Before beginning the
installation, switch power off at service panel and lock
the service disconnecting means to prevent power
from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten
a prominent warning device, such as a tag, to the
service panel.
Scissors (optional)
Page 2
2
CUTOUT DIMENSIONS
* Min. depth with receptacle outside cabinet 19
1
⁄2″
Min. depth with receptacle inside cabinet 22″
Installation Instructions
Models 27″ 30″
Height 163⁄4″ 163⁄4″
Width 251⁄2″ 251⁄2″
Depth (min.)* 191⁄2″ or 22″ 191⁄2″ or 22″
On 27″ models, allow 11⁄4″ at the top, 9⁄16″ on the sides
and 1″ at the bottom for overlap of the Trim Frame
over the edges of the cutout.
On 30″ models, allow 11⁄4″ at the top, 21⁄8″ on the sides
and 1″ at the bottom for overlap of the Trim Frame
over the edges of the cutout.
Depth
Height
1″ overlap
Width
INSTALL BOTTOM BRACKET
AND BOTTOM DUCT
2
Fit the tab on the bottom bracket into the slot on
the back of the bottom duct, and push down until
the bracket is flush with the bottom of the duct.
Fasten the bottom bracket to the bottom duct by
using two bronze round-head screws.
Disconnect the microwave oven before proceeding
with the installation.
Remove any loose items inside the microwave
oven, including the turntable and turntable
support. Carefully turn the microwave oven
upside down.
Line up the tabs on the bottom duct with the slots
on the bottom of the microwave and insert the
tabs into the slots. Secure the bottom duct with
four bronze round-head screws as shown.
A
C
B
D
Front
Rear
Screws
Screws
Screws
Microwave Oven Upside Down
1
11⁄4″ overlap
1″ Clearance beyond
Trim Frame
(on all sides)
27″ Models:
9
⁄16″ overlap
30″ Models: 21⁄8″ overlap
3″ min.
CAUTION
This trim kit uses air flow from the top, bottom and
sides of the trim frame. Blocking the air flow can
cause the microwave to function improperly and
may cause damage to the microwave.
Allow a 1″ clearance beyond the edge of the Trim
Frame to provide proper air flow.
Page 3
3
Installation Instructions

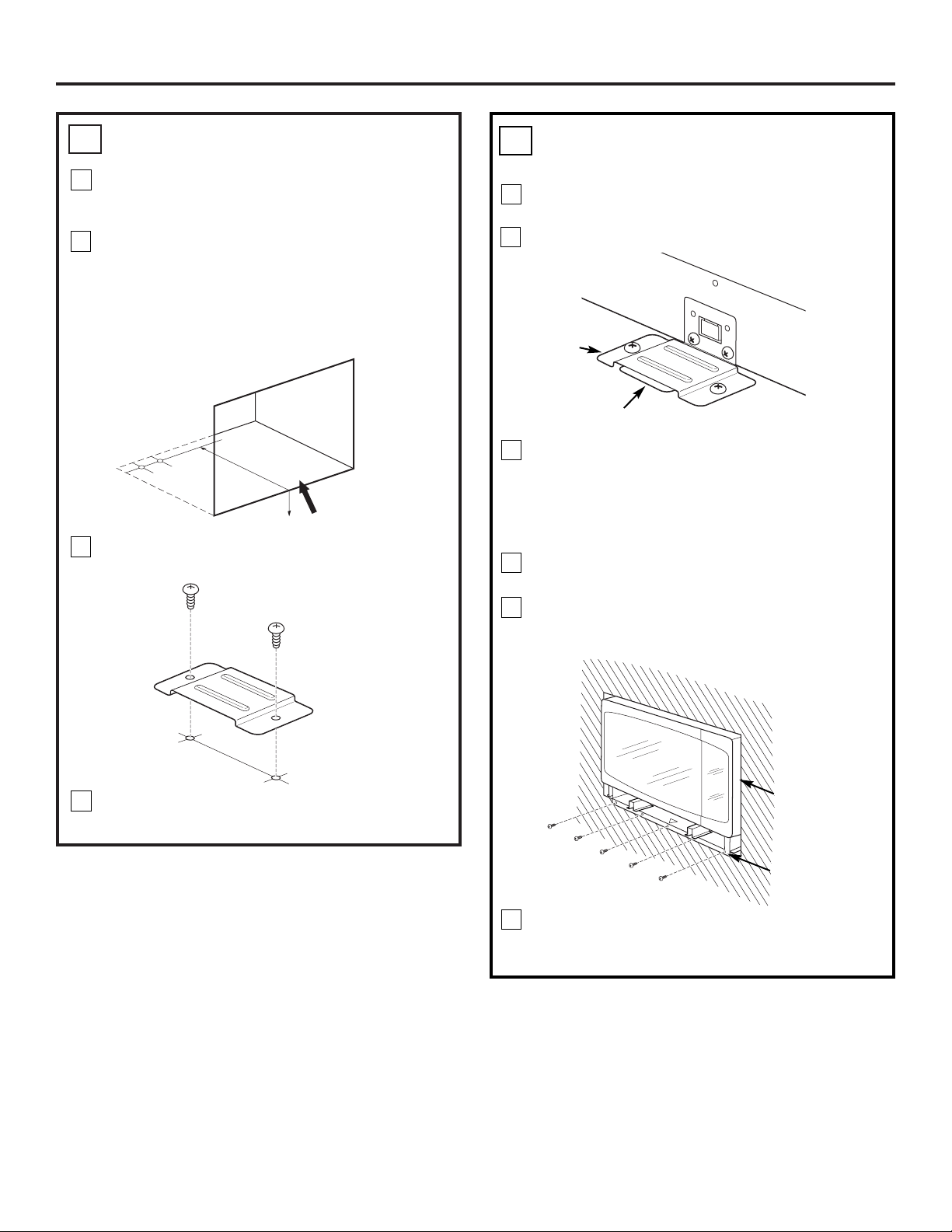

INSTALL THE ANTI-TIP BRACKET
3
Draw a line on the cutout floor at the center of
the cutout, and extend the line 1⁄2″ down the face
of the cabinet.
Fold or cut the front edge of the template, along
the front guide line. Place the template flush
along the front edge of the cutout floor, aligning
the center line of the template with the center line
of the cutout floor. Mark the centers of the two
screw holes with an awl or center punch for the
anti-tip bracket location as shown.
Remove the template and drill two holes for the
anti-tip bracket.
Install the anti-tip bracket onto the cutout floor
using two bronze round-head screws.
A
B
C
Cutout Floor
Screws
Anti-Tip Bracket
D
INSTALL MICROWAVE OVEN
INTO CABINET
4
Slide the microwave oven part way into the cabinet
opening.
Plug in the microwave oven.
The bottom bracket must be flat to the cutout
floor to engage correctly with the anti-tip bracket
as shown. Carefully slide the microwave oven back,
engaging the anti-tip bracket. Make sure the
power cord is not mashed or cut as you slide the
microwave into place.
Center the microwave oven within the
cutout opening.
Ensure the microwave oven is accurately centered.
Line up the center line on the cabinet with the
triangular hole on the front of the bottom duct.
Drill pilot holes through the positioning flange
and then install five bronze round-head screws
at the front of the bottom duct as shown.
A
B
C
Anti-Tip Assembly
Bottom Duct
Bottom Bracket
Anti-Tip
Bracket
D
E
Cutout Opening
Screws
F
Positioning
Flange
Page 4
4
Installation Instructions
Place the top bracket on the top of the microwave
oven, with the tabs on the top and sides of the
bracket fitting squarely against the microwave oven.
Drill pilot holes through the holes in the top
bracket. Attach the top bracket to the cabinet
using nine bronze round-head screws.
A
B
INSTALL THE TOP BRACKET
5
Tabs
Your trim kit is now fully installed. Replace any
loose items that were removed from the inside
of the microwave oven. Save or discard the extra
screws. Do not place them in the microwave oven.
Keep these installation instructions for future
reference.
Replace house fuse or close circuit breaker to
restore power at the service panel.
A
B
REPLACE ANY LOOSE ITEMS
7
164D3370P328
49-40398
06-03 JR
Printed in Korea
C
Place the trim frame over the microwave oven.
Snap the two spring clips on the trim frame into
the slots on the top bracket.
Open the microwave oven door. Secure the trim
frame using four flat-head screws (two on the
inside top and two on the inside bottom).
A
C
INSTALL THE TRIM FRAME
6
B
Spring Clips
Slots
Flat-head screws
Tabs
Screws
Flat-head screws
