Page 1
JTP31SR
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 275 lbs.)
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
29-3/4
C
30
Recommended
cutout location
32-1/2"
from floor
21
Junction
box
location
Allow minimum of 21'' for clearance
to adjacent corners, drawers, walls, or etc.
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"–3/4" for overlap of oven over side edges of cutout.
C=28-1/4" without trim and 28-3/4" with trim.
Conduit
48-1/2"
5
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
A
B
23-1/2'' MIN.
Cutout depth
22'' MIN.
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 275 lbs.)

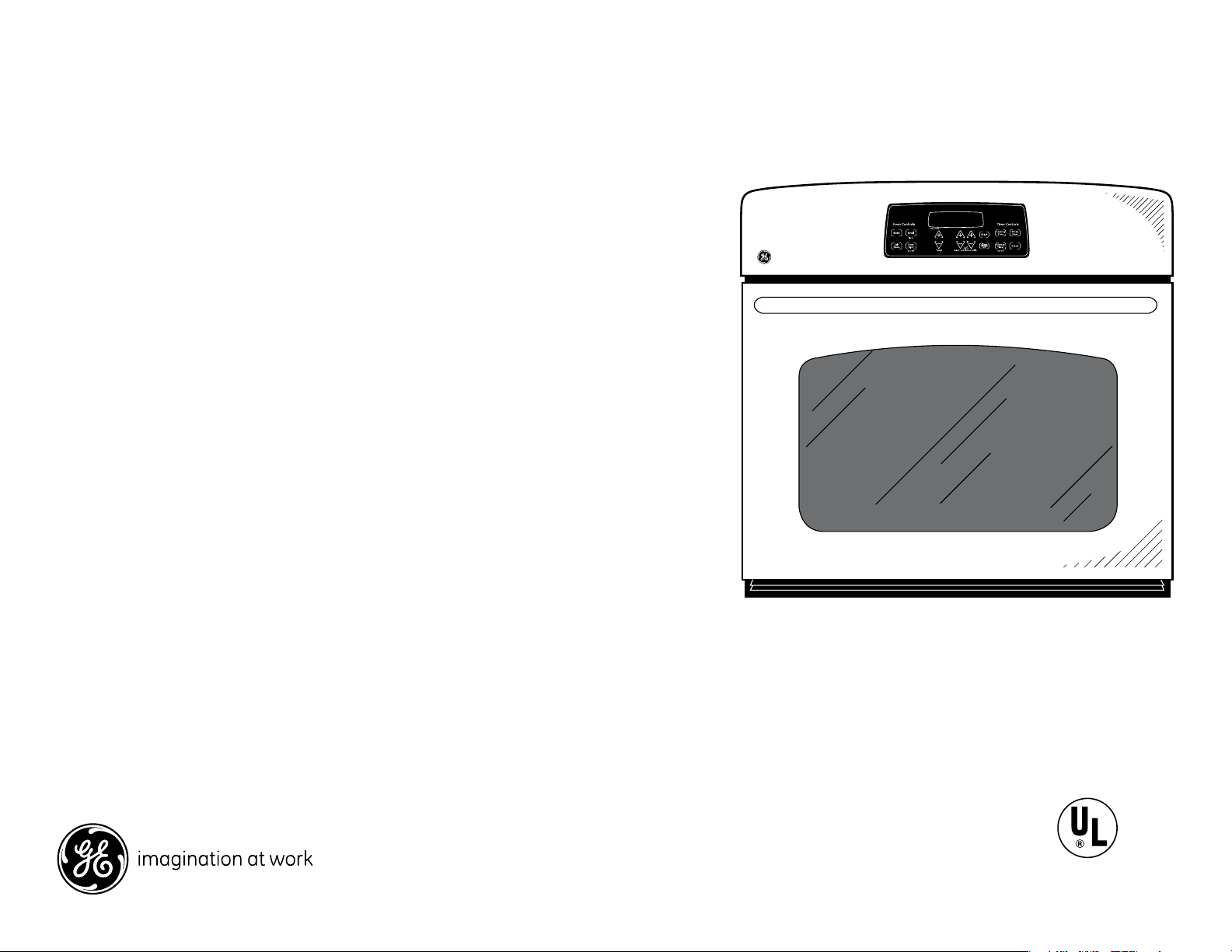

GE® 30" Built-In Single Wall Oven
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
240V
208V
Most 30" Wall Cabinets can be used with this unit .
Note: These ovens are not approved for stackable
installations.
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating.
Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be
placed to avoid interference with the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
Electric wall ovens are not approved for installation
with a plug and receptacle. They must be hard
wired in accordance with installation instructions.
Side-by-side installations require at least 2"
between cutouts.
For answers to your Monogram,
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
4.5
3.4
20 Amps
20 Amps
®
GE Profile™ or
Listed by
Underwriters
Laboratories
Specification Created 5/10
320230
Page 2
JTP31SR
5
24
25
Gas or electric cooktops may be installed over
this oven. See cooktop installation instructions
for cutout size. See label on top of oven for
approved cooktop models.
Gas (including the pressure regulator) and
electrical connections for gas cooktop must
be located in an adjacent acce ssible location.
For a 30" gas cooktop, the connections are
more conveniently made to the right.
120 Volt
Outlet
Gas
connection
Junction box
location
240/208V
36'' MIN.
4'' To 4-1/2 '' Toe kick allowable
Match toe kick height
front and two sides
22'' MIN. above
support platform
Top and/or side
fillers may be
necessary if unit
is positioned
between
existing cabinets
28-1/2'' MIN.
28-5/8'' MAX.
27-1/4'' MIN.
27-5/16'' MAX.
Cutout height
3/4'' Support
platform required
23-1/2" MIN.
Cutout depth
Allow 11/16''
overlap over side
edges of cutout
1- 1/ 2"
Co un te r to p
4-3/4"
to
5-1/4"
36" Typical
Countertop height
Power cord
30-3/4"
to
31-3/4"
1-1/2" MIN.
Free space
1-1/2" Typical countertop
Side View
22
27-5/16" MAX.
Cutout height
27-1/4" MIN.
Junction box(s) for
oven & radiant
cooktop 22"
from floor
Add suitab le filler to match
adjacent c abinets when needed
to maintai n toe kick alignment
30" Oven W/ Rad. Cktp.
Power cord
for cooktop
Junction box
for oven
Junction box in
adjacent cabinet
for cooktop
hook-up
2 (two) 90°elbows &
sufficient pipe to
connect in adjacent
cabinet
Right cabinet side
3/4" Support
Shut-off
valve
Pressure
regulator
1/2" Black
iron pipe
Union
Conduit
48-1/2"
30" built-in
oven
3-1/2" MIN.
Free space
4" To 4-1/2"
3-1/4
22
Side View
GE® 30" Built-In Single Wall Oven
Optional Undercounter Installation Dimensions
(in inches)
This installation is to achieve minimum gap between bottom of countertop and control panel.
Note: For this installation, the bottom trim will not be flush with a typical 4" toe kick.
Note: Cabinets installed adjacent to wall ovens must have an adhesion spec of at least a 194°F
temperature rating.
Note: 36" radiant and induction cooktops are approved for use over GE 30" single wall ovens
only. 30" radiant and induction cooktops are approved for use over GE 30" and GE 27" single wall
ovens. Refer to cooktop and wall oven installation information packed with products for current
dimensional data.
Installation Information: Before installing, consult installation instructions packed with product
for current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Optional Undercounter Installation With Electric Cooktop
Dimensions (in inches)
Undercounter Installation
Specification Created 5/10
Listed by
Underwriters
Laboratories
320230
Page 3
JTP31SR
GE® 30" Built-In Single Wall Oven
Features and Benefits
• Self-clean Oven - Self-clean allows you to spare yourself from the trouble and effort
it takes to scrub the oven interior. The oven does all the work!
• Super-large Oven Capacity - Remarkably large oven interior is ideal for holidays,
dinner parties and everyday family cooking
• Electronic Oven Controls - Electronic pads on the control panel are easy to operate
with just a touch
• TrueTemp™ Oven System - Provides even heat distribution and precise oven control
• Hidden Bake Oven Interior - Conceals the lower oven bake element to eliminate
hard-to-reach areas that collect food and spills for easy cleaning
• Eight-pass Bake Element - Interior heating element loops eight times to distribute
heat quickly and evenly for optimal baking results
• 6-Pass Broil Element - Provides better and more even coverage of the food on the
broiler pan
• Heavy-duty Oven Racks - Tough, durable racks include 50% thicker crossbars for
extra strength
• Certified Sabbath Mode - Convenient mode keeps the oven warm in accordance
within the restrictions of the kosher kitchen
• Model JTP31SRSS – Stainless steel
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 5/10
Listed by
Underwriters
Laboratories
320230
