cooking products
Retail and Contract Sales
March 2005 new product introductions
Contents
3
Free-standing gas ranges
49 Specifications & installation

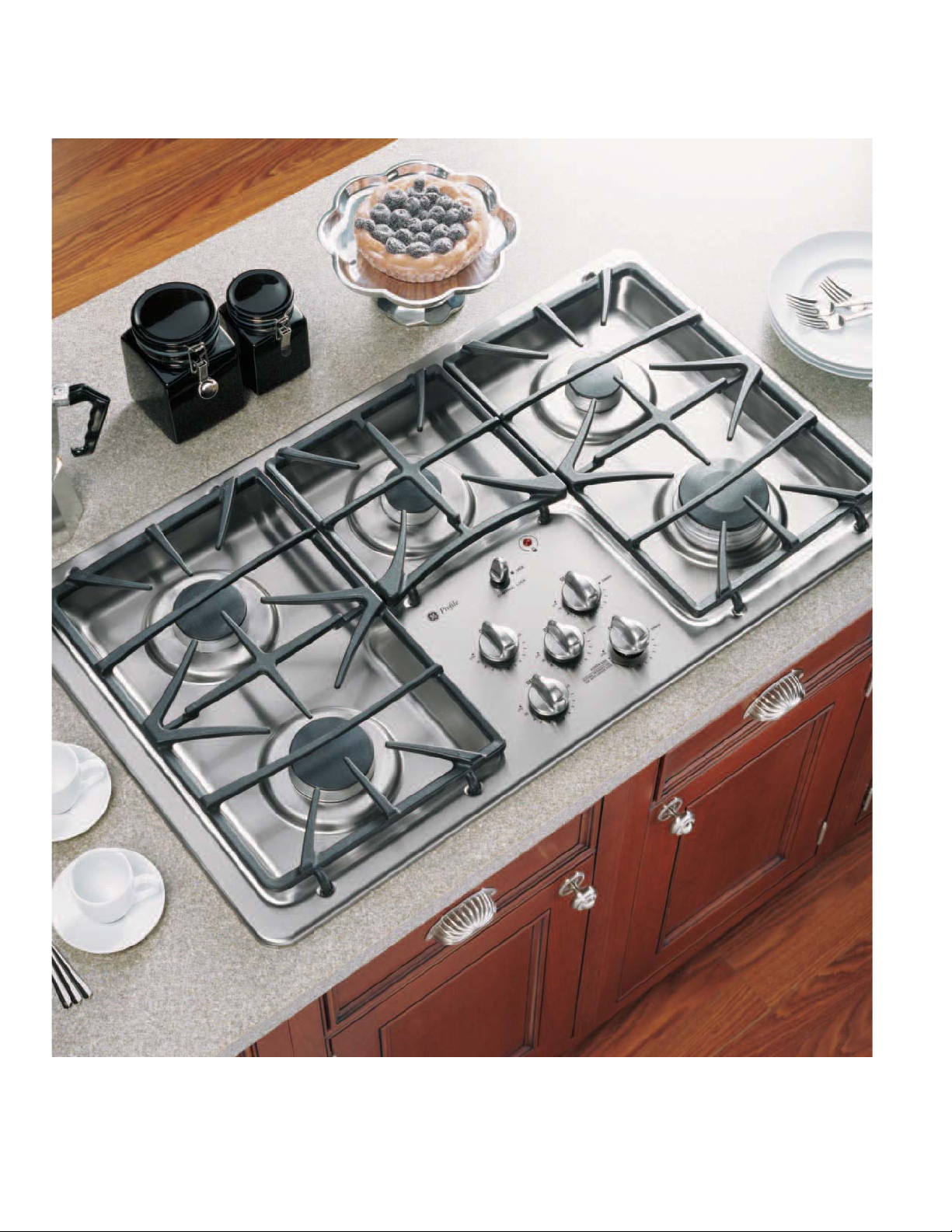

25 Built-in gas cooktops
52 Specifications & installation
34 Built-in electric cooktops
54 Specifications & installation
2
ge.com
gas
ranges
New product introductions 2005
GE Profile
™
and GE® free-standing gas and dual-fuel ranges
3
JGB918–no griddle
W/JVM2070
photo t/c
4
Free-standing gas and dual-fuel range quick pitch
The maximum in cooking performance and flexibility
ge.com
Engaging Style
Deep recessed cooktop with continuous grates
incorporate modern styling and heavy-duty
construction to create a cooktop with a high-end
appearance that’s impressive and practical.
Easy Cleanability
Sealed burners, self-clean oven and glass
touch controls are specifically designed to make
cleaning incredibly quick and easy, helping users
maintain the attractive appearance of the range
while ensuring performance.
Advanced Technology
Large capacity oven, PowerBoil™ 17,000 BTU and
Precise Simmer offers high-performance capabilities to
help cooks do more at once – saving time in the kitchen,
offering customized control and creating ideal results.
Remarkable Versatility
Dual-fuel electric convection and double ovens offer
high-performance and flexible cooking options that make
meal preparation coordinated, convenient and easy –
so foods come out evenly baked and are ready at the
same time.
5
What’s new: Free-standing double oven range
The maximum in cooking performance and flexibility
Lower oven
• Adds additional 1.0 cu. ft. of cooking capacity
• 6.0 cu. ft. total baking capacity when combined with
upper oven
• 150º–450º capability for warming and baking
• Upper and lower heating elements
• Provides additional storage when not in use
• Easy-to-clean removable drawer liner
• Available on JGB928, J2B918, JGB918
Center oval burner
• Adds fifth burner to the cooktop
• Interchangeable center grate removes to insert
provided griddle accessory
• Available on J2B918, JGB918, JGB916, JGB908, JGBP88
Not all features available on all models.
6
Non-stick griddle
• Replaces center grate
• Cooks multiple items like pancakes, sandwiches,
quesadillas or sausages
• Flat, non-stick surface
• Provides uniform heat distribution from front to
back of griddle
• Included with purchase of range
• Available on J2B918, JGB918, JGB916, JGB908, JGBP88
PowerBoil™ 17,000 BTU burner
• Maximum 17,000 BTU output
• Accelerates boiling
• Available on J2B918, JGB918, JGB916, JGB908
ge.com
Profile stainless sculptured handles
• Durable stainless steel construction
• Sculptured handle coordinates with other
GE Profile appliances
• Available on all stainless GE Profile gas range models
7
Feature gallery: GE Profile™ free-standing gas and dual-fuel ranges
QuickSet VI glass
touch controls*
Features a smooth glass
design that is easy-tooperate and easy-to-clean.
Gas on glass cooktop
Features a ceramic glass
surface that is easy-to-clean.
Continuous grates
Allow for easy movement
of pots and pans between
burners.
Precise simmer burner
Delivers a low setting of
140°, ideal for delicate
foods and sauces.
Lower oven
Offers an additional 1.0
cu. ft. of capacity for
convenient baking from
150º–450º.
Big ClearView™ window
Allows monitoring the
progress of food easy.
GE Profile model JGB928
*Traditional QuickSet VI controls on stainless models.
Not all features available on all models.
8
Deep recessed cooktop
Helps contain spills
for easy cleaning.
Power Boil™
17,000 BTU burner
Delivers 17,000 BTUs of
forceful heat for rapid
boiling.
Center oval burner
Adds a fifth element to
the center of the cooktop
to accommodate large
cookware and deliver
ideal results.
ge.com
GE Profile model JGB916
Non-stick griddle
Offers a flat cooking surface,
placed over the center oval
burner, for cooking multiple
foods at once.
Sealed cooktop burners
Contain spills and make
cleaning quick and easy.
Warming drawer
Provides variable
temperature control for
keeping foods warm.
9
Feature gallery: GE® free-standing gas ranges

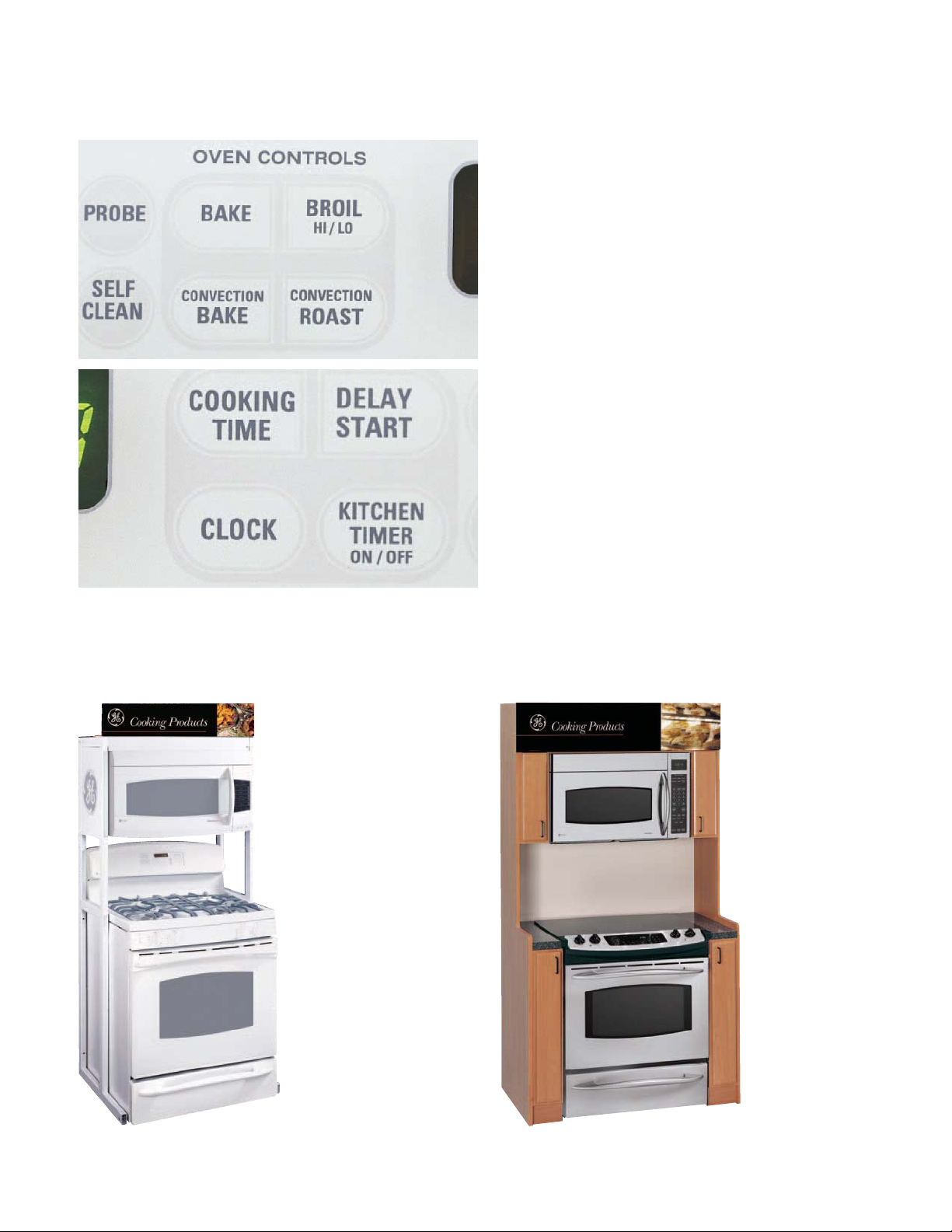

QuickSet V
oven controls
Feature easy to use
electronic touch pads to
simplify oven operation.
Deep recessed cooktop
Helps contain spills for
easy cleaning.
Dishwasher-safe grates
Features durable
construction for worry-free
and effortless cleaning and
maintenance.
Non-stick griddle
Offers a flat cooking surface,
placed over the center oval
burner, for cooking multiple
foods at once.
Center oval burner
Adds a fifth element to
the center of the cooktop
to accommodate large
cookware and deliver
ideal results.
Warming drawer
Provides variable
temperature control for
keeping foods warm.
GE model JGBP88
Not all features available on all models.
10
Precise simmer burner
Delivers a low setting of
140°, ideal for delicate
foods and sauces.
PowerBoil™
16,000 BTU burner
Delivers 16,000 BTUs
of forceful heat for
rapid boiling.
Sealed cooktop burners
Contain spills and make
cleaning quick and easy.
ge.com
Continuous grates
Allow for easy movement
of pots and pans between
burners.
Frameless glass
oven door
Offers an easy-to-clean
and stylish design that
blends seamlessly into
existing cabinetry.
Big ClearView™ window
Allows monitoring the
progress of food easy.
11
The inside story: GE Profile™ and GE® free-standing gas and dual-fuel ranges
GE Profile upper oven interior
5.0 cu. ft. super-large
oven capacity
Gives consumers the
room they need to cook
large meals.
Two-speed
convection oven
Circulates air throughout
the oven ensuring even
baking and roasting results.
Auto Recipe™
conversion
Automatically converts
standard recipe
temperatures to proper
convection settings.
Oven meat probe
Displays the internal
temperature and signals
when meats are cooked
to perfection.
Dual-fuel range
Offers electric convection
oven performance with
the responsiveness of a
gas cooktop.
Features on GE Profile and GE modelsGE Profile dual-fuel range
Not all features available on all models.
12
TrueTe mp™ system
Provides even heat
distribution and maximum
oven control.
Certified Sabbath mode
Allows consumers to keep
cooked foods warm on the
Jewish Sabbath and
Jewish holidays.
GE upper oven interior
ge.com
Extra-large
4.8 cu. ft. capacity
Gives consumers the
room they need to cook
large meals.
In-oven broiling
Features a low and high
setting for broiling foods
inside the oven.
Interior oven light
Makes viewing of the
progress of cooking easy
and convenient.
Two oven rack s
Feature a durable
construction to help
accommodate any size
or type of cookware.
Six embossed
rack positions
Allows consumers to take
full advantage of the oven
capacity and adjust racks
for oversized cookware.
Self-clean oven
Conveniently cleans the
oven without the need
for scrubbing.
13
The inside story: GE Profile™ and GE® free-standing gas and dual-fuel ranges
Lower oven interior
The maximum in
cooking versatility
Baking drawer photo
To Come
Bake
150º to 450º baking makes
it ideal for side dishes,
breads or casseroles.
Removable drawer liner
Provides additional
convenience for quick
and easy cleaning.
Full-extension drawer
Allows users to pull out the
drawer to the fullest length
for effortless loading,
unloading and cleaning.
An additional 1.0 cu. ft.
capacity adds a second
oven to bake at a
separate temperature.
Dual element bake
Upper and lower elements
provide even heating and
optimal results.
Warm
Prepared foods can stay
warm and ready to serve.
Store
Cookware can be stored
when the lower oven is
not in use.
Not all features available on all models.
14
Warming drawer interior
ge.com
Multiple settings
Provide added convenience
with low, medium and high.
Warming capability
Helps keep meals
coordinated, warm and
ready for the table.
Storage space
Allows cookware to be
placed in one organized
location.
15
Dare to compare
Capacity
GE Profile™ double oven ranges Maytag® Gemini
• Cooking BIG in the 5.0 cu. ft. capacity oven is easy—
room enough for six pieces of cookware
• Shown in the GE Profile oven:
two 2.5 qt. casseroles
1.5 qt. casserole
1.8 qt. casserole
7 qt. french oven
large roasting pan
• GE delivers all the cooking capacity
you will ever need
• The same six pieces of cookware won’t fit into the
Maytag 4.0 cu. ft. main oven because it is 25% smaller
than the GE Profile oven
• In this example, the Gemini oven is so small that even
the 7 qt. french oven, 1.5 qt. casserole dish and 1.8 qt.
casserole dish won’t fit into the oven at the same time
as the other cookware
• Gemini delivers less than GE
16
Oven placement
ge.com
GE Profile double oven ranges Maytag Gemini
• Large, heavy, hot roasting pans are NO problem
• Cooking BIG in the 5.0 cu. ft. capacity oven is easy
• Handling big, heavy pans is easy because the food
is closer to the cooktop or countertop
• Large, heavy, hot roasting pans are a BIG problem
• Floor level positioning requires constant bending and
stooping, making lifting heavy items a pain.
• Gemini delivers less than GE
• GE delivers all the cooking convenience
you will ever need
17
Dare to compare
5th burner performance/versatility
GE Profile™ double oven ranges Maytag® Gemini
• GE Profile 5-burner gas ranges are designed to use the
entire cooktop, providing ample cooking space
• Shown on the GE Profile cooktop:
two 4 qt. sauce pans
3 qt. sauce pan
3 qt. saute pan
8 qt. stock pot
• GE delivers all the cooking capacity
you will ever need
• Gemini has a tiny 5th burner on a cooktop that is too
crowded
• Room required for cooking is needed to accommodate
the controls
• In this example, the 8 qt. stock pot won’t fit on the
Gemini cooktop at the same time as the other cookware
• Gemini delivers less than GE
GE Profile double oven ranges Maytag Gemini
• GE Profile 5-burner gas ranges are designed to use a
griddle over the very large center oval burner and the
griddle is included with every 5-burner gas range
• Shown on the GE Profile cooktop:
two 4 qt. sauce pans
3 qt. sauce pan
3 qt. saute pan
griddle
• GE delivers all the cooking capability
you will ever need
18
• Gemini has a tiny 5th burner on a cooktop that is
already too small
• Maytag Gemini does not include a griddle with
their range
• Using a typical griddle (available at department stores)
leaves only two burners available
• In this example, two 4 qt. pans won’t fit on the cooktop
at the same time as the other cookware
• Gemini delivers less than GE
Claim P.O.P.
ge.com
Pub. No. 3-D451
Pub. No. 3-D431
Model JGBP85
Pub. No. 3-D104
Model J2B915
Pub. No. 3-D104
Pub. No. 3-D241
Top - rat ed cook ing pro duc ts
merchandiser
Pub. No. 3-D104
19
Show and tell
Lower oven demo
• Plug in range to any standard 120-volt outlet.
• Remove all use and care, installation instructions, etc.,
from the upper and lower ovens.
• Place two 9 x 13 casserole dishes in the lower oven on
the baking rack.
• Show the consumer the huge 5.0 cu. ft. upper oven,
point to the graphic on the backsplash “Double Oven
Range.” Show them the knob control for the oven and
tell them it is an electric oven that bakes from 150 to
450 degrees. Then pull open the lower oven.
• Tell the consumer that this range has two ovens. Both
ovens can be used at the same time to cook two
different dishes at different temperatures. Lift out the
casserole dish and hand it to the customer and tell
them the lower oven is ideal for a 9 x 13 casserole, as
well as pies, cookies, rolls, biscuits, muffins, and pizza.
• Lift out the lower oven liner to show them it can be
removed for easy cleaning.
Griddle demo
• Show the consumer that the cooktop has five burners,
two all-purpose burners, one high temperature
PowerBoil
and GE’s exclusive large oval center burner.
• Explain that pans can be used on any of the five
burners using the center grate.
• Remove the center grate and replace it with the
customer-engineered non-stick griddle. Point out that
the burner and griddle were designed for each other.
• Tell them the griddle is ideal for eggs, bacon, sausage,
pancakes, grilled sandwiches, warming tortillas, and
many other uses.
• Point out how much more useful this cooktop design
is than traditional five-burner gas range cooktops.
• Tell them GE includes the griddle at no charge.
• Cookware shown: (2) 4 qt. sauce pans, 3 qt. sauce pan,
3 qt. saute pan and griddle.
™
burner, one small Precise simmer burner
20
ge.com
Sales demo mode
• Plug the range into any standard
120 volt outlet.
• Remove all tape, plastic and paper from inside the oven
(just in case the oven control is left on bake or broil
which can activate the glowbar igniter).
• Press and hold both the BAKE and BROIL pads at the
same time, hold until SF appears in the display.
• Then, at the same time, touch the CLOCK and KITCHEN
TIMER pads.
• The control will then continuously scroll through each
oven function.
• To end the sales display mode touch the START pad.
With the range plugged in, the following can
be demonstrated:
Oven Light & the Big ClearView
Digital time and temperature displays
Hi/Lo broil settings
Variable self clean time
Automatic self clean door latch
Convection bake control setting fan operates
Convection roast control setting fan operates
Reminder timer
™
Window
Tubular free-standing
display
Designed to display a
free-standing range
and an Advantium
or Spacemaker
microwave oven.
72-1 /2 "H x 32-1/4" W
x 25"D
Pub. No. 4-D001
™
®
Free-standing or
slide-in/drop-in
display
Designed to display
a free-standing,
slide-in or drop-in
range and an
Advantium or
Spacemaker
microwave oven.
82"H x 44"W x
26-3/4"D
Pub. No. 3-D131
21
Free-standing gas and dual-fuel ranges
Available new models
GE Profile™
30" free-standing double-oven
gas range
JGB928
• Profile appearance
• Gas convection bake/roast
• Extra-large, self-clean oven
• Gas on glass ceramic cooktop
• Lower oven
• Power Boil
• QuickSet VI glass touch controls*
• Precise Simmer burner
• Continuous dishwasher-safe grates
• Sealed cooktop burners
• TrueTemp
• Big ClearView
™
15,000 BTU burner
™
system
™
window
GE Profile
30" free-standing double-oven
gas range
JGB918
• Profile appearance
• Gas convection bake/roast
• Extra-large, self-clean oven
• Center oval burner
• Non-stick griddle
• Lower oven
• Deep recessed cooktop
• QuickSet VI glass touch controls*
• PowerBoil 17,000 BTU burner
• Precise Simmer burner
• Continuous dishwasher-safe grates
• Sealed cooktop burners
GE Profile
30" free-standing dual-fuel
double-oven gas range
J2B918
Similar features as JGB918, except it
has an electric convection oven
GE Profile
30" free-standing gas range
JGB916
• Profile appearance
• Gas convection bake/roast
• Extra-large, self-clean oven
• Center oval burner
• Non-stick griddle
• Deep recessed cooktop
• QuickSet VI glass touch controls*
• PowerBoil 17,000 BTU burner
• Precise Simmer burner
• Warming drawer
• Continuous dishwasher-safe grates
*Traditional QuickSet VI controls on stainless models.
Not all features available on all models.
22
ge.com
GE Profile
30" free-standing gas range
JGB908
• Profile appearance
• Extra-large, self-clean oven
• Deep recessed cooktop
• Center oval burner
• Non-stick griddle
• PowerBoil 17,000 BTU burner
• Warming drawer
• QuickSet V controls
• Precise Simmer burner
• Continuous dishwasher-safe grates
• Sealed cooktop burners
GE Profile
30" free-standing gas range
JGB900
• Profile appearance
• Extra-large, self-clean oven
• Deep recessed cooktop
• PowerBoil 15,000 BTU burner
• Precise Simmer burner
• Medium cast grates
• QuickSet V controls
• Two oven racks
• Continuous dishwasher-safe grates
GE®
30" free-standing gas range
JGBP88
• Extra-large, self-clean oven
• Deep recessed cooktop
• Center oval burner
• Non-stick griddle
• PowerBoil 16,000 BTU burner
• Warming drawer
• QuickSet V controls
• Precise Simmer burner
• Continuous dishwasher-safe grates
• Sealed cooktop burners
23
Engaging Style
Deep recessed cooktop with
continuous grates incorporate
modern styling and heavy-duty
construction to create a cooktop
with a high-end appearance that’s
impressive and practical.
Easy Cleanability
Sealed burners, self-clean oven
and glass touch controls are
specifically designed to make
cleaning incredibly quick and easy,
helping users maintain the attractive
appearance of the range while
ensuring performance.
Advanced Technology
Large capacity oven, PowerBoil™
17,000 BTU and Precise Simmer
offers high-performance capabilities
to help cooks do more at once –
saving time in the kitchen, offering
customized control and creating
ideal results.
24
ge.com
cooktops
New product introductions 2005
GE Profile
™
and GE® gas and electric cooktops
25
2626
GE Profile™ gas cooktops quick pitch
The maximum in cooking performance and versatility.
ge.com
Engaging Style
Enhanced cooktop surface with continuous grates
and heavy-duty die-cast knobs features a smooth
and clean design to provide a seamless appearance
that is universally attractive, durable and professional.
Easy Cleanability
Deep recessed or gas-on-glass cooktops with
dishwasher-safe gates and knobs create a cooking
environment that is not only functional, but also easy
to clean and maintain.
Extraordinary Versatility
Power Boil™ and Precise Simmer burners offer
high-performance capabilities to do more at once.
27
What’s new: More of what consumers want
The maximum in cooking performance and flexibility.
Dual-flame stacked burner
• Unique design combines two burners in one!
• PowerBoil
accelerated boiling
• Precise simmer for gentle 140° simmering
• The ultimate in convenience – takes the guesswork
out of cooking
• Available on JGP975/JGP945
™
burner with 18,000 BTUs for
Only GE has it!
Control lock capability
• Locks the cooktop controls and shuts off the gas
• Helps prevent unintended activation
• “Locked” reminder light
• Immediately turns every burner off
• Audible alarm sounds if burner activation is attempted
when in the locked position
• Available on JGP975/JGP970/JGP945/JGP940
Simmer option
• New simmer option maintains 140° temperature
• “Simmer” is incorporated on the control graphics
• Available on JGP975/JGP970/JGP945/JGP940
Not all features available on all models.
28
44066a
ge.com
Heavy-duty die-cast knobs
(stainless steel models only)
• Robust construction for long-lasting durability
• Brushed chrome finish enhances overall stainless
appearance
• Available on JGP975SEKSS/JGP970SEKSS/JGP945SEKSS/
JGP940SEKSS
Curved front appearance
• New design provides a smooth and seamless look
• Complements other GE Profile
• Available on JGP970/JGP940
™
appliances
Profile grates and graphic design
• Continuous grates provide practical
cooking convenience
• Simplified graphics deliver a clean and
elegant appearance
Dishwasher safe grates and knobs
• All sealed burner cooktops have dishwasher safe grates
• All cooktops have dishwasher safe knobs
29
Feature gallery: GE Profile™ 36" and 30" gas cooktops
Deep recessed cooktop
Helps contain spills and
make cleaning easy.
Continuous grates
Allow for easy movement
of pans between burners.
Only GE has it!
Control lock capability
Shuts off gas to prevent
unintended activation.
Upfront controls
(36” models only)
Provide access at the center
of the cooktop for quick and
easy reach.
Sealed cooktop burners
Contain spills and make
cleaning quick and easy.
Not all features available on all models.
30
Dishwasher-safe grates
Feature durable
construction for worry-free
and effortless cleaning
and maintenance. Available
on all gas cooktops.
Precise simmer burner
Delivers a low setting of
140°, ideal for delicate foods
and sauces.
Dual-flame
stacked burner
Features a unique
two-in-one burner design
for 18, 000 BTU boiling or
gentle 140º simmering.
All-purpose burners
Provide a powerful
11,000 BTU burner output
for efficient heat-up
and sautéing.
ge.com
GE Profile model JGP975
Heavy-duty
die-cast knobs*
Add durability and brushed
chrome for enhanced style
and performance.
Dishwasher-safe knobs
Feature a robust
construction for safe and
easy cleaning. Available
on all gas cooktops.
Gas-on-glass cooktop
Features a frameless
surface that is easy
to clean.
*Available on JGP975SEKSS/JGP970SEKSS/JGP945SEKSS/JGP940SEKSS
31
GE Profile™ and GE® 36" and 30" gas cooktops
Available new models
GE Profile 36" gas cooktops
JGP975
• Deep recessed cooktop
• Sealed cooktop burners
• Control lock capability
• Dual-flame stacked
18,000 BTU burner
• All-purpose burners
GE Profile 30" gas cooktops
• Precise simmer burner
• Continuous grates
• Heavy-duty die-cast
knobs on stainless
model
• Dishwasher-safe grates
and knobs
JGP970
• Gas on glass cooktop
• Sealed cooktop burners
• PowerBoil
burner
• All-purpose burners
• Precise simmer burner
• Continuous grates
™
15,000 BTU
• Dishwasher safe grates
and knobs
• Control lock capability
• Heavy-duty die-cast
knobs on stainless
model
•
Curved front
appearance
JGP945
• Deep recessed cooktop
• Sealed cooktop burners
• Control lock capability
• Dual-flame stacked
18,000 BTU burner
• All-purpose burners
32
• Precise simmer burner
• Continuous grates
• Heavy-duty die-cast
knobs on stainless
model
• Dishwasher-safe grates
and knobs
JGP940
• Gas on glass cooktop
• Sealed cooktop burners
• PowerBoil 15,000 BTU
burner
• All-purpose burners
• Precise simmer burner
• Continuous grates
• Dishwasher-safe grates
and knobs
• Control lock capability
• Heavy-duty die-cast
knobs on stainless
model
•
Curved front appearance
GE 36" gas cooktop
ge.com
JGP963
• Deep recessed cooktop
• Sealed cooktop burners
• PowerBoil 15,000 BTU
burner
• All-purpose burners
• Precise simmer burner
• Continuous grates
• Dishwasher safe grates
and knobs
JGP630
• Deep recessed cooktop
• Fifth burner
• Sealed cooktop burners
• All-purpose burners
• Precise simmer burner
GE 30" gas cooktop
• Continuous grates
• Dishwasher safe grates
and knobs
• Medium cast-iron grates
JGP933
• Deep recessed cooktop
• Sealed cooktop burners
• PowerBoil 15,000 BTU
burner
• Precise simmer burner
• All-purpose burners
• Continuous grates
• Dishwasher-safe grates
and knobs
JGP330
• Deep recessed cooktop
• Sealed cooktop burners
• All-purpose burners
• Precise simmer burner
• Continuous grates
• Dishwasher safe grates
and knobs
• Medium cast-iron grates
33
34
GE Profile™ electric cooktops quick pitch
The maximum in cooking performance and versatility.
ge.com
Engaging Style
Enhanced cooktop surface with a curved front edge
and heavy-duty die-cast knobs features a smooth and
clean design to provide a seamless appearance that is
universally attractive and durable.
Easy Cleanability
Ceramic glass cooktop with dishwasher-safe knobs
create a cooking environment that is not only functional,
but also easy to clean and maintain.
Extraordinary Versatility
12”/9”/6” Tri-ring and 6"/9" dual elements provide
multiple cooking areas in one to accommodate
various-sized pots or pans. Users can customize the
heating element to meet their needs, helping maximize
performance and produce ideal results.
35
What’s new: More of what consumers want
The maximum in cooking performance and flexibility.
12"/9"/6" tri-ring element
12"
9"
6"
• Three cooking areas in one element
• 3,000 watt element
• Accommodates various-sized pots and pans
• The ultimate in versatile convenience
• Available on JP970
Melt and simmer options
• New melt option maintains 110º temperature
• “Melt” and “simmer” are incorporated on the
control graphics
• Available on JP970/JP940
Not all features available on all models.
36
Control lock capability
• Now on more models!
• Locks the cooktop controls
• Helps prevent unintended activation
• All GE Profile
JP940/JP930/JP910
™
models: JP980/JP970/JP960/JP950/
ge.com
Heavy-duty die-cast knobs
(stainless steel models only)
• Robust construction for long-lasting durability
• Brushed chrome finish enhances overall stainless
appearance
• Available on JP970SKSS/JP940SKSS
GE Profile element and graphic design
• Reduced speckle on cooktop pattern
• Simplified graphics complements clean and
elegant appearance
Curved front appearance
• New design provides a smooth and seamless look
• Complements other GE Profile appliances
• All GE Profile models: JP980/JP970/JP960/JP950/JP940/
JP930/JP910
37
Feature gallery: GE Profile™ 36" and 30" electric cooktops
Frameless ceramic
glass cooktop
Provides a clean and
seamless design to make
cleaning quick and easy.
12"/9"/6" tri-ring element
Accommodates various-sized
pots or pans for the ultimate
in cooking versatility.
Ribbon heating
elements
Provide powerful heat
beneath a smooth glass
surface to ensure even heat
and fast warm-up times.
Control lock capability
Provides the ability to lock
the cooktop’s controls,
helping protect from
unintended activation.
Dishwasher-safe knobs
Feature a robust
construction for safe and
easy cleaning.
Heavy-duty
die-cast knobs*
Add durability and brushed
chrome for enhanced style
and performance.
Not all features available on all models.
38
Melt option
Maintains the optimal 110º
temperature for melting
delicate foods like chocolate
or butter—eliminating
the guesswork.
Adjustable elements
Offers a convenient choice
of using a 6"/9" or 5"/8"
heating element, depending
on the size of the pan.
Upfront controls
(36” models only)
Provide access at the center
of the cooktop for quick and
easy reach.
ge.com
GE Profile model JP970
Hot surface
indicator lights
Illuminates when the
cooking surface is active or
hot, adding convenience
and safe caution.
Simmer option
Delivers the ideal 140°
temperature for the gentle
simmering of foods like
soups or sauces.
Bridge element
Combines two elements
into one large cooking
surface.
*Available on JP970SKSS/JP940SKSS only
39
Feature gallery: GE Profile™ digital electric cooktop
Electronic touch controls
Replaces traditional dial
controls with digital buttons
that are precise and
easy-to-use.
Precise Digital Control
System
Delivers accurate
temperature control
on the cooktop ensuring
even heating and less
temperature variation.
™
Frameless ceramic
glass cooktop
A smooth cooktop surface
makes cleaning quick
and easy.
Electronic
kitchen timer
Provides convenient
notification to help
coordinate meal preparation and cooking times.
Not all features available on all models.
40
Pan presence sensors
All elements detect when
a burner element is left “on”
and automatically shut off
when not in use.
Adjustable elements
Offers a convenient choice
of using a 6"/9" or 5"/8"
heating element, depending
on the size of the pan.
Warming capability
Provides low heat capability
for foods, making meal
coordination simple.
Pan size sensor
Automatically adjusts the
heating element to the size
of the pan.
Control lock capability
Provides the ability to lock
the cooktop’s controls,
helping protect from
unintended activation.
ge.com
GE Profile model JP980
Upfront controls
(only on 36" models)
Controls are placed within
easy reach at the front
center of the cooktop.
Hot surface
indicator lights
Illuminates when the
cooking surface is hot,
adding convenience and
safe caution.
Heating element
“ON” light
Illuminates when the
cooking surface is activated.
41
GE Profile™ 36" and 30" electric cooktops
Available new models
GE Profile 36" electric cooktops
JP980
• Electronic touch
controls
• Precise Digital Control
System
• Frameless ceramic
glass cooktop
™
• Pan presence sensors
• Pan size sensors
• Ribbon heating elements
• 6"/9" dual element
• 5"/8" dual element
• Control lock capability
GE Profile 30" electric cooktops
JP970
• Ceramic glass cooktop
• Ribbon heating elements
• 12"/9"/6" tri-ring
element
• 6"/9" dual element
• Frameless design
• Upfront controls
• Control lock capability
• Heavy-duty die-cast
knobs on stainless
model
• Melt and Simmer
options
JP950
• Electronic touch
controls
• Precise Digital Control
System
• Frameless ceramic
glass cooktop
42
• Pan presence sensors
• Pan size sensors
• Ribbon heating elements
• 6"/9" dual element
• 5"/8" dual element
• Control lock capability
JP940
• Ceramic glass cooktop
• Ribbon heating elements
• 6"/9" dual element
• 5"/8" dual element
• Frameless design
• Hot surface
indicator lights
• Control lock capability
• Heavy-duty die-cast
knobs on stainless
model
• Melt and Simmer
options
JP960
• Ceramic glass cooktop
• Ribbon heating elements
• Bridge element
• 6"/9" dual element
ge.com
• Frameless design
• Upfront controls
• Control lock capability
JP930
• Ceramic glass cooktop
• Ribbon heating elements
• Bridge element
• 6"/9" dual element
• Frameless design
• Hot surface
indicator lights
• Control lock capability
JP910
• Ceramic glass cooktop
• Ribbon heating elements
• 6"/9" dual element
• Frameless design
• Hot surface
indicator lights
• Control lock capability
43
Show and tell
GE Profile™ gas cooktops
44308
Dual-flame stacked burner
• Have a qualified technician hook-up
the GE Profile cooktop to either
natural gas or LP according to all
installation instructions.
• When selling to the consumer turn
the knob to light the burner, then to
the highest temperature setting.
• Show them both the upper and
lower rings of flame.
• Explain that this is a very powerful
18,000 BTU burner ideal for fast
boiling, frying and wok cooking.
• Now turn burner to lowest setting.
• This demonstrates that the upper
ring of flame disappears and only
the very small, lower ring of flame
remains.
• Explain that this is 2 burners in 1.
High-power, high-heat and a gentle
low-heat burner ideal for delicate
sauces, low 140º cooking. The same
gentle, low-heat delivered by the
Precise simmer burner.
Only GE has it!
Control lock capability
• Have a qualified technician hook-up
a GE Profile gas or electric cooktop
according to all installation
instructions.
• Have the consumer turn on any
cooktop burner. Then have them
turn the control lock knob to the
locked position.
• Explain that control lock immediately
turns every burner off. Tell them the
buzzing noise is a reminder that the
cooktop is locked AND one or more
burner knobs are turned on.
• Turn off the knob that is on and the
warning buzzer stops. Show them
that when the cooktop is locked and
any burner is turned on the buzzer
will sound.
• Point out the “Locked” reminder light
by the control lock knob.
44
GE Profile electric cooktops
6"
9"
12"
ge.com
12"/9"/6" tri-ring element
• Have a qualified technician hook-up
the GE Profile electric cooktop
according to all installation
instructions.
• Have the consumer turn on the
large tri-ring element. Explain to
them it is three elements in
one—12", 9" or 6".
• Then have them turn the selector
knob to see the change in the
size of the heated surface. Tell
them that the 12" element will
accommodate pans up to 14"
in diameter.
• Show them the second adjustable
5"/8" dual element and that it
operates the same way.
Pan presence sensor
• Have a qualified technician hook-up the GE Profile
electric cooktop according to all installation instructions.
You will need at least one large metal pan 9 to 10 inches
in diameter.
• (Option – order 120 volt demo cord kit pub # 3-A050)
• Turn on any element. Look at the “PAN SENSOR” pad. If
the red light does not glow beside pad touch the “PAN
SENSOR” pad to activate the sensors.
• Have the consumer turn on any element and touch the
“+” pad for that element.
• Show them that the “H”, for high, flashes until a pan is
placed on the element. Remove the pan and show them
that the “H” starts to flash again.
• Explain that if the pan is not returned to the element
the cooktop will turn that element off in approximately
70-80 seconds. All the elements have the pan presence
sensor. Explain that the two large adjustable size elements
will automatically change the size of the heated area if a
very small or very large pan is placed on those elements.
45
Show and tell
Five-unit cooktop display
Offers the convenience of displaying five
cooktops in a single display. Designed to display:
– Four 30" cooktops
– One 36" cooktop
82"H x 43-1/2"W x 27-7/8"D
Pub. No. 3-D001
46
30" wall oven display
Show the versatility of the 30" wall oven with an
undercounter installation.
Designed to display:
–30" single oven
– 30" cooktop and an Advantium or
Spacemaker microwave oven
82"H x 44"W x 26-3/4"D
Pub. No. 3-D081
ge.com
Downdraft cooktop display
Designed to display:
–Electric or gas downdraft cooktop
37-3/4"H x 48"W x 27"D
Pub. No. 3-D150
Electric cooktop demo cord kit
Provides power to all controls, but will not energize
heating elements. Kit contains one cord, wire nuts,
electrical tape and instructions.
For use with JP980 and JP950 only.
Pub. No. 3-A050
47
GE Profile™ gas cooktop
Engaging Style
Enhanced cooktop surface with
continuous grates and heavy-duty
die-cast knobs features a smooth
and clean design to provide a
seamless appearance that is
universally attractive, durable
and professional.
GE Profile electric cooktop
Easy Cleanability
Deep recessed or gas-on-glass
cooktops with dishwasher-safe
gates and knobs create a cooking
environment that is not only
functional, but also easy to clean
and maintain.
Extraordinary Versatility
Power Boil™ and Precise Simmer
burners offer high-performance
capabilities to do more at once.
Engaging Style
Enhanced cooktop surface with
a curved front edge and heavyduty die-cast knobs features a
smooth and clean design to provide
a seamless appearance that is
universally attractive and durable.
48
Easy Cleanability
Ceramic glass cooktop with
dishwasher-safe knobs create a
cooking environment that is not only
functional, but also easy to clean
and maintain.
Extraordinary Versatility
12”/9”/6” Tri-ring and 6"/9" dual
elements provide multiple cooking
areas in one to accommodate
various-sized pots or pans. Users
can customize the heating element
to meet their needs, helping
maximize performance and
produce ideal results.
ge.com
30" self-clean gas ranges
™
GE Profile
Sealed burner models Dual-fuel model Sealed burner models
JGB928SEK
JGB928TEK
JGB928KEK
Capacity
Upper oven capacity
Lower oven capacity 1.0 cu. ft. 1.0 cu. ft. 1.0 cu. ft.
Features
Oven cleaning Self-clean Self-clean Self-clean Self-clean Self-clean Self-clean Self-clean Self-clean Self-clean Self-clean
Gas on glass
ceramic cooktop
Deep recessed
porcelain cooktop
Cooktop burners Sealed Sealed Sealed Sealed Sealed Sealed Sealed Sealed Sealed Sealed
Power Boil™
burner (Nat.)
Precise simmer
burner (Nat.)
All-purpose
burners (Nat.)
Center oval burner (1) 6,000 BTU (1) 6,000 BTU (1) 6,000 BTU (1) 6,000 BTU (1) 6,000 BTU
Non-stick griddle Included Included Included Included Included
Valves (degree of turn) 270 270 270 270 270 270 270 270 270 270
TrueTemp™ system
Convection bake/roast
QuickSet oven controls
Auto self-clean
Electronic oven control
Hi/Low broil
Electronic clock and timer
Automatic oven timer
Audible preheat signal
Oven meat probe
Auto oven shut-off
Certified Sabbath mode
Auto Recipe™ conversion
Control lock capability
One-piece upswept cooktop Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam.
Removable grates
Continuous grates Dishwasher-safe Dishwasher-safe Dishwasher-safe Dishwasher-safe Dishwasher-safe Dishwasher-safe
Ignition system Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic Electronic
Lower oven
Dual element bake 150°–450° 150°–450° 150°–450°
Removable drawer liner
Warming drawer 150°–220° 150°–220° 150°–220° 150°–220° 150°–220° 150°–220°
Oven racks 3 3 2 2 2 3 2 2 2 3
Six embossed rack positions
Broiler pan
Scratch-resistant
backguard
Interior oven light
In-oven broiling
Appearance
Color appearance* SS/WW/CC/BB SS/WW/CC/BB SS/WW/CC/BB SS/WW/CC/BB SS/WW/CC/BB SS/WW/CC/BB BC SS/WW/CC/BB SS/WW/CC/BB SS/WW/CC/BB
Frameless oven door
Oven door with window Big ClearView™ Big ClearView Big ClearView Big ClearView Big ClearView Big ClearView Big ClearView Big ClearView Big ClearView Big ClearView
Oven door handle Sculptured Sculptured Sculptured Sculptured Sculptured Sculptured Professional-style Designer-style Designer-style Designer-style
Weights & Dimensions
Overall oven interior dimens.
(WxHxD in inches)
Approx. shipping
weight (lbs.)
JGB928BEK
Super-large
5.0 cu. ft.
Black
True white
True bisque
Black
(1) 15,000 BTU/
180° Simmer
(1) 5,000 BTU/
140° Simmer
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
● ● ● ● ● ● ● ● ● ●
● ● ●
QuickSet VI
glass touch†
● ● ● ● ● ● ● ● ● ●
● ● ● ● ● ● ● ● ● ●
● ● ● ● ● ● ● ● ● ●
● ● ● ● ● ● ● ● ● ●
● ● ● ● ● ● ● ● ● ●
● ● ● ● ● ● ● ● ● ●
● ● ● ●
● ● ● ● ● ● ● ● ● ●
● ● ● ● ● ● ● ● ● ●
● ● ●
● ● ● ● ● ● ● ● ●
Matte black
hvy.-cast
Grey hvy.-cast
Taupe hvy.-cast
Black hvy.-cast
● ● ●
● ● ●
● ● ● ● ● ● ● ● ● ●
● ● ● ● ● ● ● ● ● ●
Stainless steel
Glass
● ● ● ● ● ● ● ● ● ●
● ● ● ● ● ● ● ● ● ●
Stainless steel
White glass
Bisque glass
Black glass
24 x 19 x 19 24 x 19 x 19 24 x 19 x 19 24 x 19 x 19 24 x 19 x 19 24 x 19 x 19 24 x 18.5 x 19 24 x 19 x 19 24 x 18.5 x 19 24 x 18.5 x 19
250
Power/Ratings
Top burners
(000’s BTU’s) Nat/LP
Oven/broiler burners
(000’s BTU’s) Nat/LP
Dual-fuel range
electrical rating
Gas range electrical rating 120V, 60Hz, 9A 120V, 60Hz, 5A 120V, 60Hz, 9A 120V, 60Hz, 9A 120V, 60Hz, 9A 120V, 60Hz, 5A
LP conversion kit (includ.)
*SS = Stainless steel with black accents, BC = Soft stainless with black accents, WW = White with white glass door, CC = Bisque with bisque glass door, BB = Black with black glass door.
† = Stainless steel models feature traditional QuickSet controls.
Factory set for Natural Gas. A set of LP orifices is included with each range for LP conversion.
(1) 15.0/11.0
(1) 11.0/9.1
(1) 5.0/5.0
(1) 9.1/9.1
● ● ● ● ● ● ● ● ● ●
JGB918SEK
JGB918WEK
JGB918CEK
JGB918BEK
Super-large
5.0 cu. ft.
●
(1) 17,000 BTU/
160° Simmer
(1) 5,000 BTU/
140° Simmer
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
QuickSet VI
glass touch†
Matte black
hvy.-cast
Grey hvy.-cast
Taupe hvy.-cast
Black hvy.-cast
Stainless steel
Glass
Stainless steel
White glass
Bisque glass
Black glass
235
(1) 17.0/11.0
(1) 15.0/11.0
(1) 11.0/9.1
(1) 5.0/5.0
(1) 9.1/9.1
15A
JGB916SEK
JGB916WEK
JGB916CEK
JGB916BEK
Super-large
5.0 cu. ft.
●
(1) 17,000 BTU/
160° Simmer
(1) 5,000 BTU/
140° Simmer
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
QuickSet VI
glass touch† QuickSet V QuickSet V
Matte black
hvy.-cast
Grey hvy.-cast
Taupe hvy.-cast
Black hvy.-cast
Stainless steel
Glass
Stainless steel
White glass
Bisque glass
Black glass
245
(1) 17.0/11.0
(1) 11.0/9.1
(1) 9.1/8.0
(1) 6.0/6.0
(1) 5.0/4.0
16.0/16.0 oven
13.5/12.0 broil
JGB908SEK
JGB908WEK
JGB908CEK
JGB908BEK
Super-large
5.0 cu. ft.
●
(1) 17,000 BTU/
160° Simmer
(1) 5,000 BTU/
140° Simmer
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
Electric
Matte black
hvy.-cast
Grey hvy.-cast
Taupe hvy.-cast
Black hvy.-cast
Stainless steel
Porc.-enam.
Stainless steel
White glass
Bisque glass
Black glass
235
(1) 17.0/11.0
(1) 15.0/11.0
(1) 11.0/9.1
(1) 5.0/5.0
(1) 9.1/9.1
JGB900SEK
JGB900WEF
JGB900CEF
JGB900BEF
Super-large
5.0 cu. ft.
●
(1) 15,000 BTU/
180° Simmer
(1) 5,000 BTU/
140° Simmer
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
Matte black
hvy.-cast
Grey hvy.-cast
Taupe hvy.-cast
Black hvy.-cast
Stainless steel
Porc.-enam.
Stainless steel
White glass
Bisque glass
Black glass
220
(1) 15.0/11.0
(1) 11.0/9.1
(1) 5.0/5.0
(1) 9.1/9.1
J2B918SEK
J2B918WEK
J2B918CEK
J2B918BEK
Super-large
5.0 cu. ft.
(1) 17,000 BTU/
160° Simmer
(1) 5,000 BTU/
140° Simmer (1) 5,000/600 BTU
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
QuickSet VI
glass touch† QuickSet V QuickSet V QuickSet V QuickSet IV
Matte black
hvy.-cast
Grey hvy.-cast
Taupe hvy.-cast
Black hvy.-cast
Stainless steel
Glass
Stainless steel
White glass
Bisque glass
Black glass
235
(1) 17.0/11.0
(1) 15.0/11.0
(1) 11.0/9.1
(1) 5.0/5.0
(1) 9.1/9.1
208/240V, 60Hz,
40A
●
GE
JGBP90MEH
Extra-large
4.8 cu. ft.
(2) 12,000/
1,000 BTU;
(1) 9,500/850 BTU
Matte black
hvy.-cast
●
Soft stainless
Soft stainless
230
(2) 12.0/11.0
(1) 5.0/5.0
(1) 9.5/9.5
JGBP88SEK
JGBP88WEK
JGBP88CEK
JGBP88BEK
Super-large
5.0 cu. ft.
●
(1) 16,000 BTU
160° Simmer
(1) 5,000 BTU/
140° Simmer
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
Matte black
hvy.-cast
Grey hvy.-cast
Taupe hvy.-cast
Black hvy.-cast
Dishwasher-safe Dishwasher-safe Dishwasher-safe
Stainless steel
Porc.-enam.
Stainless steel
White glass
Bisque glass
Black glass
220
(1) 6.0/6.0
(1) 16.0/11.0
(1) 11.0/10.0
(1) 5.0/5.0
(1) 9.1/9.1
JGBP85SEJ
JGBP85WEJ
JGBP85CEJ
JGBP85BEJ
Extra-large
4.8 cu. ft.
(1) 15,000 BTU/
180° Simmer
(1) 5,000 BTU/
140° Simmer
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
Matte black
hvy.-cast
Grey hvy.-cast
Taupe hvy.-cast
Black hvy.-cast
Stainless steel
Porc.-enam. Porc.-enam.
Stainless steel
White glass
Bisque glass
Black glass
(1) 15.0/11.0
(1) 11.0/10.0
(1) 5.0/5.0
(1) 9.1/9.1
16.0/16.0 oven
12.5/12.0 broil
220
●
JGBP36SEJ
JGBP36WEJ
JGBP36CEJ
JGBP36BEJ
Extra-large
4.8 cu. ft.
●
(1) 15,000 BTU/
180° Simmer
(1) 5,000 BTU/
140° Simmer
(1) 11,000 BTU/
150° Simmer;
(1) 9,100 BTU/
150° Simmer
Matte black
med.-cast
Grey med.-cast
Taupe
medium-cast
Black
medium-cast
Stainless steel
White glass
Bisque glass
Black glass
210
(1) 15.0/11.0
(1) 11.0/10.0
(1) 5.0/5.0
(1) 9.1/9.1
49
CANADIAN GAS ASSOCIATION
APPROVED
7-1/2
2
30
3
3
9
3
C
L
Recommended area for
through-the-wall connection
of pipe stub/shut-off valve.
Recommended area for
through-the-floor connection
of pipe stub/shut-off valve.
This area allows for
flush range installation
with the rear wall.
J2B900_gas_locate.eps
Recommended area for gas outlet
24
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
C
L
7-1/2
2-1/4
30
4
8
3
C
L
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
Product is shipped with a 4-prong
plug. Recommended outlet is a
NEMA 14-50R receptacle.
Wall Mounted
J2B900_elec_locate.eps
Recommended area for electric outlet
30" FS Gas Ranges-CL
A
B
C
D
E
Installation Information (Dimensions in inches)
30" self-clean gas ranges (continued)
®
GE
Sealed burner models
JGBP35SEJ
JGBP35WEJ
JGBP35CEJ
Capacity
Extra-large 4.8 cu. ft. oven
Features
Oven cleaning Self-clean Self-clean Self-clean Self-clean
Deep recessed porcelain cooktop
Cooktop burners Sealed Sealed Sealed Standard/Twin
Power Boil™ burner (Nat.)
Precise simmer burner (Nat.)
All-purpose burners (Nat.)(j)
Valves (degree of turn) 270 270 140 270
TrueTemp™ system
Electronic controls
QuickSet oven controls QuickSet IV QuickSet IV QuickSet III QuickSet IV
Auto self-Clean
Electronic clock and timer
Automatic oven timer
Audible preheat signal
Auto oven shut-off
Certified Sabbath mode
One-piece upswept cooktop Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam.
Lift-up cooktop
Easy-clean subtop Porc.-Enam.
Porcelain-enameled
one-piece drip pans
Removable grates
Continuous grates Dishwasher-safe
Square grates
Ignition system Electronic Electronic Electronic Electronic
Oven racks 2 3 2 2
Six embossed rack positions
Broiler pan
Scratch-resistant backguard Porc.-enam. Porc.-enam. Porc.-enam. Porc.-enam.
Interior oven light
Storage drawer
In-oven broiling
Appearance
Color appearance* SS/WW/CC/BB SS/WW/CC/BB SS/WW/BB/WH/CT WW/CC
Frameless oven door
Oven door with window Big ClearView Big ClearView Big ClearView ClearView
Designer-style handle
Weights & Dimensions
Overall oven interior dimensions
(WxHxD in inches)
Approx. shipping weight (lbs.) 210 210 210 200
Power/Ratings
Top burners
(000’s BTU’s) Nat/LP
Oven/broiler burners
(000’s BTU’s) Nat/LP
Gas range electrical rating 120V, 60Hz, 5A
LP conversion kit (included)
* SS = Stainless steel with black accents, WW = White with white glass door, CC = Bisque with bisque glass door,
BB = Black with black glass door, WH = White with black glass door, CT = Bisque with black glass door.
Factory set for Natural Gas. A set of LP orifices is included with each range for LP conversion.
Gas self-clean range anti-tip bracket
(part no. 205C1714P001)
J2B918, JGB928/918/916/908/900, JGBP90/88/85/28/26/24
50
All GE ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
installation of the range.
JGBP35BEJ
(1) 15,000 BTU/
180° Simmer
(1) 5,000 BTU
140° Simmer
(2) 9,100 BTU/
150° Simmer
Matte black med.-cast
Grey medium-cast
Taupe medium-cast
Black medium-cast
Stainless steel
White glass
Bisque glass
Black glass
(1) 15.0/11.0
(1) 5.0/5.0
(2) 9.1/9.1
● ● ● ●
●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
● ● ● ●
JGBP33SEH
JGBP33WEH
JGBP33CEH
JGBP33BEH
(1) 5,000/600 BTU
(1) 13,000/1,000 BTU;
(2) 9,500/850 BTU
Black
Grey
Taupe
Black
Black medium-cast
Grey medium-cast
Taupe medium-cast
Black medium-cast
● ● ●
Stainless steel
White glass
Bisque glass
Black glass
24 x 18.5 x 19
(1) 13.0/11.0
(1) 5.0/5.0
(2) 9.5/9.5
16.0/16.0 Oven
12.5/12.0 Broil
JGBP28SEJ
JGBP28WEJ
JGBP28EEJ
JGBP28BEJ
(4) 9,500/850 BTU
Opt. access.
Black std. porc.-steel
Grey std. porc.-steel
Black std. porc.-steel
Black std. porc.-steel
Stainless steel
White glass
Bisque glass
Black glass
(4) 9.5/9.5
Standard
burner models
JGBP26WEH
JGBP26CEH
(4) 9,100/850 BTU
●
Chrome
Chrome
Grey std. porc.-steel
Taupe std. porc.-steel
White glass
Bisque glass
(4) 9.1/8.0
Installation information (in inches)
Model J2B915
Installation information (in inches)
All models except J2B915
Optional gas range accessory drip pans for sealed
and standard burner models (Available at additional cost)
To order these accessory drip pans, call toll-free 800-626-2002.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Dimensions (in inches)
Model A B C* D E
J2B918
JGB928
JGB918
JGB916
JGB908
JGB900
JGBP90
JGBP88
JGBP85
JGBP36
JGBP35
JGBP33
JGBP28
JGBP26
JGBP24
* Dimension from wall to front of closed door handle is 29" on models
J2B918, JGB928/918/916/908/900, JGBP88/85/36/35 and 28-1/4" on
models JGBP90/33/28/26/24. Depth to front edge of cooktop—25-1/4".
30 47-3/4 26-1/4 46-3/8 36-1/4± 1/4
30 47-3/4 26-1/4 46-3/8 36-1/4± 1/4
30 47-3/4 26-1/4 46-3/8 36-1/4± 1/4
30 47-3/4 26-1/4 46-3/8 36-1/4± 1/4
30 47-3/4 26-1/4 46-3/8 36-1/4± 1/4
30 47-3/4 26-1/4 46-3/8 36-1/4± 1/4
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
30 47-1/2 26-1/4 46-3/8 36-1/4± 1/4
30 47-1/2 26-1/4 46-3/8 36-1/4± 1/4
30 47-1/2 26-1/4 46-3/8 36-1/4± 1/4
30 47-1/2 26-1/4 46-3/8 36-1/4± 1/4
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
ge.com
CANADIAN GAS ASSOCIATION
APPROVED
30" FS Gas Ranges-CL
A
B
C
D
E
Installation Information (Dimensions in inches)
24
30
8
4
9
2
2-1/2
Recommended area for
thru the floor connection
of pipe stub and shut-off valve
Recommended area for
120V outlet on rear wall
and area for thru the wall
connection of pipe stub
and shut-off valve
Recommended common
area for gas outlet and
electrical outlet
C
L
30" continuous- and standard-clean gas ranges
GE
Sealed burner models Standard burner models
JGBS23SEH
JGBS23WEH
JGBS23CEH
Capacity
Extra-large 4.8 cu. ft. oven
Features
Oven cleaning Standard-clean Standard-clean Standard-clean Standard-clean Cont.-clean Standard-clean Standard-clean Standard-clean
Cooktop burners Sealed Sealed Sealed Sealed Std./twin Std./twin Std./twin Std./twin
Precise simmer burner (Nat.) (1) 5,000/600 BTU
All-purpose burners (Nat.)
Center oval burner (1) 6,000/850 BTU (1) 6,000/850 BTU
Valves (degree of turn) 270 140 270 270 140 140 140 140
Electronic clock and timer
Porcelain-enameled cooktop One-piece upswept One-piece upswept
Lift-up cooktop
Easy-clean
porcelain-enameled subtop
One-piece drip pans
Removable square grates
Griddle Non-stick Non-stick
Ignition system
Oven racks 2 2 2 1 2 2 2 2
Six embossed rack positions
One piece broiler pan
Porcelain-enameled backguard
Interior oven light
Broiler drawer Slide-out Slide-out Drop-down
Appearance
Color appearance*
Frameless oven door
Oven door with window Big ClearView Big ClearView ClearView ClearView ClearView ClearView ClearView
Designer-style handle
Weights & Dimensions
Overall oven interior dimensions
(WxHxD in inches)
Approx. shipping weight (lbs.) 180 170 160 160 175 175 165 165
Power/Ratings
Top burners
(000’s BTU’s) Nat/LP
Oven/broiler burners
(000’s BTU’s) Nat/LP
Gas range electrical rating** 120V, 60Hz., 5A
LP conversion kit (included)
*SS = Stainless steel with black accents, WW = White with white door, CC = Bisque with bisque door, BB = Black with black door, WH = White with black door, CT = Bisque with black door,
CM = Color-Matched indicates color of oven door matches cooktop (either white or bisque).
**Electrical rating not applicable to standing pilot models.
†JGBS04PPH has a standing pilot ignition.
Factory set for Natural Gas. A set of LP orifices is included with each range for LP conversion.
JGBS23BEH
● ● ● ● ● ● ● ●
(1) 12,000/
1,000 BTU;
(2) 9,500/850 BTU
● ●
Black
Grey
Taupe
Black
Deluxe
porcelain-steel
Electronic
● ● ● ● ● ● ● ●
● ● ● ● ● ● ●
● ●
● ● ● ● ● ● ●
SS
WW
CC
BB
Stainless steel
White glass
Bisque glass
Black glass
● ● ● ● ● ● ●
(1) 12.0/11.0
(1) 5.0/5.0
(2) 9.5/9.5
● ● ● ● ● ● ● ●
JGBS22BEH
(4) 9,500/850 BTU
Opt. access.
Black standard
porcelain-steel
Electronic
WH/CT
Black glass
(4) 9.5/9.5
JGBS10WEH
JGBS10CEH
JGBS10BEH
(1) 8,000/850 BTU
(3) 7,000/850 BTU
Clock only
● ●
Continuous wire
Electronic
Glass
WW
CC
BB
White glass
Bisque glass
Black glass
(1) 8.0/8.0 BTU
(3) 7.0/7.0 BTU
(1) 6.0/6.0 BTU
JGBS09PEH
(1) 8,000/850 BTU
(3) 7,000/850 BTU
Continuous wire
Electronic
● ● ● ● ●
WW
White
porcelain-enameled
24 x 18.5 x 19
(1) 8.0/8.0 BTU
(3) 7.0/7.0 BTU
(1) 6.0/6.0 BTU
18.0/16.5
JGBC20WEH
JGBC20CEH
(4) 9,100/850 BTU
● ●
One-piece upswept One-piece upswept
● ● ● ●
●
Opt. access.
Grey standard
Taupe standard
Black standard
Porcelain-steel
Electronic
● ● ● ●
WW
CC
White glass
Bisque glass
(4) 9.1/8.0
JGBS20WEH
JGBS20BEH
(4) 9,100/850 BTU
●
Opt. access.
Grey standard
Black standard
Porcelain-steel
Electronic
WW
WH/CT
White glass
Black glass
(4) 9.1/8.0
JGBS07PEH
(4) 9,100/850 BTU
Opt. access.
Grey/Taupe/Black
standard
porcelain-steel
Electronic
WW/CC/BB
White/Bisque/Black
porcelain-enameled
(4) 9.1/8.0
● ●
●
JGBS04BEH
JGBS04PPH
(4) 9,100/850 BTU
●
Opt. access.
Black standard
Porcelain-steel
Electronic
Pilot†
WH/CT
WW /WH/CT
Black glass
CM*
porcelain-enameled
● / chrome visor
(4) 9.1/8.0
Dimensions (in inches)
Model A B C* D E
JGBS23
JGBS22
JGBS10
JGBS09
JGBC20
JGBS20
JGBS17
JGBS07
JGBS04
* Dimension from wall to front of closed door handle is 29".
25-1/4"—Depth to front top edge of cooktop.
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
30 45 25-5/16 46-1/4 36-1/4± 1/4
30 45 25-5/16 46-1/4 36-1/4± 1/4
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
30 46-7/8 26-1/4 46-3/8 36-1/4± 1/4
30 46-7/8 26-1/4 46-1/4 36-1/4± 1/4
30 46-7/8 26-1/4 46-1/4 36-1/4± 1/4
30 46-7/8 25-5/16 46-1/4 36-1/4± 1/4
All GE ranges are equipped
with an Anti-Tip device. The
installation of this device is an
important, required step in the
installation of the range.
Gas Self-clean range anti-tip bracket
(part no. 205C1714P001)
JGBS23/22/20/17/10/09/07/04, JGBC20
51
Built-in gas cooktops
™
GE Profile
JGP975SEK
JGP975WEK
JGP975CEK
Features
Cooktop burners 5 sealed 5 sealed 5 sealed 5 sealed 4 sealed 4 sealed 5 sealed 4 sealed 5 sealed 4 sealed 4 sealed 4 sealed 4 standard
Dual-flame stacked
burner 000’s BTU’s
Power Boil burner
000’s BTU’s
All-purpose burner(s)
000’s BTU’s
Precise Simmer
burner(s) 000’s BTU’s
Electronic pilotless
ignition
Cooktop surface
JGP975BEK
140° simmer
150° simmer
140° simmer
Deep stainless
porcelain
Matte black
deluxe-cast
deluxe-cast
Cooktop grates
Continuous grates ● ● ● ● ● ● ● ● ● ●
Dishwasher-safe
grates and knobs
One-piece drip pans Porc.-enam. Porc.-enam. Chrome
Control panel
Controls Upfront Upfront Upfront Right side Right side Right side Upfront Right side Upfront Right side Upfront Right side Right side
Control lock capability ● ● ● ●
Appearance
Color appearance*
Weights &
Dimensions
Cooktop width
(in inches) 36 36 36 30 30 30 36 30 36 30 36 30 30
Approx. shipping
wt. (lbs.) 54 59 55 39 52 45 38 30 51 44 51 44 35
Features
Gas cooktop elect.
rating 120V, 60Hz, 5A
Burners (000’s/BTU’s):
Natural Gas/LP Gas †
*SS = Stainless Steel, WW = White on white, CC = Bisque on bisque, BB = Black on black, WH = White, BL = Black.
†A set of LP orifices is included with each cooktop for LP conversion. Factory set for natural gas.
deluxe-cast
deluxe-cast
Stainless
(1) 18.0/15.0
(1) 11.0/10.0
(1) 9.5/9.1
(2) 5.0/5.0
(1) 18.0
(1) 11.0
(1) 9.5
(2) 5.0
●
Deep
Grey
Taupe
Black
●
White
Bisque
Black
SS
WW
CC
BB
JGP970SEK
JGP970TEK
JGP970KEK
JGP970BEK
180° simmer
150° simmer
140° simmer
Ceramic-
Matte black
deluxe-cast
deluxe-cast
deluxe-cast
deluxe-cast
Stainless
True white
True bisque
(1) 15.0/14.0
(1) 11.0/10.0
(1) 9.1/8.1
(2) 6.0/6.0
JGP963SEK
JGP963WEK
JGP963CEK
JGP963BEK
(1) 15.0
(1) 11.0
(1) 9.1
(2) 6.0
glass
Grey
Taupe
Black
Black
SS
WW
CC
BB
(1) 15.0
180° simmer
(1) 11.0
(1) 9.5
150° simmer
(2) 5.0
140° simmer
● ● ●
Deep stainless
Deep
porcelain
Matte black
deluxe-cast
Grey
deluxe-cast
Taupe
deluxe-cast
Black
deluxe-cast
●
●
Stainless
White
Bisque
Black
SS
WW
CC
BB
(1) 15.0/13.0
(1) 11.0/9.1
(1) 9.1/8.1
(2) 6.0/6.0
JGP945SEK
JGP945WEK
JGP945CEK
JGP945BEK
(1) 18.0
140° simmer
(1) 11.0
(1) 9.5
150° simmer
(1) 5.0
140° simmer
Deep stainless
Deep
porcelain
Matte black
deluxe-cast
Grey
deluxe-cast
Taupe
deluxe-cast
Black
deluxe-cast
Stainless
White
Bisque
Black
SS
WW
CC
BB
(1) 18.0/15.0
(1) 11.0/10.0
(1) 9.5/9.1
(2) 5.0/5.0
JGP940SEK
JGP940TEK
JGP940KEK
JGP940BEK
(1) 15.0
180° simmer
(1) 11.0
(1) 9.1
150° simmer
(1) 6.0
140° simmer
●
Ceramic-
glass
Matte black
deluxe-cast
Grey
deluxe-cast
Taupe
deluxe-cast
Black
deluxe-cast
●
Stainless
True white
True bisque
Black
SS
WW
CC
BB
(1) 15.0/14.0
(1) 11.0/10.0
(1) 9.1/8.1
(1) 6.0/6.0
JGP933SEK
JGP933WEK
JGP933CEK
JGP933BEK
(1) 15.0
180° simmer
(1) 11.0
(1) 9.5
150° simmer
(1) 5.0
140° simmer
●
Deep stainless
Deep
porcelain
Matte black
deluxe-cast
Grey
deluxe-cast
Taupe
deluxe-cast
Black
deluxe-cast
●
Stainless
White
Bisque
Black
SS
WW
CC
BB
(1) 15.0/13.0
(1) 11.0/9.1
(1) 9.1/8.1
(1) 6.0/6.0
GE
JGP637SEJ
JGP637WEJ
JGP637CEJ
JGP637BEJ
150° simmer ●
140° simmer ●
Matte black
deluxe-cast
deluxe-cast
deluxe-cast
deluxe-cast
(1) 12.0/10.0
®
(2) 9.5
(2) 5.0
●
Tempered
glass
Grey
Taupe
Black
●
Black
White
Bisque
Black
SS
WW
CC
BB
(2) 9.5/8.5
(2) 5.0/5.0
JGP337SEJ
JGP337WEJ
JGP337CEJ
JGP337BEJ
●
Tempered
glass
Matte black
deluxe-cast
Grey
deluxe-cast
Taupe
deluxe-cast
Black
deluxe-cast
● ●
Black
White
Bisque
Black
SS
WW
CC
BB
(1) 12.0/10.0
(2) 9.5/8.5
(1) 5.0/5.0
JGP630SEK
JGP630WEK
JGP630CEK
JGP630BEK
(1) 11.0
(2) 9.5
150° simmer
(2) 5.0
140° simmer
●
Deep stainless
Deep
porcelain
Matte black
medium-cast
Grey
medium-cast
Taupe
medium-cast
Black
medium-cast
Stainless
White
Bisque
Black
SS
WW
CC
BB
(1) 11.0/10.0
(2) 9.5/9.1
(1) 5.0/5.0
JGP330SEK
JGP330WEK
JGP330CEK
JGP330BEK
(1) 11.0
(2) 9.5
150° simmer
(1) 5.0
140° simmer
●
Deep stainless
Deep
porcelain
Black
Grey
Taupe
Black
●
Stainless
White
Bisque
Black
SS
WW
CC
BB
(1) 11.0/10.0
(2) 9.5/9.1
(1) 5.0/5.0
JGP628SEK
JGP628WEK
JGP628CEK
JGP628BEK
(3) 9.5
150° simmer
(1) 5.0
140° simmer
●
Deep stainless
Deep
porcelain
Black
Grey
Taupe
Black
●
Stainless
White
Bisque
Black
SS
WW
CC
BB
(3) 9.5/___ __
(1) 5.0/5.0
JGP328SEK
JGP328WEK
JGP328CEK
JGP328BEK
(3) 9.5
150° simmer
(1) 5.0
140° simmer
●
Deep stainless
Deep
porcelain
Black
Grey
Taupe
Black
●
Stainless
White
Bisque
Black
SS
WW
CC
BB
(3) 9.1/8.1
(1) 6.0/6.0
JGP321EJ
●
Porcelainenameled
Standard
steel
White/Black
WH/BL
(4) 9.1/8.0
52
Dimensions (in inches)
Electrical
cord
Electrical
outlet
Shut-off
valve
Pressure
regulator
1/2" pipe
Coupling
Electrical
cord
45°
Electrical
outlet
Shut-off
valve
Pressure
regulator
1/2" pipe
Coupling
Electrical junction box 16" MIN.
below countertop
30" MIN. to
unprotected
cabinet
Cut should
not interfere
with cabinet
structure at front
L MIN.
clearance to
side wall
from cut-out
R MIN.
clearance to
side wall
from cut-out
18" MIN.
to cabinet
C to
rear wall
13" MAX.
depth
Cooktop
W
D
H
Cooktop
F
(min.)
A
B
W
D
H
Minimum spacing To edge
to nearest of front
Overall Cutout combustible wall counter
Model W D H A B C L R F
JGP975 36 21 3-3/16 33-7/8 19-1/8 2-1/4 3-3/4 6 2-1/2
JGP963 36 21 3-3/16 33-7/8 19-1/8 2-1/4 3-3/4 6 2-1/2
JGP970 36 21-3/16 3-1/16 33-7/8 19-1/8 2-1/4 3-3/4 6 2-1/2**
JGP945 30 21 3-3/16 28 -1/2 19-5/8 2 -1/4 3-3/4 6 2-1/2
JGP933 30 21 3-3/16 28 -1/2 19-5/8 2 -1/4 3-3/4 6 2-1/2
JGP940 29-3/4 21-7/16 3-1/16 28-1/2 19-5/8 2-1/4 3-3/4 6 2-1/2
JGP637 36 21 3-1/16 33-7/8 19-1/8 2-1/4 3-3/4 6 2-1/2
JGP337 30 21 3 28-1/2 19-5/8 2-1/4 3-3/4 6 2-1/2
JGP630 36 21 3-3/16 33-7/8 19-1/8 2-1/4 3-3/4 6 2-1/2
JGP330 30 21 3-3/16 28-1/2 19-5/8 2-1/4 3-3/4 6 2-1/2
JGP628 36 21 3-3/16 33 -7/8 19-1/8 2 -1/4 3-3/4 6 2-1/2
JGP328 30 21 3-3/16 28-1/2 19-5/8 2-1/4 3-3/4 6 2-1/2
JGP321 30 -1/4 21-1/4 3-9/16 28 -1/2 19 -5/8 1-3/4 3-3/4 6 3 -1/4
*Allow 5-3/4" depth at rear for electrical and gas connections.
** Raised bull nose countertops will require up to 3/8" additional clearance to prevent interference with
curved front.
Note: All gas cooktop models require 7/16" free area below cooktop height to
combustible material. 0" clearance is required between left and right sides of
cooktop below countertop. Requires 18" minimum from countertop to adjacent
overhead cabinets.* *AGA requirement.
Note: If installing with a GE Profile telescopic downdraft system, consult both cooktop
and downdraft installation instructions packed with product before installing. Cooktop
gas/electric supply may need to be re-routed to install downdraft.
Cooktop dimensions (in inches) Counter installation dimensions
(in inches)
Installation information: Before installing, consult installation
instructions packed with product for current dimensional data.
ge.com
Gas connection
Models JGP963/962/637/628/337/321
Gas connection
Models JGP933/932/328
Installation with single wall oven information:
30" Gas Cooktops are approved for use over GE 27" Wall Ovens and Warming Drawers.
36" and 30" Gas Cooktops are approved for use over 30" Wall Ovens and Warming
Drawers. Refer to cooktop and wall oven installation instructions packed with product
for current dimensional data.
Optional gas range wok accessory (Available at additional cost)
JXWK = Wok accessory holder sits on top of maximum burner grate to hold a
round-bottom wok. For use with JGP637/337 models only.
JXWK2 = Wok accessory holder sits on top of maximum burner grate to hold a
round-bottom wok. For use with JGP963/933/962/932 models only.
53
Electrical junction
box 16" MIN.
below countertop
30" MIN. to
unprotected
cabinet
Cut should not interfere
with cabinet structure
at front
1-3/4" MIN.
(30" cooktop)
2" MIN. (36" cooktop)
clearance to side
wall from cut-out
1-1/2" MIN.
(30" cooktop)
2" MIN. (36" cooktop)
clearance to side
wall from cut-out
15"-18" MIN.
to cabinet
1-3/4" to
rear wall
13" MAX.
depth
H
Cooktop
G
Required
E
F
W
D
Built-in CleanDesign cooktops
™
GE Profile
JP980SK
JP980WK
JP980CK
Features
Ceramic-glass surface
Number of elements 5 ribbon 5 ribbon 5 ribbon 4 ribbon 4 ribbon 4 ribbon 4 ribbon 5 ribbon 4 ribbon 4 ribbon
12"/9"/6" tri-ring element 1 ribbon (3000W)
6"/9" dual heating element 1 ribbon (2500W) 1 ribbon (2500W) 1 ribbon (2500W) 1 ribbon (2500W) 1 ribbon (2500W) 1 ribbon (2500W) 1 ribbon (2500W) 1 ribbon (2500W)
5"/8" dual heating element 1 ribbon (2200W) 1 ribbon (2200W) 1 ribbon (2200W) 1 ribbon (1900W)
8" heating elements 1 ribbon (2000W) 2 ribbon (2000W) 1 ribbon (2500W) 2 ribbon (2000W) 2 ribbon (2000W)
7" heating element
7" heating elements 2 ribbon (1800W) 2 ribbon (1800W)
Bridge element 1 ribbon (800W) 1 ribbon (800W)
Total wattage 4400W 4400W
6" heating elements 2 ribbon (1200W) 2 ribbon (1200W) 1 ribbon (1200W) 1 ribbon (1200W) 1 ribbon (1200W) 1 ribbon (1200W) 1 ribbon (1200W) 2 ribbon (1200W) 1 ribbon (1200W) 2 ribbon (1200W)
Melt setting
Hot surface indicator lights 5 5 5 4 4 4 4 5 4 1
Precise Digital
Control System™
Pan presence sensor
Pan size sensor
Kitchen timer
Control lock capability
Dishwasher-safe knobs
Appearance
Color appearance*
Frameless
Weight & Dimensions
Cooktop width (in inches) 36 36 36 30 30 30 30 36 30 30
Approx. shipping wt. (lbs.) 45 44 44 38 38 39 38 44 38 37
Power/Ratings
KW rating @ 240V 8.6 9.6 9.6 7.4 7.6 8.1 7.7 8.4 7.7 6.4
Amps @ 240V 40 40 40 40 40 40 40 40 40 30
*SS = Stainless Steel, WW = White on white, CC = Bisque on bisque, BB = Black on black.
208V 6.5 7.2 7.2 5.6 5.7 6.1 5.8 6.3 5.8 4.8
208V 40 40 40 30 30 30 30 40 30 30
JP980BK
Pattern. black
Pattern. white
Pattern. bisque
Pattern. black
1 ribbon w/
warmer (1500W) 1 ribbon (1500W) 1 ribbon (1500W) 1 ribbon (1500W)
●
● ●
● ●
● ●
● ● ● ● ● ● ●
SS
WW
CC
BB
● ● ● ● ● ● ● ● ●
Cooktop dimensions (in inches)
Counter installation dimensions
(in inches)
54
JP970SK
JP970TK
JP970KK
JP970BK
Pattern. black
True white
True bisque
Pattern. black
● ●
● ● ● ● ● ● ●
SS
WW
CC
BB
JP960SK
JP960TK
JP960KK
JP960BK
Pattern. black
True white
True bisque
Pattern. black
SS
WW
CC
BB
JP950SK
JP950WK
JP950CK
JP950BK
Pattern. black
Pattern. white
Pattern. bisque
Pattern. black
●
SS
WW
CC
BB
JP940SK
JP940TK
JP940KK
JP940BK
Pattern. black
True white
True bisque
Pattern. black
SS
WW
CC
BB
JP930SK
JP930TK
JP930KK
JP930BK
Pattern. black
True white
True bisque
Pattern. black
SS
WW
CC
BB
JP910SK
JP910TK
JP910KK
JP910BK
Pattern. black
True white
True bisque
Pattern. black
SS
WW
CC
BB
Cooktop dimensions (in inches)
Model W D H E F G
JP980WK/CK/BK
JP970TK/KK/BK
JP960TK/KK/BK
JP950WK/CK/BK
JP940TK/KK/BK
JP930TK/KK/BK
JP910TK/KK/BK
JP355TK/WK/KK/BK
JP340WJ/CJ/BJ
* Depth of unit at conduit connection location (rear) is 6-1/4" on models JP980/950 and
4-5/8" on models JP970/960/940/930/910/355/340.
** Raised bull nose countertops will require up to 3/8" additional clearance to prevent
interference with curved front.
Overall
36 21-3/16 3-1/4* 33-7/8 19-1/8 2-1/2**
36 21-3/16 3-1/4* 33-7/8 19-1/8 2-1/2**
36 21-3/16 3-1/4* 33-7/8 19-1/8 2-1/2**
29-3/4 21-5/16 3-1/4* 28-1/2 19-5/8 2-1/2
29-3/4 21-5/16 3-1/4* 28-1/2 19-5/8 2-1/2
29-3/4 21-5/16 3-1/4* 28-1/2 19-5/8 2-1/2
29-3/4 21-5/16 3-1/4* 28-1/2 19-5/8 2-1/2
30 20-7/8 3-1/4
29-3/4 20-7/8 3-1/4* 28-1/2 19-5/8 2-1/2
Cutout
To edge
of front
counter
(min.)
Stainless steel cooktop dimensions (in inches)
Model W D H E F G
JP980SK
JP970SK
JP960SK
JP950SK
JP940SK
JP930SK
JP910SK
JP355SK
* Depth of unit at conduit connection location (rear) is 6-1/4" on models JP980/950 and
4-5/8" on models JP970/960/940/930/910/355.
** Raised bull nose countertops will require up to 3/8" additional clearance to prevent
interference with curved front.
Built-in CleanDesign cooktops
Requires a 5" free area between the bottom of the cooktop to any combustible material, i.e., shelving. Free area not required when installing wall
oven underneath cooktop. Refer to installation instructions. Units are furnished with a 48" flexible armored cable.
36" Ribbon Cooktops are approved for use over GE 30" Single Wall Ovens and Warming Drawers. 30" Ribbon Cooktops are approved for use over
GE 30" and 27" Single Wall Ovens and Warming Drawers. Refer to cooktop and wall oven installation instructions packed with product for current
dimensional data.
Overall
36-1/8 21-1/4 3-1/4* 33-7/8 19-1/8 2-1/2**
36-1/8 21-1/4 3-1/4* 33-7/8 19-1/8 2-1/2**
36-1/8 21-1/4 3-1/4* 33-7/8 19-1/8 2-1/2**
29-7/8 21-3/8 3-1/4* 28-1/2 19-5/8 2-1/2
29-7/8 21-3/8 3-1/4* 28-1/2 19-5/8 2-1/2
29-7/8 21-3/8 3-1/4* 28-1/2 19-5/8 2-1/2
29-7/8 21-3/8 3-1/4* 28-1/2 19-5/8 2-1/2
29-7/8 21-1/2 3-1/4* 28-1/2 19-5/8 2-1/2
Cutout
To edge
of front
counter
(min.)
®
GE
JP655SK
JP655TK
JP655BK
Pattern. black
True white
Pattern. black
1 ribbon (1500W)
SS
WW
BB
Notes: If installing with a GE Profile Telescopic Downdraft
System, consult both cooktop and downdraft installation
instructions packed with product before installing. Cooktop
gas/electric supply may need to be re-routed to install
downdraft.
The countertop must be at least 26" deep with a flat surface
area of 23-1/2" or more, front to back. Stainless CleanDesign
and gas on glass cooktops require 23-5/8" flat surface
area. In addition, other clearances to the front edge of the
countertop must be considered.
Note: Consult cabinet and countertop manufacturer’s specs
for flush mount installation prior to install.
Filler trim kit
When replacing an old GE 30" cooktop (with larger opening)
with Models JP939/931/930/350/340, use the following
one-piece trim kit to fill in the over-size hole. Available at
additional cost.
JXTR32W (True White)
JXTR32C (True Bisque)
JXTR32B (Black—use with black glass cooktops
with a white, bisque or black pattern)
Flush mount installation kit
Accommodates both 30" and 36" installations.
Not for use with stainless steel models.
JXFLM2TW (True White)
JXFLM2CC (True Bisque)
JXFLM2BB (Black—use with black glass cooktops with
a white, bisque or black pattern)
Installation information:
Before installing, consult installation instructions packed
with product for current dimensional data.
JP355SK
JP355TK
JP355WK
JP355KK
JP355BK
Pattern. black
True white
Pattern. white
True bisque
Pattern. black
SS
SS
WW
CC
BB
JP340WJ
JP340CJ
JP340BJ
Pattern. white
Pattern. bisque
Pattern. black
WW
CC
BB
Electrical junction box 16" MIN.
below countertop
30" MIN. to
unprotected
cabinet
Cut should
not interfere
with cabinet
structure at front
L MIN.
clearance to
side wall
from cut-out
R MIN.
clearance to
side wall
from cut-out
18" MIN.
to cabinet
C to
rear wall
13" MAX.
depth
Built-in electric cooktops
Cooktop
F
(min.)
A
B
W
D
H
GE
JP626WK
JP626CK
Features
Cooktop surface
Lift-up cooktop with support rod
8" heating elements 2 plug-in 2 plug-in 1 plug-in 1 plug-in
6" heating elements 2 plug-in 2 plug-in 1 plug-in 1 plug-in
One-piece removable chrome
drip bowls
Infinite heat rotary controls
Control panel location Upfront Upfront Upfront Upfront
Control panel
Surface element “ON” indicator light
Appearance
Color appearance*
Weights & Dimensions
Cooktop width (in inches) 35-1/2 30-1/4 21-1/4 21-1/4
Approx. shipping weight (lbs.) 38 36 18 18
Power/Ratings
KW rating @ 240V 7.4 7.4 3.4 3.4
Amps @ 240V 40 40 20 20
*SS = Stainless Ste el, WW = White on white, CC = Bis que on bisque, BB = Black on black.
208V 5.6 5.6 2.5 2.5
208V 30 30 20 20
JP626BK
Porcelain-enameled
● ●
●
● ● ● ●
White glass
Bisque glass
Black glass
● ● ● ●
WW
CC
BB
Counter installation dimensions (in inches)
JP328SK
JP328WK
JP328CK
JP328BK
Stainless steel
Porcelain-enameled
Porcelain-enameled
Porcelain-enameled
●
Black glass
White glass
Bisque glass
Black glass
SS
WW
CC
BB
JP201CB
Stainless steel
●
SS
Built-in cooktop dimensions (in inches)
JP202D
Porcelain-enameled
●
WW
ge.com
Built-in electric cooktops
Required free area between the bottom of the cooktop
and any combustible material, i.e., shelving is 5"
minimum on models JP626/328 and 1-1/2" minimum
on models JP201/202. Free area not required when
installing wall oven underneath. Requires an 18"
minimum from cooktop to adjacent overhead cabinets.
Units are furnished with a 48" flexible armored cable.
Cooktop model JP328 is approved for use over select
GE 27" or 30" Single Wall Ovens. JP626 is approved
for use over GE 30" Single Wall Ovens only. Refer to
cooktop and wall oven installation instructions packed
with product for current dimensional data.
Cooktop models JP201CB and JP202D are approved
for use over GE undersink dishwasher model GSM2100.
Refer to cooktop installation instructions packed with
product for current dimensional data.
Note: JP626 may be installed with a GE Profile
Telescopic Downdraft System. Consult both cooktop
and downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.
Note: The countertop must be at least 26" deep with
a flat surface area of 23-1/2" or more, front to back.
In addition, other clearances to the front edge of the
countertop must be considered.
Filler trim kit—When replacing an old GE 30" cooktop
(with larger opening) with Models JP328WF, JP328CF,
JP328BF, JP328SF, use the following one-piece trim kits
to fill in the over-size hole. Available at additional cost.
JXTR31W (White)
JXTR31C (Bisque)
JXTR31B (Black)
Installation information:
Before installing, consult installation instructions
packed with product for current dimensional data.
Dimensions (in inches)
Model W D A B C R L F
JP626
JP328
JP202
JP201
Overall
35-1/2 21 33-7/8 19-1/8 2-1/2 3-3/4 3-3/4 2-1/2
30-1.4 21-1/4 28-1/2 19-1/2 1-3/4 2 5-1/2 2-1/2
21-1/4 16-5/8 20-1/8 16-1/8 2 2 2 2-3/4
21-1/4 16-5/8 20-1/8 16-1/8 2 2 2 2-3/4
Cutout
Minimum spacing
combustible wall
to nearest
To edge
of front
counter
(min.)
55
A Century of Quality and Innovation
For more than a century, GE has been committed to producing innovative products
that change the way people live. The result of thorough research and rigorous testing,
GE appliances are designed for years of dependable performance.
Today, the GE tradition of quality and innovation continues.
GE Consumer & Industrial
Appliances
General Electric Company
Louisville, KY 40225
ge.com
GE has a policy of continuous improvement of
its products and reserves the right to change
materials and specifications without notice.
© 2004 GE Company
Pub. No. 3-X005 PC40447
Loading...
