JGP970SEK

Cooktop

2-1/2

(Min.)

33-7/8

19-1/8

3-3/16*

21-5/16

Electrical junction box 12" MIN. below countertop

30" MIN. to unprotected cabinet

Cut should not interfere with cabinet structure at front

3-3/4" MIN.

clearance to

side wall

from cut-out

6" MIN.

clearance to

side wall

from cut-out

18" MIN. to cabinet

2-1/4" to rear wall

13" MAX. depth

Electrical cord

Electrical outlet

Shut-off

valve

Pressure regulator

1/2" pipe

Coupling

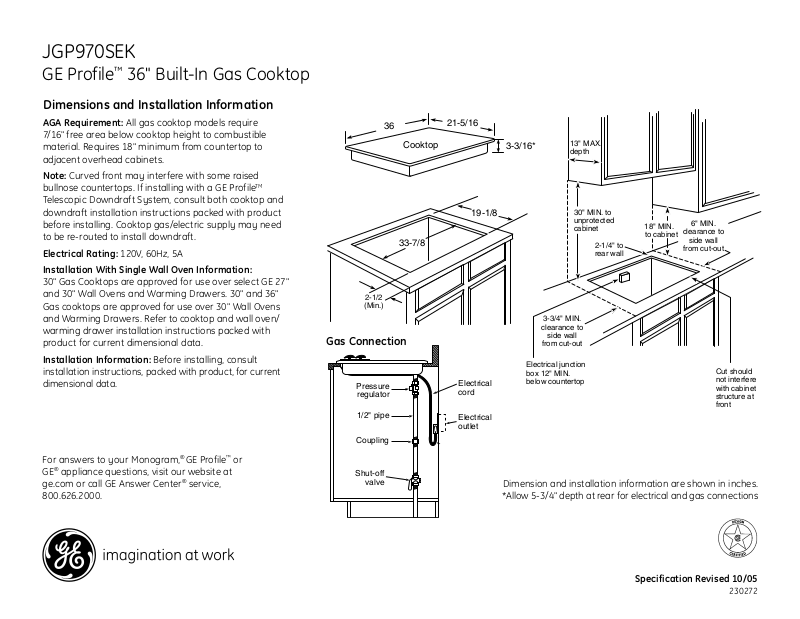

GE Profile™ 36" Built-In Gas Cooktop

Dimensions and Installation Information

AGA Requirement: All gas cooktop models require

7/16" free area below cooktop height to combustible material. Requires 18" minimum from countertop to adjacent overhead cabinets.

Note: Curved front may interfere with some raised bullnose countertops. If installing with a GE ProfileTM Telescopic Downdraft System, consult both cooktop and downdraft installation instructions packed with product before installing. Cooktop gas/electric supply may need to be re-routed to install downdraft.

Electrical Rating: 120V, 60Hz, 5A

Installation With Single Wall Oven Information:

30" Gas Cooktops are approved for use over select GE 27" and 30" Wall Ovens and Warming Drawers. 30" and 36" Gas cooktops are approved for use over 30" Wall Ovens and Warming Drawers. Refer to cooktop and wall oven/ warming drawer installation instructions packed with product for current dimensional data.

Installation Information: Before installing, consult installation dimensional data.

instructions, packed with product, for current

Gas Connection

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

Dimension and installation information are shown in inches. *Allow 5-3/4" depth at rear for electrical and gas connections

Specification Revised 10/05

230272

JGP970SEK

GE Profile™ 36" Built-In Gas Cooktop

Features and Benefits

• Gas On Glass Cooktop - Features a flat one-piece ceramic glass surface that is sleek and easy-to-clean

• Sealed Cooktop Burners - Eliminates the space between the burners and the cooktop to help contain spills and boil over liquids, ensuring easy cleanup

• Power Boil™ Burner - Delivers 15,000 BTUs of forceful heat for rapid boiling

• High Output Burner - Provides a powerful burner output for efficient heat-up and boiling

• Precise Simmer Burner - Delivers a low settng of 140 degrees, ideal for delicate foods and sauces

• Continuous Grates - Provide a flat, sturdy surface allowing easy movement of pans between burners

• Control Lock Capability - Shuts off gas to prevent unintended activation. Only GE has it!

• Dishwasher-Safe Grates and Knobs - Feature durable construction for worry-free, effortless cleaning and maintenance

• Deluxe Cast Grates - Constructed from a premium cast iron material for a long-lasting performance and durability

• Upfront Controls - Controls are placed within easy reach at the front center of the cooktop

• Electronic Pilotless Ignition - Provides reliable burner ignition operation, eliminating the need for a standing pilot

• Heavy-Duty Die-Cast Knobs - Add durability and brushed chrome for enhanced style and performance

• Model JGP970SEKSS - Stainless Steel
