GENERAL ELECTRIC GTH16BBXRWW, GTH16BBXRCC, GTH16BBXLWW, GTH16BBSR User Manual
Top-Freezer
Safety Instructions
Operating Instructions
Installation Instructions
Troubleshooting Tips
Consumer Support
Mesures de sécurité
Instructions de fonctionnement
Instructions d’installation
En cas de panne
Soutien au consommateur
Información de seguridad
Instrucciones de operación
Instrucciones para la instalación
Consejos para la solución
de problemas
Soporte al consumidor
Refrigerators
ge.com
Top-Freezer
Refrigerators
Owner’s Manual and
Installation Instructions
Models 16,17,18
Automatic Icemaker . . . . . . . . . . . . . .5
Care and Cleaning . . . . . . . . . . . . . . .6
Shelves . . . . . . . . . . . . . . . . . . . . . . . .4
Storage Drawers . . . . . . . . . . . . . . .4, 5
Temperature Controls . . . . . . . . . . . .4
Preparing to Install
the Refrigerator . . . . . . . . . . . . . . . . .7
Reversing the Door Swing . . . . .11–14
Water Line Installation . . . . . . . . .8–10
Before You Call For Service . . . . .15, 16
Normal Operating Sounds . . . . . . . .15
. . . . . . . . . .2, 3
Congélateur supérieur
Réfrigérateurs
Manuel d’utilisation
et d’installation
La section française commence à la page 22
Bacs de rangement . . . . . . . . . . .25, 26
Clayettes . . . . . . . . . . . . . . . . . . .24, 25
Commandes de
la température . . . . . . . . . . . . . . . . .24
Entretien et nettoyage . . . . . . . . . . .27
Machine à glaçons
automatique . . . . . . . . . . . . . . . . . . .26
Installation de la
conduite d’eau . . . . . . . . . . . . . .29–32
Inversion de
l’ouverture des portes . . . . . . . . .33–37
Préparation à l’installation
du réfrigérateur . . . . . . . . . . . . . . . .28
. . . . . . . 22–23
Congelador superior
Refrigeradores
Manual del propietario
e instalación
La sección en español empieza en la página 44
Control . . . . . . . . . . . . . . . . . . . . . . .46
Cuidado y limpieza . . . . . . . . . . . . .49
Estantes . . . . . . . . . . . . . . . . . . . .46, 47
Gavetas de
almacenamiento . . . . . . . . . . . . .47, 48
Máquina de
hielos automática . . . . . . . . . . . . . . .48
Cómo invertir el
vaivén de la puerta . . . . . . . . . . .56–57
Instalación de la
tubería del agua . . . . . . . . . . . . .51–55
Preparación para
instalar el refrigerador . . . . . . . . . . .50
44–45
Consumer Support . . . . . . Back Cover
Product Registration
(Canadian) . . . . . . . . . . . . . . . . . 19, 20
Product Registration (U.S.) . . . . 18–20
Warranty for
Canadian Customers . . . . . . . . . . . 17
Warranty for U.S. Customers . . . . . 21
Write the model and serial
numbers here:
Model # __________________________
Serial # __________________________
You can find them on a label on
the upper left side of the fresh food
compartment.
Avant d’appeler
un réparateur . . . . . . . . . . . . . . . .40, 41
Bruits normaux
de fonctionnement . . . . . . . . . . . . . .39
Garantie . . . . . . . . . . . . . . . . . . . . . .42
Soutien au consommateur . . . . . . . .43
Écrivez ici le numéro de modèle et le
numéro de série :
Modèle #__________________________
Série # __________________________
Vous les trouvez sur une étiquette
dans le coin supérieur gauche du
compartiment réfrigérateur.
Antes de solicitar
un servicio . . . . . . . . . . . . . . . . .58, 59
Sonidos normales
de operación . . . . . . . . . . . . . . . . . . .58
Garantía . . . . . . . . . . . . . . . . . . . . .62
Soporte al consumidor . . . . . . . . . . .63
Escriba aquí el modelo y el número
de serie:
Modelo # ________________________
Serie # __________________________
Encuentre estos números en la etiqueta en el
lado izquierdo de la parte superior del
compartimiento del refrigerador.
197D8622P002 49-60656 03-11 GE
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner’s Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
This refrigerator must be properly installed
and located in accordance with the Installation
Instructions before it is used.
Do not allow children to climb, stand or hang
on the shelves in the refrigerator. They could damage
the refrigerator and seriously injure themselves.
Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet.
Skin may stick to these extremely cold surfaces.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
In refrigerators with automatic icemakers,
avoid contact with the moving parts of the
ejector mechanism, or with the heating element
located on the bottom of the icemaker. Do not place
fingers or hands on the automatic icemaking
mechanism while the refrigerator
is plugged in.
Keep fingers out of the “pinch point” areas;
clearances between the doors and between
the doors and cabinet are necessarily small.
Be careful closing doors when children are
in the area.
Unplug the refrigerator before cleaning and making
repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
Turning the control to the 0 position does
not remove power to the light circuit.
Do not refreeze frozen foods which have
thawed completely.
DANGER! RISK OF CHILD ENTRAPMENT
PROPER DISPOSAL OF THE REFRIGERATOR
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous…even if they will sit for “just a few days.” If
you are getting rid of your old refrigerator, please follow
the instructions below to help prevent accidents.
Before You Throw Away Your Old
Refrigerator or Freezer:
Take off the doors.
Leave the shelves in place so that children may not
easily climb inside.
2
Refrigerants
All refrigeration products contain refrigerants, which
under federal law must be removed prior
to product disposal. If you are getting rid of an
old refrigeration product, check with the company
handling the disposal about what to do.
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with a standard
3-prong (grounding) wall outlet to minimize the
possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating that
matches the rating plate.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a
fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the power
cord. Always grip plug firmly and pull straight out from
the outlet.
Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a cord
that shows cracks or abrasion damage along its length or
at either end.
When moving the refrigerator away from the
wall, be careful not to roll over or damage the
power cord.
ge.com
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against
the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or
a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet
and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
3
About the temperature control dial.
Turning the dial to Off stops cooling in both compartments—fresh food and freezer. It does not shut off power to the refrigerator.
Temperature Control Dial
The temperature dial adjusts refrigerator from warmest to coldest.
See illustrations below for temperature setting information.
OFF
Recommened
factory setting
Coldest setting
OFF
OFF
Warmest setting
About the fresh food compartment shelves.
Shelf supports at various levels allow you to custom-space your shelves. Not all features are on all models.
Half-Width Shelves
2
1
Tilt up
Lift rear
Pull forward
To remove the full-width shelves
One end of the shelf rests on a molded sidewall support; a bracket on the other end hooks
into a track on the rear cabinet wall.
To remove, lift the shelf up at front, then off
the support and out of the track.
To replace, select desired shelf height. With
shelf front raised slightly, hook the bracket’s top
lug into the track, then lower the shelf onto the
support.
Full-Width Shelves
Some models have a steel wire sliding shelf, a
stationary tempered glass shelf,
a spillproof shelf or two steel wire stationary
shelves. These shelves can be moved to
another place in the fresh food
compartment.
The full-width sliding shelf has stop-locks.
When placed correctly on the shelf supports,
the shelf will stop before coming completely
out of the refrigerator and will not tilt when
you place food on it or remove food from it.
NOTE: The shelf to the right of the track is designed
to hook into the right-hand slot; the shelf to the left
is designed to hook into the left-hand slot.
Lift rear
Pull forward and down
To remove a full-width shelf when
the fresh food compartment door
cannot be opened fully
About the freezer compartment shelves.
Step Shelf (on some models)
To remove the step shelf:
Lift left side of shelf slightly.
1
Move shelf to the left to free its right ends
1
2
3
4
2
from holes in the cabinet wall.
To replace the step shelf:
With shelf tilted as shown, fit left ends of
1
shelf into holes in cabinet wall.
Lower right side of shelf, move shelf to the
3
right and take it out.
Lift left side of shelf slightly, swing shelf up,
2
fit right ends of shelf into holes in cabinet
wall, and lower shelf into place.
About the storage drawers. ge.com
Not all features are on all models.
Snacks Drawer
The snacks drawer can
be moved to the most
useful location for your
family’s needs.
About storage drawer and cover removal.
Not all features are on all models.
Adjustable Humidity Drawer (on some models)
Slide the control all the way to the
HIGH setting to provide high humidity
recommended for most vegetables.
Drawer and Cover Removal
Drawers can be removed easily by grasping the sides and lifting up slightly while pulling drawers
past the stop location.
To remove the cover, lift it off its supports, pull it forward, tilt it and take it out.
Twin Drawer Shelf
To remove:
Remove the drawers.
1
Reach in, push the front of glass cover up,
2
and at the same time, pull it forward as far
as it will come.
Tilt it and take it out. Avoid cleaning the cold glass
cover with hot water because the extreme
temperature difference may cause it to break.
Remove the drawer frame. (Always remove
3
the glass cover before you take out the
drawer frame.)
Lift the frame off the supports at each side and
back, pull it forward, tilt it and take it out.
Fruit and Vegetable Drawers
Excess water that may
accumulate in the bottom of
the drawers should be emptied
and the drawers wiped dry.
Slide the control all the way to the LOW
setting to provide lower humidity levels
recommended for most fruits.
To replace:
Lower the frame until it rests on the
1
supports at each side and back.
Replace the glass cover, pushing its rear
2
edge firmly into the rear frame channel and
gently lowering the front into place.
Replace the drawers.
3
About the automatic icemaker.
A newly-installed refrigerator may take 12 to 24 hours to begin making ice.
Automatic Icemaker (on some models)
The icemaker will produce approximately
100–130 cubes in a 24-hour period, depending on
the freezer compartment temperature, room
temperature, number of door openings and other
use conditions.
If the refrigerator is operated before the water
connection is made to the icemaker, move the
feeler arm to the STOP (up) position.
When the refrigerator has been connected to
the water supply, move the feeler arm to the ON
(down) position.
You will hear a buzzing sound each time the
icemaker fills with water.
The icemaker will fill with water when it cools to
15°F. A newly-installed refrigerator may take 12 to
24 hours to begin making ice cubes.
Throw away the first few batches of ice to allow
the water line to clear.
Feeler Arm in
the ON (down)
position
Feeler Arm in
the STOP
(up) position
Be sure nothing interferes with the sweep of the
feeler arm.
When the bin fills to the level of the feeler arm,
the icemaker will stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequently, old ice cubes will
become cloudy, taste stale and shrink.
NOTE: In homes with lower-than-average water
pressure, you may hear the icemaker cycle multiple
times when making one batch of ice.
Icemaker Accessory Kit
If your refrigerator did not already come equipped
with an automatic icemaker, an icemaker
accessory kit is available at extra cost.
Check the back of the refrigerator for
the specific icemaker kit needed for
your model.
5
Care and cleaning of the refrigerator.
Cleaning the Outside
The door handles and trim (on some models). Clean
with a cloth dampened with soapy water. Dry with a
soft cloth.
Keep the outside clean. Wipe with a clean cloth lightly
dampened with kitchen appliance wax or mild liquid dish
detergent. Dry and polish with a clean,
soft cloth.
The stainless steel panels and door handles (on some models)
can be cleaned with a commercially available stainless steel
cleaner. Do not use appliance wax or polish on the stainless
steel.
Do not wipe the refrigerator with a soiled dish cloth or wet
towel. These may leave a residue that can erode the paint.
Do not use scouring pads, powdered cleaners, bleach or cleaners
containing bleach because these products can scratch and
weaken the paint finish.
Cleaning the Inside
To help prevent odors, leave an open box of baking soda in
the fresh food and freezer compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excess moisture out of sponge
or cloth when cleaning around switches, lights or controls.
Use warm water and baking soda solution—about a
tablespoon (15 ml) of baking soda to a quart (1 liter)
of water. This both cleans and neutralizes odors. Rinse and
wipe dry.
After cleaning the door gaskets, apply a thin layer of
petroleum jelly to the door gaskets at the hinge side. This
helps keep the gaskets from sticking and bending out of
shape.
Avoid cleaning cold glass shelves (on some models) with hot water
because the extreme temperature difference may cause them to
break. Handle glass shelves carefully. Bumping tempered glass can
cause it to shatter.
Do not wash any plastic refrigerator parts in the dishwasher.
Moving the Refrigerator
Be careful when moving the refrigerator away from
the wall. All types of floor coverings can be damaged,
particularly cushioned coverings and those with embossed
surfaces.
Turn the leveling legs at each front corner of the refrigerator
counterclockwise until the rollers support
the refrigerator. Pull the refrigerator straight out and return it to
position by pushing it straight in. Moving
the refrigerator in a side direction may result in damage
to the floor covering or refrigerator.
When pushing the refrigerator back, make sure you don’t roll over
the power cord or icemaker supply line (on some models).
After rolling the refrigerator back into place, turn the legs
clockwise until the legs again bear the weight of the
refrigerator.
Light Bulb Replacement
To replace a burned-out bulb, unplug the refrigerator from
its electrical outlet, unscrew the bulb when cool and replace
it with an appliance bulb of the same or lower wattage.
Turning the control to the 0 position does not remove power to
the light circuit.
Preparing for Vacation
For long vacations or absences, remove food and unplug the
refrigerator. Move the temperature control dial to the 0
position, and clean the interior with a baking soda solution
of one tablespoon (15 ml) of baking soda to one quart (1
liter) of water. Leave the doors open.
Move the feeler arm to the STOP (up) position and
shut off the water supply to the refrigerator.
If the temperature can drop below freezing, have a qualified
servicer drain the water supply system (on some models) to
prevent serious property damage
due to flooding.
Condenser
There is no need for routine condenser cleaning in normal
home operating environments.
However, in environments that
may be particularly dusty or
greasy, the condenser should
be cleaned periodically for
Cleaning the condenser coils.
To clean the condenser, turn the temperature control dial to
0. Sweep away or vacuum up dust.
For best results, use a brush specially designed for this
purpose. It is available at most appliance parts stores.
efficient refrigerator operation.
6
Preparing to Move
Secure all loose items such as grille, shelves and drawers by
taping them securely in place to prevent damage.
Be sure the refrigerator stays in an upright position during moving.
Read these instructions completely and carefully.
IMPORTANT –
IMPORTANT –
Note to Installer –
Note to Consumer –
Skill level
Completion time
ge.com
www.geappliances.ca
Installation Instructions Models 16, 17, 18
or
or
If you have questions, call 1.800.GE.CARES
In Canada, call 1.800.561.3344
BEFORE YOU BEGIN
•
for local inspector’s use.
•
codes and ordinances.
•
instructions with the Consumer.
•
future reference.
•
mechanical skills.
•
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
– Installation of this appliance requires basic
Be sure to leave these
– Refrigerator Installation
15 minutes
Reversing the Door Swing
1 hour
Save these instructions
Observe all governing
Keep these instructions for
visit our Website at: ge.com
Visit our Website at: www.geappliances.ca
CLEARANCES
Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.
• Sides 3/4” (19 mm)
• Top 1” (25 mm)
• Back 2” (50 mm)
ROLLERS AND LEVELING LEGS
Leveling legs near each front corner of the refrigerator are
adjustable. They firmly position the refrigerator and prevent
it from moving when the doors are opened. Leveling legs
should be set so the front of the refrigerator is raised just
enough that the doors close easily when opened about
halfway.
Turn the leveling legs clockwise to raise the refrigerator,
counterclockwise to lower it.
Rollers next to the leveling legs allow you to move the
refrigerator away from the wall for cleaning.
WATER SUPPLY TO THE ICEMAKER
(on some models)
If the refrigerator has an icemaker, it will have to be
connected to a cold water line. A water supply kit
(containing copper tubing, shutoff valve, fittings and
instructions) is available at extra cost from your dealer, by
visiting our Website at
1.800.661.1616.
) or from Parts and Accessories,
(in Canada at
REFRIGERATOR LOCATION
• Do not install the refrigerator where the temperature will go
below 60°F (16°C) because it will not run often enough to
maintain proper temperatures.
• Install it on a floor strong enough to support it fully loaded.
Turn the legs counterclockwise until the weight of the
refrigerator is transferred from them to the rollers. After
rolling the refrigerator back into place, turn the legs
clockwise until the legs again bear the weight of the
refrigerator.
7
Copper or GE SmartConnect™Refrigerator Tubing kit
Installation Instructions
NOTE: The only GE approved plastic tubing is that
supplied in GE SmartConnect™Refrigerator Tubing kits.
Do not use any other plastic water supply line because the
line is under pressure at all times. Certain types of plastic
will crack or rupture with age and
cause water damage to your home.
A GE water supply kit
A cold water supply
Power drill.
1/2”or adjustable wrench.
Straight and Phillips
blade screwdriver.
Two 1/4”outer diameter compression nuts and
2 ferrules (sleeves)
OR
adapter
OR
tube cutter
Shutoff valve
COLD WATER LINE
1
INSTALLING THE WATER LINE (ON SOME MODELS)
BEFORE YOU BEGIN
Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of tubing
you need. Approved plastic water supply lines are GE
SmartConnect
WX08X10015 and WX08X10025).
When connecting your refrigerator to a GE Reverse
Osmosis Water System, the only approved installation is
with a GE RVKit. For other reverse osmosis water systems,
follow the manufacturer’s recommendations.
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and lead
to water leakage or flooding. Call a qualified plumber to
correct water hammer before installing
the water supply line to the refrigerator.
To prevent burns and product damage, do not hook up the
water line to the hot water line.
If you use your refrigerator before connecting the water
line, make sure the feeler arm is in the STOP (up) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power drill)
during installation, be sure the device is double insulated or
grounded in a manner to prevent the hazard of electric
shock, or is battery powered.
All installations must be in accordance with local plumbing
code requirements.
™
Refrigerator Tubing (WX08X10006,
WHAT YOU WILL NEED
•
1/4” outer diameter to connect the refrigerator to the
water supply. If using copper, be sure both ends of the
tubing are cut square.
WHAT YOU WILL NEED (CONT.)
GE SmartConnect™Refrigerator Tubing Kits are available
in the following lengths:
6’ (1.8 m) – WX08X10006
15’ (4.6 m) – WX08X10015
25’ (7.6) m) – WX08X10025
Be sure that the kit you select allows at least 8’ (2.4 m) as
described above.
•
and fittings listed below) is available at extra cost from
your dealer or from Parts and Accessories,
1.800.661.1616.
•
20 and 120 p.s.i. (1.4–8.1 bar).
•
•
•
•
the copper tubing to the shutoff
valve and the refrigerator water valve.
• If you are using a GE SmartConnect™Refrigerator
Tubing kit, the necessary fittings are preassembled
to the tubing.
• If your existing copper water line has a flared fitting at
the end, you will need an
supply stores) to connect the water line to the refrigerator
you can cut off the flared fitting
with a
,
not cut formed end from GE SmartConnect
Refrigerator tubing.
(containing tubing, shutoff valve
. The water pressure must be between
—to connect
and then use a compression fitting. Do
(available at plumbing
™
To determine how much tubing you need: measure the
distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8’
(2.4 m). Be sure there is sufficient extra tubing
(about 8’ [2.4 m] coiled into 3 turns of about 10”
[25 cm] diameter) to allow the refrigerator to move out
from the wall after installation.
•
The shutoff valve should have a water inlet with a
minimum inside diameter of 5/32” at the point of
connection to the
shutoff valves are included in many water supply kits.
Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
to connect to the cold water line.
. Saddle-type
8
Installation Instructions
Take care
not to allow water to drain into the drill.
NOTE:
NOTE:
NOTE:
NOTE:
Install the shutoff valve on the nearest frequently used drinking water line.
1
SHUT OFF THE MAIN WATER
SUPPLY AND UNPLUG
REFRIGERATOR
Turn on the nearest faucet (counterclockwise) long
enough to clear the line of water.
2
DRILL THE HOLE FOR THE VALVE
Choose a location for the valve that is easily accessible. It
is best to connect into the side of a vertical water pipe.
When it is necessary to connect into a horizontal water
pipe, make the connection to the top or side, rather than
at the bottom, to avoid drawing off any sediment from
the water pipe.
Drill a 1/4” hole in the water pipe (even if using a self-
piercing valve), using a sharp bit. Remove any burrs
resulting from drilling the hole in the pipe.
a 1/4” hole may result in reduced ice production or
smaller cubes.
Failure to drill
4
ROUTE THE TUBING
Route the tubing between the cold water line and the
refrigerator.
Route the tubing through a hole drilled in the wall or
floor (behind the refrigerator or adjacent base cabinet) as
close to the wall as possible.
feet [244 cm] coiled into 3 turns of about 10” [25 cm]
diameter) to allow the refrigerator to move out from the
wall after installation.
5
CONNECT THE TUBING
Be sure there is sufficient extra tubing (about 8
TO THE VALVE
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing and
connect it to the shutoff valve.
Make sure the tubing is fully inserted into the
valve. Tighten the compression nut securely.
For plastic tubing from a GE SmartConnect
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then tighten one
additional turn with a wrench. Overtightening may
cause leaks.
Saddle-Type
Shutoff Valve
™
Compression
Nut
SmartConnect
Tubing
™
3
FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with the
pipe clamp.
Tighten the clamp screws until the sealing washer begins
to swell.
tubing.
Pipe Clamp
Saddle-Type
Shutoff Valve
Codes 248CMR shall be adhered to. Saddle valves are
illegal and use is not permitted in Massachusetts. Consult
with your licensed plumber.
Do not overtighten or you may crush the
Washer
Inlet End
Clamp Screw
Vertical Cold
Water Pipe
Commonwealth of Massachusetts Plumbing
Packing Nut
Outlet Valve
Codes 248CMR shall be adhered to. Saddle valves are
illegal and use is not permitted in Massachusetts. Consult
with your licensed plumber.
6
FLUSH OUT THE TUBING
Turn the main water supply on (counterclockwise) and
flush out the tubing until the water is clear.
Shut the water off at the water valve after about
one quart (1 liter) of water has been flushed through the
tubing.
Commonwealth of Massachusetts Plumbing
Ferrule (sleeve)
9
Installation Instructions
NOTES:
NOTE:
1
INSTALLING THE WATER LINE (CONT.)
7
CONNECT THE TUBING TO THE
REFRIGERATOR
• Before making the connection to the refrigerator, be
sure the refrigerator power cord is not plugged into the
wall outlet.
• We recommend installing a water filter if your water
supply has sand or particles that could clog
the screen of the refrigerator’s water valve. Install
it in the water line near the refrigerator. If using
GE SmartConnect™Refrigerator Tubing kit,
you will need an additional tube (WX08X10002)
to connect the filter. Do not cut plastic tube to
install filter.
Remove the access cover.
Remove the plastic flexible cap from the water
valve (refrigerator connection).
7
CONNECT THE TUBING TO THE
REFRIGERATOR
Fasten the tubing into the clamp provided to
hold it in a vertical position. You may need to
pry open the clamp.
1/4” Copper
Tub i ng
Refrigerator
Connection
Reattach the access cover.
8
TURN THE WATER
(CONT.)
1/4”Compression
Nut
ON AT THE
SHUTOFF VALVE
Tubing Clamp
Ferrule
(sleeve)
SmartConnect
Tubing
™
Place the compression nut and ferrule (sleeve)
onto the end of the tubing as shown. On GE
SmartConnect™Refrigerator Tubing kit,
the nuts are already assembled to the tubing.
Insert the end of the tubing into the water valve
connection as far as possible. While holding the tubing,
tighten the fitting.
For plastic tubing from a GE SmartConnect
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then
tighten one additional turn with a wrench.
Overtightening may cause leaks.
™
Tighten any connections
that leak.
9
PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the wall.
Push the refrigerator back to the wall.
10
START THE ICEMAKER
Move the feeler arm to the ON (down) position. The
icemaker will not begin to operate until it reaches
its operating temperature of 15°F (–9°C) or below.
It will then begin operation automatically.
Feeler Arm in the
STOP (up) position
Feeler Arm in
the ON (down) position
valve may turn on up to 3 times to deliver enough water
to the icemaker.
In lower water pressure conditions, the water
10
Installation Instructions
IMPORTANT:
2.1
2.2
2.3
2.6
2.5
2.4
1.1 Unplug the refrigerator from its electrical outlet.
1.2
CAUTION:
2
REVERSING THE DOOR SWING
IMPORTANT NOTES
When reversing the door swing:
• Read the instructions all the way through before starting.
• Handle parts carefully to avoid scratching paint.
• Set screws down by their related parts to avoid using them
in the wrong places.
• Provide a non-scratching work surface for
the doors.
until door-swing reversal is completed.
These instructions are for changing the hinges from
the right side to the left side—if you ever want to change the
hinges back to the right side, follow these same instructions
and reverse all references to left and right.
Once you begin, do not move the cabinet
2

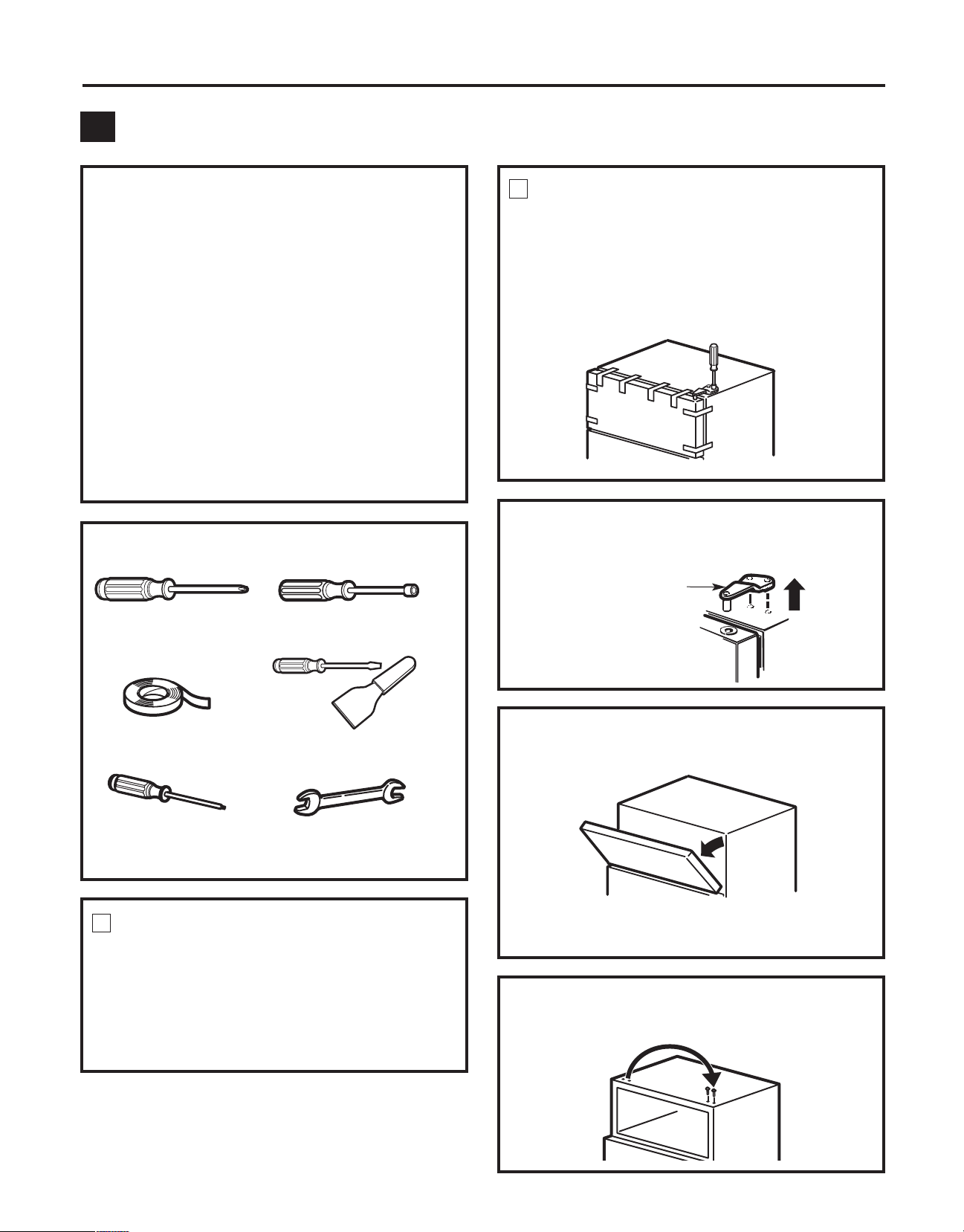

REMOVE THE FREEZER DOOR
Tape the door shut with masking tape.
With a 5/16” hex-head socket driver, remove the
screws that hold the top hinge to the cabinet.
Lift the hinge straight up to free the hinge pin from
the socket in the top of the door and set it aside,
along with its screws.
TOOLS REQUIRED
Phillips screwdriver
5/16” hex-head
socket driver
Putty knife or thin-blade
screwdriver
1
BEFORE YOU START
Empty all door shelves, including the dairy
compartment.
Masking tape
T20 or T25 Torxdriver
(needed for some models)
5/16” open-end
wrench
Top Hinge
Remove the tape and tilt the door away from the
cabinet. Lift it off the center hinge pin.
Set the door on a non-scratching surface with the
outside up.
Transfer the 2 screws from the opposite side of the
cabinet to the screw holes vacated by the top hinge
removal.
do so could damage the door stop.
Do not let either door drop to the floor. To
11
Installation Instructions
3.1
3.4
3.3
3.2
3.7
3.5
3.6
4.1
2
REVERSING THE DOOR SWING (CONT.)
3
REMOVE THE FRESH FOOD DOOR
Tape the door shut with masking tape.
Using a 5/16” hex-head socket screwdriver and a
5/16” open-end wrench, remove the two screws
holding the center hinge to the cabinet. Lift the
center hinge to free its pin from the socket in the top
of the door, and set hinge and screws aside. Be
careful not to lose the center hinge spacer and washer.
3
REMOVE THE FRESH FOOD DOOR (CONT.)
Transfer the two screws from the opposite side of the
cabinet to the screw holes vacated by the center hinge
removal.
Transfer the washer (if your model has one) to the
opposite side.
Take one of the screws removed in step 2 and start
it in the outermost screw hole on the opposite side. Do not
drive it all the way down—leave enough space under the
screw head for thickness of the bracket.
Remove the tape and tilt the door away from the
cabinet. Lift the door from the pin in the bottom hinge
bracket. (If the plastic washer sticks to the door bottom,
put it back on the hinge.)
Set the door outside-up on a non-scratching surface.
4
REVERSING THE HARDWARE
Move the bottom hinge bracket and plastic washer from the
right side to the left side.
Switch the hinge pin to the
opposite side of the bracket.
Hinge
Bracket
Plastic
Washer
12
Installation Instructions
4.2
NOTES:
5.1.2
5.1.3
5.1.4
5.3.1
5.3.2
5.1.1
5.2.1
5
.
2
.
2
4
REVERSING THE HARDWARE
Interchange hinge and screws at top right with screws at
top left of cabinet. Do not tighten screws on hinge side
at this time.
(CONT.)
5
REVERSING THE DOOR
HANDLES
Remove plug button from the top hinge hole on the left
side of the door and insert it into the hole on the
opposite side that was vacated by removal of the top
hinge.
(CONT.)
Plug Button
Installing the hinge on the left.
• Some hinges have four holes. Which holes you use
for installing the hinge depends on which side you
install the hinge.
• The outer edge of the hinge should be parallel to the
edge of the case for correct installation.
5
REVERSING THE DOOR HANDLES
Installing the hinge on the right.
5.1 Transfer fresh food door handle
Remove the handle plug using a tape-tipped
putty knife under the edge, and remove the screw
underneath. Remove the two screws holding the
handle to the top of the door.
Top
Plug
Pull the plug button from the front of the door and
transfer it to the opposite side.
Plug Button
5.2 Transfer door stop
Move the plastic door stop and screws from
the right side to the left side.
Left Side
Plastic Door Stop
Move the metal door stop from the right side
to the left side and transfer the screw to the
opposite side of the door.
Right Side
To reattach the
handle on the
opposite side.
Remove the handle.
Left Side
Metal Door Stop
5.3 Reinstall fresh food door handle
Attach the handle to the right side of the
door with screws at the top
and under the handle plug.
Reinstall the handle plug.
13
Right Side
Installation Instructions
5.4.3
5.4.4
5.4.5
5.4.1
5.4.2
6.1.2
NOTE:
6.2.1
Be sure the
washer and spacer
are in place on the pin.
6.1.3
6.1.1
Be sure the washer
is in place on the pin.
6.2.2
6.2.3.
2
REVERSING THE DOOR SWING (CONT.)
5
REVERSING THE DOOR HANDLES (CONT.)
5.4 Transfer Freezer Door Handle
Remove the screw
holding the handle
to the top of the
door and the two
screws holding the
handle to the bottom
of the door.
Remove the handle.
Remove the screw from the
right top edge of the door
and insert it into the handle
screw hole on the left side.
Transfer the door stop as shown in preceding
section 5.2.
TOP
To p
BOTTOM
Bottom
6
RE-HANGING THE DOORS (CONT.)
Insert the pin on the center hinge into the socket in the
top of the door. Place the spacer, then the washer, on the
hinge pin.
be turned over as shown when
mounted on the left side.
Tilt the door toward the cabinet. As the door is brought
into position, slide the hinge under the head of the screw
which earlier had been partly driven into the outermost
hole. Insert the remaining screw, then tighten both screws
securely.
The center hinge must
Plastic Washer
and Spacer
Hinge Pin
6.2 Re-hang the freezer door
Lower the freezer door
onto the center hinge
pin.
Center Hinge Pin
Attach the handle to the right
edge of the door
with screws at top and bottom,
using bottom holes vacated by
removal of the door stop
screws.
RE-HANGING THE DOORS
6
6.1 Re-hang the fresh food door
Lower the fresh food door onto the
bottom hinge pin.
Hinge
Bracket
Plastic
Washer
Tilt the door toward the cabinet, lifting the top hinge so
the pin fits into the socket on the top of the door.
Make sure the door is slightly above the top of the
cabinet and the gap between the doors is even across the
front. Tighten the top hinge screws. Do not overtighten
these screws–tighten them until they are just snug, then
turn them another one-half turn.
Plastic Washer
and Spacer
14
Normal operating sounds. ge.com
Refrigerator in defrost cycle.
Temperature control dial
in
position.
Refrigerator is unplugged.
The fuse is blown/circuit
breaker is tripped.
Roller screws or leveling legs
need adjusting.
Temperature control dial
not set cold enough.
Warm weather or frequent
door openings.
Door left open.
Package blocking air duct in
freezer compartment.
Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features
and use newer technology.
Do you hear what I hear? These sounds are normal.
The new high efficiency
compressor may run
faster and longer than
your old refrigerator and
you may hear a high-pitched hum or pulsating sound
while it is operating.
You may hear a whooshing sound when the doors close. This
is due to pressure equalizing within the refrigerator.
HUMMM...
WHOOSH...
CLICKS, POPS,
CRACKS and CHIRPS
You may hear cracking or popping sounds when the refrigerator
is first plugged in. This happens as the refrigerator cools to the
correct temperature.
The compressor may cause a clicking or chirping sound when
attempting to restart (this could take
up to 5 minutes).
Expansion and contraction of cooling coils during and after
defrost can cause a cracking or popping sound.
On models with an icemaker, after an icemaking cycle, you may
hear the ice cubes dropping into the ice bucket.
You may hear the fans spinning at high
speeds.
This happens when the refrigerator is
first plugged in, when the doors are
opened frequently or when
a large amount of food is added to the refrigerator or
freezer compartments. The fans are helping to maintain the
correct temperatures.
WATER SOUNDS
The flow of refrigerant through the freezer cooling coils may
make a gurgling noise like boiling water.
Water dropping on the defrost heater can cause a sizzling,
popping or buzzing sound during the defrost cycle.
A water dripping noise may occur during the defrost cycle as ice
melts from the evaporator and flows into the drain pan.
Closing the door may cause a gurgling sound due to pressure
equalization.
For additional information on normal
icemaker operating sounds, see the
About the automatic icemaker section.
Before you call for service…
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Causes What To Do
Refrigerator does not
operate
Vibration or rattling (slight
vibration is normal)
Fresh food or freezer
compartment too warm
0
• Wait about 30 minutes for defrost cycle to end.
• Move the temperature control dial to a temperature
setting.
• Push the plug completely into the outlet.
• Replace fuse or reset the breaker.
• See Rollers and Leveling Legs.
• See About the temperature control dial.
• Set the temperature control dial one step colder.
See About the temperature control dial.
• Check to see if package is holding door open.
• Check to see if package is blocking air duct in freezer
compartment.
15
Normal when refrigerator
is first plugged in.
Often occurs when large
amounts of food are
placed in refrigerator.
Door left open.
Hot weather or frequent
door openings.
Temperature control dial
set at the coldest setting.
Grille and condenser
need cleaning.
Door left open.
Too frequent or too long
door openings.
Icemaker is not on.
Water supply turned off or
not connected.
Freezer compartment
too warm.
Piled up cubes in the storage
bin cause the icemaker
to shut off.
Icemaker is on but the water
supply to the refrigerator has
not been connected.
Water shutoff valve connecting
refrigerator to water line may
be clogged.
Door left open.
Temperature control dial
not set cold enough.
Ice storage bin needs cleaning.
Food transmitting odor/taste
to ice cubes.
Interior of refrigerator
needs cleaning.
Not unusual during
periods of high humidity.
Too frequent or too
long door openings.
Foods transmitting
odor to refrigerator.
Interior needs cleaning.
Before you call for service…
Troubleshooting Tips
Problem Possible Causes What To Do
Motor operates for long
periods or cycles on and
off frequently. (Modern
refrigerators with more
storage space and a larger
space and a larger freezer
require more operating
time. They start and stop
often to maintain even
temperatures.)
Frost or ice crystals
on frozen food
(frost within package
is normal)
Automatic icemaker
does not work
(on some models)
Frequent “buzzing” sound
Cubes too small
Slow ice cube freezing
Ice cubes have
odor/taste
Moisture forms on
cabinet surface
between the doors
Moisture collects inside
(in humid weather, air
carries moisture into
refrigerator when doors
are opened)
Refrigerator has odor
• Wait 24 hours for the refrigerator to completely
cool down.
• This is normal.
• Check to see if package is holding door open.
• This is normal.
• See About the temperature control dial.
• See Care and cleaning.
• Check to see if package is holding door open.
• Move the feeler arm to the ON (down) position.
• See Installing the water line.
• Wait 24 hours for the refrigerator to completely
cool down.
• Level cubes by hand.
• Move the feeler arm to the STOP (up) position. Keeping it
on will damage the water valve.
• Call the plumber to clear the valve.
• Check to see if package is holding door open.
• See About the temperature control dial.
• Empty and wash bin. Discard old cubes.
• Wrap foods well.
• See Care and cleaning.
• Wipe surface dry and reset temperature control dial
one setting colder.
• Foods with strong odors should be tightly wrapped.
• Keep an open box of baking soda in the refrigerator;
replace every three months.
• See Care and cleaning.
16
CUSTOMER WARRANTY
(for customers in Canada)
Your refrigerator is warranted to be free of defects in material and workmanship.
What is covered How Long Warranted Parts Labour
(From Date of Sale) Repair or Replace
at Mabe’s Option
Compressor GE Profile: Ten (10) Years GE Profile: Ten (10) Years GE Profile: Five (5) Years
GE and All Other GE and All Other GE and All Other
Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year
Sealed System (including GE Profile: Five (5) Years GE Profile: Five (5) Years GE Profile: Five (5) Years
evaporator, condenser GE and All Other GE and All Other GE and All Other
tubing and refrigerant) Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year
All Other Parts One (1) Year One (1) Year One (1) Year
TERMS AND CONDITIONS:
This warranty applies only for single family domestic use in
Canada when the Refrigerator has been properly installed
according to the instructions supplied by Mabe and is connected
to an adequate and proper utility service.
Damage due to abuse, accident, commercial use, and alteration or
defacing of the serial plate cancels all obligations of this
warranty.
Service during this warranty period must be performed by an
Authorized Mabe Service Agent.
Neither Mabe nor the Dealer is liable for any claims or damages
resulting from failure of the Refrigerator or from service delays
beyond their reasonable control.
To obtain warranty service, purchaser must present the original
Bill of Sale. Components repaired or replaced are warranted through
the remainder of the original warranty period only.
This warranty is extended to the original purchaser and any
succeeding owner for products purchased for home use within
Canada. In home warranty service will be provided in areas where it
is available and deemed reasonable by Mabe to provide.
This warranty is in addition to any statutory warranty.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited
Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose,
are limited to one year or the shortest period allowed by law.
WHAT IS NOT COVERED:
• Owner is responsible to pay for service calls related to product
installation and/or teaching how to use the product.
• Damage to finish must be reported within 48 hours following
the delivery of the appliance.
• Damage to finish after delivery.
• Improper installation—proper installation includes adequate air
circulation to the refrigeration system, adequate electrical,
plumbing and other connecting facilities.
• Replacement of house fuses or resetting of circuit breakers.
• Replacement of light bulbs.
• Damage to product caused by accident, fire, floods or acts
of God.
• Loss of food due to spoilage.
• Proper use and care of product as listed in the owner’s manual,
proper setting of controls.
• Product not accessible to provide required service.
• WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL
DAMAGES.
IMPORTANT
Keep this warranty and your bill of sale as proof of original purchase and purchase date.
Please have serial number and model number available when calling for service.
Mabe Service is available coast to coast. If further help is
needed concerning this warranty, contact:
Manager, Consumer Relations
Mabe Canada Inc., Consumer Service
1 Factory Lane, Suite 310
Moncton, New Brunswick E1C 9M3
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
1.800.561.3344
17
C
Consumer Product Ownership Registration
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form on the next page to
ensure that your product is registered, or register online at
ge.com. The top card is for products installed in the U.S.
The bottom card is for products installed in Canada.
1
2
3
Model Number Serial Number
Complete and mail
your Consumer
Product Ownership
Registration today.
GE Service Protection Plus
™
Benefits Include:
• Prompt, reliable service from GE Authorized Servicers
• Convenient hours designed to suit your busy schedule
• Quality replacement parts
• The dependability of GE, a name recognized and trusted worldwide
• Ask about our interest-free payment plans
With Service Protection Plus you can expect:
Place your confidence in GE and call us in the U.S. toll-free at
1.800.626.2224
for more information.
*Most brands covered up to 15 years old in the continental U.S.
SPP is a trademark of General Electric
Company.
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Have the peace of
mind of knowing we
can contact you in
unlikely event of
safety modification.
the
a
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800 GE CARES
(800.432.2737).
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
GE, a name recognized worldwide for quality and dependability together with Assurant Solutions, offers you
Service Protection Plus
• An extended service plan that limits unexpected repair bills
• Service coverage for most major brands
• Unlimited service calls for the length of your contract, or credit toward a replacement product
• Service coverage for covered operating parts and labor on appliances and home electronics that fail during normal single family
household use
• Your satisfaction is our goal. We strive to provide you with excellent service in a professional and timely manner.
™
—comprehensive protection on your appliances.*
18
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
For refrigerators installed in the U.S.
Please place in envelope and mail to:
General Electric Company
W
Cut here
For refrigerators installed in Canada
Please place in envelope and mail to:
Veuillez mettre dans une enveloppe et envoyez à :
OWNERSHIP REGISTRATION
P.O. BOX 1780
MISSISSAUGA, ONTARIO
L4Y 4G1
(FOR CANADIAN CONSUMERS ONLY)
Cut here
19
For refrigerators installed in the U.S.
Consumer Product Ownership Registration
I
m
p
o
r
t
a
n
t
M
a
i
l
T
o
d
a
y
!
Model Number Serial Number
C
Cut here
First
Name
Street
Address
Apt. #
City
Date Placed
In Use
Month
Mr. Ms. Mrs. Miss
Day
Year
* Please provide your e-mail address to receive, via e-mail, discounts, special offers and other
important communications from GE Appliances (GEA).
Check here if you do not want to receive communications from GEA’s carefully selected
partners.
FAILURE TO COMPLETE AND RETURN THIS CARD DOES NOT DIMINISH YOUR
WARRANTY RIGHTS.
For information about GEA’s privacy and data usage policy, go to ge.com and click on “Privacy
Policy” or call 800.626.2224.
Last
Name
E-mail Address*
Number
Phone
S
tate
_
Zip
Code
_
For refrigerators installed in Canada
Cut here
20
Loading...
