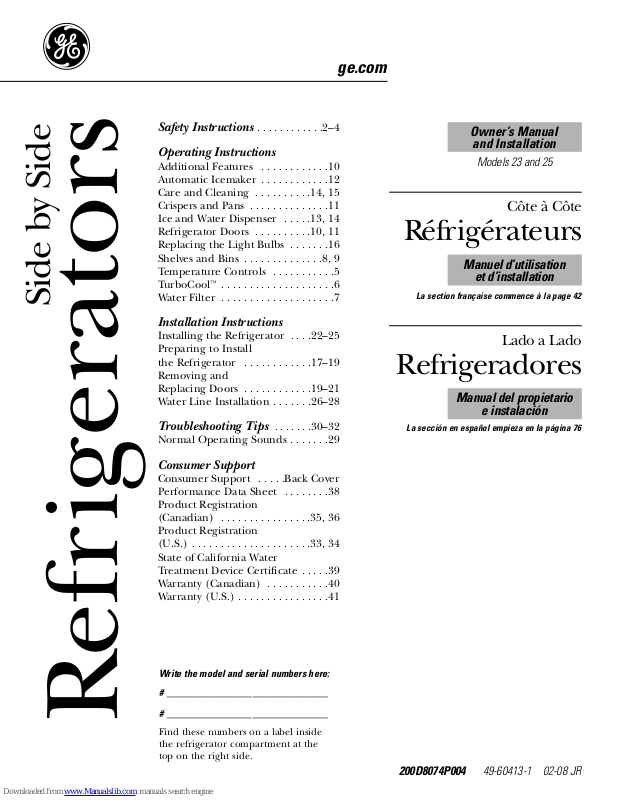

GENERAL ELECTRIC GSS25QGTWW, GSS23QSWSS, GSS23QGTCC, GSS23QGTWW, GSS23QGTBB User Manual
ge.com
Refrigerators
Side by Side
200D8074P004 49-60413-1 02-08 JR
La section française commence à la page 42
La sección en español empieza en la página 76
Safety Instructions . . . . . . . . . . . .2–4
Operating Instructions
Additional Features . . . . . . . . . . . .10
Automatic Icemaker . . . . . . . . . . . .12
Care and Cleaning . . . . . . . . . .14, 15
Crispers and Pans . . . . . . . . . . . . . .11
Ice and Water Dispenser . . . . .13, 14
Refrigerator Doors . . . . . . . . . .10, 11
Replacing the Light Bulbs . . . . . . .16

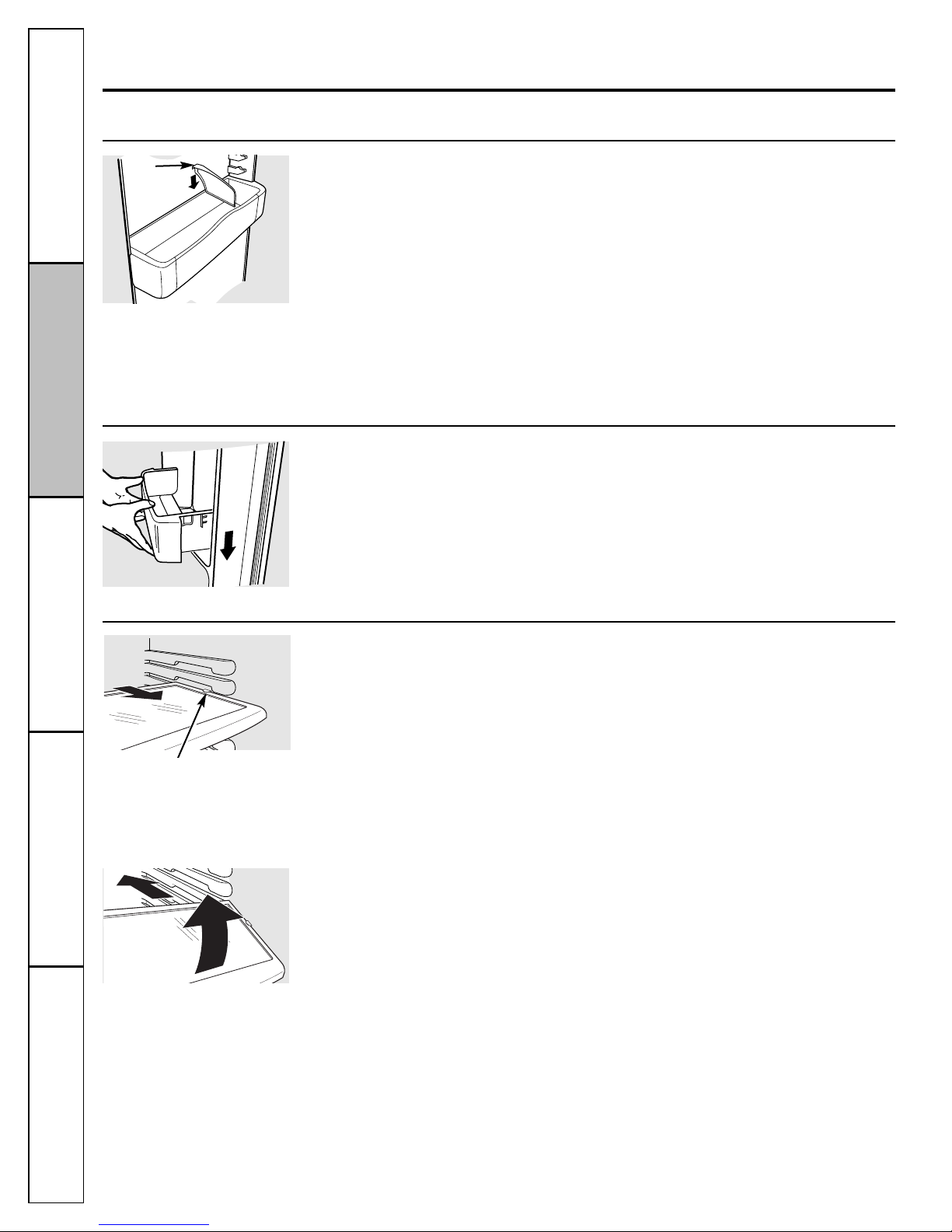

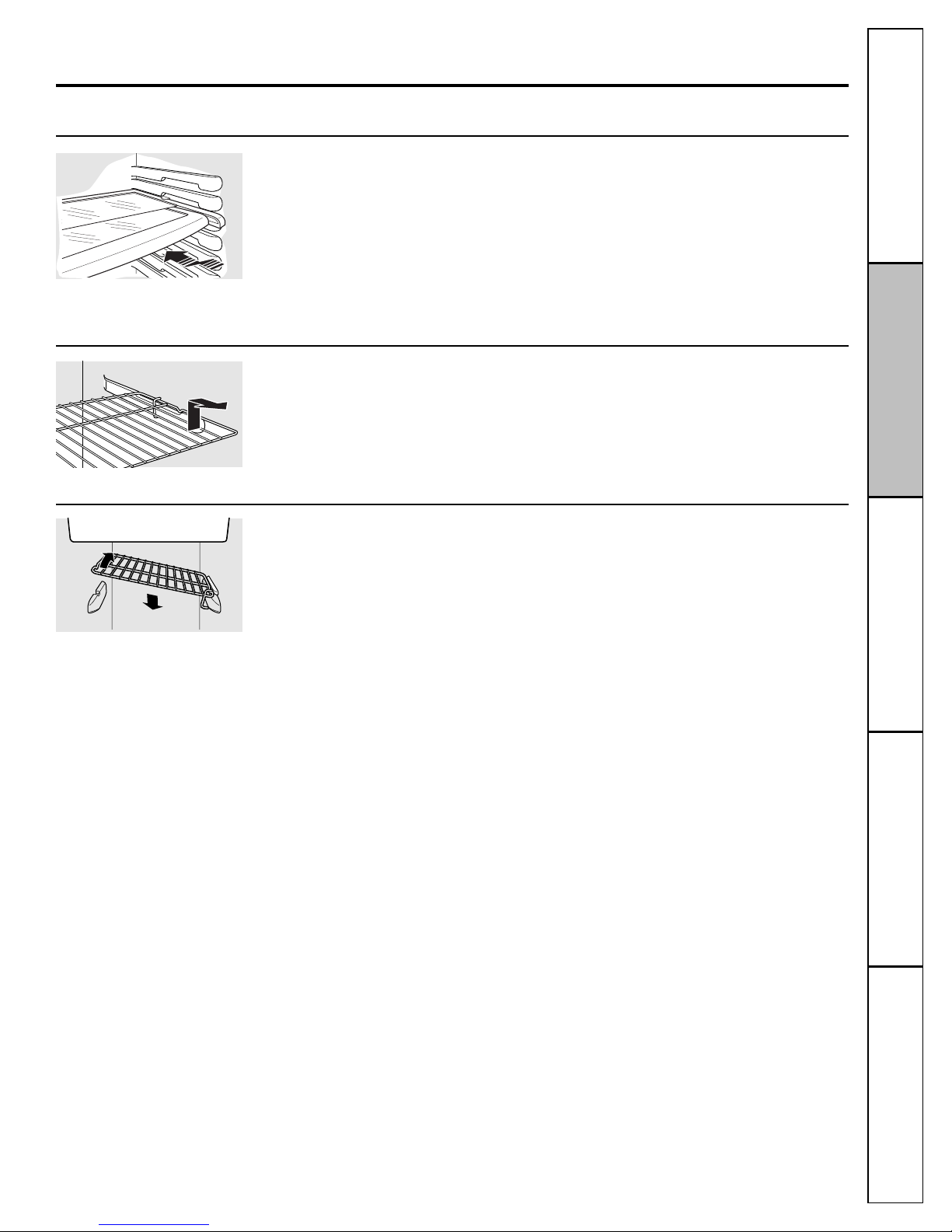

Shelves and Bins . . . . . . . . . . . . . .8, 9
Temperature Controls . . . . . . . . . . .5
TurboCool
™
. . . . . . . . . . . . . . . . . . . .6
Water Filter . . . . . . . . . . . . . . . . . . . .7
Installation Instructions
Installing the Refrigerator . . . .22–25
Preparing to Install
the Refrigerator . . . . . . . . . . . .17–19
Removing and
Replacing Doors . . . . . . . . . . . .19–21
Water Line Installation . . . . . . .26–28
Troubleshooting Tips . . . . . . .30–32
Normal Operating Sounds . . . . . . .29
Consumer Support
Consumer Support . . . . .Back Cover
Performance Data Sheet . . . . . . . .38
Product Registration

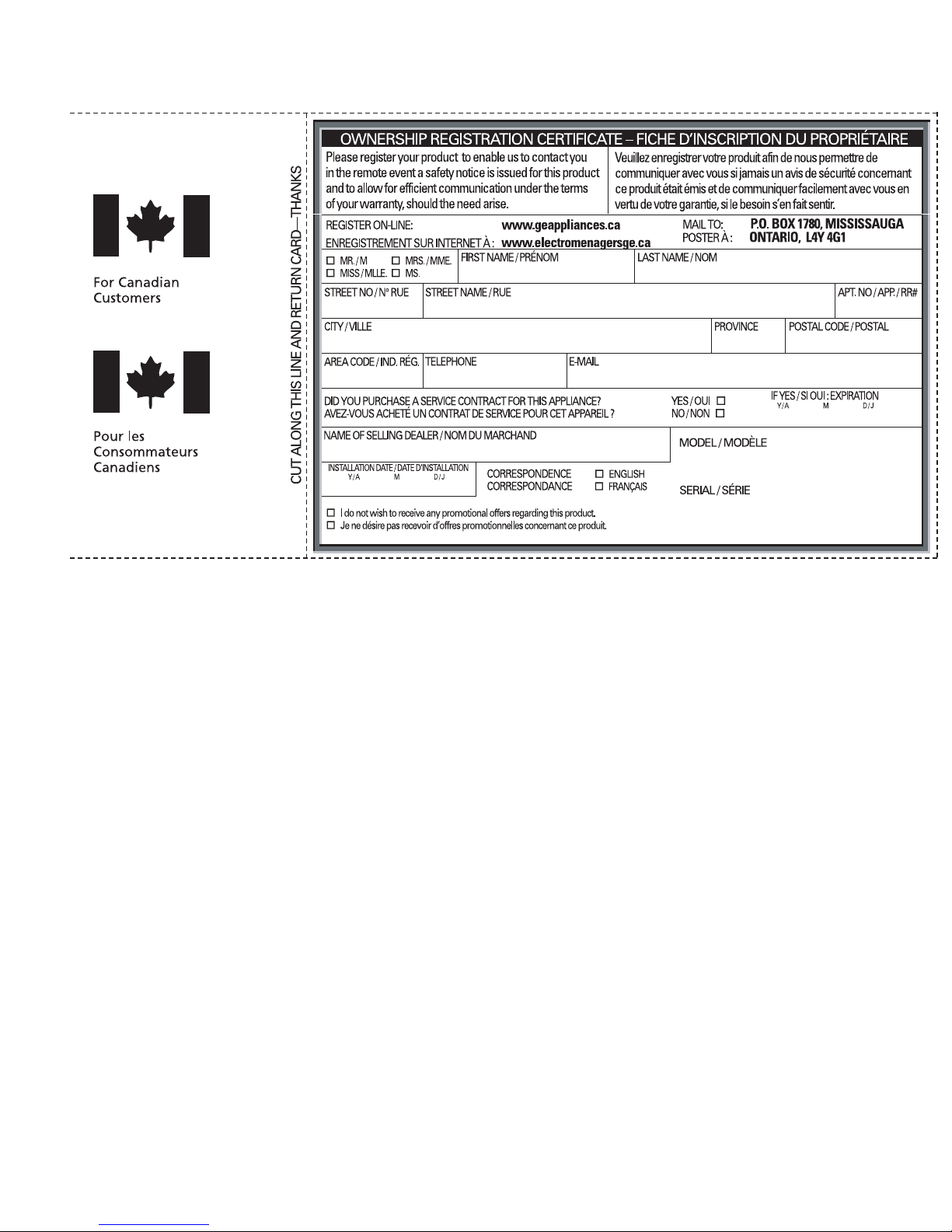

(Canadian) . . . . . . . . . . . . . . . .35, 36
Product Registration
(U.S.) . . . . . . . . . . . . . . . . . . . . .33, 34
State of California Water
Treatment Device Certificate . . . . .39
Warranty (Canadian) . . . . . . . . . . .40
Warranty (U.S.) . . . . . . . . . . . . . . . .41
Réfrigérateurs
Côte à Côte
Refrigeradores
Lado a Lado
Models 23 and 25
Write the model and serial numbers here:
# ________________________________
# ________________________________
Find these numbers on a label inside
the refrigerator compartment at the
top on the right side.
Owner’s Manual
and Installation
Manuel d’utilisation
et d’installation
Manual del propietario
e instalación
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner’s Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
■
■This refrigerator must be properly installed
and located in accordance with the Installation
Instructions before it is used.
■
■Do not allow children to climb, stand or hang
on the shelves in the refrigerator. They could
damage the refrigerator and seriously injure
themselves.
■
■Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet.
Skin may stick to these extremely cold surfaces.
■
■Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
■
■In refrigerators with automatic icemakers,
avoid contact with the moving parts of the
ejector mechanism, or with the heating
element located on the bottom of the icemaker.
Do not place fingers or hands on the automatic
icemaking mechanism while the refrigerator
is plugged in.
■
■Keep fingers out of the “pinch point” areas;
clearances between the doors and between
the doors and cabinet are necessarily small.
Be careful closing doors when children are
in the area.
■
■Unplug the refrigerator before cleaning and
making repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
■
■Setting either or both controls to
OFF
does not
remove power to the light circuit.
■
■Do not refreeze frozen foods which have
thawed completely.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
ge.com
PROPER DISPOSAL OF THE REFRIGERATOR
Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are
still dangerous…even if they will sit for “just a few
days.” If you are getting rid of your old refrigerator,
please follow the instructions below to help prevent
accidents.
Before You Throw Away Your Old Refrigerator
or Freezer:
■Take off the doors.
■Leave the shelves in place so that children may
not easily climb inside.
CFC Disposal
Your old refrigerator may have a cooling system
that used CFCs (chlorofluorocarbons). CFCs are
believed to harm stratospheric ozone.
If you are throwing away your old refrigerator, make
sure the CFC refrigerant is removed for proper
disposal by a qualified servicer. If you intentionally
release this CFC refrigerant, you can be subject to
fines and imprisonment under provisions of
environmental legislation.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend against the use
of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United
States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding
type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
DANGER! RISK OF CHILD ENTRAPMENT
3
4
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
If the outlet is a standard 2-prong outlet, it is
your personal responsibility and obligation to
have it replaced with a properly grounded
3-prong wall outlet.
The refrigerator should always be plugged into
its own individual electrical outlet which has
a voltage rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
Never unplug your refrigerator by pulling on
the power cord. Always grip plug firmly and pull
straight out from the outlet.
Repair or replace immediately all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end.
When moving the refrigerator away from the
wall, be careful not to roll over or damage the
power cord.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
5

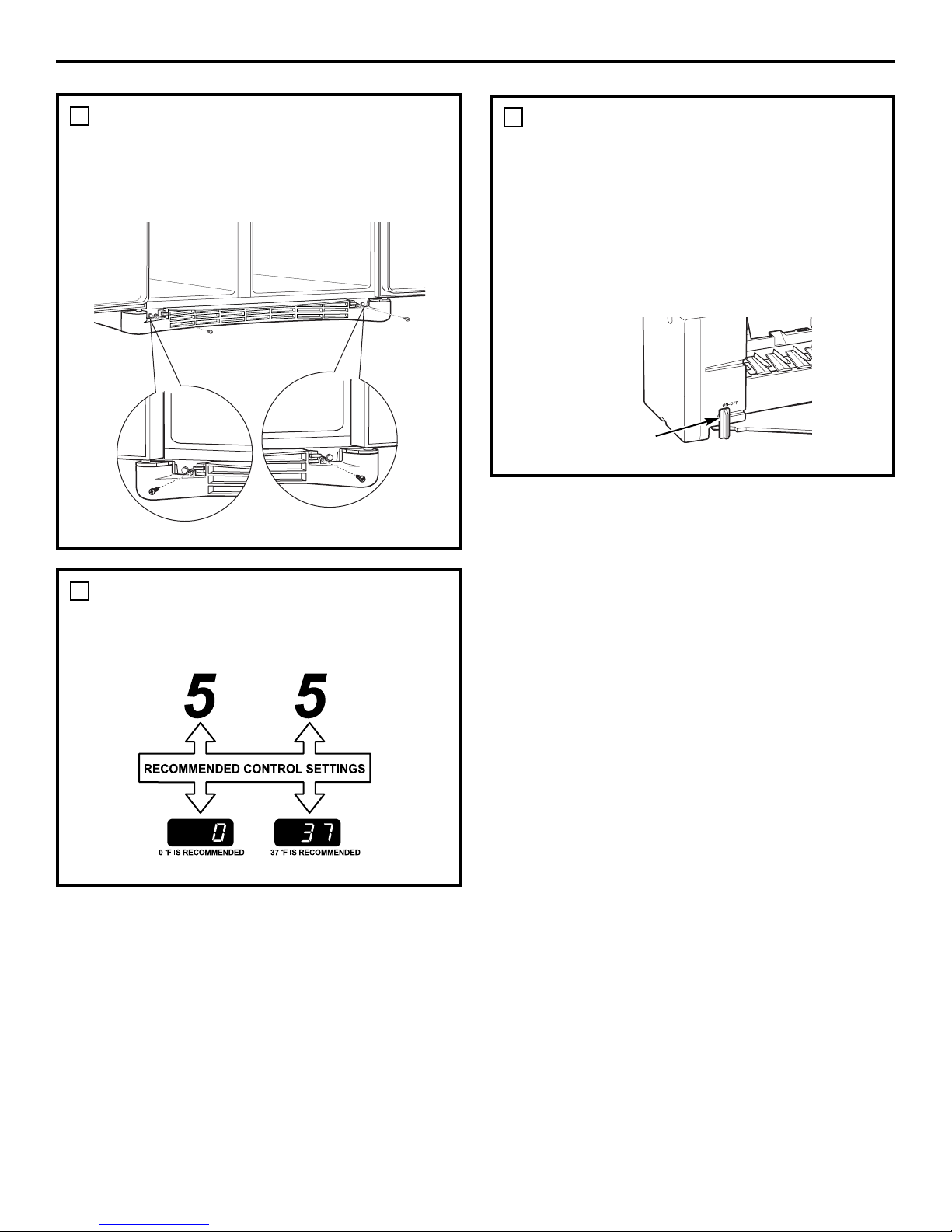

About the temperature controls.
ge.com
The temperature controls are preset in the factory at 5 for both
the refrigerator and freezer compartments. Allow 24 hours for the
temperature to stabilize to the preset recommended settings.
Several adjustments may be required. Each time you adjust
controls, allow 24 hours for the refrigerator to reach the setting
you have selected.
Setting either or both controls to 0 stops cooling in both the freezer
and refrigerator compartments, but does not shut off electrical power
to the refrigerator.
Control settings will vary based on personal preferences, usage and
operating conditions and may require more than one adjustment.
NOTE: The refrigerator is shipped with protective film covering the
temperature controls. If this film was not removed during installation,
remove it now.
The Performance Air Flow System is designed to maximize temperature control in the refrigerator and
freezer compartments. This unique special feature consists of the Air Tower along the back wall of the
refrigerator and the Air Tunnel on the bottom portion of the freezer rear wall. Placing food in front of the
louvers on these components will not affect performance. Although the Air Tower and the Air Tunnel can
be removed, doing so will affect temperature performance. (For removal instructions, on-line, contact us at
ge.com or call 800.GE.CARES. In Canada, contact us at geappliances.ca or call 1.800.561.3344.)
Performance Air Flow System
ADJUST FREEZER TEMP
WARMERCOLDER
9 IS COLDEST
ADJUST REFRIGERATOR TEMP
WARMERCOLDER
9 IS COLDEST
6
About TurboCool.
™
(on some models)
How it Works
TurboCool
rapidly cools the refrigerator
compartment in order to more quickly
cool foods. Use
TurboCool
when adding a
large amount of food to the refrigerator
compartment, putting away foods after they
have been sitting out at room temperature
or when putting away warm leftovers. It can
also be used if the refrigerator has been
without power for an extended period.
Once activated, the compressor will turn on
immediately and the fans will cycle on and
off at high speed as needed for eight hours.
The compressor will continue to run until
the refrigerator compartment cools to
approximately 34°F (1°C), then it will cycle
on and off to maintain this setting. After 8
hours, or if
TurboCool
is pressed again, the
refrigerator compartment will return to
the original setting.
How to Use
Press
TurboCool
. The refrigerator
temperature display will show 9(the coldest
setting).
After
TurboCool
is complete, the
refrigerator compartment will return
to the original setting.
NOTES:
The refrigerator temperature
cannot be changed during
TurboCool
.
The freezer temperature is not
affected during
TurboCool
.
When opening the refrigerator
door during
TurboCool
, the fans
will continue to run if they have
cycled on.
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
7

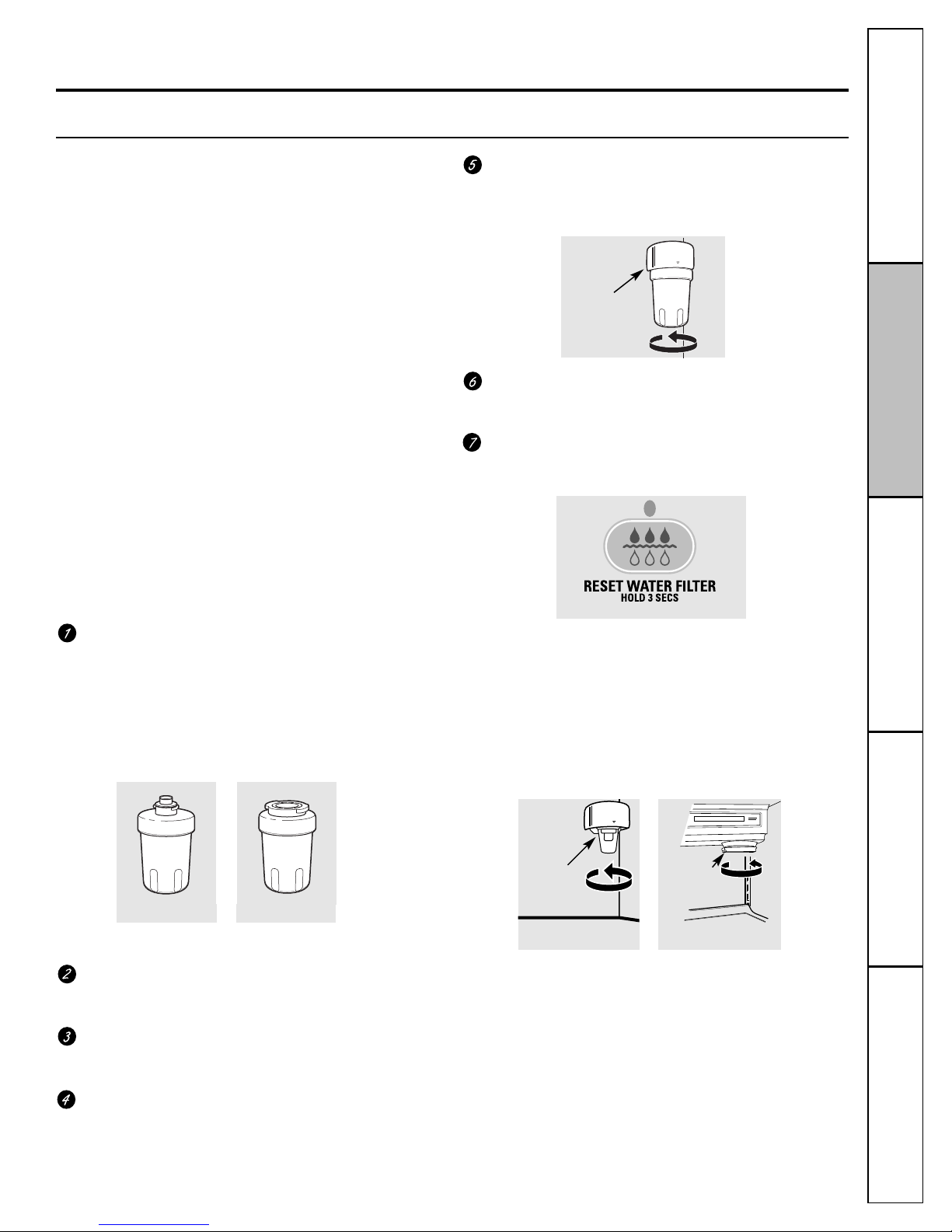

About the water filter. (on some models)
ge.com
On some models
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
Water Filter Cartridge
The water filter cartridge is located in the back upper right
corner of the refrigerator compartment.
When to Replace the Filter on Models With a
Replacement Indicator Light
There is a replacement indicator light for the water filter
cartridge on the dispenser. This light will turn orange to tell
you that you need to replace the filter soon.
The filter cartridge should be replaced when the
replacement indicator light turns red or if the flow of water
to the dispenser or icemaker decreases.
When to Replace the Filter on Models Without a
Replacement Indicator Light
The filter cartridge should be replaced every
six months
or earlier if the flow of water to the water dispenser or
icemaker decreases.
Removing the Filter Cartridge
If you are replacing the cartridge, first remove the old one
by slowly turning it to the left.
Do not
pull down on the
cartridge. A small amount of water may drip down.
Installing the Filter Cartridge
If you are replacing a
SmartWater
cartridge with an
adapter, the adapter must be removed before installing
the cartridge. To remove the adapter, turn it to the left
about 1/4 turn.
If you are replacing a
Water by Culligan
cartridge,
leave the adapter in place. This adapter will stay in the
refrigerator when you replace future cartridges.
On models without a replacement indicator light,
apply the month and year sticker to the new cartridge
to remind you to replace the filter in
six months.
Fill the replacement cartridge with water from the tap
to allow for better flow from the dispenser immediately
after installation.
Line up the arrow on the cartridge and the cartridge
holder. Place the top of the new cartridge up inside the
holder.
Do not
push it up into the holder.
Slowly turn it to the right until the filter cartridge stops.
DO NOT OVERTIGHTEN.
As you turn the cartridge, it will
automatically raise itself into position. The cartridge will
move about 1/2 turn.
Run water from the dispenser for 3 minutes (about
1-1/2 gallons) to clear the system and prevent
sputtering.
Press and
hold the
RESET WATER
FILTER
pad
(on some
models) on
the dispenser
for 3 seconds.
NOTE:
A newly-installed water filter cartridge may
cause
water to spurt
from the dispenser.
Filter Bypass Plug
You must use the filter bypass plug when a replacement
filter cartridge is not available. The dispenser and the
icemaker will not operate without the filter or filter
bypass plug.
To use the filter bypass plug on
Water by Culligan
models,
you must first remove the filter adapter from the cartridge
holder by turning it to the left.
If you have questions—visit our Website
at ge.com,
or call 1.800.GE.CARES (1.800.432.2737).
Replacement filters:
To order additional filter cartridges in the United States,
visit our Website at ge.com, or call GE Parts and Accessories,
(appearance may vary)
Cartridge
Holder
Filter
Bypass
Plug
Filter
Bypass
Plug
SmartWater
Water by Culligan
With adapter
Without adapter
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Slide-Out Spillproof Shelf
The slide-out spillproof shelf allows you
to reach items stored behind others. The
special edges are designed to help prevent
spills from dripping to lower shelves.
To remove:
Slide the shelf out until it reaches the stop,
then press down on the tab and slide the
shelf straight out.
To replace or relocate:
Line the shelf up with the supports and
slide it into place. The shelf can be
repositioned when the door is at 90° or
more. To reposition the shelf, slide the shelf
past the stops and angle downward. Slide
shelf down to the desired position, line up
with the supports and slide into place.
Make sure you push the shelves all the way back
in before you close the door.
Press tab and pull shelf forward
to remove
8
About the shelves and bins.
Refrigerator Door Bins
The refrigerator door bins are adjustable.
To remove:
Lift the front of the bin straight
up, then lift up and out.
To replace or relocate:
Engage the back side
of the bin in the molded supports of the
door. Then push down on the front of the
bin. Bin will lock in place.
The snugger
helps prevent tipping, spilling
or sliding of small items stored on the door
shelf. Place a finger on either side of the
snugger near the rear and move it back
and forth to fit your needs.
Not all features are on all models.
Refrigerator bin
Snugger
Deep Door Shelves
Detachable shelf extenders deepen and
enclose fixed door shelves, providing
more storage room and greater storage
flexibility.
To remove:
Lift the shelf extender straight
up then pull out.
To replace:
Engage the shelf extender in the
molded supports on the door and push in.
It will lock in place.
9
ge.com
Not all features are on all models.
QuickSpace™Shelf
This shelf splits in half and slides under
itself for storage of tall items on the shelf
below.
This shelf can be removed and replaced
or relocated just like Slide-Out Spillproof
Shelves.
On some models, this shelf can not be used
in the lowest position.

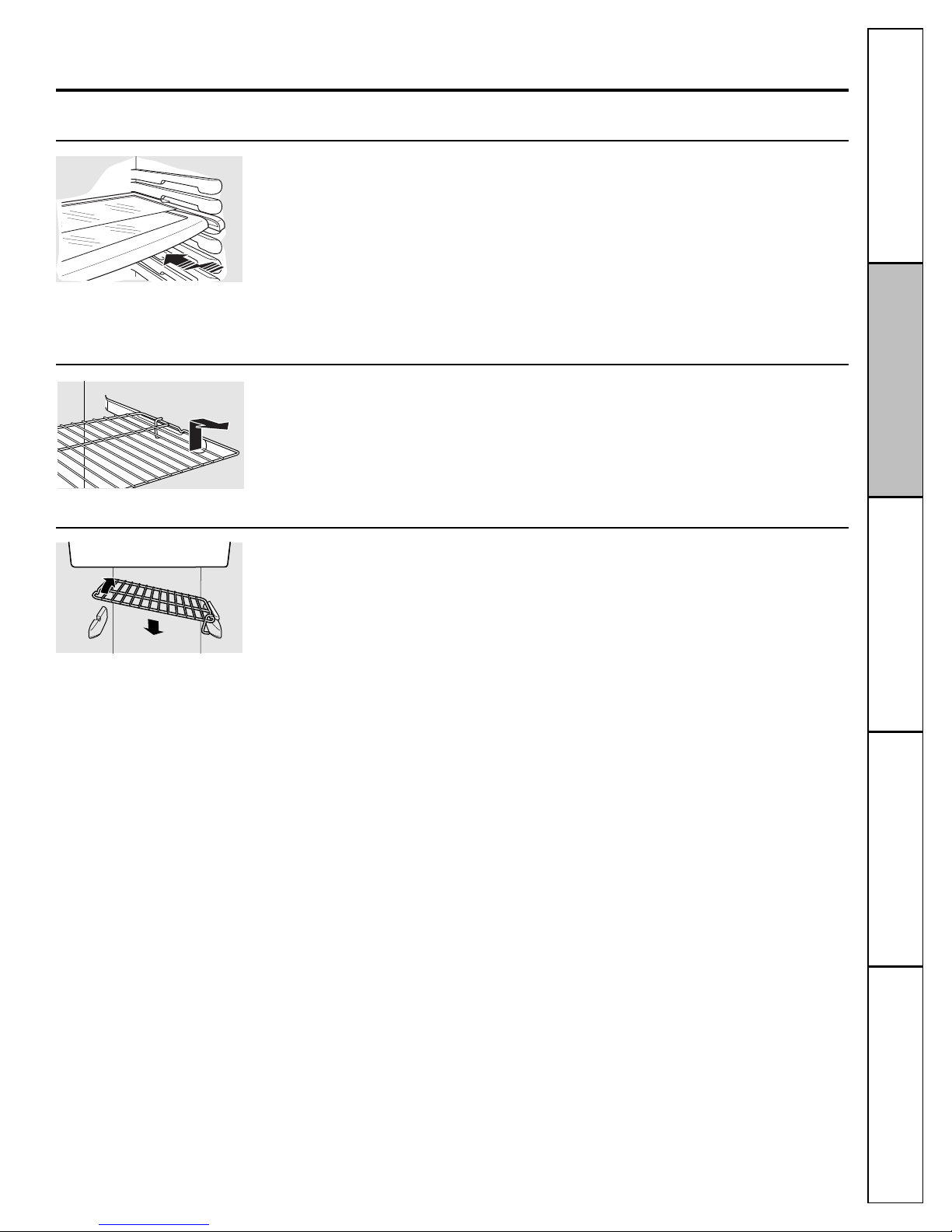

Slide-Out Freezer Shelves
To remove,
slide out to the
stop
position,
lift the front past the stop position, and
slide out.
Make sure you push the shelves all the way back
in before you close the door.
Fixed Freezer Shelves
To remove,
lift the shelf up at the left side
and then bring the shelf out.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
10
About the additional features.
Not all features are on all models.
About the refrigerator doors.
Refrigerator Doors
The refrigerator doors may feel different
than the ones you are used to. The special
door opening/closing feature makes sure
the doors close all the way and are securely
sealed.
When opening and closing the door you
will notice a
stop
position. If the door is
opened past this
stop
point, the door will
remain open to allow you to load and
unload food more easily. When the door
is only partially open, it will automatically
close.
The resistance you feel at the
stop
position will be reduced as the door
is loaded with food.
When the door is only partially open,
it will automatically close.
Beyond this stop the door will
stay open.

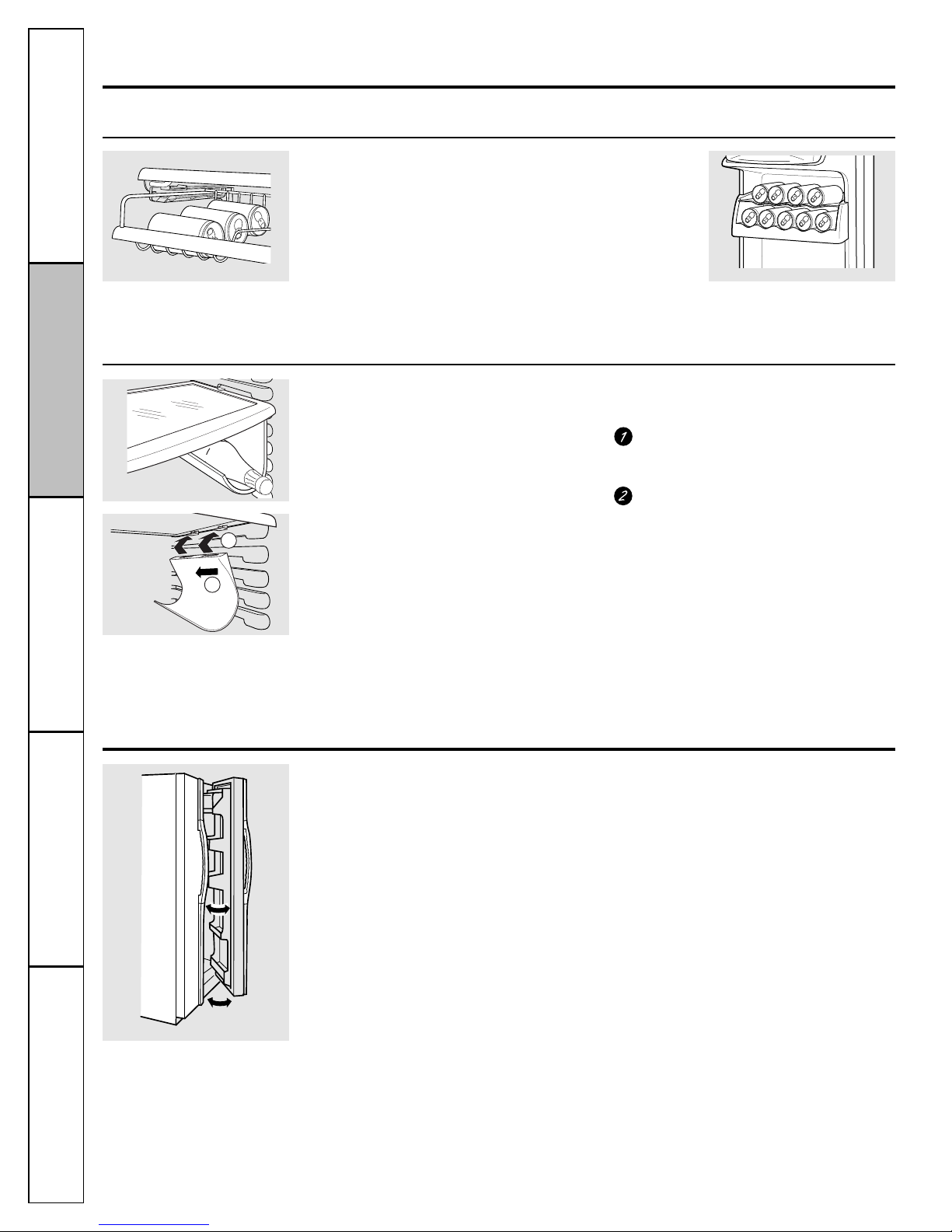

ShelfSaver™Rack
(on some models)
Use this rack to store
beverage cans for easy
access.
It can also hold a 9″ x 13″
baking dish.
This door rack holds up
to 9 cans.
NOTE: This rack can only be
mounted in the top position
under the dairy bin.
Door Can Rack
(on some models)
Removable Beverage Rack
The beverage rack is designed to hold
a bottle on its side. It can be attached
to any slide-out shelf.
To install:
Line up the large part of the slots on
the top of the rack with the tabs under
the shelf.
Then slide the rack back to lock it
in place.
1
2
About crisper removal.
Not all features are on all models.

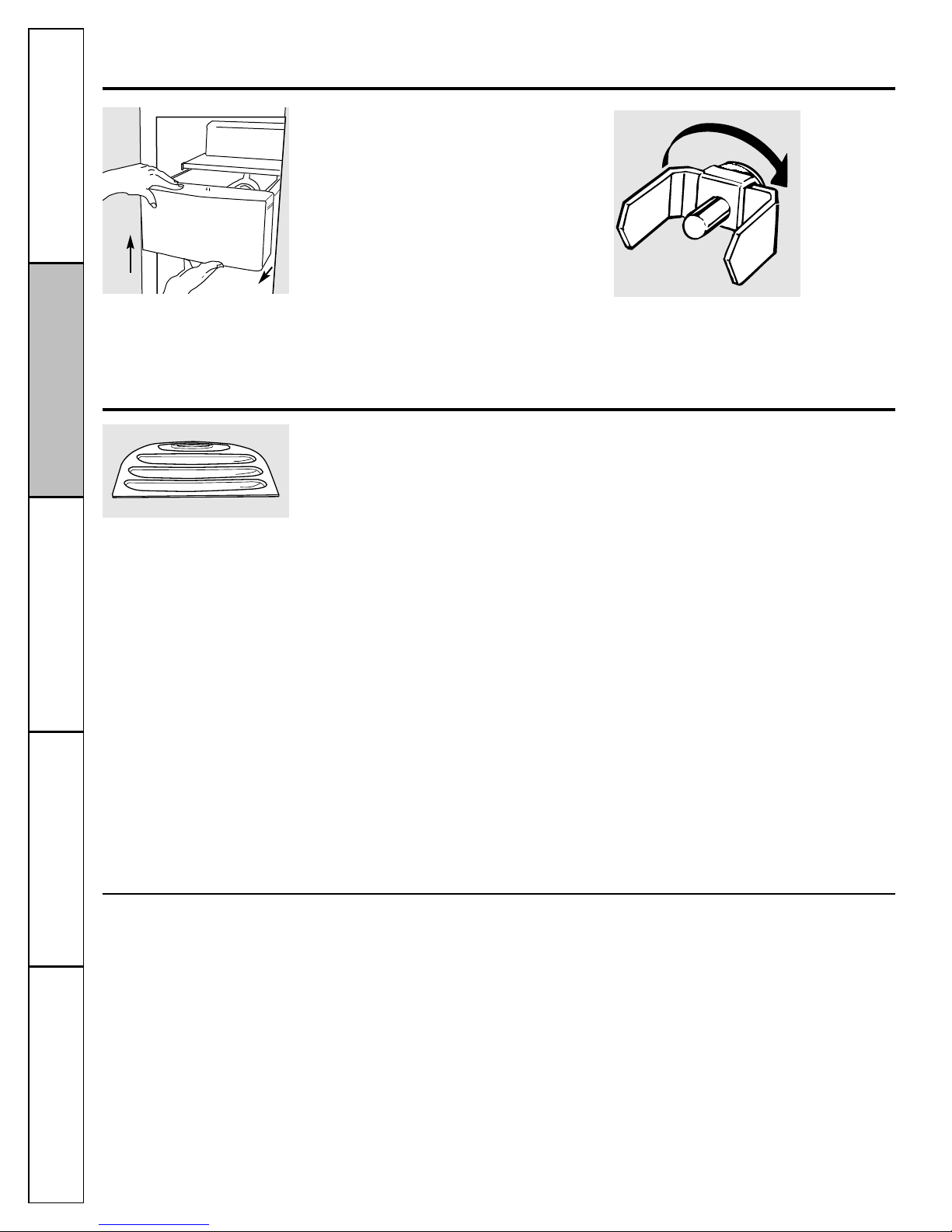

Crisper Removal
Crispers can easily be removed by pulling
the drawer straight out and lifting the
drawer up and over the
stop
location.
If the door prevents you from taking out
the drawers, first try to remove the door
bins. If this does not offer enough
clearance, the refrigerator will need to
be rolled forward until the door opens
enough to slide the drawers out. In some
cases, when you roll the refrigerator out,
you will need to move the refrigerator
to the left or right as you roll it out.
11
About the crispers and pans.
Not all features are on all models.
ge.com
Adjustable Humidity Crispers
Slide the control all the way to the
HI
setting to provide high humidity
recommended for most vegetables.
Slide the control all the way to the
LO
setting to provide lower humidity
levels recommended for most fruits.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
Door Alignment
If doors are uneven, adjust the refrigerator
door.
Using a 7/16″ wrench, turn the door
adjusting screw to the right to raise the
door, to the left to lower it.
(A nylon plug, imbedded in the
threads of the pin, prevents the pin
from turning unless a wrench is used.)
After one or two turns of the wrench,
open and close the refrigerator door
and check the alignment at the top
of the doors.
7/16″Wrench
Fruit and Vegetable Crispers
Excess water that may accumulate in the
bottom of the drawers should be wiped dry.
Humidity
High
Low
Humidity
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions

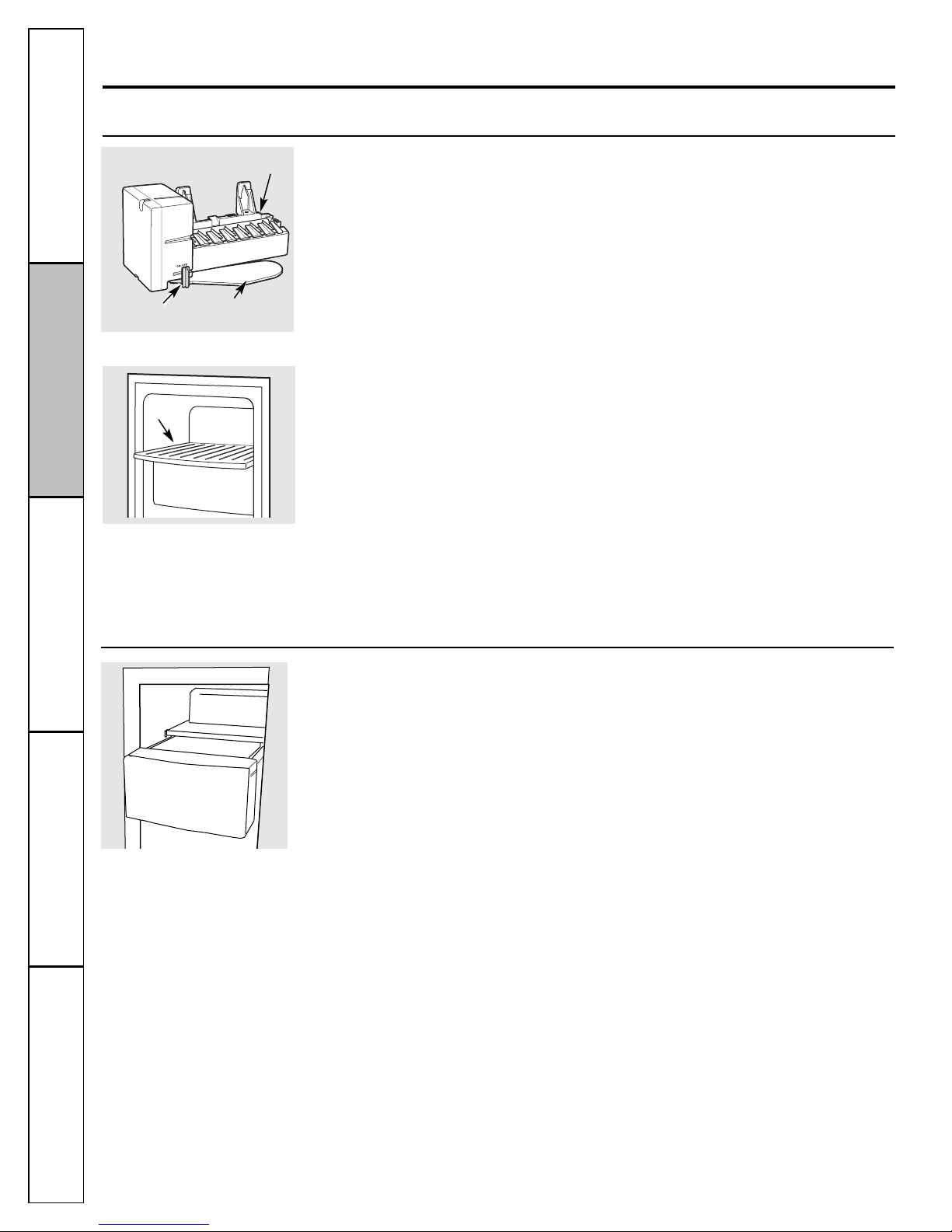

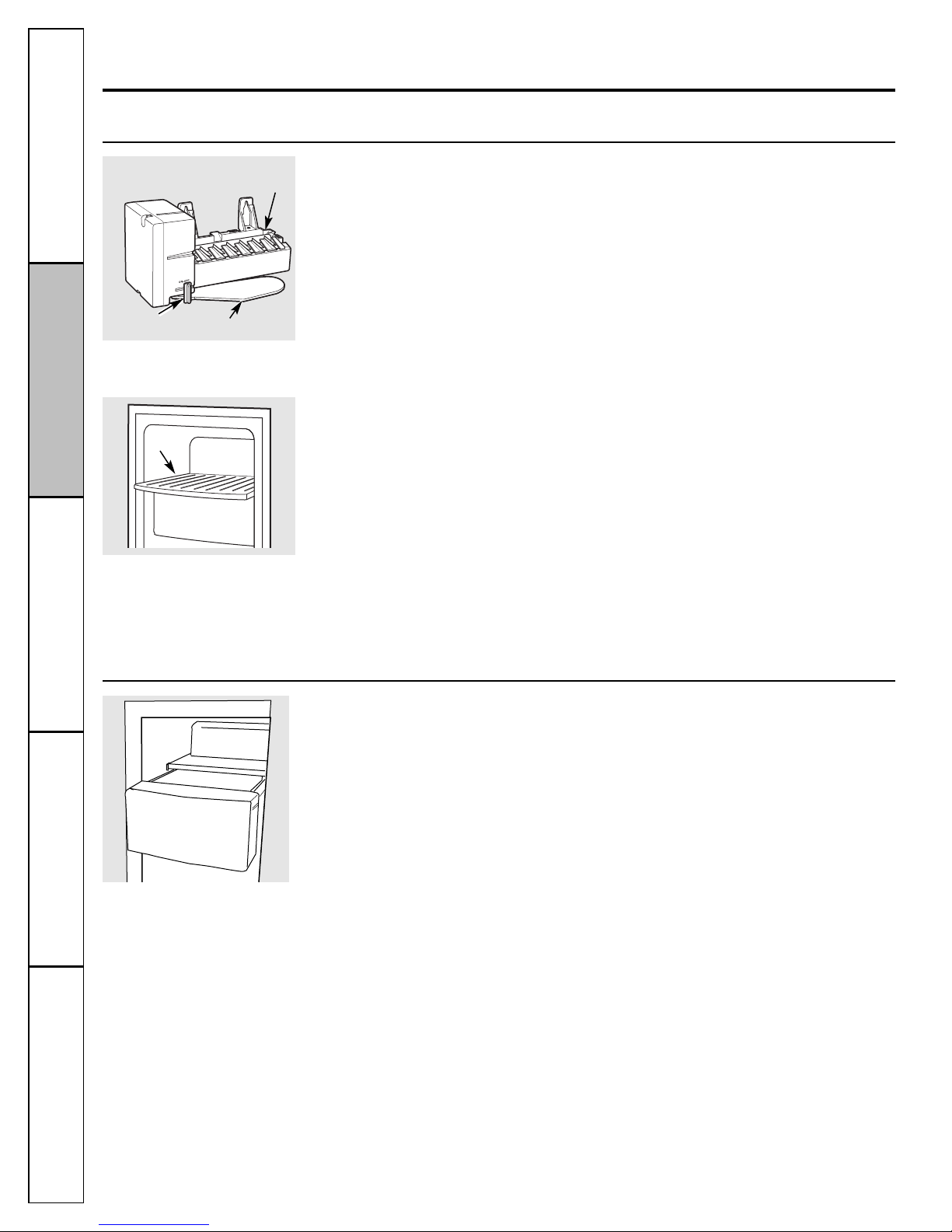

Automatic Icemaker
The icemaker will produce seven cubes
per cycle—approximately 100–130 cubes
in a 24-hour period, depending on freezer
compartment temperature, room
temperature, number of door openings
and other use conditions.
If the refrigerator is operated before the
water connection is made to the icemaker,
set the power switch in the
OFF
position.
When the refrigerator has been connected
to the water supply, set the power switch to
the ONposition.
The icemaker will fill with water when it
cools to 15°F (–10°C). A newly-installed
refrigerator may take 12 to 24 hours to
begin making ice cubes.
Throw away the first few batches of ice
to allow the water line to clear.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler
arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequently, old ice cubes
will become cloudy, taste stale and shrink.
About the automatic icemaker.
A newly-installed refrigerator may take 12 to 24 hours to begin making ice.
Ice Storage Drawer
To access ice,
pull the drawer forward.
To remove the drawer,
pull it straight out and
lift it past the
stop
location.
12
Pull the upper freezer shelf straight
out to access the icemaker. Always
be sure to replace the shelf. The
shelf can be used for storage.
Ice Drawer
Shelf
Ice Drawer
Icemaker
Feeler Arm
Power
Switch

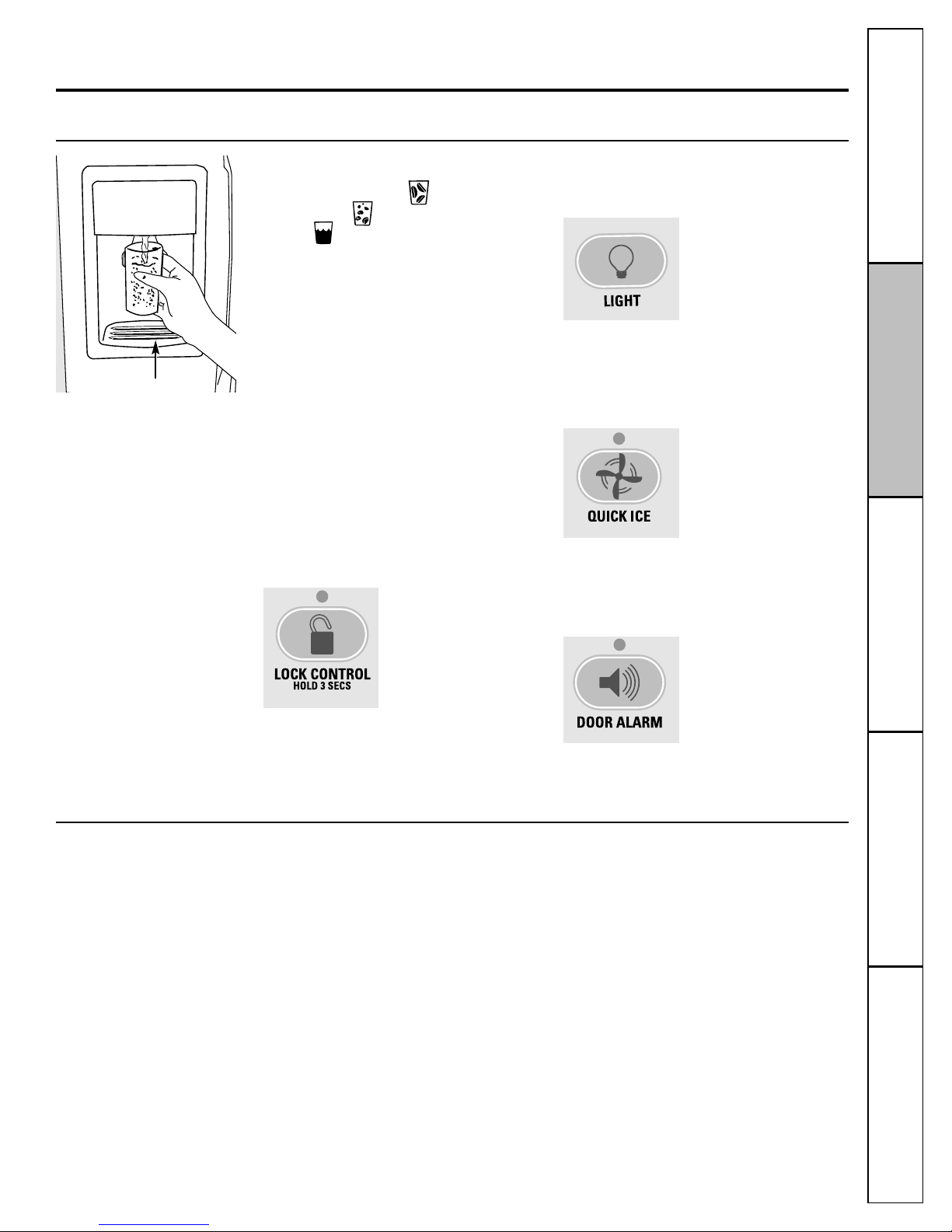

About the ice and water dispenser. (on some models)
ge.com
On some models
To Use the Dispenser
Select
CUBED ICE , CRUSHED ICE
or
WATER .
Press the glass gently against the top of the
dispenser cradle.
The spill shelf is not self-draining. To
reduce water spotting, the shelf and its
grille should be cleaned regularly.
If no water is dispensed when the refrigerator is
first installed, there may be air in the water line
system. Press the dispenser arm for at least two
minutes to remove trapped air from the water
line and to fill the water system. To flush out
impurities in the water line, throw away the first
six glassfuls of water.
CAUTION: Never put fingers or any other
objects into the ice crusher discharge opening.
Locking the Dispenser
Press the
LOCK CONTROL
pad for 3 seconds to
lock the dispenser and
control panel. To
unlock, press and
hold the pad again
for 3 seconds.
Dispenser Light
This pad turns the
night
light
in the dispenser on
and off. The light also
comes on when the
dispenser cradle is
pressed. If this light
burns out, it should be
replaced with a 6 watt
12 V maximum bulb.
Quick Ice
When you need ice
in a hurry, press this
pad to speed up ice
production. This will
increase ice production
for the following
48 hours or until you
press the pad again.
Door Alarm
To set the alarm, press
this pad until the
indicator light comes
on. This alarm will
sound if either door is
open for more than
3 minutes. The light
goes out and the
beeping stops when
you close the door.
Spill Shelf
Important Facts About Your Dispenser
■Do not add ice from trays or bags to
the storage drawer. It may not crush or
dispense well.
■Avoid overfilling glass with ice and use
of narrow glasses. Backed-up ice can jam
the chute or cause the door in the chute
to freeze shut. If ice is blocking the
chute, poke it through with a wooden
spoon.
■Beverages and foods should not be
quick-chilled in the ice storage drawer.
Cans, bottles or food packages in the
storage drawer may cause the icemaker
or auger to jam.
■To keep dispensed ice from missing
the glass, put the glass close to, but not
touching, the dispenser opening.
■Some crushed ice may be dispensed even
though you selected
CUBED ICE.
This
happens occasionally when a few cubes
accidentally get directed to the crusher.
■After crushed ice is dispensed, some
water may drip from the chute.
■Sometimes a small mound of snow will
form on the door in the ice chute. This
condition is normal and usually occurs
when you have dispensed crushed ice
repeatedly. The snow will eventually
evaporate.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
13
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Care and cleaning of the refrigerator.
Cleaning the Outside
The dispenser drip area,
(on some models)
beneath the grille, should be wiped dry. Water
left in this area may leave deposits. Remove
the deposits by adding undiluted vinegar to
the well. Soak until the deposits disappear
or become loose enough to rinse away.
The dispenser cradle
(on some models).
Before cleaning, lock the dispenser by
pressing and holding the
LOCK CONTROL
pad for 3 seconds. Clean with warm
water and baking soda solution—about
a tablespoon (15 ml) of baking soda to
a quart (1 liter) of water. Rinse thoroughly
and wipe dry.
The door handles and trim.
Clean with
a cloth dampened with soapy water.
Dry with a soft cloth.
The stainless steel panels and door handles
(on some models) can be cleaned with a
commercially available stainless steel
cleaner such as Stainless Steel Magic.
™
Stainless Steel Magic is available at Ace, True
Value, Servistar, HWI and other leading
stores. It is also available through GE Parts
and Accessories, 800.626.2002. Order part
number WX10X15.
Do not use appliance wax or polish on the
stainless steel.
Keep the outside clean.
Wipe with a clean
cloth lightly dampened with kitchen
appliance wax or mild liquid dish detergent.
Dry and polish with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish
cloth or wet towel. These may leave a residue
that can erode the paint. Do not use scouring
pads, powdered cleaners, bleach or cleaners
containing bleach because these products can
scratch and weaken the paint finish.
Cleaning the Inside
To help prevent odors,
leave an open box
of baking soda in the fresh food and freezer
compartments.
Unplug the refrigerator before cleaning.
If this
is not practical, wring excess moisture out
of sponge or cloth when cleaning around
switches, lights or controls.
Use warm water and baking soda solution—
about a tablespoon (15 ml) of baking soda
to a quart (1 liter) of water. This both cleans
and neutralizes odors. Rinse and wipe dry.
Use of any cleaning solution other than that
which is recommended, especially those that
contain petroleum distillates, can crack or
damage the interior of the refrigerator.
Avoid cleaning cold glass shelves with hot water
because the extreme temperature difference
may cause them to break. Handle glass shelves
carefully. Bumping tempered glass can cause
it to shatter.
Do not wash any plastic refrigerator parts in
the dishwasher.
Ice Storage Drawer
on Dispenser Models
To remove:
Set the icemaker power switch to the
OFF
position. Pull the drawer straight out
and then lift past the
stop
position.
To replace:
When replacing the drawer, be sure to
press it firmly into place. If it does not go
all the way back, remove it and rotate the
drive mechanism 1/4 turn. Then push
the drawer back again.
Rotate
Drive
Mechanism
Dispenser drip area.
14
About the ice and water dispenser.
For long vacations or absences, remove
food and unplug the refrigerator. Clean
the interior with a baking soda solution
of one tablespoon (15 ml) of baking soda
to one quart (1 liter) of water. Leave the
doors open.
Set the icemaker power switch to the
OFF
position and shut off the water supply
to the refrigerator.
If the temperature can drop below freezing,
have a qualified servicer drain the water
supply system (on some models) to prevent
serious property damage due to flooding.
15
ge.com
Behind the Refrigerator
Be careful when moving the refrigerator
away from the wall. All types of floor
coverings can be damaged, particularly
cushioned coverings and those with
embossed surfaces.
Pull the refrigerator straight out and return
it to position by pushing it straight in.
Moving the refrigerator in a side direction
may result in damage to the floor covering
or refrigerator.
When pushing the refrigerator back, make sure
you don’t roll over the power cord or icemaker
supply line (on some models).
Preparing for Vacation
Preparing to Move
Secure all loose items such as shelves and
drawers by taping them securely in place
to prevent damage.
When using a hand truck to move the
refrigerator, do not rest the front or back
of the refrigerator against the hand truck.
This could damage the refrigerator. Handle
only from the sides of the refrigerator.
Be sure the refrigerator stays in an upright
position during moving.
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions

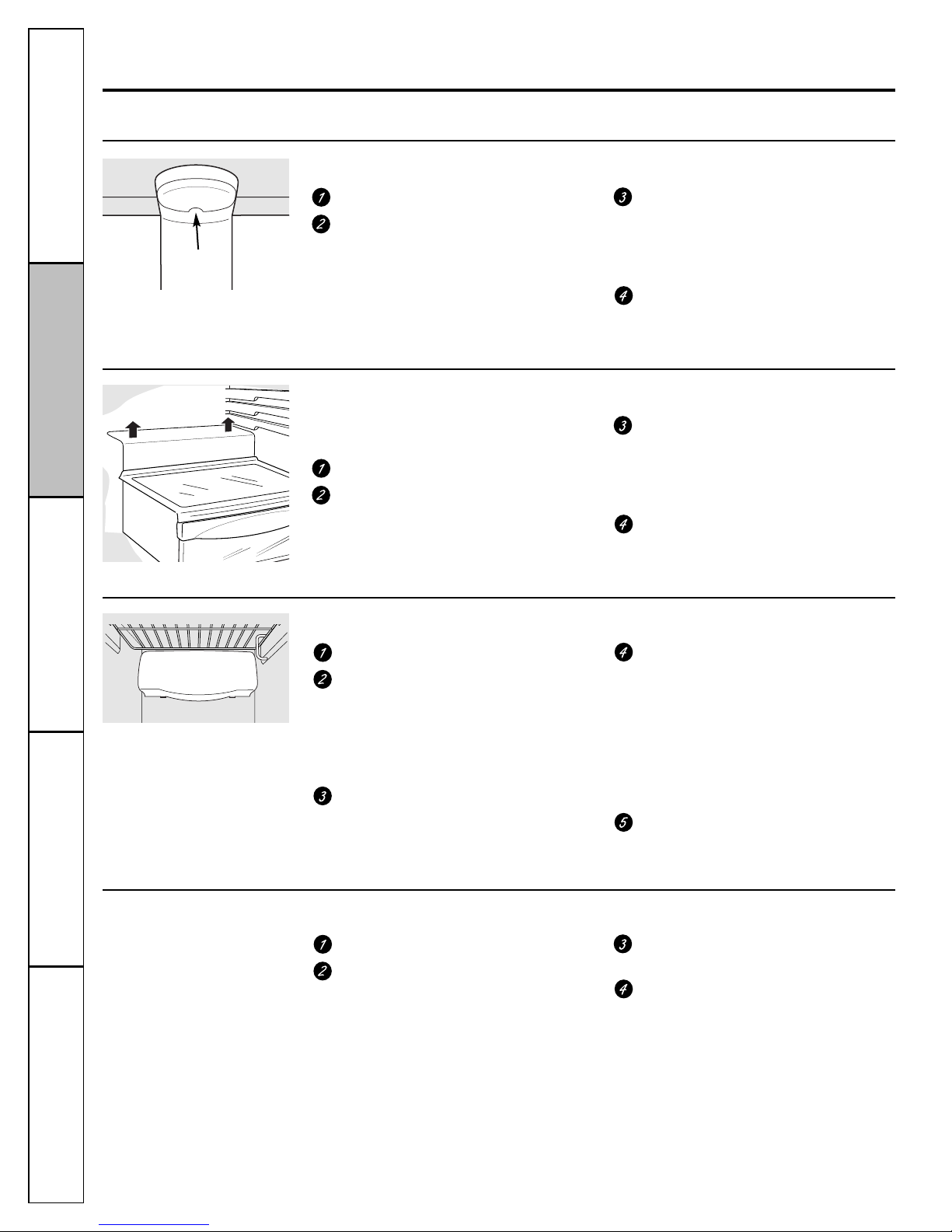

Replacing the light bulbs.
Setting either or both controls to 0 does not remove power to the light circuit.
Refrigerator Compartment—Upper Light
Unplug the refrigerator.
The bulb is located at the top of the
compartment, inside the dome light
shield. To remove the shield, place your
finger in the pocket at the back of the
shield. Pull the shield forward and down.
After replacing the bulb with an
appliance bulb of the same or lower
wattage, replace the light shield.
Plug the refrigerator back in.
Freezer Compartment
Unplug the refrigerator.
Remove the shelf just above the light
shield. (The shelf will be easier to
remove if it is emptied first.) On some
models, a screw at the top of the light
shield will need to be removed.
To remove the light shield, press in on
the sides, and lift up and out. On some
models, lift the light shield up and pull
it out.
Replace the bulb with an appliance
bulb of the same or lower wattage,
and reinstall the light shield. When
reinstalling the light shield, make
sure the top tabs snap securely
into place. Replace the screw (on
some models).
Reinstall the shelf and plug the
refrigerator back in.
16
Dispenser
Unplug the refrigerator.
The bulb is located on the
dispenser under the control panel.
Remove the light bulb by turning
it counterclockwise.
Replace the bulb with a bulb of the
same size and wattage.
Plug the refrigerator back in.
Pocket
Refrigerator Compartment—Lower Light
This light is located above the top drawer.
Unplug the refrigerator.
Lift the light shield up and pull it out.
After replacing the bulb with an
appliance bulb of the same or lower
wattage, replace the shield.
Plug the refrigerator back in.
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
•
IMPORTANT — Save these
instructions for local inspector’s use.
•
IMPORTANT — Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these
instructions for future reference.
• Skill level – Installation of this appliance
requires basic mechanical skills.
• Completion time – Refrigerator Installation
30 minutes
Water Line Installation
30 minutes
• Proper installation is the responsibility of
the installer.
• Product failure due to improper installation
is not covered under the Warranty.
If the refrigerator has already been installed,
remove the base grille (see Step 2 in
Moving
the Refrigerator
), then skip to Step 5 in
Installing the Refrigerator
.
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com
In Canada, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca
Installation
Refrigerator
Instructions
Models 23 & 25
If the refrigerator has an icemaker, it will have
to be connected to a cold water line. A GE
water supply kit (containing tubing, shutoff
valve, fittings and instructions) is available
at extra cost from your dealer, by visiting
our Website at ge.com (in Canada at
www.geappliances.ca) or from Parts and
Accessories, 800.626.2002 (in Canada
1.800.661.1616).
PREPARATION
WATER SUPPLY TO THE ICEMAKER

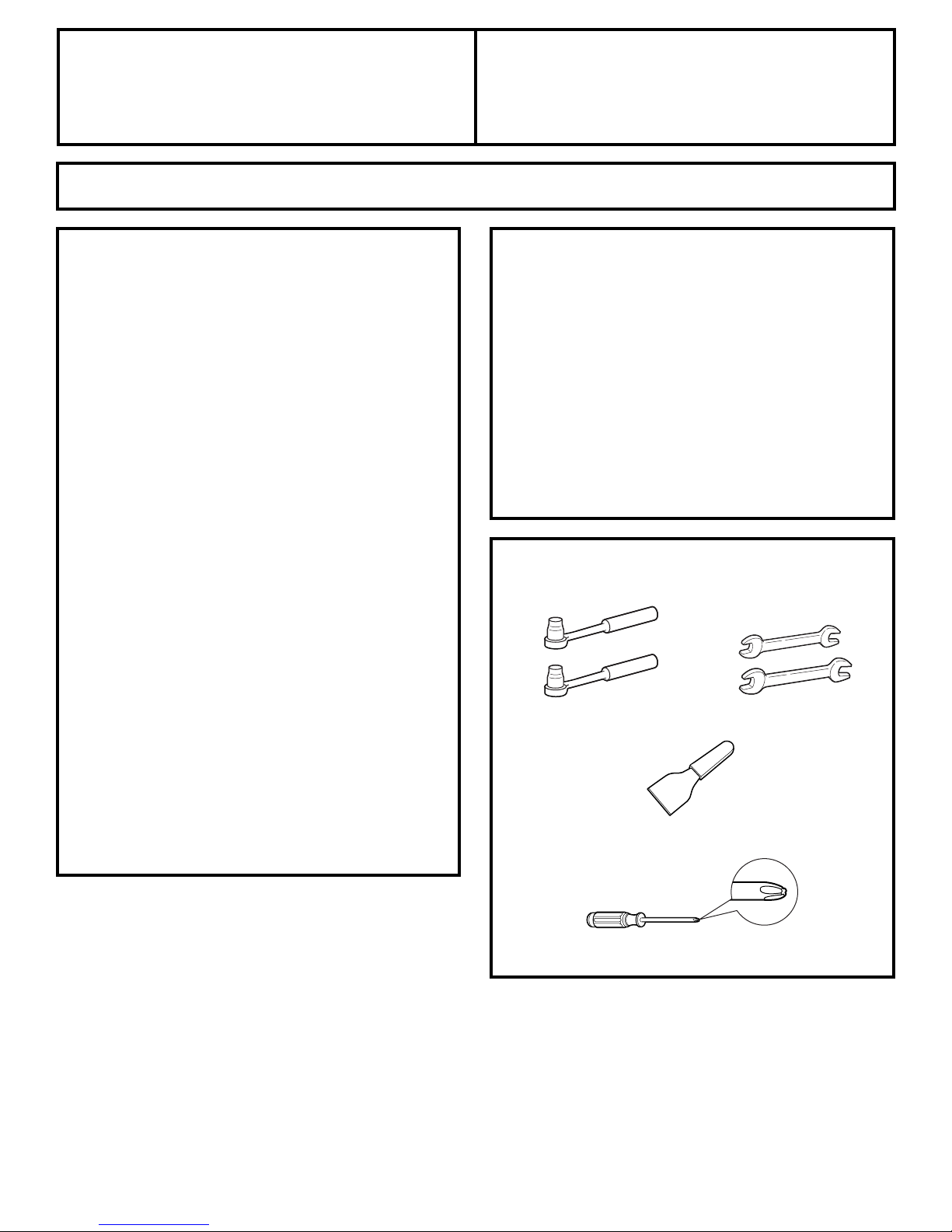

TOOLS YOU WILL NEED
17
Phillips Head Screwdriver
3/8″ and 5/16″ Socket 1/2″ and 7/16″ Wrench
Plastic Putty Knife
18
Installation Instructions
LOADING THE RERIGERATOR
ONTO A HAND TRUCK
Leave all tape and door pads on doors
until the refrigerator is in its final location.
To move the refrigerator, use a padded
hand truck. Center the refrigerator on the
hand truck and secure the strap around
the refrigerator. DO NOT OVERTIGHTEN
THE STRAP.
1
REMOVE THE BASE GRILLE
Remove the grille by removing the two
Phillips head screws.
2
If the refrigerator must go through
any entrance that is less than 38″
wide, the doors must be removed.
Proceed to Step 3.
DO NOT remove the handles.
If all entrances are more than
38″ wide, skip to
Installing
the Refrigerator
.
DISCONNECT THE WATER
COUPLING (on some models)
If the refrigerator has a water dispenser,
there is a water line from the cabinet into
the bottom hinge on the freezer door that
must be disconnected.
To disconnect, push in on the white collar
of the coupling and pull out the tubing.
3
White collar
Bottom
freezer
hinge
MOVING THE REFRIGERATOR
19
Installation Instructions
DISCONNECT THE POWER
COUPLING (on some models)
If the refrigerator has a water dispenser,
there is a power line (harness) from the
cabinet into the bottom hinge on the
freezer door that must be disconnected.
To disconnect, pull apart at the coupling.
4
Bottom
freezer
hinge
DISCONNECT THE ELECTRICAL
CONNECTORS (on some models)
If the refrigerator has a refreshment
center, there are electrical connectors
(harnesses) from the cabinet into the
bottom hinge on the refrigerator door
that must be disconnected.
To disconnect, pull apart each connector.
5
Bottom
refrigerator
hinge
CLOSE THE FREEZER AND
REFRIGERATOR DOORS
6
REMOVE THE FREEZER DOOR
Remove the freezer door top hinge cover
by either squeezing it and pulling it up or
by prying it off with a plastic putty knife.
Remove the two 5/16” hex head screws,
then lift the hinge straight up to free the
hinge pin.
Open the freezer door to 90.°
7
A
C
B
5/16” Hex Head
90°
20
Installation Instructions
MOVING THE REFRIGERATOR (CONT.)
REMOVE THE
FREEZER DOOR (cont.)
As one person slowly lifts the freezer door
up and off the bottom hinge, the second
person should carefully guide the water
line and power line (harness) through the
bottom hinge.
Set the door on a non-scratching surface
with the inside up.
7
D
E
90°
REMOVE THE
REFRIGERATOR DOOR
Remove the refrigerator door top hinge
cover by either squeezing it and pulling
it up or by prying it off with a plastic
putty knife.
8
A
REMOVE THE
REFRIGERATOR DOOR (cont.)
Remove the two 5/16” hex head screws,
then lift the hinge straight up to free the
hinge pin.
Open the refrigerator door to 90.°
8
B
C
5/16” Hex Head
90°
21
Installation Instructions
REMOVE THE
REFRIGERATOR DOOR (cont.)
Lift the refrigerator door up and off the
bottom hinge.
If the refrigerator has a refreshment
center, one person should slowly lift the
door up and off the bottom hinge and the
second person should carefully guide the
electrical lines (harnesses) through the
bottom hinge.
Set the door on a non-scratching surface
with the inside up.
8
D
E
90°
REPLACING THE DOORS
To replace the doors, simply reverse
steps 3 through 8.
However, please note the following:
• When lowering the doors onto the
bottom hinges, make sure the second
person carefully guides the tube and
harnesses through the holes in the
hinges.
• When connecting the water line, make
sure you insert the tubing all the way
to the mark.
• Do not pinch the tubing and harnesses
when placing the doors on the bottom
hinges.
• When connecting the power line and
the electrical lines (refreshment center
models only), be sure that the
connectors are seated together fully.
9
Mark
Refreshment Center Models only
22
Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
• Do not install the refrigerator where the
temperature will go below 60°F (16°C)
because it will not run often enough to
maintain proper temperatures.
• Do not install the refrigerator where the
temperature will go above 100°F (37°C)
because it will not perform properly.
• Install it on a floor strong enough to
support it fully loaded.
CLEARANCES
Allow the following clearances for ease
of installation, proper air circulation and
plumbing and electrical connections:
23′ and 25′
Sides 1/8″ (4 mm)
Top 1″ (25 mm)
Back 1″ (25 mm)
23
Installation Instructions
CONNECTING THE REFRIGERATOR
TO THE HOUSE WATER LINE
(icemaker and dispenser models)
A cold water supply is required for
automatic icemaker and dispenser
operation. If there is not a cold water
supply, you will need to provide one.
See “Installing the Water Line” section.
NOTES:
• Before making the connection to the
refrigerator, be sure the refrigerator
power cord is not plugged into the wall
outlet.
• If your refrigerator does not have a
water filter, we recommend installing
one if your water supply has sand or
particles that could clog the screen of
the refrigerator’s water valve. Install it
in the water line near the refrigerator.
If using GE SmartConnect
™
Refrigerator
Tubing Kit, you will need an additional
tube (WX08X10002) to connect the filter.
Do not cut plastic tube to install filter.
If you are using copper tubing, place a
compression nut and ferrule (sleeve) onto
the end of the tubing coming from the
house cold water supply.
If you are using the GE SmartConnect
™
tubing, the nuts are already assembled to
the tubing.
If you are using copper tubing, insert
the end of the tubing into the refrigerator
connection, at the back of the refrigerator,
as far as possible. While holding the
tubing, tighten the fitting.
If you are using GE SmartConnect
™
tubing, insert the molded end of the
tubing into the refrigerator connection,
at the back of the refrigerator, and tighten
the compression nut until it is hand tight.
Then tighten one additional turn with a
wrench. Overtightening may cause leaks.
1
A
B
Fasten the tubing into the clamp provided
to hold it in position. You may need to pry
open the clamp.
1/4″ Tubing
Tubing Clamp
1/4″
Compression Nut
Ferrule
(sleeve)
SmartConnect™Tubing
Refrigerator
Connection
C
TURN ON THE WATER SUPPLY
Turn the water on at the shutoff valve
(house water supply) and check for
any leaks.
2
PLUG IN THE REFRIGERATOR
Before plugging in the refrigerator, make
sure the icemaker power switch is set to
the OFF position.
See the grounding information attached
to the power cord.
3
Installation Instructions
INSTALLING THE REFRIGERATOR (CONT.)
PUT THE REFRIGERATOR
IN PLACE
Move the refrigerator to its final location.
4

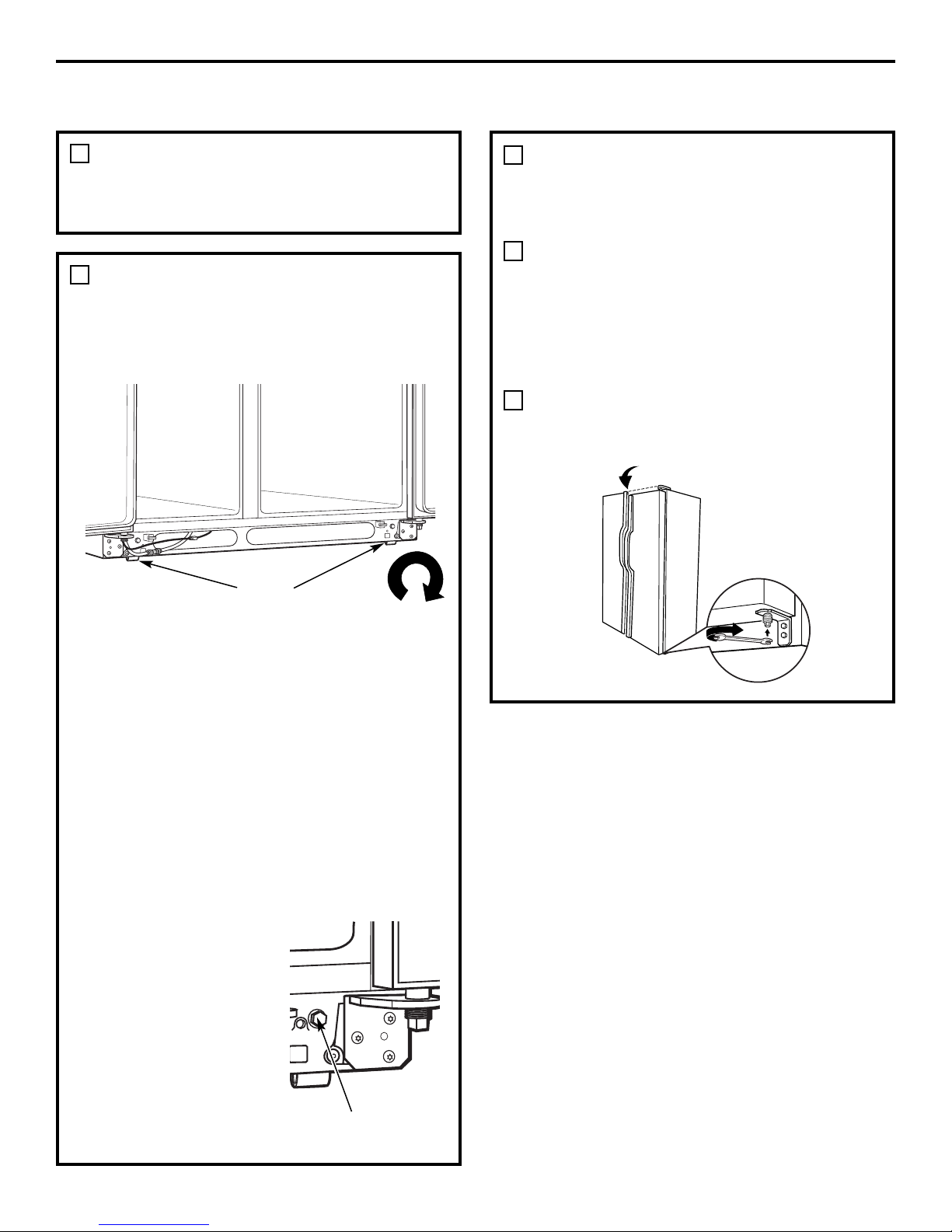

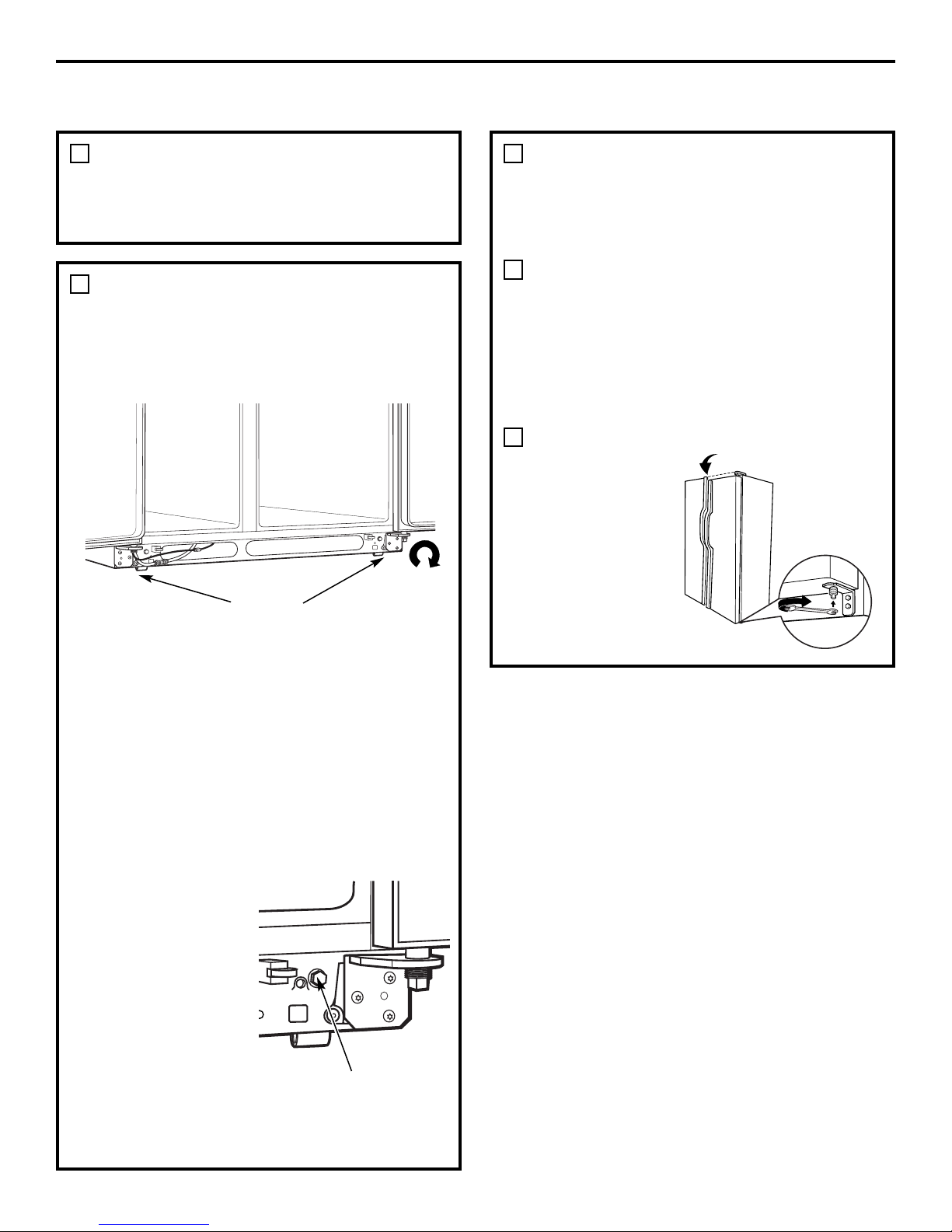

LEVEL THE REFRIGERATOR
The refrigerator can be leveled by
adjusting the rollers located near the
bottom hinges.
Rollers have three purposes:
• Rollers adjust so the door closes easily
when opened about halfway. (Raise the
front about 5/8″ [16 mm] from the floor.)
• Rollers adjust so the refrigerator is
firmly positioned on the floor and does
not wobble.
• Rollers allow you to move the
refrigerator away from the wall for
cleaning.
To adjust the rollers on 23′ and 25′ models:
• Turn the roller
adjusting screws
clockwise to
raise the
refrigerator,
counterclockwise
to lower it. Use a
3/8″ hex socket
or wrench, or an
adjustable
wrench.
5
Rollers
Roller adjusting screw
LEVEL THE DOORS
Adjust the refrigerator door to make the
doors even at the top.
To align:
Using a 7/16″ wrench, turn the door
adjusting screw to the right to raise the
door, to the left to lower it.
NOTE:
A nylon plug, imbedded in the threads
of the pin, prevents the pin from turning
unless a wrench is used.
After one or two turns of the wrench,
open and close the refrigerator door and
check the alignment at the top of the doors.
6
A
B
Doors should be even at top
Raise
7/16″ wrench
24
Raise
25
Installation Instructions
REPLACE THE BASE GRILLE
Replace the grille by installing the two
Phillips head screws.
7
SET THE CONTROLS
Set the controls to the recommended
setting.
8
START THE ICEMAKER
Set the icemaker power switch to the
ON position. The icemaker will not begin
to operate until it reaches its operating
temperature of 15°F (–9°C) or below. It
will then begin operation automatically.
It will take 2–3 days to fill the ice bin.
9
Power
switch
26
INSTALLING THE WATER LINE (ICEMAKER & DISPENSER MODELS)
Recommended copper water supply kits are
WX8X2, WX8X3 or WX8X4, depending on the
amount of tubing you need. Approved plastic
water supply lines are GE SmartConnect
™
Refrigerator Tubing (WX08X10002,
WX08X10006, WX08X10015 and
WX08X10025).
When connecting your refrigerator to a GE
Reverse Osmosis Water System, the only
approved installation is with a GE RVKit. For
other reverse osmosis water systems, follow
the manufacturer’s recommendations.
If the water supply to the refrigerator is from
a Reverse Osmosis Water Filtration System
AND the refrigerator also has a water filter,
use the refrigerator’s filter bypass plug. Using
the refrigerator’s water filtration cartridge in
conjunction with the RO filter can result in
hollow ice cubes and slower water flow from
the water dispenser.
This water line installation is not warranted
by the refrigerator or icemaker manufacturer.
Follow these instructions carefully to
minimize the risk of expensive water damage.
Water hammer (water banging in the pipes)
in house plumbing can cause damage to
refrigerator parts and lead to water leakage
or flooding. Call a qualified plumber to correct
water hammer before installing the water
supply line to the refrigerator.
To prevent burns and product damage, do not
hook up the water line to the hot water line.
If you use your refrigerator before connecting
the water line, make sure the icemaker power
switch is in the OFF position.
Do not install the icemaker tubing in areas
where temperatures fall below freezing.
When using any electrical device (such as a
power drill) during installation, be sure the
device is double insulated or grounded in a
manner to prevent the hazard of electric
shock, or is battery powered.
All installations must be in accordance with
local plumbing code requirements.
BEFORE YOU BEGIN
Installation Instructions
WHAT YOU WILL NEED
• Copper or GE SmartConnect™Refrigerator
Tubing kit, 1/4″ outer diameter to connect
the refrigerator to the water supply. If using
copper, be sure both ends of the tubing are
cut square.
To determine how much tubing you need:
measure the distance from the water valve on
the back of the refrigerator to the water
supply pipe. Then add 8′ (2.4 m). Be sure
there is sufficient extra tubing (about 8′ [2.4 m]
coiled into 3 turns of about 10″ [25 cm]
diameter) to allow the refrigerator to move
out from the wall after installation.
GE SmartConnect
™
Refrigerator Tubing Kits
are available in the following lengths:
2′ (0.6 m) – WX08X10002
6′ (1.8 m) – WX08X10006
15′ (4.6 m) – WX08X10015
25′ (7.6 m) – WX08X10025
Be sure that the kit you select allows at least
8′ (2.4 m) as described above.
27
NOTE: The only GE approved plastic tubing
is that supplied in GE SmartConnect
™
Refrigerator Tubing kits. Do not use any
other plastic water supply line because the
line is under pressure at all times. Certain
types of plastic will crack or rupture with age
and cause water damage to your home.
• A GE water supply kit (containing tubing,
shutoff valve and fittings listed below) is
available at extra cost from your dealer or
from Parts and Accessories, 800.626.2002
(in Canada 1.800.661.1616).
• A cold water supply. The water pressure must
be between 20 and 120 p.s.i. (1.4–8.1 bar).
• Power drill.
• 1/2″ or adjustable wrench.
• Straight and Phillips blade screwdriver.
• Two 1/4″ outer diameter compression nuts
and 2 ferrules (sleeves)—to connect the
copper tubing to the shutoff valve and the
refrigerator water valve.
OR
• If you are using a GE SmartConnect
™
Refrigerator Tubing kit, the necessary
fittings are preassembled to the tubing.
• If your existing copper water line has a
flared fitting at the end, you will need an
adapter (available at plumbing supply
stores) to connect the water line to the
refrigerator OR you can cut off the flared
fitting with a tube cutter and then use a
compression fitting. Do not cut formed end
from GE SmartConnect
™
Refrigerator tubing.
• Shutoff valve to connect to the cold water
line. The shutoff valve should have a water
inlet with a minimum inside diameter of
5/32″ at the point of connection to the COLD
WATER LINE. Saddle-type shutoff valves are
included in many water supply kits. Before
purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
WHAT YOU WILL NEED (CONT.)
Installation Instructions
SHUT OFF THE MAIN WATER
SUPPLY
Turn on the nearest faucet long enough
to clear the line of water.
Install the shutoff valve on the nearest
frequently used drinking water line.
1
Choose a location for the valve that is
easily accessible. It is best to connect into
the side of a vertical water pipe. When it is
necessary to connect into a horizontal
water pipe, make the connection to the
top or side, rather than at the bottom,
to avoid drawing off any sediment from
the water pipe.
CHOOSE THE VALVE LOCATION
2
DRILL THE HOLE FOR THE VALVE
3
Drill a 1/4″ hole in the water pipe (even if
using a self-piercing valve), using a sharp
bit. Remove any burrs resulting from
drilling the hole in the pipe.
Take care not to allow water to drain into
the drill.
Failure to drill a 1/4″ hole may result in
reduced ice production or smaller cubes.
28
Place the compression nut and ferrule
(sleeve) for copper tubing onto the end
of the tubing and connect it to the
shutoff valve.
Make sure the tubing is fully inserted
into the valve. Tighten the compression
nut securely.
For plastic tubing from a GE
SmartConnect
™
Refrigerator Tubing kit,
insert the molded end of the tubing into
the shutoff valve and tighten compression
nut until it is hand tight, then tighten one
additional turn with a wrench.
Overtightening may cause leaks.
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered
to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with
your licensed plumber.
CONNECT THE TUBING
TO THE VALVE
7
Saddle-Type
Shutoff Valve
Compression Nut
Packing Nut
Outlet Valve
Ferrule (sleeve)
Turn the main water supply on and flush
out the tubing until the water is clear.
Shut the water off at the water valve after
about one quart (1 liter) of water has been
flushed through the tubing.
FLUSH OUT THE TUBING
8

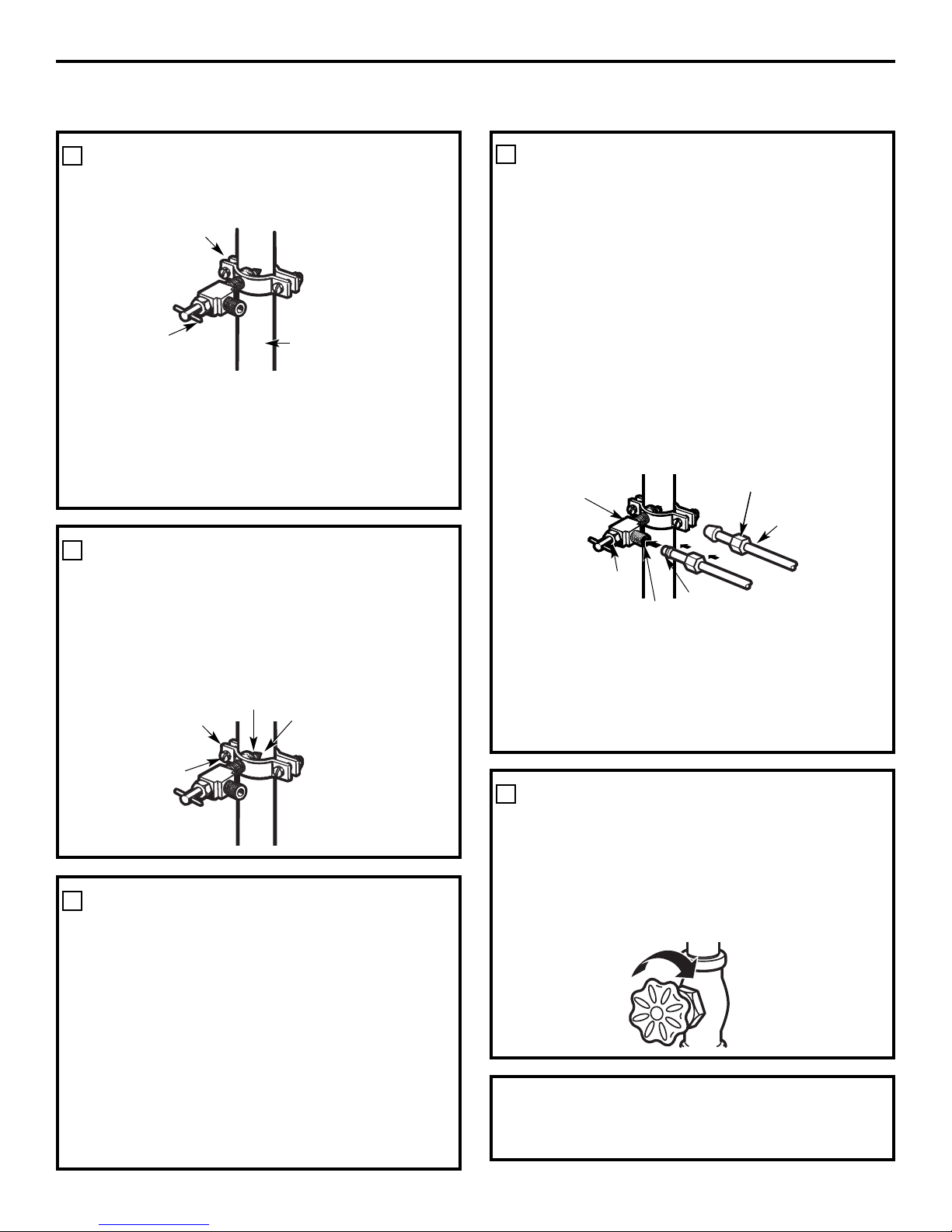

INSTALLING THE WATER LINE (CONT.)
Installation Instructions
SmartConnect
™
Tubing
Fasten the shutoff valve to the cold water
pipe with the pipe clamp.
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered
to. Saddle valves are illegal and use is not
permitted in Massachusetts. Consult with
your licensed plumber.
FASTEN THE SHUTOFF VALVE
4
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE: Do not overtighten or you may
crush the tubing.
TIGHTEN THE PIPE CLAMP
5
Pipe Clamp
Vertical Cold Water Pipe
Saddle-Type
Shutoff Valve
Washer
Inlet End
Pipe Clamp
Clamp
Screw
Route the tubing between the cold water
line and the refrigerator.
Route the tubing through a hole drilled in
the wall or floor (behind the refrigerator or
adjacent base cabinet) as close to the wall
as possible.
NOTE: Be sure there is sufficient extra
tubing (about 8
′
[2.4 m] coiled into 3 turns
of about 10″ [25 cm] diameter) to allow the
refrigerator to move out from the wall after
installation.
ROUTE THE TUBING
6
To complete the installation of the refrigerator,
go back to Step 1 in
Installing the Refrigerator
.
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
29
Normal operating sounds.
ge.com
Newer refrigerators sound different from older refrigerators.
Modern refrigerators have more features and use newer
technology.
HUMMM...
WHOOSH...
■
The new high efficiency compressor may run faster
and longer than your old refrigerator and you may
hear a high-pitched hum or pulsating sound while
it is operating.
■
Sometimes the refrigerator runs for an extended period,
especially when the doors are opened frequently. This
means that the
Frost Guard
™
feature is working to
prevent freezer burn and improve food preservation.
■
You may hear a whooshing sound when the doors close.
This is due to pressure equalizing within the refrigerator.
■
You may hear the fans spinning at high speeds.
This happens when the refrigerator is first plugged
in, when the doors are opened frequently or when
a large amount of food is added to the refrigerator
or freezer compartments. The fans are helping to
maintain the correct temperatures.
■
If either door is open for over 3 minutes, you may
hear the fans come on in order to cool the light
bulbs.
■
The fans change speeds in order to provide optimal
cooling and energy savings.
CLICKS, POPS,
CRACKS and CHIRPS
■
You may hear cracking or popping sounds when the
refrigerator is first plugged in. This happens as the
refrigerator cools to the correct temperature.
■
Electronic dampers click open and closed to provide
optimal cooling and energy savings.
■
The compressor may cause a clicking or chirping
sound when attempting to restart (this could take
up to 5 minutes).
■
The electronic control board may cause a clicking
sound when relays activate to control refrigerator
components.
■
Expansion and contraction of cooling coils during
and after defrost can cause a cracking or popping
sound.
■
On models with an icemaker, after an icemaking
cycle, you may hear the ice cubes dropping into
the ice bucket.
WATER SOUNDS
■
The flow of refrigerant through the freezer cooling
coils may make a gurgling noise like boiling water.
■
Water dropping on the defrost heater can cause a
sizzling, popping or buzzing sound during the
defrost cycle.
■
A water dripping noise may occur during the defrost
cycle as ice melts from the evaporator and flows into
the drain pan.
■
Closing the door may cause a gurgling sound due to
pressure equalization.
Do you hear what I hear? These sounds are normal.
For additional information on normal
icemaker and dispenser operating sounds,
see the About the automatic icemaker
and About the ice and water dispenser
sections.
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
Before you call for service…
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Causes What To Do
Refrigerator does not
Refrigerator in defrost cycle. •Wait about 30 minutes for defrost cycle to end.
operate
Either or both controls set to 0. •Set the controls to a temperature setting.
Refrigerator is unplugged. •Push the plug completely into the outlet.
The fuse is blown/circuit •Replace fuse or reset the breaker.
breaker is tripped.
Refrigerator is in the showroom •Unplug the refrigerator and plug it back in.
mode.
Vibration or rattling
Rollers need adjusting. •See
Rollers.
(slight vibration
is normal)
Motor operates for
Normal when refrigerator •Wait 24 hours for the refrigerator to completely
long periods or cycles
is first plugged in. cool down.
on and off frequently.
Often occurs when large •This is normal.
(Modern refrigerators
amounts of food are
with more storage
placed in refrigerator.
space and a larger
Door left open. •Check to see if package is holding door open.
freezer require more
Hot weather or frequent • This is normal.
operating time. They
door openings.
start and stop often
Temperature controls •See
About the controls.
to maintain even
set at the coldest
temperatures.)
setting.
Refrigerator or freezer
Temperature control not set •See
About the controls.
compartment too warm
cold enough.
Warm weather or frequent • Set the temperature control one step colder.
door openings. See
About the controls.
Door left open. •Check to see if package is holding door open.
Frost or ice crystals
Door left open. •Check to see if package is holding door open.
on frozen food
Too frequent or too long
(frost within package
door openings.
is normal)
Divider between
Automatic energy saver •This helps prevent condensation on the outside.
refrigerator and freezer
system circulates warm
compartments
liquid around front edge
feels warm
of freezer compartment.
Automatic icemaker
Icemaker power switch • Set the power switch to the ONposition.
does not work
is in the
OFF
position.
Water supply turned off or •See
Installing the water line.
not connected.
Freezer compartment •Wait 24 hours for the refrigerator to completely
too warm. cool down.
Piled up cubes in the storage •Level cubes by hand.
bin cause the icemaker
to shut off.
Ice cubes stuck in icemaker. •Turn off the icemaker, remove cubes and turn the
icemaker back on.
30
Loading...
