GENERAL ELECTRIC GSS20IBT, GSS25QSTSS, GSH25JSXSS, GSH25JFXBB, GSH25JFXWW User Manual

...

Réfrigérateurs

Côte à côte

Manuel d’utilisation

et d’installation

La section française commence à la page 23

Safety Information

Connect Electricity . . . . . . . . . . . . .3

Extension Cords . . . . . . . . . . . . . . .2

Proper Disposal . . . . . . . . . . . . . . . .2

Safety Precautions . . . . . . . . . . . . . .2

Operating Instructions

Automatic Icemaker . . . . . . . . . .7–8

Controls . . . . . . . . . . . . . . . . . . . . .6

Crispers and Pans . . . . . . . . . . . . . .5

How to Install Features . . . . . . . . . .4

Ice and Water Dispenser . . . . . . . .8

Shelves and Bins . . . . . . . . . . . . . . .4

Water Filter Cartridge . . . . . . . . . . .7

Care and Cleaning

Cleaning . . . . . . . . . . . . . . . . . . . . . .9

Light Bulbs . . . . . . . . . . . . . . . . . . .9

Installation Instructions

Preparing to Install . . . . . . . . . . .10

Water Line Installation . . . . . .11–13

Troubleshooting Tips

Before You Call

For Service . . . . . . . . . . . . . . . .14–16

Normal Operating Sounds . . . . . .14

Consumer Support

Consumer Support . . . .Back Cover

Performance Data Sheet . . . . . . .19

Ownership Registration

(Canadian) . . . . . . . . . . . . . . .21, 22

State of California Water

Treatment Device Certificate . . . .19

Warranty (Canadian) . . . . . . . . . .17

Warranty (U.S.) . . . . . . . . . . . . . . .18

GEAppliances.com

Refrigerators

Side by Side

197D3351P020 49-60514-2 05-09 JR

Write your model and serial numbers here:

Model # _____________________

Serial # _____________________

Find these numbers on a label inside the refrigerator compartment at the top on the right side behind the controls.

Refrigeradores

Lado a lado

Models 20, 22, 25

Owner’s Manual and

Installation Instructions

Manual del propietario

e instalación

La sección en español empieza en la página 42

Refrigerators

Side by Side

Mesures de sécurité

Comment vous débarrasser convenablement de votre

ancien réfrigérateur . . . . . . . . . . . . . . . .23

Cordons prolongateurs . . . . . . . . . . . . . .23

Mesures de sécurité . . . . . . . . . . . . . . . . .23

Raccordement électrique . . . . . . . . . . . .24

Fonctionnement

Bacs à légumes . . . . . . . . . . . . . . . . . . . . .26

Cartouche du filtre à eau . . . . . . . . . . . .28

Clayettes et bacs . . . . . . . . . . . . . . . . . . . .25

Installation des accessoires . . . . . . . . . . .25

Le distributeur d’eau et de glaçons . . . .29

Les commandes . . . . . . . . . . . . . . . . . . . .27

Machine à glaçons automatique . . . . .28–29

Entretien et nettoyage

Nettoyage . . . . . . . . . . . . . . . . . . . . . . . . .30

Remplacement des ampoules . . . . . . . .30

Installation

Installation de la

conduite d’eau . . . . . . . . . . . . . . . . . .32–34

Préparation . . . . . . . . . . . . . . . . . . . . . . . .31

Conseils de dépannage

Avant d’appeler un réparateur . . . . .36–38

Bruits de fonctionnement

normaux . . . . . . . . . . . . . . . . . . . . . . . . . .35

Service à la clientèle

Feuillet de données relatives à la performance de la

cartouche HWF . . . . . . . . . . . . . . . . . . . .40

Garantie pour la

clientèle au Canada . . . . . . . . . . . . . . . . .39

Service à la clientèle . . . . . . . . . . . . . . . .41

Información de seguridad

Cables de extensión . . . . . . . . . . . . . . . . 42

Conectar la electricidad . . . . . . . . . . . . . 43

Deshacerse debidamente

de su refrigerador . . . . . . . . . . . . . . . . . . 42

Precauciones de seguridad. . . . . . . . . . . 42

Instrucciones de operación

Cartucho del filtro de agua . . . . . . . . . . 47

Controles del refrigerador . . . . . . . . . . . 46

Dispensador . . . . . . . . . . . . . . . . . . . . . . . 48

Dispositivo automático

para hacer hielo. . . . . . . . . . . . . . . . . 47–48

Entrepaños y recipientes . . . . . . . . . 44–45

Gavetas de almacenamiento . . . . . . . . . 45

Instalación de las características . . . . . . 44

Cuidado y limpieza

Limpieza . . . . . . . . . . . . . . . . . . . . . . . 49–50

Reemplazo de bombillas . . . . . . . . . . . . 50

Instrucciones de instalación

Instalación de la línea

de agua . . . . . . . . . . . . . . . . . . . . . . . . 53–56

Preparación para

instalar el refrigerador . . . . . . . . . . . 51–52

Solucionar problemas

Antes de solicitar un servicio . . . . . . 58–60

Sonidos normales

de la operación . . . . . . . . . . . . . . . . . . . . 57

Servicio al consumidor

Garantía para consumidores

en los Estados Unidos. . . . . . . . . . . . . . . 61

Hoja de datos de

funcionamiento . . . . . . . . . . . . . . . . . . . 62

Servicio al consumidor . . . . . . . . . . . . . . 63

PROPER DISPOSAL OF THE REFRIGERATOR

Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous…even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow the instructions below to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may

not easily climb inside.

Refrigerants

All refrigeration products contain refrigerants, which under federal law must be removed prior to product disposal. If you are getting rid of an old refrigeration product, check with the company handling the disposal about what to do.

USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions, we strongly recommend against the use of an extension cord.

However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.

DANGER! RISK OF CHILD ENTRAPMENT

Consumer Support

Troubleshooting Tips

Operating Instructions Safety InstructionsInstallation Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

Use this appliance only for its intended purpose as described in this Owner’s Manual.

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should be followed, including the following:

■

■ This refrigerator must be properly installed

and located in accordance with the Installation Instructions before it is used.

■

■ Do not allow children to climb, stand or hang

on the shelves in the refrigerator. They could damage the refrigerator and seriously injure themselves.

■

■ Do not touch the cold surfaces in the freezer

compartment when hands are damp or wet. Skin may stick to these extremely cold surfaces.

■

■ Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

NOTE: Turning the refrigerator off via the controls on the touch panel does not shut off electrical power to the refrigerator.

■

■ Do not refreeze frozen foods which have thawed

completely.

■

■ In refrigerators with automatic icemakers,

avoid contact with the moving parts of the ejector mechanism, or with the heating element that releases the cubes. Do not place fingers or hands on the automatic icemaking mechanism while the refrigerator is plugged in.

■

■ Keep fingers out of the “pinch point” areas;

clearances between the doors and between the doors and cabinet are necessarily small. Be careful closing doors when children are in the area.

■

■ Unplug the refrigerator before cleaning and

making repairs.

NOTE: We strongly recommend that any servicing be performed by a qualified individual.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

Installation Instructions

GEAppliances.com

WARNING!

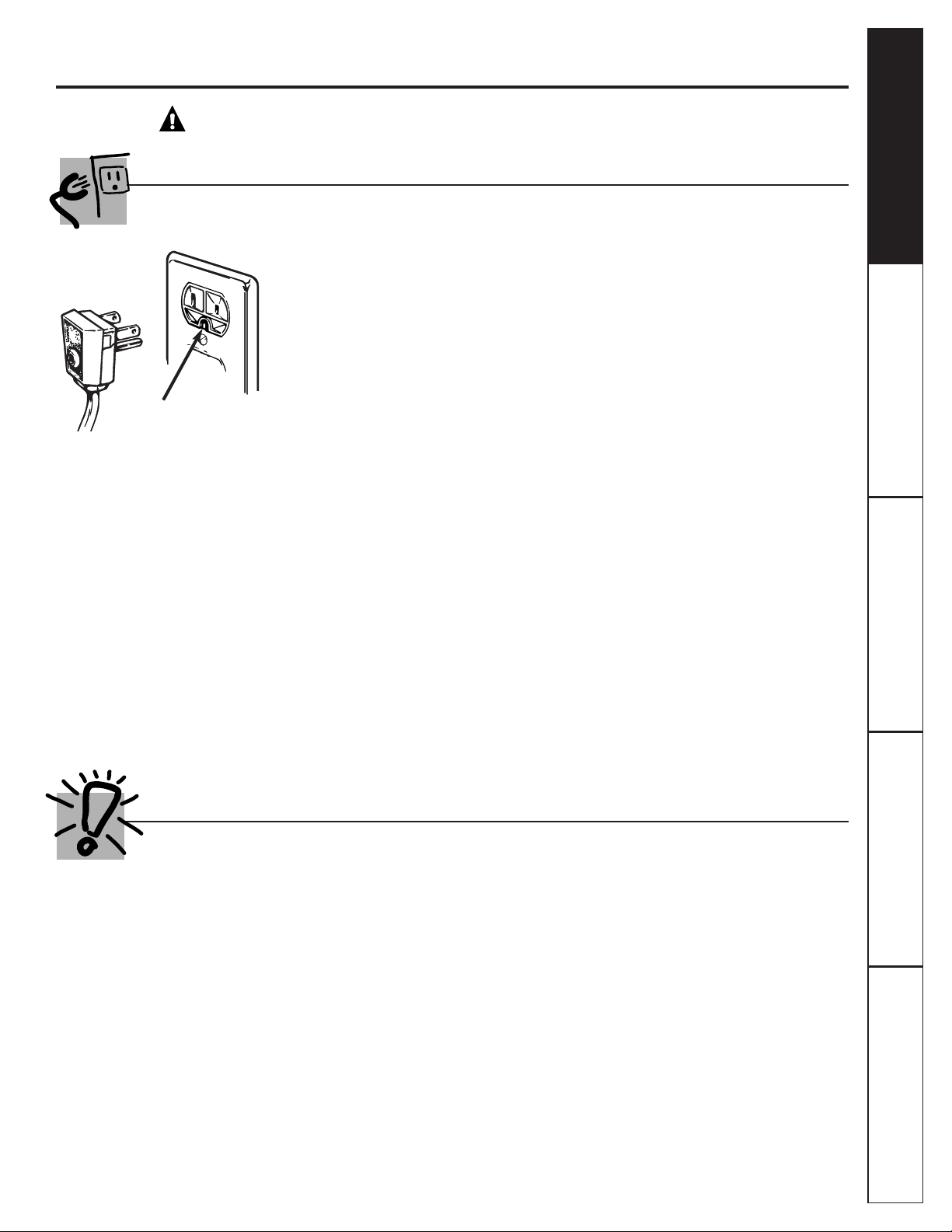

HOW TO CONNECT ELECTRICITY

Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For personal safety, this appliance must

be properly grounded.

■

■ The power cord of this appliance is equipped with a 3-prong (grounding) plug

which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance.

■

■ Have the wall outlet and circuit checked by a qualified electrician to make sure the

outlet is properly grounded.

■

■ If the outlet is a standard 2-prong outlet, it is your personal responsibility and

obligation to have it replaced with a properly grounded 3-prong wall outlet.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

INSURE PROPER GROUND EXISTS BEFORE USE

■

■ The refrigerator should always be plugged into its own

individual electrical outlet which has a voltage rating that matches the rating plate.

■

■ This provides the best performance and also prevents

overloading house wiring circuits which could cause a fire hazard from overheated wires.

■

■ Never unplug your refrigerator by pulling on the power

cord. Always grip plug firmly and pull straight out from the outlet.

■

■ Repair or replace immediately all power cords that have

become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end.

■

When moving the refrigerator away from the wall, be careful not to roll over or damage the power cord.

Consumer Support

Troubleshooting Tips

Installation Instructions Safety InstructionsOperating Instructions

How to install features.

(Not all features are on all models.)

Top Freezer Shelf

¿ TOP FREEZER SHELF

Make sure the shelf front locks into position.

Lower Door Bin

≈ LOWER FIXED DOOR BINS

Make sure the bin fronts lock into position.

ƒ ADJUSTABLE

DOOR BINS DOOR BIN SNUGGERS

¬ DAIRY COVER

√ BOTTLE RETAINER

Door Shelf Front

Door Shelf

¡ FILTER CARTRIDGE

FREEZER DOOR SHELF FRONTS

Make sure that the shelf front locks into position.

NOTE: On dispenser models, the longer shelf fronts go in the top two positions.

Remove Bypass Plug Install Filter Cartridge

To remove:

Lift the front of the bin up, then pull out.

To replace or relocate:

Engage the bin in the molded supports of the door, and push in. Bin will lock in place.

To remove:

Lift the shelf extender

straight up, then pull out.

To replace:

Engage the shelf extender in the molded supports of the door and push in. It will lock in place.

About the shelves and bins.

(Not all features are on all models.)

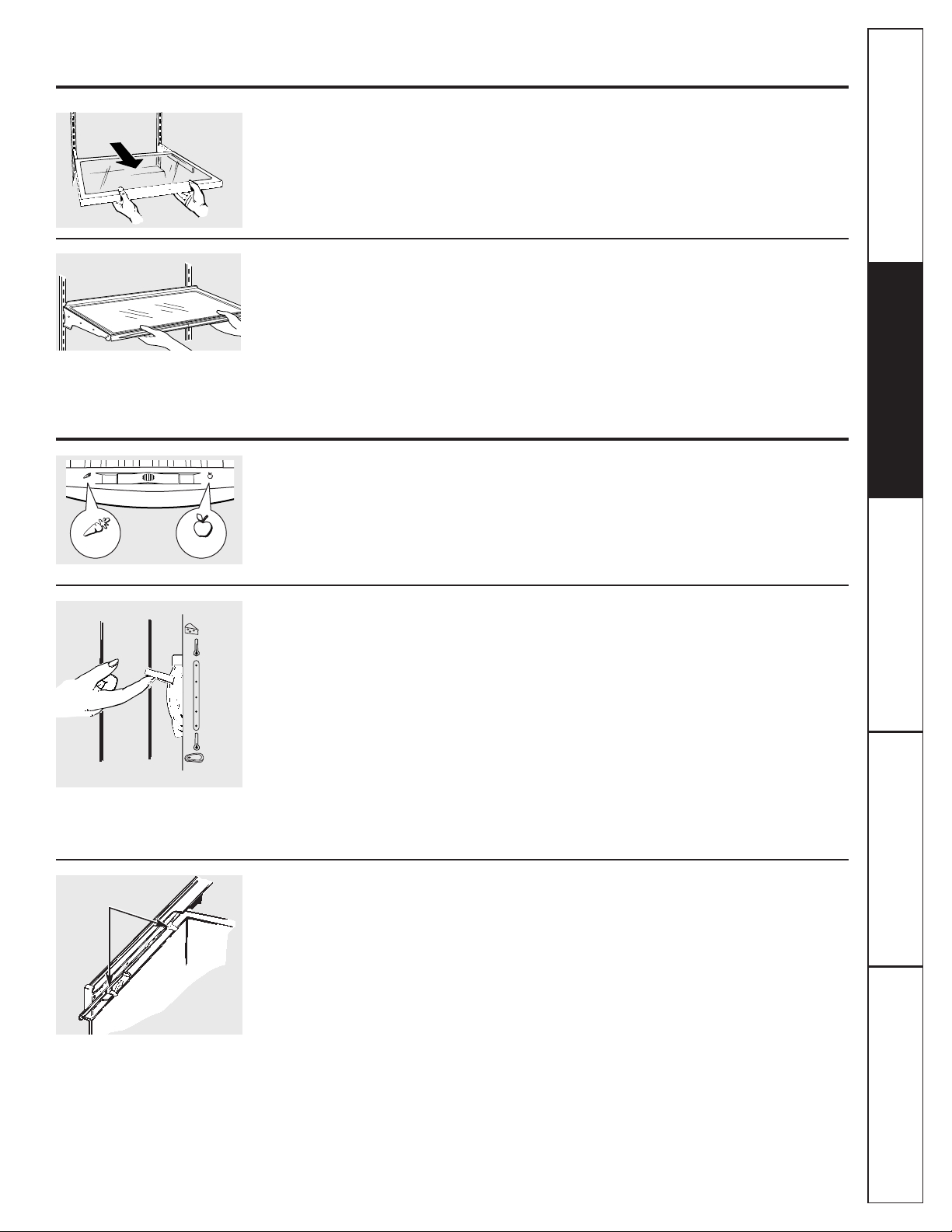

Rearranging the Shelves

To Remove

To Replace

Refrigerator Shelves:

Lift up and out

Tilt up

Insert top hook

Lower to lock in

place

To Remove

Freezer Shelves:

To Remove

Freezer Pan:

Remove the pan by pulling it forward, lifting up the front and sliding it past the

stop

location.

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions

Installation Instructions

Slide-Out Spillproof Shelf

(on some models)

The slide-out spillproof shelf allows you to reach items stored behind others. The special edges are designed to help prevent spills from dripping to lower shelves.

NOTE: Make sure you push the shelves all the way back in before you close the door.

Spillproof Shelves

(on some models)

Spillproof shelves have special edges to help prevent spills from dripping to lower shelves.

GEAppliances.com

About the crispers and pans.

(Not all features are on all models.)

Adjustable Humidity Crispers and Snack Pan

(on some models)

Slide the control all the way to the

High

setting to provide high humidity

recommended for most vegetables.

Slide the control all the way to the

Low

setting to provide lower humidity levels recommended for most fruits.

LOW

HIGH

Convertible Meat Pan

(on some models)

The convertible meat pan has its own cold air duct to allow a stream of cold air from the freezer compartment to flow around the pan.

The variable temperature control

regulates

the air flow from the freezer compartment.

Set control lever

to convert the pan to normal refrigerator temperature and provide extra vegetable storage space. Cold air duct is turned off. Variable settings between these extremes can be selected.

Set control lever

down

to the coldest setting to store fresh meats. If lever is left in meat position for a long period of time, some frost may form on the inside of the pan.

Normal

Coldest

Crisper Removal

Crispers can easily be removed by tilting up slightly and pulling past

stop

location.

If the door prevents you from taking out the crispers, the refrigerator will need to be rolled forward until the door opens enough to slide the crispers out. In some cases, when you roll the refrigerator out, you will need to move the refrigerator to the left as you roll it out.

When replacing the crispers, make sure you slide them through the crisper guides.

HIGH

LOW

About the controls on the refrigerator.

Consumer Support

Troubleshooting Tips

Installation Instructions Safety InstructionsOperating Instructions

9 IS COLDEST

0 IS OFF

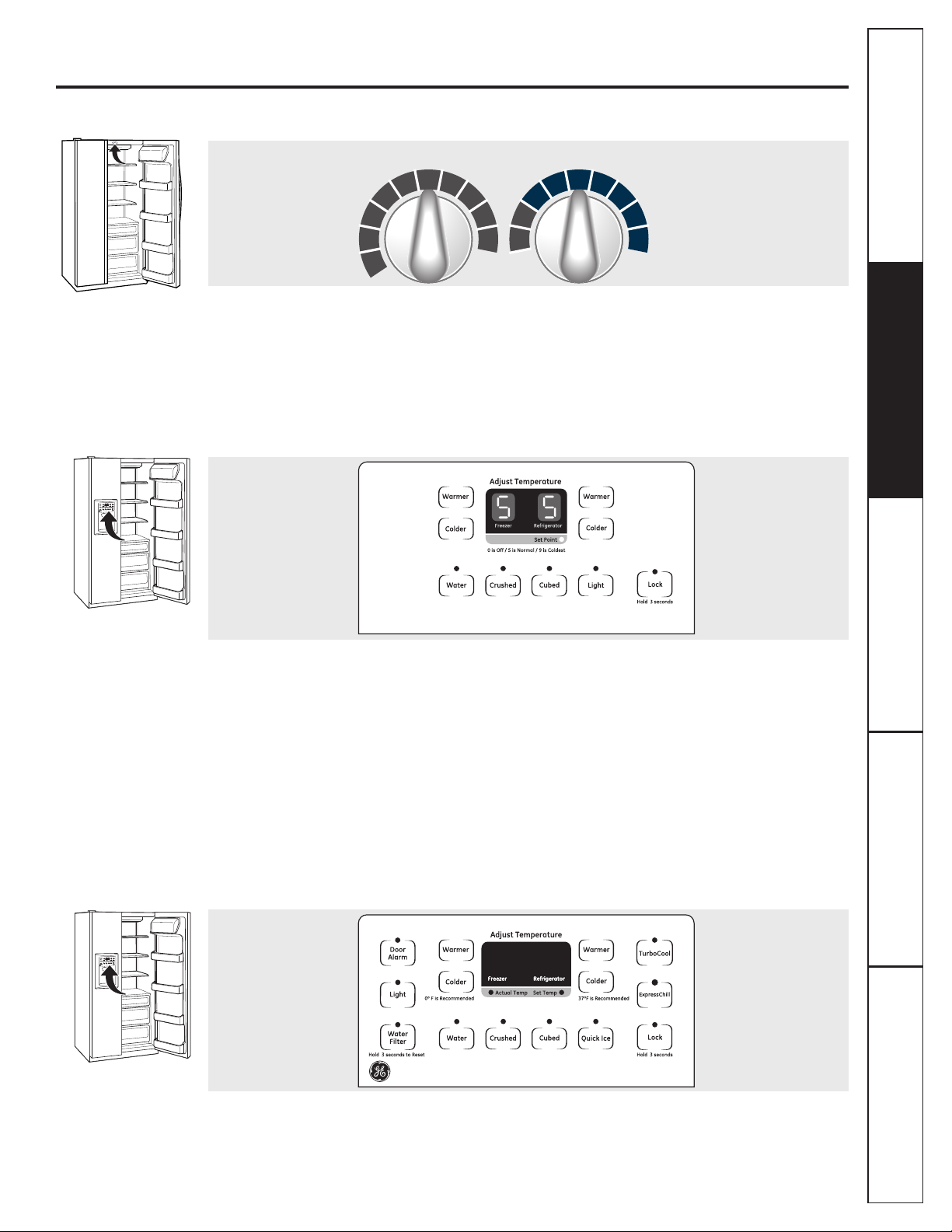

Your controls will look like one of the following:

Startup Steps for Proper Temperature Control

STEP 1—Set Fresh Food Control on “5.” STEP 2—Set Freezer Control on “5.” STEP 3—WAIT 12HOURS for temperature to stabilize. STEP 4—If a change is needed, move the control one number at

a time and allow 12hours for temperature to stabilize.

NOTE:

Turning the refrigerator to the

(off)

setting via the controls

does not shut off electrical power to the refrigerator.

Control settings will vary based on personal preferences, usage and operating conditions and may require more than one adjustment.

0 IS OFF 9 IS COLDEST

FREEZER

REFRIGERATOR

To Change Temperature Control Setting with Touch Pads:

• Freezer setting is on the left side of the display.

• Refrigerator setting is on the right side of the display. — Press the

Warmer

Colder

pad for compartment and

direction desired. — Present control setting number will illuminate. — Each time the pad is touched, compartment setting

changes one number.

A display of 1 is warmest and 9 is the coldest setting.

To Turn Cooling Off:

To stop cooling in the refrigerator

and

freezer compartments, first

repeatedly press the

Warmer

pad for the freezer until its display

continuously

flashes

“1”. Then, using the refrigerator control,

repeatedly press

Warmer

until both displays flash “0”. “0” in both displays turns off the cooling system. On some models, it may be necessary to set only one control to 0to turn off cooling in both compartments.

NOTE:

Turning the refrigerator to the

(off)

setting via the controls

does not shut off electrical power to the refrigerator.

Control settings will vary based on personal preferences, usage and operating conditions and may require more than one adjustment.

The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the freezer compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.

The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.

Setting either or both controls to OFF stops cooling in both the freezer and refrigerator compartments, but does not shut off electrical power to the refrigerator.

NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed during installation, remove it now.

9 IS COLDEST 0 IS OFF

FREEZER FRESH FOOD

About the water filter cartridge.

(On some models.)

GEAppliances.com

Water Filter Cartridge

The water filter cartridge is located in the back upper right corner of the refrigerator compartment.

When to Replace the Filter on Models With a Replacement Indicator Light

There is a replacement indicator light for the water filter cartridge on the dispenser. This light will turn orange to tell you that you need to replace the filter soon.

The filter cartridge should be replaced when the replacement indicator light turns red or if the flow of water to the dispenser or icemaker decreases.

When to Replace the Filter on Models Without a Replacement Indicator Light

The filter cartridge should be replaced every

six months

or earlier if the flow of water to the water dispenser or icemaker decreases.

Removing the Filter Cartridge

If you are replacing the cartridge, first remove the old one by slowly turning it to the left.

Do not

pull down on the

cartridge. A small amount of water may drip down.

Installing the Filter Cartridge

If you are replacing a

SmartWater

cartridge with an adapter, it must be removed before installing the cartridge. To remove the adapter, turn it to the left about 1/4 turn.

If you are replacing a

Water by Culligan

cartridge, leave the adapter in place. This adapter will stay in the refrigerator when you replace future cartridges.

On models without a replacement indicator light, apply the month and year sticker to the new cartridge to remind you to replace the filter in

six months.

Fill the replacement cartridge with water from the tap to allow for better flow from the dispenser immediately after installation.

Line up the arrow on the cartridge and the cartridge holder. Place the top of the new cartridge up inside the holder.

Do not

push it up into the holder.

Slowly turn it to the right until the filter cartridge stops.

DO NOT OVERTIGHTEN.

As you turn the cartridge, it will automatically raise itself into position. The cartridge will move about 1/2 turn.

un water from the dispenser for 3 minutes (about 1-1/2

gallons) to clear the system and prevent sputtering.

Filter Bypass Plug

You must use the filter bypass plug when a replacement filter cartridge is not available. The dispenser and the icemaker will not operate without the filter or filter bypass plug.

To use the filter bypass plug on

Water by Culligan

models, you must first remove the filter adapter from the cartridge holder by turning it to the left.

If you have questions—visit our Website at GEAppliances.com, or call 1.800.GE.CARES (1.800.432.2737).

Replacement filters: To order additional filter cartridges in the United States,

visit our Website at GEAppliances.com, or call GE Parts and Accessories, 800.626.2002.

Filter Model MWF Customers in Canada should consult the yellow pages for

the nearest Mabe Service Center. Customers outside of the United States or Canada should

contact the local distributor.

Cartridge Holder

Filter Bypass Plug

SmartWater

Water by Culligan

(appearance may vary)

With adapter

Without adapter

About the automatic icemaker.

A newly-installed refrigerator may take 12–24 hours to begin making ice.

Automatic Icemaker

(on some models)

When the refrigerator has been connected to the water supply, slide the power switch to the ONposition.

The icemaker will fill with water when it cools to 15°F. When the bin fills to the level of the feeler arm, the icemaker will stop producing ice.

Be sure nothing interferes with the sweep of the feeler arm.

Throw away the first few batches of ice to allow the water line to clear.

The icemaker will produce seven cubes per cycle—approximately 100–130 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other use conditions.

You will hear a buzzing sound each time the icemaker fills with water.

Consumer Support

Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation Instructions

Icemaker

Feeler Arm

Power Switch

Consumer Support

Troubleshooting Tips

Installation Instructions Safety InstructionsOperating Instructions

About the automatic icemaker.

It is normal for several cubes to be joined together. If ice is not used frequently, old ice cubes will

become cloudy, taste stale, and shrink.

Icemaker Accessory Kit

If your refrigerator did not come already equipped with an automatic icemaker, an icemaker accessory kit is available at extra cost. Check the back of the refrigerator for the specific icemaker kit needed for your model.

Select or Press the glass gently against the top of the

dispenser cradle. The spill shelf is not self-draining. To

reduce water spotting, the shelf and its grille should be cleaned regularly.

Locking the Dispenser

(on some models)

Press the

Lock

pad for 3 seconds to lock the dispenser and control panel. To unlock, press and hold the pad again for 3 seconds.

If no water is dispensed when the refrigerator is first installed, there may be air in the water line system. Press the dispenser arm for at least two minutes to remove trapped air from the water line and to fill the water system. To flush out impurities in the water line, throw away the first six glassfuls of water.

CAUTION: Never put fingers or any other objects into the ice crusher discharge opening.

Dispenser Light

This pad turns the

night light

in the dispenser on and off. The light also comes on when the dispenser cradle is pressed. If this light burns out, it should be replaced with a 6 watt maximum, 12 volt DC bulb.

About the ice and water dispenser.

(On some models.)

To Use the Dispenser

Important Facts About Your Dispenser

■ Do not add ice from trays or bags to the storage bin. It

may not crush or dispense well.

■ Avoid overfilling glass with ice and use of narrow glasses.

Backed-up ice can jam the chute or cause the door in the chute to freeze shut. If ice is blocking the chute, poke it through with a wooden spoon.

■ Beverages and foods should not be quick-chilled in the

ice storage bin. Cans, bottles or food packages in the storage bin may cause the icemaker or auger to jam.

■ To keep dispensed ice from missing the glass, put the

glass close to, but not touching, the dispenser opening.

■ Some crushed ice may be dispensed even though you

selected

Cubed.

This happens occasionally when a few

cubes have been left in the crusher.

■ After crushed ice is dispensed, some water may drip from

the chute.

■ Sometimes a small mound of snow will form on the door

in the ice chute. This condition is normal and usually occurs when you have dispensed crushed ice repeatedly. The snow will eventually evaporate.

■ The first glass of water dispensed may be warmer than

the following ones. This is normal.

■ Dispensed water is not ice cold. For colder water, simply

add crushed ice or cubes before dispensing water.

Ice Storage Drawer on Dispenser Models

To remove:

Slide the icemaker power switch to the

OFF

position.

Pull the drawer straight out and then lift past the

stop

position.

To replace:

When replacing the drawer, make sure to push it firmly into place. If it does not go all the way back, remove it and rotate the drive mechanism 1/4 turn. Then push the drawer back again.

Drive Mechanism

Rotate

Spill Shelf

Consumer Support

Troubleshooting TipsOperating Instructions

Safety Instructions Installation Instructions

Care and cleaning of the refrigerator.

GEAppliances.com

Cleaning the Inside

o help prevent odors,

leave an open box of baking soda in the refrigerator and freezer compartments.

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture out of sponge or cloth when cleaning around switches, lights or controls.

Use warm water and baking soda solution— about a tablespoon (15 ml) of baking soda to a quart (1 l) of water. This both cleans and neutralizes odors. Rinse and wipe dry.

After cleaning the door gaskets, apply a thin layer of petroleum jelly to the door gaskets at the hinge side. This helps keep the gaskets from sticking and bending out of shape.

Drain opening in freezer compartment.

During yearly cleaning, remove bottom freezer pan and flush a solution of baking soda—1 teaspoon (5 ml) and 2 cups (500 ml) of hot (not boiling) water— through the drain line with the help of a meat baster. This will help eliminate odor and reduce the likelihood of a clogged drain line. If drain becomes clogged, use a meat baster and baking soda solution to force the clog through the drain line.

Avoid cleaning cold glass shelves with hot water because the extreme temperature difference may cause them to break. Handle glass shelves carefully. Bumping tempered glass can cause it to shatter. Do not wash any plastic refrigerator parts in the dishwasher.

For long vacations or absences, remove food and unplug the refrigerator. Clean the interior with a baking soda solution of one tablespoon (15 ml) of baking soda to one quart (1 l) of water. Leave the doors open.

Slide the icemaker power switch to the

OFF

position and

shut off the water supply to the refrigerator.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All types of floor coverings can be damaged, particularly cushioned coverings and those with embossed surfaces.

Pull the refrigerator straight out and return it to position by pushing it straight in. Moving the refrigerator in a side direction may result in damage to the floor covering or refrigerator.

When pushing the refrigerator back, make sure you don’t roll over the power cord or icemaker supply line (on some models).

Preparing for Vacation

Preparing to Move

Secure all loose items such as grille, shelves and drawers by taping them securely in place to prevent damage.

Be sure the refrigerator stays in an upright position during moving.

NOTE: Turning the refrigerator to the 0 (off) setting via the controls does not shut off electrical power to the refrigerator.

Replacing the Light Bulbs

Unplug the refrigerator.

Remove the shelf just below the light shield.

Replace with an appliance bulb of the same or lower

wattage.

Reinstall the shelf and plug the refrigerator back in.

Cleaning the Outside

The dispenser drip area,

(on some models) beneath the grille, should be wiped dry. Water left in this area may leave deposits. Remove the deposits by adding undiluted vinegar to the well. Soak until the deposits disappear or become loose enough to rinse away.

The dispenser cradle

(on some models). Before cleaning, lock the dispenser by pressing and holding the

Lock

pad for 3 seconds. Clean with warm water and baking soda solution—about a tablespoon (15 ml) of baking soda to a quart (1 l) of water. Rinse thoroughly and wipe dry.

The door handles and trim.

Clean with a cloth dampened with soapy water. Dry with a soft cloth.

Keep the outside clean.

Wipe with a clean cloth lightly dampened with kitchen appliance wax or mild liquid dish detergent. Dry and polish with a clean, soft cloth.

The stainless steel door panels and handles.

The stainless steel panels can be cleaned with a commercially available stainless steel cleaner or a similar product using a clean, soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on stainless steel doors and handles.

For best results, GE recommends using stainless steel cleaner PM10X311 with the WX10X307 polishing cloth, or for convenience the SS cleaning wipes, part number WX10X10001.

Do not wipe the refrigerator with a soiled dish cloth or wet towel. These may leave a residue that can erode the paint. Do not use scouring pads, powdered cleaners, bleach or cleaners containing bleach because these products can scratch and weaken the paint finish.

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT

–

Save these

instructions for local inspector’s use.

•

IMPORTANT

–

Observe all

governing codes and ordinances.

• Note to Installer –Be sure to leave these

instructions with the Consumer.

• Note to Consumer –Keep these instructions

for future reference.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Completion time – Refrigerator Installation

15 minutes

• Proper installation is the responsibility of installer.

• Product failure due to improper installation is not

covered under the Warranty.

REFRIGERATOR LOCATION

• Do not install the refrigerator where the temperature will go below 60°F (16°C) because it will not run often enough to maintain proper temperatures.

• Install it on a floor strong enough to support it fully loaded.

Installation Instructions

Models 20, 22, 25

Allow the following clearances for ease of installation, proper air circulation and plumbing and electrical connections.

• Sides 1/8″ (4 mm) • To p 1″ (25 mm) • Back 1″ (25 mm) A door clearance of 3/4″ (19 mm) is needed for a 90º door

opening which provides better access to food storage area.

CLEARANCES

If the refrigerator has an icemaker, it will have to be connected to a cold water line. A GE water supply kit is available at extra cost from your dealer, by visiting our Website at GEAppliances.com (in Canada, at www.GEAppliances.ca), or from Parts and Accessories,

800.626.2002.

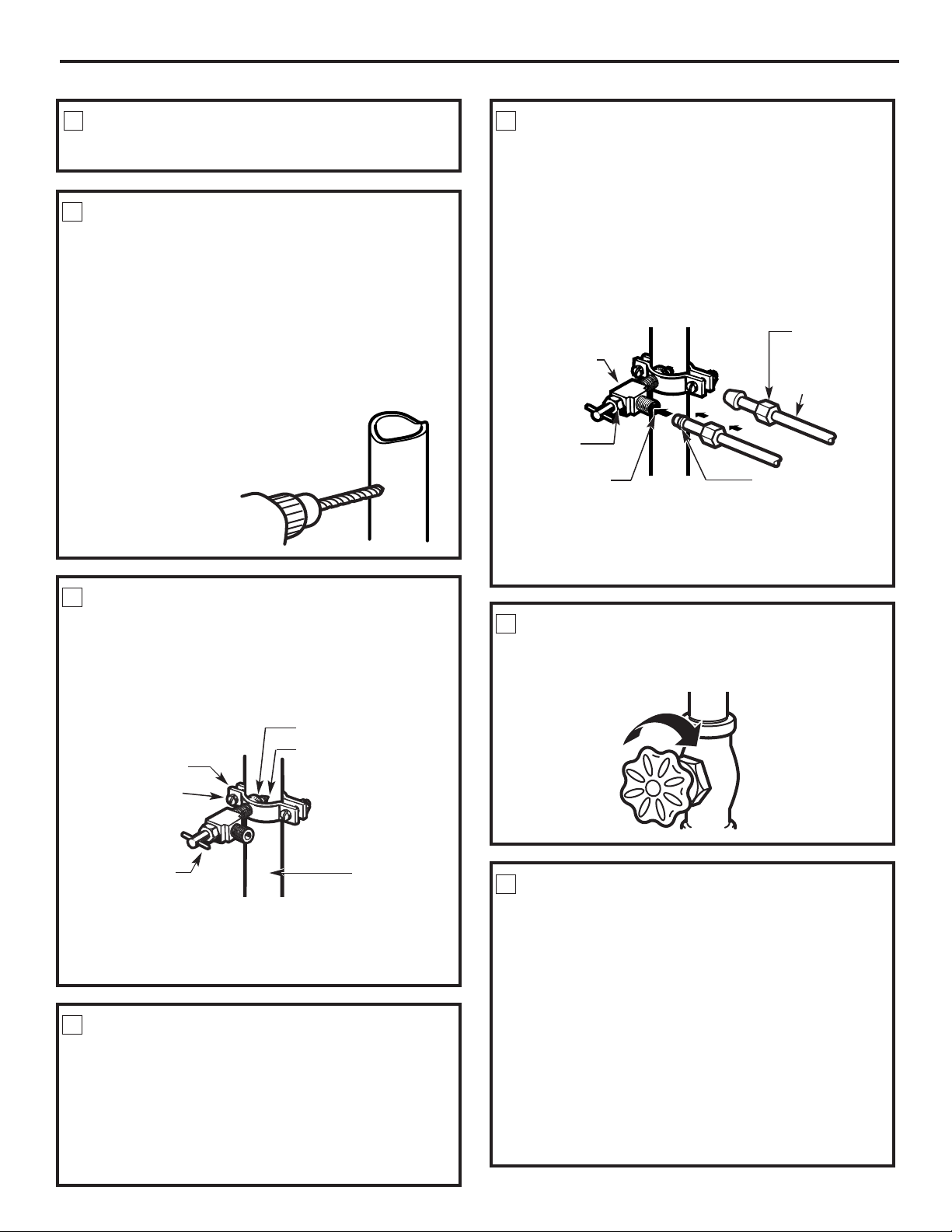

WATER SUPPLY TO THE ICEMAKER

(on some models)

Questions? Call 800.GE.CARES (800.432.2737)

or Visit our Website at:

GEAppliances.com

Questions? In Canada, call 1.800.561.3344

or Visit our Website at:

www.GEAppliances.ca

The rollers have 3 purposes:

■ Rollers adjust so the door closes easily when opened

about halfway.

■ Rollers adjust so the refrigerator is firmly positioned

on the floor and does not wobble.

■ Rollers allow you to move the refrigerator away from

the wall for cleaning.

To adjust the rollers, remove the base grille by pulling it out at the bottom.

Turn the roller adjusting screws clockwise to raise the refrigerator, counterclockwise to lower it. Use an adjustable wrench (3/8″ hex head bolt) or pliers.

To replace base grille, line up the clips on back of grille between the bar and the bottom of the cabinet. Push forward until grille snaps into place.

ROLLERS

To remove the base grille, open the doors and then pull the grille straight out.

5/16″ Socket Wrench

Raise

DOOR ALIGNMENT

After leveling, make sure that doors are even at the top. To make the doors even, adjust the refrigerator door.

Using a 5/16″ socket wrench, turn the door adjusting screw to the right to raise the door, to the left to lower it. (A nylon plug, embedded in the threads of the pin, prevents the pin from turning unless a wrench is used.)

After one or two turns of the wrench, open and close the refrigerator compartment door and check the alignment at the top of the doors.

Installation Instructions

INSTALLING THE WATER LINE

Recommended copper water supply kits are WX8X2, WX8X3 or WX8X4, depending on the amount of tubing you need. Approved plastic water supply lines are GE SmartConnect™Refrigerator Tubing (WX08X10002, WX08X10006, WX08X10015 and WX08X10025).

When connecting your refrigerator to a GE Reverse Osmosis Water System, the only approved installation is with a GE RVKit. For other reverse osmosis water systems, follow the manufacturer’s recommendations.

If the water supply to the refrigerator is from a Reverse Osmosis Water Filtration System AND the refrigerator also has a water filter, use the refrigerator’s filter bypass plug. Using the refrigerator’s water filtration cartridge in conjunction with the RO filter can result in hollow ice cubes and slower water flow from the water dispenser.

This water line installation is not warranted by the refrigerator or icemaker manufacturer. Follow these instructions carefully to minimize the risk of expensive water damage.

Water hammer (water banging in the pipes) in house plumbing can cause damage to refrigerator parts and lead to water leakage or flooding. Call a qualified plumber to correct water hammer before installing the water supply line to the refrigerator.

To prevent burns and product damage, do not hook up the water line to the hot water line.

If you use your refrigerator before connecting the water line, make sure the icemaker power switch is in the

OFF

position. Do not install the icemaker tubing in areas where

temperatures fall below freezing. All installations must be in accordance with local

plumbing code requirements.

WARNING – Connect to potable water

supply only.

BEFORE YOU BEGIN

• Copper or GE SmartConnect™Refrigerator Tubing

kit, 1/4″ outer diameter to connect the refrigerator

to the water supply. If using copper, be sure both ends of the tubing are cut square.

To determine how much tubing you need: measure the distance from the water valve on the back of the refrigerator to the water supply pipe. Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation.

GE SmartConnect™Refrigerator Tubing Kits are available in the following lengths: 2′ (0.6 m) – WX08X10002 6′ (1.8 m) – WX08X10006 15′ (4.6 m) – WX08X10015 25′ (7.6 m) – WX08X10025

WHAT YOU WILL NEED

NOTE: The only GE approved plastic tubing is that supplied in GE SmartConnect™ Refrigerator Tubing kits. Do not use any other plastic water supply line because the line is under pressure at all times. Certain types of plastic will crack or rupture with age and cause water damage to your home.

• A GE water supply kit (containing tubing, shutoff valve and fittings listed below) is available at extra cost from your dealer or from Parts and Accessories,

800.626.2002.

• A cold water supply. The water pressure must be between 20 and 120 p.s.i. (1.4–8.2 bar) on models without a water filter and between 40 and 120 p.s.i. (2.8–8.2 bar) on models with a water filter.

• Power drill.

• 1/2″ or adjustable wrench.

• Straight and Phillips blade screwdriver.

• Two 1/4″ outer diameter compression nuts and

2 ferrules (sleeves)—to connect the copper tubing to the shutoff valve and the refrigerator water valve.

• If you are using a GE SmartConnect™ Refrigerator Tubing kit, the necessary fittings are preassembled to the tubing.

• If your existing copper water line has a flared fitting at the end, you will need an adapter (available at plumbing supply stores) to connect the water line to the refrigerator OR you can cut off the flared fitting with a tube cutter and then use a compression fitting. Do not cut formed end from GE SmartConnect™ Refrigerator tubing.

• Shutoff valve to connect to the cold water line. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32″ at the point of connection to the COLD WATER LINE. Saddle-type shutoff valves are included in many water supply kits. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Install the shutoff valve on the nearest frequently used drinking water line.

WHAT YOU WILL NEED (CONT.)

Installation Instructions

SHUT OFF MAIN WATER SUPPLY

Choose a location for the valve that is easily accessible. It is best to connect into the side of a vertical water pipe. When it is necessary to connect into a horizontal water pipe, make the connection to the top or side, rather than at the bottom, to avoid drawing off any sediment from the water pipe.

Drill a 1/4″ hole in the water pipe (even if using a self-piercing valve) using a sharp bit. Remove any burrs resulting from drilling the hole in the pipe.

Take care not to allow water to drain into the drill.

Failure to drill a 1/4″ hole may result in reduced ice production or smaller cubes.

DRILL THE HOLE FOR THE VALVE

Fasten the shutoff valve to the cold water pipe with the pipe clamp.

Tighten the clamp screws until the sealing washer begins to swell.

NOTE: Do not overtighten or you may crush the tubing.

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

FASTEN THE SHUTOFF VALVE

Vertical Cold Water Pipe

Saddle-Type Shutoff Valve

Pipe Clamp

Clamp Screw

Washer

Inlet End

Route the tubing between the cold water line and the refrigerator.

Route the tubing through a hole drilled in the wall

or floor (behind the refrigerator or adjacent base cabinet) as close to the wall as possible.

NOTE: Be sure there is sufficient extra tubing to allow the refrigerator to move out from the wall after installation

ROUTE THE TUBING

Place the compression nut and ferrule (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve.

Make sure the tubing is fully inserted into the valve. Tighten the compression nut securely.

For plastic tubing from a GE SmartConnect™ Refrigerator Tubing kit, insert the molded end of the tubing into the shutoff valve and tighten compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

CONNECT THE TUBING TO THE VALVE

Turn the main water supply on and flush out the tubing until the water is clear.

FLUSH OUT THE TUBING

NOTE: Commonwealth of Massachusetts Plumbing Codes 248CMR shall be adhered to. Saddle valves are illegal and use is not permitted in Massachusetts. Consult with your licensed plumber.

Saddle-Type Shutoff Valve

Compression Nut

SmartConnect™ Tubing

Packing Nut

Outlet Valve

Ferrule (sleeve)

NOTES:

• Before making the connection to the refrigerator, be sure the refrigerator power cord is not plugged into the wall outlet.

• If your refrigerator does not have a water filter, we recommend installing one if your water supply has sand or particles that could clog the screen of the refrigerator’s water valve. Install it in the water line near the refrigerator. If using a GE SmartConnect™ Refrigerator Tubing kit, you will need an additional tube (WX08X10002) to connect the filter. Do not cut plastic tube to install filter.

CONNECT THE TUBING TO THE REFRIGERATOR

Installation Instructions

Place the compression nut and ferrule (sleeve) onto the end of the tubing as shown. On a GE SmartConnect™Refrigerator Tubing kit, the nuts are already assembled to the tubing.

Insert the end of the tubing into the refrigerator connection as far as possible. While holding the tubing, tighten the fitting.

For plastic tubing from a GE SmartConnect

™

Refrigerator Tubing kit, insert the molded end of the tubing into the refrigerator connection and tighten the compression nut until it is hand tight, then tighten one additional turn with a wrench. Overtightening may cause leaks.

Fasten the tubing into the clamp provided as shown to keep it in position. You may need to pry open the clamp.

One of the illustrations below will look like the connection on your refrigerator.

On models using the refrigeration connection at the water valve, remove the plastic flexible cap.

CONNECT THE TUBING TO THE REFRIGERATOR

(CONT.)

Some models have the refrigerator connection at the end of tubing located outside the compressor compartment access cover. On other models, the compressor compartment access cover must be removed in order to access the refrigerator connection at the water valve.

1/4″ Compression Nut

Tubing Clamp

1/4″ Tubing

Refrigerator Connection

SmartConnect™ Tubing

Ferrule (sleeve)

Tighten any connections that leak.

TURN THE WATER ON AT THE SHUTOFF VALVE

CONNECT THE TUBING TO THE REFRIGERATOR

(CONT.)

Reattach the access cover.

Arrange the coil of tubing so that it does not vibrate against the back of the refrigerator or against the wall. Push the refrigerator back to the wall.

PLUG IN THE REFRIGERATOR

START THE ICEMAKER

Slide the icemaker power switch to the ONposition. The icemaker will not begin to operate until it reaches its operating temperature of 15°F (-9°C) or below. It will then begin operation automatically if the icemaker power switch is in the

position.

SmartConnect™ Tubing

1/4″ Compression Nut

1/4″ Tubing

Tubing Clamp

Refrigerator Connection

Ferrule (sleeve)

Consumer Support

Troubleshooting Tips

Installation Instructions Safety InstructionsOperating Instructions

Normal operating sounds.

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Refrigerator does not

Refrigerator in defrost cycle. • Wait about 30 minutes for defrost cycle to end.

operate

Freezer control •Move the freezer control to a lower temperature setting. in

0 (off)

position.

Refrigerator is unplugged. • Push the plug completely into the outlet. The fuse is blown/circuit •Replace fuse or reset the breaker.

breaker is tripped.

Refrigerator or freezer

Temperature control not set • See

About the controls.

compartment too warm

cold enough. Warm weather or frequent • Set the temperature control one step colder.

door openings. See

About the controls.

Door left open. • Check to see if package is holding door open.

Before you call for service…

Newer refrigerators sound different from older refrigerators. Modern refrigerators have more features and use newer technology.

Do you hear what I hear? These sounds are normal.

HUMMM...

WHOOSH...

■

The new high efficiency compressor may run faster and longer than your old refrigerator and you may hear a high-pitched hum or pulsating sound while it is operating.

■

Sometimes the refrigerator runs for an extended period, especially when the doors are opened frequently. This means that the

Frost Guard

™

feature is working to

prevent freezer burn and improve food preservation.

■

You may hear a whooshing sound when the doors close. This is due to pressure equalizing within the refrigerator.

■

You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping to maintain the correct temperatures.

■

If either door is open for over 3 minutes, you may hear the fans come on in order to cool the light bulbs.

■

The fans change speeds in order to provide optimal cooling and energy savings.

CLICKS, POPS,

CRACKS and CHIRPS

■

You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.

■

Electronic dampers click open and closed to provide optimal cooling and energy savings.

■

The compressor may cause a clicking or chirping sound when attempting to restart (this could take up to 5 minutes).

■

The electronic control board may cause a clicking sound when relays activate to control refrigerator components.

■

Expansion and contraction of cooling coils during and after defrost can cause a cracking or popping sound.

■

On models with an icemaker, after an icemaking cycle, you may hear the ice cubes dropping into the ice bucket.

WATER SOUNDS

■

The flow of refrigerant through the freezer cooling coils may make a gurgling noise like boiling water.

■

Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.

■

A water dripping noise may occur during the defrost cycle as ice melts from the evaporator and flows into the drain pan.

■

Closing the door may cause a gurgling sound due to pressure equalization.

Consumer Support

Troubleshooting Tips

Operating Instructions

Safety Instructions Installation Instructions

Problem Possible Causes What To Do

Vibration or rattling

Front rollers need adjusting. • See

Rollers.

Slight vibration is normal.

Motor operates for

Normal when refrigerator •Wait 24 hours for the refrigerator to completely

long periods or cycles

is first plugged in. cool down.

on and off frequently.

Often occurs when large • This is normal.

(Modern refrigerators

amounts of food are

with more storage

placed in refrigerator.

space and a larger

Door left open. • Check to see if package is holding door open.

freezer require more

Hot weather or frequent • This is normal.

operating time. They

door openings.

start and stop often

Temperature controls • See

About the controls.

to maintain even

set at the coldest

temperatures.)

setting.

Frost or ice crystals

Door left open. • Check to see if package is holding door open.

on frozen food

Too frequent or too long

(frost within package

door openings.

is normal)

Divider between

Automatic energy saver •This helps prevent condensation on the outside.

refrigerator and freezer

system circulates warm

compartments

liquid around front edge

feels warm

of freezer compartment.

Automatic icemaker

Icemaker power switch • Slide the power switch to the ONposition.

does not work

is in the

OFF

position.

(on some models)

Water supply turned off or • See

Installing the water line.

not connected. Freezer compartment • Wait 24 hours for the refrigerator to completely

too warm. cool down. Piled up cubes in the storage •Level cubes by hand.

bin cause icemaker to shut off. Ice cubes stuck in icemaker. • Turn off the icemaker, remove cubes and turn the

icemaker back on.

Ice cubes have

Ice storage bin needs cleaning. • Empty and wash bin. Discard old cubes.

odor/taste

Food transmitting odor/taste • Wrap foods well. to ice cubes.

Interior of refrigerator •See

Care and cleaning.

needs cleaning.

Small or hollow cubes

Water filter clogged. •Replace filter cartridge with new cartridge or with plug.

Slow ice cube freezing

Door left open. • Check to see if package is holding door open. Temperature control not set •See

About the controls.

cold enough.

Door not closing

Door gasket on hinge side •Apply petroleum jelly on face of gasket.

properly

sticking or folding over.

Orange glow in freezer

Defrost heater is on. • This is normal.

Cube dispenser does not

Icemaker or water supply • Turn on icemaker or water supply.

work (on some models)

turned off. Ice cubes are frozen to • Remove cubes.

icemaker feeler arm. Irregular ice clumps in • Break up with fingertip pressure and discard

storage container. remaining clumps.

•Freezer may be too warm. Adjust the freezer control to a colder setting, one position at a time, until clumps do not form.

Dispenser is

LOCKED

. • Press and hold the

Lock

pad for 3 seconds.

GEAppliances.com

Problem Possible Causes What To Do

Water has poor taste/odor

Water dispenser has not been •Dispense water until all water in system is replenished.

(on some models)

used for a long time.

Water in first glass is

Normal when refrigerator •Wait 24 hours for the refrigerator to completely

warm (on some models)

is first installed. cool down. Water dispenser has not been •Dispense water until all water in system is replenished.

used for a long time. Water system has been drained. •Allow several hours for replenished supply to chill.

Water dispenser does

Water supply line turned • See

Installing the water line.

not work (on some models)

off or not connected. Water filter clogged. • Replace filter cartridge or remove filter and install plug. Air may be trapped in the •Press the dispenser arm for at least two minutes.

water system. Dispenser is

LOCKED

. • Press and hold the

Lock

pad for 3 seconds.

Water spurting from

Newly-installed filter cartridge. • Run water from the dispenser for 3 minutes (about

dispenser

11⁄2 gallons).

Water is not dispensed

Water in reservoir is frozen. • Call for service.

No water or ice cube

Supply line or shutoff • Call a plumber.

production

valve is clogged. Water filter clogged. •Replace filter cartridge or remove filter and install plug.

Dispenser is

LOCKED

. • Press and hold the

Lock

pad for 3 seconds.

Refrigerator has odor

Foods transmitting • Foods with strong odors should be tightly wrapped. odor to refrigerator.

• Keep an open box of baking soda in the refrigerator; replace every three months.

Interior needs cleaning. • See

Care and cleaning.

Defrost water drainage •See

Care and cleaning.

system needs cleaning.

Moisture forms on

Not unusual during •Wipe surface dry.

outside of refrigerator

periods of high humidity.

Moisture collects inside

Too frequent or too long door openings.

Interior light does

No power at outlet. •Replace fuse or reset the breaker.

not work

Light bulb burned out. •See

Replacing the light bulbs.

Water on kitchen floor or

Drain in the bottom of • See

Care and cleaning.

on bottom of freezer

the freezer clogged. Cubes jammed in chute. •Poke ice through with a wooden spoon.

Hot air from bottom

Normal air flow cooling motor.

of refrigerator

In the refrigeration process, it is normal that heat be expelled in the area under the refrigerator. Some floor coverings are sensitive and will discolor at these normal and safe temperatures.

Cubed Ice was selected

Last setting was

Crushed Ice

. • A few cubes were left in the crusher from the previous

but Crushed Ice was

setting. This is normal.

dispensed (

on some models)

Frequent “buzzing” sound

Icemaker power switch is in the • Slide the power switch to the

OFF

position. Keeping it in

position but the water supply the

position will damage the water valve.

to the refrigerator has not been connected.

Consumer Support

Troubleshooting Tips

Installation Instructions Safety InstructionsOperating Instructions

Before you call for service…

TERMS AND CONDITIONS:

This warranty applies only for single family domestic use in Canada when the Refrigerator has been properly installed according to the instructions supplied by Mabe and is connected to an adequate and proper utility service.

Damage due to abuse, accident, commercial use, and alteration or defacing of the serial plate cancels all obligations of this warranty.

Service during this warranty period must be performed by an Authorized Mabe Service Agent.

Neither Mabe nor the Dealer is liable for any claims or damages resulting from failure of the Refrigerator or from service delays beyond their reasonable control.

To obtain warranty service, purchaser must present the original Bill of Sale. Components repaired or replaced are warranted through the remainder of the original warranty period only.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

This warranty is in addition to any statutory warranty.

WHAT IS NOT COVERED:

• Owner is responsible to pay for service calls related to product installation and/or teaching how to use the product.

• Damage to finish must be reported within 48 hours following the delivery of the appliance.

• Damage to finish after delivery.

• Improper installation—proper installation includes adequate air circulation to the refrigeration system, adequate electrical, plumbing and other connecting facilities.

• Replacement of house fuses or resetting of circuit breakers.

• Replacement of light bulbs.

• Damage to product caused by accident, fire, floods or acts of God.

• Loss of food due to spoilage.

• Proper use and care of product as listed in the owner’s manual, proper setting of controls.

• Product not accessible to provide required service.

• WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

IMPORTANT

Keep this warranty and your bill of sale as proof of original purchase and purchase date. Please have serial number and model number available when calling for service.

Mabe Service is available coast to coast. If further help is needed concerning this warranty, contact:

Manager, Consumer Relations Mabe Canada Inc., Consumer Service 1 Factory Lane, Suite 310 Moncton, New Brunswick E1C 9M3

1.800.561.3344

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

What is covered How Long Warranted Parts Labour

(From Date of Sale) Repair or Replace

at Mabe’s Option

Compressor GE Profile: Ten (10) Years GE Profile: Ten (10) Years GE Profile: Five (5) Years

GE and All Other GE and All Other GE and All Other

Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year

Sealed System (including GE Profile: Five (5) Years GE Profile: Five (5) Years GE Profile: Five (5) Years evaporator, condenser GE and All Other GE and All Other GE and All Other tubing and refrigerant) Brands: One (1) Year Brands: One (1) Year Brands: One (1) Year

All Other Parts One (1) Year One (1) Year One (1) Year

CUSTOMER WARRANTY

(for customers in Canada)

Your refrigerator is warranted to be free of defects in material and workmanship.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Consumer Support

Troubleshooting Tips

Installation Instructions Safety InstructionsOperating Instructions

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

Refrigerator Warranty. (For customers in the United States)

All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, visit us at GEAppliances.com, or call 800.GE.CARES (800.432.2737). Please have serial number and model number available when calling for service.

For The Period Of: GE Will Replace:

GE and GE PROFILE MODELS:

One Year Any part

of the refrigerator which fails due to a defect in materials or workmanship.

From the date of the

During this

limited one-year warranty,

GE will also provide,

free of charge,

all labor and

original purchase

related service to replace the defective part.

Thirty Days Any part

of the water filter cartridge which fails due to a defect in materials or workmanship.

(Water filter, if included)

During this

limited thirty-day warranty,

GE will also provide,

free of charge,

a replacement water

From the original

filter cartridge.

purchase date of the refrigerator

GE PROFILE MODELS ONLY:

Five Years Any part of the sealed refrigerating system

(the compressor, condenser, evaporator

(GE Profile models only)

and all connecting tubing) which fails due to a defect in materials or workmanship.

From the date of the

During this

limited five-year sealed refrigerating system warranty,

GE will also provide,

original purchase free of charge,

all labor and related service to replace the defective part in the sealed

refrigerating system.

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

■ Loss of food due to spoilage.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage caused after delivery.

■ Replacement of the water filter cartridge, if included,

due to water pressure that is outside the specified operating range or due to excessive sediment in the water supply.

■ Replacement of the light bulbs, if included, or water filter

cartridge, if included, other than as noted above.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

■ Product not accessible to provide required service.

What GE Will Not Cover:

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

Manufactured for: General Electric Company, Louisville, KY 40225 EPA EST. No. 070595-MN-001

Performance Data Sheet

SmartWater Filtration System

MWF Cartridge

This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.*

(100% safety factors built in for unmetered usage)

Standard No. 42: Aesthetic Effects

Parameter USEPA Influent Influent Effluent % Reduction Min. Required

MCL Challenge Concentration Average Average Maximum Average Minimum Reduction

Chlorine — 2.0 mg/L + 10% 1.96 mg/L 0.06 mg/L 0.11 mg/L 96.77% 94.74% > 50% T & O — — — — — — — — Particulate** — ≥ 10,000 particles/mL 6,400,000 #/mL 58,833 #/mL 150,000 #/mL 99.14% 97.97% ≥ 85%

Standard No. 53: Health Effects

Parameter USEPA Influent Influent Effluent % Reduction Min. Required

MCL Challenge Concentration Average Average Maximum Average Minimum Reduction

Turbidity 0.5 NTU 11 + 1 NTU*** 10.5 NTU 0.14 NTU 0.28 NTU 98.54% 97.20% 0.5 NTU Cysts ≥ 99.95% Reduction Minimum 50,000 L 118,750 #/L < 1 #/L 4 #/L > 99.99% > 99.99% ≥ 99.95% Asbestos ≥ 99% Reduction 107to 108fibers/L; > 10µm 57 MF/L 0.996 MF/L < 1 MF/L 99.60% 99.39% ≥ 99% Lead at pH 6.5 0.015 mg/L 0.15 mg/L + 10% 0.1567 mg/L < 0.001 mg/L < 0.001 mg/L 99.36% 99.29% 0.010 mg/L Lead at pH 8.5 0.015 mg/L 0.15 mg/L + 10% 0.1433 mg/L < 0.001 mg/L < 0.001 mg/L 99.30% 99.29% 0.010 mg/L Mercury at pH 6.5 0.002 mg/L 0.006 mg/L + 10% 0.0059 mg/L 0.000350 mg/L 0.0007 mg/L 94.70% 87.50% 0.002 mg/L Mercury at pH 8.5 0.002 mg/L 0.006 mg/L + 10% 0.0057 mg/L 0.000325 mg/L 0.0006 mg/L 93.20% 89.29% 0.002 mg/L Alachlor 0.002 mg/L 0.04 mg/L + 10% 0.0367 mg/L 0.00023 mg/L 0.0004 mg/L 99.34% 98.67% 0.002 mg/L

Lindane 0.0002 mg/L 0.002 mg/L + 10% 0.0020 mg/L < 0.00002 mg/L < 0.00002 mg/L 99.00% 98.95% 0.0002 mg/L

2,4-D 0.070 mg/L 0.210 mg/L + 10% 0.2033 mg/L 0.00337 mg/L 0.011000 mg/L 98.32% 94.50% 0.070 mg/L Toxaphene 0.003 mg/L 0.015 mg/L + 10% 0.0160 mg/L 0.00100 mg/L 0.001000 mg/L 93.44% 91.67% 0.003 mg/L Benzene 0.005 mg/L 0.015 mg/L + 10% 0.0145 mg/L 0.000500 mg/L 0.000500 mg/L 96.51% 95.83% 0.005 mg/L Carbofuran 0.040 mg/L 0.080 mg/L + 10% 0.0830 mg/L 0.001000 mg/L 0.001000 mg/L 98.78% 98.65% 0.04 mg/L 1,4 dichlorobenzene

0.075 mg/L 0.225 mg/L + 10% 0.2283 mg/L 0.000500 mg/L 0.000500 mg/L 99.78% 99.77% 0.075 mg/L

Atrazine 0.003 mg/L 0.009 mg/L + 10% 0.0087 mg/L < 0.0005 mg/L < 0.0005 mg/L 94.22% 93.33% 0.003 mg/L

* Tested using a flow rate of 0.50 gpm; pressure of 60 psig; pH of 7.5 ± 0.5; temp. of 68° ± 5°F (20° ± 3°C) ** Measurement in Particles/ml. Particles used were 0.5-1 microns *** NTU=Nephelometric Turbidity units

Operating Specifications

■ Capacity: certified for up to 300 gallons (1135 l); up to six

months for models without a replacement filter indicator light; up to one year for models with a replacement filter indicator light

■ Pressure requirement: 40–120 psi (2.8–8.2 bar), non-shock

■ Temperature: 33–100ºF (0.6–38ºC)

■ Flow rate: 0.5 gpm (1.9 lpm)

General Installation/Operation/Maintenance Requirements

■ Flush new cartridge at full flow for 3 minutes to purge out

trapped air.

■ Replace cartridge when the indicator light flashes or water

flow rate is reduced on non-indicator units.

Special Notices

■ Installation instructions, parts and service availability, and standard

warranty are included with the product when shipped.

■ This drinking water system must be maintained according to

manufacturer’s instructions, including replacement of filter cartridges.

■ Do not use with water that is microbiologically unsafe or of unknown

quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.

■ The contaminants or other substances removed or reduced by this

water treatment system are not necessarily in your water.

■ Check for compliance with the state and local laws and regulations.

■ Note that while the testing was performed under standard laboratory

conditions, actual performance may vary. Systems must be installed and operated in accordance with manufacturer’s recommended procedures and guidelines.

NSF

System Tested and Certified by NSF International against ANSI/NSF Standard 42 & 53 for the reduction of:

State of California

Department of Health Services

Water Treatment Device

Certificate Number

Date Issued: February 2, 2005

Trademark/Model Designation

Replacement Elements

169805 -

MWF MWF

Manufacturer: General Electric Company

The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section

116830 of the Health and Safety Code for the following health related contaminants:

Cysts Turbidity

Asbestos Lead Mercury

Alachlor Atrazine Benzene Carbofuran Lindane Mercury Toxaphene 1,4-dichlorobenzene 2,4-D

Microbiological Contaminants and Turbidity

Inorganic/Radiological Contaminants

Organic Contaminants

Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

300 galRated Service Capacity:

0.5 gpm

Rated Service Flow:

Conditions of Certification:

Standard No. 42: Aesthetic Effects

Chemical Unit

Chlorine Taste and Odor

Mechanical Filtration Unit

Particulate Reduction, Class I

Standard No. 53: Health Effects

Chemical Reduction Unit

Alachlor and Atrazine Reduction Benzene and Carbofuran Reduction 1,4 dichlorobenzene and 2,4-D Reduction Lead and Lindane Reduction Mercury and Toxaphene Reduction

Mechanical Filtration Unit

Turbidity Reduction Cyst and Asbestos Reduction

Consumer Support

Troubleshooting Tips

Installation Instructions Safety InstructionsOperating Instructions

Notes.

+ 44 hidden pages
