GENERAL ELECTRIC GSE20JEWFWW, GSE20JEFBB200, GSG25MIF, GSG22KEFWW, GSG22KEF User Manual
...
Safety Information
Adapter Plugs . . . . . . . . . . . . . . . . .4
Electricity . . . . . . . . . . . . . . . . . . . . .4
Extension Cords . . . . . . . . . . . . . . .3
Proper Disposal . . . . . . . . . . . . . . . .3
Safety Precautions . . . . . . . . . . . . . .2
Operating Instructions
Automatic Icemaker . . . . . . . . . . . .9
Controls . . . . . . . . . . . . . . . . . . . . .5
Crispers and Pans . . . . . . . . . . . .8, 9
Ice and Water Dispenser . . . . . . . .10
Shelves, Bins and Racks . . . . . . . .6–8
Water Filter Cartridge . . . . . . . . . . .6
Care and Cleaning
Cleaning . . . . . . . . . . . . . . . . .11, 12
Light Bulbs . . . . . . . . . . . . . . . . . .13
Installation Instructions
Preparing to Install
the Refrigerator . . . . . . . . . . . .14, 15
Water Line Installation . . . . . .16–20
Troubleshooting Tips
Before You Call For Service . . .22–24
Normal Operating Sounds . . . . . .21
Consumer Support
Consumer Support . . . . .Back Cover
Performance Data Sheet . . . . . . . .27
Product Registration . . . . . . . .29, 30
State of California Water
Treatment Device Certificate . . . . .28
Warranty (Canadian) . . . . . . . . . . .25
Warranty (U.S.) . . . . . . . . . . . . . . .26
www.GEAppliances.com
Refrigerators
Side by Side
197D3351P006 49-60272 07-03 JR
Write your model and serial numbers here:
Model # _____________________
Serial # _____________________
Find these numbers on a label inside
the refrigerator compartment at the top
on the right side behind the controls.
Réfrigérateurs
Côte à côte
Refrigeradores
Lado a lado
Models 20, 22 and 25
Manuel d’utilisation
et d’installation
Owner’s Manual and
Installation Instructions
Manual del propietario
e instalación
La section française commence à la page 31
La sección en español empieza en la página 59
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
2
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
Use this appliance only for its intended purpose as described in this Owner’s Manual.
SAFETY PRECAUTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
■
■ This refrigerator must be properly installed
and located in accordance with the Installation
Instructions before it is used.
■
■ Do not allow children to climb, stand or hang
on the shelves in the refrigerator. They could
damage the refrigerator and seriously injure
themselves.
■
■ Do not touch the cold surfaces in the freezer
compartment when hands are damp or wet. Skin
may stick to these extremely cold surfaces.
■
■ Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
■
■ In refrigerators with automatic icemakers,
avoid contact with the moving parts of the
ejector mechanism, or with the heating element
located on the bottom of the icemaker. Do not
place fingers or hands on the automatic
icemaking mechanism while the refrigerator
is plugged in.
■
■ Keep fingers out of the “pinch point” areas;
clearances between the doors and between
the doors and cabinet are necessarily small.
Be careful closing doors when children are
in the area.
■
■ Unplug the refrigerator before cleaning and
making repairs.
NOTE: We strongly recommend that any servicing be
performed by a qualified individual.
■
■ Setting the freezer control to the 0 (off) position
does not remove power to the light circuit.
■
■ Do not refreeze frozen foods which have
thawed completely.
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
PROPER DISPOSAL OF THE REFRIGERATOR
Child entrapment and suffocation are not problems
of the past. Junked or abandoned refrigerators are
still dangerous…even if they will sit for “just a few
days.” If you are getting rid of your old refrigerator,
please follow the instructions below to help prevent
accidents.
Before You Throw Away Your Old Refrigerator
or Freezer:
■ Take off the doors.
■ Leave the shelves in place so that children may
not easily climb inside.
Refrigerants
All refrigeration products contain refrigerants,
which under federal law must be removed prior
to product disposal. If you are getting rid of an
old refrigeration product, check with the
company handling the disposal about what
to do.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly recommend
against the use of an extension cord.
However, if you must use an extension cord, it is absolutely necessary that it be a UL-listed (in the United
States) or a CSA-listed (in Canada), 3-wire grounding type appliance extension cord having a grounding
type plug and outlet and that the electrical rating of the cord be 15 amperes (minimum) and 120 volts.
DANGER! RISK OF CHILD ENTRAPMENT
3
www.GEAppliances.com
4
Consumer Support Troubleshooting Tips
Installation Instructions Safety InstructionsOperating Instructions
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord. For
personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with a
standard 3-prong (grounding) wall outlet to
minimize the possibility of electric shock hazard
from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
If the outlet is a standard 2-prong outlet, it is your
personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall
outlet.
The refrigerator should always be plugged into its
own individual electrical outlet which has a voltage
rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the
power cord. Always grip plug firmly and pull
straight out from the outlet.
Repair or replace immediately all power cords that
have become frayed or otherwise damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end.
When moving the refrigerator away from the
wall, be careful not to roll over or damage the
power cord.
USE OF ADAPTER PLUGS (Adapter plugs not permitted in Canada)
Because of potential safety hazards under certain conditions, we strongly recommend against
the use of an adapter plug.
However, if you must use an adapter, where local
codes permit, a temporary connection may be made
to a properly grounded 2-prong wall outlet by use
of a UL-listed adapter available at most local
hardware stores.
The larger slot in the adapter must be aligned with
the larger slot in the wall outlet to provide proper
polarity in the connection of the power cord.
When disconnecting the power cord from the
adapter, always hold the adapter in place with one
hand while pulling the power cord plug with the
other hand. If this is not done, the adapter ground
terminal is very likely to break with repeated use.
If the adapter ground terminal breaks, DO NOT USE
the refrigerator until a proper ground has been
established.
Attaching the adapter ground terminal to a wall outlet
cover screw does not ground the appliance unless the
cover screw is metal, and not insulated, and the wall
outlet is grounded through the house wiring. You should
have the circuit checked by a qualified electrician to make
sure the outlet is properly grounded.
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
5
About the controls on the refrigerator. www.GEAppliances.com
Initially, set the refrigerator compartment control at 5 and the freezer
control at 5 and allow 12 hours for the temperature to stabilize.
Several adjustments may be required. Adjust the controls one
increment at a time, and allow 12 hours after each adjustment for the
refrigerator to reach the temperature you set.
Setting the freezer control to 0 stops cooling in both the refrigerator
and freezer compartments but does not shut off electrical power to
the refrigerator.
Control settings will vary based on personal preferences, usage and
operating conditions and may require more than one adjustment.
Your controls will look like one of the following:
5
5
6
6
4
4
7
7
3
3
8
8
2
2
9 IS COLDEST
9
9
1
1
0 IS OFF
0
FREEZER FRESH FOOD
6
Consumer Support Troubleshooting Tips
Installation Instructions Safety InstructionsOperating Instructions
About the water filter cartridge.
About the shelves and bins.
Bins on the Refrigerator Compartment Door
Adjustable bins can easily be carried from
refrigerator to work area.
To remove: Lift the front of the bin up, then
pull out.
To replace or relocate: Engage the bin in the
molded supports of the door, and push in.
Bin will lock in place.
The snugger helps prevent tipping, spilling
or sliding of small items stored on the door
shelf. Place a finger on either side of the
divider near the rear and move it back
and forth to fit your needs.
Water Filter Cartridge
The water filter cartridge is located in the
back upper right corner of the refrigerator
compartment.
When to Replace the Filter on
Models With a Replacement
Indicator Light
There is a replacement indicator light
for the water filter cartridge on either the
dispenser or the temperature control panel
(depending on model). This light will turn
yellow to tell you that you need to replace
the filter soon.
The filter cartridge should be replaced
when the replacement indicator light turns
red or if the flow of water to the dispenser
or icemaker decreases.
When to Replace the Filter on
Models Without a Replacement
Indicator Light
The filter cartridge should be replaced
every six months or earlier if the flow of
water to the water dispenser or icemaker
decreases.
Installing the Filter Cartridge
If you are replacing the cartridge, first
remove the old one by slowly turning it
to the left. Do not pull down on the
cartridge. A small amount of water may
drip down.
On models without a replacement
indicator light, apply the month and
year sticker to the new cartridge to
remind you to replace the filter in
six months.
Fill the replacement cartridge with
water from the tap to allow for better
flow from the dispenser immediately
after installation.
Lining up the arrow on the cartridge
and the cartridge holder, place the
top of the new cartridge up inside
the holder. Do not push it up into
the holder.
Slowly turn it to the right until the filter
cartridge stops. DO NOT OVERTIGHTEN.
As you turn the cartridge, it will
automatically raise itself into position.
Cartridge will rotate about 1/2 turn.
Run water from the dispenser for 3
minutes (about one and a half gallons)
to clear the system and prevent
sputtering.
Press and hold the RESET WATER FILTER
pad (on some models) for 3 seconds.
NOTE: A newly-installed water filter
cartridge may cause water to spurt from
the dispenser.
Filter Bypass Plug
You must use the filter bypass plug
when a replacement filter cartridge is not
available. The dispenser and the icemaker
will not operate without the filter or filter
bypass plug.
Replacement Filters:
To order additional filter cartridges in
the United States, visit our Website,
www.GEAppliances.com, or call
GE Parts and Accessories, 800.626.2002.
GWF
Suggested Retail $34.95 USD.
Customers in Canada should consult the
yellow pages for the nearest Camco Service
Center.
Place the top of the cartridge up
inside the cartridge holder and
slowly turn it to the right.
Filter Bypass Plug
Cartridge Holder
On some models
Not all features are on all models.
Snugger
(on some models, appearance may vary)
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
Rearranging the Shelves
To Remove
To Replace
Deep Door Shelves
Detachable shelf extenders deepen and
enclose fixed door shelves, providing
more storage room and greater storage
flexibility.
To remove: Lift the shelf extender straight
up then pull out.
To replace: Engage the shelf extender in the
molded supports on the door and push in.
It will lock in place.
Quick Space Shelf (on some models)
This shelf splits in half and slides under
itself for storage of tall items on the shelf
below.
Refrigerator Shelves:
Lift up and out
Tilt up
Insert
top hook
Lower to
lock in
place
To Remove
Freezer Shelves:
Slide-Out Spillproof Shelf (on some models)
The slide-out spillproof shelf allows you to
reach items stored behind others. The
special edges are designed to help prevent
spills from dripping to lower shelves.
Make sure you push the shelves all the way back
in before you close the door.
Spillproof Shelves (on some models)
Spillproof shelves have special edges
to help prevent spills from dripping to
lower shelves.
www.GEAppliances.com
To Remove
Freezer Pan:
Remove the pan by pulling it forward,
lifting up the front and sliding it past the
stop location.
7
Consumer Support Troubleshooting Tips
Operating Instructions Safety InstructionsInstallation Instructions
8
About the crispers and pans.
Not all features are on all models.
About the additional features.
Not all features are on all models.
Fruit and Vegetable Crispers
Excess water that may accumulate in the
bottom of the drawers should be wiped dry.
Adjustable Humidity Crispers and Snack Pan (on some models)
Slide the control all the way to the
High setting to provide high humidity
recommended for most vegetables.
Slide the control all the way to the Low
setting to provide lower humidity levels
recommended for most fruits.
Convertible Meat Pan (on some models)
The convertible meat pan has its own cold
air duct to allow a stream of cold air from
the freezer compartment to flow around
the pan.
The variable temperature control regulates
the air flow from the freezer compartment.
Set control lever up to convert the pan
to normal refrigerator temperature and
provide extra vegetable storage space. Cold
air duct is turned off. Variable settings
between these extremes can be selected.
Set control lever down to the coldest setting
to store fresh meats. If lever is left in meat
position for a long period of time, some
frost may form on the inside of the pan.
Normal
Coldest
ShelfSaver™Rack
(on some models)
Use this rack to store
beverage cans for easy
access.
It can also hold a 9″ x 13″
baking dish.
This door rack holds up
to 9 cans.
NOTE: This rack can only be
mounted in the top position
under the dairy bin.
Door Can Rack
(on some models)
HIGH
HIGH
LOW
LOW
Automatic Icemaker (on some models)
The icemaker will produce seven cubes
per cycle—approximately 100–130 cubes
in a 24-hour period, depending on freezer
compartment temperature, room
temperature, number of door openings
and other use conditions.
If the refrigerator is operated before the
water connection is made to the icemaker,
set the power switch in the O (off) position.
When the refrigerator has been connected
to the water supply, set the power switch to
the l (on) position.
The icemaker will fill with water when it
cools to 15°F. A newly-installed refrigerator
may take 12 to 24 hours to begin making
ice cubes.
You will hear a buzzing sound each time
the icemaker fills with water.
Throw away the first few batches of ice to
allow the water line to clear.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler
arm, the icemaker will stop producing ice.
It is normal for several cubes to be joined
together.
If ice is not used frequently, old ice cubes
will become cloudy, taste stale and shrink.
NOTE: In homes with lower-than-average water
pressure, you may hear the icemaker cycle multiple
times when making one batch of ice.
About crisper removal.
www.GEAppliances.com
Not all features are on all models.
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
About the automatic icemaker.
A newly-installed refrigerator may take 12–24 hours to begin making ice.
Crisper Removal
Crispers can easily be removed by tilting up
slightly and pulling past stop location.
If the door prevents you from taking out
the crispers, the refrigerator will need to
be rolled forward until the door opens
enough to slide the crispers out. In some
cases, when you roll the refrigerator out,
you will need to move the refrigerator to
the left as you roll it out.
When replacing the crispers, make
sure you slide them through the
crisper guides.
There is an upper freezer shelf
above the icemaker that can be
used for storage.
Crisper
Guides
Ice Storage Drawer
Icemaker Accessory Kit
To access ice, pull the drawer out. To remove the drawer, pull it straight out
and lift it past the stop location.
If your refrigerator did not come already
equipped with an automatic icemaker,
an icemaker accessory kit is available at
extra cost.
Check the back of the refrigerator for
the specific icemaker kit needed for
your model.
9
Icemaker
Feeler Arm
Power
Switch
Green
Power Light
Upper
Freezer
Shelf
10
Consumer Support Troubleshooting Tips
Installation Instructions Safety InstructionsOperating Instructions
About the ice and water dispenser.
On some models
Ice Storage Drawer
on Dispenser Models
To remove:
Set the icemaker power switch to the
O (off) position. Pull the drawer straight
out and then lift past the stop position.
To replace:
When replacing the drawer, make sure
to push it firmly into place. If it does not
go all the way back, remove it and rotate
the drive mechanism 1/4 turn. Then push
the drawer back again.
Rotate
Drive
Mechanism
Important Facts About Your Dispenser
■ Do not add ice from trays or bags to
the storage bin. It may not crush or
dispense well.
■ Avoid overfilling glass with ice and use of
narrow glasses. Backed-up ice can jam the
chute or cause the door in the chute to
freeze shut. If ice is blocking the chute,
poke it through with a wooden spoon.
■ Beverages and foods should not be
quick-chilled in the ice storage bin.
Cans, bottles or food packages in the
storage bin may cause the icemaker
or auger to jam.
■ To keep dispensed ice from missing
the glass, put the glass close to, but not
touching, the dispenser opening.
■ Some crushed ice may be dispensed even
though you selected CUBED ICE. This
happens occasionally when a few cubes
have been left in the crusher.
■ After crushed ice is dispensed, some
water may drip from the chute.
■ Sometimes a small mound of snow will
form on the door in the ice chute. This
condition is normal and usually occurs
when you have dispensed crushed ice
repeatedly. The snow will eventually
evaporate.
To Use the Dispenser
Select CUBED ICE , CRUSHED ICE
or WATER .
Press the glass gently against the top of
the dispenser cradle.
The spill shelf is not self-draining. To
reduce water spotting, the shelf and its
grille should be cleaned regularly.
If no water is dispensed when the refrigerator
is first installed, there may be air in the water
line system. Press the dispenser arm for at least
two minutes to remove trapped air from the water
line and to fill the water system. To flush out
impurities in the water line, throw away the first
six glassfuls of water.
CAUTION: Never put fingers or any other
objects into the ice crusher discharge opening.
Locking the Dispenser (on some models)
Press the LOCK
CONTROL pad for
3 seconds to lock the
dispenser and control
panel. To unlock, press
and hold the pad again
for 3 seconds.
Dispenser Light
This pad turns the
night light in the
dispenser on and off.
The light also comes
on when the dispenser
cradle is pressed. If this
light burns out, it
should be replaced
with a 6 watt maximum,
12 volt DC bulb.
Spill Shelf
Condenser
There is no need for routine condenser
cleaning in normal home operating
environments. However, in environments
that may be particularly dusty or greasy, the
condenser should be cleaned periodically
for efficient refrigerator operation.
Cleaning the condenser:
The condenser is located inside the back
of the refrigerator. To access it, first unplug
the refrigerator. Then remove the access
cover. The condenser is on the right side.
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
Care and cleaning of the refrigerator. www.GEAppliances.com
Cleaning the Outside
The dispenser drip area, (on some models)
beneath the grille, should be wiped dry. Water
left in this area may leave deposits. Remove
the deposits by adding undiluted vinegar to
the well. Soak until the deposits disappear
or become loose enough to rinse away.
The dispenser cradle (on some models).
Before cleaning, lock the dispenser by
pressing and holding the LOCK CONTROL
pad for 3 seconds. Clean with warm water
and baking soda solution—about a
tablespoon (15 ml) of baking soda to a
quart (1 l) of water. Rinse thoroughly
and wipe dry.
The door handles and trim. Clean with a
cloth dampened with soapy water. Dry
with a soft cloth.
Keep the outside clean. Wipe with a clean
cloth lightly dampened with kitchen
appliance wax or mild liquid dish detergent.
Dry and polish with a clean, soft cloth.
Do not wipe the refrigerator with a soiled dish
cloth or wet towel. These may leave a residue
that can erode the paint. Do not use scouring
pads, powdered cleaners, bleach or cleaners
containing bleach because these products can
scratch and weaken the paint finish.
Cleaning the Inside
To help prevent odors, leave an open box of
baking soda in the refrigerator and freezer
compartments.
Unplug the refrigerator before cleaning. If this
is not practical, wring excess moisture out
of sponge or cloth when cleaning around
switches, lights or controls.
Use warm water and baking soda solution—
about a tablespoon (15 ml) of baking soda
to a quart (1 l) of water. This both cleans
and neutralizes odors. Rinse and wipe dry.
After cleaning the door gaskets, apply a
thin layer of petroleum jelly to the door
gaskets at the hinge side. This helps keep
the gaskets from sticking and bending out
of shape.
Drain opening in freezer compartment.
During yearly cleaning, remove bottom
freezer pan and flush a solution of baking
soda—1 teaspoon (5 ml) and 2 cups (500
ml) of hot (not boiling) water— through
the drain line with the help of a meat
baster. This will help eliminate odor and
reduce the likelihood of a clogged drain
line. If drain becomes clogged, use a meat
baster and baking soda solution to force the
clog through the drain line.
Avoid cleaning cold glass shelves with hot water
because the extreme temperature difference may
cause them to break. Handle glass shelves
carefully. Bumping tempered glass can cause it
to shatter.
Do not wash any plastic refrigerator parts in the
dishwasher.
11
Dispenser drip area.
For long vacations or absences, remove
food and unplug the refrigerator. Clean the
interior with a baking soda solution of one
tablespoon (15 ml) of baking soda to one
quart (1 l) of water. Leave the doors open.
Set the icemaker power switch to the O (off)
position and shut off the water supply to
the refrigerator.
If the temperature can drop below
freezing, have a qualified servicer drain the
water supply system (on some models) to
prevent serious property damage due to
flooding.
12
Consumer Support Troubleshooting Tips
Installation Instructions Safety InstructionsOperating Instructions
Care and cleaning of the refrigerator.
Behind the Refrigerator
Be careful when moving the refrigerator
away from the wall. All types of floor
coverings can be damaged, particularly
cushioned coverings and those with
embossed surfaces.
Pull the refrigerator straight out and return
it to position by pushing it straight in.
Moving the refrigerator in a side direction
may result in damage to the floor covering
or refrigerator.
When pushing the refrigerator back, make sure
you don’t roll over the power cord or icemaker
supply line (on some models).
Preparing for Vacation
Preparing to Move
Secure all loose items such as grille, shelves and drawers by taping them securely
in place to prevent damage.
Be sure the refrigerator stays in an upright position during moving.
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
Replacing the light bulbs. www.GEAppliances.com
Turning the control to the 0 (off) position does not remove power to the light circuit.
Refrigerator Compartment—Upper Light
Unplug the refrigerator.
The bulb is located behind the controls.
Replace with an appliance bulb of the
same or lower wattage.
Plug the refrigerator back in.
Refrigerator Compartment—Lower Light (on some models)
This light is located above the top drawer.
Unplug the refrigerator.
Grasp the lip at the bottom of the light
shield and pull it up and forward.
After replacing with an appliance
bulb of the same or lower wattage,
replace the shield.
Plug the refrigerator back in.
Freezer Compartment
Unplug the refrigerator.
Remove the shelf just below the light
shield. (The shelf will be easier to
remove if it is emptied first.)
Lift up on the light shield to remove.
After replacing with an appliance
bulb of the same or lower wattage,
reinstall the shield by hanging it
from the three tabs.
Reinstall the shelf and plug the
refrigerator back in.
13
Dispenser
Unplug the refrigerator.
The bulb is located on the dispenser
under the control panel.
Remove the light bulb by turning
it counterclockwise.
Replace the bulb with a bulb of the
same size and wattage.
Plug the refrigerator back in.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•
IMPORTANT – Save these
instructions for local inspector’s use.
•
IMPORTANT – Observe all
governing codes and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
for future reference.
• Skill level – Installation of this appliance requires
basic mechanical skills.
• Completion time – Refrigerator Installation
15 minutes
• Proper installation is the responsibility of the
installer.
• Product failure due to improper installation is not
covered under the Warranty.
• Do not install the refrigerator where the temperature
will go below 60°F (16°C) because it will not run often
enough to maintain proper temperatures.
• Install it on a floor strong enough to support it fully
loaded.
REFRIGERATOR LOCATION
Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com
Questions? In Canada, call 1.800.361.3400
or Visit our Website at: www.geappliances.ca
Installation
Refrigerator
Instructions
Models 20, 22, 25
Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.
• Sides 1/8″ (4 mm)
• To p 1″ (25 mm)
• Back 1″ (25 mm)
A door clearance of 3/4″ (19 mm) is needed for a 90º
door opening which provides better access to the food
storage area.
CLEARANCES
The rollers have 3 purposes:
■ Rollers adjust so the door closes easily when opened
about halfway.
■ Rollers adjust so the refrigerator is firmly positioned
on the floor and does not wobble.
■ Rollers allow you to move the refrigerator away from
the wall for cleaning.
To adjust the rollers, remove the base grille by pulling it
out at the bottom.
Turn the roller adjusting screws clockwise to raise the
refrigerator, counterclockwise to lower it. Use an
adjustable wrench (3/8″ hex head bolt) or pliers.
To replace base grille, line up the clips on back of grille
between the bar and the bottom of the cabinet. Push
forward until grille snaps into place.
ROLLERS
If the refrigerator has an icemaker, it will have to be
connected to a cold water line. A GE water supply kit
(containing tubing, shutoff valve, fittings and
instructions) is available at extra cost from your dealer,
by visiting our Website at www.GEAppliances.com
(in Canada, at www.geappliances.ca) or from Parts
and Accessories, 800.626.2002.
WATER SUPPLY TO THE ICEMAKER
(on some models)
14
To remove the base
grille, open the doors
and then pull the
grille straight out.
5/16″ Socket
Wrench
Raise
DOOR ALIGNMENT
After leveling, make sure that doors are even at the top.
To make the doors even, adjust the refrigerator door.
Using a 5/16″ socket wrench, turn the door adjusting
screw to the right to raise the door, to the left to lower
it. (A nylon plug, embedded in the threads of the pin,
prevents the pin from turning unless a wrench is
used.)
After one or two turns of the wrench, open and close
the refrigerator compartment door and check the
alignment at the top of the doors.
Installation Instructions
15
Installation Instructions
16
INSTALLING THE WATER LINE
Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of
tubing you need. Approved plastic water supply lines
are GE SmartConnect™Refrigerator Tubing
(WX08X10002, WX08X10006, WX08X10015 and
WX08X10025).
When connecting your refrigerator to a GE Reverse
Osmosis Water System, the only approved installation
is with a GE RVKit. For other reverse osmosis water
systems, follow the manufacturer’s recommendations.
If the water supply to the refrigerator is from a Reverse
Osmosis Water Filtration System AND the refrigerator
also has a water filter, use the refrigerator’s filter bypass
plug. Using the refrigerator’s water filtration cartridge
in conjunction with the RO filter can result in hollow
ice cubes and slower water flow from the water
dispenser.
This water line installation is not warranted by the
refrigerator or icemaker manufacturer. Follow these
instructions carefully to minimize the risk of expensive
water damage.
Water hammer (water banging in the pipes) in house
plumbing can cause damage to refrigerator parts and
lead to water leakage or flooding. Call a qualified
plumber to correct water hammer before installing
the water supply line to the refrigerator.
To prevent burns and product damage, do not hook
up the water line to the hot water line.
If you use your refrigerator before connecting the
water line, make sure the icemaker power switch is in
the O (off) position.
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double
insulated or grounded in a manner to prevent the
hazard of electric shock, or is battery powered.
All installations must be in accordance with local
plumbing code requirements.
BEFORE YOU BEGIN
• Copper or GE SmartConnect™Refrigerator Tubing
kit, 1/4″ outer diameter to connect the refrigerator
to the water supply. If using copper, be sure both ends
of the tubing are cut square.
To determine how much tubing you need: measure
the distance from the water valve on the back of the
refrigerator to the water supply pipe. Then add 8′
(2.4 m). Be sure there is sufficient extra tubing (about
8′ [2.4 m] coiled into 3 turns of about 10″ [25 cm]
diameter) to allow the refrigerator to move out from
the wall after installation.
GE SmartConnect™Refrigerator Tubing Kits are
available in the following lengths:
2′ (0.6 m) – WX08X10002
6′ (1.8 m) – WX08X10006
15′ (4.6 m) – WX08X10015
25′ (7.6 m) – WX08X10025
Be sure that the kit you select allows at least 8′ (2.4 m)
as described above.
NOTE: The only GE approved plastic tubing is that
supplied in GE SmartConnect™Refrigerator Tubing
kits. Do not use any other plastic water supply line
because the line is under pressure at all times. Certain
types of plastic will crack or rupture with age and cause
water damage to your home.
WHAT YOU WILL NEED
Installation Instructions
17
SHUT OFF THE MAIN WATER
SUPPLY
Turn on the nearest faucet long enough to clear
the line of water.
Install the shutoff valve on the nearest frequently used
drinking water line.
1
Choose a location for the valve that is easily
accessible. It is best to connect into the side of a
vertical water pipe. When it is necessary to connect
into a horizontal water pipe, make the connection
to the top or side, rather than at the bottom,
to avoid drawing off any sediment from the
water pipe.
CHOOSE THE VALVE LOCATION
2
Drill a 1/4″ hole in the water pipe (even if using a
self-piercing valve) using a sharp bit. Remove any
burrs resulting from drilling the hole in the pipe.
Take care not to allow water to drain into the drill.
Failure to drill a 1/4″ hole may result in reduced
ice production or smaller cubes.
DRILL THE HOLE FOR THE VALVE
3
• A GE water supply kit (containing tubing, shutoff
valve and fittings listed below) is available at extra
cost from your dealer or from Parts and Accessories,
800.626.2002.
• A cold water supply. The water pressure must be
between 20 and 120 p.s.i. (1.4–8.2 bar) on models
without a water filter and between 40 and 120 p.s.i.
(2.8–8.2 bar) on models with a water filter.
• Power drill.
• 1/2″ or adjustable wrench.
• Straight and Phillips blade screwdriver.
• Two 1/4″ outer diameter compression nuts and
2 ferrules (sleeves)—to connect the copper tubing
to the shutoff valve and the refrigerator
water valve.
OR
• If you are using a GE SmartConnect™Refrigerator
Tubing kit, the necessary fittings are preassembled to
the tubing.
• If your existing copper water line has a flared fitting
at the end, you will need an adapter (available at
plumbing supply stores) to connect the water line to
the refrigerator OR you can cut off the flared fitting
with a tube cutter and then use a compression fitting.
Do not cut formed end from GE SmartConnect
™
Refrigerator tubing.
• Shutoff valve to connect to the cold water line.
The shutoff valve should have a water inlet with a
minimum inside diameter of 5/32″ at the point of
connection to the COLD WATER LINE. Saddle-type
shutoff valves are included in many water supply kits.
Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
WHAT YOU WILL NEED
(CONT.)
Installation Instructions
18
Place the compression nut and ferrule (sleeve) for
copper tubing onto the end of the tubing and
connect it to the shutoff valve.
Make sure the tubing is fully inserted into the valve.
Tighten the compression nut securely.
For plastic tubing from a GE SmartConnect™
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then tighten
one additional turn with a wrench. Overtightening
may cause leaks.
CONNECT THE TUBING
TO THE VALVE
7
Turn the main water supply on and flush out the
tubing until the water is clear.
Shut the water off at the water valve after about
one quart (1 liter) of water has been flushed
through the tubing.
FLUSH OUT THE TUBING
8
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
Saddle-Type
Shutoff Valve
Compression Nut
SmartConnect
™
Tubing
Packing Nut
Outlet Valve
Ferrule (sleeve)
Fasten the shutoff valve to the cold water pipe with
the pipe clamp.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
FASTEN THE SHUTOFF VALVE
4
Tighten the clamp screws until the sealing washer
begins to swell.
NOTE: Do not overtighten or you may crush the
tubing.
TIGHTEN THE PIPE CLAMP
5
Vertical Cold
Water Pipe
Saddle-Type
Shutoff Valve
Washer
Inlet End
Pipe Clamp
Clamp Screw
Route the tubing between the cold water line and
the refrigerator.
Route the tubing through a hole drilled in the wall
or floor (behind the refrigerator or adjacent base
cabinet) as close to the wall as possible.
NOTE: Be sure there is sufficient extra tubing
(about 8′ [2.4 m] coiled into 3 turns of about 10 ″
[25 cm] diameter) to allow the refrigerator to move
out from the wall after installation.
ROUTE THE TUBING
6
Pipe Clamp

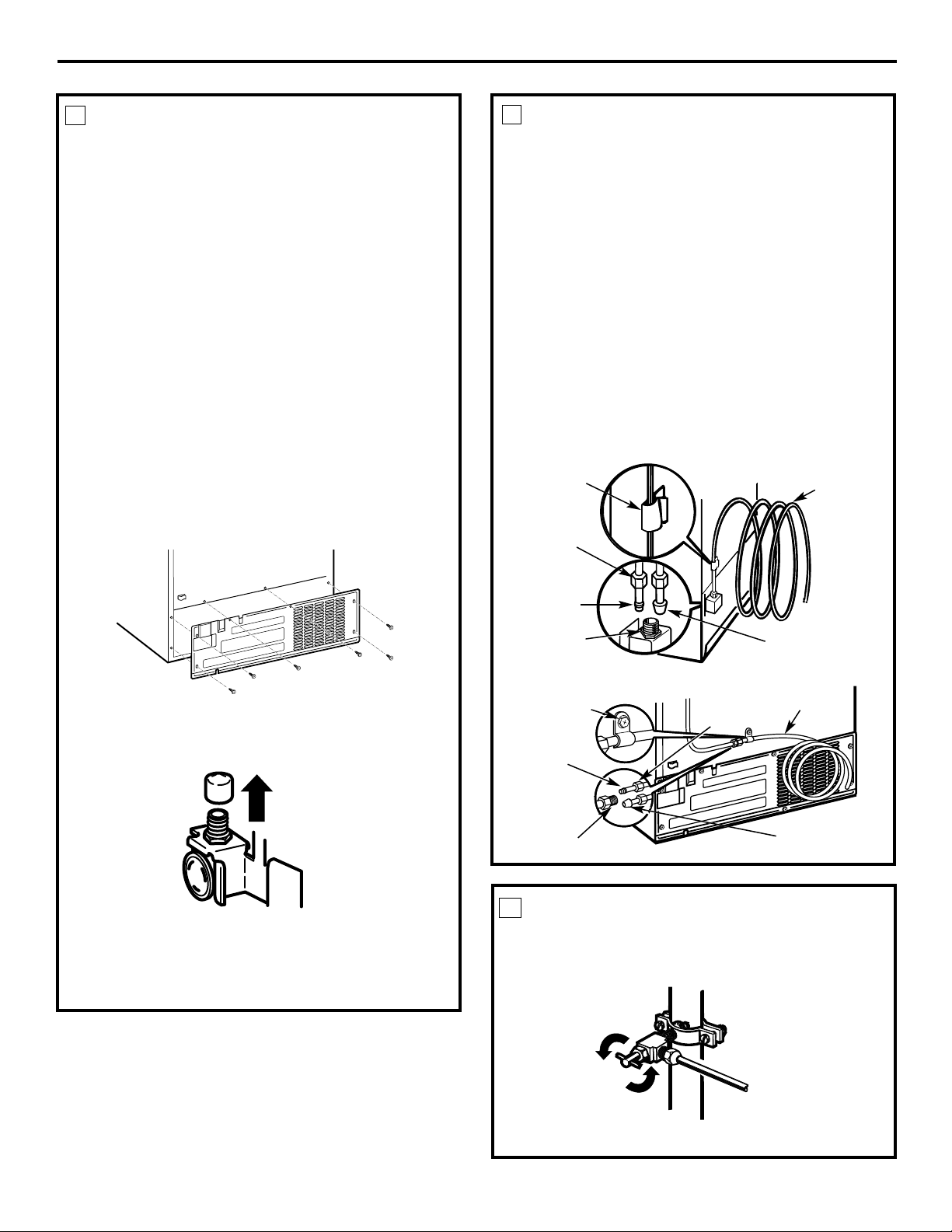

INSTALLING THE WATER LINE (cont.)
Installation Instructions
Tighten any connections that leak.
TURN THE WATER ON AT THE
SHUTOFF VALVE
10
19
Place the compression nut and ferrule (sleeve)
onto the end of the tubing as shown. On a GE
SmartConnect Refrigerator Tubing kit, the nuts
are already assembled to the tubing.
On models using the refrigeration connection at
the water valve, remove the plastic flexible cap.
NOTES:
• Before making the connection to the refrigerator,
be sure the refrigerator power cord is not
plugged into the wall outlet.
• If your refrigerator does not have a water filter,
we recommend installing one if your water supply
has sand or particles that could clog the screen of
the refrigerator’s water valve. Install it in the
water line near the refrigerator. If using a GE
SmartConnect
™
Refrigerator Tubing kit, you
will need an additional tube (WX08X10002)
to connect the filter. Do not cut plastic tube
to install filter.
CONNECT THE TUBING TO THE
REFRIGERATOR
9
CONNECT THE TUBING TO THE
REFRIGERATOR
(CONT.)
9
Some models have the refrigerator connection at
the end of tubing located outside the compressor
compartment access cover. On other models, the
compressor compartment access cover must be
removed in order to access the refrigerator
connection at the water valve.
Reattach the access cover.
Insert the end of the tubing into the refrigerator
connection as far as possible. While holding the
tubing, tighten the fitting.
For plastic tubing from a GE SmartConnect
Refrigerator Tubing kit, insert the molded end of
the tubing into the refrigerator connection and
tighten the compression nut until it is hand tight,
then tighten one additional turn with a wrench.
Overtightening may cause leaks.
Fasten the tubing into the clamp provided as
shown to keep it in position. You may need to pry
open the clamp.
One of the illustrations below will look like the
connection on your refrigerator.
1/4″
Compression
Nut
Tubing
Clamp
1/4″
Tubing
Refrigerator
Connection
SmartConnect
™
Tubing
Ferrule
(sleeve)
Tubing
Clamp
Refrigerator
Connection
SmartConnect
™
Tubing
1/4″
Compression
Nut
Ferrule
(sleeve)
1/4″
Tubing
20
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the
wall. Push the refrigerator back to the wall.
PLUG IN THE REFRIGERATOR
11
START THE ICEMAKER
Set the icemaker power switch to the I (on) position.
The icemaker will not begin to operate until it
reaches its operating temperature of 15°F (–9°C)
or below. It will then begin operation automatically
if the icemaker power switch is in the I (on) position.
NOTE: In lower water pressure conditions, the
water valve may turn on up to 3 times to deliver
enough water to the icemaker.
Installation Instructions
INSTALLING THE WATER LINE (cont.)
21
Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
Normal operating sounds.
www.GEAppliances.com
Newer refrigerators sound different from older refrigerators.
Modern refrigerators have more features and use newer
technology.
HUMMM...
WHOOSH...
■
The new high efficiency compressor may run faster
and longer than your old refrigerator and you may
hear a high-pitched hum or pulsating sound while
it is operating.
■
Sometimes the refrigerator runs for an extended period,
especially when the doors are opened frequently. This
means that the Frost Guard™feature is working to
prevent freezer burn and improve food preservation.
■
You may hear a whooshing sound when the doors close.
This is due to pressure equalizing within the refrigerator.
■
You may hear the fans spinning at high speeds.
This happens when the refrigerator is first plugged
in, when the doors are opened frequently or when
a large amount of food is added to the refrigerator
or freezer compartments. The fans are helping to
maintain the correct temperatures.
■
If either door is open for over 3 minutes, you may
hear the fans come on in order to cool the light
bulbs.
■
The fans change speeds in order to provide optimal
cooling and energy savings.
CLICKS, POPS,
CRACKS and CHIRPS
■
You may hear cracking or popping sounds when the
refrigerator is first plugged in. This happens as the
refrigerator cools to the correct temperature.
■
Electronic dampers click open and closed to provide
optimal cooling and energy savings.
■
The compressor may cause a clicking or chirping
sound when attempting to restart (this could take
up to 5 minutes).
■
The electronic control board may cause a clicking
sound when relays activate to control refrigerator
components.
■
Expansion and contraction of cooling coils during
and after defrost can cause a cracking or popping
sound.
■
On models with an icemaker, after an icemaking
cycle, you may hear the ice cubes dropping into
the ice bucket.
WATER SOUNDS
■
The flow of refrigerant through the freezer cooling
coils may make a gurgling noise like boiling water.
■
Water dropping on the defrost heater can cause a
sizzling, popping or buzzing sound during the
defrost cycle.
■
A water dripping noise may occur during the defrost
cycle as ice melts from the evaporator and flows into
the drain pan.
■
Closing the door may cause a gurgling sound due to
pressure equalization.
Do you hear what I hear? These sounds are normal.
For additional information on normal
icemaker and dispenser operating sounds,
see the About the automatic icemaker
and About the ice and water dispenser
sections.
Consumer Support Troubleshooting Tips
Installation Instructions Safety InstructionsOperating Instructions
Before you call for service…
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Problem Possible Causes What To Do
Refrigerator does not Refrigerator in defrost cycle. • Wait about 30 minutes for defrost cycle to end.
operate
Freezer control • Move the freezer control to a temperature setting.
in 0 (off) position.
Refrigerator is unplugged. • Push the plug completely into the outlet.
The fuse is blown/circuit •Replace fuse or reset the breaker.
breaker is tripped.
Vibration or rattling Front rollers need adjusting. •See Rollers.
(slight vibration
is normal)
Motor operates for Normal when refrigerator • Wait 24 hours for the refrigerator to completely
long periods or cycles is first plugged in. cool down.
on and off frequently.
Often occurs when large • This is normal.
(Modern refrigerators
amounts of food are
with more storage
placed in refrigerator.
space and a larger
Door left open. • Check to see if package is holding door open.
freezer require more
Hot weather or frequent • This is normal.
operating time. They
door openings.
start and stop often
Temperature controls • See About the controls.
to maintain even
set at the coldest
temperatures.)
setting.
Refrigerator or freezer Temperature control not set • See About the controls.
compartment too warm cold enough.
Warm weather or frequent • Set the temperature control one step colder.
door openings. See About the controls.
Door left open. • Check to see if package is holding door open.
Frost or ice crystals Door left open. • Check to see if package is holding door open.
on frozen food
Too frequent or too long
(frost within package
door openings.
is normal)
Divider between Automatic energy saver • This helps prevent condensation on the outside.
refrigerator and freezer system circulates warm
compartments liquid around front edge
feels warm of freezer compartment.
Automatic icemaker Icemaker power switch • Set the power switch to the l (on) position.
does not work is in the O (off) position.
(on some models)
Water supply turned off or • See Installing the water line.
not connected.
Freezer compartment • Wait 24 hours for the refrigerator to completely
too warm. cool down.
Piled up cubes in the storage •Level cubes by hand.
bin cause the icemaker
to shut off.
Ice cubes stuck in icemaker. • Turn off the icemaker, remove cubes and turn the
(Green power light on icemaker back on.
icemaker blinking).
22
Consumer SupportTroubleshooting TipsOperating Instructions
Safety Instructions
Installation Instructions
www.GEAppliances.com
Problem Possible Causes What To Do
Ice cubes have Ice storage bin needs cleaning. • Empty and wash bin. Discard old cubes.
odor/taste
Food transmitting odor/taste • Wrap foods well.
to ice cubes.
Interior of refrigerator •See Care and cleaning.
needs cleaning.
Small or hollow cubes Water filter clogged. •Replace filter cartridge with new cartridge or with plug.
Slow ice cube freezing Door left open. • Check to see if package is holding door open.
Temperature control not set •See About the controls.
cold enough.
Door not closing Door gasket on hinge side •Apply petroleum jelly on face of gasket.
properly sticking or folding over.
Orange glow in Defrost heater is on. •This is normal.
the freezer
Cube dispenser does not Icemaker turned off or • Turn on icemaker or water supply.
work (on some models) water supply turned off.
Ice cubes are frozen to • Remove cubes.
icemaker feeler arm.
Irregular ice clumps in • Break up with fingertip pressure and discard
storage container. remaining clumps.
•Freezer may be too warm. Adjust the freezer control
to a colder setting, one position at a time, until clumps
do not form.
Dispenser is LOCKED. •Press and hold the LOCK CONTROL pad for 3 seconds.
Water has poor taste/odor Water dispenser has not been •Dispense water until all water in system is replenished.
(on some models) used for a long time.
Water in first glass is Normal when refrigerator • Wait 24 hours for the refrigerator to completely
warm (on some models) is first installed. cool down.
Water dispenser has not been • Dispense water until all water in system is replenished.
used for a long time.
Water system has been drained. • Allow several hours for replenished supply to chill.
Water dispenser does Water supply line turned • See Installing the water line.
not work (on some models) off or not connected.
Water filter clogged. •Replace filter cartridge or remove filter and install plug.
Air may be trapped in the •Press the dispenser arm for at least two minutes.
water system.
Dispenser is LOCKED. •Press and hold the LOCK CONTROL pad for 3 seconds.
Water spurting from Newly-installed filter cartridge. •Run water from the dispenser for 3 minutes (about
dispenser
one and a half gallons).
Water is not dispensed Water in reservoir is •Call for service.
but icemaker is working frozen.
No water or ice cube Supply line or shutoff •Call a plumber.
production valve is clogged.
Water filter clogged. •Replace filter cartridge or remove filter and install plug.
Dispenser is LOCKED. •Press and hold the LOCK CONTROL pad for 3 seconds.
23
Problem Possible Causes What To Do
Refrigerator has odor Foods transmitting • Foods with strong odors should be tightly wrapped.
odor to refrigerator.
• Keep an open box of baking soda in the refrigerator;
replace every three months.
Interior needs cleaning. • See Care and cleaning.
Defrost water drainage •See Care and cleaning.
system needs cleaning.
Moisture forms on Not unusual during •Wipe surface dry.
outside of refrigerator periods of high humidity.
Moisture collects inside Too frequent or too
(in humid weather, air long door openings.
carries moisture into
refrigerator when doors
are opened)
Interior light does No power at outlet. •Replace fuse or reset the breaker.
not work
Light bulb burned out. •See Replacing the light bulbs.
Water on kitchen floor or Drain in the bottom of • See Care and cleaning.
on bottom of freezer the freezer clogged.
Cubes jammed in chute. •Poke ice through with a wooden spoon.
Hot air from bottom Normal air flow cooling
of refrigerator motor. In the refrigeration
process, it is normal that
heat be expelled in the
area under the refrigerator.
Some floor coverings are
sensitive and will discolor at
these normal and safe temperatures.
CUBED ICE was selected Last setting was CRUSHED ICE. • A few cubes were left in the crusher from the previous
but CRUSHED ICE was setting. This is normal.
dispensed (
on some models)
Frequent “buzzing” sound Icemaker power switch is in the • Set the power switch to the O (off) position. Keeping it in
I (on) position but the water supply the I (on) position will damage the water valve.
to the refrigerator has not been
connected.
Consumer Support Troubleshooting Tips
Installation Instructions Safety InstructionsOperating Instructions
Before you call for service…
24
TERMS AND CONDITIONS:
This warranty applies only for single
family domestic use in Canada when the
Refrigerator has been properly installed
according to the instructions supplied by
Camco and is connected to an adequate
and proper utility service.
Damage due to abuse, accident, commercial
use and alteration or defacing of the serial
plate cancels all obligations of this warranty.
Service during this warranty must be performed
by an Authorized Camco Service Agent.
Neither Camco nor the Dealer is liable for any
claims or damages resulting from any failure
of the Refrigerator or from service delays
beyond their reasonable control.
To obtain warranty service, purchaser must
present the original bill of sale. Components
repaired or replaced are warranted through the
remainder of the original warranty period only.
This warranty is in addition to any statutory
warranty.
WHAT IS NOT COVERED:
• Service trips to your home to teach you how
to use the product.
• Damage to finish after delivery.
• Improper installation—proper installation
includes adequate air circulation to the
refrigeration system, adequate electrical,
plumbing and other connecting facilities.
• Replacement of house fuses or resetting
of circuit breakers.
• Replacement of light bulbs.
• Damage to product caused by accident,
fire, floods or acts of God.
• Loss of food due to spoilage.
• Proper use and care of product as listed
in the owner’s manual, proper setting of
controls.
• WARRANTOR IS NOT RESPONSIBLE
FOR CONSEQUENTIAL DAMAGES.
IMPORTANT
Keep this warranty and your bill of sale as proof of original purchase and purchase date.
Camco Service is available coast to coast.
If further help is needed concerning this warranty, contact:
Manager, Consumer Relations, Camco Inc.,
Suite 310, 1 Factory Lane, Moncton, N.B. E1C 9M3
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
25
CONSUMER WARRANTY
(for customers in Canada)
Your refrigerator is warranted to be free of defects in material and workmanship.
What is covered How Long Warranted Parts Labour
(From Date of Sale) Repair or Replace
at Camco’s Option
Compressor Five (5) Years Five (5) Years Five (5) Years
Sealed System (including Five (5) Years Five (5) Years Five (5) Years
evaporator, condenser
tubing and refrigerant)
Clear Lexan Freezer Pan Lifetime Lifetime Lifetime
All Other Parts One (1) Year One (1) Year One (1) Year
26
Consumer Support Troubleshooting Tips
Installation Instructions Safety InstructionsOperating Instructions
Refrigerator Warranty. (For customers in the United States)
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care
®
technician. To schedule service,
on-line, 24 hours a day, visit us at www.GEAppliances.com, or call
800.GE.CARES (800.432.2737).
■ Service trips to your home to teach you how to use
the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for
other than the intended purpose or used commercially.
■ Loss of food due to spoilage.
■ Replacement of house fuses or resetting of circuit
breakers.
■ Damage caused after delivery.
■ Replacement of the water filter cartridge due to water
pressure that is outside the specified operating range or
due to excessive sediment in the water supply.
■ Replacement of the light bulbs or water filter cartridge
other than as noted above.
■ Damage to the product caused by accident, fire, floods
or acts of God.
■ Incidental or consequential damage caused by possible
defects with this appliance.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.
For The Period Of: GE Will Replace:
One Year Any part of the refrigerator which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, GE will also provide, free of charge, all labor and in-home
original purchase service to replace the defective part.
Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator
From the date of the and all connecting tubing) which fails due to a defect in materials or workmanship.
original purchase During this full five-year sealed refrigerating system warranty, GE will also provide, free of charge,
all labor and in-home service to replace the defective part in the sealed refrigerating system.
Thirty Days Any part of the water filter cartridge which fails due to a defect in materials or workmanship.
From the original During this limited thirty-day warranty, GE will also provide, free of charge, a replacement water
purchase date of the filter cartridge.
refrigerator
Lifetime The clear Lexan freezer pan furnished with the refrigerator if the pan breaks during normal
From the date of the household use.
original purchase
27
Manufactured for: General Electric Company, Louisville, KY 40225
Performance Data Sheet
SmartWater Filtration System
GWF / HWF Cartridge
This system has been tested according to NSF/ANSI 42/53 for reduction of the substances listed below.
The concentration of the indicated substances in water entering the system was reduced to a concentration
less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI 42/53.*
(100% safety factors built in for unmetered usage)
Standard No. 42: Aesthetic Effects
Parameter USEPA Influent Effluent % Reduction Min. Required
MCL Challenge Concentration Average Maximum Average Minimum Reduction
Chlorine — 2.0 mg/L + 10% 0.02 ppm 0.05 ppm 98.90% 97.37% > 50%
T & O — — — — — — —
Particulate** — at least 10,000 particles/mL 3,978 7,800 98.00% 96.10% >
85%
Standard No. 53: Health Effects
Parameter USEPA Influent Effluent % Reduction Min. Required
MCL Challenge Concentration Average Maximum Average Minimum Reduction
Turbidity 1 NTU*** 11 + 1 NTU*** 0.07 NTU 0.1 NTU 99.71% 99.59% 0.5 NTU
Cysts
99.95% Reduction
Minimum 50,000 L 26 55 99.97% 99.95% > 99.95%
Lead at pH 6.5 15 ppb 0.15 mg/L + 10% 1 ppb 1 ppb 99.37% 99.37% 0.010 mg/L
Lead at pH 8.5 15 ppb 0.15 mg/L + 10% 1.8 ppb 4.3 ppb 98.8% 97.13% 0.010 mg/L
Lindane
0.0002 ppm
0.002 mg/L + 10%
0.00005 ppm 0.00005 ppm
91.93% 91.93% 0.0002 mg/L
Atrazine
0.003 ppm
0.009 mg/L + 10% 0.002 ppm 0.003 ppm 76.19% 64.28% 0.003 mg/L
2,4-D
0.100 ppm
0.210 mg/L + 10% 0.042 ppm 0.090 ppm 84.89% 67.63% 0.07 mg/L
Asbestos
99%
10
7
to 108fibers/L; 0.32 MFL/ml 1.2 MFL/ml 99.95% 99.82% 99%
fibers greater than
10 micrometers in length
* Tested using a flow rate of 0.5 gpm; pressure of 60 psig; pH of 7.5 ± 0.5; temp. of 20° ± 2.5°C
** Measurement in Particles/ml. Particles used were 0.5-1 microns
*** NTU=Nephelometric Turbidity units
Operating Specifications
Capacity: certified for up to 300 gallons (1135 l); up to six months for models without a replacement filter indicator light; up
to one year for models with a replacement filter indicator light
Pressure requirement: 40–120 psi (2.8–8.2 bar), non-shock
Temperature: 33–100ºF (0.6–38ºC)
Flow rate: 0.5 gpm (1.9 lpm)
General Installation/Operation/Maintenance Requirements
Flush new cartridge at full flow for 3 minutes to purge out trapped air.
Replace cartridge when flow becomes too slow.
Special Notices
Installation instructions, parts and service availability, and standard warranty are included with the product when shipped.
This drinking water system must be maintained according to manufacturer’s instructions, including replacement of filter
cartridges.
Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or
after the system. Systems certified for cyst reduction may be used on disinfected water that may contain filterable cysts.
The contaminants or other substances removed or reduced by this water treatment system are not necessarily in your
water.
Check for compliance with the state and local laws and regulations.
Note that while the testing was performed under standard laboratory conditions, actual performance may vary. Systems
must be installed and operated in accordance with manufacturer’s recommended procedures and guidelines.
NSF
®
System Tested and Certified by NSF International against ANSI/NSF Standard 42 & 53 for
the reduction of:
Standard No. 42: Aesthetic Effects
Chemical Unit
Taste and Odor Reduction
Chlorine Reduction
Mechanical Filtration Unit
Particulate Reduction, Class I
Standard No. 53: Health Effects
Chemical Reduction Unit
Lead and Atrazine Reduction
Lindane and 2,4-D Reduction
Mechanical Filtration Unit
Turbidity Reduction
Cyst and Asbestos Reduction
Loading...
