General Electric EasyOne-CS Spirometer Service Manual_SM_2030434-006_E Alaris GP Gaurdrails Volumetric Pump (with plus software) Directiosn for Us

ndd Medizintechnik AG

Technoparkstrasse 1

CH-8005 Zürich, Schweiz

www.ndd.ch

EasyOne-CS

Field Service Manual

EasyOne-CS Spirometer

Manufactured for GE Medical Systems Information Technologies

2030434-006 Rev. E

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 1

Contents

1 Manual Purpose .............................................................................................................................. 3

2 Intended Audience .......................................................................................................................... 3

3 Introduction ................................................................................................................................... 3

4 Operation Principle ......................................................................................................................... 3

5 Technical Details ............................................................................................................................ 4

5.1 EasyOne-CS Spirometer Handheld Unit ........................................................................................... 4

5.2 Screen-Connector ........................................................................................................................... 5

5.3 Block Diagram ................................................................................................................................ 6

5.4 Printed Circuit board....................................................................................................................... 6

6 Specifications ................................................................................................................................. 7

6.1 EasyOne-CS Model 2001 Spirometer .............................................................................................. 7

6.2 EasyOne-CS Model 2010 Screen-Connector ................................................................................... 8

7 Replacement Parts List .................................................................................................................... 8

7.1 Manuals ......................................................................................................................................... 8

7.2 Accessories .................................................................................................................................... 9

7.3 Spare Parts .................................................................................................................................. 11

7.4 Exchange Unit .............................................................................................................................. 12

8 Checkout Procedure ...................................................................................................................... 13

9 Hidden Keys ................................................................................................................................. 14

10 Device Error Codes ........................................................................................................................ 15

11 EasyOne-CS Device Software Update .............................................................................................. 16

11.1 Introduction ................................................................................................................................. 16

11.2 Validated Upgrade Steps .............................................................................................................. 16

11.3 Preparation .................................................................................................................................. 16

11.4 Unpacking of Upgrade Package .................................................................................................... 16

11.5 Installation of EasyFlash PC Software ............................................................................................ 16

11.6 EasyOne-CS Device Software Update Procedure ............................................................................ 18

12 EasyWare PC Software Installation ................................................................................................. 19

13 EasyOne-CS Lithium Battery Replacement ...................................................................................... 21

13.1 Background .................................................................................................................................. 21

13.2 Environment ................................................................................................................................. 22

13.3 Preparation (save database) ......................................................................................................... 22

13.4 Battery exchange procedure ......................................................................................................... 23

13.5 Restart EasyOne-CS ...................................................................................................................... 24

13.6 Restore database ......................................................................................................................... 24

14 EasyOne-CS board with sensor and housing parts Replacement ....................................................... 24

14.1 Background .................................................................................................................................. 24

15 Appendix ...................................................................................................................................... 26

15.1 Schematic Diagrams ..................................................................................................................... 26

15.2 WEEE Selective Treatment ............................................................................................................ 33

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 2

Version

Description

Datum

2030434-006 Rev. A

First Release

August 8, 2006

2030434-006 Rev. B

2030434-006 Rev. C

Chapter 7.1 with new content
Chapter 7.2 with V2.9.5
Chapter 9 with additional comment for 1-2-5
Chapter 11.2 with Windows 2000, XP or Vista
Chapter 11.3 update: added resource update
Chapter 8 updated and renamed as ‘Checkout Procedure’
Chapter 12 EasyWare PC Software Installation - new
This page with additional addresses

August 31, 2009

Octobre 27, 2009

2030434-006 Rev. D

Header info modified to “EasyOne-CS Field Service Manual”
Chapter 7.2 Accessories – CD pictures adapted to V2.9.5
Chapter 11 modified to document update FW v4.1 to v4.3

November 6, 2009

2030434-006 Rev. E

Telephone number (US) changed
Chapter 7.1: Chinese manual is no longer available
New chapter 15.2 WEEE Selective Treatment

April 1, 2014

Document History

Europe:

ndd Medizintechnik AG
Technoparkstrasse 1, CH-8005 Zurich, Switzerland
Tel.: [phone]
Fax: [phone]
Web: www.ndd.ch

USA:

ndd Medical Technologies
Two Dundee Park
Andover, MA 01810
Tel: [phone]
Fax: [phone]
Web: www.nddmed.com

Asia - Please contact GE Healthcare:

Asia Headquarters
GE China Co., Ltd.
No1 Huatuo Road,
Zhangjiang Hi-Tech Park Pudong,
Shanghai, P.R.China 201203
Tel: [phone]
Fax: [phone]

Distributed by: GE Medical Systems Information Technologies, Inc.

8200 West Tower Avenue, Milwaukee, WI 53223 USA
Tel.: [phone]
[phone] (USA only)
[phone] (Canada only)
Fax: [phone]

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 3

1 Manual Purpose

This manual supplies technical information for service representative and technical personnel so they
can maintain the equipment to the assembly level. Use it as a guide for maintenance and electrical
repairs considered field repairable. Where necessary the manual identifies additional sources of
relevant information and or technical assistance.

See the operator manual for the instructions necessary to operate the equipment safely in accordance
with its function and intended use.

2 Intended Audience

This manual is intended for the person who uses, maintains, or troubleshoots this equipment.

3 Introduction

The EasyOne-CS Spirometer uses digital ultrasonic flow measurement technology for fast, accurate,
reliable operation. The EasyOne-CS was designed for full range testing in primary care, specialty
physician, industrial and hospital settings. It offers automated comparison to predicted values, pre­and post Broncho Dilator comparisons, interpretation of results and test quality control that
automatically assesses patient effort offering helpful suggestions to obtain optimum results. Optional
easy to read and interpret color printout with graphic display for instant test review is available. The
single-patient-use spirette minimizes risk of cross-infection.

4 Operation Principle

This EasyOne-CS flow sensor is equipped with two ultrasonic transducers, mounted at different sides of
the flow channel. In order to determine gas flow (and molar mass), ultrasonic pulses are transmitted in
up- and downstream direction. Precisely measured transit-times are the basis for determining flow and
molar mass. The following figure shows a diagram of the flow sensor including its internal sound
transmission path.

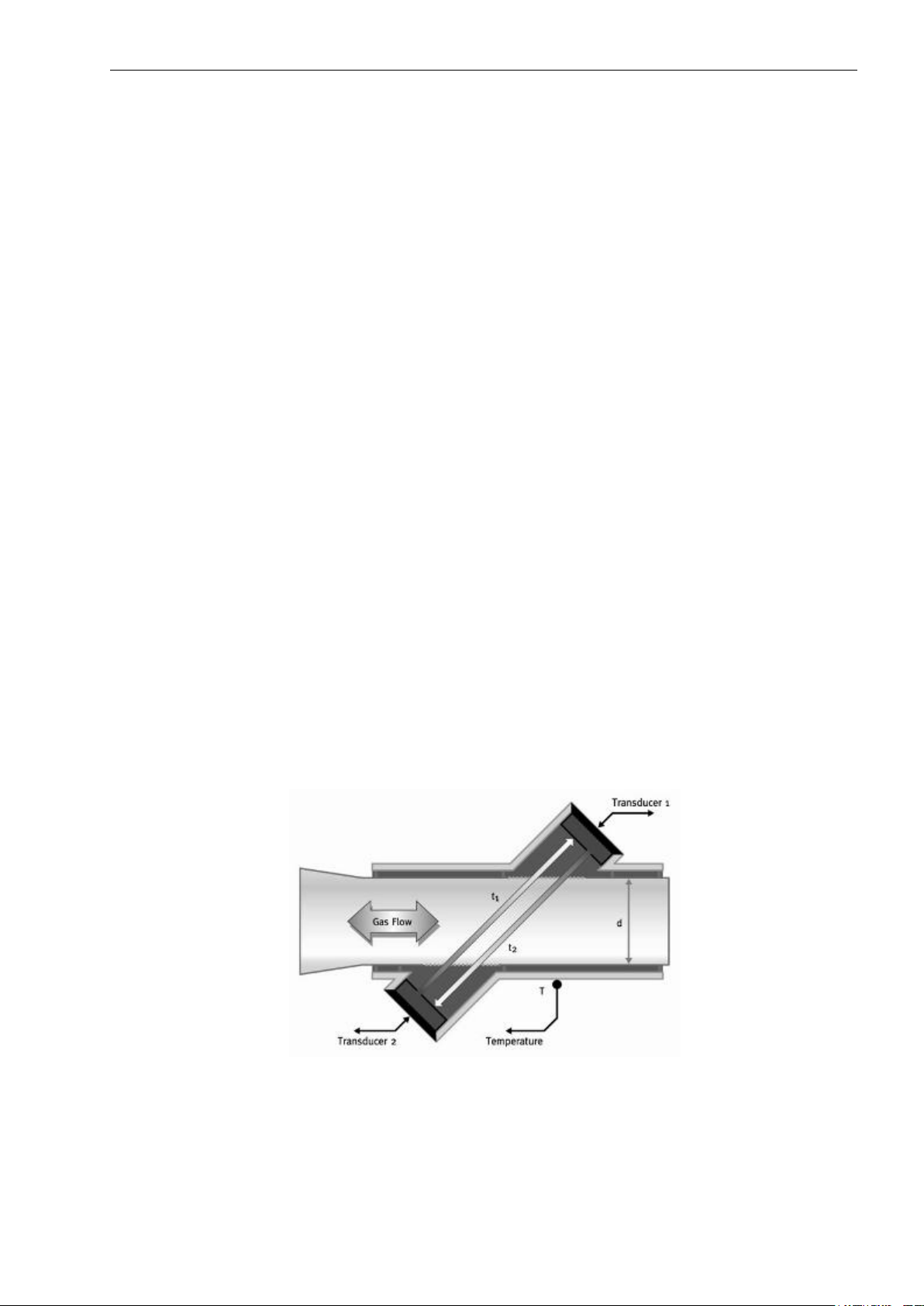

Figure 1: Schematic of EasyOne-CS flow sensor

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 4

5 Technical Details

5.1 EasyOne-CS Spirometer Handheld Unit

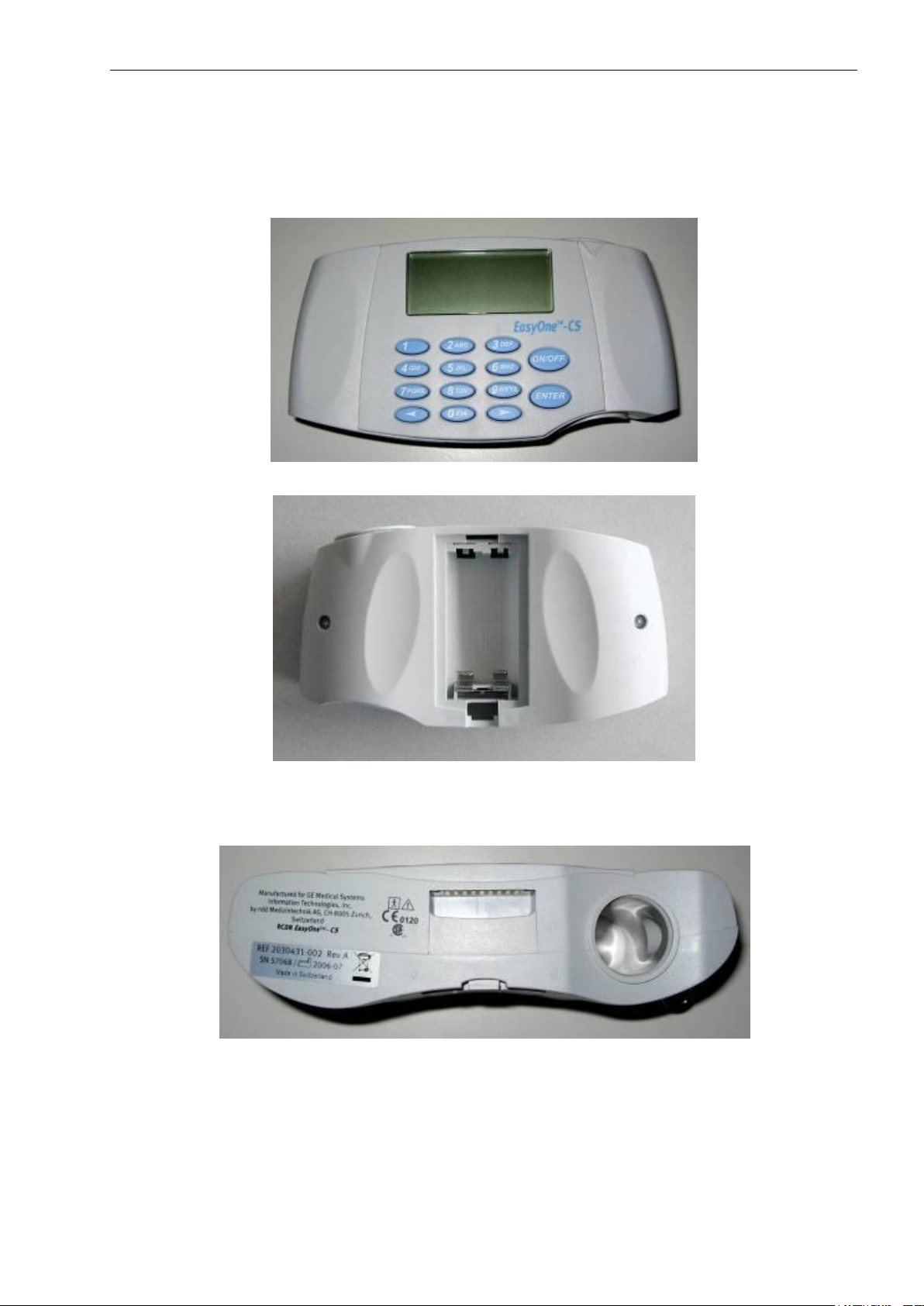

The following pictures show the top, rear and bottom views of the EasyOne-CS.

Figure 2: Top view of EasyOne-CS

Figure 3: Rear view with empty battery compartment

The two screws on the back side are used to open EasyOne-CS. With the exception of the lithium
battery there are no serviceable parts inside the unit. Therefore do not open the unit!

Figure 4: Bottom view of EasyOne-CS

The bottom view shows the name plate, the serial number and the EasyOne-CS-to-Screen-Connector.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 5

5.2 Screen-Connector

The following pictures show the top and bottom views of the EasyOne-CS Screen-Connector.

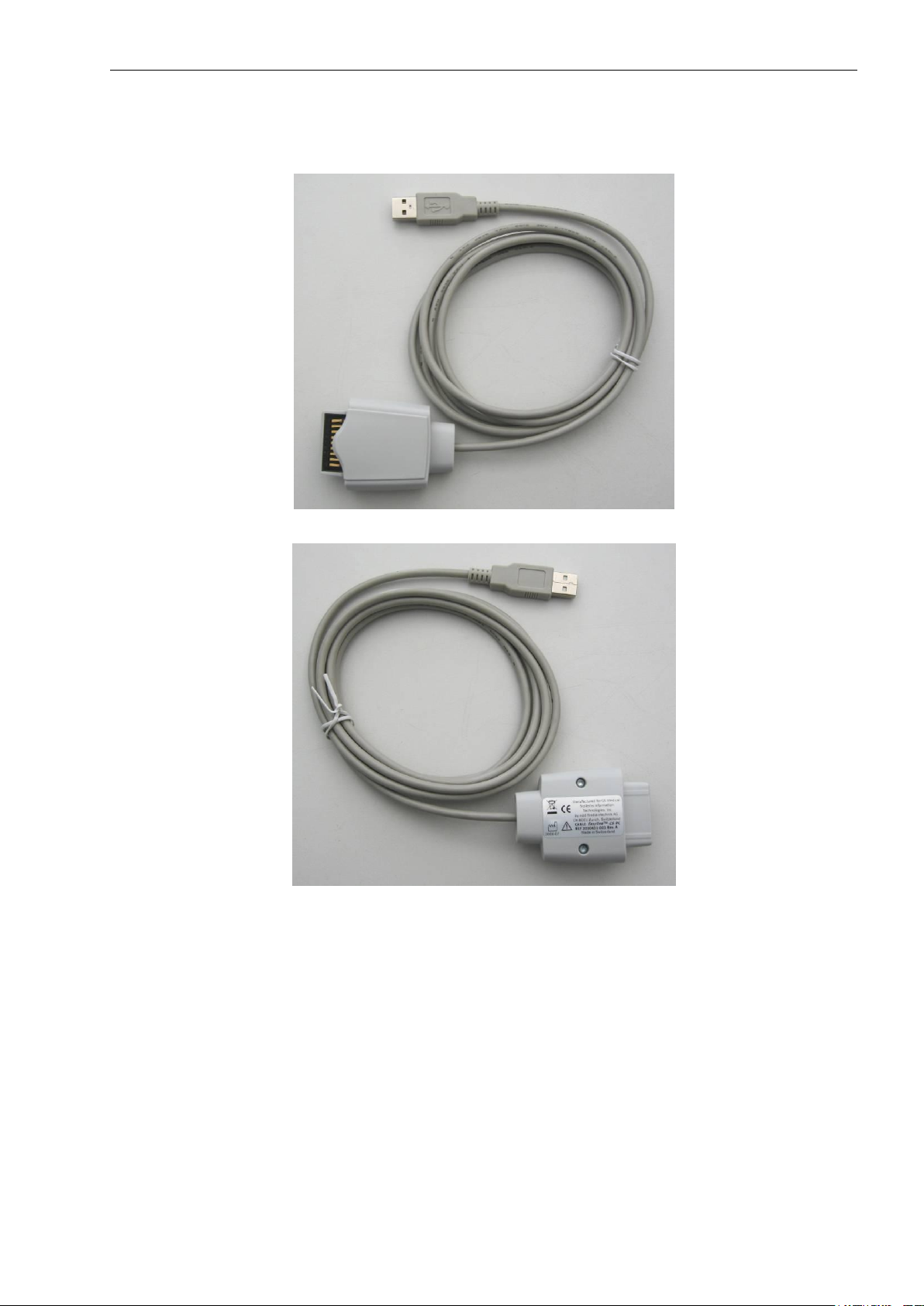

Figure 5: Screen-Connector top view

Figure 6: Screen-Connector bottom view

The Screen-Connector uses a standard USB connection to the PC.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 6

Microcontroller

M16C62

Real Time

Clock (RTC)

Serial Data

Flash

Graphic LC

Display

Flow Sensor

ASIC

Power

Management

Buzzer

Keypad

ON/OFF

EZ1-BlockDiagram.sdr

Screen

Connector

PC (USB)

5.3 Block Diagram

The following picture shows the functional block diagram of the EasyOne-CS Spirometer.

5.4 Printed Circuit board

All electrical components of EasyOne-CS are mounted on a single PCB.

With the exception of the lithium battery no components can be serviced.

The following two pictures show a top and bottom view of the PCB.

Figure 7: Bottom view of EasyOne-CS PCB

The lithium battery located on the top right of the PCB has an approximate life time of 5 to 10 years. In
early revisions of the hardware the lithium battery is soldered on the board.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 7

Size:

83 x 158 x 43 mm (3.3 x 6.2 x 1.7 inches)

Weight:

242 grams (8,6 ounces), with batteries

Measuring accuracy

Volume: ±2% or 0.050 l
Flow: ±2% or 0.020 l/s, (except PEF)
PEF: ±5% or 0.200 l/s
MVV: ±5% or 5 l/min.

Measuring range:

Volume: ±12 l
Flow: ±16 l/s

Resistance:

below 0.3 cm H2O/L/s

Display:

64 x 160 graphic display

Data entry:

14-key keyboard

Data memory:

For up to 700 tests, stored in EasyOne CS

Test modes:

FVC, FVL, Slow VC, MVV, Pre/Post

Parameters:

FVC, MVV, FEV6, FEV1, FEV1/FVC, FEV1/VC , FEV1/FEV6, MEF25 (FEF75),
MEF50 (FEF50), MEF75 (FEF25), MEF25%-75%, PEF, FET, FIVC, PIF, IVC, ERV,
IRV, pre-post % variation, Lung Age

Respiratory tube:

Disposable spirette respiratory tube

Measurement principle:

Ultrasound transit-time measurement

Adult predicted:

NHANES-III, Knudson_83, Knudson_76, Crapo, Morris, ERS (ECCS/EGKS),
Forche (Austria), Sapaldia (Switzerland), Roca (Spain), Berglund, Gulsvik,
Hedenström, Gore, Cherniak (only for MVV)

Pediatric predicted:

Dockery (Harvard), Hsu, Zapletal, Polgar, Hibbert

Power supply
Power consumption:

2 alkaline batteries, Type AA, 1.5V
Typical 0.6 W

Report:

A4

Storage:

Temperature: -20 to 50 °C
Relative humidity: 5% to95%
Ambient pressure: 500 to 1060 hPa

Figure 8: Top view of EasyOne-CS PCB (without EMI shielding)

6 Specifications

6.1 EasyOne-CS Model 2001 Spirometer

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 8

Operating conditions:

Temperature: 0 to 40 °C
Relative humidity: 0% to 95%
Ambient pressure: 500 to 1060 hPa

Certifications and standards:

CE Declaration of Conformity
C CSA US approval, CAN/CSA-C22.2 No. 601.1-M90, S1-94, CSA 601.1
Amendment 2:1998, UL Std No. 2601.1
FDA 510 (k) approval, K993921
EasyOne-CS meets or exceeds the published targets of the European
Respiratory Society (ERS), the American Thoracic Society (ATS) and the
National Lung Health Education Program (NLHEP).

Instrument classification:

Type BF applied part (when used with a PC, protection class 2

according to IEC 60601-1)

Instrument not suitable for use in flammable anesthetic gases in mixtures
with O2 or NO.

Life time:

7 years

Size:

64 x 44 x 25 mm (2.5 x 1.7 x 1.0 inches)

Weight:

82 grams (3 ounces)

Power supply:

From USB port

Power consumption:

Type 0.15W

Function:

Connects the EasyOne-CS spirometer to a PC

Interface:

Standard USB type A connector for connection to PC

Pins: 1 = VBus, 2 = D–, 3 = D+, 4 = GND

Storage:

Temperature: -20 to 50 °C
Relative humidity: 5% to 95%
Ambient pressure: 500 to 1060 hPa

Operating conditions:

Temperature: 0 to 40 °C
Relative humidity: 0% to 95%
Ambient pressure: 500 to 1060 hPa

PC:

The PC must comply with corresponding IEC standard (ex. IEC 60950-1. The
user is responsible that requirements of IEC 60601-1-1 for safety of medical
electrical systems are met.

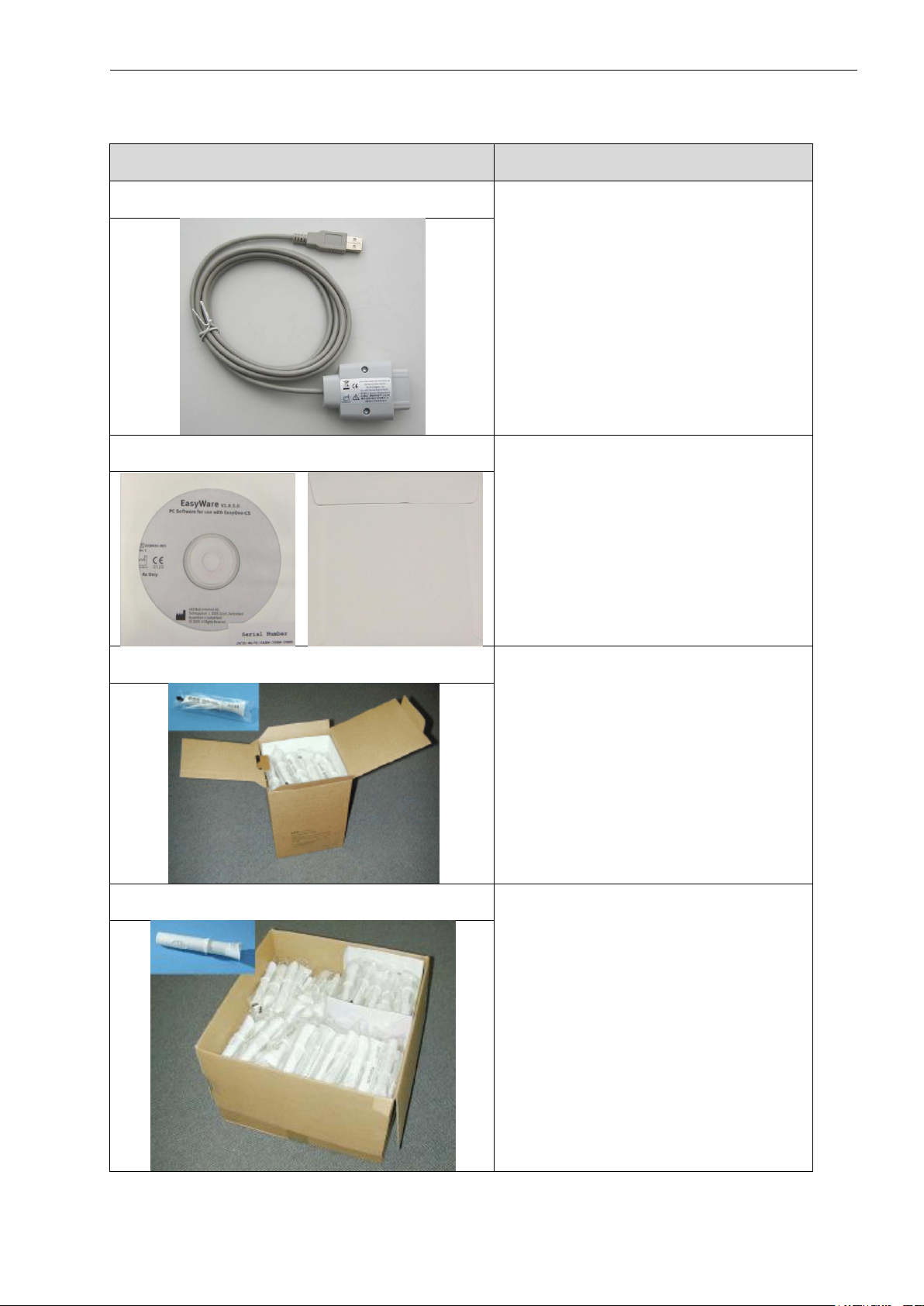

Part Number
Short Description

Description

2030434-006 MNL SVCE EASYONE-CS

Field Service Manual (this document)

2030434-013

Operator’s Manual German

2030434-014

Operator’s Manual English

2030434-015

Operator’s Manual French

2030434-016

Operator’s Manual Italian

2030434-017

Operator’s Manual Spanish

2030434-018

Operator’s Manual Portuguese

2030434-019

Operator’s Manual Danish

2030434-020

Operator’s Manual Dutch

2030434-023

Operator’s Manual English-US

6.2 EasyOne-CS Model 2010 Screen-Connector

7 Replacement Parts List

The following parts are available for replacement:

7.1 Manuals

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 9

Part Number
Short Description

Description

2030431-003
CABLE EASYONE-CS - PC

Screen-Connector, connects EasyOne-CS with
the PC via USB connection

2030431-005
CD EASYWARE V2.9.5

CD with EasyWare V2.9.5 software

2030431-006
SPLY SPIRETTES #50

50 spirettes

2030431-007
SPLY SPIRETTES #200

200 spirettes

7.2 Accessories

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 10

Part Number
Short Description

Description

2030431-008
SPLY NOSECLIP #25

25 nose clips

2030431-009
SPLY PAD FOR NOSECLIP #100

100 pads for noseclips

2030431-010
SPLY CALIBRATION SYRINGE EASYONE-CS

Calibration syringe

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 11

Part Number
Short Description

Description

2033231-001
SPARE EASYONE-CS FRONTHALF

Case front half

2033231-002
SPARE EASYONE-CS REARHALF

Case rear half

2033231-003
SPARE EASYONE-CS BATTERY DOOR

Battery door

2033231-004
SPARE EASYONE-CS KEYPAD

Keypad

7.3 Spare Parts

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 12

Part Number
Short Description

Description

2033231-005
SPARE EASYONE-CS SCREW SET

Screw set, consisting of:

- #1 Spring lock ring 12mm

- #2 Torx screw K30x6, WN1452

- #2 Washer

- #2 Allen screw M3x25

- #2 Hook-sleeve 5.6x6.5

2033231-006
SPARE EASYONE-CS BOARD WITH SENSOR

- PCB board with sensor and

programmed serial number

- Serial number label (Silver label)

2033231-007
SPARE EASYONE-CS LITHIUM BATTERY

BR1225 Lithium battery coin

Part Number
Short Description

Description

2030431-002
RCDR EASYONE-CS

EasyOne-CS unit for exchange

7.4 Exchange Unit

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 13

8 Checkout Procedure

After repair or maintenance of the EasyOne-CS the following procedure is recommended in order to
check correct operations of EasyOne-CS:

 Optional step: If all data in EasyOne-CS must be deleted, perform the ‘hidden key’ sequence 1-

2-5 described in the following chapter in order to perform a factory reset. Please be aware that
this step clears all customer data and resets the device to factory default settings.

 Get a calibration adapter and a calibration syringe (2030431-010)
 Ensure that the correct syringe volume is entered in the instrument’s configuration setting.
 Choose item “Check calibration” in the main menu of EasyOne.

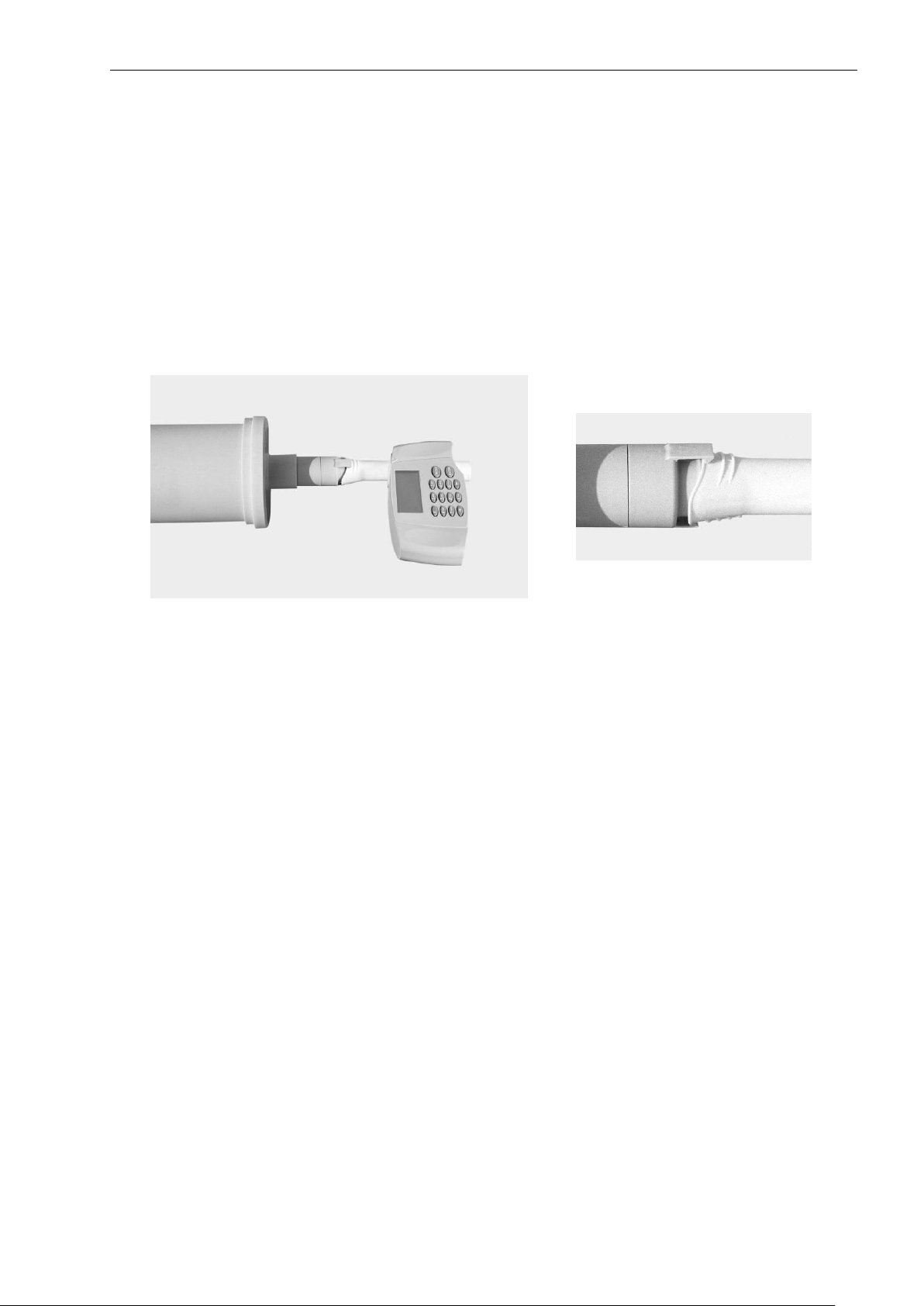

 Connect the spirometer as shown below using the calibration adapter and the syringe. Ensure

that the piston is fully inserted and at the stop position.

 Now press ENTER.
 Wait until the baseline has been set and you hear an audible signal.
 Now execute one full inspiratory pump stroke followed by one full expiratory pump stroke at

moderate speed.

 After you perform the maneuver, you will see the text "Accuracy confirmed" at the top of the

display and, beneath it, the percentage deviation and the average flow velocity of the pump
stroke.

 If desired, make a printout of the calibration report.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 14

Location

Key
sequence

Description

Main Menu

1-3-5

Factory defaults (same as in Configuration Menu).

Device self test error
screen

1-3-5

Ignore error and go on. Use only for troubleshooting! Do not
perform a patient test, because the results could be errorneous

Device info screen (from
Configuration Menu).

1-2-4

Show additional device information.

Device info screen

1-2-5

Hard factory reset (configuration settings are reset and database is
deleted (In case of synchronisation with EasyWare, please do not
forget to synchronize EasyOne with new database.)

Device info screen

1-2-6

FVC filter disable temporarily (until next power cycle).

Device info screen

1-2-7

Switch off BTPS correction temporarily (until next power cycle).

Device info screen

1-2-8

Switch off flow linearity correction temporarily (until next power
cycle).

Device info screen

1-3-9

Restore corrupt database: Caution use only for inconsistent
databases

9 Hidden Keys

The “hidden key” sequences access special features that are not available in the standard menu
structure of EasyOne-CS. The following table shows what key sequences are available. The column
labeled ‘Location’ indicates in what menu / screen the described key sequence has to be used.

Caution: The key sequences should not be used in conjunction with patient testing.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 15

No.

Description

1

internal software error (wrong argument)

2

internal software error (unsupported)

3

internal software error (timeout)

4

internal software error (data inconsistent)

5

internal software error (write error)

6

internal software error (read error)

7

internal software error (not found error)

13

internal software error (WD timeout)

14

the ultrasonic receive amplitude is too low (check spirette insertion)

15

the ultrasonic receive amplitude is too high (check spirette insertion)

16

Bootloader software inconsistent (CRC failure)

17

User software inconsistent (CRC failure). Update EasyOne-CS device software.

18

Calibration data inconsistent.

19

Failure of flash memory.

20

Flow sensor transit time range check error. Possible reasons: a) Blocked sound path, e.g. caused by
wrongly inserted spirette, b) almost empty batteries.

21

ndd ASIC serial transmission error (STX expected)

22

ndd ASIC serial transmission error (sequence error)

23

ndd ASIC serial transmission error (unknown character)

24

Real time clock RAM error

25

Configuration data inconsistent (lithium battery failure possible)

49

internal software error (overrun error)

50

internal software error (timeout error)

51

internal software error (storage error)

52

internal software error (record structure error)

53

internal software error (address error)

54

Serial data flash or serial communication data inconsistent (CRC failure)

55

internal software error. Writing to the internal Flash failed (flash command sequence error)

56

internal software error. Erasing the internal Flash failed (flash block erase error)

57

internal software error. Writing to the internal Flash failed (flash program error)

65

internal software error. Writing to the internal Flash failed (flash block program error)

66

internal software error. Accessing the internal Flash failed (flash busy)

67

First record of database reached. Go beyond this record failed (FIRST_RECORD)

68

Last record of database reached. Go beyond this record failed (LAST_RECORD)

69

No valid record in the database found (NO_VALID_RECORD)

70

internal software error (UNKNOWN_ERROR)

144

Sensor serial communication error

10 Device Error Codes

Internal errors are reported using the following screen:

ERROR

Device Selftest

Failure #xx

Please contact

service

The number xx indicates the type of error that is detected. The following list shows all error numbers
and a description of the internal error.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 16

Old Version

New Version

Item Number

EasyOne-CS device software

CRC

V04.01.00.00

V04.03.00.00

2033231-008

GE-EOV04030000-P-EU_Resources.hex
with EU language package

0xF3D7

11 EasyOne-CS Device Software Update

11.1 Introduction

The internal software of EasyOne-CS is stored in a Flash EPROM. It is therefore possible to update the
internal software. The following procedure describes how this update is executed.

11.2 Validated Upgrade Steps

The following upgrade steps are validated:

11.3 Preparation

The following items are required:

 2033231-008.zip (upgrade package with EasyFlash and EasyOne-CS device software V4.3)
 ndd Screen-Connector cable 2030431-003.
 PC program EasyFlash, V2.4.12 or higher.
 EasyOne-CS device software for the download (*.hex).
 PC with Windows 2000, XP or Vista (all 32 Bit).

The following installation description presumes that you have basic knowledge of your PC operating
system.

11.4 Unpacking of Upgrade Package

After getting upgrade package 2033231-008.zip the zip archive can be extracted to a folder of your
choice, e.g. to C:\nddmed\2033231-008.

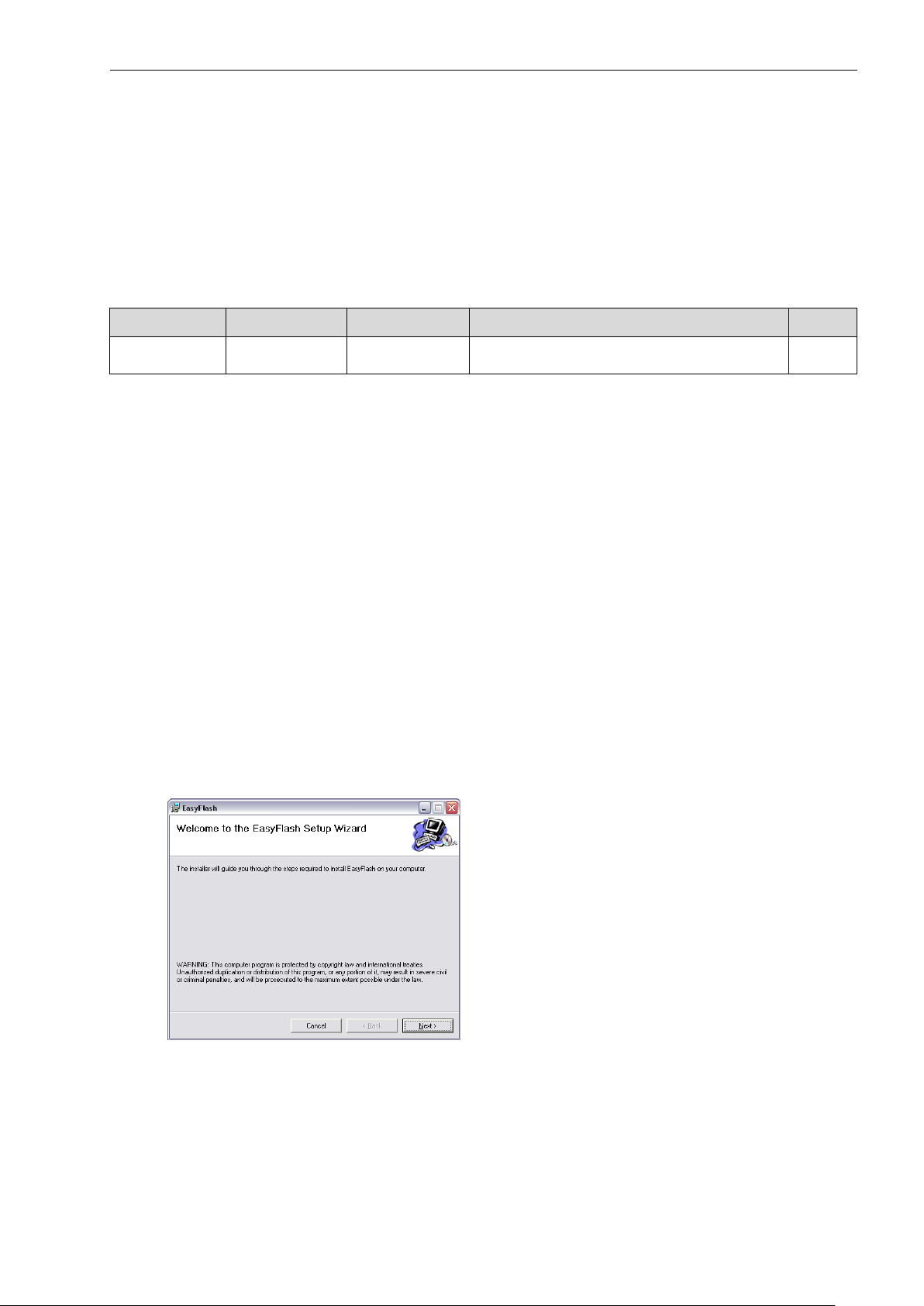

11.5 Installation of EasyFlash PC Software

The PC software EasyFlash is needed to update EasyOne-CS device software:

1. Start “C:\nddmed\2033231-008\EasyFlash\Setup.exe” to install the EasyFlash software.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 17

2. Click “Next >”

3. Select target installation folder if you prefer another one. Click “Next >”.

4. Click “Next >”

5. The EasyFlash software is now installed on your PC. Click “Close” to terminate the setup

program.

6. To start EasyFlash you find an appropriate short cut in the start menu of your PC.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 18

11.6 EasyOne-CS Device Software Update Procedure

In order to update the EasyOne-CS device software follow this procedure:

1. Connect the EasyOne-CS Screen-Connector with an unused USB port of your PC.

2. Turn the power of EasyOne-CS on and connect it with the ScreenConnector. The EasyOne-CS

display shows: „EasyOne“.

3. Start the PC software “EasyFlash”.

4. Set “Device Selection” to “EasyOne” and communication port to “Screen Connector”.

5. Press the “Update Device Info” button. The window on the right side shows the Model and the

version information of the EasyOne-CS.

6. The device software can be selected through selecting the “Open” icon or with menu command

“File/Open” C:\nddmed\2033231-008\ EasyOne-CS V4.3 Firmware EU\GE-EOV04030000-P­EU_Resources.hex”).

7. The programming is started by pressing the “Download” button. You are requested to enter

your company and user name.

8. Under certain circumstances the following message can appear.

In order to procede perform the following steps.

a. Click “OK”.
b. Disconnect EasyOne-CS from the ScreenConnector. The display of EasyOne-CS shows

“Receive Idle mode, Setting 19200 Baud”.

c. Reconnect EasyOne-CS with the ScreenConnector
d. Click “Update Device Info” and press the “Download” button again.

9. During the programming of EasyOne-CS a progress bar is shown. The programming takes

approx. 3 to 5 minutes. Please do not interrupt the programming process. After successful
programming the following message is shown:

10. The EasyOne-CS device has to be restarted using the ON/OFF key.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 19

11. The correct programming can be checked by pressing “Update Device Info” button and

validating “Firmware Version” and “CRC” information.

Troubleshooting:

 If the programming of the software is interrupted: Turn the power of EasyOne-CS off and turn it

on again. Retry the programming procedure.

12 EasyWare PC Software Installation

You will require Administrator privileges to install the software. Proceed as follows:

 Do not yet connect the ScreenConnector to the PC.
 You will require Administrator privileges on the PC in order to install the software.
 Quit all programs and insert the EasyWare CD into your CD ROM drive. The installation routine

should start automatically within 30 seconds of inserting the CD. If the installation routine does
not start automatically, switch to root directory on the CD-ROM and run the
"SmartInstallation.exe" program. You will then see the following window:

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 20

 Click on "Install EasyWare".

 Click on "Next >".

 In the bottom part of the window, you can still select whether this application is to be installed

for all users ("Everyone") or for you only ("Just me").

 Click on "Next >" to confirm the displayed installation path. If you wish to change the displayed

installation path, you can do this by clicking on "Browse…"

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 21

 Confirm the summarized installation information by clicking on "Next >".

 If button "Install FlashPlayer" is not visible the Macromedia FlashPlayer has also been installed

automatically. Confirm completion of installation by clicking on "Close".

 Optional: On Windows Vista the FlashPlayer has to be installed manually (Macromedia Flash

Player must be installed on your system in order to display the pediatric animation). Click on
"Install FlashPlayer" if button is displayed.


 Confirm installation by clicking on “Yes”.


 Click on "OK".

 Your computer may need to be restarted during this installation procedure under certain

circumstances.

 The SmartInstaller can be terminated by clicking on "Exit". Remove the CD from the drive.
 An EasyWare icon will have been installed on your desktop after installation.
 Launch EasyWare. When EasyWare is launched for the first time, you are prompted to choose

the language and enter the software serial number. Enter the software serial number that is
provided on the CD-ROM sleeve and then quit EasyWare.

13 EasyOne-CS Lithium Battery Replacement

This procedure is intended for use by trained electronic service technicians. It describes how to
exchange the internal Lithium battery.

13.1 Background

The internal Lithium battery of the EasOne-CS has a lifetime of more than 5 years (designed to last up
to 10 years). If the lithium battery is empty, the device shows an error #25 message. The battery is
needed to hold the date & time and parts of the device configuration information which is stored in the
RAM area of the RTC. If the battery is empty, this data is corrupt and leads to the above error. In this
case, it is necessary to change this battery.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 22

ERROR

Device Selftest

Error #25

Please contact

service

13.2 Environment

1. Windows PC with installed and working EasyOne-CS connection (Serial cradle, USB cradle or

Screen-Connector)

2. Installed EasyWare greater or equal V02.04

3. Torx T8 / Allen key /hex key screw driver depending on serial number

4. Electrostatic save working environment for the device disassembly

13.3 Preparation (save database)

To make sure that no data is lost/altered, the internal EasyOne-CS database should be saved first.
Please follow the below steps.

1. Start EasyWare by the link on the desktop

2. Switch EasyOne-CS on and press key sequence 1-3-5 when the below shown error screen

appears. Enter the date & time if requested. Then the normal main menu should be shown.

3. Connect the EasyOne-CS to the PC (Device Connected is shown in the status line of EasyWare/

“PC interface active” on the EasyOne-CS screen)

4. Go to menu: File/Backup Device DB… And the following progress bar appears

5. The EasyOne-CS backup file will be written (takes several minutes) and the success is indicated

by the following dialog

6. The backup file of the form EZ1BackupXXXXX_DateTime.txt

- XXXXX: device serial number

- Date: YearMonthDay

-Time: HourMinute
(e.g. EZ1Backup40126_200506071607.txt) is located in the folder where EasyWare has been
started e.g. C:\programmfiles\ndd Medizintechnik\EasyWare

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 23

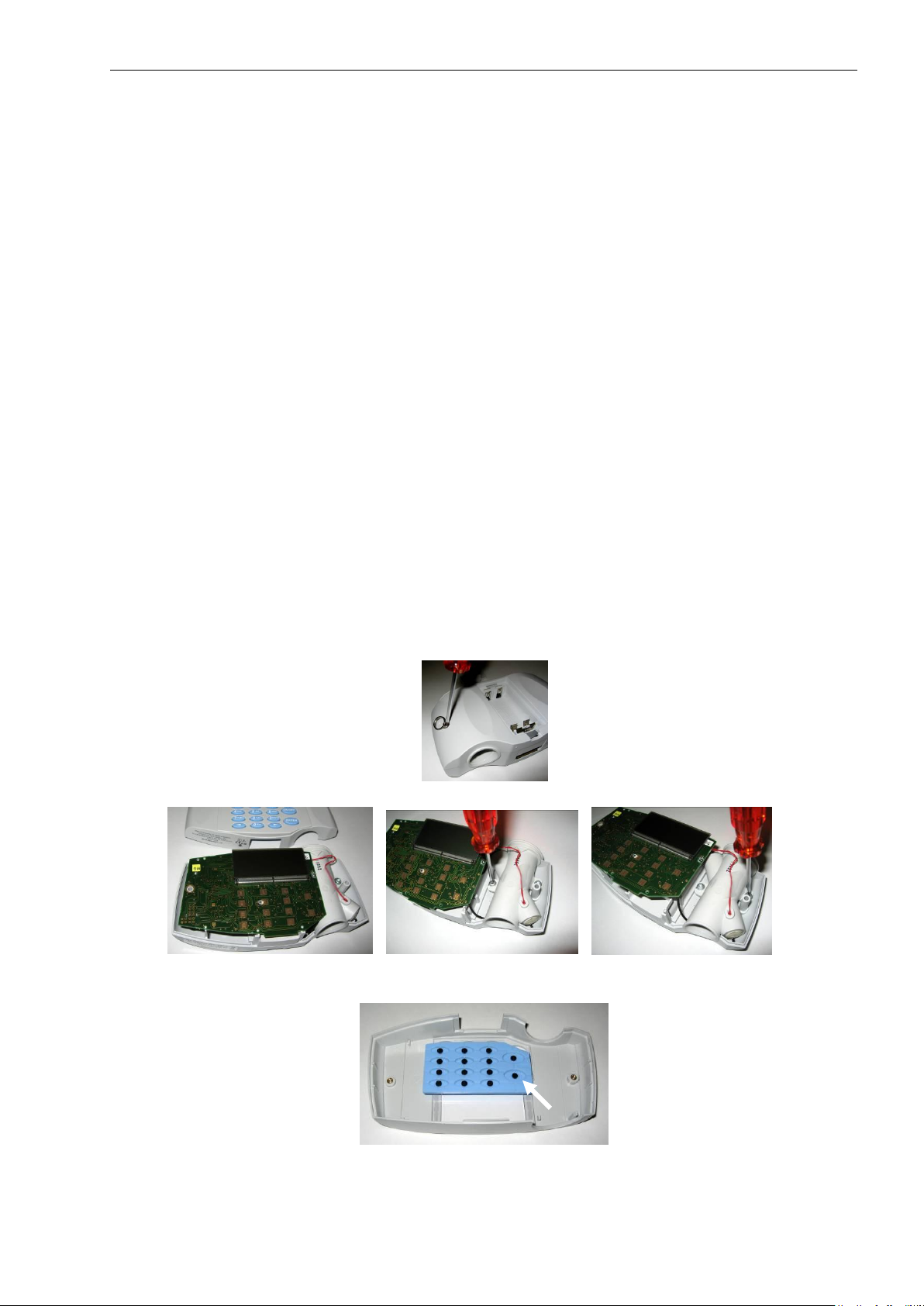

13.4 Battery exchange procedure

Please make sure that your working environment is electrostatic safe to avoid damage to the used
electrostatic sensitive electronic components

 Open the front cover by removing the two main screws.
 Remove the printed circuit board (PCB)

Do not remove the sensor tube (two additional screws)

 Remove the Lithium battery (see figures below)

 Insert only 3V BR 1225 batteries which are approved by ndd Medizintechnik AG (e.g. Panasonic

3V BR 1225)

 Make sure that the + Sign form holder and battery are matched.

 Enter the new battery by preventing any short circuit (use only your fingers)
 Insert the PCB back to the EasyOne-CS case.
 Attach the front half of the case (make sure no cable will be squeezed)

False Correct

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 24

13.5 Restart EasyOne-CS

Switch the EasyOne-CS back on. The above described error screen (#25) should be shown. Do the steps
as described before. If you are in the main menu, check that all records are there by going to View
results. If you are sure that all records are there, the exchange is finished.

13.6 Restore database

Under normal conditions EasyOne-CS restores the database by it self (Please wait… screen after 1-3-5).
Double-check the amount of stored records. If the “Please wait…” screen appears longer than ca. 3
minutes you can interrupt it by pressing the ESC key (hold 0 key for more than 2sec.). This is only
possible for firmware versions >= V02.14.00.00. If restore database failed, it will be necessary to
restore the database manually. This can only be done at ndd!

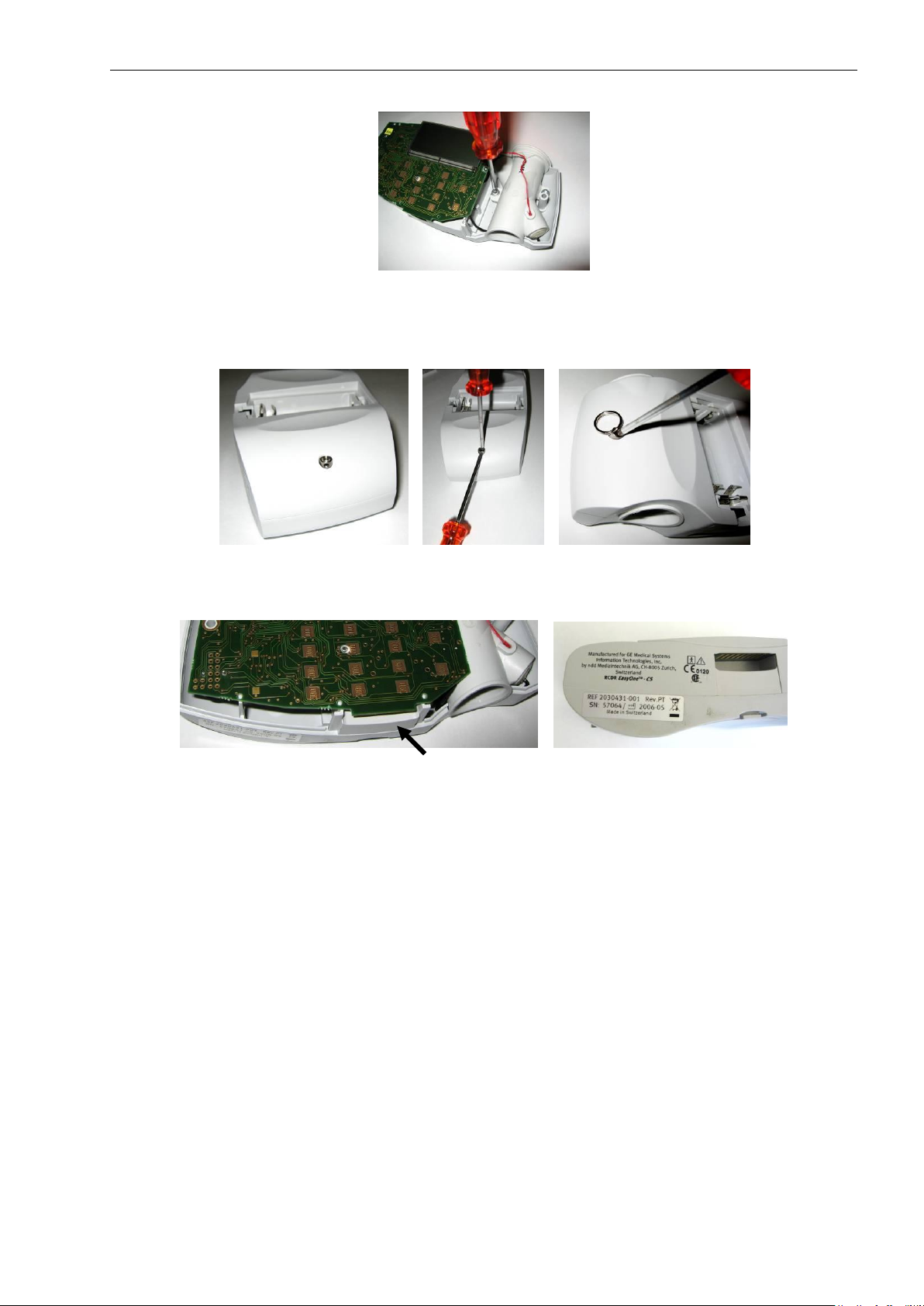

14 EasyOne-CS board with sensor and housing parts Replacement

This procedure is intended for use by trained electronic service technicians. It describes how to
exchange the internal board with sensor and how to change the housing parts.

14.1 Background

If the sensors and/or the board fail, the complete board with the sensors has to be changed. If one
housing part gets disturbed, change it following the description.

Please make sure that your working environment is electrostatic safe to avoid damage to the used
electrostatic sensitive electronic components

 Open the battery door and remove the 2 AA batteries
 Open the front cover by removing the two main screws on the backside

 Remove the board (no screws) so you can remove the sensor tube by removing the two screws

 When you only change the front you must not remove the board with the sensors, remove the

keypad from the damaged front and put it into the new front part.

 When you change the board, remove the old one and replace it with the new one. Bring the

sensor tube into position and screw it with the washers – be carefully, do not turn the screws to
tight! Bring the board into position.

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 25

 Put the front part with the keyboard back on the instrument in that way that the window is

placed over the LCD display and that the front fits tight on the back cover

 Turn the instruments (front at the bottom) and turn the screws in. The holes in the hook sleeves

must be in the right position, look to the left and right side of the instrument

 When you change the rear half of the housing, please remove the pocket and the serial number

label (silver label) from the old housing part and but the pocket into the rear half and glue the
label at the same position on the new rear half part.

Pocket

 When you change the board with sensor, remove the old label and glue the new delivered one

onto the rear half.

 Put in the 2 AA batteries, close the battery door

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 26

1

1

2

2

3

3

4

4

D

D

C

C

B

B

A

A

1

ndd Medizintechnik AG

Technoparkstr. 1

8005 Zürich

7

7.0

Title

Size : Date:

File:

Revision:

Sheet of

A

EasyOne Overview

Copyright

ndd Medizintechnik AG

Drawn by: Released by:

CONFIDENTIAL

Overview.SchDoc

19.05.2006

Th. Mathis C. Buess

RXD0TXD0

DISP_RS

DISP_RD

DISP_CS

DISP_WR

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ON_OFF

ENTER

TXD1_D

RTS1_CLK

STRB

RXD1_RCLK

CTS1_ACK

BUSY

FAULT

PWRHOLD

ON_OFF

V5C_ON

DISP_RST

PWRHOLD

V5C_ON

AN0

DISP_WR

DISP_RD

DISP_RS

DISP_CS

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ENTER

RXD0

TXD1_D

RTS1_CLK

STRB

RXD1_RCLK

CTS1_ACK

BUSY

FAULT

TXD0

PWRHOLD

ON_OFF

V5C_ON ON_OFF_FB

ASIC_ON

U_EasyOne-Power

Power.schdoc

TXD0

DISP_WR

DISP_RD

DISP_RS

DISP_CS

RXD0

TXD1_D

RTS1_CLK

STRB

RXD1_RCLK

CTS1_ACK

BUSY

FAULT

DISP_RST

PWRHOLD

V5C_ON

AN0

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ENTER

ON_OFF_FB

EE_CS2

EE_UD

EE_CK

D0D1D2D3D4

D5D6D7

ASIC_ON

U_EasyOne-Proc

Processor.schdoc

TXD0 RXD0

EE_CS2

EE_UD

EE_CK

U_EasyOne-Sensor

ASIC.schdoc

TXD1_D

RTS1_CLK

STRB

RXD1_RCLK

CTS1_ACK

BUSY

FAULT

U_EasyOne-Interface

Interface.schdoc

ON_OFF_FB

ON_OFF_FB

DISP_RST

EE_CS2

EE_UD

EE_CK

EE_CS2

EE_UD

EE_CK

ASIC_ON

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ON_OFF

ENTER

U_EasyOne-Keypad

Keypad.schdoc

DISP_RS

DISP_RD

DISP_WR

DISP_CS

DISP_RSTD0D1

D2D3D4

D5D6D7

U_EasyOne-Display

Display.schdoc

D0D1D2

D3D4D5D6D7

D0D1D2

D3D4D5

D6

D7

ASIC_ON

15 Appendix

15.1 Schematic Diagrams

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 27

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 28

1

1

2

2

3

3

4

4

D

D

C

C

B

B

A

A

3

ndd Medizintechnik AG

Technoparkstr. 1

8005 Zürich

7

7.0

Title

Size : Date:

File:

Revision:

Sheet of

A

EasyOne-Interface

Copyright

ndd Medizintechnik AG

Drawn by: Rele ased by:

CONFIDENTIAL

Interface.SchDoc

19.05.2006

Th. Mathis C. Buess

TXD1_D

RXD_RCLK

RTS1_CLK

GND

BUSY2

FAULT2

STRB

123

J7

123

J9

1

2

3

J10

TXD_D

RXD_RCLK

RTS_CLK

CTS_ACK

BUSY

FAULT

STRB

V5C

GND

Base Unit Connector

V5C

CTS_ACK

R36

R37

R40

R41

1

2

456

8

37

D7

TXD1_D

RXD1_RCLK

RTS1_CLK

CTS1_ACK

BUSY

GND

FAULT

Dataline Protection

D3

C34

GND

D6

V5C

RXD_RCLK

CTS_ACK

FAULT2

BUSY2

D9

GND

V5P

C44

GND

V5C

TXD1_D

RTS1_CLK

STRB

RXD1_RCLK

CTS1_ACK

TXD1_D

RTS1_CLK

STRB

RXD1_RCLK

CTS1_ACK

BUSY

FAULT

BUSY

FAULT

F3 F2

STRB

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 29

1

1

2

2

3

3

4

4

D

D

C

C

B

B

A

A

4

ndd Medizintechnik AG

Technoparkstr. 1

8005 Zürich

7

7.0

Title

Size : Date:

File:

Revision:

Sheet of

A

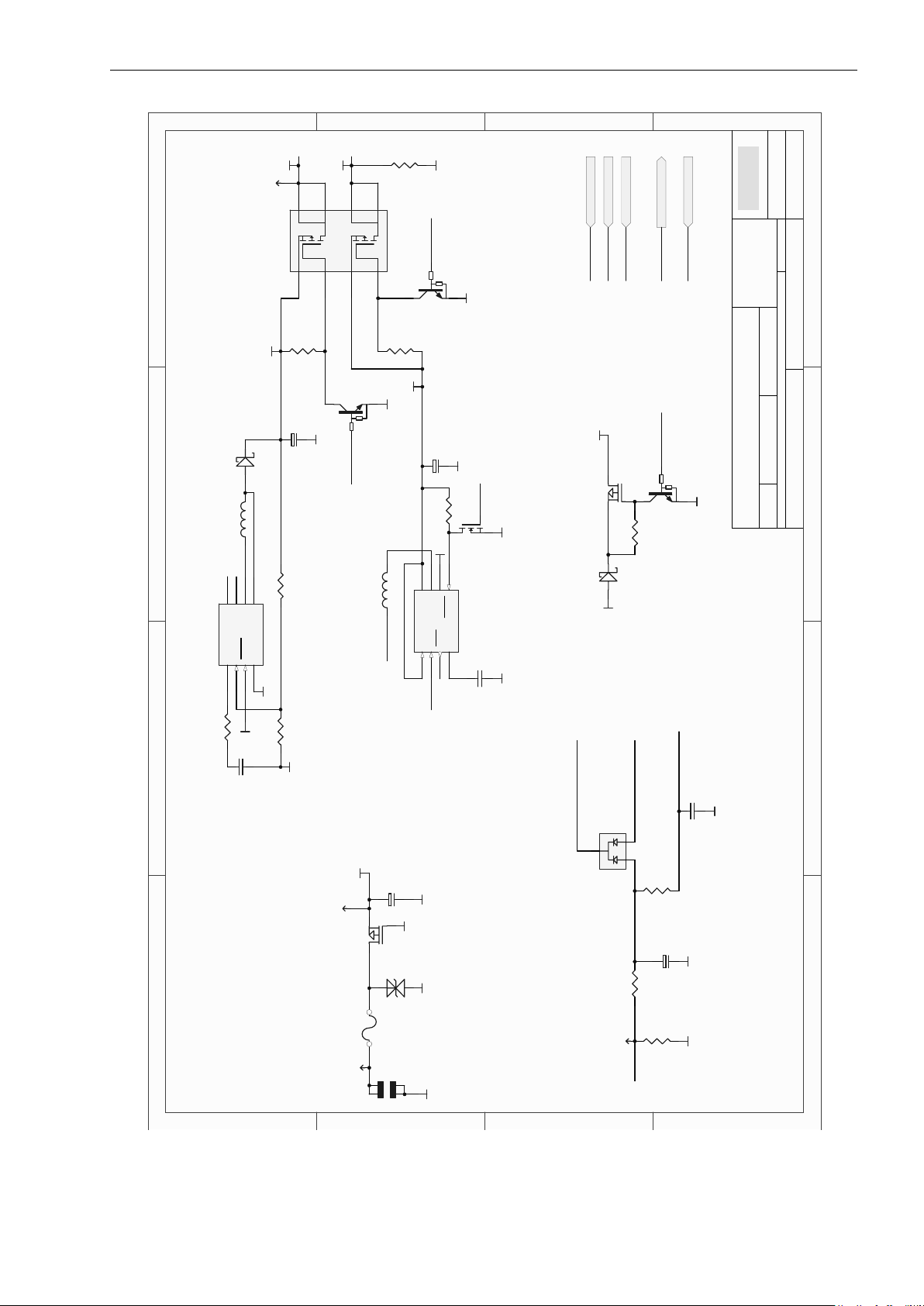

EasyOne-Power

Copyright

ndd Medizintechnik AG

Drawn by: Released by:

CONFIDENTIAL

Power.SchDoc

19.05.2006

Th. Mathis C. Buess

LBO

3

LBI

2

REF

4

FB

1

LX

7

SHDN

5

GND

6

OUT

8

U9

C4

L2

L3

C18

C19

R31

5.0V Power

3.3V Power

C3

GND

GND

VBAT

VBAT

GND

GND

GND

V33OFF

GND

ASIC_ON

GND

D4

GND

F1

R46

PW RON

Battery Voltage:2..3.5V

T1

T2

GND

GND

3.3V ON/OFF

1 8

7

6

54

3

2

D1

D1

D2

D2

S1S2G1

G2

T3

R19

Power ON/O FF

ON_OFF

GND

Ton=0.01s

R28

C45

PW RHOLD

PWRHOLD

ON_OFF

V5C_ON

PWRHOLD

ON_OFF

V5C_ON

V55P

V33S

V5S

GND

Q6

R33

ON_OFF_FB

ON_OFF_FB

ON_OFF_FB

D2

GND

PW RON

Toff=0.1s

VBAT

VBAT

MP12

MP17

MP18

V33P

R70

GND

Q9

T10

GND

3.3V ON/OFF

V55P

R65

V5C

V5C_ON

ASIC_ON

ASIC_ON

V33OFF

T12

GND

R58

AS IC ON/Off

Cradle ON/OFF

B2

B3

3V, alkalin

SHDN3FB2GND

4VC1

LBI

7SW5

VIN

6

LBO

8

U8

D10

R20R59

R63

C5

GND

D11

V33S

C61

GND

MP21

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 30

1

1

2

2

3

3

4

4

5

5

6

6

D

D

C

C

B

B

A

A

5

ndd Medizintechnik AG

Technopargstr. 1

8005 Zürich

7

7.0

Title

Size: Date:

File:

Revision:

Sheet of

B

EasyOne-Processo r

Copyright

ndd Medizintechnik AG

Drawn by: Released by:

CONFIDENTIAL

Processor.SchDoc

19.05.2006

Th. Mathis C. Buess

VSS14VSS

64

AVSS

96

P60/CTS0/RTS0

38

P61/CLK0

37

P62/RXD036P63/TXD0

35

P64/CTS1/RTS1/CTS0/CLKS1

34

P65/CLK133P66/RXD132P67/TXD131P70/TXD2/SDA/TA0OUT

30

P71/RXD2/SCL/TA0IN/TB5IN

29

P72/CLK2/TA1OUT/V28P73/CTS2/RTS2/TA1IN/V

27

P74/TA2OUT/W

26

P75/TA2IN/W25P76/TA3OUT

24

P77/TA3IN

23

P80/TA4OUT/U22P81/TA4IN/U21P82/INT020P83/INT119P84/INT218P85/NMI

17

P86/XCOUT

11

P87/XCIN10P90/TP0IN/CLK37P91/TB1IN/SIN36P92/TB2IN/SOUT35P93/DA0/TBB3IN4P94/DA1/TB4IN3P95/ANEX0/CLK42P96/ANEX1/SOUT41P97/ADTRG/SIN4

100

P100/AN097P101/AN195P102/AN294P103/AN393P104/AN4/KI092P105/AN5/KI191P106/AN6/KI290P107/AN7/KI389XIN15XOUT13RESET12BYTE8CNVSS0

9

VCC16VCC

62

AVCC

99

AVREF

98

P20/A0

72

P21/A171P22/A2

70

P23/A3

69

P24/A468P25/A567P26/A666P27/A765P30/A8

63

P31/A9

61

P32/A1060P33/A11

59

P34/A12

58

P35/A1357P36/A14

56

P37/A15

55

P40/A1654P41/A1753P42/A1852P43/A19

51

P00/D088P01/D187P02/D2

86

P03/D3

85

P04/D484P05/D583P06/D682P07/D781P10/D880P11/D9

79

P12/D1078P13/D1177P14/D1276P15/D1375P16/D1474P17/D1573P44/CS050P45/CS149P46/CS248P47/CS3

47

P50/WRL/WR

46

P51/WRH/BHE

45

P52/RD

44

P53/BCLK/CLKOUT

43

P57/RDY

39

P54/HLDA42P55/HOLD

41

P56/ALE

40

U10

U5

C26

C27

C20 C21

C25

GND V33S

GND

GND

GND

GND

V33S

R27

GND

R29

V33S

R30

GND

MP1

MP13

FLS_CS

FLS_WP

FLS_BUSY

RXD0

TXD0

RTC_CS

TXD1_D

RXD1_RCLK

XCLK

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ENTER

PWRHOLD

BUZZER

RTS1_CLK

CTS1_ACK

STRB

BUSY

FAULT

V5C_ON

C49 C53 C51

GND

V33S

RDY/BUSY1RESET

2

WP

3NC4

NC

5

VCC

6

GND7NC8NC9NC10CS

11

SCK

12SI13

SO

14

NC15NC

16NC17NC18NC19NC20

NC21NC

22NC23

NC24NC

25NC26

NC27NC

28

U11

1 2

U4

U6

SO3

SI3

SCLK3

FLS_CS

GND

FLS_WP

RESET

FLS_BUSY

DQ

6

X12X2

3

GND

4

RST

5

VCC

1

CLK

7

VBAT

8

U7 V33S

RTC_CS

SIO2

SCLK2

BUZZER

GND

B1

GND

R44

TXD0

TXD0

DISP_WR

DISP_RS

DISP_WR

DISP_RS

DISP_RD

DISP_RD

DISP_CS

DISP_CS

RXD0

TXD1_D

RTS1_CLK

STRB

RXD1_RCLK

CTS1_ACK

RXD0

TXD1_D

RTS1_CLK

STRB

RXD1_RCLK

CTS1_ACK

BUSY

FAULT

BUSY

FAULT

DISP_RST

PWRHOLD

V5C_ON

AN0

DISP_RST

PWRHOLD

V5C_ON

AN0

BUZZER

R50

V33S

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ENTER

ENTER

V33S

R54

GND

R53

C50

GND

V33S

RESET

R55

V33S

R32

V33S

C33

LVEN

SO3

SI3

SCLK3

R39

GND

ASIC_ON

MP11

MP14

MP15

MP16

SIO2

SCLK2

R48

V33S

ON_OFF_FB

ON_OFF_FB

ON_OFF_FB

T9

GND

V55P

EE_CS2

EE_CS2

EE_UD

EE_UD

EE_CK

EE_CK

EE_CS2

EE_UD

EE_CK

SCLK

DISP_RST

RESET

2

VCC

3

GND

1

U15

GND

D8

D0D1D2D3D4

D5D6D7

DISP_WR

DISP_CS

DISP_RD

DISP_RS

D0D0D1D1D2D3D4D5D6

D7

D2D3D4D5D6

D7

U20

GND

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 31

1

1

2

2

3

3

4

4

D

D

C

C

B

B

A

A

6

ndd Medizintechnik AG

Technoparkstr. 1

8005 Zürich

7

7.0

Title

Size : Date:

File:

Revision:

Sheet of

A

EasyOne-Display

Copyright

ndd Medizintechnik AG

Drawn by: Rele ased by:

CONFIDENTIAL

Display.SchDoc

19.05.2006

Th. Mathis C. Buess

DISP_RS

DISP_RD

DISP_RS

DISP_RD

DISP_WR

DISP_WR

DISP_CS

DISP_CS

DISP_RST

DISP_RST

VDC

1

DVDD

2

RES

3

D/C

4

R/W/RD

5

CLK/WR

6

DVSS

7

SDA/D0

8

D19D210D311D412D513D614D7

15CE16

C1P17C1N18C2P19C2N20C3P21C3N22C4P23C4N24DVSS25VLL226VLL3

27

DUM4

28

DUM3

29

DUM230DVSS31DUM132DVSS

33

VLL434VLL535VLL636OS C137DVSS38C+39C-40VCC41VF42VR43AVSS44OS C245AVDD

46

P/S4768/8048NC49NC

50NC51NC52

NC

53

U12C28

C29

C30

C31

GND

C32

C6

C35

C36

C67

C38

C39

C40

C41

R67

C68

C42

C43

C69

R68

GND

R9

GND

D0D0D1D1D2

D3

D4D5D6

D7

D2

D3

D4D5D6

D7

V33S

DISP_RS

DISP_RD

DISP_WR

DISP_CS

V33S

DISP_RST

GND

D0

D1D2D3D4D5D6D7

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 32

1

1

2

2

3

3

4

4

D

D

C

C

B

B

A

A

7

ndd Medizintechnik AG

Technoparkstr. 1

8005 Zürich

7

7.0

Title

Size : Date:

File:

Revision:

Sheet of

A

EasyOne-Keypad

Copyright

ndd Medizintechnik AG

Drawn by: Rele ased by:

CONFIDENTIAL

Keypad.Sch Doc

30.05.2006

Th. Mathis C. Buess

456

789

123

<- 0 ->

ON/OFF

Enter

ON/OFF

27

ON/OFF

28

1

1

1

2

2

3

3

5

4

7

5

9

6

11

7

13

LEFT

21

RIGHT

23

ENTER

25

2

4

3

6

4

8

5

10

6

12

7

14

LEFT

22

8

16

9

18

0

20

8

15

9

17

0

19

RIGHT

24

ENTER

26

KP1

ON_OFF

ENTER

GND

VBAT

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ROW123

ROW456

ROW789

ROWX0Y

COL147X

COL2580

COL369Y

ON_OFF

ENTER

ON_OFF

ENTER

2030434-006 Rev. E EasyOne-CS Field Service Manual Page 33

WEEE Selective
Treatment
Category

Traitement sélectif
des matières et
composants des
DEEE

Type/Materials

Substances, préparations et composants

Check ONLY if
substance is
present

Une croix si la
substance est
présente

1

Capacitors containing Polychlorinated biphenyls (PCB) or
Polychlorinated terphenyls (PCY/PCT)

Condensateurs contenant du polychlorobiphényle (PCB) , et des
polychloroterphényles (PCT)

2

Components containing Mercury - e.g. switches, circuit breakers,
lamps

Composants contenant du mercure, tels que les interrupteurs ou les
lampes à rétroéclairage

3

Batteries - Piles et accumulateurs

X

2033231-007

4

Printed Circuit Boards - Area greater than 10 square centimenters

Cartes de circuits imprimés si la surface est supérieure à 10
centimètres carrés

X

2033231-006

5

Toner cartridges from printers - Cartouches de toner

6

Plastic containing brominated flame retardants

Matières plastiques contenant des retardateurs de flamme bromés

7

Components containing Asbestos

Déchets d'amiante et composants contenant de l'amiante

8

Cathode ray tubes - Tubes cathodiques

9

Refrigerants - Chlorofluorocarbons (CFC), Hydrochlorofluorocarbons
(HCFC) or hydrofluorocarbons
(HFC), and hydrocarbons (HC),

Réfrigérants - Chlorofluorocarbones (CFC),
hydrochlorofluorocarbone (HCFC) ou hydrofluorocarbone (HFC),
hydrocarbures (HC)

10

discharge lamps - Lampes à décharge

11

Liquid crystal displays (together with their casing where appropriate)
of a surface area greater than 100 square centimeters and all back­lighted with gas discharge lamps

Écrans à cristaux liquides (ainsi que leur boîtier le cas échéant)
d'une surface sup

12

External electrical cables - Câbles électriques extérieurs

X

2030431-003

13

Components containing refractory ceramic fibers

Composants contenant des fibres céramiques réfractaires

14

Components containing radioactive substances

Composants contenant des substances radioactives

15

Electrolyte capacitors containing substances of concern — greater than
25 mm diameter or height or similar volume

Condensateurs électrolytiques contenant des substances
dangereuses (hauteur >25mm, diamètre >25mm ou volume
proportionnellement similaire)

16

Lead - Plomb

17

Cadmium - Cadmium

18

Fluids - Fluides

15.2 WEEE Selective Treatment

WEEE category: 8 (Medical Device)

GE Medical Systems
Information Technologies, Inc.
8200 West Tower Avenue
Milwaukee, WI 53233 USA
Tel: [phone]
[phone] (USA only)
[phone] (Canada only)
Fax: [phone]

GE Medical Systems
Information Technologies, GmbH
Munzinger Straße 5
D-79111 Freiburg
Germany
Tel: [phone] - 0
Fax: [phone] - 233

Asia Headquarters
GE China Co., Ltd.
No1 Huatuo Road,
Zhangjiang Hi-Tech Park Pudong,
Shanghai, P.R.China 201203
Tel: [phone]
Fax: [phone]
