Illustrated Parts List
MODEL
040315-0
7000 Watt
Home Generator System
IPL No.
206234
Rev.
D
12/23/2010
Not for
Reproduction
Not for
Reproduction
Table Of Contents
PRODUCT COMPONENTS PAGES
Main Unit ..............................................................................................................................................................
Alternator ..............................................................................................................................................................
Control Panel .......................................................................................................................................................
Enclosure .............................................................................................................................................................
Torque Specification Chart ............................................................................................ Inside Back Cover
4
6
7
9
Not for
Reproduction

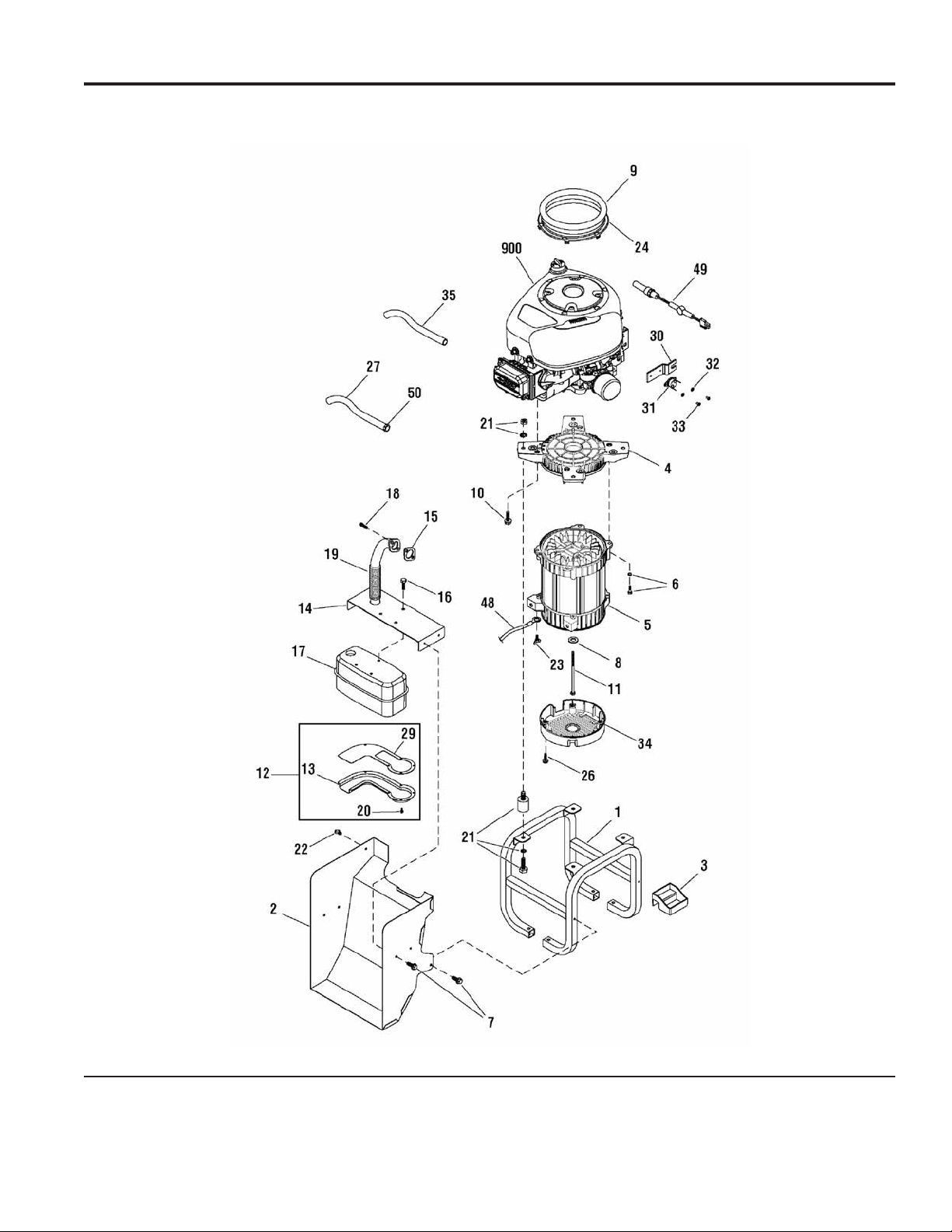

Exploded View -
4
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
Main Unit
0002.t
The above parts group applies to the following Mfg. Nos.:
040315-0 - 7,000 Watt Home Generator System
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
206234IPL No.
Not for
Reproduction
Parts List -
p
5
Part No. DescriptionRef.
Main Unit
CRADLE 1 B191860GS
DUCT 2 194568GS
TRAY, Oil Drain 3 193536GS
ADAPTER, Engine 4 191793GS
ALTERNATOR ASSEMBLY 5 -----
KIT, Hardware Adapter 6 194728GS
BOLT 7 B4300GS
WASHER 8 96796GS
SEAL 9 208103GS
TAPTITE 10 2830598SM
CAPSCREW, Hex head, 5/16-24 x 9.84 11 187365HGS
DEFLECTOR, Muffler 12 207270GS
DEFLECTOR 13 193475GS
BRACKET, Muffler 14 206856GS
GASKET 15 692236
TAPTITE 16 83512GS
MUFFLER 17 207059GS
SCREW 18 698941
PIPE, Exhaust 19 194159GS
KIT, Hardware Deflector 20 195008GS
KIT, Vibration Mount 21 194209GS
CLIP 22 192940GS
SCREW 23 86494GS
COLLAR, Air Inlet 24 192853GS
TAPTITE 26 74908GS
HOSE, Fuel 27 206817GS
ARRESTOR, Spark 29 194221GS
PLATE, Temp Switch 30 206047GS
SWITCH 31 206045GS
WASHER 32 27772GS
* SCREW, Phillips Head, 4-40 x 1/4 33 -----
Part No. Descri
tionRef.
Footnotes:
* - Items without part numbers are common fasteners and are available at your local hardware store.
** Contact Engine Manufacturer
The above parts group applies to the following Mfg. Nos.:
040315-0 - 7,000 Watt Home Generator System
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
206234IPL No.
Not for
Reproduction
Exploded View -
6
NOTE: Unless noted otherwise, use the
standard hardware torque
specification chart.
Main Unit
0002.t
The above parts group applies to the following Mfg. Nos.:
040315-0 - 7,000 Watt Home Generator System
Briggs & Stratton Power Products Group, LLC
Copyright © by Briggs & Stratton Corporation
Milwaukee, WI, USA. All rights reserved
2010
206234IPL No.
