General Dynamics Itronix T5200SB300 User Guide
Sierra Wireless
SB300 Series OEM Modems
User’s Guide
2110059 Rev 1.1
Proprietary and Confidential
June 1999
SB300 Series Modems User’s Guide
Important Notice
Because of the nature of wireless communications, transmission and reception of data can never be guaranteed.
Data may be delayed, corrupted (i.e., have errors) or be totally lost. Although significant delays or losses of data are
rare when wireless devices such as the Sierra Wireless modem are used in a normal manner with a well-constructed
network, the Sierra Wireless modem should not be used in situations where failure to transmit or receive data could
result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss
of property. Sierra Wireless, Inc., accepts no responsibility for damages of any kind resulting from delays or errors
in data transmitted or received using the Sierra Wireless modem, or for failure of the Sierra Wireless modem to
transmit or receive such data.
Safety and Hazards
Do not operate the Sierra Wireless modem in areas where blasting is in progress, where explosive atmospheres may
be present, near medical equipment, near life support equipment, or any equipment which may be susceptible to any
form of radio interference. In such areas, the Sierra Wireless modem MUST BE TURNED OFF. The Sierra
Wireless modem can transmit signals that could interfere with this equipment.
Do not operate the Sierra Wireless modem in any aircraft, whether the aircraft is on the ground or in flight. In
aircraft, the Sierra Wireless modem MUST BE TURNED OFF. When operating, the Sierra Wireless modem can
transmit signals that could interfere with various onboard systems.
The driver or operator of any vehicle should not operate the Sierra Wireless modem while in control of a vehicle.
Doing so will detract from the driver or operator’s control and operation of that vehicle. In some states and
provinces, operating such communications devices while in control of a vehicle is an offence.
Patents
Portions of this product are covered by some or all of the following US patents: D367062, D372248, D372701,
5515013, 5617106, 5629960, 5682602, 5748449, and other patents pending.
Copyright
©1999 Sierra Wireless, Inc. All rights reserved.
Printed in Canada.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any
means, without the prior permission of the publisher.
The information in this manual is subject to change without notice and does not represent a commitment on the part
of Sierra Wireless, Inc. Sierra Wireless, Inc. shall not be liable for incidental or consequential damages resulting
from the furnishing, performance, or use of this manual.
The Watcher and WirelessExpert™ software described in this manual are copyright 1998 Sierra Wireless, Inc. All
rights reserved.
Trademarks
Watcher and WirelessExpert™ is a trademark of Sierra Wireless, Inc.
Windows® and Microsoft® are registered trademarks of Microsoft Corporation.
Hayes™ is a trademark of Hayes Microcomputer Products, Inc.
Paradyne™ is a trademark of Paradyne Corporation.
ETC® is a registered trademark of Paradyne Corporation.
All other brand or product names, logos, trademarks, etc. mentioned in this manual are owned by their respective
companies.
2110059 Rev 1.1 Proprietary and Confidential Page i
SB300 Series Modems User’s Guide
!!
!!
Regulatory Information
The equipment certifications appropriate to your device are marked on the device and the accompanying product
specific information. Where appropriate, the use of the equipment is subject to the following conditions:
CAUTION
Unauthorized modifications or changes not expressly approved by Sierra Wireless, Inc.
could void compliance with regulatory rules, and thereby your authority to use this
equipment.
WARNING (EMI) - United States FCC Information
This equipment has been tested and found to comply with the Class B limits pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in an appropriate installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communication. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
WARNING – FCC RF Exposure Guidelines
While this device is in operation, a separation distance of at least 20cm must be
maintained between the radiating antenna and the body of all persons exposed by the
transmitter to meet FCC exposure guidelines.
This transmitter is only approved to operate with an antenna not exceeding 1.5 watts
total system ERP (effective radiated power) for operations with the antenna located at
more than 20 cm from all persons. The warning label must be displayed at the base of
the antenna (if stand-alone) or attached to the final product (if the antenna is integral
with the product), clearly visible to all persons exposed to the transmitter.
For Final Product Regulatory Approvals in the USA
To use the modems in the United States of America without additional FCC certifications you
must:
1. Use an antenna providing a total system ERP (effective radiated power) not exceeding
1.5 watts for operations with the antenna located at more than 20 cm from all persons. If the
system exceeds 1.5 watts ERP then separate submissions to the FCC are required.
2. Place a warning label on the antenna (if stand-alone) or attached to the final product visible to
all persons exposed to the transmitter (if the antenna is integral with the final product). This
label must state:
Page ii Proprietary and Confidential 2110059 Rev 1.1
SB300 Series Modems User’s Guide
!!
“WARNING:
While this device is in operation, a separation distance of at least 20cm must be
maintained between the radiating antenna and the body of all persons exposed to the
transmitter to meet FCC exposure guidelines.”
3. The word “WARNING” should be placed in front of or above the warning statement included
in documentation and also in the actual warning label on the antenna or final product.
This warning label is not required when Specific Absorption Rate (SAR) compliance of a final
product configuration is approved through a separate FCC equipment authorization approval.
Otherwise, the warning label is required on the antenna or final product in order to meet separating
distance requirements to satisfy the FCC RF exposure requirements.
WARNING (EMI) – Canada
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the interference causing equipment standard
entitled 'Digital Apparatus', ICES-003 of the Department of Communications.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux
appareils numériques de Classe B prescrites dans la norme sur le matériel brouilleur:
'Appareils Numériques', NMB-003 édictée par le ministre des Communications.
RSA Licensee
If you have purchased this product under a United States Government contract, it shall be subject to
restrictions as set forth in subparagraph (c)(1)(ii) of Defense Federal Acquisitions Regulations
(DFARs) Section 252.227-7013 for Department of Defense contracts, and as set forth in Federal
Acquisitions Regulations (FARs) Section 52.227-19 for civilian agency contracts or any successor
regulations. If further government regulations apply, it is your responsibility to ensure compliance with such
regulations.
2110059 Rev 1.1 Proprietary and Confidential Page iii
SB300 Series Modems User’s Guide
Contact Information
Sierra Wireless, Inc. Telephone: (604) 231-1100
13575 Commerce Parkway Fax: (604) 231-1109
Suite 150
Richmond, BC e-mail: support@sierrawireless.com
V6V 2L1 Web: www.sierrawireless.com
Customer Service
Help Desk
Open between 6:00 a.m. and 5:00 p.m. Pacific Time
(604) 231-1128
support@sierrawireless.com
Warranty and Service Desk
Open between 8:00 a.m. and 5:00 p.m. Pacific Time
(604) 231-1157
support@sierrawireless.com
Sales Desk
Open between 8:00 a.m. and 5:00 p.m. Pacific Time
(604) 231-1100
sales@sierrawireless.com
Web
Consult our webpage for
up-to-date product descriptions, documentation,
application notes, firmware upgrades,
troubleshooting tips, and press releases:
wwwwww..ssiieerrrraawwiirreelleessss..ccoom
m
Page iv Proprietary and Confidential 2110059 Rev 1.1
SB300 Series Modems User’s Guide
Contents
Getting Started
1. About this Guide...........................................................................1
1.1. Introduction.......................................................................................................1
1.1.1. Getting Started....................................................................................1
1.1.2. Operational View................................................................................1
1.1.3. Hardware View...................................................................................1
1.1.4. OEM Developer’s Toolkit Checklist ...................................................2
1.2. References..........................................................................................................2
1.3. Currency............................................................................................................2
1.4. Document Structure...........................................................................................3
1.4.1. Modem Operations .............................................................................3
1.5. Conventions Used in this Reference ..................................................................4
2. Getting Started..............................................................................5
2.1. Introduction.......................................................................................................5
2.2. Registration........................................................................................................5
2.2.1. CDPD.................................................................................................5
2.2.2. CSC (AMPS)......................................................................................6
2.2.3. Wireline .............................................................................................6
2.3. Setup Considerations.........................................................................................6
2.3.1. Host Computer Terminal.....................................................................6
2.3.2. Physical considerations.......................................................................7
2.3.3. Antenna considerations.......................................................................7
2.4. MIB Presets .......................................................................................................8
2.5. Connections........................................................................................................8
2110059 Rev 1.1 Proprietary and Confidential Page v
SB300 Series Modems User’s Guide
The Operational View
3. Software Installation....................................................................11
3.1. Introduction.....................................................................................................11
3.2. Installing Software on the Host.......................................................................11
3.3. Configuration using WirelessExpert...............................................................12
3.4. About Watcher................................................................................................13
3.5. Using Watcher for Modem Setup....................................................................13
3.5.1. Configuring Watcher........................................................................13
3.5.2. Configuring Cellular Settings using Watcher.....................................14
3.6. Monitoring CDPD With Watcher...................................................................15
3.7. About the Watcher Program Window............................................................16
3.7.1. Icon Status .......................................................................................16
3.7.2. Watcher Menus and Commands........................................................16
3.7.3. Toolbar Buttons................................................................................18
3.7.4. Status Indicators...............................................................................18
3.7.5. Updating Status Indicators................................................................18
3.7.6. Quitting Watcher..............................................................................18
3.8. Updating Modem Firmware............................................................................19
4. Basic Modem Operation..............................................................21
4.1. Introduction.....................................................................................................21
4.2. Modem Modes and States ...............................................................................21
4.2.1. Modes..............................................................................................21
4.2.2. States ...............................................................................................21
4.2.3. Conditions........................................................................................22
4.3. Modem Communications with the Host (DTE) ..............................................22
4.3.1. Fixed Rate Setting (+IPR).................................................................22
4.3.2. DTE Communication Options...........................................................22
4.3.3. DTR Signal Handling.......................................................................23
4.3.4. DSR Signal Control ..........................................................................23
4.3.5. Local Flow Control ..........................................................................23
4.3.6. Result Code Formats ........................................................................24
4.4. Communication Protocols and Stacks ............................................................24
4.4.1. SB300 Series Internal Protocol Stacks ..............................................25
Page vi Proprietary and Confidential 2110059 Rev 1.1
SB300 Series Modems User’s Guide
4.5. Modem Handshaking (SB320)......................................................................... 25
4.5.1. Modem Protocol Layers....................................................................25
4.5.2. CSC vs. Wireline..............................................................................27
5. CDPD Operation..........................................................................29
5.1. Cellular Digital Packet Data (CDPD) Introduction ........................................29
5.1.1. Security............................................................................................29
5.1.2. Architecture...................................................................................... 30
5.1.3. Modem Registration .........................................................................30
5.1.4. CDPD Radio Coverage.....................................................................31
5.1.5. CDPD and the SB300 Series Modems............................................... 31
5.2. Configuring NEI Entries .................................................................................32
5.2.1. NEI Table.........................................................................................32
5.2.2. SPNI Matching................................................................................. 33
5.3. CDPD Network Registration...........................................................................33
5.3.1. Active and Auto-register NEI Indices................................................ 34
5.3.2. Manual Registration..........................................................................34
5.3.3. Automatic Registration.....................................................................35
5.3.4. De-registration.................................................................................. 35
5.4. Monitoring the Network Connection...............................................................36
5.4.1. Radio Signal Monitors......................................................................36
5.4.2. Registration Status............................................................................36
5.4.3. PING................................................................................................37
5.5. Sleep Mode....................................................................................................... 38
5.5.1. CDPD Sleep ..................................................................................... 38
5.5.2. Logic Sleep.......................................................................................38
5.6. Friends Only....................................................................................................39
5.7. Dial Directory ..................................................................................................39
5.8. Packet Services ................................................................................................39
5.8.1. Serial Line Interface Protocol (SLIP).................................................40
5.8.2. User Datagram Protocol (UDP).........................................................42
5.8.3. Transmission Control Protocol (TCP)................................................48
5.9. Packet Assembly Management........................................................................54
5.10. Data and Telemetry Applications.............................................................55
2110059 Rev 1.1 Proprietary and Confidential Page vii
SB300 Series Modems User’s Guide
6. CSC Operation.............................................................................57
6.1. Introduction.....................................................................................................57
6.1.1. Modem Registration.........................................................................57
6.1.2. CSC Radio Coverage........................................................................57
6.1.3. Modem Pools ...................................................................................58
6.2. Configuring the Modem for CSC ....................................................................58
6.2.1. Setting the NAM..............................................................................58
6.2.2. Confirm CSC Service.......................................................................59
6.3. Originate a CSC Connection...........................................................................60
6.4. Auto-answer a Cellular Call............................................................................60
6.5. Optimizing Data Performance........................................................................60
6.5.1. Factory Default for ETC...................................................................61
6.5.2. Connections to ETC Enabled Modems..............................................62
6.5.3. Connections to Non-ETC Compatible Modems ................................. 62
6.5.4. Connections to Modem Pools............................................................63
7. Wireline Operation.......................................................................65
7.1. Introduction.....................................................................................................65
7.1.1. Hardware .........................................................................................65
7.2. Configuring the Modem for Wireline.............................................................65
7.2.1. Connecting to another Wireline Modem or Modem Pool...................65
7.2.2. Connecting to a Cellular Modem ......................................................65
7.3. Originate a Wireline Connection ....................................................................66
7.4. Auto-answer a Wireline Call...........................................................................67
8. Voice Operation in CSC and Wireline.........................................69
8.1. Introduction.....................................................................................................69
8.2. Setting Voice Mode..........................................................................................69
8.2.1. Command and Register Profiles........................................................69
8.3. Placing a Voice Call.........................................................................................70
8.4. Receiving a Voice Call.....................................................................................70
8.5. Adjusting MIC and SPKR Levels...................................................................71
8.6. Terminating a Voice Call................................................................................71
Page viii Proprietary and Confidential 2110059 Rev 1.1
SB300 Series Modems User’s Guide
9. Troubleshooting..........................................................................73
9.1. Introduction.....................................................................................................73
9.2. General Modem Problems............................................................................... 73
9.3. General Communication Problems................................................................. 74
9.4. CDPD Problems...............................................................................................74
9.5. CSC Problems ..................................................................................................75
9.6. Wireline Problems........................................................................................... 75
The Hardware View
10. Product Descriptions..................................................................77
10.1. Hardware Integration Considerations...................................................... 77
10.2. Specifications Common to All Modems.................................................... 79
10.2.1. Application Interface Specifications ..................................................79
10.2.2. Special Features................................................................................79
10.2.3. Environmental Specifications............................................................79
10.2.4. Connector Part Numbers ...................................................................80
10.3. SB300 CDPD Modem................................................................................81

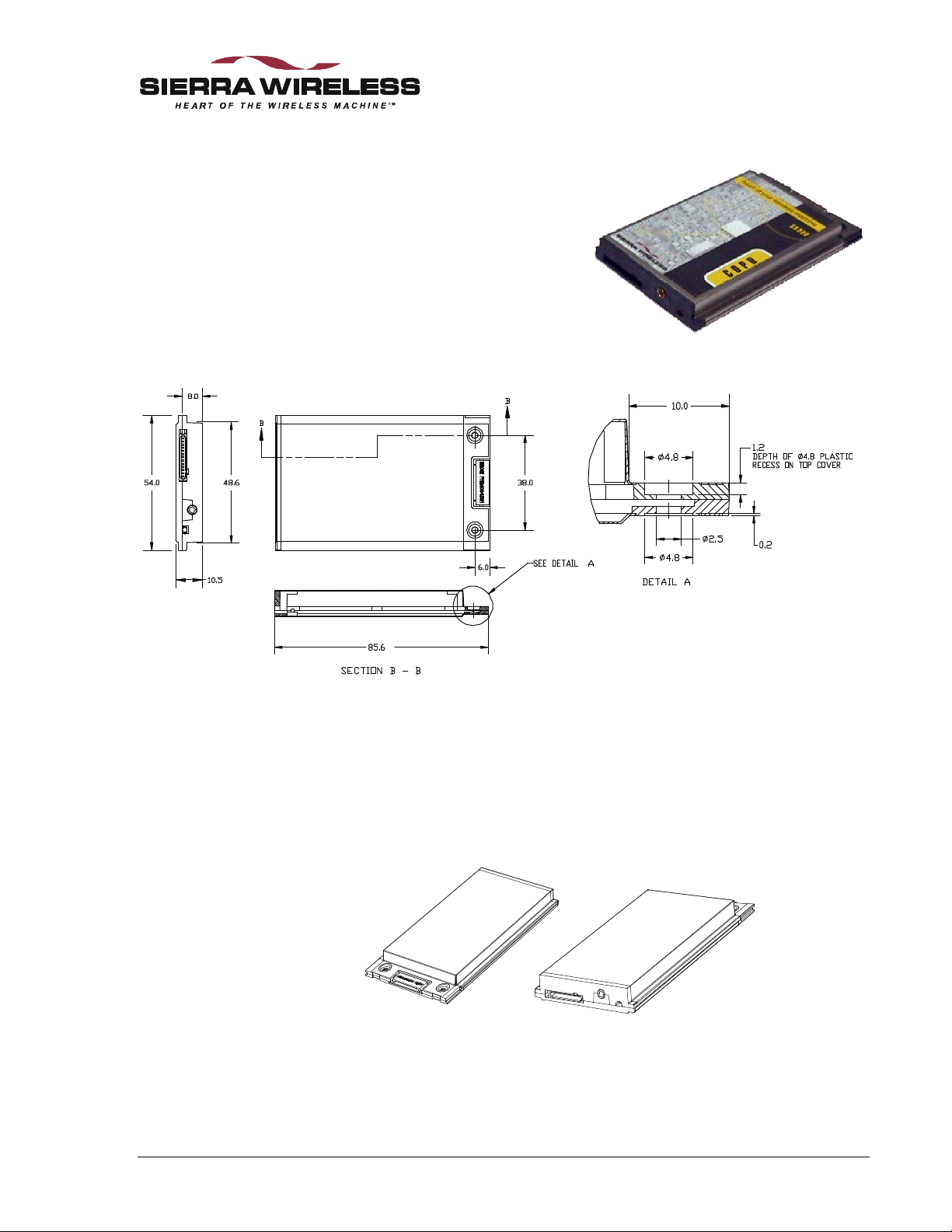

10.3.1. Mechanical.......................................................................................81
10.3.2. Connectors ....................................................................................... 82
10.3.3. Power Specifications.........................................................................82
10.3.4. Heat Dissipation...............................................................................82
10.3.5. RF Features......................................................................................83
10.3.6. Electrical..........................................................................................83
10.4. SB320 Specifications .................................................................................87
10.4.1. Mechanical.......................................................................................87
10.4.2. Connectors ....................................................................................... 88
10.4.3. Power Specifications.........................................................................88
10.4.4. Heat Dissipation...............................................................................88
10.4.5. RF Features......................................................................................89
10.4.6. Electrical..........................................................................................89
10.4.7. SB320 Communication Mode Specifications.....................................93
2110059 Rev 1.1 Proprietary and Confidential Page ix
SB300 Series Modems User’s Guide
11. Multipurpose Interface Board.....................................................95
11.1. Introduction..............................................................................................95
11.1.1. Features............................................................................................ 95
11.2. Board Description .....................................................................................96
11.2.1. Schematic......................................................................................... 96
11.2.2. Parts Layout.....................................................................................96
11.3. Power Supply............................................................................................97
11.3.1. Voltage Adjustment..........................................................................97
11.3.2. Using Power from Host (DTE).........................................................97
11.4. Connections...............................................................................................97
11.4.1. PC Host (DTE) RS-232 Serial Connection ........................................97
11.4.2. Host (DTE) Connection for SB300/320............................................. 98
11.4.3. Host (DTE) Connection for SB301/302............................................. 98
11.4.4. Protocol Analyzer Connection..........................................................98
11.4.5. SB300 / SB320 Modem Connection.................................................. 98
11.4.6. SB302 Modem Connection...............................................................99
11.4.7. SB220 Modem Conneciton.............................................................100
11.5. Jumpers ..................................................................................................100
11.5.1. Main Jumper Block........................................................................100
11.5.2. Power Select .................................................................................. 101
11.5.3. SPK EN – Speaker Enable..............................................................101
11.6. Serial Breakout Box................................................................................101
11.6.1. DIP Switch.....................................................................................101
11.6.2. Serial Connection Indicators...........................................................101
11.7. Test Points...............................................................................................102
11.7.1. TP1 DISC......................................................................................102
11.7.2. TP2 KEY.......................................................................................102
11.7.3. TP3 5V Adjusted............................................................................102
11.7.4. TP4 5V Setting...............................................................................102
11.7.5. TP5 Debug for 5V / GND...............................................................102
11.7.6. TP6 Unused ................................................................................... 102
11.7.7. Current Measurement..................................................................... 102
11.8. Reset Button............................................................................................102
11.9. Initial Setup ............................................................................................103
Page x Proprietary and Confidential 2110059 Rev 1.1
1. About this Guide
1.1. Introduction
This guide is intended to assist both hardware integrators and application software developers with
the setup, installation, testing, and design of applications for the Sierra Wireless SB300 Series
OEM modems. You should be familiar with the use of modems, communication media (PSTN
and Cellular), protocols, and the use of AT commands.
This guide describes the full feature set of the entire SB300 series, so some sections may not apply
to the particular model you are using. Consult the Product Descriptions for a summary of the
features available on each product.
1.1.1. Getting Started
Chapter 2 covers the setup up of the OEM Developer’s Toolkit (the toolkit) and establishing host
communication with the modem. If you have any uncertainties about the Multipurpose Interface
Board (MIB), the modem, or the connectors, consult the Hardware View reference chapters.
1.1.2. Operational View
The main body of this document covers the operational issues of the SB300 Series modems.
Installation and use of the application software Watcher and WirelessExpert™ is covered. These
programs are designed to manage use of the modem in a Microsoft Windows® 95/98/NT
environment without the need for further interface programming.
If custom applications are required, additional information is provided covering connection issues
and tips for writing applications. A complete reference to the available modem commands is in a
separate document (2110031 included with the toolkit).
Use of a terminal application for initial setup and testing of a modem may be required. Terminal
emulation software is not provided nor described in this guide.
1.1.3. Hardware View
This guide provides product descriptions of the SB300 Series OEM modems including the
information needed for the physical integration of the modems.
A full description of the Multipurpose Interface Board provided with the OEM Developer’s
Toolkit is also included in this guide.
2110059 Rev 1.1 Proprietary and Confidential Page 1
SB300 Series User’s Guide
1.1.4. OEM Developer’s Toolkit Checklist
Your toolkit should include the following parts:
SWI Part No. Description
1200054 Multipurpose Interface Board (MIB)
1900000 AC Adapter
006.0011 10’ Serial Cable with 9-pin D connectors
2000068 30-Pin Flat Flex Cable (for SB300 and SB320)
2000071 13-Pin I/O Connector Cable (for SB320)
1710034 13-pin Male SB320 Connector sample
1710134 13-pin Female SB320 Connector sample
1810009 Magnetic Mount Cellular Antenna with coaxial cable
2000066 Cable Adapter for antenna coax to SB modems. (MMCX to SMA)
006.0002 Telephone Cable
1900003 Headset with Microphone, cable and connector.
2000067 16-Pin Ribbon Connector Cable (for SB302)
6000084 CD with Watcher and WirelessExpert™ Revision 3.3.1 or above.
2110031 SB300 Series OEM Modems AT Command Reference
2110059 SB300 Series OEM Modems User’s Guide (this document)
1.2. References
For detailed information on the command interface of an SB300 Series modem, consult the Sierra
Wireless SB300 Series OEM Modems AT Command Reference, document number 2110031,
included in toolkit.
For background information on the nature of wireless communications consult your cellular
service provider and/or their Internet site. All major service providers provide web-based
information on CSC and CDPD.
1.3. Currency
This document is under ongoing revision to maintain currency with product development. Please
check our web site frequently for revisions. This edition is:
This document is current with the following modem firmware revisions:
SB300
Rev 1.1 June 22, 1999
Revision R1.1.1. To determine your firmware revision:
1. Enter the Identification command ATI5
The modem will respond with the Firmware revision information:
R1-1-1 …
The details following the revision number may vary depending on the mode of the modem.
Page 2 Proprietary and Confidential 2110059 Rev 1.1
Introduction
SB320
Revision R1.1.2. To determine your firmware revision:
1. Enter the Identification command ATI5
The modem will respond with the Firmware revision information:
CDPD Mode: R1_1_2 …
CSC/Wireline Modes: (no tag) g:/sb3xx/r1_1_2/ …
If the identification command is issued in any of the wireline or CSC modes, this firmware
provides no revision tag, however the revision is found farther down the string.
Upgrading
If your modem firmware is an earlier version, you can acquire updated firmware by contacting
Sierra Wireless Technical Support at 604.231.1128 or by e-mail to support@sierrawireless.com.
Instructions for updating the modem firmware are contained in Section 3.8 Updating Modem
Firmware.
Descriptions of Watcher and WirelessExpert are current with revision R3.3.1. The revision is
reported in the splash screen when the program is started and can be checked using the Help >
About option from the program’s menu.
1.4. Document Structure
This document focuses on the operational view. The hardware view is covered in a reference
section at the end.
There is a Getting Started chapter in this section intended to help you quickly get the toolkit
components connected and communicating.
The operational view follows, starting with the basics of the Watcher and WirelessExpert
software provided with the toolkit. Important background on the modem basics, including
terminology used in this guide, starts you into the operational elements of getting your modem
configured and operating. There are separate chapters covering modem operation in each of the
three possible modes with sample configurations.
The hardware view is covered in two chapters. The first describes the modem product
descriptions including the hardware integration issues of each of the modems. The second is a
reference to the Multipurpose Interface Board (MIB) used to test and configure the modem during
product development.
1.4.1. Modem Operations
The various modes, states, and conditions the modem can be placed in are described in the chapter
on Basic Modem Operations. That chapter also discusses the communication interface between
the host (DTE) and the modem.
The types of protocols supported in each mode are described but examples of configuring the
modem will be found in the chapters on operations for each specific mode.
™
2110059 Rev 1.1 Proprietary and Confidential Page 3
SB300 Series User’s Guide
1.5. Conventions Used in this Reference
WARNING
Notes in this form denote a physical hazard. The warning calls attention to a
procedure or practice which, if not performed correctly, could result in personal injury.
CAUTION
Notes in this form highlight a procedure or practice which, if not performed correctly,
could result in loss of data or damage to equipment. This is also used to highlight
issues related to regulatory limitations.
NOTE
This form of note draws attention to procedures or practices which, if not performed
correctly, could result in failure of a process or improper configuration. These are
typically pre-requisites to other operations.
Hardware signals are named with a convention of:
NAME active high (5 Volts)
\NAME active low (0 Volts)
Result Code – This is a numeric or text code that is returned after all commands (except resets).
Response – This term indicates a response from the modem which is issued prior to a return code.
Reading registers or issuing commands that report information will provide a response followed
by a return code unless the command generates an error.
Hexadecimal values are shown with a prefix of 0x, i.e. in the form 0x3F.
Character codes which are described with words or standard abbreviations are shown within angle
brackets: such as <CR> for Carriage Return and <space> for a blank space character.
AT Command and register syntax is noted using an alternate font:
AT+WS46=4
Page 4 Proprietary and Confidential 2110059 Rev 1.1
2. Getting Started
2.1. Introduction
This chapter guides you through the initial physical setup of a host terminal (usually a PC), the
Multipurpose Interface Board (MIB), and a modem. Related start-up issues such as cellular
activation are also covered. If you have any difficulties, consult the reference chapters in the
Hardware View to become more familiar with the components and their setup.
After completing this chapter, you should be able to communicate (DTE to DCE) with the modem
by using AT commands from a host terminal. Modem connection to a remote modem is not
covered until the Operational View.
The chapters immediately following deal with the Operational View. Software Installation will
deal with the installation on a host PC of the Watcher and WirelessExpert™ software which make
further configuration of the modem and testing on a CDPD network (if applicable) much simpler.
A reference section covering the Hardware View follows at the end of the manual.
2.2. Registration
Before you can use your modem for wireless communication you must register it with a cellular
service provider. This section describes what they will need to know and what information they
will provide to you.
Contact your service provider to get the registration process started. While the service provider is
getting your account configured, you can install and configure your modem. Record the
information provided by your carrier for configuring the modem later.
In any coverage area there can be two providers, each assigned to a “side” (A or B) of the cellular
waveband. Each provider is also assigned a Service Provider Network Identifier (SPNI) number.
2.2.1. CDPD
To use your modem in CDPD mode it must be activated on a CDPD network. To register your
modem for Wireless IP activation on CDPD networks, contact your local CDPD service provider.
Give the CDPD service provider the Equipment Identifier (EID). This is the identification
number of the radio/modem. A Sierra Wireless modem EID has the following format:
Look for this number on the back of your modem and on a label affixed to the outside of the
package that the modem was shipped in. If only the ESN (Electronic Serial Number) can be found
you can convert it to a Sierra Wireless EID by expressing the last 8 digits as hexadecimal values.
For example:
The EID number is also available by querying the modem with the AT+WPEID command.
The CDPD service provider supplies the following:
1. Modem address, commonly referred to as a Network Entity Identifier (NEI). This may also
be referred to as your Internet Protocol (IP) address. This identifies your modem on a CDPD
network and on the Internet.
2. IP address of a router or server to ping when testing the connection. This may be a Domain
Name Server (DNS).
00-A0-D5-xx-xx-xx
ESN: 206 - 00057628 = EID: 00-A0-D5-00-E1-1C
57628 = 0xE11C
2110059 Rev 1.1 Proprietary and Confidential Page 5
SB300 Series User’s Guide
Both of the above items are in the form of an IP number. This is made up of four numbers
ranging in value from 0 to 255, separated with periods (sample: 192.168.0.9)
3. Side designator, A or B. This is determines the channels used by your CDPD service
provider.
4. SPNI number of the provider. This is optional. The Service Provider Network Identifier
(SPNI) can be used to restrict the modem to accepting service from a limited list of providers
and can help speed up cellular channel acquisition and registration.
This information will be required when configuring your modem for CDPD registration either
with WirelessExpert or AT commands.
2.2.2. CSC (AMPS)
To use your SB320 modem in CSC mode it must be activated with a cellular phone service
provider. To register your modem for CSC activation, contact your local cellular carrier.
Give the service provider the Electronic Serial Number (ESN). This is the identification number
of the radio/modem. A Sierra Wireless ESN has the following format: 206-xxxxxxxx. Look for
this number on the back of your modem and on a label affixed to the outside of the package that
the modem was shipped in. The number is also available by querying the modem with the
AT+WVESN command.
The cellular service provider supplies the following:
1. A Number Assignment Module (NAM). This is your cellular telephone number and your
Home System ID (SID).
2. Side designator, A or B. This determines the channels used by your service provider.
This information will be required when configuring your modem for CSC mode use either with
WirelessExpert or AT commands.
2.2.3. Wireline
There are no particular setup issues to configure your SB320 modem for use in wireline mode. It
is required that the telephone line be analogue - not digital as found on some PBX systems.
2.3. Setup Considerations
2.3.1. Host Computer Terminal
You will require a PC with a communications program capable of operating in ASCII terminal
emulation mode. This allows the PC to function as a terminal attached to the modem and permits
the entering of AT commands required for modem setup and diagnostics. We recommend that the
program chosen be capable of logging terminal communications activity to a file for later analysis
or printout in the event that technical support is required.
For IBM PC-compatibles, Windows Terminal, Hyperterminal, Procomm, and Kermit are all
acceptable. Note that early versions of Hyperterminal do not allow you to send SLIP framing
characters to the modem, preventing use of the escape sequence. This is corrected in later
versions.
A 9-pin D connector RS-232 serial cable (part number 006.0011) is provided with the OEM
Developer’s Kit for connecting the PC host to the Multipurpose Interface Board.
Page 6 Proprietary and Confidential 2110059 Rev 1.1
Getting Started
2.3.2. Physical considerations
NOTE
The MIB and modem can be sensitive to static so the work surface should be a
static controlled environment.
2.3.3. Antenna considerations
The SB300 Series modem uses standard mobile cellular radio signals. An antenna (part
number 1810009) is provided with the OEM Developer’s Kit. Along with this antenna is a
connector adapter (part number 2000066) to convert the antenna connector (Male SMA) to match
the modem requirement (Male MMCX).
You can use an antenna of your own if you choose. Any standard cellular antenna of good quality
will function properly provided you have a suitable connector.
CAUTION
The combination of cable loss and antenna gain must yield an overall system gain not
exceeding 0 dB. The transmitter output of 0.6 Watt is delivered at the connector. This
is the FCC regulated limit of a Class I device.
Antenna performance is subject to the following guidelines:
Location – Locate the antenna as far away from personnel as possible to minimize signal
blocking. For optimum reception in indoor fixed location applications, position the antenna above
the height of personnel and nearby equipment or structures. Locate the antenna as close to a
window as possible.
Cabling – Select a low loss, high quality, 50-ohm, coaxial cable with the appropriate connectors.
The cable can be any length, but lengths greater than 4 metres (13.1 feet) increase cable loss and
offset the antenna’s nominal gain. If longer length cables are required, use a heavier wire gauge to
reduce the dB loss/m and to minimize the effect of the cable loss on antenna gain.
Ground Plane – For installations where a good antenna ground plane (metal surface) is not
available, use a non-ground plane type of antenna to help maximize signal reception.
Proximity to Other Antennas – In general, do not locate the SB300 Series modem antenna closer
than 1.5 metres (5 feet) to another antenna. In certain cases even more separation is required. The
effect of the interference from two-way transmitters varies from slowing down response times to
blocking modem transmission.
The SB300 has recently had hardware modifications to support an upcoming Sierra Wireless
3-Watt booster.
CAUTION
In cases where the antenna output is to be connected to test equipment, DC blocks must
be used on the antenna output to protect the test equipment and avoid false booster
detection..
2110059 Rev 1.1 Proprietary and Confidential Page 7
SB300 Series User’s Guide
2.4. MIB Presets
The Multipurpose Interface Board has several switches and jumpers which should be configured
as follows for the initial setup.
• DIP Switch in the Serial Breakout Box:
Switches 1 through 8 should be closed (on)
Switches 9 and 10 open (off).
• Power Select (J21) should be on pins 1 – 2 (+5V).
• HOSTSHDN, \SHDN, and MODEM DIS jumpers on J24 should all be off.
• Speaker Enable should be on.
2.5. Connections
This section describes the steps to connect the PC host, MIB, and modem. At the end of this
procedure you should be ready to configure and use the modem. If results at any step are not as
described, consult the chapter on troubleshooting.
To connect follow these steps:
1. Attach the RS-232 serial cable from the host to the MIB PC Serial Port connector (J1).
The Serial Breakout Box indicators for DTR, TxD, and RTS should all light (powered from
the RS-232 connection).
2. Start the terminal application on the host PC. Configure the application for the port connected
to the MIB. At this time, the modem initially requires a setting of 19200 bps, 8 data, no
parity, 1 stop, with hardware (RTS/CTS) flow control.
3. Instruct the terminal application to connect.
The DTR and RTS indicators should be green. The TxD indicator should be red.
4. Attach the 30-pin flat flex modem connector strap to the MIB’s SB300/SB320 port.
To make the SB300/320 connection:
i. Open the hinged SB300/SB320 connector on the MIB by lifting it away from the
edge of the board.
ii. Slide the strap into the connector with the contact side down (coloured side up).
Be sure it is fully inserted.
iii. Close the connector by pressing down on the ends of the connector rather than the
centre.
iv. Connect the 13-pin I/O cable to the MIB and the modem. This connector is keyed
to prevent connection error.
Page 8 Proprietary and Confidential 2110059 Rev 1.1
Getting Started
5. Attach the modem to the connector strap using the same procedure as the MIB end of the
connector.
CAUTION
Although the MIB provides support for the full SB Series of modems, it is not intended
to support more than one modem at a time. Attaching more than one modem can
damage circuitry.
6. Place the antenna is a suitable location, attach the antenna connector adapter to the antenna
cable, and attach the cable to the modem.
7. Ensure the modem power switch is OFF.
8. Plug the 12V DC power adapter into a 120V AC outlet and connect the power supply to the
MIB.
9. Switch on the MIB and modem power using the POWER switch on the MIB.
The remaining LED indicators should come on. Power indicators for 7V and 5V should show
red. The Serial Breakout Box indicators should all light; the DSR signal shows green. The
Status indicators should begin operation to specification as the modem initializes. In about 6
to 10 seconds (following the modem’s internal initialization) the CTS serial signal should go
green and OK should appear on the PC terminal.
10. Type AT<enter> at the host terminal. The modem should reply with OK.
The modem is now ready to be used with the host computer.
You may now continue to use the modem with the terminal application, or you may close the
terminal application and use Watcher and WirelessExpert (described below) to configure and use
the modem.
2110059 Rev 1.1 Proprietary and Confidential Page 9
SB300 Series User’s Guide
Page 10 Proprietary and Confidential 2110059 Rev 1.1
The Operational View
3. Software Installation
3.1. Introduction
This chapter provides instructions for installing Watcher and WirelessExpert™ on a host PC and
using these programs to configure and use the modem. It also includes procedures for updating
the firmware on the modem if needed.
NOTE
Running WirelessExpert is required before using Watcher. WirelessExpert will install
and configure necessary drivers on the host PC.
Watcher
Watcher is a Windows application that configures and monitors Sierra Wireless modems for
CDPD, Circuit Switched Cellular (CSC), and Wireline operation. This chapter explains how to
install Watcher and describes basic Watcher operations and important screen elements.
WirelessExpert
Installation of the drivers required for modem operations is performed with an installation wizard
called WirelessExpert. This can be run at any time to view and edit the cellular activation settings
(NAMs, NEIs, etc.). It allows you to test cellular connections.
3.2. Installing Software on the Host
The software is provided on CD-ROM. The CD is self-starting when inserted into a PC running
Windows 95/98/NT. An installation wizard will guide you through the process.
A menu folder is added to the Start > Programs menu:
2110059 Rev 1.1 Proprietary and Confidential Page 11
The Operational View SB300 Series
3.3. Configuration using WirelessExpert
WirelessExpert will automatically locate the modem on a COM port, interrogate it for features,
and install the required drivers on your host PC. It will then allow you to set or alter the cellular
activation settings.
To make the modem drivers available to the Windows operating system, the PC may be restarted
part way through the execution of WirelessExpert. This is done automatically but does require
that no other programs are running on the PC at the time.
Preparation:
1. Ensure the host serial connection to the modem via the MIB is in place and the modem power
is on. The full set of serial communication LED indicators should be on.
2. For CDPD configurations:
a. Ensure the modem is in CDPD mode (+WS46=4). This can be queried (AT+WS46?) to
verify.
b. Ensure the modem is using the SLIP mode of service (+WS45=3). This can be queried
(AT+WS45?) to verify.
c. Ensure the modem is set to auto-register (+WS173=1).
3. Close any open applications on the host PC including any communication program connected
to the modem. A system restart supervised by WirelessExpert may fail if other programs are
running. Leave the modem on.
4. Have the NAM / NEI and related information from your cellular service provider ready. See
Section 2.2 for information on cellular service registration.
Installation:
1. Select Start > Programs > Watcher > WirelessExpert from the Windows taskbar.
2. Select the modem being used from the list:
SB320 – OR – SB300 Series for the SB300
3. Click Next > and then Next > again to skip the page regarding setup of other modem
products. WirelessExpert then locates the COM port connected to the modem and finds the
related registry entries for it. The results are displayed.
4. Click Next > to have WirelessExpert install the appropriate drivers for the modem.
5. A message may appear advising of the need to restart the computer. Click OK.
WirelessExpert shuts down the computer and restarts it for you.
6. When the setup wizard reappears, continue to click Next > until you pass the section on
connectivity components. WirelessExpert now examines the modem for cellular network
activation, reading any NAM and NEI entries stored on the modem.
7. The next page allows you to set the level of access to configuration settings that will be
allowed to the Watcher program. Setting “full access” will allow Watcher to alter the NAM /
NEI settings, “read-only” will allow Watcher to display the settings but you will have to use
WirelessExpert or direct AT commands to alter settings.
8. For SB320 installations, the NAM entries for CSC activation will be presented for entry and
editing. This screen is automatically skipped for CDPD only modems.
9. For SB320 installations, WirelessExpert can test the connection provided you have a
registered NAM and a number to dial. This tests that the modem can obtain a cellular channel
and place a call. The called station can be your own voice line if you simply want to verify
that the modem can reach a destination phone number. The test can be skipped by marking
the checkbox on the screen. This test screen is automatically skipped for CDPD only
modems.
10. The CDPD settings of the modem are displayed for entry and editing. A radio button sets the
active NEI for use. A pull-down menu allows setting of the channel side preference.
Page 12 Proprietary and Confidential 2110059 Rev 1.1
User’s Guide Watcher and WirelessExpert
11. You are prompted to enter an IP address for a Domain Name Server (DNS). Your cellular
service provider should have provided one. This address is used for testing the CDPD
configuration by “pinging” the provided address. It is also added to the Windows Dial-up
Networking profile. The DNS is not stored in the modem, it is on the host side only.
12. The CDPD settings can now be tested by WirelessExpert and will be setup in the Windows
Dial-up Networking Connection facility. A pull-down menu allows you to select the NEI to
use for the local end of the test. If you select one different from the radio button selection on
the previous screen, the new setting will become the default. This test will verify that you can
register with the CDPD network and will “ping” the DNS server to verify the connection.
The test can be skipped if desired.
13. Click Finish to complete the WirelessExpert configuration. The modem should now be ready
for use.
WirelessExpert will have created an entry in Windows Dial-up Networking for CDPD mode. You
may notice that it is configured to dial the number 2. This is normal. Although CDPD
connections do not actually dial a number, Windows Dial-up Networking requires that a telephone
number be entered.
3.4. About Watcher
Watcher is a configuration and monitoring tool to manage Sierra Wireless modems. The program
can set the modem mode of operation (CDPD, CSC, or Wireline) and can be used to get
information about cellular connections and signals. Watcher can also monitor modem connection
when using CDPD mode.
WirelessExpert must be run initially to properly install and register the required connectivity
components with Windows. If you have not run WirelessExpert on the host PC to be used with
the modem it must be done before using Watcher.
3.5. Using Watcher for Modem Setup
When Watcher is started, it will check a registry on the PC to see what mode the modem was last
used in. If it was CDPD then the program will open a CDPD connection using the settings in the
Dial-up Networking facility of Windows which were configured by WirelessExpert. If an SB320
was last used in either CSC or Wireline mode then Watcher will attempt to set the modem to that
mode.
To start Watcher:
Select Start > Programs > Watcher > Watcher from the Windows taskbar.
Watcher will locate and initialize the modem. It will then indicate the mode and condition of the
connection.
3.5.1. Configuring Watcher
Watcher has a setup dialog that lets you verify the Sierra Wireless modem connection to the COM
port, and the basic configuration strings Watcher will use for Circuit Switched Cellular and
Wireline operation.
To set up Watcher:
1. Make sure the modem is powered on and is communicating with your PC.
2. Select Options > Setup Watcher from the Watcher main menu
This will open the Setup Watcher dialog (next page).
2110059 Rev 1.1 Proprietary and Confidential Page 13
The Operational View SB300 Series
3. Click the WirelessExpert… button to activate the installation wizard described above.
4. If specialized setup strings are required for your installation, you can enter them here. The
modem uses configuration strings to optimize its operation in certain modes. The modem
comes preset with the most common configuration strings. See the specific sections on CSC
and Wireline Operations for more information.
CDPD mode does not offer special setups. To control CDPD mode use Options >
Setup CDPD… described below.
5. Click OK to save the configuration and return to the Watcher program window.
3.5.2. Configuring Cellular Settings using Watcher
Watcher’s ability to manage the cellular activation settings of the modem is set by WirelessExpert.
If WirelessExpert has set the access level for Watcher to anything but full access, then Watcher
cannot be used to configure the settings.
3.5.2.1. CDPD Settings
To edit the modem configuration with Watcher:
1. Select Start > Programs > Watcher > Watcher from the Windows taskbar.
2. If the modem is not in CDPD mode then select Settings > CDPD from Watcher’s main
menu.
3. Select Options > Setup CDPD… from the Watcher main menu.
The following window will open to allow configuration changes:
Note that the modem’s EID is displayed at the top of the window.
4. To change a NEI address you must click the Unlock button.
5. The Channel Set is a side preference dictated by your cellular service provider.
6. The SPNI box is used to enable the use of a restrictive list of service providers. When the
modem is finding a channel, it can determine if a channel belongs to a provider whose SPNI
is on the list. If the SPNI is not listed, then the modem will reject the channel and resume
searching. If the list is enabled, use the Setup… button to maintain the list of accepted
SPNIs.
7. Registration mode allows you to select between manual and automatic registration. If manual
is selected, Watcher will not try to register on the CDPD network until commanded to do so.
Automatic will set Watcher to register the modem when the program is started.
Page 14 Proprietary and Confidential 2110059 Rev 1.1
User’s Guide Watcher and WirelessExpert
8. Sleep mode is discussed in the CDPD Operations chapter, Section . Enabling it will allow
the modem to reduce power consumption when it is inactive, but response times will be
slowed. This function sets the sleep timer to 30 seconds.
3.5.2.2. CSC Settings
If you are using a SB320, you can place the modem in CSC mode using Watcher. The settings for
CSC can then be accessed.
To edit the modem’s CSC configuration with Watcher:
1. Select Start > Programs > Watcher > Watcher from the Windows taskbar.
2. If the modem is not in CSC mode then select Settings > Cellular from Watcher’s main
menu.
3. Select Options > Setup Cellular… from the Watcher main menu.
The following window will open to allow configuration changes:
Note that the modem’s ESN is displayed at the top of the window.
4. Use a radio button to select the NAM to make active.
5. To change a NAM entry you must delete the current value. The entry is formatted
automatically and will not allow more characters than will fit the format.
6. The Home System ID will have been provided by your cellular carrier.
7. Use the pull-down menu to select the Side Preference dictated by your cellular service
provider.
8. The Description allows you to enter a text label to help you recognize the setting.
3.6. Monitoring CDPD With Watcher
To monitor the state of the modem’s CDPD connection, you can leave Watcher running all the
time. The connection is established through Windows Dial-up Networking and Watcher is treated
as one socket to the connection. Other Internet clients can be used simultaneously.
To monitor a CDPD connection:
1. Select Start > Programs > Watcher > Watcher – or double-click the Watcher icon.
The Watcher program window will open.
2. Ensure the modem is registered in CDPD mode.
3. Run other applications.
Watcher will receive event information from the modem and update the channel and signal
strength indicators (described below) when the modem advises of an event. You can force
Watcher to update the display by selecting Window > Refresh from the Watcher main menu or
pressing F5 when Watcher is the active window.
2110059 Rev 1.1 Proprietary and Confidential Page 15
The Operational View SB300 Series
3.7. About the Watcher Program Window
The Watcher program window looks like this:
The window can be set to always be on top of other active windows by using the Window >
Always on Top option in the Watcher main menu. Selecting the option again will disable the
feature.
The window can be minimized and the connection monitored by use of the icon shown in the
taskbar.
3.7.1. Icon Status
When Watcher is minimized, the shape of the icon shown in the taskbar indicates the current
operating mode and service status.
Indicates the modem is registered in CDPD mode.
Indicates the modem is unregistered in CDPD mode.
Indicates the modem is in Circuit Switched Cellular (CSC) mode.
Indicates the modem is in Wireline mode.
Indicates the modem is not responding.
3.7.2. Watcher Menus and Commands
The Watcher program window contains the following menus:
Settings Options Window Help
These are described below.
Page 16 Proprietary and Confidential 2110059 Rev 1.1
User’s Guide Watcher and WirelessExpert
mode. You must be in Wireline or Circuit Switched Cellular mode to
3.7.2.1. Settings Menu
Any dimmed options are not available on the modem being used.
Wireline
Cellular
CDPD
Register
Set Radio Channel…
Disable Transmitter
Exit
Switches the modem to Wireline mode.
Switches the modem to Circuit Switched Cellular (CSC) mode.
Switches the modem to CDPD mode.
Registers the modem on a CDPD network.
Displays options for setting the radio channel automatically or manually.
Turns the transmitter off so the modem can only receive data. When
selected a checkmark will appear beside it and the status line will indicate
the transmitter is disabled. Select the option again to re-enable the
transmitter.
Exits Watcher after gracefully shutting down any active modem connection.
3.7.2.2. Options Menu
Any dimmed options are not available on the modem being used.
Setup Watcher… Displays the dialog box for configuring the Watcher modem
connection and the startup strings for the wireline and CSC modes of
operations. See 3.5.1 Configuring Watcher for details.
Setup Cellular… Displays a dialog box for configuring Circuit Switched Cellular
Setup CDPD… Displays a dialog box for configuring CDPD mode. You must be in
3.7.2.3. Window Menu
Refresh F5 Updates the signal strength, and channel status indicators as
Always On Top Displays the Watcher program window on top of any currently active
3.7.2.4. Help Menu
Pressing F1 will open the main Watcher Help window. Other access to help features are:
Contents… Displays the main Help topics.
Search… Lets you search for keywords in Help.
select this command. See 3.5.2.2 CSC Settings for details
CDPD mode to select this command. See 3.5.2.1 CDPD Settings for
details.
appropriate.
application window. When selected a checkmark will appear beside it.
Select the option again to disable the feature.
Current… Opens Watcher Help to a context sensitive page.
Warranty Regisrtaion.. Displays a form for automated product registration via the Internet.
About… Displays important information about the Watcher version; the
2110059 Rev 1.1 Proprietary and Confidential Page 17
modem version, EID, hardware and firmware revision, transmitter
temperature, and the connectivity drivers.
The Operational View SB300 Series
3.7.3. Toolbar Buttons
The Watcher program window contains three buttons for selecting the operating mode, and one
button for registering and de-registering your modem in CDPD mode. These buttons are
described below. If a button is dimmed, the option is not available on the current modem.
Click to switch to Wireline mode.
Click to switch to Circuit Switched Cellular mode.
Click to switch to CDPD mode.
Click to register the modem in CDPD mode. When the cables appear joined, the
modem is registered.
Click the button again to de-register the modem.
3.7.4. Status Indicators
¡
ll
“---” (flashing) Indicates that the modem is not locked onto a CDPD channel.
Appears to the left of the Wireline button and indicates that Watcher is actively
communicating with the modem in a non-packet mode (Wireline or Circuit
Switched Cellular).
Appears to the left of the Wireline button and indicates that Watcher is actively
communicating with the modem in a packet mode (CDPD).
Shows the Received Signal Strength Indication (RSSI). Double-click on the
gauge to display the value in dBm.
Displays the current radio channel.
3.7.5. Updating Status Indicators
The display will refresh automatically when the modem reports an event.
To force an update of the status indicators, select Window > Refresh in the main menu or press
F5 when Watcher is the active window. Depending on the operating mode, the status indicators
may take a few seconds to update.
3.7.6. Quitting Watcher
To quit Watcher:
1. Click the close box in the top left corner of the Watcher program window.
Watcher may take a moment to close while it gracefully closes a CDPD session and disconnects
from the modem.
Page 18 Proprietary and Confidential 2110059 Rev 1.1
User’s Guide Watcher and WirelessExpert
3.8. Updating Modem Firmware
Should your modem(s) require a firmware upgrade, this section describes the procedure.
See Section 1.3 Currency for information on the current revisions at the time of this writing. That
section also describes the method to determine the firmware revision on the modem.
You can acquire updated firmware by contacting Sierra Wireless Technical Support at
604.231.1128 or by e-mail to support@sierrawireless.com. In most cases you will be provided a
URL to download the update over the Internet. You may have the option to use a ZIP file
(requiring either PKUNZIP ver 2.04g or WINZIP v5.6) or a slightly larger self-extracting
executable file. Both of the ZIP utilities are available from links on the Sierra Wireless download
page.
To download the update:
1. Create a folder on your PC in which to store the download.
2. Enter the URL provided for the chosen download and save the file in the folder you have
created.
3. If the ZIP file was downloaded then Unzip it using your extraction utility.
Before updating make sure you know which COM port your modem is connected to. This
information is required by the upgrade utility.
To upgrade the Modem firmware, you can run either:
• SETUP.EXE program in Windows,
– or –
• INSTALL.BAT command file from DOS.
DOS firmware upgrade:
1. If you run the DOS option , EXIT Windows completely.
2. Change Directory to the one with the downloaded firmware.
3. Turn off the modem.
4. Enter INSTALL <space> d where d is the COM Port number.
Examples: INSTALL 1 (installs the firmware using COM 1)
INSTALL 3 (installs the firmware using COM 3)
5. Follow the Install instructions carefully.
Windows firmware upgrade:
1. Close all open applications.
2. Turn off the modem.
3. Run either the self extracting update file (which will expand and execute in one step) or the
SETUP.EXE file.
4. Select the COM port your modem is connected to.
5. You will be prompted to turn on the modem. When you have done so, the installation
program will automatically perform the balance of the update.
Installation provides “thermometers” indicating the progress of the update. These are only a
guideline. Do not be surprised if the update completes before the indicators have been updated.
After the upgrade is complete you may delete the download folder or retain it for updating
additional modems, as you choose.
2110059 Rev 1.1 Proprietary and Confidential Page 19
