General Dynamics Itronix IX-WT11 User Manual

Download

GD8000 User Guide

German

French

Spanish

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Table of Contents

Notices, Compliance and Safety .........................5

Disclaimer ............................................................. 5

Trademark and Patent Notice ............................5

Compliance Statements .....................................5

Compliance Statement for Canada ................... 6

Fax Branding ........................................................ 6

Warnings and Cautions ...................................... 6

Safety ....................................................................7

Service and Upgrade Safety and Precautions .................... 7

Battery Pack Safety and Precautions ................................. 8

Getting Started..........................................................9

Standard Features ............................................... 9

Optional Features ................................................ 9

Operating System Information .......................... 9

Tips for New Owners ..........................................9

Turning Off the Computer ..................................9

Getting Familiar With Your Computer ..............10

Front View .......................................................... 10

Left Side View .................................................... 11

Right Side View .................................................. 12

Back Edge View ................................................. 12

Bottom View ...................................................... 13

Keyboard Basics ................................................14

Primary Keys...................................................................... 14

Arrow Keys ........................................................................ 15

Function Keys and Key Combinations .............................. 15

Numeric Keypad ................................................................ 16

Lock Keys .......................................................................... 16

Windows Keys ...................................................................17

Radio ON/OFF Switch (option) .........................17

To Turn all Radios on or off ........................................... 17

Application Launch Key ....................................17

To Program the Application Launch Key .................... 17

Touch Screen Display ....................................... 18

Install the Stylus Tether ..................................................... 18

Calibrate the Touch Screen ............................................... 18

Adjusting Display Brightness ............................................ 18

Adjusting Display Resolution ............................................ 18

Auto Dim Feature .............................................................. 19

Simultaneous or Extended Display .................................. 19

LCD Heater ........................................................................ 19

General Dynamics Itronix | 72-0137-001

Cursor Visibility ................................................................. 19

Lid Switch ........................................................... 19

LED Status Indicators ........................................20

Audio ................................................................... 21

To Adjust the Volume ........................................................ 21

Inserting the Card .............................................................. 21

The PC Card Slot ................................................ 21

Ejecting a Card .................................................................. 22

Touchpad ............................................................ 22

To Select Objects .............................................................. 22

To Drag .............................................................................. 22

Adjusting the Touchpad Settings ..................................... 22

Touchpad Precautions ....................................................... 22

Smart Card or EXPRESS Card Slot (option) ..23

To Insert a Card ................................................................. 23

To Remove a Card ............................................................. 23

The Hard Disk Drive (HDD) ............................... 23

Replacing the hard disk drive ............................................ 23

Hard Disk Drive Heater ..................................................... 24

The Media Bay ................................................... 24

To Change Swappable Media Bay Device ....................... 24

To Insert a Disk ................................................................. 24

To Remove a DVD or CD .................................................. 24

Precautions for Handling DVDs and CDs ......................... 25

Computer Security ............................................ 25

Security Slot ...................................................................... 25

BIOS Level Passwords ..................................................... 25

Smart Card Reader (Option) ............................................. 25

Fingerprint Scanner (Option) ............................................. 25

Stealth Mode ..................................................................... 25

Trusted Platform Module (TPM) ....................................... 25

Ports and Connectors ....................................... 26

ENERGY STAR

® ..........................................................................................26

Making Connections .............................................27

Attaching Power ................................................27

To Attach AC Power .......................................................... 27

To Use the Vehicle Adapter (optional) ............27

USB Devices .......................................................27

External keyboard or pointing device................................ 27

Fax/data modem................................................ 28

External Monitor or Video Device ...................28

Using Simultaneous Display ............................................. 28

Using Extended Display .................................................... 28

GD8000 User Guide

Table of Contents

Wireless Communication ....................................29

WLAN radio option ...........................................29

About WLAN .....................................................................29

CRMA Express WWAN (option) ...................... 29

HSPA ................................................................................. 29

EDGE/GPRS/GSM Network ............................................. 29

UMTS/GPRS/GSM Network ............................................ 29

EV-DO Rev A - EV-DO Rev 0/1xRTT/CDMA ....................29

EVDO Rev. A ..................................................................... 30

EV-DO/1xEV-DO/CDMA Network .................................... 30

GPS (option) .......................................................30

Bluetooth (option) .............................................. 30

Antennas .............................................................30

Improving Radio Coverage .............................. 31

On the Street ..................................................................... 31

Inside a Building ................................................................ 31

When to use Landline Communication .......... 31

Operating with Battery Power ...........................32

Frequently Asked Battery Questions ..............32

The Battery .........................................................32

Using a battery for the ﬁrst time .......................................32

Battery and Temperature .................................................. 32

Replacing the Battery........................................32

Charging .............................................................33

Discharging ........................................................33

Battery Charging ...............................................33

When to Replace the Battery ........................................... 33

Heat Considerations .......................................................... 33

Battery Calibration ............................................33

When to calibrate the battery: .......................................... 33

About Battery Calibration .................................................. 34

BIOS Level Battery Calibration ......................................... 34

Monitoring Battery Power ................................34

Low Battery Alarms ..........................................................34

Managing Power................................................34

Low-Power States ............................................................ 34

Battery Tips ........................................................35

Tip 1. Avoid excessive heat and cold................................ 35

Tip 2. Prevent wasted power ............................................35

Tip 3. Calibrate your battery .............................................. 36

Tip 4. Get a good charge ..................................................36

Tip 5. Prevent data loss ..................................................... 36

Tip 6. Clean terminals ....................................................... 36

Tip 7. Storing batteries ......................................................36

Customizing Your BIOS ........................................37

Starting the Setup Utility ..................................37

Navigation and Help..........................................37

The Main Menu ..................................................38

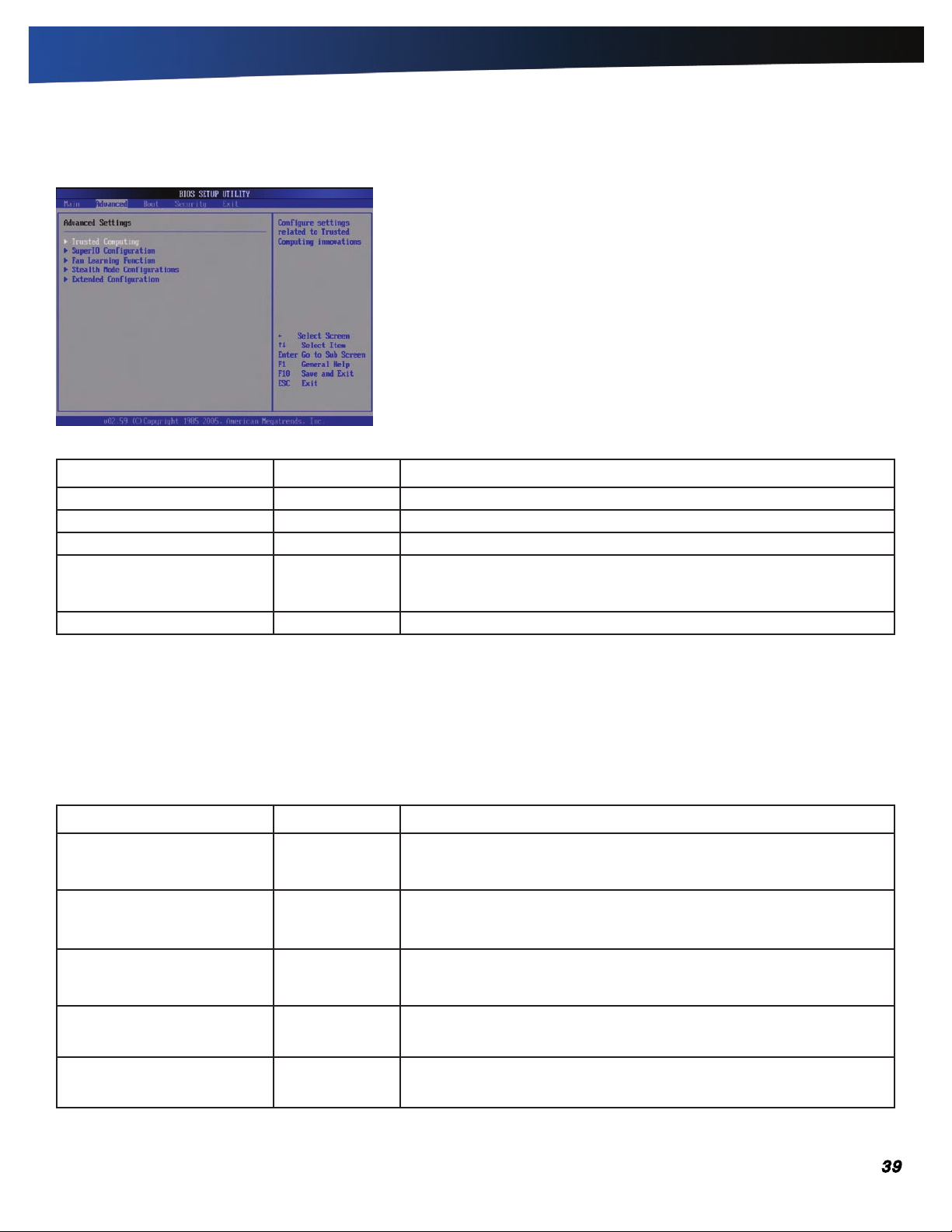

The Advanced Menu .........................................39

Trusted Computing ...........................................................39

Super I/O Conﬁguration .................................................... 40

Fan Learning Function ....................................................... 41

Stealth Mode Conﬁguration .............................................. 41

Extended Conﬁguration .................................................... 42

The Boot Menu ..................................................44

The Security Menu ............................................45

The Exit Menu ....................................................45

Optional Equipment and Accessories ..............46

Surge Protection ................................................ 46

Vehicle Adapter .................................................. 46

Temperature ....................................................... 46

Charging Activity ...............................................46

To connect the vehicle adapter ........................................ 46

Vehicle Dock .......................................................46

To charge a battery installed in the computer .................. 46

Communicating with Other Devices ............................... 47

External Antennas ............................................................. 47

Memory Upgrade ..............................................47

Maintenance and Storage ...................................48

Taking care of your AC adapter .......................48

Servicing Your Computer .................................48

Storing Your Computer .....................................48

Taking Care of Your Batteries ..........................48

Taking Care of Your Hard Drive .......................49

For Internal Hard Drives .................................................... 49

For External PC Cards .......................................49

Cleaning Your Computer ..................................49

Cleaning the Outside Case ............................................... 49

Cleaning the Display ......................................................... 49

Cleaning the External Power Connector ....................... 49

Cleaning the RJ-11/ RJ-45 / USB Connectors ................ 49

Data Backup .......................................................50

Saving Important System Information .............................50

Data Recovery ....................................................50

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Table of Contents

Option 1: Restoring System Information ........................50

Option 2 : Restoring a Backup ......................................... 50

Option 3: Restoring Drive C: ............................................. 50

Client Care Center (CCC) ................................... 51

Services Expertise ........................................................... 51

Product Support - Downloads ......................... 51

Service and Support ..............................................51

Troubleshooting .....................................................52

Application Troubleshooting .......................... 52

My application locks up, acts strangely, or produces a Gen-

eral Protection Fault (GPF) error or blue screen ............... 52

Battery Troubleshooting ...................................52

The battery does not charge ............................................. 52

The batteries take much longer than seven hours to charge 52

The batteries don’t last very long ..................................... 52

The gas gauge isn’t full after charging the battery ........... 53

The gas gauge reads “full,” but the charging LED is still lit 53

My battery seems to have less and less capacity ........... 53

Display / Touch Screen .....................................53

The display performance is slow ...................................... 53

I can’t read the display ...................................................... 53

The underlined, inverse, and hypertext characters are difﬁcult

to read on the screen ........................................................53

I can’t see the cursor while using the DOS editor ........... 53

I changed my display resolution, but I see no difference on

the screen .......................................................................... 53

Nothing happens when I try to use the stylus on my touch

screen ................................................................................ 53

The touch screen doesn’t respond after a suspend ........ 53

Hard Disk ............................................................53

The hard disk will not spin up so the computer can’t boot up 53

Keyboard and Mouse Troubleshooting ..........54

Something unexpected happens when I press a key .....54

Incorrect characters appear on the screen when I press

certain keys ....................................................................... 54

I have difﬁculty double-clicking the mouse fast enough . 54

Modem Troubleshooting ..................................54

The modem doesn’t work ................................................ 54

The modem doesn’t dial a number .................................. 54

The modem dials and receives an answer but does not

establish a connection ...................................................... 54

PC Cards ...........................................................54

I can’t remove the PC card................................................ 54

Read Error .......................................................................... 54

The computer locks up when I remove the PC card .......54

Miscellaneous Troubleshooting ......................54

The computer shuts off unexpectedly ............................. 54

The speaker volume is too high or too low ...................... 54

The computer won’t turn on ............................................. 54

The computer won’t turn off............................................. 54

The computer enters suspend mode too quickly ............ 55

The computer doesn’t automatically suspend ................. 55

The system date and time are incorrect ...........................55

I receive an “out of memory” error message .................. 55

Holding down the Power button to reset the computer

doesn’t always work ......................................................... 55

The computer doesn’t make any sounds, even during boot-

up ....................................................................................... 55

The fan stopped running ................................................... 55

Can I improve the startup speed of my programs by cleaning

up and rearranging ﬁles on the hard drive? ...................... 55

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Notices, Compliance and Safety

Identiﬁcation: GD8000 User Guide

Copyright Notices

© Copyright 2009 General Dynamics. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any other language or computer language in whole or in part, in any form or by any means, whether it be electronic, mechanical, magnetic, optical, manual, or otherwise, without the prior written consent of General Dynamics Itronix Corporation, 12825 E. Mirabeau Parkway, Spokane Valley, WA

99216.

Disclaimer

General Dynamics Itronix reserves the right to revise the manual and make periodic changes to the content without a direct or inferred obligation to notify any person of such revision or changes. General Dynamics Itronix Corporation does not assume responsibility for the use of this manual, nor for any patent infringements or other rights or third parties who may use the manual.

This document contains proprietary information of General Dynamics Itronix Corporation.

This product is available for purchase under General Dynamics Itronix’s standard terms and conditions of sale. Hardware products may be reconditioned, or be manufactured from parts and components that may be new, used, rebuilt, or recycled and in some cases, the hardware product may not be new and may have been previously installed. In any event, General Dynamics Itronix warranty terms apply.

partner, General Dynamics Itronix has determined this computer meets ENERGY STAR program requirements for computers.

Compliance Statements

The GD8000 computer has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:



Reorient or relocate the receiving antenna.



Increase the separation between the equipment and receiver.



Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.



Consult the dealer or an experienced radio/TV technician for help.

The GD8000 computer complies with Part 68 of the FCC Rules. On the bottom of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

Trademark and Patent Notice

Itronix is a registered trademark of General Dynamics Itronix Corporation. Microsoft, MS, Windows, and MS-DOS are registered trademarks of Microsoft Corporation.

The following United States Patent Numbers apply to any unit which incorporates a DVD drive - 5,434,678; 5,589,945; 5,913,013; 6,151,444; and 6,208,805.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

ENERGY STAR Environmental Protection Agency. As an ENERGY STAR

General Dynamics Itronix | 72-0137-001

is a registered trademark of the U.S.

The REN is used to determine the quantity of devices which may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed ﬁve (5.0). To be certain of the number of devices that may be connected to the line, as determined by the total RENs, contact the telephone company to determine the maximum REN for the calling area.

The GD8000 computer may be connected to the telephone network using the RJ-11 jack provided.

If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. If advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to ﬁle a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone

GD8000 User Guide

Notices, Compliance and Safety

company will provide advance notice in order for you to make the necessary modiﬁcations in order to maintain uninterrupted service.

If trouble is experienced with this equipment, please contact the equipment manufacturer for repair and/or warranty information. Do not attempt repairs of this equipment yourself without obtaining manufacturer authorized parts and documentation. If the trouble is causing harm to the telephone network, the telephone company may request you remove the equipment from the network until the problem is resolved.

Compliance Statement for Canada

NOTICE The Industry Canada label identiﬁes certiﬁed

equipment. This certiﬁcation means that the equipment meets certain telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements document(s). The Department does not guarantee the equipment will operate to the user’s satisfaction.

Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certiﬁed equipment should be made by a representative designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

CAUTION Users should not attempt to make such

connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate.

The Ringer Equivalence Numbers (REN) are:

GD8000 non-radio: 0.5B

NOTICE The Ringer Equivalence Number (REN) assigned to

each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

The GD8000 computer may be connected to the telephone network using the RJ-11 jack provided.

Fax Branding

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the ﬁrst page of the transmission, the date and time it is sent and an identiﬁcation of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual.

In order to program this information into your fax machine, you should complete the following:

This information is entered through the FAX application software you have installed. Consult your FAX software documentation for instructions about entering this information.

Warnings and Cautions

WARNING It is important that only authorized personnel

service and attempt repairs on the equipment. Unauthorized service or repair may void the warranty and any maintenance contract in effect for the equipment. Unauthorized service personnel might be subject to shock hazard on some equipment if removal of protective covers is attempted.

There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

The product you have purchased is powered by a rechargeable battery. The battery is recyclable and, under various state and local laws, it may be illegal to dispose of this battery into the municipal waste stream. Do not crush the battery or place it in a ﬁre. Check with your local solid-waste ofﬁcials for details on recycling options or proper disposal.

CAUTION Internal components of the GD8000 computer will

be damaged if exposed to contaminants. When dust covers, the PC card door, or the bottom access panel are open on the computer, shield the unit from all contaminants such as liquids, rain, snow, and dust.

This device may contain a WLAN radio transmitter, a WPAN radio transmitter, and a WAN radio transmitter.

Each internal radio may or may not have an individual FCC Identiﬁer label. That FCC Identiﬁer label is not applicable to this conﬁguration. Only the external FCC ID label is applicable.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Notices, Compliance and Safety

Only the antenna with which an intentional radiator is authorized may be used with the intentional radiator.

The WAN embedded antenna location is in the upper center edge of the display screen and is not to be modiﬁed.

The WPAN embedded antenna location is near the lower left edge of the Keyboard and is not to be modiﬁed.

The WLAN embedded dual antennas are located internally in the upper right and left edges of the display screen and are not to be modiﬁed.

To comply with FCC RF exposure requirements when using the WAN radio transmitter, a minimum separation distance of 20 cm must be maintained between the upper center edge of the display screen antenna and all users/bystanders.

When using the WLAN transmitter, a minimum separation distance of 20 cm must be maintained between the upper right and left edges of the display screen and all users/bystanders.,

The WAN transmitter, WLAN transmitter and WPAN transmitter should be turned off before carrying the laptop PC in order to comply with

FCC RF exposure requirements.

The equipment has been approved to [Commission Decision “CTR21”] for pan-European single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between individual PSTNs provided in different countries the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

In the event of problems, you should contact your equipment supplier in the ﬁrst instance.

Safety

Do not proceed beyond a WARNING or CAUTION until the indicated conditions are fully understood and met.

Read these instructions carefully. Following these guidelines will help prevent damage to your computer and help protect your personal safety.



Read and follow all WARNINGS, CAUTIONS and instructions marked on the product and noted in this documentation.



Before using your computer, read the Power Management section to familiarize yourself with basic battery information and ensure optimum performance.



CAUTION To reduce the risk of ﬁre, only use a No. 26 AWG or

larger telecommunication line cord.



CAUTION This notebook computer is designed to be used

with the provided dedicated AC Adapter or Vehicle Adapter.



Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Aerosols, solvents, or strong

detergents are not recommended cleaning solutions and may void your warranty. For system decontamination recommendations please contact your service technician.



Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat.



Do not place the product on a soft surface such as a bed, sofa, or rug where the ventilation slots and openings may be blocked.



Do not place this product near or over a radiator or heat register.



Do not place this product in a built-in installation unless proper ventilation is provided.



Do not operate the computer at temperatures above 140°F (60°C) or below -10°F (-23C).



Do not store the computer at temperatures above 167°F (75°C) or below -67°F (-55°C).



Do not step on or place anything on the power cord.



Do not slam the display lid when you close it.



Do not place any object on top of the computer.



If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet.



Do not push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, ﬁre, or damage sensitive components.



The computer is designed to withstand spills. If a spill occurs, immediately power off the computer and wipe it down.



For best results, use a power strip with a built-in surge protector. Do not use inferior extension cords as this may result in damage to your computer.



FAA regulations require that all transmit/receive devices be turned off during ﬂight. If you have radios in your computer (including GPS) and your computer is equipped with a

ON/OFF Switch

ﬂight. If you have radios and you do not have a switch to turn the radios off, either leave your computer off during ﬂight or contact your help desk for assistance.

, please use it to turn your radios off during

Radio

Service and Upgrade Safety and Precautions

Do not service this product yourself. Opening or removing covers may expose you to dangerous voltage points or other risks and may void your warranty. Damage caused by servicing that is not authorized may void your warranty. If your computer needs service, remove power and turn it off, then contact authorized service personnel.

Refer all servicing to authorized service personnel under the following conditions:



When the power cord or plug is damaged or frayed.



If the product does not operate normally when the operating

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

instructions are followed. Adjust only those controls that are covered by the instructions in this manual.



If the product exhibits a distinct change in performance, indicating a need for service.

Before performing any manufacturer authorized service or upgrade, ﬁrst follow these instructions:



Prevent damage from static electricity by following ESD precautions.



Place the computer on a clean, ﬂat surface.



Turn off the computer and disconnect the power supply.



Undock the computer if it is in an ofﬁce dock or vehicle dock.



Disconnect any attached peripherals.



Disconnect any attached network, telephone or telecommunication line.



Remove any PC Cards, EXPRESS Cards, Smart Cards, CDs, DVDs or any other media in your computer’s slots or bays.



Remove the battery (See Battery Removal).



Remove the hard drive (See Hard Disk Drive Removal).

Notices, Compliance and Safety

Battery Pack Safety and Precautions



WARNING! There is danger of explosion if the battery is

incorrectly replaced. Replace only with a manufacturer approved battery.



WARNING! Dispose of used batteries promptly and

according to the manufacturer’s instructions



WARNING! Batteries may explode if not handled properly.

Do not disassemble, open, puncture or dispose of battery packs in a ﬁre. The battery pack could burst or explode releasing hazardous chemicals.



WARNING! Keep battery packs away from children.



Follow the safety instructions printed on the battery.



Only use approved manufacturer approved battery packs with your computer.



Do not abuse, deliberately pierce, or subject the battery pack to excessive impact.



Immediately discontinue use of the battery if it appears damaged or abnormal in any way and consult your local provider for advice.



Do not immerse the battery pack in liquid.



Do not short together the battery connections. Do not store the battery pack with metallic objects due to the risk of short circuit.



Battery chemical leakage is harmful. In the unlikely event of battery leakage; DO NOT TOUCH. In case of accidental contact with the eyes or skin, immediately wash with running water and seek medical advice. In the case of accidental ingestion, seek immediate medical attention.



Follow Battery Tips for use and storage.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Getting Started

Standard Features



DynaVue® Touch Screen Display



Shock-mounted, ruggedized, removable Hard Disk Drive with heater



Fully-rugged magnesium case



Full-size keyboard with embedded numeric keypad and 12 function keys



Capacitive Touchpad



Internal 56K V.92 Fax/Modem



Lid Switch: The lid switch can be conﬁgured to suspend your

computer when the lid is closed and to resume when the lid is opened.



Application Launch Key and user programmable button



Internal Gigabit Ethernet LAN



Three USB 2.0 Ports



Type II PC Card Slot



Audio Jacks for external speakers and microphone and internal

speakers and microphone



Stealth Mode: This feature allows you to use the computer in

an environment where sound and light could be dangerous or disruptive



Microsoft Windows XP SP3 or Microsoft Windows Vista operating system



Three-year limited warranty

Operating System Information

For information and help with Windows XP, select Start, Help and Support. Under Pick a Help Topic, select Windows Basics

to open The Windows XP Help and Support Center, an online orientation of the Windows XP Operating System.

For information and help with Windows Vista, select Start,

Welcome Center. Under Get Started with Windows, select Show all 13 items.

Tips for New Owners



Back up ﬁles often. Users who need to manage large amounts of data may wish to use backup devices.



Create a set of recovery CDs or DVDs to recover your hard disk in case it becomes corrupted. To do this, use the Recovery CD Wizard by selecting Start, Programs, Mobile Computer Tools.



Don’t leave passwords anywhere on your notebook or carrying case.



Install antivirus software and keep it updated.



For added security, consider using a computer lock with the computer’s

Security Slot.



Develop ergonomic work habits to help prevent related health issues. The science of ergonomics studies the relationship between health and a suitable work environment. For more information on ergonomics, contact your nearest computer bookstore, local library, reputable website.

Optional Features

Below is a list of some of the optional features supported by your computer. Contact your authorized dealer if you decide to perform a key component upgrade.



Fingerprint Scanner



Radio ON/OFF Switch



Smart Card or EXPRESS Card/54 slot



CRMA Express radio technology: Flexible, upgradeable radio

module for signiﬁcant cost savings



Integrated Wireless LAN Communications: 802.11a/b/g Wireless LAN with Mini-PCI wireless card support



Bluetooth



GPS



Media Bay Device: DVD multi drive or media bay battery



Backlit Keyboard



Hazloc



Memory



Extra Hard Disk Drive (HDD)

General Dynamics Itronix | 72-0137-001

Turning Off the Computer

To turn off your computer select Start, Shut Down, Shut Down and follow the instructions on the screen.

If you are going to be away from the computer for a short period, you can conserve power without shutting down the system. See Managing Power and Battery Tips for details.

NOTE If you are unable to shut down your computer

normally, follow the instructions in Troubleshooting.

CAUTION Shutting off the computer improperly may result

in data loss.

GD8000 User Guide

Getting Familiar With Your Computer

Front View

# Feature Description

1 Display Latch The display latch holds the display when closed

2 Display 13.3-inch DynaVue

3 Internal Microphone Integrated, weatherized microphone can be used with various software applications that

require audio input

4 Pen / Stylus Slot Store the provided custom touch screen pen (stylus) in this slot below the touchpad

5 Right Tether Slot You can attach a stylus tether here

6 Handle Integrated handle for convenient carrying

7 Touchpad Buttons Use like the buttons on a mouse

8 Left Tether Slot You can attach a stylus tether here

9 Touchpad Use for navigation

10 Keyboard Standard keyboard with embedded numeric keypad

11 Button and LED strip Area above the keyboard with the power button, Radio ON/OFF Switch, Application

Launch Key and LED Status Indicators

XGA, outdoor-viewable, color display with an integrated touch screen

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Left Side View

Getting Familiar With Your Computer

3 4 5 6 7 8 9

# Icon Feature Description

1 Back Handle Mount The back handle mount, located on both sides of the computer is used with an

optional back handle

7 Cooling Fan Exhaust Cooling Fan exhaust area. Do Not Block. This area may become hot as air vents

DC-in Jack Connects to an AC power adapter

Network Jack (RJ45/LAN) Connects to an Ethernet-based network. Connection speed is 10/100/1000 Mbps

Modem Jack (RJ11) Connects a phone line to the internal fax/data modem. It can transmit data using

the 56 Kbps V.90 or V.92 protocol, and send and receive faxes at 14.4 Kbps.

NOTE In some countries, local regulations may not permit the use of the fax/

modem designed for this system. In this case, you may use a PCMCIA modem

Microphone Jack Connect a microphone to this jack to record audio

Audio Out Jack Connect external speakers or a stereo headset to this jack to listen to multimedia

from the computer

External Monitor Port Connects to a display monitor (up to 2048x1536 resolution)

9 Smart Card Reader or

Express Card Slot option

General Dynamics Itronix | 72-0137-001

Depending on your conﬁguration, use with a Smart Card or EXPRESS Card

GD8000 User Guide

Getting Familiar With Your Computer

Right Side View

1 2 3 4 5

# Icon Feature Description

1 Three USB 2.0 Ports Connects to USB devices (e.g., USB digital camera)

3 PC Card Slot Use this slot for Type II PC Card devices

4 Media Bay Combo DVD-ROM/CD-RW, DVD Multi-Drive (DVD-RAM/DVD-ROM/DVD-RW/CD-R/

5 Back Handle Mount The back handle mount located on both sides of the computer is used with an

Serial Port Connects your computer to serial devices such a fax/modem or a serial mouse.

This port is identiﬁed as COM1

CD-ROM/CD-RW), or second battery module

optional back handle

Back Edge View

3 4

# Feature Description

1 Battery Release Lock Press this in (toward the display) to unlock the battery

2 Battery Release Latches Slide these toward the center of the unit to release the battery

3 Cooling Fan Intake Air intake for fan. Do NOT block this area

General Dynamics Itronix | 72-0137-001

Security Slot The security slot can be used with a standard laptop-locking device, such as a

Kensington lock. You can connect the computer to a large object with the lock to prevent theft. See the documentation that comes with your lock for more information.

GD8000 User Guide

Bottom View

Getting Familiar With Your Computer

# Feature Description

1 Dual External Antenna

Connector (DEAC)

2 CRMA Express Module Upgradeable WWAN radio module (optional)

3 Memory compartment User expandable memory slot

4 WLAN compartment Integrated wireless LAN radio

5 Speakers Integrated stereo speakers for audio output

6 Hard Disk Drive Locks Open and turn these to lock or unlock the removable hard disk drive

7 Docking Connector 84-pin cradle connector that mates with the Vehicle Dock, or Ofﬁce Dock

8 Media Bay Release After unlocking the media drive, slide this to release the media drive.

9 Media Bay Lock Slide Slide this to unlock the media drive before releasing it.

10 Battery Pack Smart Lithium-Ion battery

The DEAC gives you the ability to switch the internal WLAN and WWAN to an external antenna to gain better performance when you are in a vehicle.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Getting Familiar With Your Computer

Keyboard Basics

The GD8000 features:



Full size, glow-in-the-dark (GID) keys on a 85-key keyboard



Twelve function keys



Embedded numeric keypad



Application Launch Key (programmable button)



Radio ON/OFF Switch (option)



Ergonomically designed wide palm rest located below the keyboard.

Primary Keys

Key Description

ALT The ALT (alternate) key is used with other keys to perform special tasks. On some operating systems

pressing CTRL+ALT+DEL twice soft reboots the computer.

BACKSPACE The BACKSPACE key, sometimes represented on the keyboard as a left arrow, moves the cursor one posi-

tion to the left. The character to the left of the cursor is erased.

CAPS LOCK Pressing the CAPS LOCK key one time locks keys A through Z in the UPPER CASE position. Pressing the

CAPS LOCK key again returns the letters to lower case. While in the upper case mode, pressing the SHIFT

key results in lowercase characters when entered. You still have to use the SHIFT key to display characters located on the upper portion of the keyboard. For example, press SHIFT+8 to type an asterisk (*), even when the CAPS LOCK key is activated.

The Caps Lock LED

CTRL The CTRL (control) key works with other keys to perform a variety of functions.

ENTER The ENTER key signals the computer that you have completed your entry. This is your way of telling the

computer to process the information that you have entered.

ESC The ESC (escape) key allows you to exit a pop-up window or message box.

PRTSC In Windows, pressing the PRTSC (print screen) key or ALT+PRTSC key copies the current screen or window

to the clipboard so you can paste it into documents.

SHIFT The SHIFT key changes the keys A through Z to the UPPER CASE position. When you press an alphabetic

key, the character appears as a capital letter. When you press SHIFT with other keys, the characters on the upper part of the keys appear. For example, pressing SHIFT+7 displays an ampersand (&).

FN Some special FN (function) keys have been established to perform important tasks when pressed in

combination with the FN key. These keys are described later in this document. The FN key legend is color keyed to other special keys on the keyboard.

SPACEBAR Use the SPACEBAR to enter a space and move the cursor one character to the right.

TAB The TAB key moves the cursor to the next tab stop or ﬁeld. Tab stops are deﬁned by your operating system

or application program. Press the TAB key to move from one ﬁeld or text box to another.

lights when the keyboard is in Caps Lock mode.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Arrow Keys

Getting Familiar With Your Computer

The arrow keys are deﬁned by the software application.

UP ARROW:

the up arrow to make selections from menus and scrollable list boxes.

DOWN ARROW: usually moves the cursor down one line. In Windows, you can

use the down arrow to make selections from menus and scrollable list boxes.

RIGHT ARROW:

LEFT ARROW: usually moves the cursor one character position to the left.

usually moves the cursor up one line. In some cases, you can use

usually moves the cursor one character position to the right.

Arrow Keys

Function Keys and Key Combinations

When using function keys, press and hold the FN key before pressing the other key in the key combination.

Function Key Icon Function Description

FN+F1

FN+F2

FN+F3

Screen blank Turns off the display screen backlight. Press it again to turn

the light back on.

Display toggle Switches the display output between the display screen,

external monitor (if connected) and both the display screen and external monitor

NOTE When a DVD or VCD is playing display toggle is

disabled.

Standby Puts the computer in standby mode.

FN+F4

FN+F5

FN+F6

FN+F7

FN+F8

FN+F9

FN+F10

FN+RIGHT ALT

FN+ LEFT SHIFT

Keyboard Backlight Brightness Down

Keyboard Backlight Brightness Up

Display Brightness Down

Display Brightness Up Increases the screen brightness

Audio Volume Down Decreases the audio volume

Audio Volume Up Increases the audio volume

Speaker on/off Turns the speakers on and off; mutes the sound

Touchpad on/off Toggles the touchpad on and off

Keyboard backlight Toggles the keyboard backlight (option) on and off

Decreases the keyboard backlight brightness if you have the optional EL keyboard.

Increases the keyboard backlight brightness if you have the optional EL keyboard.

Decreases the screen brightness

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Numeric Keypad

Getting Familiar With Your Computer

Standard Key Key with Numlock On

7 7

8 8

9 9

0 *

U 4

I 5

O 6

P -

J 1

K 2

L 3

; +

M 0

. .

/ /

ENTER Carriage Return

The embedded numeric keypad consists of sixteen keys that make number intensive input more convenient. It is indicated by small characters located on the lower right corner of the key. Press numeric keypad.

NUMLK to enable or disable the

Numeric Keypad

Lock Keys

The keyboard has three lock keys you can toggle on and off.

Lock Key Description

CAPS LOCK Pressing the CAPS LOCK key one time locks keys A through Z in the UPPER CASE position. Pressing the

CAPS LOCK key again returns the letters to lower case. While in the upper case mode, pressing the SHIFT

The Caps Lock LED

NUM LOCK When NUM LOCK is on, the embedded keypad is in numeric mode. The keys function as a calculator (with

the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry.

Alternately, connect an external keypad. See External keyboard.

The Num Lock LED

SCROLL LOCK Enters Scroll Lock mode. Scroll Lock varies between applications. It does not work with some applications.

The Scroll Lock LED

lights when the keyboard is in Caps Lock mode.

lights when the keyboard is in Num Lock mode.

lights when the keyboard is in Scroll Lock mode.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Getting Familiar With Your Computer

Windows Keys

The keyboard has two keys that perform Windows-speciﬁc functions.

Key Icon Description

Windows Logo Key Start button. Combinations with this key perform special functions. Below are a few

examples:

+ TAB (Activates next Taskbar button)

+ E (Opens My Computer in Windows Explorer)

+ M (Minimizes all Windows)

Application Key

SHIFT +

+ R (Displays Run dialog box)

Refer to Keyboard Shortcuts in Windows Help and Support for a complete list of Windows key combinations.

Opens the application’s context menu (same as right-click)

+ M (Restores Minimized Windows)

Radio ON/OFF Switch (option)

The keyboard has two keys that perform Windows-speciﬁc functions.

CAUTION FAA regulations require that all transmit/receive devices be

turned off during ﬂight. If you have radios in your computer (including GPS) and your computer is equipped with a Radio ON/OFF Switch, please use it to turn your radios off during ﬂight. If you have radios and you do not have a switch to turn the radios off, either leave your computer off during ﬂight or contact your help desk for assistance.

The wireless Radio ON/OFF Switch is the middle button above the keyboard. This switch toggles the power on and off to all radio devices. Radio devices include GPS, Bluetooth, WLAN, and WWAN radios.

To Turn all Radios on or off

Slide the radio switch to the left to power off all radio devices (airplane mode).

Slide the radio switch to the right to turn radio power on.

Radio On/Off Switch

Application Launch Key

The application launch key is the right button above the keyboard.

To Program the Application Launch Key

Click the Launch Key Control icon in the taskbar to open the launch key settings dialogue box.

Select the application you want to open by right clicking on the icon (Windows Explorer, Internet Explorer, Email Application or Custom Application):

If you choose Custom Application, type the name of the Application in the text ﬁeld with either an .exe, .com or .bat extension, then click on

Select the check mark button to save and close or select the X at the top of the window to cancel and close.

Open. You can also use this button to browse to the application of your choice

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Touch Screen Display

The GD8000 features a 13.3-inch, XGA, outdoor-viewable, color display with an integrated touch screen. You can start programs and input data on the touch screen using an approved pen (stylus) that comes with the computer. The Colorvue™ Transmissive display technology uses a built-in backlight for easy reading in most ambient light conditions. DynaVue visibility and even works well in sunlight.

CAUTION To avoid damaging the display, do not slam it

when you close it. Also, do not place any object on top of the computer when the display is closed.

Install the Stylus Tether

Insert one tether loop through one of the holes on the end of the stylus, then pull it back through the adjacent hole.

NOTE The holes in the stylus are notched on one side and

smooth on the other. Feed the tether through the smooth side ﬁrst, so that it lies inside the notch when ﬁnished.

Insert the free end of the tether through the loop and pull the slack back through the loop to secure the stylus.

Repeat these steps with the other end of the tether to attach it to one of the tether slots on the front on your computer.

display technology provides improved outdoor

Getting Familiar With Your Computer

Press down to remove stylus

smooth side

Calibrate the Touch Screen

Press down on one side of the stylus to remove it from its slot below the touchpad.

From the Start menu select All Programs, eGalaxTouch, Con-

ﬁgure Utility

On the eGalaxTouch dialogue box, select the Tools tab and then click the

Use an approved stylus and follow the instructions provided to complete touch screen calibration.

Click OK to save the new settings and click OK again to begin using your computer.

Linearization Button. This will initiate 9 pt calibration.

Adjusting Display Brightness

Windows XP:



Press FN + F6 to decrease display brightness



Press FN + F7 to increase display brightness

Windows Vista:

Click Start, Control Panel and open the Mobile PC menu.

Under Windows Mobility Center, click Adjust Screen Bright-

. Under Display Brightness, use the slide bar to adjust

ness

display brightness.

Adjusting Display Resolution

Windows XP:

Right click on the desktop.

Select Properties and then select the Settings tab. The dialog box indicates the monitor screen resolution.

Use the slide bar to adjust the resolution. Normally, you should use the resolution suggested for the display or monitor.

Windows Vista:

Click Start, Control Panel and select Appearance and Person-

alization

Click Adjust Screen Resolution.

Use the slide bar to adjust the resolution.

NOTE Using a lower resolution than the screen was designed

for will reduce the area of the display. You can stretch low resolution displays to full screen size by enabling Screen Expansion on the Main Menu of the BIOS Setup Utility. However, the stretching may cause distortion, especially to fonts. Higher resolution modes may be used as long as the monitor supports them.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Getting Familiar With Your Computer

Auto Dim Feature

To save the battery power, your computer automatically dims the display when the computer is not attached to external power.

NOTE You may still use the display brightness function keys

(FN+F6 and FN+F7) to adjust display brightness.

See Managing Power for more information on power management features.

Simultaneous or Extended Display

This computer supports simultaneous LCD and external display output via the external monitor port located on the back edge of the computer. You can also connect other output display devices such as LCD projection panels for large audience presentations. See Attaching an External Monitor or

Video Device for more information.

FEATURE When using an external monitor you can extend

your desktop. This allows you to open and view one program on the external monitor while viewing a different program on your laptop’s display.

To Extend Your Desktop onto the External Monitor:

Right click on the desktop.

Select Properties to open the Display Properties dialogue box.

Select the Settings tab.

Click on the “2” in the Monitors section.

Check “Extend my Windows desktop onto this monitor”.

Select Apply and OK to save and exit. Now you can drag the programs you want to view onto the external monitor.

LCD Heater

The GD8000 has a CCFL heater to improve display brightness in a cold environment. The heater includes a ﬁlm and heater strip that is bonded over the CCFL area of the display. It is designed to turn on when the temperature is cold enough to impact display brightness and does not require user intervention.

Cursor Visibility

To improve the visibility of the mouse cursor, you should:



Enable the “Pointer Trails” feature to add trailing cursors



Use a slow or medium speed/sensitivity level

You can combine a higher level of acceleration with a slow or medium speed/sensitivity level. This allows you to move the mouse cursor quickly by increasing your ﬁnger pressure, while still providing a ﬁner degree of control when you apply minimum pressure.

NOTE To change the speed of the mouse, do the following:

For Windows XP:

Select Start, Settings, Control Panel, and then choose Mouse to make adjustments.

For Windows Vista:

Select Start, Control Panel, and under Hardware and Sound, choose Mouse.

Lid Switch

Your computer has a lid switch that can automatically suspend and resume your computer when you close and open the display. To change the power management settings for the lid switch, perform the following:

For Windows XP:

On the System Tray area of the Taskbar, right-click the Power

icon ( or ).

Saver

From the menu, select Conﬁgure Power Settings.

Select the Advanced button.

Select what you want to happen when you open or close the display lid.

For Windows Vista:

On the System Tray area of the Taskbar, right-click the DynaPow-

icon .

At the top of the grid, select the appropriate Power plan.

Select the desired action settings for both battery or AC power.

In the Power buttons and lid section, select the Lid Open Ac-

and Lid Close Action.

tion

Select Save Changes and repeat steps 2 through 4 until all power plan settings you wish to modify.

General Dynamics Itronix | 72-0137-001

NOTE The Lid Close Action default is Standby for Windows XP and

Sleep for Window Vista. The default Lid Open Action is Do Nothing.

GD8000 User Guide

LED Status Indicators

The activity indicators, located above the keyboard, light up when a particular function of the computer is active. Each indicator is marked with an icon.

Getting Familiar With Your Computer

Display Hinge LEDs visible when the display lid is closed

4 5

6 7

8 9 10

# Icon Function LED Description

1 Power Lit Power is ON

Flashing Suspend to RAM

Battery Lit Battery charging

Flashing Low Battery

LED off No battery / battery fully charged (will always be OFF without external

power connected to the unit)

External Power Lit External power is connected to the unit

WWAN Communication Lit WWAN radio is on

WLAN Communication Lit Wireless LAN, Bluetooth, and/or GPS radio(s) are on

Media Bay Lit The computer is equipped with a DVD/CDRW Combo, CD-ROM,

or DVD-ROM

Disk Status (HW) Lit The hard disk drive is being accessed

Caps Lock Lit The keyboard is in Caps Lock mode

Wireless Modem LED

Power LED

General Dynamics Itronix | 72-0137-001

Number Lock Lit The keyboard is in Num Lock mode

Scroll Lock Lit The keyboard is in Scroll Lock mode

GD8000 User Guide

Getting Familiar With Your Computer

LED Icon LED Description

Power Lit

Flashing

Power is ON Suspend to RAM

Wireless Modem

Lit LED off

One or more installed radios are ON All installed radios are OFF

Audio

Your computer includes 24-bit high-ﬁdelity stereo audio output and an integrated microphone. You can also attach external audio devices via the audio in and out jacks on the left side of the computer.

To Adjust the Volume



To decrease volume, press FN+F8



To increase volume, press FN+F9



To mute the volume, press FN+F10

You can also adjust the volume with the Windows volume control applet located on the taskbar. However, the volume control function keys override the Windows volume control applet. If your volume is too low or too high after setting the volume in the applet, adjust the volume with the function keys.

Audio Jacks

Microphone

Speakers

The PC Card Slot

Use the PC card slot, located on the right side of the computer under the media bay, as an interface between your computer and a variety of communications devices, such as network adapters, SCSI adapters, and fax/modems, or to provide additional data storage capacity. Your computer’s PC Card slot supports single Type I or II PC Cards, 32-bit CardBus cards, and Zoomed Video cards.

CAUTION Do not remove or change any hardware while your computer is hibernating or in a Sleep/Standby state.

Inserting the Card

The top side of a PC Card is usually identiﬁed with a label. Insert the card into the slot with the top up and the edge with pinhole contacts or arrow, going in ﬁrst. You will feel some resistance as the card slides into the back of the slot.

PC Cards require drivers, or a program that allows the operating system to use a speciﬁc device. Many drivers are included with Windows so the PC Card will be automatically recognized; but if not, you will be prompted to install the driver included with your card.

The PC Card becomes a removable disk drive and is assigned a letter drive.

NOTE Please read the instructions included with individual PC

Cards. Some cards may be inserted with power on, while others require that the computer be turned off.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Ejecting a Card

First, exit the application using the card.

On the taskbar, left-click on the Safely Remove Hardware icon

or .

Press the slot eject button once to pop it out; then press it again to eject the PC Card.

Getting Familiar With Your Computer

PC Card Eject Button

Touchpad

The integrated touchpad is a pointing device that senses movement on its surface so the cursor responds as you move your ﬁnger over of the touchpad. The buttons located directly below the touchpad have the same function as a two-button mouse. Press these buttons to make selections, drag objects, or perform a variety of other functions depending on the software.

To Use the Touchpad

First, place your ﬁngers on the keyboard in the normal typing position. The touchpad is easily accessible by moving either your left or right thumb off the space bar and onto the touchpad.

Gently move your thumb across the touchpad in the direction you want the cursor to move.

To Select Objects

First, move the pointer over the object that you want to select.

Double-tap the touchpad or double-click the left touchpad button. The touchpad will respond like a mouse.

To Drag

Place the cursor over the desired object.

Press and hold the left button or tap the touchpad two times as if you were double-clicking but do not remove your ﬁnger after the second tap.

Move the cursor to the desired location and release the button or lift your ﬁnger to ﬁnish dragging.

Adjusting the Touchpad Settings

These settings allow you to change the orientation from righthanded to left-handed, and ﬁne-tune the pointer movement and timing of clicks.

For Windows XP:

Select Start, Settings, Control Panel, Mouse, Buttons.

Touchpad

Touchpad Buttons

For Windows Vista:

Select Start, Control Panel, Hardware and Sound, Mouse to open the

Select the Device Settings tab and click on the Synaptics PS/2

Port Touchpad

ties for the touchpad. You can also open

Touchpad

Mouse Properties window.

. Then choose settings to conﬁgure the proper-

Synaptics PS/2 Port

from the icon in the system tray.

Touchpad Precautions

The touchpad is a sensitive device. If not properly cared for, it can be easily damaged. Please take note of the following precautions:



Make sure the touchpad does not into come into contact with dirt, liquids or grease.



Keep the touchpad area dry and clean.



Do not touch the touchpad if your ﬁngers are dirty



Do not rest heavy objects on the touchpad or touchpad buttons



Keep your ﬁngers dry and clean when using the touchpad.



Avoid tapping too hard. The touchpad is sensitive to ﬁnger movements and responds best to light touches.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Getting Familiar With Your Computer

Smart Card or EXPRESS Card Slot (option)

Your computer comes with a Smart Card Reader or ExpressCard slot (option) that supports ExpressCard/34 and ExpressCard/54. This slot is located on the left side of the computer.

To Insert a Card

Insert the compatible card with the label side up into the slot until it clicks into place. The card will appear as a removable storage device that you can copy ﬁles to and from.

To Remove a Card

Make sure no operation is using the card (such as ﬁle copying or deletion).

Press the card further into the slot to release the card. You will hear a click.

Remove the card

CAUTION Do not remove or change any

hardware while your computer is hibernating or in a Sleep/Standby state.

The Hard Disk Drive (HDD)

Your computer features a removable, shock-mounted hard disk to provide high-capacity storage and fast access. The operating system and most programs are stored here. Your computer identiﬁes the hard disk drive as drive C. You can do a one-time conﬁguration of your hard disk space through the HDD Space Setup Wizard. The Wizard can run when it is convenient for you; however, should be run after ﬁrst start-up.

See the BIOS Setup Utility to password protect your removable hard disk drive.

Replacing the hard disk drive

You should print these instructions before continuing. They will not be available after you shut down the computer in step two.

Shut down the computer and remove power.

Remove the battery (see

Battery Removal)

Remove screws

Turn the computer over so you are looking at the bottom.

If installed, use a Phillips screwdriver to remove the two optional screws in the hard disk drive cover.

Flip open the HDD locks and turn both of them toward the center of the computer.

Lift the HDD cover off of the computer.

Turn toward inside

Using the ribbon, remove the HDD from the computer.

Line up the connectors and insert the HDD in the computer.

Replace the door and turn the HDD locks

10.

toward the outside of the computer to lock it.

If desired, install the optional HDD screws.

11.

Remove by the ribbon

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Getting Familiar With Your Computer

Hard Disk Drive Heater

The hard disk drive heater warms the HDD before spinning up in temperatures below 5°C, the minimum safe operating temperature for the HDD. The heater is integrated and operates as needed when the computer is on. If the temperature is below 5°C when booting or resuming you will see the message “Warming internal hard drive. Please wait...”. The unit will continue booting when it detects the HDD is warm enough to operate safely.

NOTE If you are using the computer in a cold temperature

environment and the battery level is too low for the heater to operate, you will see the error message “Battery too low to warm the hard drive. Shutting down...” and the computer will shut down. Apply external power and reboot.

The Media Bay

Depending on your conﬁguration, your computer may have an optional DVD multi-drive (DVD-RAM/DVD-ROM/DVD-RW/ CD-R/CD-ROM/CD-RW) or media bay battery. The multi-drive allows you to read data from DVDs and CDs, including audio or video CDs, and enables you to burn your data onto a CD or DVD recordable disc. Please refer to the recording software online help for more information.

If you have the media bay battery, it extends your unplugged runtime.

To Change Swappable Media Bay Device

Make sure the computer is not accessing the media bay drive.

Open the media bay door cover.

Double-click the Safely Remove Hardware icon on the Win- dows tray taskbar.

Select the Media Bay device, then select Stop.

Wait for the “safe to remove hardware” message, then click

OK.

Turn your computer over so you are looking at the bottom.

If installed, remove the screw in the media bay lock.

Slide the media bay lock toward the back of the computer and hold.

While holding the media lock in the unlocked position, slide the media bay release toward the outside of the computer. The media bay should come part way out of the computer.

10.

Grasp the media bay device by the edges and pull straight out until it is clear from the slot.

11.

Re-insert the next media bay device by ﬁrmly pushing it back into the slot until it clicks into place.

CAUTION Do not remove or change any hardware while

your computer is hibernating or in a Sleep/Standby state.

Your notebook identiﬁes the drive with the letter following the hard drive and/or recovery partition letter. If your hard drive is C, then the media bay will be E if you have a recovery partition. It will be D if you do not have a recovery partition.

Media Bay Screw and Lock

Media Bay Release

To Insert a Disk

Open the media bay door cover.

Insert the disk into the media bay slot.

To Remove a DVD or CD

Make sure the computer is not accessing the DVD drive.

Press the eject button. The disk will automatically eject.

Multi Drive Eject Button

Pick up the disk by the edges and remove it from the slot.

CAUTION When the computer is reading from a DVD or

CD, the Optical Disk Drive LED will ﬂash on. Do not attempt to

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Getting Familiar With Your Computer

remove a disk while this light is active.

Precautions for Handling DVDs and CDs

Keep these precautions in mind when handling DVDs and CDs:



Always hold the disk by the edges; avoid touching the surface of the disk



Use a clean, dry, cloth to remove dust, smudges, or ﬁngerprints. Wipe from the center outward



Do not write on the surface of the disk



Extremes in temperature may damage disks. Store disks in a cool dry place



Do not use benzene, thinners, or cleaners with detergent. Only use cleaning kits designed for DVDs or CDs



Do not bend or drop the disks



Do not place objects on top of disks

Computer Security

Your computer includes several security features to help prevent theft and protect data. These include a security slot, multiple levels of password protection, an optional ﬁngerprint scanner, an optional Smart Card slot, stealth mode and Trusted Platform Module (TPM).

Security Slot

The security slot located on the back edge of the computer lets you connect a Kensington compatible computer security lock so you can connect the computer to an immovable object to prevent theft. Insert the lock into the notch and turn the key to secure the lock. Some keyless models are also available. See the documentation that comes with your lock for more information.

BIOS Level Passwords

Passwords protect your computer from unauthorized access. When set, no one can access the computer without entering the correct password.

There are two types of passwords you can set:



Supervisor Password secures your computer against unauthorized entry to critical parameters in the BIOS Utility



User Password secures your computer against unauthorized use, and allows limited access to the BIOS Utility

Smart Card Reader (Option)

If your computer has the Smart Card Reader option, you can use smart card technology for added security.

Fingerprint Scanner (Option)

The optional swipe style ﬁngerprint scanner can be used for all standard security uses. The optional ﬁngerprint scanner provides a greater level of security and convenience for your GD8000 and your private data. Use the ﬁngerprint scanner instead of passwords for the following:



during computer login

Fingerprint scanner



during login at secure websites



when opening password protected applications



to provide encryption security for individual ﬁles

Fingerprint Scanner Software

Before using the ﬁngerprint scanner, you must ﬁrst install compatible software. If the optional ﬁngerprint scanner was present during initial user setup, you should have the “Install Finger Print Software” link on your desktop. Click this link and follow the instructions to install the software. A wizard may guide you through the process.

CAUTION Before installing any third party software, ensure

it is approved for use with this computer.

When accessing some secure websites, you may need to specify you are using the ﬁngerprint scanner instead of a password. Refer to the ﬁngerprint scanner software documentation for setup information.

Stealth Mode

The stealth mode feature enables you to use the computer where light or sound could be dangerous or disruptive, such as a military or public safety environment. Enabling stealth mode allows you to disable sound and light features such as system beeps, the fan, and the display backlight. Refer to the BIOS

Setup Utility section for information about how to conﬁgure

stealth mode.

NOTE Do not forget to set your password! If you forget

your password, please get in touch with your dealer or an authorized service center.

General Dynamics Itronix | 72-0137-001

Trusted Platform Module (TPM)

Enable or disable TPM in the System BIOS. TPM provides a platform root of trust which uniquely identiﬁes a particular platform and provides various crypto capabilities including hardware-protected storage.

GD8000 User Guide

Getting Familiar With Your Computer

Ports and Connectors Icon Connection Location

RJ-11 Phone line/modem (internet and fax) Left Side

RJ-45

DC-in

3 USB Universal Serial Bus

2.0

External Monitor

Audio In

Audio Out

PC Card Slot Type II PC Cards Right Side

Smart Card Reader or EXPRESS Card Slot

Security Slot

Multi I/O Docking Connector Compatible ofﬁce dock or vehicle dock Bottom

Serial Port

Ethernet Left Side

AC Adapter (power) Left Side

USB Peripherals such as a mouse, printer or optical disk drive

External Monitor Left Side

Microphone Left Side

Speakers or headphones Left Side

Smart Cards or EXPRESS Cards Left Side

Computer lock such as a Kensington lock Back Edge

IEEE 1394-compatible devices, such as digital cameras Right Edge

Right Side

ENERGY STAR

General Dynamics Itronix is committed to designing mobile computers with the environment in mind. Not only do we design computers that withstand the environment – with rugged features that enable you to use them in extreme operating conditions, we design computers that use less energy, reducing environmental pollution.

That’s why our ENERGY STAR compliant mobile computers meet or exceed the stringent ENERGY STAR standards set by the Environmental Protection Agency (EPA). According to the EPA, ENERGY STAR qualiﬁed products use as much as 60% less energy than standard equipment. By lowering energy consumption, our computers help customers save money while reducing greenhouse gas emissions.

For more information about ENERGY STAR (in English), go to www.energystar.gov.

To help you conserve energy on both AC and battery power, by default this computer:



turns off the display after 15 minutes of inactivity



enters standby, a low power mode, after 15 minutes of inactivity, compared to 30 minutes required for ENERGY STAR compliance

Press any key to wake the computer or turn the display back on after a period of inactivity.

This computer was also designed with other power saving features that go beyond ENERGY STAR requirements. See the

Managing Power section to make the most efﬁcient use of those features.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Making Connections

This section describes how to connect peripherals and hardware options that help you maximize your computer’s features.

Before connecting peripherals, ﬁrst read the manual included with the peripheral for connection and operation instructions. You can purchase most of these and other options directly from authorized dealers.

If you are a mobile worker, you may want to purchase an approved docking solution such as the Vehicle Dock or Ofﬁce Dock. These docks provide drop-in convenience, port expansion, and automatic battery recharging, enabling you to leverage your computer’s features without having to attach and reattach cables and connectors when you move your computer from ofﬁce to vehicle.

Attaching Power

Your computer can be powered by battery, by attaching an AC Adapter or Vehicle Adapter to the DC power port, or by connecting the computer to a powered Vehicle Dock or Ofﬁce Dock.

NOTE When external power is properly applied, the External

Power LED

CAUTION This notebook computer is designed to be used

with the provided dedicated AC Adapter or Vehicle Adapter.

To Attach AC Power

Connect the AC adapter power cord to the AC adapter.

Connect the AC adapter to the DC power port on the left side of your computer.

Connect the AC adapter power cord to a properly grounded AC outlet.

NOTE It is

recommended you use a quality surge protector.

lights.

To Use the Vehicle Adapter (optional)

Insert the vehicle adapter’s power cord into the DC-in jack on the left side of the computer.

Insert the 12V (cigarette lighter) adapter into the vehicle’s 12V socket, turning it slightly to make a good connection.

CAUTION The vehicle adapter is not intended to be used

continuously. It is intended to provide a convenient, temporary power source for powering and charging this computer while in transit in a vehicle. For permanent installations, it is recommended that the (fused) vehicle charger adapter be wired directly to the vehicle power supply. For additional information regarding permanent installation, contact your sales representative.

The power LED illuminates to indicate that current is reaching the vehicle adapter. When you connect the vehicle adapter, it automatically begins charging the computer’s battery. At moderate temperatures, around 20°C (68ºF), the battery should charge from empty to 90% in less than three hours if the unit is suspended or off. It should take less than four hours if the unit is in use.

NOTE As the battery temperature approaches the ends of its

temperature range (5°C/ 41°F to 50°C/122°F), it may take longer to charge the battery.

CAUTION Avoid exposing batteries to extremely hot or

cold temperatures for long periods. To prevent possible damage to the battery, the GD8000 laptop does not allow the battery to charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F).

USB Devices

Your computer comes with three Universal Serial Bus (USB)

2.0 ports on the right side of the computer. This enables you to attach various devices such as a keyboard, mouse, scanner, or printer. USB devices can be chained together on a single cable.

External keyboard or pointing device

This computer has a keyboard with full-sized keys and an embedded numeric keypad. If you feel more comfortable using a desktop keyboard, you can connect a USB external keyboard to one of the USB ports. You can also connect a USB mouse or other pointing device to one of the USB ports.

General Dynamics Itronix | 72-0137-001

USB Ports

GD8000 User Guide

Making Connections

Ethernet (LAN)

With the built-in Ethernet LAN, you can make LAN connections with 10/100/1000 Mbps connection speed. To use the network feature, connect an Ethernet cable from the network jack on the left side of the computer to a network jack or hub on your network.

Ethernet Port RJ45)

Modem Port (RJ11)

Fax/data modem

You can use the fax/modem to connect to the Internet to send and receive data using the 56 Kbps V.92 protocol. When used with fax software, it can be used as a fax at 14.4 Kbps. In some countries, local regulations may not permit the use of the fax/ modem designed for this system. In this case, you may use a PC Card modem. To use the fax/data modem port, connect a phone cable from the modem port on the left side of the computer to a telephone jack.

connect to the line-out jack.

External Monitor or Video Device

You may use an external monitor simultaneously with your notebook’s display, instead of your notebook’s display, or as an extension of your notebook’s display. To attach an external monitor, do the following:

Connect the video signal cable from the external monitor (or the VGA adapter) to the external monitor port on the left side of your computer.

Connect the power cable from the external monitor to a power outlet and turn on the monitor.

Read the monitor manual for additional instructions.

Using Simultaneous Display

Your computer takes advantage of Windows dual-display capability, allowing you to use your computer for presentation purposes. To use simultaneous display, connect an external display device to the external monitor port. You can then toggle the display output location by pressing FN+F2 will output to your computer’s display, the attached external display, or both displays simultaneously. Keep pressing FN+F2 until you have the output option you want.

. It

CAUTION Plug your modem into an analog telephone jack

only. Most homes use analog lines. Do not use digital lines, such as the PBX and ISDN systems found in many ofﬁces. Digital lines may damage your modem.

To reduce the risk of ﬁre, only use a No. 26 AWG or larger telecommunication line cord.

Audio Devices

Audio devices are easy to connect with the audio ports accessible from the left side of the computer. You can plug an external microphone (or an audio line-in device) into the line-in jack. Ampliﬁed speakers or headphones

Microphone Jack

Headphone / Speaker Jack

External Monitor Port

Using Extended Display

When using an external monitor you can extend your desktop. This allows you to open and view one program on the external monitor while viewing a different program on your laptop’s display.

For Windows XP:

Right click on the desktop.

Select Properties to open the Display Properties dialogue box.

Select the Settings tab.

Click on the “2” in the Monitors section.

Check “Extend my Windows desktop onto this monitor”.

Select Apply and OK to save and exit. Now you can drag the programs you want to view onto the external monitor.

For Windows Vista:

Right click on the desktop.

Select Personalize to open the Display Properties dialogue box.

Select the Settings tab.

Click on the “2” in the Monitors section.

Check “Extend my Windows desktop onto this monitor.”

Select Apply and OK to save and exit. Now you can drag the programs you want to view onto the external monitor.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Wireless Communication

Your GD8000 supports up to four integrated radios for superior wireless communication (One radio per category listed below).



Wireless Local Area Network (WLAN)



Wireless Wide Area Network (WWAN) with CRMA Express



Global Positioning System (GPS)



Wireless Personal Area Network (WPAN) Bluetooth

Since each customer’s radio conﬁguration is unique, please read the radio help installed on your desktop and refer to the manufacturer documentation to setup and use your radio(s).

If you have the Radio ON/OFF option, slide the Radio ON/

OFF Switch to the left to power off all radio devices (airplane

mode).

CAUTION FAA regulations require that all transmit/receive

devices be turned off during ﬂight. If you have radios in your computer (including GPS) and your computer is equipped with a Radio ON/OFF Switch, please use it to turn your radios off during ﬂight. If you have radios and you do not have a switch to turn the radios off, either leave your computer off during ﬂight or contact your help desk for assistance.

WLAN radio option

Your computer may include an integrated Wireless Local Area Network (WLAN) capability. See the radio help ﬁle on your desktop for more information.

About WLAN

WLAN provides all the features and beneﬁts of traditional LAN technologies, such as Ethernet, without the limitations of wires or cables. It enables mobility and ﬂexibility without compromising connectivity for today’s mobile user.

CRMA Express WWAN (option)

If you ordered the CRMA Express module option, your computer may support one or more of these Wireless Wide Area Network (WWAN) radios:

HSPA

High-Speed Packet Access (HSPA) combines High-Speed Download Packet Access (HSDPA) and High- Speed Uplaod Packet Access (HSUPA). It is a 3G GSM Mobile protocol in the HSPA family, which provides a roadmap for UMTS-based networks to increase their data transfer speeds and capacity. HSDPA deployments/cards/modules can support 1.8 Mbps,

3.6 Mbps, 7.2 Mbps and 14.4 Mbps in downlink mode and 2.0 Mbps and 5.6Mbps in the uplink mode.

EDGE/GPRS/GSM Network

The Enhanced Data Rates for Global Evolution (EDGE) network allows users to transfer data with download speeds up to 200Kbps (70-130 Kbps typical). It is more than three times the speed of GPRS. The EDGE network can help you perform at higher levels of productivity by providing real-time wireless access to critical business systems and applications.

UMTS/GPRS/GSM Network

Universal Mobile Telecommunications System (UMTS) - also referred to as wideband code division multiple access (W– CDMA), is one of the most signiﬁcant advances in the evolution of telecommunications into 3G networks.

UMTS is a worldwide standard for wide-area wireless data communication based on Global Systems for Mobile communications (GSM™). UMTS provides broadband mobile access to business systems and applications that can help improve mobile users’ productivity.

General Dynamics Itronix | 72-0137-001

UMTS provides broadband speeds with download speeds up to 2Mbps (220-320 Kbps typical). It delivers four-to-six times the speed of dial-up Internet access and eight times the speed of GPRS wireless data service. UMTS allows mobile users to respond to urgent email and access the Internet.

EV-DO Rev A - EV-DO Rev 0/1xRTT/CDMA

CRMA Express is upgradeable and when WWAN radio technology changes, you can change with it. You can upgrade your radio to the various supported CRMA Express modules through General Dynamics Itronix service centers, giving you greater wireless access when you need it. After initialization the ﬁrst time the unit is booted, refer to the radio help found on your desktop for information about setting up and using your radio.

NOTE All WWAN radios are capable of backward

GD8000 User Guide

Wireless Communication

compatibility to support slower technologies when necessary to provide the greatest possible coverage to the user.

EVDO Rev. A

EVDO Revision A (1x Evolution-Data Optimized) is a wireless radio broadband data standard that offers download speeds up to 3.1 Mbps (500 to 800 Kbps typical). Revision A integrates faster data technology and improves latency. These enhancements allow features such a VoIP and video calling.

EV-DO/1xEV-DO/CDMA Network

EV-DO Rev 0

Evolution Data Only or Evolution Data Optimized (EV-DO) is a 3G wireless technology with average user download speeds up to 2.4 Mbps (400-700 kbps typical). When you spend a lot of time away from your desk, the faster speeds from EV-DO can lead to greater productivity. It’s more than just fast email retrieval. Get fast and secure access to your information and applications with EV-DO.

1XRTT - Single Carrier (1x) Radio Transmission Technology

1xRTT is a pre-3G wireless technology based on the CDMA platform. It has the capability to provide ISDN like speeds that offer up to 144 Kbps (50-70 Kbps typical). 1xRTT is also referred to as CDMA2000.

GPS (option)

The Global Positioning System (GPS) is a worldwide radionavigation system formed from a constellation of satellites and their ground stations. GPS uses these satellites as reference points to calculate positions accurate within ﬁve meters.

Bluetooth (option)

Bluetooth is a short range, wireless technology. Bluetooth systems create a Wireless personal-area network (WPAN). When Bluetooth-capable devices come within range of one another, an electronic conversation automatically takes place to determine whether they have data to share or whether one needs to control the other. Then, the devices hop frequencies in unison so they stay in touch with one another and avoid interference with other devices.

do degrade the signal and reduce its range.

Antennas

The GD8000 has several embedded antenna options to support wireless communications. They require no user action.

CAUTION Use only the supplied or an approved antenna(s).

Use of unauthorized antennas, modiﬁcations, or attachments may void your warranty and could impair call quality, damage the radio, or result in violation of FCC regulations.

The GD8000 may contain the radio transmitters listed below. The following statements are relevant when using these radios:

This device may contain a WLAN radio transmitter, a WPAN radio transmitter, and a WAN radio transmitter.

Each internal radio may or may not have an individual FCC Identiﬁer label. That FCC Identiﬁer label is not applicable to this conﬁguration. Only the external FCC ID label is applicable.

Only the antenna with which an intentional radiator is authorized may be used with the intentional radiator.

The WAN embedded antenna location is in the upper center edge of the display screen and is not to be modiﬁed.

The WPAN embedded antenna location is near the lower left edge of the Keyboard and is not to be modiﬁed.

The WLAN embedded dual antennas are located internally in the upper right and left edges of the display screen and are not to be modiﬁed.

When using the WLAN transmitter, a minimum separation distance of 20 cm must be maintained between the upper right and left edges of the display screen and all users/bystanders.,

The WAN transmitter, WLAN transmitter and WPAN transmitter should be turned off before carrying the Laptop PC in order to comply with

FCC RF exposure requirements.

Since each customer’s radio conﬁguration is unique, please read the radio help installed on your desktop and refer to the manufacturer documentation to setup and use your radio(s).

Bluetooth devices send out weak signals of 1 milliwatt. Class II Bluetooth devices have a range of about ten meters while Class I devices have a range up to 100 meters. The GD8000 Bluetooth option is a Class I device with the greater range. Even with the low power, the walls in your house won’t stop a Bluetooth signal. This makes the standard useful for controlling several devices in different rooms. However, obstructions such as walls

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Improving Radio Coverage

Radio connectivity between your computer and your wireless network may vary at different times of the day and in different types of weather. It may also be inﬂuence by terrain, buildings or even a crowded room. Follow these tips to improve radio coverage between your computer and your wireless network, depending on your location.

On the Street



Try all sides of a building to see which side provides the strongest radio signal.



Move from under trees. Pine needles absorb radio signals more than leaves.



Move away from overhead electrical wires.



Move away from buildings. Radio signals reﬂect off other buildings.



Try not to hold the unit. If possible, place it in vehicle, on a cabinet or desk.



If holding the unit, turn the unit in 90-degree increments to avoid shielding it with your body.



Move several feet in any direction if needed for a stronger signal since the signal is 1-2 feet across.

Wireless Communication

Inside a Building



Move toward windows.



Move above ground. Signals do not penetrate the ground so there will probably be no signal in basements.



Try the side of the building that is least likely to have coated windows. Reﬂective coatings on windows reﬂect radio signals.



Open blinds. Closed metal blinds can reﬂect radio signals.



Try different rooms. Dropped ceilings sometimes hide an accumulation of electrical cable.



Avoid sources of Electromagnetic Interference (EMI). Electromagnetic Interference (EMI) is generated by switching circuitry closets or Un-interruptable Power Source (UPS) systems found near computer rooms and can block the radio signal.

When to use Landline Communication

If these tips do not improve radio signal strength, switch to landline communication. Switching to landline communication is faster than searching for and trying to improve the radio signal.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Operating with Battery Power

The computer operates on AC or battery power. This section contains the information you need to know to operate the computer on battery power and describes how your computer manages and saves power. Effective use of power management options can greatly conserve and extend your battery life.

Be sure to read the Battery Safety and Precautions section.

Frequently Asked Battery Questions

Does it harm the Li-Ion battery pack to frequently “top off” the batteries?

No. Connect the computer to an approved charging source whenever available.

What constitutes a charge cycle?

A full recharge of the battery to 100%.

Where can general battery charge state information be obtained?

To see how much power the battery has left, move the cursor over the Power Saver icon ( icon will show as a pop-up.

What effect will temperature have on battery life and performance?

Using the computer at very low temperatures will reduce the battery performance and may decrease how long the battery lasts compared to operation at moderate temperatures. The battery performance will recover when the computer returns to a normal range, around 20°C (68°F). However, storing Li-Ion batteries at low temperatures reduces Li-Ion aging effects.

in the System Tray area of the Taskbar. The status

or ) or DynaPower

The Battery



Employs current battery technology standards. The computer uses a “smart” Lithium-Ion battery to consistently provide the long battery life best suited for mobile users



Uses a temperature sensor and memory device to gather and store information about the battery, such as how much charge is left and how many times it has been recharged



Warns when the battery charge level is low by sounding an alarm beep or displaying a warning on the screen. If you receive a battery low warning you should save your work and recharge the battery as soon as possible.



Use the AC adapter whenever possible and consider carrying an extra fully-charged battery as backup.

battery or with a battery that’s been stored without being used for a long time. If the computer will be stored for more than two weeks, it is recommended you remove the battery.

Battery and Temperature

The battery is most efﬁcient at room temperature. It operates in a wide temperature range but the battery capacity is affected by higher or lower temperatures.

WARNING Do not expose the battery to temperatures below

0ºC (32ºF) or above 46ºC (115ºF). This may adversely affect the battery pack.

NOTE While the battery may not provide 100% capacity

at temperature extremes, its capacity is restored when the battery temperature return to a normal range, around 20°C (68°F).

Temperature Approximate Available Capacity

0°C (32°F) 80%

20°C (68°F) 100%

45°C (113°F) 100%

Replacing the Battery

CAUTION Before removing the battery pack, make sure that

you have an AC adapter connected to the computer or a media bay battery installed; otherwise, ﬁrst turn off the computer.

To Remove the Battery:

Plug in AC power or turn off the computer.

Turn over the computer so you are looking at the bottom.

Press and hold down the battery lock in the hinge to unlock the battery.

Slide the battery release latches toward the inside of the computer to release the battery.

Gently slide the battery out of the computer.

Using a battery for the ﬁrst time

The ﬁrst time you use the battery, you should:



Connect the AC adapter to the computer and a power source.



Calibrate the battery to set the gas gauge to accurately reﬂect

battery capacity. You only need to do this once with a new

General Dynamics Itronix | 72-0137-001

Battery Release Latches

Press down Battery Lock

GD8000 User Guide

Operating with Battery Power

When to Replace the Battery

Over time, the battery’s capacity gradually decreases. We recommend that you replace your battery if it no longer provides 70% of its original rated capacity.

WARNING Only use approved batteries when replacing the

battery.

To Install the Battery:

Turn the computer over so you are looking at the bottom.

Line up the battery connector.

Press gently on the battery until it clicks into place.

NOTE When using a battery pack for the ﬁrst time, it is

recommended that you calibrate the battery so the gas gauge accurately displays battery capacity.

Battery Charging

To charge the battery, install the battery pack and plug the AC adapter into the computer and an electrical outlet. You can use your computer while charging the battery. However, this will increase the charging time.

While the battery is charging, the Battery Power LED be active after 6-12 seconds and stay lit until the battery is fully charged. When the battery is fully charged, the LED turns off.

If your computer is off or suspended, a fully discharged battery takes about 4 hours to recharge. If your computer is turned on it may take four to six (4- 6) hours to recharge the battery.

will

Charging Discharging

System On 3-6 hours depending on

temperature and processes

running

System Off 3 hours -

Suspend to RAM

Suspend to Disk

NOTE A fully charged battery can power the computer for

approximately four to ﬁve (4-5) hours, depending on usage patterns. If your computer also has the optional Media Bay battery, it will power the computer for an additional two to three (2-3) hours.

3.5 hours

72 hours

7 days

Heat Considerations

The computer’s processor has been specially designed to consume as little power as possible. However, working in a hot environment, or working for long periods may raise the temperature. Your computer takes the following steps to lower temperature:



The cooling fan turns on. You may hear the fan and feel air coming from a vent on the left side of the computer when this happens.



If the temperature continues to rise, processor activity is reduced. You may notice a slight loss of performance if this happens.



To prevent damage, if the computer gets too hot, the processor stops and the computer shuts down.

Battery Calibration

Over time, as the battery is repeatedly drained and recharged, battery runtime may decrease. Calibrate the battery the ﬁrst time you use it and then periodically for maximum performance. The calibration process empties and charges the battery. This allows the Windows battery gauge to accurately monitor battery status.

Battery calibration will take from 6 to 12 hours, depending on how much power the battery already contains. The unit will not suspend while calibration is running. It is okay to use your computer during battery calibration.

CAUTIONS



Do not disconnect AC power while battery calibration is running.



Do not remove the battery while battery calibration is running.

When to calibrate the battery:



The ﬁrst time you use it



After it has been in storage



If the gas gauge has become inaccurate



Every three months for optimum performance

Windows XP Battery Calibration

Select Start, All Programs, and Mobile Computer Tools.

Select Battery Calibration.

General Dynamics ITRONIX | 72-0137-001

GD8000 User Guide

Operating with Battery Power

Windows Vista Battery Calibration

Right click on the DynaPower icon in the Taskbar.

Select DynaPower Battery Calibration from the menu on the left side of the screen. The asking if you’d like to start the calibration process.

Calibration window will pop up

NOTE The battery calibration process may take up to 8 hours

to complete.

Select Start to begin calibrating or Cancel to Exit.

About Battery Calibration

Battery calibration may take up to 12 hours to complete. After starting calibration, the application requires no further input from the user. During calibration it goes through three steps:

Charge - the battery is fully charged to 100 %.

Discharge and calibrate - the battery is discharged to zero, then calibrated but not charged. You may stop the process after this point and let the battery charge outside of the battery calibration application.

Charge - if battery calibration continues running, the battery will fully charge to 100%.

BIOS Level Battery Calibration

You can also calibrate the battery from within the BIOS Setup Utility by following these steps:

Plug in the AC adapter.

Restart the computer. When the startup screen appears, just prior to the Windows logo screen, press the BIOS Setup Utility.

At the “Choose the setup function” screen, use your arrow keys to select

Battery Calibration and press ENTER.

NOTE Make sure the AC adapter and battery are present.

DEL key to enter the

Monitoring Battery Power

Low Battery Alarms

CAUTION When battery power is low, the alarm beeps or

displays a warning on your screen. Take immediate action, such as saving ﬁles or connecting to the AC adapter or data may be lost.

When the computer alerts you that the battery is low, immediately do one of the following:



Connect the AC power adapter.



Save your work and then select Start, Shut Down.



Turn off the computer and replace the discharged battery with a charged battery (see

NOTE Do not restart the computer until you have connected

to an AC adapter or replaced the discharged battery with a charged battery.

Refer to Battery Tips for more information about how you can conserve battery power. Refer to Managing Power for information about how you can setup your computer to effectively manage power for your unique use patterns.

Battery Charging).

Managing Power

Your computer has power management capability so you can reduce the amount of energy used, especially during periods of inactivity. Effective use of power management options can greatly conserve and extend your battery life. The power management unit monitors system activity, such as hard drive, keyboard, mouse, or any devices attached to a port. If it does not detect activity for a period of time, the computer stops some or all of these devices to conserve energy.

Your computer employs a power management scheme that supports ACPI (Advanced Conﬁguration and Power Interface), allowing for maximum power conservation and maximum performance at the same time. Windows handles all powersaving chores for your computer.

Select Battery Calibration

Choose Primary or Secondary battery and press ENTER.

General Dynamics ITRONIX | 72-0137-001

For more information search for Power Options in Microsoft® Help and Support.

Low-Power States

Your computer can enter three different low-power states to conserve power: Standby/Sleep, Hibernate and Power Off. These states can be entered manually or after a period of inactivity. From the Power Saver or DynaPower utilities, you can conﬁgure the Power Button, Sleep Button (FN+F3) and Lid Switch to initiate any of the low-power states.

Standby/Sleep

Most system devices are powered off, but the contents of system memory are retained. Standby/Sleep is sometimes

GD8000 User Guide

referred to as Suspend to RAM. When the computer returns from Standby mode, the desktop appears with the same ﬁles and programs open as when the computer was suspended. Resume time is very quick.

For Windows Vista

to enter Standby/Sleep mode.

For Windows XP

Standby/Sleep mode.

Hibernate

Hibernate, or Suspend to Disk, is similar to Standby except the current state of the computer is copied to the hard disk in a special ﬁle. Then, all devices in the computer are turned off. When the computer returns from hibernation, the desktop appears with the same ﬁles and programs open as when the computer was suspended. Hibernation saves more power than Standby, but takes slightly longer to resume.

For Windows XP:

right click the Power Saver icon , then select Conﬁgure Power Settings and make your desired changes.

For Windows Vista: On the System tray area of the Taskbar, right click the DynaPower icon, then select DynaPower Grid and make your desired changes.

Power Off

All applications are closed and the system shuts down. To power off the computer select Start, Shut Down, Shut down. Then click OK.

Battery Tips

Tip 1. Avoid excessive heat and cold



Your battery will last longer during the day if it is used, charged and stored between 50°F and 86°F (10°C and 30°C).



Charge the battery nightly where the temperature will remain around 68°F (20°C). Your battery may not last as long through the day if you charge it at higher or lower temperatures.



Allow unrestricted airﬂow while the computer is connected to external power. Make sure that the fan inlet and outlet are unobstructed.



Avoid exposure to extreme temperatures for long periods as this can shorten battery charge life or damage the battery.

Select Start, Turn off computer, Stand by

: Select Start, Shut Down, Stand by to enter

On the System tray area of the Taskbar,

Operating with Battery Power



If possible, turn off or suspend your computer while the battery is charging in a warm environment to avoid over-heating.



In warmer temperatures, your battery may take much longer to fully charge.

How your battery behaves in cold conditions



When using a battery in cold conditions, the battery capacity may drain signiﬁcantly faster than normal.



To prevent possible battery damage, the system will not allow a charge if the battery temperature is below 41°F (5°C), such as in a closed, unattended vehicle during the winter. In this case, the

Battery LED may indicate the computer has stopped

charging your battery; however, your battery may not be fully charged



In cooler temperatures, your battery can take much longer to fully charge.

Tip 2. Prevent wasted power



Manually turn off or suspend your computer whenever you are not using it.



Reduce the screen brightness. Decrease brightness by pushing

FN + F6.



Enable the display’s automatic dimming feature.



Use the AC adapter or vehicle adapter whenever possible.



Use the Power Saver utility (Windows XP) to help save power or the



When running on battery power, make sure your system suspends automatically after a few minutes of inactivity. PC Cards, radios, custom applications, or modiﬁed system settings may affect this.



Remove PC Cards and unplug peripherals when you are not using them. They may draw power from the system even when not in use.



Avoid operating the fax/modem, or audio and video applications when using battery power. Operating a fax/modem, video, or audio equipment increases the computer’s power requirements



Don’t use screen savers as they draw excessive current, especially “3D” screen savers.



Turn off the Wireless LAN when not using it. Turning on the Wireless LAN increases the computer’s power requirements.



Avoid or minimize using applications that keep the CPU busy a large percentage of the time. The following will help you determine if your system is running such applications:

Increase it by pushing FN + F7.

DynaPower utility (Windows Vista).

How your battery behaves in warm conditions



To prevent possible battery damage, the system may not allow a charge if the battery temperature is above 122°F (50°C), such as in a closed, unattended vehicle during the summer. In this case, the

Battery LED may indicate the computer has stopped

charging your battery; however, your battery may not be fully charged.

General Dynamics ITRONIX | 72-0137-001

Identifying power wasting programs

To determine if applications or processes are keeping the CPU busy:

Start the Task Manager utility. To open Windows Task

Manager

click

, right-click an empty space on the taskbar, and then

Task Manager.

GD8000 User Guide

Select the Performance tab to view running applications, and the

Process tab to view running processes.

Watch the CPU Usage. It is okay if the processor usage is occasionally 100 percent, but if it is 100 percent most of the time, this may indicate a problem.

What to do if applications are keeping the CPU busy



If possible, close applications that keep the CPU busy when you are not using them.



Turn off or suspend your computer whenever you are not using it. This will help to conserve power.

Tip 3. Calibrate your battery

Over time the accuracy of the Windows battery gas gauge may be affected by repeated charging and discharging of the battery. Calibrating the battery every 3 or 4 months helps to keep the gas gauge accurate. Refer to Battery Calibration for more information.

Tip 4. Get a good charge



Your computer will charge more quickly if it is turned off or suspended.



In warmer or cooler temperatures the battery can take much longer to fully charge.



If your battery is charged in a cold (less than 41°F/5°C) or very warm (greater than 122°F/50°C) environment, it is possible that the

Battery LED will indicate that the charge has stopped;

however, this does not necessarily mean that your battery is fully charged.

Operating with Battery Power

Tip 7. Storing batteries

Stored Li-Ion battery packs gradually deteriorate, particularly if they are not stored in ideal conditions, and their life expectancy decreases. When storing Li-Ion battery packs for extended periods, consider these recommendations:



When storing batteries for extended periods store them between 3°C to 7°C (38°F to 45°F) to slow self-discharge and battery aging. If you store batteries at normal ambient temperatures, use the following charging policy to maintain battery pack condition:

 Charge installed batteries every 21 days to maintain their charge

capacity

 Charge uninstalled batteries every 6 months.



Unused or stored batteries can lose power over time. When you install a battery that has not been used recently, connect external power to the computer and fully charge your battery



Fully charged Li-Ion batteries deteriorate faster than partly discharged ones. For ideal storage, charge the battery to 100% and then discharge them to 50% charge before storing.



Do not allow stored Li-Ion batteries to discharge completely, as this may permanently damage them. Stored batteries should be recharged to 50% capacity every six months

Tip 5. Prevent data loss

Follow these guidelines to prevent data loss when removing your battery or storing your computer:



You will lose data if you remove the battery while the computer is operating or suspended and AC power is disconnected. To prevent this, shutdown your computer or put it into hibernate (suspend-to-disk) mode before removing your battery



If you plan to store your computer for more than a few days, shutdown your computer or put it into hibernate mode.

the battery

before storing the computer.

Remove

Tip 6. Clean terminals

Dirty terminals can be a cause of charging problems. Clean battery terminals with a cotton swab dipped in isopropyl alcohol. Make sure that the alcohol has evaporated before reinstalling the battery.

General Dynamics ITRONIX | 72-0137-001

GD8000 User Guide

When you turn your computer on, the system reads the BIOS Settings to test and initialize components and make sure everything runs properly when the system is operating. You can use the Setup Utility to change your computer’s startup conﬁguration. For example, you can change your system’s security routine.

The GD8000 is conﬁgured with a set of default values. The default values may not be appropriate for your work environment. For example, you can set a boot password to protect your system when booting.

CAUTION It is recommended that you use the default set-

tings. If you set incorrect system option settings, the system may not run properly.

In this section the default ﬁeld values are shown in bold.

Starting the Setup Utility

You can only start the Setup Utility shortly after the computer has been turned on or rebooted. To execute a controlled reboot, select Start, Shut Down, Restart. Shortly after the computer restarts, the following prompt appears at the bottom of the screen:

Customizing Your BIOS

“Press F10 for HDD Recovery. Press F11 to display Boot Menu. Press DEL to enter Setup. Press TAB to show POST information”

Press the DEL key when you see this prompt. The system will start the Setup Utility. Select “CMOS Setup Menu” and press

ENTER.

Navigation and Help

The Setup Utility has ﬁve menu options in the Menu Bar at the top of the window. Press the left or right arrow keys to cycle through these menu screens:

MAIN: Displays basic system information and allows you to

set the date and time

AdvANCEd: Use to set the advanced features

BOOT: Use to select the sequence of boot devices that are

searched to load an operating system

SECURITy: Use to set user and supervisor passwords

ExIT: Use to exit the current Setup session

The Field Help Window is on the right side of each menu. It displays the help text for the currently selected ﬁeld. This text updates as you move the cursor from ﬁeld to ﬁeld.

Menu Bar

Field Help Window

The General Help Window describes the legend keys. You can display it by pressing F1 on any menu.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Customizing Your BIOS

The Main Menu

You can change the system date and time on the main menu, and view processor and memory information.

Field Setting Description

AMIBIOS Version N/A Displays the AMIBIOS version detected during boot up. This is a display only ﬁeld.

Motherboard NA Displays the motherboard version detected during boot up. This is a display only ﬁeld.

Processor N/A Displays the processor type and speed detected during boot up. This is a display only

ﬁeld.

System Memory N/A Displays amount of memory detected during boot up. This is a display only ﬁeld.

System Time HH:MM:SS Use this ﬁeld to set the time. The time is displayed in 24 hour format. The value set takes

effect immediately.

NOTE Once you make a change, you must press ENTER to continue.

System Date MM/DD/YYYY Use this ﬁeld to set the date. The date can be set from January 1, 1980 to December 31,

2099. The value set takes effect immediately.

NOTE Once you make a change, you must press ENTER to continue.

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup

Defaults by pressing F9.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Customizing Your BIOS

The Advanced Menu

Field Setting Description

Trusted Computing sub-menu Conﬁgure settings related to Trusted Computing Security

SuperIO Conﬁguration sub-menu Conﬁgure SuperIO Chipset

Fan Learning Function sub-menu Fan calibration (learning) will take about two (2) minutes to ﬁnish.

Stealth Mode Conﬁguration sub-menu Conﬁguring the stealth mode feature enables you to turn off sound

and light in environments where sound and light could be dangerous or disruptive

Extended Conﬁguration sub-menu Other special function settings including low battery beep, radio wakeup, etc.

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup

Defaults by pressing F9.

Trusted Computing

Trusted Platform Module (TPM) is a secure micro-controller with added cryptographic functions.

Field Setting Description

TCG/TPM Support

Execute TPM Command

Clearing the TPM Press Enter Clearing the TPM is the process of returning the TPM to factory defaults. It

TPM Enable/Disable Status Greyed out This ﬁeld shows the current status of the TPM module and is not

TPM Owner Status Greyed out This ﬁeld shows the current ownership status of the TPM module and is

Yes

dON’T ChANGE

Disabled Enabled

Enables Trusted Platform Module (TPM) support. When this item is set to Yes new “Execute TPM Command” and “Clearing the TPM” items appear on the BIOS Menu.

Enables or Disables the TPM module. TPM must be enabled before TPM software installation in Windows will start.

is possible the platform owner will change when in the default state so be sure this is what you wish to do before clearing the TPM.

accessible to the user.

not accessible to the user.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Super I/O Conﬁguration

Customizing Your BIOS

Field Setting Description

Serial Port1 Address Disabled

3F8/IRQ4

3E8/IRQ4 2E8/IRQ3

Serial Port2 Address Disabled

2F8/IRQ3

3E8/IRQ4 2E8/IRQ3

Serial Port2 Mode

Serial Port3 Address Disabled

NORMAL

IrDA ASK IR

3F8 2F8

3E8

2E8

Serial Port3 IRQ IRQ4

IRQ5

IRQ10 IRQ11

Serial Port4 Address Disabled

3F8 2F8 3E8

2E8

Serial Port4 IRQ IRQ3

IRQ6

IRQ10 IRQ11

Allows the BIOS to select Serial Port1 Base Addresses.

Allows the BIOS to select Serial Port2 Base Addresses.

Allows the BIOS to select the mode for Serial Port2.

Allows the BIOS to select Serial Port3 Base Addresses (GPS)

Allows the BIOS to select Serial Port3 IRQ.

Allows the BIOS to select Serial Port4 Addresses (Touch Panel).

Allows the BIOS to select Serial Port4 IRQ.

*BOLd is default setting

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Fan Learning Function

Customizing Your BIOS

Field Setting Description

Start Fan Learning

Elapsed Time in Seconds

Current Learning Stage

View Fan Learning Result

Cancel

N/A Displays the amount of time fan learning has been running in seconds.

N/A Displays the current fan learning stage.

see screen Lists information details for each step of fan learning. Use the up and down

Stealth Mode Conﬁguration

Stealth mode allows you to use the computer in an environment where sound and light could be dangerous or disruptive. If stealth mode is disabled, the LEDs, fan, system beeps, audio, and display brightness operate normally.

NOTE An off setting indicates stealth mode is in effect for that

option. For example, if stealth mode is enabled and the LED option is set to “off”, the LEDs will NOT illuminate to indicate activity.

If FAN PWM shows DFLT the fan learning process has not been previously performed. To begin the learning process press ENTER. It will take about 120 seconds to ﬁnish. The keyboard will not work during fan learning.

NOTE Fan learning is not required for fan function. It is a calibration process to

optimize fan speed control.

arrow keys to scroll through the fan learning result.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Field Setting Desription

Stealth Mode

LED Off

dISABLEd

Enabled

Fan Off

Audio Off

System Beeps Off

Display Brightness Off

Radio Off

Enable or disable stealth mode. If disabled, the computer functions normally and the options listed below are not accessible.

Off: LEDs are disabled On: LEDs function normally

The fan is disabled. Heat management is then controlled solely through throttling. The fan functions normally

Off: Volume is set to 0 across suspend/resume and boot. Use the existing audio function keys to adjust volume. On: Audio is preserved across suspend/resume and boot. The default volume level is set to mid-range.

Off: Beeps are disabled during the boot up or resume process On: Beeps are heard during POST

Off: Brightness is set to 0 across suspend, resume and boot. FN+F7 increases display brightness gradually. FN+F6 decreases brightness gradually. On: Display brightness is preserved across suspend/resume and boot. It is restored to default when the brightness level is set at 0. The default level is mid-range.

Off: All wireless devices are set to off during a suspend/resume or boot. The Radio ON/

OFF Switch can be used to manually turn the radios on or off.

On: The radio on/off switch functions normally and radio device power states are held though suspend/resume and boot.

Customizing Your BIOS

Extended Conﬁguration

Field Setting Description

Core Multi-Processing Disabled

ENABLEd

Virtualization Technology

Battery Low Warning Beep

Secure HDD Support

Dock USB Port

Bluetooth Wakeup

dISABLEd

Enabled

Disabled

ENABLEd dISABLEd

Enabled

USB 2.0

USB 1.1

dISABLEd

Enabled

When enabled the CPU cores function and process data independently for superior performance. When disabled one of the CPU cores is disabled.

When enabled, a virtual machine monitor (VMM) can leverage the computer’s hardware resources for multiple virtual machines (VM).

The system will sound 3 beeps every 10 seconds when battery capacity drops below 7%.

If secure HDD is enabled the system will disable standby mode (S3) and will maintain HDD power when the system is restarted.

Set this to USB 1.1 if you are using a non-standard dock.

If enabled, the Bluetooth radio will wake up the system.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Customizing Your BIOS

Field Setting Description

LID Open Wakeup

LCD ON By Power Button

Auto DIM

VGA Share Memory Size 32MB

dISABLEd

Enabled

dISABLEd

Enabled

dISABLEd

Enabled

64MB

128MB

Dynamic Video Memory 128MB

256MB

Maximum DVMT

Disk Conﬁgurations IDE

AChI

Resume on AC Power Insertion

Boot Menu Disabled

dISABLEd

Enabled

ENABLEd

Radio Conﬁguration submenu Use the submenu to set whether individual radio devices are powered during a sys-

GPS Disabled

ENABLEd

If enabled, opening the display lid will wake up the system.

If enabled, the power button will turn on the LCD if it is off.

Use this option to conserve battery life. When enabled, the display will dim automatically when AC power is removed.

Select the amount of system memory that will be used by the internal graphics device.

Select the maximum allocated system memory size for DVMT 5.0

If set to IDE, the disk conﬁguration is IDE drive compatible. If set to AHCI, the disk conﬁguration supports SATA drive advanced mode.

When enabled, the system wakes from standby, hibernate or off when AC power is attached. When disabled, the system does not wakeup when AC power is attached.

If enabled, the F11 hot key enters the boot menu. If disabled, the F11 hot key is deac- tivated.

tem reboot.

Turn the GPS radio on/off during a system reboot.

OSPM Performance Counter

Sets which timer is used by the operating system power management: 1 - the ACPI power management timer. 0 - either the ACPI Management timer or the internal processor clock.

General Dynamics Itronix | 72-0137-001

GD8000 User GuideGD8000 User Guide

Radio Conﬁguration sub-menu

Field Setting Description

Bluetooth Disabled

ENABLEd

Turn the Bluetooth radio on/off during a system reboot.

Customizing Your BIOS

Wireless LAN Disabled

ENABLEd

CRMA Express Disabled

Turn the WLAN port on the Mini PCI WLAN or MiniCard WLAN on/off during a system reboot.

Turn the CRMA Express radio on/off during a system reboot.

ENABLEd

The Boot Menu

Use these ﬁelds to set the devices from which the system should boot, in order of priority, depending on your conﬁguration. The boot device ﬁelds are dynamic and change depending on the devices installed on your GD8000 during that boot sequence. For example, if you have a DVD/CDRW Combo drive or a USB ﬂoppy drive installed, they appear as options in the boot device ﬁelds. If you only have a hard disk drive, it will be the only option that displays.

When you select a device, it is disabled in the other boot device ﬁelds.

Field Setting Description

1st Boot Device

hdd:P0-hITAChI hTS

CD/DVD:P1-Optiarc Disabled

Select the device the computer should boot from ﬁrst. A device enclosed in parenthesis has been disabled in the corresponding type menu

2nd Boot Device HDD:P0-Hitachi HTS

Cd/dvd:P1-OPTIARC

Disabled

Network Boot (PXE)

Quiet Boot Disabled

dISABLEd

Enabled

ENABLEd

NOTE Only devices installed during boot up will show as boot device

options.

If enabled, booting from the network is possible.

Enabled: displays OEM logo instead of POST messages Disabled: displays normal POST messages

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup

Defaults by pressing F9.

General Dynamics Itronix | 72-0137-001

GD8000 User GuideGD8000 User GuideGD8000 User Guide

The Security Menu

Field Setting Description

Change Supervisor Password

Change User Password Enter New Password Install or Change the User password.

Enter New Password Install or Change the Supervisor password. This ﬁeld must be set before a

user level password can be set. You will be prompted to set and then verify a new password. Type in six or fewer keystrokes. If you make an error, press

ESC to start over.

Customizing Your BIOS

Clear User Password Clear User Password?

Cancel

Password Check Setup

Always

Immediately clears the User password. This option is only available when a user password has been set.

This option is only available when a password has been set. Setup: requires a password when entering the setup utility. Always: requires a password during boot and when entering the setup utility.

CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup

Defaults by pressing F9.

The Exit Menu

You use the exit menu to leave the BIOS Setup Utility.

Field Setting Description

Save Changes and Exit

Cancel

Exit system setup after saving the changes. The F10 key can be used for this operation.

Discard Changes and Exit

Discard Changes

Load Optimal Defaults

General Dynamics Itronix | 72-0137-001

Cancel

Exit system setup without saving any changes. The ESC key can be used for this operation.

Discards changes done so far to any of the setup questions. The F7 key can be used for this operation.

Load Optimal Default values for all the setup questions. The F9 key can be used for this operation.

GD8000 User Guide

Optional Equipment and Accessories

The GD8000 computer has several equipment and accessory options to further enhance your mobile computing experience from an optional shoulder strap to docking solutions. Click for a current list of optional peripherals and accessories.

here

CAUTION Only purchase accessories that are approved for

use with your computer. Some accessories are proprietary items and can be obtained through your system vendor. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of regulations. For nonproprietary accessories such as PC Cards or printers, ensure that the accessory functions properly with your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models.

Surge Protection

A large number of computer and high technology equipment damage is directly related to AC power and telephone line problems. These problems can include surges, spikes, noise, interference, and weather-related issue that may cause glitches, hang-ups, crashes, performance slow downs, and computer down time. It is recommended that you use a quality surge protector with your computer and any attached peripherals.

Vehicle Adapter

The vehicle adapter is an optional device that supplies power from the vehicle battery to operate the computer and charge the battery installed in the unit. It typically connects to the vehicle battery using the cigarette lighter socket.

CAUTION The vehicle adapter is only designed for

temporary use. Use the optional vehicle dock to power and secure the GD8000 for frequent or long term vehicle installations.

To prevent possible damage to the battery, the system will not allow the battery to charge at extreme temperatures. Be aware of the following charging characteristics, especially if the computer is left unattended in a closed vehicle.

To connect the vehicle adapter

Insert the vehicle adapter power cord into the power port on the computer.

Insert the cigarette lighter adapter into the vehicle’s cigarette lighter socket (12V), turning it slightly to make a good connection.

The Power LED on the adapter lights to indicate current is reaching it. When you connect the vehicle adapter, it automatically begins charging the computer’s battery. At moderate temperatures, around 20°C (68ºF), the battery will be fully charged in approximately four to ﬁve hours. However, as the battery temperature approaches the ends of its temperature range (5°C/41°F to 50°C/122°F), it will take longer to charge the battery.

CAUTION Avoid exposing batteries to extremely hot or cold

temperatures for long periods. To prevent possible damage to the battery, the GD8000 laptop does not allow the battery to charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F).

Vehicle Dock

The vehicle dock is designed to safely secure the computer in a vehicle. It includes a key lock for security. You can use the vehicle dock to:



Charge batteries with voltage from the vehicle battery



Communicate with other devices



Automatically connect to an external antenna

CAUTIONS



Do not open the vehicle dock case. It has no user-replaceable parts. The vehicle dock is internally protected; it resets automatically if there is a power fault.



Do not use the vehicle dock to charge the computer battery overnight. Turn off the vehicle dock at the end of each work day to prevent draining the voltage in your vehicle’s battery below starting levels.

Temperature Charging Activity

<5°C (<41°F) Battery will not charge

>50°C (<122°F) Battery will not charge

General Dynamics Itronix | 72-0137-001

To charge a battery installed in the computer

Place the computer onto the vehicle dock, making sure it is securely latched.

If charging is required it begins automatically. The Battery Power LED lights.

When the battery is fully charged, the Battery Power LED turns off.

GD8000 User Guide

Optional Equipment and Accessories

CAUTIONS



Refer to Battery Tips for recommended charging temperature ranges and other recommendations



If you charge the battery daily rely on the gas gauge reading to determine battery capacity. The gas gauge may show that the battery is full while still charging. This happens because the charging process is trying to put a little more capacity into the battery. External power can be removed at this time since the battery is virtually full.



If your battery is new or has not been used for several weeks, rely on the indicator light to determine when the battery is fully charged. The gas gauge is unreliable in these cases; it may read 100%, when the actual capacity is only 10%.

battery

to correct this issue.

Recalibrate the

Communicating with Other Devices

Connect external devices to the ports on the back of the dock, and then place the GD8000 onto the vehicle dock. You can install or remove the computer from the vehicle dock without connecting or disconnecting the cables.

External Antennas

The vehicle dock integrates WLAN and WWAN antennas with switching capability. You can also connect an external RF antenna to the dock using the SMA RF connector on the back of the vehicle dock. FCC regulations require that users of vehicle-mounted antennas must use only antennas authorized for use with the GD8000 in order to meet FCC RF exposure limits. Please contact your organizations’s help desk for a list of approved vehicle-mounted antennas. Before mounting an external antenna, refer to the installation instructions provided with the antenna.

Memory Upgrade

Adding memory allows the computer to operate faster, handle more tasks simultaneously, and work more smoothly with large ﬁles. Users who increase memory demands - by adding additional programs, for example - may notice a slowdown in operating speed, and wish to increase memory. The GD8000 comes with a user accessible memory sockets for memory upgrades. Please consult your dealer if you need to add more memory.

CAUTIONS



First read and follow the guidelines in the Safety section.



Only use memory cards approved for use in your computer. Failure to do so may void your warranty.

Vehicle-mounted Antenna Placement

WARNING Improper installation and/or operating

conﬁgurations of permanent and magnetic vehicle-mounted antennas may cause FCC RF exposure limits to be exceeded. Vehicle-mounted antennas must be placed at least 20 cm from operators and bystanders and at least 92cm (36 inches) from any existing roof mounted antennas.

Measure and identify an area 20 cm (8 inches) in from the edges of the vehicle roof.

Place the antenna within that area.

To maximize RF performance, position the antenna in the center of the vehicle roof.

CAUTION Do not place any metal objects on top of the

dock that might make contact with the metal pins of the contact connector. Doing so may cause an electrical short and subsequent damage to the dock.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Maintenance and Storage

The GD8000 is rugged and weather resistant and you can use it under a wide range of environmental conditions. However, to ensure long use and continued high performance, follow these tips and precautions:

Taking Care of Your Computer



Follow all warnings and instructions noted in this documentation and in the operating system documentation.



Read the Safety and Battery Tips sections.



Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Aerosols, solvents, or strong detergents are not recommended cleaning solutions and may void your warranty. For system decontamination recommendations please contact your support representative.



Do not block or cover slots and openings in the unit case. These are for ventilation purposes and covering them could cause the system to overheat.



Do not use or store the computer near a source of heat or dust.



Never insert objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock or ﬁre, or damage sensitive components.



For best results, use a power strip with a built-in surge protector. Do not use inferior extension cords as this may result in damage to your computer.



Set the computer on a ﬂat, stable surface. To prevent damage to the computer’s hard disk drive, avoid using the computer where it will be exposed to extreme vibration.



Do not operate the computer to temperatures below -23ºC (-10ºF) or above 60ºC (140ºF). Operate the computer within the recommended temperature ranges of -23°C to +60°C (-10°F to +140°F).



Do not subject the computer to magnetic ﬁelds.



Do not intentionally spill liquid on the computer.



Do not subject the computer to extreme shock and vibration.



Do not place objects on top of the computer.



Do not place the computer on uneven surfaces.



Periodically inspect the computer and accessories for wear, damage, loose or missing parts. Identifying and correcting potential problems early can help reduce the need to return the unit for service.



Periodically inspect the ports and connectors for damage and contamination.



Turn off the computer when you are not using it.



Charge the batteries daily or whenever their capacity is low.

Taking care of your AC adapter



Do not connect the adapter to any other device.



Do not step on the power cord or place anything on top of it. Carefully route the power cord and any cables away from all potential trafﬁc.



When unplugging the power cord, do not pull on the cord itself but pull on the plug.



The total ampere ratings of the equipment plugged in should not exceed the ampere rating of the cord if you are using an extension cord. Also, the total current rating of all equipment plugged into a single wall outlet should not exceed the fuse rating.

Servicing Your Computer

Contact your dealer or see your service technician if any of the following occurs:



The computer has been dropped and the body has been damaged.



Liquid has been spilled into the product.



The computer does not operate normally.

See the Service and Support section for more information.

Storing Your Computer

Save and backup ﬁles and data before storing the computer.

Remove any PC Cards, Smart Cards, or EXPRESS Cards from the card slots.

Remove any media from the media bay.

Exit all applications.

Select Start, Shut down, OK to turn off the computer.

Remove the battery from the unit and store it in a dry place.

Store the computer within the recommended temperature ranges of -55°C to +75°C (-67°F to +167°F).

If you use PC cards, refer to the manufacturer’s instructions you received with the card for storage and care information.

Taking Care of Your Batteries



Read and follow all battery precautions in the Safety section.



Use only batteries of the same kind as replacements.



Turn the power off before removing or replacing batteries.



Do not tamper with the batteries.



Keep batteries away from children.



Before storing your battery, read and follow the recommendations in the

Battery Tips section.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Maintenance and Storage



Dispose of used batteries according to local regulations. Recycle if at all possible.



Avoid exposing batteries to extremely hot or cold temperatures for long periods. To prevent possible damage to the battery, the GD8000 does not allow the battery to charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F).



Charge the battery nightly where the temperature will remain around 20°C (68°F).



Recalibrate your battery when your battery performance

degrades.

Taking Care of Your Hard Drive

The GD8000 hard drive is a removable, shock-mounted drive. You can reduce the risk of damage to the hard drive and increase the reliability of the hard drive and data integrity by following the recommendations below.

For Internal Hard Drives



Do not intentionally drop the computer. The unit is designed to withstand the day to day rigors of the mobile environment and provide years of reliable service. The useful life of the product can be enhanced by not intentionally abusing it



Whenever possible, suspend the unit by pressing FN+F3 before moving it from one location to another. This unloads the read/ write heads and spins down the disk, reducing exposure to high operating shocks.



Maintain the environmental seal of the computer by keeping all external access doors closed and latched.



Avoid exposing the unit to extreme temperatures or moisture when the doors are open



Periodically backup or archive important ﬁles and data.

For External PC Cards

Each PC Card manufacturer provides speciﬁc guidelines for the care and handling of the product. In addition, follow these recommendations:



When the PC Card is not inserted in a PC Card socket, store the PC Card in a protective carrying case. This will help protect it from inadvertent shocks.



Always use care when handling PC Cards. Do not drop, bend, ﬂex, or crush them.



Avoid exposing PC Cards to extreme moisture, heat, or sunlight.



Keep all debris out of the connector to ensure good electrical connections.



There are no user repairable parts in the PC Card slot. Do not attempt to disassemble any part of the device. The warranty will be voided if drive seals are broken or screws have been removed.



Periodically backup or archive important ﬁles and data.



If you have problems with your PC Card, contact the manufacturer for more information and troubleshooting information.

Cleaning Your Computer

Cleaning the Outside Case

Disconnect external power and turn off the computer.

Remove the battery.

Add a small amount of water to a soft cloth and clean the computer case. Do not use paper products because they can scratch the surface.

Wipe off any excess liquid with a soft cloth.

Reinstall the battery.

CAUTION Aerosols, solvents, or strong detergents are not

recommended cleaning solutions and may void your warranty. For system decontamination recommendations please contact your support representative.

Cleaning the Display

Use a soft, dry cloth. In some cases, you can use a small amount of water to remove streaks or smears. For difﬁcult display cleaning tasks, use a 50/50 mixture of isopropyl alcohol and water. Do not use paper products because they can scratch the screen.

Cleaning the External Power Connector

The external power connector may sometimes be exposed to moisture and/or contamination causing an unreliable connection to the external power source. Clean the connector with a cotton swab dipped in electronics grade isopropyl alcohol.

Cleaning the RJ-11/ RJ-45 / USB Connectors

If the connector pins get dirty, clean the connector with a cotton swab dipped in electronics grade isopropyl alcohol.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Maintenance and Storage

Data Backup

Regularly backup your data to ensure the greatest data integrity, provide the fastest recovery options, and minimize downtime.

After you have installed all applications and have your computer conﬁgured as desired, create a backup of drive C: using the Hard Disk Backup and Recovery Utility. Then use the Windows Backup Utility frequently to backup data. It is recommended you set the backup utility to run automatically.

Saving Important System Information

By default your computer is set up to automatically save certain critical information, such as the registry, on a regular basis. This information is saved as a restore point. You can also create restore points manually by using the System Restore

Utility. Select Start, All Programs, Accessories, System Tools, System Restore. Then, follow the instructions in the Wizard.

Backing Up Files in Windows XP:

Select Start, All Programs, Accessories, System Tools, Backup. You can schedule backups to run automatically on a regular basis. To set this up, talk to your help desk or IT department.

Backing Up Files in Windows Vista:

Select Start, Control Panel and select Backup Your Computer under System and Maintenance.

Backing Up Drive C:

You can make an exact copy of drive C: and save the backup image on the Recovery Partition of your hard disk (usually drive D:). In the future, you can restore drive C: to its previous state if it becomes corrupted. To make a backup copy of drive C:, use the Hard Disk Backup and Recovery Utility. Select Start,

All Programs, Mobile Computer Tools, Hard Disk Backup and Recovery. You will be prompted for additional information.

NOTE The Hard Disk Backup and Recovery Utility is only

available on computers conﬁgured with a recovery partition.

Option 1: Restoring System Information

Windows XP:

If you have problems with your system, restore system information to an earlier state, or Restore Point. Select Start, All Programs, Accessories, System Tools, System Restore. Then, follow the instructions in the Wizard.

Windows Vista:

Select Start, Control Panel, System and Maintenance, Backup and Restore Center. On the Tasks menu on the left-hand side of the screen select Repair Windows using System Restore.

Option 2 : Restoring a Backup

Windows XP:

Select Start, All Programs, Accessories, System Tools, Backup. Then follow the instructions in the wizard to restore ﬁles and settings.

Windows Vista:

Select Start, Control Panel, System and Maintenance. Then select Backup Your Computer. This opens the Backup and Restore Center where you can restore ﬁles and folders.

Option 3: Restoring Drive C:

If you used the Hard Disk Backup and Recovery Utility to create a backup disk image you can use it to restore drive C:.

CAUTION Restoring a previously saved disk image

overwrites the entire contents of drive C:. Before running this process, save your data to another location, such as a USB ﬂash drive.

NOTE The Hard Disk Backup and Recovery Utility is only

available on computers conﬁgured with a recovery partition. If it is not available, you will either need to contact your company’s help desk about obtaining a recovery CD or return your unit for service.

Data Recovery

There are several methods to restore your data. Start with the least destructive and fastest recovery options, listed below in the order in which you should restore data.

Restore system information.

Restore a backup using the Windows Backup Utility.

Restore the entire contents of drive C:

General Dynamics Itronix | 72-0137-001

Windows XP:

Select Start, All Programs, Mobile Computer Tools, Hard Disk Backup and Recovery and follow the prompts.

Windows Vista:

Select Start, Control Panel, System and Maintenance. Then select Backup Your Computer. This will bring you to the Backup and Restore Center where you can restore ﬁles and folders. To restore your entire computer select Windows

Complete PC Backup and Restore Image. Click on Restore Computer to begin the process.

GD8000 User Guide

We are committed to providing you world class support services that ensure the lowest total cost of ownership for your hardware investment. The icareServices program will help you maximize end user productivity and decrease overall system operating cost.

Client Care Center (CCC)

The General Dynamics Itronix Client Care Center provides world class service with a single entry point of access to meet all your needs including:



Troubleshooting and RMA origination



Dispatch of ﬁeld support staff



Wireless carrier service activation



Hardware performance information



RMA status checks on service unit and warranty/service parts orders



New and refurbished platform, accessory, and add-on orders



Trial unit orders and status updates



Proof of delivery status updates for service and new unit orders



International new unit and accessory, peripheral and service parts orders



Centralized access for all invoicing and ﬁnance related issues

Most of these services are available through the icareServeNet web based system.

Service and Support

Go to the Support section of our website and select ServeNet Login for more information.

Services Expertise

The Technical Services and Client Services Account Management staff provide support with expertise that spans hardware platforms, industry applications and third party solutions. They regularly visit customers to garner feedback and input and provide training and post-installation support. For more information on our comprehensive service programs or current support phone numbers and email addresses, click here.

Product Support - Downloads

It is easy to get the software updates you need to keep your conﬁguration current and get the most from your product. Go to the Support section of our website and select product downloads.

NOTE Downloads are listed by model and/or product number

(GD8000).

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Troubleshooting

This section is designed to help you determine and ﬁx issues you might encounter while operating the GD8000 computer. Try the following things in order:



First look through the categories in this section for a solution.



If you are having a problem with a computer application, use the Help that comes with the application to ﬁnd a solution.



If you are having a problem with the operating system, refer to its

Help and Support, found on the Start Menu.



If you still cannot resolve your problem, contact the help desk at your organization.

Application Troubleshooting

My application locks up, acts strangely, or produces a General Protection Fault (GPF) error or blue screen

For Windows XP:



You may need to restart your computer. Select Start,

Shut Down, Restart

CTRL+ALT+DEL and select Shut Down.



If the computer does not restart, the keyboard may be locked up. Press and hold the

CAUTION This will result in a loss of all unsaved data.



The data on the hard disk could be corrupted. Run the

SCANDISK Utility.



The operating system may be out of memory or resources. Close some open programs to free up more memory or exit and restart by selecting

For Windows Vista:



Click the Start button and point your cursor past the icon and click on the arrow. This will bring up the menu. Click



If the computer does not restart, the keyboard may be locked up. Press and hold the

Restart to reboot the computer.

CAUTION This will result in a loss of all unsaved data.



The data on the hard disk could be corrupted. Run the CHKDSK Utility.



The operating system may be out of memory or resources. Close some open programs to free up more memory or exit and restart by selecting

. If that does not work, try pressing

POWER BUTTON for ten seconds.

Start, Shut Down, Restart.

Shut Down/Log Off

POWER BUTTON for ten seconds.

Start, Shut Down, Restart.

Battery Troubleshooting

The battery does not charge



To prevent possible damage to the battery, the computer does not allow the battery to charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122°F). If possible, charge the battery in a location with a moderate temperature of around 20°C (68°F).



If possible, turn off the computer while the battery is charging.



If the battery is new or has been stored for a week or more, follow this procedure:

1. Make sure the computer is turned off.

2. Remove the battery.

3. Connect the AC adapter to the computer and an AC wall outlet, and then turn on the computer by pressing the

POWER BUTTON.

4. Let the computer complete the boot process. Then reinstall the battery.



Allow the system to remain idle for one hour with the AC adapter connected to the computer.



The Battery Power LED lights when the battery starts charging.



If the battery still fails to start charging after an hour, remove the battery, wait several seconds, and then install it again.



If the battery does not begin charging within several minutes,

return the unit for service.

The batteries take much longer than seven hours to charge



Under moderate temperatures, about 20°C (68ºF), the computer’s battery takes approximately 4 to 5 hours to completely charge.

NOTE As the battery temperature approaches the ends of its

temperature range (5°C/ 41°F to 50°C/122°F), it may take longer to charge the battery.

The batteries don’t last very long



Calibrate the battery. If your battery is new or has not been

used for several weeks, calibrating the battery accurately sets the gas gauge.



As your battery ages, its maximum capacity naturally decreases, and even the best maintained batteries eventually need to be retired. Consider replacing the battery if you are not getting the usage you need from it.



To meet ENERGY STAR® requirements, Wake-on-LAN is enabled by default. If running on battery power this may decrease battery run-time. To change Wake-on-LAN settings, go to the LAN device. Open the device

Management

Device Manager, Network Adapters and select the

Properties and select Power

. Then disable the Wake-on-LAN setting.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Troubleshooting

The gas gauge isn’t full after charging the battery

This may indicate that the charging process terminated prematurely.

The gas gauge reads “full,” but the charging LED is still lit

If you charge your battery daily, rely on the gas gauge reading to determine battery capacity. The charging process may continue even if the gas gauge reads full. External power can be removed because the battery is virtually full.

My battery seems to have less and less capacity



If your battery is new, or if your are using it for the ﬁrst time, you will need to



As your battery ages, the maximum capacity that it can hold naturally decreases, and even the best maintained batteries eventually need to be retired. Consider replacing the battery if you are not getting the usage you need from it.

calibrate it prior to using it.

Display / Touch Screen

The display performance is slow

The temperature may be too cold. Move the computer to a warmer operating environment.

I can’t read the display



Adjust the brightness level using FN+F6 and FN+F7.



The automatic power-saving mode may have shut off (suspended) the computer. Press any key to resume.



If the display brightness is unreadable after a resume or reboot but is easily adjusted with

Stealth mode in the Setup Utility. If you disable Stealth mode,

the display and backlight will operate normally.

The underlined, inverse, and hypertext characters are difﬁcult to read on the screen

For Windows XP:

FN+F6 and FN+F7, you may have set

I can’t see the cursor while using the DOS editor

Press FN+INS to change from insert mode to overwrite mode and enable a block cursor. When it defaults to insert mode, the DOS editor uses an underline cursor which is less visible than the block cursor for overwrite mode.

I changed my display resolution, but I see no difference on the screen

For Windows XP:

Try restarting your computer for the changes to take effect. Select Start, Shutdown, Restart.

For Windows Vista:

Try restarting your computer for the changes to take effect. Click the Start button and point your cursor past the icon and click on the arrow. This will bring up the Shut Down/Log Off menu. Click Restart to reboot the computer.

Nothing happens when I try to use the stylus on my touch screen

If you cannot select objects accurately with the stylus, you may need to calibrate the touch screen.

The touch screen doesn’t respond after a suspend

The touch screen needs a few seconds to work after a suspend. Wait a moment and try again.

Hard Disk

The hard disk will not spin up so the computer can’t boot up

This occurs if the unit is exposed to extreme low temperatures. This is not a hardware failure associated with the hard disk. The integrated hard disk drive heater will warm the drive to a safe operating temperature.

Change the color scheme. Select Start, Control Panel, Display and then select the Appearance tab to make changes to the color scheme.

For Windows Vista:

Right click on the Windows Desktop, select Personalize, Window Color and Appearance to change the color and style

of your Windows.

General Dynamics Itronix | 72-0137-001

GD8000 User Guide

Troubleshooting

Keyboard and Mouse Troubleshooting

Something unexpected happens when I press a key

You may have pressed a key combination that performs a Windows function. Make sure you are pressing the correct keys for the application you are running.

Incorrect characters appear on the screen when I press certain keys

You may be in Num Lock mode. Press NUM LOCK to toggle Num Lock mode off. NUM LOCK is on the top row of buttons on your keyboard next to the F12 key.

I have difﬁculty double-clicking the mouse fast enough

For Windows XP:

Select Start, Control Panel, Mouse. The Buttons tab contains the setting for the double-click speed.

For Windows Vista:

Select Start, Control Panel, Hardware and Sound. Then select Mouse to conﬁgure double-clicking speed and other options.

Modem Troubleshooting

The modem doesn’t work



When you ﬁrst try to use HyperTerminal or similar application, the system responds with a message asking if you want to install the modem. Answer “ instructions on the screen to install it.



Make sure the communication settings are correct in your application. Refer to the online help for your application.

The modem doesn’t dial a number



If you are using an external modem, make sure the cables are attached correctly.



Make sure your communications parameters are correct in your application. Refer to the online help for your application.

Yes” to this question and follow the

PC Cards

I can’t remove the PC card



Press the ejector button located inside the PC card door on the side of the computer. The button will pop out. Press the ejector button again to eject the PC card. Slide the card out.



If the ejector button malfunctions when you press it, release the button and then press it again.

Read Error

If a memory card that is not properly formatted is installed in the PC Card slot, it will cause this error.

The computer locks up when I remove the PC card

Before you remove the card, select the PC card icon ( or ) on the taskbar (in the tray area near the clock in the lower right corner) and choose “Stop [card name] card.”

Miscellaneous Troubleshooting

The computer shuts off unexpectedly



The computer has entered suspend mode. Press any key to resume from the standby state. Press the resume from the hibernate state.



The battery capacity may be low. Connect external power to charge the battery, or replace the battery with a fully charged one.

The speaker volume is too high or too low

Refer to the audio section for instructions on adjusting volume.

The computer won’t turn on



Make sure a fully charged battery is properly installed.



Connect external power to charge the battery if it is not charged.



If you are using the AC adapter check the electrical outlet you are using to make sure it is working properly.



If the computer does not turn on, reset the computer by holding down the press the

POWER button for at least ten seconds, release it, then

POWER button again.

POWER button to

The modem dials and receives an answer but does not establish a connection



You may have incorrect parameters selected for your application to talk with the remote modem. Refer to the online help for your application.



You may need to adjust your modem’s baud rate or protocol selection.

General Dynamics Itronix | 72-0137-001

The computer won’t turn off

For Windows XP:

Select Start, Shut down, Shut down.

If that does not work, press CTRL+ALT+DEL and then select

Task Manager.

If any programs are open, use your arrow keys to highlight each

GD8000 User Guide

Troubleshooting

one and select End Task. Repeat this until all programs are closed.

Select Start, Shut down, Shut down again.

If that still does not work, press CTRL+ALT+DEL and select Shut

Down

If that still does not work, press and hold the POWER BUTTON for approximately ten seconds and then release it.

For Windows Vista:



Click the Start button and point your cursor past the icon and click on the arrow. This will bring up the menu. Click Restart to reboot the computer.



If that does not work, press CTRL+ALT+DEL and then select

Start Task Manager.



If any programs are open, use your arrow keys to highlight each one and select closed.



If that still does not work, press and hold the POWER BUTTON for approximately ten seconds and then release it.

End Task. Repeat this until all programs are

Shut Down/Log Off

The computer enters suspend mode too quickly

For Windows XP:

When there is no activity for a period of time, the computer turns off or enters suspend mode. To extend this time, use the

Power Management program (Start, Settings, Control Panel, Power Management) and increase the non-activity time to

enter suspend.

For Windows Vista:

Select Start, Control Panel, Hardware and Sound. Select Power Options. For each plan displayed, select Change Plan Settings and modify the Put Computer to Sleep option.

The computer doesn’t automatically suspend



Exit any application that uses COM ports.



Make sure external power is not connected. Depending on power settings, some systems will not suspend automatically when they are connected to external power.

For Windows Vista:

Select Start, Control Panel. Then select Clock, Language and Region. Under Date and Time, make the appropriate changes.

I receive an “out of memory” error message



Restart the computer.



Too many applications may be running at the same time. Close applications you don’t need.



Make sure you have enough space on your hard disk (at least 15% free).

Holding down the Power button to reset the computer doesn’t always work



Try resetting the computer again. If this doesn’t work, remove all power, including the battery pack, and allow the unit to remain idle for ten minutes. After ten minutes, connect external power and retry.



The LEDs, backlight, and/or keyboard backlight don’t illuminate.



You may have enabled Stealth mode in the Setup Utility. Disable Stealth mode.

The computer doesn’t make any sounds, even during boot-up

You may have enabled Stealth mode in the Setup Utility. Disable Stealth mode.

The fan stopped running

You may have enabled Stealth mode in the Setup Utility. Disable Stealth mode.

Can I improve the startup speed of my programs by cleaning up and rearranging ﬁles on the hard drive?

Using the Windows utilities to defragment your drive may improve the startup speed of programs.

The system date and time are incorrect

For Windows XP:

Reset the correct date and time by choosing the Date/Time icon from the Control Panel and making the appropriate changes.

General Dynamics Itronix | 72-0137-001
