General Dynamics Itronix IX600-MC75 Users manual

Page 1 of 100GoBook PRO II Hel

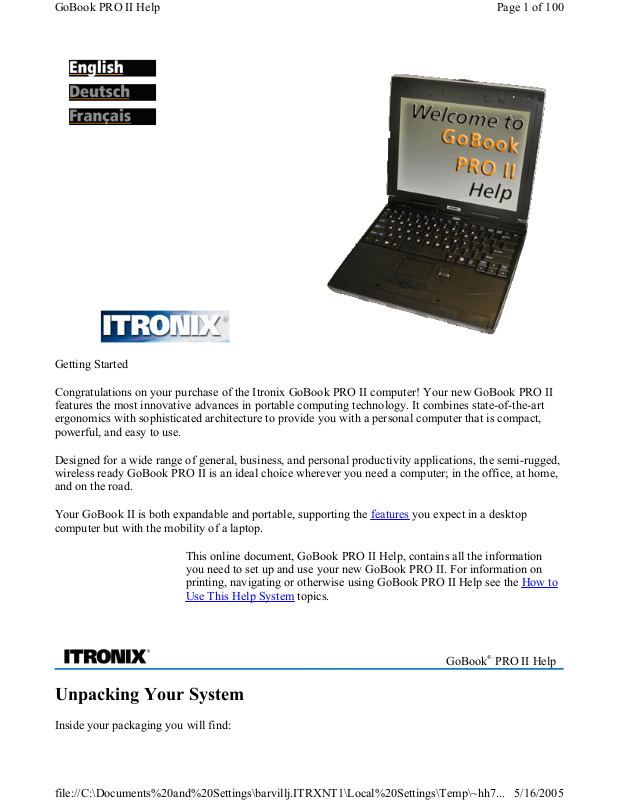

Getting Started

Congratulations on your purchase of the Itronix GoBook PRO II computer! Your new GoBook PRO II features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with sophisticated architecture to provide you with a personal computer that is compact,

owerful, and easy to use.

Designed for a wide range of general, business, and personal productivity applications, the semi-rugged, wireless ready GoBook PRO II is an ideal choice wherever you need a computer; in the office, at home, and on the road.

Your GoBook II is both expandable and portable, supporting the features computer but with the mobility of a laptop.

This online document, GoBook PRO II Help, contains all the information you need to set up and use your new GoBook PRO II. For information on printing, navigating or otherwise using GoBook PRO II Help see the How to

Use This Help System topics.

you expect in a desktop

GoBook® PRO II Help

Unpacking Your System

Inside your packaging you will find:

Standard

Options

Where to Look For Information

72_0128_001 16 May 2005

Page 2 of 100GoBook PRO II Hel

GoBook® PRO II Help

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

Multimedia

Connectivity

Human-centric design and ergonomics

Expansion

See Specifications for more information.

72_0128_001 16 May 2005

GoBook® PRO II Help

The First Time. . .

Before using your computer, install the battery and then attach the computer to AC power.

Installing the battery:

. Line up the battery connectors.

. Press gently on the battery until it

clicks into place.

3. Slide the battery locks

toward the outside of the computer to lock the battery.

Page 3 of 100GoBook PRO II Hel

Attaching AC Power:

. Connect the AC adapter power cord to the AC

adapter.

. Connect the AC adapter to the DC power port

on the rear panel of your computer.

. Connect the AC adapter power cord to a

properly grounded AC outlet.

NOTE It is recommended you use a quality

surge protector

Begin Using the Computer

. Slide the display cover release latch to the

right.

. Open the display to a comfortable viewing

angle.

insert picture

. Press the power switch to turn on the power.

The POST executes and Windows begins loading.

NOTE When using a battery pack for the first time, fully charge the battery, then

(power-on self-test) routine

disconnect the adapter to use up the battery

efore recharging again. Perform this action twice to condition the battery pack.

Calibrating the battery before use is also

highly recommended. Refer to Power

Management, for more information.

Turning off Your Computer

Page 4 of 100GoBook PRO II Hel

Turning off the computer properly is important to maintaining your computer. Select Start, and follow the instructions on the screen.

If you are going to be away from the computer for a short period, there are ways to conserve power without shutting down the system. See Power Saving Modes

NOTE

than four seconds to turn off the computer. If you turn off the computer and want to turn it on again, wait at least two seconds before powering up.

CAUTION Shutting off the computer improperly may result in data loss.

72_0128_001 16 May 2005

If you are unable to shut down your computer normally, press and hold the power button more

for details.

GoBook® PRO II Help

Shut Down

Loading Windows

This section is for installing the Windows operating system only. If you are installing a different operating system, please check with your vendor for installation details.

Your computer will begin loading Windows once you turn on the power. Wait a few seconds for Windows setup to load. The Windows setup will prompt you for the product key number. You can find the product key number on a sticker attached to the bottom of the computer.

1. Type your name, and, if applicable, the name of your company.

2. Read the End User's License Agreement. Click

3. Enter the product key number. You can find this on the Certificate of Authenticity on a sticker attached to the computer. Click

4. The Start Wizar

will prompt you to set the date, and your local time.

Finish

to accept it.

Page 5 of 100GoBook PRO II Hel

Some software comes pre-loaded with Windows. New users can familiarize themselves with this software by selecting All Programs from the start menu, then clicking on programs to run them.

CAUTION

When you are installing the Windows operating system and enter the product key number, we strongly recommend connecting the AC adapter - DO NOT use battery alone to avoid warning messages.

72_0128_001 16 May 2005

GoBook® PRO II Help

Startup Problems?

If your computer does not operate, try these solutions.

Connect the AC adapter to charge the battery if it is not charged. NOTE The Power LED on the AC adapter should be lit as well as the External Power Indicator on the GoBook PRO II if the AC adapter is connected and functioning properly. Additionally, one of the power icons should appear in the task tray.

If the AC adapter is connected but the unit will still not turn on, make sure the electrical outlet you are using works.

Check to make sure the battery is installed and charged properly.

If the battery does not begin charging, remove the battery, connect the AC adapter, and turn on the computer by pressing the Power Button. Reinstall the battery. The Battery Indicator is solid orange while the battery is charging.

The Troubleshooting

section lists additional solutions you can try.

72_0128_001 16 May 2005

Safety and Ergonomics

Important safety instructions

1. Read these instructions carefully. Save these instructions for future reference.

GoBook® PRO II Help

Page 6 of 100GoBook PRO II Hel

2. Follow all warnings and instructions marked on the product.

3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this product near water.

5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.

6. Slots and openings in the cabinet and the back or bottom are provided for ventilation; to ensure reliable operation of the product and to protect it from overheating, these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

7. This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.

8. Do not allow anything to rest on the power cord. Do not locate this product where persons will walk on the cord.

9. If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

10. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

11. Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

12. Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

1. When the power cord or plug is damaged or frayed

2. If liquid has been spilled into the product

3. If the product has been exposed to rain or water

4. If the product does not operate normally when the operating instructions are followed. Adjust only those controls that are covered by the operating instructions since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

5. If the product has been dropped or the cabinet has been damage

Page 7 of 100GoBook PRO II Hel

6. If the product exhibits a distinct change in performance, indicating a need for service.

13. Replace the battery with the same type as the product's battery we recommend. Use of another battery may present a risk of fire or explosion. Refer battery replacement to a qualified serviceman.

14.

WARNING!

Batteries may explode if not handled properly. Do not disassemble or dispose of

them in fire. Keep them away from children and dispose of used batteries promptly.

15. Use only the proper type of power supply cord set (provided in your accessories box) for this unit. It should be a detachable type: UL listed/CSA certified, type SPT-2, rated 7A 125V minimum, VDE approved or its equivalent. Maximum length is 15 feet (4.6 meters).

Ergonomics

72_0128_001 16 May 2005

GoBook® PRO II Help

Tips for New Owners

Take responsibility for backup

Back up files often. Users who need to manage large amounts of data may wish to use backup devices such as a ZIP drive.

Don't leave passwords anywhere on your notebook or carrying case

Be careful when placing your notebook on an airport security conveyor belt

In most airports, security conveyor belts are safe for computers. If you are not sure, ask the security staff. You should keep a close eye on your computer.

Tape your business card to the notebook and accessories

In the workplace, notebooks and accessories may often look exactly alike, leading to equipment mix-ups. Prevent such mix-ups by placing your name on your equipment.

Develop ergonomic work habits

The science of ergonomics studies the relationship between health and a suitable work environment. For more information on ergonomics, contact your nearest computer bookstore, or local library. See Safety and Ergonomics.

Page 8 of 100GoBook PRO II Hel

Consider using a lock

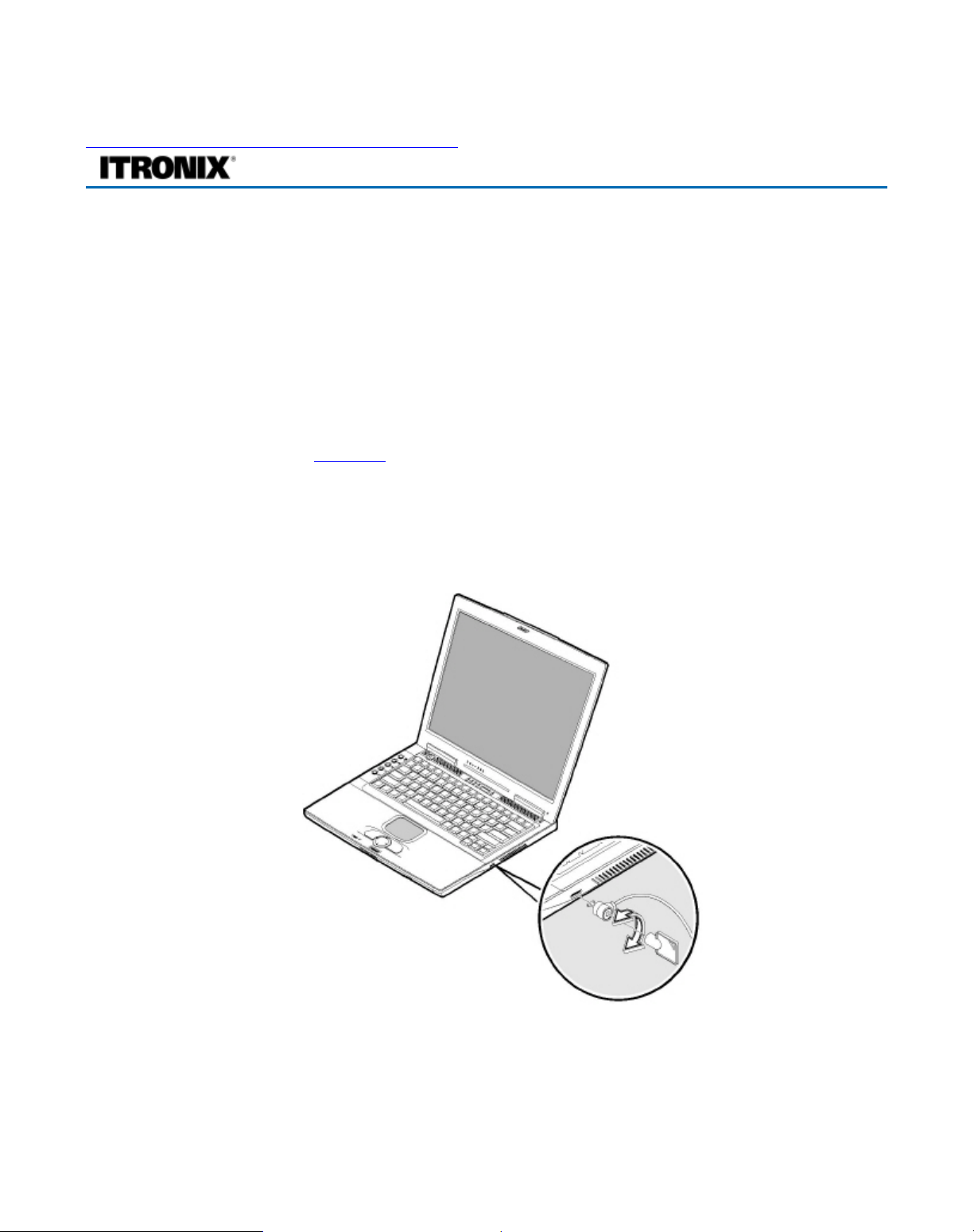

For added security, consider purchasing a Kensington lock to put into the Security Slot on the

right side of your computer. Use the Kensington lock to secure the computer to a desk or table.

NOTE

habits can cause health problems.

72_0128_001 16 May 2005

Getting Familiar with Your Computer

This chapter introduces the different components and controls of your notebook computer, including the hardware components, the software, and the audio and video systems.

Before you begin using your GoBook PRO II, read this chapter to familiarize yourself with the main components installed in the system.

This computer combines high-performance, versatility, power management features and multimedia capabilities with a unique style and ergonomic design. Work with unmatched productivity and reliability with your new power computing partner.

This chapter gives an in-depth "tour" of the computer's many features.

Using a computer for extended periods of time with a poor workstation setup and incorrect work

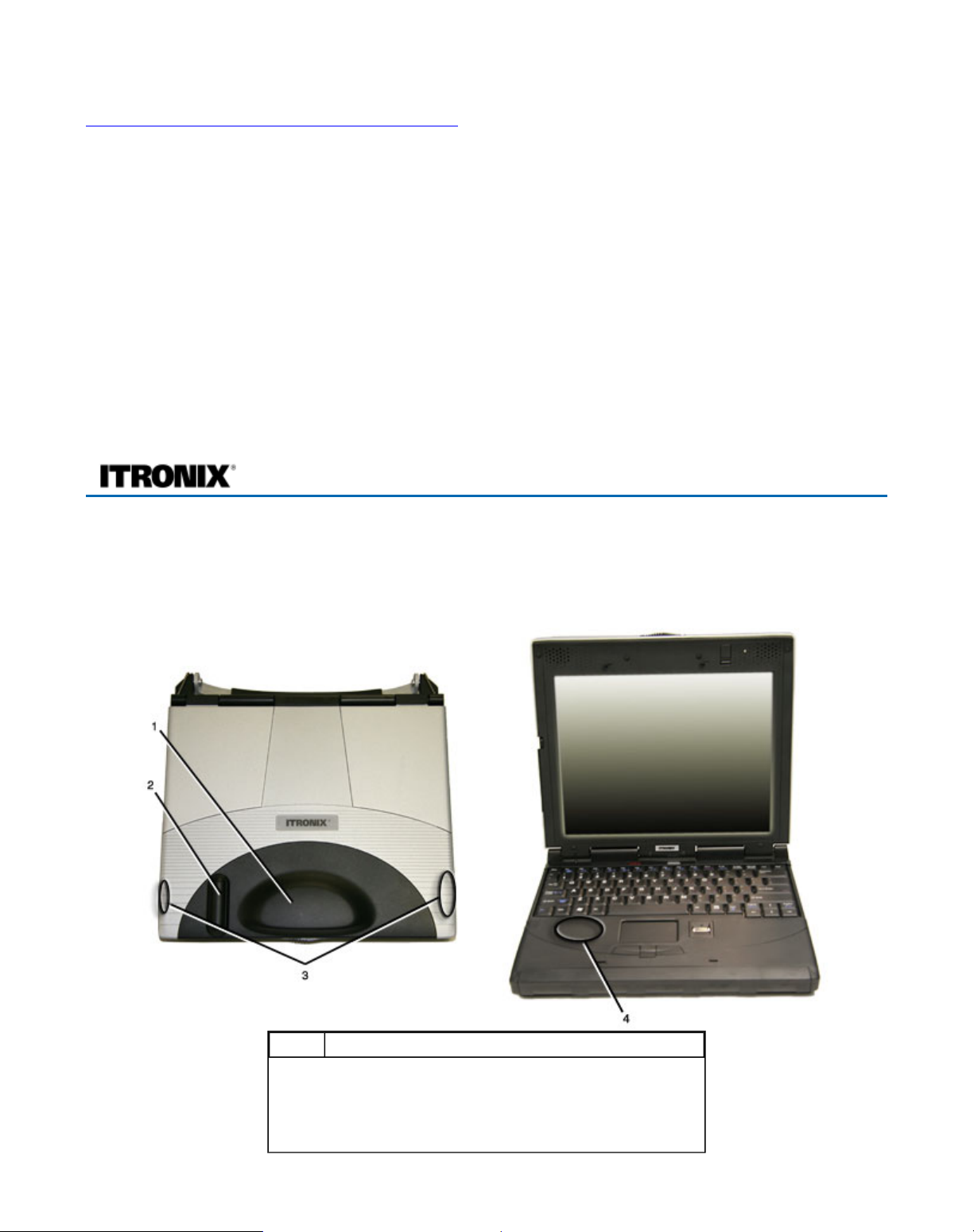

Front View

Hover the mouse over each number on the picture to see a description

GoBook® PRO II Help

Page 9 of 100GoBook PRO II Hel

Feature Description

# 1 Speakers 2 Photo Sensor 3 Keyboard Light 4 Touch Screen

Display

5 Fingerprint

Scanner 6 Touchpad 7 Bluetooth /

Diversity for

EVDO Antenna

Optional feature

8 LEDs Lights that turn on, of or blink to show the status of the computer and its

functions

72_0128_001 16 May 2005

Page 10 of 100GoBook PRO II Hel

Top View

Hover the mouse over each number on the picture to see a description

GoBook® PRO II Help

Feature Description

1 CRMA Express

Antenna 2 GPS Antenna Antenna for GPS Communications 3 WLAN

Antennas

CAUTION

communications quality.

Please avoid hitting wireless communication antennas as this may adversely affect

Antenna for WAN Communications

Antenna for WLAN Communications

72_0128_001

16 May 2005

Page 11 of 100GoBook PRO II Hel

Left Side View

Hover the mouse over each number on the picture to see a description

** insert picture**

# 1 Volume Control Knob Use to adjust the volume 2 Memory Stick / Secure

Digital Card Slot (optional) 3 PC Card Slot 4 Infrared Port (optional) 5 6

72_0128_001 16 May 2005

Feature Description

Use with a Memory Stick, Secure Digital (SD) or MultiMediaCard (MMC) memory card.

GoBook® PRO II Help

Right Side View

Hover the mouse over each number on the picture to see a description

# 1 2 3 4 5 6 7 8 9 10

Feature Description

**insert picture**

GoBook® PRO II Help

Page 12 of 100GoBook PRO II Hel

1. USB ports

2. S-Video port

3. DVD-ROM drive

4. DVD-ROM drive lock

72_0128_001 16 May 2005

Back Edge View

Hover the mouse over each number on the picture to see a description

**insert picture**

5. DVD-ROM drive eject button

6. GPRS Headset Jack

7. Shoulder strap hole

GoBook® PRO II Help

# 1 DC-in jack Connects to an AC adapter. 2 S-video out port Connects to a television or display device with S-video input. 3 External monitor port Connects to a display monitor (up to 2048x1536 resolution). 4 Parallel port Connects to a parallel device (e.g., parallel printer). 5 Modem jack Connects a phone line (only for models with an internal fax/data

6 Network jack Connects to an Ethernet-based network. 7 IEEE 1394 port (firewire) Connects to a IEEE 1394-compatible (4-pin) device (e.g., digital

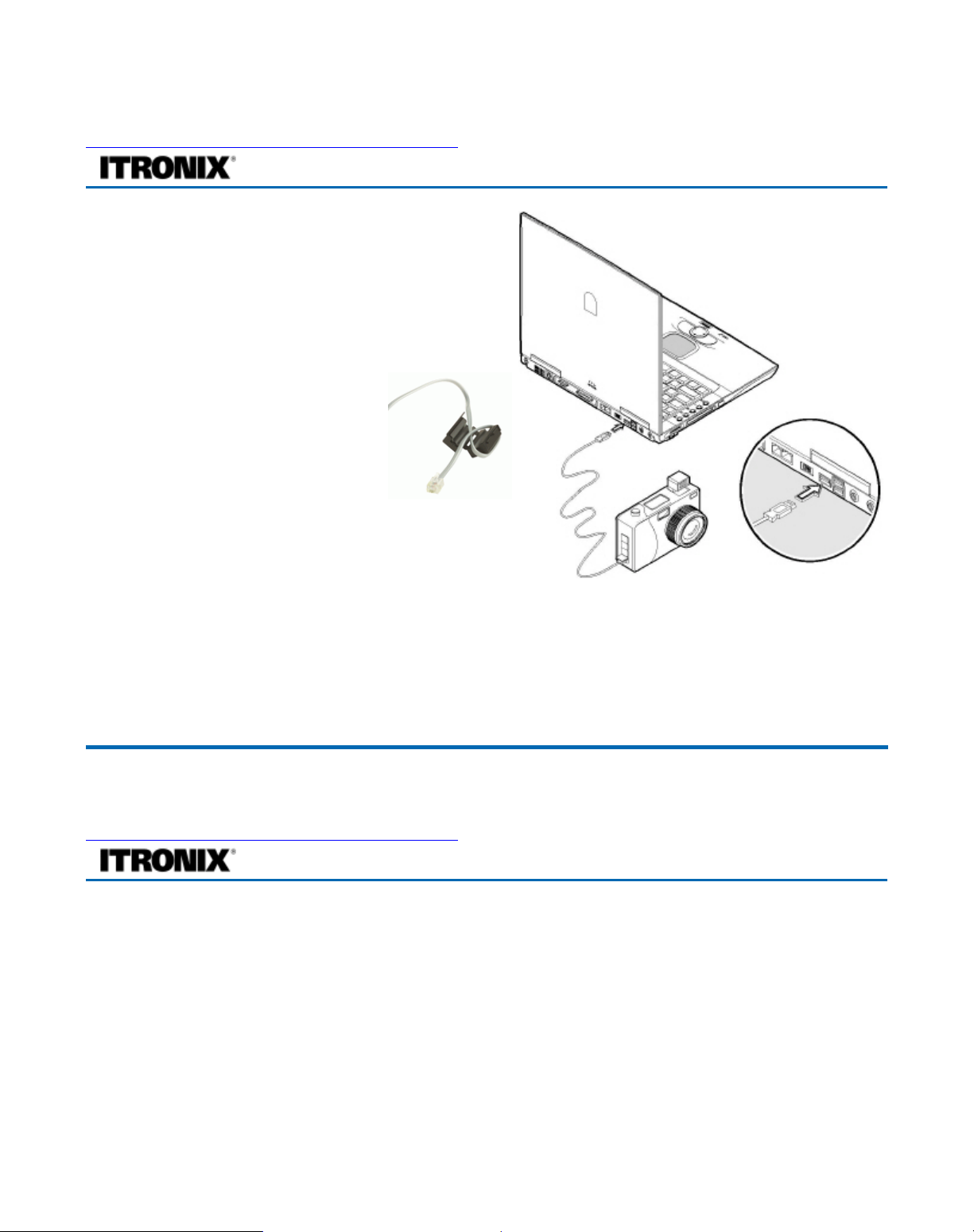

8 USB ports Connect to USB devices (e.g., USB digital camera). 9 Line-in jack Accepts audio line-in devices (e.g., audio CD player, stereo

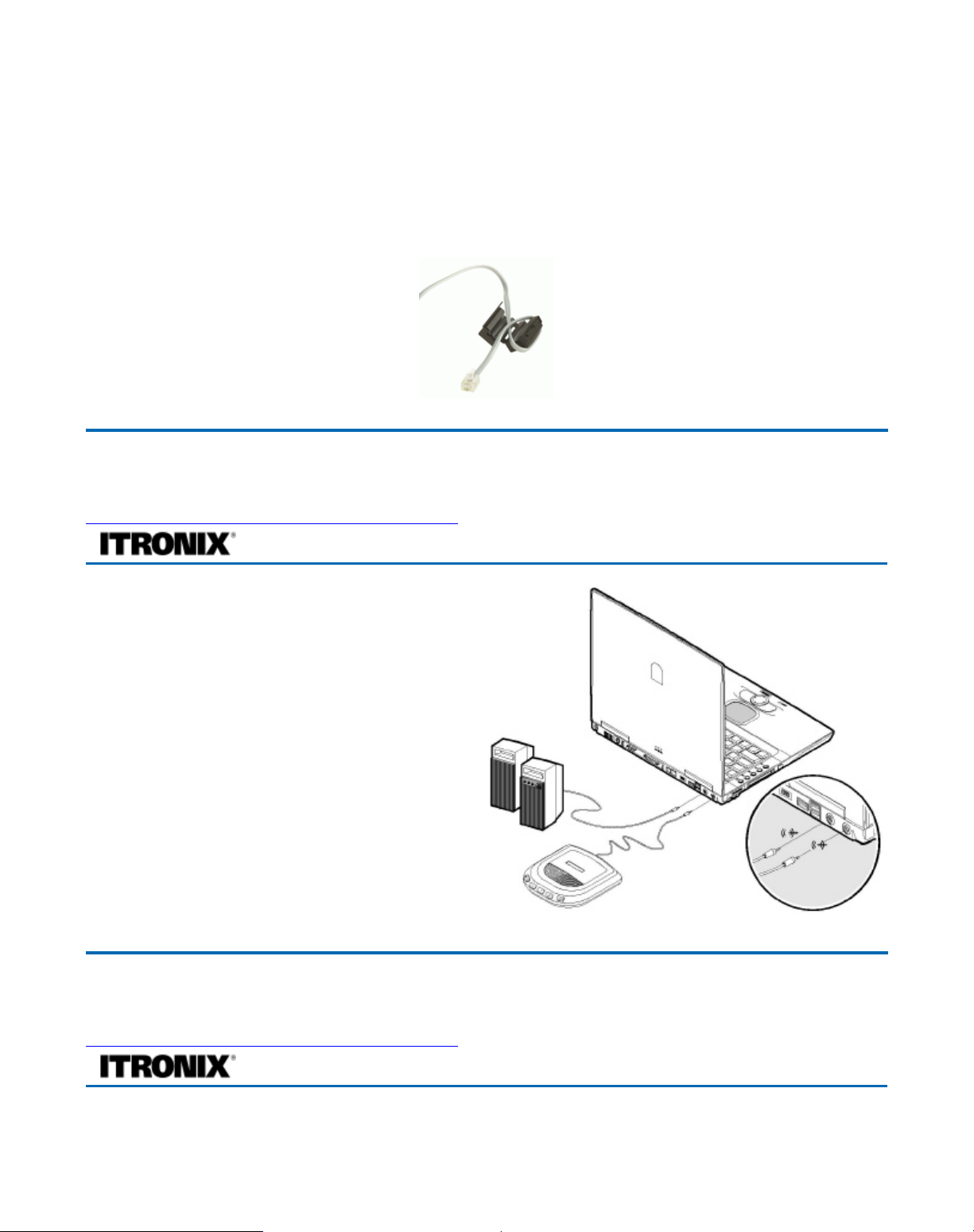

10 S/PDIF line-out jack Connects to audio line-out devices (e.g., speakers, headphones);

72_0128_001 16 May 2005

Feature Description

modem).

video camera).

walkman).

supports S/PDIF connections.

Bottom View

Hover the mouse over each number on the picture to see a description

GoBook® PRO II Help

Page 13 of 100GoBook PRO II Hel

Feature Description

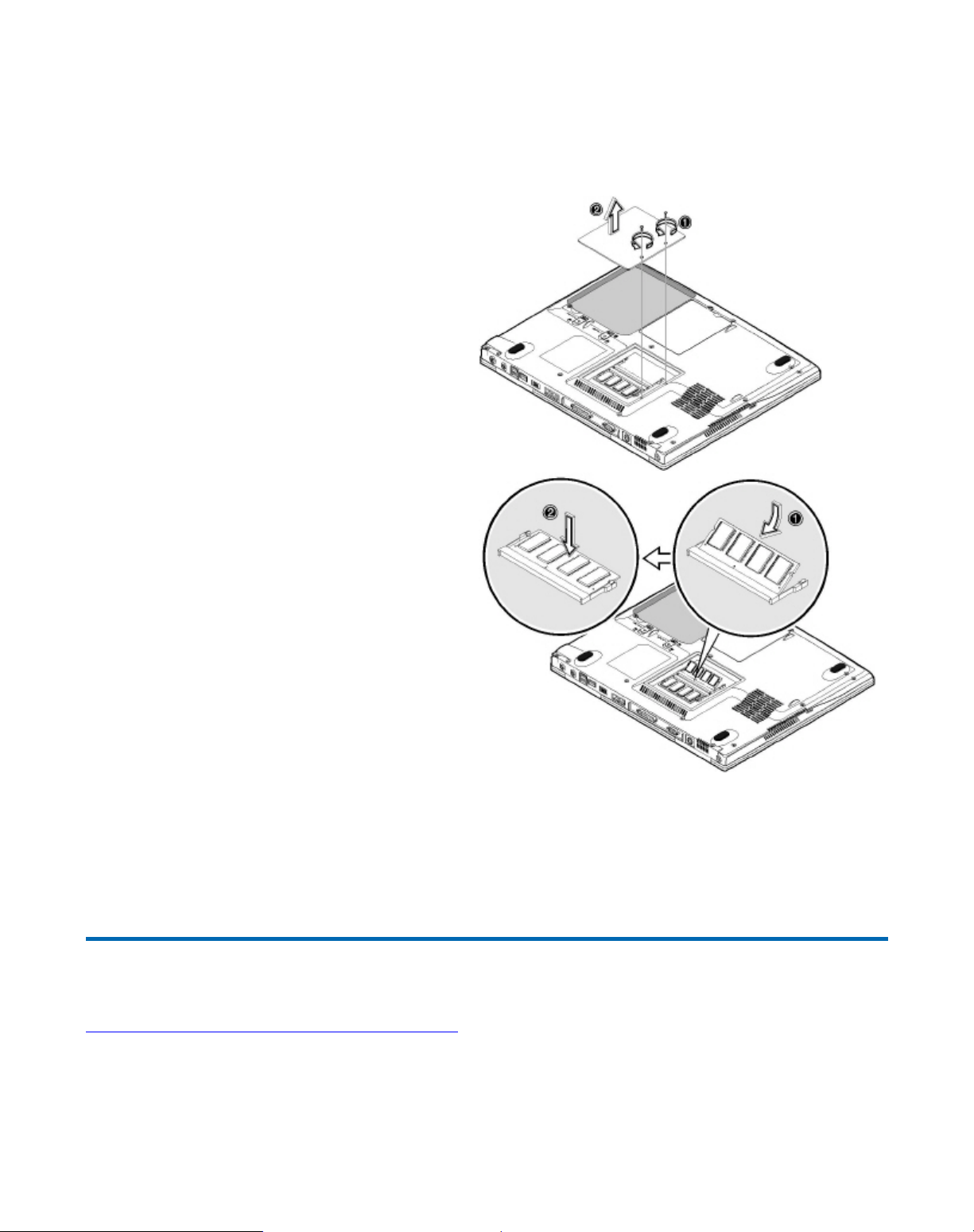

# 1 Memory compartment User expandable memory slot 2 Hard Disk Lock Slide this to lock or unlock the hard disk drive 3 Hard Disk Drive Removable hard disk drive for data storage 4 Battery Locks Slide these locks toward the outer edges of the computer to lock the

battery. 5 Battery 6 Serial Number Label 7 Battery Release Latch Slide this latch to the left to remove the battery. NOTE You must

first unlock the battery.

72_0128_001 16 May 2005

Keyboard Basics

The GoBook PRO II computer features:

Full size keys 85-key US keyboard; 87-key international keyboard

Twelve function keys

Embedded numeric keypad

Page 14 of 100GoBook PRO II Hel

Mouse keys and cursor control keys

USB port that enables you to connect an external keyboard

Keyboard ergonomics

Located below the keyboard, the wide and curved palm rest is ergonomically designed to provide you with a very comfortable place to rest your hands while you type.

Primary Keys

Key Description

ALT

The ALT (alternate) key is used with other keys to perform special tasks. On some operating systems pressing CTRL+ALT+DEL twice soft reboots the computer .

ALT GR

BACKSPACE

CAPS LOC

The ALT GR key, a special function key found on the 87-key international keyboard, when pressed and held, allows you to use characters in the bottom right of a three character key.

The BACKSPACE key, sometimes represented on the keyboard as a left arrow, moves the cursor one position to the left. The character to the left of the cursor is erased.

Pressing the caps lock key one time locks keys A through Z in the UPPER CASE position. Pressing the caps lock key again returns the letters to lower case. While in the upper case mode, pressing the shift key results in lowercase characters when entered. You still have to use the shift key to display characters located on the upper portion of the keyboard. For example, press shift+8 to type an asterisk (*), even when the caps lock key is activated.

GoBook® PRO II Help

CTRL

ENTER

ESC

PRTSC

SHIFT

The CAPS LOCK activity indicator is on when the keyboard is in CAPS LOCK mode.

The ctrl (control) key works with other keys to perform a variety of functions. The enter key signals the computer that you have completed your entry. This

is your way of telling the computer to process the information that you have entered.

The esc (escape) key allows you to exit a pop-up window or message box. In Windows, pressing the prtsc (print screen) key or ALT+PRTSC key copies

the current screen or window to the clipboard so you can paste it into documents.

The shift key changes the keys A through Z to the UPPER CASE position. When you press an alphabetic key, the character appears as a capital letter. When you press shift with other keys, the characters on the upper part of the keys appear. For example, pressing shift+7 displays an ampersand (&).

Some special Fn (function) keys have been established to perform important tasks when pressed and held with the Fn key. These keys are described later in this document. The Fn key legend is color keyed to other special keys on the

keyboard

spacebar

72_0128_001 16 May 2005

Use the spacebar to enter a space and move the cursor one character to the right.

TAB

The tab key moves the cursor to the next tab stop or field. Tab stops are defined by your operating system or application program. Press the tab key to move from one field or text box to another.

Page 15 of 100GoBook PRO II Hel

GoBook® PRO II Help

Arrow Keys

The arrow keys are defined by the software application.

The up arrow key usually moves the cursor up one line. In some cases, you can use the up arrow to make selections from menus and scrollable list boxes.

The down arrow key usually moves the cursor down one line. In Windows, you can use the down arrow to make selections from menus and scrollable list boxes.

The right arrow key usually moves the cursor one character position to the right.

The Left arrow key usually moves the cursor one character position to the left.

72_0128_001 16 May 2005

Function Keys and Key Combinations

When using function keys, press and hold the combination.

Function Key

Fn+F1

Function Icon Description

Display toggle

key before pressing the other key in the key

Switches the display output between the display screen, external monitor (if connected) and both the display screen and external monitor NOTE When a DVD or VCD is playing, this hotkey is disabled.

GoBook® PRO II Help

Page 16 of 100GoBook PRO II Hel

Fn+F2

Fn+F3

Fn+F4

Fn+F5

Fn+F6

Fn+F7

Fn+F8

Fn+F9

Fn+F10

Fn+F12 Fn+PgUp Fn+PgDn Fn+ Right

Ctrl Fn+ Left

Shift Fn+Caps

Lock

Screen blank

Standby

Tasklight Brightness Down

Tasklight Brightness Up

Brightness Down

Brightness Up Increases the screen brightness

Speaker Volume Down

Speaker Volume Up

Speaker on/off

Home End Touchpad

on/off Keyboard Task

Light Wireless Toggles the power on and off to all radio devices.

Scr Lk

Home

End

Turns off the display screen backlight and turns off the external monitor, if attached. Press any key to turn it back on.

Puts the computer in standby mode, which can be defined via the advanced section of the Power Management Properties in the Windows Control Panel

Dims the keyboard tasklight. NOTE You must first turn on the tasklight by pressing Fn+Shift

Increases the brightness of the keyboard tasklight. NOTE You must first turn on the tasklight by pressing Fn+Shift

Decreases the screen brightness

Decreases the speaker volume

Increases the speaker volume

Turns the speakers on and off; mutes the sound

Scroll Lock Functions as the “Home” key Functions as the “End” key Toggles the touchpad on and off

Toggles the keyboard tasklight on and off

The radio devices include GPS, Bluetooth, WLAN,and WWAN radios.

NOTE If radio wakeup is enabled, radio power will turn back on before the system suspends.

72_0128_001 16 May 2005

Quick Launch Buttons

Five Quick Launch Buttons, located at the top of the keyboard, launch frequently used applications. The Quick Launch Buttons automatically lock when the

GoBook® PRO II Help

cover is closed so you don't have to worry about the

GoBook PRO II getting turned on accidentally.

Item Icon Description

# 1 Wireless

Communication

2 Email

3 Internet browser

4 P1 This button is user-programmable 5 P2 This button is user-programmable

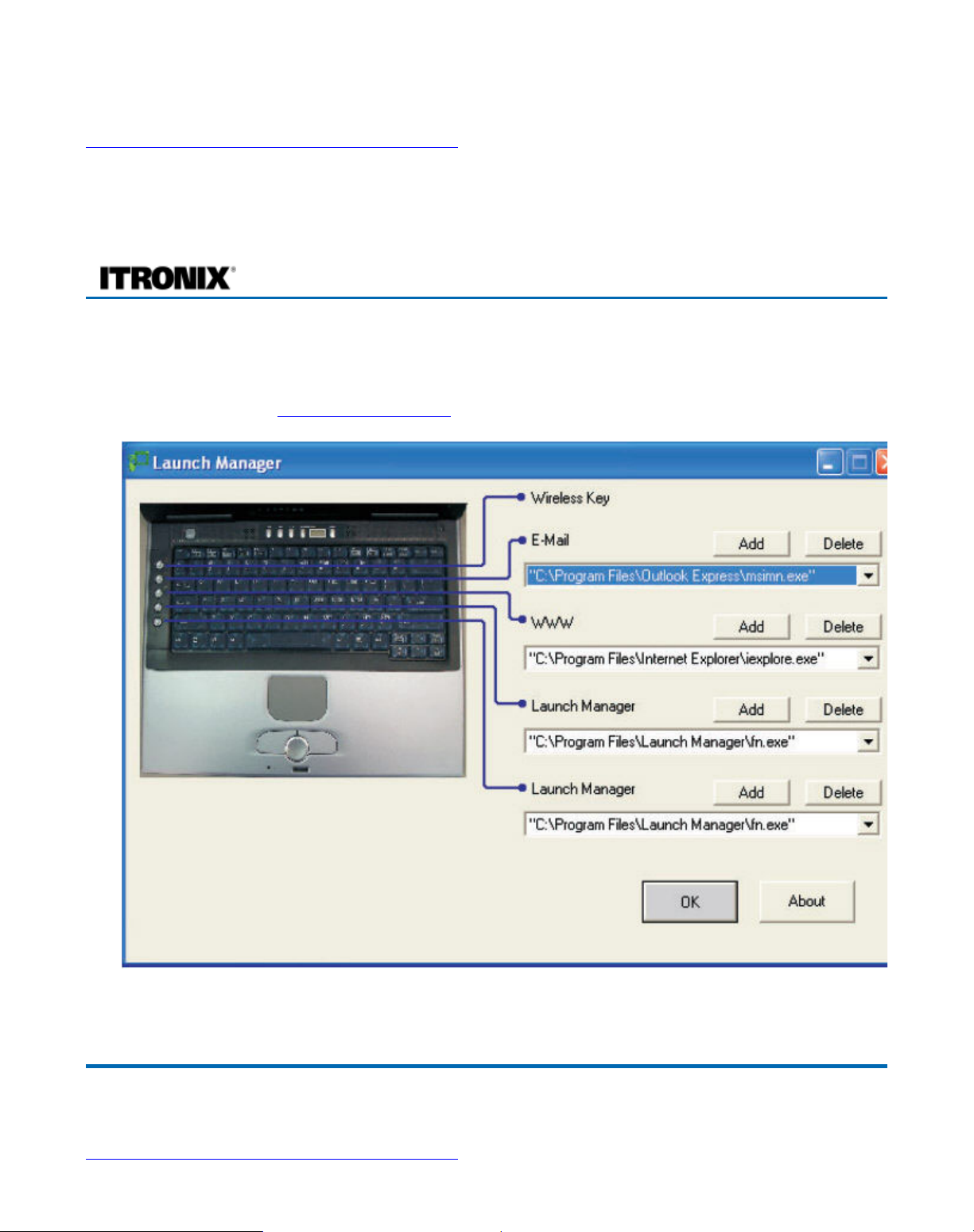

For more information, see Launch Manager.

72_0128_001 16 May 2005

This button is used to enable or disable the wireless LAN (optional) function.

The mail button is used to launch the email application.

By default, is used to launch your internet browser.

Page 17 of 100GoBook PRO II Hel

GoBook® PRO II Help

Numeric Keypad

The embedded numeric keypad consists of ten keys that make number intensive input more convenient. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys. Press FN+NumLock to enable or disable the numeric keypad.

**insert picture**

Desired Access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys Hold Fn while typing letters on

72_0128_001 16 May 2005

Num Lock On Num Lock Off

Type numbers in a normal

manner.

Hold Shift while using cursorcontrol keys.

embedded keypad.

Hold Fn while using cursor-control keys.

Type the letters in a normal manner.

Lock Keys

GoBook® PRO II Help

The keyboard has three lock keys which you can toggle on and off.

Lock Key Description

CAPS LOCK

NUM LOCK

(Fn-F11)

SCROLL

LOCK

(Fn-F12)

72_0128_001 16 May 2005

When Caps Lock is on, all alphabetic characters typed are in uppercase. When Num Lock is on, the embedded keypad is in numeric mode. The

keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad. See

External keyboard

When Scroll Lock is on, the screen moves one line up or down when you press Ł or ¯ respectively. Scroll Lock does not work with some applications.

Page 18 of 100GoBook PRO II Hel

Windows Keys

The keyboard has two keys that perform Windowsspecific functions.

Key

Windows Logo Key

Icon Description

Start button. Combinations with this key perform special functions. Below are a few examples:

+ TAB (Activates next Taskbar button)

+ E (Explores My Computer)

+ M (Undoes Minimize All)

GoBook® PRO II Help

SHIFT + + M (Undoes Minimize All)

+ R (Displays Run dialog box)

Application Key

72_0128_001 16 May 2005

Opens the application's context menu (same as right-click).

Page 19 of 100GoBook PRO II Hel

Keyboard Light

72_0128_001 16 May 2005

GoBook® PRO II Help

Restarting the Computer

Press… To do this

CTRL+ALT+DEL twice Soft reboot the computer.

CAUTION All open and unsaved data will be lost.

Press and hold the Power Button for approximately ten seconds and then release it.

Reset the computer CAUTION All open and unsaved data will be lost.

GoBook® PRO II Help

72_0128_001 16 May 2005

GoBook® PRO II Help

Activity Status LEDs

Thirteen easy-to-read LEDs under the display screen indicate activity status for common functions.

***insert picture with callout of LEDs

The Power indicators are visible even when you close the display cover so you can see the status of the computer while the cover is closed.

Icon Function LED Description

Power Steady

Green

Computer is on and operating

Page 20 of 100GoBook PRO II Hel

Blinking

External Power

Battery Power

Touch Pad

Hard Disk Drive

Media Bay

Num Lock

Caps Lock

Scroll Lock

WLAN Communication

Bluetooth Communication

GPS Communication

WWAN Steady WWAN radio is on

Green Steady

Green

Blinking Green

Steady Green

Blinking Green

No Light The battery is fully charged or a main battery pack is

Steady Green

Blinking Green

Steady Green

Computer has suspended to RAM

Power is on and external power is applied from one of

the following:

1. The AC Adapter connected to a wall outlet, or

2. A vehicle-mounted cradle, or

3. A vehicle power adapter. AC adapter is in use and computer is in suspend mode

Battery is charging

Battery is low

NOTES

If the computer is not plugged into external power within a few minutes, it will go into a Suspend Power Mode.

If the computer is radio-equipped and is in the middle of communication, it will suspend power to the radio when the battery is low. The computer must then be plugged into external power to continue radio communication.

not fitted.

Computer is reading from, or writing to the built-in hard disk

Computer is reading information from the DVD ROM or Combo DVD/CD-RW drive in the Media Bay.

Keyboard is in Num Lock mode

Keyboard is in Caps Lock mode

Keyboard is in Scroll Lock mode

Wireless LAN radio is on

Bluetooth radio is on

GPS radio is on

Page 21 of 100GoBook PRO II Hel

72_0128_001 16 May 2005

Communication Green

Touchpad

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger over of the touchpad. It also provides all the features of a twobutton mouse.

How to Use the Touchpad

1. First, place your fingers on the keyboard in the normal typing position. The touchpad is easily accessible by moving either your left or right thumb off the space bar and onto the touchpad.

GoBook® PRO II Help

2. Gently move your thumb across the pressuresensitive touchpad in the direction you want the cursor to move. The pad detects the change in pressure and moves the cursor in the corresponding direction.

3. You can also make selections by double-tapping. This function corresponds to double-clicking with a mouse. Once the cursor has been moved to the object you want to select, lightly double-tap the pressure sensitive touchpad. This double-tapping on the touchpad will select the desired item and prompt the software to perform the related operation.

4. The buttons located directly below the touchpad are the same in function as those on a twobuttoned mouse. Clicking these buttons makes selections, drags objects, or performs a variety of other functions depending on the software. To select an object, first move the pointer over the object you want to select, and then press the left button one time. The functions of these buttons are software specific.

5. Double-clicking is a common technique for selecting objects or launching programs from icons. Once you have moved the pointer over the object you wish to select, rapidly press the left button two times. This action is commonly referred to as "double-clicking" an object.

Dragging

Move the pointer to the desired location then press down the left button. While still holding down the left button, move the pointer to the desired location. Release the button.

Page 22 of 100GoBook PRO II Hel

Move the pointer to the desired location. Tap the touchpad twice quickly as if you were doubleclicking, however do not remove your finger after the second tap. Move the cursor to the desired location. Lift your finger to finish dragging.

Adjust the touchpad settings by selecting Settings/Control Panel/Mouse/Buttons. These settings allow you to change the orientation of the joystick from right-handed to left-handed, and fine-tune the pointer movement and timing of clicks.

Touchpad Precautions

The touchpad is a pressure-sensitive device. If not properly cared for, it can be easily damaged. Please take note of the following precautions:

Make sure the touchpad does not into come into contact with dirt, liquids or grease.

Do not touch the touchpad if your fingers are dirty.

Do not rest heavy objects on the touchpad or the touchpad buttons.

Scrolling buttons

If you are scrolling through a document, you may find that using the scrolling button is more restful to your hand than holding down a mouse button. The scrolling button is located between the touchpad buttons. Push the top of the button to scroll up in a document or Web page; press the bottom of the button to scroll down in a document or web page.

Touchpad basics

The following teaches you how to use the touchpad:

Move your finger across the touchpad to move the cursor.

Press the left (1) and right (3) buttons located below the touchpad to do selection and execution functions. These buttons are similar to the left and right buttons on a mouse. Tapping on the touchpad produces similar results.

Press the center 4-way scroll button (2) to scroll up, down, left, and right on a page. This button mimics the cursor pressing the right and bottom scroll bars of your Windows applications.

Function Left Button Right

Execute Click twice

quickly.

Tap twice (at the same speed as double-clicking

the mouse button). Select Click once. Tap once. Drag Click and

hold, then

Tap twice (at the same

speed as double-clicking

Button

Center Button

Tap

Page 23 of 100GoBook PRO II Hel

use finger to drag the cursor on the touchpad.

Access

the mouse button) and

hold finger to the

touchpad on the second

tap to drag the cursor.

Click once. context menu

Scroll Click and hold

the button in the desired direction (up/ down/left/ right).

NOTES

Keep your fingers dry and clean when using the touchpad and keep the touchpad dry and clean.

The touchpad is sensitive to finger movements. It responds best to light touches. Tapping too hard will not increase the touchpad's responsiveness.

72_0128_001 16 May 2005

GoBook® PRO II Help

The Graphics System

Your computer has a high-performance graphics system that can easily handle the demands of today's multimedia computing. The display offers excellent viewing, display quality and desktop-performance graphics. The computer supports a large Thin-Film Transistor (TFT) liquid crystal display (LCD) displaying up to 16.7 million colors at 1024x768 XGA or 1400x1050 SXGA+ resolution, depending on the LCD display model.

Screen Controls

Adjusting Display Brightness

Function keys can increase or decrease the display brightness.

FN + F6 decreases the LCD panel brightness

FN + F7 increases the LCD panel brightness

Adjusting Display Resolution

Page 24 of 100GoBook PRO II Hel

1. Select My Computer, Control Panel, Display, Settings. Select the Settings tab. The dialog box indicates the monitor resolution.

2. Use the slide bar to adjust the resolution. Normally, you should use the resolution suggested for the LCD or monitor.

OTE Using a lower resolution than the screen was designed for will reduce the area of the display. You can stretch low resolution displays to full screen size by selecting either the Expanded Display or Display Expansion Mode features in the BIOS utility. However, the stretching may cause distortion, especially to fonts.

Higher resolution modes may be used, as long as the monitor supports them.

Photo Sensor

The built in photo sensor automatically adjusts the display brightness unless you use the function keys to manually adjust display brightness.

OTE Fn+F6 and Fn+F7 override the photo sensor. Once they have been used, the photo sensor is disabled until the next resume or reboot.

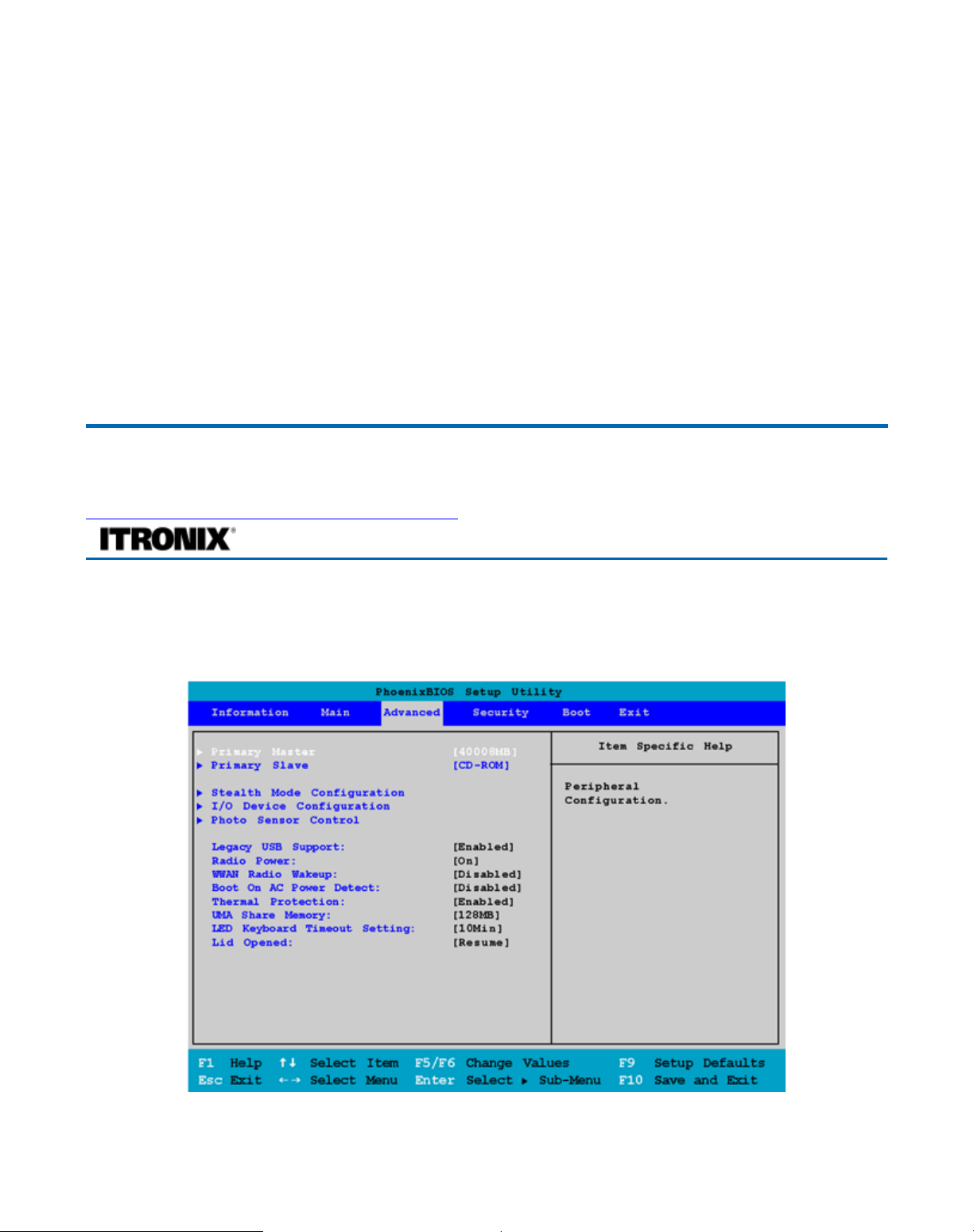

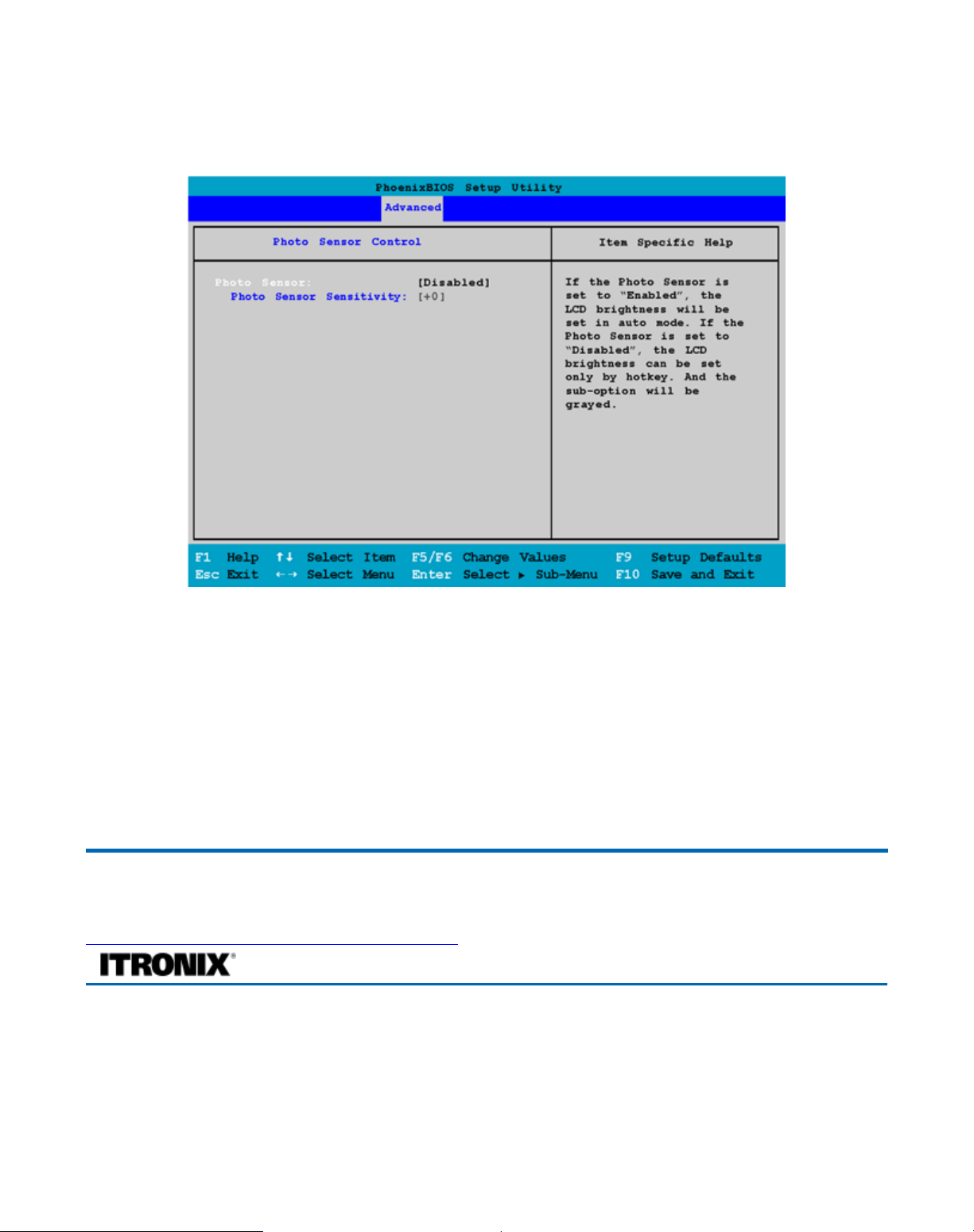

The sensitivity of photo sensor is adjustable in BIOS Setup Utility. The photo sensor does not have a time out setting.

Auto Dim Feature

To save the battery power, your GoBook PRO II automatically dims the display when the computer is not attached to external power.

OTE You may still use the display brightness function keys (Fn+F6 and Fn+F7) to adjust display brightness.

See Power

management for more information on power management features.

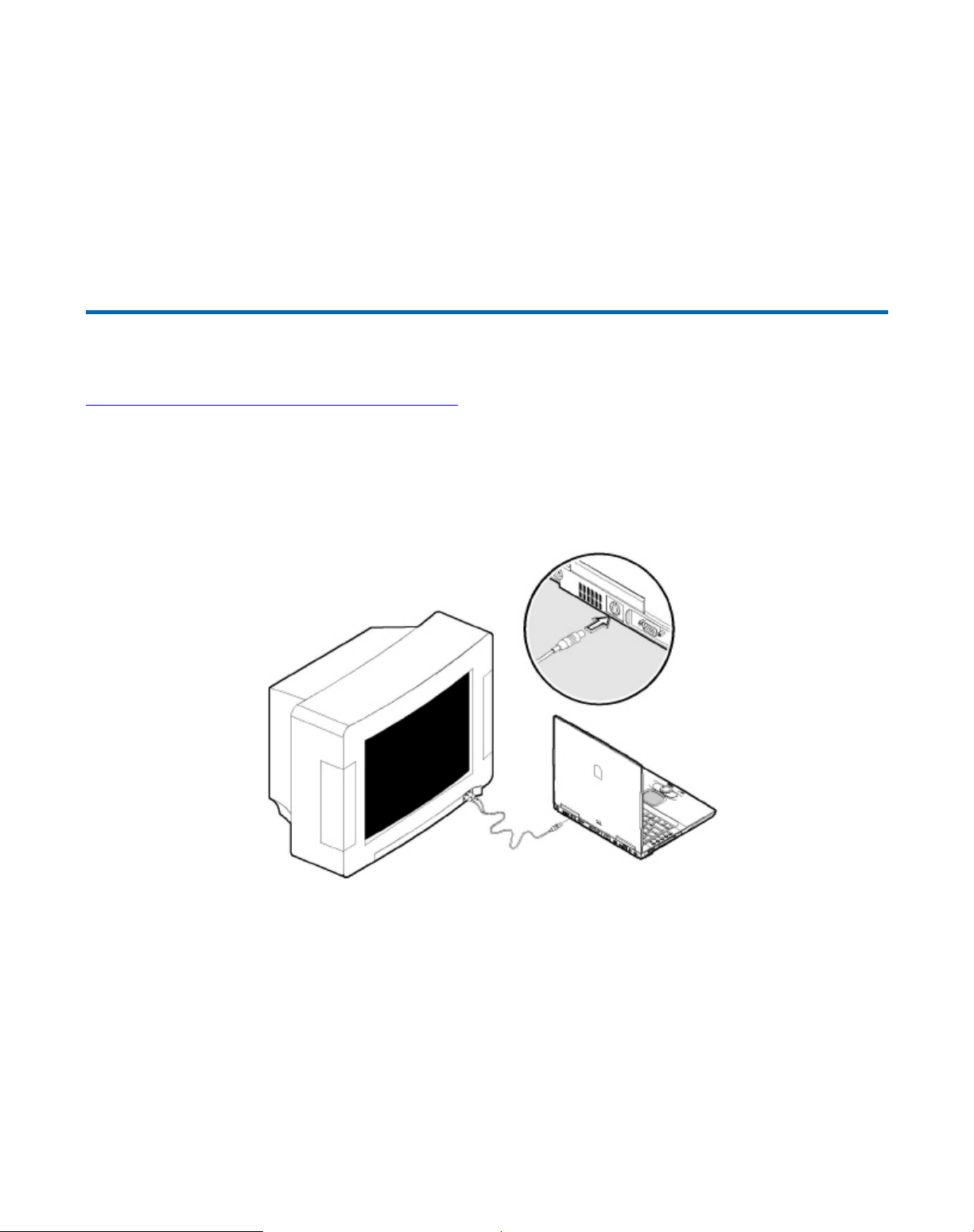

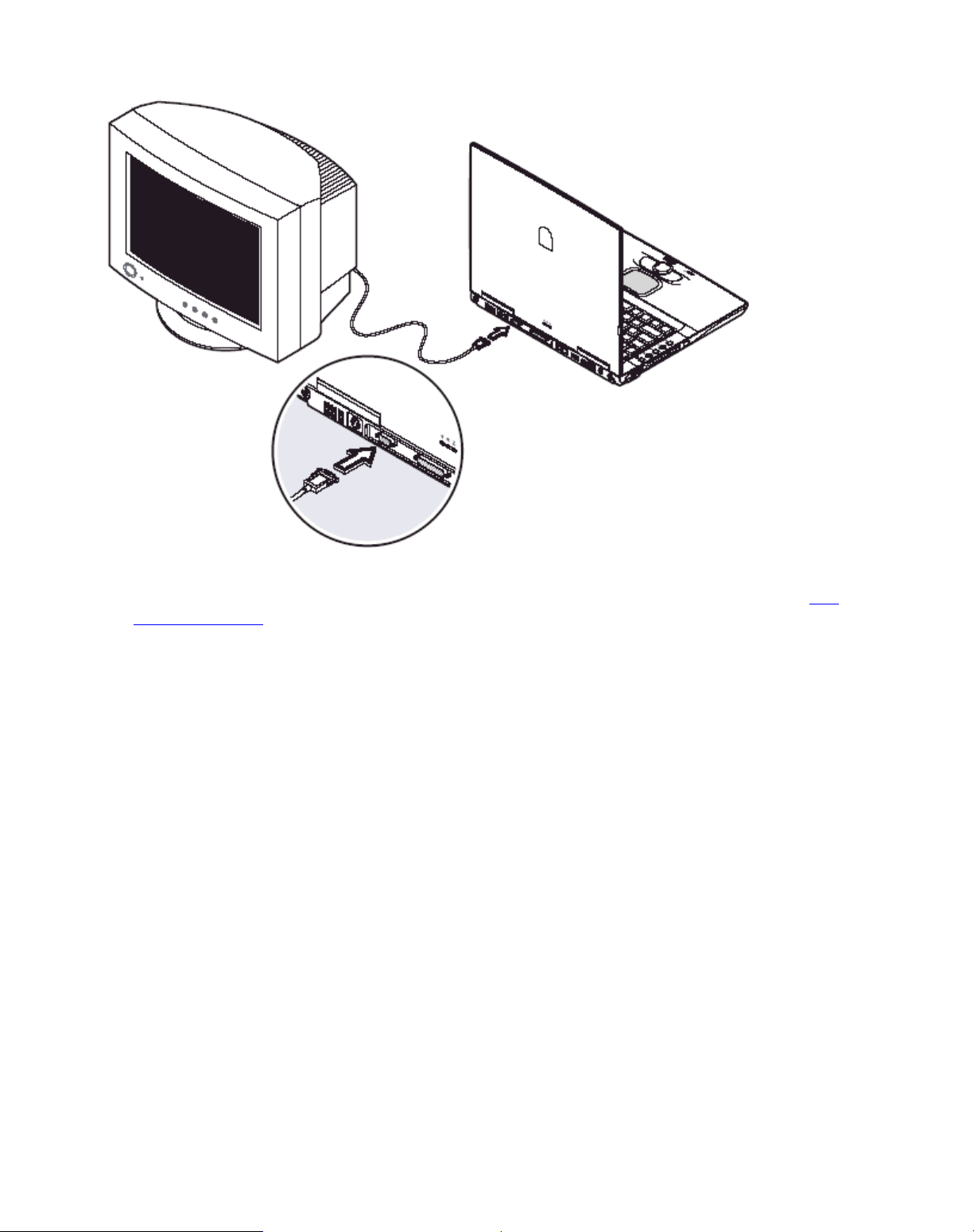

Simultaneous display

The computer's crisp display and multimedia capabilities are great for viewing movies or giving

resentations. If you prefer, you can also connect an external monitor when giving presentations. This computer supports simultaneous LCD and external display output via the external display port or the Svideo output port. Simultaneous display allows you to control the presentation from your computer and at the same time face your audience. You can also connect other output display devices such as LCD

rojection panels for large-audience presentations.

Opening and closing the display

To open the display, press the display cover latch and lift up the cover, then tilt it to a comfortable viewing position. See Connecting your computer the display (e.g., enters standby mode) to conserve power when you close the display cover, and turns it

ack on when you open the display cover.

. The computer employs a microswitch that turns off

Page 25 of 100GoBook PRO II Hel

To close the display cover, fold it down gently until the display cover latch clicks into place.

CAUTION

object on top of the computer when the display is closed.

To avoid damaging the display, do not slam it when you close it. Also, do not place any

Cursor Visibility

The mobile computer uses a Liquid Crystal Display (LCD), a type of screen used on many notebook and sub-notebook computers. One problem experienced on computers with an LCD display, especially in cold environments, is that the cursor seems to “disappear” whenever the mouse is moved quickly. To improve the visibility of the mouse cursor, you should:

Enable the “Pointer Trails” feature to add trailing cursors.

Use a slow or medium speed/sensitivity level.

You can combine a higher level of acceleration with a slow or medium speed/sensitivity level. This allows you to move the mouse cursor quickly by increasing your finger pressure, while still providing a finer degree of control when you apply minimum pressure.

OTE To change the speed of the mouse, from the Start Menu select Settings, Control Panel, and then

choose Mouse to make adjustments.

72_0128_001 16 May 2005

GoBook® PRO II Help

Memory

Adding memory allows the computer to operate faster, handle more tasks simultaneously, and work more smoothly with large files. Users who increase memory demands - by adding additional programs, for example - may notice a slowdown in operating speed, and wish to increase memory. The notebook includes a memory card slot for adding additional memory.

Calculate memory size by adding the size of the memory module to the existing built-in memory. For example: 128 MB (module) + 128 MB (built-in memory) = 256 MB Total

Replacing a Memory Card

CAUTION Memory modules can be easily damaged by static electricity. Leave the module inside its static-proof bag until it is ready for installation.

Removing a Memory Card

1. Turn off the computer and disconnect the AC adapter.

Page 26 of 100GoBook PRO II Hel

Turn the computer upside down and lay it on a flat surface.

2. Carefully remove the two RAM compartment cover screws and remove the RAM compartment cover.

3. Gently pull tabbed latched in the direction of the arrows (1). The card will pop up slightly.

4. Pull upwards on the card and then slide the card out (2).

Inserting a Memory Card

1. Hold the memory card by its edges with the edge-connector side towards the slot.

2. Hold the card at a shallow angle (about 25 degrees) and insert the edge connector into the connector slot. The "gold teeth" of the edge connector should no longer be visible when the card is fully inserted.

3. Press the card downwards so that it is flat inside the compartment. You may hear an audible click as the latches of the connector lock the card in place.

4. Replace the RAM compartment cover and secure it with the two screws.

Your notebook computer will automatically detect the change in RAM capacity when it restarts. You can verify RAM capacity has changed in the Setup Utility or in Windows:

1. Setup: Press DEL during boot-up when you see the "Hit DEL if you want to run Setup" prompt. Then select Standard CMOS Setup. This screen shows the base memory and the extended memory.

2. Windows: Right click on my computer and select properties. The bottom of the system Properties General tab lists the memory detected by Windows.

72_0128_001 16 May 2005

GoBook® PRO II Help

Audio

Your computer includes 16-bit high-fidelity stereo audio. The speaker is located above the display.

Page 27 of 100GoBook PRO II Hel

You can attach external audio devices via the audio ports on the left side of the computer.

Adjusting the Volume

To increase volume, press FN+F9

To decrease volume, press FN+F8

You can also adjust the volume with the Windows volume control applet located on the taskbar. However, the volume control function keys override the Windows volume control applet. If your volume is too low or too high after setting the volume in the applet, adjust the volume with the function keys.

72_0128_001 16 May 2005

GoBook® PRO II Help

The PC Card Slot

The computer has a built-in CardBus PC Card slot on the left panel of the computer that can accommodate one Type II PC Card. It accepts credit-card sized cards that enhance the usability and expandability of the computer. The PC card slot can be used as an interface between your computer and a variety of communications devices, such as network adapters, SCSI adapters, or fax/modems. They can also be used to provide additional data storage capacity. Please consult your dealer for PC Card options available that you can purchase for your computer.

PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving you expansion

ossibilities long afforded by desktop PCs. Popular type II cards include flash memory, SRAM, fax/data

Page 28 of 100GoBook PRO II Hel

modem, LAN and SCSI cards. CardBus improves on the 16-bit PC card technology by expanding the data path to 32 bits.

NOTE

Inserting a Card

NOTE

with power on, while others require that the computer be turned off.

Refer to your card's manual for details on how to install and use the card and its functions.

1. The top side of a PC Card is usually identified with a label. Insert the card into the slot with the top up and the edge with pinhole contacts going in first. You will feel some resistance as the card slides into the back of the slot.

2. PC Cards require drivers, or a program that allows the

operating system

are included with Windows, but if not, you will be prompted to install the driver included with your card.

3. The computer will beep twice to indicate successful installation. A single beep means that there was a problem recognizing the card.

Please read the instructions included with individual PC Cards. Some cards may be inserted

to use a specific device. Many drivers

Ejecting a Card

1. First, exit the application using the card.

2. Left-click on the Safely Remove

Hardware icon on the taskbar and stop

the card operation.

3. Press the slot eject button once (1) to pop it out (2); then press it again (3) to eject the PC Card.

72_0128_001 16 May 2005

GoBook® PRO II Help

Memory Stick/SD combo slot (option)

Your computer comes with a Memory Stick/Secure Digital (SD) combo slot (option). This slot is useful

Page 29 of 100GoBook PRO II Hel

for transferring data to and from a Memory Stick, SD or MultiMediaCard (MMC). Memory cards are used in a variety of digital devices such as digital cameras, digital camcorders and mobile phones.

Insert a card (label side up) into the slot until it clicks into place.

The card now appears on My Computer as a removable storage device that you can copy files to and from.

To remove the card from the slot, do the following:

1. Make sure no operation (e.g., file copying or deletion) is using the card.

2. Press the card further into the slot to release the card (you hear a click); then pull out and remove the card.

72_0128_001 16 May 2005

Ports and Connectors

Icon

Ports and Connectors Connection Location

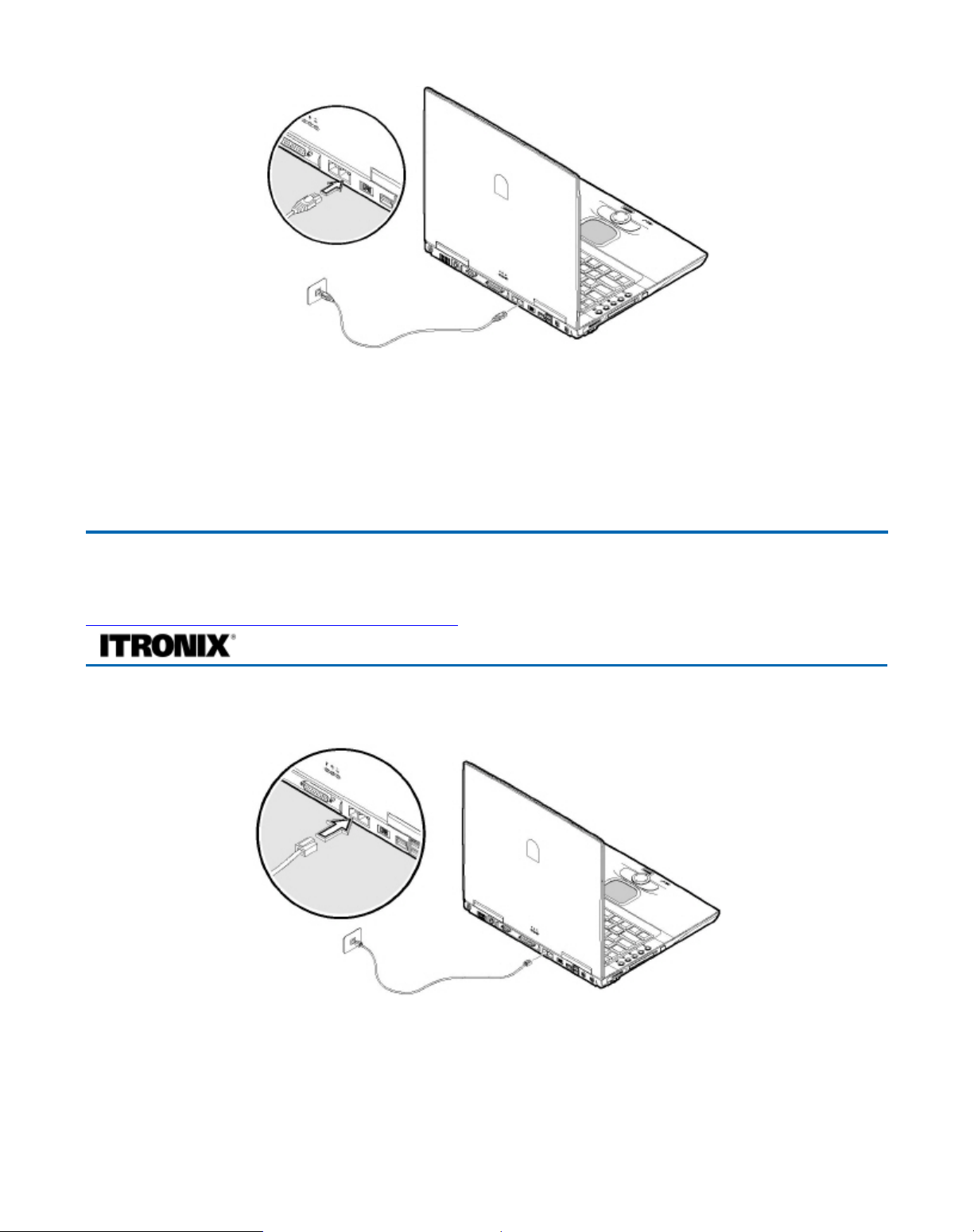

RJ-11

Phone line/modem (internet and fax)

RJ-45

DC-in 2 USB 2.0

Multi-I/O Extension Slot

Audio In

Ethernet

AC Adapter (power) USB Peripherals such as a mouse or

printer Vehicle Dock, Desk Mount

Microphone

Page 30 of 100GoBook PRO II Hel

Audio Out

PC Card Slot

CompactFlash Slot

no icon

Making Connections

Your computer is equipped with a full array of ports and connectors, including standard input/output (I/O) ports for quickly and easily adding peripheral devices such as printers, keyboards, and mice. Refer to documentation included with individual devices for details on connecting these devices to your computer. Your computer also includes IEEE 1394 ports, modem and LAN ports, offering advanced communications technology.

Security Slot

Speakers or headphones

Type II PC Cards

CompactFlash Cards

Computer lock such as a Kensington lock

GoBook® PRO II Help

Attaching Power

insert picture with callout of port

Connect the DC power cable from the AC adapter or the vehicle adapter to this jack.

72_0128_001 16 May 2005

GoBook® PRO II Help

Attaching an External Monitor or Video Device

+ 69 hidden pages
