Getting Started
Congratulations on your purchase of the Itronix GoBook Tablet PC! Your new GoBook Tablet PC features the most innovative advances in portable computing technology. It combines state-of-the-art
that is compact, powerful, and easy to use virtually anywhere.
Designed for a wide range of business productivity applications, the GoBook Tablet PC is an ideal choice for mobile workers who are on the go throughout the day. It offers flexibility, durability and dependability along with ruggedness and portability to make it quick and easy to transport to any work location, indoors, outdoors, or in your vehicle.
This online document, GoBook Tablet PC Help, contains all the information you need to set up and use your new GoBook Tablet PC. It describes all the features of the GoBook Tablet PC in an easy-to-read yet thorough manner. For information on printing, navigating or using GoBook Tablet PC Help see
to Use This Help System. To optimize readability we recommend you view this document in landscape
orientation.
GoBook® Tablet PC Help
Unpacking Your System
After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following:
STANDARD
l
The following items are normally optional, but some vendors may include them in the standard package.
Soft Handle
Page
2
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
8.4” SVGA TFT Active Matrix Color Display
l
Seven (7) Hot keys
l
56K V.92 Fax/Modem
l
10/100 Mbit Ethernet LAN
l
Li-Ion Battery
l
Two (2) USB 2.0 Ports
l
RJ11 Jack
l
RJ45 Jack
l
Two PC Card Slots: a Type II PC Card Slot, and a Compact Flash Slot
l
External Speaker and Microphone Jacks
l
Internal Speaker and Microphone
l
Stand Holder Connector
l
Second Battery Connector
l
Microsoft Windows XP Tablet PC edition
l
3-year limited warranty
OPTIONS
Some items may not be available in some countries, or some vendors may choose not to carry all the items.
l
Vehicle Adapter
l
Carry Case
l
Vehicle Dock
l
Desk Mount
l
External USB Floppy Disk Drive
l
External USB DVD/CD-RW Drive
l
Shoulder Strap
l
l
This Help System describes the key elements of your computer. Be sure to read it thoroughly before you
,
Page
3
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
DRAM memory modules
l
WLAN radio
l
Bluetooth radio
l
Wireless WAN radios and antennas
l
Extra Battery
l
Tip and Ring Cable
l
RJ-11 Cable
l
USB to Serial Cable
l
USB 2.0 Port Replicator
CAUTION When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor may be able to recommend reliable brands and models.
Where to Look For Information
About Your GoBook Tablet PC
begin using your GoBook Tablet PC and refer to whenever needed. It includes a table of contents, search function, index and glossary to make finding the information you need quick and easy. See How
to Use this Help System for information about navigating, printing or otherwise using this document.
About Windows
For more extensive information and help about Windows go to Help and Support, found on the Start Menu. We also recommend that you go to Start, All Programs, Accessories to open Tour Windows XP an online orientation of Windows XP.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
The first time you use your computer, we recommend that you carefully read the section on
GoBook® Tablet PC Help
GoBook
® Tablet PC Help
Page
4
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Features
High Capacity Hard Disk Drive
Your Tablet PC has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files.
Full Array of Ports and Connectors
Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals.
SVGA Display
Your Tablet PC has an SVGA TFT active matrix display with integrated graphics capabilities.
Built-in Microphone and Speaker
The internal speaker and microphone enable you to run a variety of multimedia applications.
Hot Keys
Hot keys or function keys allow you to suspend your computer, navigate, and give you easy control of your display.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Precautions
You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:
l
Follow all warnings and instructions noted in this documentation and in the Windows Help and Support, found on the Start Menu.
l
Power Management to familiarize yourself with some basic battery information and to ensure
Using your computer for the first time involves:
Page
5
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
optimum performance
l
There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
l
Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents
l
Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat
l
On the bottom of the GoBook Tablet PC, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company
l
Do not step on or place anything on the power cord
l
If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet
l
Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components
l
For best results, use a power strip with a built-in surge protector. Do not use inferior extension cords as this may result in damage to your computer
l
Do not operate the GoBook Tablet PC at temperatures above 140°F (60°C) or below -4°F (-20C).
l
Do not store the GoBook Tablet PC at temperatures above 167°F (75°C) or below -67°F (-55°C).
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
The First Time...
l
For added security, consider purchasing a Kensington lock to put into the Kensington lock hole on
Using a computer for extended periods of time with a poor workstation setup and incorrect work
Page
6
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Installing the Main Battery
l
Connecting the AC Adapter
l
Turning on/off the GoBook Tablet PC
l
Calibrating the Digitizer Touch Panel
Tips for New Owners
l
Read the Troubleshooting section for common questions and answers about the GoBook Tablet PC.
l
Take the Windows tutorials. Select Get Going with Tablet PC from the Start Menu.
l
Take responsibility for backup Back up files often. Users who need to manage large amounts of data may wish to use backup devices such as a ZIP drive.
l
Don't leave passwords anywhere on your notebook or carrying case
l
Be careful when placing your notebook on an airport security conveyor belt. In most airports, security conveyor belts are safe for computers. If you are not sure, ask the security staff. You should keep a close eye on your computer.
l
Tape your business card to the notebook and accessories In the workplace, notebooks and accessories may often look exactly alike, leading to equipment mix-ups. Prevent such mix-ups by placing your name on your equipment.
l
Develop ergonomic work habits The science of ergonomics studies the relationship between health and a suitable work environment. For more information on ergonomics, contact your nearest computer bookstore, or local library. The Internet also has information on this and other related subjects.
l
Consider using a lock the left side of your computer (see Top Connectors). Use the Kensington lock to secure the
computer to a desk or table.
NOTE habits can cause health problems.
More Basics
The next section, Getting Familiar with Your Computer, contains basic information you need to efficiently use your GoBook Tablet PC.
72_0111_007
Page
7
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Startup Problems
If your computer does not operate properly, try these solutions:
l
Connect the AC adapter to charge the battery if it is not charged. NOTE The Power Status LED should be solid blue and the Power LED on the AC adapter should
be lit if the AC adapter is connected and functioning properly. Additionally, one of the power icons should appear in the task tray.
l
If the AC adapter is connected, make sure the electrical outlet you are using works.
l
Check to make sure the battery is installed and charging properly.
l
If the battery doesn’t begin charging, remove the battery, connect the AC adapter, and turn on the computer by pressing the power button . Reinstall the battery. The Battery Status LED is orange while the battery is charging.
The Troubleshooting section lists additional solutions you can try:
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Getting Familiar with Your Tablet PC
The Itronix GoBook Tablet PC is a ruggedized , weather-sealed Tablet PC system built for the demanding environment of the mobile worker. Designed for use by mobile workers, this computer is a superior work tool for collecting, managing, and communicating information in the field.
The following pages describe the external and internal features of your GoBook Tablet PC.
GoBook® Tablet PC Help
Individual Parts
The following diagrams and descriptions provide an overview of your GoBook Tablet PC. This
Page
8
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
document uses the landscape view as the default orientation of your GoBook Tablet PC.
Hover your cursor over the pictures to see feature descriptions or link to more information.
Front View
Bottom Edge View
Top Edge View

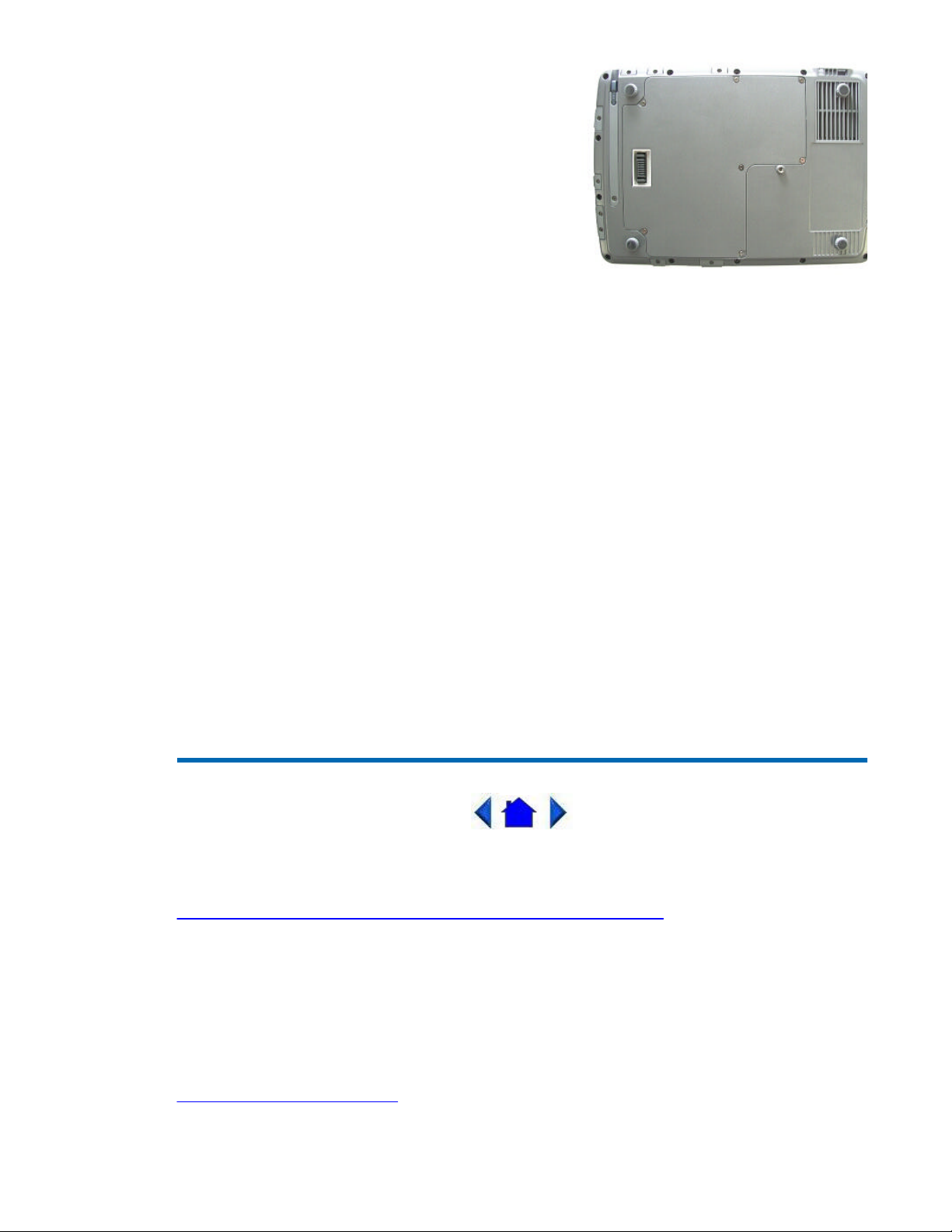

Back View
Hover the cursor over each hot key on the picture to see a description.
GoBook
® Tablet PC Help
Page
9
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Right Side View
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Hot Keys
The GoBook Tablet PC has seven function or hot keys to speed common functions.
Hot Key
Description
combinations
below.
cursor down one line.
content.
Page
10
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
1. Function Key
2. Line Up Key
3. Line Down Key
4. Enter Key
5. Escape Key
6. Security Key
7. Rotate Key
Function Key (Fn) Press this key in
combination with another key to perform more functions. Press it and hold while pressing another hot key to perform the key
Line Up Key Press this key to move the
cursor up one line.
Line Down Key Press this key to move the
Enter Key Press this key just like you
would press Enter on a desktop computer. For example, implement an action, navigate deeper or move forward through
Escape Key Press this to go back or
escape to the previous context or window.
Security Key Press this key like you
would press Ctrl+Alt+Del on a desktop computer.
Rotate Key Use this key to switch
between portrait and landscape orientation on the display.
NOTE Some applications may not display as well in portrait orientation. For example, you may need to
scroll right to view all the
contents on the page.
Fn + Line Up
Page up
Fn
+
Security
Display brightness down
GoBook
® Tablet PC Help
Page
11
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Fn + Hot Key Combinations
Fn + Line Down Page down Fn + Enter Speaker volume down Fn + Escape Speaker volume up
Fn + Rotate Display brightness up
Description
Power Button
Additionally, the GoBook Tablet PC has a power button located at the top left corner above the display. Press this button to suspend or turn the unit on or off.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
LED Status Indicators
The GoBook Tablet PC has four LED status indicators located left of the display when the unit is in landscape orientation. The LEDs light up when a particular function of the computer is active. LED numbers are from top to bottom when the Tablet PC is in landscape orientation.
1.
From the Start Menu, select Control Panel.
3. Battery Status LED
GoBook
® Tablet PC Help
Page
12
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
4. Power Status LED
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Green Fully Charged Orange Charging Blinking Red Battery capacity is less than 10% Solid Blue Unit is turned on
Blinking Blue Suspend to RAM
Display and Pen Basics
Your GoBook Tablet PC has an SVGA TFT active matrix color display with integrated graphics capabilities. The display is a transmissive color display that provides excellent readability indoors or outdoors. If you have trouble reading your display you can adjust the screen brightness using hot keys. Press FN+Rotate to increase brightness and press FN+Security to decrease brightness.
Use the digitizer pen /stylus provided with your GoBook Tablet PC like you would use a mouse on a desktop PC. The following common mouse functions can all be performed with your pen:
Single-click: Tap once with the pen
Double-click: Tap twice with the pen.
Right-click: Tap while holding down the button on the pen.
Mouse-rollover: Hover your pen above the display. For example, when you roll your mouse over an
icon you see a popup description of the icon. Hover your pen over the icon to see this description.
In addition to these mouse functions you can use the digitizer pen to draw or write in some Tablet PC applications.
CAUTION Use only the digitizer pen included with the unit. Never use sharp, hard, or abrasive implements on the digitizer touch panel such as ball point pens, pencils, or keys. They could damage the screen.
To calibrate the digitizer touch panel
2. If you are in Classic View continue to step 3. If you are in Category View select Printers and
also read data from
DVDs
and
CDs
, including audio or video disks. Your Tablet PC
identifies the drive
GoBook
® Tablet PC Help
Page
13
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Other Hardware and continue to step 3.
3. Select Tablet and Pen Settings. Then tap the Settings tab.
4. Under the Calibration field choose the orientation you want to calibrate, either Landscape or Portrait.
5. Tap on the Calibrate button.
6. After you have completed calibration by touching the cross-hairs with your digitizer pen, select OK to have the new settings take effect.
See Maintenance and Storage for information on how to clean the display.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Disk Drives
Your Tablet PC comes with several components for reading and writing (recording) information.
The Hard Disk Drive
The hard disk provides high-capacity storage and fast access. The operating system and most programs are stored here. Your GoBook Tablet PC identifies the hard disk drive as drive C.
Optional External Drives
The GoBook Tablet PC has PC Card slots in addition to three USB external drive options. You do not have to power down the Tablet PC to connect any of these drives because they are "hot pluggable".
USB Floppy Disk Drive (FDD)
The floppy disk drive provides a convenient way of storing and transferring small files. The disk drive uses standard 3.5-inch, 1.44 MB disks.
USB DVD / CD-RW
The DVD / CD-RW drive is a read/write drive. It can be used to write data to a recordable CD. It can
with the letter following the hard drive letter. If your hard drive is D, then the DVD/CD-RW drive will
menu.
This screen shows the amount of system memory.
Page
14
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
be E.
Precautions for Handling DVDs and CDs
Keep these precautions in mind when handling DVDs and CDs.
l
Always hold the disk by the edges; avoid touching the surface of the disk.
l
Use a clean, dry, cloth to remove dust, smudges, or fingerprints. Wipe from the center outward.
l
Do not write on the surface of the disk.
l
Extremes in temperature may damage disks. Store disks in a cool dry place.
l
Do not use benzene, thinners, or cleaners with detergent. Only use cleaning kits designed for DVDs or CDs.
l
Do not bend or drop the disks.
l
Do not place objects on top of disks.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Memory
Adding memory allows the computer to operate faster, handle more tasks simultaneously, and work more smoothly with large files. Users who increase memory demands - by adding additional programs, for example - may notice a slowdown in operating speed, and wish to increase memory. The Tablet PC includes a memory card slot for adding additional memory.
Calculate memory size by adding the size of the memory module to the existing built-in memory. For example: 128 MB (module) + 128 MB (built-in memory) = 256 MB Total.
If you add memory to your GoBook Tablet PC it will automatically detect the change in RAM capacity when it restarts. You can verify RAM capacity has changed in the Setup Utility or in Windows:
1. Setup: Double-tap the green Setup box when it appears during boot-up. Then select CMOS Setup
2. Windows: Right click on my computer and select properties. The bottom of the system Properties
You can use these slots to
5.
Press the eject button again to release the PC Card.
Page
15
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
General tab lists the memory detected by Windows.
For information on adding memory to your GoBook Tablet PC, contact your supervisor or your organization’s help desk.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
PC Card Slots
The GoBook Tablet PC has two PC card slots: a Compact Flash Slot located on the right side of the computer and a Type II PC Card Slot located on the top side of the computer. interface between your GoBook Tablet PC and a variety of communications devices, such as network adapters, SCSI adapters, fax/modems. They can also provide additional data storage capacity.
Installing a PC Card
1. The top side of a PC Card is usually identified with a label. Insert the card into the slot with the top up and the edge with pinhole contacts going in first. You will feel some resistance as the card slides into the back of the slot.
2. PC Cards require drivers, or a program that allows the operating system to use a specific device. Many drivers are included with Windows, but if not, you will be prompted to install the driver included with your card.
NOTE Please read the instructions included with individual PC Cards. Some cards may be inserted with power on, while others require that the computer be turned off.
Removing a PC Card
1. If a PC Card is in use, you must shut down the PC Card before removing it.
2. Select the PC Card icon on the right side of the Windows tray taskbar, then select Stop.
3. When the Windows message appears, telling you that it is safe to remove the card, select OK.
4. Press the eject button on the PC Card slot to release the eject button (it is spring loaded and remains hidden until it is pressed).
Compact Flash Cards
Page
16
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
The GoBook Tablet PC has a user accessible Compact Flash card slot. Files stored on Compact Flash cards can be created, deleted, moved and amended in exactly the same manner as files stored in memory.
Your GoBook Tablet PC can use Type 1 Compact Flash cards for secure data storage. If you store any user-installed application programs and associated data on Compact Flash, these programs and this data will not be lost after a hard reset.
Open the Compact Flash port cover on the right side of the computer. Orientate the Compact Flash card with the label side uppermost and carefully insert it into the socket. Your GoBook Tablet PC should automatically detect most Compact Flash cards.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Making Connections
Your GoBook Tablet PC is equipped with a full array of ports and connectors, including standard input/output (I/O) ports for quickly and easily adding peripheral devices such as USB devices. Refer to documentation included with individual devices for details on connecting these devices to your computer. Along with the standard ports found on most computers, your computer also includes modem and LAN ports for advanced communications technology.
GoBook® Tablet PC Help
Right Side Connectors
1 LAN RJ-45 Jack
With an Ethernet LAN you can make LAN connections without installing PC cards. Connection speed
Page
17
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
is 10/100 Mbps.
2 USB 2.0 ports
The Universal Serial Bus ( USB ) is the latest standard for attaching keyboards, mice, scanners, printers and other devices to a computer. USB devices can be chained together on a single cable.
3 Audio-Out Jack
Connect external speakers or a stereo headset to this jack to listen to multimedia.
4 Audio-In Jack
Connect a microphone to this jack to record audio.
5 Compact Flash Slot
Use this slot to insert a compact flash card.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Bottom Edge Connectors
1 Extension Slot

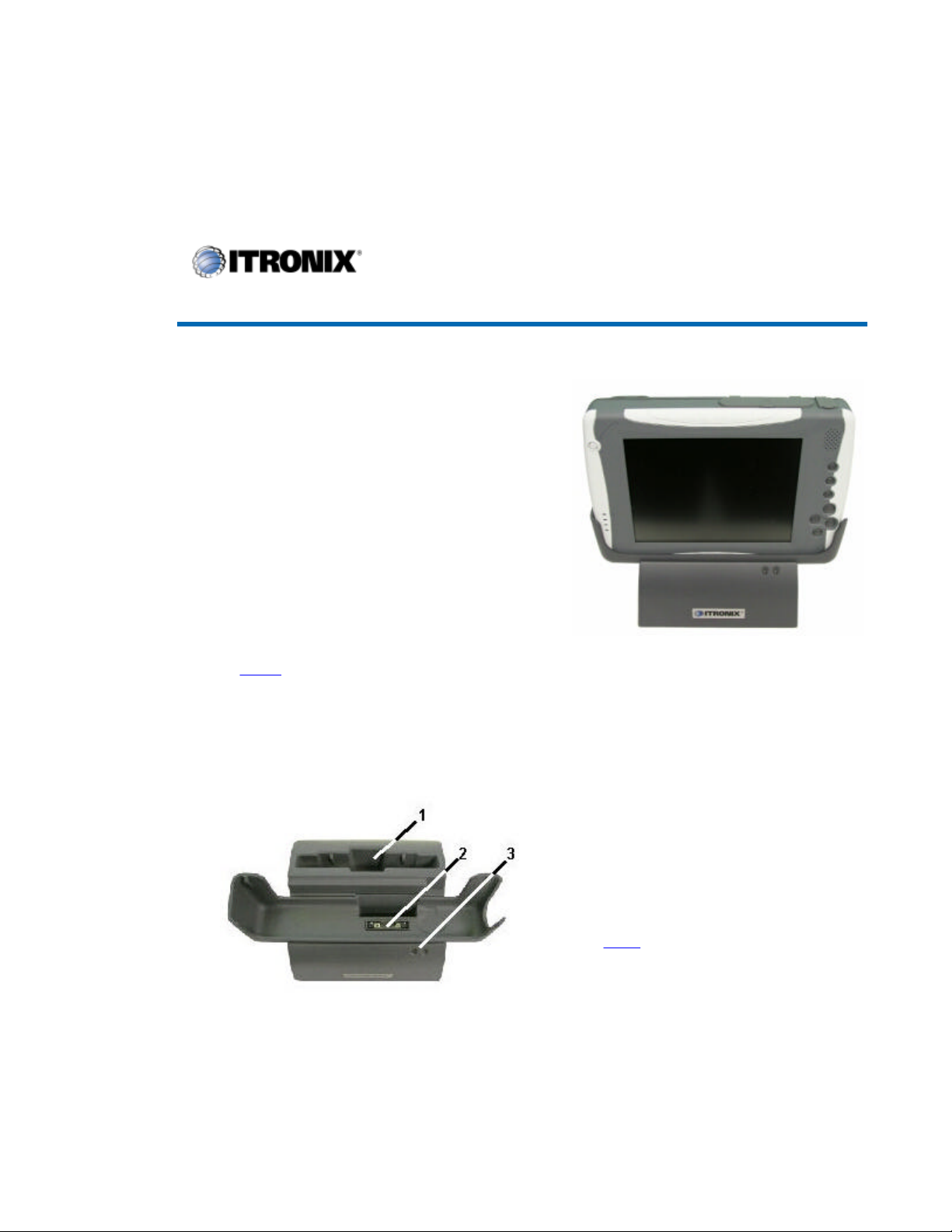

Use this Multi-IO extension slot with the Desk Mount or the Vehicle Dock.
2 DC-in Jack
Connect the DC power cable from the AC adapter to this jack or use with the vehicle adapter.
Do not
Page
18
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Top Connectors
1 Fax/modem RJ-11 Jack
The fax/modem can transmit data using the 56 Kbps V.90 or V.92 protocol, and send and receive faxes at 14.4 Kbps. In some countries, local regulations may not permit the use of the fax/modem designed for this system. In this case, you may use a PCMCIA modem.
CAUTION Plug your modem into an analog telephone jack only. Most homes use analog lines. use digital lines, such as PBX and ISDN systems found in many offices. Digital lines may damage your modem. If you are unsure as to the type of port you have to plug into, simple detection and protection devices are available at your local computer store.
2 Type II PC Card Slot
Supports 32 bit Card Bus 2.1 interface as well as Zoom Video when in landscape orientation. You can use this slot with PC Card Radios.
3 Security Slot
Your computer has a Security Slot that can be used with a standard laptop locking device, such as a Kensington Lock. You can connect the GoBook Tablet PC to a large object with the lock to prevent theft of your Tablet PC. See the documentation that comes with your lock for more information.
72_0111_007
Use the end of a paper clip in this hole to perform a reset of your GoBook Tablet PC. You will then need
Page
19
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Back Connectors
1 Digitizer Pen
Use this digitizer pen to navigate and input on the digitizer touch panel.
2 Second Battery Connector
Attach a second, external battery to this connector to extend battery life.
3 Security Slot
Your computer has a Security Slot that can be used with a standard laptop locking device, such as a Kensington Lock. You can connect the GoBook Tablet PC to a large object with the lock to prevent theft of your Tablet PC. See the documentation that comes with your lock for more information.
4 Master Reset Key
to press the power button to restart the computer.
5 RF Power On/Off Button
This button turns on/off the integrated WLAN and Bluetooth radios.
The Itronix GoBook Tablet PC has superior wireless capabilities that simultaneously support Bluetooth ,
Page
20
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Wireless Communication
Wireless LAN ( WLAN ) and Wireless WAN .
It includes three antennas for wireless communication; two internal antennas and one PC-Card Radio antenna .
Use only the supplied or an approved antenna(s). Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations.
Your GoBook Tablet PC has an On/Off button on the back for the integrated WLAN and Bluetooth radios.
GoBook® Tablet PC Help
Bluetooth Radio (optional)
The GoBook Tablet PC includes an integrated Bluetooth option. Its typical range is 10 meters. NOTE It is not recommended you use the Bluetooth radio and WLAN radio at the same time since this
will degrade the WLAN radio's performance.
Read About Bluetooth
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
WLAN Radio (optional)
Sierra GPRS 750. The GoBook Tablet PC supports wakeup when using this
Help
Page
21
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
The GoBook Tablet PC has an integrated 802.11b WLAN radio option. Its typical range is 100 to 300 meters in open spaces and 30 to 100 meters indoors. An internal antenna is provided for the WLAN radio
Read About WLAN
Read About In-Building WLANs Read About Building-to-Building WLANs
Read About Combination WLANs
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC
PC Card Radios
Your GoBook Tablet PC supports the following PC Card radios:
l
CDMA2000/1xRTT: Sierra CDMA 55X PC-Cards,and Cisco WLAN PC Card.
¡
GSM / GPRS :
card.
See the PC Card Radio manufacturer for more information on using each radio.
Read About CDMA Read About GSM / GPRS Read About WLAN
72_0111_007
reliability of radio coverage is a primary concern. Therefore, one of the most
Try all sides of a building to see which side provides the strongest radio
Page
22
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Improving Radio Coverage
Wireless connectivity between radio-equipped portable terminals and host computers is unique and maintaining this wireless connectivity over a wide area is fundamental to the usefulness of the network. As such, the scope and
important features of the wireless network is the degree of radio coverage provided. Coverage is influenced by terrain, buildings or a crowded room. There are many things that can be done to improve coverage depending on location.
In any location
1. Performance can vary significantly at different times of the day.
2. Weather can affect performance.
On the street
1. signal.
2. Move from under trees. Pine needles absorb radio signals more than leaves.
3. Move away from overhead electrical wires.
4. Radio signals reflect off other buildings. Even in the signal shadow, the signal could be reflected back by another building.
5. Try not to hold the unit. If possible, place it in vehicle, on a cabinet or desk.
6. If holding the unit, turn the unit in 90-degree increments to avoid shielding it with your body.
7. The signal is 1 - 2 feet across; therefore, moving several feet in any direction may give different results.
Inside a Building
Electromagnetic Interference (EMI) is generated by switching circuitry
) so
Page
23
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
1. Move toward windows.
2. Signals do not penetrate ground, therefore, there will probably be no signal in basements.
3. Reflective coatings on windows reflect radio signals. Try the side of the building that is least likely to have coated windows.
4. Closed metal blinds can reflect radio signals.
5. Dropped ceilings sometimes hide an accumulation of electrical cable.
Electromagnetic Interference (EMI)
1. closets or Un-interruptable Power Source (UPS) systems found near computer rooms and can block the radio signal.
2. Look for significant sources of electromagnetic radiation. The problem may emanate from a source between location and the radio base station.
When to use landline communication If these tips do not improve radio signal strength, switch to landline
communication. Switching to landline communication is faster than searching for and trying to improve the radio signal.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Power Management The Itronix GoBook Tablet PC uses dynamic power management ( DPM
you can reduce the amount of energy used, especially during periods of inactivity. Effective use of power management options can greatly conserve and extend your battery life.
Your GoBook Tablet PC includes a smart Li-ION battery pack and a Real Time Clock coin battery. There is also an optional second external battery pack that effectively doubles your unplugged runtime.
Page
24
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
GoBook® Tablet PC Help
Battery Calibration
The first time you use a battery, you should calibrate it. The calibration process empties and charges the battery one time. This allows the Windows battery gauge to accurately monitor battery status. To calibrate the main battery or second external battery, follow these steps:
1. Plug in the AC adapter .
2. Restart the computer and when the startup screen appears, use your digitizer pen to tap on the green Setup box in the corner of the screen. This starts the Setup Utility .
3. Then select the Setup function "Battery Calibration". Please press the Line Up or Line Down keys to select the option, and Enter to continue.
4. You will be prompted to make sure the AC adapter and Battery are present. Do this and then Select Yes to begin "battery auto-learning".
Battery Calibration will take from 10 to 16 hours, depending on how much power the battery may already contain.
NOTE For optimum performance, we recommend calibrating the battery and optional secondary battery every three months.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
RAM
and Suspend to Disk)
Page
25
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
GoBook® Tablet PC Help
Battery Charging
When you use the AC adapter to connect your GoBook Tablet PC to a power outlet, the internal battery automatically begins to recharge. While the battery is charging, the Battery Status LED turns orange after 6-12 seconds and stays solid orange until the battery is fully charged. Then it turns green.
If your computer is turned off, a fully discharged battery takes about 3 hours to recharge. If your computer is turned on and is not in suspend
mode , it takes about 3-5 hours to recharge the battery. Refer to the
following table:
Charging Discharging System On 3-5 hours 3 hours System Off (Suspend to
3 hours _
NOTE A fully charged Li -Ion battery can run the Tablet PC for approximately 3 hours of normal use. (According to Battery Mark benchmark tests). Use of external devices, the media bay and wireless radio causes increased battery consumption.
If a second external battery is attached to your GoBook Tablet PC, this battery will begin charging once the main battery is fully charged.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Using the Battery
About the Battery
The battery is a Lithium-Ion "smart" battery. It contains a temperature
0°C
80%
55°C 80%
Page
26
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
sensor and a memory device that stores information about the battery, such as how much charge is left and how many times it has been recharged. The parameters for the "management" of the battery are also kept in the battery's memory. The life expectancy will depend strongly on the care of the battery, the individual usage pattern and the GoBook Tablet PC specific configuration.
CAUTION Shutdown the computer and remove from external power before removing the battery to prevent potential loss of data.
The battery pack is most efficient at room temperature. However, its efficiency fails as the temperature varies from that range. The chart below shows approximate capacity values with respect to temperatures.
Temperature Capacity
-10°C 50%
20°C 100% 45°C 100%
To prevent damage, the charge circuitry is turned off for temperatures that are too high (above approximately 115°F or 46°C) or too low (below approximately 32°F or 0°C). Your GoBook Tablet PC is equipped with a Thermal Grate to remove heat from the processor.
CAUTION The Thermal Grate gets warm during use of the GoBook Tablet PC. Do not block the flow of air to the Thermal Grate.
NOTE A "cold-soaked" battery of 0°C only has about 10% capacity and may not power a unit.
Monitoring Battery Power There are two ways to monitor how much power the battery has left:
1. Hovering your digitizer pen over the battery icon in the taskbar , without selecting anything, is the simplest way to check on battery power status. The status will show as a pop-up.
2. Alternately, tap Start, Control Panel. If you are in Category View select Performance and Maintenance, then Power Options. In Classic View simply select Power Options. Then tap the Power Meter tab to see how much battery power remains.
NOTE If you do not see the battery icon, enable it in Start, Control Panel, Power Options. Choose the Advanced tab and select "Always show icon on
the taskbar."
Click on the Alarm Action button to
Save your work and then select Turn Off Computer, Turn Off from the
Page
27
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Low Battery Alarms How your computer responds to a low battery condition can be set by going
to Start, Control Panel, Power Options, and selecting the Alarms tab. Two different power alarms can be enabled or disabled: the Low Battery
Alarm, and the Critical Battery Alarm. Use the slidebar to set the power level at which the alarms are activated. choose whether the alarm sounds, displays a message, or both.
CAUTION When battery power is low, the Battery Status LED will blink red and the alarm will beep or display a warning on your screen. Take immediate action, such as saving files or connecting to the AC adapter , or data may be lost.
When the computer alerts you that the battery is low, immediately do one of the following:
n Connect the AC power adapter n Save your work and suspend to disk (Hibernate) by pressing the Power
Button
n
Start menu
n Turn off the computer (or suspend to disk) and replace the discharged
battery with a charged battery (See Battery Replacement )
NOTE Do not restart the computer until you have connected to an AC adapter, or replaced the discharged battery with a charged battery.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Power Saving Modes
Adjust the default power management settings by going to Control Panel,
Page
28
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Power Options. Power Button On the Advanced tab of Power Options the Power buttons dialog box allows
you to set different actions to take when the power button is pressed. You may have the Tablet PC standby, hibernate, or you can shut down the computer altogether. You can also have the power button do nothing (not recommended) or give you a choice between standby, restart and turn off.
However, holding the Power Button down for more than ten seconds will force a power off while operating under any situation, resulting in the loss of any unsaved information.
Standby Most devices are powered down in a low power state. Resume the unit by
pressing the power button once to resume to point at which the unit was suspended.
Hibernate Suspend to Disk is similar to turning off the computer, except that the
current state of the computer is copied to the hard disk as a special file. When the computer returns from suspend mode , the desktop appears with the same files and programs open as when the computer was suspended. Suspend to Disk is very useful when you don't want to take the time to shut down all open programs one by one to shut off the computer, only to have to open the same programs and files the next time you use the computer. This mode is also called hibernation mode.
Suspend-to-disk File Suspend to Disk file will be saved by Windows to the hard disk. The size of
the file will correspond to the amount of system memory. Please make sure there is enough space on the hard disk.
Shut Down System is shutdown. Initiating Suspend Mode There are three ways to initiate suspend mode. The settings can be adjusted
in the Power Schemes tab in Power Options:
n The computer will automatically enter suspend mode when not used
for a set period of time
Page
29
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
n Selecting Start, Turn Off Computer, Stand By n Pressing the Power Button (if enabled in Power Options)
Power Saving Tips Avoid operating the fax/modem, or audio and video applications when using
battery power. Operating a fax modem, video, or audio equipment or turning on the Wireless LAN increases the computer's power requirements.
Decreasing display brightness can also save power. Decrease brightness by pushing FN+Security. Increase it by pushing FN+Rotate.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Battery Replacement
Replacing the Main Battery Over time, the battery’s capacity gradually decreases. We recommend that
you replace your battery when you notice that it begins to store significantly less charge. Change the main battery pack as follows (you may want to print this topic for reference):
1. Turn off the computer.
2. Unplug power supply if connected.
3. Turn the computer upside down.
4. Remove the secondary battery if installed.
5. Using a Phillips screwdriver, remove the seven screws from the battery cover and remove the battery cover.
Keep the door closed when the unit is use to
6. Using the tab on the battery, lift the
Page
30
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
battery pack up and out of the battery bay.
7. Orient the replacement battery correctly and insert it into the battery compartment, making sure it is fully seated.
8. Replace the battery cover over the battery bay and install the seven screws.
9. Install the secondary battery if equipped.
CAUTION The GoBook Tablet PC should always be shut down prior to removal of the battery, as there is a possibility that data may be lost when the unit shuts down by removing the battery.
CAUTION The GoBook Tablet PC battery and unit are only weatherized when the Battery door is closed. prevent damage to the unit.
Replacing the Real Time Clock Battery The Real Time Clock has a coin battery that can be replaced by following
the steps 1-6 above. Then:
1. Lift the coin battery out of the holder.
2. Install a new coin battery with the positive terminal up.
3. Continue with steps 7-9 above.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Optional Equipment and Accessories The Itronix GoBook Tablet PC has several equipment and accessory options
to further enhance your mobile computing experience. A complete list of Itronix optional peripherals and accessories are listed in
Unpacking Your System.
CAUTION When purchasing any additional accessories, purchase only those accessories that are approved for use with your computer. Some
accessories are proprietary items and can be obtained through your system
accessories such as PC Cards or printers, ensure that the accessory functions
properly in your computer before making the purchase. Your system vendor
Stand Holder Connector (unit interface)
Stand Holder Connector (unit interface)
Page
31
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
vendor. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary
may be able to recommend reliable brands and models.
GoBook® Tablet PC Help
Desk Mount
The GoBook Tablet PC's desk mount enables you to experience desktop functionality with your GoBook Tablet PC. The desk mount includes the following ports:
n Stand holder connector (this is the
unit interface)
n DC in n 2 USB 1.1 ports n 15-pin CRT port for an external monitor n Extra battery charger
1. Extra Battery Charging Slot
2.
3. LED
1. Guides
2.
3. 2 USB 1.1 ports
pin CRT port for External Monitor
Page
32
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
4. Extra Battery Charging Slot
5. 15-
To use the desk mount:
1. Ensure the port cover on the extension slot is open and the port cover for the AC power is closed.
2. Line up the bottom of the unit with the guides and press down while feeding the rubberized IO port cover through the opening provided.
3. Apply external power to the desk mount. The LED in the front of the desk mount will light along with the Power Status LED on the GoBook Tablet PC.
The desk mount includes a slot so you can simultaneously charge the main battery and an additional battery.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
the unit. It typically connects to the vehicle battery using the cigarette lighter
unit. When you connect the vehicle adapter, it automatically begins charging
Page
33
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
GoBook® Tablet PC Help
Vehicle Adapter
The Vehicle Adapter is an optional device that supplies power from the vehicle battery to operate the computer and charge the battery installed in
socket. To prevent possible damage to the battery, the system will not allow the
battery to charge at extreme temperatures. Be aware of the following charging characteristics, especially if the computer is left unattended in a closed vehicle.
n If the temperature is <20°C the battery will take longer to charge. n If the temperature is <5°C (<41°F) the battery will not charge n If the temperature is >50°C (<122°F) the battery will not charge
NOTE The Vehicle adapter is not designed for long-term fixed use. To connect the vehicle adapter Insert the vehicle adapter’s power cord into the power port (DC-in jack)on
the bottom side of the computer. Insert the cigarette lighter adapter into the vehicle’s cigarette lighter socket,
turning it slightly to make a good connection. The Power Status LED illuminates to indicate that current is reaching the the computer’s battery. At moderate temperatures, around 21°C (70ºF), the
battery will be fully charged in approximately 3-5 hours. However, under extremely cold or hot temperatures, or if the system is on, it will take longer to charge the battery (up to 16 hours).
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
This depends on factors such as surge environment, the type of equipment to
Page
34
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
GoBook® Tablet PC Help
Surge Protection
A large number of computer and high technology equipment damage is directly related to AC power and telephone line problems. These problems can include surges, spikes, noise, interference, and weather-related problems, which in turn can cause glitches, hang-ups, crashes, performance slow downs, and down time with computer equipment. The market is flooded with hundreds of AC power line surge suppressors advertising high performance surge protection; only a few of them actually provide adequate protection.
This section provides guidelines for selecting a quality surge suppressor to be used with your GoBook Tablet PC, and it helps identify a few sources for products with acceptable performance.
Selecting the Right Surge Protection Consider the level of quality you need when selecting a surge suppressor. be protected, and the quality of the electrical wiring and service.
Surge Environment
Surge environment refers to the damage potential from electrical surges in a particular geographical area. A high quality suppressor should be used if there is frequent lightning activity in the area and the location service is fed by overhead utility poles.
Type of Equipment to be Protected
If the computer is equipped with a modem, the modem should also be surge protected. Protecting the power line without protecting the modem line provides only partial protection.
Quality of Electrical Wiring and Service
Wiring should be up to current NEC standards and have verified good AC grounds. It is important that your computer system be plugged into a grounded AC outlet when charging and that all peripherals connected to your system reference the same AC ground.
Selecting the Right Equipment
The surge suppressor should have diagnostic LEDs that verify good AC
Page
35
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
There are a number of companies that sell quality surge suppressors such as Sutton Designs, APC, and Panamax. When you are looking for a surge suppressor, consider these things.
n Expect to pay at least $50 for a good quality surge suppressor. n The surge suppressor should be a UL 1449, 497, and 1283 listed for
surge suppression, modem surge protection, and RFI/EMI noise filtering respectively.
n
ground, proper wiring, and proper surge operation. On/off switches that light are not recommended since they can produce electrical noise.
n The Joule ratings should be a minimum of 480 Joules for the AC surge
circuit.
n The Joule ratings should be a minimum of 240 Joules for the modem. n The modem surge circuit should present low capacitance to the modem
line or it will slow the transmission rate. Capacitance should be specified at less than 50 picofarads.
n Quality surge suppressor manufacturers generally offer a lifetime
warranty.
n Consider obtaining a protected equipment coverage policy which
insures the equipment in the event of surge damage.
n The devices that will be attached to the computer also need to be surge
protected.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Maintenance and Storage The Itronix GoBook Tablet PC is ruggedized and weather resistant. Handle
it with the normal care required by any sophisticated electronic equipment, and the computer will provide reliable service even under harsh field conditions.
Follow the guidelines in this section to care for your unit.
Avoid exposing batteries to extremely hot or cold temperatures for long
C to
Page
36
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
GoBook® Tablet PC Help
Battery Maintenance and Storage
Maintaining Batteries Follow these guidelines to maintain performance of Lithium-Ion (Li-on)
batteries.
n
periods. To prevent possible damage to the battery, the GoBook Tablet PC does not allow the battery to charge if the internal temperature of the battery gets too low (< 5°C or < 41°F) or too high (> 50°C or > 122 ° F).
n Charge the battery nightly where the temperature will remain around
20°C (68°F).
n Re-calibrate your battery when your battery performance degrades.
Storing Batteries
n Store the battery within the recommended temperature range: 10°
30°C (50°F to 86°F).
n Unused or stored batteries can lose power over time. When you install
a battery that has not been used for awhile, connect external power to the computer and charge the battery.
n After storage, battery calibration may increase its capacity.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Tablet PC Maintenance and Storage
scratch the surface, add a small amount of cleaning solution to the cloth
Page
37
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Maintaining Your Tablet PC Follow these guidelines to help maintain the condition and performance of
your computer.
n
Turn off the computer when you are not using it.
n
Charge the batteries daily or whenever their capacity is low.
n
Operate the computer within the recommended temperature ranges of
-20°C to +60°C (-4°F to +140°F).
Care and Cleaning Physical Inspection Periodically inspect the computer and accessories for
wear, damage, loose or missing parts. Identifying and correcting potential problems early can help reduce the need to return the unit for service.
Outside Case Like all tools, the outside of the computer will get dirty with use. The case is made of painted Magnesium and polycarbonate blend (plastic) doors and covers. These areas can be cleaned with a solution of one part Formula 409™ and one part water. Follow the procedure below.
To clean the outside case
1. Disconnect external power and turn off the computer.
2. Using a soft, dry cloth (do not use paper products because they can and clean the computer case.
3. Wipe off any excess liquid with a soft cloth.
4. Reinstall the battery.
Display Periodically inspect the display to make sure the brightness function is operating properly and that all pixels are operational.
To clean your display To clean the display assembly, use the same cleaning solution and procedure
described earlier for the outside case. In some cases, you can use a small amount of isopropyl alcohol to remove streaks or smears. Use a soft, clean cloth to clean the display. Do not use paper products because they can scratch the screen.
External Power Connector The external power connector may sometimes
broken, bent, or pushed out of place. Clean the connector with a cotton swab
s help desk about the procedure for backing
Page
38
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
be exposed to moisture and/or contamination causing an unreliable connection to the external power source.
Clean the connector using a cotton swab dipped in isopropyl alcohol. RJ-11/ RJ-45 / USB Connectors Make sure these connectors are operating
properly. During normal use, the connector pins can get dirty or become dipped in isopropyl alcohol. I/O Ports Make sure the audio and Multi-IO ports are operating properly.
Periodically inspect the ports for damage or contamination, and make sure their covers are attached and closed when not in use. The I/O covers can be replaced without returning the unit for service. Contact your local support person for more information.
PC Card Door and Connector Whenever possible, make sure this door is
closed and latched properly. When the PC Card door is closed, it provides a watertight seal for the PC Card socket. Shield the area from all contaminants such as liquids, rain, snow, and dust when the door is open.
Make sure the PC Card connector is operating properly by reading from or writing to a PC Card.
Storing Your Computer If you plan to store the computer, follow these storage guidelines. To store the computer
n Files and data should be saved before storing the computer. n Contact your organization’
up files or data.
n Exit all applications and use the appropriate procedure to exit from
your operating system.
n Turn off the computer by going to the Start menu and selecting
Shutdown.
n Remove the battery from the unit and store it in a dry place. n Store the computer within the recommended temperature ranges of -
55°C to +75°C (-67°F to +167°F).
n If you use PC cards, refer to the manufacturer’s instructions you
received with the card for storage and care information.
Page
39
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Customizing Your BIOS Settings This chapter explains how to use the Setup Utility to modify the BIOS
settings. The Setup Utility displays and allows modification of the GoBook Tablet PC components and the configuration of devices that are connected to it. This information is used to test and initialize components at start-up time and to make sure everything runs properly when the system is operating.
The BIOS is installed with a set of default values. You may be able to increase system performance by changing some of the timing values in the Setup Utility, but this can be limited by the kind of hardware you are using. In certain circumstances, the system may generate an error message that asks you to make changes to the CMOS settings using the Setup Utility. This happens when the system finds an error during the POST (Power On Self Test) that it carries out at startup.
CAUTION It is not recommended that you change any settings since this may cause the unit to not function properly.
If you are not sure how to configure the BIOS settings we suggest that you load optimal defaults by selecting that option on the Exit Menu or by selecting F9 on the popup input panel.
GoBook® Tablet PC Help
Using the BIOS Setup Utility
The BIOS Setup Utility allows you to configure your computer’s basic settings. When you turn your computer on, the system reads this information to initialize the hardware The electronic components, boards, peripherals, and equipment that make up your computer system. so that it can operate correctly. You can use the BIOS Setup Utility to change your computer’s start-up configuration. For example, you can change your system's security routine.
Starting the BIOS Setup Utility
Page
40
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
You can only start the Setup Utility shortly after the computer has been turned on. A green Setup box appears on the lower right corner of the computer display. When you see this double tap the box.
You will then see the following screen:
Use your Line Up or Line Down hot keys to highlight "CMOS Setup Menu" and press the Enter key. The system will start the Setup Utility and display the main menu of the utility.
CAUTION Incorrect settings can cause your system to malfunction. To correct mistakes, return to Setup and restore the Setup Defaults by going to the Exit Menu and selecting Load Optimal Defaults.
Navigation and Help
Main
Use for basic system configuration
Use to select the sequence of boot devices that are searched to load an
Use to set user and supervisor passwords and to set backup and virus
Page
41
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
The Menu Bar
The Setup Utility has these five menu options in the Menu Bar at the top of the window. To navigate between these screens you must tap the left or right arrows on the popup input panel:
Advanced Use to set the advanced features Boot
operating system.
Security
check reminders
Exit Use to exit the current Setup session
The Field and General Help Windows
The Field Help Window is on the right side of each menu. It displays the help text for the currently selected field. This text updates as you move the cursor from field to field.
NOTE The field help window refers to keys that are only available via an external USB keyboard. If you do not have an external keyboard attached to your GoBook Tablet PC use the Setup utility's popup input panel
described below:
To navigate between the five menu screens tap the left or right arrows on the
through the fields. Press the Enter Key to view a list of options for each field.
If you need to input characters, tap FnA on the popup input panel to expand
Press FnA again to return
Page
42
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
The General Help Window describes the popup input panel keys and their functions. You can access it by selecting F1on the popup input panel. However, the following keys are not available during Setup unless you have an external USB keyboard attached to the GoBook Tablet PC:
HOME F2/F3 F8 END
Popup Input Panel
The Setup Utility has a unique popup input panel that appears when you hover or tap your pen anywhere on the screen. Use the popup input panel to navigate between setup screens, between fields on each screen and to make any field changes. To avoid making unintentional field changes, we recommend you do not open the panel from the bottom right side of your screen. Instead tap anywhere on the left side of the display.
input panel. To toggle through the fields tap the up and down arrows. Alternately, you can use the Line Up and Line Down hot keys to toggle
it to a larger input panel that includes characters. to the small input panel.
NOTE The popup input panel disappears after a few seconds of inactivity and when you change screens.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help

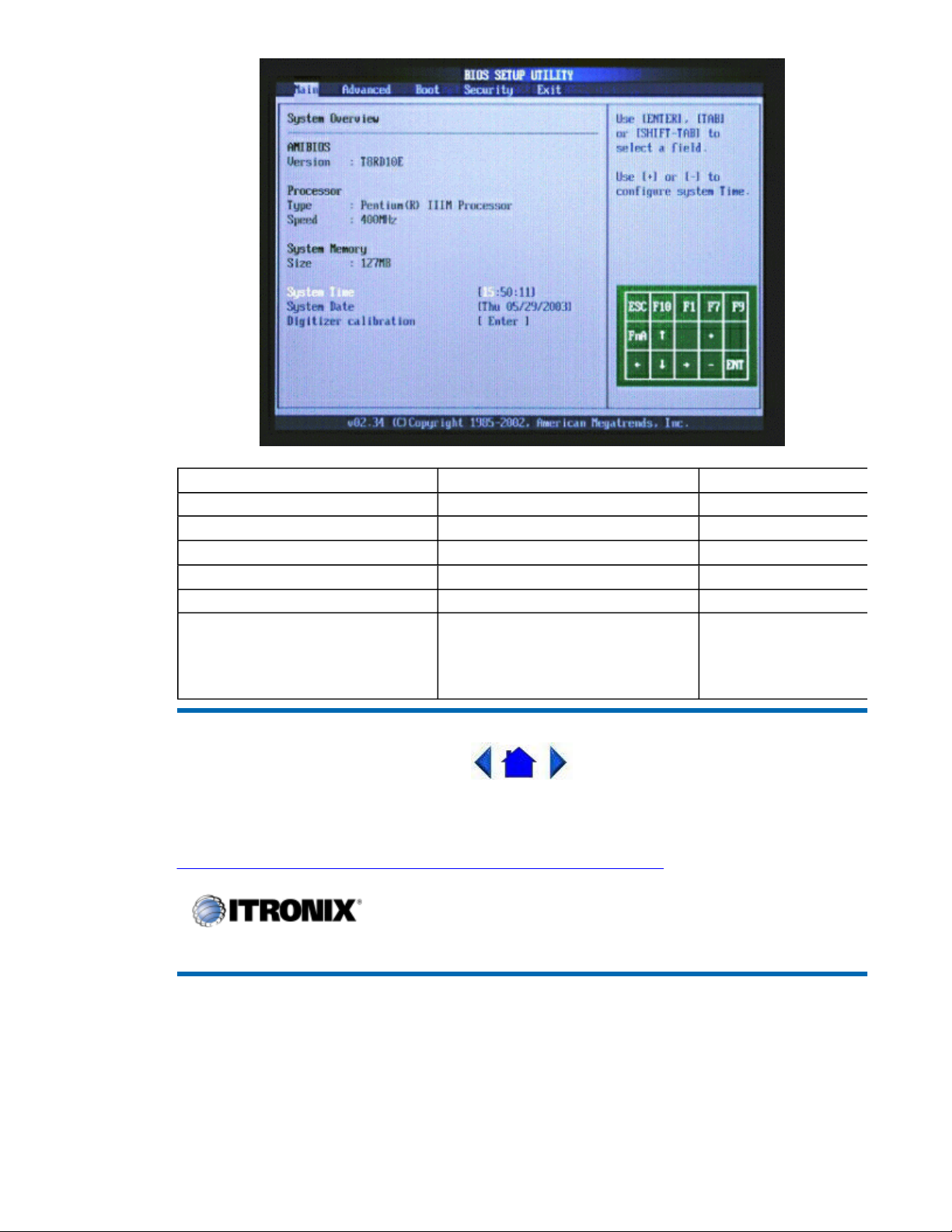

The Main Menu
AMBIOS
for information only
Version
Configure system time
System Date
MM/DD/YYYY
Configure system date
Begins the digitizer calibration.
Once you have calibrated the
display the computer will
restart.
Page
43
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Field Setting Function
Processor for information only Type and Speed System Memory for information only Size System Time HH:MM:SS
Digitizer Calibration Opens Display Calibration
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help

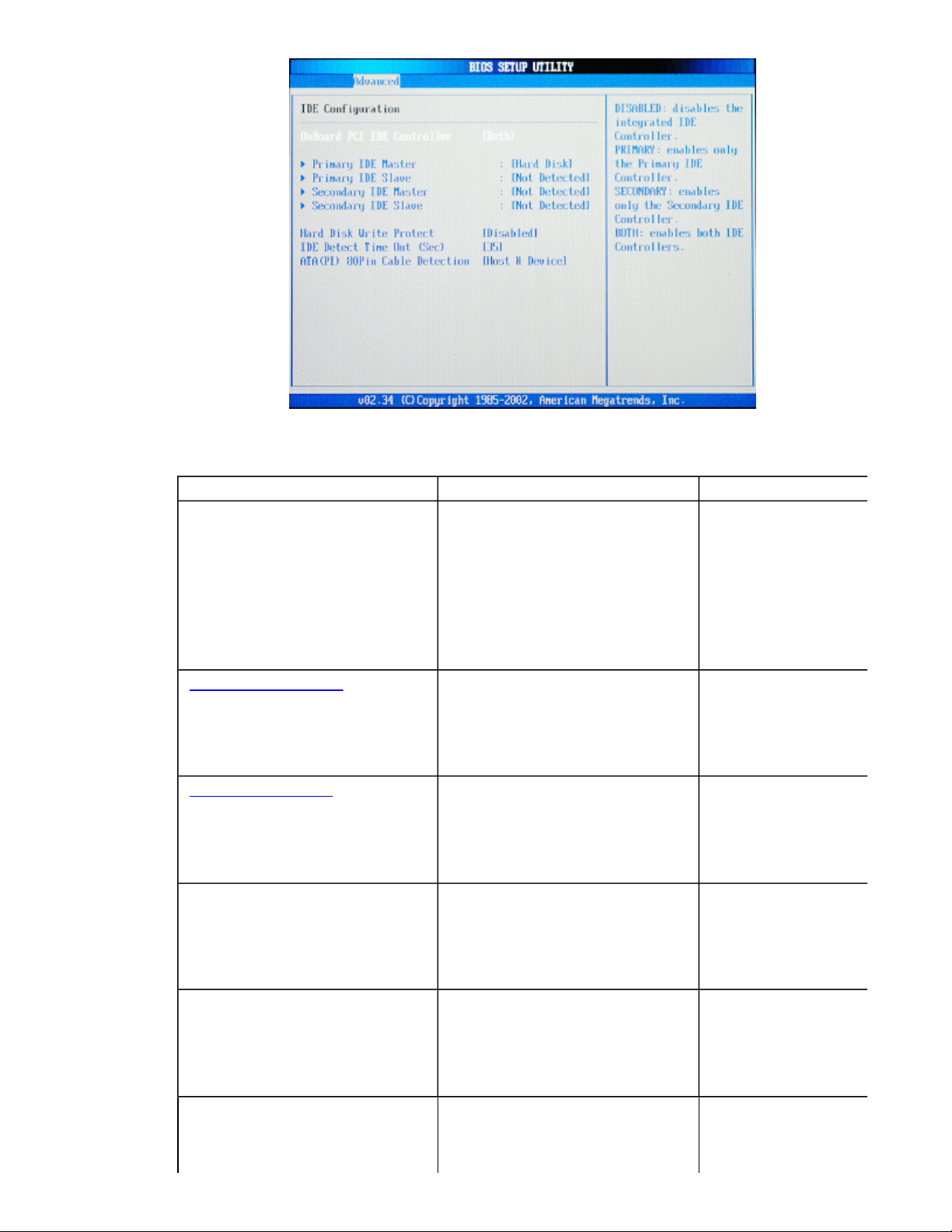

The Advanced Menu
IDE Configuration
sub-menu
Configure the IDE device(s).
Enables support for legacy
USB. Auto option disables
legacy support if no USB
devices are connected
AC or Battery powered, CPU
speed will change based on the
selections
Select which RF module
Page
44
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Field Setting Function
Legacy USB Support Disabled
Enabled
Auto
Intel (R) SpeedStep (tm) tech Maximum Performance
Battery Optimised Reversed Automatic Disabled
RF Module Option Wireless LAN Enable
Bluetooth Enable Disabled Both RF Enable
IDE Configuration
Depending on
Support
Disabled: disables the
integrated IDE Controller.
Primary: enables only the
Primary IDE Controller.
Secondary: enables only the
Secondary IDE Controller.
Both: enables both IDE
While entering setup, BIOS
auto detects the presence of
IDE devices. This displays the
status of auto detection of IDE
While entering setup, BIOS
auto detects the presence of
IDE devices. This displays the
status of auto detection of IDE
While entering setup, BIOS
auto detects the presence of
IDE devices. This displays the
status of auto detection of IDE
devices
While entering setup, BIOS
auto detects the presence of
IDE devices. This displays the
status of auto detection of IDE
Disable/enable device write
protection. This will be
effective only if device is
Page
45
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Field Setting Function
OnBoard PCI IDE Controller Disabled
Primary Secondary Both
Controllers.
Primary IDE Master sub-menu
devices
Primary IDE Slave sub-menu
Secondary IDE Master sub-menu
(same as Primary IDE Master)
Secondary IDE Slave sub-menu
(same as Primary IDE Slave)
Hard Disk Write Protect Disabled
Enabled
devices
devices

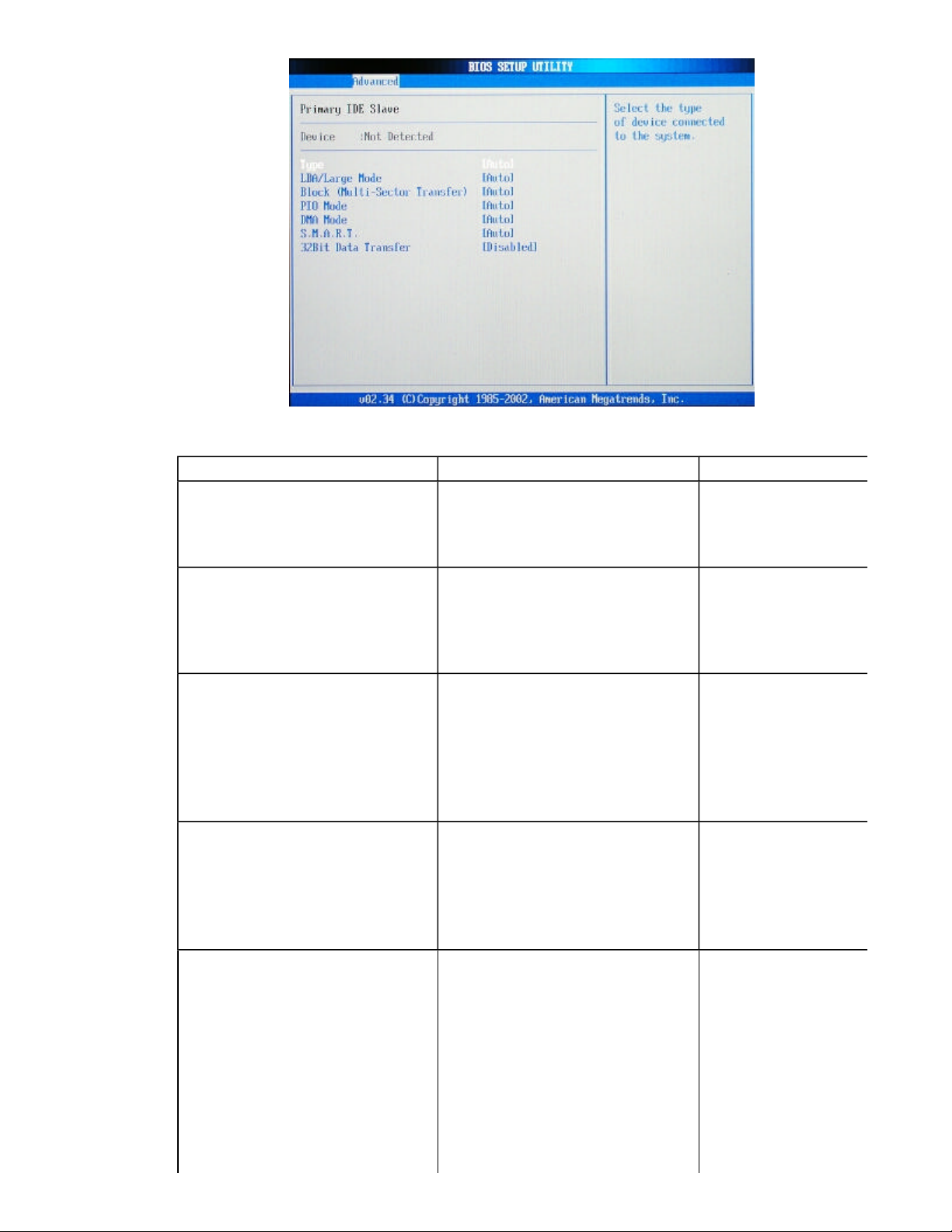

Primary IDE Slave
accessed through BIOS
IDE Detect Time Out (Sec) 0
Select the time out value for
/ATAPI device
Select the mechanism for
detecting 80Pin ATA(PI)
Page
46
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
ATA(PI) 80Pin Cable Detection

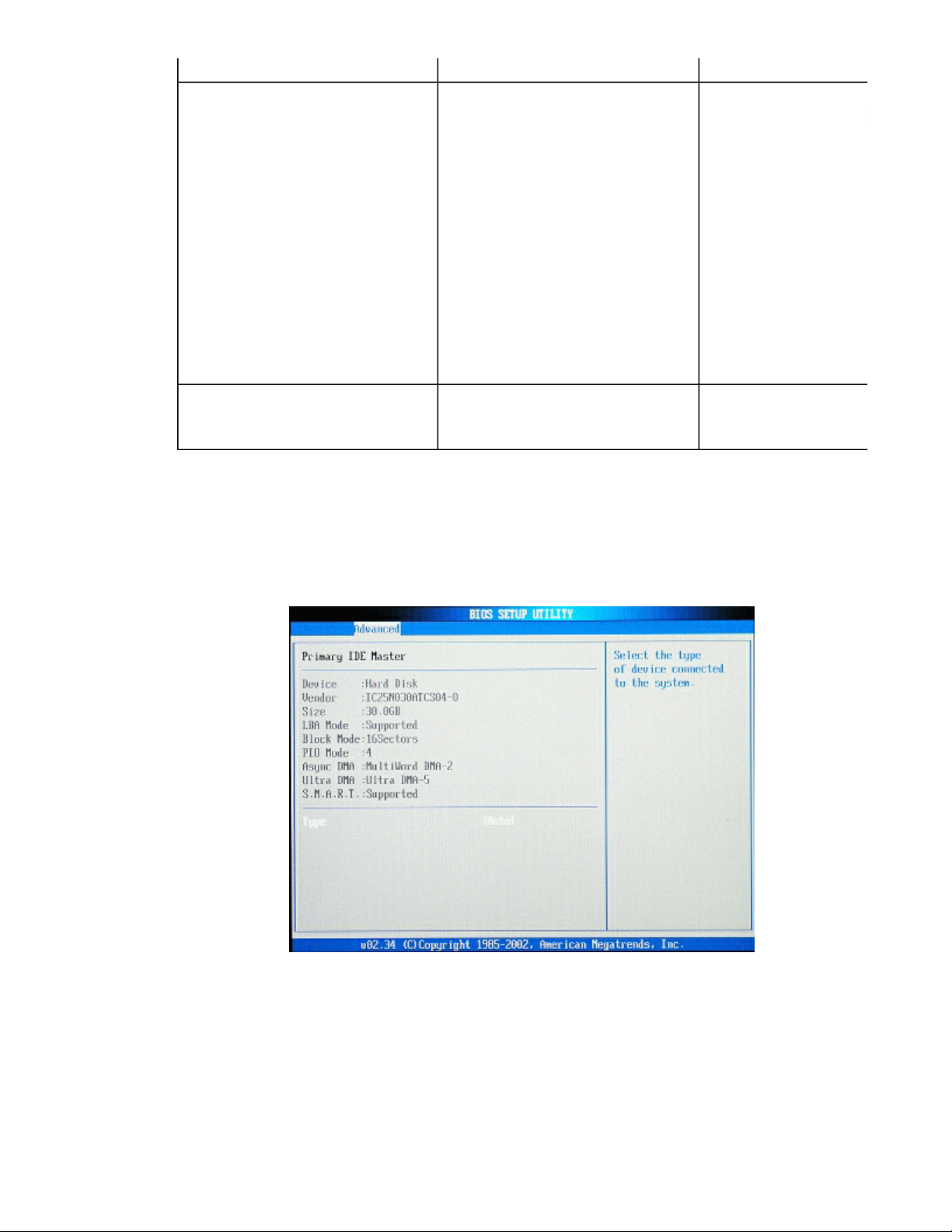

Primary IDE Master
5
10
15
20
25
30
35 Host & Device
Host Device
detecting ATA (s)
Cable.
IDE Devices are automatically detected by the BIOS. It can be set to Not Installed, Auto, CDROM or ARMD. The default is Auto.
Select the type of device
connected to the system
Disabled: Disables LBA Mode.
Auto: Enables LBA Mode if
the device supports it and the
device is not already formatted
with LBA Mode disabled.
Disabled: the Data transfer
from and to the device occurs
one sector at a time. Auto: The
Data transfer from and to the
device occurs multiple sectors
at a time if the device supports
it.
Select DMA Mode. Auto: Auto
SWDMAn:singleWordDMAn
MWDMAn: MultiWordDMAn
UDMAn: Ultra DMAn
Page
47
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Field Setting Function Type Not Installed
Auto
CDROM ARMD
LBA/Large Mode Disabled
Auto
Block (Multi-Sector Transfer) Disabled
Auto
PIO Mode Auto
0 1 2 3 4
DMA Mode Auto
SWDMA0 SWDMA1 SWDMA2 MWDMA0 MWDMA1 MWDMA2 UDMA0 UDMA1 UDMA2
Select PIO Mode
detected
UDMA3
UDMA4
S.M.A.R.T. stands for Self
Monitoring, Analysis and
Reporting Technology.
bit Data
Specifies the boot sequence
from the available devices. A
device enclosed in parenthesis
has been enabled in the
corresponding type menu.
Removable Devices = FDD
Page
48
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
S.M.A.R.T. Auto
Disabled Enabled
32Bit Data Transfer Disabled
Enabled
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Enable/Disable 32­Transfer
The Boot Menu
Field Setting Function
1st Boot Device Removable Dev.
ATAPI CDROM
PM-IC25N030ATCS04­Realtek Boot Agent
Disabled CDROM = CDROM
IC25N030ATCS04
Boot Agent = ethernet
Disabled
GoBook
® Tablet PC Help
Page
49
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
2nd Boot Device Removable Dev.
ATAPI CDROM
PM-IC25N030ATCS04­Realtek Boot Agent
PM­HDD
Realtek boot
same as above
3rd Boot Device Removable Dev.
ATAPI CDROM
PM-IC25N030ATCS04- Realtek Boot Agent
Disabled
4th Boot Device Removable Dev.
ATAPI CDROM PM-IC25N030ATCS04-
Realtek Boot Agent
Disabled
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
same as above
same as above
The Security Menu
Change Supervisor Password
Install or Change the password
Page
50
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Field Function
Change User Password Install or Change the password
NOTE After inserting a password you have the option to set the password to Always or SCU.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
The Exit Menu
Field Function
Exit system setup after saving the changes. F10 key can
Exit system setup without saving any changes. ESC key
Discards changes done so far to any of the setup
questions. F7 key can be used for this operation.
Load Optimal Default values for all the setup questions.
Page
51
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Save Changes and Exit
be used for this operation
Discard Changes and Exit
can be used for this operation.
Discard Changes
Load Optimal Defaults
F9 key can be used for this operation.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Troubleshooting This section is designed to help you determine and fix problems you might
encounter while operating the GoBook Tablet PC. Try the following things in order:
l
First look through the categories in this section for a solution.
l
If you don’t find a solution for your situation here, try one of the resources listed below.
l
If you are having a problem with a computer application , use the
online help that comes with the application to find a solution.
GoBook
® Tablet PC Help
Page
52
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
l If you still cannot resolve your problem, contact the help desk at your
organization.
For More Help
l
Windows Help is already installed on your system. To access this information, go to Help and Support, on the Start Menu.
l
Take the Windows Tutorials. Select Get Going with Tablet PC from the Start Menu.
l
Third-party Windows manuals are available from your local bookstore.
Applications
My application locks up, acts strangely, or produces a General Protection Fault (GPF) error
n If you’ve tried to resolve the problem and your application still doesn’t
respond, you may need to restart your computer as described below. To reboot your computer, select Start, Turn Off Computer, Restart. If
that does not work, try pressing the Security hot key once to bring up the Windows Task Manager. Then select Shut Down, Restart.
n The data on the hard disk could be corrupted. Run SCANDISK. n Windows is out of memory/resources. Exit Windows and restart
Windows.
Communications programs don’t seem to work or they lock Windows
n When you first try to use your communications application, the system
responds with a message asking if you want to install the modem. Answer “Yes” to this question and follow the instructions on the screen to install it.
When I rotate the display to portrait orientation my application does not work or does not display correctly.
n Some applications do not display or work properly in portrait
Page
53
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
orientation due to the rugged nature of your GoBook Tablet PC's display screen. Use these applications in landscape orientation.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Batteries
The battery does not charge
n To prevent possible damage to the battery, the system will not allow a
charge if the battery temperature is extremely hot or cold (such as in a closed, unattended vehicle). If possible, charge the battery in a location with a moderate temperature of around 20°C (68°F).
n If possible, turn off the computer while the battery is charging. n If the battery is new or has been stored for a week or more, follow this
procedure:
1. Make sure the computer is turned off.
2. Unscrew and open the battery cover, then remove the battery.
3. Connect the AC adapter to the computer and an AC wall outlet, and then turn on the computer by pressing the Power Button . The Power
Status LED will be solid blue when connected to external power .
4. Let the computer complete the boot process. Then reinstall the battery and replace the battery door.
5. Allow the system to remain idle for one hour with the AC adapter connected to the computer.
The Battery Status LED is orange when the battery starts charging.
6. If the battery still fails to charge after an hour, remove the battery,
wait several seconds, and then install it again.
Under extremely
Page
54
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
If the battery does not begin charging within several minutes, return the unit for service.
The batteries take much longer than seven hours to charge
n Under moderate temperatures, about 21°C (70ºF), the computer’s
battery takes approximately 3 hours to completely charge while suspended and 3-5 hours to charge while powered on. cold or hot temperatures, however, the battery can take up to 16 hours to fully charge.
The batteries don’t last very long
n As your battery ages, the maximum capacity that it can hold naturally
decreases, and even the best maintained batteries eventually need to be retired. Consider replacing the battery if you are not getting the usage you need from it.
The gas gauge isn’t full after charging the battery
n This may indicate that the charging process terminated prematurely. n Calibrate the battery to align the gas gauge with the battery capacity.
The gas gauge reads “full,” but the charging indicator light is still lit
n If you charge your battery daily, rely on the gas gauge reading to
determine battery capacity. The charging process may continue even if the gas gauge reads full. External power can be removed because the battery is virtually full.
My battery seems to have less and less capacity
n If your battery is new, or if your are using it for the first time, you will
need to calibrate it prior to using it.
n As your battery ages, the maximum capacity that it can hold naturally
decreases, and even the best maintained batteries eventually need to be retired. Consider replacing the battery if you are not getting the usage you need from it.
72_0111_007
13 February 2004
overwrite mode and to enable a block cursor. When it defaults to insert
Page
55
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Display
The display performance is slow
n The temperature may be too cold. Move the computer to a warmer
operating environment.
I can’t read the display
n Adjust the brightness level up by pressing FN+Rotate and adjust it
down by pressing FN+Security.
n Your display may be off. Tap your pen on it once. n If that doesn't work the automatic power-saving mode may have shut
off (suspended) the computer. Press the power button to resume.
The underlined, inverse, and hypertext characters are difficult to read on the screen
n Change the color scheme. From the Start Menu select the Control
Panel. Choose Display and then tap the Appearance tab to make changes to the color scheme.
I can’t see the cursor while using the DOS editor
n Press INSERT on the input panel to change from insert mode to
mode, the DOS editor uses an underline cursor which is less visible than the block cursor for overwrite mode.
The display appears to have random pixels darkened after scrolling
n Contact your supervisor or your organization’s help desk for
information about correcting this problem.
I changed my display resolution, but I see no difference on the screen
n Try restarting your computer for the changes to take effect.
The display cuts off the right side of the application or page in portrait mode
Page
56
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
n Some applications do not display properly in portrait mode. For
example, you may need to scroll to the right to view all the contents on the page. For best visibility, use these applications in landscape orientation.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Hard Disk
The hard disk will not spin up so the computer can’t boot up
n This occurs if the unit is exposed to extreme low temperatures. This is
not a hardware failure associated with the hard disk . Allow the computer to warm to room temperature. The minimum cold or soft boot temperature is 5°C (41°F)
I can’t save files because the disk is full
n Report this situation to your supervisor or your organization’s help
desk.
Diskette Read Error
n Any card in the PC card socket except for a properly formatted
memory card will cause this error since it is trying to read the PC card.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Page
57
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
GoBook® Tablet PC Help
Landline Modems
The modem doesn’t work
n When you first try to use HyperTerminal or similar application , the
system responds with a message asking if you want to install the modem. Answer “Yes” to this question and follow the instructions on the screen to install it.
n Make sure the communication settings are correct in your application.
Refer to the online Help for your application.
The modem doesn’t dial a number Check these things:
n If you are using an external modem, make sure the cables are attached
correctly.
n Make sure your communications parameters are correct in your
application. Refer to the online Help for your application.
The modem dials and receives an answer but does not establish a connection
n You may have incorrect parameters selected for your application to
talk with the remote modem. Refer to the online Help for your application.
n You may need to adjust your modem’s baud rate or protocol selection.
Communications programs such as HyperTerminal don’t seem to work or they lock Windows
n If you are using the internal modem, be sure to specify the proper
communications port .
n When you first try to use HyperTerminal or similar application, the
system responds with a message asking if you want to install the modem. Answer “Yes” to this question and follow the instructions on the screen to install it.
The modem dials and the answering modem generates tone, but our modem does not begin the training sequence to establish a connection
Although the problem may appear to originate from the computer, the
to charge the
Page
58
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
source of the problem is the answering modem.
n Try setting up the answering modem to generate the correct V.22 tone,
which can usually be done by sending an AT command to the modem.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Miscellaneous
The computer shuts off unexpectedly
n The computer has entered suspend mode . Press the power button to
resume.
n The battery capacity may be low. Connect external power
battery, or replace the battery with a fully charged one.
n The battery contacts may be dirty. Turn off the computer, remove the
battery, and clean the contacts.
The speaker volume is too high or too low
n Increase the volume by pressing FN+Escape; decrease the volume by
pressing FN+Enter.
The computer won’t turn on
n The battery may not be installed properly, or it may not be fully
charged. Make sure a fully charged battery is properly installed.
n Connect external power to charge the battery if it is not charged. n If you are using the AC adapter , check the electrical outlet you are
using to make sure it is working properly.
n If the GoBook Tablet PC does not turn on, restart the computer by
holding down the Power Button for at least 10 seconds and then release
When there is no activity for a period of time, the computer turns off or
Page
59
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
it.
n If the Power Button does not work to reset the unit, press the Master
Reset Key on the back side of your GoBook Tablet PC.
The computer won’t turn off
n Press and hold the Power Button for at least 10 seconds.
The computer enters suspend mode too quickly
n
enters suspend mode. To extend this time, use the Power Management program and increase the non-activity time to enter suspend.
The computer doesn’t automatically suspend
n Check to make sure the COM ports are off. For example, exit any
application that uses COM ports.
n Make sure external power is not connected. Depending on power
settings, some systems will not suspend automatically when they are connected to external power.
n Make sure the standby time is set properly in the Power Management
program.
The system date and time are incorrect
n Reset the correct date and time by choosing the Date/Time icon from
Control Panel and making the appropriate changes.
I receive an “out of memory” error message
n Too many applications may be running at the same time. Close
applications you don’t need.
n If you’re using desktop wallpaper, set wallpaper to None. To do this,
choose Display from Control Panel and make the appropriate change.
n Make sure you have enough space on your hard disk . Contact your
supervisor or your organization’s help desk for assistance.
n Set up a permanent swap file. Contact your supervisor or your
organization’s help desk for assistance.
Holding down the Power button to reset the computer doesn’t always work
n Try resetting the computer again. If this doesn’t work, press the
If none of these solutions work, remove all power, including the battery
s help desk for
Page
60
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
Security key.
n Alternately, press the Master Reset Key on the back of the unit.
n
pack, and allow the unit to remain idle for ten minutes. After ten minutes, connect external power and retry.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
PC Cards
I can’t remove the PC card
n Press the ejector button located inside the PC card door on the side of
the computer. The button will pop out. Press the ejector button again to eject the PC card. Slide the card out.
n If the ejector button malfunctions when you press it, release the button
and then press it again.
Diskette Read Error
n Any card in the PC Card socket except for a properly formatted
memory card will cause this error since it is trying to read the PC Card.
The system does not recognize the PC Card CD-ROM when it is inserted into the PC Card socket
n There is a delay of 10 to 15 seconds before the CD-ROM drive is
recognized.
n Drivers may not be installed. Contact your organization’
assistance.
The computer locks up when I remove the PC card
Page
61
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
n Before you remove the card, select the PC card icon on the taskbar (in
the tray area near the clock in the lower right corner), and choose “Stop [card name] card.”
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
Pen/Digitizer Touch Panel
When I try to use the pen on my display, nothing happens
n If you cannot select objects accurately with the pen, you may need to
recalibrate the digitizer touch panel.
To calibrate the digitizer touch panel
1. From the Start Menu, select Control Panel.
2. If you are in Classic View continue to step 3. If you are in Category View select Printers and Other Hardware and continue to step 3.
3. Select Tablet and Pen Settings. Then tap the Settings tab.
4. Under the Calibration field choose the orientation you want to calibrate, either Landscape or Portrait.
5. Tap on the Calibrate button.
6. After you have completed calibration by touching the crosshairs with your digitizer pen, select OK to have the new settings take effect.
NOTE You need to recalibrate the screen for each orientation. The display warps or pillows in high humidity
n The computer remains functional; however, moving the computer to a
more suitable environment will allow the display to recover.
To increase screen resolution
Page
62
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
The digitizer touch panel doesn't respond after a suspend
n The digitizer touch panel needs a few seconds to work after a suspend.
Wait a moment and try again.
I cannot change the orientation
n Your screen resolution may be set to low.
select the Control Panel from the Start Menu. Then select the Settings page in Display Properties.
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
GoBook® Tablet PC Help
FAQs
How do I calibrate the pen?
1. From the Start Menu, select Control Panel.
2. If you are in Classic View continue to step 3. If you are in Category View select Printers and Other Hardware and continue to step 3.
3. Select Tablet and Pen Settings. Then tap the Settings tab.
4. Under the Calibration field choose the orientation you want to calibrate, either Landscape or Portrait.
5. Tap on the Calibrate button.
6. After you have completed calibration by touching the cross-hairs with your digitizer pen, select OK to have the new settings take effect.
How do I change the main battery?
1. Turn off the Tablet PC and remove external power .
2. Turn the unit over and remove the cover screw with a Phillips
Page
63
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
screwdriver.
3. Lift out the battery and replace it with a new battery.
4. Screw the cover on and press the power button .
How do I adjust the speaker volume? You can change speaker volume with hot keys or via the volume icon in the
tray area of the Windows taskbar . FN+Escape increases volume and FN+Enter decreases volume.
How do I clean the display screen? To clean the display assembly, use the same cleaning solution and procedure
described earlier for the outside case. In some cases, you can use a small amount of isopropyl alcohol to remove streaks or smears. Use a soft, clean cloth to clean the display. Do not use paper products because they can scratch the screen.
How do I change the display screen's brightness? You can increase the display brightness by pressing FN+Rotate hot keys.
You can decrease the display brightness by pressing FN+Security. How do I change the display orientation?
You can change between landscape and portrait orientation by pressing the rotate
hot key. You will need to calibrate the screen for each orientation. You can also
change the orientation via the input panel by tapping CTRL+ALT and then selecting one of the arrow keys.
NOTE Some applications may not display properly in portrait orientation. How long will the battery last? The main Li-Ion battery lasts approximately 3 hours with normal use. You
can increase your runtime on battery power by using a second external battery.
How do I optimize the GoBook Tablet PC for left handed use? You can change the screen orientation 90°, 180°, or even 270°. See the
answer to "How do I change the display orientation?" above. You can also change the hand strap on the back of the Tablet PC for the use that best suits you. Additionally, you can select a left-handed preference by going to the Control Panel and selecting Tablet and Pen Settings. Then check Left-
handed under the Handedness option and under the Menu location.
Page
64
of 64GoBook Tablet PC Help
2/23/2004
file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~
...
72_0111_007 13 February 2004
© 2003-2004 Itronix Corporation. All rights reserved.
Loading...
