General Dynamics Itronix IX260PROA775BT, IX260P AC775BT, IX260PNL3054BT Users manual

Page 1 of 80GoBook III Hel

Getting Started

Congratulations on your purchase of the Itronix GoBook III computer! Your new GoBook III features the most innovative advances in portable computing technology. It combines state-of-the-art ergonomics with a rugged, durable architecture to provide you with a notebook computer that is compact, powerful, rugged and easy to use. Designed for a wide range of business and personal productivity applications, the GoBook III is an ideal choice for use in applications that require durability and performance.

For maximum expandability without compromising portability, the GoBook III has a USB interface and a PC card multimedia files and applications.

The GoBook III features a standard 87-key Nitevue® keyboard (89-key international). The highresolution 12.1-inch touch screen LCD panel provides clear and crisp viewing with the convenience of a touch screen.

This online document, new GoBook III. It describes all the features of the GoBook III in an easy-to-read yet thorough manner. For information on printing, navigating or otherwise using

System.

slot. The high capacity hard disk drive provides you with plenty of storage space for

GoBook III Help

, contains all the information you need to set up and use your

GoBook III Help

see How to Use This Help

GoBook III® Help

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 2 of 80GoBook III Hel

Checklists

After opening the package, carefully inspect the contents. Contact your dealer if any items are missing or appear damaged. The shipping carton should contain the following:

STANDARD

The Itronix GoBook III computer

Battery

ADP-90AB or ADP-75FB AC adapter with power cord

12.1 inch XGA display

Stylus

Shoulder Strap

GoBook III Quick Start Guide

OPTIONS

The following items are normally optional, but some vendors may include them in the standard package. Some items may not be available in some countries, or some vendors may choose not to carry all the items.

Floppy disk drive

CD-ROM drive

CD-RW Drive

DVD-ROM drive

Soft Handle

Media Bay Li-Ion battery pack

Hard Disk Drive Heater

LCD Heater

CAUTION

When purchasing any of the accessories listed above, purchase only those accessories that are approved for use with your computer. The above accessories are proprietary items. Your system vendor can obtain these approved accessories. If you use items that are not approved for use with this computer, you may cause your computer to malfunction, or to emit or receive electromagnetic radiation in excess of local regulations. For non-proprietary accessories such as PC Cards or printers, ensure that the accessory functions properly in your computer before making the purchase. Your system vendor

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 3 of 80GoBook III Hel

may be able to recommend reliable brands and models.

Features

High Capacity Hard Disk Drive

The computer has a high capacity hard disk drive, enabling you to install your favorite programs and store large multimedia files.

Full Array of Ports and Connectors

Your computer includes standard ports for connecting to peripherals such as USB devices and monitors. USB ports allow you to add many types of peripherals.

Large XGA LCD

Your computer has a large, easy to view XGA LCD panel.

Built-in Microphone and Stereo Speakers

The stereo speakers and internal microphone enable you to run a variety of multimedia applications.

Function Keys

Function keys allow you to suspend your computer, shut the LCDs off, and give you easy control of audio and your monitor.

Where to Look For Information

About Your Computer

This Help System describes the key elements of your computer. New users can find a simple step-bystep orientation in this chapter.

About Windows

For more extensive information and help about Windows go to Help and Support, found on the Start Menu.

72_0119_001 28 June 2004

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 4 of 80GoBook III Hel

GoBook III® Help

Precautions

You can use your computer under a wide range of environmental conditions. However, to ensure long use and continued high performance, consider the following factors when setting up your computer:

Follow all warnings and instructions noted in this documentation and in Windows Help and Support, found on the Start Menu.

The first time you use your computer, we recommend that you carefully read the section on Power

Management to familiarize yourself with some basic battery information and to ensure optimum

performance

There is danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Do not open the RAM door by yourself.

Unplug the computer from the power outlet before cleaning. Use a damp cloth for cleaning. Do not use aerosols, solvents, or strong detergents

Slots and openings in the computer case are for ventilation purposes. Do not block or cover these openings or the system could overheat

On the bottom of the GoBook III, there is a label with information on the power requirements of this system. These requirements must be followed. If you are unsure of your local power supply, consult your dealer or local Power Company

Do not step on or place anything on the power cord

If you use the computer with an extension cord, ensure that the total ampere ratings of all the devices sharing the extension do not exceed the rating of the extension cord or the rating of the wall outlet

Unless instructed, never push foreign objects into the computer through any of the slots or openings. Dangerous voltages are present, which could cause electric shock, fire, or damage sensitive components

For best results, use a power strip with a built-in surge protector. Do not use inferior extension cords as this may result in damage to your computer

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

72_0119_001

28 June 2004

GoBook III® Help

The First Time. . .

Using your computer for the first time involves:

Installing the battery

Connecting the AC adapter to the computer

Page 5 of 80GoBook III Hel

Turning the Computer On and Off

Adjusting the Volume

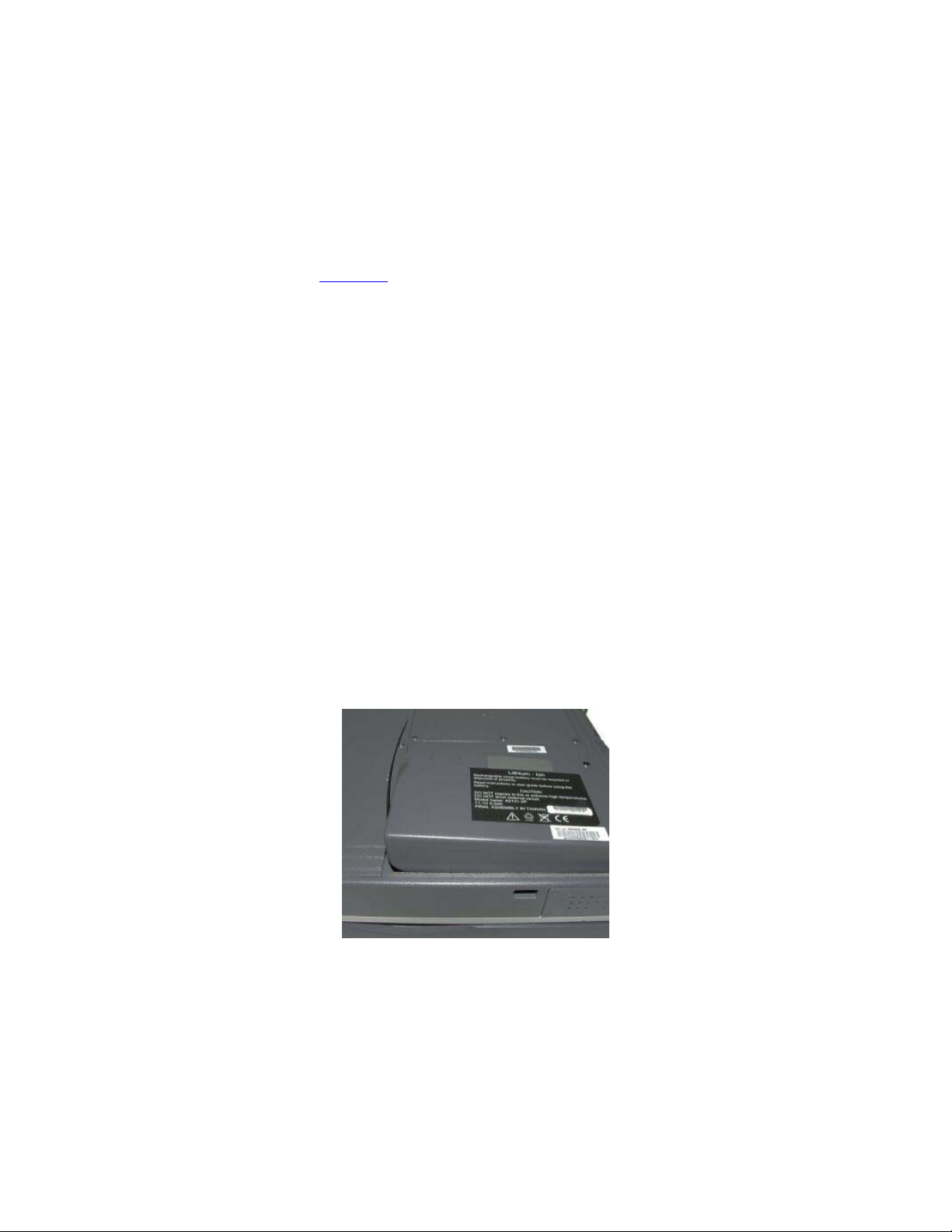

Installing the Battery

Make sure the computer is sheltered when you install the Lithium Ion battery; the computer is not weather sealed until the battery is properly installed. The battery should be fully charged before you operate the unit on battery power. To get the most from your battery, follow the guidelines in the Power

Management section.

To install the battery

1. Remove the battery door.

2. Align the battery connectors and place the battery in the computer.

3. Replace the battery door and rotate the door latches to secure the door.

NOTE

AC Adapter below, it starts charging automatically. At moderate temperatures, approximately 70° Fahrenheit (21°C), the battery will be fully charged in four to six hours. In warmer or cooler temperatures, the battery can take much longer to fully charge. Refer to the Power Management section for additional information.

When the battery is installed and the computer is connected to AC power, see Connecting the

Connecting the AC Adapter

To connect the ADP-90AB or ADP-75FB AC adapter

1. Connect the AC adapter power cord to the AC adapter.

2. Connect the AC ada

ter to the powerjack at the rear of your computer.

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

3. Connect the AC adapter power cord to an AC outlet.

4. Lift the display to open the LCD.

5. Open the LCD panel to a comfortable viewing angle.

Page 6 of 80GoBook III Hel

6. Press the

Power Button

to turn ON the power.

Turning the Computer On and Off

You can operate the computer while the battery is charging, while on external power , or on battery

ower only.

To turn on the computer

Press the

Power Button

To turn off the computer

1. From the Start menu, select Turn Off Computer.

2. Then, from the Shut Down Windows screen select Turn Off.

If you need to leave the system for a short time, or if you want to conserve battery power, you can suspend the computer by pressing FN+F3. See Power Management for additional information.

Suspend to RAM

In a suspend to RAM, the contents of your computer's memory are held intact, while almost all the components in your computer either turn off completely, or reduce power consumption to a minimum. In a suspend to RAM, your computer remains active, but with a minimum possible power consumption. Return the computer to full power by pressing any key. A fully-charged battery can maintain a Suspend to RAM for many hours.

button once, and then give the system time to respond.

Suspend to Disk (Hibernate)

current state of the computer is copied to the hard disk

Suspend to Disk is similar to turning off the computer, except that the

as a special file. In a Suspend to Disk there is no

ower consumption. When the computer returns from suspend mode , the desktop appears with the same files and programs open as when the computer was suspended. Suspend to Disk is very useful when you don’t want to take the time to shut down all open programs one by one to shut off the computer. This mode is also called hibernation mode.

CAUTION

Shutting down the computer improperly could result in lost or corrupted data.

Adjusting the Volume

Volume for the computer is adjusted by using function key combinations.

+ F8 decreases the volume

+ F9 increases the volume

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 7 of 80GoBook III Hel

toggles the volume mute on or off

F10

You can also adjust the volume with the Windows volume control applet, which is located on the

taskbar and looks like this .

NOTE

Adjusting the volume using the function keys produces only a slight change with each press. It

may take several presses to increase or decrease the volume to a level that you desire.

72_0119_001 28 June 2004

GoBook III® Help

Calibrating the Touch Screen

Your GoBook III computer has a touch screen display. Follow the guidelines below to calibrate the touch screen for optimum use.

CAUTION

Always use an approved stylus or your finger.

Never use sharp, hard, or abrasive implements on the touch screen such as ball point pens, pencils, or keys. They could damage the screen.

To clean the touch screen panel, apply a household glass cleaner to a soft, clean, dry cloth an wipe the screen.

Calibrating the touch screen

To calibrate the touch screen, open the Calibration Applet by selecting Start, Programs, Mobile Computer Tools, Touch Screen Calibrator. You can also open the Calibration Applet by selecting Start, Settings, Control Panel, Touch Screen Calibrator.

After the Calibration Applet starts, click on the Calibrate button

After you have completed calibration by touching the four highlighted points with an approved stylus, select OK to have the new settin

s take effect.

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 8 of 80GoBook III Hel

NOTE

screen. This can be accomplished by revisiting the procedure above.

Adjusting the Screen

You can adjust the display brightness for better viewing.

Use the following keys to make adjustments:

Setting the Date and Time

To set the date and time

If you cannot select objects accurately with the stylus you may need to re-calibrate the touch

To Do This... Press

Lighten the display

Darken the display

1. Tap the Start button, Settings, Control Panel, and double-tap the Date / Time icon.

FN+F7

FN+F6

2. From the Date / Time Properties menu, make changes to the Time and Date, and then close this screen by selecting OK.

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

72_0119_001

28 June 2004

GoBook III® Help

Startup Problems?

If your computer does not operate, try these solutions.

Connect the AC adapter to charge the battery if it is not charged.

Page 9 of 80GoBook III Hel

NOTE

The Power LED on the AC adapter should be lit as well as the External Power Indicator

on the GoBook III if the AC adapter is connected and functioning properly. Additionally, one

of the power icons should appear in the task tray.

If the AC adapter is connected, make sure the electrical outlet you are using works.

Check to make sure the battery is installed and charged properly.

If the battery doesn’t begin charging, remove the battery, connect the AC adapter, and turn on the computer by pressing On. Reinstall the battery. The Battery Power Indicator LED is solid while the battery is charging.

The

Troubleshooting

section lists additional solutions you can try.

72_0119_001 28 June 2004

Getting Familiar with Your Computer

The GoBook III computer is a ruggedized

, weather-sealed laptop computer system built for the demanding environment of the mobile worker. Designed for use by mobile workforces, this computer is a superior work tool for collecting, managing, and communicating information in the field.

The following pages describe the external and internal features of your GoBook III computer.

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 10 of 80GoBook III Hel

GoBook III® Help

Individual Parts

The following diagrams and descriptions provide an overview of your GoBook III computer.

Hover the mouse over each number on the picture to see a description.

Front View

1. Touch Screen Display

2. Display Latches

3. Antenna (internal mini-WLAN)

4. GPS and/or Bluetooth Antenna

5. LED Activity Indicators

6. Power Button

7. Touchpad

8. Scrolling Button

9. Touchpad Buttons

10. Power / Wireless Modem Indicators

11. Speakers

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 11 of 80GoBook III Hel

Back View

1. Cooling Fan

2. Power Jack

3. 15-Pin VGA Port

4. 68-Pin Multi-IO Port

5. 9-Pin Serial Port

6. PS2 Port

7. RJ-11 Modem Jack

8. RJ-45 Network Jack

9. IEEE 1394 Port

10. USB 2.0 Port

11. Handle

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Left Side View

1. PC Card Slot

Page 12 of 80GoBook III Hel

2. Microphone Jack

3. Audio Jack

4. Stylus

Right Side View

1. Media Bay - CDROM, DVD, Floppy Disk, CDRW, or Media Bay Battery

2. Smart Card Option

3. Cooling Fan

4. Security Slot

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Display with Stylus

Page 13 of 80GoBook III Hel

LED Activity Indicators

The activity indicators, located above the keyboard, light up when a particular function of the computer is active. Each indicator is marked with a corresponding symbol and is visible when the lid is open or closed. LED numbers are from left to right.

Icon & LED #

LED #1

Function LED Description

Mini PCI Lit

Power is on to the Mini-PCI Slot. This can be a WLAN or Modem.

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 14 of 80GoBook III Hel

LED #2

LED #3

LED #4

LED #5

LED #6

LED #7

Bluetooth Lit

Disk Status (HW) Lit The hard disk drive is being accessed

Not lit The hard disk drive is not being accessed

Media Drive Bay Lit The computer is accessing the CD-ROM,

Number Lock Lit The keyboard is in Num Lock mode.

Caps Lock Lit The keyboard is in Caps Lock mode

Scroll Lock Lit The keyboard is in Scroll Lock mode

Bluetooth Power is on

the DVD-ROM, or the Floppy drive.

LED Power / Wireless Modem Indicators

The case front LED's indicate external power, unit ON/OFF, battery status, and wireless modem ON/OFF. The indicators remain active and viewable even when the LCD panel is closed.

Icon Function LED Description

External Power

Power Green Power is ON

Battery Green Battery charging

Wireless Modem

Green

LED off External power is not connected to the unit.

Flashing Green

LED off No battery / battery fully charged (will always be OFF

Green Wireless modem is On Flashing Message waiting

External power is connected to the unit.

Suspend to RAM

Low Battery

without external power connected to the unit)

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Green

LED off Wireless modem is Off

72_0119_001 28 June 2004

GoBook III® Help

Keyboard Basics

Page 15 of 80GoBook III Hel

The keyboard on the GoBook III computer looks much like the keyboard of a typewriter and operates in almost the same way. While typewriter keys put characters on paper, the keys on the laptop enter characters in the computer and perform certain functions, depending on the application

or program.

The GoBook III computer features:

87-key US keyboard; 89-key international keyboard

Twelve function keys,F1-

Embedded numeric keypad

Mouse keys and cursor control keys

Keyboard backlight

F12

Restarting the Computer

Press… To do this CTRL+ALT+DEL

Reboot the computer.

CAUTION

All open and unsaved data will be lost.

Primary Keys

Key Description ALT

ALT GR

The some operating systems pressing stops processing and restarts the operating system.

The keyboard, when pressed and held, allows you to use characters in the bottom

(alternate) key is used with other keys to perform special tasks. On

ALT

resets the computer,

ALT GR

CTRL+ALT+DEL

key, a special function key found on the 89-key international

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

BACKSPACE

Page 16 of 80GoBook III Hel

right of a three character key. The

BACKSPACE

arrow, moves the cursor one position to the left. The character to the left of the cursor is erased.

key, sometimes represented on the keyboard as a left

On the 89-key international keyboard the key to the right of the key is also designed to mover the cursor one position to the left. The character to the left of the cursor is erased. If other functions are designed for this key, the key will be printed with the appropriate legend.

CAPS LOCK

Key Description CTRL ENTER

ESC

PRTSC

SHIFT

SPACEBAR TAB

The

Function. Some special keys have been established to perform important tasks whe

The

Pressing the UPPER CASE position. Pressing the letters to lower case. While in the upper case mode, pressing the results in lowercase characters when entered. You still have to use the key to display characters located on the upper portion of the keyboard. For example, press key is activated.

The

CAPS LOCK

LOCK mode. This indicator can be found in the windows system tray at the lower right corner of the screen.

CTRL ENTER

your way of telling the computer to process the information that you have entered. The

ESC

DOS applications, pressing the In Windows, the

In Windows, pressing the the current screen or window to the clipboard so you can paste it into documents.

SHIFT

you press an alphabetic key, the character appears as a capital letter. When you pre

SHIFT

example, pressing

pressed and held with the FNkey. These keys are described later in this document. The FN key legend is color keyed to other special keys on the keyboard

Use the

your operating system or application program. Press the field or text box to another.

with other keys, the characters on the upper part of the keys appear. For

SPACEBAR

TAB

CAPS LOCK

SHIFT+8

activity indicator is on when the keyboard is in CAPS

(control) key works with other keys to perform a variety of functions.

key signals the computer that you have completed your entry. This is

(escape) key cancels the current line if you are working in DOS. In some

key allows you to exit a pop-up window or message box.

ESC

key changes the keys A through Zto the UPPER CASE position. Wh

SHIFT+7

to enter a space and move the cursor one character to the rig

key moves the cursor to the next tab stop or field. Tab stops are defined

key one time locks keys A through Z in the

CAPS LOCK

to type an asterisk (*), even when the

key backs you out of your last menu selection

ESC

PRTSC

(print screen) key or

displays an ampersand (&).

key again returns the

ALT+PRTSC

TAB

BACKSPACE

SHIFT

CAPS LOCK

key to move from o

key

SHIFT

key copies

Arrow Keys

The arrow keys are defined by the software application.

The

UP ARROW

make selections from menus and scrollable list boxes.

The

DOWN ARROW

key usually moves the cursor up one line. In some cases, you can use the up arrow to

usually moves the cursor down one line. In Windows, you can use the down

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

arrow to make selections from menus and scrollable list boxes.

Page 17 of 80GoBook III Hel

The

RIGHT ARROW

The

LEFT ARROW

key usually moves the cursor one character position to the right.

key usually moves the cursor one character position to the left.

Function Keys

Hold the FN key while pressing the numbered function key.

Function key Description FN+F1 FN+F2 FN+F3 FN+F4 FN+F5 FN+F6 FN+F7 FN+F8 FN+F9 FN+F10

Toggles display on / off Toggles between LCD / CRT displays Suspend to RAM / HDD

Decreases keyboard backlight brightness

Increases keyboard backlight brightness Decreases LCD brightness Increases LCD brightness Decrease volume Increase volume

Mutes the audio

Numeric Keypad

The numeric keypad is embedded in the keyboard area. The embedded keypad emulates the numeric keypad typically found on a full-size keyboard. It is arranged like a calculator for applications that require you to key many numbers or for use with the Calculator in the standard Windows Accessories.

Touchpad

The touchpad is a pointing device that provides all the features of a two-button mouse. Its primary function is to move the cursor around the screen.

Using Your Touchpad

Clicking

1. First, place your fingers on the keyboard in the normal typing position. The touchpad is easily accessible by moving either your left or right thumb off the space bar and on to the touchpad.

2. Gently move your thumb across the touchpad in the direction you want the cursor to move. The pad detects the change in pressure and moves the cursor in the corresponding direction.

NOTE

The touchpad on your GoBook III computer is electrically sensitive to finger touch. It

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 18 of 80GoBook III Hel

will not respond if touched by anything other than your fingers, such as a stylus or pencil.

3. The touchpad offers another method of making selections in a software program. It is called double-tapping. This function corresponds to double-clicking with a mouse. Once the cursor has been moved to the object you want to select, lightly double-tap the pressure sensitive touchpad. This double-tapping on the touchpad will select the desired item and prompt the software to perform the related operation.

4. The left and right buttons located directly below the touchpad are the same in function as those on a two-buttoned mouse. Clicking these buttons makes selections, drags objects, or performs a variety of other functions depending on the software. To select an object, first move the pointer over the object you want to select, and then press the left button one time. The functions of these buttons are software specific.

Double-clicking

Double-clicking is a common technique for selecting objects or launching programs from icons. Once you have moved the pointer over the object you wish to select, rapidly press the left button two times. This action is commonly referred to as “double-clicking” an object.

Dragging

Move the pointer to the desired location then press down the left button. While still holding down the left button, move the pointer to the desired location. Release the button.

Move the pointer to the desired location. Tap the touchpad twice quickly as if you were doubleclicking, however do not remove your finger after the second tap. Move the cursor to the desired location. Lift your finger to finish dragging.

Adjust the touchpad settings by selecting Settings/Control Panel/Mouse/Buttons. These settings allow you to change the orientation of the touchpad from right-handed to left-handed, and fine-tune the pointer movement and timing of clicks.

Touchpad Precautions

If not properly cared for the touchpad can be easily damaged. Please take note of the following

recautions.

Do not rest heavy objects on the touchpad or the touchpad buttons.

General Guidelines

The mobile computer uses a Liquid Crystal Display (LCD), which is the type of screen used on many notebook and sub-notebook computers. One problem experienced on computers with an LCD display, especially in cold environments, is that the cursor seems to “disappear” whenever the mouse is moved quickly. To improve the visibility of the mouse cursor, you should use a slow or medium speed/sensitivity level.

You can combine a higher level of acceleration with a slow or medium speed/sensitivity level. This will allow

ou to move the mouse cursor quickly by increasingyour fingerpressure, while still providing a

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

finer degree of control when you apply minimum pressure.

Page 19 of 80GoBook III Hel

NOTE

choose Mouse to make adjustments.

To change the speed of the mouse, from the Start Menu select Settings, Control Panel, and then

Scrolling Buttons

If you are scrolling through a document, you may it find the scrolling button more restful to your hand than holding down a mouse button. The scrolling button is located between the touchpad buttons. Push the top of the button to scroll up in a document or Web page; press the bottom of the button to scroll down.

Connecting an External Keyboard or Mouse

You can use your GoBook III computer with an optional external keyboard, numeric keypad, or IBM PS/2 compatible mouse. These devices are “hot swap” capable, which means you do not have to power down the GoBook III to connect them to the PS/2 connection located on the back of the unit.

Keyboard Backlight

Press

FN+Shift

You can decrease brightness by pressing keyboard backlight retains its previous brightness setting after a suspend or resume.

to turn on the keyboard backlight. The keyboard backlight has four brightness levels.

FN+F4

and increase brightness by pressing

FN+F5

. The

72_0119_001 28 June 2004

GoBook III® Help

Display Basics

Connecting to an External Monitor

The GoBook III has a 15-Pin VGA monitor port to connect your computer to an external monitor.

Using the VGA monitor port for dual display

You may use an external monitor simultaneously with your GoBook III’s LCD. You may also disable the GoBook III's LCD and use the external monitor exclusively.

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 20 of 80GoBook III Hel

1. Locate the 15-pin VGA monitor port on the back of the unit behind the IO door. Then connect the video signal cable from the external monitor to the monitor port.

2. Connect the monitor’s power cable to a power outlet and turn on the monitor.

3. If the new monitor has not automatically been detected and is not displaying what appears on your GoBook III’s LCD screen, open the Control Panel.

4. Double-tap

5. Tap the

6. Tap the

7. You can also use the FN+F2 hot keys to cycle through the CRT, LCD, and CRT/LCD settings.

72_0119_001 28 June 2004

GoBook III® Help

Display

Settings

S3DuoVue

. The Display Properties window opens.

tab. Then select the

tab and select the CRT box the enable display on an external monitor.

Advanced

button.

Disk Drives

Your computer comes with several components for reading and writing (recording) information.

The Hard Disk Drive

The hard disk provides high-capacity storage and fast access. Windows and most programs are stored here. Your GoBook III identifies the hard disk drive as drive C. For information about removing or installing the hard drive see Hard Drive Care and Handling.

The Floppy Disk, CD-ROM, or DVD-ROM Drive

Your computer may come with a floppy disk drive. The floppy disk drive accepts 3.5-inch floppy disks and is read and write capable.

The CD-ROM drive is a read only drive. It cannot be used to write data to a recordable compact disk. The CD-ROM drive can read data from CDs, including audio or video CDs. The DVD drive can read both DVD and CD disks. Your GoBook III identifies the drive with the letter following the hard drive letter. If

ou hard drive is C, then the CD-ROM drive will be D. The media bay is located on the right

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 21 of 80GoBook III Hel

side of your computer, as you are facing the display, and is accessible by sliding the two bay door latches, which release and open the door.

Inserting a CD-ROM or DVD-ROM Disk

1. Press the button on the front of the drive to open the disk tray and pull the tray open.

2. Place the disk on the tray, label side up.

3. Place the disk on the central spindle and press gently until the disk clicks into place.

4. Slide back the tray until it clicks shut.

Removing a CD-ROM or DVD-ROM Disk

1. Make sure the computer is not accessing the CD-ROM/DVD-ROM drive.

2. Press the button on the front of the drive and pull the tray all the way out.

3. Pick up the CD-DVD by the edges and remove the CD-ROM/DVD-ROM from the tray. Push the tray into the computer until it closes fully.

CAUTION

indicator light for the drive will flash. Do not attempt to remove a disk while this light is active.

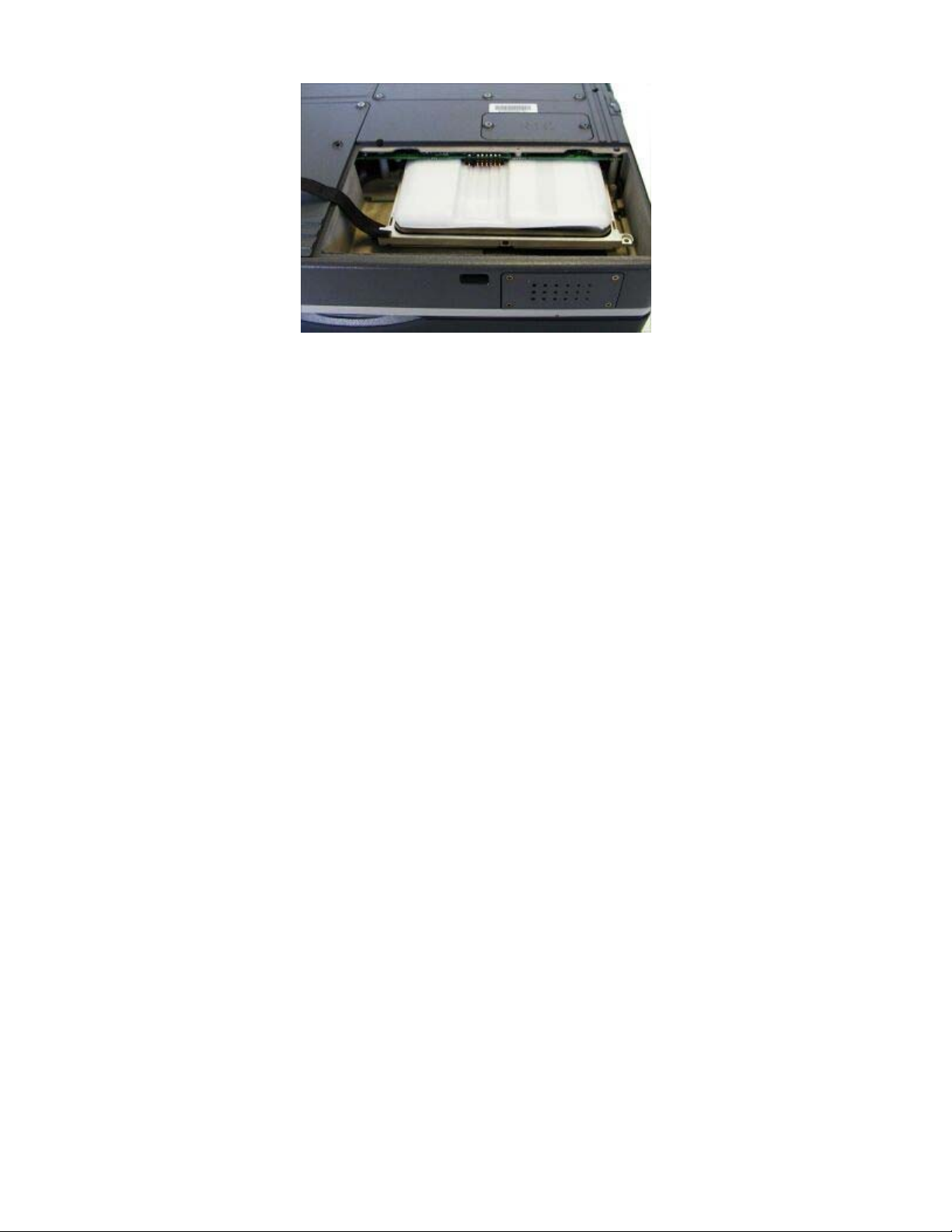

Changing your 'swappable' media bay device

1. Make sure the computer is not accessing

2. Slide the door latches to release the media

3. Left click the "unplug or eject" media bay

4. Select the media bay device and left click

5. Wait for the "safe to remove hardware"

When the computer is reading from a CD-ROM/DVD-ROM or Floppy disk drive, the

the media bay drive.

bay door.

icon on the right side of the taskbar.

to stop the device.

message.

6. Grasp the media bay device by the removal tab and pull straight out until it is clear from the slot.

7. Click OK

8. Re-insert the next media bay device by firmly pushing it back into the slot until it clicks into

lace.

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Precautions for Handling CD-ROM/DVD-ROM Disks

Keep these precautions in mind when handling CD-ROM/DVD-ROM discs.

Always hold the disc by the edges; avoid touching the surface of the disc.

Use a clean, dry, cloth to remove dust, smudges, or fingerprints. wipe from the center outward.

Do not write on the surface of the disc.

Extremes in temperature may damage discs. Store discs in a cool dry place.

Do not use benzene, thinners, or cleaners with detergent. Only use CD-ROM/DVD-ROM cleaning kits.

Do not bend or drop the discs.

Do not place objects on top of discs.

Page 22 of 80GoBook III Hel

CAUTION

do not insert any foreign objects into the disc tray. Do not force the tray to open or close manually. When not in use, keep the tray closed to prevent dust or dirt from entering the drive unit. If you experience difficulty when removing a CD/DVD disc, stretch a paper clip (or use a pin or a thin metal rod) and insert it into the emergency eject hole located on the front panel.

The CD/DVD disk tray should eject immediately. This procedure can also be used to remove a CDDVD from the drive when the GoBook III is powered off.

72_0119_001 28 June 2004

GoBook III® Help

The PC Card Slot

The PC card slot can be used as an interface between your computer and a variety of communications devices, such as network adapters, SCSI adapters, and fax/modems. They can also be used to provide additional data storage capacity. Your computer’s PC Card slot supports Type I, II or III PC Cards, 32-

it CardBus cards, and Zoomed Video cards.

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 23 of 80GoBook III Hel

Installing a Card

1. The top side of a PC Card is usually identified with a label. Insert the card into the slot with the top up and the edge with pinhole contacts going in first. You will feel some resistance as the card slides into the back of the slot.

2. PC Cards require drivers, or a program that allows the operating system Many drivers are included with Windows, but if not, you will be prompted to install the driver included with your card.

NOTE

with power on, while others require that the computer be turned off.

Removing a PC Card

Please read the instructions included with individual PC Cards. Some cards may be inserted

1. If a PC Card is in use, you must shut down the PC Card before removing it.

2. Select the PC Card icon on the right side of the Windows tray taskbar

3. When the Windows message appears, telling you that it is safe to remove the card, tap OK.

4. Press the eject button on the PC Card slot to release the eject button (it is spring loaded and remains hidden until it is pressed).

5. Press the eject button again to release the PC Card.

to use a specific device.

, then tap Stop.

72_0119_001 28 June 2004

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 24 of 80GoBook III Hel

Making Connections

Your computer is equipped with a full array of ports and connectors, including standard input/output (I/O) ports for quickly and easily adding peripheral devices such as printers and monitors. Refer to documentation included with individual devices for details on connecting these devices to your computer. Along with the standard ports found on most computers, your computer may also include optional modem and LAN ports for advanced communications technology.

GoBook III® Help

Rear Connectors

Hover the mouse over each number on the picture to see a description.

1 DC-in Jack

Connect the DC power cable from the AC adapter to this jack.

2 VGA Out (External Video) Port

The 15-pin monitor can connect your computer to an external monitor.

3 Multi-I/O Port

The 68-pin Multi-IO port is provided so you can connect the GoBook III to an optional cradle or office dock.

4 Serial Port

The 9-pin serial port can be used to connect your computer to serial devices such a a fax/modem or a serial mouse. This port is identified as COM1 and is 16550A compatible.

5 PS/2 Port

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

Page 25 of 80GoBook III Hel

You can use the mini-DIN PS/2 port to connect your computer to a PS/2 device such as a PS/2 keyboard or mouse.

6 Fax/modem RJ-11 Jack

The fax/modem can transmit data using the 56 Kbps V.90 or V.92 protocol, and send and receive faxes at 14.4 Kbps. In some countries, local regulations may not permit the use of the fax/modem designed for this system. In this case, you may use a PCMCIA modem.

CAUTION

use digital lines, such as PBX and ISDN systems found in many offices. Digital lines may damage your modem. If you are unsure as to the type of port you have to plug into, simple detection and protection devices are available at your local computer store.

7 LAN RJ-45 Jack (optional)

With an Ethernet LAN you can make LAN connections without installing PC cards. Connection speed is 10/100 Mbps.

8 IEEE 1394 Port

You can use the IEEE 1394 port to transfer data at rates up to 400Mbps. It is ideal for video devices because it can transfer data in real time.

9 USB (Universal Serial Bus) Port

The USB is latest standard for attaching input devices, scanners, and other devices to a PC. USB devices can be chained together on a single cable. USB is 2.0 compliant.

Plug your modem into an analog telephone jack only. Most homes use analog lines. Do not

72_0119_001 28 June 2004

GoBook III® Help

Left Side Connectors

Hover the mouse over each number on the picture to see a description

7/5/2004file://C:\Documents%20and%20Settings\harwoodm.ITRXNT1\Local%20Settings\Temp\~h...

+ 58 hidden pages
