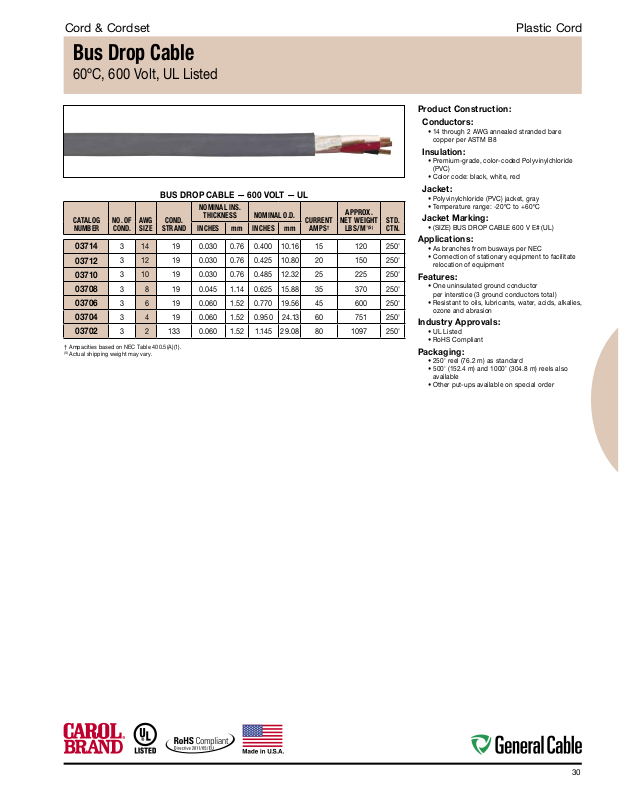

General Cable Plastic Cord Catalog Page

Cord & Cordset

Bus Drop Cable

60ºC, 600 Volt, UL Listed

BUS DROP CABLE — 600 VOLT — UL

NOMINAL INS.

CATALOG

NUMBER

03714

03712

03710

03708

03706

03704

03702

† Ampacities based on NEC Table 400.5(A)(1).

(S)

Actual shipping weigh t may var y.

NO. OF

AWG
SIZE

COND.

STRAND

COND.

3 14 19 0.030 0.76 0.400 10.16 15 120 250'

3 12 19 0.030 0.76 0.425 10.80 20 150 250'

3 10 19 0.030 0.76 0.485 12.32 25 225 250'

3 8 19 0.045 1.14 0.625 15.88 35 370 250'

3 6 19 0.060 1.52 0.770 19.56 45 600 250'

3 4 19 0.060 1.52 0.950 24.13 60 751 250'

3 2 133 0.060 1.52 1.145 29.08 80 1097 250'

THICKNESS NOMINAL O.D.

CURRENT

AMPS

NET WEIGHT

†

APPROX.

LBS/M'

Plastic Cord

Product Construction:

Conductors:

• 14 through 2 AWG annealed stranded bare
copper per ASTM B8

Insulation:

• Premium-grade, color-coded Polyvinylchloride
(PVC )

• Color code: black, white, red

Jacket:

• Polyvinylchloride (PVC) jacket, gray

• Temperature range: -20 ºC to +60ºC

STD.

(S)

CTN.INCHES mm INCHES mm

Jacket Marking:

• (SIZE) BUS DROP CABLE 600 V E# (UL)

Applications:

• As branches from busways per NEC

• Connection of stationar y equipment to facilitate
relocation of equipment

Features:

• One uninsulated ground conductor
per interstice (3 ground conductors total)

• Resistant to oils, lubricants, water, acids, alkalies,
ozone and abrasion

Industry Approvals:

• UL Listed

• RoHS Compliant

Packaging :

• 250' reel (76.2 m) as standard

• 500' (152.4 m) and 1000’ (304.8 m) reels also
available

• Other put-ups available on special order
