Residential Steam Humidiﬁers

User manual

Elite Steam

REMOVE BEFORE INSTALLING

LATCH THE CYLINDER CLAMP

REMOVE BEFORE INSTALLING

Warning

If present, remove the following items:

Elite Steam +03U221903 REV 2.1

We wish to save you time and money! We can assure you that the thorough reading of this manual will guarantee correct installation and safe use of the product described.

IMPORTANT WARNINGS

BEFORE INSTALLING OR HANDLING THE HUMIDIFIER PLEASE CAREFULLY READ AND FOLLOW THE INSTRUCTIONS AND SAFETY STANDARDS DESCRIBED IN THIS MANUAL AND ON THE LABELS ATTACHED TO THE Elite Steam.

CAUTION: ALWAYS DISCONNECT THE MAIN POWER BEFORE OPENING OR SERVICING THE HUMIDIFIER!

Elite Steam

contained in the plastic steam generator cylinder. Electric current passes through the water between the electrodes, heating the water into steam, which is then used to humidify the air.

The quality of the water used affects the operation of this unit, so the Elite Steam may be supplied with untreated water, as long as this is drinkable and not softened or demineralized. The water converted into steam is automatically replaced through an electric ﬁll valve. Periodically, based on the water quality, the unit will also drain some water to dilute the build-up of minerals in the steam generator. In cases of high water mineral content, an activated carbon filter in series with a particulate filter, no more than 5 microns is suggested.

This humidifier has been designed exclusively to directly humidify residential rooms or ducts, using

a distribution system. The installation, use and maintenance operations must be carried out according to

the instructions contained in this manual and on the labels applied internally and externally.

IMPORTANT: BEFORE beginning installation:

• Check for shipping damage to cartons. Mark the shipping waybill accordingly.

• Open cartons and check for any hidden damage. Mark the shipping waybill accordingly.

• Check packing slip to ensure all items have been received. Notify GENERAL FILTERS, INC. of any shortages or damaged parts. You must notify General Filters, Inc. within 5 working days of any shortages.

CAUTION : ELECTRIC SHOCK HAZARD! The humidiﬁer has components under power inside! CAUTION : SCALDING HAZARD! The humidiﬁer has hot parts (100°C / 212°F) WARNING : Install the humidiﬁer out of the reach of children The humidiﬁer must be installed in accordance with all local and national standards. All service and/or maintenance operations must be performed by qualiﬁed personnel who are aware of the necessary precautions and are capable of performing the operations correctly. Disconnect the humidiﬁer from the main power supply before accessing any internal parts. The conditions of the environment and the power supply voltage must comply with the speciﬁed values

listed on the data label in the humidiﬁer. All other uses and modiﬁcations made to the humidiﬁer that are not authorized by the manufacturer

are considered incorrect, and the manufacturer assumes no liability for the consequences of any such

unauthorized use.

produces non-pressurized steam by means of electrodes immersed in the water

Please note that the humidifier contains powered electrical devices and hot surfaces.

WARNING: Your humidifier requires water to operate. Do NOT mount it above materials or machinery

that could be damaged if a leak occurs. General Filters, Inc. assumes no responsibility for consequential

damage as a result of any leaks.

Disposal of the parts of the humidifier: the humidifier is made up of metallic and plastic parts. All parts must be disposed of according to the local standards on waste disposal.

Elite Steam +03U221903 REV 2.1

Contents

1. HOWTHE ELITE STEAM WORKS

1.1 Basic Operation

1.2 Cylinder Life

1.3 Calculating Humidity Load

.......................................................................................................................

...............................................................................................

2. MODELS

3. INSTALLATION

3.1 Positioning...........................................................................................................................

3. 2 Mounting..............................................................................................................................

3.3 Plumbing..............................................................................................................................

3. 4 Steam Distribution...........................................................................................................

3.5 Power Wiring......................................................................................................................

3.6 Control Wiring....................................................................................................................

3. 7 Wiring Connections .......................................................................................................

4. START-UP

4.1 Startup Checklist.................................................................................

4.2 The Elite Steam Controller...................................................................

4.3 Starting Elite Steam...............................................................................

4.4 Starting with a New Cylinder................................................................

5. OPERATING ELITE STEAM

5.1 Displaying Information.................................................................................................

5. 2 Changing The Maximum Production.....................................................................

5.3 Activating Manual Drain .............................................................................................. 18

5. 4 Resetting the Hour Counter ........................................................................................

5. 5 Using the E2 Humidistat .............................................................................................

5.6 Alarms................................................................................................................................... 19

6 7

9 9

9 11 12 14

14 16

17 17 17

17 17

18 18 18

18 19

6. TROUBLESHOOTING

7. MAINTENANCE

7. 1 Periodic Checks.................................................................................................................21

7. 2 Cylinder Maintenance.....................................................................................................

7. 3 Replacement Parts

.........................................................................................................

8. TECHNICAL SPECIFICATIONS

9. LIMITED WARRANTY

21 21

22 24

5Elite Steam +03U221903 REV 2.1

1. How The Elite Steam Works

1.1 Basic Operation

Elite Steam is an electrode humidifier. It produces steam for humidification by passing electric current through the water between metal electrodes in the plastic steam generator cylinder. There are no heating elements. Steam output is directly proportional to the conductivity of the water, and the amount of electrode immersed in the water.

On a call for humidity, the Elite Steam controller will open the water fill valve (1) and allow water to enter the cylinder. A flow restrictor (2) prevents the unit from filling too quickly or with too much pressure. The water flows up the fill tube (3) and into the fill cup (7). Water then flows over the dam in the fill cup (7), which creates a 1” air gap to

prevent backflow of contaminated water into the feed lines, and through the fill tube (4) and into the bottom of the steam cylinder (11). Any backflow or overflow of water travels through the overflow hose (5) to the drain.

As the water fills the cylinder, it will reach the electrodes (10) and current will begin to flow. As the water continues to fill the cylinder, the current will increase, and this is monitored by an amperage transformer connected to one of the power wires (9)

and located on the electronic controller. When the desired current is reached, the fill valve will close (1) and the water will then begin to warm and produce steam. If the water reaches the cylinder full probes (8) prior to reaching the desired current rises too much as the water fills the cylinder, the drain valve (13) will be activated to drain away some water and reduce the current flow to acceptable levels. Note that, any time the drain valve is activated, the tempering valve (14) will be opened for tempering the hot drained water down to 140 degrees F/ 60 degrees C in accordance to local and national standards.

Periodically, based on the incoming water conductivity, the unit will open the drain valve (13) and drain some water to reduce the mineral concentration. Every 120 hours the unit automatically drains to remove mineral sediment on the bottom of the cylinder. A strainer (12) in the cylinder helps to prevent mineral debris from jamming the drain valve (13). In case Elite Steam remains powered but idle, i.e. without producing steam, for more than 72 hours (3 days), the cylinder will be emptied to not have stagnant water inside.

If there is no water in the cylinder, there will be no current flow and no steam production. The electrodes do not burn out, but they will eventually become completely coated with mineral and the cylinder will then need to be replaced. Cleaning cylinders may cause electrode damage, therefore voiding its warranty. See 7.2.2 maintenance section on page 21.

No c ton 1 Steam generator cylinder 2 Room blower/manifold (optional)

3 User interface/display 4 On/Off, SET buttons 5 Fill & tempering valves 6 Fill & drain connections

7 Drain valve

ble 1.a

Fig. 1.b

Elite Steam +03U221903 REV 2.1

1.2 Cylinder Life

1.2.1 Basics of the Steam Cylinder The Steam Cylinder is the engine of the humidifier. As the humidifier operates and water is evaporated and minerals are left behind. Much of these minerals are removed through the cylinder drain. Some are deposited on the walls of the cylinder and the cylinder electrodes. When a lower section of the electrodes develop a thick coating, the water level is raised to expose clean electrode surface. Eventually minerals cover the electrodes’ entire length with a thick coating and little electrical current can pass between them resulting in poor steam output. The humidifier can sense the low amperage and will display the E6 Cylinder Exhausted error code. There are several factors that influence cylinder life.

1.2.2 Water Characteristics of water influence cylinder life and can vary greatly from place to place. Total mineral content of the water is

important. Equally important is what minerals are present in the water. Most water conditions result in flakey scale that eventually fills the bottom of the cylinder until it can no longer function. Water with high silica content can result in a thin glass-like coating on the electrodes that is highly insulating resulting in shorter cylinder life. Only cold water is to be used

1.2.3 Water Filtration Typically additional filtration of the incoming water supply is not necessary. If, however, mineral content is known to reduce cylinder life excessively or if cylinder life proves insufficient then water filtration can be added. In most cases the addition of a two element water filter can improve cylinder life. The filter should contain an activated carbon element and a particulate filter element rated for 5 microns or less. Micron is a size measurement. The filter system should have a flow rate of at least 2 gpm. The activated carbon will absorb much of the mineral content while the particulate filter will catch any granular material

or sediment. It is important to remember that the increase in cylinder life will be accompanied by the need to replace filter

elements with each cylinder change.

1.2.4 Humidity Load and Cylinder Life

Humidity load demands have an effect on cylinder life. Normal installations where humidity capacity is properly sized require only intermittent periods where full humidifier capacity is required. This allows the water level in the cylinder to be increased only as electrode segments become insulated. This tends to maximize cylinder life.

Extraordinary installations that require constant operation at full capacity reduce cylinder life. The water level in the cylinder is, on average, much higher, and the electrodes become completely insulated more quickly. Installations like this may result in cylinder life of less than 1000 hours.

The importance of providing adequate humidifier capacity should not be underestimated.

1.2.5 Maximum Production

Another factor affecting cylinder life is the maximum production setting. A higher production rate will result in a shorter cylinder life. For this reason DS-35 and RS-35 units are preset from the factory at 70%. Further reductions in Maximum Production will extend cylinder life. See Figure 1.c.

Figure.1.c

1.2.6 Structures Under Construction In high end construction projects, humidification is often required while the structure is being finished. Humidification is necessary to protect and stabilize wood floors, trim and decoration. Humidification load, however, in an unfinished structure may be five to eight times higher than when finished. Elite Steam humidifiers may be operated while construction is underway but, reduced cylinder life is to be expected and budgeted for. Good practice dictates that the steam cylinders also be replaced once the project is complete.

Cylinder

Life

100% 20%

Maximum Production

1.3 Calculating Humidity Load

1.3.1 Steps to Determine Humidity Load

Total Square Footage x Average Ceiling Height x Factor From Table 1.2 x 1.05 for each Fireplace Humidity Load in lbs./hour

x 2.88 convert to gallons/day Gallons per Day Humidity Load

Table 1.2 Pounds of Moisture / Hour / Cubic Foot *

Indoor Air Temp

◦

68 0.00015 0.00018 0.00021 0.00024 70 0.00017 0.00020 0.00023 0.00026 72 0.00019 0.00022 0.00025 0.00028

35% 40% 45% 50%

Indoor RH%

Steam Elite +03U221903 REV 2.1

*Based on .5 air changes per hour.

2. MODELS

There are two basic models available in two voltages. Duct models require selection of an additional kit.

Duct Steam Injection

Room Steam Discharge

Fig.2.a

PART NUMBER

RS 15 Fig. 2.b

RS 35

Fig. 2.b

DS 15 Fig. 2.a

DS 35 Fig. 2.a

DMNKIT

(not shown)

RMB 15

(not shown)

RMB 35

(not shown)

Steam Elite +03U221903 REV 2.1

DESCRIPTION PARTS INCLUDED

Room steam dicharge, 15 gallons per day (5.5 Lbs per hour) 115-120v

Room steam dicharge, 35 gallons per day (12 Lbs per hour) 220-240v

Duct steam injection 15 gallons per day (5.5 Lbs per hour) 115-120v

Duct steam injection 35 gallons per day (12 Lbs per hour) 220-240v

Duct mount kit

Remote mount blower kit for DS 15

Remote mount blower kit for DS 35

MODEL LIST

Complete Humidifier. E2 humidistat, code valve, water fill connector, water supply tubing.

Humidifier only, Kit selection required

8 ft. steam hose, nozzle, E2 humidistat, code valve, water fill connector, condensate hose, water supply tubing, air proving pressure switch.

12 ft. steam hose, E2 humidistat, code valve, condensate hose, water fill connector, water supply tubing, and thru-the wall sleeve with 120v blower and grille pkg.

12 ft. steam hose, E2 humidistat, code valve, condensate hose, water fill connector, water supply tubing, and thru-the wall sleeve with 240v blower and grille pkg.

Fig.2.b

3. INSTALLATION

3.1 Positioning

Duct Steam Injection

The Elite Steam has been designed for wall mounting and, since it is an atmosheric steam humidifier, should be placed close to the point where the steam will be used, to minimize the steam hose length (and the amount of condensate). Certain clearances must be maintained around the unit for safety and maintenance.

3.2 Mounting

3.2.1 Removing the front cover The front cover is secured by four screws located at the four corners of the unit.

Use a phillips head screwdriver to remove the four cover screws. Then simply pull the front cover away from the back part of the unit. Return it in reverse order.

Be careful not to over-tighten the screws

Room Steam Discharge

Fig. 3.a

Millimeters Inch A B C D E F

150 mm 6”

24” m m 0 0 6

max. 0.2 Degrees

Tab. 3.a

Fig. 3.d

Fig. 3.b

Millimeters Inch A B C D

150 mm 6”

1800 mm 72”

600 mm 24”

Tab. 3.b

Unit Dimensions: Duct and Room Units

Fig. 3.e

Elite Steam+03U22190 REV 2.1 9

A B C

Weight empty Weight packaged Weight installed with water

Fig. 3.c

Millimeters Inch

341 mm 204 mm

600 mm

13.4”

8.1”

23.7”

K ilograms Pounds

8kg 10kg 12kg

18lbs 22lbs 26lbs

Tab.3.c

[21/8]

[2 3/8]

115

[41/2]

128

[5]

25 6

]8 /1 0 1[

128

[5]

448

[1 7 5/8]

DOWN

[1 3/8]

[3 7/8 ]

[21/2]

[21/8]

[31/8]

[11/2]

10 2

[4]

600

[23 5/8]

[1 3/8]

[2 3/ 4 ]

ø40

[15/8]

ø50

[2]

ø23

[7/8]

ø 30

[11/8]

[1 7/8 ]

[2 3/8]

[5/8]

[2 3/4]

[21/2]

[2 3/8]

ø 23

[7/8]

[3 5/8]

[31/4]

[2]

[3/8]

[21/8]

[7/8]

[1 5/8]

3.2.2 Fastening to the wall Drill the wall according to the drilling template supplied; then secure Elite Steam firmly to the wall by the screws and anchors supplied.

Elite Steam +03U221903 REV 2.1

Fig. 3.f

3. INSTALLATION

3.1 Positioning

Duct Steam Injection

3.2 Mounting

3.2.1 Removing the front cover The front cover is secured by four screws located at the four corners of the unit.

Use a phillips head screwdriver to remove the four cover screws. Then simply pull the front cover away from the back part of the unit. Return it in reverse order.

Be careful not to over-tighten the screws

Room Steam Discharge

Fig. 3.a

Millimeters Inch A B C D E F

150 mm 6”

24” m m 0 0 6

max. 0.2 Degrees

Tab. 3.a

Fig. 3.d

Fig. 3.b

Millimeters Inch A B C D

150 mm 6”

1800 mm 72”

600 mm 24”

Tab. 3.b

Unit Dimensions: Duct and Room Units

Fig. 3.c

Millimeters Inch

Fig. 3.e

A B C

Weight empty Weight packaged Weight installed with water

341 mm 204 mm

600 mm

K ilograms Pounds

8kg 10kg 12kg

13.4”

8.1”

23.7” 18lbs

22lbs 26lbs

Tab.3.c

0 .Elite Steam +03U22190 REV 2.1

A B C D E F G H I

1 2 3 4 5 6 7

Millimeters Inch

31.5 mm

1.24” 50 mm 1.96” 56 mm 2.20”

57.5mm

2.26” 100 mm 3.93” Ø22mm Ø 0.31” Ø22 mm Ø 0.86” Ø22mm Ø 1.18” 12or 22mm 0.47”or 0.87”

Steam inlet Condensate drain Steam inlet Condensate drain Flange gasket End support Mounting screw

Tab.3.f

3.4 Steam distribution

3.4.1 Duct steam injection The maximum allowed duct static pressure is 2 in WC. The Duct Mount Kit includes a plastic duct injection nozzle.

See Fig.3.i

Fig. 3.i

H G

Min 8”

Airflow

1000 cfm min.

Height >8”

Airflow

1000 cfm min

8” min

24” min Upstream

Fig.3.j

36”min

1/3 Height

Airflow 1000 cfm min.

Downstream

3.4.1 Duct Distribution If a duct steam distribution nozzle is to be used, select an accessible location on supply or return duct, allowing at least 36” of straight duct (no elbows or obstructions) after the point where the nozzle will be installed and the clearances can be maintained as per the previous drawings. See Fig.3.j To mount the steam nozzle, cut or drill a 2-1/2” hole in the duct. Apply caulk to the to the mounting plate of the nozzle. Attach the nozzle to the duct using 4 #10 sheet metal screws (supplied). Nozzle must be level or vertical with condensate outlet to the bottom.

IMPORTANT: Allow 1 M ( 3 feet ) of straight duct downstream of the distributor pipes and nozzles for absorption of the steam. Always allow 0.6M (2 feet) of straight duct upstream of the distributor pipes for evaporation of the steam. Turbulent air flow may require longer lengths.

Optional Stainless Steel Duct Distributor Pipe:

Fig. 3.k

To install the distributor pipe:

30 mmX= 3” 40mmX=3.9”

1. Cut a round hole in the side of the duct to match the steam pipe and condensate return. . Apply silicone sealant to the mounting plate and insert the pipe through the hole and secure it with sheet metal screws. See Fig.3.k

3. Connect the steam and condensate hoses using the hose clamps supplied.

(Note: End support bracket supplied only with 0,9m (36”) and longer distributors.)

3.4.2 Return Condensate Connection

The return condensate hose from the nozzle, etc. must be trapped. Coil the hose into a vertical loop and secure it below the nozzle, etc. This trap prevents steam from being released into the cabinet. The hose end may be run through the knockout at the top of the humidifier and be inserted into the hole located on top of the fill cup. The hole may be enlarged to suit. See Fig.3.l.

3.4.3 Steam Hoses

IMPORTANT WARNING: NINETY PERCENT (90%) OF ALL OPERATION PROBLEMS ARE CREATED BY IMPROPER STEAM

PIPING FROM THE HUMIDIFIER UNIT TO THE DUCT DISTRIBUTOR PIPES. To avoid these problems, remember one simple fact when running the steam hose: steam naturally flows uphill, and condensate naturally flows downhill. Run the steam hose or piping to avoid any kinks, sharp elbows, or low spots that could collect to restrict the flow of steam to the distributor pipe, or the flow of condensate back to the humidifier. Support the hose adequately to avoid sags, steam hose can droop after serveral years' service.

The following diagrams are to provide you with some guidelines. If you have a situation you are unsure of, please contact technical support for instructions.

Elite Steam +03U221903 REV 2.1

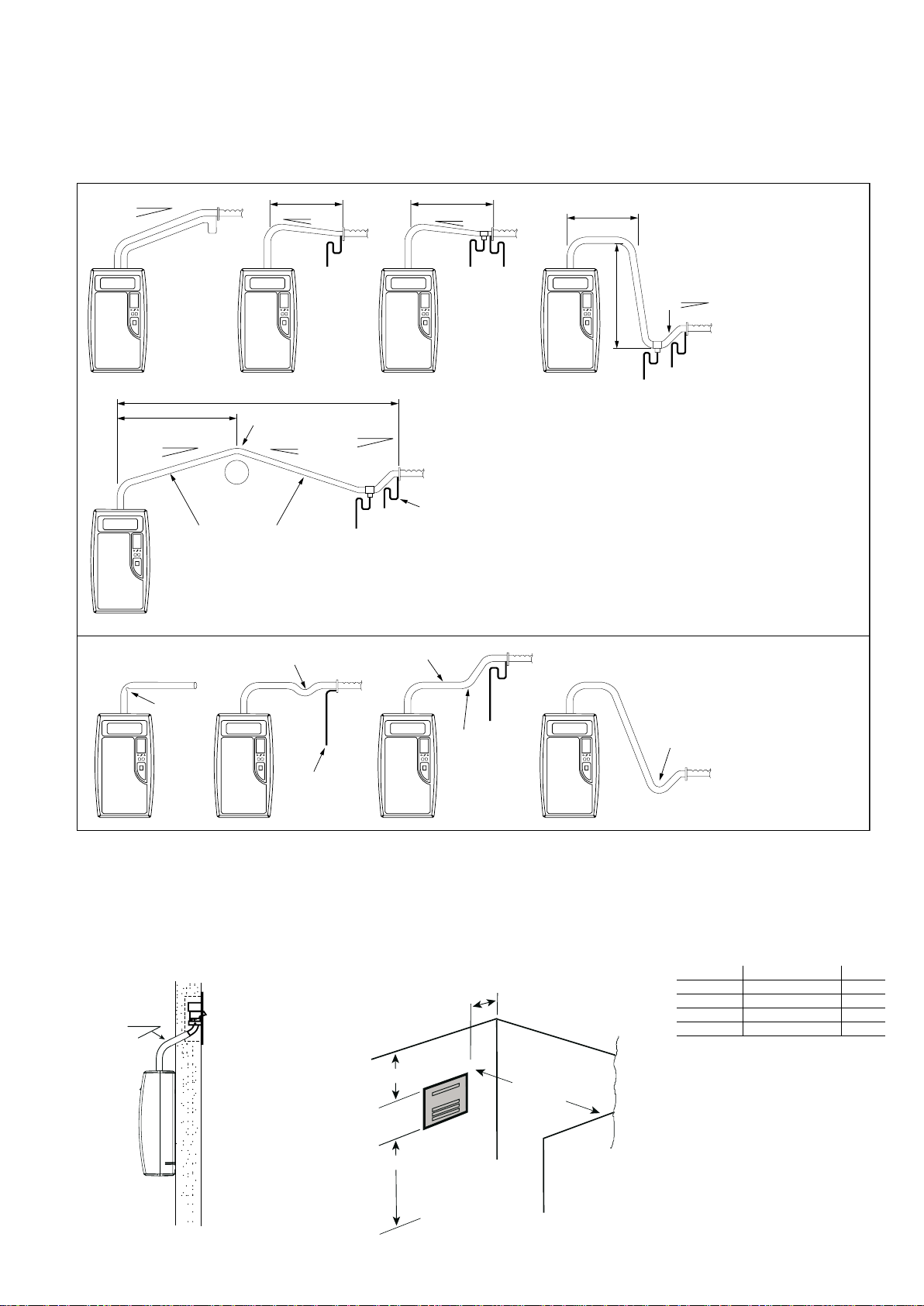

FIG.3.l

IMPORTANT: Maximum length of rubber steam hose is 4m (12 feet.). Insulated copper tubing may be up to 6m(20feet) in length.

45°elbows instead of

-2 esU .swoble dna sdneb prahs eziminim ,sesac lla nI

90°s.

Hose inner diameter =7/8”

( 22 mm).

Hose outer diameter = 1-1/4” (30 mm).

1,5 m (5 FTmax.)

≥15°

3 m (10 FT max.)

1,5 m (5 FT max.)

≥15° ≥15°

OBSTUCTION

SUPPORTED STEAM HOSE

AND/OR COPPER PIPE

NOTE

• SLOPE PIPING UP IN DIRECTIONS OF STEAM FLOW AT 20% OR GREATER, WHICH MEANS 63.5MM (2 1/2” PER FOOT)

• SLOPE PIPING DOWN IN THE DIRECTION OF STEAM FLOW AT 5% OR GREATER, WHICH MEANS 19MM (2 1/2” PER FOOT).

• MAX. LENGTH OF RUBBER STEAM HOSE IS 4M(12 FT).

• HEIGHT OF P-TRAPS MUST BE GREATER THAN THE DUCTS STATIC PRESSURE.

IF NO

TRAP

≥5°

DNEB ELTNEG

≥5°

DRAINS

3 m (10FT max.)

PART HTIW

≥5°

DR AINS

TYPICAL INSTALLATION

WHEN THE UNIT IS ABOVE

THE DISTRIBUTOR PIPE

P- TRAP NOTE: HEIGHT OF TRAPS MUST BR GREATER

THAN THE DUCTS STATIC PRESSURE

1,5 m (5 FTmax.)

IF NO EPO LS

≥15°

0,9 m (3FTmax.)

DRAINS

YES

NO SLOPE

UNDRAINED

ELBOW

UNDRAINED

ELBOW

NO DISTRIBUTION

PIPE DRAIN

NO SLOPE

KINKED

SAG

NO TRAP

Fig. 3.m

3.4.4 Remote Mount Blower Remote Mount Blowers, are used to distribute the steam directly into the room. The drawings show the minimum

recommended distances to avoid the flow of humidified air from coming into direct contact with persons, lights, electrical appliances, and surfaces before the steam has been totally absorbed by the environment. For further details on the assembly, the electrical connections and the use of a Remote Mount Blower,

please refer to the speciﬁc instruction manual.

Millimeters 150 mm

1800 mm 72 “ 600 mm 24 “ 2100mm 84 “

≥20°

A B

C D

Inch

6 “

Tab. 3.g

Elite Steam +03U221903 REV 2.1

Fig. 3.n

3.5 Power wiring

L1 L2

Fig. 3.o

Fig. 3.p

Fig. 3.q

Model

Power supply

(single phase)

Steam Ouput

(Ibs/hr)

DS15 110Vac 56/60Hz 5.5 RS15

DS35 RS35

110Vac 56/60Hz

230Vac 50/60 hz 230Vac 50/60 hz 12 5.4 3.89 16.95

5.5 2.5 1.80 16.40 AWG10 5 12

Check that the power supply voltage to be connected matches the value indicated on the rating plate

inside the electrical panel.

Insert the power and ground connection cables into the electrical panel compartment using the strain reliefs supplied, and connect to the terminals. An external fused disconnect must be installed. See Fig. 3.o

All wiring must be in accordance with local, state and national electric codes. NOTE: to avoid unwanted interference, the power cables should be kept separate from any

control wiring. NOTE: Tolerance allowed on main voltage = -15% to +10%

Connect power wires to the power terminal block located at the bottom left of the control module, polarity does not matter. See Fig. 3.p

Connect the ground wire to the unit’s chassis ground, located just behind the power wiring terminal block. See Fig. 3.q

Steam Ouput

(kg/h)

2.5 1.80 16.40

5.4 3.89 16.95

POWER

(kW)

CURRENT

(A)

EXTERNAL POWER WIRES

AWG10

EXTERNAL FUSE (A) OR BREAKER

AWG10

Tab. 3.h

N2 GND

N1 AB

AB GND

Fig. 3.t

Fig. 3.r

N2 GND

N1 AB

AB GND

N2 GND

N1 AB

AB GND

Fig. 3.u

PR E SSUR E SW I TCH

Fig. 3.s

3.6 Control wiring

Elite Steam allows connection of any simple or automatic humidistat, and safety devices such as high-limit humidistat, air flow proving switch, and remote on/off.

The humidiﬁer is operated by the closing of a mechanical humidistat H, or by the closing of a voltage-free remote contact CR, or alternatively by a combination of both. The

most common is a combination of a humidistat and pressure switch. The diagrams

in the figures show the connections to be made on the terminal block, in case of : Fig. 3.t Operation controlled by an external mechanical humidistat; Fig. 3.u Operation performed by a simple enabling contact; Fig. 3.v A combination of both humidistat and pressure switch (most common).

Contact AB-AB:

• closed: humidiﬁer enabled to produce steam

(production starts when humidistat closes);

• open: steam production is immediately stopped.

The remote on/off contact is usually a series of external potential-free contacts

that enable the humidiﬁer to produce steam when all of them are closed, indicating the

duct/AHU is ready to accept steam. Connect the 12500 Pressure Switch NO and C terminals to the AB-AB contacts.

For example,

• fan contact closes when fan is running;

• downstream cooling coil contact closes when coil is off;

• etc.

Contact IN-GND:

• closed: steam production starts if contact AB-AB is closed

• open: steam production is stopped after 5 sec.

Fig. 3.v

Elite Steam +03U221903 REV 2.1

3.6.1 Connect the E2 Humidistat for On/Off Operation:

1. Remove the humidistat from the base, squeeze the louvered base at the top and bottom. To remove the humidistat from the wall, lift up on the humidistat and pivot top away from wall.

2. Before wall mounting, please remove the black foam gasket.

3. Before return air duct mounting, please remove the breakout piece.

4. If return air duct mounting, route wires between humidistat and base.

5. Mount the sensor outside the house. Do not mount on South side of the house or in direct sunlight. Place at least 4 feet away from any exhaust vent. If in air intake, place 1 foot or closer to outside wall. Place at least 6” higher than possible snow. Do not route sensor wire near high voltage wires.

6. Connect the GND-IN terminals on the humidifier to the HUM terminals on the E2 Humidistat. Connect the GND-24V terminals to the ACL-ACN terminals on the E2 Humidistat. see Fig.3.x

3.6.2 Modulating Operation Connect an external 0...10 Vdc modulating input between terminals IN-GND.

PR E SSUR E SW I TCH

Connect any Safety Switches (high-limit, air ﬂow switch, remote on/off) in series to terminals AB-AB. If no safety switches are used, then a jumper must be installed between AB-AB. DO NOT apply any voltage to AB-AB.

3.6.3 Connect the ADCD humidistat for Modulating Operation To select signal modulating see Fig 3.y

Fig. 3.w

EXTERNAL REGULATOR

Connect the power supply to the ADCD G and G O terminals, using the terminal GND and 24V on the Elite Steam. Connect an external signal to the ADCD using the terminal IN from the Elite Steam and AOUT in

ADCD.

See the diagram below.

AC L

AC N

HUM

E2 HUMIDISTAT ADCD HUMIDISTAT

SNSR

OUTDOOR TEMP. SENSOR (not used in manual mode)

Fig. 3.x

N2 GND N1 AB AB

GND IN

C NC

C NO

GND 24V

Elite Steam

FOR HUMIDISTAT ONLY OPERATION

Fig. 3.y

ADCD

DIP SWITCH SETTNGS

ON OFF OFF

1 2 3 4

ON DIP

ADCD

3.6.4 Safety and High Limit Switches Remove the jumper between terminals AB-AB and connect any simple high-limits, air flow switch, 12500 pressure switch, and remote contacts in series to terminals AB-AB; otherwise, if no such dry contacts are available, the jumper must remain in place between terminals AB-AB. DO NOT apply any voltage to AB-AB.

Thread the control wiring through the bottom of the unit, and the strain relief (see photo at top of previous page), and then up the side of the control module to the top right wiring terminal blocks. Connect the control wiring to the control wiring terminal blocks found at the top right side of the control module.

Elite Steam +03U221903 REV 2.1

WATE R INL ET

DRAIN VALVE

STE A M BOI LER UN IT

EV F

POWER SUPPLY

(110 VAC 1-PHASE 50-60 HZ

230 VAC 1-PHASE 50-60 HZ)

24 VAC FOR EXTERNAL HUMIDISTATS

EXTERNAL DUCT FAN

ALARM

HUMIDISTAT

PROGRAMMING PORT

NTC AIR PROVING SENSOR

IN GN D AB AB N1 GND N2

NO C

NC C NO

24Vac GND

LCD AND

KEY BOARD

EXT FA N

ALARM

KE Y

HL N EVF

EVD N F INT

FAN E2 E1

L1 L2

ON/OFF BUTTON

12124

EMBEDDED BLOWER

EXTERNAL FUSED DISCONNECT TO BE INSTALLED (NOT SUPPLIED) RESPECT LOCAL CODES

CONNECTED TO GROUND

KEY: EVF = FILL VALVE DT = DRAIN TEMPERING VALVE HL = HIGH-LEVEL SENSOR

3.7 Wiring Connections:

Terminals Functions L1-L2 -GROUND Power supply and Ground connections

Electrical specifications

Power supply 110 VAC 1-phase 50-60Hz 1.86kW or 230VAC 1-phase 50-60Hz 4.05kW

KEY Programming port Connecting to Programming port or supervisor

-GND-N 21N NTC air proving sensor Connection to NTC 2K and 10K to 20°C

AB-AB Remote enabling input Imposes an external NO contact ; Rmax= 300 Ohm; Vmax=33 Vdc; Imax=

6mAdc; humidiﬁer enabled = contact closed

IN-GND Control signal imput If programmed 0...10V:

Input impedance 10 kohm If programmed ON-OFF: Vmax 33Vdc Imax = 5mA Rmax = 300 Ohm

NC-C-NO NC alarm contact

250V; 8Amp max with resistive load;

4 Amp max with inductive load Common alarm contact NO alarm contact

NO-C External fan relay 250V; 8Amp max with resistive load; 4 Amp max with inductive load 24-GND Power for external humidistat Power supply for external humidistat 24 Vac; 2 Watt

Tab. 3.i

3.7.1 Wiring diagram of controller

AIR PRESSURE SWITCH

Fig. 3.z

Elite Steam +03U221903 REV 2.1

4. START -UP

IMPORTANT WARNINGS:

leaks and that the electrical parts are dry;

2. Do not connect power if the humidiﬁer is damaged or even partially wet!

When installation is completed, ﬂush the supply pipe for around 10 minutes by piping water directly into the drain, without sending it into the humidiﬁer; this will eliminate any scale or residues that may cause

foam when boiling.

4.1 Startup Checklist

Before starting the humidiﬁer, the following should be checked:

• Water is connected, the line has been ﬂushed, and external valves are open.

• Drain is connected, run to an open drain, and has a trap under the unit.

• Electricity is connected in accordance with instructions, local codes and data labels in the unit.

• The power fuses are installed and intact.

• All control wiring is done and tested.

• Airﬂow switch is wired to open on air ﬂow loss.

• Hi-limit humidistat is wired to open on humidity rise above set point.

• Unit wires have been checked to make sure they and all connectors are tight from shipping.

• The steam hose(s) are run correctly with no sags or kinks and sloped properly according to the manual.

• Condensate hoses are run correctly with no sags or kinks and sloped properly according to the manual.

4.2 The Elite Steam Controller

The Elite Steam controller features a comprehensive information display that shows the

operation of the system at a glance:

1 2 3

4 5 6 7

10 11

The Elite Steam is now ready to operate.

1. Before starting, check that the humidiﬁer is in perfect condition, that there are no water

Display is % of nominal capacity

Maintenance

Display is amperage (default)

Steam is being produced

Cylinder ﬁlling

Foaming

Water presence inside the cylinder

Cylinder draining

LEDs indicate: power (yellow), operation (green) and alarms (red) Drain button for manual draining of cylinder and conﬁrming parameter values ON/OFF button

Reset button to reset alarms and access parameters

Level of output: 33%, 66%, 100% Fan relay is activated

4.3 Starting Elite Steam

• Insure that the external power is turned on.

• Push the top part of the On/Off button so that the I part is in. The yellow Power LED will be lit. The Elite Steam is now ready to operate.

• When there is a call for humidity, Elite Steam will close its power relays and send power to the electrodes in the plastic steam generator. The green Operation

LED will light, indicating that operation has begun.

4.4 Starting with a new cylinder

When starting with a new cylinder, you should activate the cylinder cleaning function as follows:

1. Switch Elite Steam off.

When the wrench blinks

3. Press and hold "reset" until display shows 04..

WARNING: DO NOT conﬁrm any value higher than 04

display goes back to the normal operating mode and restart from step.

4. Press “drain” (minimum 1 second): the cleaning starts.

During the cleaning, the electrodes are powered and water is ﬁlled in until it touches the high-level sensor or the phase current equals 20A, whichever occurs first. After either

of the events is detected, the boiler is fully discharged with the electrodes un-powered

(the drain valve and the drain tempering valve are activated for 3 minutes). Warming the

filling water helps

do two cleanings when starting a new boiler. After the cleaning ends, the humidifier starts the regular

duty. When starting the unit with a new or empty cylinder, it may take a signiﬁcant amount of time (hours) for the unit to build up enough mineral concentration to reach rated capacity. This time can be shortened by the addition of Alka-Seltzer through the steam outlet on top of the cylinder.

Elite Steam +03U221903 REV 2.1

washing out any mold release or dirt. General Filters, Inc. recommends to

then release the two buttons.

. In case, press “reset” until the

no kcab maetS etilE hctiws dna ,”niard“ dna ”teser“ snottub htob d loh dna sserP .2

1012

Fig. 4.a

5. OPERATING ELITE STEAM

5.1 Displaying Information

By pressing the “Reset” button for 2 seconds, the display will loop from amperage to production in % of the maximum production to the hour counter and back to amperage:

Fig. 5.a

1. Amperage: the value of the current that ﬂows through the water making it boil off

2. Production %: the current production expressed as a percentage of the

5.1.1 Select Signal Type

The Elite Steam is preset for the included E Series humidistat (signal type 0). If the included humidistat is used, this section may be omitted. If another humidistat is used, review this section to see if changes are needed.

2. Press and hold both buttons “reset” and “drain” and switch Elite Steam back on.

(default display)

capacity.

3. Hour counter, expressed in tens: for instance, when the display shows 13 the real hour value will be between 130 and 139 hours.

1. Switch Elite Steam off.

When the wrench blinks,

3. Press “Reset” until the display shows 02. WARNING: DO NOT conﬁrm any

value higher than 04. In case, press “Reset” until the display goes back to the normal

operating mode and restart from step 1.

4. Press “drain” (minimum 1 second) to conﬁrm: the display shows “P1” then the current signal type and

5. Press “Reset” to change signal type between 0 and 1:

0 = On-Off humidistat such as the GeneralAire “M” or “E” series humidistat.

1 = external 0...10 Vdc modulating signal such as the GeneralAire ADCD series humidistat.

6. Press “drain” (mininimum 1 second) when done to conﬁrm the new value of P1 and exit to the

normal operating mode.

7. Switch Elite Steam off: you can now proceed with connecting the control wiring.

“set”.

release the 2 buttons.

5.2 Changing The Maximum Production

The maximum production can be adjusted between 20% to 100% of the humidifier's capacity in steps of 5% in order to suit the environment characteristics. DS35 and RS35 Maximum production is factory set at 70%.

2.. Press both and hold both buttons “Reset” and “Drain” , and switch Elite Steam back on. When the

4. Press “drain” (minimum 1 second) the display shows “P0” then the current Maximum Production

1. Switch Elite Steam off.

wrench

3. Press “reset” until the display shows 01. WARNING: DO NOT confirm any value higher than 04. In case, press "Reset" until the display goes back to the normal operating mode and restart from step 1.

Percent and "set".

5. Press “reset” to change the Maximum Production in steps of 5% between 20% and 100%.

6. Press and hold “drain” (minimum 1 second) when done to conﬁrm the new Maximum Production and exit to the normal operating mode.

blinks; release the 2 buttons.

5.3 ActivatingManual Drain

Press and hold the “drain” button on the front of the unit until the cylinder is drained. Note: Water will continue to flow from the tempering valve after the cylinder is empty.

5.4

Resetting the hour counter

The hour counter should be reset every time the cylinder is changed in order to reset and restart the

internal maintenance timer:

2. Press and hold both buttons “Reset” and “Drain” and switch Elite Steam back on. When the

3. Press and hold “reset” until the display shows 03. WARNING: DO NOT conﬁrm any

Elite Steam +03U221903 REV 2.1

1. Switch Elite Steam off.

wrench

value higher than 04. In case, press “Reset” until the display goes back to the normal

operating mode and restart from step 1.

Press “Drain” (mininimum 1 second) to conﬁrm: the hour counter will be reset at once and

Elite Steam will go back to the normal operating mode.

blinks; release buttons.

5 Using the E2 Humidistat5

Press

to select OFF, MANUAL

or AUTO mode (if outdoor sensor is connected)

OFF mode: The humidifier is turned off.

MANUAL mode:

The E2 will work to maintain the single humidity selected. You can set your desired humidity level by pressing or . The humidifier will turn ON or OFF according to your manual setting. (The humidifier will operate when the measured relative humidity falls more than 2% below the set point). Humidity will have to be lowered when weather is colder or if condensation is suspected.

AUTO mode:

The E2 will automatically raise the humidity as the outdoor temperature increases. This provides the highest

Suggested Setting Outdoor Temperatures

15% 20% 25% 30% 35% 40%

-20F

-10F 0 F +10F +20F +30F

-29C

-23C

-18C

-12C

-7C

-1C

possible humidity. The E2 will automatically lower the humidity as temperatures drop. This minimizes the risk of condensation ON

on cold surfaces like windows. You can adjust the Auto Humidity Index Set Point from 0(low) to 10(high) by pressing

or The Humidity Index is based on the outdoor temperature and indoor humidity. The humidity will switch ON/OFF according to the calculated auto humidity index set point. Lower index settings are for older homes with less insulation and vapor barriers.

Higher Index settings are for newer homes with complete vapor barriers, triple pane windows, and high R value insulation. If condensation occurs reduce Index setting by 2 points until condensation stops.

NOTE:

If the outdoor temperature sensor fails,

flashes and the unit will default to MANUAL mode.

To toggle between indoor / outdoor temperature and indoor humidity: To change the temperature unit: Press °C / °F

Press

To set the temperature / humidity offset in MANUAL or AUTO mode:

1.Simultaneously press and when viewing the temperature or humidity reading.

2.Use

3.Press

or to change the setting (

and

simultaneously or wait 5 seconds to confirm and move onto the next setting.

3 to 3).

Lo or Hi will flash on the display when:

MEASUREMENT LO HI

Indoor temp. Below 0

(32

Outdoor temp. Below -40oC

(-40

Above

F(37oC)

Above 50

(122

Humidity Below 10% Above 90%

•

If power is lost, current settings are retained.

WARNING

Do not allow excess humidification. Excess humidity can cause condensation and enable mold and mildew growth.

5.6 Alarms

In the event of an alarm, the red alarm LED will ﬂash, the alarm relay will close, and the alarm code will flash in the display. Multiple alarms will ﬂash in sequence, alternating with the main display. Pressing the sel button for 2 seconds will reset

the alarms, although still active alarms will continue to display.

Display Description Action

Remote on-off open

- -

Internal memory error Unit disabled

Control board conﬁguration not valid Unit disabled On On

High current alarm Unit disabled On Turn off, check connections, check cylinder

Low production, low supply water conductivity

excessive foam/limescale in the cylinder

Cylinder lifetime expired

(1200 hours)

Fill alarm, unable or slow fill

(current does not increase within timeout)

Drain alarm, unable to drain

(current does not decrease within timeout)

Cylinder exhausted

(critical performance detected)

Unit disabled

Press “reset” key for 1 seconds to reset.

Press “reset” key for 1 seconds to reset. The warning will be displayed 50 hrs later until the hour counter is reset and the cylinder replaced. Press “reset” key for 1 seconds to reset, otherwise the warning will be reset aut -o-

matically every 10 minutes until the supply

water is available again.

Press “reset” key for 1 seconds to reset On On Check drain valve and drain connection

The warning is automatically reset if CompactSteam can produce the demand,

Red Led

Off Off

On On

On On Check supply water conductivity (too low?), Off Off Change cylinder (not urgent)

Alarm Relay

Check AB-AB jumper or pres. switch

Notes

Contact Tech. Support Contact Tech. Support

(no limescale bridges between electrodes,

no electrodes short-circuited) replace the cylinder.

0n On Check water supply and ﬁll valve;

check drain valve for leakage

Off Off Change cylinder (urgent)

Foam detected

Cylinder lifetime expired

(2000 hours)

High Controller Temperature

(above 80°C / 176

°F )

Elite Steam +03U221903 REV 2.1

Press “reset/sel” key for 1 seconds to reset Off Off If it continues, do some cleaning cycles

Reset the hour counter (read chapter Resetting the hour counter”) The warning is automatically reset if the

temperature decreases below 80°C / 176

Off Off Change the cylinder.

Off Off Check the ambient temperature,

°F.

chap. “Starting with a new cylinder”)

(read

replace the controller.

Tab. 5.a

6. TROUBLE SHOOTING

Problem Causes Solutions

The humidiﬁer does not turn on

1 No electrical power

2. On/off switch of the humidiﬁer in

Position 0 (off)

3. Control connectors improperly connected

4 . Blown fuses

5. Transformer failure

1. Check the safety devices upstream from the humidiﬁer and the presenceof power

2. Close the switch on the panel: position I

3. Check that connectors are properly inserted in terminal block

4. Check the condition of fuses

5. Check that the proper voltage is connected and turned on

The humidiﬁer does not start operation

The humidiﬁer ﬁlls with water without producing steam

The humidiﬁer wets the duct

The humidiﬁer wets the ﬂoor below

1. Remote ON/OFF contact open

. The humidistat has not been connected correctly

3. Humidistat failure

4 . Control signal not compatible with

the type set

5. Value measured by the sensors higher than the corresponding set point

1. High steam back pressure

. Fill valve strainer clogged

3. Mineral in the ﬁll cup

4. Drain solenoid valve leaking

1. The distributor is not installed correctly

(too near the top of the duct or the

condensate return is blocked)

2. System over-sized

3. Humidiﬁer active when the fan in the duct is off

1. The humidiﬁer drain is blocked

2. The supply water or overﬂow circuit has

leaks

3. The condensate drain pipe does not bring the water back to the drain pan

4. The steam hose is not properly fastened

to the cylinder

1. Close ON/OFF contacts

2. Check the external connection

3. Replace the humidistat

1. Check that the steam hose is not kinked or sagging, trapping condensate

. Clean the ﬁll valve strainer

3. Clean the ﬁll cup

. Check for voltage at the drain solenoid valve and/or drain solenoid replacement

1. Check that the steam distributor is installed correctly

2. Decrease the steam production set on the control

3. Check the connection of the device (ﬂow switch or differential

pressure switch)

controling the humidifier to the ventilation in

the duct.

1. Clean the drain assembly and pan

2. Check the entire water circuit

3. Check the correct position of the condensate drain hose in the drain pan

4. Check the fastening of the hose clamps on the steam outlet

Tab. 6.a

Problem Causes Solutions

Water in the cylinder turns black

1. Minerals in the cylinder have over

concentrated and are deteriorating the electrodes

1. Check for sags & kinks that could trap condensate in the

steam hoses that could cause a back pressure on the cylinder

2. Check the duct static pressure

3. Check the ﬁll valve and inlet strainer

4. Check the drain valve operation

5. Correct installation problems and replace cylinder

Heavy arcing occurs

within hours of startup

1. The feed water contains large amounts

of Iron, Copper or, other conductive contaminants

1. Contact the factory for an optional drain timer to force

additional drains to control the minerals

2. If you are using a softener, check the salt being used. If it

contains any additives, discontinue use, flush all lines and convert to pure salt or unsoftened water

3. Check the electrodes in the cylinder to be sure they were not

damaged in shipping

Humidiﬁer continuously ﬁlls and drains without production steam

1. Minerals have bridged the electrodes

. There is back pressure from the steam

hoses or duct

3. The ﬂow regulator in the ﬁll valve is broken

or out of place

4. Water conductivity is very high

5. Water is foaming excessively

1. Clean or replace the cylinder

. Check the steam hoses for kinks or gullies that might be

trapping condensate

3. Replace the ﬁll valve

4. Consider using a mix of demineralized water with raw water

5. Check cylinder - replace if exhausted. If feed water contains silica or nitrates, install a 1 micron water filter

20Elite Steam +03U221903 REV 2.1

Tab. 6.b

7. M AIN TE N A NC E

7.1 Periodic checks

• After one hour of operation: Check that there are no signiﬁcant water leaks.

• Every ﬁfteen days or no more than 300 operating hours: Check operation, that there are no significant water leaks and the general condition of the cylinder. Check that during operation there is no arcing between the electrodes.

• Every three months or no more than 1000 operating hours: Check operation, that there are no significant water leaks and, if necessary, replace the cylinder. Check that there are no blackened parts of the cylinder. If there are blackened parts of the cylinder, check the condition of the electrodes, and if necessary replace the cylinder.

• Annually or no more than 2500 operating hours: Replace the cylinder.

CAUTION: ALWAYS DISCONNECT THE MAIN POWER BEFORE DOING MAINTENANCE! CAUTION: always disconnect the main power before touching the cylinder in the event of leaks, as current may flow through the water.

7.2 Cylinder maintenance

The life of the cylinder depends on a number of factors, including: the amount and type of minerals in the water, the correct use and sizing of the humidiﬁer, and the output, as well as careful and regular maintenance. Another factor affecting cylinder life is Maximum Production, the higher the production rate the shorter the cylinder life; for this reason the DS-35 and RS-35 are preset from the factory at 70%. Further reductions in maximum production will extend cylinder life. See figure 7.a

IMPORTANT WARNINGS

The humidiﬁer and its cylinder contain live electrical components and hot surfaces, and therefore all

service and/or maintenance operations must be performed by expert and qualiﬁed personnel, who are aware of the necessary precautions. Before performing any operations on the cylinder, check that the humidiﬁer is disconnected from the power supply. Remove the cylinder from the humidiﬁer only after having drained it completely using the manual “drain” button or procedure. Check that the model and the power supply voltage of the new cylinder correspond to the data on the rating label.

7.2.1 Replacing the cylinder

IMPORTANT WARNING: The cylinder may be hot. Allow it to cool before touching it or use protective

gloves.

Cylinder

life

100% 20%

Maximum Production

Fig. 7.a

To replace the cylinder:

1. Completely drain the cylinder by pressing and holding the “drain” button until the cylinder is empty.

2. Turn the humidiﬁer off and disconnect the main power.

3. Remove the cover.

4. DS Models. a. Remove the steam hose from the cylinder. b. Flip up the cylinder holding bracket and lift the cylinder out of the unit.

5. RS Models a. Undo the 2 bolts of the embedded fan. b. Flip up the cylinder holding bracket.

6. Disconnect the distributor from the cylinder and lift the cylinder out of the unit.

7. Disconnect the electrical connections from the top of the cylinder.

8. Install the new cylinder in the humidiﬁer by performing the previous operations in reverse. CAUTION: Do not tighten the 7/8” hose clamp so tight that it crushes the cylinder outlet.

WARNING: Electrical connections to the cylinder must be tight or possible ﬁre hazard may result.

Threaded nuts on power wires must be connected with (22 to 29 inch-pounds of torque).

2.5 to 3.3 Nm

7.2.2 Maintenance of the other plumbing components

IMPORTANT WARNINGS:

• External power must always be disconnected when performing any maintenance on the humidiﬁer.

• When cleaning the plastic components do not use detergents or solvents;

• Scale can be removed using a solution by using vinegar or a weak solution of acetic acid and a soft brush; then rinse the cylinder thoroughly with fresh water.

Cleaning the ﬁll valve:

After having disconnected the cables and the hoses, remove the valve and check the condition of the inlet ﬁlter; clean if necessary using the same cleaning solution as for the steam cylinder and a soft brush. Cleaning the drain valve:

Remove the valve body, clean if necessary using the same cleaning solution as for the steam cylinder and a soft brush.

Cleaning the drain pan:

Clean the pan of any mineral deposits and check that the water ﬂows freely from the pan to the drain at the drain valve.

Cleaning the supply, ﬁll, overﬂow pipes: Check that these are clear and clean or replace if necessary.

Fig. 7.b

IMPORTANT WARNING: After having replaced or checked the plumbing, check that components have been reconnected correctly with the proper seals. Re-start the humidiﬁer and perform a number of cleaning cycles (2 to 4 cleanings, read chap. “Starting with a new cylinder”), then check for any water leaks.

Elite Steam +03U221903 REV 2.1

7.3 Replacement Parts

Part

Item

1 2 7532 15-1 CONTROL MODULE 5,5 Lbs/Hr 110/1 2 7533 35-1 CONTROL MODULE 12 Lbs/Hr 230/1 3 7551 35-18 ON/OFF SWITCH 4 7534 15-2 ROOM BLOWER ASSEMBLY 110/1 4 7535 35-2 ROOM BLOWER ASSEMBLY 230/1 5 7544 35-19 BLOWER FILTER KIT 6 7536 35-20 INTERNAL STEAM DISTRIBUTOR MANIFOLD FOR ROOM VERSION 7 7537 15-3 FILL/TEMPERING VALVE ASSEMBLY 110/1 7 7538 35-3 FILL/TEMPERING VALVE ASSEMBLY 230/1 8 7539 15-4 DRAIN VALVE ASSEMBLY 110/1 8 7541 35-4 DRAIN VALVE ASSEMBLY 230/1

9 7542 35-21 90 DEGREE DRAIN ADAPTER 10 7548 35-22 FILL CUP 11 7546 35-23 INTERNAL HOSES KIT FOR ROOM VERSION 11 7547 35-24 INTERNAL HOSES KIT FOR DUCT VERSION 12 7553 35-25 COVER HOLDING SCREWS

13 35-63 DRAIN VALVE CONNECTOR 230V 14 35-61 TANK SUPPORT BRACKET

Elite Steam +03U221903 REV 2.1

No. Description

See

table

below STEAM GENERATION CYLINDER

7554

7556

7530

V021 ROTCENNOC EVLAV NIARD 26-51 31

STRAP TNEMECALPER

Continued from page 22

7500 20-1 STEAM NOZZLE 7501 20-4 FILL CONNECTOR 7512 20-3 CONDENSATE HOSE 5/16" I.D. 7513 20-2 STEAM HOSE 7/8” ID. 22 MM I.D. PER FOOT

7521 DP030D22RU 12" STAINLESS STEEL DISTRIBUTION MANIFOLD 7522

7526 7531 7527 35-51 INTERNAL WIRE KIT 230V (SERIAL < 5000)

7517 7528 35-26 FRONT GRILL FOR RMB 7525 DMNKIT DUCT MOUNT KIT FOR GENERALAIRE DS35 AND DS15 7545 RMB15 REMOTE MOUNT BLOWER KIT 110/1 FOR GENERAL AIRE DS15 7540 RMB35 REMOTE MOUNT BLOWER KIT 230/1 FOR GENERAL AIRE DS35

7016

7078

DP045D22R0 17.5” STAINLESS STEEL DISTRIBUTION MANIFOLD 15-50 INTERNAL WIRE KIT 110V (SERIAL < 5000) 15-51 INTERNAL WIRE KIT 110V (SERIAL > 5000)

35-60 INTERNAL WIRE KIT 230V (SERIAL > 5000)

GCV3412 CODE VALVE 1/2”, OR 3/4” TO 1/4” COMPRESSION

WATER SUPPLY TUBE KIT 747-38

1 7523 1 7524 1 7543

1 7516

7552

15-14 CYLINDER STD. CONDUCTIVITY 110/1 5.5 LBS/HR GENERALAIRE DS15, RS15

35-14 CYLINDER STD. CONDUCTIVITY 230/1 12 LBS/HR GENERALAIRE DS35, RS35 35-15 CYLINDER LOW CONDUCTIVITY 230/1 12 LBS/HR GENERALAIRE DS35, RS35 20-14A CYLINDER STD. CONDUCTIVITY 230/1 7 LBS/HR GENERALAIRE DS20A, RS20A 35-16 INTERNAL FILTER AND GASKET KIT FOR CYLINDER

Tab. 7.c

Elite Steam +03U221903 REV 2.1

8. TECHNICAL SPECIFICATIONS

THERE ARE NOT EXPRESS WARRANTIES COVERING THIS HUMIDIFIER OTHER THAN AS SET FORTH ABOVE. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE EXPRESSLY EXCLUDED. THE MANUFACTURER ASSUMES NO LIABILITY IN CONNECTION WITH THE INSTALLATION OR USE OF THIS PRODUCT, EXCEPT AS STATED IN THE LIMITED WARRANTY. THE MANUFACTURER WILL IN NO EVENT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow either limitations on implied warranties, or exclusions from incidental or consequential damages, so the above exclusion and limitation may not apply to you.

Any questions pertaining to this limited warranty should be addressed to General Filters, Inc. General Filters, Inc. has elected not to make available the informal dispute settlement mechanism which is specified in the Magnuson-Moss Warranty Act.

Instant steam production; voltage-phase-frequency, kW Outlet pressure limits (Pa) 950 Pa / 3.81 in WC For duct only Dimensions (mm ) 600 x 341 x 204mm (24” x 14” x 8”) (Height x Width x Depth) Weight empty/packaged/

installed with water IP class IP20 Electrode power cables 12 AWG Power relays 2x 30 Amp On board Ground connection Screw Input water type Potable water No demin. or softened water Conductivity range 125 to1250 µS/cm Special cylinders for cond. < 350

Water ﬁll connection ¾” G Adapter to ¾” FPS Water ﬁll - instant ﬂow

Drain connection Drain water temp < 60°C Drain tempering device

Drain ﬂow

Embedded fan ﬂow 120 m³/hr

Serial communication RS-485

2.5 kg/h (5.5 lbs/hr): 110 VAC 1-phase 50-60 Hz, 1.86 kW

5.4 kg/h (12 lbs/hr): 230 VAC 1-phase 50-60 Hz, 4.05 kW

8/10/12 kg

18/22/26 lbs.

0.35 - 0.45 l/min 0.09- 0.12 gpm 32 mm 1.25”

<140°F

Max 4 l/min

Max 1.3 gpm

71 cfm

Adjustable from horizontal to vertical. May be from back or bottom of unit.

Direct Room Discharge Only

Notes

Tab. 7.d

9. LIMITED WARRANTY

DS and RS Humidifiers, consumer against defects in materials and workmanship for a period of two years from the date of installation, so long as the product has been installed andoperated in accordance with all appropriate manuals and wiring diagrams. Replacement of routinely replaceable parts such as steam cylinders and gaskets, are not covered by this limited warranty or any other warranties. Any other defective parts will be repaired without charge except for removal, reinstallation and transportation costs. To obtain repair service under this limited warranty, the consumer must send the defective part to General Filters, Inc.

if properly registered by the return of the attached warranty registration to General Filters, Inc., are warranted to the

Elite Steam +03U221903 REV 2.1
