QT025A
Standby Power Rating
31kVA 25kW 60Hz
Industrial Gaseous Generator Set
EPA Certified Stationary Emergency
Generator image used for illustration purposes only
QT025A 25kW
1 of 5
features benefits
Generator Set
= PROTOTYPE & TORSIONALLY TESTED 4 PROVIDES A PROVEN UNIT
= UL2200 TESTED 4 ENSURES A QUALITY PRODUCT
= RHINOCOAT PAINT SYSTEM 4 IMPROVES RESISTANCE TO ELEMENTS
Engine
= EPA COMPLIANT 4 ENVIRONMENTALLY FRIENDLY
= INDUSTRIAL TESTED, GENERAC APPROVED 4 ENSURES INDUSTRIAL STANDARDS
= POWER-MATCHED OUTPUT 4 ENGINEERED FOR PERFORMANCE
= INDUSTRIAL GRADE 4 IMPROVES LONGEVITY AND RELIABILITY
Alternator
= TWO-THIRDS PITCH 4 ELIMINATES HARMFUL 3RD HARMONIC
= LAYER WOUND ROTOR & STATOR 4 IMPROVES COOLING
= CLASS H MATERIALS 4 HEAT TOLERANT DESIGN
= DIGITAL 3-PHASE VOLTAGE CONTROL 4 FAST AND ACCURATE RESPONSE
Controls
= ENCAPSULATED BOARD W/ SEALED HARNESS 4 EASY, AFFORDABLE REPLACEMENT
= 4-20mA VOLTAGE-TO-CURRENT SENSORS 4 NOISE RESISTANT 24/7 MONITORING
= SURFACE-MOUNT TECHNOLOGY 4 PROVIDES VIBRATION RESISTANCE
= ADVANCED DIAGNOSTICS & COMMUNICATIONS 4 HARDENED RELIABILITY
primary codes and standards
QT025A application and engineering data
ENGINE SPECIFICATIONS
QT025A 25kW
2 of 5
General Cooling System
Make Generac Cooling System Type Pressurized Closed
EPA Emissions Compliance Stationary Emergency Water Pump Flow 11 gal/min
EPA Emissions Engine Reference See Emissions Data Sheet Fan Type Pusher
Cylinder # 4 Fan Speed (rpm) 2150
Type In-line Fan Diameter mm (in.) 457 (18)
Displacement - L 2.4 Coolant Heater Wattage 1500
Bore - mm (in.) 86.61 (3.41) Coolant Heater Standard Voltage 120VAC
Stroke - mm (in.) 100.08 (3.94)
Compression Ratio 9.5:1
Intake Air Method Naturally Aspirated
Number of Main Bearings 5 Fuel System
Connecting Rods Forged Fuel Type Natural Gas, Propane Vapor
Cylinder Head Aluminum Carburetor Down Draft
Cylinder Liners No Secondary Fuel Regulator Standard
Ignition High Energy Fuel Shut Off Solenoid Standard
Pistons Aluminum Alloy Operating Fuel Pressure 5" - 14" H2O*
Crankshaft Cast
Lifter Type Overhead Cam *Fuel pressure must remain within specified range and not drop more than 1
Intake Valve Material Steel Alloy
Exhaust Valve Material Hardened Steel
Hardened Valve Seats Yes Engine Electrical System
Lubrication System Battery Charging Alternator (Amps) 30
Oil Pump Type Gear Battery Size (at 0ºC) 525CCA
Oil Filter Type Full-flow spin-on cartridge Battery Group 26
Crankcase Capacity - L (qts) 3.8 (4) Battery Voltage 12VDC
ALTERNATOR SPECIFICATIONS
in. w.c. from static (no-load) to full load.
System Voltage 12VDC
Ground Polarity Negative
Standard Model 390mm Voltage Regulator Type Full Digital
Poles 4 Number of Sensed Phases 3
Field Type Revolving Regulation Accuracy (Steady State) +/- 0.25%
Insulation Class - Rotor H
Insulation Class - Stator H
Total Harmonic Distortion <5% Engine Governing
Telephone Interference Factor (TIF) <50 Governor Electronic
Standard Excitation Brush Type Frequency Regulation (Steady State) +/- 0.25%
Bearings Sealed Ball
Coupling Flexibile Disc
Load Capacity - Standby 100%
Prototype Short Circuit Test Yes
CODES AND STANDARDS COMPLIANCE (WHERE APPLICABLE)
NFPA 99 BS5514
NFPA 110 SAE J1349
ISO 8528-5 DIN6271
ISO 1708A.5 IEEE C62.41 TESTING
ISO 3046 NEMA ICS 1
UL2200
Rating Definitions:
Standby – Applicable for a varying emergency load for the duration of a utility power outage with no overload capability. (Max. load factor = 70%)
QT025A operating data (60Hz)
POWER RATINGS (kW)
Natural Gas Propane Vapor
Single-Phase 120/240VAC @1.0pf 25 Amps: 104 25 Amps: 104
Three-Phase 120/208VAC @0.8pf 25 Amps: 87 25 Amps: 87
Three-Phase 120/240VAC @0.8pf 25 Amps: 75 25 Amps: 75
Three-Phase 277/480VAC @0.8pf 25 Amps: 38 25 Amps: 38
STARTING CAPABILITIES (sKVA)
sKVA vs. Voltage Dip
480VAC 208/240VAC
Alternator kW 10% 15% 20% 25% 30% 35% 10% 15% 20% 25% 30% 35%
Standard 25 16 25 33 41 49 57 12 19 25 31 37 43
FUEL
Fuel Consumption Rates*
Natural Gas Propane Vapor
Percent Load ft3/hr m3/hr Percent Load ft3/hr m3/hr
25% 140 3.9 25% 56 1.6
50% 220 6.2 50% 87 2.5
75% 300 8.5 75% 119 3.4
100% 380 10.8 100% 151 4.3
* Refer to "Emissions Data Sheet" for maximum fuel flow for EPA and SCAQMD permitting purposes.
QT025A 25kW
3 of 5
COOLING
Air Flow (inlet air combustion and radiator) ft3/min (m3/min) 1500 (42.48)
System Coolant Capacity Gal (Liters) 2.5 (9.46)
Heat Rejection to Coolant BTU/hr 95,000
Max. Operating Air Temp on Radiator ºF (ºC) 122 (50)
Max. Ambient Temperature ºF (ºC) 104 (40)
Maximum Radiator Backpressure in H2O 1.5
COMBUSTION AIR REQUIREMENTS
STANDBY
Flow at Rated Power cfm 70
ENGINE
STANDBY
Rated Engine Speed rpm 1800
Horsepower at Rated kW** hp 40
Piston Speed ft/min 1182
BMEP psi 120
** Refer to “Emissions Data Sheet” for maximum bHP for EPA and SCAQMD permitting purposes.
STANDBY
EXHAUST
STANDBY
Exhaust Flow (Rated Output) cfm (m3/min) 220 (6.2)
Maximum Recommended Back Pressure inHg 1.5
Exhaust Temp (Rated Output) ºF (ºC) 975 (524)
Exhaust Outlet Size in 2.5
Deration – Operational characteristics consider maximum ambient conditions. Derate factors may apply under atypical site conditions. Please consult a Generac Power Systems Industrial Dealer for
additional details. All performance ratings in accordance with ISO3046, BS5514, ISO8528 and DIN6271 standards.
QT025A standard features and options
GENERATOR SET
QT025A 25kW
4 of 5
Genset Vibration Isolation Std
Extended warranty Opt
Gen-Link™ Communications Software Opt
Steel Enclosure Opt
Aluminum Enclosure Opt
ENGINE SYSTEM
General
Oil Drain Extension Std
Critical Exhaust Silencer Std
Air cleaner Std
Fan guard Std
Radiator duct adapter Std
Fuel System
Fuel lockoff solenoid Std
Secondary Fuel Regulator Std
Flexible fuel lines Std
Cooling System
120VAC Coolant Heater
Closed Coolant Recovery System
UV/Ozone resistant hoses
Factory-Installed Radiator
Radiator Drain Extension
Engine Electrical System
Battery charging alternator Std
Battery cables Std
Battery tray Std
Solenoid activated starter motor Std
10A UL float/equalize battery charger Std
Rubber-booted engine electrical connections Std
ALTERNATOR SYSTEM
UL2200 GENprotect™ Std
Main Line Circuit Breaker Std
Std
Std
Std
Std
Std
CONTROL SYSTEM
Control Panel
Digital H Control Panel - Dual 4x20 Display Std
Programmable Crank Limiter Std
21-Light Remote Annunciator Opt
Remote Relay Panel (8 or 16) Opt
7-Day Programmable Exerciser Std
Special Applications Programmable PLC Std
RS-232 Communications Std
RS-485 Communications Std
All-Phase Sensing DVR Std
Full System Status Std
Utility Monitoring (Req. H-Transfer Switch) Std
2-Wire Start Compatible Std
Power Output (kW) Std
Power Factor Std
Reactive Power Std
All phase AC Voltage Std
All phase Currents Std
Oil Pressure Std
Coolant Temperature Std
Coolant Level Std
Fuel Pressure Std
Engine Speed Std
Battery Voltage Std
Frequency Std
Isochronous Governor Control Std
-40deg C - 70deg C Operation Std
Waterproof Plug-In Connectors Std
Audible Alarms and Shutdowns Std
Not in Auto (Flashing Light) Std
Auto/Off/Manual Switch Std
E-Stop (Red Mushroom-Type) Std
NFPA 110 Level I and II (Programmable) Std
Remote Communication - RS232 Std
Alarms (Programmable Tolerances, Pre-Alarms and Shutdowns)
Low Fuel Pressure Std
Oil Pressure (Pre-programmed Low Pressure Shutdown) Std
Coolant Temperature (Pre-programmed High Temp Shutdown) Std
Coolant Level (Pre-programmed Low Level Shutdown) Std
Engine Speed (Pre-programmed Overspeed Shutdown) Std
Voltage (Pre-programmed Overvoltage Shutdown) Std
Battery Voltage Std

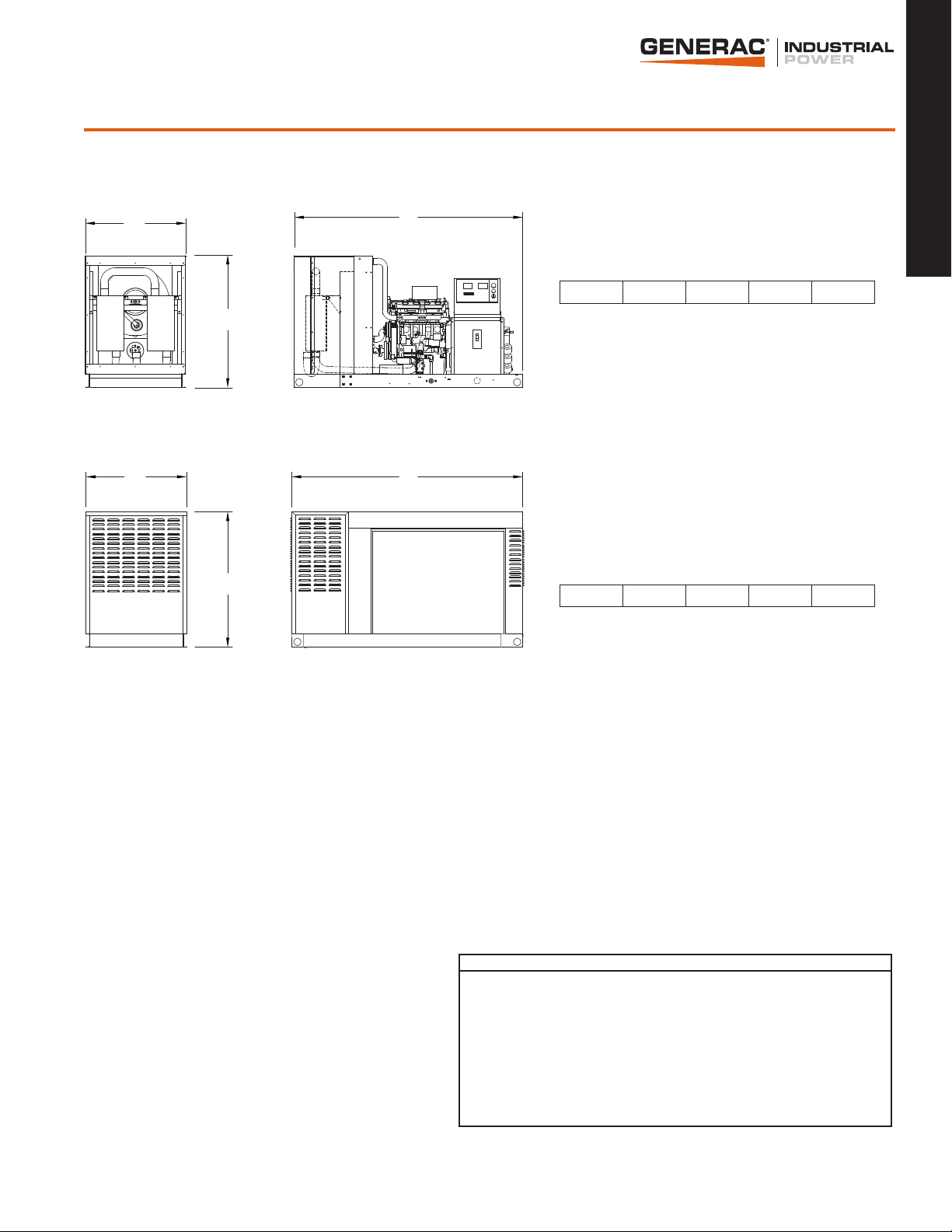

QT025A dimensions, weights and sound levels
QT025A 25kW
W
W
L
OPEN SET
L W H WT dBA*
77 34 43 1163 83
H
L
LEVEL 1 ACOUSTIC ENCLOSURE
H
L W H WT dBA*
77 34 46 1414 60
5 of 5
*All measurements are approximate and *All measurements are approximate and for estimation purposes only. Sound levels measured at 23ft (7m) under normal operation and do not account for
ambient site conditions. estimation purposes only. Sound levels measured at 23ft (7m) and does not account for ambient site conditions.
YOUR FACTORY RECOGNIZED GENERAC INDUSTRIAL DEALER
Specification characteristics may change without notice. Dimensions and weights are for preliminary purposes only. Please consult a Generac Power Systems Industrial Dealer for detailed installation drawings.
Generac Power Systems, Inc. • S45 W29290 HWY. 59, Waukesha, WI 53189 • generac.com
©2012 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Bulletin 0173110SBY-D / Printed in U.S.A. 03/15/12
