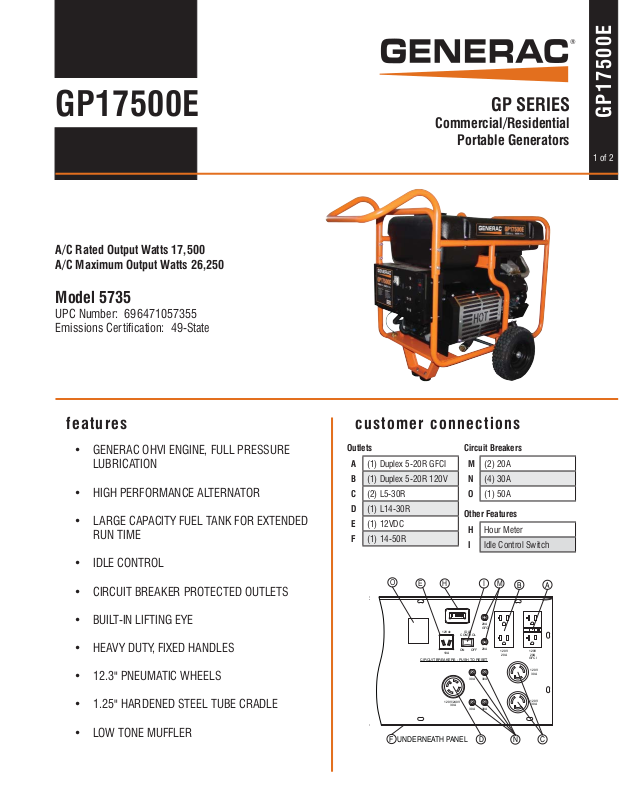

Generac Power Systems GP17500E GP SERIES, 5735 Specification
®
GP17500E
A/C Rated Output Watts 17,500
A/C Maximum Output Watts 26,250
Model 5735
UPC Number: 696471057355
Emissions Certification: 49-State
GP SERIES
Commercial/Residential
Portable Generators
GP17500E
1 of 2
• GENERAC OHVI ENGINE, FULL PRESSURE
LUBRICATION
• HIGH PERFORMANCE ALTERNATOR
• LARGE CAPACITY FUEL TANK FOR EXTENDED
RUN TIME
• IDLE CONTROL
• CIRCUIT BREAKER PROTECTED OUTLETS
• BUILT-IN LIFTING EYE
• HEAVY DUTY, FIXED HANDLES
• 12.3" PNEUMATIC WHEELS
• 1.25" HARDENED STEEL TUBE CRADLE
customer connectionsfeatures
Outlets
A (1) Duplex 5-20R GFCI
B (1) Duplex 5-20R 120V
C (2) L5-30R
D (1) L14-30R
E (1) 12VDC
F (1) 14-50R
O
CIRCUIT BREAKERS - PUSH TO RESET
Circuit Breakers
M (2) 20A
N (4) 30A
O (1) 50A
Other Features
H Hour Meter
I Idle Control Switch
H
12Vdc
10A
120V/240V
30A
IDLE
CONTROL
ON
OFF
30A 30A
30A 30A
I
20A
GFCI
20A
ME
120V
20A
A
B
TEST
RESET
TEST
RESET
120V
20A
GFCI
120V
30A
120V
30A
• LOW TONE MUFFLER
F
UNDERNEATH PANEL
D
C
N
GP17500E
specifications
Product Series GP17500E Start Switch Type 3-Position
Model 5735 Switch Location On Engine
Configuration/Emissions 49-State Single-Point Lifting Eye Yes
A/C Rated Output Watts: 17,500 Fuel Gauge Built-in Tank
A/C Maximum Output Watts: 26,250 Fuel Tank Capacity (Gal) 16
A/C Voltage 120/240VAC Fuel Tank Capacity (Ltrs) 60.56
A/C Frequency 60 Hz Run Time at 50% (Hours) 10
Rated 120/240 VAC Amperage 72.9 Cord Set N/A
Max 120/240 VAC Amperage 109.4 Handle Style Fixed
Neutrals Not bonded to ground (Floating) Wheel type 12.3" Pneumatic Wheels
Engine Displacement 992cc Maintenance Kit Included
Engine Type OHVI Warranty - Residential 2 Year
Engine RPM 3600 Warranty - Commercial 1 Year
Recommended Oil SAE 30
Lubrication Method Full Pressure
Choke Type Manual Lever
Fuel Shut Off Manual Lever
Idle Control Yes
Starting Method Electric
Battery Included
Battery Size 12VDC 365 CCA
Low Oil Shutdown Method Low Pressure
GP17500E
2 of 2
dimensions and weights
Length (L) 48.5
Width (W) 31
Height (H) 38.5
Carton Length 49.25
Carton Width 23.25
Carton Height 31
Unit Weight (lbs) 390
Shipping Weight (lbs) 513
L
W
H
®
Generac Power Systems, Inc. • P.O. Box 8, Waukesha, WI 53187 • generac.com
©2012 Generac Power Systems, Inc. All rights reserved. All specifications are subject to change without notice. Bulletin 0181220SBY-B / Printed in U.S.A. 04/18/12
