Model No. 1460-0 (2,300 PSI High Pressure Washer) Manual No. 186145 Revision 2 (7/14/2000)

Visit our Generac website: www.generac-portables.com

2300PSI

Pressure Washer Owner’s Manual

Problems?

Questions?

Before taking your unit

back to the store,

call the pressure washer

helpline at

1-800-270-1408

M-F 8-5 CT

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.

Generac Portable Products 2,300 PSI Pressure Washer

2

EQUIPMENT DESCRIPTION

CONGRATULATIONS on your purchase of a

GENERAC high pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.

This manual contains information for an high pressure
washer that operates at 2,300 PSI at a flow rate of

2.2 gallons per minute. This high quality residential
system features large 10 wheels, a pump equipped
with an automatic cool down system, a chemical
injection system, adjustable nozzle extension, safety
goggles, a heavy duty 25 hose, and more.

Please read and retain this manual. The instructions
will enable you to assemble your unit, and maintain
your high pressure washer properly.

Every effort has been made to ensure that the
information in this manual is both accurate and
current. However, Generac reserves the right to
change, alter or otherwise improve the product and its
documentation at any time without prior notice.

Should you experience any problem you cannot easily
fix, call the pressure washer helpline at

1-800-270-1408.

CUSTOMER

RESPONSIBILITIES

 Read and observe the safety rules.
 Follow regular schedule in maintaining, caring for

and using your high pressure washer.

 For off-season storage, review Preparing The Unit

For Storage on page 14.

SAFETY RULES

CAUTION! When setting up, transporting,

adjusting or making repairs to your high
pressure washer, always disconnect the spark
plug wire from the spark plug and place the
wire where it cannot contact spark plug.

DANGER! Engine exhaust contain DEADLY

carbon monoxide gas. This dangerous gas, if
breathed in sufficient concentrations, can cause
unconsciousness or even death. Operate this
equipment only in the open air where adequate
ventilation is available.

DANGER! Gasoline is highly FLAMMABLE

and its vapors are EXPLOSIVE. Do Not permit
smoking, open flames, sparks or heat in the
vicinity while handling gasoline. Avoid spilling
gasoline on a hot engine. Allow unit to cool for
2 minutes before refueling. Comply with all laws
regulating storage and handling of gasoline.

Read this manual carefully and become familiar
with your pressure washer. Know its applications,
its limitations, and any hazards involved.

 Locate this pressure washer in areas away from

combustible materials, combustible fumes or dust.

 The high pressure equipment is designed to be

used with Generac authorized parts ONLY. If you
use this equipment with parts that Do Not comply
with minimum specifications, the user assumes all
risks and liabilities.

 Do Not allow CHILDREN to operate the pressure

washer at any time.

 Always be certain the spray gun, nozzles and

accessories are correctly attached.

 Do Not wear loose clothing, jewelry or anything that

may be caught in the starter or other rotating parts.

The engine exhaust from this product contains

chemicals known to the State of California to

cause cancer, birth defects, or other

reproductive harm.

WARNING:

Generac Portable Products 2,300 PSI Pressure Washer

3

 Before starting the pressure washer in cold weather,

check all parts of the equipment and be sure ice has
not formed there.

 Units with broken or missing parts, or without

protective housing or covers, should NEVER be
operated.

 Do Not secure the spray gun in the open position.
 Use a respirator or mask whenever there is a

chance that vapors may be inhaled. Read all
instructions with mask so you are certain the mask
will provide the necessary protection against
inhaling harmful vapors.

 Always wear eye protection when you use this

equipment or when you are in the vicinity where the
equipment is in use.

 The cleaning area should have adequate slopes and

drainage to reduce the possibility of a fall due to
slippery surfaces.

 Do Not bypass any safety device on this machine.
 Keep the hose connected to machine or the spray

gun while the system is pressurized. Disconnecting

the hose while the unit is pressurized is dangerous.
 Operate and store this unit on a stable surface.
 Some chemicals or detergents may be harmful if

inhaled or ingested, causing severe nausea, fainting

or poisoning. The harmful elements may cause

property damage or severe injury.
 Do Not spray flammable liquids.
 Never allow any part of the body to come in contact

with the fluid stream. Do Not come in contact with a

fluid stream created by leaks in high pressure hose.
 High pressure spray can cause paint chips or other

particles to become airborne.
 Do Not operate the pressure washer above the

rated pressure.
 High pressure spray may damage fragile items

including glass. Do Not point spray gun at glass

when in the jet spray mode.
 Keep water spray away from electric wiring or fatal

electric shock may result.
 Never use a spray gun which does not have a

trigger lock or trigger guard in place and in working

order.

 Never aim the spray gun at people, animals or

plants. The high pressure stream of water that this
equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.

 Hold the spray gun firmly in your hand before you

start the unit. Failure to do so could result in an
injury from a whipping spray gun. Do Not leave the
spray gun unattended while the machine is running.

 Never move the machine by pulling on the high

pressure hose. Use the handle provided on the unit.

 High pressure hose can develop leaks from wear,

kinking, abuse, etc. Water spraying from a leak is
capable of injecting material into skin. Inspect hose
each time before using it. Check all hoses for cuts,
leaks, abrasions or bulging of cover, or damage or
movement of couplings. If any of these conditions
exist, replace hose immediately. Never repair high
pressure hose. Replace it with another hose that
exceeds maximum pressure rating of your unit.

 Check the fuel system for leaks or signs of

deterioration, such as chafed or spongy hose, loose
or missing clamps, or damaged tank or cap. Correct
all defects before operating the pressure washer.

 Operate engine only at governed speed. Running

the engine at excessive speeds increases the
hazard of personal injury. Do Not tamper with parts
which may increase or decrease the governed
speed.

 The muffler and engine heat up during operation

and remain hot immediately after shutting it down.
Avoid contact with a hot muffler or engine as you
could be severely burned.

 The muffler and air cleaner must be installed and in

good condition before operating the pressure
washer. These components act as spark arresters if
the engine backfires.

In the State of California a spark arrester is required
by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws.
Federal laws apply on federal lands.

NOTE: If you equip the muffler with a spark arrester, it
must be maintained in effective working order. You can
order a spark arrester through your authorized Honda
service dealer.

Generac Portable Products 2,300 PSI Pressure Washer

4

Adjustable Nozzle  Always attached to nozzle
extension. Adjustable nozzle allows you to adjust force
of spray and spray pattern.

Air Cleaner  Dry type filter element limits the
amount of dirt and dust that gets into the engine.

Automatic Cool Down System  Cycles water
through pump when internal water temperature
reaches 140°-145°F. Warm water will discharge

from pump onto ground.
Chemical Inject Hose  Siphons detergent into the

spray pattern.

Choke Rod Prepares a cold engine for starting.
Goggles  Always use the enclosed goggles or other

eye protection when running your pressure washer.
High Pressure Hose  Connect one end to water

pump and the other end to spray gun.

High Pressure Outlet  Connection for high
pressure hose.

Nozzle Extension  Attach to spray gun to use
adjustable nozzle.

Oil FillOil input area.
Pump  Develops high pressure.
Recoil Starter  Used for starting the engine

manually.
Spray Gun  Controls the application of water onto

cleaning surface with trigger device. Includes safety
latch.

Throttle Lever Sets engine in starting mode for
recoil starter and stops a running engine.

Water Inlet  Connection for garden hose.

KNOW YOUR PRESSURE WASHER

Read this owners manual and safety rules before operating your pressure washer.

Compare the illustration below with your pressure washer to familiarize yourself with the locations of various
controls and adjustments. Save this manual for future reference.

High Pressure Hose

Adjustable Nozzle

Nozzle Extension

Safety Goggles

High Pressure Outlet

Pump equipped with

Automatic Cool Down

System

Spray Gun

Water Inlet

Chemical Inject Hose

Oil Fill

Recoil Starter, Throttle

Lever, Choke Rod

(Located near recoil starter)

Air Cleaner

Generac Portable Products 2,300 PSI Pressure Washer

5

Read entire owners manual before you attempt
to assemble or operate your new pressure
washer.

REMOVE PRESSURE

WASHER FROM CARTON

 Remove the handle and parts box included with

pressure washer.
 Slice two corners at the end of carton from top to

bottom so the panel can be folded down flat, then

remove all packing material.
 Roll pressure washer out of carton.

CARTON CONTENTS

Items in the carton include:

 Main Unit
 Parts Box (includes the following):

- Adjustable Nozzle Extension

- Emissions Control Warranty

- Engine Manual

- Engine Warranty

- Goggles

- Handle and Handle Hardware Bag

- High Pressure Hose

- Nozzle Cleaning Kit

- O-Ring Maintenance Kit

- Oil Bottle

- Owner's Manual

- Spray Gun

- Warranty Card

- Wireform

If any of the above parts are missing or damaged, call
the pressure washer helpline at 18002701408.

PREPARING PRESSURE

WASHER FOR USE

If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged,
call the pressure washer helpline at 18002701408.

To prepare your pressure washer for operation
you will need to perform these tasks:

 Attach the handle and wire form.
 Add oil to the engine.
 Add fuel to the fuel tank.
 Connect the high pressure hose to the spray gun

and the pump.

 Connect the water supply to the pump.

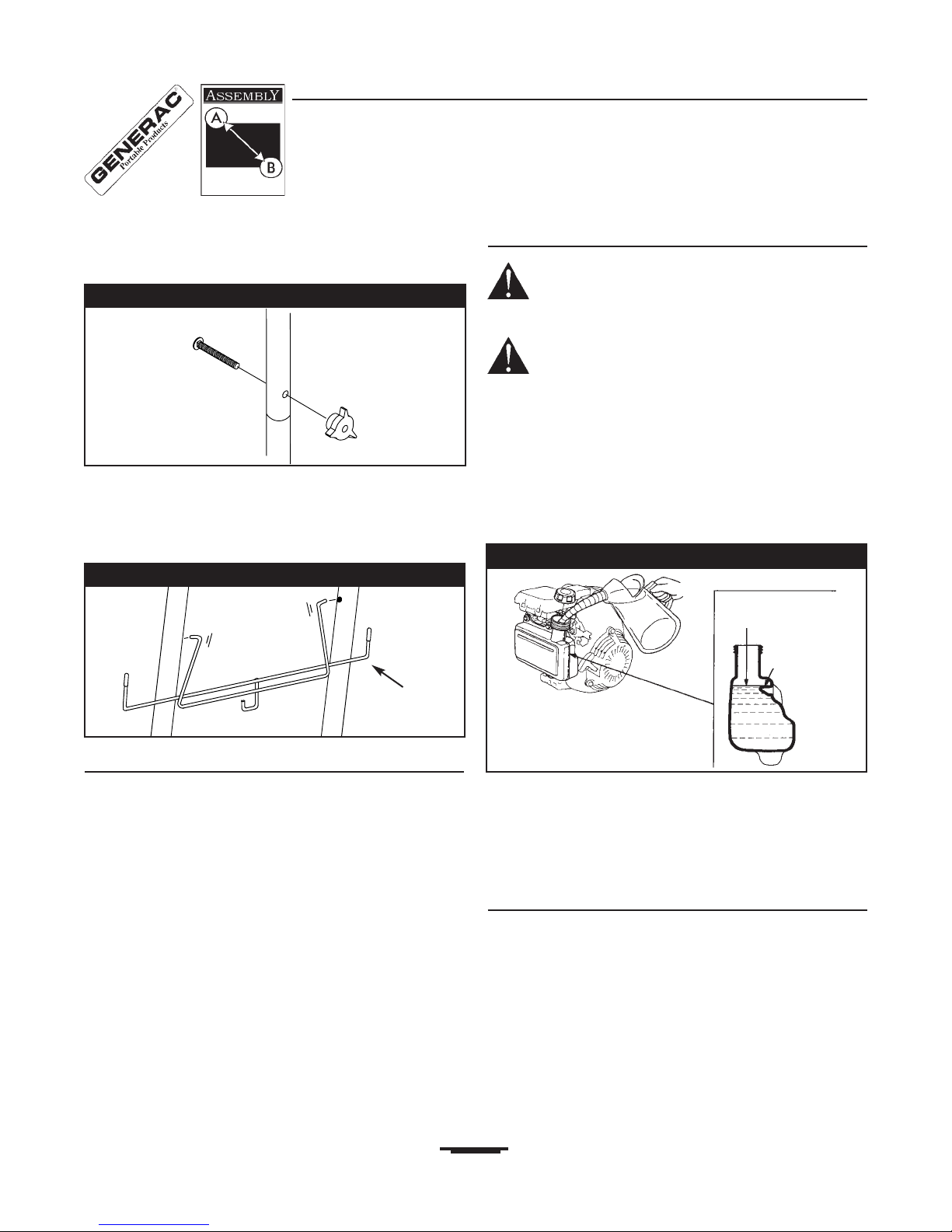

Attach the Handle

 Place the handle onto the handle supports already

connected to the units base. Make sure the holes in
the handle align with the holes on the handle
supports (Figure 1).

NOTE: It may be necessary to move the handle
supports from side to side in order to align the handle
so it will slide over the handle supports.

Make sure the

holes on the

handle are

aligned with

the holes on

the handle

supports

Handle

Handle

Supports

Figure 1  Attach Handle to Base

Generac Portable Products 2,300 PSI Pressure Washer

6

 Insert the carriage bolts through the holes on the

handle and attach the plastic knobs. Tighten the

knobs by hand (Figure 2).

 Insert the wire support with the longer arm

positioned on the right, as viewed from the rear of

the unit. The chemical bottle hook should resemble

a J (Figure 3).

Add Engine Oil

IMPORTANT: Any attempt to crank or start the engine

before it has been properly serviced with the
recommended oil may result in an engine failure.

 Place pressure washer on a level surface.
 Refer to the engine owners manual to add

recommended oil to engine.
NOTE: Check oil often during engine breakin. Refer

to engine owners manual for recommendations.
NOTE: The pump is pre-lubricated and sealed,

requiring no additional lubrication for the life of the
pump.

Add Gasoline

DANGER! Never fill fuel tank indoors. or when

engine is running or hot. Do Not smoke when
filling fuel tank.

WARNING!

Never fill fuel tank completely full.

Fill tank to provide space for fuel expansion.
Wipe away any fuel spillage from engine and
equipment before starting.

 Use clean fuel and store in approved, clean covered

containers. Use clean fill funnels. Never use stale
gasoline left over from last season or gasoline
stored for long periods.

 Clean the area around the fuel fill cap, remove the

cap (Figure 4).

 Slowly add regular unleaded gasoline to fuel tank.

Use a funnel to prevent spillage.

 Install the fuel cap and wipe up any spilled gasoline.

Connect Hose and Water Supply to

Pump

IMPORTANT: You must attach all hoses before you

start the engine. Starting engine without all hoses
connected and water supplied will damage the pump.

 Uncoil the high pressure hose and attach one end of

the hose to the base of the spray gun (Figure 5).
Tighten by hand.

Maximum Fuel
Level

Fuel Level
Mark

Longer Arm

Figure 4  Add Gasoline to Fuel Tank

Figure 2  Secure Handle

Figure 3  Attach Wire Form to Handle

Generac Portable Products 2,300 PSI Pressure Washer

7

 Attach the other end of the high pressure hose to

the high pressure outlet on the pump (Figure 6).

Tighten by hand.

 Before you connect your garden hose to the water

inlet, inspect the inlet screen (Figure 7). Clean the

screen if it contains debris or have it replaced if

damaged. DO NOT RUN THE PRESSURE

WASHER IF THE SCREEN IS DAMAGED.

 Run water through your garden hose for 30 seconds

to clean out any debris.

 Connect the garden hose to the water inlet. Tighten

by hand (Figure 7).

WARNING! There MUST be at least ten feet

of unrestricted garden hose between the
pressure washer inlet and any flow shut off
device, such as a Y shut-off connector or other
convenience-type water shut-off valve. Damage
to pressure washer resulting from disregarding
this warning will not be covered by the warranty.

 Turn ON the water and squeeze the trigger on the

gun to purge the pump system of air and impurities.

CAUTION! Before starting the pressure

washer, be sure you are wearing adequate eye
protection.

CHECKLIST BEFORE

STARTING ENGINE

Review the units assembly to ensure you have
performed all of the following.

 Check that the handle is secure.
 Check that the wireform is properly installed.
 Check that oil and fuel has been added to the

engine.
 Check for properly tightened hose connections.
 Check to make sure that there are no kinks, cuts, or

damage to the high pressure hose.
 Provide a proper water supply (not to exceed

140° F) at an adequate flow.
 Be sure to read Safety Rules and How To Start

Your Engine before using the pressure washer.

Connect high

pressure hose

here.

Connect

high

pressure

hose here.

Inspect inlet

screen, Do Not

use if damaged;

clean if dirty.

Figure 5  Connect High Pressure Hose to Spray Gun

Figure 6  Connect High Pressure Hose to Pump

Figure 7  Connect the Garden Hose to Water Inlet

Generac Portable Products 2,300 PSI Pressure Washer

8

HOW TO USE YOUR

PRESSURE WASHER

If you have any problems operating your pressure
washer, please call the pressure washer helpline at

1-800-270-1408.

How to Start Your Engine

The best way to start your enginepowered pressure
washer for the first time is to follow these instructions
stepbystep. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit idle for at least a day.

 Place the pressure washer in an area close enough

to an outside water source that provides flow rate of

2.4 gallons per minute minimum.
 Make sure the unit is in a level position.
 Check that the high pressure hose is tightly

connected to the spray gun and to the pump.

 Connect the garden hose to the water inlet on the

pressure washer pump. Turn ON the water.

WARNING! Do Not run the pump without the

water supply connected and turned on. You
must follow this caution or the pump will be
damaged.

 Pull the Choke rod to the CLOSED position (all the

way out, Figure 8).

NOTE: For a warm engine, be sure the choke is in the
OPEN position (no choke).

 Move the Throttle Control lever to the Fast position

(Figure 9). Always keep the throttle in the Fast
position while pressure washing.

 Ensure that the nozzle extension is NOT attached to

the spray gun. The spray gun should be held in the
left hand, as shown in Figure 10. The left hand
should also be used to steady the unit.

Choke Rod

Open

Closed

Throttle Lever

Fast

Slow

Stop

Figure 8  Choke Positions

Figure 9  Throttle Control Lever Positions

Figure 10  Recommended Engine Starting Posture

Right Hand

pulls recoil

starter handle

Safety Goggles

Left Hand

stabilizes

unit and

squeezes

trigger

Do Not

attach

nozzle

extension

Generac Portable Products 2,300 PSI Pressure Washer

9

 Standing at the rear of the unit, squeeze the trigger

on the spray gun. Water will flow out of the spray
gun in a thin stream. Continue to squeeze the
trigger.

 Grasp the recoil starter handle with your right hand

and pull slowly until you feel some resistance. Then
pull rapidly to start the engine.

 Return the starter handle slowly. Do Not let the rope

snap back against the starter.

 If the engine fails to start repeat above steps or refer

to the engine owners manual.

 If the choke was pulled to the CLOSED position to

start the engine, slowly push it to the OPEN position
as the engine runs smoother.

 Engage the safety latch to the spray gun trigger

(Figure 11).

 Attach the nozzle extension to the spray gun.

Tighten by hand (Figure 12).

How to Stop Your Pressure Washer

 Move the throttle lever to the Stop position.
 Squeeze trigger on the spray gun to relieve

pressure in the hose.

NOTE: A small amount of water will squirt out from the

spray gun when you squeeze the trigger.

How to Use the Adjustable Nozzle

You now should know how to start your pressure
washer and how to stop it. The information in this
section will tell you how to adjust the spray pattern
and apply detergent or any other cleaning chemicals.

DANGER! Never adjust spray pattern when

spraying. Never put hands in front of nozzle to
adjust spray pattern.

Your pressure washer is equipped with an adjustable
nozzle that permits you to adjust the spray pattern and
spray pressure, as follows:

 Slide the nozzle forward when you wish to adjust the

spray to low pressure mode (Figure 13). Slide the
nozzle backward to achieve high pressure.

 Point the nozzle down towards a hard surface and

press the trigger to test the pattern (Figure 14).

Figure 13 - Adjusting Spray Pressure

Slide nozzle backward

for high pressure

mode.

Slide nozzle forward

for low pressure mode

and detergent

application.

Figure 14 Testing the Spray Pattern

Safety Latch

Figure 11  Engage Safety Latch

Figure 12  Connect Nozzle Extension to Spray Gun

Generac Portable Products 2,300 PSI Pressure Washer

10

 Twisting the nozzle adjusts the spray pattern from a

narrow pattern to a fan pattern (Figure 15).

 For most effective cleaning, keep spray nozzle

between 8 to 24 inches away from cleaning surface.

 If you get the spray nozzle too close, especially

using high pressure mode, you may damage the
cleaning surface.

 Do Not get closer than 6 inches when cleaning

automobile tires.

Applying Detergent with the

Adjustable Nozzle

IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could

damage the pump.
IMPORTANT: You must attach all hoses before you

start the engine. Starting the engine without all the
hoses connected and without the water turned ON will
damage the pump.

To apply detergent follow these steps:

 Review the use of adjustable nozzles.
 Prepare detergent solution as required by the job.

 Hang the detergent solution on hook of the wireform

on the handle (Figure 16).

 Place small filter end of the plastic chemical inject

tube into the detergent container.

CAUTION! Keep the plastic chemical inject

tube from coming in contact with the hot muffler.
This will damage the tube. When inserting the
filter into a cleaning agent bottle, route the tube
so as to keep it from inadvertently contacting
the hot muffler.

 Make sure garden hose is connected to water inlet.

Check that high pressure hose is connected to spray
gun and pump.

IMPORTANT: Detergent cannot be applied without the
water source turned on.

 Start engine and attach nozzle extension.
 Slide the adjustable nozzle forward to low pressure

mode. Detergent cannot be applied with nozzle in
high pressure position.

 Apply detergent to a dry surface, starting from the

bottom and working up.

 Allow the detergent to soak in between 3-5 minutes

before washing and rinsing. Reapply as needed to
prevent surface from drying.

 For washing, start at lower portion of area to be

washed and work upward, using long, even
overlapping strokes.

Twist nozzle

counterclockwise for

fan spray pattern.

Twist nozzle clockwise

for narrow spray

pattern.

Figure 16  Insert the Small Filter Into Container of

Cleaning Solution

Figure 15 - Adjusting Spray Pattern

Generac Portable Products 2,300 PSI Pressure Washer

11

Pressure Washer Rinsing

WARNING! Be extremely careful if you must

use the pressure washer from a ladder,
scaffolding or any other unstable location.
Pressure in a running washer builds as you
climb. When you press the trigger, the initial
spray recoil could cause you to fall. The high
pressure spray could also cause you to fall if
you are too close to the cleaning surface.

For Rinsing:

 Slide nozzle backward to high pressure and wait for

detergent to clear.

 Keep the spray gun a safe distance from the area

you plan to spray.

 Apply a high pressure spray to a small area and

then check the surface for damage. If no damage is
found, you can assume it is okay to continue
cleaning.

 Start at top of area to be rinsed, working down with

same overlapping strokes as you used for cleaning.

NOTE: You can also stop detergent from flowing by
simply removing siphon from bottle.

Automatic Cool Down System

(also known as Thermal Relief)

If you run the engine on your pressure washer for
3-5 minutes without pressing the trigger on the spray
gun, circulating water in the pump can reach a
temperature between 140145°F. When the water
reaches this temperature, the automatic cool down
system engages and cools the pump by discharging
the warm water onto the ground. This system
prevents internal damage to the pump.

SPECIFICATIONS

Outlet Pressure . . . . 2,300 psi

Flow Rate . . . . . . . . . 2.2 gallons per minute (gpm)

Detergent . . . . . . . . . Use detergent approved for

pressure washers

Water Supply . . . . . . Not to exceed 140°F

Temperature

Automatic Cool . . . . Will cycle when water

Down System reaches 140°-145°F

Generac Portable Products 2,300 PSI Pressure Washer

12

GENERAL MAINTENANCE

RECOMMENDATIONS

The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence. To receive the full value from the
warranty, the operator must maintain the high pressure
washer as instructed in this manual.

 Some adjustments will need to be made periodically

to properly maintain your high pressure washer.

 All adjustments in the Maintenance section of this

manual should be made at least once each season.

 Once a year you should clean or replace the spark

plug and clean or replace the air filter and check the
spray gun and nozzle extension assembly for wear.
A new spark plug and clean air filter assure proper
fuelair mixture and help your engine run better and
last longer.

Before Each Use

 Check engine oil level.
 Check water inlet screen for damage.
 Check high pressure hose for leaks.
 Check chemical injection tube and filter for damage.
 Check spray gun and adjustable nozzle extension

assembly for leaks.

 Rinse out garden hose to flush out debris before

attaching to pressure washer.

PRESSURE WASHER

MAINTENANCE

Check and Clean Inlet Screen

Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.

Check High Pressure Hose

The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before
using it. Check for cuts, leaks, abrasions or bulging of
cover, damage or movement of couplings. If any of
these conditions exist, replace the hose immediately.

DANGER! Water spraying from a leak is

capable of injecting material into skin. Inspect
hose each time before using it. Never repair a
high pressure hose. Replace it with another
hose that exceeds the maximum pressure
rating of your pressure washer.

Check Chemical Injection Tube

Examine the filter on the detergent hose and clean if
clogged. The tube should fit tightly on the barbed
fitting. Examine the tube for leaks or tears. Replace
the filter or tube if either is damaged.

Check Gun and Adjustable Nozzle

Extension

Examine the hose connection to the spray gun and
make sure it is secure. Test the trigger by pressing it
and making sure it springs back into place when you
release it. Put the safety latch in the On position and
test the trigger. You should not be able to press the
trigger.

Check In-Line Filter

Refer to Figure 17 and service the in-line filter if it
becomes clogged, as follows:

1. Detach spray gun and nozzle extension from high
pressure hose. Detach nozzle extension from
spray gun and remove o-ring and screen from
nozzle extension. Flush the screen, spray gun,
and nozzle extension with clean water to clear
debris.

2. If the screen is damaged, the o-ring kit contains a
replacement in-line filter screen and an o-ring. If
undamaged, reuse screen.

Filter Screen

Nozzle Extension

O-Ring

Figure 17  Service In-Line FIlter

Generac Portable Products 2,300 PSI Pressure Washer

13

3. Place the in-line filter screen into the threaded end
of the nozzle extension. Direction does not matter.
Push the screen in with the eraser end of a pencil
until it rests flat at the bottom of the opening. Take
care to not bend the screen.

4. Place the o-ring into the recess. Push the o-ring
snugly against the in-line filter screen.

5. Assemble the nozzle extension to the spray gun,
as described earlier in this manual.

Purge Pump of Air and

Contaminants

To remove air from the pump, follow these steps:

 Set up the pressure washer as described in the

Preparing Pressure Washer for Use section and
connect the water supply.

 Pull the trigger on the spray gun and hold.

To remove contaminants from the pump, follow
these steps:

 Set up the pressure washer as described in

Preparing Pressure Washer for Use and connect

the water supply.
 Remove the nozzle extension from the spray gun.
 Start the engine according to instructions in How To

Start Your Engine.
 Squeeze the trigger on the spray gun and hold.
 When the water supply is steady and constant,

engage the safety latch and refasten the nozzle

extension.

Cleaning Chemical Injection Tube

If you have used the chemical injection tube you must
flush it with clean water before stopping the engine.

 Place the chemical injection tube in a bucket full of

clean water.
 Flush for 12 minutes.
 Shut off the engine.

IMPORTANT: Simply shutting OFF engine will not
release pressure in the system. When the engine has
shut down, squeeze the trigger on the spray gun to
relieve the pressure in the hose.

Nozzle Maintenance

If the adjustable nozzle becomes restricted or clogged
with foreign materials, such as dirt, excessive pump
pressure may develop. If this nozzle becomes partially
clogged, it can cause a pulsing sensation during use.
This generally is not a pump related problem, but
rather a clogged or partially restricted adjustable
nozzle.

Immediately clean a clogged nozzle with the kit
included with your pressure washer by following these
instructions:

 Shut off the engine and turn off the water supply.
 Separate the nozzle extension from the spray gun.
 Adjust the nozzle extension to the stream position.
 Remove nozzle from the end of the nozzle extension

(Figure 18) using a 2mm or 5/64 allen wrench.

 Use the wire included in the kit (Figure 18) or a

small paper clip to free the foreign materials
clogging or restricting the nozzle.

Figure 18  Remove and Clean Nozzle

Nozzle

Generac Portable Products 2,300 PSI Pressure Washer

14

 Remove additional debris by back flushing water

supply through nozzle extension (Figure 19). Back

flush between 30 to 60 seconds. Turn nozzle

extension to stream spray and move nozzle from

low to high while flushing.

 Reinstall nozzle into the nozzle extension. Do Not

over tighten.
 Reconnect the water supply, turn on the water, and

start the engine.
 Attach the nozzle extension to the spray gun.
 Test pressure washer operation with the adjustable

nozzle in both high and low positions.

ORing Maintenance

Orings keep the connections of the hoses and spray
gun tight and leakfree. Through the normal operation
of your pressure washer, o-rings may become worn or
damaged.

Provided with your pressure washer is an ORing
Maintenance Kit which includes replacement o-rings,
rubber washer and water inlet filter. Refer to the
instruction sheet provided in the kit to service your
units o-rings. Note that not all of the parts in the kit
will be used on your unit.

To remove a worn or damaged oring:

 Use a small flathead screwdriver to get underneath

the o-ring and pry it off.

ENGINE MAINTENANCE

See the engine owners manual for instructions on
how to properly maintain the engine.

PREPARING THE UNIT FOR

STORAGE

Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on pump
parts and freeze pump action. If you do not plan to
use the pressure washer for more than 30 days, follow
this procedure:

1. Flush chemical injection tube by placing the filter
into a pail of clean water while running pressure
washer in low pressure (adjustable nozzle in
forward position). Flush for one to two minutes.

2. Shut off the engine and let it cool, then remove all
hoses.

3. Place the throttle lever in Stop position.

WARNING! Be sure lever is in Stop position

before you continue. If you start engine without
proper water supply connected, you can
damage pump.

4. Empty the pump of all pumped liquids by pulling
the recoil handle about 6 times. This should
remove most of the liquid in the pump.

NOTE: To protect the unit from freezing temperatures,
draw RV antifreeze (no alcohol) into the pump by
pouring the antifreeze into a 3foot section of garden
hose connected to inlet adapter and pulling recoil
handle twice.

5. Store in a clean, dry area.

STORING THE ENGINE

See the engine owners manual for instructions on
how to properly store the engine.

Figure 19  Backflush the Nozzle

Generac Portable Products 2,300 PSI Pressure Washer

15

TROUBLESHOOTING

Problem Cause Solution

Pump has the following
problems:
Failure to produce adequate
pressure, erratic pressure,
chattering, loss of pressure
or low water volume.

1. Lance in low pressure.

2. Water inlet is blocked.

3. Inadequate water supply.

4. Garden hose is kinked or leaking.

5. Clogged water inlet screen.

6. Water supply is over 140°F.

7. Outlet hose is blocked or leaks.

8. Gun leaks.

9. Nozzle is obstructed.

10. Pump is faulty.

1. Adjust chemical valve handle to
high pressure.

2. Clear inlet.

3. Make sure you have at least a 2.4
GPM flow for your garden hose.

4. Straighten garden hose or patch
leak.

5. Check and clean water inlet
screen.

6. Provide cooler water supply.

7. Clear blocks in outlet hose.
Replace immediately if leaking.

8. Replace gun.

9. Clear nozzle.

10. Contact Generac service facility.

Detergent fails to mix with
spray.

1. Chemical injector hose is not
submerged.

2. Chemical injector hose is
clogged.

3. Lance is in high pressure mode.

1. Insert chemical line into detergent.

2. Clean or replace filter/chemical
injector hose.

3. Put dual lance into low pressure
mode.

Engine runs well when not
spraying but bogs down
when trigger is squeezed.

Engine speed is too slow. Contact Honda service facility.

Engine will not start; or
starts and runs rough.

1. Low oil level.

2. Dirty air cleaner.

3. Out of gasoline.

4. Stale gasoline.

5. Spark plug wire not connected to
spark plug.

6. Bad spark plug.

7. Water in gasoline.

8. Excessively rich fuel mixture.

9. Intake valve stuck open or
closed.

10. Engine has lost compression

1. Fill crankcase to proper level.

2. Clean or replace air filter.

3. Fill fuel tank.

4. Drain gas tank; fill with fresh fuel.

5. Connect wire to spark plug.

6. Replace spark plug.

7. Drain as tank fill with fresh fuel.

8. Contact Honda service facility.

9. Contact Honda service facility.

10. Contact Honda service facility.

Engine shuts down during
operation.

1. Out of gasoline.

2. Low oil level.

1. Fill fuel tank.

2. Fill crankcase to proper level.

Engine lacks power.

Dirty air filter. Replace air filter.

Engine hunts or falters.

Engine is not operating properly. Contact Honda service facility.

Generac Portable Products 2,300 PSI Pressure Washer

16

EXPLODED VIEW  UNIT

Generac Portable Products 2,300 PSI Pressure Washer

17

PART LIST  UNIT

Item Part # Qty Description

1 B2150 1 HOOK, Gun
2 67989 8 NUT, M8 Flange Serr.
3 42909 2 HHCS, M8 1.25 x 30
4 50190 2 WASHER, M8 Flat
5 27007 2 MOUNT, Donut Type Vibration
6 B3107 1 HOSE, Thermal Drain
7 30809 1 GROMMET, Rubber
8 B2043 7 BOLT, 5/16"-18 x 1-3/4"

Carriage

9 AB5721 1 BASE
10 B2516 1 CAP, Vinyl (black)
11 186153 1 DECAL, Logo
12 B1983 1 HANDLE
13 B1631A 1 BILLBOARD, Plastic
14 B2796 1 DECAL, Instructions, Start
15 99583 9 NUT, Flange Lock 5/16"-18
16 B1981 2 SUPPORT, Handle
17 21217 4 MOUNT, Rubber Shock
18 48031B 1 CLAMP, Hose Band
19 A1040D 1 HOSE, 4-1/2' Chemical Clear
21 NSP 1 ENGINE
22 A1041 1 FILTER, Chemical Hose
23 97178 2 KNOB, Handle 1/4" - 20 PW
24 31669 2 BOLT, 1/4" - 20 x 1-3/4"

Carriage
25 B4966 2 TIRE, 10"
26 75402C 2 PUSHNUT, 5/8" Dia.

Item Part # Qty Description

27 B5830 1 KIT, "O" Ring
28 B3263 1 GUN, High Pressure
29 B2163 1 KIT, Nozzle Cleaning
30 87815 1 GOGGLES, Safety
31 B5642 1 HOSE, High Pressure
32 21761 1 NOZZLE, 1.05 Yellow

Replacement
33 97566 1 TAG, Nozzle Instructions
34 B3335 1 LANCE, Nozzle Hi/Lo
35 NSP 1 WARANTY, Honda Emissions
36 NSP 1 WARANTY, Honda Engine
37 B2168A 1 WIREFORM, Hose, Gun, Jug
38 97837 1 O RING, Hi Pressure Transfer
39 B2218 1 O-RING, 1.625 I.D.
40 BB3061B 1 OIL
41 B1982 1 BUMPER
42 NSP 1 MANUAL, Engine
43 186145 1 MANUAL
44 48031G 2 CLAMP, Hose Band
46 21424 1 CONNECTOR, Garden Hose
47 B4925B 1 ASSEMBLY, Pump
49 B2203 1 KIT, Handle Fastening
50 B4224 1 SCREEN, Gun Inlet
51 23707 4 SHCS, 5/16 - 24 x 1
52 92479 4 WASHER, M8 Conical Ribbed
53 52858 2 NUT, Locking M8 - 1.25

Generac Portable Products 2,300 PSI Pressure Washer

18

EXPLODED VIEWPUMP

Generac Portable Products 2,300 PSI Pressure Washer

19

PART LISTPUMP

Item Part # Qty Description

1 B2218 1 O-RING, 1.625 ID x .103
2 97962 3 SHCS, M6 - 1 x 25
3 B5710 1 VALVE, 1/8 npt 1-5 PSI
4 97835 1 O-RING, Housing Seal
5 B3090 1 VALVE, Thermal Relief
6 93680 3 SEAL, Oil Piston
7 97831 3 SPACER, Pilot
8 B2702 1 HOUSING, Piston

9 B4813 1 ADAPTER, Engine
10 97841 3 CAP, Outlet Check Valve
11 40946 4 SHCS, M6-1.0 x 35
12 185715 0 KIT, AXIAL CAM

1 . . . . . . 1 O-RING, Engine Seal

2 . . . . . . 3 SHCS, M6 - 1 x 25

4 . . . . . . 1 O-RING, Housing Seal

13 . . . . . . 1 WASHER, Brg. 36 x 65 x

6Thk

14 . . . . . . 2 ASSY., Brg. Cage 45 x 65

15 . . . . . . 3 WASHER, Brg. 45 x 65 x 1

16 . . . . . . 1 CAM, Axial 5.6 3/4"SAE

17 185287 0 KIT, CHEM INJECT

18 . . . . . . 1 FITTING, Chem Inject

19 . . . . . . 1 BALL, Chem Inject

20 . . . . . . 1 SPRING, Chem Inject

21 . . . . . . 1 O-RING, Venturi & Seat, Black

22 . . . . . . 1 VENTURI, Chem Inject

28 . . . . . . 1 O-RING, Venturi, Yellow

23 185711 0 KIT, UNLOADER 2300

21 . . . . . . 1 O-RING, Venturi & Seat, Black

24 . . . . . . 1 CAP, Unloader

25 . . . . . . 1 O-RING, Unloader Cap

26 . . . . . . 1 SPRING, Unloader

27 . . . . . . 1 PISTON, Unloader

29 . . . . . . 1 SEAT, Unloader

Item Part # Qty Description

31 185712 0 KIT, CHECK VALVES

11 . . . . . . 4 SHCS, M6-1.0 x 35

32 . . . . . . 3 O-RING, Check Valve

33 . . . . . . 6 ASSY., Check Valve

45 . . . . . . 3 O-RING, Check Valve, White

34 185531 0 KIT, HEAD BRASS EG

11 . . . . . . 4 SHCS, M6-1.0 x 35

35 . . . . . . 1 HEAD, Pump

36 . . . . . . 1 PLUG, 1/8-28

46 . . . . . . 4 WASHER, M6 Flat

37 185713 0 KIT, PISTON & SPRING

1 . . . . . . 1 O-RING, Engine Seal

2 . . . . . . 3 SHCS, M6 - 1 x 25

4 . . . . . . 1 O-RING, Housing Seal

38 . . . . . . 3 RETAINER, Piston Spring

39 . . . . . . 3 PISTON, Dia. 15 x 65

40 . . . . . . 3 SPRING, Piston Return

41 185714 0 KIT, O-RING/SEAL 2300

1 . . . . . . 1 O-RING, Engine Seal

2 . . . . . . 3 SHCS, M6 - 1 x 25

4 . . . . . . 1 O-RING, Housing Seal

6 . . . . . . 3 SEAL, Oil Piston

11 . . . . . . 4 SHCS, M6-1.0 x 35

21 . . . . . . 2 O-RING, Venturi & Seat, Black

25 . . . . . . 1 O-RING, Unloader Cap

28 . . . . . . 1 O-RING, Venturi, Yellow

32 . . . . . . 3 O-RING, Check Valve

42 . . . . . . 3 SEAL, Double-Lip

43 . . . . . . 1 O-RING, High Pressure

Transfer

44 . . . . . . 3 O-RING, Outlet CV Cap

45 . . . . . . 3 O-RING, Check Valve, White

Item numbers 12, 17, 23, 31, 34, 37, and 41 are
service kits and include all parts shown within the box.
Certain parts may only be available as components of
a kit.

LIMITED PRESSURE WASHER WARRANTY

GENERAC PORTABLE PRODUCTS (hereafter referred to as the COMPANY) warrants to the original retail
purchaser, the pressure washer manufactured by the COMPANY to be free from defects in material and
workmanship for the period(s) set forth below from the date of original purchase. This warranty is not
transferable. The term original purchaser means the person for whom the pressure washer is originally
purchased.

Warranty Schedules

Electric Power Washer 1 year (does not apply to commercial or rental applications)

CONSUMER* COMMERCIAL*

All Other Engine-driven Engine: Warranted solely by Warranted solely by

Engine Manufacturer Engine Manufacturer

Pump: 1 year 90 days

* NOTE: For the purpose of this warranty consumer use means personal residential household use by
original purchaser. Commercial use means all other uses, including rental, construction, commercial
and income producing purposes. Once a pressure washer has experienced commercial use, it shall
thereafter be considered a commercial use pressure washer for the purposes of this warranty.

During said warranty period, the COMPANY will, at its option, repair or replace any part which, upon examination
by the COMPANY or COMPANY-Authorized Dealers, is found to be defective under normal use and service**. All
transportation costs under warranty, including return to the factory if necessary, are to be borne by the purchaser
and prepaid by the purchaser.

** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and
replacement to perform well. This warranty does not cover repair when normal use has exhausted the life
of a part or pressure washer pump.

This warranty does not include: Used products and demonstration equipment. Parts, such as GUNS, HOSES,

WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing,
etc. Pumps which have been run without water supplied. Damage or malfunctions resulting from: accidents,
abuse, modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance
such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
SPECIFICALLY, THE COMPANY MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES
WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE
EXPRESS WARRANTY. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL
DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE
A DIRECT RESULT OF THE COMPANY'S NEGLIGENCE. THE COMPANY ALSO DISCLAIMS ANY
RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SUCH AS THE LOSS OF
TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE
FAILURE OF THE EQUIPMENT: AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE
DURATION OF THIS WRITTEN

WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state.

For service, see your nearest COMPANY-Authorized warranty service facility or call 1-877-544-0982. Warranty
service can be performed only by a COMPANY-Authorized service facility. This warranty will not apply to service
at any other facility. At the time of requesting warranty service, evidence of original purchase date must be
presented.

Generac Portable Products

Jefferson, Wisconsin U.S. A.
