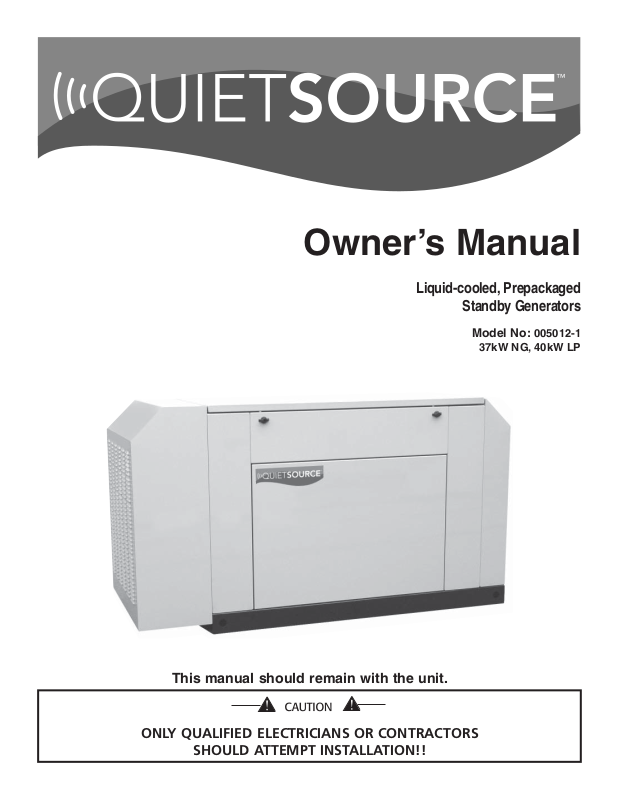

Generac Power Systems 005012-1 User Manual

Owner’s Manual
Liquid-cooled, Prepackaged
Standby Generators
Model No: 005012-1
37kW NG, 40kW LP
This manual should remain with the unit.
ONLY QUALIFIED ELECTRICIANS OR CONTRACTORS
SHOULD ATTEMPT INSTALLATION!!
Thank you for purchasing this model of the QuietSource standby generator set product line by Generac Power Systems.
Every effort was expended to make sure that the information and instructions in this manual are both accurate and current at the time the manual was writ­ten. However, the manufacturer reserves the right to change, alter or otherwise improve this product(s) at any time without prior notice.
READ THIS MANUAL THOROUGHLY
If any portion of this manual is not understood, con­tact the nearest Authorized Service Dealer for start­ing, operating and servicing procedures.
Throughout this publication, and on tags and decals affixed to the generator, DANGER, WARNING, CAUTION and NOTE blocks are used to alert personnel to spe­cial instructions about a particular service or opera­tion that may be hazardous if performed incorrectly or carelessly. Observe them carefully. Their definitions are as follows:
DANGER
After this heading, read instructions that, if not
strictly complied with, will result in personal injury or property damage.
The operator is responsible for proper and safe use of the equipment. The manufacturer strongly recom­mends that the operator read this Owner's Manual and thoroughly understand all instructions before using this equipment. The manufacturer also strong­ly recommends instructing other users to properly start and operate the unit. This prepares them if they need to operate the equipment in an emergency.
OPERATION AND MAINTENANCE
It is the operator's responsibility to perform all safety checks, to make sure that all maintenance for safe operation is performed promptly, and to have the equipment checked periodically by an Authorized Service Dealer. Normal maintenance service and replacement of parts are the responsibility of the owner/operator and, as such, are not considered defects in materials or workmanship within the terms of the warranty. Individual operating habits and usage contribute to the need for maintenance service.
Proper maintenance and care of the generator ensures a minimum number of problems and keep operating expenses at a minimum. See the Authorized Service Dealer for service aids and accessories.
Operating instructions presented in this manual assume that the standby electric system has been installed by an Authorized Service Dealer or other competent, qualified contractor. Installation of this equipment is not a “do-it-yourself” project.
After this heading, read instructions that, if not
strictly complied with, may result in personal injury or property damage.
After this heading, read instructions that, if not
strictly complied with, could result in damage to equipment and/or property.
NOTE:
After this heading, read explanatory statements
that require special emphasis.
These safety warnings cannot eliminate the hazards that they indicate. Common sense and strict compli­ance with the special instructions while performing the service are essential to preventing accidents.
Four commonly used safety symbols accompany the DANGER, WARNING and CAUTION blocks. The type of information each indicates is as follows:
This symbol points out important safety informa-
tion that, if not followed, could endanger personal safety and/or property of others.
This symbol points out potential explosion hazard.
This symbol points out potential fire hazard.
This symbol points out potential electrical shock
hazard.
HOW TO OBTAIN SERVICE
When the generator requires servicing or repairs, contact an Authorized Service Dealer for assistance. Service technicians are factory-trained and are capa­ble of handling all service needs.
When contacting an Authorized Service Dealer about parts and service, always supply the complete model number of the unit as given on the front cover of this manual or on the DATA LABEL affixed to the unit.
AUTHORIZED SERVICE
DEALER LOCATION
To locate the nearest AUTHORIZED SERVICE
DEALER, please call this number:
1-800-333-1322
OR
Locate us on the web at:
www.generac.com
Table of Contents
40kW Liquid-cooled Generators
INTRODUCTION ............................................... IFC
Read this Manual Thoroughly ..................................... IFC
Operation and Maintenance ........................................ IFC
How to Obtain Service ................................................. IFC
Authorized Service Dealer Location ............................ IFC
SAFETY RULES ....................................................2
Section 1 — GENERAL INFORMATION ............. 4
1.1 Generator ..............................................................4
1.2 Transfer Switch .....................................................4
1.3 Automatic System Operation .................................4
1.4 Generator AC Connection Systems ........................4
1.5 Main Circuit Breaker .............................................4
1.6 Generator Fuel System ..........................................5
1.7 Engine Protective Devices ......................................5
1.8 Unpacking .............................................................6
1.9 Lifting the Generator .............................................7
1.10 Specifications ........................................................7
1.11 Fuel Consumption .................................................7
1.12 Reconfiguring the Fuel System ..............................7
1.13 Torque Specifications ............................................8
1.14 Engine Oil Recommendations ...............................8
1.15 Coolant Recommendations ....................................8
1.16 Before Installation .................................................8
Section 2 — INSTALLATION ............................. 8
2.1 Standby Generator Installation .............................8
2.2 Generator Location ...............................................9
2.3 Generator Mounting and Support .........................9
2.4 Basic Standby Electric System ............................10
2.5 Emergency Circuit Isolation Method ...................10
2.6 Total Circuit Isolation Method .............................10
2.7 Grounding the Generator ....................................10
2.8 Generator AC Neutral Connections .....................11
2.9 Transfer Switch Start Signal Connections ...........11
2.10 Battery Installation ..............................................11
2.11 Preparation Before Start-Up ................................12
Section 3OPERATION ................................ 13
3.1 Using an Engineered “GTS” Transfer Switch ......13
3.2 Control Console Components ..............................13
3.3 Manual Transfer and Startup ..............................14
3.4 Engine Governor Adjustments ............................14
3.5 Retransfer and Shutdown ...................................15
3.6 Automatic Operation ...........................................15
3.7 Weekly Exercise Cycle .........................................15
Section 4 — MAINTENANCE ........................... 16
4.1 Maintenance Performed by Authorized
Service Facilities ..................................................16
4.2 Cooling System....................................................16
4.3 Overload Protection for Engine DC
Electrical System .................................................16
4.4 Checking Fluid Levels .........................................16
4.5 Maintenance Owner/Operator
Can Perform ........................................................17
4.6 Miscellaneous Maintenance .................................18
4.7 Scheduled Maintenance .......................................20
Section 5 — TROUBLESHOOTING ................. 23
Section 6 — ELECTRICAL DATA .................... 24
Section 7 — EXPLODED VIEWS AND
PARTS LISTS ............................. 28
Section 8 — INSTALLATION DIAGRAM .......... 43
Section 9 — NOTES ........................................ 44
Section 10 — WARRANTY .................Back Cover
1
IMPORTANT SAFETY INSTRUCTIONS
40kW Liquid-cooled Generators
SAVE THESE INSTRUCTIONS – The manufacturer suggests that these rules for safe
operation be copied and posted in potential hazard areas. Safety should be stressed to all
operators, potential operators, and service and repair technicians for this equipment.
SAVE THESE INSTRUCTIONS – This manual contains important instructions that should be
followed during installation and maintenance of the generator and batteries.
The engine exhaust from this product
contains chemicals known to the state
This product contains or emits chemicals known to the state of California to cause
cancer, birth defects or other reproductive harm.
Study these SAFETY RULES carefully before installing, operating or servicing this equipment. Become familiar with this Owner’s Manual and with the unit. The gen­erator can operate safely, efficiently and reliably only if it is properly installed, operated and maintained. Many accidents are caused by failing to follow simple and fun­damental rules or precautions.
The manufacturer cannot anticipate every possible cir­cumstance that might involve a hazard. The warnings in this manual, and on tags and decals affixed to the unit are, therefore, not all-inclusive. If using a procedure, work method or operating technique that the manufac­turer does not specifically recommend, ensure that it is safe for others. Also make sure the procedure, work method or operating technique chosen does not render the generator unsafe.
WARNING:
of California to cause cancer, birth
defects or other reproductive harm.
WARNING:
DANGER
Despite the safe design of this generator,
operating this equipment imprudently, neglecting its maintenance or being careless can cause possible injury or death. Permit only responsible and capable persons to install, operate or maintain this equipment.
Potentially lethal voltages are generated by these
machines. Ensure all steps are taken to render the machine safe before attempting to work on the generator.
Parts of the generator are rotating and/or hot dur-
ing operation. Exercise care near running genera­tors.
GENERAL HAZARDS
• For safety reasons, the manufacturer recommends that this equipment be installed, serviced and repaired by an Authorized Service Dealer or other competent, qualified electrician or installation technician who is familiar with applicable codes, standards and regula­tions. The operator also must comply with all such codes, standards and regulations.
• Installation, operation, servicing and repair of this (and related) equipment must always comply with applicable codes, standards, laws and regulations. Adhere strictly to local, state and national electri­cal and building codes. Comply with regulations the Occupational Safety and Health Administration (OSHA) has established. Also, ensure that the genera­tor is installed, operated and serviced in accordance with the manufacturer’s instructions and recommen­dations. Following installation, do nothing that might render the unit unsafe or in noncompliance with the aforementioned codes, standards, laws and regula­tions.
• The engine exhaust fumes contain carbon monoxide gas, which can be DEADLY. This dangerous gas, if breathed in sufficient concentrations, can cause unconsciousness or even death. For that reason, adequate ventilation must be provided. Exhaust gases must be piped safely away from any building or enclosure that houses the generator to an area where people, animals, etc., will not be harmed. This exhaust system must be installed properly, in strict compliance with applicable codes and standards.
• Keep hands, feet, clothing, etc., away from drive belts, fans, and other moving or hot parts. Never remove any drive belt or fan guard while the unit is operat­ing.
• Adequate, unobstructed flow of cooling and ventilat­ing air is critical to prevent buildup of explosive gases and to ensure correct generator operation. Do not alter the installation or permit even partial blockage of ventilation provisions, as this can seriously affect safe operation of the generator.
• Keep the area around the generator clean and unclut­tered. Remove any materials that could become haz­ardous.
• When working on this equipment, remain alert at all times. Never work on the equipment when physically or mentally fatigued.
2
IMPORTANT SAFETY INSTRUCTIONS
40kW Liquid-cooled Generators
• Inspect the generator regularly, and promptly repair or replace all worn, damaged or defective parts using only factory-approved parts.
• Before performing any maintenance on the generator, disconnect its battery cables to prevent accidental start-up. Disconnect the cable from the battery post indicated by a NEGATIVE, NEG or (–) first. Reconnect that cable last.
• Never use the generator or any of its parts as a step. Stepping on the unit can stress and break parts, and may result in dangerous operating conditions from leaking exhaust gases, fuel leakage, oil leakage, etc.
ELECTRICAL HAZARDS
• All generators covered by this manual produce dan­gerous electrical voltages and can cause fatal electri­cal shock. Utility power delivers extremely high and dangerous voltages to the transfer switch as well as the standby generator. Avoid contact with bare wires, terminals, connections, etc., on the generator as well as the transfer switch, if applicable. Ensure all appro­priate covers, guards and barriers are in place before operating the generator. If work must be done around an operating unit, stand on an insulated, dry surface to reduce shock hazard.
• Do not handle any kind of electrical device while standing in water, while barefoot, or while hands or feet are wet. DANGEROUS ELECTRICAL SHOCK
MAY RESULT.
• If people must stand on metal or concrete while installing, operating, servicing, adjusting or repair­ing this equipment, place insulative mats over a dry wooden platform. Work on the equipment only while standing on such insulative mats.
• The National Electrical Code (NEC), Article 250 requires the frame and external electrically conduc­tive parts of the generator to be connected to an approved earth ground and/or grounding rods. This grounding will help prevent dangerous electrical shock that might be caused by a ground fault condi­tion in the generator set or by static electricity. Never disconnect the ground wire.
• Wire gauge sizes of electrical wiring, cables and cord sets must be adequate to handle the maximum elec­trical current (ampacity) to which they will be sub­jected.
• Before installing or servicing this (and related) equip­ment, make sure that all power voltage supplies are positively turned off at their source. Failure to do so will result in hazardous and possibly fatal electrical shock.
• Connecting this unit to an electrical system normally supplied by an electric utility shall be by means of a transfer switch so as to isolate the generator electric system from the electric utility distribution system when the generator is operating. Failure to isolate the two electric system power sources from each other by such means will result in damage to the generator and may also result in injury or death to utility power workers due to backfeed of electrical energy.
• Generators installed with an automatic transfer switch will crank and start automatically when NOR­MAL (UTILITY) source voltage is removed or is below an acceptable preset level. To prevent such automatic start-up and possible injury to personnel, disable the generator’s automatic start circuit (battery cables, etc.) before working on or around the unit. Then, place a “Do Not Operate” tag on the generator control panel and on the transfer switch.
• In case of accident caused by electric shock, imme­diately shut down the source of electrical power. If this is not possible, attempt to free the victim from the live conductor. AVOID DIRECT CONTACT WITH THE VICTIM. Use a nonconducting implement, such as a dry rope or board, to free the victim from the live conductor. If the victim is unconscious, apply first aid and get immediate medical help.
• Never wear jewelry when working on this equipment. Jewelry can conduct electricity resulting in electric shock, or may get caught in moving components causing injury.
FIRE HAZARDS
• Keep a fire extinguisher near the generator at all times. Do NOT use any carbon tetra-chloride type extinguisher. Its fumes are toxic, and the liquid can deteriorate wiring insulation. Keep the extinguisher properly charged and be familiar with its use. If there are any questions pertaining to fire extinguishers, consult the local fire department.
EXPLOSION HAZARDS
• Properly ventilate any room or building housing the generator to prevent build-up of explosive gas.
• Do not smoke around the generator. Wipe up any fuel or oil spills immediately. Ensure that no combustible materials are left in the generator compartment, or on or near the generator, as FIRE or EXPLOSION may result. Keep the area surrounding the generator clean and free from debris.
• These generator sets may operate using one of several types of fuels. All fuel types are potentially FLAMMABLE and/or EXPLOSIVE and should be handled with care. Comply with all laws regulating the storage and handling of fuels. Inspect the unit’s fuel system frequently and correct any leaks imme­diately. Fuel supply lines must be properly installed, purged and leak tested according to applicable fuel­gas codes before placing this equipment into service.
• Diesel fuels are highly FLAMMABLE. Gaseous fluids such as natural gas and liquid propane (LP) gas are extremely EXPLOSIVE. Natural gas is lighter than air, and LP gas is heavier than air; install leak detectors accordingly.
3
Section 1 - General Information
40kW Liquid-cooled Generators
1.1 GENERATOR
This equipment is a liquid-cooled, engine-driven generator set. The generator is designed to supply electrical power that operates critical electrical loads during utility power failure. The unit has been facto­ry-installed in a weather resistant, all metal enclosure and is intended for outdoor installation only. Use this generator as a source of electrical power for the operation of 120 and/or 240VAC, single-phase loads.
If this generator is used to power electrical load
circuits normally powered by a utility power source, it is required by code to install a trans­fer switch. The transfer switch must effectively isolate the electric system from the utility distri­bution system when the generator is operating (NEC 701). Failure to isolate an electrical system by such means results in damage to the genera­tor and may also result in injury or even death to utility power workers due to backfeed of electrical energy.
1.2 TRANSFER SWITCH
This generator system is intended to be used with the manufacturer's transfer switch. It will be avail­able in either a NEMA 1 enclosure or a NEMA 3R enclosure. The NEMA 1 enclosure is intended for indoor use only. The NEMA 3R enclosure is weather proof and can be used indoors or outdoors. Follow these rules:
• Install the transfer switch on a firm, sturdy sup­porting structure.
• To prevent switch distortion, level the switch if necessary. This can be done by placing washers between the switch enclosure and the mounting surface.
• Never install the switch where water or any corro­sive substance might drip onto the enclosure.
• Protect the switch at all times against excessive moisture, dust, dirt, lint, construction grit and cor­rosive vapors.
An Authorized Dealer can supply an appropriate transfer switch for the generator.
1.3 AUTOMATIC SYSTEM OPERATION
When this generator, along with a transfer switch, has been installed and interconnected, a circuit board in the generator panel constantly monitors UTILITY power source voltage. Should that voltage drop below a preset value, and remain at such a low state for a preset amount of time, the generator cranks and starts. After the generator starts, the transfer switch transfers load circuits so the generator can power them.
When utility source voltage has been restored, the switch re-transfers back to the UTILITY source volt­age and the generator then shuts down.
Please reference the transfer switch manual for spe­cific information.
1.4 GENERATOR AC CONNECTION SYSTEMS
The generator was shipped from the factory with its stator AC output leads connected in a single-phase, three-wire generator AC connection system (Figure
1.1). The stator assembly in this system consists of
a pair of stationary windings, with two leads brought out of each winding. Each single winding can sup­ply 120VAC, 60 Hertz. When the two windings are connected in series, a 240VAC, 60 Hertz AC output results. Typically the two HOT leads in the circuit are wires 11 and 44. The NEUTRAL leads are the junction of Wires 22 and 33. The NEUTRAL is not grounded.
Figure 1.1 - Generator AC Connection System
1.5 MAIN CIRCUIT BREAKER
The generator’s main circuit breaker is included with the unit as shipped from the factory. The breaker for this unit is described in Figure 1.2.
Figure 1.2 - Main Circuit Breaker
Model Rating Phase Actual Current C/B Rating* Circuit Breaker
005012-1 37,000 NG 1 154.2 200 200A QN2 40,000 LP 1 166.7 200 200A QN2
4
* Amp Rating of C/B structured under model.
1.6 GENERATOR FUEL SYSTEM
The unit has been factory tested and adjusted using a natural gas fuel system. If propane (LP) gas is nec­essary, refer to "Reconfiguring the Fuel System" for conversion instructions.
Fuel pressure for a natural gas set up should be five
inches to 14 inches of water column (0.18 to 0.5 psi) at all load ranges.
Fuel pressure for an LP vapor set up should be 11 inches to 14 inches of water column (0.4 to 0.5 psi) at all load ranges.
NOTE:
A seperate gas line and regulator may be needed to assure proper gas pressure to the generator. Improper gas pressure can cause hard starting and affect engine durability.
Section 1 - General Information
40kW Liquid-cooled Generators
1.7.1 LOW OIL PRESSURE SWITCH
This switch is normally-closed (N.C.) but is held open by engine oil pressure during engine running. Should operating oil pressure drop below about 8-10 psi (55­68 kPa), the switch contacts close, the engine shuts down automatically, and the low oil pressure LED is turned ON (Figure 1.4).
NOTE:
The Low Oil Pressure, High Coolant Temperature and Low Coolant Level are not monitored for the first 10 seconds of engine run time.
Figure 1.4 - Low Oil Pressure Switch
Gaseous fuels such as natural and LP (propane)
gas are highly explosive. Even the slightest spark can ignite such fuels and cause an explo­sion. No leakage of fuel is permitted. Natural gas, which is lighter than air, tends to collect in high areas. LP gas is heavier than air and tends to settle in low areas.
1.7 ENGINE PROTECTIVE DEVICES
The engine has several safety switches which cause the engine to automatically shut down under the following conditions: low oil pressure, high coolant temperature, engine overspeed, low coolant level or overcrank (Figure 1.3).
Figure 1.3 - Engine Protective Devices
High Coolant Temperature Switch
Low Oil Pressure Switch
1.7.2 HIGH COOLANT TEMPERATURE SWITCH
This normally open (N.O.) thermostatic switch has sensing tip which is immersed in captive coolant. Should coolant temperature exceed about 230°F (110°C), the switch contacts close. This causes the engine to shut down automatically and turns on the high coolant temperature/low coolant level LED (Figure 1.5).
Figure 1.5- High Coolant Temperature Switch
Low Coolant Level Sensor
5
PC
906
.
9J2C2
C26
U7
C27
Q2
9
C30
3
1
5
C9
C21
D10
J1
8
U1
Section 1 — General Information
40kW Liquid-cooled Generators
1.7.3 LOW COOLANT LEVEL SWITCH
Should engine coolant level drop below the level of the high coolant temperature switch, it is possible for the engine to overheat without automatic shutdown. To prevent such overheating without automatic shut down, the engine has a low coolant level sensor. If the engine coolant drops too low, the engine automatical­ly shuts down and turns on the high coolant tempera­ture/low coolant level LED (Figure 1.6 on page 6).
Figure 1.6 - Low Coolant Level Sensor
1.7.4 OVERSPEED SHUTDOWN
The engine control board receives AC frequency signals from an engine run winding in the alterna­tor. Should AC frequency exceed about 72 Hertz for three seconds or 75 Hertz instantaneously, the engine shuts down and the overspeed LED turns on. Should AC frequency exceed about 72 Hertz, circuit board action will automatically shutdown the engine (Figure
1.7).

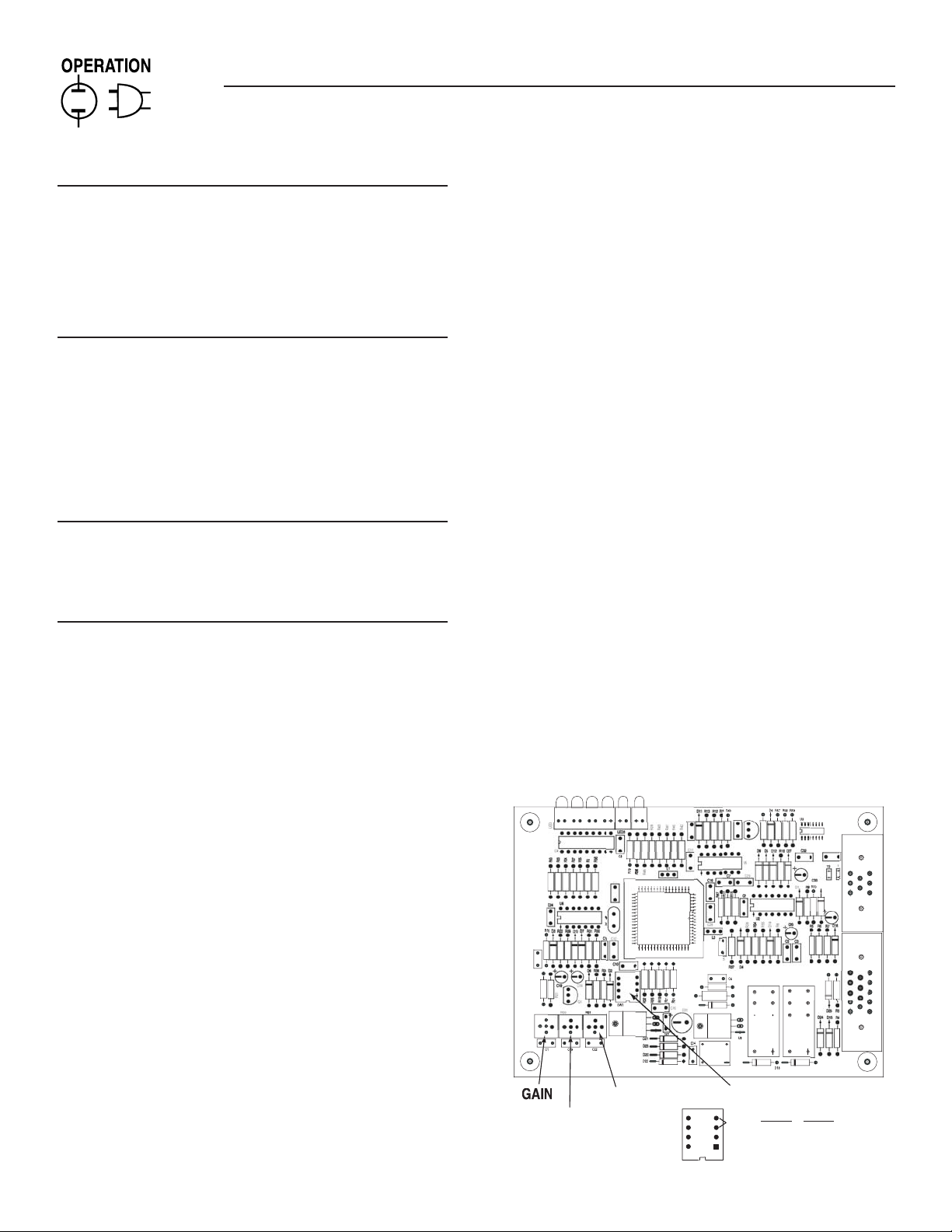

Figure 1.7 - Printed Circuit Board Assembly
D
1.7.6 OVERCRANK SHUTDOWN
The engine control board uses a cyclic cranking pro­cess when attempting to start the engine. The first crank cycle is a 15-second crank followed by a seven­second rest. This is followed by five more crank cycles each with a seven-second crank followed by a seven-second rest.
If the engine fails to start after all six attempts, the start attempt is stopped and the overcrank LED turned on.
1.7.7 LOW BATTERY
The engine control board continually monitors the battery voltage and turns on the low battery LED if the battery voltage falls below 11.0 VDC for one minute. Low battery voltage is a non-latching alarm, which will automatically clear if the battery voltage rises above 11.0 VDC.
The control system will not attempt to start the engine if there is a low battery condition, however, if the engine is already running when the low battery condition occurs, the engine will continue to run as long as possible.
Battery voltage is NOT monitored during the crank cycle.
1.7.8 ALARM RESET
If the engine control board shuts down the genera­tor for any of the above reasons, the engine remains stopped until the alarm is cleared by placing the AUTO/OFF/MANUAL switch into the OFF position.
1.7.9 DC FUSE
These fuses are located on the front panel of the con­trol system. They protect the panel wiring and com­ponents from damaging overload. Always remove the 15 amp main fuse before working on the generator. The unit will not start or crank if this fuse is blown. Replace the fuse with one of the same size, type, and rating (main AGC-15, battery charger AG4).
1.8 UNPACKING
2
R4
B# 0E4
REV
1.7.5 RPM SENSOR LOSS
If the engine control board does not receive a proper rpm signal from the starter during cranking or run­ning, it shuts down the engine on rpm sensor loss and flashes the overspeed LED.
6
R4
1.8.1 UNPACKING PRECAUTIONS
Handle shipping cartons and crates with care. Use care to avoid damage from dropping, bumping, col-
L
D1
lision, etc..
1.8.2 INSPECTION
After unpacking, carefully inspect the generator for any damage that may have occurred during ship­ment. If loss or damage is noted at the time of deliv­ery, have the person(s) making delivery note all dam­age on the freight bill or affix their signature under the consignor’s memo of loss or damage.
Section 1 — General Information
40kW Liquid-cooled Generators
1.9 LIFTING THE GENERATOR
When lifting or hoisting equipment is used, be
careful not to touch overhead power lines. The generators weight of more than 900 pounds requires proper tools, equipment, and qualified personnel to be used in all phases of handling and unpacking.
1.10 SPECIFICATIONS
1.10.1 GENERATOR SPECIFICATIONS
Single-phase
Model 005012-1 Rated Max. Cont. 37 (NG), 40 (LP) AC Power Output (kW) Rated voltage (volts) 120/240 No. of Rotor Poles 4 Driven Speed of Rotor 1800 Rotor Excitation System Direct excited brush type Type of Stator 4 Wire Rotor/Stator Insulation Class F/H
1.10.2 ENGINE SPECIFICATIONS
Make ................................................................................ Chr ysler
Displacement ................................................................... 3.9 liters
Cylinder Arrangement ............................................................. V-6
Valve Arrangement .............................................. Overhead Valve
Firing Order .................................................................1-6-5-4-3-2
Number of Main Bearings ...........................................................4
Compression Ratio ........................................................... 9.1 to 1
No. of Teeth on Flywheel .........................................................164
Ignition Timing at 1800 rpm ..............................30 degrees BTDC
Spark Plug Gap .............................................. 1.01mm (0.040 in.)
Recommended Spark Plugs
Champion ....................................................................RC12LC4
Oil Pressure ....................................................................30-80 psi
Crankcase Oil Capacity ........................4.0 U.S. quarts (3.8 liters)
Recommended Engine Oil ....................................... SAE 15W-40
Type of Cooling System ................. Pressurized, closed recovery
Cooling Fan ...............................................................Pusher Type
Cooling System Capacity ................. 5.0 U.S. gallons (19.3 liters)
Recommended Coolant ............................ Use a 50-50 mixture of
ethylene glycol base and de-ionized water.
1.11 FUEL CONSUMPTION
Natural Gas
% of Load 25% 50% 75% 100%
3
m
/hr 4.1 7.7 11.0 14.2
3
ft
/hr 143.1 271.1 388.5 502.0
LP Vapor
% of Load 25% 50% 75% 100%
3
m
/hr 1.7 3.3 4.7 6.0
3
ft
/hr 60.7 115.0 164.9 213.0
NOTE:
Fuel consumption is given at rated maximum continuous power output when using natural gas rated at 1000 Btu per cubic foot. LP gas is rated at 2520 Btu per cubic foot. Actual fuel consumption obtained may vary depending on such variables as applied load, ambient temperature, engine condi­tions and other environmental factors.
Fuel pressure for a natural gas set up should be five inches to 14 inches of water column (0.18 to 0.5 psi) at all load ranges.
Fuel pressure for an LP vapor set up should be 11 inches to 14 inches of water column (0.4 to 0.5 psi) at all load ranges.
1.12 RECONFIGURING THE FUEL SYSTEM
NOTE:
All models are configured for natural gas from the factory.
To reconfigure the fuel system from NG to LP vapor, follow these steps:
1. Turn the main gas supply off.
2. Remove the carburetor fuel hose from the outlet
port (Port 1) of the demand regulator (Figure
1.8).
Figure 1.8 — Reconfigure the Fuel System
Port 2
PLUG
PLUG
Port 1
FUEL HOSE
BRASS HOSE FITTING
PORT 1
HOUSING PORTS
FUEL HOSE
BRASS HOSE FITTING
OUT
OUT PORT 2
HOUSING PORTS
NG FUEL SYSTEM
7
LP FUEL SYSTEM
Section 2 — Installation
40kW Liquid-cooled Generators
3. Remove the brass hose fitting from the outlet port (Port 1) of the demand regulator.
4. Remove pipe plug from Port 2.
5. Install brass hose fitting into Port 2.
6. Install pipe plug into Port 1.
7. Connect carburetor gas hose to brass fitting.
8. Tighten all clamps and plugs.
9. Make sure fuel supply is of the proper pressure and type for configuration.
10. Reverse the procedure to convert back to natural gas.
NOTE:
Port 1 is for NG only and Port 2 is for LP vapor only. No provision for dual fuel has been made.
DANGER
Serious injury or damage may occur if not con-
figured properly. Please consult an Authorized Service Dealer with any questions.
1.13 TORQUE SPECIFICATIONS
Tighten the bolts from the middle out, in a criss­cross pattern.
Cylinder Head .....................................50 ft.lb./105 ft.lb./105 ft.lb.
Intake Manifold ....................................48 in.lb./84 in.lb./84 in.lb.
Exhaust Manifold ............................................................. 25 ft.lb.
1.14 ENGINE OIL RECOMMENDATIONS
The unit has been filled with 15W-40 engine oil at the factory. Use a high-quality detergent oil classified “For Service CC, SD, SE, SF.” Detergent oils keep the engine cleaner and reduce carbon deposits. Use oil having the following SAE viscosity rating, based on the ambient temperature range anticipated before the next oil change:
Temperature Oil Grade (Recommended)
Above 80° F (27° C) SAE 15W-40 32° to 80° F (-1° to 27° C) SAE 15W-40 Below 32° F (0° C) SAE 15W-40
1.15 COOLANT RECOMMENDATIONS
Use a mixture of half low silicate ethylene glycol base anti-freeze and half de-ionized water. Cooling system capacity is about 20 U.S. quarts (19.3 liters). Use only de-ionized water and only low silicate anti-freeze. If desired, add a high quality rust inhibitor to the rec­ommended coolant mixture. When adding coolant, always add the recommended 50-50 mixture.
Do not use any chromate base rust inhibitor
with ethylene glycol base anti-freeze or chro­miumhydroxide (“green slime”) forms and will cause overheating. Engines that have been oper­ated with a chromate base rust inhibitor must be chemically cleaned before adding ethylene glycol base anti-freeze. Using any high silicate anti-freeze boosters or additives will also cause overheating. It is also recommend that any solu­ble oil inhibitor is NOT USED for this equipment.
1.16 BEFORE INSTALLATION
Before installing this equipment, check the ratings of both the generator and the transfer switch. Read “Emergency Isolation Method” and “Total Circuit Isolation Method”.
The generator’s rated wattage/amperage capacity must be adequate to handle all electrical loads that the unit will power. The critical (essential) loads may need to be grouped together and wired into a sepa­rate “emergency” distribution panel.
This generator can be installed in conjunction with an engineered “GTS” type transfer switch, if neces­sary.
The standard transfer switch has no sensing or con­trolling circuit boards. Instead, the generator control console houses a “Printed Circuit Board Assembly”, which controls all phases of operation, including engine start up and load transfer.
NOTE:
5W-30 full synthetic oil is highly recommended in any element with temperatures above 90° F or below 30° F.
Any attempt to crank or start the engine before
it has been properly serviced with the recom­mended oil may result in an engine failure.
8
2.1 STANDBY GENERATOR INSTALLATION
DANGER
Connecting this generator to an electrical system
normally supplied by an electric utility shall be by means of a transfer switch, so as to isolate the electric system from the utility distribution system when the generator is operating. Failure to isolate the electric system by these means will result in damage to the generator and may also result in injury or death to utility workers due to backfeed of electrical energy.
Section 2 — Installation
40kW Liquid-cooled Generators
If an open bottom is used, the engine-generator
is to be installed over non-combustible materi­als and should be located such that combustible materials are not capable of accumulating under the generator set.
Only qualified, competent installation contractors or electricians thoroughly familiar with applicable codes, standards and regulations should install this standby electric power system. The installation must comply strictly with all codes, standards and regula­tions pertaining to the installation.
After the system has been installed, do nothing
that might render the installation in noncompli­ance with such codes, standards and regulations.
2.1.1 NFPA STANDARDS
The following published standards booklets pertain­ing to standby electric systems are available form the National Fire Protection Association (NFPA), Batterymarch Park, Quincy, MA 02269:
NOTE:
It is essential to use the latest version of any stan­dard to ensure correct and current information.
• NFPA No. 37, STATIONARY COMBUSTION ENGINES AND GAS TURBINES.
• NFPA No. 76A, ESSENTIAL ELECTRICAL SYSTEMS FOR HEALTH CARE FACILITIES.
• NFPA No. 220, STANDARD TYPES OF BUILDING CONSTRUCTION
• NFPA No. 68, GUIDE FOR EXPLOSION VENTING
• NFPA No. 70, NATIONAL ELECTRICAL CODE.
• NFPA No. 30, FLAMMABLE AND COMBUSTIBLE LIQUIDS CODE.
• NFPA No. 10, INSTALLATION, MAINTENANCE AND USE OF PORTABLE FIRE EXTINGUISHERS.
ASAE EP-364.2, INSTALLATION AND MAINTENANCE OF FARM STANDBY ELECTRIC POWER, available from the American Society of Agricultural Engineers, 2950 Niles Road, St. Joseph, MI 49085.
• A52.1, AMERICAN NATIONAL STANDARD FOR CHIMNEYS, FIREPLACES AND VENTING SYSTEMS, available from the American National Standard Institute, 1430 Broadway, New York, N.Y.
10018.
2.2 GENERATOR LOCATION
Install the generator set, in its protective enclosure outdoors, where adequate cooling and ventilating air always is available. Consider these factors:
• Install the unit where air inlet and outlet open­ings will not become obstructed by leaves, grass, snow, etc. If prevailing winds will cause blowing or drifting, consider using a windbreak to protect the unit.
• Install the generator on high ground where water levels will not rise and endanger it.
• This genset must be installed on a level surface. The base frame must be level within 1/2 inch all around.
• Allow sufficient room on all sides of the generator for maintenance and servicing. A good rule is to allow five feet of space on all sides.
• Where strong prevailing winds blow from one direction, face the generator air inlet openings into the prevailing winds.
• Install the generator as close as possible to the transfer switch. This reduces the length of wiring and conduit.
• Install the generator as close as possible to the fuel supply, to reduce the length of piping. HOWEVER, REMEMBER THAT LAWS OR CODES MAY REGULATE THE DISTANCE.
2.3 GENERATOR MOUNTING AND
2.1.2 OTHER PUBLISHED STANDARDS
In addition to NFPA standards, the following informa­tion pertaining to the installation and use of standby electric systems is available:
NOTE:
It is essential to use the latest version of any stan­dard to ensure correct and current information.
• Article X, NATIONAL BUILDING CODE, available from the American Insurance Association, 85 John Street, New York, N.Y. 10038.
• AGRICULTURAL WIRING HANDBOOK, obtainable from the Food and Energy Council, 909 University Avenue, Columbia, MO, 65201.
SUPPORT
Retain the generator compartment to a concrete slab with 1/4-inch masonry type anchor bolts. Be sure the bolts are long enough to retain the compartment. The slab should be at least six inches thick and should extend beyond the enclosure to a distance of at least three inches on all sides. See "Mounting Dimensions" for generator major dimensions.
9
GROU
G
UG
Section 2 — Installation
40kW Liquid-cooled Generators
2.4 BASIC STANDBY ELECTRIC
SYSTEM
Figure 2.1 shows a schematic diagram of a basic standby electric system. Both the UTILITY power supply and the STANDBY (GENERATOR) output are connected to an approved transfer switch. The trans­fer switch is required by electrical code and serves the following functions:
• Allows the LOAD circuits to be connected to only one power supply at a time.
• Prevents electrical backfeed between the generator and the UTILITY power circuits.
Notice that both the STANDBY and the UTILITY power supplies to the transfer switch are protected against overload by a main line circuit breaker.
Figure 2.1 – Basic Standby Electric System
2.6 TOTAL CIRCUIT ISOLATION METHOD
When a generator capable of powering all electrical loads in the circuit is to be installed, use the “Total Circuit Isolation Method.” It is possible for the gen­erator to be overloaded when this isolation method is employed. The following apply to the transfer switch in this type of system.
• Ampere rating of the transfer switch must equal
the ampere rating of the normal incoming utility service.
• The transfer switch is installed between the util-
ity service entrance and the building distribution panel.
• By code and approved means of service disconnect
must be located between the incoming utility ser­vice and the transfer switch.
2.7 GROUNDING THE GENERATOR
The National Electrical Code requires the frame and external electrically conductive parts of this equip­ment to be properly connected to an approved earth ground and/or grounding rods. For that purpose, a GROUND LUG (Figure 2.2) is provided on the gen­erator mounting base. Consult a qualified electrician for grounding requirements in the area. Grounding procedures must meet local regulations.
2.5 EMERGENCY CIRCUIT ISOLATION METHOD
This prevents overloading the generator by keeping electrical loads below the wattage/amperage capac­ity of the generator. If the generator is powering only critical loads, within the wattage/amperage capac­ity, during utility power outages, consider using the emergency circuit isolation method.
Critical electrical loads are grouped together and wired into a separate “Emergency Distribution Panel.” Load circuits powered by that panel are within the wattage/amperage capacity of the generator set. When this method is used, it is difficult to overload the gen­erator. The transfer switch must meet the following requirements:
• It must have an ampere rating equal to the total
amperage rating of the emergency distribution panel circuit.
• Have it installed between the building’s main dis-
tribution panel and the emergency distribution panel.
DANGER
Do not connect the ground wire to any pipe
that carries a flammable or explosive substance – FIRE or an EXPLOSION may result.
Proper grounding helps protect personnel against electrical shock in the event of a ground fault condi­tion in the generator or in connected electrical devic­es. In addition, grounding helps dissipate static elec­tricity that often builds up in ungrounded devices.
Figure 2.2 – Generator Grounding Lug (typical)
NDIN
L
10
Section 2 — Installation
40kW Liquid-cooled Generators
2.8 GENERATOR AC NEUTRAL CONNECTIONS
The manufacturer uses an UNGROUNDED AC neu­tral. Grounding is recommended only at the main service entrance. If the neutral wire is grounded and one of the phase loads becomes grounded, the exces­sive current opens the load circuit breaker or col­lapses the generator field. The actual result depends on the electrical characteristics of the particular installed generator.
Failure to connect the generator neutral proper-
ly will result in unbalanced line-to-neutral volt­ages. Resulting high voltages will cause equip­ment damage.
2.9 TRANSFER SWITCH SIGNAL CONNECTIONS
2.9.1 PRE-PACKAGED ATS
If the generator is to be installed with a pre-packaged transfer switch, it is necessary to connect the control wires to the generator and set position two of the four-position dip switch to OFF.
Setting switch two to OFF allows the control PCB to perform the ATS control functions.
Control system interconnections consist of N1 and N2, and leads 23 and 194. Control system intercon­nection leads must be run in a conduit that is sepa­rate from the AC power lead. Recommended wire gauge sizes for this wiring depends on the length of the wire, as recommended below:
MAXIMUM WIRE LENGTH RECOMMENDED WIRE SIZE
460 feet (140m) No. 18 AWG. 461 to 730 feet (223m) No. 16 AWG. 731 to 1,160 feet (354m) No. 14 AWG. 1,161 to 1,850 feet (565m) No. 12 AWG.
2.10 BATTERY INSTALLATION
DANGER
Standby generators installed with automatic
transfer switches will crank and start automati­cally when NORMAL (UTILITY) source voltage is removed or is below an acceptable preset level. To prevent such automatic start-up and pos­sible injury to personnel, do not connect battery cables until certain that normal source voltage at the transfer switch is correct and the system is ready to be placed into operation.
Storage batteries give off explosive hydrogen
gas. This gas can form an explosive mixture around the battery for several hours after charg­ing. The slightest spark can ignite the gas and cause an explosion. Such an explosion can shat­ter the battery and cause blindness or other injury. Any area that houses a storage battery must be properly ventilated. Do not allow smok­ing, open flame, sparks or any spark producing tools or equipment near the battery.
Battery electrolyte fluid is an extremely caus-
tic sulfuric acid solution that can cause severe burns. Do not permit fluid to contact eyes, skin, clothing, painted surfaces, etc. Wear protective goggles, protective clothing and gloves when handling a battery. If fluid is spilled, flush the affected area immediately with clear water.
Do not dispose of the battery in a fire. The bat-
tery is capable of exploding.
Do not open or mutilate the battery. Released
electrolyte can be toxic and harmful to the skin and eyes.
The battery represents a risk of high short circuit
current. When working on the battery, always remove watches, rings or other metal objects, and only use tools that have insulated handles.
2.9.2 GTS-TYPE ENGINEERED TRANSFER
SWITCH
If the generator is to be installed with an engineered transfer switch, such as a GTS-type switch, it is nec­essary to connect the two-wire start control system.
Connect the two-wire start signal from the automatic transfer switch to the automatic start connection, which is located in the middle, on the bottom, inside the control panel. Match wires 178 and 183 in the transfer switch to 178 and 183 on the terminal strip in the control panel. The conductors for the two-wire start circuit must be in their own conduit. (See "Using an Engineered GTS Transfer Switch" for further explanation.)
2.10.1 VENTED BATTERIES
The electrolyte is a dilute sulfuric acid that is
harmful to the skin and eyes. It is electrically conductive and corrosive. The following proce­dures are to be observed:
• Wear full eye protection and protective clothing,
• Where electrolyte contacts the skin, wash it off immediately with water,
• Where electrolyte contacts the eyes, flush thor­oughly and immediately with water and seek medical attention, and
11
Section 2 — Installation
40kW Liquid-cooled Generators
• Spilled electrolyte is to be washed down with an acid-neutralizing agent. A common practice is to use a solution of one pound (500 grams) bicarbon­ate of soda to one gallon (4 liters) of water. The bicarbonate of soda solution is to be added until the evidence of reaction (foaming) has ceased. The resulting liquid is to be flushed with water and the area dried.
Lead acid batteries present a risk of fire because
they generate hydrogen gas. The following pro­cedure are to be followed:
• DO NOT SMOKE when near batteries,
• DO NOT cause flame or spark in battery area, and
• Discharge static electricity from body before touch­ing batteries by first touching a grounded metal surface.
Servicing of batteries is to be performed or super­vised by personnel knowledgeable of batteries and the required precautions. Keep unauthorized person­nel away from batteries.
For recommended batteries, see the Maintenance section. All batteries must be at 100 percent state-of­charge before they are installed on the generator.
When using maintenance-free batteries, it is not necessary to check the specific gravity or electrolyte level. Have these procedures performed at the inter­vals specified in the Maintenance section. A nega­tive ground system is used. Battery connections are shown on the wiring diagrams. Make sure all batter­ies are correctly connected and terminals are tight. Observe battery polarity when connecting batteries to the generator set.
NOTE:
Damage will result if the battery connections are made in reverse.
2.11 PREPARATION BEFORE START-UP
The instructions in this section assume that the standby generator has been properly installed, ser­viced, tested, adjusted and otherwise prepared for use by a competent, qualified installation contractor. Be sure to read the “Safety Rules” on pages 2 and 3, as well as all other safety information in this manual, before attempting to operate this (and related) equip­ment.
2.11.1 PRIOR TO INITIAL START-UP
Prior to initially starting the generator, it must
be properly prepared for use. Any attempt to crank or start the engine before it has been properly serviced with the recommended types and quantities of engine fluids (oil, coolant, fuel, etc.) may result in an engine failure.
Before starting the generator for the first time, the installer must complete the following procedures. For follow-up maintenance information and/or service intervals, please refer to the Maintenance section.
2.11.2 TRANSFER SWITCH
If this generator is used to supply power to any elec­trical system normally powered by an electric utility, the National Electrical Code requires that a transfer switch be installed. The transfer switch prevents elec­trical backfeed between two different electrical sys­tems (for additional information, see the applicable transfer switch manual for this unit). The transfer switch, as well as the generator and other standby components, must be properly located and mounted in strict compliance with applicable codes, standards and regulations.
2.11.3 FUEL SYSTEM
Make sure the fuel supply system to the generator (a) delivers the correct fuel at the correct pressure and (b) is properly purged and leak tested according to code. No fuel leakage is permitted. See “Specifications” for more information.
2.11.4 GENERATOR SET LUBRICATION
Check the engine crankcase oil level before operating and add oil to the proper level – the dipstick “FULL” mark. Never operate the engine with the oil level below the dipstick “ADD” mark. See “Specifications” and “Engine Oil Recommendations”.
NOTE:
This engine is shipped from the manufacturer with 15W-40 oil. This oil should be changed after 30 hours of operation.
2.11.5 ENGINE COOLANT
Have the engine cooling system properly filled with the recommended coolant mixture. Check the system for leaks and other problems. See “Specifications” and “Coolant”.
2.11.6 BELT TENSION
Check-the engine-fan belt tension and condition prior to placing the unit into service and at recommended intervals. Belt tension is correct when a force of approximately 22 pounds (10 kg), applied midway between pulleys, deflects the belt about 3/8- to 5/8 of an inch (10 to 16 mm).
2.11.7 ELECTRICAL SYSTEM
Make sure the generator is properly connected to an approved earth ground and/or ground rod.
12
(
)
5
T
SE
TO SET EXERCISER TIME
1) PLACE AUTO/OFF/MANUAL SWITCH TO AUTO POSITION.
(
N
OFF
SE
ON
SET
S:
T
Y
SYS
Y
MANUAL
OFF
O
0E7194
O
K
O/OFF/
L
S
CH
USE
R
USE
C
R
SET
R
S
CH
s
G
D
Section 3 - Operation
40kW Liquid-cooled Generators
Make sure the generator battery is fully charged, prop­erly installed and interconnected, and ready for use.
Check to ensure that there are no loose electrical con­nections. Restrain any loose wires to keep them clear of any moving generator set components.
3.1 USING AN ENGINEERED “GTS”
TRANSFER SWITCH
When required, the pre-packaged standby generator can be installed with an engineered “GTS” type auto­matic transfer switch.
In this application, the GTS is responsible for utility sensing, weekly exercising, and load transferring.
Position two of the four-position dip switch is used to turn over this control to the GTS.
Pos2 ON — GTS Application
• The control board will NOT monitor utility.
• The control board will NOT perform a weekly exercise. (The five red LEDs will not flash in this mode.)
• The control board will NOT activate the transfer output.
• The control board WILL monitor all engine condi­tions and shut down on all the faults listed in this document.
Pos2 OFF — Prepackaged ATS Application
• The control board will perform all of the automatic features listed in this document.
• The two-wire start connections should NOT be used.
GTS Mode Operation
When in GTS mode, the control board will respond as follows based on the AUTO/OFF/MANUAL switch position.
OFF — The generator will not start and run in this position.
MANUAL — The control board will start and run the generator whenever the switch is in the manual position.
AUTO — The control board will monitor the two-wire start circuit. When a two-wire start is sent, the con­trol board will immediately start and run the genera­tor. When the two-wire start is removed, the control board will immediately stop the generator.
NOTE:
If the generator is installed in conjunction with an engineered GTS type transfer switch, refer to the applicable transfer switch manual for exact oper­ating parameters and timing sequences.
3.2 CONTROL CONSOLE COMPONENTS
The components of a home standby generator control console (Figure 3.1) are as follows:
Figure 3.1 - Home Standby Generator Panel
LED INDICATOR
FLASHING GREEN LED = NO UTILITY SEN
FLASHING RED LED'S = EXERCISER NOT SE IN AUTO MODE ONLY) SOLID GREEN LED = SYSTEM READY, UTILITY POWER O RED LED'S = INDIVIDUAL FAUL
SEE OWNER'S MANUAL FOR COMPLETE LED DETAILS
EXECISE
WIT
4A F
HARGE
3.2.1 AUTO/OFF/MANUAL SWITCH
EXERCI
Use this three-position switch as follows:
• Set the switch to AUTO for fully automatic opera­tion. See “Automatic Operation”.
• Set switch to MANUAL position to crank and start the generator engine.
• Set switch to OFF position to shut down an operat­ing engine. With OFF selected, operation will not be possible.
DANGER
With switch set to AUTO, engine can crank and
start suddenly without warning. Such automatic start up normally occurs when utility source voltage drops below a pre-set level. To prevent possible injury that might be caused by such sudden starts, set AUTO/OFF/MANUAL switch to OFF before working on or around the unit. Then, place a “DO NOT OPERATE” tag on control console.
3.2.2 FAULT INDICATOR LED
This LED goes ON when one or more of the following engine faults occurs and when engine shuts down.
• Low Oil Pressure
• Overcrank
• Low Battery
• Overspeed/RPM Sensor Loss
• High Coolant Temperature/Low Coolant Level
See "Engine Protective Devices" for further explana­tion of engine protection functions.
13
15A F
VER CRAN
LOW BATTER
TEM READ
AUT
MAI
POWE
AUT
RED LED
REEN LE
MANUA WIT
PCB# 0E4906 REV.
9
J2
C2
C26
U7
C27
Q2
9
C30
3
1
5
C9
C21
D10
J1
8
U1
0
0
Section 3 — Operation
40kW Liquid-cooled Generators
3.2.3 15 AMP FUSE
This fuse protects the control console’s DC control circuit against electrical overload. If the fuse has melted open because of an overload, engine crank­ing and startup cannot occur. If the fuse needs to be replaced, use only an identical 15-amp replacement fuse. (Type AGC)
3.2.4 4.0 AMP INLINE FUSE
This fuse protects the battery charger against electri­cal overload. If the fuse needs to be replaced, use only an identical 4-amp replacement fuse (type AG).
NOTE:
This fuse will not remove the + battery input power from the PCB when it opens. This means the exercise timer will not be reset.
3.2.5 SET EXERCISE TIME SWITCH
This switch allows programming the generator to start and exercise automatically. “See Weekly Exercise Cycle.”
3.2.6 SYSTEM READY LED
The System Ready LED (green) has two main pro­poses. First, the LED will be ON when the AUTO/ OFF/MANUAL switch is in the AUTO position, utility is present, and there are no system alarms. This ON state indicates the system is fully ready for automatic operation.
The system ready LED will be OFF when the switch is in the MANUAL or OFF positions.
The system ready LED is also used to indicate the presence of utility sensing at the PCB when the switch is either in the AUTO or MANUAL modes. The LED will flash at the rate of 1/2 second on, 1/2 second off if the utility sensing level is below the transfer back threshold.
This secondary function is only available with dip switch two in the OFF position (standard ATS appli­cation).
3.4 ENGINE GOVERNOR
ADJUSTMENTS
Engine speed governing is also controlled by the engine control board. Connector J2 on the engine control board interfaces with a governor driver mod­ule and the Bosch throttle body. The engine gover­nor has been set by the factory during final testing of the generator and, in most cases, should not be adjusted.
If, however, adjustments are necessary, or a new engine control board is installed in the generator, the following procedure should be followed (Figure 3.2):
1. Set all three potentiometers (pots) fully counter-
clockwise.
2. Under no load condition, increase the GAIN pot
as much as possible without causing instability.
3. Apply 1/4, 1/2, 3/4 and full load to the unit.
Decrease the GAIN pot if there is instability at any load point.
4. Under full load condition, increase the stability
pot until the unit returns to 60 Hertz (or 50 Hertz in 50 Hertz applications).
5. Reduce load to 3/4, 1/2, 1/4 and no load. Decrease
the STABILITY pot if there is instability at any load point.
6. Adjust differential pot to make the recovery to
load changes even faster and minimize load change undershoot and overshoot. If it is set too high, it may introduce oscillations at some load. It can be set to zero (full CCW) if a small amount causes oscillations at some load.
Figure 3.2 — Engine Governor Adjustment
D
3.3 MANUAL TRANSFER AND START-UP
To transfer electrical loads to the Standby (EMERGENCY) power source side and start the engine manually, refer to the Owner’s Manual of the particular transfer switch.
14
2
R4
STABILITY
DIFFERENTIAL
R4
L
DIP SWITCH
1
UNUSED
3
GTS/ATS
2
50/60 HZ
4
POSITION 1 50/60 HZ ON = 50 HZ
OFF = 60 HZ
D1
POSITION 2 GTS/ATS Select ON = GTS OFF = ATS (standard mode)
E
E
S
F
S
U
S
E
E
S
F
U
S
F
U
S
USE
C
R
ON
OFF
SE
SET
L
O
OFF
USE
5A
Section 3 - Operation
40kW Liquid-cooled Generators
3.5 RETRANSFER AND SHUTDOWN
When utility power source voltage has been restored, electrical loads may be transferred back to that source and the generator can be shut down as fol­lows:
• Verify that utility power supply voltage to the trans-
fer switch has been positively turned OFF, using whatever means provided (such as utility main line circuit breaker).
• Set the generator’s main circuit breaker to its OFF
or OPEN position.
• Let the generator engine run at no-load for a few
minutes, to stabilize internal unit temperatures.
• On the generator console, set the A
UTO/OFF/
MANUAL switch to OFF. Wait for engine to come to a complete stop.
• For transfer to utility position, refer to the Owner’s
Manual of the particular transfer switch.
• Turn on the utility power supply to the transfer
switch, using whatever means provided (such as a utility main line circuit breaker). The utility power source now powers the loads.
3.6 AUTOMATIC OPERATION
To set the system for fully automatic operation, pro­ceed as follows:
• Check that load circuits are connected to the utility
power supply.
• Set the AUTO/OFF/MANUAL switch to its AUTO
position.
• Set the generator main circuit breaker to its ON or
CLOSED position.
3.7 WEEKLY EXERCISE CYCLE
The engine control board will start and run the gen­erator once every seven days for approximately 12 minutes. If utility should fail during this exercise period, the engine control board will transfer the load to the generator output and continue to run until util­ity returns.
On the day, and at the time of day chosen for the generator to exercise, set the weekly exercise cycle as follows:
1. Place the AUTO/OFF/MANUAL switch in the
AUTO position.
2. Press and hold the “Set Exercise” switch for three
seconds, then release.
At this time all five red LEDs will flash for approxi­mately 10 seconds, then the engine will start and run for it’s 12 minute exercise period, then shut down. The generator will now start and run each week at the same time.
If DC power to the control board is lost, the weekly exercise setting will be lost. This is indicated by all five red LEDs continually flashing. In this state the generator will still start and run in manual mode, or automatically start and run if UTILITY is lost while in AUTO mode, but it will not perform a weekly exercise cycle.
If a failure occurs while running in this mode, the five red LEDs will stop flashing, the individual fault LED will turn on and the engine will shut down. Once the AUTO/OFF/MANUAL switch has been switch to OFF, the individual fault LED will turn OFF and the five red LEDs will begin flashing to show exercise has still not been set.
Figure 3.2 - “Set Exercise” Switch
F
HARGE
EXERCI
F 1
AUT
MANUA
15
Section 4 — Maintenance
40kW Liquid-cooled Generators
4.1 MAINTENANCE PERFORMED BY AUTHORIZED SERVICE FACILITIES
EVERY THREE MONTHS
1. Check battery state of charge and condition.
2. Inspect and test fuel system.
3. Check transfer switch.
4. Inspect exhaust system.
5. Check engine ignition system.
6. Check fan belts.
ONCE EVERY SIX MONTHS
1. Test Engine Safety Devices (low oil pressure, low
coolant level, high coolant temperature).
ONCE ANNUALLY
1. Test engine governor. Adjust or repair, if needed.
2. Clean, inspect generator.
3. Flush cooling system.
FIRST 100 OPERATING HOURS
1. Change engine oil and oil filter. (After initial
change, service engine oil and filter at 150 operat­ing hours or 6 months, whichever comes first.)
2. Retorque cylinder head. (See Torque Specs.)
3. Retorque intake and exhaust manifold. (See
Torque Specs.)
4.3 OVERLOAD PROTECTION FOR ENGINE DC ELECTRICAL SYSTEM
Engine cranking, start up and running are controlled by a solid state Engine Controller circuit board. Battery voltage is delivered to that circuit board via a 15-amp fuse. These overcurrent protection devices will open if the circuit is overloaded.
If a circuit breaker opens or a fuse element
melts, find the cause of the overload before resetting the circuit breaker or replacing the fuse.
4.4 CHECKING FLUID LEVELS
4.4.1 CHECK ENGINE OIL
Check engine crankcase oil level (Figure 4.1) at least every 20 hours of operation, or prior to use.
• Remove oil dipstick and wipe dry with a clean, lint-
free cloth.
• Install oil dipstick, then remove again.
• Oil should be between FULL and ADD marks.
• If oil level is below the dipstick ADD mark,
remove oil fill cap. Add the recommended oil to bring oil level up to the FULL mark. DO NOT FILL ABOVE THE “FULL” MARK. See "Engine Oil Recommendations" for recommended oils.
EVERY 500 OPERATING HOURS
1. Service air cleaner.
2. Check starter.
3. Check engine DC alternator.
4.2 COOLING SYSTEM
Air intake and outlet openings in the generator com­partment must be open and unobstructed for contin­ued proper operation. This includes such obstruc­tions as high grass, weeds, brush, leaves and snow.
Without sufficient cooling and ventilating air flow, the engine/generator quickly overheats, which causes it to shut down. (See the Mounting Dimensions drawing for installation and vent locations.)
The exhaust system parts from this product get
extremely hot and remain hot after shutdown. High grass, weeds, brush, leaves, etc. must remain clear of the exhaust. Such materials may ignite and burn from the heat of the exhaust system.
Figure 4.1 - Oil Dipstick and Oil Fill Cap
Oil Dipstick
Oil Filter
4.4.2 BATTERY FLUID
Check battery electrolyte fluid at least once weekly. Fluid should cover separators in all battery cells. If fluid level is low, add distilled water to cover tops of separators. DO NOT USE TAP WATER IN BATTERY.
4.4.3 ENGINE COOLANT
Check coolant level in coolant recovery bottle. See Specifications.
Oil Fill
16
Section 4 — Maintenance
40kW Liquid-cooled Generators
• Add recommended coolant mixture as necessary.
• Periodically remove radiator pressure cap to make sure the coolant recovery system is functioning properly. Coolant should be at bottom of radiator filler neck. If coolant level is low, inspect gasket in radiator pressure cap. Replace cap, if necessary. To have pressure cap tested, contact an Authorized Service Dealer. Inspect cooling system and coolant recovery system for leaks.
4.5 MAINTENANCE OWNER/
OPERATOR CAN PERFORM
4.5.1 CHECK ENGINE OIL LEVEL
Refer to “Checking Fluid Levels”.
4.5.2 CHECK BATTERY
• Check battery fluid level each week as outlined under “Check Fluid Levels”.
• Check battery cables for condition, tightness, cor­rosion or damage. Clean, tighten or replace as necessary.
4.5.3 EXERCISE SYSTEM
Start the generator engine at least once every seven days and let it run at least 20 minutes. See “Weekly Exercise Cycle”.
4.5.4 INSPECT COOLING SYSTEM
• Inspect engine cooling system at least once each month.
• Check hoses for damage, deterioration, leaks, etc. Correct any discrepancies found.
• Check hose clamps for tightness.
4.5.5 CHECK ENGINE COOLANT LEVEL
See “Checking Fluid Levels”.
4.5.6 PERFORM VISUAL INSPECTION
Complete a thorough visual inspection of the entire engine-generator monthly. Look for obvious damage, loose, missing or corroded nuts, bolts and other fas­teners. Look for fuel, oil or coolant leaks.
4.5.7 INSPECT EXHAUST SYSTEM
Inspect the exhaust system at least once every three months. Check all exhaust system pipes, mufflers, clamps, etc. for condition, tightness, leaks, security, damage.
4.5.8 CHECK FAN BELT
• Inspect fan belts every three months. Replace any damaged, deteriorated, worn or otherwise defec­tive belt.
• Check fan belt tension. Thumb pressure, exerted midway between pulleys, should deflect about 3/8 to 5/8 of an inch. Adjust belt tension as required.
4.5.9 INSPECT ENGINE GOVERNOR
Visually inspect electronic governor.
DANGER
Do not attempt to adjust the governor. Only
qualified service facilities should adjust the governor. Excessively high operating speeds are dangerous and increase the risk of personal injury. Low speeds impose a heavy load on the engine when adequate engine power is not available and may shorten engine life. Correct rated frequency and voltage are supplied only at the proper governed speed. Some connected electrical load devices may be damaged by incor­rect frequency and/or voltage. Only qualified service technicians should adjust the governed speed.
4.5.10 CHANGING ENGINE OIL
Refer to maintenance performed by authorized service dealers for engine oil and filter change frequencies.
Drain the oil while the engine is still warm from run­ning. This means warm up the engine, shut it down and drain immediately as follows:
1. Remove OIL DRAIN HOSE from its retaining
clip.
2. Loosen and remove OIL DRAIN HOSE CAP. Drain
oil completely into suitable container.
3. When all oil has drained, install and tighten OIL
DRAIN HOSE CAP, and re-install into its retaining clip.
4. Turn OIL FILTER (Figure 4.2) counterclockwise
and remove. Dispose of old filter.
5. Apply light coating of new engine oil to seal of new
oil filter.-Install FILTER and tighten by hand only. DO NOT OVERTIGHTEN.
6. Remove OIL FILL CAP. Add recommended oil (see
SPECIFICATIONS). DO NOT FILL ABOVE THE DIPSTICK “FULL” MARK. Crankcase oil capacity is 4.0 U.S. quarts (3.8 liters).
After refilling the crankcase with oil, always
check oil level on dipstick. NEVER OPERATE ENGINE WITH OIL BELOW THE DIPSTICK “ADD” MARK.
17
Section 4 — Maintenance
40kW Liquid-cooled Generators
7. Start engine and check for oil leaks.
Figure 4.2 - Oil Filter
Oil Filter
4.5.11 CHANGING THE ENGINE AIR CLEANER
To replace the engine air cleaner, (part number 0A4637), remove the air cleaner cover and replace the air filter making sure it is positioned properly before reattaching the cover.
See the “Service Schedule,” for air cleaner mainte­nance.
4.5.12 SPARK PLUGS
Reset the spark plug gap or replace the spark plugs as necessary.
1. Clean the area around the base of the spark plugs to keep dirt and debris out of the engine. Clean by scraping or washing using a wire brush and commercial solvent. Do not blast the spark plugs to clean.
2. Remove the spark plugs and check the condi­tion. Replace the spark plugs if worn or if reuse is questionable. See the “Service Schedule, for recommended inspection.
3. Check the spark plug gap using a wire feeler gauge. Adjust the gap to 1.01 mm (0.040 inch) by carefully bending the ground electrode (Figure
4.3).
Figure 4.3 – Setting the Spark Plug Gap
SET PLUG GAP AT 1.01 mm
(0.040 inch)
4.5.13 COOLANT CHANGE
Every year, have an authorized service deal­er drain, flush and refill the cooling system. See SPECIFICATIONS for cooling system recommenda­tions.
4.6 MISCELLANEOUS MAINTENANCE
4.6.1 CLEANING THE GENERATOR
Keep the generator as clean and as dry as possible. Dirt and moisture that accumulates on internal gen­erator windings have an adverse effect on insulation resistance.
Periodically clean generator exterior surfaces. A soft brush may be used to loosen caked on dirt. Use a vacuum system or dry, low pressure air to remove any accumulations of dirt. The generator is housed inside an all-weather enclosure, clean the enclosure with a soft, damp cloth or sponge and water.
Once each year, have the generator cleaned and inspected by an Authorized Service Dealer. That dealer will use dry, low pressure air to clean internal windings. Parts inside the control console should be cleaned and inspected at this time as well.
Finally, have the insulation resistance of stator and rotor windings checked. If insulation resistances are excessively low, the generator may require drying.
4.6.2 BATTERY
All lead-acid storage batteries discharge when not in use. Refer to specific instructions and warnings that accompany the battery. If such information is not available, observe the following precautions when handling a battery:
• DO NOT use jumper cables and a booster battery to crank or start the generator engine.
• DO NOT recharge a weak battery while it is installed in the generator. Remove battery from generator and recharge in a well-ventilated area, away from fuel vapors, sparks, heat or flames.
• Battery electrolyte fluid is an extremely caustic sulfuric solution that can cause severe burns. DO NOT permit fluid to contact eyes, skin, clothing, painted surfaces, wiring insulation, etc. If any bat­tery fluid is spilled, flush the affected area with clear water immediately.
• Always wear safety glasses, rubber apron and gloves when handling a battery.
18
• Batteries give off explosive hydrogen gas while charging. The gas can form an explosive mixture around the battery for several hours after charging. Any spark, heat or flames can ignite the gas and cause an explosion which can shatter the battery, causing blindness or other serious injury.
4.6.3 BATTERY MAINTENANCE
The battery should be inspected per the “Service Schedule”. The following procedure should be fol­lowed for inspection:
1. Inspect the battery posts and cables for tightness
and corrosion. Tighten and clean as necessary.
2. Check the battery fluid level of unsealed batteries
and, if necessary, fill with DISTILLED WATER ONLY. DO NOT USE TAP WATER IN BATTER­IES.
3. Have the state of charge and condition checked.
This should be done with an automotive-type bat­tery hydrometer.
DANGER
Section 4 — Maintenance
40kW Liquid-cooled Generators
Be sure the AUTO/OFF/MANUAL switch is set to
the OFF position before connecting the battery cables. If the switch is set to AUTO or MANUAL, the generator can crank and start as soon as the battery cables are connected.
Be sure the UTILITY power supply is turned OFF,
or sparking may occur at the battery posts as the cables are attached and cause an explosion.
4.6.4 BATTERY REPLACEMENT
When replacing batteries, use the same number and the type of battery that follows:
BCI Group No. CCA
27F 700 @ 0 deg. F
NOTE:
The BCI number should be located directly on the battery.
Storage batteries give off explosive hydrogen
gas. This gas can form an explosive mixture around the battery for several hours after charg­ing. The slightest spark can ignite the gas and cause an explosion. Such an explosion can shat­ter the battery and cause blindness or other injury. Any area that houses a storage battery must be properly ventilated. Do not allow smok­ing, open flame, sparks or any spark producing tools or equipment near the battery.
Battery electrolyte fluid is an extremely caus-
tic sulfuric acid solution that can cause severe burns. Do not permit fluid to contact eyes, skin, clothing, painted surfaces, etc. Wear protective goggles, protective clothing and gloves when handling a battery. If the fluid is spilled, flush the affected area immediately with clear water.
Do not use any jumper cables or booster battery
to crank and start the generator engine. If the battery has completely discharged, remove it from the generator for recharging.
PERIODIC REPLACEMENT PARTS
Part Name Part Number
Oil Filter # 0E7415 Radiator Cap # 046627 Air Cleaner # 0A4637 Spark Plug Champion # RC12LC4
19
Section 4 — Maintenance
40kW Liquid-cooled Generators
4.7 SCHEDULED MAINTENANCE
Following is a recommended maintenance schedule for QuietSource small standby and residential generator sets. The established intervals in the schedule are the maximum recommended when the unit is used in an average service application. They will need to be decreased (performed more frequently) if the unit is used in a severe application. Use calendar time from the previous maintenance interval to determine the next required maintenance interval.
Service Maintenance Interval Information:
The various service maintenance intervals are designated by interval numbers as follows:
1 An early inspection of the generator set to ensure it is ready to operate when required and to identify any poten-
tial problem areas.
Performed monthly, this procedure requires approximately .5 man-hours per unit to complete.
This inspection may be performed by the end user providing the following safety steps are taken to prevent
the engine from starting automatically without warning:
To prevent injury, perform the following steps in the order indicated before starting any maintenance:
Disable the generator set from starting and/or connecting to the load by setting the control panel AUTO/
OFF/MANUAL switch to the “OFF” position.
• Remove the control panel fuse.
• Turn off the battery charger.
• Remove the negative battery cable.
The battery charger must be turned off BEFORE removing the battery cable to prevent an over current condition
from burning out sensitive control panel components and circuits.
Following all maintenance, reverse these steps to insure the unit is returned to standby setup for normal operation when required.
2 A break-in service inspection of the generator set to ensure it is ready to operate and carry the load when
required, and to identify any potential problem areas.
Performed ONLY ONCE following the first three months after purchase of the unit and requires approxi-
mately 2.5 man-hours per unit to complete.
This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge
to accomplish and should be performed only by an Authorized Service Dealer.
3 An operational inspection of the generator set to ensure it is ready to operate and carry the load when required,
and to identify any potential problem areas.
Performed semi-annually, this procedure requires approximately 1.5 man-hours per unit to complete.
This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge
to accomplish and should be performed only by an Authorized Service Dealer.
4 A mid-level inspection of the generator set to ensure it is ready to operate and carry the load when required,
and to identify any potential problem areas.
Performed annually, this procedure requires approximately 4.0 man-hours per unit to complete.
This inspection contains some maintenance tasks which require special tools, equipment, and/or knowledge
to accomplish and should be performed only by an Authorized Service Dealer.
NOTE:
If the generator experiences heavy use, the maintenance intervals should be reduced so that procedures are performed more frequently.
20
Section 4 — Maintenance
40kW Liquid-cooled Generators
Maintenance Level 1 Level 2 Level 3 Level 4 Tasks Recom- Task Required Task Required Task Task
mended Comp. to be done Comp. to be done Comp. Required Comp. to be done (Date- 3 months/ (Date- Semi- (Date- to be done (Date­ monthly Initials) Break-in Initials) annually Initials) Annually Initials)
1. Disable the unit from
operating per the first page warning.
2. Check the engine oil level.
Adjust as necessary.
3. Check the engine coolant
level. Adjust as necessary.
4. Check the engine coolant
thermal protection level. Correct as necessary.
5. Check the natural gas
delivery system on gas engine driven units. Tighten connections as necessary.
6. Check the air inlets and
outlets for debris. Clean as necessary.
7. Check the battery
electrolyte level if accessible. Adjust as necessary.
8. Check the battery posts,
cables, and charger for loose connections, corrosion, and proper operation. Correct as necessary.
9. Check the unit wiring for
loose connections, corrosion, and damage. Correct as necessary.
10. Check the engine
accessory drive belts for wear, weather cracking, and damage. Replace as necessary.
11. Visually inspect the unit
looking for leaks, wear or damage, loose connections or components, and corrosion. Correct as necessary.
12. Test the engine and
transfer switch safety devices. Correct and/or adjust as necessary.
21
Section 4 — Maintenance
40kW Liquid-cooled Generators
Maintenance Level 1 Level 2 Level 3 Level 4 Tasks Recom- Task Required Task Required Task Task
mended Comp. to be done Comp. to be done Comp. Required Comp. to be done (Date- 3 months/ (Date- Semi- (Date- to be done (Date­ monthly Initials) Break-in Initials) annually Initials) Annually Initials)
13. Initiate an automatic start and transfer of the unit to site load and exercise it for at least 1 hour looking for leaks, loose connections or components, and abnormal operating conditions. Correct as necessary.
14. Start and exercise the unit at full rated load (use a load bank if the site load is not enough) for at least 2 hours looking for leaks, loose connections or components, and abnormal operating conditions. Correct as necessary.
15. Change the engine oil.
16. Replace the engine oil filter(s).
17. Replace the engine air filter(s).
18. Replace the engine fuel filter(s) on diesel engine driven units and re-prime the fuel system.
19. Check the engine spark plugs on gas engine driven units. Clean and re-gap or replace as necessary.
20. Perform a 5 minute no-load operational run of the unit looking for any post service problems.
21. Return the unit to standby setup for operation when required.
22
Section 5 — Troubleshooting
40kW Liquid-cooled Generators
TROUBLESHOOTING POINTS
PROBLEM CAUSE CORRECTION
Engine won’t crank. 1. 15-amp fuse blown. 1. Replace fuse.
2. Loose or corroded or defective 2. Tighten, clean or replace
battery cables. battery cables as necessary.
3. Defective starter contactor. 3. Replace contactor.
4. Defective starter motor. 4. Replace starter motor.
5. Dead or Defective Battery. 5. Remove, change or replace battery.
6. 4-amp fuse blown. 6. Replace fuse.
Engine cranks, but won't start 1. Out of fuel. 1. Replenish fuel.
2. Fuel solenoid (FS) is defective 2. Replace solenoid.
3. Open Wire #14 from Engine Control 3. Reconnect wire.
circuit board.
4. Spark plugs defective. 4. Clean, regap or replace plugs.
Engine starts hard, runs rough. 1. Air cleaner plugged or damaged. 1. Clean or replace as needed.
2. Plugged fuel line. 2. Unclog fuel line.
3. Defective spark plugs. 3. Clean, regap or replace plugs.
Engine starts, then shuts down. 1. Engine oil level is low. 1. Check oil and add oil as needed.
2. Engine is overheated. 2. Check cooling system for leaks.
3. Defective Low Oil Pressure Switch 3. Replace switch.
4. Defective Coolant Temperature Switch 4. Replace switch.
5. Defective Control Module circuit board. 5. Replace board.
6. Coolant Level is Low. 6. Repair leak - Add coolant.
7. Defective Low Coolant Level Switch 7. Replace Switch.
AUTO/OFF/MANUAL Switch at 1. Defective AUTO/OFF/MANUAL switch 1. Replace switch.
OFF, engine continues to run 2. Open/disconnected wire #15A between 2. Reconnect/close wire.
AUTO/OFF/MANUAL switch and Control Module circuit board.
3. Defective Control Module circuit board 3. Replace board.
No AC output from generator. 1. Check main line circuit breaker. 1. Reset to ON or CLOSED.
2. Check circuit breaker & fuses. 2. Reset and replace, if necessary.
3. Transfer switch set to NORMAL position 3. Set to GENERATOR position.
4. Generator internal failure. 4. Contact an Authorized facility.
5. Thermal circuit breaker open. 5. Auto-reset - Wait 5 min. and
attempt restart.
23
Section 6 - Electrical Data
40kW Liquid-cooled Generators Wiring Diagram — Engine — Drawing No. 0E8115-A
24
Section 6 - Electrical Data
40kW Liquid-cooled Generators
Wiring Diagram — Engine — Drawing No. 0E8115-A
25
Section 6 - Electrical Data
40kW Liquid-cooled Generators Electrical Schematic — Engine — Drawing No. 0E8116-A
26
Section 6 - Electrical Data
40kW Liquid-cooled Generators
Electrical Schematic — Engine — Drawing No. 0E8116-A
27
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators Mounting Base — Drawing No. 0E8084-C
TO
BLOCK
ENGINE
18
33
REAR BEARING
CARRIER
STARTER
BOLT
TO
18
2
3
4
10
16
14
11
12
13
1
WIRE
15
5
6
7
TO
STARTER
37
HARNESS
CONTACTOR
20
21
31
20
29
22
32
27
38
36
35
34
19
36
35
41
39
27
28
30
16
34
40
16
4
3
7
6
42
2
43
ENGINE
TO
5
MOUNT
8
18
35
34
9
13
28
12
16
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators
Mounting Base — Drawing No. 0E8084-C
ITEM PART NO. QTY. DESCRIPTION
1 0E7331 1 WELDMENT MTG BASE 3.9L CRYSLR 2 052860 4 NUT FLANGED HEX M12-1.75 3 052251 4 DAMPENER VIBRATION 40 BLUE 4 052257 4 SPACER .49 X .62 X 1.87 PWDR/ZNC 5 052252 4 DAMPENER VIBRATION 6 052259 4 WASHER FLAT M12 7 052891 4 SCREW HHC M12-1.75 X 80 G8.8 8 0536210214 1 ASSY WIRE 15.0” 9 074906 1 SCREW HHTT M6-1.0 X 20 BP 10 047411 1 SCREW HHC M6-1.0 X 16 BP 11 055414 1 LUG SLDLSS #2-#8 X 17/64 CU 12 026850 2 WASHER SHAKEPROOF EXT 1/4 STL 13 022097 1 WASHER LOCK M6-1/4 14 022473 1 WASHER FLAT M6-1/4 ZINC 15 049813 1 NUT HEX M6 -1.0 G8 YEL CHR 16 0A1694 4 1-1/2” BUTTON PLUG 18 025507 3 WASHER SHAKEPROOF EXT 7/16 STL 19 0E7359 2 ENGINE MOUNT (3.9L CHRYSLER) 20 027482 2 WASHER SHAKEPROOF EXT 5/16 STL 21 022129 1 WASHER LOCK M8-5/16 22 045771 1 NUT HEX M8-1.25 G8 YEL CHR 23* 051756 1 SCREW HHC M10-1.5 X 20 G8.8 24* 046526 1 WASHER LOCK M10 25* 022131 1 WASHER FLAT 3/8-M10 ZINC 26* 055934M 1 CLAMP VINYL .75 X .343 Z 27 049820 2 NUT HEX LOCK M8-1.25 NY INS 28 059473 1 HOLD DOWN BATTERY 29 061902 1 HOLD DOWN BATTERY 30 058665 REF. BATT 12VDC 90-AH 27F (NOT INCLUDED) 31 038804D 1 CABLE BATT RED #4 X 20.00 32 038805J 1 CABLE BATT BLK #1 X 30.00 33 021991 1 EARTH STRAP 34 036833 6 SCREW HHC 3/8-16 X 1 G8 35 022237 6 WASHER LOCK 3/8 36 022131 6 WASHER FLAT 3/8 ZINC 37 0F3976 1 BOOT, CONTACTOR CABLES 38 050331 1 BATTERY POST COVWER (BLACK) 39 050331A 1 BATTERY POST COVWER (RED) 40 0A4010 2 SCREW HHC M8-1.25 X 60 G8.8 FT 41 052858 2 NUT TOP LOCK FL M8-1.25 42 065852 1 SPRING CLIP HOLDER .37-.62 43 045764 1 SCREW HHTT M4-0.7 X 8 BP
* NOT SHOWN-USED TO HOLD DOWN I/N 32.
29
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators Enclosure — Drawing No. 0F4930-C
16
28
26
44
1
TO "B"
(2-PLCS)
41
4
43
11
53
7
54
54
53
5
6
4
9
SEE LATCH
DETAIL
49
"B"
52
11
10
39
26
18
40
17
4
24
23
47
20
51
19
21
14
47
17
55
15
18
10
20
48
12
22
13
4
18
17
55
21
52
"B"
9
"A"
29
39
18
17
42
8
4
4
TO "A"
4
32
SECURE AS SHOWN.
REQUIRE INSULATION.
TYPICAL OF ROOF PANEL THAT
4
36
53
46
4
STAT ES FOAM IS ON NEAR SIDE
30
STAT ES FOAM IS ON FAR SIDE
4
33
4
SUPPORT
RADIATOR
53
4
37
35
4
25
40
3
27
45
39
32
18
17
34
31
4
2
31
32
38
LATCH DETAIL
30
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators
Enclosure — Drawing No. 0F4930-C
ITEM PART NO. QTY. DESCRIPTION
1 0E8418 1 DUCT INTAKE MID AL 2 0E8414 1 DUCT DISCHARGE RH AL 3 0E8413 1 DUCT DISCHARGE LH AL 4 0C2454 62 SCREW TH-FRM M6-1 X 16 N WA Z/JS 5 0E7807 1 BAFFLE REAR BOTTOM 6 0E5902 1 POST CORNER LH REAR HSB AL 7 0E5903 1 POST CORNER RH REAR HSB AL 8 0E8387 1 BAFFLE REAR TOP 9 0E5912 2 DOOR SIDE HSB AL 10 0F5570 1 SUPPORT RH SIDE HSB AL 11 089961 2 FOAM STRIP 3/4” WIDE X 3/16” THK (40” LG) 12 0A2115 4 WASHER NYLON .257 13 0E8404 1 BRACKET STIFFENER RH FRONT 14 0D2538A 1 HINGE LIFT OFF TYPE B KNUCKLE 15 0D2538 1 HINGE LIFT OFF TYPE B PIN 16 078115 8 WASHER SELF LOCKING DOME 17 022097 12 WASHER LOCK M6-1/4 18 022473 12 WASHER FLAT 1/4-M6 ZINC 19 0E7570 2 GAS SPRING 20 0E7571 4 BALL STUD GAS SPRING MOUNT 21 070015 4 NUT HEX 5/16-18 LOCK 22 0E7662 4 SCREW WING M6-1.00 X 25 23 0D2537A 1 HINGE LIFT OFF TYPE A KNUCKLE 24 0D2537 1 HINGE LIFT OFF TYPE A PIN 25 0D2023 2 TRIM VINYL SELF GRIPPING (91” LG) 26 0E7869 2 BRACKET STIFFENING BACK 27 0E8001 1 MUFFLER BOX 28 0F5568 1 ROOF HSB AL ACOUSTIC 29 0E8798 1 BRACE, FRONT TOP 30 0D3037A 1 LATCH 1/4 TURN NONLOCKING 31 0C7781 2 PAWL DOOR HSB 32 0E5910 1 SUPPORT LH SIDE HSB AL 33 0E8052 1 MUFFLER BOX TOP 34 0D3037 1 LATCH QUARTER TURN LOCKING 35 0E5900 1 POST CORNER LH FRONT HSB AL 36 0E5901 1 POST CORNER RH FRONT HSB AL 37 0F4938A 1 BRACE FRONT BOTTOM 38 0E8415 1 DUCT DISCHARGE MID AL 39 026850 4 WASHER SHAKEPROOF EXT 1/4 STL 40 0912970063 2 ASSY WIRE 14AWG 7.5 #0 GRN/YEL 41 0912970064 2 ASSY WIRE 14AWG 7.5 #0 GRN/YEL 42 049813 2 NUT HEX M6 X 1.0 G8 YEL CHR 43 0E8416 1 DUCT INTAKE LH AL 44 0E8417 1 DUCT INTAKE RH AL 45 0E8665 1 BRACKET STIFFENER LH FRONT 46 0D2023 1 TRIM VINYL SELF GRIPPING (165.5” LG) 47 0E7829N 2 AI ROOF PANEL 2 48 0E7829T 1 AI SUPPORT RH PANEL 49 0E7829S 1 AI SUPPORT LH PANEL 50 * 0E8442 1 KIT INSULATION 3.9L HSB 51 0E7829A 1 AI ROOF PANEL 1 52 0E7829B 2 AI DOOR PANEL 53 0E7829P 4 AI CORNER POST PANEL 1 54 0E7829R 2 AI CORNER POST PANEL 2 55 043116 8 SCREW HHC M6-1.0 X 12 G8.8
* ALL ITEMS NOTATED WITH “AI” ARE COMPONENTS OF 0E8442
31
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators Control Panel — Drawing No. 0E7118-K
32
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators
Control Panel — Drawing No. 0E7118-K
ITEM PART NO. QTY. DESCRIPTION
1 0E7195 1 CONTROL BOX HSB 2 0E7196 1 COVER FRONT PANEL HSB 3 0E7197 1 COVER TOP PANEL HSB 4 0E7193 1 DECAL WARNINGS HSB 5 0E7194 1 DECAL CONTROLS HSB 6 0E4494 1 SWITCH ROC DPDT ON-OFF-ON 7 082573 1 SWITCH ROCKER DPST 125V SPD 8 032300 2 HOLDER FUSE 9 022676 1 FUSE 15A X AGC15 10 067682B 1 FUSE 4A SLO BLO GLASS 11 060015 1 FITTING CONDUIT 90D 3/8" 12 054199 1 DECAL DANGER HIGH VOLTAGE 13 0C2657 1 TRANSFRMR 16V 6VA 14 099076 1 TRANSFORMER 16V 56VA 15 040213 2 PCB SUPPORT SNAP-IN 1/4" 16 0E9668 1 ASSY PCB HSB CONTROLLER 17 067680 1 ASSY VOLTAGE REGULATOR 60HZ 18 0E6875A 1 RELAY 12VDC C FORM W/DIODE 19 0E6881 * REF. SOCKET RELAY 20 0C5139 * REF. CONN DEUTSCH RECEPT GY/FLN 21 0C5142 * REF. CONN DEUTSCH RECEPT WDGE
BLKHD 22 0E3161 1 ASSY BOSCH GOV DRIVER 23 054450 1 CIRCT BRK 5.5 X 1 ETA 46-500-P 24 0D5070A 1 ASSY 2A 12V UL BATTERY
CHARGER 25 0E2514 1 FITTING CONDUIT STR 1-1/2" 26 0A9457 1 DECAL NEUTRAL 27 0E7539 1 DECALCUSTOMER CNNCTN XFER
SW 28 046357 * REF. BLOCK TERM 20A 6 X 6 X 1100V 29 0D3719B 1 DECAL CUSTOMER CNNCTN 30 057073 1 JUNCTION BLOCK 3/8-16 31 0E7283 1 CB 0150A2P240V S QN2 LL 0E3628 1 CB 0200A2P240V S QN2 LL 32 0E3664 1 BASE QN CIRCUIT BREAKER 33 0E7539A 1 DECAL TB1 H 34 0D4698 * REF. BLOCK TERM 20A 6 X 3 X 1100V 35 0E7252 1 BRACKET CB 221.5 X 102 36 0C1229 1 DECAL WARNING ELECTRICAL
SHOCK
SB CONTROL PANEL
ITEM PART NO. QTY. DESCRIPTION
37 0C1127 1 DECAL AVR COVER 38 0A1441B 1 COVER PLATE, AVR 39 0E7128 1 HARNESS CNTRL PNL (NOT
SHOWN) 40 0E7358 8 SCREW PPPH HI-LO #4-24 X 3/8 41 074908 6 SCREW HHTT M5-0.8 X 10 BP 42 0C5141 1 CONN DEUTSCH GASKET 8/12 POS
DT 43 0C2699 11 SCREW PHTT #6-32 X 3/8 ZYC 44 0C2323 4 SCREW PHTT #6-32 X 5/8 ZYC 45 022155 15 WASHER LOCK #6 46 0C2265 4 SCREW PHTT M4-0.7 X 12 ZYC 47 022264 4 WASHER LOCK #8-M4 49 020911 2 SCREW PPHM M5-0.8 X 30 ZINC 50 066849 2 SCREW HHTT M5-0.8 X 16 51 022152 4 WASHER LOCK #10 52 023897 3 WASHER FLAT #10 ZINC 53 051716 2 NUT HEX M5-0.8 G8 YEL CHR 54 090388 2 SCREW HHTT M6-1.0 X 12 ZINC 55 042568 4 SCREW HHC M6-1.0 X 20 G8.8 56 022097 8 WASHER LOCK M6-1/4 57 022473 6 WASHER FLAT 1/4-M6 ZINC 58 0441140187 2 WIRE ASSY 3" X (2) 3/16" TABS 59 070370 2 WASHER MICA .203 60 023762 1 WASHER SHAKEPROOF EXT #10
STL 61 055444 1 HEATSINK 62 030468 1 WASHER STEP NYLON .20 63 049939 1 RECTIFIER MSC 12A 600V 1N1206R 64 022158 1 NUT HEX #10-32 STEEL 65 022985 1 WASHER FLAT #6 ZINC 66 038750 2 SCREW HHC M6-1.0 X 30 G8.8 67 0A2115 4 WASHER NYLON .257 68 0C2454 4 SCREW THF M6-1 X 16 N WA Z/JS 69 0F6146 1 HANG TAG 2 WIRE
SHOWN)
* ITEMS INCLUDED AS PART OF I/N 39
START (NOT
33
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators Engine — Drawing No. 0E8121-H
BAFFLE REAR UPPER
58
79
19
18
15
14
8
USE
D.C. ALTERNATOR
BRACKET HARDWARE.
48
23
62
61
25
63
66
COMES WITH
ENGINE
35
65
30
39
5
6
37
40
21
T
N O R F
43
36
78
5
26
"B"
52
75
73
76
24
64
74
77
18
33
19
17
"A"
38
17
19
18
70
19
TO
"B"
18
4
9
13
"C"
14
28
60
TO
"A"
18
19
7
14
13
16
TO "C"
17
69
3
27
2
22
72
18
19
21
17
20
44
1
19
10
51
34
18
41
59
16
57
14
18
21
29
47
12
19
E N
44
18
11
56
18
54
46
45
17
18
43
44
18
19
55
31
32
42
G I N
E O IL
50
49
14
13
53
18
19
17
34
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators
Engine — Drawing No. 0E8121-H
ITEM PART NO. QTY. DESCRIPTION
1 0E5048A 1 FLEXPLATE 3.9L HSB 2 0E7477 1 MACHINING 3.9L ENGINE ADAPTOR 3 0E6703 1 COVER FLYWHEEL ACCESS 4 0E8336 REF REWORK 3.9L CHRYSLER ENGINE 5 0E7841 2 GASKET THERMOSTAT ADAPTOR 6 0E7254 1 MACH THERM ADAPTOR 3.9L CHRY 7 0E7956 1 BRACKET IGNITION COIL 8 0E7953 1 COIL IGNITION 3.9L CHRYSLER 9 047411 4 SCREW HHC M6-1.0 X 16 G8.8 10 0E8591 6 BOLT AUTO TRANS CRANKSHAFT 11 0E7921 1 BRACKET ALTERNATOR 12 0E7749 1 FAN SPACER ENGINE COOLING 13 022097 7 WASHER LOCK M6-1/4 14 022473 10 WASHER FLAT 1/4-M6 ZINC 15 049721 2 SCREW HHC M6-1.0 X 35 G8.8 BLK 16 049813 3 NUT HEX M6 X 1.0 G8 YEL CHR 17 036833 11 SCREW HHC 3/8-16 X 1 G8 18 022131 21 WASHER FLAT 3/8-M10 ZINC 19 022237 14 WASHER LOCK 3/8 20 0E6729 1 STARTER DELCO-REMY 12V 21 022129 11 WASHER LOCK M8-5/16 22 049821 3 SCREW SHC M8-1.25 X 30 G12.9 23 057073 1 JUNCTION BLOCK 3/8-16 24 052677 1 WASHER NYLON .50 X .87 X .06 25 066849 2 SCREW HHTT M5-0.8 X 16 26 056739 1 RELAY SOLENOID 12VDC PNL MNT 27 0D2244M 1 ASSY MAGPICKUP (3/8-24 MALE) 28 087599 1 PLUG PLASTIC 3/8 NPT 29 0E0992B REF PLUG EXPANSION 21/32” OD
(WATER PUMP) (QTY 1)
30 0E0992A REF PLUG EXPANSION 14.1 OD
(INJCTOR HOLE) (QTY 6) 31 0E7754 1 COOLING FAN 10-BLADE (KYSAIR) 32 0E7854 1 CLUTCH COOLING FAN 33 0E7855 1 TENSIONER W/BRACKET 34 0E7952 1 PULLEY CRANKSHAFT 3.9L
CRYSLR 35 0E0561 1 ASSY WATER LEVEL SENSOR C/E
PL 36 035606 1 S 37 061012 1 PLUG STD PIPE 1/8 SOCKET HEAD 38 0A8584 1 SWITCH OIL PRESSURE10 PSI
ENSOR HI COOLANT SHUTDOWN
2POL
ITEM PART NO. QTY. DESCRIPTION
39 050873A 1 PLUG PIPE 1/4 CSK W/ VIBRA SL 40 031919 1 PLUG STD PIPE 3/8
COUNTERSUNK 41 022145 6 WASHER FLAT 5/16-M8 ZINC 42 030795 6 SCREW HHC 5/16-18 X 1 G5 43 051756 5 SCREW HHC M10-1.5 X 20 G8.8 44 046526 6 WASHER LOCK M10 45 0A1232A 1 ASSEMBLY, D.C. ALTERNATOR 46 0A7801B 1 PULLEY POLY-V 82 OD 47 045772 1 NUT HEX M10-1.5 G8 YEL CHR 48 022403 2 SCREW HHC 5/16-18 X 2 G5 49 0E7950 1 TUBE DIPSTICK 3.9L CHRYSLER 50 0E7951 1 DIPSTICK OIL LEVEL 3.9L CRYSLR 51 0E8445 1 BRACKET DIPSTICK TUBE 52 0E7415 1 OIL FILTER 3.9L CHRYSLER 53 042568 1 SCREW HHC M6-1.0 X 20 G8.8 54 061652 1 SCREW HHC M10-1.5 X 85 G8.8 55 031578 1 SCREW HHC 3/8-16 X 1-1/2 G8 56 082120 1 SPACER .41 X .75 X .39 ST/ZNC 57 023645 5 SCREW SHC 3/8-16 X 1.25 G8.8 Z 58 0E9974 1 CAP VINYL 3/8” ID X 1” DP BLK 59 0D3488A 1 BELT SERPENTINE 69.39” 60 0E7954 1 CABLE IGN COIL 3.9L CHRYSLER 61 0E8309 1 ASSY IGNITION MODULE 3.9L 62 029187 2 SPACER .19 X .31 X .50 PL 63 032712 2 SCREW HHTT #10-32 X 1.75 CZ 64 054455 1 ADP OIL DRN 1/2-20 65 0E8606 2 SCREW PPH TAPPING #4 X 3/8” LG 66 0E8642 REF ASSEMBLY RESISTOR 67 0E8597 1 HARNESS 3.9L CHRYSLER ENGINE
(NOT SHOWN) 68 0E8755 1 HARNESS IGNITION 3.9L CHRY
(NOT SHOWN) 69 0E8731 1 PLATE FLEX DISK SPACER 70 026076 1 SCREW SHC 3/8-16 X 1.5 G8.8 NZ 72 0F1444A 2 HEAT SHEILD L/H SIDE 73 0C2454 2 SCREW THF M6-1 X 16 N WA Z/JS 74 043790 1 BARBED EL 90 3/8 NPT X 3/8 75 069860C 1 HOSE OIL DRAIN ASSY 21” 76 048031J REF HOSE CLAMP BAND 5/8” 77 0F1444 1 HEAT SHIELD R/H SIDE 78 026925 1 PLUG STD PIPE 3/8 STEEL SQ HD 79 026257 1 SCREW SHC 3/8-16 X 2 G8.8 NZ
35
U
P
G
3
G OS
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators Radiator — Drawing No. 0E8102-F
"A"
TAT
IN
HERM
M
INE
EN
ATER P
4
2
"
36
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators
Radiator — Drawing No. 0E8102-F
ITEM PART NO. QTY. DESCRIPTION
1 0D7825A 1 RADIATOR COPPER BRASS 2 0D7174C 1 VENTURI,3.9L CRYSLR HSB 22"FAN 3 0E7640 1 RADIATOR SUPPORT L/H SIDE 4 0E7924 1 HOSE LOWER RADIATOR 5 0F2853 1 HOSE, RADIATOR UPPER, 3.9L 6 0D8252 1 FAN GUARD, TOP 7 0D8251 1 FAN GUARD, BOTTOM 8 0E0726 1 BRACKET, WATER BOTTLE 1.5L MIT 9 076749 1 TANK COOLANT RECOVERY 10 035685 4 CLAMP HOSE #28 1.32-2.25 13 069860C 1 HOSE OIL DRAIN ASSY 21" 14 058443 17 SCREW CRIMPTITE 1/4-20 X 5/8 15 0C2454 5 SCREW TH-FRM M6-1X16 N WA Z/JS 16 052250 2 TAPE FOAM 1 X 1 (27"LG) 17 048031C 1 CLAMP HOSE BAND 1/4 18 029032 1 HOSE 9/32 ID (30" LG) 19 0A2111 1 SCREW SWAGE 10-32 X 5/16 Z/YC 20 0E7640A 1 RADIATOR SUPPORT R/H SIDE 21 035461 1 BARBED STR 1/4NPT X 3/8 22 065852 1 SPRING CLIP HOLDER .37-.62 23 051756 4 SCREW HHC M10-1.5 X 20 G8.8 24 022131 8 WASHER FLAT 3/8-M10 ZINC 25 046526 4 WASHER LOCK M10 26 045772 4 NUT HEX M10-1.5 G8 YEL CHR
37
G "
O
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators Fuel System — Drawing No. 0E8122-H
4
"
LD
ANIF
7
"B
2
1
INE
EN
38
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators
Fuel System — Drawing No. 0E8122-H
ITEM PART NO. QTY. DESCRIPTION
1 033212 4 SCREW HHC 5/16-18 X 1-1/4 G5 2 075580 1 FLANGE FUEL INLET 3 0E8365 1 ASSY REG. 3.9L N/G-LPV 1800RPM 4 039253 2 SCREW HHC M8-1.25 X 20 G8.8 5 022145 2 WASHER FLAT 5/16 ZINC 6 022129 8 WASHER LOCK M8-5/16 7 045771 2 NUT HEX M8-1.25 G8 YEL CHR 8 042907 2 SCREW HHC M8-1.25 X 16 G8.8 9 0C2454 2 SCREW TH-FRM M6-1 X 16 N WA Z/JS 10 026307 1 ELBOW 90D STREET 3/4 11 0E1056 1 FUEL HOSE ASSY NAT.GAS/L.P.V. 12 0E6584 1 BRACKET REGULATOR 3.0L FORD HSB 13 057822 2 CLAMP HOSE #8 .53-1.00 14 059194 1 HOSE 5/8 ID LPG & NG (36" LG) 15 064945 1 GASKET CARB ADAPTOR 16 0D1509 1 DECAL INLET PRESSURE 17 050279 1 DECAL FUEL INLET NG 18 0E7839 1 MACHINING, CARBURETOR ADAPTOR 19 0E6586 2 GASKET BOSCH 32 & 40 20 0E4394 1 ACTUATOR BOSCH 40 GOVERNOR 21 040105 1 HOSE COOL 2IN ID 20R4 (2" LG) 22 0E6382B 1 VENTURI HOLDER W/40MM ACTUATOR 23 0F2119 1 O-RING 45.63 ID X 2.62 WIDTH 24 0E6376B 1 VENTURI 28 ID THROTTLE W/CHOK 25 042561 2 CLAMP HOSE #36 1.88-2.75 27 0E7929 1 BASE AIR CLEANER PLATE 28 0A4637 1 FILTER AIR 11.5" CA326 29 0E6406 1 HOLDER VENTURI 30 0E7702 1 HOLD DOWN AIR CLEANER 31 0A4632A 1 PLATE AIR CLEANER TOP 32 037561 1 NUT WING 1/4-20 NYLK 33 046580 4 SCREW SHC M6-1.0 X 45 G12.9 34 0E8286 1 STREET EL 45DEG 1/2" NPT BRASS 35 044118 1 BARBED STR 1/2NPT X 5/8 36 049815 4 SCREW HHC M5-0.8 X 16 G8.8 37 049226 4 WASHER LOCK M5 38 051713 4 WASHER FLAT M5 39 022097 4 WASHER LOCK M6-1/4 40 057796 1 GROMMET 41 057795A 1 BARBED EL 90 3/4 PLASTIC 42 052223 1 HOSE 1/2 ID SAE-30R2 FUEL/OIL 43 061012 1 PLUG STD PIPE 1/8 S 44 0E9295 1 ASSY THROTTLE 28MM 45 0F3994 1 PCV VALVE 2.5L FORD 46 0E7121 1 O-RING 47.625 ID X 2.38 WIDTH
OCKET HEAD
39
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators Alternator — Drawing No. 0F5092-B
14
19
20
11
12
10
3
13
LOCKTIGHT
9
21
6
8
7
2
LEADS
5
40
30
31
4
16
18
1
17
7
15
LOCKTIGHT
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators
Alternator — Drawing No. 0F5092-B
ITEM PART NO. QTY. DESCRIPTION
1 0F1659A 1 ROTOR 390 15KW 1P DIRECT HSB (2.5L FORD) 0F1657A 1 ROTOR 390 20KW 1P DIRECT HSB (2.5L FORD) 0F1655A 1 ROTOR 390 25KW 1P DIRECT HSB (2.5L FORD) 0F5073A 1 ROTOR 390__30AD1 HSB TECUM 0E7413A 1 RTR 390 40KW 1P DIRECT HSB 2 0F1660A 1 STR 390 15AD HSB (382MM LONG) (2.5L FORD) 0F1658A 1 STR 390 20AD HSB (382MM LONG) (2.5L FORD) 0F1656A 1 STR 390 25AD HSB (382MM LONG) (2.5L FORD) 0F5074A 1 STR-390__30AD1 HSB TECUM 0E7412A 1 STR-390--40AD HSB (433MM LONG) 3 0E5706 1 REAR BEARING CARRIER 390/DRCT 4 0E5048 REF FLEXPLATE 3.0L FORD 0E5048B REF FLEXPLATE 2.5L FORD 0E5048A REF FLEXPLATE HSB 3.9L CHRYSLER 5 0E6668 1 FLYWHEEL ASSY 3.0L HSB LG GEAR 6 0E6076 1 REVCOR FAN 10.75 X 2 W/PRESS DIS 7 046526 8 WASHER LOCK M10 8 051755 4 SCREW HHC M10-1.5 X 16 G8.8 9 04576100BK 4 STUD M14-2.0 X 490 G5 ZINC (3.0L FORD & 2.5L FORD) 04576100BF 4 STUD M14-2.0 X 540 G5 ZINC 10 043123 4 WASHER LOCK M14 11 051779 4 NUT HEX M14-2.0 G8 YEL CHR 12 0E7587 1 ASSY BRUSH HOLDER 390/HSB 13 023365 1 WASHER SHAKEPROOF INT #8 14 092980 4 SCREW PPHM M4-0.7 X 25 15 057192 4 SCREW SHC M10-1.5 X 30 G12.9 16 0A2602 1 WASHER FLAT .688 ID X 3.25 OD 17 042558 1 KEY SQ 3/8 X 1 STEEL 18 0A2601 1 SCREW HHC M16-2.0 X 45 G8.8 19 022264 4 WA 20 038150 4 WASHER FLAT #8 ZINC 21 077043F 1 CONDUIT FLEX 1-1/4” (30” LG - 3.0L FORD & 3.9L CHRYSLER) 077043F 1 CONDUIT FLEX 1-1/4” (18” LG – 2.5L FORD)
SHER LOCK #8-M4
ROTOR REPLACEMENT PARTS 30 047248 1 BALL BEARING-45 MM 31 070892 1 SLIP RING -MACHINED-
41
3
8
5
9
10
023
0
8
D
UST
9
0
5
8
9
6
O
8
5
CO
T
O
3
8
0
0
3
0
9
5
19
6TO
UST
D
Section 7 - Exploded Views and Parts
40kW Liquid-cooled Generators Muffler — Drawing No. 0F4894-B
1
1
2
1
1
1
T
MPARTMEN
2
1
1
1
2
1
1
2
ITEM PART NO. QTY. DESCRIPTION
1 0F0738 1 MUFFLER 7"X9"-(2)2"IN/2.5"OUT 2 0C9748 1 PLUG M18-1.50 3 0F0778 1 PIPE R/H SIDE EXHAUST MILD ST 4 0F0777 1 PIPE L/H SIDE EXHAUST MILD ST 5 0E5914 1 BRACKET MUFFLER 3.0L FORD
HSB 6 0E0170C 1 EXHAUST BLANKET 675MM 7 0F6258 1 PIPE MUFFLER OUT 8 036797 4 BOLT U 5/16-18 X 2.25 9 039253 2 SCREW HHC M8-1.25 X 20 G8.8 10 022145 6 WASHER FLAT 5/16-M8 ZINC 11 022129 11 WASHER LOCK M8-5/16 12 045771 3 NUT HEX M8-1.25 G8 YEL CHR 13 0C2454 4 SCREW TH-FRM M6-1 X 16 N WA
Z/JS
42
EXHA
MANIFOL
1
1
T EXHA MANIFOL
ITEM PART NO. QTY. DESCRIPTION
14 052860 4 NUT TOP LOCK FL M12-1.75 15 052891 4 SCREW HHC M12-1.75 X 80 G8.8 16 0E8816 1 EXHAUST FLANGE 2" PIPE 17 051769 4 WASHER LOCK M12 18 0E0170B 1 EXHAUST BLANKET 800MM 19 049808 8 WASHER FLAT M12 20 022259 8 NUT HEX 5/16-18 STEEL 21 080762 1 BOLT U 3/8-16 X 2.62 22 0E8726 2 STRAP MUFFLER 23 039288 1 SCREW HHC M8-1.25 X 55 G8.8 24 0F5612 1 PIPE R/H SIDE EXHAUST MILD ST 25 0F6262 1 PIPE L/H SIDE EXHAUST MILD ST
Section 8 — Installation Diagram
40kW Liquid-cooled Generators
Installation Diagram — Drawing No. 0E8797
43
Section 9 - Notes
40kW Liquid-cooled Generators
44
Section 9 - Notes
40kW Liquid-cooled Generators
45
Section 10 – Warranty
40kW Liquid-cooled Generators
GENERAC POWER SYSTEMS "TWO YEAR" LIMITED WARRANTY FOR QUIETSOURCE™
"PREPACKAGED EMERGENCY AUTOMATIC STANDBY GENERATORS"
For a period of two years from the date of original sale, Generac Power Systems, Inc. (Generac) warrants that its Quietsource generator will be free from defects in material and workmanship for the items and period set forth below. Generac will, at its option, repair or replace any part which, upon examination, inspection and testing by Generac or an Authorized Warranty Service Dealer, is found to be defective. Any equipment that the purchaser/owner claims to be defective must be examined by the nearest Authorized Warranty Service Dealer. All transportation costs under the warranty, including return to the factory, are to be borne and prepaid by the purchaser/owner. This warranty applies only to Generac Quietsource prepackaged emergency automatic standby generators sold and rated for use in "Standby" applications.
WARRANTY SCHEDULE
YEARS ONE and TWO - 100% (one hundred percent) transferable coverage on Labor and Part(s) listed (proof of purchase and maintenance is required): Engine - All Components Alternator - All Components Transfer System - All Components All warranty expense allowances are subject to the conditions defined in Generac's Warranty Policies, Procedures and Flat Rate Manual.
THIS WARRANTY SHALL NOT APPLY TO THE FOLLOWING:
• Quietsource generators that utilize non-Generac replacement parts.
• Quietsource generators utilizing non-Generac automatic transfer switches.
• Repairs or diagnostics performed by individuals other than Guardian/Generac authorized dealers not authorized in writing by Generac Power Systems.
• Any Quietsource generators used as rental or trailer mounted applications.
• Units used for prime power in place of existing utility power where utility power is present or in place of utility power where utility power service does not normally exist.
• Costs of normal maintenance, adjustments, installation and start-up.
• Failures caused by any contaminated fuels, oils, coolants or lack of proper fluid amounts.
• Failures due, but not limited, to normal wear and tear, accident, misuse, abuse, negligence or improper installation. As with all mechanical devices, the Generac engines need periodic part(s) service and replacement to perform well. This warranty will not cover repair when normal use has exhausted the life of a part(s) or engine.
• Failures caused by any external cause or act of God, such as collision, theft, vandalism, riot or wars, nuclear holocaust, fire, freezing, lightning, earthquake, windstorm, hail, volcanic eruption, water or flood, tornado or hurricane.
• Damage related to rodent and/or insect infestation.
• Products that are modified or altered in a manner not authorized by Generac in writing.
• Any incidental, consequential or indirect damages caused by defects in materials or workmanship, or any delay in repair or replacement of the defective part(s).
• Failure due to misapplication.
• Telephone, cellular phone, facsimile, internet access or other communication expenses.
• Living or travel expenses of person(s) performing service, except as specifically included within the terms of a specific unit warranty period.
• Expenses related to "customer instruction" or troubleshooting where no manufacturing defect is found.
• Rental equipment used while warranty repairs are being performed.
• Costs incurred for equipment used for removal and/or reinstallation of generator, (i.e.; cranes, hoists, lifts, etc.)
• Overnight freight costs for replacement part(s).
• Overtime labor.
• Starting batteries, fuses, light bulbs and engine fluids.
THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED. SPECIFICALLY, GENERAC MAKES NO OTHER WARRANTIES AS TO THE MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
GENERAC'S ONLY LIABILITY SHALL BE THE REPAIR OR REPLACEMENT OF PART(S) AS STATED ABOVE. IN NO EVENT SHALL GENERAC BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES, EVEN IF SUCH DAMAGES ARE A DIRECT RESULT OF GENERAC'S NEGLIGENCE. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you.
This warranty gives you specific legal rights. You also have other rights from state to state.
GENERAC® POWER SYSTEMS, INC.
P.O. BOX 297 • WHITEWATER, WI 53190
Part No. 0F4946 Revision E (09/02/05) Printed in U.S.A.
Revision (2.05)
Loading...
