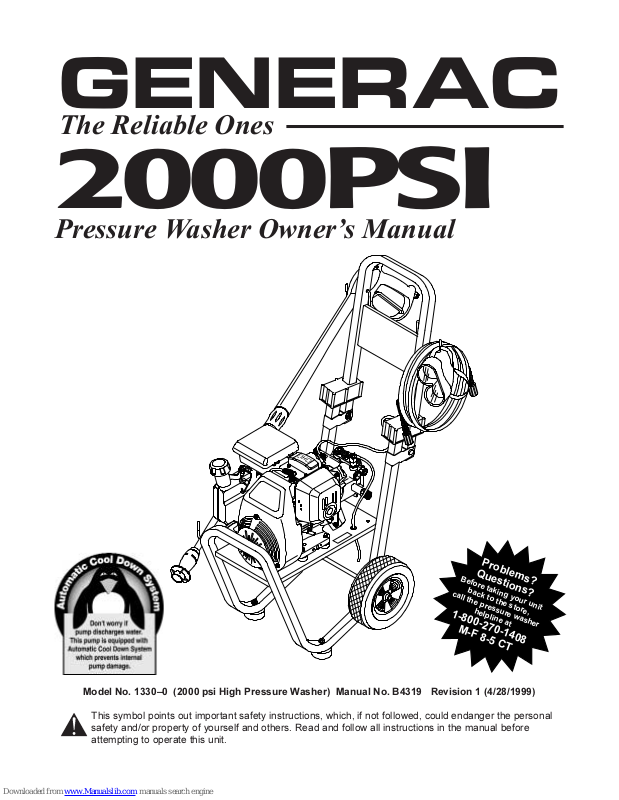

Generac Portable Products 2000PSI, 1330-0 Owner's Manual

This symbol points out important safety instructions, which, if not followed, could endanger the personal
safety and/or property of yourself and others. Read and follow all instructions in the manual before
attempting to operate this unit.

Model No. 13300 (2000 psi High Pressure Washer) Manual No. B4319 Revision 1 (4/28/1999)

2000PSI

Pressure Washer Owner’s Manual

Problems?

Questions?

Before taking your unit

back to the store,

call the pressure washer

helpline at

1-800-270-1408

M-F 8-5 CT

GENERAC

The Reliable Ones

2

Generac Portable Products 2000PSI High Pressure Washer

CAUTION! Always disconnect spark plug

wire and place wire where it cannot contact
spark plug to prevent accidental starting when
setting up, transporting, adjusting or making
repairs to your high pressure washer.

 Engine exhaust gases contain DEADLY carbon

monoxide gas. This dangerous gas, if breathed in
sufficient concentrations, can cause
unconsciousness or even death. Operate this
equipment only in the open air where adequate
ventilation is available.

 Gasoline is highly FLAMMABLE and its vapors are

EXPLOSIVE. Do not permit smoking, open flames,
sparks or heat in the vicinity while handling
gasoline. Avoid spilling gasoline on a hot engine.
Allow unit to cool for 2 minutes before refueling.
Comply with all laws regulating storage and
handling of gasoline.

 Locate this pressure washer in areas away from

combustible materials, combustible fumes or dust.

 The high pressure equipment is designed to be

used with Generac authorized parts only. If you use
this equipment with parts that do not comply with
minimum specifications, the user assumes all risks
and liabilities.

 Some chemicals or detergents may be harmful if

inhaled or ingested, causing severe nausea,
fainting or poisoning. The harmful elements may
cause property damage or severe injury.

 Do not allow CHILDREN to operate the pressure

washer at any time.

 Operate engine only at governed speed. Running

the engine at excessive speeds increases the
hazard of personal injury. Do not tamper with parts
which may increase or decrease the governed
speed.

 Do not wear loose clothing, jewelry or anything that

may be caught in the starter or other rotating parts.

 Before starting the pressure washer in cold

weather, check all parts of the equipment and be
sure ice has not formed there.

 Units with broken or missing parts, or without

protective housing or covers should NEVER be
operated.

 The muffler and air cleaner must be installed and in

good condition before operating the pressure
washer. These components act as spark arrestors if
the engine backfires.

 Check the fuel system for leaks or signs of

deterioration such as chafed or spongy hose, loose
or missing clamps or damaged tank or cap. Correct

all defects before operating the pressure washer.
 Do not spray flammable liquids.
 Never aim the gun at people, animals or plants.

The engine exhaust from this product

contains chemicals known to the State

of California to cause cancer, birth

defects, or other reproductive harm.

WARNING:

IMPORTANT!  SAFETY RULES  IMPORTANT!

3

Generac Portable Products 2000PSI High Pressure Washer

 High pressure spray can cause paint chips or other

particles to become airborne and fly at high speeds.

 Never allow any part of the body to come in contact

with the fluid stream. DO NOT come in contact with
a fluid stream created by a leak in the high pressure
hose.

 The high pressure stream of water that this

equipment produces can pierce skin and its
underlying tissues, leading to serious injury and
possible amputation.

 Always wear eye protection when you use this

equipment or when you are in the vicinity where the
equipment is in use.

 Do not operate the pressure washer above the

rated pressure.

 Never move the machine by pulling on the high

pressure hose. Use the handle provided on the top
of the unit.

 Always be certain the spray gun, nozzles and

accessories are correctly attached.

 Never use a spray gun which does not have a

trigger lock or trigger guard in place and in working
order.

 Use a respirator or mask whenever there is a

chance that vapors may be inhaled. Read all
instructions with mask so you are certain the mask
will provide the necessary protection against
inhaling harmful vapors.

 High pressure spray may damage fragile items

including glass. Do not point spray gun at glass
when in the jet spray mode.

 Keep the hose connected to machine or the spray

gun while the system is pressurized. Disconnecting
the hose while the unit is pressurized is dangerous.

 Hold the spray gun firmly in your hand before you

start the unit. Failure to do so could result in an
injury from a whipping spray gun. Do not leave the
spray gun unattended while the machine is running.

 The cleaning area should have adequate slopes

and drainage to reduce the possibility of a fall due
to slippery surfaces.

 Keep water spray away from electric wiring or fatal

electric shock may result.
 Do not secure the spray gun in the (open) position.
 Do not bypass any safety device on this machine.
 The muffler and engine heat up during operation

and remain hot immediately after shutting it down.

Avoid contact with a hot muffler or engine or you

could be severely burned.
 Operate and store this unit on a stable surface.
 High pressure hose can develop leaks from wear,

kinking, abuse, etc. Water spraying from a leak is

capable of injecting material into skin. Inspect hose

each time before using it. Check all hoses for cuts,

leaks, abrasions or bulging of cover, or damage or

movement of couplings. If any of these conditions

exist, replace hose immediately. Never repair high

pressure hose. Replace it with another hose that

meets maximum pressure rating of your pressure

washer.

IMPORTANT!  SAFETY RULES  IMPORTANT!

4

Generac Portable Products 2000PSI High Pressure Washer

CONGRATULATIONS on your purchase of a
GENERAC high pressure washer. It has been
designed, engineered and manufactured to give you
the best possible dependability and performance.

Should you experience any problem you cannot
easily remedy, call the pressure washer helpline at
1-800-270-1408.

Please read and retain this manual. The instructions
will enable you to assemble and maintain your high
pressure washer properly.

CUSTOMER
RESPONSIBILITIES

 Read and observe the safety rules.
 Follow regular schedule in maintaining, caring for

and using your high pressure washer.

 Follow the instructions under Customer

Responsibilities and Storage sections of this
Owner's Manual.

PRODUCT
SPECIFICATIONS

Pressure Washer Specifications

Outlet Pressure . . . . 2000 psi

Flow Rate . . . . . . . . . 2.0 gallons per minute (gpm)

Detergent . . . . . . . . . Use detergent approved for

pressure washers

Water Supply . . . . . . Not to Exceed 140°F

Temperature

Automatic Cool . . . . Will cycle when water

Down System reaches 140°-145°F

Engine Specifications

Engine Model . . . . . . Honda GC 160

Rated Horsepower . . 5 HP

Displacement . . . . . . 160 cc

Spark Plug

Type . . . . . . . . BPR6ES (NGK)

Set Gap To: . . 028-.031 inch (.7-.8mm)
Gasoline Capacity . . .53 U.S.gallons (2.0l)

Oil . . . . . . . . . . . . . . . See page 7

In the State of California a spark arrestor is required
by law (Section 4442 of the California Public
Resources Code). Other states may have similar
laws. Federal laws apply on federal lands.

NOTE: If you equip the muffler with a spark arrestor, it
must be maintained in effective working order.

You can order a spark arrestor through your
authorized Honda service dealer.

Model Number 13300

Serial Number

Date of Purchase

The model and serial numbers will be found on a
decal attached to the pressure washer. Record
both serial number and date of purchase and
keep in a safe place for future reference.

High Pressure Hose

Adjustable Nozzle

Goggles

Choke Rod

High Pressure Outlet

Pump equipped with
Automatic Cool Down
System

Spray Gun

Water Inlet

Oil Fill

Recoil Starter

Throttle Lever

Air Cleaner

Chemical Injection Tube

5

Generac Portable Products 2000PSI High Pressure Washer

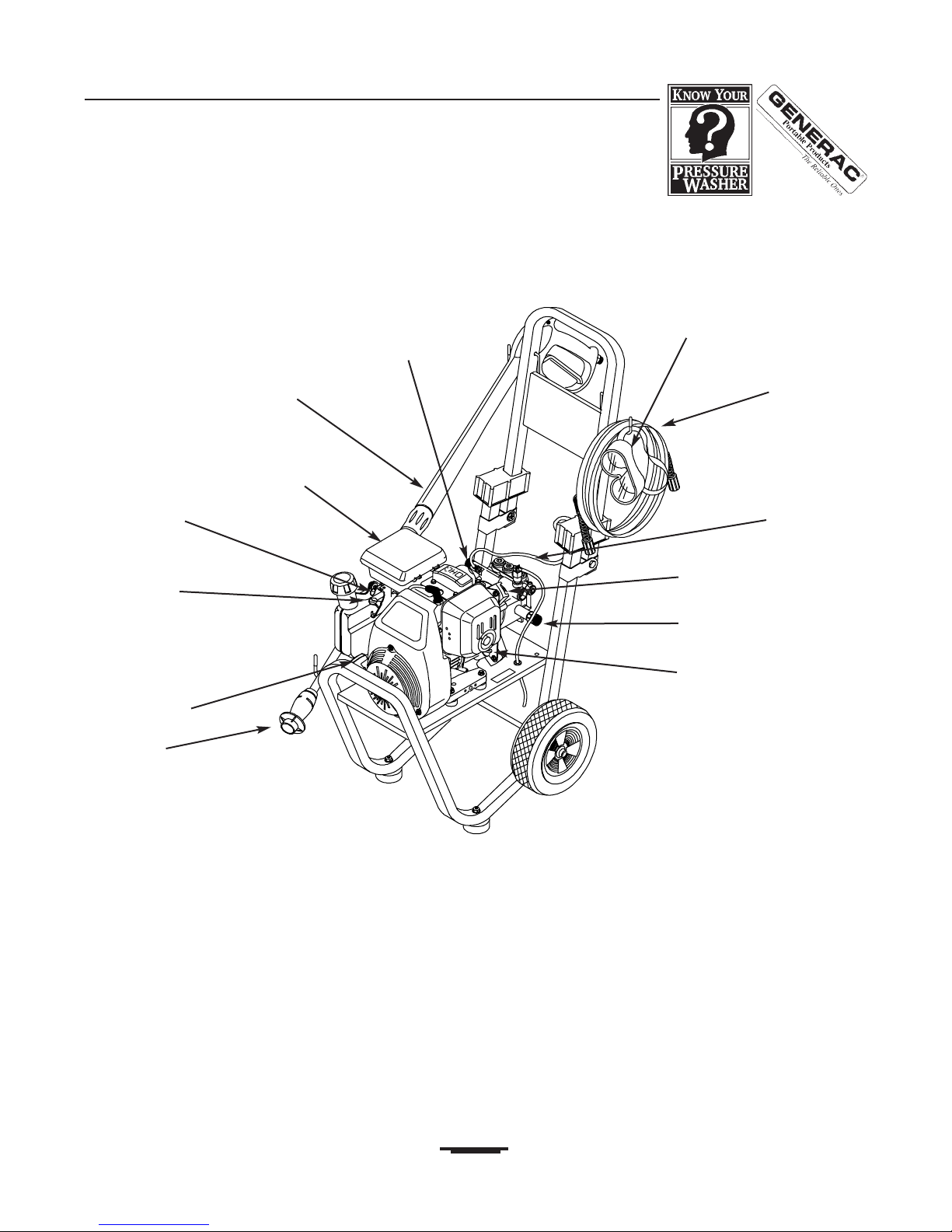

KNOW YOUR PRESSURE WASHER

Read this owners manual and safety rules before operating your high pressure washer.

Compare the illustrations with your high pressure washer to familiarize yourself with the location of the controls.
Save this manual for future reference.

Adjustable Nozzle  You must attach this to the spray
gun to provide high pressure stream. Adjustable nozzle
allows you to adjust force of spray and spray pattern.

Air Cleaner  Dry type filter element limits the amount
of dirt and dust that gets in the engine.

Automatic Cool Down System  Cycles water
through pump when water reaches 140°-145°F. Warm
water will discharge from pump onto ground. This
system prevents internal pump damage.

Chemical Injection TubeUsed to siphon chemical
from the detergent container to the pump.

Choke Rod Prepares a cold engine for starting.
Goggles  Always use the enclosed goggles or other

eye protection when running your pressure washer.

High Pressure Hose  Connect one end to water
pump and the other end to spray gun.

High Pressure Outlet  Connection for high pressure
hose.

Oil FillOil input location.
Pump  Develops high pressure.
Recoil Starter  Used for starting the engine

manually.
Spray Gun  Controls the application of water onto

cleaning surface with trigger device. Includes safety
latch.

Throttle LeverSets engine in starting mode for recoil
starter and stops a running engine.

Water Inlet  Connection for garden hose.

6

Generac Portable Products 2000PSI High Pressure Washer

WARNING! Read entire owners manual

before you attempt to assemble or operate
your new pressure washer.

REMOVE PRESSURE
WASHER FROM CARTON

 Remove the high pressure hose and parts box

included with pressure washer.

 Slice two corners at the end of carton from top to

bottom so the panel can be folded down flat, then
remove all packing material.

 Roll pressure washer out of carton.

CARTON CONTENTS

Items in the carton include:
 Main Unit
 High Pressure Hose
 Parts Box (includes the following):

 Oil Bottle
 Wire Form
 Goggles
 Nozzle Cleaning Kit
 ORing Maintenance Kit
 Owners Manual
 Engine Manual
 Engine Warranty
 Emissions Control Warranty
 Warranty Card
 Spray Gun
 Adjustable Nozzle Extension

If any of the above parts are missing or damaged, call
the pressure washer helpline at 18002701408.

PREPARING PRESSURE
WASHER FOR USE

If you have any problems with the assembly of your
pressure washer or if parts are missing or damaged,
call the Pressure Washer Helpline at

18002701408.

To prepare your pressure washer for operation
you will need to perform these tasks:

 Unfold the handle and attach the wire form.
 Add oil to the engine.
 Add fuel to the fuel tank.

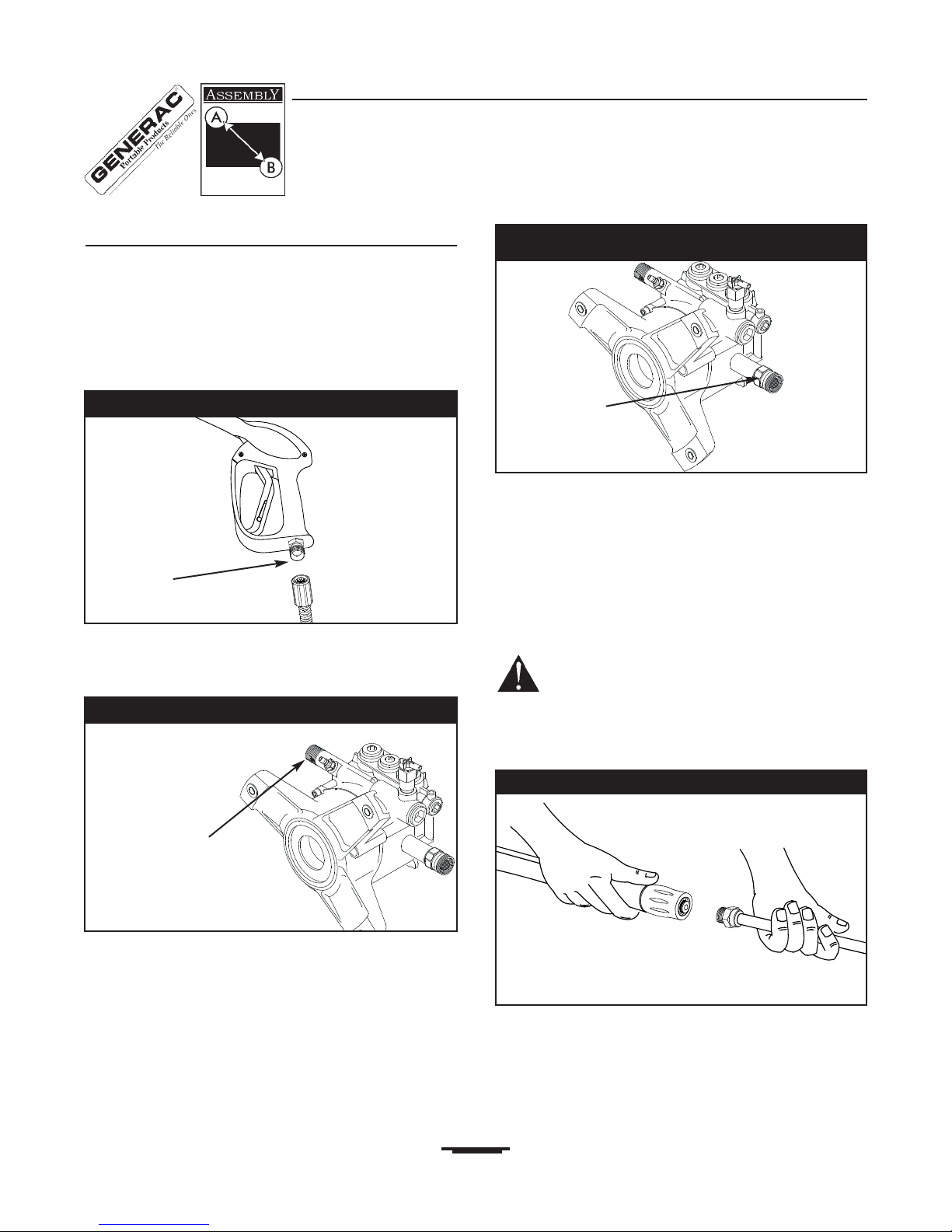

 Connect the high pressure hose to the spray gun

and the pump.
 Connect the water supply to the pump.
 Connect nozzle extension to gun.

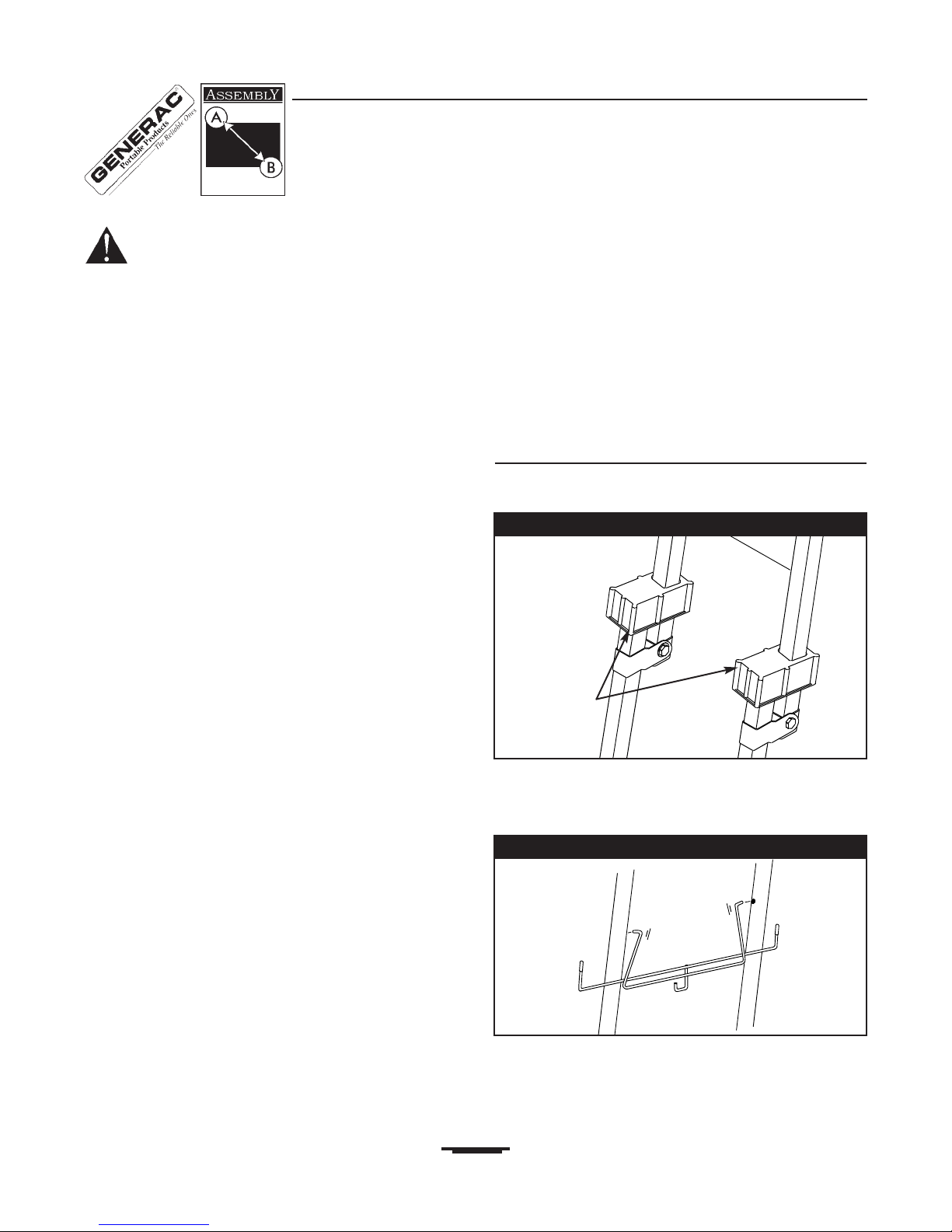

Secure Handle and Wire Form

 Lift handle and slide locking caps over the bottom

part of the handle (Figure 1).

 Insert wire form into the handle with the longer arm

positioned on the left. From rear of unit, the hook

should resemble a J (Figure 2).

Figure 1  Secure Handle

Figure 2  Attach Wire Form to Handle

Lift handle
and slide
locking caps
into place

7

Generac Portable Products 2000PSI High Pressure Washer

Add Engine Oil

WARNING! Any attempt to crank or start the

engine before it has been properly serviced
with the recommended oil will result in an
engine failure.

Use only high quality detergent oil rated with API
service classification SF or SG rated 10W30. Do
not use SAE 10W40 oil. Other viscosities shown
in the chart below may be used when the average
temperature in your area is within the
recommended range.

 Place the pressure washer on a level surface.
 Clean the area around oil fill and remove the oil

dipstick (Figure 3).

 Wipe the dipstick clean.
 Insert and remove the dipstick without screwing it

into the filler neck. Check the oil level shown on the
dipstick.

 If the oil level is low, fill to the edge of the oil filler

hole with the recommended oil. Do not overfill.
 Reinstall the oil dipstick, hand tighten securely.

Note: Check Oil Often During Engine Breakin.

Add Gasoline

DANGER! Never fill fuel tank indoors. or

when engine is running or hot. Do not smoke
when filling fuel tank.

WARNING! Never fill fuel tank completely full.

Fill tank to about 1/2" below the bottom of the
filler neck to provide space for fuel expansion.
Wipe away any fuel spillage from engine and
equipment before starting.

 Use clean fuel and store in approved, clean

covered containers. Use clean fill funnels. Never

use stale gasoline left over from last season or

gasoline stored for long periods.
 Clean the area around the fuel fill cap, remove the

cap (Figure 4).

 Add regular UNLEADED gasoline, slowly, to fuel

tank. Use a funnel to prevent spillage.
 Install the fuel cap and wipe up any spilled gasoline.

Figure 3  Add Oil to Engine Crankcase

Oil Fill Cap/Dipstick

Upper Limit

Lower Limit

Figure 4  Add Regular Unleaded Gasoline to Fuel

Tank.

Maximum Fuel
Level

Fuel Level
Mark

8

Generac Portable Products 2000PSI High Pressure Washer

Connect Hose and Water to Pump

IMPORTANT: You must assemble the wand and

attach all hoses before you start the engine. Starting
engine without all hoses connected and water
supplied will damage the pump.

 Uncoil the high pressure hose and attach one end

of the hose to the base of the spray gun. (Figure 5).
Tighten by hand.

 Attach the other end of the high pressure hose to

the high pressure outlet on the pump (Figure 6).
Tighten by hand.

 Before you connect your garden hose to the water

inlet, inspect the Inlet Screen (Figure 7). Clean the
screen if it contains debris or have it replaced if
damaged. DO NOT RUN THE PRESSURE
WASHER IF THE SCREEN IS DAMAGED.

 Run water through your garden hose for 30

seconds to clean out any debris .

 Connect the garden hose to the water inlet. Tighten

by hand (Figure 7).
 Turn ON the water.
 Squeeze the trigger on the gun until you have a

steady stream of water. This purges the pump

system of air and impurities.

CAUTION: Before starting the pressure

washer, be sure you are wearing adequate
eye protection.

 Attach the adjustable nozzle extension to the spray

gun. Tighten by hand (Figure 8).

Figure 5  Connect High Pressure Hose to Spray Gun

Connect high pressure
hose here.

Figure 6  Connect High Pressure Hose to Pump

Connect high
pressure hose here.

Figure 7  Connect the Garden Hose to Water Inlet

and Turn ON the Water.

Inspect inlet
screen, do not use
if damaged, clean
if dirty.

Figure 8  Connect Nozzle Extension to Spray Gun

9

Generac Portable Products 2000PSI High Pressure Washer

CHECKLIST BEFORE
STARTING ENGINE

If you have reached this point, look back over the

assembly to see if you have performed all of the
following.

 Make sure the handle and wireform are in place

and secure.

 Check for properly tightened hose connections

(high pressure and water supply).

 Check to make sure that there are no kinks, cuts, or

damage to the high pressure hose.

 Check that oil has been added to the proper level in

the engine crankcase before trying to start the

pressure washer.
 Add the proper gasoline to fuel tank.
 Provide a proper water supply (not to exceed

140°F).
 Be sure to read the Safety Rules and Operation

sections before using the pressure washer.

HOW TO USE YOUR
PRESSURE WASHER

If you have any problems operating your pressure
washer, please call the pressure washer helpline at

1-800-270-1408.

How to Start Your Engine

The best way to start your enginepowered pressure
washer for the first time is to follow these instructions
stepbystep. This starting information also applies
whenever you start the engine after you have let the
pressure washer sit idle for at least a day.

 Place the pressure washer in an area close enough

to an outside water source that can flow at a rate of

2.2 gallons per minute.
 Make sure the unit is in a level position.
 Check that the high pressure hose is tightly

connected to the spray gun and to the pump.

 Connect the garden hose to the water inlet on the

pressure washer pump and turn on the water.

WARNING! Do not run the pump without the

water supply connected and turned on. You
must follow this caution or the pump will be
damaged.

 Position the nozzle in the low pressure mode

(nozzle slid forward) and squeeze the trigger on the
spray gun to relieve the air pressure caused by
turning ON the water. Water will flow out of the gun
in a thin stream. Continue to hold trigger until you
have a steady stream of water and no air remains in
the system. This will make it easier to pull start the
engine. Release the trigger.

 Engage the safety latch on the spray gun (Figure

9).

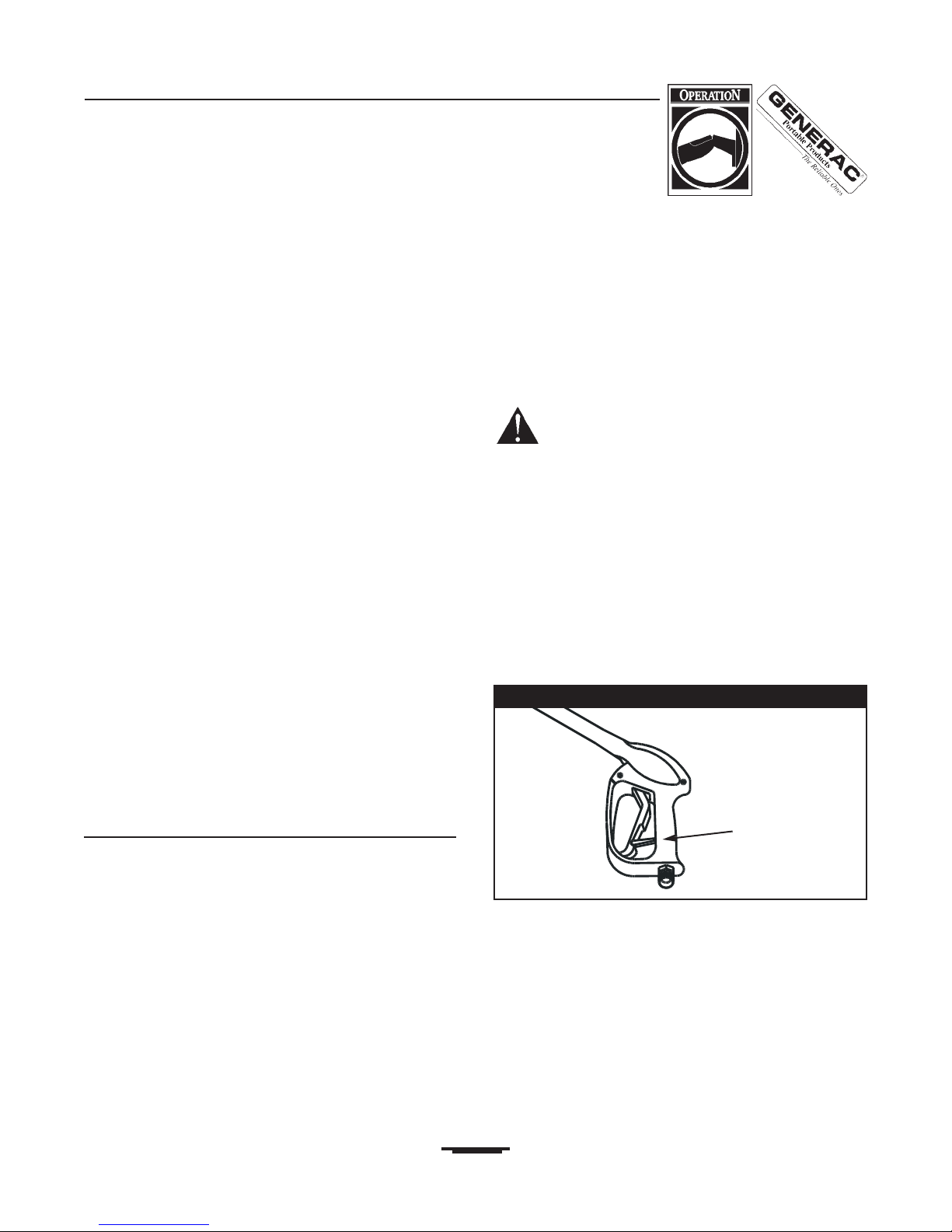

Figure 9  Spray Gun with Safety Latch Engaged

Safety Latch

10

Generac Portable Products 2000PSI High Pressure Washer

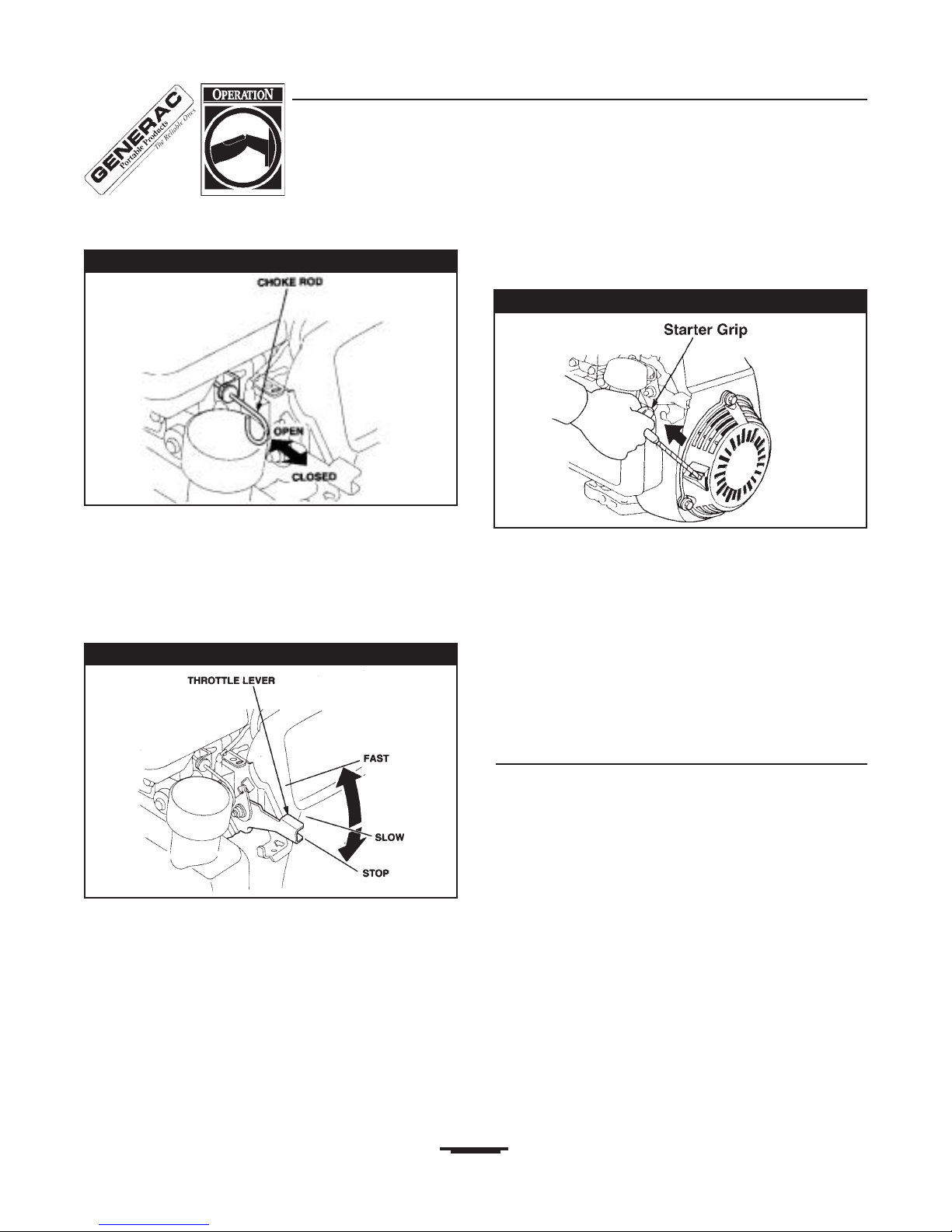

 Position the choke rod (Figure 10).

 Cold engine ~ ~ ~ ~ ~ ~ ~ ~ ~(Choke-CLOSED)
 Restarted warm engine ~ ~ ~ ~(Choke-OPEN)
 Just refueled engine ~ ~ ~ ~(Choke-CLOSED)

 Move throttle lever to the Fast position

(Figure 11).

IMPORTANT: When using the pressure washer,
always keep the throttle in the fast position.

 Grasp the starter grip handle and pull slowly until

you feel some resistance. Then pull rapidly to start
the engine (Figure 12).

 Return the starter grip handle slowly.
 Grasp starter grip and pull slowly until you feel

some resistance. Then pull cord out with rapid full
arm stroke. Let rope return slowly. Do not let rope
snap back against starter.

 If the choke lever has been moved to the

CLOSED position to start the engine, gradually
move it to the OPEN position as the engine
warms up.

How to Stop Your Pressure Washer

 Move the throttle Lever to the Stop position.
 Squeeze trigger on the spray gun to relieve

pressure in the hose.

Note: A small amount of water will squirt out from the

spray gun when you release the pressure.

Figure 12  Starter Grip

Figure 11  Throttle Lever

Figure 10  Choke Rod

11

Generac Portable Products 2000PSI High Pressure Washer

How to Use the Adjustable Nozzle

You now should know how to START your pressure
washer and how to STOP it. The information in this
section will tell you how to adjust the spray pattern
and apply detergent or any other cleaning chemicals.

DANGER! Never adjust spray pattern when

spraying. Never put hands in front of nozzle to
adjust spray pattern.

On the end of your spray gun is a nozzle that you can
slide forward and backward and that you can also
twist from side to side. With the adjustable nozzle you
can adjust the spray pattern to be either high
pressure or low pressure. You can also adjust the
spray so it is concentrated in a stream pattern or
expanded into a fan pattern.

 Slide the nozzle forward when you wish to adjust

the spray to low pressure mode (Figure 13). Slide
the nozzle backward to achieve high pressure.

 Point the nozzle toward the ground and press the

trigger to test the pattern (Figure 14).

 Twisting the nozzle adjusts the spray pattern from a

narrow pattern to a fan pattern.

 For most effective cleaning, keep spray nozzle

between 8 to 24 inches away from cleaning surface.

 If you get the spray nozzle too close, especially

using high pressure mode, you may damage the
cleaning surface.

 Do not get closer than 6 inches when cleaning

automobile tires.

Figure 14 Testing the spray pattern.

Figure 13  Using the adjustable nozzle.

Slide Nozzle Backward
for High Pressure
Mode

Slide Nozzle Forward
for low pressure
mode and detergent
application

Twist nozzle counter­clockwise for fan
spray pattern

Twist nozzle clock­wise for narrow
spray pattern

12

Generac Portable Products 2000PSI High Pressure Washer

Applying Detergent with the
Adjustable Nozzle

IMPORTANT: Use soaps designed specifically for
pressure washers. Household detergents could

damage the pump.
IMPORTANT: You must attach all hoses before you

start the engine. Starting the engine without all the
hoses connected and without the water turned ON will
damage the pump.

To apply detergent follow these steps:

 Review the use of adjustable nozzles on page 11.
 Prepare the detergent solution as required by the

job.

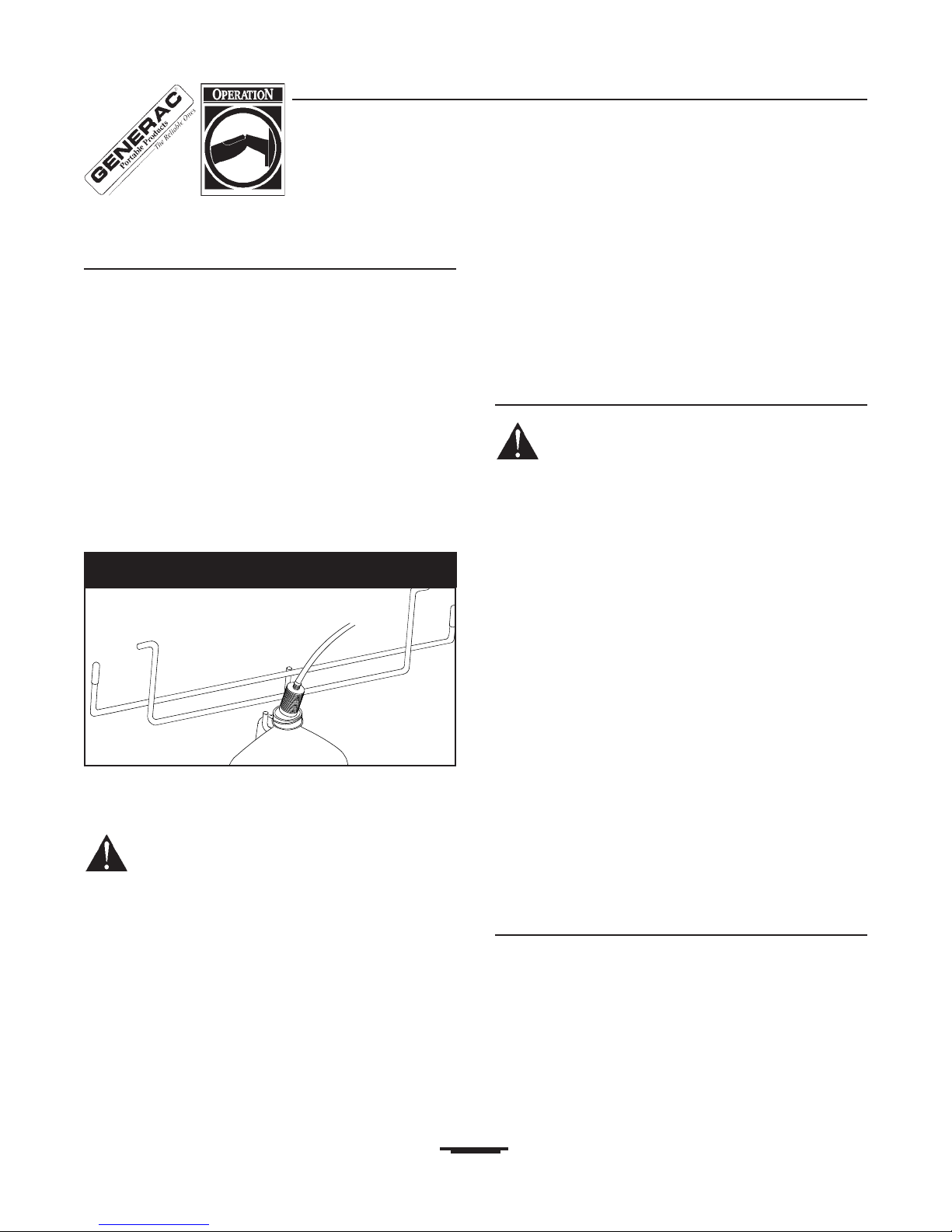

 Hang the detergent solution on hook of the wireform

on the handle (Figure 15).

 Place small filter of the clear, detergent siphoning

tube into the detergent container.

CAUTION! Keep the plastic injector tube from

coming in contact with the hot muffler. This will
damage the plastic tube. When inserting the
filter into a cleaning agent bottle, route the
tube so as to keep it from inadvertently
contacting the hot muffler.

 Slide the adjustable nozzle forward to low pressure

mode. Detergent cannot be applied with nozzle in
high pressure position.

IMPORTANT: Detergent cannot be applied without
the water source turned on.

 Make sure garden hose is connected to water inlet.

Check that high pressure hose is connected to
spray gun and pump. Start engine.

 Apply detergent to a dry surface, starting from the

bottom and working up.

 Allow the detergent to soak in between 3-5 minutes

before washing and rinsing.

 For washing, start at lower portion of area to be

washed and work upward, using long, even
overlapping strokes.

Pressure Washer Rinsing

WARNING: Be extremely careful if you must

use the pressure washer from a ladder,
scaffolding or any other relatively unstable
location. Pressure in a running washer builds
as you climb. When you press the trigger, the
recoil from the initial spray could force you to
fall. The high pressure spray could also force
you to fall if you are too close to the cleaning
surface.

For Rinsing:

 Slide nozzle backward to high pressure and wait for

detergent to clear.

 Keep the spray gun a safe distance from the area

you plan to spray.

 Apply a high pressure spray to an small area and

then check the surface for damage. If no damage is
found, you can assume it is okay to continue
cleaning.

 Start at top of area to be rinsed, working down with

same overlapping strokes as you used for cleaning.

Note: You can also stop detergent from flowing by
simply removing siphon from bottle.

Automatic Cool Down System

(also known as Thermal Relief)

If you run the engine on your pressure washer for 3-5
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach a temperature
between 140145°F. When the water reaches this
temperature, the automatic cool down system
engages and cools the pump by discharging the
warm water onto the ground. This system prevents
internal damage to the pump.

Figure 15  Insert the Small Filter Into Container of

Cleaning Solution

13

Generac Portable Products 2000PSI High Pressure Washer

GENERAL MAINTENANCE
RECOMMENDATIONS

The warranty of the high pressure washer does not
cover items that have been subjected to operator
abuse or negligence. To receive the full value from
the warranty, the operator must maintain the high
pressure washer as instructed in this manual.

 Some adjustments will need to be made periodically

to properly maintain your high pressure washer.

 All adjustments in the Service and Adjustments

section of this manual should be made at least once
each season.

 Once a year you should clean or replace the spark

plug and clean or replace the air filter and check the
gun and wand assembly for wear. A new spark plug
and clean air filter assure proper fuelair mixture
and help your engine run better and last longer.

Before Each Use

 Check engine oil level.
 Check water inlet screen for damage.
 Check high pressure hose for leaks.
 Check chemical injection tube and filter for damage.
 Check gun and adjustable nozzle extension

assembly for leaks.

 Rinse out garden hose to flush out debris.

PRESSURE WASHER
MAINTENANCE

Check and Clean Inlet Screen

Examine the screen on the water inlet. Clean it if the
screen is clogged or replace it if screen is damaged.

Check High Pressure Hose

The high pressure hose can develop leaks from wear,
kinking, or abuse. Inspect the hose each time before
using it. Check for cuts, leaks, abrasions or bulging of
cover, damage or movement of couplings. If any of
these conditions exist, replace the hose immediately.

DANGER! Water spraying from a leak is

capable of injecting material into skin. Inspect
hose each time before using it. Never repair a
high pressure hose. Replace it with another
hose that meets the maximum pressure rating
of your pressure washer.

Check Gun and Adjustable Nozzle
Extension

Examine the hose connection to the gun and make
sure it is secure. Test the trigger by pressing it and
making sure it springs back into place when you
release it. Put the safety latch in the ON position and
test the trigger. You should not be able to press the
trigger.

Check In-Line Filter

Refer to Figure 16 and service the in-line filter if it
becomes clogged, as follows:

1. Detach gun and lance from high pressure hose.

Detach lance from gun and remove o-ring and
screen from lance. Flush the screen, gun, and
lance with clean water to clear debris.

2. If the screen is damaged, the o-ring kit contains a

replacement in-line filter screen and an o-ring. If
undamaged, reuse screen.

3. Place the in-line filter screen into the threaded

end of the lance. Direction does not matter. Push
the screen in with the eraser end of a pencil until
it rests flat at the bottom of the opening. Take
care to not bend the screen.

4. Place the o-ring into the recess. Push the o-ring

snugly against the in-line filter screen.

5. Assemble the lance to the spray gun, as

described earlier in this manual.

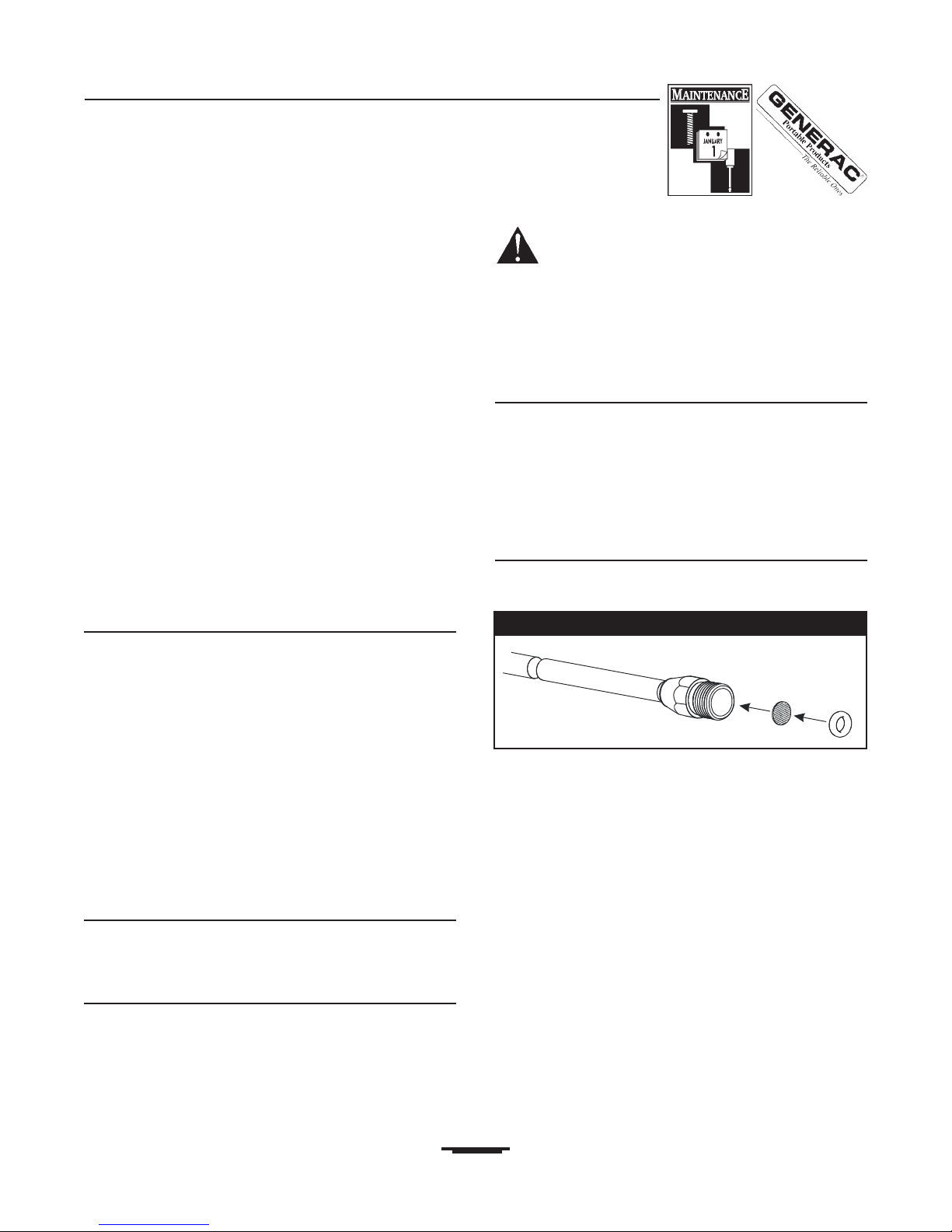

Figure 16  Service In-Line Filter

Filter Screen

O-Ring

Lance

14

Generac Portable Products 2000PSI High Pressure Washer

Check Chemical Injection Tube

Examine the filter on the detergent hose and clean if
clogged. The tube should fit tightly on the barbed
fitting. Examine the tube for leaks or tears. Replace
the filter or tube if either is damaged.

Purge Pump of Air and
Contaminants

To remove the air from the pump, follow these
steps:

 Set up the pressure washer as described in the

Preparing the Pressure Washer for Use section

and connect the water supply.
 Remove the nozzle extension from the gun.
 Pull the trigger on the gun and hold.

To remove the contaminants from the pump,
follow these steps:

 Set up the pressure washer as described in the

HOW TO USE YOUR PRESSURE WASHER

section, and connect the water supply.
 Remove the nozzle extension from the gun.
 Start the engine according to instructions in

OPERATION section.
 Squeeze the trigger on the gun and hold.
 When the water supply is steady and constant,

engage the safety latch and refasten the nozzle

extension.

Cleaning Chemical Injection Tube

If you have used the chemical injection tube you must
flush it with clean water before stopping the engine.

 Place the chemical injection tube in a bucket full of

clean water.
 Flush for 12 minutes.
 Shut off the engine.

Important: Simply shutting OFF engine will not
release pressure in the system. When the engine

has shut down, squeeze the trigger on the gun to
relieve the pressure in the hose.

Nozzle Maintenance

If the adjustable nozzle becomes restricted or
clogged with foreign materials, such as dirt, excessive
pump pressure may develop. If this nozzle becomes
partially clogged, it can cause a pulsing sensation
during use. This generally is not a pump related
problem, but rather a clogged or partially restricted
adjustable nozzle.

If the adjustable nozzle becomes clogged or partially
restricted, immediately clean the nozzle with the kit
included with your pressure washer by following
these instructions:

 Shut off the engine and turn off the water supply.
 Separate the wand extension from the gun.
 Adjust the wand extension to the stream position.
 Remove nozzle from the end of the wand extension

(Figure 16) using a 2mm or 5/64 allen wrench (like
the one included in the kit).

 Use the wire included in the kit (Figure 16) or a

small paper clip to free the foreign materials
clogging or restricting the nozzle.

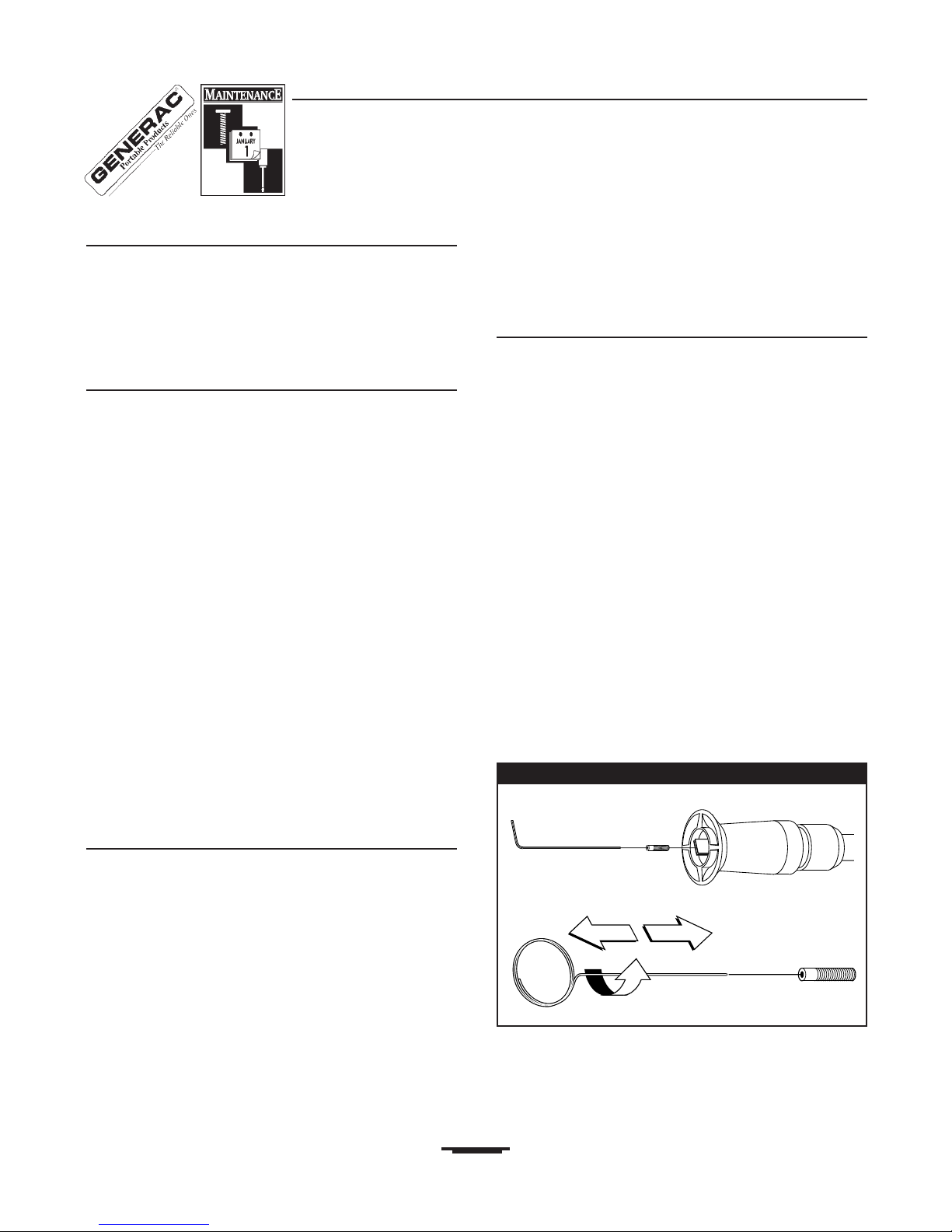

Figure 16  Remove and clean nozzle.

15

Generac Portable Products 2000PSI High Pressure Washer

 Remove additional debris by back flushing water

supply through wand extension (Figure 17). Back
flush between 30 to 60 seconds. Turn wand
extension to stream spray and move nozzle from
low to high while flushing.

 Reinstall nozzle into the wand extension. DO NOT

over tighten.
 Reconnect the wand extension to the gun.
 Reconnect the water supply, turn on the water, and

start the engine.
 Test the pressure washer by operating with nozzle

in the high and in the low position.

ORing Maintenance

Through the normal operation of your pressure
washer, orings, which keep the connections of the
hoses and gun tight and leakfree, may become worn
or damaged.

Provided with your pressure washer is an ORing
Maintenance Kit (p/n B3057) which provides
replacement o-rings, rubber washer and water inlet
filter.

To remove a worn or damaged oring:

 Use a small flathead screwdriver to get underneath

the o-ring and pry it off.

ENGINE MAINTENANCE

See the Engine Owners Manual for instructions on
how to properly maintain the engine.

PREPARING UNIT FOR
STORAGE

Water should not remain in the unit for long periods of
time. Sediments of minerals can deposit on pump
parts and freeze pump action. If you do not plan to
use the pressure washer for more than 30 days,
follow this procedure:

1. Flush chemical injection tube by placing the filter
into a pail of clean water while running pressure
washer in low pressure (adjustable nozzle in
forward position). Flush for one to two minutes.

2. Shut off the engine and let it cool, then remove all
hoses.

3. Place the throttle lever in STOP position.

WARNING! Be sure lever is in STOP

position before you continue. If you start
engine without proper water supply connected,
you can damage pump.

4. Empty the pump of all pumped liquids by pulling
the recoil handle about 6 times. This should
remove most of the liquid in the pump.

NOTE: To protect the unit from freezing temperatures,
draw RV antifreeze (no alcohol) into the pump by
pouring the antifreeze into a 3foot section of garden
hose connected to inlet adapter and pulling recoil
handle twice.

5. Store in a clean, dry area.

STORING THE ENGINE

See the Engine Owners Manual for instructions on
how to properly store the engine.

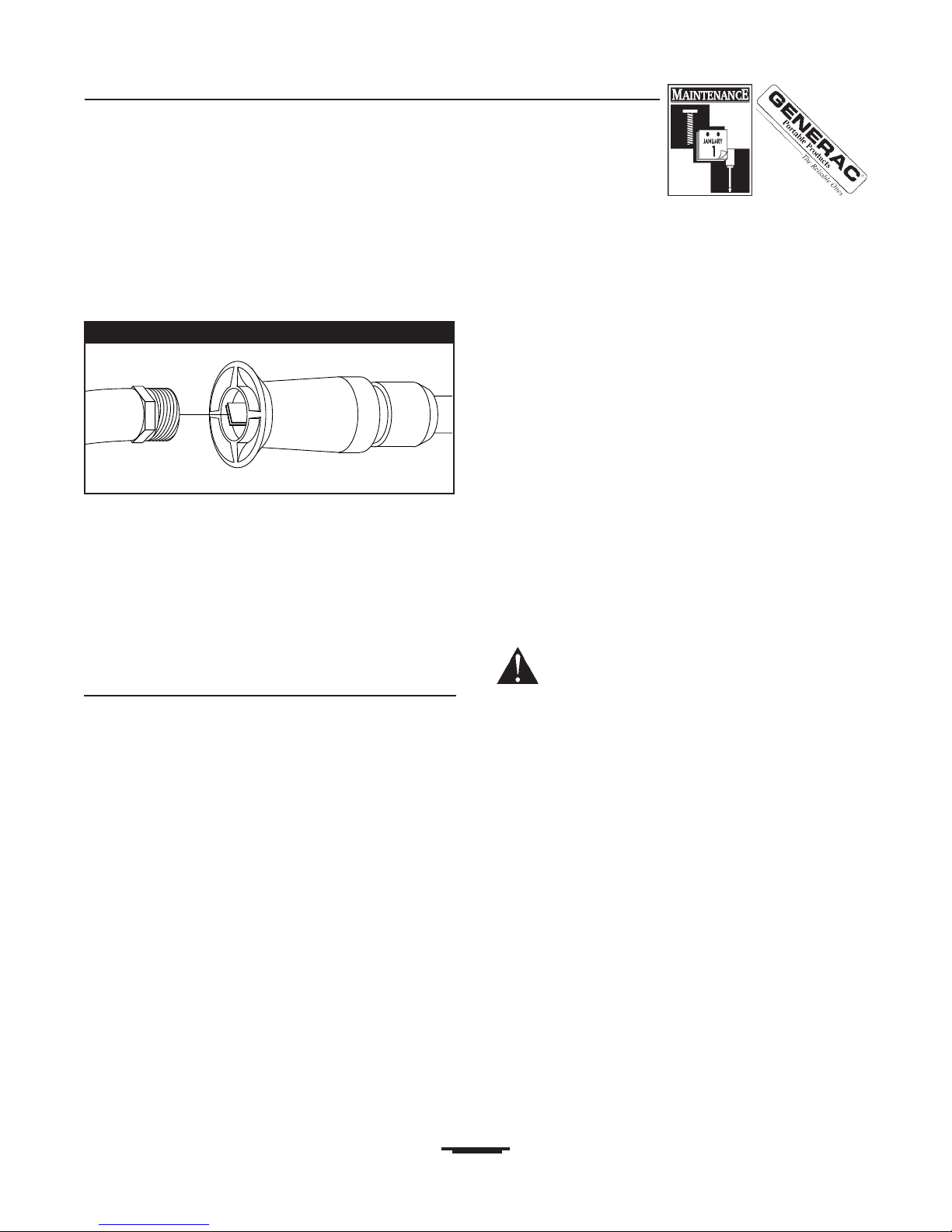

Figure 17  Backflush the nozzle.

16

Generac Portable Products 2000PSI High Pressure Washer

TROUBLESHOOTING

Problem

Pump has the following problems:
Failure to produce adequate pressure,

erratic pressure, chattering, loss of
pressure or low water volume.

Detergent fails to mix with spray.

Engine runs well when not spraying but

"bogs down" when trigger is
squeezed.

Engine will not start; or starts and runs

rough.

Engine shuts down during operation.

Engine lacks power.

Engine "hunts" or falters.

Cause

1. Lance in low pressure.

2. Water inlet is blocked.

3. Inadequate water supply.

4. Garden hose is kinked or leaking.

5. Clogged water inlet screen.

6. Water supply is over 140°F.

7. Outlet hose is blocked or leaks.

8. Gun leaks.

9. Nozzle is obstructed.

10. Pump is faulty.

1. Chemical injector hose is not
submerged.

2. Chemical injector hose is clogged.

3. Lance is in high pressure mode.

Engine speed is too slow.

1. Low oil level.

2. Dirty air cleaner.

3. Out of gasoline.

4. Stale gasoline.

5. Spark plug wire not connected to
spark plug.

6. Bad spark plug.

7. Water in gasoline.

8. Excessively rich fuel mixture.

9. Intake valve stuck open or closed.

10. Engine has lost compression

1. Out of gasoline.

2. Low oil level

Dirty air filter.

Engine is not operating properly.

Solution

1. Adjust chemical valve handle to
high pressure.

2. Clear inlet.

3. Make sure you have at least a 2.2
GPM flow for your garden hose.

4. Straighten garden hose or patch
leak.

5. Check and clean water inlet
screen.

6. Provide cooler water supply.

7. Clear blocks in outlet hose.
Replace immediately if leaking.

8. Replace gun.

9. Clear nozzle.

10. Contact Generac service facility.

1. Insert chemical line into detergent.

2. Clean or replace filter/chemical
injector hose.

3. Put dual lance into low pressure
mode.

Contact Honda service facility.

1. Fill crankcase to proper level.

2. Clean or replace air filter.

3. Fill fuel tank.

4. Drain gas tank; fill with fresh fuel.

5. Connect wire to spark plug.

6. Replace spark plug.

7. Drain as tank fill with fresh fuel.

8. Contact Honda service facility.

9. Contact Honda service facility.

10. Contact Honda service facility.

1. Fill fuel tank.

2. Fill crankcase to proper level.

Replace air filter.

Contact Honda service facility.

NOTES

17

Generac Portable Products 2000PSI High Pressure Washer

18

Generac Portable Products 2000PSI High Pressure Washer

EXPLODED VIEWMAIN UNIT

19

Generac Portable Products 2000PSI High Pressure Washer

Item Part # Qty Description

1 AB2789 1 FRAME, Weldment
2 B4324 1 DECAL, 2000 PSI
3 B1631A 1 BILLBOARD, Plastic
4 B2796 1 DECAL, Start Instructions
5 46476 2 CAPLUG, 1 Sq. x 16 GA
6 30809 1 GROMMET, 1/8" - 11/16"
7 20566 1 DECAL, 1-800 #
8 52858 2 NUT, Locking M8 1.25

9 27007 2 VIB MOUNT, Donut Type
10 50190 2 FLAT WASHER, 10 GA
11 39287 2 HHCS, M8 1.25 x 45
12 B2142 2 WHEEL, Black Mag 2" x 9"
13 75402 2 PUSHNUT, 1/2" Dia.
14 B1460 4 CAP, Black Vinyl
15 B2759 1 HOOK, Square Neck Gun
16 A1041 1 FILTER, Chemical Hose
17 B1779 2 COVER, Hinge
18 AB2534 1 HANDLE, Vertical
19 B2071 2 NUT, Locking Flange 1/4" - 20
20 21217 4 MOUNT, Rubber Shock
21 B2347 2 CAP, End of Tube
22 31669 1 CARRIAGE BOLT, 1/4" - 20 x

1-3/4"
23 B3107 1 HOSE, Thermal Drain
24 48031B 1 CLAMP, Hose 3/8" Band
25 B3607 1 HOSE, 1/4" x 25'

Item Part # Qty Description

26 87815 1 GOGGLES, Safety
27 B3263 1 GUN, High Pressure
28 BB3061B 1 OIL, Engine
29 B3335 1 WAND, Adjustable Nozzle
30 97566 1 TAG, Nozzle Instruction
31 B3057 1 KIT, Maintenance
32 B4319 1 MANUAL, Owners 1330-0
33 B2168 1 WIREFORM
34 B3294 1 MANUAL, Engine Honda
35 B2163 1 KIT, Nozzle Cleaning
36 B2486 1 ADAPTER, Engine
37 42909 3 HHCS, M8 - 1.25 x 30
38 97739 1 PLATE, Pump Mounting
39 30209 4 HHCS, 5/16" - 24 x 1 1/4"
40 B3468B 1 ASSY., PUMP EG Horizontal
41 21424 1 CONNECTOR, Garden Hose
42 A1408 1 CAP, Garden Hose Connector
43 B1880 3 NUT, M8 with Washer
44 48031G 2 CLAMP, Hose 3/16" Band
45 A1040A 1 HOSE, Chemical 42" Clear
46 97100 1 CAP, High Pressure Adapter
47 98300 1 SEAL, Engine Donut
48 B2218 2 O-RING, 1.625" I.D. x .103"
49 NSP 1 ENGINE, Honda 5HP
50 67989 8 NUT, M8 Flange Serr.
51 21761 1 NOZZLE, 1.05 Yellow

Replacement

PART LISTMAIN UNIT

20

Generac Portable Products 2000PSI High Pressure Washer

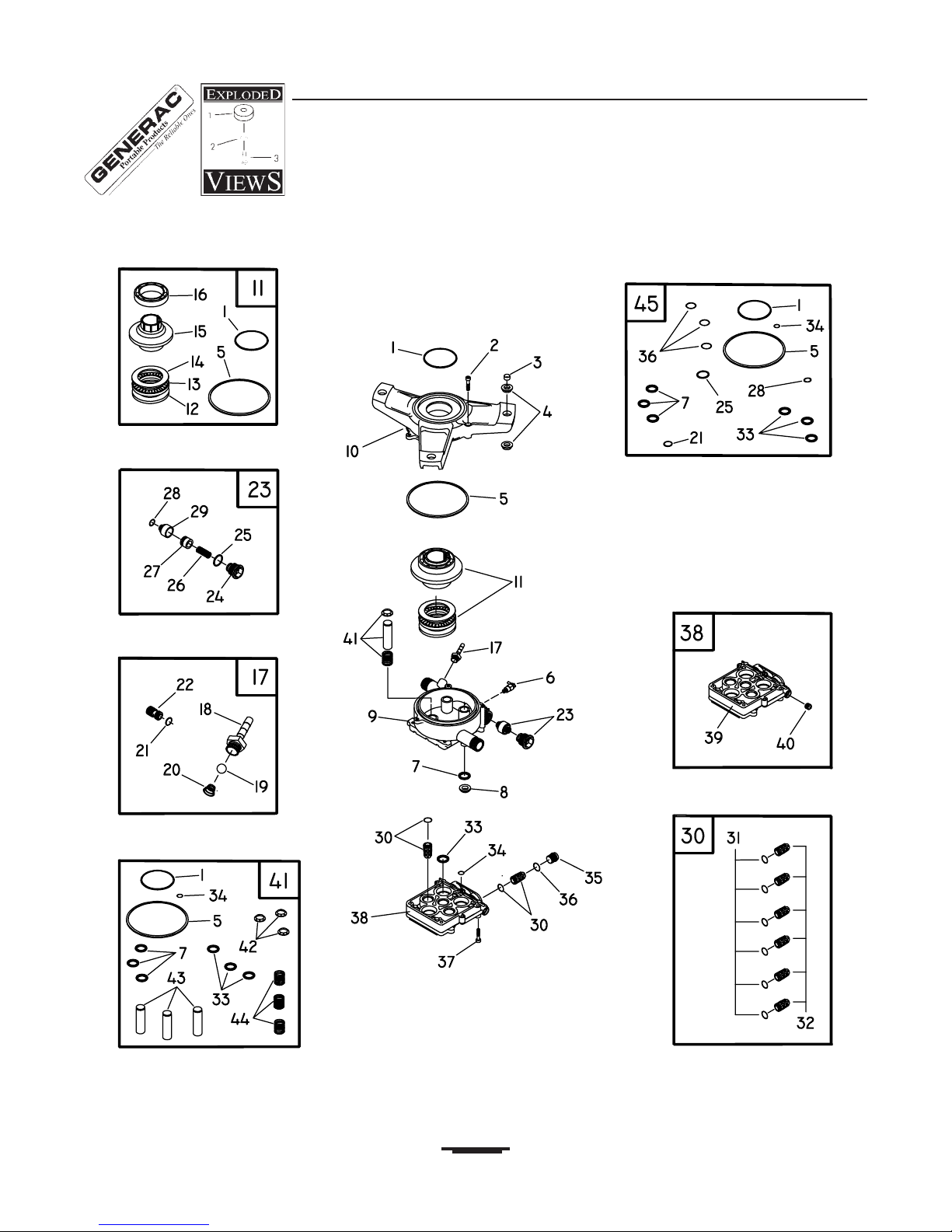

EXPLODED VIEWPUMP

21

Generac Portable Products 2000PSI High Pressure Washer

Item Part # Qty Description

1 98300 1 SEAL, Engine Donut
2 97962 3 SHCS, M6 - 1 x 25
3 96795 3 SLEEVE, Grommet Spacer
4 21429 6 BUSHING, Rubber Mount
5 97835 1 O-RING, Housing Seal
6 B3090 1 THERMAL RELIEF, GPW-EG
7 93680 3 SEAL, Oil Piston 15 TC4
8 97831 3 SPACER, Pilot

9 B2702 1 HOUSING, Piston
10 98227 1 ADAPTER, Engine
11 B4337 0 KIT, AXIAL CAM SERV

12 . . . . . . 1 WASHER, Brg. 36 x 65 x 6Thk

13 . . . . . . 1 ASSY., Brg. Cage 45 x 65

14 . . . . . . 1 WASHER, Brg. 45 x 65 x 1

15 . . . . . . 1 CAM, Axial 5.6 HS

16 . . . . . . 1 BALL BEARING, 35 x 72 x 17

17 B3829 0 KIT, CHEM INJECT

18 . . . . . . 1 FITTING, Chem Inject

19 . . . . . . 1 BALL, Chem Inject

20 . . . . . . 1 SPRING, Chem Inject

21 . . . . . . 1 O-RING, Venturi

22 . . . . . . 1 VENTURI, Chem Inject

23 B3828 0 KIT, UNLOADER

24 . . . . . . 1 CAP, Unloader

25 . . . . . . 1 O-RING, Unloader Cap

26 . . . . . . 1 SPRING, 2000 Unloader

27 . . . . . . 1 PISTON, Unloader

28 . . . . . . 1 O-RING, .364 ID x .070

29 . . . . . . 1 SEAT, 2000 Unloader

Item Part # Qty Description

30 B3513 0 KIT, CHECK VALVES

31 . . . . . . 6 O-RING, Check Valve

32 . . . . . . 6 ASSY., Check Valve

33 B3286 3 SEAL, Double-Lip
34 97837 1 O-RING, Hi-Pressure

Transfer
35 97841 3 CAP, Outlet Check Valve
36 97840 3 O-RING, Outlet CV Cap
37 40946 4 SHCS, M6-1.0 x 35
38 B4186 0 KIT, HEAD CASTING SFG

39 . . . . . . 1 HEAD, Pump

40 . . . . . . 1 PLUG, 1/8-28 W/VIBR

41 B2312 0 KIT, PISTON & SPRING

42 . . . . . . 3 RETAINER, Piston Spring

43 . . . . . . 3 PISTON, Dia. 15 x 65 Lg

44 . . . . . . 3 SPRING, Piston Return

45 B1933 0 KIT, O-RING/SEAL SERV

1 . . . . . . 1 SEAL, Engine Donut

5 . . . . . . 1 O-RING, Housing Seal

7 . . . . . . 3 SEAL, Oil Piston 15 TC4

21 . . . . . . 1 O-RING, Venturi

25 . . . . . . 1 O-RING, Unloader Cap

28 . . . . . . 1 O-RING, .364ID x .070

33 . . . . . . 3 SEAL, Double-Lip

34 . . . . . . 3 O-RING, Outlet CV Cap

PART LISTPUMP

Item numbers 11, 17, 23, 30, 38, 41, and 45 are service kits and include all parts shown within the box. Items
previously described are not listed under the service kit number.

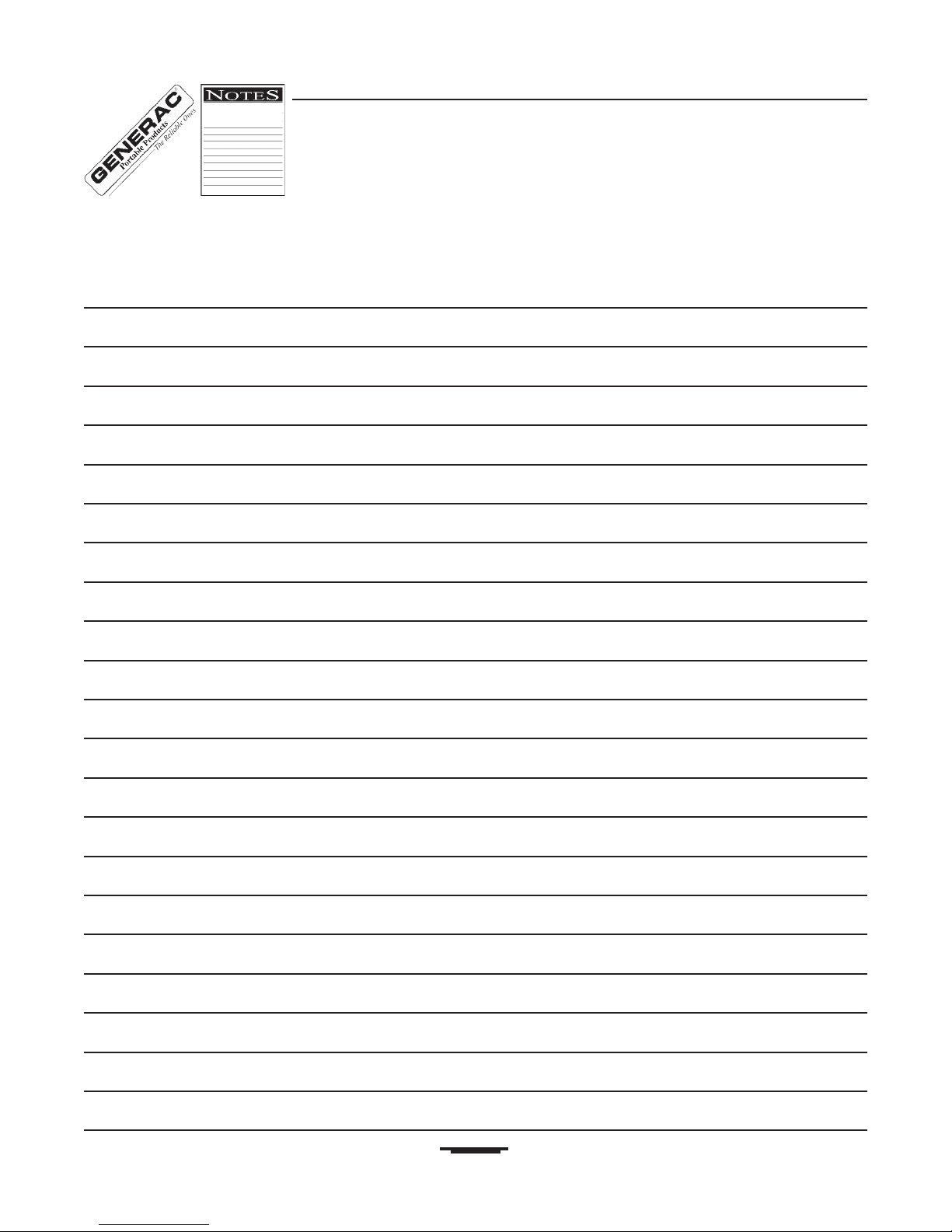

NOTES

22

Generac Portable Products 2000PSI High Pressure Washer

NOTES

23

Generac Portable Products 2000PSI High Pressure Washer

LIMITED PRESSURE WASHER WARRANTY

Generac Portable Products LLC (hereafter referred to as GENERAC LLC) warrants to the original retail purchaser,
the pressure washer manufactured by GENERAC LLC to be free from defects in material and workmanship for
the period(s) set forth below from the date of original purchase. This warranty is not transferable. The term
original purchaser means the person for whom the pressure washer is originally purchased.

Warranty Schedules

Electric Power Washer 1 year (does not apply to commercial or rental applications)

CONSUMER* COMMERCIAL*

All Other Engine-driven Engine: Warranted solely by Warranted solely by

Engine Manufacturer Engine Manufacturer

Pump: 1 year 90 days

* NOTE: For the purpose of this warranty consumer use means personal residential household use by
original purchaser. Commercial Use means all other uses, including rental, construction, commercial
and income producing purposes. Once a pressure washer has experienced commercial use, it shall
thereafter be considered a commercial use pressure washer for the purposes of this warranty.

During said warranty period, GENERAC LLC will, at its option, repair or replace any part which, upon examination
by GENERAC LLC or GENERAC LLC Authorized Dealers, is found to be defective under normal use and
service**. All transportation costs under warranty, including return to the factory if necessary, are to be borne by
the purchaser and prepaid by the purchaser.

** NORMAL WEAR: As with all mechanical devices, pressure washers need periodic parts service and
replacement to perform well. This warranty does not cover repair when normal use has exhausted the life
of a part or pressure washer pump.

This warranty does not include: Used products and demonstration equipment. Parts, such as GUNS, HOSES,

WANDS, NOZZLES or other wear items such as quick couplers, oil, gauges, belts, o-rings, filters, pump packing,
etc. Pumps which have been run without water supplied. Damage or malfunctions resulting from: accidents,
abuse, modifications, alterations, or improper servicing. Freezing or chemical deterioration. Normal maintenance
such as adjustments, fuel system cleaning and obstruction (due to chemical, dirt, carbon or lime, etc.).

THIS WARRANTY IS IN PLACE OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
SPECIFICALLY, GENERAC LLC MAKES NO OTHER WARRANTIES AS TO MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. THE DURATION OF ANY IMPLIED WARRANTIES
WHICH CANNOT BE DISCLAIMED IS LIMITED TO THE TIME PERIOD AS SPECIFIED IN THE
EXPRESS WARRANTY. LIABILITY FOR CONSEQUENTIAL, INCIDENTAL, OR SPECIAL
DAMAGES UNDER ANY AND ALL WARRANTIES IS EXCLUDED, EVEN IF SUCH DAMAGES ARE
A DIRECT RESULT OF GENERAC LLC'S NEGLIGENCE. GENERAC LLC ALSO DISCLAIMS ANY
RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SUCH AS THE LOSS OF
TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE
FAILURE OF THE EQUIPMENT: AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE
DURATION OF THIS WRITTEN

WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights and you may also have other rights, which vary from state to state.

For service, see your nearest GENERAC LLC authorized warranty service facility or call 1-877-544-0982.
Warranty service can be performed only by a GENERAC LLC authorized service facility. This warranty will not
apply to service at any other facility. At the time of requesting warranty service, evidence of original purchase date
must be presented.

Generac Portable Products LLC

Jefferson, Wisconsin U.S. A.
