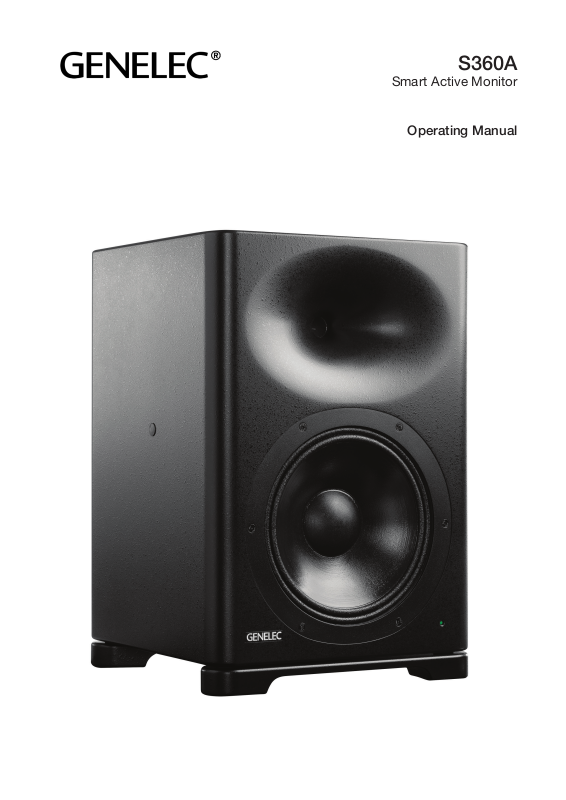

Genelec S360 Users Manual

S360A
Smart Active Monitor
Operating Manual
Introduction
Congratulations and a thank you for the purchase of a Genelec Smart Active Monitor™ (SAM™) system. This manual addresses the stand-alone setup and use of the S360A monitor. SAM monitors can also be set up from a Mac or a PC using the Genelec Loudspeaker Manager GLM™ and the proprietary Genelec monitor control network, offering much more versatile acoustic settings and features. Please find more details in the separate GLM Operating Manual.
Housed in a compact, low diffraction enclosure with premium quality Finnish woodwork, the S360A features a further enhanced 10-inch high efficiency and minimal distortion woofer based on Genelec’s Master Series, and an integrated extended Directivity Control Waveguide DCWTM supporting its 1-inch compression driver. A thirty-two mm (1 ¼ in) thick front baffle and critical bracing minimise panel vibration for pristine sound quality.
integrated reflex ports LIPTM, also making it suitable for use in conjunction with perforated screens. To focus low frequency output while preventing vibration transfer and air turbulence, S360A includes an innovative Iso-PlateTM, which effectively decouples the monitor from its base when standing. Tailor-made S360A mounting brackets for wall, ceiling, stand and truss installation may be acquired separately.
Package content
The package contains
•  one S360A monitor
•  one mains cable, length 1.8 m (6 ft)
•  one 5 m GLM network cable
•  this operating manual
System setup using GLM Control Network
The S360A is a precision monitor with neutral and well-controlled sound characteristics on its acoustical axis, uncoloured off-axis response, and 95-degree (horizontal) to 75-degree (vertical) dispersion for accurate directivity control across the entire audio band. Like other new SAM monitors, it features constant acoustic group delay above the lowest octaves, i.e. linear phase response, without introducing latency incompatible with production requirements.
The S360A’s fusion of high SPL and compact size makes it perfect for demanding film, post and music production, including play-live monitoring. In combination with a subwoofer, the S360A satisfies the demands of premium home theatres, EDM playback or Dolby film mixing even in rooms where the listening distance exceeds 10 metres (33 feet). Due to well-controlled dispersion, S360 may also be used in midfield or even nearfield applications. If doing so, please be sure first to read the Safe listening practice paragraph in this manual.
The S360A provides two pairs of enclosure mounting points, and its integrated system electronics can be placed remotely using the 2U high rack installation kit. Versatile mounting is further supported by downward-firing flow optimised laminar
2
Although S360A can be used without the GLM software and control network, it can only reach its full potential when set up and calibrated using the GLM software. Genelec recommends setting up SAM monitoring systems using the GLM application. Please find a more detailed description of the setup and use in the separate GLM System Operating Manual.
The GLM software can be downloaded at www.genelec.com free of charge. The necessary hardware for creating the control network - GLM Kit (order number 8300-601) - is sold separately at your Genelec dealer. The main components of the kit are the calibrated measuring microphone and the GLM Adapter, which links the computer running the software, measuring microphone and all monitors and subwoofers together.
Genelec Loudspeaker Manager GLM and the proprietary Genelec monitor control network offer automated acoustic equalization, alignment and level calibration for any reproduction system from simple stereo to very complex 3D immersive audio setups including also one or more subwoofers. GLM setup is fast and accurate. Settings can be controlled with a Mac or PC or they can be permanently stored in the monitors to make them available at all times, even when a computer is not connected.
COMPUTER RUNNING GLMSOFTWARE
USB CABLE
GLM ADAPTER
MONITORS
GLM
TERMINATOR
MICROPHONE
PLACED IN
THE LISTENING
POSITION
292-0063
GLM NETWORK CABLE
Figure 1. GLM control network cabling
FUNCTION SWITCHES:
- LED DISABLE
- ISS
MAINS CONNECTOR
TONE CONTROLS
+2
ALLOFF
0
-2
BASS
-4 TILT
BASS ROLL-OFF
DESKTOP
Frequency(Hz)
S360A
MADEIN FINLAND www.genelec.com
4k 20k
800
50/60Hz200 W
TREBLE TILT
MAINSINPUT
100- 240V~
SERIALNUMBER
GLM NETWORK CONNECTORS
-6
dB
20 160
- DIGITALA/B
- LEVEL
-STORED
ON
-4
-2
-6
0
dBu
OFF
+2
+6
+4
A
B
-2
-2
-4-4-4
+2
(dB)dB)
ISS
-10dB
-20dB
SENSITIVITY
RESETTO FACTORY
STORED
INdBu FOR
SETTINGS:PUSH
100dB SPL(1 m)
BUTTONFOR10SEC
DIGITAL
LEDDISABLE
BASSTILT
LEVEL
TREBLETILT
DESKTOP160Hz-4
BASSROLL-OFF
ANALOG
DIGITALTHRU
DIGITALIN
GLM
AES/EBU
AES/EBU
NETWORK
WARNING:ELECTRIC SHOCKHAZARD.DONOTOPEN.DONOTSUBJECTTO
WATEROR MOISTURE.NO USERSERVICEABLEPA RTSINSIDE.REFER SERVICINGTO QUALIFIEDPERSONNEL. USEEARTHEDMAINS CONNECTION ONLY. AVERTISSEMENTRISQUEDECHOC ÉLECTRIQUE.NE PASOUVRIR.NEPAS EXPOSERÀL'EAUOUL'HUMIDITÉ. AUCUNCOMPOSANTÀL'INTÉRIEUR REMPLAÇABLEPARL'UTILISATEUR.ADRESSERTOUTERÉPARATIONÀUN PERSONNELQUALIFIÉ.CETAPPAREILDOITÊTRERACCORDÉÀLATERRE. LAITEONLIITETTÄVÄSUOJAKOSKETTIMILLA VARUSTETTUUNPISTORASIAAN. APPARATETMÅTILKOPLESJORDETSTIKKONTAKT. APPARATENSKALLANSLUTASTILLJORDATUTTAG.
ThisdevicecomplieswithFCCPart15 andCanadian ICES-003radiofrequency ClassBemissionrequirements.Refer tooperating manualforfullinformation.
IN
292-S360AT-6
SENSITIVITY CONTROL
POWER/RESET SWITCH
DIGITAL IN, DIGITAL THRU AND ANALOG IN CONNECTORS
Figure 2. Connectors and local controls on the back panel of a S360A.
The setup is fast and consists of the following steps:
1. Connect a CAT5 (RJ45) or higher category cable between each monitor (and subwoofer) and finally to the control network input of the GLM Adapter device (see Figure 1).
2. Connect the GLM Adapter device to computer USB connector.
3. Using a microphone stand, place the Genelec measurement microphone at the listening location with the microphone pointing upwards and the microphone top at the height of the engineer’s ear. The microphone is a part of the GLM User Kit.
4. Connect the microphone cable to the microphone input in the GLM Adapter device.
Figure 3. Connector panel detail.
5. Download the GLM software at the Genelec web site (www. genelec.com).
6. Install the GLM software and follow the instructions in the software to measure and set up your monitors.
7. If you plan to not use a computer for controlling the monitors, use the GLM software to write the setting into the monitors (use menu item “Group | Store Group Settings”).
GLM calculates the acoustic compensation for the room in a cloud computer. This enables always up-to-date methods and efficient calculation process. The Stored Settings function using the Genelec Loudspeaker Manager software can be used to store calibration settings into the monitors.
Once the GLM network is disconnected, the calibrated stored settings using the Genelec Loudspeaker Manager software can be selected in use by setting the STORED switch to the ON position found on the rear of the monitor.
3
Genelec
consultation
Settings
Measurement data
Test signal
Unique microphone calibration selected by microphone serial number
Figure 4. The GLM Cloud enables the room response compensation.
Monitor Mounting Position
Flat anechoic response
Free standing in a damped room
Free standing in a reverberant room
Near field on a reflective surface
In a corner None -4 dB -4 dB None
Treble
Tilt
None None None None
None -2 dB None None
None -4 dB None None
None -2 dB None -4 dB
Bass
Tilt
Bass
Roll-Off
Desktop
Calibration data
Genelec Cloud
GLM AutoCal
Table 1. Suggested Tone Control settings for some typical moni­tor placement positions.
Interfaces
All connectors on the S360A face down, making cables easy to run into the monitor and enabling mounting close to a wall.
Connect the MAINS INPUT to the mains supply. Any mains voltage globally can be accepted (100-240 VAC, 50-60 Hz) so the monitor can be plugged in anywhere. When the mains power is provided with a generator, inverter or certain lower-quality UPS devices, we recommend filtering of the mains voltage to reduce harmonics and taking care that the voltage supply is stable.
Type RJ-45 connectors for the CONTROL NETWORK are used with Genelec Loudspeaker Manager (GLM) management network. These connectors are not Ethernet LAN compatible. Do not connect to Ethernet LAN.
The ANALOG IN connector accepts balanced analog audio signals. The maximum analogue input level is +25 dBu. The default input sensitivity is set so that for a -6 dBu input level the S360A produces 100 dB SPL sound level at one meter in free space. The analogue input impedance is 10 kOhm, so line level audio sources can drive it.
Figure 5. Symmetrical layout and keeping the acoustic axis clear from obstructions minimizes reflection surfaces and maintains accurate localisation because reflections are symmetrical.
The DIGITAL IN AES/EBU female XLR connector is for AES/ EBU formatted digital audio input signals. This input is selected automatically when a digital audio signal is present, even when the digital audio is silent. The analog input is reselected when the AES/EBU signal input is disconnected. The AES/EBU input supports two channels in a single cable. When the digital source controls the level, it may be advantageous to lower the level setting in the monitor’s controls, which will enable a higher digital level and improved use of the digital resolution. The digital input level is referenced to 0 dBFS (dB relative to the digital full scale, the largest level that can be represented in the AES/EBU signal). The S360A sensitivity is scaled to produce 100 dB SPL sound level at one meter in free space for a digital input signal of –30 dBFS.
The DIGITAL OUT male XLR carries an unaltered copy of the digital input signal. This enables daisy-chaining with digital signal up to four monitors.
4
System monitoring
The S360A supports monitoring of the internal temperature, input levels and levels to the transducers, input clip, and digital audio full scale warning, and activation of the system overload protection. These can be monitored using the GLM Loudspeaker Manager software for all monitors in the monitor group.
Energy saving
Energy saving Intelligent Signal Sensing (ISS) can put the monitor automatically into a deep sleep state where the product consumes less than one watt of power. When the ISS is active you can have your monitoring system ready for action at all times. Upon sensing an input signal the monitor automatically wakes up to full operation.
Safe listening practice
The S360A is a powerful monitor so please observe safe listening habits, and be extra careful if using S360A at short listening distances.
Temporary or permanent hearing damage is caused by sound energy rather than sound power. In other words, a high sound pressure level (SPL) in itself, within reasonable limits, may not be harmful, while even a lower sound pressure, integrated with time, can be. For instance, listening to peaks of around 100 dB SPL generally do not cause damage, while listening at 90 dB SPL integrated over two hours is considered potentially harmful.
Acoustic reflections from objects like desks, cabinets, computer monitors etc. can cause unwanted coloration and blurring of the sound image. Minimise these by placing the monitors away from acoustically reflective surfaces. Putting the monitors on stands behind and above a mixing console usually improves the response over placing monitors on a meter bridge. Symmetrical positioning of the sound reflecting objects maintains a balanced soundstage (see Figure 5).
Setup without using the GLM and Stand-
Alone Control Functions
There are basic aocustic alignment control, input selection and level calibration controls on S360A. When GLM is not available, you can use the settings on the monitor for system setup. These settings are limited but provide the basic acoustical calibrations and input selection. To use this method, set the STORED switch to “OFF”.
Although the S360A can be used without the GLM software and control network, they only reach their full potential when set up and calibrated using the GLM software. Genelec recommends setting up SAM monitoring systems using GLM.
Bass Roll-Off Control
The Bass Roll-Off control attenuates the monitor’s output near the cut-off frequency. Attenuation levels of -2 dB, -4 dB or -6 dB (both switches “ON”) can be selected.
A-weighted sound pressure integrated with time is called “sound exposure” (SE), which is the best predictor of potentially harmful sound. Recent studies have shown how SE previously thought to be harmless actually is capable of generating long-term hearing loss, which may even go unnoticed for years because it does not show in standard clinical tests.
Summarising medical research, safe listening habits for adults include keeping weekly SE below 80 dB(A) for 40 hours, which is equivalent to 83 dB(A) for 20 hours, 86 dB(A) for 10 hours etc., i.e. based on an equal energy principle. Per day, assuming two days per week without significant sound exposure, the daily baseline is 80 dB(A) for 8 hours.
Using GLM, listening level may be calibrated to ensure SPL doesn’t creep up over the course of a day, to make sound exposure more predictable, and to utilise S360A’s power for headroom rather than elevated average listening levels. The latter is especially important when S360A is used in midfield or nearfield applications.
Acoustic considerations
Aim the monitor so that its acoustic axis points towards the listening position (see Figure 5). Vertical orientation is preferable, as this eliminates acoustical cancellation problems around the crossover frequency. Place the monitors symmetrically at equal distances from the listening position. If possible, place the listening position on the left-right centerline of the room (see Figure 5). When a monitor is placed far away (1 to 2.2 m, 3-7 ft) from the acoustically hard wall behind the monitor, an acoustic reflection from the wall may cause cancellation of low frequencies and reduce bass output.
Desktop 160 Hz
The desktop low frequency control (switch 5) attenuates the bass frequencies around 160 Hz by 4 dB. This feature is designed to compensate for the boost often occurring at this frequency range when the monitor is placed upon a meter bridge, table or similar reflective surface.
Bass Tilt
The Bass Tilt control switches (swiches 3 and 4) offer three attenuation levels for the bass response below 800 Hz, usually necessary when the monitors are placed near room boundaries. The attenuation levels are -2 dB, -4 dB and -6 dB (both switches “ON”).
Treble Tilt
The Treble Tilt control allows adjusting the treble response above 2 kHz by +2 dB, -2 dB or -4 dB, which can be used for correcting an excessively bright or dull sounding system or to compensate for high frequency level loss if the monitor is placed behind a screen. The -2 dB setting is selected by turning both switches to “ON.”
LED Disable
This switch shuts off the front panel LED light.
ISS
This switch activates or deactivates the ISS automatic power saving function. The default time for ISS activation is 60 minutes. The waiting time with no input signal before the monitor enters the ISS power save can be configured using the GLM software.
Digital
The Digital switch selects the digital audio channels on the AES/ EBU. Turning both switches on reproduces the sum of the A and B channels. A 6 dB attenuation is applied to avoid overloading
5
Figure 6. Mounting points on the S360A
Mounting
on the top/bottom and left/right side.
Colour Indication
Solid greed
Blinking green
Green blink every 10 sec.
Red blink
Solid red
Yellow
Yellow blinking
Normal state, normal operation
GLM is adjusting the monitor
Monitor is an ISS power saving sleep state
Power amplifier overload protection is active (audio is modified because of protection)
Monitor is muted
Monitor is not in the active (playing) group
Overheat protection is active (audio is modified because of protection)
Table 2. Monitor front panel light indications summary
Figure 7. The S360-450B side-side bracket shown with wire suspen­sion, a truss mount clamp and S360-465B ceiling mount plate.
the monitor. If the AES/EBU cable is operated in dual-wire mode, the monitor detects this automatically and the channel selection switches have no effect.
Level
The Level switches scale down the monitor output level in 10 dB steps. The effects of these switches add up and combine with the effect of the rotary level adjustment control. The combined total setting range is -42 dB.
Stored
T
he Stored switch selects the use of the controls on the monitor’s back panel or the settings stored inside the monitor memory using the GLM system calibration software. Setting the Stored switch to OFF position selects the settings defined by the monitor’s own rear panel controls. Setting the Stored switch to ON position selects the use of internally stored GLM settings. Using the Stored option overrides all adjustments done with the monitor’s own controls.
Front Panel Light
Normally, the light on the front panel is green. Red and yellow colours are used to indicate special situations. See Table 2 for more details.
Figure 8. S360A Iso-Plate™ vibration decoupling platform and the dual downward firing bass reflex ports.
45-75°
Mounting point 2
24-45°
Mounting point 3
point 4
0-24°
Figure 9. Ceiling mount 8000-436 used with S360-424B bracket. Note the use of different mounting points on the bracket for different tilt angles.
Operating Environment
These monitors are designed for indoor use only. The permissible ambient temperature is 15-35 degrees Celsius (50-95°F) and relative humidity 20% to 80% (non-condensing). When the product has been stored or transported in a cool environment and is taken into a warm room, to prevent condensation of humidity wait 0.5-1 hours before opening
6
any packing or before connecting to mains power. Sufficient cooling must be ensured. Behind, above and on both sides of the S360A monitor the minimum clearance is 50 mm (2 in). This space must be ventilated sufficiently to dissipate the heat.
Mounting and Placing Monitors
Mounting
The S360A has mounting points on the top and bottom and on the left and right sides. S360-424B top-bottom and S360-450B side-side mount brackets are available for the S360A. These are used with standard Genelec mounting accessories, offering floor stands, wall mounts, ceiling mounts and truss mounts. All mounting points on the enclosure have M10 (10 mm diameter, metric thread) threads. Correct bolts are included with the mounting brackets. The brackets have several hole pairs to allow finding the correct orientation and load balance. The S360A can be turned to point in the correct direction before the bracket bolts are tightened. The tightening torque for the attachment bolts is 10 - 20 Nm (7.4 -14.8 lb ft).
The S360-424B top-bottom mount bracket is used with the S360-444B wall mount and ceiling mount plate S360-465B. The S360-450B side-side mount bracket is used with the S360­415B floor stand and ceiling/truss mounts.
Figure 10. The S360A amplifier installed in the 9032A rack mount kit.
The Iso-Plate™ is detached before the mounting brackets are used. To do this, remove carefully the four rubber covers on the botton of the Iso-Plate feet. This shows the mounting screws. Use an M6 Allen key to remove the screws and lift off the Iso-Plate. Remove the four vibration dampers bt turning them anti-clockwise. Store the Iso-Plate and other components for later use. Follow the mounting instructions for the S360A mounting brackets to attach them to the enclosure.
Flush mounting
The unique Iso-Plate vibration decoupling platform enables in­wall (flush) mounting. There are two main methods for in-wall installation.
In method one, the amplifier remains on the enclosure when the monitor is inserted into the recess. There must be sufficient ventilation in the recess space behind of the enclosure to control the temperature of the amplifier. The temperature of the adjacent air must not exceed 35 degrees Celsius (
In method two, the amplifier is detached from the enclosure and placed into the 9032A rack mount kit. Then standard Speakon and RJ-45 cables connect the amplifier rack installation kit to the enclosure. The rack mount accessory takes 2U vertical space in the 19 in rack. Sufficient air flow must be ensured to avoid premature limiting of the output level. ELECTRIC SHOCK HAZARD! To ensure electric safety, the removal of the amplifier from the enclosure and its installation to the rack mount chassis may only be done by qualified Genelec service personnel.
95°F.)
Figure 11. The S360-424B top-bottom mount bracket for S360A can be attached to the S360-444B wall mount at different mounting points.
Use with Subwoofers
Genelec recommends using the 7300 series subwoofers, particularly models 7380 and 7382 are a good match with the S360A. The S360A contains a subwoofer crossover highpass filter, which can be set between 50 and 100 Hz in 5 Hz increments. This selection is done in the GLM software and
Figure 12. Left: S360-450B side-side mount bracket used with S360-415B floor stand. Note the removed Iso-Plate. Right: The S360-408B stand plate used with the floor stand, in which case the Iso-Plate remains attached.
7
enables easy integration with the 7300 series subwoofers and
dB SPL
20k
Frequency Hz
Genelec Oy S360 29 Oct 18
80
85
90
BASS ROLL-OFF
TREBLE TILT
BASS TILT
80
85
90
DESKTOP
Genelec Oy S360 26 Oct 18
60°
15°
30°
45°
85
90
95
100
70
75
80
85
90
95
dB SPL
dB SWL
precise room acoustic compensations. For more detailed system configuration and matching products, please consult the on-line Genelec Product Selection Tool, Monitor Setup Guide booklet and Immersive Solutions brochure at www.genelec.com.
Maintenance
There are no user serviceable parts inside the monitor. Maintenance or repair must only be done by a Genelec certified service.
Accessories
Up to date information about Genelec accessories can be found in the Accessories Catalogue which is available on Genelec’s website www.genelec.com.
Safety Considerations and warnings
The S360A has been designed in accordance with international safety standards. To ensure safe operation and to maintain the monitor under safe operating conditions, the following warnings and precautions must be observed:
•  Servicing and adjustment must only be performed by a certified Genelec service. No part of the monitor enclosure may be opened.
•  Do not use this product with a mains outlet or mains power cord without the protective earth contact as this may lead to personal injury.
•  To prevent fire or electric shock, do not expose the unit to water or moisture.
•  Do not place any objects filled with liquid, such as vases, on the monitor or near it.
•  Note that the amplifier is not completely disconnected from the mains power unless the mains power cord is removed from the amplifier or the mains outlet.
•  Free flow of air behind the monitor is necessary to maintain sufficient cooling. Do not obstruct airflow around the monitors.
way in excess of 85 dB SPL and to cause instant, permanent hearing damage. Please do not stand close without hearing protection when the unit is powered.
Guarantee
Genelec S360A is guaranteed for two years against manufacturing faults or defects altering performance. Refer to the reseller for full sales and guarantee terms.
Compliance to FCC Rules
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
•  Reorient or relocate the receiving antenna.
•  Increase the separation between the equipment and
receiver.
•  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
•  Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment under FCC rules.
These monitors are capable of producing sound pressure levels
90
85
80
20
100
50
200
500
Figure 12. The curves above show the effect of the “Bass Tilt”, “Treble Tilt”, “Desktop Low Frequency” and “Bass Roll-Off” controls on the free field response of the S360A.
8
1k 2k
Product Data and Measurements
5k
10k
20
Figure 13. Frequency responses at 0, 15, 30, 45 and 60 degree horizontal angles and power response in full space. Input level -20 dBu.
100
50
200
500
1k 2k
5k
Frequency Hz
20k
10k
Figure 14. The curves above show the horizontal directivity characteristics of the S360A.
Figure 15. The curves above show the vertical directivity characteristics of the S360A.
Figure 16. The curve above shows the group delay of the S360A as a function of frequency.
Figure 18. The maximum short-term SPL of the S360A as a function of distance and the monitoring room reverberation time RT60.
Figure 17. The curve above shows the phase response of the S360A as a function of frequency.
9
199 mm
(7 3/16 in)
227 mm (8 15/16 in)
Acoustic axis
530 mm (20 7/8 in)
330 mm (13 in)
294 mm (11 9/16 in)
SMARTACTIVE MONITOR
+2
ALLOFF
0
-2 BASS
-4 TILT
TREBLE
-6
TILT
DESKTOP
dB
BASS ROLL-OFF
4k 20k
800
20 160
Frequency(Hz)
MAINSINPUT 50/60Hz200W 100-240V~
S360A
MADEINFINLAND www.genelec.com
SERIALNUMBER
ON
-4
-2
-6
0
dBu
OFF
+2
+6
+4
A
B
-2
-2
-4-4-4 +2
(dB)(dB)
ISS
-20dB
-10dB
SENSITIVITY
STORED
INdBuFOR
100dBSPL(1m)
DIGITAL
LEDDISABLE
BASSTILT
LEVEL
TREBLETILT
DESKTOP160Hz-4
BASSROLL-OFF
DIGITALIN
GLM
AES/EBU
AES/EBU
NETWORK
WARNING:ELECTRICSHOCKHAZARD.DONOTOPEN.DONOTSUBJECTTO WATERORMOISTURE.NOUSERSERVICEABLEPARTSINSIDE.REFER SERVICINGTOQUALIFIEDPERSONNEL.USEEARTHED MAINSCONNECTION ONLY. AVERTISSEMENTRISQUEDECHOC ÉLECTRIQUE.NEPASOUVRIR. NEPAS EXPOSERÀL'EAUOUL'HUMIDITÉ.AUCUNCOMPOSANTÀL'INTÉRIEUR REMPLAÇABLEPARL'UTILISATEUR.ADRESSERTOUTERÉPARATIONÀUN PERSONNELQUALIFIÉ.CETAPPAREILDOITÊTRE RACCORDÉÀLATERRE. LAITEONLIITETTÄVÄSUOJAKOSKETTIMILLA VARUSTETTUUNPISTORASIAAN. APPARATETMÅTILKOPLESJORDETSTIKKONTAKT. APPARATENSKALLANSLUTASTILL JORDATUTTAG.
ThisdevicecomplieswithFCCPart15andCanadianICES-003radiofrequency ClassBemissionrequirements.Refertooperatingmanualforfullinformation.
RESETTOFACTORY
SETTINGS:PUSH
BUTTONFOR10SEC
ANALOGINDIGITALTHRU
292-S360AT-6
360 mm (14 3/16 in)
180 mm
(7 1/16 in)
Acoustic axis
170 mm
360 mm (14 3/16 in)
(6 11/16 in)
Figure 20. The dimensions of the S360A and locations of the acoustic axis and mounting points.
GLM
ANALOGUE IN
SUM
DIGITAL AES/EBU IN
DIGITAL AES/EBU THRU
Room
acoustic
EQ
Figure 21. The signal path block diagram of the S360A.
10
ϕ
Phase
EQ
Crossover
filter
Tweeter
EQ
Woofer
EQ
Level and
optional
gain
Overload
protection
Overload
protection
Tweeter
amplifier
Woofer
amplifier
Tweeter
driver
Woofer
driver
SYSTEM SPECIFICATIONS
S360A
Lower cut-off frequency, –6 dB ≤ 36 Hz
Upper cut-off frequency, –6 dB ≥ 22 kHz
Accuracy of frequency response, ± 2.0 dB 39 Hz – 19 kHz
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m
Maximum peak acoustic output per pair in a listening room with music material at 1 m ≥ 128 dB SPL
Self generated noise level in free space at 1 m on axis (A-weighted) ≤ 10 dB
Harmonic distortion at 95 dB SPL at 1 m on axis
Freq: 50…100 Hz 100 Hz...5 kHz > 5 kHz
Drivers
Bass Treble
Weight 30 kg (66 lb)
Dimensions
Height Width Depth
≥ 118 dB SPL
≥ 112 dB SPL
< 1 % < 0.5 % < 1.5 %
250 mm (10 in) cone Compression driver 44 mm (1.7 in) into a 25 mm (1 in) throat
530 mm (207/8 in) 360 mm (143/16 in) 360 mm (143/16 in)
AMPLIFIER SECTION
S360A
Bass amplifier short term output power Treble amplifier short term output power
250 W 100 W
(Long term output power is limited by driver protection circuitry)
Amplifier system THD at nominal output <0.01%
Mains voltage 100-240 VAC 50/60 Hz
Power consumption
ISS active Idle Full output (short term)
< 1 W 11 W 230 W
SIGNAL PROCESSING SECTION
S360A
Analog signal input connector XLR female, balanced 10 kOhm
Maximum analog input signal Analog input sensitivity (100 dB SPL at 1 m) Analog input gain selection
Digital signal input connector XLR female 110 Ohm Digital signal output / Thru connector XLR male 110 Ohm
Digital audio input
Word length
Sample rate Digital input sensitivity (100 dB SPL at 1 m) Digital input gain selection
Control network
Type
Connection
Crossover frequency 1.4 kHz
pin 1 gnd pin 2 non-inverting, pin 3 inverting
+25.0 dBu
-6 dBu 0, +6, +12, +18 dB
AES/EBU Single Wire AES/EBU Single Wire
16 - 24 bits 32 - 192 kHz
-30 dBFS 0, +6, +12, +18 dB
Proprietary GLM™ network 2 RJ45, CAT5 cables
GLMTM software frequency response adjustment*
Parametric notch filters
Shelving filters
16 2 LF and 2 HF
System room response calibration Genelec GLM AutoCal™, GLM manual, Stand-alone*
* The notch and shelving filters adjustments, AutoCalTM and GLM
TM
manual system calibration features are part of the Genelec Loudspeaker Manager (GLMTM) software
11
Genelec Document D0152R001 Copyright Genelec Oy 11.2018. All data subject to change without prior notice.
International enquiries:
Genelec, Olvitie 5
FIN-74100, Iisalmi, Finland
Phone +358 17 83881
Fax +358 17 812 267
Email genelec@genelec.com
In the U.S. please contact:
Genelec, Inc., 7 Tech Circle
Natick, MA 01760, USA
Phone +1 508 652 0900
Fax +1 508 652 0909
Email genelec.usa@genelec.com
In Sweden please contact:
Genelec Sverige
Ellipsvägen 10B
P.O. Box 2306
S-127 02 Skärholmen
Phone +46 8 449 5220
Fax +46 8 708 7071
Email info@genelec.com
www.genelec.com
In China please contact:
Beijing Genelec Audio Co.Ltd
B33 - 101
Universal Business Park
No. 10 Jiuxianqiao Road
Chaoyang District
100015 Beijing, China
Phone +86 (10) 5823 2014, 400 700 1978
Email genelec.china@genelec.com
Loading...
