Genelec RAM2-405 RM2 Installation Manual

RAM2-405 RM2 Rack Mount Kit

1

Installation

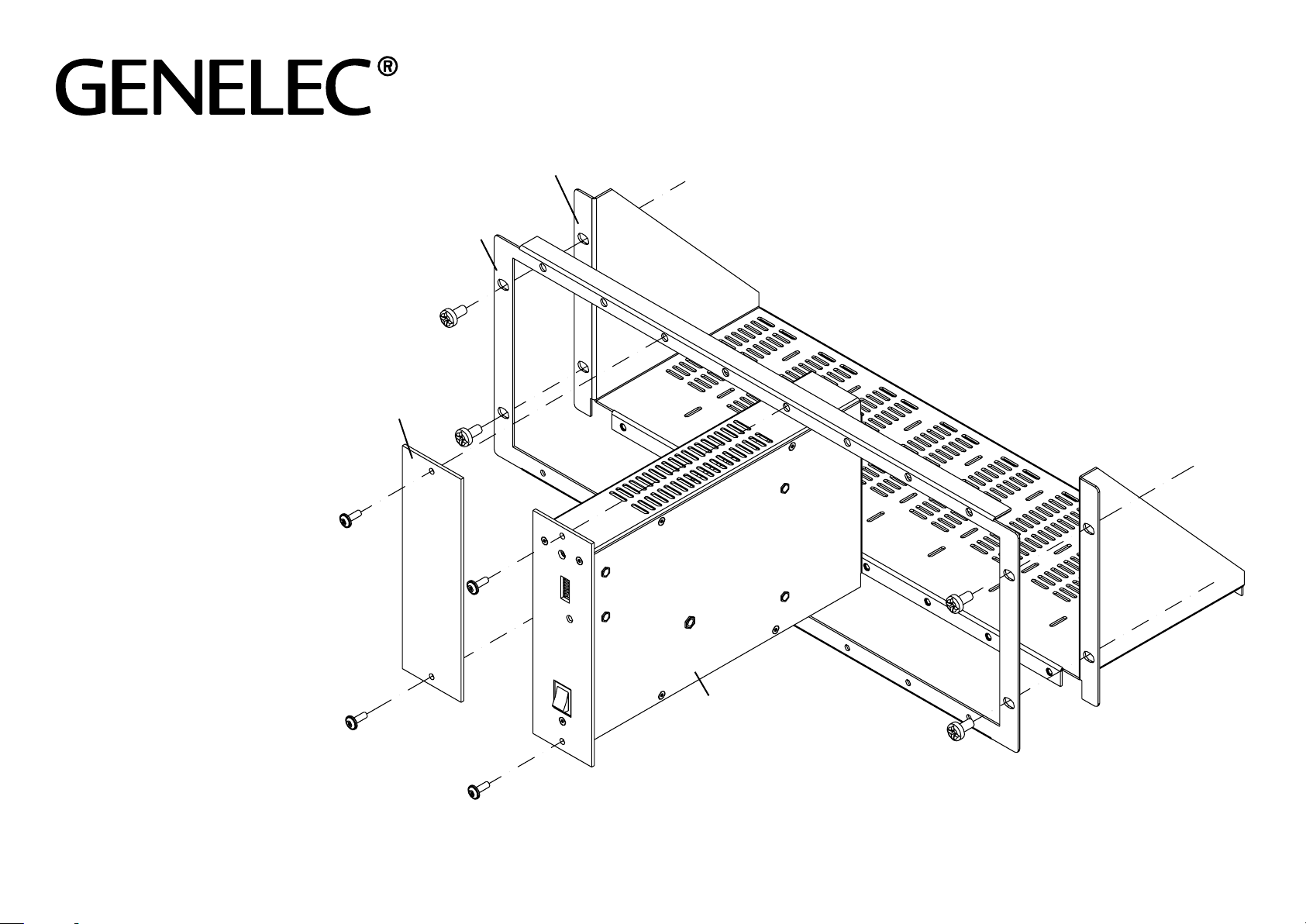

The required space for the RM2 Rack

Mount is 4U in a well ventilated 19” equip-

ment rack.

Attach the rack mount main chassis (1)

and front frame (2) to the rack with suit-

able screws. Leave the screws slightly

loose to allow moving the parts.

Connect the cabling to the RAM2 or

RAM3 amplifier module and attach it to

the rack mount with two M4 screws pro-

vided. The adapter can take up to eight

RAM2 or RAM3 modules. A single blank-

ing plate is included with each RM2 (item

4 in diagram). If needed, additional blank-

ing plates can be purchased (order code

272–0031). Finally, tighten the screws

binding the adapter to the rack. The instal-

lation is now complete.

2

4

Genelec Document D0064R003b Copyright Genelec Oy 12.2008. All data subject to change without prior notice
