Page 1
Owner’s Manual
5226, 5228

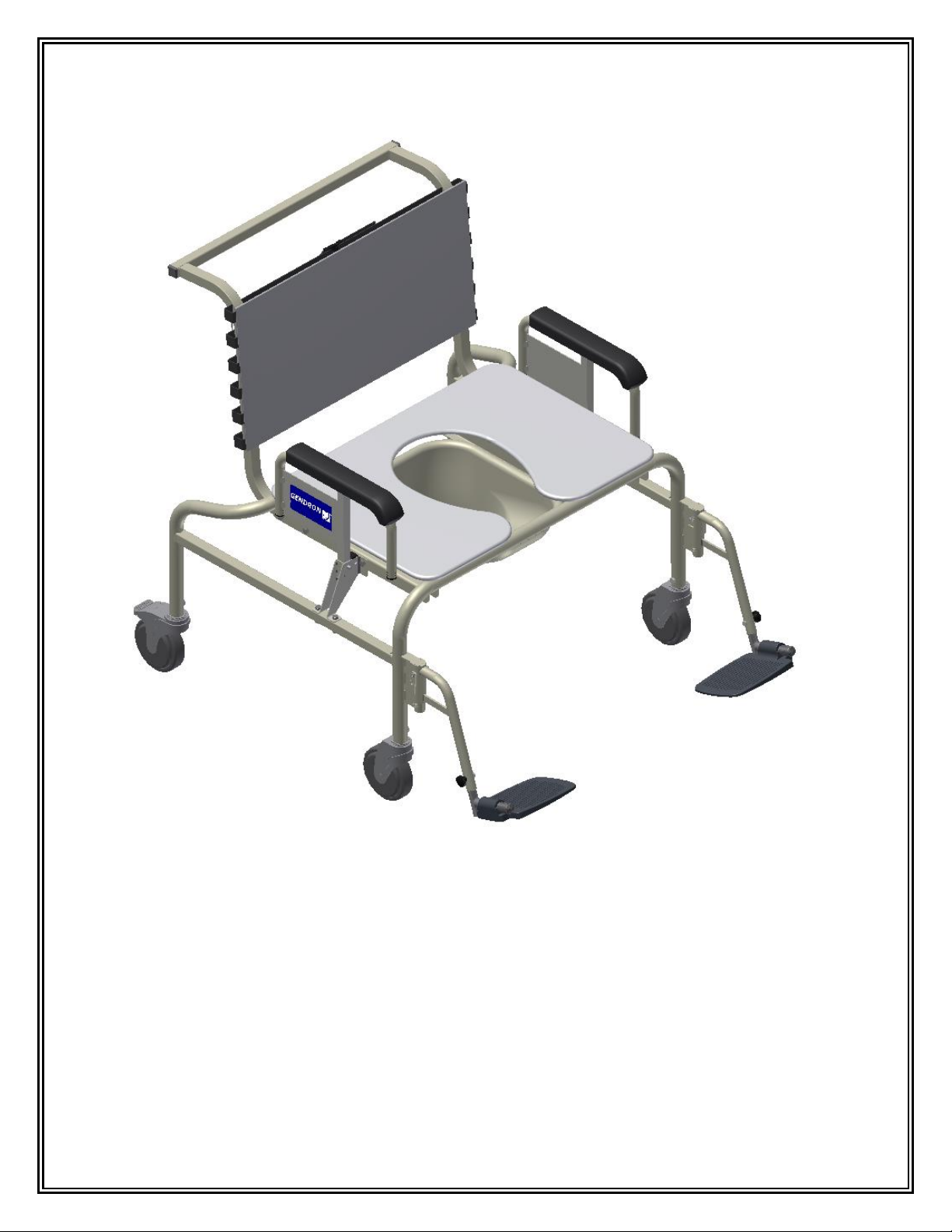

Bariatric Shower/Commode Chair
by GENDRON
BARIATRIC REHAB LEADERSHIP
520 W. Mulberry Street – Suite 100 * Bryan, OH 43506 U.S.A.
800-537-2521 * FAX 419-636-9261
Page 2
Thank you for choosing Gendron!
UNLOCKED
LOCKED
LOCK LEVER
Founded in 1872, Gendron is the oldest manufacturer of wheelchairs in the United States.
Your Shower/Commode chair has been carefully assembled at our plant in Northwest Ohio. With proper care
and maintenance, it will provide many years of reliable service. Before using your chair, please read this
manual thoroughly.
CHAIR MAINTENANCE AND SAFETY INSPECTION
5” Caster Wheel- The wheel design is high strength, high durability, and maintenance-free. Sealed precision
bearing raceway guarantees superior rollability and performance. Periodically examine tires for wear and
debris. Worn tires will make your wheelchair difficult to propel and hold in place. All wheels should be replaced
at the same time to prevent chair from pulling to one side or not locking properly.

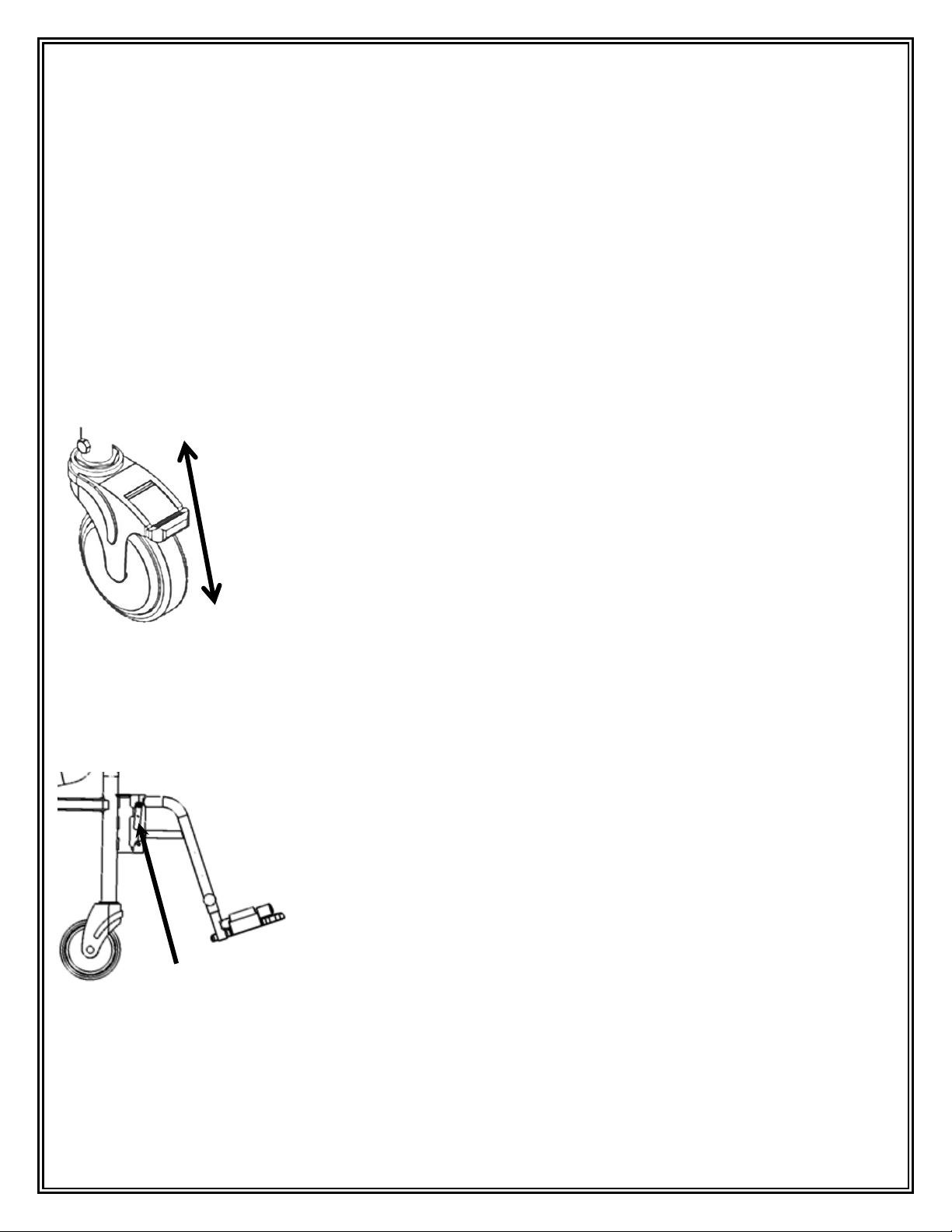

5” Brake Casters – Brake casters do not swivel. A foot pedal brake is built into both
brake casters. To take off caster, unfasten bolt, then pull out caster. When installing
the caster, ensure that the bolt is fastened tightly and the caster is oriented toward the
backrest.
Brakes- To engage the brakes, press foot on each brake pedal until it fully lowers. To
disengage brakes, lightly kick the brake pedal up into its normal resting position.
Occasionally check wheels for wear and debris as those can affect the performance of
the brakes.
5” Swivel Casters - Replace wheels that are loose and casters that flutter. The 5” wheel is secured to the
frame by a cross bolt at the stem of the caster. To take off caster, unfasten bolt, then pull out caster. When
installing the caster, ensure that the bolt is fastened tightly to the frame.
Footrests- To remove footrests rotate lock levers away from footrest and lift
footrest assembly off.
Seat Pad and Backrest Fabric- Only premium grade high density
polyethylene is used on the seats. Replace immediately if material is cracked
or mounting holes are stripped. The adjustable backrest is made with water
repellant Phifertex fabric. Replace immediately if tears in fabric are present.
Cleaning and Polishing- All components may be cleaned with warm water
and a mild detergent. Wipe dry immediately with a soft clean cloth
Page 3
WARNING!
BACKREST ASSEMBLY
BASE FRAME

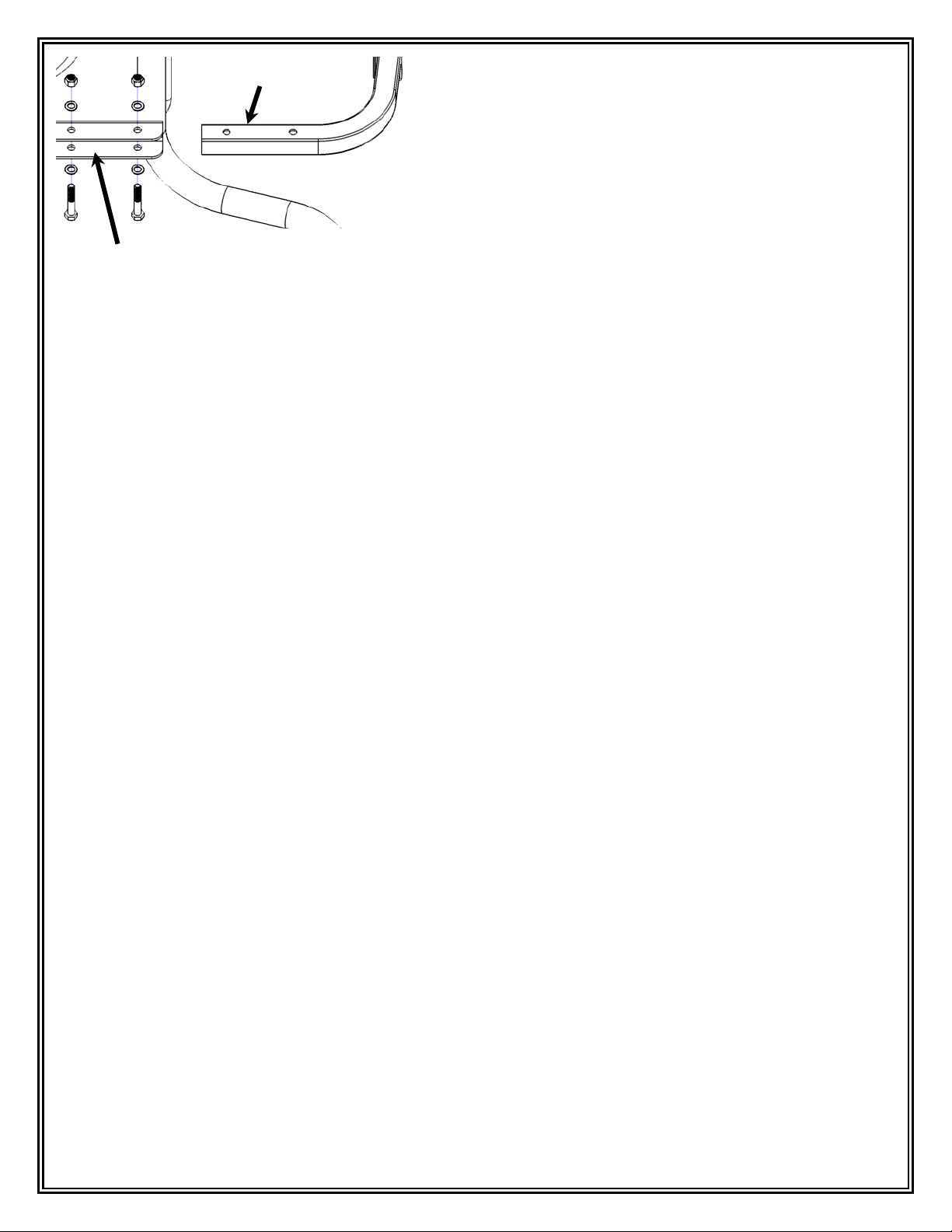

Back Assembly- Insert back assembly into lower frame and
line up the two holes in back assembly with two holes in the
lower frame. Insert bolt with washer through hole and install
nut with washer. Repeat alignment on other side and install the
other two bolts, washers, and nuts. Tighten all bolts and nuts
until snug.
You must heed the following warnings. Read all instructions before using the shower commode chair.
Failure to observe these safety warnings may result in personal injury or mechanical failure.
Maximum weight capacity for the chair is 750 Lbs. Do not exceed the weight limit of the chair.
Never lift the shower commode chair while it is occupied.
Do not tilt the chair back when occupied.
Do not lift the chair by any removable parts including armrests and footrests. Lifting the chair by these parts,
even if the chair is not occupied, may cause personal injury or damage to the chair.
Only use the backrest with all straps properly latched. Failure to do so could cause serious injury.
Do not move forward in seat to reach for objects. Do not pick objects up from the floor by reaching down
between your knees.
Do not stand on footrests. When entering or exiting the chair, always fold up the footrests.
Always be sure the brakes are locked when entering or exiting the chair.
Be sure armrests are locked in position.
Chair can safely go over a 1 ¾” shower threshold.
Do not attempt to go up or down steps.
Do not ride over curbs or obstacles.
Do not use the chair outdoors.
Do not park the chair on an incline.
Do not use the chair on a slope grade steeper than 10%. (A 10% slope grade means one foot in elevation
for every ten feet of slope length.)
Wipe the shower chair dry immediately after use.
Page 4
Page 5
DESCRIPTION DESCRIPTION
FRAME ASSEMBLY FOOTREST ASSEMBLY
Complete Footrest Assy, Left or Right 20622
1 FRAME, CHAIR, SS 1 26800
5 ASSY, H/O BKT. & EXT. TUBE 2 SX1400-2
FOOT LOCKING PLATE ASSSEMBLY 6 ASSY, SWIVEL TUBE 2 FC1555-4
17 SCREW,HHC 1/4-20 X 1-1/4" SS 2 P372-4
7 ASSY, LOCK PLATE & PIN, SS 2 SX1024-2 24 WASHER, LOCK 1/4" SS 2 P757-4
15 SCREW,PPH 10-24 X 1-1/2" SS 2 P315-4 28 KNOB, ADJ.. 2 P151-1
21 NUT, LOCK #10-24 SS 2 P545-4 29 FOOTPLATE, ALUM. 2 P945
23 WASHER, FLAT #10 SS 6 P630-4 31 SPRING, FOOTPLATE 2 FC69-1
32 CAP, END 2 P577
ARMREST SOCKET ASSEMBLY
ARMREST ASSEMBLY
2 WLMT, ARM SOCKET, SS 2 26801 Complete Amrest Assy. 20623-2
18 SCREW, HHC 5/16-18 X 1-1/2" SS 4 P383-4
19 SCREW, HHC 5/16-18 X 1-3/4" SS 4 P384-4 4 WLMT, S/C ARMREST, ALUM 2 C1078-29BW
22 NUT, LOCK 1/4-20 SS 4 P547-4 11 ARMREST, MOLDED 2 P1120
27 TUBE, SPACER 4 26519 16 SCREW, PRHM 1/4-20 X 1-1/4" SS 4 P307-4
33 CAP, END, 7/8" SQ 2 P155 30 BUTTON, SNAP SS 2 P858-4
34 CAP, END, 7/8" OD, 14-23GA 4 P161
FRONT CASTOR ASSY.
SEAT
12 CASTER, 5", SWIVEL W/O BRAKES 2 21454-8
20 SCREW, HHC M8 X 1.25 X 16mm 2 P20043-1 9 SEAT, S/C 1
25 WASHER, LOCK, SS, 5/16" ID 4 P759-4 26" WIDTH 20627-13
28" WIDTH 20627-14
REAR CASTER ASSY. 14 SCREW, PPH #10-32 X 1-1/2" SS 8 20669-1
23 WASHER, FLAT, #10 SS 4 P630-4
13 CASTER, 5", RIGID STEM W/ BRAKES 2 21454-7
20 SCREW, HHC M8 X 1.25 X 16mm 2 P20043-1 BACK
25 WASHER, LOCK, SS, 5/16" ID 4 P759-4
3 WLMT, BACK FRAME, SS 1 26806
8 BACK, ADJUSTABLE, S/C 1 26802
19 SCREW, HHC 5/16-18 X 1-3/4" SS 4 P384-4
22 NUT, LOCK 1/4-20 SS 4 P547-4
26 WASHER, FLAT, 5/16" ID SS 8 P741-4
35 CAP, 1" SQ - 14-20GA 2 P152
MISCELLANEOUS
10 PAN,COMMODE W/ LID 1 20626
Doc No. PL-5228 8/8/2019

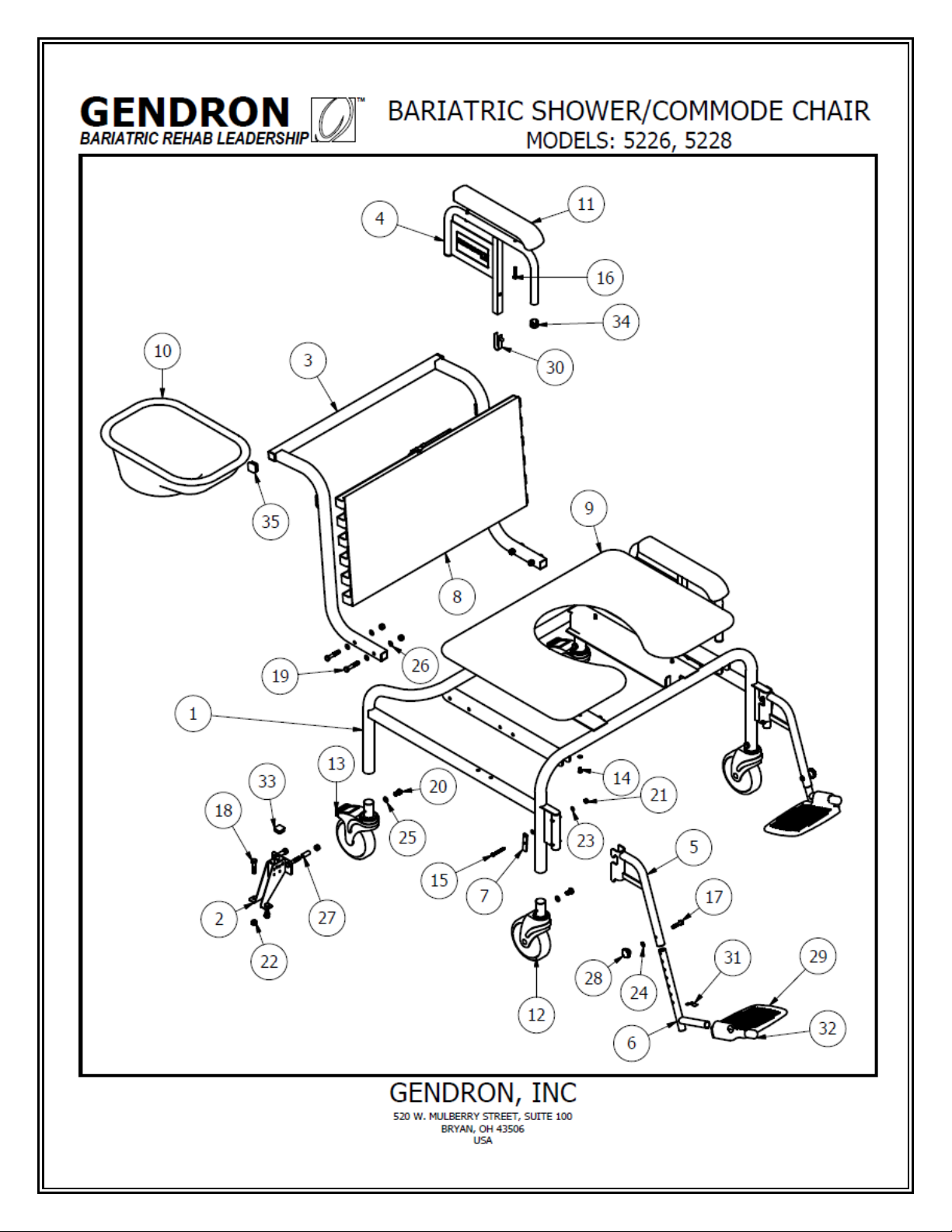

PARTS LIST SHOWER/COMMODE CHAIR
SERVICE SHEET
MODEL: 5226, 5228
REF
NO.
QTY
REQ'D
PART
NUMBER
REF
NO.
QTY
REQ'D
PART
NUMBER
Page 6
Model No………………………………..
Serial No………………………………..
Date of purchase……………………….
BUILT, INSPECTED & PACKED BY: …………………………. DATE BUILT: .………….
LIMITED WARRANTY
This limited warranty is extended to the original purchaser/user and cannot be transferred.
The Shower/Commode Chair frame is warranted for 2 years against defects in material and
workmanship. All other components are warranted for 1 year against defects in material and
workmanship.
Defective parts will be repaired or replaced by the company or its appointed agent. The warranty
does not cover damage caused by misuse or negligence, nor does it cover defects or damages by
use of unauthorized parts or service by an unauthorized person.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.
Do not return merchandise without prior authorization. All correspondence relating to this warranty
must indicate Model number and Serial number and be addressed to:
GENDRON, INC.
520 W. Mulberry Street – Suite 100
Bryan, Ohio 43506
NOTICE
FREIGHT DAMAGE -The carrier who delivers merchandise to your door is responsible for loss and damages.
Acceptance of the shipment by you is acknowledgment that all articles delivered were in good condition and
properly packed. Therefore, all claims for loss or damage must be filed immediately with the freight carrier.
Then notify us. We will mark our records accordingly. After settling claim, damaged merchandise will be picked
up by the freight carrier and returned. Should you need assistance with the claim, call our customer service at
800-537-2521.
RETURN GOODS - Within 60 days from date of purchase returns will be subject to a handling and re-stocking
charge plus any additional costs resulting from damage or use. After 60 days from date of purchase: Gendron
Inc. reserves the right to not accept return goods for any reason. If accepted, the amount of credit will be at the
discretion of Gendron Inc. Returned merchandise without prior authorization will not be accepted.
5200-5225 Shower Chair User Manual 28609 Rev. 0
