GBBLE01-NRF5201 is a powerful, multiprotocol,
ultra low power Bluetooth Low Energy (BLE)
module using Nordic nRF52832 SoC. With an ARM
Cortex TM M4F MCU, 512KB flash, 64KB RAM,
embedded 2.4GHz multi-protocol transceiver, and
an integrated chip antenna. It provide a comple
solution with no extral RF design, allows faster
time to market with reduced development cost.
Overview and Features
Based on Nordic Semiconductor’s nRF52832 BLE SoC;
Complete RF solution with integrated antenna;
Multi-Protocol 2.4GHz Radio;
32-bit ARM Cortex M4F processor;
Serial Wire Debug (SWD);
Over-the-Air (OTA) firmware update;
Flash/RAM: 512KB/64KB:
11 General purpose I/O pins:
12 bit/200KSPS ADC;
SPI Master/Slave (8Mbps);
Low power comparator;
Two 2-wire Master/Slave (I 2 C compatible);
I2S audio interface;
UART (with CTS/RTS and DMA);
20 channel CPU independent Programmable Peripheral Interconnect (PPI);
Quadrature Demodulator (QDEC);
128-bit AES HW encryption;
5 x 32 bits, 3 x 24 bits Real Time Counters (RTC);
Internal RC Oscillator 32.768kHz;
Receiver Sensitivity: -96 dBm;
TX power: +/- 0dBm; programmable +4dBm to -20dBm in 4 dB steps;
Sizes: 16.5*15.3*2.7mm;
Integrated chip antenna;
Operation voltage: 1.7V to 3.6V;
Operation temperature: -40°C to +85°C;
Application:
IoT Connected Devices, Appliances;
Bluetooth Low Energy Sensors;
Genbyte Technology Inc. Confidential Page 2 of 7
Page 3
Genbyte TechnologyInc. GBBLE01-NRF5201 BLE Module
Wearable;
Beacons/Proximity;
Lighting products;
Home Automation and Control;
Toys and Gaming;
9 GND Power Ground
10 VDD Power Supply
11 P0.26 I/O
12 P0.27 I/O
13 P0.28 ADC IN
14 P0.29 ADC IN
15 P0.30 ADC IN
GPIO Electrical Specification:
The module has up to 32 GPIOs available. All GPIOs can be mapped to a module,
facilitating design and enabling changes after the hardware has been configured. Each
GPIO is configurable with the following features:
Input/output direction
Output drive strength
Internal pull-up and pull-down resistors
Wake-up from high or low level triggers on all pins
Trigger interrupt on all pins
All pins can be used by the PPI task/event system; the maximum number of
pins that can be interfaced through the PPI at the same time is limited by the
number of GPIOTE channels
All pins can be individually configured to carry serial interface or quadrature
demodulator signals
HW debug and flash programming of Module :
The module support the two pin Serial Wire Debug (SWD) interface and offers
flexible and powerful mechanism for non-intrusive debugging of program code.
Breakpoints, single stepping, and instruction trace capture of code execution flow are
part of this support.
Pin Flash Program interface
SWDIO Debug and flash programming I/O
SWCLK Debug and flash programming I/O
Signal Description Note
Genbyte Technology Inc. Confidential Page 4 of 7
Page 5
Genbyte TechnologyInc. GBBLE01-NRF5201 BLE Module
Recommended Operating Conditions:
Parameter Symbol Min Typical Max Unit
Operating Supply Voltage VCC 1.7 3.0 3.6 V
Operating Temperature Range Top -40 25 85 ℃
Radio Specifications:
ParameterMINTYPMAXUNITS
Frequency Range 2402 - 2480 MHz
Channel Spacing - 2 - MHz
Output Power -20 - +1.50 dBm
Receiver Sensitivity - BLE -96 dBm
Data Rate 250kbps, 1Mbps, 2Mbps -
Absolute Maximum Ratings:
Parameter Min Max Unit
Supply Voltage -0.3 3.9 V
Storage Temperature Range -40 125 ℃
RF Signal Input Level - 10 dBm
VI/O, VDD ≤ 3.6 V -0.3 VDD + 0.3V V
VI/O, VDD > 3.6 V -0.3 3.9 V

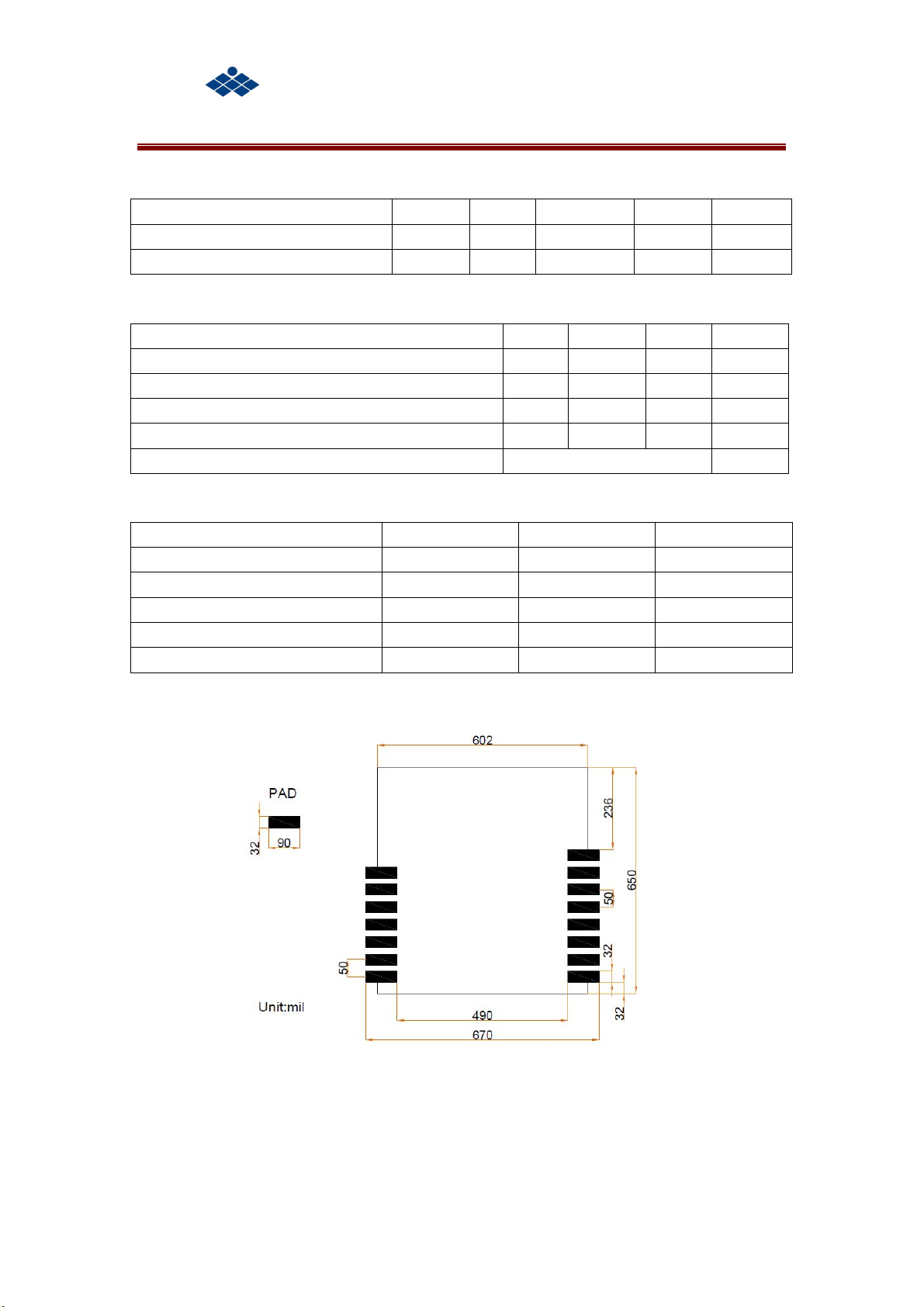

Recommended PCB Land Pattern:
Genbyte Technology Inc. Confidential Page 5 of 7
Page 6
Genbyte Technology Inc.
For more information:
Manufacturer: Genbyte Technology Inc.
ADD: NO.4 Building, Huahong Xintong Industrial Park, Guangming New-district,
Shenzhen, China
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment .This equipment should be installed and operated with
minimum distance 20cm between the radiator& your body.
GBBLE01-NRF5201 BLE Module
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.aaannnaaannnttteeennnnnnaaa ooorrr tttrrraaannnsssmmmiiitttttteeerrr... ttteeennnnnnaaaooorrrtttrrraaannnsssmmmiiitttttteeerrr...
This module is intended for OEM integrator. The OEM integrator is still responsible for
the FCC compliance requirement of the end product, which integrates this module.
The final end product must be labeled in a visible area with the following “Contains
FCC ID: 2AMRBGBBLE01-NRF52” and the frequency can’t be changed by end users.
Genbyte Technology Inc. Confidential Page 6 of 7
Page 7
Genbyte TechnologyInc. GBBLE01-NRF5201 BLE Module
Important notice :
●Genbyte Technology Inc. reserve the right to make corrections, enhancements,
improvements and other changes to its products.
●Buyer acknowledges and agrees that it is solely responsible for compliance with all
legal, regulatory and safety-related requirements concerning its products.
●Reserves the right to correct, modify, and/or improve products and/or specifications
without notice.
ATTENTION !
Electrostatic Sensitive Device
Observe Precaution for handing.
Reversion History
Rev Issued by Checked by Approved by
V1.0 Li Zhang Leon Jiaxiang Zeng
Genbyte Technology Inc. Confidential Page 7 of 7
