Genaray SSL-36B User Manual

SSL-36B

36 IN. SOFT STRIP BI-COLOR LED

USER MANUAL

THANK YOU FOR CHOOSING GENARAY

The Genaray SSL-36B is a strip LED with a unique form factor that provides

even illumination along its entire 36-inch length. In the studio, it’s perfect for

lighting full-length portraits, and it excels as a hair or accent light for group

SSL-36B

INTRODUCTION

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

2

shots. The bright LED array has an integrated diffuser for a soft wraparound,

single-shadow beam. The xture is constructed with full-length barndoors

that can cut the beam to a very narrow strip, which gives precise control over

light and shadow on subjects or backgrounds.

The SSL-36B runs on AC or battery power. Power output is controlled by

a digital control box that adjusts output level in 1% increments for precise

brightness control. Passive, fanless cooling means this light won't create fan

noise that can disrupt a video shoot.

PRECAUTIONS

· Please read and follow these
instructions, and keep this manual in
a safe place.

· Keep this unit away from water and

any ammable gases or liquids.

· Make sure the unit is powered off
when plugging it into a power source.

· Use only the correct, recommended
voltage.

· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Genaray will
not be responsible for any damage.

· Handle the unit with care.

· Do not stare directly at the lights
when they are powered on.

· Clean the unit with only a soft, dry
cloth.

· Keep this unit away from children.

· Use only parts provided by the
manufacturer.

· Make sure the item is intact and that
there are no missing parts.

· All images are for illustrative
purposes only.

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

PRECAUTIONS

3

AC power
cable

AC adapter

PRODUCT
OVERVIEW

V-mount strap

FRONT BACK

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

4

Two-way 5/8 in.
receiver

Carrying case

3-pin XLR cable

Ratchet handle

Lollipop
mount

Locking knob

Mounting
pins

Power input cableBarndoorsMounting plateDiffuser

Channel indicator

Channel selector

Color temperature
indicator

Color temperature up/down
controls

Dimmer control box

Hanger
loop

D-tap
power
socket

Antenna

Power output cable

Battery power indicator

Brightness indicator

Brightness up/down controls

V-mount battery slot

Antenna

Battery contacts

port

Battery
release
button

3-way power
switch

3-pin XLR input

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

PRODUCT OVERVIEW

5

ALSO INCLUDED MOUNTING THE

SSL-36B

· Light xture

· Dimmer control box with V-mount

· AC adapter

· Power cable

· Lollipop mount

INSTRUCTIONS

· V-mount strap

· Antenna

· Carry case

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

6

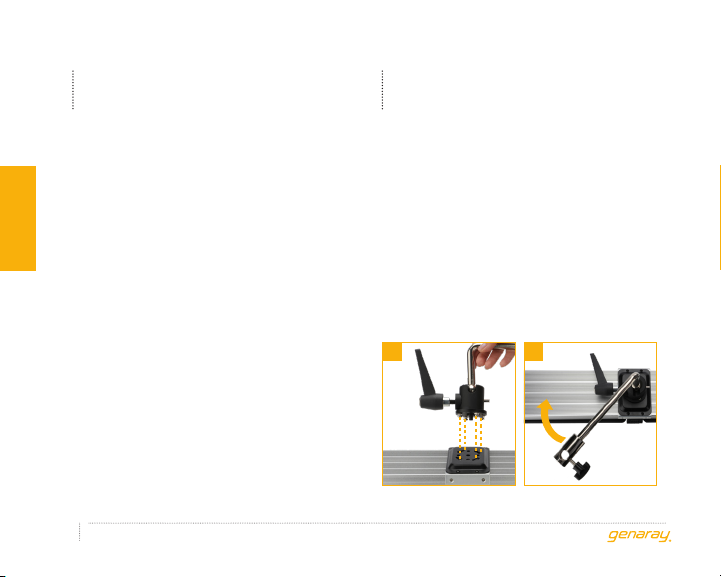

Attaching the Lollipop Mount

1. Close the barndoors, and place the light

facedown on a at surface.

2. Align the lollipop mount with the
mounting plate, and insert the pins into
the mounting plate holes.

3. Make sure the lollipop mount is ush with
the mounting plate, and rotate the lollipop
mount a quarter-turn clockwise until it
clicks into place.

2 3

Attaching the Lollipop Mount
(continued)

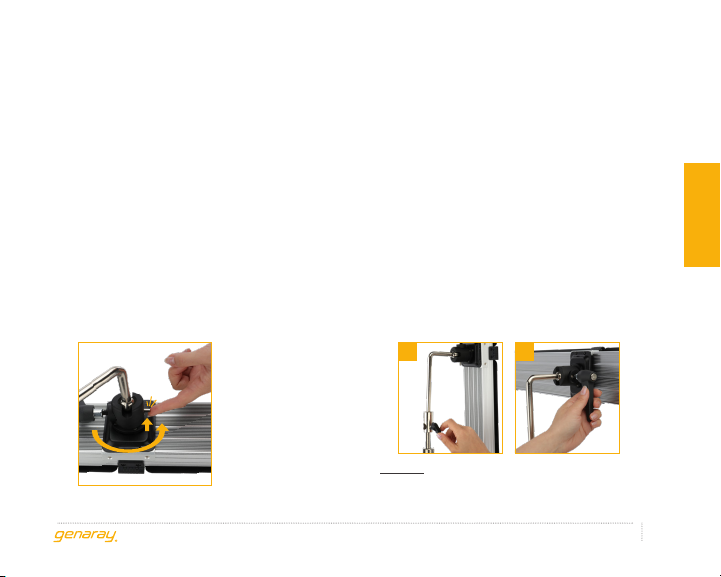

To remove the lollipop mount, press up on
the release button, turn the lollipop mount a
quarter turn counterclockwise, and lift it off
the mounting plate.

Mounting the SSL-36B to a Light Stand

1. Make sure the ratchet handle is tightened

before mounting the SSL-36B.

2. Loosen the locking knob, and place the

5/8-inch receiver on a light stand.

3. Tighten the locking knob until secure.

4. Loosen the ratchet handle to adjust the

light’s tilt and swivel. Once the light is
aimed, retighten the ratchet handle, and

make sure the xture is secure.

3 4

Pro Tip: To prevent the light stand from tipping

over, place a counterweight like a sandbag
over one or two legs of your light stand.

INSTRUCTOONS

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

7

POWERING THE
SSL-36B

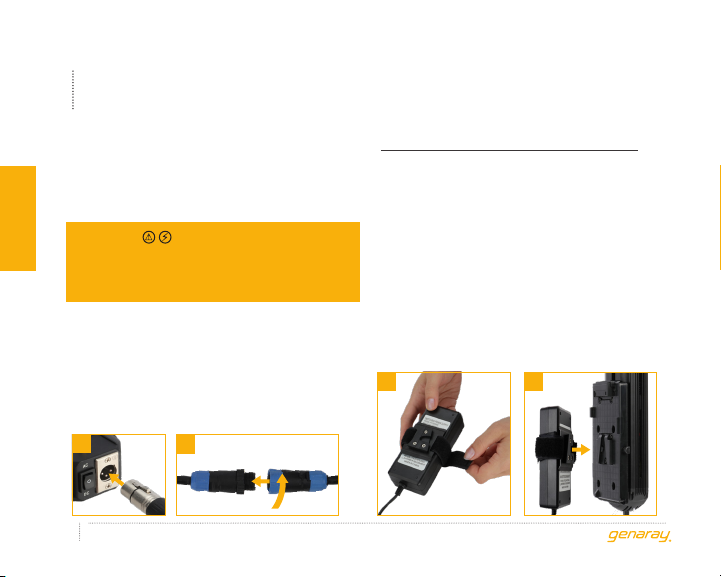

Using the SSL-36B with AC power

1. Connect the AC power adapter to the control
box with the locking 3-pin XLR connector,
and plug the power cable into an outlet.

Important!

INSTRUCTIONS

The connectors should easily attach. Don’t
use force to connect the control box to the

light xture.

2. Align the notches of the power input cable
and power output cable’s two connectors,
and press them together. Then tighten the
locking collar until secure.

3. Push the 3-way power switch to the AC
position.

1

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

8

2

To Secure the AC Adapter to the Control Box:

1. Wrap the touch-connect strap securely
around the AC adapter.

2. Insert the V-mount adapter into the
V-mount slot of the control box until it
clicks into place.

3. Once the AC adapter is secured to the
control box, use the hanger loop to hang
the control box on a hook or on your light
stand.

21

POWERING THE SSL-36B

(CONTINUED)

Using the SSL-36B with Battery Power

1. When attaching a V-mount battery,
make sure the power switch is in
the off position, and disconnect the
AC adapter so the control box is not
plugged into a wall outlet.

2. Align the battery terminals with the
contacts in the battery mount.

3. Place the battery into the mount, and
push the battery toward the contacts
until it clicks into place.

4. Push the 3-way power switch to the DC
position.

To connect gold-mount batteries to the control
box, use a D-tap power cable (not included).

ADJUSTING THE
LIGHT

INSTRUCTOONS

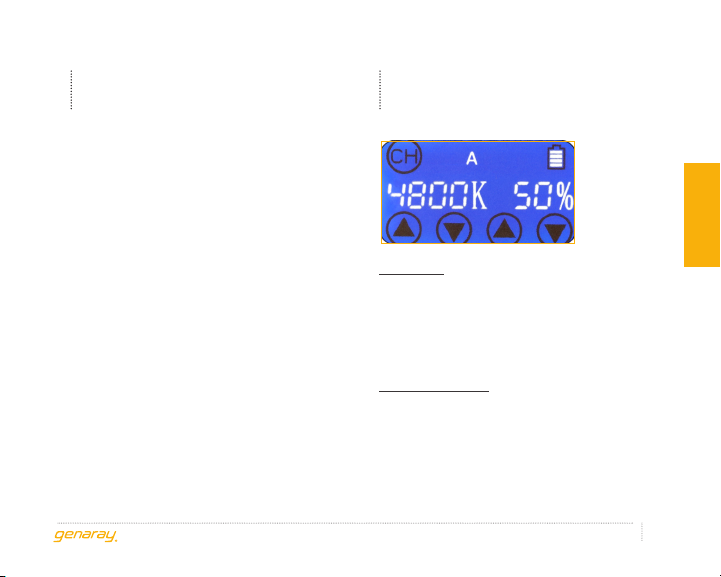

Brightness

The brightness control on the control box
can adjust the output from 1% to 100% In 1%
increments. Tap the up and down buttons to
adjust the brightness in 1% increments. Touch
and hold the buttons to rapidly adjust.

Color Temperature

The SSL-36B has a color temperature range
of 3000 to 5600 K.

Tap the color temperature up and down
buttons to change the color temperature in
50 K increments. Touch and hold the buttons
to rapidly adjust.

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

9

ADJUSTING THE LIGHT

(CONTINUED)

WIRELESS OPERATION

Barndoors

Adjust the barndoor to aim or shape the
beam and contain light spill.

Important! Do not operate the light

while the barndoors are closed.

INSTRUCTIONS

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

10

The SSL-36B’s control box has an integrated
transmitter and receiver with four channels.

The Genaray SSL-RC remote (sold separately)
can control multiple SSL-series lights. Refer to
the Genaray SSL-RC user manual for setup and
operation instructions.

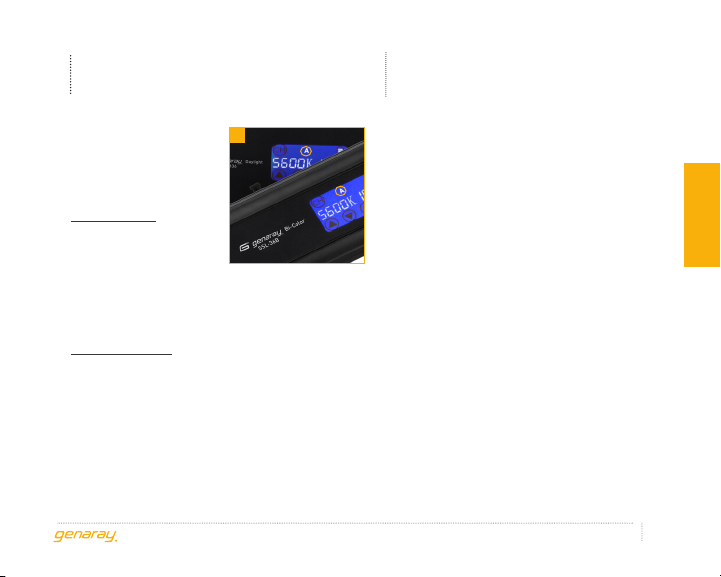

To remotely control Genaray SSL series digitally
controlled lights from your SSL-36B’s control
box, follow these steps:

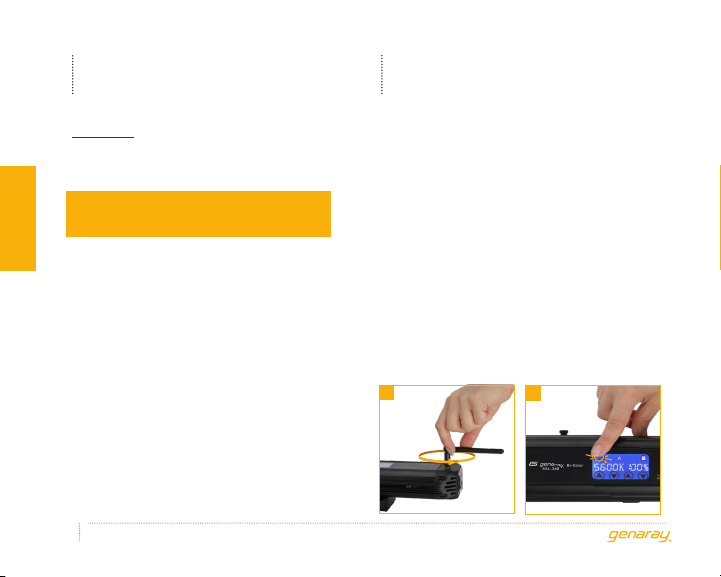

1. Screw the antenna into the antenna port on
each control box.

2. Select the channel for each light by
repeatedly tapping the channel button.

1

2

WIRELESS OPERATION

(CONTINUED)

USING THE SSL-RC
REMOTE

3. Make sure the control
boxes are set to the
same channel.

3

Mutual Control (multiple

lights set to the same
channel):

Any control box will set
the brightness level for all the lights.
It will also control the color temperature of
all SSL-series bi-color lights.

Individual Control (multiple lights set to

different channels):

Use the brightness and color temperature
control on one box to adjust the brightness
and color temperature of lights set to each
channel.

Genaray lights that are equipped with
SSL-RC remote capability can be
controlled individually or globally with
the SSL-RC remote (sold separately).

Refer to the user manual that comes
with the SSL-RC remote for instructions.

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

INSTRUCTIONS

11

SPECIFICATIONS

PRODUCT
SPECIFICATIONS

Light Fixture

LED Chip Type: SMD

LED Count: 512

Beam Angle: 110°

Color Temperature: 3000 to 5600 K in 50 K

increments

CRI: 93.9 (5600 K), 92.3 (4400 K), 95.6 (3200 K)

TLCI: 97 (5600 K), 97 (4400 K), 98 (3200 K)

Dimming: 0% to 100% in 1% increments

Display: LCD

Housing Material: Metal

Light Intensity @ 3 ft.: 1300 lx (5600 K),

1311 lx (4400 K), 1210K (3200 K)

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

12

Expected Lamp Life: 50,000 hr.

Dimensions (H × W × D)

37.6 × 4.2 × 1.9 in. (95.5 × 10.7 × 4.8 cm)

Weight with Lollipop Adapter: 7.6 lb. (3.4 kg)

Connectors Power

Battery Plate: V-mount

Power Input Connector: 3-pin XLR

Mounting

Fixture Mount: 5/8 in. receiver

AC Input Power: 100 to 240 V AC, 50/60 Hz

DC Input Power: 15 V, 5 A

Power Source: AC adapter, 3-pin XLR, 14.8 V

V-mount battery

Max Power Consumption: 56 W

Power Pass-Through: No

Remote Operation

Remote Control Type: 2.4 GHz

Number of Channels: 4

Wireless Range : 100 ft. (30 m)

SPECIFICATIONS

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

13

FCC DISCLAIMER

This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,
including interference that may cause undesired

DISCLAIMER

operation.

Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:

SSL-36B 36 in. Soft Strip Bi-color LED - USER MANUAL

14

· Reorient or relocate the receiving antenna.

· Increase the separation between the equipment
and receiver.

· Connect the equipment to an outlet on a circuit
different from that to which the receiver is
connected.

· Consult the dealer or an experienced radio/TV
technician for help.

Important: Changes or modications to this product

not authorized by Gradus Group could void the
electromagnetic compatibility (EMC) and wireless
compliance and negate your authority to operate
the product. This product has demonstrated EMC
compliance under conditions that included the use
of compliant peripheral devices and shielded cables
between system components. It is important that you
use compliant peripheral devices and shielded cables
between system components to reduce the possibility
of causing interference to radios, televisions, and other
electronic devices.

ONE-YEAR LIMITED WARRANTY

This Genaray product is warranted to the original purchaser to be free from defects in materials and
workmanship under normal consumer use for a period of one (1) year from the original purchase date
or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect
to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of
any product that fails during normal use of this product in its intended manner and in its intended
environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product
has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality
and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse,
improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER
ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This

warranty provides you with specic legal rights, and you may also have additional rights that vary

from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return
merchandise authorization (“RMA”) number, and return the defective product to Genaray along with
the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own
risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at
[email protected].

© 2019 Genaray. All Rights Reserved.

WARRANTY

GG1
