Page 1
SSL-36
36 IN. SOFT STRIP LED
USER MANUAL
Page 2
SSL-36
INTRODUCTION
SSL-36 USER MANUAL
2
The Genaray SSL-36 is a daylight-balance strip LED that provides
even illumination along its entire 36-inch length. In the studio, it’s
perfect for lighting full-length portraits, and it excels as a hair or
accent light for group shots. The bright 256-bulb LED array has an
integrated diffuser for a soft wraparound beam that eliminates the
multiple shadows of most LED lights. The SSL-36 is constructed with
full-length barndoors that can cut the beam to a very narrow strip,
which gives precise control over light and shadow on subjects or
backgrounds.
The SSL-36 runs on AC or battery power. It has a color temperature
of 5600 K and a 95 CRI rating, which delivers excellent color accuracy.
Its power output is controlled by a stepless dimmer knob that ranges
from 100% to 10% brightness. Passive cooling eliminates the need
for a fan, so there’s no fan noise that can disrupt a video shoot. A
lollipop mount is included for precise and easy positioning in
any orientation.
Page 3
PRECAUTIONS
· Please read and follow these
instructions, and keep this manual in
a safe place.
· Keep this unit away from water and
any flammable gases or liquids.
· Make sure the unit is powered off
when plugging it into a power source.
· Use only the correct, recommended
voltage.
· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Genaray will
not be responsible for any damage.
· Handle the unit with care.
· Do not stare directly at the lights
when they are powered on.
· Clean the unit with only a soft, dry
cloth.
· Keep this unit away from children.
· Use only parts provided by the
manufacturer.
· Make sure the item is intact and that
there are no missing parts.
· All images are for illustrative
purposes only.
SSL-36 USER MANUAL
PRECAUTIONS
3
Page 4
AC adapter
PRODUCT
OVERVIEW
SSL-36 USER MANUAL
4
Carrying case
Ratchet handle
Lollipop
Release
lever
3-pin XLR cable
5/8 in. mounting
receiver
Locking knob
AC power
cable
FRONT BACK
Mounting plate BarndoorsDiffuser
Mounting
studs
Page 5

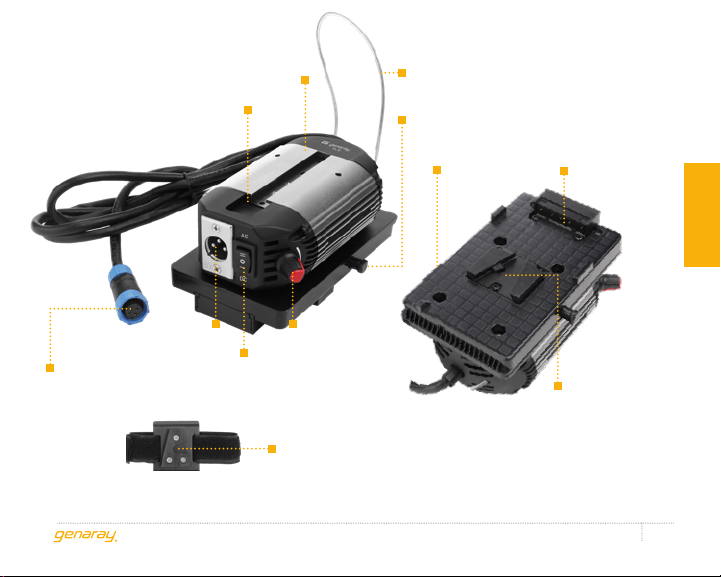

Dimmer control box
Mounting-shoe
slot
Hanger loop
Battery
release button
D-tap power
socket
Battery
contacts
PRODUCT OVERVIEW
Power output
cable
3-pin XLR
input
Brightness
control
3-way power
switch
V-mount adapter with
touch-connect strap
V-mount
battery slot
SSL-36 USER MANUAL
5
Page 6
MOUNTING THE
SSL-36

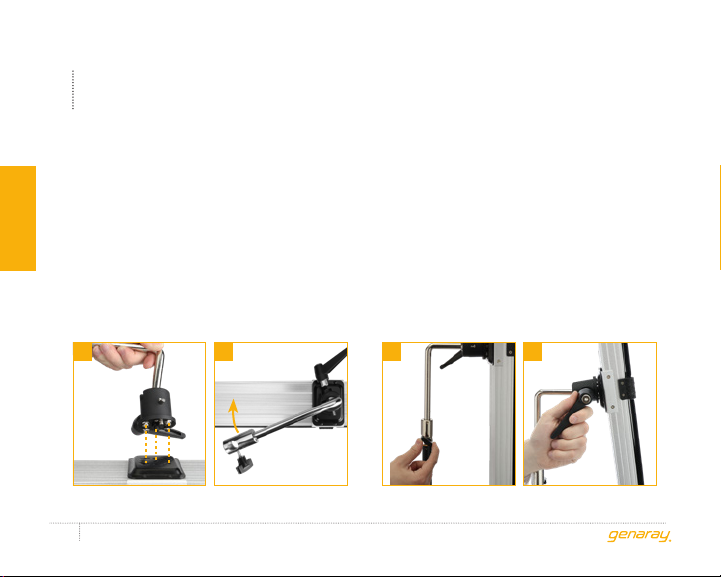

Attaching the Lollipop Mount
1. Close the barndoors, and place the light
facedown on a flat surface.
2. Align the lollipop mount with the mounting
plate, and insert the studs into the
INSTRUCTIONS
mounting plate holes.
3. Make sure the lollipop mount is flush with
the mounting plate, and rotate the lollipop
mount a quarter-turn clockwise until it
clicks into place.
Mounting the SSL-36 to a Light Stand
1. Make sure the ratchet handle is tightened
before mounting the SSL-36.
2. Loosen the locking knob, and place the
5/8-inch receiver on a light stand.
3. Tighten the locking knob until secure.
4. Loosen the ratchet handle to adjust the
light’s tilt and swivel. Once the light is
aimed, retighten the ratchet handle, and
make sure the fixture is secure.
2 33 4
SSL-36 USER MANUAL
6
Page 7
POWERING THE
SSL-36
Using the SSL-36 with AC power
Important! The SSL-36 is a multivoltage fixture
capable of running on 100 to 240 V, 50/60 Hz.
The included cable has a 120 V, 50 Hz (North
American) plug. To use this fixture with other
voltages, you must use a plug adapter (sold
separately).

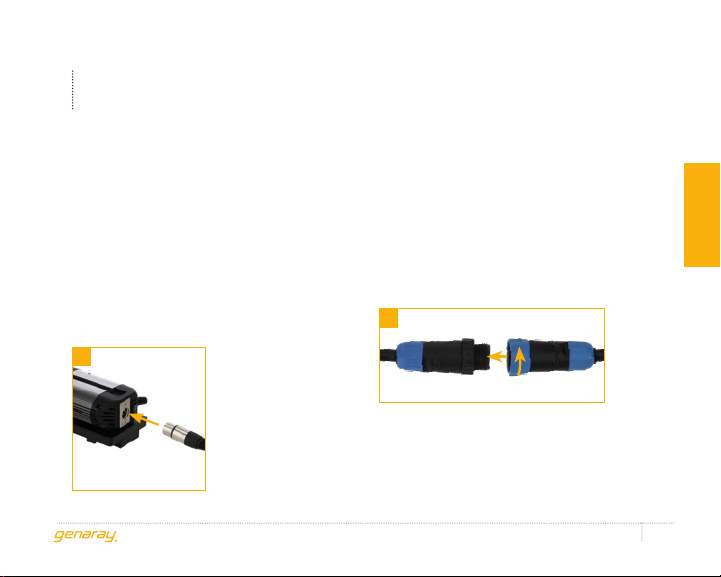

1. Connect the AC power adapter to the
control box with the 3-pin XLR cable, and
plug the power cable into an outlet.
1
2. To connect the power output cable to the
SSL-36’s 4-pin connector, align the two
connectors, and press them together.
Then tighten the locking collar until
secure.
Important! The connectors should easily
attach. Don’t use force to connect the control
box to the light fixture.
2
SSL-36 USER MANUAL
INSTRUCTOONS
7
Page 8
POWERING THE SSL-36
(CONTINUED)

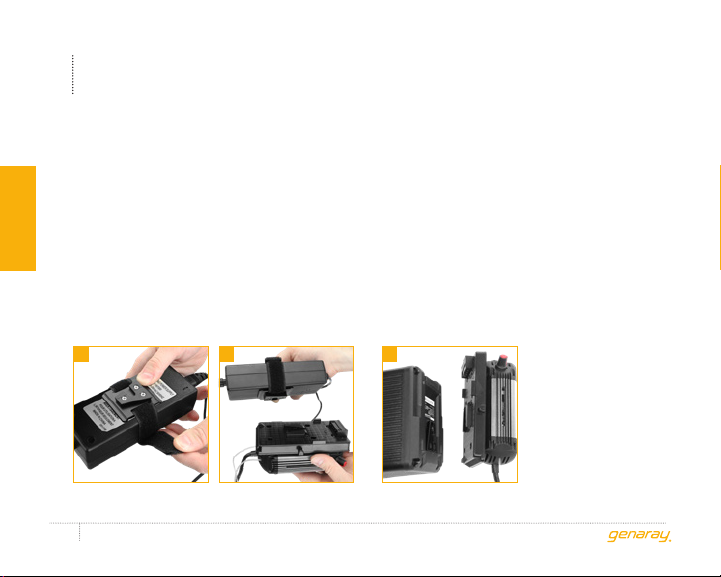

To move the AC adapter safely out of
the way:
1. Wrap the touch-connect strap securely
around the AC adapter.
2. Insert the V-mount adapter into the
INSTRUCTIONS
V-mount slot of the control box until it
clicks into place.
3. Once the AC adapter is secured to the
control box, use the hanger loop to hang
the control box on a hook or on your
light stand.
1 2 2
SSL-36 USER MANUAL
8
Using the SSL-36 with Battery Power
1. When attaching a V-mount battery, make
sure the power switch is in the off position,
and disconnect the AC adapter so the
control box is not plugged into a wall
outlet.
2. Align the battery terminals with the
contacts in the battery mount.
1
Page 9
POWERING THE SSL-36
(CONTINUED)
ADJUSTING
THE LIGHT
3. Place the battery down into the mount,
and push the battery toward the contacts
until it clicks into place.
To connect gold-mount batteries to the control
box, use a D-tap power cable (not included).

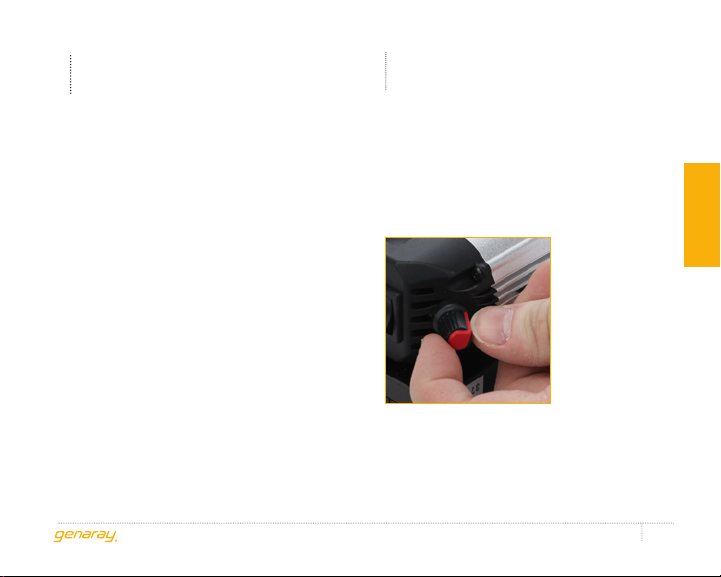

The brightness control on the control box can
adjust the output from 100% to 10%.
Adjust the barndoor flaps to aim or shape the
beam and contain light spill.
SSL-36 USER MANUAL
INSTRUCTIONS
9
Page 10
PRODUCT
SPECIFICATIONS
SPECIFICATIONS
LED Count: 256
Color Temperature: 5600 K
Dimming: 100% to 10%
Luminance: 977 lx @ 1 m
Coverage: 68°
CRI: 95
TLCI: 98.3
Electrical Consumption: 56 W
AC Operating Voltage: 100 to 240 V, 50/60 Hz
DC Operating Voltage: 15 V, 5 A
Bulb Life: 50,000 hr.
Battery: V-mount
SSL-36 USER MANUAL
10
Material: Metal chassis and barndoors
Power Cord Length:
AC cord: 102 in. (2.6 m)
AC adapter cord: 44 in. (111.8 cm)
Adapter DC cord: 36 in. (91.4 cm)
DC cord: 36 in. (91.4 cm)
Weight :
Light: 6.4 lb. (2.9 kg)
Control box: 1.2 lb. (527 g)
AC adapter: 0.9 lb. (443 g)
Carry bag: 1.3 lb. (590 g)
Dimensions (H × W × D)
Light: 37.5 × 2.4 × 4.5 in. (95.25 × 6 × 11.4 cm)
Control box: 2.7 × 3.5 × 5.6 in. (6.8 × 9 × 14.2 cm)
AC adapter: 1.5 × 2.9 × 5.9 in. (3.8 × 7.4 × 15 cm)
Carry bag: 39.4 × 5.1 × 4.7 in. (100 × 13 × 12 cm)
Page 11
ONE-YEAR LIMITED WARRANTY
This GENARAY product is warranted to the original purchaser to be free from defects in materials and
workmanship under normal consumer use for a period of one (1) year from the original purchase date
or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect
to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of
any product that fails during normal use of this product in its intended manner and in its intended
environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product
has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality
and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse,
improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER
ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This
warranty provides you with specific legal rights, and you may also have additional rights that vary
from state to state.
To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return
merchandise authorization (“RMA”) number, and return the defective product to Genaray along with
the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own
risk and expense.
For more information, or to arrange service, visit www.genaray.com or contact us at
[email protected].
© 2018 Genaray All Rights Reserved.
Other product and corporate names mentioned herein are trademarks of their respective holders.
WARRANTY
SSL-36 USER MANUAL
11
