Page 1
SP-S-BPS / SP-S-BPAB
BATTERY PLATE
for SpectroLED Studio 1000 / 500
USER MANUAL
Battery Plates for SpectroLED Studio Lights - USER MANUAL
1
Page 2
The Genaray Battery Plates allow you to use either a Sony
V-Lock or Anton/Bauer Gold battery to power a Genaray
INTRODUCTION
SpectroLED Studio Light. The battery plates are easy to
install, include a D-tap power cord, and offer quick-release
functionality. Mounting hardware is included.
• SP-S-BPS allows the use of a Sony V-Lock battery
• SP-S-BPAB allows the use of an Anton/Bauer Gold
• Easy installation
• Quick-release battery mounting
• D-tap power connector
• Mounting hardware included
Battery Plates for SpectroLED Studio Lights - USER MANUAL
2
with a Genaray Studio Light
battery with a Genaray Studio Light
Page 3
PRECAUTIONS
· Please read and follow these
instructions, and keep this manual in
a safe place.
· Keep this unit away from water and
any flammable gases or liquids.
· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Genaray will
not be responsible for any damage.
· Handle the unit with care.
· Clean the unit with a soft dry cloth.
· Keep this unit away from children.
· Use only parts provided by the
manufacturer.
· Make sure the item is intact and that
there are no missing parts.
· All photos are for illustrative
purposes only.
Battery Plates for SpectroLED Studio Lights - USER MANUAL
Precautions
3
Page 4
MOUNTING THE
BATTERY PLATES
· All Genaray Studio lights can be
operated using the Sony V-Lock
or Anton/Bauer Gold battery. To
use either battery, you will need to
instructions
mount the correct battery plate to
the back of the Studio light.
· Each battery plate uses our screws
in order to secure the plate to the
back of the light. The holes for the
screws are configured in a different
pattern for each battery plate;
therefore, there are eight mounting
holes on the back of the light,
only four of which you will use for
mounting your specific battery plate.
Battery Plates for SpectroLED Studio Lights - USER MANUAL
4
· If there are screws in any of the eight
mounting holes on your light (inside
the yellow box), remove them first.
Be sure not to remove any of the
surrounding structural screws.
· Make certain that the power switch
on the light is in the Off position. Place
the battery plate on the mounting
holes and screw the mounting screws
into the light. Each battery can only be
mounted using the correct holes on
the light; if all four screws cannot be
screwed in, the plate is in the wrong
position.
Page 5

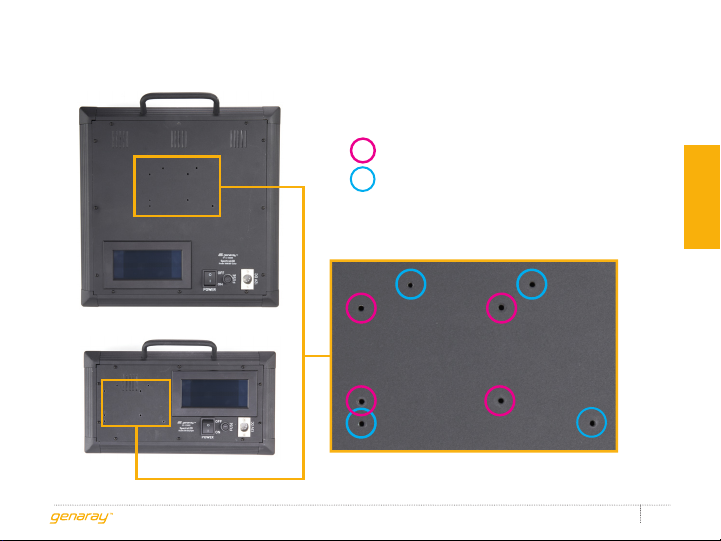

SP-S-1000B/D
SP-S-5000B/D
Sony V-Lock battery plate
Anton/Bauer Gold battery plate
instructions
Battery Plates for SpectroLED Studio Lights - USER MANUAL
5
Page 6
MOUNTING THE
BATTERY PLATES (CONT.)
· The Sony V-Lock battery plate
will have the battery release lever
oriented toward the bottom of the
Studio light. The Anton/Bauer Gold
instructions
battery plate will have the battery
release button oriented toward the
top of the light.
· After the battery plate is securely
attached to the light, plug the D-tap
connector into the battery plate–the
two-pin connector has a rounded
top, so it can only be plugged into
the battery plate in the correct
orientation. Then, plug the other end
of the D-tap cable into the power
socket on the light by aligning the
Battery Plates for SpectroLED Studio Lights - USER MANUAL
6
four pins on the light with the four
holes on the D-tap cable. Push the
cable connector in until it clicks into
place. To remove the connector,
press the release button on the top
and pull the connector straight out.
· Once the battery plate is attached
to the light, mount the battery to the
battery plate. Then, push the power
switch to the On position to power
the light. To remove the battery, be
sure that the power switch is in the
Off position, then press the battery
release to eject the battery.
Page 7
PRODUCT
SPECIFICATIONS
BOX
CONTENTS
SP-S-BPS (Sony V-Lock)
Weight: 4.8 oz. (136 g)
Dimensions: (H×W×L) 5.62 × 3.19 × 0.86˝
(143 × 81 × 22 mm)
SP-S-BPAB (Anton/Bauer Gold)
Weight: 2 oz. (57 g)
Dimensions: (H×W×L) 4.72 × 3.0 × 0.55˝
(120 × 76 × 14 mm)
· SP-S-BPS or SP-S-BPAB
Battery Plate
· D-tap power cord
· Mounting Hardware
· One-Year Limited Warranty
Battery Plates for SpectroLED Studio Lights - USER MANUAL
sPecifications
7
Page 8
ONE-YEAR LIMITED WARRANTY
Genaray provides a limited warranty to the original purchaser that this product is free from
defects in materials and workmanshipunder normal consumer use for a period of one
(1) year from the original purchase date or thirty (30) days after replacement, whichever
occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited
solely to repair or replacement, at Genaray’s discretion, of any product that fails during
normal consumer use. Inoperability of the product or part(s) shall be determined by
Genaray. If the product has been discontinued, we reserve the right to replace it with a
model of equivalent quality and function.To obtain warranty coverage, contact Genaray
to obtain a return merchandise authorization (“RMA”) number, and return the defective
product to Genaray, along with the RMA number and proof of purchase. Shipment of the
defective product is at the purchaser’s own risk. This warranty does not cover damage
or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or
maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS
WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
This warranty provides you with specific legal rights, and you may also have additional
rights that vary from state to state. Product and corporate names mentioned herein are
trademarks of their respective holders.
www.genaray.com
Battery Plates for SpectroLED Studio Lights - USER MANUAL
8
© Copyright 2013 Genaray
