SpectroLED
SP-LR
USER MANUAL
Page 2
SpectroLED
INTRODUCTION
SpectroLED - USER MANUAL
2
Thank you for choosing the Genaray SpectroLED SP-LR.
This device’s unique shape provides the user with a stylized
light source, perfect for highlight and accent lighting. The
SP-LR is designed to emit a particularly soft light with
gradual falloff from the sides and a sharper falloff from the
top and bottom.
The 516-LED SP-LR offers two color temperature modes.
The 5600°K daylight mode produces a soft, natural color
tone on subjects, while the 3200°K tungsten mode emits a
warmer color tone. These two modes, combined with the
built-in light diffusion tube, create multiple stylized lighting
settings for various photo and video scenes.
LED lights produce very little heat, so the SP-LR can be
used for extended periods without overheating.
The SP-LR is a versatile lightweight light source that
provides unique accent lighting for various shooting
scenarios.
Page 3
KEY FEATURES
· Provides unique and creative
accent lighting for various shooting
scenarios
· Daylight mode produces 5600°K
light
· Tungsten mode produces 3200°K
light
CONTENTS
INCLUDE
· SP-LR light unit
· AC/DC charger/adapter
· 5/8˝ spigot with 1/4˝-20 and 3/8˝
threads
· Built-in diffuser
· 100% to 10% dimming
· Battery or AC/DC power
· 2.5-hour lithium-ion battery
· Carrying case
· User manual
SpectroLED - USER MANUAL
FEATURES
3
Page 4
Daylight
Panel
On/Off
Button
Mode
Button
PRODUCT
OVERVIEW
Tungsten
Panel
SpectroLED - USER MANUAL
4
1/4ʺ-20 Mount
Dimmer
Down
Button
Dimmer Up
Button
Battery Level
Indicators
Charge Status
Indicator
AC/DC Socket
Page 5
PRECAUTIONS
· Please read and follow these
instructions, and keep this manual in
a safe place.
· Keep this unit away from water and
all flammable gases or liquids.
· Do not attempt to disassemble or
repair equipment—doing so will void
the warranty, and Genaray will not be
responsible for any damage.
· Handle the unit with care.
· Do not stare directly at the lights
when they are powered on.
· Clean the unit with a soft, dry cloth.
· Keep this unit away from children.
· Use only parts provided by the
manufacturer.
· Make sure the item is intact and that
there are no missing parts before use.
· All photos are for illustrative
purposes only.
SpectroLED - USER MANUAL
PRECAUTIONS
5
Page 6
POWERING THE
SP-LR
The Genaray SP-LR can be powered two
ways: with the built-in lithium-ion battery,
or with the included AC adapter.
INSTRUCTIONS
Using the Battery:
To use the battery, first ensure that it is fully
charged. Plug the included charger/adapter
into a standard power outlet and the other
end into the AC/DC socket on the back of

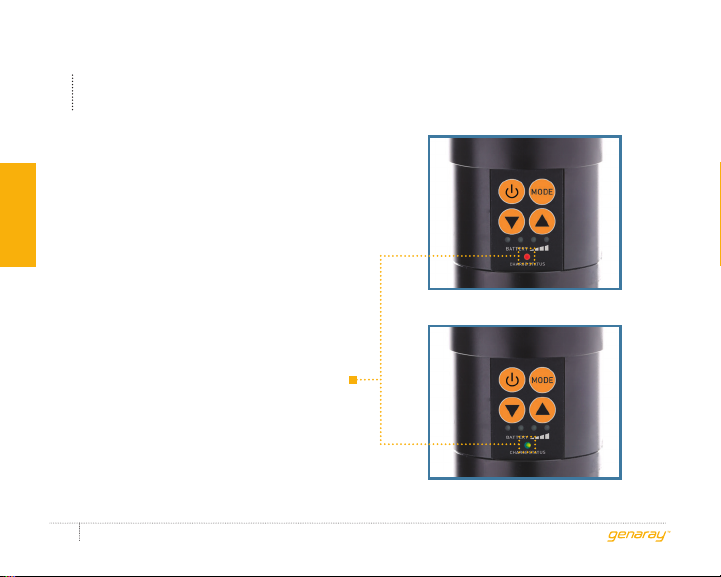

the SP-LR. The Charge Status Indicator
light on the SP-LR will display the charging
status.
The light will glow red while charging and
green when the battery is fully charged.
SpectroLED - USER MANUAL
6
Page 7
POWERING THE
SP-LR

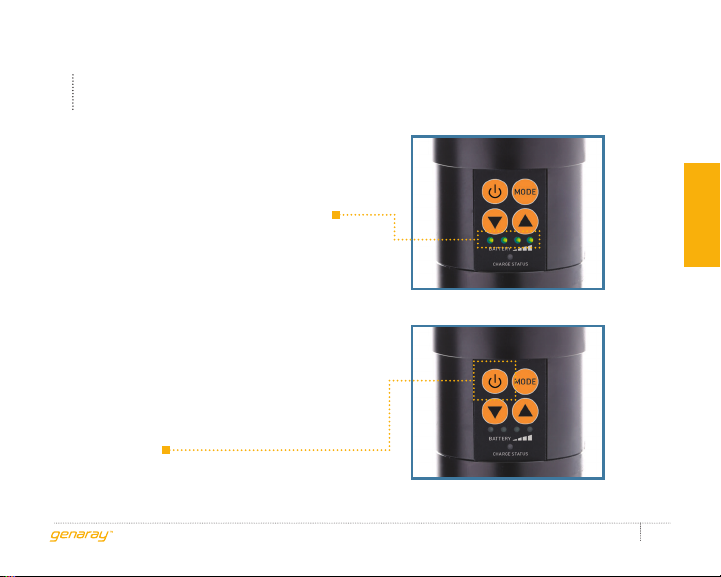

The battery will last approximately 2.5
hours on a full charge with the light at full
power. To see the remaining battery power,
check the Battery Level Indicator. When all
four LEDs are lit the battery is 100% full,
three LEDs represent 75% remaining, and
so on.
Using the AC Adapter:
To power the light via the included AC
adapter, simply plug the adapter into a
standard power outlet and the other end
into the AC/DC socket on the back of the
SP-LR.
Turning the SP-LR on or off:
To turn the light on or off, simply press the
On/Off button.
INSTRUCTIONS
SpectroLED - USER MANUAL
7
Page 8
MOUNTING THE LIGHT

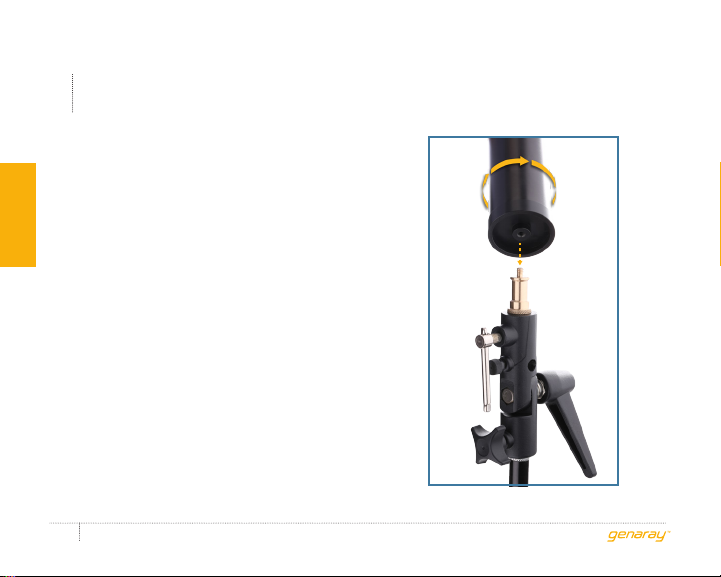

The SP-LR has a 1/4”-20 mount on
the bottom of the light. To secure the
INSTRUCTIONS
device, simply position the light over a
compatible mount and turn clockwise
until tight and secure. The device comes
with a 5/8” spigot with male 1/4”-20 and
3/8” threads for use with non 1/4”-20
light stand mounts.
The SP-LR light can also be used
handheld by grasping the base of the
unit.
SpectroLED - USER MANUAL
8
Page 9
COLOR TEMPERATURE
MODES
The Genaray SP-LR has two color
temperature modes. The 5600°K daylight
mode produces a soft, natural color tone
on subjects, while the 3200°K tungsten
mode emits a warmer color tone.
To switch between the new modes,
simply press the Mode button.
DIMMING THE LIGHT
The SP-LR has a 100% to 10% dimming
range. To adjust the light output, press and
hold the up or down dimmer buttons until
desired output is reached.
INSTRUCTIONS
SpectroLED - USER MANUAL
9
Page 10
PRODUCT
SPECIFICATIONS
SPECIFICATIONS
LED Count: 516
Color Temperature: 5600°K or 3200°K
Dimming: 100% to 10%
Watts: 15
Lux: 1000 Lux @ 1m
CRI: >85
LED Life: 50,000 hours
Mount: 1/4˝-20
SpectroLED - USER MANUAL
10
Input: DC 12v
Battery: Built-in 5200 mAh lithium-ion
battery
Battery Life: Approx. 2.5 hours with full
charge at full power output
Weight: 2 lb (0.9 kg)
Diameter: 2.25˝ (5.7 cm)
Height: 21.75˝ (55.2 cm)
