Genaray LED-7100T User manual

LED-7100T

312 LED VARIABLE COLOR ON-CAMERA LIGHT

USER MANUAL

LED-7100T
INTRODUCTION

LED-7100T - USER MANUAL

2

Thank you for choosing the Genaray LED-7100T
On-Camera Light. This product will provide you with
powerful, portable and dependable illumination that
can be used in a variety of settings. Featuring a super­bright 312 LED lamp count, 3200K-5600K variable
color temperature, flicker-free dimmable features
and a removable magnetic diffuser with advanced
light dispersion capabilities, the Genaray LED-7100T
On-Camera Light is the perfect choice for professional
photographers and videographers alike.

KEY FEATURES PRODUCT CONTENTS

· 3200K-5600K Variable Color

Temperature

· Lightweight Design With
Powerful 312 Lamp Count

· Dual On-Board Batteries
& Battery Level Indicator

· Removable Snap-On Magnetic
Diffuser

· Compact Profile & Case
For Easy Transport

LED-7100T - USER MANUAL

3

· 312 LED Light

· Magnetic Diffuser

· 2 NP-F550 Batteries

· AC/DC Dual Battery Charger

· AC Adapter

· Car Adapter

· Ball Head Mount

· Carrying Case

· Manual

Features

SAFETY
WARNINGS

· Do not attempt to disassemble,
repair or perform any unauthorized
modifications on device

· Do not handle with wet hands,

saFety Warnings

immerse in liquids or expose to water
and rain; electric shock or fire may
result

· Device contains small parts which
may pose a choking hazard; keep out
reach of children

· Do not operate device in presence of
flammable gas or vapors

LED-7100T - USER MANUAL

4

· Do not use product if it emits smoke
or a strange odor; disconnect power
source immediately to avoid personal
injury and contact place of purchase

· Observe caution when handling
batteries; only use batteries approved
by the manufacturer of this product

· Batteries are prone to leakage when
fully discharged; to avoid damaging
product be sure to remove batteries
when leaving product unattended

· Do not intentionally stare or gaze at

LED light for prolonged periods while
device is on

· During operation, do not cover the
ventilation grille found at the rear of
device and ensure light is cool before
storing

· Do not use or leave device in
conditions of extreme heat, severe
cold or high humidity

· Unit will display a decrease in
brightness when the battery runs

LED-7100T - USER MANUAL

5

low; be sure to replace battery when
necessary to avoid affecting recording
quality

· When cleaning the device, use only a
mild detergent solution and quickly
wipe dry with a soft cloth

· Dispose of used batteries, packaging
and old devices in accordance
with appropriate environmental
regulations

saFety Warnings

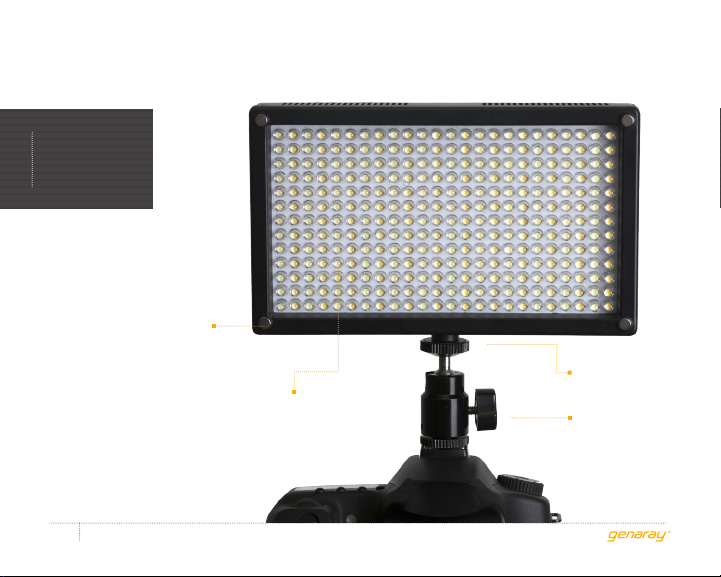

PRODUCT
OVERVIEW

LED-7100T - USER MANUAL

6

Filter
Mounting
Magnet

LED Array

1/4 20
Threaded Mount

Included
Ball Head
Mount

Battery 1
Mounting
Area

Battery
Release
Button 1

Color
Variation
Knob

LED-7100T - USER MANUAL

7

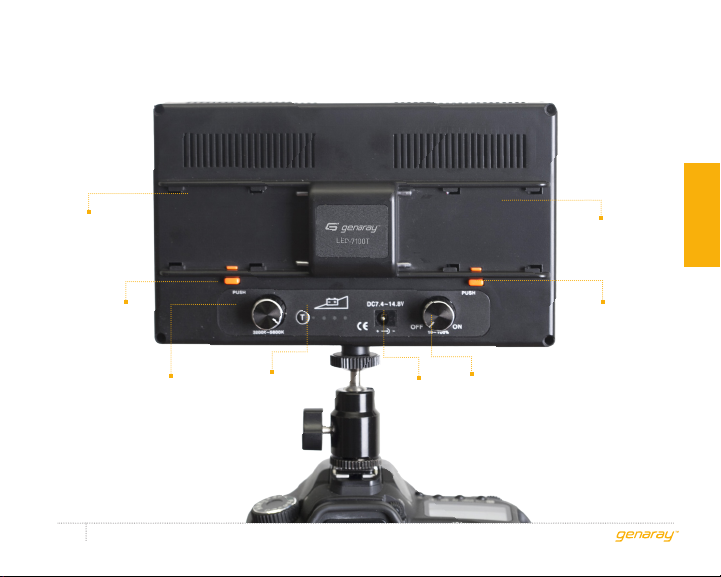

Battery Level
Indicator

DC
Input

Power &
Dimming
Knob

Battery 2
Mounting Area

Battery
Release
Button 2

PrODuCt OvervieW

MOUNTING LIGHT
UNIT DIRECTLY
ON TRIPOD

MOUNTING LIGHT
UNIT ON BALL HEAD
MOUNT

· For basic tripod installation, insert 1/4 20
screw found on tripod head into the 1/4 20
threading mount found on bottom of light

instruCtiOns

unit; then tighten securely

Note

LED-7100T - USER MANUAL

8

Light can also be fastened
to included ball head mount,
which can then be installed on
cold shoe found on cameras or
similar devices; see ball head
mounting instructions

· Included ball head mount is designed to
provide user with a 180° tilt/360° rotating
angle feature that can be used on both
cameras and other devices featuring a
cold shoe

· Begin by inserting 1/4 20 screw found atop
ball head mount into the 1/4 20 threading
found on bottom of LED light unit and
fasten securely

· Tighten adjustment locking knob so light
unit does not wobble during remainder of
mounting process

· Ensure cold shoe foot is firmly secured to
ball head mount device and loosen locking
collar found on base of ball head device

· Slide entire male cold shoe into female cold
shoe of camera or other mounting device;
then fasten locking collar securely

· Loosen adjustment locking knob by
twisting counterclockwise and rotate ball
head mount to position light at desired
angle; twist locking knob clockwise to hold
light unit firmly in position

Cold shoe mount can also
be removed to reveal an

Note

integrated1/4 20 threading
mount

LED-7100T - USER MANUAL

9

· To reveal ball head mount's integrated 1/4
20 threading mount for fastening to tripod,
twist locking ring resting above cold shoe
counterclockwise until entire shoe comes
out; insert 1/4 20 screw found on tripod
head into the 1/4 20 threading mount; then
follow remaining adjustment steps above

instruCtiOns

POWERING
DEVICE

· Begin by holding a fully-charged battery
in position over Battery 1 Mounting Area,
leaving only a small gap between conductor
contacts found on battery and metal prongs

instruCtiOns

found on unit

· Push battery down and lock into place by
sliding it inwards along grooves until an
audible click is heard; repeat sequence
with second battery over Battery 2
Mounting Area

Only one battery is technically

Note

required to operate light

· Twist the power & dimming switch
clockwise to turn LED lights on

· Press the built-in battery level indicator
button to instantly view the power

LED-7100T - USER MANUAL

10

remaining in both batteries; each indicator
circle represents approximately 25% of
battery capacity; the showing of 4 lit circles
combined will represent a fully charged
battery

For an accurate reading of
battery levels, it is best to turn

Note

off light unit before using battery
level indicator feature

· Rechargeable batteries can be removed
by firmly pushing down on dual battery
release buttons

· The DC input found on rear of device
connects directly to the included AC power
adapter or car charger and can provide
continuous power when battery is low or
not working

ADJUSTING
FEATURES

PRODUCT
SPECIFICATIONS

· To adjust the 3200K-5600K variable
color temperature range, simply rotate
color variation knob until desired
effect is achieved

· To adjust the flicker-free dimmable
features, simply rotate the power &
dimming knob until desired effect
is achieved

· To install magnetic snap-on diffusion
filter, hold diffuser over LED panel with
silver magnetized posts facing inwards;
then quickly snap it into place

LED-7100T - USER MANUAL

11

Bulb Type: 156 Daylight & 156 Tungsten LEDs

Brightness: 1400 lux @ 3'

Color Temperature: 3200K - 5600K

Voltage: 7.4-14.8V

Weight: 0.76 lbs

Dimension: 7.5" x 4.5" x 1.75"

CUSTOMER SUPPORT

For more information about this product or to
contact the Genaray Customer Support Center
with any questions, please send your email
correspondence to: [email protected].

sPeCiFiCatOns

ONE-YEAR LIMITED WARRANTY

Genaray provides a limited warranty that this product is free from defects in
materials and workmanship to the original purchaser under normal use for a period
of one (1) year from the original purchase date or thirty (30) days after replacement,
whichever occurs later (the “Warranty Period”). Our responsibility with respect
to this limited warranty shall be limited solely to repair or replacement, at its
option, of any product which fails during normal consumer use. To obtain warranty
coverage during the Warranty Period, contact your place of purchase (“Seller”) to
obtain a return merchandise authorization (“RMA”) number, and return to Seller the
defective product along with proof of purchase and the RMA number. This warranty
does not extend to damage or failure which results from misuse, neglect, accident,
alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED
HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY
IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty
provides you with specific legal rights, and you may also have additional rights which
vary from state to state. © Copyright 2013 Genaray

www.genaray.com
