SpectroLED
ESSENTIAL 365/500
LIGHT
USER MANUAL
Page 2
The SpectroLED Essential Bi-Color LED and Daylight LED
Thank you for
choosing Genaray.
lights have a sturdy housing that’s designed for use in the
studio or on location. They produce bright, consistent light
powered by DC power or by two Sony-style NP-F batteries.
The panels each contain LEDs in two variations: Daylight
and Bi-Color. The Daylight version generates a 5600 K daylight-balanced light. The
Bi-Color version has a variable color temperature that allows you to choose from 3200
to 5600 K. A built-in dimmer allows you to change the light output from 100% to 0%.
Additionally, a removable diffusion filter is included to help soften and spread the light.
LED lights produce very little heat, so the SpectroLED can be used for extended
periods without overheating.
The Essential LED-series lights are excellent lightweight fixtures that provide a
high-powered lighting solution for in-studio or on location illumination.
SpectroLED ESSENTIAL LIGHT - USER MANUAL
2
Page 3
KEY FEATURES
· Portable, lightweight LED light
· Dimming from 100% to 0%
· Daylight version produces 5600 K
light
· Bi-Color version has adjustable
color temperature from 3200 to
5600 K
· AC/DC power
· Optional Sony NP-F battery power
· Yoke and 1/4 in. mounting options
· Ability to stack up to three units
· Offset diffuser
SpectroLED ESSENTIAL LIGHT - USER MANUAL
FEATURES
3
Page 4
· Light Panel
· Yoke
CONTENTS
· AC to DC adapter
· AC power cord
· Diffuser
· Stacking clips (×2)
4
CONTENTS
INCLUDE
SpectroLED ESSENTIAL LIGHT - USER MANUAL
Page 5
PRECAUTIONS
· Please read and follow these
instructions and keep this manual in
a safe place.
· Keep this unit away from water and
all flammable gases or liquids.
· Use only the recommended batteries.
· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Genaray will
not be responsible for any damage.
· Handle the unit with care.
· Do not stare directly at the lights
when they are powered on.
· Clean the unit with a soft, dry cloth.
· Keep this unit away from children.
· Use only parts provided by the
manufacturer.
· Make sure the item is intact and that
there are no missing parts.
· All images are for illustrative
purposes only.
SpectroLED ESSENTIAL LIGHT - USER MANUAL
PRECAUTIONS
5
Page 6
PRODUCT
OVERVIEW

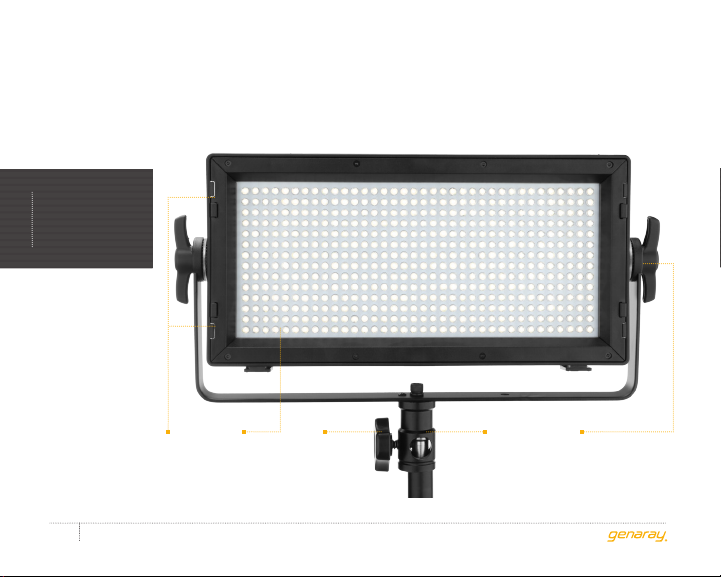

Diffusion
notches
LED
array
(4)
SpectroLED ESSENTIAL LIGHT - USER MANUAL
6
Tightening
knob
Mounting
knuckle
Yoke mounts
and adjustment
knobs (2)
Page 7

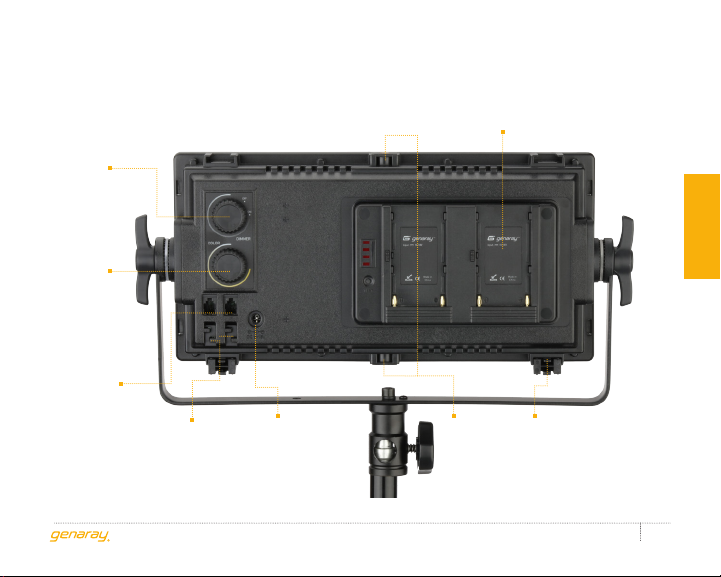

Power
Dimming
knob
NP-F battery
mount
Color
Temperature
knob
(SP-E-365/500B
only)
Multi Link
cable ports
Multi Link
cable
guides
DC input
1/4 in.
threaded
sockets
Stacking
mounts
(4)
(2)
SpectroLED ESSENTIAL LIGHT - USER MANUAL
PRODUCT OVERVIEW
7
Page 8
MOUNTING THE
SpectroLED
ESSENTIAL LIGHTS

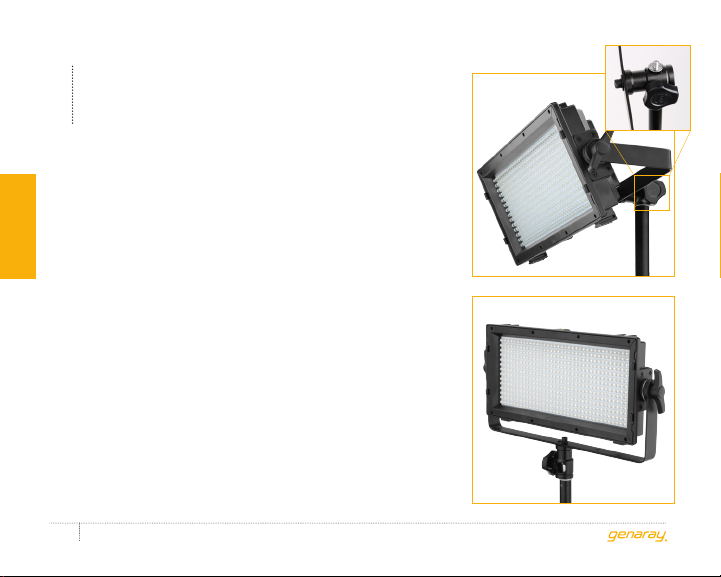

· The SpectroLED Essential LED
INSTRUCTIONS
lights come with a preinstalled yoke,
allowing you to easily balance and
adjust the tilt of the light. The yoke
can be mounted horizontally or
vertically on a light stand, allowing the
user to position the device in a way
that the yoke doesn’t block the light.
· The yoke has a standard 5/8-inch
mount to fit most light stands.
Additionally, there are 1/4-inch
sockets on the top and bottom
of the lights, allowing for fully
customizable light mounting.
SpectroLED ESSENTIAL LIGHT - USER MANUAL
8
Horizontally
mounted
Vertically
mounted
Page 9
· To remove the yoke, unscrew the
two adjustment knobs from the
sides.

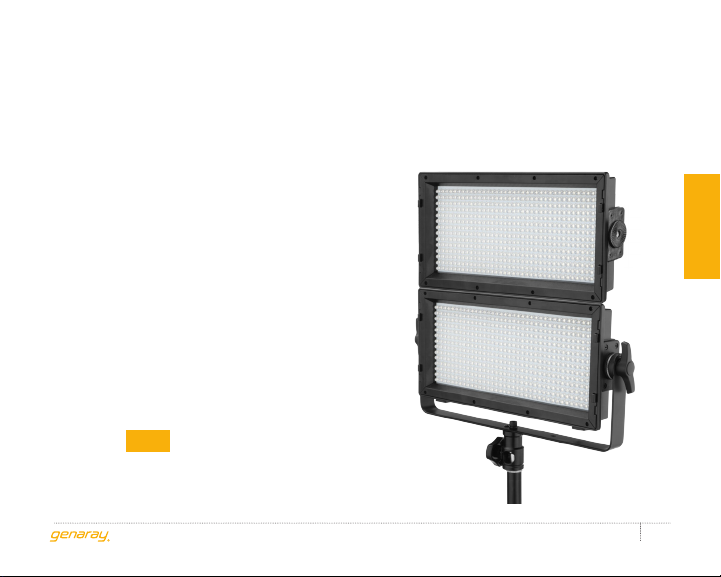

· The Essential-series LED lights are
also equipped with stacking mounts,
allowing you to connect up to
three units to create a vast array of
additional lighting options. To stack
your units, slide the stacking clips
into the stacking mounts on one of
the devices. Then slide the second
light to the first unit’s stacking clips.
Make sure it locks in place. Repeat
these steps to mount a third light.
Do not stack more than
Note
three units at one time.
INSTRUCTIONS
SpectroLED ESSENTIAL LIGHT - USER MANUAL
9
Page 10
POWERING THE
LIGHTS
· The SpectroLED Essential LED
INSTRUCTIONS
lights come with an included
AC/DC cable, allowing for a nearly
limitless power supply from a
standard electrical outlet. To power
your light, plug the AC/DC adapter
into a power outlet, and the other
end into your device’s DC input port
on the back of the unit.

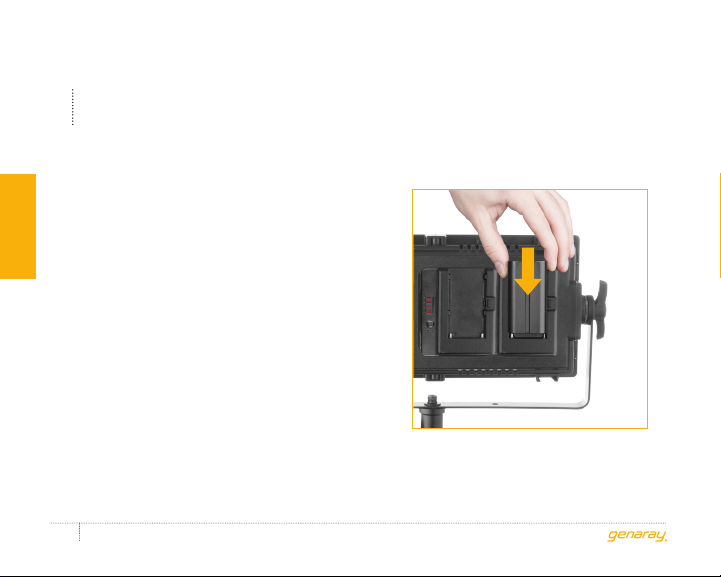

· Additionally, the Essential-series
light units can be powered
with Sony NP-F batteries (sold
separately), allowing you to avoid
cable clutter or work in a location
without electrical outlets.
SpectroLED ESSENTIAL LIGHT - USER MANUAL
10
Page 11
ADJUSTING THE
LIGHT OUTPUT
· The SpectroLED Essential LED
lights’ power output is controlled
with the Power/Dimming knob
on the back of the device. With
the device in the off position
(with the knob turned all the way
counterclockwise), turn the knob
clockwise to power on the light
and adjust the brightness output
from 0% to 100%. Turn the knob
counterclockwise to dim or turn off
the light.
· The Bi-Color version also includes
a color temperature knob, allowing
you to change the color temperature
from daylight (5600 K) to tungsten
(3200 K). Turning the knob clockwise
will adjust the color temperature
towards daylight, while turning the
knob counterclockwise will give the
lights a warmer, tungsten light color
temperature.
SpectroLED ESSENTIAL LIGHT - USER MANUAL
INSTRUCTIONS
11
Page 12
INSTRUCTIONS
SpectroLED ESSENTIAL LIGHT - USER MANUAL
12

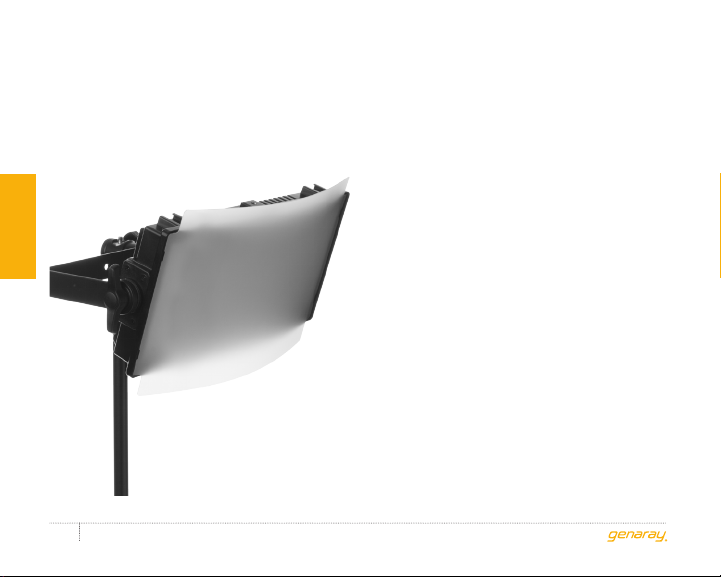

· The Essential-series LED lights
come with an offset diffuser which is
perfect for dispersing and softening
the light output.
· To install the diffuser, insert the its
notches into the mounting clips on
the sides of the light panel.
Page 13
DAISY CHAINING
MULTIPLE LIGHTS
· The Essential-series LED lights
come with two Multi Link cable
ports. With the use of the optional
SP-E-MLC Multi Link cable, you
can control the light output of
any compatible lights using the
adjustment dial on the first unit in
the chain.
· For example, you can adjust the
dimming and color temperature of
multiple Essential Bi-Color lights
by adjusting the dials on only the
first unit. The same applies to the
dimming for multiple Essential
Daylight lights.
An Essential Bi-Color
light cannot adjust the
color temperature of
an Essential Daylight
Note
light unit. Similarly,
an Essential Daylight
light cannot adjust the
color temperature of an
Essential Bi-Color light.
SpectroLED ESSENTIAL LIGHT - USER MANUAL
INSTRUCTIONS
13
Page 14
PRODUCT
SPECIFICATIONS
SPECIFICATIONS
SP-E-365B (Bi-Color)/SP-E-365D (Daylight) SP-E-500B (Bi-Color)/SP-E-500D (Daylight)
LED count: 360
Color temperature: 3200 to 5600 K / 5600 K
Dimming: 100% to 0%
Watts: 40
Lux (@ 1 m): 1445 to 1524 / 1524
Coverage: 60°
Bulb life: 30,000 hr.
Weight (without yoke): 1.6 lb. (0.7 kg)
Weight (with yoke): 2.5 lb. (1.1 kg)
Dimensions: 9.25 × 13.6 × 2.2 in.
(23.5 × 34.5 × 5.5 cm)
(H×W×D) (H×W×D)
SpectroLED ESSENTIAL LIGHT - USER MANUAL
14
LED count: 504
Color temperature: 3200 to 5600 K / 5600 K
Dimming: 100% to 0%
Watts: 40
Lux (@ 1 m): 4060 to 4280 / 4280
Coverage: 60°
Bulb life: 30,000 hr.
Weight (without yoke): 1.6 lb. (0.7 kg)
Weight (with yoke): 2.5 lb. (1.1 kg)
Dimensions: 9.25 × 13.6 × 2.2 in.
(23.5 × 34.5 × 5.5 cm)
Page 15
ONE-YEAR LIMITED WARRANTY
This GENARAY product is warranted to the original purchaser to be free from defects in materials and
workmanship under normal consumer use for a period of one (1) year from the original purchase date
or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this
limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of any product
that fails during normal use of this product in its intended manner and in its intended environment.
Inoperability of the product or part(s) shall be determined by Genaray. If the product has been
discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse,
improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER
ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty
provides you with specific legal rights, and you may also have additional rights that vary from state to
state.
To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return
merchandise authorization (“RMA”) number, and return the defective product to Genaray along with the
RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk
and expense.
For more information, or to arrange service, visit www.genaray.com or contact us at [email protected].
© 2017 Genaray LLC. All Rights Reserved
Other product and corporate names mentioned herein
are trademarks of their respective holders.
SpectroLED ESSENTIAL LIGHT - USER MANUAL
WARRANTY
15
Page 16
