CR-7D
CRUX
USER MANUAL
Crux Daylight LED - USER MANUAL
1
Page 2
Crux Daylight LED
INTRODUCTION
Crux Daylight LED - USER MANUAL
2
Thank you for choosing Genaray.
The Crux 7-inch round LED is a compact and lightweight
LED array that emits 1490 lux (@ 0.5 m) of flickerfree, continuous light. It draws only 19 W to deliver the
equivalent output of a 150 W tungsten bulb. This light
fixture produces a 60° beam that’s ideal for interviews and
tabletop photography, as well as other applications where
it’s necessary to place the lights close to your subjects.
The CR-7D is daylight balanced (5600 K) and with a CRI of
93, it delivers excellent color accuracy. Its power output
is controlled by a stepless dimmer knob that ranges from
Page 3
100% to 10% brightness. A built-in diffuser softens the light emitted by the 90-LED array,
and it eliminates the multiple shadows that are often associated with LED lighting. The
light generates minimal heat, and it allows you to place the fixture close to heat-sensitive
subjects, like models, animals, or food, without causing discomfort or damage.
INTRODUCTION
Crux Daylight LED - USER MANUAL
3
Page 4
CONTENTS
INCLUDE
CONTENTS
· Genaray Crux 7-Inch Round Daylight
LED with Yoke
· Sony NP-F battery type
Crux Daylight LED - USER MANUAL
4
· Battery charger with power cord
· AC adapter with power cord
· Carry case
Page 5
PRECAUTIONS
· Please read and follow these
instructions, and keep this manual in
a safe place.
· Keep this unit away from water and
any flammable gases or liquids.
· Make sure the unit is powered off
when plugging it into a power source.
· Use only the correct, recommended
voltage.
· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Genaray will
not be responsible for any damage.
· Handle the unit with care.
· Do not stare directly at the lights
when they are powered on.
· Clean the unit with only a soft,
dry cloth.
· Keep this unit away from children.
· Use only parts provided by the
manufacturer.
· Make sure the item is intact and that
there are no missing parts.
· All images are for illustrative
purposes only.
Crux Daylight LED - USER MANUAL
PRECAUTIONS
5
Page 6
PRODUCT
OVERVIEW

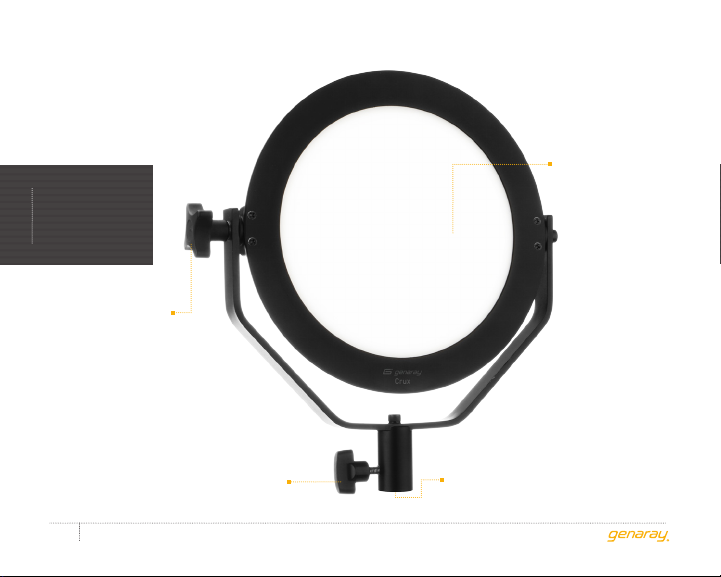

Tilt locking knob
Front diffuser
(not removable)
Crux Daylight LED - USER MANUAL
6
Locking knob
5/8 in. mounting receiver
Page 7

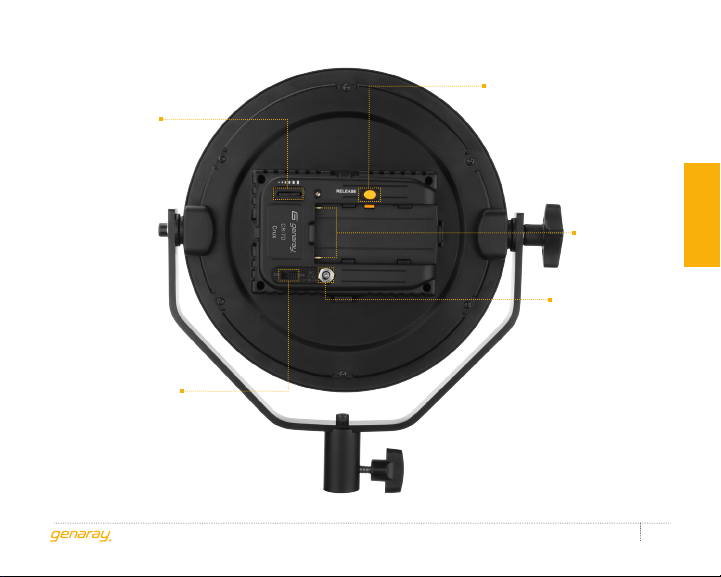

Brightness
control
Power switch
Battery release
button
Battery indicator
DC power input
Battery
contacts
PRODUCT OVERVIEW
Crux Daylight LED - USER MANUAL
7
Page 8
MOUNTING
THE LIGHT
INSTALLING THE
BATTERY (OPTIONAL)

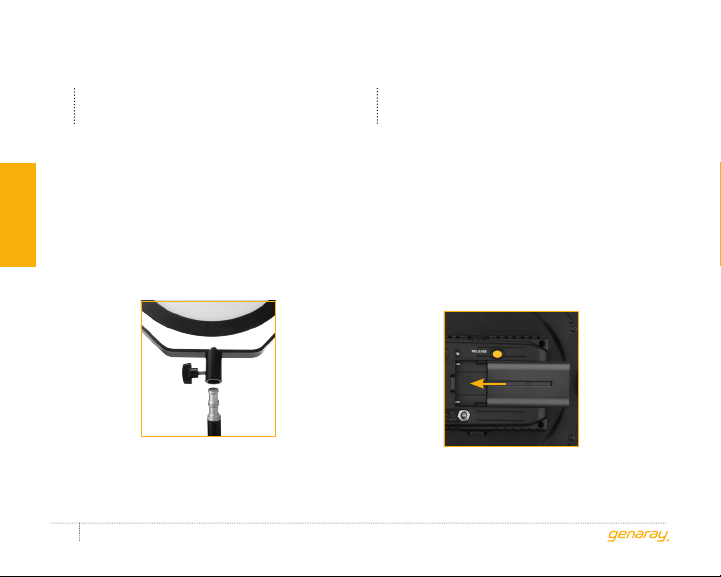

1. Loosen the locking knob, and insert the
INSTRUCTIONS
5/8-inch receiver over a light stand’s
5/8-inch stud. Tighten the locking knob
until secure.
2. Adjust the angle of the light, and tighten
the tilt locking knob.
Crux Daylight LED - USER MANUAL
8
Make sure the power switch is in the
OFF position.
1. Align the battery terminals on the battery
with the contacts in the battery mount.
2. Place the battery down into the mount, and
push the battery toward the contacts until it
clicks into place.
To uninstall the battery, press the release
button, and slide the battery out of the mount.
Page 9
CHARGING THE
BATTERY
CONNECTING THE
POWER CORD
1. Insert the battery into the battery charger.
2. Plug the charger’s power cord into a wall
socket. The LED indicator will glow red
when the battery is charging.
When the LED indicator turns green, the
battery is fully charged. Remove it from the
charger, and insert it into the light’s
battery mount.
The CR-7D LED will operate on AC power,
even if the battery is not installed.
Make sure the power switch
is in the OFF position.
1. Plug the power adapter cord
into the light’s DC input.
2. Plug the AC cord into the adapter and
the other end into a wall socket.
Crux Daylight LED - USER MANUAL
INSTRUCTIONS
9
Page 10
OPERATING
THE LIGHT
1. Turn the power switch ON.
INSTRUCTIONS
2. Adjust the brightness with the dimmer knob.
Crux Daylight LED - USER MANUAL
10
Page 11
PRODUCT
SPECIFICATIONS
LED count: 90
Color temperature: 5600 K (±200 K)
Dimming: 100% to 10%
Luminance: 1490 lx @ 0.5 m
Coverage: 60° @ 0.5 m
CRI: 93
Electrical consumption: 19 W
Tungsten output equivalent: 150 W
AC operating voltage: 100 to 240 V, 50/60 Hz
DC operating voltage: 9 V DC, 3 A
Bulb life: 30,000 hr.
Battery: Sony NP-F battery type
AC cable length: 9.5 ft. (2.9 m)
DC cable length: 3.9 ft. (1.2 m)
Weight: 1.55 lb. (703 g)
Dimensions (W × H × D): 11.4 × 10.6 × 2 in.
(29 × 27 × 5 cm)
Crux Daylight LED - USER MANUAL
SPECIFICATIONS
11
Page 12
ONE-YEAR LIMITED WARRANTY
This GENARAY product is warranted to the original purchaser to be free from defects in materials and
workmanship under normal consumer use for a period of one (1) year from the original purchase date
or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this
limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of any product
that fails during normal use of this product in its intended manner and in its intended environment.
Inoperability of the product or part(s) shall be determined by Genaray. If the product has been
discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.
This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse,
improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER
ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty
provides you with specific legal rights, and you may also have additional rights that vary from state to
state.
To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return
merchandise authorization (“RMA”) number, and return the defective product to Genaray along with the
RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk
and expense.
For more information, or to arrange service, visit www.genaray.com or contact us at [email protected].
© 2017 Genaray LLC. All Rights Reserved
Other product and corporate names mentioned herein
are trademarks of their respective holders.
Crux Daylight LED - USER MANUAL
12
