Genaray BLT-60 User Manual

BLT-60

PORTABLE DAYLIGHT FOCUSING LED

USER MANUAL

BLT-60
INTRODUCTION

BLT-60 USER MANUAL

2

The Genaray Torpedo is a great choice for photographers and

videographers who need a powerful and focusable beam from

a compact, portable source. This advanced light is perfect for

events that are usually shot on location, such as weddings and

meetings. The Torpedo’s COB LED technology offers a

high-powered beam from a small array that eliminates the

multiple shadows that are common in LED lighting.

The Torpedo features an integrated Fresnel-style lens that

focuses the beam from a concentrated 15° spot with a long

throw to a wide 75° flood. This fixture is set to a 5600 K daylight

balance, and it boasts a 96 TLCI rating for extremely accurate

color rendering. For additional control, the removable barndoors

shape the beam while minimizing light spill.

PRECAUTIONS

· Please read and follow these
instructions, and keep this manual in
a safe place.

· Keep this unit away from water and
any flammable gases or liquids.

· Make sure the unit is powered off
when plugging it into a power source.

· Use only the correct,
recommended voltage.

· Do not attempt to disassemble or
repair the equipment—doing so will
void the warranty, and Genaray will
not be responsible for any damage.

· Handle the unit with care.

· Do not stare directly at the lights
when they are powered on.

· Clean the unit with only a soft, dry
cloth.

· All images are for illustrative
purposes only.

BLT-60 USER MANUAL

PRECAUTIONS

3

PRODUCT
OVERVIEW

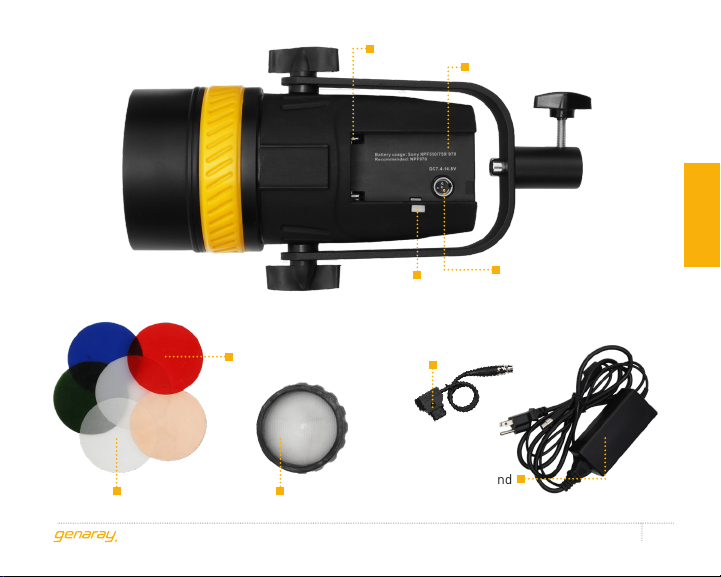

Heat ventsFocusing ring

LED array

Locking
knobs

Yok e

Hex
screw

Barndoors

BLT-60 USER MANUAL

4

Locking
knobs

5/8 in. light

stand receiver

Battery terminals

Battery slot

Diffusers (×2)

Filters (× 3)

Lens

Battery
release
button

D-tap cable

AC adapter and

power cord

3-pin mini XLR
power input

BLT-60 USER MANUAL

PRODUCT OVERVIEW

5

ATTACHING THE
BARNDOORS

MOUNTING ON A
LIGHT STAND

Align the barndoors with the front of the
Torpedo, and screw them on until
they’re secure.

The barndoor fixture should easily

INSTRUCTIONS

Note

If you remove the lens for any reason, you can
replace it by fitting it into the Torpedo with the
textured side facing in toward the LED.

6

screw onto the light. Don’t use force
if it seems hard to turn, because you
can damage the threads. Unscrew
the barndoors, and then realign
them and screw them in again.

BLT-60 USER MANUAL

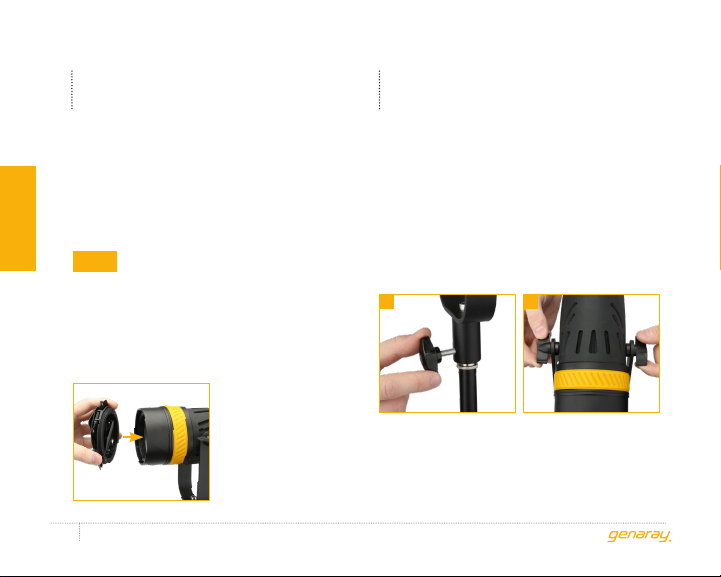

1. Loosen the yoke’s locking screw, and fit

the receiver over the light stand’s 5/8-inch
stud. Tighten the locking screw until
secure.

2. Loosen the tilt angle screws, and adjust

the tilt angle of the light. Tighten the
screws until secure.

1 2

POWERING THE TORPEDO
AND ADJUSTING THE
BRIGHTNESS

AC Power

Important: The Torpedo is a multivoltage

fixture capable of running on 120 to 240 V,
50/60 Hz. The included cable has a 120 V, 50
Hz (North American) plug. To use this fixture
with other voltages, you must use a plug
adapter (sold separately). Attach the power
adapter cord to the power input socket.

Make sure the unit is turned off. Insert the
mini XLR connector from the AC power
adapter into the Torpedo’s power input.

The 3-pin mini XLR connector
should fit easily into the Torpedo’s

Note

power input. Using force to insert
the connector can damage the pins.
Make sure the pins are aligned, and
reinsert the connector until it clicks
into place.

Battery Power

The Torpedo will operate with two different
types of batteries.

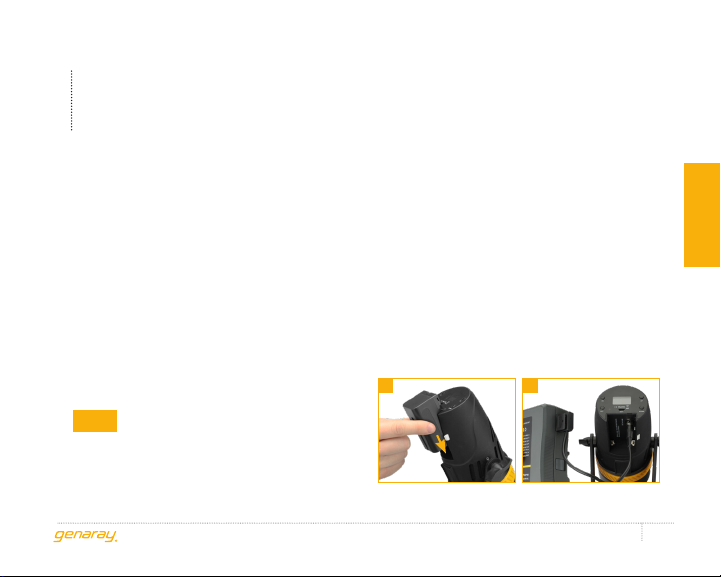

Sony NP-F Series Batteries: Align the battery
terminals, and slide the NP-F battery into the
battery slot until it locks into place (Figure A).

Professional Batteries: Use the included D-tap
cable to connect the battery's D-tap port to the
Torpedo’s power input. (Figure B).

Press the on button. The light powers on to
the previous brightness setting.

A B

BLT-60 USER MANUAL

INSTRUCTOONS

7

OPERATING THE
TORPEDO

Using the Barndoors

Unfold the barndoors to shape the beam and
prevent light spill.

Using a Diffuser or Filter

The Torpedo comes with two diffusers of

INSTRUCTIONS

different densities and three colored filters.

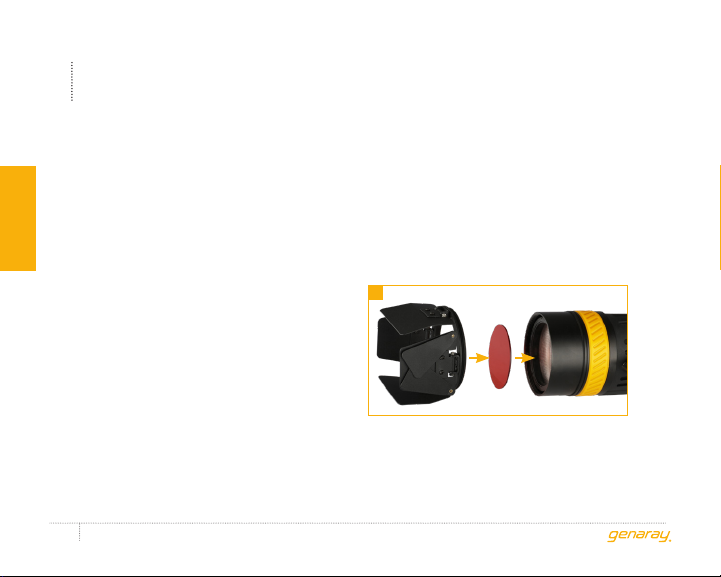

To insert a diffuser or filter, follow these steps:

1. Unscrew the barndoors from the
focusing ring.

2. Place the filter or diffuser over the lens. It
will fit into the lens’s beveled inner edge.

3. Replace the barndoors by screwing them
onto the focusing ring.

BLT-60 USER MANUAL

8

Adjusting the Light

With the light turned on, press the up and
down buttons to adjust the brightness from
1% to 100%, in 1% increments.

2

RECOMMENDED
ACCESSORY

Adjusting the Fresnel Lens

The Torpedo has an integrated Fresnel-style
lens that focuses the angle of the beam from a
15° spot to a 75° flood.

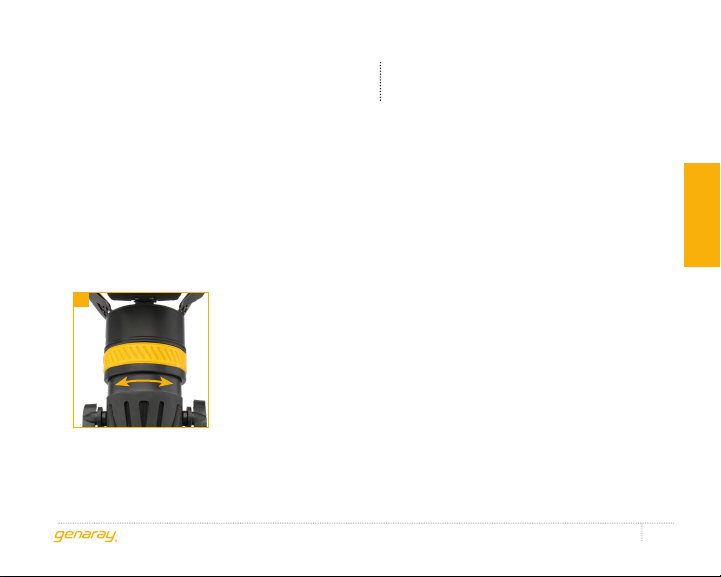

Turn the focusing ring to adjust the beam
angle to the desired width.

1

Bowens Mount Adapter

The Bowens adapter ring screws onto the
Torpedo and lets you attach light-shaping
tools with Bowens-style S-mounts, such as
softboxes, diffusers, and globes.

BLT-60 USER MANUAL

INSTRUCTIONS

9

PRODUCT
SPECIFICATIONS

SPECIFICATIONS

Light Source: 60 W COB LED array

Lamp Life: 50,000 hr.

Beam Angle: 15° to 75°

Color Temperature: 5600 K

CRI: ≥95

TLCI: ≥96

Dimming: 100% to 1%

Tungsten Equivalent: 250 to 300 W

Battery: NP-F type

Pro/Cine with D-tap connection

Working Voltage: AC: 100 to 240 V, 50/60 Hz

DC: 7.4 to 36 V

BLT-60 USER MANUAL

10

Mount: 5/8 in. receiver

Length: 8 in. (20.3 cm)

Diameter: 3.7 in. (9.4 cm)

AC Cable Length: 10 ft. (3 m)

DC Cable Length: 3.4 ft. (1 m)

Weight: 2.6 lb. (1.2 kg)

ONE-YEAR LIMITED WARRANTY

This GENARAY product is warranted to the original purchaser to be free from defects in materials and
workmanship under normal consumer use for a period of one (1) year from the original purchase date
or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect
to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of
any product that fails during normal use of this product in its intended manner and in its intended
environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product
has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality
and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse,
improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER
ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This
warranty provides you with specific legal rights, and you may also have additional rights that vary
from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return
merchandise authorization (“RMA”) number, and return the defective product to Genaray along with
the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own
risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at
[email protected].

© 2018 Genaray LLC. All Rights Reserved.
Other product and corporate names mentioned hereinare trademarks of their respective holders.

WARRANTY

BLT-60 USER MANUAL

11
