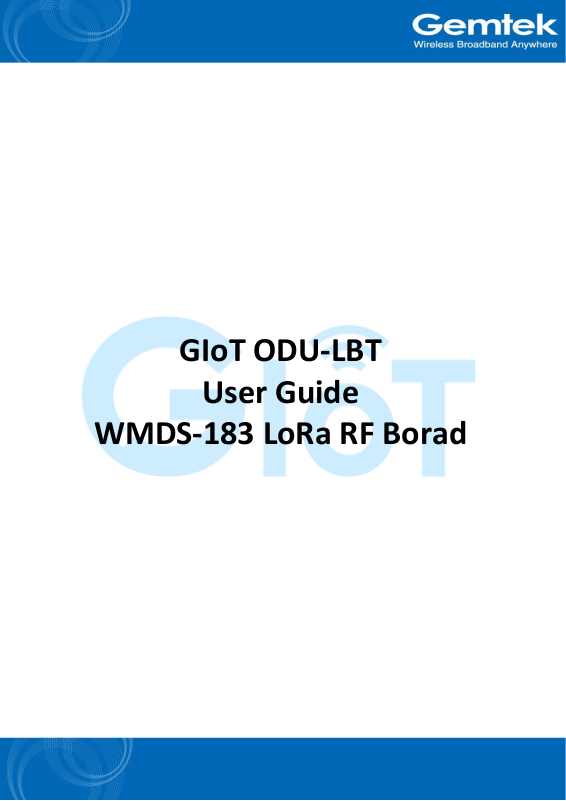

GIoT ODU-LBT
User Guide
WMDS-183 LoRa RF Borad
Device Photo
1. Open Admin GUI
Access ODU WebUI via WAN IP address assigned by dhcp.
The WAN IP address will configure to 192.168.77.1 after enabling 3G/4G LTE.
Default username is “admin” and password is "admin“
Copyright © 2017 Gemtek Technology Corporation. All Rights Reserved.
QW_02_0035.001
1
Figure 1
2. GIoT
The GIoT menu consists of the following categories: Status, Provision, Configuration
and Network Server.
2.1 GIoT - Status
The purpose of this category is to view GIoT information as in its provision code,
gateway type, gateway ID or LoRa modules, channels and spreading factor.
Copyright © 2017 Gemtek Technology Corporation. All Rights Reserved.
QW_02_0035.001
2
Figure 2 - GIoT Info
2.2 GIoT - Provision
GIoT provision code can be setup on this page.
Figure 3 - Provision Code
Copyright © 2017 Gemtek Technology Corporation. All Rights Reserved.
QW_02_0035.001
3
2.3 GIoT - Configuration
Click “PERFORM RESTART” button to restart LoRa server.
LoRa provides 3 modes: Normal AP, Repeater AP and Repeater. Users can set up the
required mode in LoRa Configuration.
Figure 4 - GIoT Management
2.4 GIoT - Network Server
Users can configure ODU to connect to mqtt broker over the network server. The
proper provision code has to be in place to reveal and access the network server
features on the system menu. Please contact GIoT personnel if needed.
Figure 5 - GIoT Network Server
Copyright © 2017 Gemtek Technology Corporation. All Rights Reserved.
QW_02_0035.001
4
3. LoRaWan
The LoRaWan menu consists of the following categories: OTAA Status, Node
Parameters, OTAA and ABP. The proper provision code has to be in place to reveal
and access the LoRaWan features on the system menu. Please contact GIoT personnel
if needed.
3.1 LoRaWan - OTAA Status
The purpose of this category is to view the process status of a node joining Network
Server via OTAA, which includes DevAddr, Device EUI, App EUI, OTAA Group Index
and Latest Update Time.
Figure 6 - OTAA Status
Click “REFRESH”to renew OTAA information.
When there are over 20 OTAA Status entries on the page, users can click on the page
number on the upper-right corner to move on to the next page.
Definition of OTAA Status Fields:
DevAddr: The device address of node assigned by network server
Device EUI: The unique device EUI of node.
App EUI: The unique app EUI of node.
OTAA Group Index: The unique index of OTAA EUID group.
Latest Update Time: The last time an uplink data was sent (sync per hour)
3.2 LoRaWan - Node Parameters
The purpose of this category is to view node parameters, which includes DevAddr,
Rx1DrOffset, Rx2DataRate, Delay, Rx2Freq and LastDownMsgSeqNo.
Copyright © 2017 Gemtek Technology Corporation. All Rights Reserved.
QW_02_0035.001
5
